Cadi Scientific TSS900 ThermoSensor User Manual
Cadi Scientific Pte. Ltd. ThermoSensor
User Manual
TSS-800/900 ThermoSENSORTM
Wireless Temperature Sensor
User Guide
Cadi Scientific Pte Ltd
2
Federal Communications Commission (FCC) Statement
15.21
You are cautioned that changes or modifications not expressly approved by the part
responsible for compliance could void the user’s authority to operate the equipment.
15.105(b)
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
Operation is subject to the following two conditions:
1) this device may not cause interference and
2) this device must accept any interference, including interference that may cause undesired
operation of the device.
FCC RF Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. End users must follow the specific operating instructions for satisfying RF
exposure compliance. This transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
COPYRIGHT
Specifications are subject to change without notice. Copyright © 2003 Cadi Scientific Pte Ltd.
All rights reserved.
Cadi Scientific Pte Ltd
1003 Bukit Merah Central
#04-40
Singapore 159836
Singapore
http://www.cadi.com.sg
Cadi Scientific Pte Ltd
3
Introduction
The TSS-800/900 ThermoSENSORTM is a wireless temperature sensor for
measuring a patient’s body temperature. It is part of the SmartSense Wireless
Integrated Sensing System – a system designed for monitoring of vital signs,
tracking of the location of people and equipment, contact-tracing between people,
and providing alert notification of people or equipment that has arrived at
designated locations.

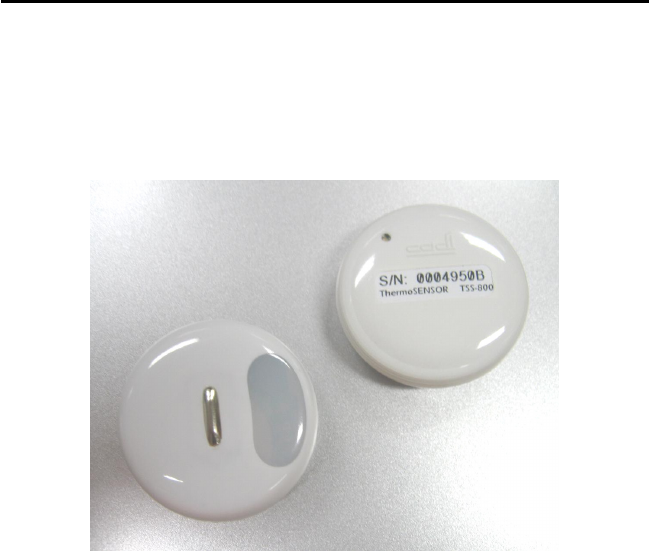

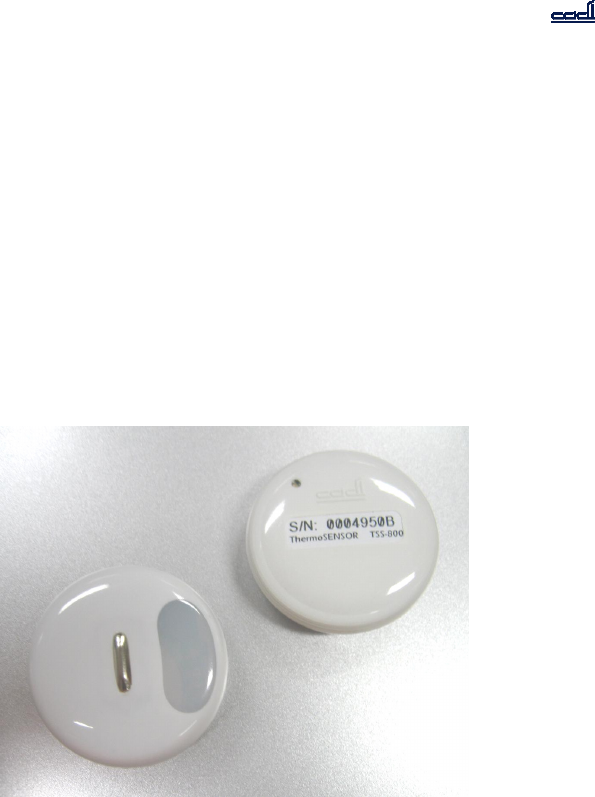

The ThermoSENSORTM is to be attached to patients’ body, at the lower abdomen
area, with the use of a comfortable and hypoallergenic dressing, such as the 3M
Tegaderm, to continuously measure patient’s body temperature.
Every 30 seconds, the sensor will take a temperature measurement and transmits
the measured temperature to the SMN-800/900 SmartNODE.
Cadi Scientific Pte Ltd
4
Features
• Each ThermoSENSORTM has a unique ID
• Measures patient’s body temperature by contact with patient’s skin
• Wirelessly transmits ID and temperature data to the SMN-800/900 SmartNODE
• Sensor is activated or deactivated using SSW SmartSWITCH
• Sensor has a lifespan of up to 12 months of continuous usage (based on 30
seconds transmit interval)
• Water-resistant enclosure that allows cleaning using water or alcohol
Cadi Scientific Pte Ltd
5
Instruction for use
Identify an area for ThermoSENSOR™ to be pasted.
1. Place 3 fingers down from the navel.
Refer to diagram.
2. Place the first layer of adhesive dressing about half the distance from
the center to the side of the body.
Refer to diagram.
3. Place ThermoSENSOR™ on another layer of adhesive dressing*.
The second layer of dressing should be pasted over the front of the
sensor. Do not paste the dressing on the metal part of the sensor. You
may use any suitable medical adhesive dressing e.g. 3M tegaderm
4. Place ThermoSENSOR™ (with the second layer of adhesive
dressing) over the first layer of adhesive dressing.
3 fingers
down
Cadi Scientific Pte Ltd
6
5. For cleaning before use, wipe the ThermoSENSOR™ with an alcohol
swab.
• Cadi Scientific recommends 3M Tegederm dressing for use
with the ThermoSENSOR as it has been tested to have no
adverse effect on the user/ThermoSENSOR.
Medical Device Safety Service, GmbH
Schiffgraben 41, 30175 Hannover, Germany
CADI SCIENTIFIC
1003 Bukit Merah Central, #04-40, Singapore 159836
Tel: (65) 62762676 Fax: (65) 62766216
Email: info@cadi.com.sg URL: www.cadi.com.sg
Made In Singapore
0434
Cadi Scientific Pte Ltd
7
Specifications
Technical Data
General
Unique Sensor ID 24 bits
Thermistor accuracy +/- 0.2oC (32.0 to 42.0oC)
Transmission Rate
Data transmission rate Every 30 seconds (on average)
RF
RF Frequency US (TSS-9xx): 919.8MHz or 925MHz
Europe (TSS-8xx): 868.4MHz
Transmit Power Less than -2dBm
Power Source
Power source Internal 3V lithium cell
Estimated battery life 12 months (@30 sec transmit interval)
Environment
Operating temperature range 10 – 50oC
Water resistant Yes
Physical
Dimension 36mm DIA, 11.6mm HT
Weight 12g
Compliance
Certification CE, FCC
RF Compliance ETSI EN 300 220
EMC Compliance ETSI EN 301 489
