Cal Comp Electronics and Communications BS616 Smart body scale User Manual HDBS6160X05 QSG SCALE 20160729 CS5 ai
Cal-Comp Electronics & Communications Company Limited Smart body scale HDBS6160X05 QSG SCALE 20160729 CS5 ai

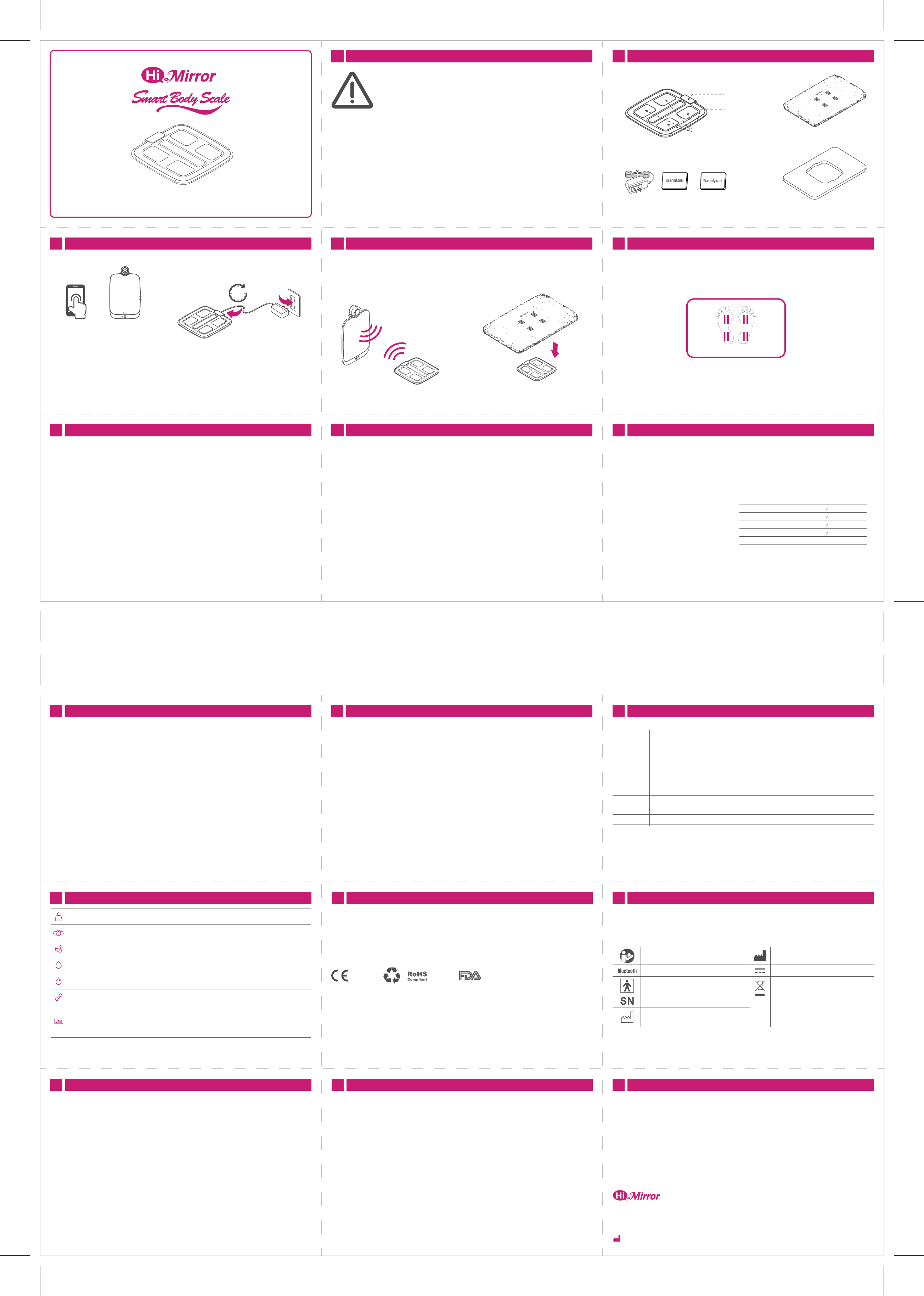

User manual
正面
背面
2. Put Conductive Mat on the Smart
Body Scale.
3. Get started.
• Do not use the Smart Body Scale on a wet floor or with wet feet; you risk
slipping and falling.
• Do not jump on the Smart Body Scale; you risk slipping and falling.
• Do not put Conductive Mat on the Smart Body Scale while charging.
• Do not charge the Smart Body Scale in the humid environment.
• Always use the Smart Body Scale on a hard flat surface.
Caution
WARNING!
• Do not use if you have a pacemaker or any other internal medical
device.
• If you are pregnant, please activate “Pregnancy Mode” or “Weight
Only Mode” from the HiMirror before using the Smart Body Scale.
• Not intended for use by children under the age of 10.
• Smart Body Scale should not be used to diagnose or treat any
medical condition. Always consult your physician to determine what
is ideal for you.
HDBS6160X05
Getting Started3 Getting Started4 Using Your Smart Body Scale
Using Your Smart Body Scale
5
6
Start your Smart Body Scale to measure
1. Choose the Body & Fitness mode on your HiMirror.
Reset Smart Body Scale
Plug in the adaptor to reset your Smart Body Scale. During the reseting progress, the Smart
Body Scale will blink twice three times.
3. The light will turn on while starting to measure. The light will turn off when the measurement
is completed.
2. Stand barefoot in the middle of Conductive Mat and follow the instructions on your HiMirror.
Power Status
When the battery is at or below 15% the Smart Bydy Scale light will blink 3 times. There will also
be a warning on your HiMirror.
Battery level at or near zero — no light. There will also be a warning on your HiMirror.
Battery charging and charged — the Smart Bydy Scale light will blink continually during charging.
When the charge is completed, the Smart Body Scale will display a constant light.
As with any scale; in order to ensure safety, as well as to ensure measurement accuracy,
you should always make sure that your feet and the scale surface are completely dry.
Place your feet on the marked section of the mat.
User Manual
Service Address: 20191 Windrow Dr., Lake Forest CA 92630 ,USA
Toll-free number: +1-855-999-3348
Website: www.himirror.com
Support Site: www.himirror.com/support
Imported by XYZprinting, Inc.
Zhongshan Transtek Electronics Co.,Ltd
Jin´an Road, Minzhong, Zhongshan
528441 China
Any Questions ?
More advice regarding the installation and use of the Smart Body Scale is available online at:
http://himirror.com/support/
Limitations
• The Smart Body Scale will not accurately measure the weight of children and adults under 10kg (22 lbs).
Care & Maintenance
• Don’t submerge the scale or use high-pressure water jets (e.g. shower head) to clean the
surface.
• Don’t use antiseptic wipes, chlorine, or highly concentrated glass cleaner on the surface of the
scale.
• Don’t wash the device with water or immerse it in water.
• Don’t use propellant, abrasive or other chemicals to wipe the dirt in avoidance of discolor or
malfunction.
• Don’t disassemble this device. If you have any problems, please contact email us at
www.himirror.com/support
• Do use a wet soft cloth, dipped into water and wrung out, to wipe the dirt. Then use adry soft
cloth to dry up the device.
• Wipe down the surface with a damp cloth using water only.
• The cover may be washed. Please follow the instructions on the label.
Operating Environment
Storage Environment
Environmental Conditions
+41~95ºF(+5~+35ºC)
-4~140ºF(-20~+60ºC) 30~85%RH
10~95%RH
Temperature Relative Humidity
88kPa~106kPa
50kPa~106kPa
Atmospheric pressure
7
14
12
FCC User Guide Information
Radio Frequency Interface Requirements - FCC
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna; Increase the separation between the equipment and receiver;
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected;
Consult the dealer or an experienced radio / TV technician for help. Radio Transmitters (Part 15)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment. FCC RF Exposure Guidelines Safety Information Reducing RF Exposure -
Use Properly Only operate the device in accordance with the instructions supplied. This device complies with
FCC radiation exposure limits set forth for an uncontrolled environment.
FCC Warning:
Changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
Regulatory & Safety Notices 16
13
Smart Body Scale Information
Innovations
• Auto Weight Measurement:
While users stand on a comfortable mat, the Smart Body Scale measures the user’s body indicators;
automatically connects with the Hi Mirror or your smart phone, and updates the data accordingly.
• Not Just Weight :
We have developed a full body type analysis. It doesn‘t just rely on the numbers, but also focuses on different
body types to assess the user’s body issues precisely.
• High tech analysis:
The Smart Body Scale provides precise analysis with a multi-layered structure all while standing on a
Conductive Mat.
What is Smart Body Scale ?
Smart Body Scale is an innovative new Internet-of-things connected device with up to date health-management
technology. It offers highly accurate body composition analysis, such as physique rating(9 body–types), weight,
body fat percentage, body mass index, total body water, skeletal muscle mass, bone mass & basal metabolic
rate. Smart Body Scale can be work with HiMirror or individual APP.
Smart Body Scale Information 17
Warnings & Cautions1 Getting Started2
FCC ID : 2AA2U-BS616
Declaration of Conformity with Regard to the EU Directive 1999/5/EC
XYZ Inc. is authorized to apply the CE Mark on Smart Body Scale, Model BS616, thereby declaring
conformity to the essential requirements and other relevant provisions of Directive 1999/5/EC.
This device complies with FCC part 15 FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference, including interference that may cause undesired operation
of the device.
REACH
IP21
Regulatory & Safety Notices
15
10 11
8
Batteries & Power9 Troubleshooting
Error Prompt
Error Message
1. The soles of your feet are not in firm contact with the electrodes. Please make sure
your feet are bare.
2. Your posture is wrong or the soles of your feet are not in firm contact with the
electrodes.
3. The soles of your feet may be too dry. Please try moistening your soles with a wet
towel, and then repeat the measurement.
Please unplug and then re-plug in the adapter to reset the Smart Body Scale.
We apologize. The Smart Scale is not capable of measuring body weights of 330lbs
(150kg) and over. This unit is not suitable for your needs.
Weak Signal. Please move the carpet closer to the mirror.
Err1
Err2
Err3
Err4
Measurement
10~150kg ( 22~330lbs )
Adapter
100~240V / 50~60Hz / 1.2A DC Jack
i.For model EM1005AHUS-050:
AC input: 100-240V AC, 0.6-0.3A, 50-60Hz
DC output: 5V DC, 1.2A
ii.For model WAG010:
AC input: 100-240V AC, 0.2A, 50/60Hz
DC output: 5V DC, 1.2A
Battery Capacity
3000 mAh
Wireless
Bluetooth BLE4.0
Measurement System
Multi-layered Tactile Electrode System
Electrode Method
4-points tactile electrode system
Measurement Method
Harris Benedict Equation (HBE)
Weight Accuracy
±0.4kg ( 0.66lbs )
±0.5kg ( 0.88lbs )
±0.6kg ( 1.1 lbs )
5~50kg ( 11~110lbs ):
50~100kg ( 110~220lbs ):
100~150kg ( 220~330lbs ):
Intended Service Life
3 years
Smart Body Scale Specification
Size and Weight
• Smart Body Scale
Length 34cm 13.4in
Width 32cm 12.6in
Depth 1.8cm 0.7in
Weight 2kg
Degree of protection Type BF applied part
Software Version
Protection Against
Ingress of Water
A0
IP21
4.4lbs
Protected against access to hazardous parts with a
finger and against vertically falling water drops.
• 6.5 hours for regular charge.
• The typical charge time or number refer to No.3 “Charge your Smart Body Scale”
• The plug (or appliance separable) is used as disconnect to the mains supply, do not to position
the ME EQUIPMENT so that it is difficult to operate the disconnection device.
• The device contains no user repairable or serviceable parts.
• The user must check that the equipment functions safely and see that it is in proper working
condition before being used.
• The manufacturer does not require preventive inspections by other persons.
• No modification of this equipment is allowed.
• The device is not suitable for use in the presence of flammable anesthetic mixtures with air or
with oxygen or nitrous oxide.
• The operator shall not touch DC connector of adapter and the patient simultaneously.
• Manufacturer will provide circuit diagrams, component part lists, descriptions, calibration
instructions to assist to SERVICE PERSONNEL in parts repair.
• When the body scale is in use, there should not be any great power appliances such as high
voltage cables, X-ray machine, ultrasound equipment and electrizer nearby.
• Do not use other adapter except the one provided with product.
• Long power cable and air hose. To avoid strangulation and entanglement, keep cable out of
reach of young children.
Measurement Indicators
• Weight: The weight of a person’s body.
• Body Fat Percentage: Body Fat Percentage refers to the total amount of fat contained in a body.
• Skeletal Muscle Mass: Skeletal Muscle Mass refers to the total weight of muscles that supports a
body’s movement and heartbeat.
• Total Body Water: Total Body Water (TBW) refers to the amount of water contained in a body.
• BMR: Basal Metabolic Rate (BMR) refers to the minimum level of energy required to support a
body’s basic function while at rest.
• Bone Mass: Bone Mass refers to the weight of minerals contained in a body.
• BMI: Body Mass Index (BMI) is calculated as (weight / height²). Since the BMI cannot determine
the amount of body fat contained in a body, the Fat Free Mass Index (FFMI) is usually used to
determine the fat-free mass. The Fat Free Mass Index (FFMI) refers to the amount of non-body fat
weight in a body by taking your muscle mass into account and is calculated as [weight (kg)*
(100% – body fat rate)] / height² (m).
Note: You will see the most consistent and reliable readings when placing your Smart Body Scale scale on
a hard, flat surface.
Adapter User manual Warranty card
Inside the box Inside the bag
Smart Body Scale
Power In
LED
Foot Pads
Mat Pad
Conductive Mat
Charge your Smart Body ScaleBefore starting, you need:
Plug in the adapter, and charge your Smart
Body Scale for 6.5 hours before use.
Note: Conductive Mat should be flat after putting Conductive Mat on the Smart Body Scale.
Smart Phone HiMirror
*
You MUST charge your Smart Body Scale to
power up or it can not be used.
Each charge should last around 180 days for a
family of four.
Please store the adapter carefully.
hours
6.5
Assembling your Smart Body Scale
1.Put the Smart Body Scale near your
HiMirror. Then depress the button on
the back of your Smart Body Scale
for three seconds to pair with your
HiMirror.
• Battery Disposal
Recycle or dispose of the lithium battery in accordance with all federal, state and local laws. To
avoid fire and explosion hazard, do not burn or incinerate the battery.
• Recycling the batteries
When the battery no longer holds a charge, it should be replaced. The batteries are recyclable.
Remove the old battery from the body scale and follow your local recycling guidelines.
Batteries & Power
Note: Please refer to the video when you turn on the HiMirror product for the first time. It will show
you the Smart Body Scale power status and is also available on the HiMirror website
(www.himirror.com/video).
The warning signs and symbols are essential to ensure your correct and safe use of this product and
protect you and others from injury. Please kindly find the meanings of the warning signs and symbols,
which you may encounter in the label and user manual, as follows:
Symbol for “THE OPERATION GUIDE
MUST BE READ”
Model : BS616
Symbol for “MANUFACTURER”
Symbol for “ENVIRONMENT
PROTECTION – Waste electrical
products should not be disposed of
with household waste. Please
recycle where facilities exist. Check
with your local authority or retailer
for recycling advice”
Symbol for “TYPE BF APPLIED PARTS”
The Bluetooth Combination Mark
Symbol for “SERIAL NUMBER”
Symbol for “DIRECT CURRENT”
Symbol for “MANUFACTURE DATE”
Regulatory & Safety Notices
