User Manual

5531-0001-IG V7A&VIM Installation Guide

Prepared By: Vincent Ricci

Date: May 10, 2013

Document ID: 5531-0001-IG

Revision: "1.0"

Document Name: 5531-0001-IG V7A&VIM Installation Guide(4-19-13).doc

Revision: "1.0" 5531-0001-IG V7A&VIM Installation Guide

Document ID #: 5531-0001-IG Page 2 of 8

LOJACK CONFIDENTIAL PROPRIETARY

DOCUMENT NOT TO BE COPIED OR RETRANSMITTED IN ANY FORM WITHOUT PRIOR AUTHORIZATION

proprietary information protected by copyright. This document is intended for use by

LoJack internal customers and should be disclosed within the customer’s organization

on a “need to know” basis. This document shall not be reproduced by any means,

stored on magnetic media, or made available directly or indirectly to any third party,

without prior written consent of LoJack Corporation. Program listings may be entered,

stored, and executed in a computer system, but may not be reproduced for publication.

The information in this document is subject to change without notice and should not be

construed as a commitment by LoJack, which expressly disclaims any warranties,

express or implied, including any implied warranty of merchantability or fitness for a

particular purpose and assumes no liability for errors or omissions in this guide or any

damages, direct or consequential resulting from its use.

All brand and/or product names are trademarks or registered trademarks of their

respective holders.

For inquiries or comments, e-mail LoJack Corporation at the following address:

engdocs@lojack.com

Revision: "1.0" 5531-0001-IG V7A&VIM Installation Guide

Document ID #: 5531-0001-IG Page 3 of 8

LOJACK CONFIDENTIAL PROPRIETARY

DOCUMENT NOT TO BE COPIED OR RETRANSMITTED IN ANY FORM WITHOUT PRIOR AUTHORIZATION

Compliance



FCC:

Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:

(1)Thisdevicemaynotcauseharmfulinterference,

(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesired

operation.

Caution:ChangesormodificationsnotexpresslyapprovedbyLoJackCorporationcouldvoidthe

user'sauthoritytooperatetheequipment.95

Industry Canada:

ThisdevicecomplieswithIndustryCanadaLicense‐ExemptRSSStandard(s).Operationissubjecttothefollowing

twoconditions:

(1)Thisdevicemaynotcauseharmfulinterference,

(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesiredoperation.

Cet appareil est conforme avec Industrie Canada exempts de licence RSS Norme (s). Son fonctionnement

est soumis aux deux conditions suivantes,

(1) Ce dispositif ne doit pas causer d'interférences nuisibles,

(2) cet appareil doit accepter toute interférence reçue, y compris les interférences pouvant entraîner un

fonctionnement indésirable.

Revision: "1.0" 5531-0001-IG V7A&VIM Installation Guide

Document ID #: 5531-0001-IG Page 4 of 8

LOJACK CONFIDENTIAL PROPRIETARY

DOCUMENT NOT TO BE COPIED OR RETRANSMITTED IN ANY FORM WITHOUT PRIOR AUTHORIZATION

Document History

Version Status Date Author Description Approval

1.0 Draft 04-19-2013 VR

Put on LoJack Template add Compliance

statements.

0.1 Draft SR Original Development

Revision: "1.0" 5531-0001-IG V7A&VIM Installation Guide

Document ID #: 5531-0001-IG Page 5 of 8

LOJACK CONFIDENTIAL PROPRIETARY

DOCUMENT NOT TO BE COPIED OR RETRANSMITTED IN ANY FORM WITHOUT PRIOR AUTHORIZATION

Table of Contents

Copyright........................................................................................................................................................... 2

Compliance Requirements.............................................................................................................................. 3

Document History ............................................................................................................................................ 4

Table of Contents............................................................................................................................................. 5

Table of Figures................................................................................................................................................ 5

Section 1 Guidelines for the Installation of VIM Module and V7A .............................................................. 6

Table of Figures

Error! No table of figures entries found.

Revision: "1.0" 5531-0001-IG V7A&VIM Installation Guide

Document ID #: 5531-0001-IG Page 6 of 8

LOJACK CONFIDENTIAL PROPRIETARY

DOCUMENT NOT TO BE COPIED OR RETRANSMITTED IN ANY FORM WITHOUT PRIOR AUTHORIZATION

Section 1 Guidelines for the Installation of VIM Module and V7A

This document will serve as a guideline for the installation of a V7A and a VIM module. The proper methods for the

connection of the output from the VIM module must be determined by the installer at the time of installation. This

document will be divided into two sections. The first will focus on the installation of the V7A and the second will

focus on the installation of the VIM module. The V7A and the VIM will be paired at the time of manufacture and

should be kept together until they are installed in a vehicle.

The V7A and the VIM module communicate via a wireless connection using an encrypted serial protocol. While the

link is designed to be very robust, there are some attributes that must be considered when installing these devices

into a vehicle. It is assumed that both the V7A and the VIM module will be installed inside the passenger

compartment of the vehicle.

V7A

TheV7AshouldbeinstalledusingthesameguidelinesasatypicalVLU7EW.

• TheUnitshouldbeinstalledwithinthepassengercompartmentofthevehicle

• TheUnitshouldbeconcealedaswellaspossible

• TheUnitmustbesecurelyfastened

• Thetwogroundlugsmustbesecurelyfastenedtochassisgroundinthevehicle

• Iftheunitisvehiclepowered,itmustbeconnectedtoaclean,constant,non‐computercontrolled12voltsource

• Theantennamustbeinstalledpertheapprovedantennainstallationguidelines

• Theunitshouldnotbeinstalledinalocationthatresultsinthedevicebeingcompletelyencasedinmetal.The

antennaforthetransmitterthatcommunicatestotheVIMislocatedinsidethemodule.

VIM Module

The VIM module will typically be installed in a location that allows easy access to the immobilizer device. The

following steps will allow for reliable communication with the V7A.

• Theunitshouldbeinstalledwithinthepassengercompartmentofthevehicle

• Theunitshouldbeconcealedinawaythatitisnotreadilyvisibletotheuserorathief

• Theunitshouldbesecurelyfastened

• Thetopsideoftheunitshouldnotbeplacedindirectcontactwithametallicsurface

• Theunitshouldnotbeinstalledinalocationthatresultsinthedevicebeingcompletelyencasedinmetal.The

antennaforthetransmitterthatcommunicatestotheV7Aislocatedinsidethemodule.

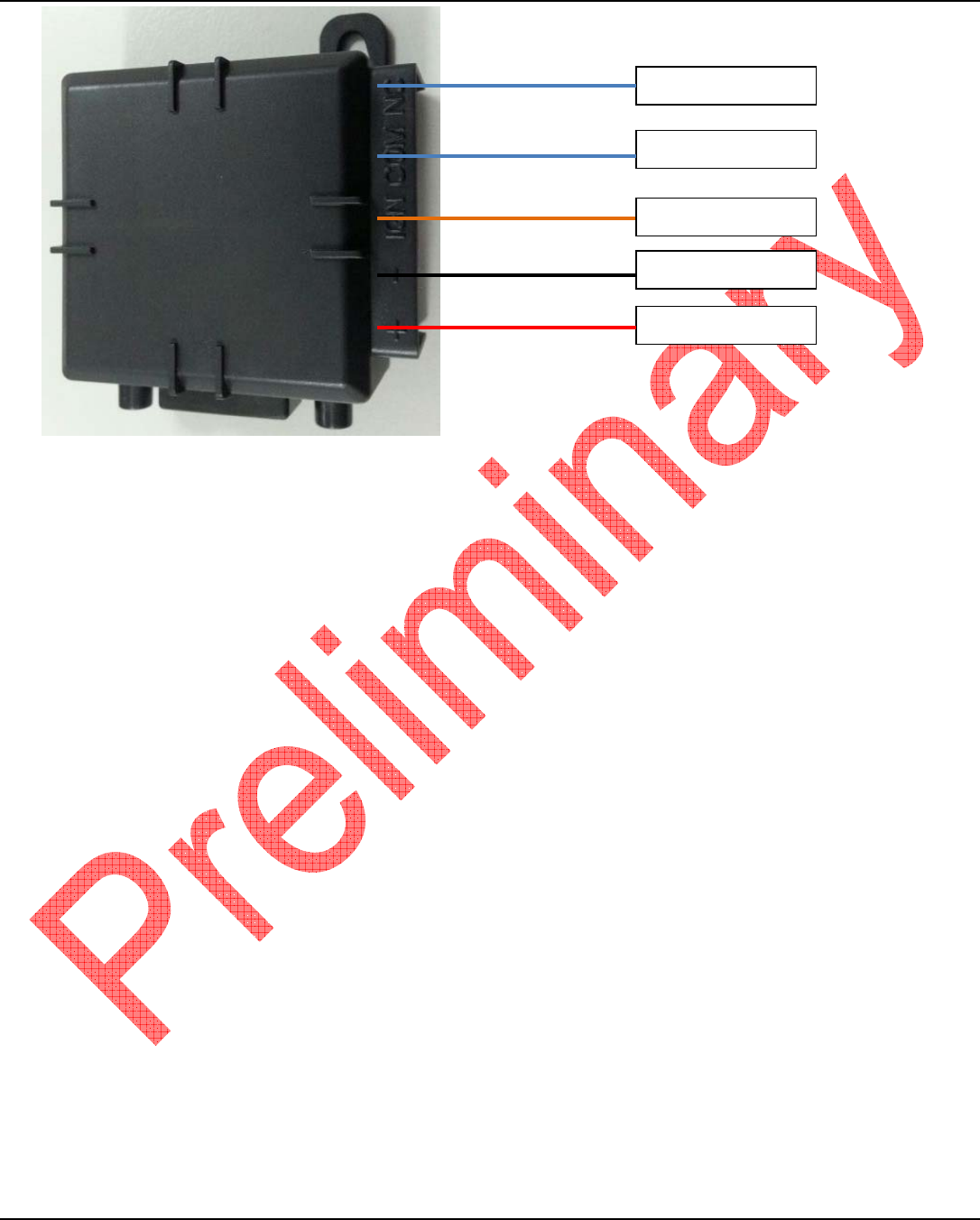

• TheVIMmodulehasthefollowinginputterminals

o NC‐NormallyClosedcontact

o COM‐Common

o IGN‐Ignition

o ‐‐ChassisGround

o +‐constant12volt

Typical Starter Interrupt Wiring

Revision: "1.0" 5531-0001-IG V7A&VIM Installation Guide

Document ID #: 5531-0001-IG Page 7 of 8

LOJACK CONFIDENTIAL PROPRIETARY

DOCUMENT NOT TO BE COPIED OR RETRANSMITTED IN ANY FORM WITHOUT PRIOR AUTHORIZATION

Starter

Chassis

Constant 12

Ignition

Revision: "1.0" 5531-0001-IG V7A&VIM Installation Guide

Document ID #: 5531-0001-IG Page 8 of 8

LOJACK CONFIDENTIAL PROPRIETARY

DOCUMENT NOT TO BE COPIED OR RETRANSMITTED IN ANY FORM WITHOUT PRIOR AUTHORIZATION

5531-0001-IG V7A&VIM Installation Guide

Revision: "1.0"

5531-0001-IG
