XD2-230 Two-Radio Access Points
1
Quick Installation Guide
For the XD2-230 AP

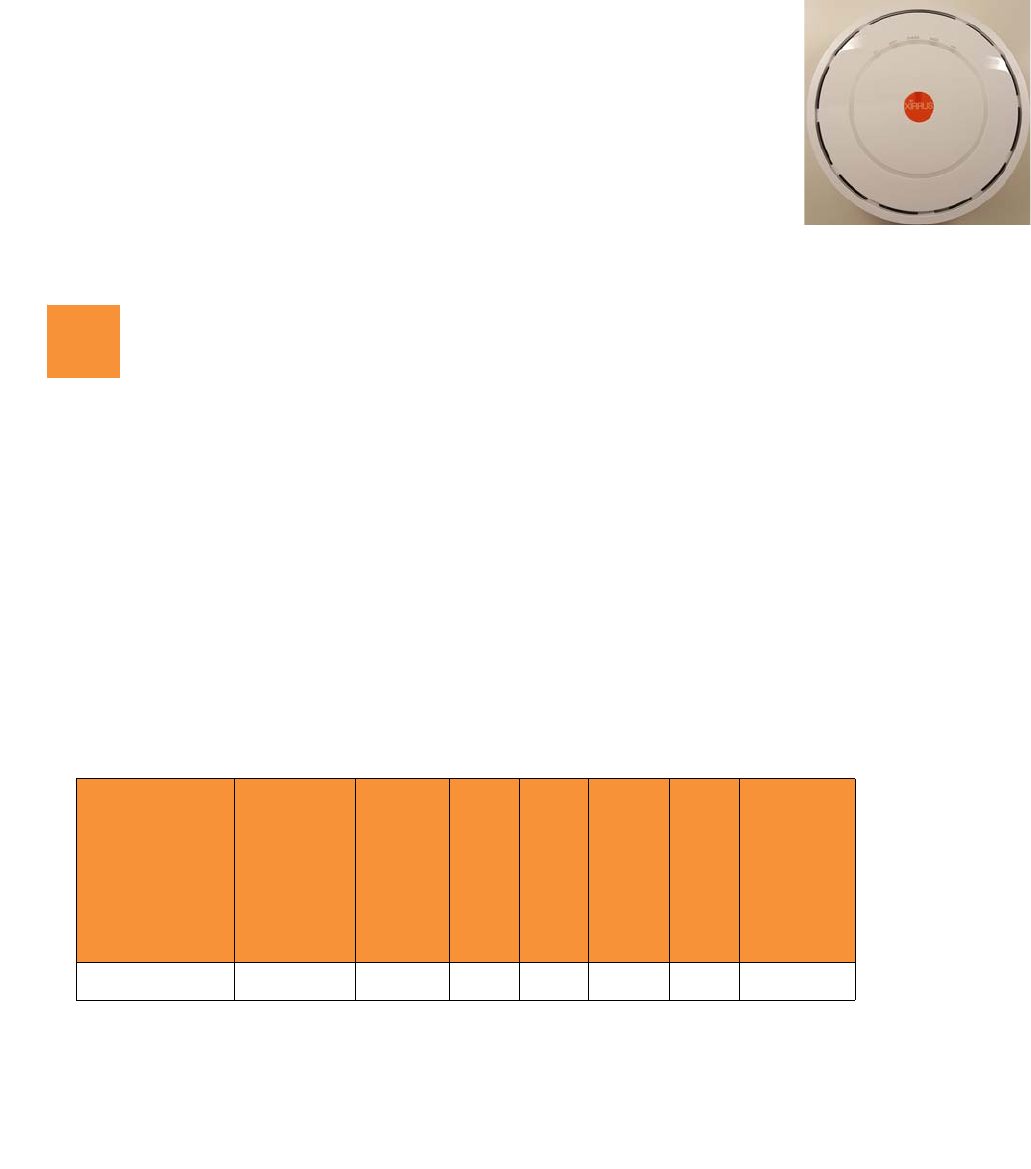

The XD2-230 Access Point (AP) is part of the Xirrus wireless portfolio. With two
omnidirectional 802.11ac radios, an integrated controller, and cloud management,
this AP delivers robust wireless connectivity.
The XD2-230 (Model XD2230) AP’s radio1 is a dual-band (2.4GHz/5GHz) 3x3
802.11ac Wave 1 radio, set to 2.4GHz by default. Radio2 is a 5GHz-only Wave 2
radio.
This Guide covers the steps required to install and start these APs.
You Need the Following Items
Power and Ethernet connection(s) to your wired network using Cat 5e or Cat 6 cables:
GIG1/POE—This Gigabit port powers the AP via Power over Ethernet (PoE) using a Cat 5e or Cat 6 cable
that also carries data traffic. See below for Power details.
GIG2—This second, data-only Gigabit port is only available on the XD2-240, and provides additional
bandwidth. Its use is optional. Connect with Cat 5E or Cat 6 cable.
AP must be connected to PoE networks without routing cabling to the outside plant. This ensures that cabling is
not exposed to lightning strikes or possible crossover from high voltage lines. AP, PoE injectors, and switches
must be installed and used indoors. The total Cat 5e or Cat 6 cable length from the switch to the AP must be no
more than 100 m, including all cable segments.
Power—See the matrix below to select a compatible PoE switch or Xirrus-supplied injector for your AP. XD2
models require 802.3at. If using an injector, you must provide a data connection from the switch to the injector
as well as another cable from the injector's OUT port to the AP’s GIG1/POE port.
Apply power to GIG1/POE port only—other AP Gigabit ports will not draw power if connected to a
powered switch port, and AP LEDs will not light.
If you are using a POE switch, it is imperative that you know that the switch has sufficient power budget
to power all connected devices.
Xirrus XD2 APs are Type 2, Class 4 POE-802.3at devices. If your switch vendor provides a setting for the
type of powered-device detection with options such as Legacy, 4-Point, or BOTH, set the port to BOTH or
4-Point. Do not use settings intended for legacy devices.
AP Type
Generic PoE+
Injector or Switch
(802.3at)
Xirrus
PoE+ Switch
(802.3at)
XP1-MSI-30
XP1-MSI-75M
XP1-MSI-75
(POE-75U-1UP-X)
XP8-MSI-70M
XP2-MSI-95M
XD2-230
1
XD2-230 Two-Radio Access Points
2
Access to a Web browser to configure the AP via the Xirrus Management System or directly via the AP’s
Windows Management Interface (WMI).
For a suspended ceiling mount, you need a 7/16” nut driver to attach the mounting plate to the T-Bar clips.
(See “Install Mounting Hardware” on page 3.) Do not use old T-Bar clips or studs from XN or XS APs with the
X2 and XD2 Series—they will damage the AP case.
NOTE: Leave protective plastic film on the AP until installation is complete to avoid leaving marks on the AP.
Mounting Options
Direct Ceiling Mount—for a more secure mount, use the furnished
mounting plate with at least two user-supplied screws. Or you may mount
directly to the ceiling with two user-supplied screws (we recommend max
screw size #8, Pan Head type). In either case, you must use screws that are
appropriate for the ceiling construction material.
Suspended Ceiling Grid Mount—See photos at right and on Page 3. Use the
mounting plate with the two supplied T-Bar clips (for 15/16” ceiling grid).
For a slotted ceiling grid, T-slot bolts are available for attaching the
mounting plate to slots in the grid.
Wall Mount—use a Wall Mount Accessory Kit (XE-500-WALL), which
contains a mounting plate, wall mount bracket, and three screws (1/4”
Plastite).
Choose a Suitable Location
Choose an indoor location that is central to your users, that is away from heat sources. To ensure good air flow,
it is essential that the AP’s vents are not blocked.
The AP should be installed parallel to the ground (i.e., in a horizontal position, not tilted on its side). The AP
should not be more than 30 feet (9m) above the ground (or the level at which receiving devices will be used).
For atypical installations, please verify the resulting signal coverage.
The location must be capable of supporting the weight of the AP and the mounting bracket (about 2 lb total).
For optimal placement, we recommend that a predictive survey be performed by a qualified Xirrus partner.
Maintain a distance of at least 50 feet (15m) between additional APs.
Keep the unit away from electrical devices or appliances that generate RF noise—at least 3 to 6 ft (1m - 2m).
AP Mounting Plate (front)
This side faces the AP
2
XD2-230 Two-Radio Access Points
3
Install Mounting Hardware
3A—Ceiling Mount
We recommend use of the supplied AP mounting plate, which offers a more secure mount and ease of dismount.
1. Remove the mounting plate from the back of the AP (push it against the AP and twist it to the left). Use the
holes on the mounting plate to mark the placement of at least two user-supplied screws to install in the ceiling.
If not using the mounting plate, mark the locations for the two mounting screws on the ceiling—the centers are
3.5” (8.9 cm) apart.
2. Drill and prepare holes for the screws as appropriate.
3. Cut an access hole for the cable(s) in the ceiling and draw enough cable through to attach to the AP after it is
installed.
4. If using the mounting plate, align it over the prepared holes. Secure the plate with the screws. Do not over-
tighten.
If not using the mounting plate, install two screws at the marked locations so that they protrude 1/8” (.3 cm)
between the mounting surface and the head of the screw.
5. Proceed to “Connect Cables and Install AP” on page 4.
NOTE: The AP must not be disassembled! If not using the mounting plate, do not remove the back of the AP to tighten the
screws after mounting to ceiling.
3B—Ceiling Grid Mount with Mounting Plate
1. Remove the mounting plate from the back of the AP (push it against the
AP and twist it to the left). For T-Bar clips, use two of the four holes on
the AP mounting plate to mark the placement of two T-Bar clips on the
metal ceiling support grid.
Twist the two supplied T-Bar clips onto the metal ceiling grid at the
marked locations and tighten the screw posts to 10-12 lbf.ft (1.38-1.66 kgf.m). Do not over- tighten the screw
posts.
2. Cut an access hole in the ceiling tile and draw the cable(s) through.
3. Align the AP mounting plate over the screw posts of the T-Bar clips and secure it to the two posts using the
nuts provided. Tighten the nuts to 10-12 lbf.ft (1.38-1.66 kgf.m), but do not over tighten.
4. Proceed to “Connect Cables and Install AP” on page 4.
3A—Ceiling Mount
3B—Ceiling Grid Mount with Mounting Plate
3C—Wall Mount with Bracket
3
XD2-230 Two-Radio Access Points
4
3C—Wall Mount with Bracket
NOTE: The mounting location must be able to support the weight of the AP and the mounting bracket (about 2 lb. total).
Connect Cables and Install AP
NOTE: Once you connect the AP's GIG1/POE port, an automatic upgrade typically starts soon after the AP has Internet
connectivity. Do not unplug this port while booting or during the upgrade process or the AP may become inoperable. The
upgrade should take 10 minutes or less depending on bandwidth.
1. Remove the mounting plate from the back of the AP (push it against the AP
and twist it to the left). Align the three holes in the wall bracket (ordered
separately, see Page 2) over the corresponding mounting plate holes, indicated
in the photo. The wall bracket’s small locking tab should point down toward
the mounting plate.
NOTE: Use only the screws provided in the accessory kit. Other screws that seem
equivalent in size may damage the mounting plate.
2. Use the three screws provided in the accessory kit to attach the wall mount bracket to the AP mounting
plate.
3. Use the Wall Mounting Bracket as a template and mark the locations on the wall for the mounting holes.
The bracket must be secured to the wall in 3 places. When marking the holes, make sure the mounting plate
is level.
4. Attach the mounting plate to the wall with three user-supplied screws appropriate to the wall construction
type.
5. Cut an access hole for the cable(s) in the wall and draw enough cable through to attach to the AP after it is
installed.
6. Proceed to “Connect Cables and Install AP” on page 4.

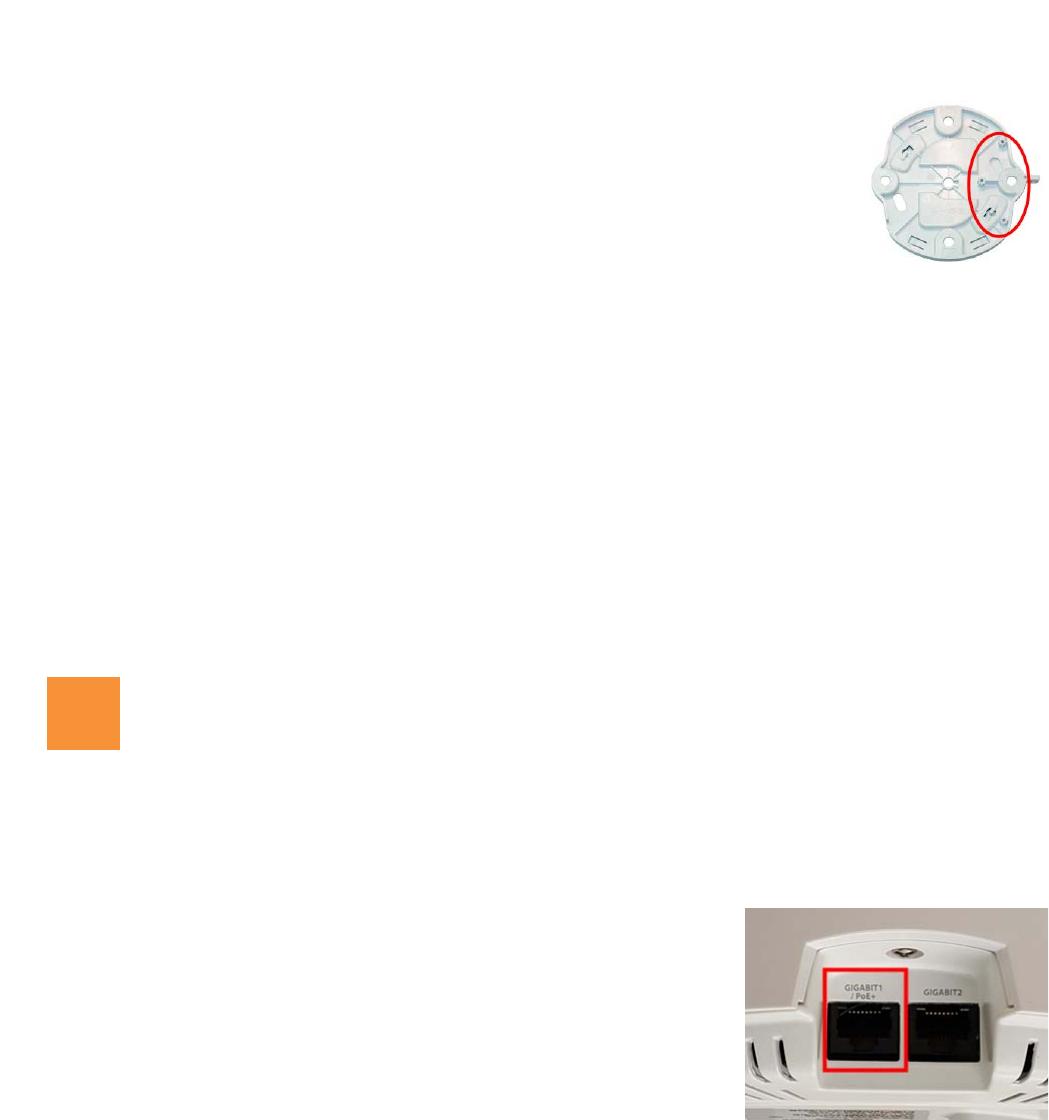

1. Connect the cable that carries power and data to GIGABIT1/POE+
(shown in red). If you use a Xirrus-supplied injector, its CONNECT
LED should light (for 70W and higher injectors, it is OK if it blinks). If
power is being properly supplied, the AP’s LEDs will light and then
commence blinking in their rotating boot pattern. A second data
connection may be plugged into GIG2 (optional).
4
XD2-230 Two-Radio Access Points
5
Zero-Touch Provisioning and Ongoing Management
Most customers employ the Xirrus Management System (XMS) for the initial setup and continuing management of
Xirrus devices. XMS users can readily set up their new devices for provisioning and ongoing maintenance via the
following platforms. Set up discovery for the subnetwork of your APs, and create and configure a default profile
for newly added APs. When APs are discovered, they are automatically assigned to the XMS default profile and
will receive the configuration defined for that profile.
XMS-Cloud—performs zero-touch provisioning. Your new APs appear in XMS even before you receive your
equipment. When the email arrives with your login information, use XMS-Cloud to specify the initial settings
for your APs. A Guided Tour will walk you through the basic steps of creating a profile containing
configuration settings, including creating SSIDs and firewall/application control rules. Once the installed AP
has Internet connectivity, it will automatically contact Xirrus for cloud-based zero-touch provisioning per your
settings, install the latest applicable license, and upgrade the AP to the latest software version as appropriate.
XMS-Enterprise—automatically detects and provisions new Xirrus devices deployed in your network via a
similar provisioning approach. Set up the SSH Users page in the Discovery section, and create and configure a
default profile for newly added APs. After discovery, these new devices automatically receive the
configuration defined in your default profile.
If you are not using XMS, see the Xirrus Wireless AP User's Guide to configure XD2 APs manually via the Express
Setup menu. The User Guide is available from http://support.xirrus.com (login required). Select the Libraries tab
and click the AOS - Latest Release link.
Using the Reset Button
The reset button returns the AP to factory default settings while rebooting.
It is located on the bottom of the unit. Use the reset button as follows:
Unplug the cable from the GIGABIT1/POE+ port.
Press the reset button all the way (there should be a faint click) and
hold it.
Plug the cable back in and continue to keep the button pressed for 10
seconds. This triggers the factory default reset during the boot process.

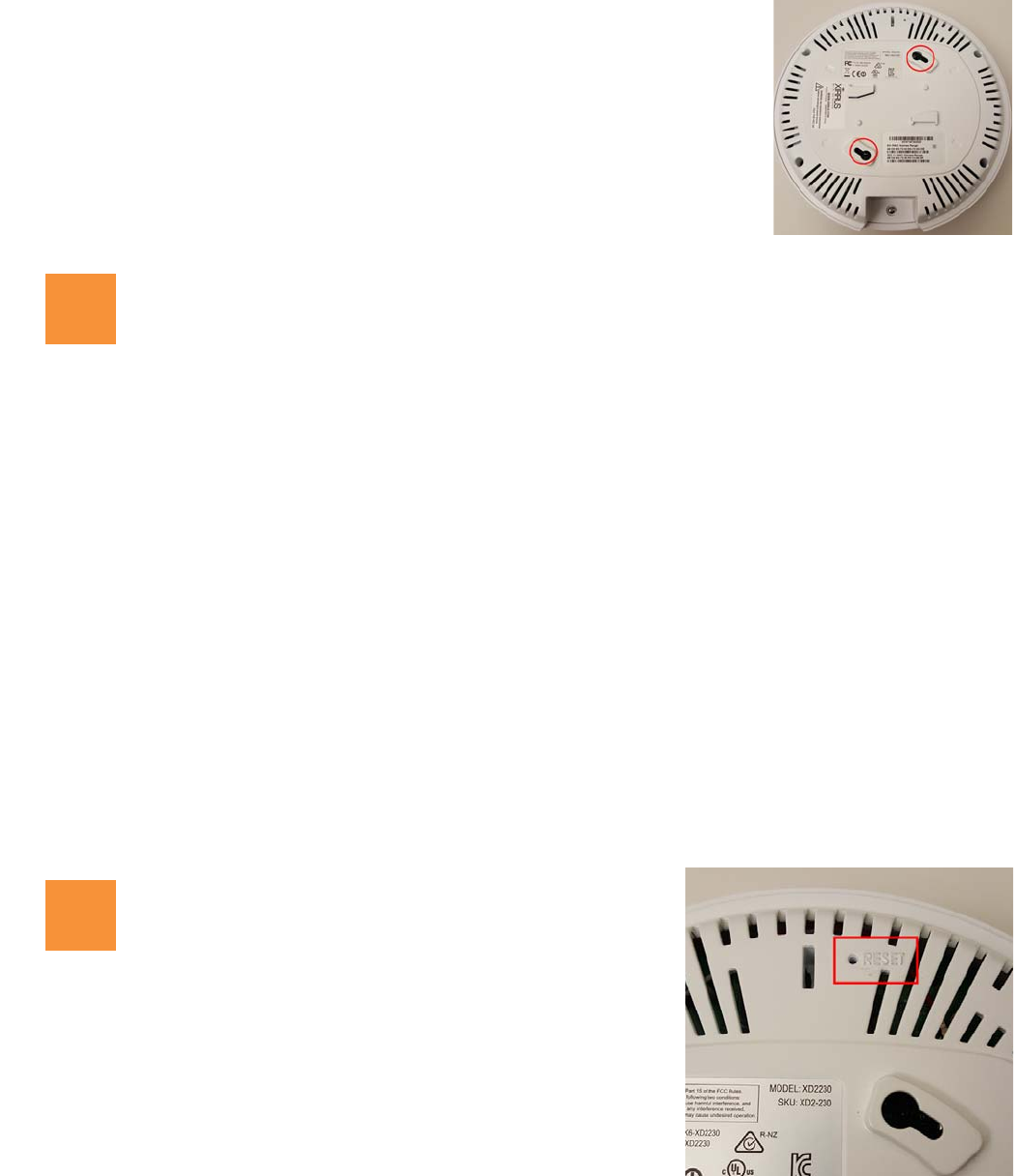

2. Align the two slots on the back of the AP chassis (circled in red) with
the corresponding tabs on the AP mounting plate or with the two
screws installed directly in the ceiling.
3. Push the AP chassis up on the mounting plate tabs and rotate the AP
to the right until it snaps in place.
4. Remove the protective plastic film from the unit.
5. If you need to remove the AP, push it up towards the ceiling and
rotate it to the left.
5
6
XD2-230 Two-Radio Access Points
6
Specifications
Physical/Environmental Specifications
Dimensions (WxDxH, including mounting plate): 8 x 8 x 2.25 in / 20.3 x 20.3 x 5.7 cm
Weight: 2 lb / 0.9 kg
Operating Temperature of XD2-230: 0-45°C / 32-113°F, 10-90% humidity, non-condensing
Operating Altitude up to 3048m/10,000ft)
WARNING: This unit contains a replaceable battery.
CAUTION: Risk of explosion if the battery is replaced by an incorrect type. Dispose of used batteries
according to the battery manufacturer’s instructions.
NOTE: Power over Ethernet must be supplied by a UL listed I.T.E. product.
7
1.800.947.7871 Toll Free in the US
+1.805.262.1600 Sales
+1.805.262.1601 Fax
2101 Corporate Center Drive
Thousand Oaks, CA 91320, USA
To learn more visit:
xirrus.com or
email info@xirrus.com
© 201 Xirrus, Inc. All Rights Reserved. The Xirrus logo is a registered trademark of Xirrus, Inc.
All other trademarks are the property of their respective owners. Content subject to change without notice.
FCC Statement
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this
equipment.
This device and its antenna(s) must not be co-located or operating in conjunction
with any other antenna or transmitter.
For product available in the USA/Canada market, only channel 1~11 can be operated.
Selection of other channels is not possible.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
ISED Statement
This device complies with Industry Canada’s licence-exempt RSSs. Operation is
subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions
suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de
l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement.
IMPORTANT NOTE:
IC Radiation Exposure Statement:
This equipment complies with IC RSS-102 radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20 cm between the radiator & your body.
Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies
pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec
un minimum de 20 cm de distance entre la source de rayonnement et votre corps.
The transmitter module may not be co-located with any other transmitter or
antenna.
Le module émetteur peut ne pas être coïmplanté avec un autre émetteur ou
antenne.
CAN ICES-3 (B)/NMB-3(B)
The Country Code Selection feature is disabled for products marketed in the
US/Canada
