The Command Line Interface 377

The Command Line Interface

This section covers the commands and the command structure used by the

Wireless Array’s Command Line Interface (CLI), and provides a procedure for

establishing an SSH connection to the Array. Topics discussed include:

“Establishing a Secure Shell (SSH) Connection” on page 377.

“Getting Started with the CLI” on page 379.

“Top Level Commands” on page 381.

“Configuration Commands” on page 390.

“Sample Configuration Tasks” on page 426.

See Also

Establishing Communication with the Array

Network Map

System Tools

Establishing a Secure Shell (SSH) Connection

Use this procedure to initialize the system and log in to the Command Line

Interface (CLI) via a Secure Shell (SSH) utility, such as PuTTY. When connecting to

the unit’s Command Line Interface over a network connection, you must use a

Secure SHell version 2 (SSH-2) utility. Make sure that your SSH utility is set up to

use SSH-2.

1. Start your SSH session and communicate with the Array via its IP

address.

•If the Array is connected to a network that uses DHCP, use the

address assigned by DHCP. We recommend that you have the

Some commands are only available if the Array’s license includes

appropriate Xirrus Advanced Feature Sets. If a command is unavailable,

an error message will notify you that your license does not support the

feature. See “About Licensing and Upgrades” on page 361.

Wireless Array

378 The Command Line Interface

network administrator assign a reserved address to the Array for ease

of access in the future.

•If the network does not use DHCP, use the factory default address

10.0.2.1 to access either the Gigabit 1 or Gigabit 2 Ethernet port. You

may need to change the IP address of the port on your computer that

is connected to the Array — change that port’s IP address so that it is

on the same 10.0.2.xx subnet as the Array port.

•If your Array is an 8-, 12-, or 16-port model, it has a 10/100Mb

Ethernet port called Ethernet0. This management port has a default

IP address of 10.0.1.1. You may connect your computer directly to this

port, but you will need to set the IP address of the connected port on

your computer to the 10.0.1.xx subnet.

2. At the login prompt, enter your user name and password (the default for

both is admin). Login names and passwords are case-sensitive. You are

now logged in to the Array’s Command Line Interface.

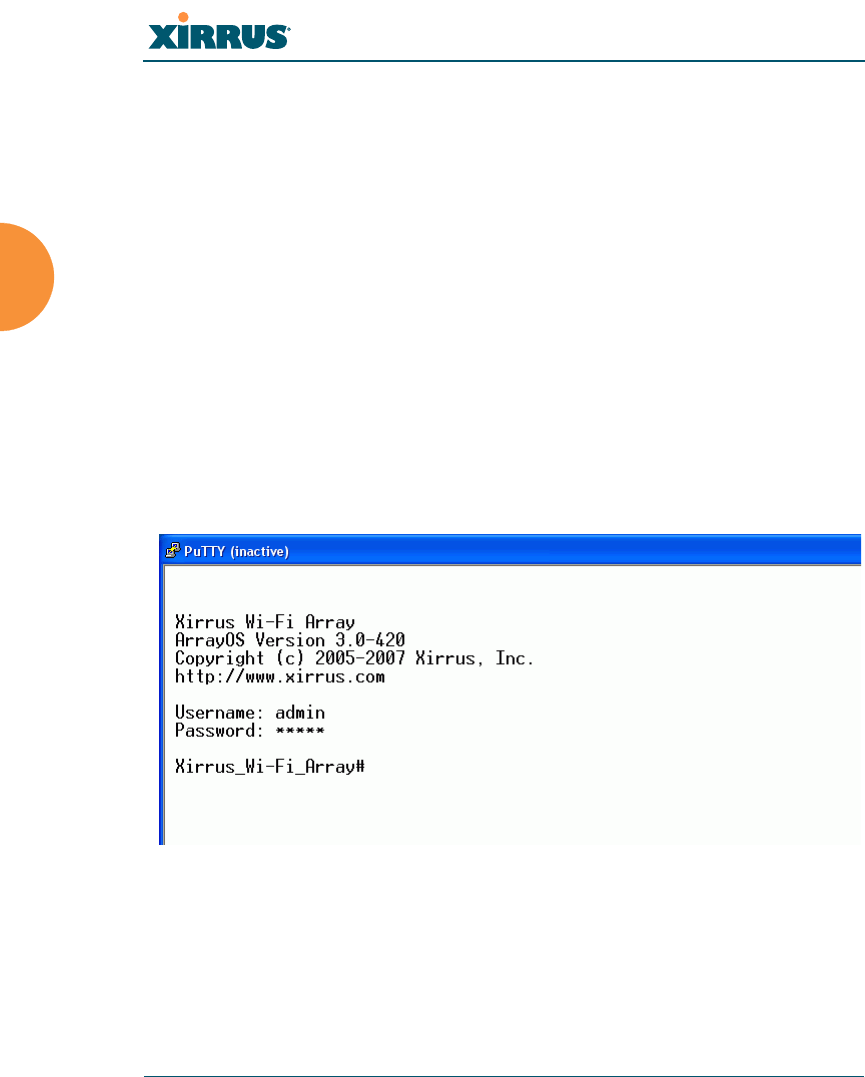

Figure 184. Logging In

Wireless Array

The Command Line Interface 379

Getting Started with the CLI

The root command prompt (Root Command Prompt) is the first prompt you see

after logging in to the CLI. If you are at a level other than the root command

prompt you can return to this prompt at any time by using the exit command to

step back through each command prompt level. The root command prompt you

see in the CLI window is determined by the host name you assigned to your

Array. The prompt Xirrus_Wi-Fi_Array is displayed throughout this document

simply because this is the host name assigned to the Array used for development.

To terminate your session at any time, use the quit command.

Inputting Commands

When inputting commands you need only type as many characters as the system

requires before it recognizes your input. For example, you can type the

abbreviated term config to access the configure prompt.

Getting Help

The CLI offers the following two levels of assistance:

help Command

The help command is only available at the root command prompt.

Initiating this command generates a window that provides information

about the types of help that are available with the CLI.

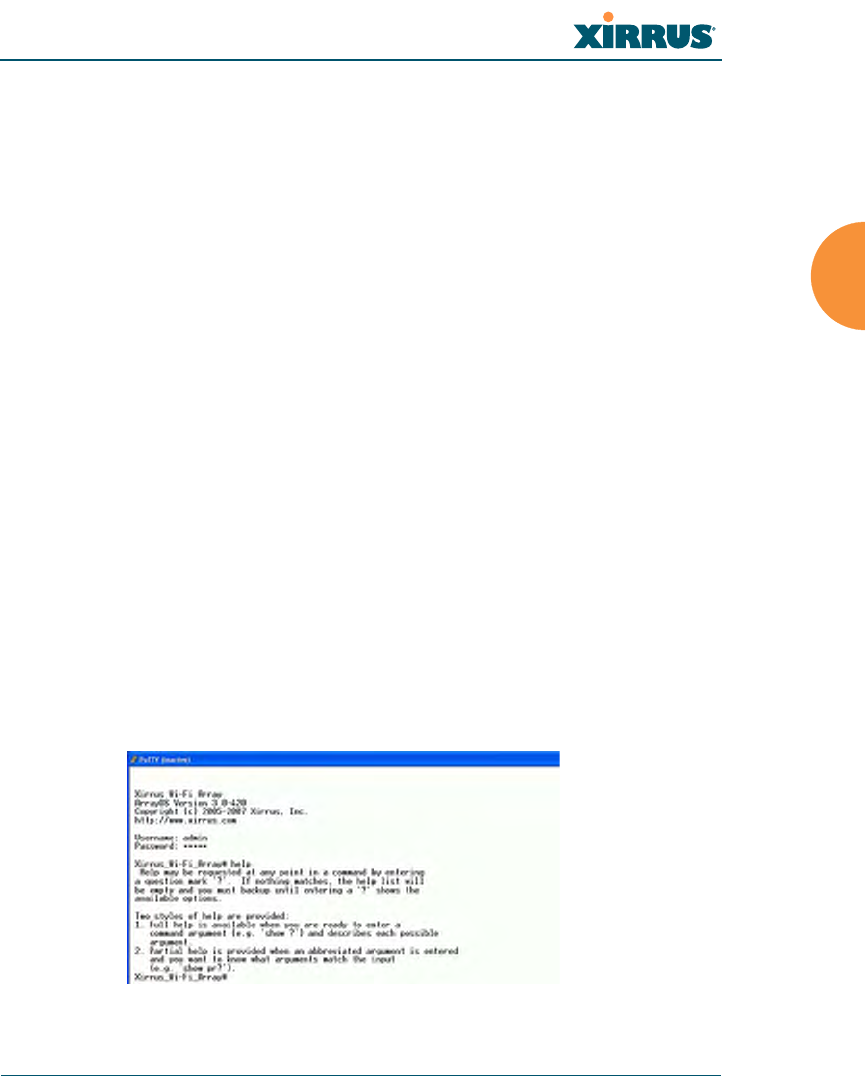

Figure 185. Help Window

Wireless Array

380 The Command Line Interface

? Command

This command is available at any prompt and provides either FULL or

PARTIAL help. Using the ? (question mark) command when you are

ready to enter an argument will display all the possible arguments (full

help). Partial help is provided when you enter an abbreviated argument

and you want to know what arguments will match your input.

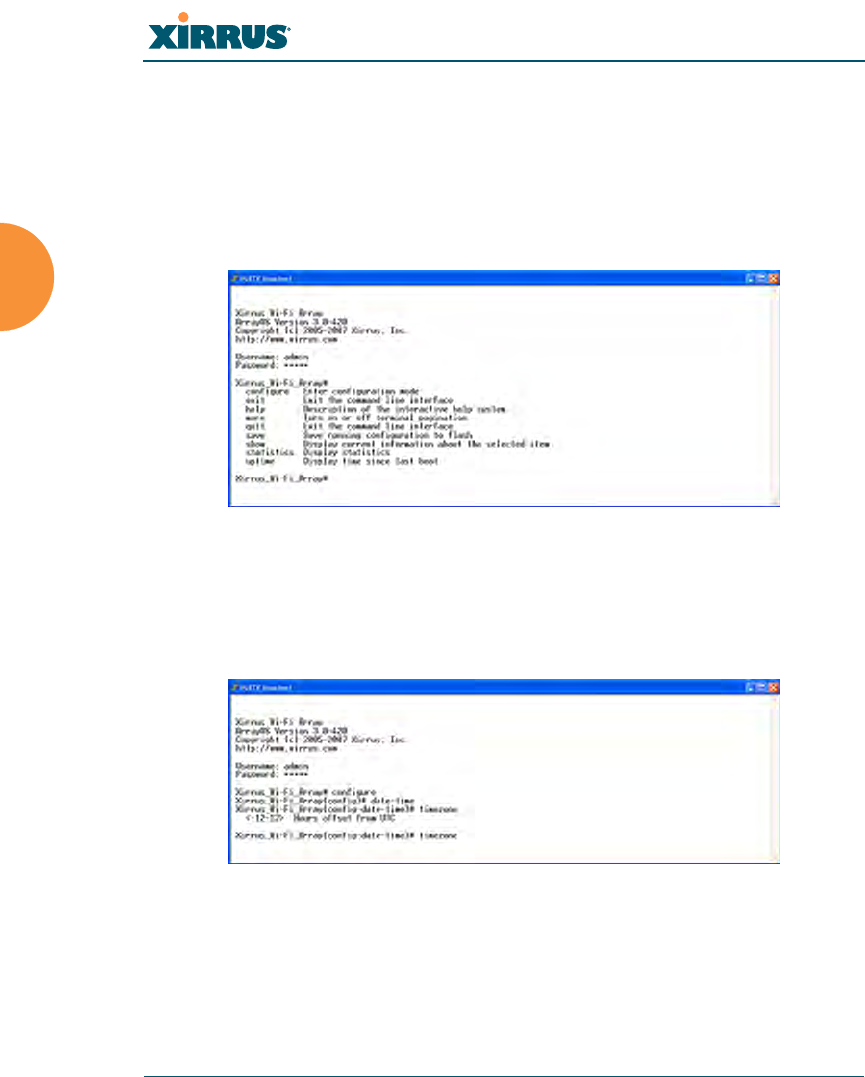

Figure 186. Full Help

Figure 187 shows an example of how the Help system can provide the

argument and format when specifying the time zone under the date-time

command.

Figure 187. Partial Help

Wireless Array

The Command Line Interface 381

Top Level Commands

This section offers an at-a-glance view of all top level commands — organized

alphabetically. Top level commands are defined here as commands that are

directly accessible from the root command prompt (Xirrus_Wi-Fi_Array#). The

root command prompt is based on the host name assigned to your Array. When

inputting commands, be aware that all commands are case-sensitive.

All other commands are considered second level configuration commands —

these are the commands you use to configure specific elements of the Array’s

features and functionality. For a listing of these commands with examples of

command formats and structure, go to “Configuration Commands” on page 390.

Root Command Prompt

The following table shows the top level commands that are available from the

root command prompt [Xirrus_Wi-Fi_Array].

Command Description

@ Type @n to execute command n (as shown by the

history command).

configure Enter the configuration mode. See “Configuration

Commands” on page 390.

exit Exit the CLI and terminate your session — if this

command is used at any level other than the root

command prompt you will simply exit the current

level (step back) and return to the previous level.

help Show a description of the interactive help system.

See also, “Getting Help” on page 379.

history List history of commands that have been

executed.

more Turn terminal pagination ON or OFF.

quit Exit the Command Line Interface (from any level).

search Search for pattern in show command output.

Wireless Array

382 The Command Line Interface

configure Commands

The following table shows the second level commands that are available with the

top level configure command [Xirrus_Wi-Fi_Array(config)#].

show Display information about the selected item. See

“show Commands” on page 385.

statistics Display statistical data about the Array. See

“statistics Commands” on page 388.

uptime Display the elapsed time since the last boot.

Command Description

@ Type @n to execute command n (as shown by the

history command).

acl Configure the Access Control List.

admin Define administrator access parameters.

cdp Configure Cisco Discovery Protocol settings.

clear Remove/clear the requested elements.

cluster Make configuration changes to multiple Arrays.

contact-info Contact information for assistance on this Array.

date-time Configure date and time settings.

dhcp-server Configure the DHCP Server.

dns Configure the DNS settings.

end Exit the configuration mode.

exit Go UP one mode level.

file Manage the file system.

Command Description

Wireless Array

The Command Line Interface 383

filter Define protocol filter parameters.

group Define user groups with parameter settings

help Description of the interactive Help system.

history List history of commands that have been

executed.

hostname Host name for this Array.

interface Select the interface to configure.

load Load running configuration from flash

location Location name for this Array.

management Configure array management parameters

more Turn ON or OFF terminal pagination.

netflow Configure NetFlow data collector.

no Disable (if enabled) or set to default value.

quit Exit the Command Line Interface.

radius-server Configure the RADIUS server parameters.

reboot Reboot the Array.

reset Reset all settings to their factory default values

and reboot.

restore Reset all settings to their factory default values

and reboot.

run-tests Run selective tests.

save Save the running configuration to FLASH.

search Search for pattern in show command output.

security Set the security parameters for the Array.

Command Description

Wireless Array

384 The Command Line Interface

show Display current information about the selected

item.

snmp Enable, disable or configure SNMP.

ssid Configure the SSID parameters.

statistics Display statistics.

syslog Enable, disable or configure the Syslog Server.

uptime Display time since the last boot.

vlan Configure VLAN parameters.

wifi-tag Configure VLAN parameters.

Command Description

Wireless Array

The Command Line Interface 385

show Commands

The following table shows the second level commands that are available with the

top level show command [Xirrus_Wi-Fi_Array# show].

Command Description

acl Display the Access Control List.

admin Display the administrator list or login

information.

array-info Display system information.

associated-

stations

Display stations that have associated to the Array.

boot-env Display Boot loader environment variables.

capabilities Display detailed station capabilities.

cdp Display Cisco Discovery Protocol settings.

channel-list Display list of Array’s 802.11an and bgn channels.

clear-text Display and enter passwords and secrets in the

clear.

conntrack Display the Connection Tracking table.

console Display terminal settings.

contact-info Display contact information.

date-time Display date and time settings summary.

dhcp-leases Display IP addresses (leases) assigned to stations

by the DHCP server.

dhcp-pool Display internal DHCP server settings summary

information.

diff Display the difference between configurations.

dns Display DNS summary information.

Wireless Array

386 The Command Line Interface

error-numbers Display the detailed error number in error

messages.

ethernet Display Ethernet interface summary information.

external-radius Display summary information for the external

RADIUS server settings.

factory-config Display the Array factory configuration

information.

filters Display filter information.

iap Display IAP configuration information.

internal-radius Display the users defined for the embedded

RADIUS server.

lastboot-config Display Array configuration at the time of the last

boot-up.

management Display settings for managing the Array, plus

Standby, FIPS, and other information.

network-map Display network map information.

realtime-monitor Display realtime statistics for all IAPs.

rogue-ap Display rogue AP information.

route Display the routing table.

rssi-map Display RSSI map by IAP for station.

running-config Display configuration information for the Array

currently running.

saved-config Display the last saved Array configuration.

security Display security settings summary information.

self-test Display self test results.

snmp Display SNMP summary information.

Command Description

Wireless Array

The Command Line Interface 387

spanning-tree Display spanning tree information.

spectrum-

analyzer

Display spectrum analyzer measurements.

ssid Display SSID summary information.

stations Display station information.

statistics Display statistics.

syslog Display the system log.

syslog-settings Display the system log (Syslog) settings.

temperature Display the current board temperatures.

unassociated-

stations

Display unassociated station information.

vlan Display VLAN information.

wds Display WDS information.

<cr> Display configuration or status information.

Command Description

Wireless Array

388 The Command Line Interface

statistics Commands

The following table shows the second level commands that are available with the

top level statistics command [Xirrus_Wi-Fi_Array# statistics].

Command Description

ethernet Display statistical data for all Ethernet interfaces.

Ethernet Name

eth0, gig1, gig2

Display statistical data for the defined Ethernet

interface (either eth0, gig1 or gig2).

FORMAT:

statistics gig1

filter Display statistics for defined filters (if any).

FORMAT:

statistics filter [detail]

filter-list Display statistics for defined filter list (if any).

FORMAT:

statistics filter <filter-list>

iap Display statistical data for the defined IAP.

FORMAT:

statistics iap iap2

statistics iap abgn4

station Display statistical data about associated stations.

FORMAT:

statistics station billw

vlan Display statistical data for the defined VLAN. You

must use the VLAN number (not its name) when

defining a VLAN.

FORMAT:

statistics vlan 1

Wireless Array

The Command Line Interface 389

wds Display statistical data for the defined active WDS

(Wireless Distribution System) links.

FORMAT:

statistics wds 1

<cr> Display configuration or status information.

Command Description

Wireless Array

390 The Command Line Interface

Configuration Commands

All configuration commands are accessed by using the configure command at the

root command prompt (Xirrus_Wi-Fi_Array#). This section provides a brief

description of each command and presents sample formats where deemed

necessary. The commands are organized alphabetically. When inputting

commands, be aware that all commands are case-sensitive.

To see examples of some of the key configuration tasks and their associated

commands, go to “Sample Configuration Tasks” on page 426.

acl

The acl command [Xirrus_Wi-Fi_Array(config)# acl] is used to configure the

Access Control List.

Command Description

add Add a MAC address to the list.

FORMAT:

acl add AA:BB:CC:DD:EE:FF

del Delete a MAC address from the list.

FORMAT:

acl del AA:BB:CC:DD:EE:FF

disable Disable the Access Control List

FORMAT:

acl disable

enable Enable the Access Control List

FORMAT:

acl enable

reset Delete all MAC addresses from the list.

FORMAT:

acl reset

Wireless Array

The Command Line Interface 391

admin

The admin command [Xirrus_Wi-Fi_Array(config-admin)#] is used to configure

the Administrator List.

Command Description

add Add a user to the Administrator List.

FORMAT:

admin add [userID]

del Delete a user to the Administrator List.

FORMAT:

admin del [userID]

edit Modify user in the Administrator List.

FORMAT:

admin edit [userID]

radius Define a RADIUS server to be used for

authenticating administrators.

FORMAT:

admin radius [disable | enable | off | on |

timeout <seconds> | auth-type [PAP | CHAP]]

admin radius [primary |secondary] 

port <portid> server [<ip-addr> | <host>]

secret <shared-secret>

reset Delete all users and restore the default user.

FORMAT:

admin reset

Wireless Array

392 The Command Line Interface

cdp

The cdp command [Xirrus_Wi-Fi_Array(config)# cdp] is used to configure the

Cisco Discovery Protocol.

Command Description

disable Disable the Cisco Discovery Protocol

FORMAT:

cdp disable

enable Enable the Cisco Discovery Protocol

FORMAT:

cdp enable

hold-time Select CDP message hold time before messages

received from neighbors expire.

FORMAT:

cdp hold-time [# seconds]

interval The Array sends out CDP announcements at this

interval.

FORMAT:

cdp interval [# seconds]

off Disable the Cisco Discovery Protocol

FORMAT:

cdp off

on Enable the Cisco Discovery Protocol

FORMAT:

cdp on

Wireless Array

The Command Line Interface 393

clear

The clear command [Xirrus_Wi-Fi_Array(config)# clear] is used to clear

requested elements.

Command Description

authentication Deauthenticate a station.

FORMAT:

clear station [authenticated station]

history Clear the history of CLI commands executed.

FORMAT:

clear history

screen Clear the screen where you’re viewing CLI

output.

FORMAT:

clear syslog

statistics Clear the statistics for a requested interface.

FORMAT:

clear statistics [eth0]

syslog Clear all Syslog messages, but continue to log new

messages.

FORMAT:

clear syslog

Wireless Array

394 The Command Line Interface

cluster

The cluster command [Xirrus_Wi-Fi_Array(config)# cluster] is used to create and

operate clusters. Clusters allow you to configure multiple Arrays at the same

time. Using CLI (or WMI), you may define a set of Arrays that are members of the

cluster. Then you may switch the Array to Cluster operating mode for a selected

cluster, which sends all successive configuration commands issued via CLI or

WMI to all of the member Arrays. When you exit cluster mode, configuration

commands revert to applying only to the Array to which you are connected.

For more information, see “Clusters” on page 352.

Command Description

add Create a new Array cluster. Enters edit mode for

that cluster to allow you to specify the Arrays that

belong to the cluster.

FORMAT:

cluster add [cluster-name]

del Delete an Array cluster. Type del ? to list the

existing clusters.

FORMAT:

cluster del [cluster-name]

edit Enter edit mode for selected cluster to add or

delete Arrays that belong to the cluster.

FORMAT:

cluster edit [cluster-name]

end Exit Cluster configuration mode. Configuration

returns to normal operation, affecting this Array

only.

FORMAT:

cluster end

Wireless Array

The Command Line Interface 395

contact-info

The contact-info command [Xirrus_Wi-Fi_Array(config)# contact-info] is used

for managing administrator contact information.

operate Enter Cluster operation mode. All configuration

commands are applied to all of the selected

cluster’s member Arrays until you give the end

command (see above).

FORMAT:

cluster operate [cluster-name]

reset Delete all clusters.

FORMAT:

cluster reset

Command Description

email Add an email address for the contact (must be in

quotation marks).

FORMAT:

contact-info email [“contact@mail.com”]

name Add a contact name (must be in quotation marks).

FORMAT:

contact-info name [“Contact Name”]

phone Add a telephone number for the contact (must be

in quotation marks).

FORMAT:

contact-info phone [“8185550101”]

Command Description

Wireless Array

396 The Command Line Interface

date-time

The date-time command [Xirrus_Wi-Fi_Array(config-date-time)#] is used to

configure the date and time parameters. Your Array supports the Network Time

Protocol (NTP) in order to ensure that the Array’s internal time is accurate. NTP is

set to UTC time by default; however, you can set the time zone so that your Array

will display local time. This is done by defining an offset from the UTC value. For

example, Pacific Standard Time is 8 hours behind UTC time, so the offset from

UTC time would be -8.

Command Description

dst_adjust Enable adjustment for daylight savings.

FORMAT:

date-time dst_adjust

no Disable daylight savings adjustment.

FORMAT:

date-time no dst_adjust

ntp Enable the NTP server.

FORMAT:

date-time ntp on (or off to disable)

offset Set an offset from Greenwich Mean Time.

FORMAT:

date-time no dst_adjust

set Set the date and time for the Array.

FORMAT:

date-time set [10:24 10/23/2007]

timezone Configure the time zone.

FORMAT:

date-time timezone [-8]

Wireless Array

The Command Line Interface 397

dhcp-server

The dhcp-server command [Xirrus_Wi-Fi_Array(config-dhcp-server)#] is used to

add, delete and modify DHCP pools.

Command Description

add Add a DHCP pool.

FORMAT:

dhcp-server add [dhcp pool]

del Delete a DHCP pool.

FORMAT:

dhcp-server del [dhcp pool]

edit Edit a DHCP pool

FORMAT:

dhcp-server edit [dhcp pool]

reset Delete all DHCP pools.

FORMAT:

dhcp-server reset

Wireless Array

398 The Command Line Interface

dns

The dns command [Xirrus_Wi-Fi_Array(config-dns)#] is used to configure your

DNS parameters.

Command Description

domain Enter your domain name.

FORMAT:

dns domain [www.mydomain.com]

server1 Enter the IP address of the primary DNS server.

FORMAT:

dns server1 [1.2.3.4]

server2 Enter the IP address of the secondary DNS server.

FORMAT:

dns server1 [2.3.4.5]

server3 Enter the IP address of the tertiary DNS server.

FORMAT:

dns server1 [3.4.5.6]

Wireless Array

The Command Line Interface 399

file

The file command [Xirrus_Wi-Fi_Array(config-file)#] is used to manage files.

Command Description

active-image Validate and commit a new array software image.

backup-image Validate and commit a new backup software image.

check-image Validate a new array software image.

chkdsk Check flash file system.

copy

Copy a file to another file.

FORMAT:

file copy [sourcefile destinationfile]

dir List the contents of a directory.

FORMAT:

file dir [directory]

erase Delete a file from the FLASH file system.

FORMAT:

file erase [filename]

format Format flash file system.

ftp Open an FTP connection with a remote server. Files

will be transferred in binary mode.

FORMAT:

file ftp host {<hostname> |<ip>} [port <port_#>] 

[user {anonymous | <username> password

<passwd> } ] { put <source_file> [<dest_file>] |

get <source_file> [<dest_file>] }

Note: Any time you transfer any kind of software

image file for the Array, it must be transferred in

binary mode, or the file may be corrupted.

list List the contents of a file.

FORMAT:

file list [filename]

Wireless Array

400 The Command Line Interface

remote-config When the Array boots up, it fetches the specified

configuration file from the TFTP server defined in

the file remote-server command, and uses this

configuration. This must be an Array configuration

file with a .conf extension.

A partial configuration file may be used. For

instance, if you wish to use a single configuration file

for all of your Arrays but don't want to have the

same IP address for each Array, you may remove the

ipaddr line from the file. You can then load the file on

each array and the local IP addresses will not change.

FORMAT:

file remote-config <config-file.conf>

Note: If you enter file remote-config ?, the help

response suggests possibilities by listing all of the

configuration files that are currently in the Array’s

flash.

remote-image When the Array boots up, it fetches the named image

file from the TFTP server defined in the file remote-

server command, and upgrades to this file before

booting. This must be an Array image file with a .bin

extension.

FORMAT:

file remote-image <image-file.bin>

Note: This will happen every time that the Array

reboots. If you only want to fetch the remote-image

one time be sure to turn off the remote image option

after the initial download.

remote-server Sets up a TFTP server to be used for automated

remote update of software image and configuration

files when rebooting.

FORMAT:

file remote-server A.B.C.D

rename Rename a file.

Command Description

Wireless Array

The Command Line Interface 401

scp Copy a file to or from a remote system. You may

specify the port to use.

tftp Open a TFTP connection with a remote server.

FORMAT:

file tftp host {<hostname> |<ip>} [port <port_#>] 

[user {anonymous | <username> password

<passwd> } ] { put <source_file> [<dest_file>] |

get <source_file> [<dest_file>] }

Note: Any time you transfer any kind of software

image file for the Array, it must be transferred in

binary mode, or the file may be corrupted.

Command Description

Wireless Array

402 The Command Line Interface

filter

The filter command [Xirrus_Wi-Fi_Array(config-filter)#] is used to manage

protocol filters and filter lists.

Command Description

add Add a filter. Details about the air cleaner feature

are after the end of this table.

FORMAT:

filter add [air-cleaner |name]

add-list Add a filter list.

FORMAT:

filter add-list [name]

del Delete a filter.

FORMAT:

filter del [name]

del-list Delete a filter list.

FORMAT:

filter del-list [name]

edit Edit a filter.

FORMAT:

filter edit [name type]

edit-list Edit a filter list

FORMAT:

filter edit-list [name type]

enable Enable a filter list.

FORMAT:

filter enable

move Change a filter priority.

FORMAT:

filter move [name priority]

Wireless Array

The Command Line Interface 403

Air Cleaner

The air cleaner feature offers a number of predetermined filter rules that eliminate

a great deal of unnecessary wireless traffic, resulting in improved performance.

You may select all of the air cleaner rules for the greatest effect, or only specific

rules, such as broadcast or multicast, to eliminate only a particular source of

traffic. The following options are offered:

MyArray(config)# filter add air-cleaner

all All air cleaner filters

arp Eliminate station to station ARPs over the air

broadcast Eliminate broadcast traffic from the air

dhcp Eliminate stations serving DHCP addresses from the air

multicast Eliminate chatty multicast traffic from the air

netbios Eliminate NetBIOS traffic from the air

If you select all, the rules shown in Figure 188 are added to the predefined filter

list named Global. These rules assume that you have station-to-station blocking

enabled, that a DHCP server is on the Array’s wired connection, and that you

want to block most all multicast and all broadcast traffic not vital to normal

off Disable a filter list.

FORMAT:

filter off

on Enable a filter list.

FORMAT:

filter on

reset Delete all protocol filters and filter lists.

FORMAT:

filter reset

stateful Enable or disable stateful filtering (firewall).

FORMAT:

Stateful [enable | disable | on |off]

Command Description

Wireless Array

404 The Command Line Interface

operation. If you find that there is a particular type of multicast or broadcast

traffic that you want to allow, just add a specific allow filter for it before the deny

filter in this list that would normally block it. Add or delete any of the Multicast

rules as necessary for a specific site. Remember that the order of the rules is

important.

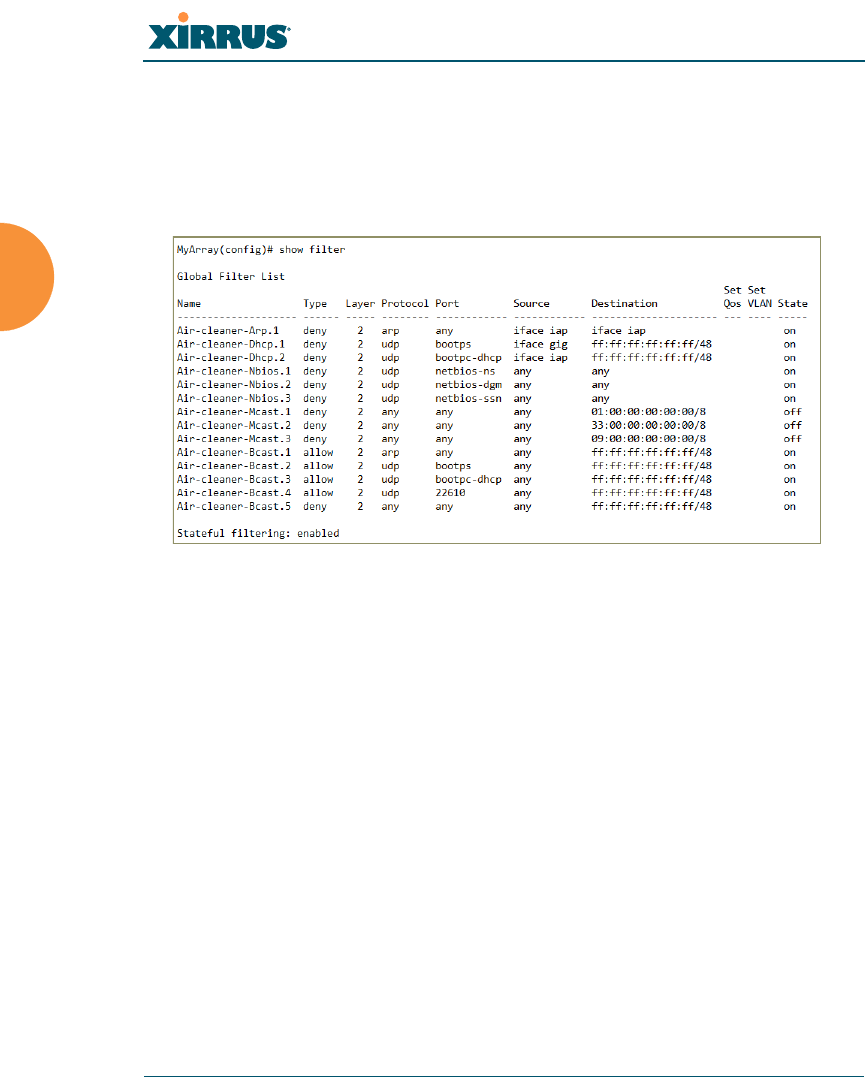

Figure 188. Air Cleaner Filter Rules

Explanations of some sample rules are below.

Air-cleaner-Arp.1 blocks ARPs from one client from being transmitted to

clients via all of the radios. The station to station block setting doesn't

block this traffic, so this filter eliminates this unnecessary traffic.

Air-cleaner-Dhcp.1 drops all DHCP client traffic coming in from the

gigabit interface. This traffic doesn't need to be transmitted by the radios

since there shouldn't be any DHCP server associated to the radios and

offering DHCP addresses. For large subnets the DHCP discover/request

broadcast traffic can be significant.

Air-cleaner-Dhcp.2 drops all DHCP server traffic coming in from the

radio interfaces. There should not be any DHCP server associated to the

radios. These rogue DHCP servers are blocked from doing any damage

with this filter. There have been quite a few cases in public venues like

schools and conventions where such traffic is seen.

Wireless Array

The Command Line Interface 405

Air-cleaner-Mcast.1 drops all multicast traffic with a destination MAC

address starting with 01. This filters out a lot of IP multicast traffic that

starts with 224.

Air-cleaner-Mcast.2 drops all multicast traffic with a destination MAC

address starting with 33. A lot of IPv6 traffic and other multicast traffic is

blocked by this filter.

Air-cleaner-Mcast.3 drops all multicast traffic with a destination MAC

address starting with 09. A lot of Appletalk traffic and other multicast

traffic is blocked by this filter. Note that for OSX 10.6.* Snow Leopard no

longer supports Appletalk.

Air-cleaner-Bcast.1 allows all ARP traffic (other than the traffic that was

denied by Air-cleaner-Arp.1). This is needed because Air-cleaner-Bcast.5

would drop this valid traffic.

Air-cleaner-Bcast.4 allows all XRP traffic from Arrays to be received from

the wire. This is needed because Air-cleaner-Bcast.5 would drop this

valid traffic.

Air-cleaner-Bcast.5 drops all other broadcast traffic that hasn't previously

been explicitly allowed. This filter will catch all UDP broadcast traffic as

well as all other known and unknown protocol broadcast traffic.

Wireless Array

406 The Command Line Interface

group

The group command [Xirrus_Wi-Fi_Array(config)# group] is used to create and

configure user groups. User groups allow administrators to assign specific

network parameters to users through RADIUS privileges rather than having to

map users to a specific SSID. Groups provide flexible control over user privileges

without the need to create large numbers of SSIDs. For more information, see

“Groups” on page 264.

hostname

The hostname command [Xirrus_Wi-Fi_Array(config)# hostname] is used to

change the hostname used by the Array.

Command Description

add Create a new user group.

FORMAT:

group add [group-name]

del Delete a user group.

FORMAT:

group del [group-name]

edit Set parameters values for a group.

FORMAT:

group edit [group-name]

reset Reset the group.

FORMAT:

group reset

Command Description

hostname Change the hostname of the Array.

FORMAT:

hostname [name]

Wireless Array

The Command Line Interface 407

interface

The interface command [Xirrus_Wi-Fi_Array(config)# interface] is used to select

the interface that you want to configure. To see a listing of the commands that are

available for each interface, use the ? command at the selected interface prompt.

For example, using the ? command at the Xirrus_Wi-Fi_Array(config-gig1}#

prompt displays a listing of all commands for the gig1 interface.

Command Description

console Select the console interface. The console interface

is used for management purposes only.

FORMAT:

interface console

eth0 Select the Fast Ethernet interface. The Fast

Ethernet interface is used for management

purposes only.

FORMAT:

interface eth0

Note: To configure a static route for management

traffic, next enter:

static-route addr [ip-addr]

static-route mask [subnet-mask]

gig1 Select the Gigabit 1 interface.

FORMAT:

interface gig1

gig2 Select the Gigabit 2 interface.

FORMAT:

interface gig2

iap Select an IAP.

FORMAT:

interface iap

Wireless Array

408 The Command Line Interface

load

The load command [Xirrus_Wi-Fi_Array(config)# load] loads a configuration

file.

location

The location command [Xirrus_Wi-Fi_Array(config)# location] is used to set the

location for the Array.

Command Description

factory.conf Load the factory settings configuration file.

FORMAT:

load [factory.conf]

lastboot.conf Load the configuration file from the last boot-up.

FORMAT:

load [lastboot.conf]

[myfile].conf If you have saved a configuration, enter its name

to load it.

FORMAT:

load [myfile.conf]

saved.conf Load the configuration file with the last saved

settings.

FORMAT:

load [saved.conf]

Command Description

<cr> Set the location for the Array.

FORMAT:

location [newlocation]

Wireless Array

The Command Line Interface 409

management

The management command [Xirrus_Wi-Fi_Array(config)# management] enters

management mode, where you may configure management parameters.

The following types of settings may be configured in management mode:

banner Configure login banner messages

console Configure console management parameters

https Enable/disable HTTPS access

license Set array software license key

load Load running configuration from flash

max-auth-attempts Maximum number of authentication (login)

attempts (0 means unlimited)

network-assurance Enable/disable network assurance

reauth-period Time between failed CLI login attempts

restore Restore to previous saved config

revert Revert to saved configuration after delay if

configuration not saved

save Save running configuration to flash

ssh Enable/disable SSH access

standby Configure standby parameters

telnet Enable/disable telnet access

uptime Display time since last boot

xircon Enable/disable xircon access. See Xircon User’s

Guide for more information. Not available for XN Arrays.

Command Description

<cr> Enter management mode.

FORMAT:

management <cr>

Wireless Array

410 The Command Line Interface

The more command [Xirrus_Wi-Fi_Array(config)# more] is used to turn terminal

pagination ON or OFF.

Command Description

off Turn OFF terminal pagination.

FORMAT:

more off

on Turn ON terminal pagination.

FORMAT:

See Also

An Overview

Serial On

Serial timeout 300 seconds

Management over IAPs Off

http timeout 300 seconds

Action Shortcut

Cut selected data and place it on the

clipboard. Ctrl + X

Copy selected data to the clipboard. Ctrl + C

Paste data from the clipboard into a

document (at the insertion point). Ctrl + V

Go to top of screen. Ctrl + Z

Copy the active window to the

clipboard. Alt + Print Screen

Copy the entire desktop image to the

clipboard. Print Screen

Abort an action at any time. Esc

Go back to the previous screen. b

Access the Help screen. ?

Setting Default Value

Wireless Array

450

Use this Space for Your Notes

Wireless Array

451

Appendix B: Technical Support

This appendix provides valuable support information that can help you resolve

technical difficulties. Before contacting Xirrus, review all topics below and try to

determine if your problem resides with the Wireless Array or your network

infrastructure. Topics include:

“General Hints and Tips” on page 451

“Frequently Asked Questions” on page 452

“Array Monitor and Radio Assurance Capabilities” on page 460

“RADIUS Vendor Specific Attribute (VSA) for Xirrus” on page 463

“Upgrading the Array via CLI” on page 464

“Contact Information” on page 469

General Hints and Tips

This section provides some useful tips that will optimize the reliability and

performance of your Wireless Arrays.

The Wireless Array requires careful handling. For best performance, units

should be mounted in a dust-free and temperature-controlled

environment.

If using multiple Arrays in the same area, maintain a distance of at least

100 feet (30m) between Arrays if there is direct line-of-sight between the

units, or at least 50 feet (15 m) if a wall or other barrier exists between the

units.

Keep the Wireless Array away from electrical devices or appliances that

generate RF noise. Because the Array is generally mounted on ceilings, be

aware of its position relative to lighting (especially fluorescent lighting).

If you are deploying multiple units, the Array should be oriented so that

the monitor abgn2 radio is oriented in the direction of the least required

coverage, because when in monitor mode the radio does not function as

an AP servicing stations.

Wireless Array

452

The Wireless Array should only be used with Wi-Fi certified client

devices.

See Also

Contact Information

Multiple SSIDs

Security

VLAN Support

Frequently Asked Questions

This section answers some of the most frequently asked questions, organized by

functional area.

Multiple SSIDs

Q. What Are BSSIDs and SSIDs?

A. BSSID (Basic Service Set Identifier) refers to an individual access point

radio and its associated clients. The identifier is the MAC address of the

access point radio that forms the BSS.

A group of BSSs can be formed to allow stations in one BSS to

communicate to stations in another BSS by way of a backbone that

interconnects each access point.

The Extended Service Set (ESS) refers to the group of BSSIDs that are

grouped together to form one ESS. The ESSID (often referred to as SSID or

“wireless network name”) identifies the Extended Service Set. Clients

must associate to a single ESS at any given time. Clients ignore traffic

from other Extended Service Sets that do not have the same SSID.

Legacy access points typically support one SSID per access point. Xirrus

Wireless Arrays support the ability for multiple SSIDs to be defined and

used simultaneously.

Q. What would I use SSIDs for?

Wireless Array

453

A. The creation of different wireless network names allows system

administrators to separate types of users with different requirements. The

following policies can be tied to an SSID:

Minimum security required to join this SSID.

The wireless Quality of Service (QoS) desired for this SSID.

The wired VLAN associated with this SSID.

As an example, one SSID named accounting might require the highest

level of security, while another SSID named guests might have low

security requirements.

Another example may define an SSID named voice that supports voice

over Wireless LAN phones with the highest possible Quality of Service

(QoS) definition. This type of SSID might also forward traffic to specific

VLANs on the wired network.

Q. How do I set up SSIDs?

A. Use the following procedure as a guideline. For more detailed

information, go to “SSIDs” on page 242.

1. From the Web Management Interface, go to the SSID

Management page.

2. Select Yes to make the SSID visible to all clients on the network.

Although the Wireless Array will not broadcast SSIDs that are

hidden, clients can still associate to a hidden SSID if they know

the SSID name to connect to it.

3. Select the minimum security that will be required by users for

this SSID.

4. If desired (optional), select a Quality of Service (QoS) setting for

this SSID. The QoS setting you define here will prioritize wireless

traffic for this SSID over other SSID wireless traffic.

5. If desired (optional), select a VLAN that you want this traffic to

be forwarded to on the wired network.

Wireless Array

454

6. If desired (optional), you can select which radios this SSID will

not be available on — the default is to make this SSID available on

all radios.

7. Click on the Save changes to flash if you wish to make your

changes permanent.

8. If you need to edit any of the SSID settings, you can do so from

the SSID Management page.

See Also

Contact Information

General Hints and Tips

Security

SSIDs

SSID Management

VLAN Support

Security

Q. How do I know my management session is secure?

A. Follow these guidelines:

Administrator passwords

Always change the default administrator password (the default

is admin), and choose a strong replacement password. When

appropriate, issue read only administrator accounts.

SSH versus Telnet

Be aware that Telnet is not secure over network connections and

should be used only with a direct serial port connection. When

connecting to the unit’s Command Line Interface over a network

connection, you must use a Secure SHell (SSH) utility. The most

commonly used freeware providing SSH tools is PuTTY. The

Array only allows SSH-2 connections, so your SSH utility must

be set up to use SSH-2.

Wireless Array

455

Configuration auditing

Do not change approved configuration settings. The optional

Xirrus Management System (XMS) offers powerful management

features for small or large Wireless Array deployments, and can

audit your configuration settings automatically. In addition,

using the XMS eliminates the need for an FTP server.

Q. Which wireless data encryption method should I use?

A. Wireless data encryption prevents eavesdropping on data being

transmitted or received over the airwaves. The Wireless Array allows you

to establish the following data encryption configuration options:

Open

This option offers no data encryption and is not recommended,

though you might choose this option if clients are required to use

a VPN connection through a secure SSH utility, like PuTTy.

WEP (Wired Equivalent Privacy)

This option provides minimal protection (though much better

than using an open network). An early standard for wireless data

encryption and supported by all Wi-Fi certified equipment, WEP

is vulnerable to hacking and is therefore not recommended for

use by Enterprise networks.

WPA (Wi-Fi Protected Access)

This is a much stronger encryption model than WEP and uses

TKIP (Temporal Key Integrity Protocol) with AES (Advanced

Encryption Standard) to prevent WEP cracks.

TKIP solves security issues with WEP. It also allows you to

establish encryption keys on a per-user-basis, with key rotation

for added security. In addition, TKIP provides Message Integrity

Check (MIC) functionality and prevents active attacks on the

wireless network.

AES is the strongest encryption standard and is used by

government agencies; however, old legacy hardware may not be

capable of supporting the AES mode (it probably won’t work on

Wireless Array

456

older wireless clients). Because AES is the strongest encryption

standard currently available, it is highly recommended for

Enterprise networks.

Any of the above encryption modes can be used (and can be used at

the same time).

Q. Which user authentication method should I use?

A. User authentication ensures that users are who they say they are. For

example, the most obvious example of authentication is logging in with a

user name and password. The Wireless Array allows you to choose

between the following user authentication methods:

Pre-Shared Key

Users must manually enter a key (pass phrase) on the client side

of the wireless network that matches the key stored by the

administrator in your Wireless Arrays.

RADIUS 802.1x with EAP

802.1x uses a RADIUS server to authenticate large numbers of

clients, and can handle different EAP (Extensible Authentication

Protocol) authentication methods, including EAP-TLS, EAP-

TTLS and EAP-PEAP. The RADIUS server can be internal

(provided by the Wireless Array) or external. An external

RADIUS server offers more functionality and is recommended

for large Enterprise deployments.

When using this method, user names and passwords must be

entered into the RADIUS server for user authentication.

MAC Address ACLs (Access Control Lists)

MAC address ACLs provide a list of client adapter MAC

addresses that are allowed or denied access to the wireless

TKIP encryption does not support high throughput rates, per the

IEEE 802.11n.

TKIP should never be used for WDS links on XN arrays.

Wireless Array

457

network. Access Control Lists work well when there are a limited

number of users — in this case, enter the MAC addresses of each

user in the Allow list. In the event of a lost or stolen MAC

adapter, enter the affected MAC address in the Deny list.

Q. Why do I need to authenticate my Wireless Array units?

A. When deploying multiple Wireless Arrays, you may need to define which

units are part of which wireless network (for example, if you are

establishing more than one network). In this case, you need to employ the

Xirrus Management System (XMS) which can authenticate your Arrays

automatically and ensure that only authorized units are associated with

the defined wireless network.

Q. What is rogue AP (Access Point) detection?

A. The Wireless Array has integrated monitor capabilities, which can

constantly scan the local wireless environment for rogue APs (non-Xirrus

devices that are not part of your wireless network), unencrypted

transmissions, and other security issues. Administrators can then classify

each rogue AP and ensure that these devices do not interrupt or interfere

with the network.

See Also

Contact Information

General Hints and Tips

Multiple SSIDs

VLAN Support

Q. What Are VLANs?

A. VLANs (Virtual Local Area Networks) are a logical grouping of network

devices that share a common network broadcast domain. Members of a

particular VLAN can be on any segment of the physical network but

logically only members of a particular VLAN can see each other.

Wireless Array

458

VLANs are defined and implemented using the wired network switches

that are VLAN capable. Packets are tagged for transmission on a

particular VLAN according to the IEEE 802.1Q standard, with VLAN

switches processing packets according to the tag.

Q. What would I use VLANs for?

A. Logically separating different types of users, systems, applications, or

other logical division aids in performance and management of different

network devices. Different VLANs can also be assigned with different

packet priorities to prioritize packets from one VLAN over packets from

another VLAN.

VLANs are managed by software settings — instead of physically

plugging in and moving network cables and users — which helps to ease

network management tasks.

Q. What are Wireless VLANs?

A. Wireless VLANs allow similar functionality to the wired VLAN

definitions and extend the operation of wired VLANs to the wireless side

of the network.

Wireless VLANs can be mapped to wireless SSIDs so that traffic from

wired VLANs can be sent to wireless users of a particular SSID. The

reverse is also true, where wireless traffic originating from a particular

SSID can be tagged for transmission on a particular wired VLAN.

Sixteen SSIDs can be defined on your Wireless Array, allowing a total of

sixteen VLANs to be accessed (one per SSID).

As an example, to provide guest user access an SSID of guest might be

created. This SSID could be mapped to a wired VLAN that segregates

unknown users from the rest of the wired network and restricts them to

Internet access only. Wireless users could then associate to the wireless

network via the guest SSID and obtain access to the Internet through the

selected VLAN, but would be unable to access other privileged network

resources.

See Also

Wireless Array

459

Contact Information

General Hints and Tips

Multiple SSIDs

Security

Wireless Array

460

Array Monitor and Radio Assurance Capabilities

All models of the Wireless Array have integrated monitoring capabilities to check

that the Array’s radios are functioning correctly, and act as a threat sensor to

detect and prevent intrusion from rogue access points.

Enabling Monitoring on the Array

Any radio IAP abgn2 may be set to monitor the Array or to be a normal IAP radio.

In order to enable the functions required for intrusion detection and for

monitoring the other Array radios, you must configure one monitor radio on the

IAP Settings window as follows:

Check the Enabled checkbox.

Set Mode to Monitor.

Set Channel to Monitor.

The settings above will automatically set the Antenna selection to

Internal-Omni., also required for monitoring. See the “IAP Settings” on page 274

for more details. The values above are the factory default settings for the Array.

How Monitoring Works

When the monitor radio has been configured as just described, it performs these

steps continuously (24/7) to check the other radios on the Array and detect

possible intrusions:

1. The monitor radio scans all channels with a 200ms dwell time, hitting all

channels about once every 10 seconds.

2. Each time it tunes to a new channel it sends out a probe request in an

attempt to smoke out rogues.

3. It then listens for all probe responses and beacons to detect any rogues

within earshot.

4. Array radios respond to that probe request with a probe response.

Intrusion Detection is enabled or disabled separately from monitoring. See Step 1

in “Advanced RF Settings” on page 313.

Wireless Array

461

Radio Assurance

The Array is capable of performing continuous, comprehensive tests on its radios

to assure that they are operating properly. Testing is enabled using the Radio

Assurance Mode setting on the Advanced RF Settings window (Step 2 in

“Advanced RF Settings” on page 313). When this mode is enabled, the monitor

radio performs loopback tests on the Array. Radio Assurance Mode requires

Intrusion Detection to be set to Standard (See Step 1 in “Advanced RF Settings”

on page 313).

When Radio Assurance Mode is enabled:

1. The Array keeps track of whether or not it hears beacons and probe

responses from the Array’s radios.

2. After 10 minutes (roughly 60 passes on a particular channel by the

monitor radio), if it has not heard beacons or probe responses from one of

the Array’s radios it issues an alert in the Syslog. If repair is allowed (see

“Radio Assurance Options” on page 462), the Array will reset and

reprogram that particular radio at the Physical Layer (PHY — Layer 1).

This action takes under 100ms and stations are not deauthenticated, thus

users should not be impacted.

3. After another 10 minutes (roughly another 60 passes), if the monitor still

has not heard beacons or probe responses from the malfunctioning radio

it will again issue an alert in the Syslog. If repair is allowed, the Array will

reset and reprogram the MAC (the lower sublayer of the Data Link Layer)

and then all of the PHYs. This is a global action that affects all radios. This

action takes roughly 300ms and stations are not deauthenticated, thus

users should not be impacted.

4. After another 10 minutes, if the monitor still has not heard beacons or

probe responses from that radio, it will again syslog the issue. If reboot is

allowed (see “Radio Assurance Options” on page 462), the Array will

schedule a reboot. This reboot will occur at one of the following times,

whichever occurs first:

•When no stations are associated to the Array

•Midnight

Wireless Array

462

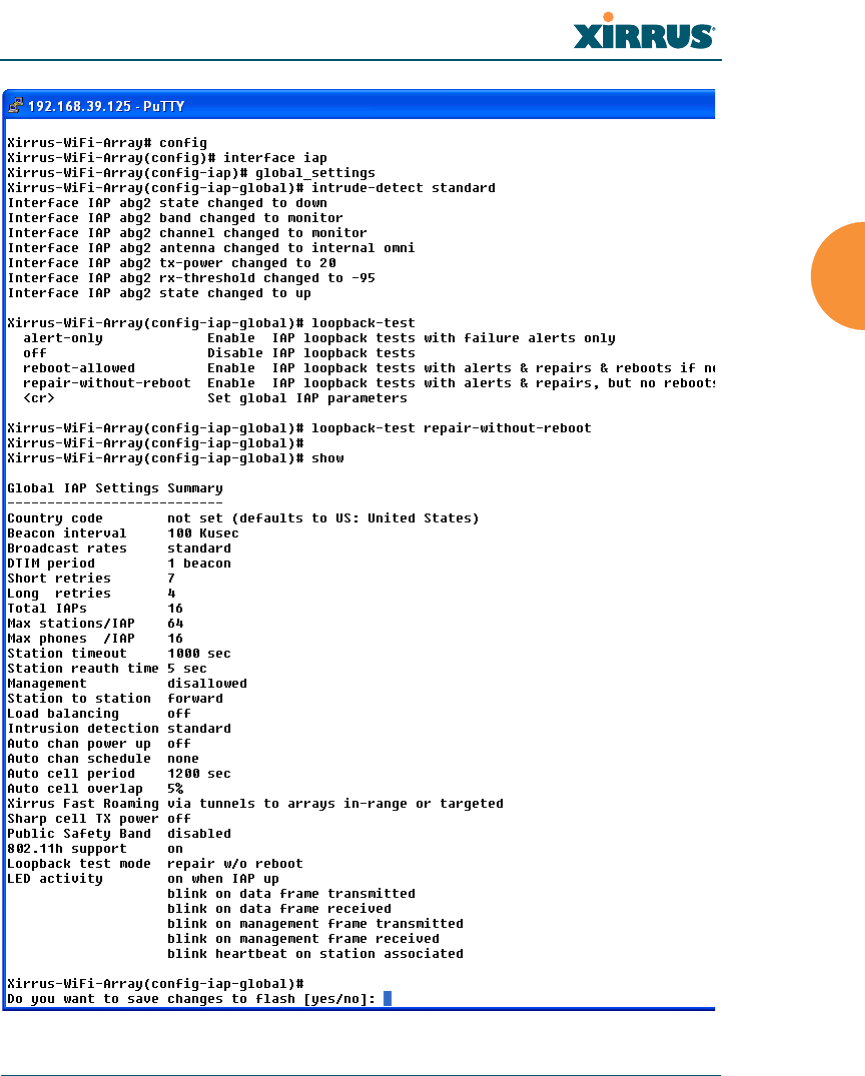

Radio Assurance Options

If the monitor detects a problem with an Array radio as described above, it will

take action according to the preference that you have specified in the Radio

Assurance Mode setting on the Advanced RF Settings window (see Step 2

page 315):

Failure alerts only — The Array will issue alerts in the Syslog, but will not

initiate repairs or reboots.

Failure alerts & repairs, but no reboots — The Array will issue alerts and

perform resets of the PHY and MAC as described above.

Failure alerts & repairs & reboots if needed — The Array will issue

alerts, perform resets of the PHY and MAC, and schedule reboots as

described above.

Disabled — Disable IAP loopback tests (no self-monitoring occurs).

Loopback tests are disabled by default.

Wireless Array

463

RADIUS Vendor Specific Attribute (VSA) for Xirrus

A RADIUS VSA is defined for Xirrus Arrays to control administrator privileges

settings for user accounts. The RADIUS VSA is used by Arrays to define the

following attribute for administrator accounts:

Array administrators — the Xirrus-Admin-Role attribute sets the

privilege level for this account. Set the value to the string defined in

Privilege Level Name as described in “About Creating Admin Accounts

on the RADIUS Server” on page 218.

Wireless Array

464

Upgrading the Array via CLI

If you are experiencing difficulties communicating with the Array using the Web

Management Interface, the Array provides lower-level facilities that may be used

to accomplish an upgrade via the CLI and the Xirrus Boot Loader (XBL).

1. Download the latest software update from the Xirrus FTP site using your

Enhanced Care FTP username and password. If you do not have an FTP

username and password, contact Xirrus Customer Service for assistance

(support@xirrus.com). The software update is provided as a zip file.

Unzip the contents to a local temp directory. Take note of the extracted file

name in case you need it later on — you may also need to copy this file

elsewhere on the network depending on your situation.

2. Install a TFTP server software package if you don't have one running. It

may be installed on any PC on your network, including your desktop or

laptop. The Solar Winds version is freeware and works well.

http://support.solarwinds.net/updates/New-customerFree.cfm?ProdId=52

The TFTP install process creates the TFTP-Root directory on your C:

drive, which is the default target for sending and receiving files. This may

be changed if desired. This directory is where you will place the extracted

Xirrus software update file(s). If you install the TFTP server on the same

computer to which you extracted the file, you may change the TFTP

directory to C:\xirrus if desired.

You must make the following change to the default configuration of the

Solar Winds TFTP server. In the File/Configure menu, select Security,

then select Transmit only and click OK.

3. Determine the IP address of the computer hosting the TFTP server. (To

display the IP address, open a command prompt and type ipconfig)

4. Connect your Array to the computer running TFTP using a serial cable,

and open a terminal program if you haven't already. Attach a network

cable to the Array’s GIG1 port, if it is not already part of your network.

Wireless Array

465

Boot your Array and watch the progress messages. When Press space bar

to exit to bootloader: is displayed, press the space bar. The rest of this

procedure is performed using the bootloader.

The following steps assume that you are running DHCP on your local

network.

5. Type dhcp and hit return. This instructs the Array to obtain a DHCP

address and use it during this boot in the bootloader environment.

6. Type dir and hit return to see what's currently in the compact flash.

7. Type del and hit return to delete the contents of the compact flash.

8. Type update server <TFTP-server-ip-addr> XS-5.x-xxxx.bin (the actual

Xirrus file name will vary depending on Array model number and

software version — use the file name from your software update) and hit

return. The software update will be transferred to the Array's memory

and will be written to the compact flash card. (See output below.)

9. Type reset and hit return. Your Array will reboot, running your new

version of software.

Sample Output for the Upgrade Procedure:

The user actions are highlighted in the output below, for clarity.

Username: admin

Password: *****

Xirrus-WiFi-Array# configure

Xirrus-WiFi-Array(config)# reboot

Are you sure you want to reboot? [yes/no]: yes

Array is being rebooted.

Xirrus Boot Loader 1.0.0 (Oct 17 2006 - 13:11:42), Build: 2725

Processor | Motorola PowerPC, PVR=80200020 SVR=80300020

Board | Xirrus MPC8540 CPU Board

Clocks | CPU : 825 MHz DDR : 330 MHz Local Bus: 41 MHz

Wireless Array

466

L1 cache | Data: 32 KB Inst: 32 KB Status : Enabled

Watchdog | Enabled (5 secs)

I2C Bus | 400 KHz

DTT | CPU:34C RF0:34C RF1:34C RF2:27C RF3:29C

RTC | Wed 2007-Nov-05 6:43:14 GMT

System DDR | 256 MB, Unbuffered Non-ECC (2T)

L2 cache | 256 KB, Enabled

FLASH | 4 MB, CRC: OK

FPGA | 2 Devices programmed

Packet DDR | 256 MB, Unbuffered Non-ECC, Enabled

Network | Mot FEC Mot TSEC1 [Primary] Mot TSEC2

IDE Bus 0 | OK

CFCard | 122 MB, Model: Hitachi XXM2.3.0

Environment| 4 KB, Initialized

In: serial

Out: serial

Err: serial

Press space bar to exit to bootloader:

XBL>dhcp

[DHCP ] Device : Mot TSEC1 1000BT Full Duplex

[DHCP ] IP Addr : 192.168.39.195

XBL>dir

[CFCard] Directory of /

Date Time Size File or Directory name

----------- -------- -------- ---------------------------

2007-Nov-05 6:01:56 29 lastboot

2007-Apr-05 15:47:46 28210390 xs-3.1-0433.bak

2007-Mar-01 16:39:42 storage/

2007-Apr-05 15:56:38 28210430 xs-3.1-0440.bin

2007-Mar-03 0:56:28 wpr/

3 file(s), 2 dir(s)

Wireless Array

467

XBL>del *

[CFCard] Delete : 2 file(s) deleted

XBL>update server 192.168.39.102 xs-3.0-0425.bin

[TFTP ] Device : Mot TSEC1 1000BT Full Duplex

[TFTP ] Client : 192.168.39.195

[TFTP ] Server : 192.168.39.102

[TFTP ] File : xs-3.0-0425.bin

[TFTP ] Address : 0x1000000

[TFTP ] Loading : ##################################################

[TFTP ] Loading : ###### done

[TFTP ] Complete: 12.9 sec, 2.1 MB/sec

[TFTP ] Bytes : 27752465 (1a77811 hex)

[CFCard] File : xs-3.0-0425.bin

[CFCard] Address : 0x1000000

[CFCard] Saving : ############################################### done

[CFCard] Complete: 137.4 sec, 197.2 KB/sec

[CFCard] Bytes : 27752465 (1a77811 hex)

XBL>reset

[RESET ]

Xirrus Boot Loader 1.0.0 (Oct 17 2006 - 13:11:42), Build: 2725

Processor | Motorola PowerPC, PVR=80200020 SVR=80300020

Board | Xirrus MPC8540 CPU Board

Clocks | CPU : 825 MHz DDR : 330 MHz Local Bus: 41 MHz

L1 cache | Data: 32 KB Inst: 32 KB Status : Enabled

Watchdog | Enabled (5 secs)

I2C Bus | 400 KHz

DTT | CPU:33C RF0:32C RF1:31C RF2:26C RF3:27C

RTC | Wed 2007-Nov-05 6:48:44 GMT

System DDR | 256 MB, Unbuffered Non-ECC (2T)

Wireless Array

468

L2 cache | 256 KB, Enabled

FLASH | 4 MB, CRC: OK

FPGA | 2 Devices programmed

Packet DDR | 256 MB, Unbuffered Non-ECC, Enabled

Network | Mot FEC Mot TSEC1 [Primary] Mot TSEC2

IDE Bus 0 | OK

CFCard | 122 MB, Model: Hitachi XXM2.3.0

Environment| 4 KB, Initialized

In: serial

Out: serial

Err: serial

Press space bar to exit to bootloader:

[CFCard] File : xs*.bin

[CFCard] Address : 0x1000000

[CFCard] Loading : ############################################### done

[CFCard] Complete: 26.9 sec, 1.0 MB/sec

[CFCard] Bytes : 27752465 (1a77811 hex)

[Boot ] Address : 0x01000000

[Boot ] Image : Verifying checksum .... OK

[Boot ] Unzip : Multi-File Image .... OK

[Boot ] Initrd : Loading RAMDisk Image

[Boot ] Initrd : Verifying checksum .... OK

[Boot ] Execute : Transferring control to OS

Initializing hardware ........................................ OK

Xirrus Wi-Fi Array

ArrayOS Version 3.0-425

http://www.xirrus.com

Username:

Wireless Array

469

Contact Information

Xirrus, Inc. is located in Thousand Oaks, California, just 55 minutes northwest of

downtown Los Angeles and 40 minutes southeast of Santa Barbara.

Xirrus, Inc.

2101 Corporate Center Drive

Thousand Oaks, CA 91320

USA

Tel: 1.805.262.1600

1.800.947.7871 Toll Free in the US

Fax: 1.866.462.3980

www.xirrus.com

support.xirrus.com

Wireless Array

470

Wireless Array

471

Appendix C: Notices

This appendix contains the following information:

“Notices” on page 471

“EU Directive 1999/5/EC Compliance Information” on page 475

“Compliance Information (Non-EU)” on page 482

“Safety Warnings” on page 483

“Translated Safety Warnings” on page 484

“Software License and Product Warranty Agreement” on page 485

“Hardware Warranty Agreement” on page 491

Notices

Wi-Fi Alliance Certification

www.wi-fi.org

FCC Notice

This device complies with Part 15 of the FCC Rules, with operation subject to the

following two conditions: (1) This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause unwanted operation.

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate RF energy and, if not

installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be

Wireless Array

472

determined by turning the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following safety measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and the receiver.

Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

Consult the dealer or an experienced wireless technician for help.

Use of a shielded twisted pair (STP) cable must be used for all Ethernet

connections in order to comply with EMC requirements.

This transmitter must not be co-located or operating in conjunction with any

other antenna or transmitter.

Operations in the 5.15-5.25GHz band are restricted to indoor usage only.

High Power Radars

High power radars are allocated as primary users (meaning they have priority) in

the 5250MHz to 5350MHz and 5650MHz to 5850MHz bands. These radars could

cause interference and/or damage to LE-LAN devices.

Non-Modification Statement

Unauthorized changes or modifications to the device are not permitted. Use only

the supplied internal antenna, or external antennas supplied by the manufacturer.

Modifications to the device will void the warranty and may violate FCC

regulations. Please go to the Xirrus Web site for a list of all approved antennas.

Cable Runs for Power over Gigabit Ethernet (PoGE)

If using PoGE, the Array must be connected to PoGE networks without routing

cabling to the outside plant — this ensures that cabling is not exposed to lightning

strikes or possible cross over from high voltage.

!FCC Caution: Any changes or modifications not expressly approved by the

party responsible for compliance could void the user's authority to operate this

equipment.

Wireless Array

473

Battery Warning

UL Statement

Use only with listed ITE product.

RF Radiation Hazard Warning

To ensure compliance with FCC and Industry Canada RF exposure requirements,

this device must be installed in a location where the antennas of the device will

have a minimum distance of at least 30 cm (12 inches) from all persons. Using

higher gain antennas and types of antennas not certified for use with this product

is not allowed. The device shall not be co-located with another transmitter.

Installez l'appareil en veillant à conserver une distance d'au moins 30 cm entre les

éléments rayonnants et les personnes. Cet avertissement de sécurité est conforme

aux limites d'exposition définies par la norme CNR-102 at relative aux fréquences

radio.

Industry Canada Statement

This device complies with RSS-210 of the Industry Canada Rules. Operation is

subject to the following two conditions: (1) This device may not cause harmful

interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation.

Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux

appareils radio exempts de licence. Son fonctionnement est sujet aux deux

conditions suivantes: (1) le dispositif ne doit pas produire de brouillage

préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un

brouillage susceptible de provoquer un fonctionnement indésirable.

!Caution! The Array contains a battery which is not to be replaced by the

customer. Danger of Explosion exists if the battery is incorrectly replaced.

Replace only with the same or equivalent type recommended by the

manufacturer. Dispose of used batteries according to the manufacturer's

instructions.



Wireless Array

474

Caution :

(i) the device for operation in the band 5150-5250 MHz is only for indoor use to

reduce the potential for harmful interference to co-channel mobile satellite

systems;

(ii) high-power radars are allocated as primary users (i.e. priority users) of the

bands 5250-5350 MHz and 5650-5850 MHz and that these radars could cause

interference and/or damage to LE-LAN devices.

Avertissement:

(i) les dispositifs fonctionnant dans la bande 5 150-5 250 MHz sont réservés

uniquement pour une utilisation à l'intérieur afin de réduire les risques de

brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes

canaux;

(ii) De plus, les utilisateurs devraient aussi être avisés que les utilisateurs de

radars de haute puissance sont désignés utilisateurs principaux (c.-à-d., qu'ils ont

la priorité) pour les bandes 5 250-5 350 MHz et 5 650-5 850 MHz et que ces radars

pourraient causer du brouillage et/ou des dommages aux dispositifs LAN-EL.

High Power Radars

High power radars are allocated as primary users (meaning they have priority) in

the 5250MHz to 5350MHz and 5650MHz to 5850MHz bands. These radars could

cause interference and/or damage to LELAN devices used in Canada.

Les utilisateurs de radars de haute puissance sont désignés utilisateurs

principaux (c.-à-d., qu’ils ont la priorité) pour les bandes 5 250 - 5 350 MHz et

5 650 - 5 850 MHz. Ces radars pourraient causer du brouillage et/ou des

dommages aux dispositifs LAN-EL.

Wireless Array

475

EU Directive 1999/5/EC Compliance Information

This section contains compliance information for the Xirrus Wireless Array family

of products. The compliance information contained in this section is relevant to

the European Union and other countries that have implemented the EU Directive

1999/5/EC.

Declaration of Conformity

Cesky [Czech] Toto zahzeni je v souladu se základnimi požadavky a

ostatnimi odpovidajcimi ustano veni mi Směrnice

1999/5/EC.

Dansk [Danish] Dette udstyr er i overensstemmelse med de

væsentlige krav og andre relevante bestemmelser i

Direktiv 1999/5/EF.

Deutsch [German] Dieses Gerat entspricht den grundlegenden

Anforderungen und den weiteren entsprechenden

Vorgaben der Richtinie 1999/5/EU.

Eesti [Estonian] See seande vastab direktiivi 1999/5/EU olulistele

nöuetele ja teistele as jakohastele sätetele.

English This equipment is in compliance with the essential

requirements and other relevant provisions of

Directive 1999/5/EC.

Español [Spain] Este equipo cump le con los requisitos esenciales asi

como con otras disposiciones de la Directiva 1999/5/

CE.

Ελληνυκη [Greek] Αυτόζ ο εξοπλτσμόζ είναι σε συμμόρφωση με τιζ

ουσιώδειζ απαιτήσειζ και ύλλεζ σχετικέζ διατάξειζ τηζ

Οδηγιαζ 1999/5/EC.

Français [French] Cet appareil est conforme aux exigences essentielles

et aux autres dispositions pertinentes de la Directive

1999/5/EC.

Wireless Array

476

ĺslenska [Icelandic] Þetta tæki er samkvæmt grunnkröfum og öðrum

viðeigandi ákvæðum Tilskipunar 1999/5/EC.

Italiano [Italian] Questo apparato é conforme ai requisiti essenziali ed

agli altri principi sanciti dalla Direttiva 1999/5/CE.

Latviski [Latvian] Šī iekārta atbilst Direktīvas 1999/5/EK būtiskajā

prasībām un citiem ar to saistītajiem noteikumiem.

Lietuvių [Lithuanian] Šis įrenginys tenkina 1995/5/EB Direktyvos

esminius reikalavimus ir kitas šios direktyvos

nuostatas.

Nederlands [Dutch] Dit apparant voldoet aan de essentiele eisen en

andere van toepassing zijnde bepalingen van de

Richtlijn 1995/5/EC.

Malti [Maltese] Dan l-apparant huwa konformi mal-htigiet essenzjali

u l-provedimenti l-ohra rilevanti tad-Direttiva 1999/

5/EC.

Margyar [Hungarian] Ez a készülék teljesiti az alapvetö követelményeket

és más 1999/5/EK irányelvben meghatározott

vonatkozó rendelkezéseket.

Norsk [Norwegian] Dette utstyret er i samsvar med de grunnleggende

krav og andre relevante bestemmelser i EU-direktiv

1999/5/EF.

Polski [Polish] Urządzenie jest zgodne z ogólnymi wymaganiami

oraz sczególnymi mi warunkami określony mi

Dyrektywą. UE:1999/5/EC.

Portuguès [Portuguese] Este equipamento está em conformidade com os

requisitos essenciais e outras provisões relevantes da

Directiva 1999/5/EC.

Slovensko [Slovenian] Ta naprava je skladna z bistvenimi zahtevami in

ostalimi relevantnimi popoji Direktive 1999/5/EC.

Wireless Array

477

Assessment Criteria

The following standards were applied during the assessment of the product

against the requirements of the Directive 1999/5/EC:

Radio: EN 301 893 and EN 300 328 (if applicable)

EMC: EN 301 489-1 and EN 301 489-17

Safety: EN 50371 to EN 50385 and EN 60601

CE Marking

For the Xirrus Wireless Array, the CE mark and Class-2 identifier opposite are

affixed to the equipment and its packaging:

Slovensky [Slovak] Toto zariadenie je v zhode so základnými

požadavkami a inými prislušnými nariadeniami

direktiv: 1999/5/EC.

Suomi [Finnish] Tämä laite täyttää direktiivin 1999/5//EY olennaiset

vaatimukset ja on siinä asetettujen muiden laitetta

koskevien määräysten mukainen.

Svenska [Swedish] Denna utrustning är i överensstämmelse med de

väsentliga kraven och andra relevanta bestämmelser

i Direktiv 1999/5/EC.

Wireless Array

478

WEEE Compliance

Natural resources were used in the production of

this equipment.

This equipment may contain hazardous

substances that could impact the health of the

environment.

In order to avoid harm to the environment and

consumption of natural resources, we encourage

you to use appropriate take-back systems when

disposing of this equipment.

The appropriate take-back systems will reuse or

recycle most of the materials of this equipment in

a way that will not harm the environment.

The crossed-out wheeled bin symbol (in

accordance with European Standard EN 50419)

invites you to use those take-back systems and

advises you not to combine the material with

refuse destined for a land fill.

If you need more information on collection, re-

use and recycling systems, please contact your

local or regional waste administration.

Please contact Xirrus for specific information on

the environmental performance of our products.

Wireless Array

479

National Restrictions

In the majority of the EU and other European countries, the 2.4 GHz and 5 GHz

bands have been made available for the use of Wireless LANs. The following table

provides an overview of the regulatory requirements in general that are

applicable for the 2.4 GHz and 5 GHz bands.

*Dynamic frequency selection and Transmit Power Control is required in these

frequency bands.

**France is indoor use only in the upper end of the band.

The requirements for any country may change at any time. Xirrus recommends

that you check with local authorities for the current status of their national

regulations for both 2.4 GHz and 5 GHz wireless LANs.

The following countries have additional requirements or restrictions than those

listed in the above table:

Belgium

The Belgian Institute for Postal Services and Telecommunications (BIPT) must

be notified of any outdoor wireless link having a range exceeding 300 meters.

Xirrus recommends checking at www.bipt.be for more details.

Draadloze verbindingen voor buitengebruik en met een reikwijdte van meer dan 300

meter dienen aangemeld te worden bij het Belgisch Instituut voor postdiensten en

telecommunicatie (BIPT). Zie www.bipt.be voor meer gegevens.

Frequency

Band (MHz) Max Power Level

(EIRP) (mW) Indoor Outdoor

2400–2483.5 100 X X**

5250–5350* 200 X N/A

5470–5725* 1000 X X

Wireless Array

480

Les liasons sans fil pour une utilisation en extérieur d’une distance supérieure à 300

mèters doivent être notifiées à l’Institut Belge des services Postaux et des

Télécommunications (IBPT). Visitez www.bipt.be pour de plus amples détails.

Greece

A license from EETT is required for the outdoor operation in the 5470 MHz to

5725 MHz band. Xirrus recommends checking www.eett.gr for more details.

Η δη ιουργβάικτ ωνεξωτερικο ρουστη ζ νησυ νοτ των 5470–5725 ΜΗz ε ιτρ ετάιωνο

ετάά όάδειά της ΕΕΤΤ, ου ορηγεβτάι στερά ά ό σ φωνη γν η του ΓΕΕΘΑ. ερισσότερες

λε τομ ρειεωστο www.eett.gr

Italy

This product meets the National Radio Interface and the requirements

specified in the National Frequency Allocation Table for Italy. Unless this

wireless LAN product is operating within the boundaries of the owner’s

property, its use requires a “general authorization.” Please check with

www.communicazioni.it/it/ for more details.

Questo prodotto é conforme alla specifiche di Interfaccia Radio Nazionali e rispetta il

Piano Nazionale di ripartizione delle frequenze in Italia. Se non viene installato

all’interno del proprio fondo, l’utilizzo di prodotti wireless LAN richiede una

“autorizzazione Generale.” Consultare www.communicazioni.it/it/ per maggiori

dettagli.

Norway, Switzerland and Liechtenstein

Although Norway, Switzerland and Liechtenstein are not EU member states,

the EU Directive 1999/5/EC has also been implemented in those countries.

Calculating the Maximum Output Power

The regulatory limits for maximum output power are specified in EIRP (radiated

power). The EIRP level of a device can be calculated by adding the gain of the

antenna used (specified in dBi) to the output power available at the connector

(specified in dBm).

Wireless Array

481

Antennas

The Xirrus Wireless Array employs integrated antennas that cannot be removed

and which are not user accessible. Nevertheless, as regulatory limits are not the

same throughout the EU, users may need to adjust the conducted power setting

for the radio to meet the EIRP limits applicable in their country or region.

Adjustments can be made from the product’s management interface — either Web

Management Interface (WMI) or Command Line Interface (CLI).

Operating Frequency

The operating frequency in a wireless LAN is determined by the access point. As

such, it is important that the access point is correctly configured to meet the local

regulations. See National Restrictions in this section for more information.

If you still have questions regarding the compliance of Xirrus products or you

cannot find the information you are looking for, please contact us at:

Xirrus, Inc.

2101 Corporate Center Drive

Thousand Oaks, CA 91320

USA

Tel: 1.805.262.1600

1.800.947.7871 Toll Free in the US

Fax: 1.866.462.3980

www.xirrus.com

Wireless Array

482

Compliance Information (Non-EU)

This section contains compliance information for the Xirrus Wireless Array family

of products. The compliance information contained in this section is relevant to

the listed countries (outside of the European Union and other countries that have

implemented the EU Directive 1999/5/EC).

Declaration of Conformity

Mexico XN16: Cofetel Cert #: RCPXIXN10-1052 

XN12: Cofetel Cert #: RCPXIXN10-1052-A1 

XN8: Cofetel Cert #: RCPXIXN10-1052-A2

XN4: Cofetel Cert #: RCPXIXN10-1052-A3

Thailand This telecommunication equipment conforms to

NTC technical requirement.

Wireless Array

483

Safety Warnings

Translated safety warnings appear on the following page.

!Safety Warnings

Read all user documentation before powering this device. All Xirrus

interconnected equipment should be contained indoors. This product is

not suitable for outdoor operation. Please verify the integrity of the

system ground prior to installing Xirrus equipment. Additionally,

verify that the ambient operating temperature does not exceed 40°C.

!Explosive Device Proximity Warning

Do not operate the XR Series Wireless Array near unshielded blasting

caps or in an explosive environment unless the device has been

modified to be especially qualified for such use.

!Lightning Activity Warning

Do not work on the XR Series Wireless Array or connect or disconnect

cables during periods of lightning activity.

!Circuit Breaker Warning

The XR Series Wireless Array relies on the building’s installation for

over current protection. Ensure that a fuse or circuit breaker no larger

than 120 VAC, 15A (U.S.) or 240 VAC, 10A (International) is used on all

current-carrying conductors.

Wireless Array

484

Translated Safety Warnings

Avertissements de Sécurité

!Sécurité

Lisez l'ensemble de la documentation utilisateur avant de mettre cet

appareil sous tension. Tous les équipements Xirrus interconnectés

doivent être installés en intérieur. Ce produit n'est pas conçu pour être

utilisé en extérieur. Veuillez vérifier l'intégrité de la terre du système

avant d'installer des équipements Xirrus. Vérifiez également que la

température de fonctionnement ambiante n'excède pas 40°C.

!Proximité d'appareils explosifs

N'utilisez pas l'unité XR Wireless Array à proximité d'amorces non

blindées ou dans un environnement explosif, à moins que l'appareil

n'ait été spécifiquement modifié pour un tel usage.

!Foudre

N'utilisez pas l'unité XR Wireless Array et ne branchez pas ou ne

débranchez pas de câbles en cas de foudre.

!Disjoncteur

L'unité XR Wireless Array dépend de l'installation du bâtiment pour ce

qui est de la protection contre les surintensités. Assurez-vous qu'un

fusible ou qu'un disjoncteur de 120 Vca, 15 A (États-Unis) ou de 240

Vca, 10 A (International) maximum est utilisé sur tous les conducteurs

de courant.

Wireless Array

485

Software License and Product Warranty Agreement

THIS SOFTWARE LICENSE AGREEMENT (THE “AGREEMENT”) IS A LEGAL

AGREEMENT BETWEEN YOU (“CUSTOMER”) AND LICENSOR (AS DEFINED

BELOW) AND GOVERNS THE USE OF THE SOFTWARE INSTALLED ON THE

PRODUCT (AS DEFINED BELOW). IF YOU ARE AN EMPLOYEE OR AGENT

OF CUSTOMER, YOU HEREBY REPRESENT AND WARRANT TO LICENSOR

THAT YOU HAVE THE POWER AND AUTHORITY TO ACCEPT AND TO

BIND CUSTOMER TO THE TERMS AND CONDITIONS OF THIS AGREEMENT

(INCLUDING ANY THIRD PARTY TERMS SET FORTH HEREIN). IF YOU DO

NOT AGREE TO ALL OF THE TERMS OF THIS AGREEMENT RETURN THE

PRODUCT AND ALL ACCOMPANYING MATERIALS (INCLUDING ALL

DOCUMENTATION) TO THE RELEVANT VENDOR FOR A FULL REFUND OF

THE PURCHASE PRICE THEREFORE.

CUSTOMER UNDERSTANDS AND AGREES THAT USE OF THE PRODUCT

AND SOFTWARE SHALL BE DEEMED AN AGREEMENT TO THE TERMS

AND CONDITIONS GOVERNING SUCH SOFTWARE AND THAT CUSTOMER

IS BOUND BY AND BECOMES A PARTY TO THIS AGREEMENT.

1.0 DEFINITIONS

1.1 “Documentation” means the user manuals and all other all documentation,

instructions or other similar materials accompanying the Software covering

the installation, application, and use thereof.

1.2 “Licensor” means XIRRUS and its suppliers.

1.3 “Product” means a multi-radio access point containing four or more distinct

radios capable of simultaneous operation on four or more non-overlapping

channels.

1.4 “Software” means, collectively, each of the application and embedded

software programs delivered to Customer in connection with this Agreement.

For purposes of this Agreement, the term Software shall be deemed to include

any and all Documentation and Updates provided with or for the Software.

1.5 “Updates” means any bug-fix, maintenance or version release to the Software

that may be provided to Customer from Licensor pursuant to this Agreement

or pursuant to any separate maintenance and support agreement entered into

by and between Licensor and Customer.

2.0 GRANT OF RIGHTS

2.1 Software. Subject to the terms and conditions of this Agreement, Licensor

hereby grants to Customer a perpetual, non-exclusive, non-sublicenseable,

non-transferable right and license to use the Software solely as installed on

Wireless Array

486

the Product in accordance with the accompanying Documentation and for no

other purpose.

2.2 Ownership. The license granted under Sections 2.1 above with respect to the

Software does not constitute a transfer or sale of Licensor's or its suppliers'

ownership interest in or to the Software, which is solely licensed to Customer.

The Software is protected by both national and international intellectual

property laws and treaties. Except for the express licenses granted to the

Software, Licensor and its suppliers retain all rights, title and interest in and

to the Software, including (i) any and all trade secrets, copyrights, patents and

other proprietary rights therein or thereto or (ii) any Marks (as defined in

Section 2.3 below) used in connection therewith. In no event shall Customer

remove, efface or otherwise obscure any Marks contained on or in the

Software. All rights not expressly granted herein are reserved by Licensor.

2.3 Copies. Customer shall not make any copies of the Software but shall be

permitted to make a reasonable number of copies of the related

Documentation. Whenever Customer copies or reproduces all or any part of

the Documentation, Customer shall reproduce all and not efface any titles,

trademark symbols, copyright symbols and legends, and other proprietary

markings or similar indicia of origin (“Marks”) on or in the Documentation.

2.4 Restrictions. Customer shall not itself, or through any parent, subsidiary,

affiliate, agent or other third party (i) sell, rent, lease, license or sublicense,

assign or otherwise transfer the Software, or any of Customer's rights and

obligations under this Agreement except as expressly permitted herein; (ii)

decompile, disassemble, or reverse engineer the Software, in whole or in part,

provided that in those jurisdictions in which a total prohibition on any

reverse engineering is prohibited as a matter of law and such prohibition is

not cured by the fact that this Agreement is subject to the laws of the State of

California, Licensor agrees to grant Customer, upon Customer's written

request to Licensor, a limited reverse engineering license to permit

interoperability of the Software with other software or code used by

Customer; (iii) allow access to the Software by any user other than by

Customer's employees and contractors who are bound in writing to

confidentiality and non-use restrictions at least as protective as those set forth

herein; (iv) except as expressly set forth herein, write or develop any

derivative software or any other software program based upon the Software;

(v) use any computer software or hardware which is designated to defeat any

copy protection or other use limiting device, including any device intended to

limit the number of users or devices accessing the Product; (vi) disclose

information about the performance or operation of the Product or Software to

any third party without the prior written consent of Licensor; or (vii) engage a

third party to perform benchmark or functionality testing of the Product or

Software.

Wireless Array

487

3.0 LIMITED WARRANTY AND LIMITATION OF LIABILITY

3.1 Limited Warranty & Exclusions. Licensor warrants that the Software will

perform in substantial accordance with the specifications therefore set forth in

the Documentation for a period of ninety [90] days after Customer's

acceptance of the terms of this Agreement with respect to the Software

(“Warranty Period”). If during the Warranty Period the Software or Product

does not perform as warranted, Licensor shall, at its option, correct the

relevant Product and/or Software giving rise to such breach of performance

or replace such Product and/or Software free of charge. THE FOREGOING

ARE CUSTOMER'S SOLE AND EXCLUSIVE REMEDIES FOR BREACH OF

THE FOREGOING WARRANTY. THE WARRANTY SET FORTH ABOVE IS

MADE TO AND FOR THE BENEFIT OF CUSTOMER ONLY. The warranty

will apply only if (i) the Software has been used at all times and in accordance

with the instructions for use set forth in the Documentation and this

Agreement; (ii) no modification, alteration or addition has been made to the

Software by persons other than Licensor or Licensor's authorized

representative; and (iii) the Software or Product on which the Software is

installed has not been subject to any unusual electrical charge.

3.2 DISCLAIMER. EXCEPT AS EXPRESSLY STATED IN THIS SECTION 3, ALL

ADDITIONAL CONDITIONS, REPRESENTATIONS, AND WARRANTIES,

WHETHER IMPLIED, STATUTORY OR OTHERWISE, INCLUDING,

WITHOUT LIMITATION, ANY IMPLIED WARRANTIES OR CONDITIONS

OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE,

SATISFACTORY QUALITY, ACCURACY, AGAINST INFRINGEMENT OR

ARISING FROM A COURSE OF DEALING, USAGE, OR TRADE

PRACTICE, ARE HEREBY DISCLAIMED BY LICENSOR AND ITS

SUPPLIERS. THIS DISCLAIMER SHALL APPLY EVEN IF ANY EXPRESS

WARRANTY AND LIMITED REMEDY OFFERED BY LICENSOR FAILS OF

ITS ESSENTIAL PURPOSE. ALL WARRANTIES PROVIDED BY LICENSOR

ARE SUBJECT TO THE LIMITATIONS OF LIABILITY SET FORTH IN THIS

AGREEMENT.

3.3 HAZARDOUS APPLICATIONS. THE SOFTWARE IS NOT DESIGNED OR

INTENDED FOR USE IN HAZARDOUS ENVIRONMENTS REQUIRING

FAIL SAFE PERFORMANCE, SUCH AS IN THE OPERATION OF A

NUCLEAR FACILITY, AIRCRAFT NAVIGATION OR COMMUNICATIONS

SYSTEMS, AIR TRAFFIC CONTROLS OR OTHER DEVICES OR SYSTEMS

IN WHICH A MALFUNCTION OF THE SOFTWARE WOULD RESULT IN

FORSEEABLE RISK OF INJURY OR DEATH TO THE OPERATOR OF THE

DEVICE OR SYSTEM OR TO OTHERS (“HAZARDOUS APPLICATIONS”).

CUSTOMER ASSUMES ANY AND ALL RISKS, INJURIES, LOSSES, CLAIMS

AND ANY OTHER LIABILITIES ARISING OUT OF THE USE OF THE

SOFTWARE IN ANY HAZARDOUS APPLICATIONS.

Wireless Array

488

3.4 Limitation of Liability.

(a) TOTAL LIABILITY. NOTWITHSTANDING ANYTHING ELSE HEREIN,

ALL LIABILITY OF LICENSOR AND ITS SUPPLIERS UNDER THIS

AGREEMENT SHALL BE LIMITED TO THE AMOUNT PAID BY

CUSTOMER FOR THE RELEVANT SOFTWARE, OR PORTION

THEREOF, THAT GAVE RISE TO SUCH LIABILITY OR ONE

HUNDRED UNITED STATES DOLLARS (US$100), WHICHEVER IS

GREATER. THE LIABILITY OF LICENSOR AND ITS SUPPLIERS

UNDER THIS SECTION SHALL BE CUMULATIVE AND NOT PER

INCIDENT.

(b) DAMAGES. IN NO EVENT SHALL LICENSOR, ITS SUPPLIERS OR

THEIR RELEVANT SUBCONTRACTORS BE LIABLE FOR (A) ANY

INCIDENTAL, SPECIAL, PUNITIVE OR CONSEQUENTIAL

DAMAGES, LOST PROFITS OR LOST OR DAMAGED DATA, OR ANY

INDIRECT DAMAGES, WHETHER ARISING IN CONTRACT, TORT

(INCLUDING NEGLIGENCE AND STRICT LIABILITY) OR

OTHERWISE OR (B) ANY COSTS OR EXPENSES FOR THE

PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES IN EACH

CASE, EVEN IF LICENSOR OR ITS SUPPLIERS HAVE BEEN

INFORMED OF THE POSSIBILITY OF SUCH DAMAGES.

3.5 Exclusions. SOME JURISDICTIONS DO NOT PERMIT THE LIMITATIONS

OF LIABILITY AND LIMITED WARRANTIES SET FORTH UNDER THIS

AGREEMENT. IN THE EVENT YOU ARE LOCATED IN ANY SUCH

JURISDICTION, THE FOREGOING LIMITATIONS SHALL APPLY ONLY

TO THE MAXIMUM EXTENT PERMITTED IN SUCH JURISDICTIONS. IN

NO EVENT SHALL THE FOREGOING EXCLUSIONS AND LIMITATIONS

ON DAMAGES BE DEEMED TO APPLY TO ANY LIABILITY BASED ON

FRAUD, WILLFUL MISCONDUCT, GROSS NEGLIGENCE OR PERSONAL

INJURY OR DEATH.

4.0 CONFIDENTIAL INFORMATION

4.1 Generally. The Software (and its accompanying Documentation) constitutes

Licensor's and its suppliers' proprietary and confidential information and

contains valuable trade secrets of Licensor and its suppliers (“Confidential

Information”). Customer shall protect the secrecy of the Confidential

Information to the same extent it protects its other valuable, proprietary and

confidential information of a similar nature but in no event shall Customer

use less than reasonable care to maintain the secrecy of the Confidential

Information. Customer shall not use the Confidential Information except to

exercise its rights or perform its obligations as set forth under this Agreement.

Customer shall not disclose such Confidential Information to any third party

other than subject to non-use and non-disclosure obligations at least as

Wireless Array

489

protective of a party's right in such Confidential Information as those set forth

herein.

4.2 Return of Materials. Customer agrees to (i) destroy all Confidential

Information (including deleting any and all copies contained on any of

Customer's Designated Hardware or the Product) within fifteen (15) days of

the date of termination of this Agreement or (ii) if requested by Licensor,

return, any Confidential Information to Licensor within thirty (30) days of

Licensor's written request.

5.0 TERM AND TERMINATION

5.1 Term. Subject to Section 5.2 below, this Agreement will take effect on the

Effective Date and will remain in force until terminated in accordance with

this Agreement.

5.2 Termination Events. This Agreement may be terminated immediately upon

written notice by either party under any of the following conditions:

(a) If the other party has failed to cure a breach of any material term or

condition under the Agreement within thirty (30) days after receipt of

notice from the other party; or

(b) Either party ceases to carry on business as a going concern, either party

becomes the object of the institution of voluntary or involuntary

proceedings in bankruptcy or liquidation, which proceeding is not

dismissed within ninety (90) days, or a receiver is appointed with respect

to a substantial part of its assets.

5.3 Effect of Termination.

(a) Upon termination of this Agreement, in whole or in part, Customer shall

pay Licensor for all amounts owed up to the effective date of termination.

Termination of this Agreement shall not constitute a waiver for any

amounts due.

(b) The following Sections shall survive the termination of this Agreement

for any reason: Sections 1, 2.2, 2.4, 3, 4, 5.3, and 6.

Agreement by Licensor, Customer shall upon Licensor's instructions

either return the Software and all copies thereof; all Documentation

relating thereto in its possession that is in tangible form or destroy the

same (including any copies thereof contained on Customer's Designated

Hardware). Customer shall furnish Licensor with a certificate signed by

an executive officer of Customer verifying that the same has been done.

Wireless Array

490

6. MISCELLANEOUS

If Customer is a corporation, partnership or similar entity, then the license to the

Software and Documentation that is granted under this Agreement is expressly

conditioned upon and Customer represents and warrants to Licensor that the

person accepting the terms of this Agreement is authorized to bind such entity to

the terms and conditions herein. If any provision of this Agreement is held to be

invalid or unenforceable, it will be enforced to the extent permissible and the

remainder of this Agreement will remain in full force and effect. During the

course of use of the Software, Licensor may collect information on your use

thereof; you hereby authorize Licensor to use such information to improve its

products and services, and to disclose the same to third parties provided it does

not contain any personally identifiable information. The express waiver by either

party of any provision, condition or requirement of this Agreement does not

constitute a waiver of any future obligation to comply with such provision,

condition or requirement. Customer and Licensor are independent parties.

Customer may not export or re-export the Software or Documentation (or other

materials) without appropriate United States, European Union and foreign

government licenses or in violation of the United State's Export Administration

Act or foreign equivalents and Customer shall comply with all national and

international laws governing the Software. This Agreement will be governed by

and construed under the laws of the State of California and the United States as

applied to agreements entered into and to be performed entirely within

California, without regard to conflicts of laws provisions thereof and the parties

expressly exclude the application of the United Nations Convention on Contracts

for the International Sales of Goods and the Uniform Computer Information

Transactions Act (as promulgated by any State) to this Agreement. Suits or

enforcement actions must be brought within, and each party irrevocably commits

to the exclusive jurisdiction of, the state and federal courts located in Ventura

County, California. Customer may not assign this Agreement by operation of law

or otherwise, without the prior written consent of Licensor and any attempted

assignment in violation of the foregoing shall be null and void. This Agreement

cancels and supersedes all prior agreements between the parties. This Agreement

may not be varied except through a document agreed to and signed by both

parties. Any printed terms and conditions contained in any Customer purchase

order or in any Licensor acknowledgment, invoice or other documentation

relating to the Software shall be deemed deleted and of no force or effect and any

additional typed and/or written terms and conditions contained shall be for

administrative purposes only, i.e. to identify the types and quantities of Software

to be supplied, line item prices and total price, delivery schedule, and other

similar ordering data, all in accordance with the provisions of this Agreement.

Wireless Array

491

Hardware Warranty Agreement

PLEASE READ THIS AGREEMENT CAREFULLY BEFORE USING THIS

PRODUCT

BY USING THIS PRODUCT, YOU ACKNOWLEDGE THAT YOU HAVE READ

AND UNDERSTOOD ALL THE TERMS AND CONDITIONS OF THIS

AGREEMENT AND THAT YOU ARE CONSENTING TO BE BOUND BY THIS

AGREEMENT. IF YOU DO NOT AGREE TO ALL OF THE TERMS OF THIS

AGREEMENT, RETURN THE UNUSED PRODUCT TO THE PLACE OF

PURCHASE FOR A FULL REFUND.

LIMITED WARRANTY. Xirrus warrants that for a period of five years from the

date of purchase by the original purchaser (“Customer”): (i) the Xirrus Equipment

(“Equipment”) will be free of defects in materials and workmanship under

normal use; and (ii) the Equipment substantially conforms to its published

specifications. Except for the foregoing, the Equipment is provided AS IS. This

limited warranty extends only to Customer as the original purchaser. Customer's

exclusive remedy and the entire liability of Xirrus and its suppliers under this

limited warranty will be, at Xirrus' option, repair, replacement, or refund of the

Equipment if reported (or, upon request, returned) to the party supplying the

Equipment to Customer. In no event does Xirrus warrant that the Equipment is

error free or that Customer will be able to operate the Equipment without

problems or interruptions.

This warranty does not apply if the Equipment (a) has been altered, except by

Xirrus, (b) has not been installed, operated, repaired, or maintained in accordance

with instructions supplied by Xirrus, (c) has been subjected to abnormal physical

or electrical stress, misuse, negligence, or accident, or (d) is used in ultra-

hazardous activities.

DISCLAIMER. EXCEPT AS SPECIFIED IN THIS WARRANTY, ALL EXPRESS OR

IMPLIED CONDITIONS, REPRESENTATIONS, AND WARRANTIES

INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTY OF

MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE,

NONINFRINGEMENT OR ARISING FROM A COURSE OF DEALING, USAGE,

OR TRADE PRACTICE, ARE HEREBY EXCLUDED TO THE EXTENT

ALLOWED BY APPLICABLE LAW.

IN NO EVENT WILL XIRRUS OR ITS SUPPLIERS BE LIABLE FOR ANY LOST

REVENUE, PROFIT, OR DATA, OR FOR SPECIAL, INDIRECT,

CONSEQUENTIAL, INCIDENTAL, OR PUNITIVE DAMAGES HOWEVER

CAUSED AND REGARDLESS OF THE THEORY OF LIABILITY ARISING OUT

OF THE USE OF OR INABILITY TO USE THE EQUIPMENT EVEN IF XIRRUS

OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH

DAMAGES. In no event shall Xirrus' or its suppliers' liability to Customer,

Wireless Array

492

whether in contract, tort (including negligence), or otherwise, exceed the price

paid by Customer.

The foregoing limitations shall apply even if the above-stated warranty fails of its

essential purpose. SOME STATES DO NOT ALLOW LIMITATION OR

EXCLUSION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL

DAMAGES.

The above warranty DOES NOT apply to any evaluation Equipment made

available for testing or demonstration purposes. All such Equipment is provided

AS IS without any warranty whatsoever.

Customer agrees the Equipment and related documentation shall not be used in

life support systems, human implantation, nuclear facilities or systems or any

other application where failure could lead to a loss of life or catastrophic property

damage, or cause or permit any third party to do any of the foregoing.

All information or feedback provided by Customer to Xirrus with respect to the

Product shall be Xirrus' property and deemed confidential information of Xirrus.

Equipment including technical data, is subject to U.S. export control laws,

including the U.S. Export Administration Act and its associated regulations, and

may be subject to export or import regulations in other countries. Customer

agrees to comply strictly with all such regulations and acknowledges that it has

the responsibility to obtain licenses to export, re-export, or import Equipment.

This Agreement shall be governed by and construed in accordance with the laws

of the State of California, United States of America, as if performed wholly within

the state and without giving effect to the principles of conflict of law. If any

portion hereof is found to be void or unenforceable, the remaining provisions of

this Warranty shall remain in full force and effect. This Warranty constitutes the

entire agreement between the parties with respect to the use of the Equipment.

Manufacturer is Xirrus, Inc. 2101 Corporate Center Drive Thousand Oaks, CA

91320

Wireless Array

Glossary of Terms 493

Glossary of Terms

802.11a

A supplement to the IEEE 802.11 WLAN specification that describes radio

transmissions at a frequency of 5 GHz and data rates of up to 54 Mbps.

802.11b

A supplement to the IEEE 802.11 WLAN specification that describes radio

transmissions at a frequency of 2.4 GHz and data rates of up to 11 Mbps.

802.11d

A supplement to the Media Access Control (MAC) layer in 802.11 to promote

worldwide use of 802.11 WLANs. It allows Access Points to communicate

information on the permissible radio channels with acceptable power levels for

user devices. Because the 802.11 standards cannot legally operate in some

countries, 802.11d adds features and restrictions to allow WLANs to operate

within the rules of these countries.

802.11g

A supplement to the IEEE 802.11 WLAN specification that describes radio

transmissions at a frequency of 2.4 GHz and data rates of up to 54 Mbps.

802.11n

A supplement to the IEEE 802.11 WLAN specification that describes

enhancements to 802.11a/b/g to greatly enhance reach, speed, and capacity.

802.1Q

An IEEE standard for MAC layer frame tagging (also known as encapsulation).

Frame tagging uniquely assigns a user-defined ID to each frame. It also enables a

switch to communicate VLAN membership information across multiple (and

multi-vendor) devices by frame tagging.

AES

(Advanced Encryption Standard) A data encryption scheme that uses three

different key sizes (128-bit, 192-bit, and 256-bit). AES was adopted by the U.S.

government in 2002 as the encryption standard for protecting sensitive but

unclassified electronic data.

Wireless Array

494 Glossary of Terms

authentication

The process that a station, device, or user employs to announce its identify to

the network which validates it. IEEE 802.11 specifies two forms of authentication,

open system and shared key.

bandwidth

Specifies the amount of the frequency spectrum that is usable for data transfer. In

other words, it identifies the maximum data rate a signal can attain on

the medium without encountering significant attenuation (loss of power).

beacon interval

When a device in a wireless network sends a beacon, it includes with it a beacon

interval, which specifies the period of time before it will send the beacon again.

The interval tells receiving devices on the network how long they can wait in low

power mode before waking up to handle the beacon. Network administrators can

adjust the beacon interval — usually measured in milliseconds (ms) or its

equivalent, kilo-microseconds (Kmsec).

bit rate

The transmission rate of binary symbols ('0' and '1'), equal to the total number of

bits transmitted in one second.

BSS

(Basic Service Set) When a WLAN is operating in infrastructure mode, each access

point and its connected devices are called the Basic Service Set.

BSSID

The unique identifier for an access point in a BSS network. See also, SSID.

CDP

(Cisco Discovery Protocol) CDP is a layer 2 network protocol which runs on most

Cisco equipment and some other network equipment. It is used to share

information with other directly connected network devices. Information such as

the model, network capabilities, and IP address is shared. Wireless Arrays can

both advertise their presence by sending CDP announcements, and gather and

display information sent by neighbors.

Wireless Array

Glossary of Terms 495

cell

The basic geographical unit of a cellular communications system. Service

coverage of a given area is based on an interlocking network of cells, each with a

radio base station (transmitter/receiver) at its center. The size of each cell is

determined by the terrain and forecasted number of users.

channel

A specific portion of the radio spectrum — the channels allotted to one of

the wireless networking protocols. For example, 802.11b and 802.11g use 14

channels in the 2.4 GHz band, only 3 of which don't overlap (1, 6, and 11).

CoS

(Class of Service) A category based on the type of user, type of application,

or some other criteria that QoS systems can use to provide differentiated classes of

service.

default gateway

The gateway in a network that a computer will use to access another network if

a gateway is not specified for use. In a network using subnets, a default gateway

is the router that forwards traffic to a destination outside of the subnet of

the transmitting device.

DHCP

(Dynamic Host Configuration Protocol) A method for dynamically assigning IP

addresses to devices on a network. DHCP issues IP addresses automatically

within a specified range to client devices when they are first powered up.

DHCP lease

The DHCP lease is the amount of time that the DHCP server grants to the DHCP

client for permission to use a particular IP address. A typical DHCP server allows

its administrator to set the lease time.

DNS

(Domain Name System) A system that maps meaningful domain names with

complex numeric IP addresses. DNS is actually a separate network — if one DNS

server cannot translate a domain name, it will ask a second or third until a server

is found with the correct IP address.

Wireless Array

496 Glossary of Terms

domain

The main name/Internet address of a user's Internet site as registered with

the InterNIC organization, which handles domain registration on the Internet. For

example, the “domain” address for Xirrus is: http://www.xirrus.com, broken

down as follows:

http:// represents the Hyper Text Teleprocessing Protocol used by all Web

pages.

www is a reference to the World Wide Web.

xirrus refers to the company.

com specifies that the domain belongs to a commercial enterprise.

DTIM

(Delivery Traffic Indication Message) A DTIM is a signal sent as part of a beacon

by an access point to a client device in sleep mode, alerting the device to a packet

awaiting delivery.

EAP

(Extensible Authentication Protocol) When you log on to the Internet, you're most

likely establishing a PPP connection via a remote access server. The password,

key, or other device you use to prove that you are authorized to do so is controlled

via PPP’s Link Control Protocol (LCP). However, LCP is somewhat inflexible

because it has to specify an authentication device early in the process. EAP allows

the system to gather more information from the user before deciding which

authenticator to use. It is called extensible because it allows more authenticator

types than LCP (for example, passwords and public keys).

EDCF

(Enhanced Distributed Coordinator Function) A QoS extension which uses

the same contention-based access mechanism as current devices but adds “offset

contention windows” that separate high priority packets from low priority

packets (by assigning a larger random backoff window to lower priorities than to

higher priorities). The result is “statistical priority,” where high-priority packets

usually are transmitted before low-priority packets.

encapsulation

A way of wrapping protocols such as TCP/IP, AppleTalk, and NetBEUI in

Ethernet frames so they can traverse an Ethernet network and be unwrapped

when they reach the destination computer.

Wireless Array

Glossary of Terms 497

encryption

Any procedure used in cryptography to translate data into a form that can be

decrypted and read only by its intended receiver.

Fast Ethernet

A version of standard Ethernet that runs at 100 Mbps rather than 10 Mbps.

FCC

(Federal Communications Commission) US wireless regulatory authority.

The FCC was established by the Communications Act of 1934 and is charged with

regulating Interstate and International communications by radio, television, wire,

satellite and cable.

FIPS

The Federal Information Processing Standard (FIPS) Publication 140-2 establishes

a computer security standard used to accredit cryptographic modules.

The standard is a joint effort by the U.S. and Canadian governments.

frame

A packet encapsulated to travel on a physical medium, like Ethernet or Wi-Fi. If a

packet is like a shipping container, a frame is the boat on which the shipping

container is loaded.

Gigabit 1 through 4

The Gigabit Ethernet interfaces on XR Series Arrays. XR-4000 Series Arrays have

two gigabit interfaces, while XR-6000 Series and higher models have four gigabit

interfaces. See also, Gigabit Ethernet.

Gigabit Ethernet

A version of Ethernet with data transfer rates of 1 Gigabit (1,000 Mbps).

Group

A user group, created to define a set of attributes (such as VLAN, traffic limits,

and Web Page Redirect) and privileges (such as fast roaming) that apply to all

users that are members of the group. This allows a uniform configuration to be

easily applied to multiple user accounts. The attributes that can be configured for

user groups are almost identical to those that can be configured for SSIDs.

Wireless Array

498 Glossary of Terms

host name

The unique name that identifies a computer on a network. On the Internet,

the host name is in the form comp.xyz.net. If there is only one Internet site

the host name is the same as the domain name. One computer can have more than

one host name if it hosts more than one Internet site (for example, home.xyz.net

and comp.xyz.net). In this case, comp and home are the host names and xyz.net is

the domain name.

IPsec

A Layer 3 authentication and encryption protocol. Used to secure VPNs.

MAC address

(Media Access Control Address) A 6-byte hexadecimal address assigned by a

manufacturer to a device.

Mbps

(Megabits per second) A standard measure for data transmission speeds (for

example, the rate at which information travels over the Internet). 1 Mbps denotes

one million bits per second.

MTU

(Maximum Transmission Unit) The largest physical packet size — measured in

bytes — that a network can transmit. Any messages larger than the MTU are

divided into smaller packets before being sent. Every network has a different

MTU, which is set by the network administrator. Ideally, you want the MTU to be

the same as the smallest MTU of all the networks between your machine and

a message's final destination. Otherwise, if your messages are larger than one of

the intervening MTUs, they will get broken up (fragmented), which slows down

transmission speeds.

NTP

(Network Time Protocol) An Internet standard protocol (built on top of TCP/IP)

that ensures the accurate synchronization (to the millisecond) of computer clock

times in a network of computers. Running as a continuous background client

program on a computer, NTP sends periodic time requests to servers, obtaining

server time stamps and using them to adjust the client's clock.

Wireless Array

Glossary of Terms 499

packet

Data sent over a network is broken down into many small pieces — packets — by

the Transmission Control Protocol layer of TCP/IP. Each packet contains the

address of its destination as well the data. Packets may be sent on any number of

routes to their destination, where they are reassembled into the original data. This

system is optimal for connectionless networks, such as the Internet, where there

are no fixed connections between two locations.

PLCP

(Physical Layer Convergence Protocol) Defined by IEEE 802.6, a protocol

specified within the Transmission Convergence layer that defines exactly how

cells are formatted within a data stream for a particular type of transmission

facility.

PoGE

This refers to the optional Xirrus-supplied Power over Gigabit Ethernet modules

that provide DC power to Arrays. Power is supplied over the same Cat 5e or Cat 6

cable that supplies the data connection to your gigabit Ethernet switch, thus

eliminating the need to run a power cable.

preamble

Preamble (sometimes called a header) is a section of data at the head of a packet

that contains information that the access point and client devices need when

sending and receiving packets. PLCP Has two structures, a long and a short

preamble. All compliant 802.11b systems have to support the long preamble.

The short preamble option is provided in the standard to improve the efficiency

of a network's throughput when transmitting special data, such as voice, VoIP

(Voice-over IP) and streaming video.

private key

In cryptography, one of a pair of keys (one public and one private) that are created

with the same algorithm for encrypting and decrypting messages and digital

signatures. The private key is provided only to the requestor and never shared.

The requestor uses the private key to decrypt text that has been encrypted with

the public key by someone else.

PSK

(Pre-Shared Key) A TKIP passphrase used to protect your network traffic in WPA.

Wireless Array

500 Glossary of Terms

public key

In cryptography, one of a pair of keys (one public and one private) that are created

with the same algorithm for encrypting and decrypting messages and digital

signatures. The public key is made publicly available for encryption and

decryption.

QoS

(Quality of Service) QoS can be used to describe any number of ways in which

a network provider prioritizes or guarantees a service's performance.

RADIUS

(Remote Authentication Dial-In User Service) A client-server security protocol,

developed to authenticate, authorize, and account for dial-up users. The RADIUS

server stores user profiles, which include passwords and authorization attributes.

RSSI

(Received Signal Strength Indicator) A measure of the energy observed by an

antenna when receiving a signal.

SDMA

(Spatial Division Multiple Access) A wireless communications mode that

optimizes the use of the radio spectrum and minimizes cost by taking advantage

of the directional properties of antennas. The antennas are highly directional,

allowing duplicate frequencies to be used for multiple zones.

SNMP

(Simple Network Management Protocol) A standard protocol that regulates

network management over the Internet.

SNTP

(Simple Network Time Protocol) A simplified version of NTP. SNTP can be used

when the ultimate performance of the full NTP implementation described in RFC

1305 is not needed or justified.

Wireless Array

Glossary of Terms 501

SSH

(Secure SHell) Developed by SSH Communications Security, Secure Shell is a

program to log into another computer over a network, to execute commands in a

remote machine, and to move files from one machine to another. The Array only

allows SSH-2 connections. SSH-2 provides strong authentication and secure

communications over insecure channels. SSH-2 protects a network from attacks,

such as IP spoofing, IP source routing, and DNS spoofing. Attackers who has

managed to take over a network can only force SSH to disconnect — they cannot

“play back” the traffic or hijack the connection when encryption is enabled. When

using SSH-2's slogin (instead of rlogin) the entire login session, including

transmission of password, is encrypted making it almost impossible for an

outsider to collect passwords. Be aware that your SSH utility must be set up to use

SSH-2.

SSID

(Service Set IDentifier) Every wireless network or network subset (such as a BSS)

has a unique identifier called an SSID. Every device connected to that part of the

network uses the same SSID to identify itself as part of the family — when it wants

to gain access to the network or verify the origin of a data packet it is sending over

the network. In short, it is the unique name shared among all devices in a WLAN.

subnet mask

A mask used to determine what subnet an IP address belongs to. An IP address

has two components: (1) the network address and (2) the host address. For

example, consider the IP address 150.215.017.009. Assuming this is part of a Class

B network, the first two numbers (150.215) represent the Class B network address,

and the second two numbers (017.009) identify a particular host on this network.

TKIP

(Temporal Key Integrity Protocol) Provides improved data encryption by

scrambling the keys using a hashing algorithm and, by adding an integrity-

checking feature, ensures that the encryption keys haven’t been tampered with.

transmit power

The amount of power used by a radio transceiver to send the signal out. Transmit

power is generally measured in milliwatts, which you can convert to dBm.

User group

See Group.

Wireless Array

502 Glossary of Terms

VLAN

(Virtual LAN) A group of devices that communicate as a single network, even

though they are physically located on different LAN segments. Because VLANs

are based on logical rather than physical connections, they are extremely flexible.

A device that is moved to another location can remain on the same VLAN

without any hardware reconfiguration.

VLAN tagging

(Virtual LAN tagging) Static port-based VLANs were originally the only way to

segment a network without using routing, but these port-based VLANs could

only be implemented on a single switch (or switches) cabled together. Routing

was required to transfer traffic between unconnected switches. As an alternative

to routing, some vendors created proprietary schemes for sharing VLAN

information across switches. These methods would only operate on that vendor's

equipment and were not an acceptable way to implement VLANs. With the

adoption of the 802.11n standard, traffic can be confined to VLANs that exist on

multiple switches from different vendors. This interoperability and traffic

containment across different switches is the result of a switch's ability to use and

recognize 802.1Q tag headers — called VLAN tagging. Switches that implement

802.1Q tagging add this tag header to the frame directly after the destination and

source MAC addresses. The tag header indicates:

1. That the packet has a tag.

2. Whether the packet should have priority over other packets.

3. Which VLAN it belongs to, so that the switch can forward or filter it

correctly.

WDS (Wireless Distribution System)

WDS creates wireless backhauls between arrays. These links between arrays may

be used rather than having to install data cabling to each array.

WEP

(Wired Equivalent Privacy) An optional IEEE 802.11 function that offers frame

transmission privacy similar to a wired network. The Wired Equivalent Privacy

generates secret shared encryption keys that both source and destination stations

can use to alter frame bits to avoid disclosure to eavesdroppers.

Wireless Array

Glossary of Terms 503

Wi-Fi Alliance

A nonprofit international association formed in 1999 to certify interoperability of

wireless Local Area Network products based on IEEE 802.11 specification. The

goal of the Wi-Fi Alliance's members is to enhance the user experience through

product interoperability.

Wireless Array

A high capacity wireless networking device consisting of multiple radios

arranged in a circular array.

WPA

(Wi-Fi Protected Access) A Wi-Fi Alliance standard that contains a subset of the

IEEE 802.11i standard, using TKIP as an encryption method and 802.1x for

authentication.

WPA2

(Wi-Fi Protected Access 2) WPA2 is the follow-on security method to WPA for

wireless networks and provides stronger data protection and network access

control. It offers Enterprise and consumer Wi-Fi users with a high level of

assurance that only authorized users can access their wireless networks. Like

WPA, WPA2 is designed to secure all versions of 802.11 devices, including

802.11a, 802.11b, 802.11g, and 802.11n, multi-band and multi-mode.

Xirrus Management System (XMS)

A Xirrus product used for managing large Wireless Array deployments from a

centralized Web-based interface.

XP1 and XP8 — Power over Gigabit Ethernet modules

See PoGE.

XPS — Xirrus Power System

A family of optional Xirrus-supplied products that provides power over Gigabit

Ethernet. See PoGE.

Wireless Array

504 Glossary of Terms

Wireless Array

Index 505

Index

Numerics

11n

see IEEE 802.11n 35

802.11a 3, 5, 274, 293

802.11a/b/g 26

802.11a/b/g/n 15

802.11a/n 15, 63, 249

802.11b 3, 5, 298

802.11b/g 274, 298

802.11b/g/n 15, 63, 249

802.11e 16

802.11g 3, 5, 298

802.11i 5, 71, 161

802.11n 5

see IEEE 802.11n 35

WMI page 304

802.11p 16

802.11q 16

802.1x 5, 46, 56, 71, 161, 454

abg(n)

nomenclature 2

abg(n)2

intrusion detection 331

self-monitoring

radio assurance (loopback

mode) 314, 315

Access Control List 208

Access Control Lists 454

access control lists (ACLs) 227, 262

ACLs 46, 208, 454

active IAPs

per SSID 261

Address Resolution Protocol

window 109

Address Resolution Protocol (ARP)

290

Admin 454

Admin ID 214

admin ID

authentication via RADIUS 218

Admin Management 214

admin privileges

setting in admin RADIUS account

218

admin RADIUS account

if using Console port 218

admin RADIUS authentication 218

administration 71, 161, 208

Administrator Account 448

Advanced Encryption Standard 46,

454

Advanced RF Analysis Manager

see RAM 18

Advanced RF Performance Manager

see RPM 16

Advanced RF Security Manager

see RSM 17

AeroScout

see WiFi tag 188

AES 5, 16, 46, 56, 71, 161, 446, 454

allow traffic

see filters 344

Analysis Manager

see RAM 18

appearance

WMI options 373

WMI, changing 373

approved

setting rogues 120

APs 56, 119, 240, 454

rogues, blocking 331

APs, rogue

see rogue APs 313, 331

ARP filtering 290

Wireless Array

506 Index

ARP table window 109

Array 28, 62, 63, 84, 161, 171

connecting 62

dismounting 62

management 359

mounting 62

powering up 63

securing 62

Web Management Interface 84

ArrayOS

upgrade 362

Arrays

managing in clusters 352

associated users 28

assurance

network server connectivity 112,

225

assurance (radio loopback testing) 313

assurance, station

see station assurance 320

attack (DoS)

see DoS attack 332

attack (impersonation)

see impersonation attack 333

authentication 16

of admin via RADIUS 218

authority

certificate 212, 225

auto block

rogue APs, settings 331

auto negotiate 171

auto-blocking

rogue APs 331

auto-configuration 71, 280, 293, 298

channel and cell size 313

automatic refresh

setting interval 374

automatic update from remote server

configuration files, boot image 363

backhaul

see WDS 53

backup unit

see standby mode 314

band association 249

beacon interval 280

Beacon World Mode 280

beam distribution 15

benefits 14

block

rogue APs, settings 328

block (rogue APs)

see auto block 331

blocking

rogue APs 331

blocking rogue APs 313

boot 362

broadcast 291

fast roaming 291

browser

certificate error 212, 225

BSS 452

BSSID 119, 452

buttons 91

capacity

of 802.11n 42

cascading style sheet

sample for web page redirect 369

cdp 392

CDP (Cisco Discovery Protocol)

settings 183

cdp CLI command 392

CDP neighbors 111

cell

sharp cell 313

cell size 28, 274

auto-configuration 313

Wireless Array

Index 507

cell size configuration 313

certificate

about 212, 225

authority 212, 225

error 212, 225

install Xirrus authority 225

X.509 212, 225

channel

auto-configuration 313

configuration 313

list selection 313

channels 28, 119, 274, 280, 293, 298

non-overlapping 15

CHAP (Challenge-Handshake Au-

thentication Protocol)

Admin RADIUS settings 219

web page redirect 258

CHAP Challenge Handshake Authen-

tication Protocol)

RADIUS ping 370

character restrictions 93

Chrome 24

Cisco Discovery Protocol

see cdp 392

Cisco Discovery Protocol (CDP) 183

CLI 5, 56, 59, 66, 377

executing from WMI 371

using to upgrade software image

464

CLI commands

see commands 392

client

web page redirect 368

cluster

CLI command 394

clusters 352

defining 353

management 354

operating in cluster mode 355

command

wifi-tag 425

Command Line Interface 5, 52, 59, 63,

66, 377, 454

configuration commands 390

getting help 379

getting started 379

inputting commands 379

sample configuration tasks 426

SSH 377

top level commands 381

command, utilities

ping, traceroute, RADIUS ping 369

commands

acl 390

admin 391

cdp 392

clear 393

cluster 394

configure 382

contact-info 395

date-time 396

dhcp-server 397

dns 398

file 399

filter 402

group 394, 406

hostname 406

interface 407

load 408

location 408

management 409

more 410

netflow 411

no 412

quit 414

radius-server 414

reboot 415, 423

reset 415

restore 416

run-tests 417

Wireless Array

508 Index

security 419

show 385

snmp 420

ssid 421

statistics 388

syslog 422

vlan 424

Community String 445

configuration 159, 454

express setup 161

reset to factory defaults 366

configuration changes

applying 92

configuration files

automatic update from remote

server 363

download 364

update from local file 364

update from remote file 364

connection

tracking window 110

connectivity

servers, see network assurance

112, 225

Console port

Contact Information 469

contact information 469

coverage 28, 59

extended 15

coverage patterns 5

critical messages 89

CTS/RTS 293, 298

data rate 293, 298

data rates

increased by 802.11n 41

date/time restrictions

and interactions 268

default gateway 71, 171

default settings 443

Default Value 446

DHCP 445

defaults

reset configuration to factory de-

faults 366

Delivery Traffic Indication Message

280

denial of service

see DoS attack 332

deny traffic

see filters 344

deployment 26, 52, 56, 59, 454

ease of 15

detection

intrusion 331

see DoS attack 332

see impersonation attack 333

see impersonation detection 332

see intrusion detection 332, 333

DHCP 28, 66, 71, 161, 171, 444

default settings 445

leases window 110

DHCP Server 184

diagnostics

log, create file 366

display

WMI options 373

DNS 71, 161, 181

DNS domain 181

DNS server 181

Domain Name System 181

DoS attack detection

settings 332

DTIM 280

DTIM period 280

duplex 171

dynamic VLAN

overridden by group 267

Wireless Array

Index 509

EAP 446, 454

EAP-MDS 16

EAP-PEAP 454

EAP-TLS 16, 46, 454

EAP-TTLS 16, 46, 454

EDCF 280

Encryption 446, 454

encryption 16

encryption method

recommended (WPA2 with AES)

210

setting 211

support of multiple methods 210

encryption method (encryption mode)

Open, WEP, WPA, WPA2, WPA-

Both 209

encryption standard

AES, TKIP, both 210

setting 211

Enterprise 1, 3, 454

WLAN 3

Enterprise Class Management 5

Enterprise Class Security 5

ESS 452

ESSID 452

Ethernet 59, 62, 63, 66, 71, 161

event log

IDS (intrusion detection) 157

see system log 150, 156

event messages 89

Express Setup 62, 71, 161

express setup 71, 161

Extended Service Set 452

Extensible Authentication Protocol 454

external RADIUS server 802.1x 25

factory default settings 443

factory defaults 444, 445, 446, 448

DHCP 445

reset configuration to 364

factory.conf 364

fail-over

standby mode 314

failover 42, 56

FAQs 452

Fast Ethernet 59, 66, 161, 171, 443

fast roaming 15, 106, 291

about 273

and VLANs 273

features 14, 52, 171, 187, 190, 280, 454

and license key 363

feedback 91

filter list 345

filter name 347

filtering

IPv6 291

filters 344, 345, 347

stateful filtering, disabling 346

statistics 147

Firefox 24

firewall 344

and port usage 48

stateful filtering, disabling 346

fragmentation threshold 293, 298

frequently asked questions 452

FTP 454

FTP server 25

General Hints 451

getting started

express setup 161

Gigabit 59, 66, 71, 161, 171, 443

global settings 280, 293, 298

glossary of terms 493

Google Chrome 24

Group

management 266

Wireless Array

510 Index

group 264

CLI command 394, 406

VLAN overrides dynamic VLAN

267

group limits and interactions 268

Group Rekey 446

guard interval

short, for IEEE 802.11n 40

GUI

see WMI 373

help

button, bottom of page 91

button, left frame 88

Help button 84

help button 91

host name 71, 84, 161, 181

hs.css 369

HTTPS

certificate, see certificate 225

HTTPS port

web page redirect 255, 259, 260

HyperTerminal 24, 59

IAP 28, 63, 71, 161, 274, 293, 298, 334

active SSIDs 261

fast roaming 273

Intrusion Detection (IDS/IPS) 328

naming 2

settings 274

IAP LED 63, 334

IAP LED settings 334

IAPs

auto block rogues 331

intrusion detection 331

IDS

see Intrusion Detection 328

IDS event log

viewing window 157

IEEE 3, 71, 161

IEEE 802.11n

capacity, increased 42

deployment considerations 35

guard interval, short 40

improved MAC throughput 40

increased data rates 41

MIMO 36

multiple data streams 38

spatial multiplexing 38

WMI page 304

IEEE 802.1Q 457


upgrade software image 362

impersonation attack detection

settings 333

implementing Voice over Wi-Fi 26,

199, 244

installation 23, 57, 62, 441

installing the MCAP-3616 59

mounting the unit 62

requirements 23

workflow 57

installation workflow 57

interfaces 161

Web 83

internal login page

web page redirect 256

web page redirect, customize 258

internal splash page

web page redirect 257

web page redirect, customize 258

Internet Explorer 24

interval

automatic WMI refresh 374

intrusion detection 119, 331

and auto block settings 331

configuration 313

setting as approved or known 120

Wireless Array

Index 511

intrusion detection (IDS)

viewing event log 157

Intrusion Detection (IDS/IPS) 328

IP Address 28, 71, 84, 92, 119, 161, 171,

181, 190, 194, 359, 444

IP Subnet Mask 71

IPS

see Intrusion Detection 328

IPv6

filtering 291

key

upgrade 363

key features 14

Keyboard Shortcuts 449

keyboard shortcuts 449

known

setting rogues 120

lastboot.conf 364

Layer 3

fast roaming 273

lease 444

Lease Time 444

leases, DHCP

viewing 110

LEDs 63

sequence 63

settings 334

license Key

upgrading 363

limits

group 268

interactions 268

station 268

traffic 268

list, access control

see access control list 227, 262

list, MAC access

see access control list 227

list, SSID access

see access control list 262

location information 71, 84, 161

log

diagnostics, create file 366

log messages

counters 89

log, IDS(intrusion detection)

viewing window 157

log, system (event)

viewing window 150, 156

logging in 66, 92

via Console port 218

web page redirect 256, 368

web page redirect, customize 258

logout 376

long retry limit 280

loopback

see radio assurance 438

loopback testing

radio assurance mode 313

MAC 46, 66, 452, 454

MAC Access Control Lists 46

MAC Access List 227

MAC address 227, 452, 454

MAC throughput

improved by IEEE 802.11n 40

Management 448, 454

management 95, 159, 359

Array clusters 352

of Arrays 359

Web Management Interface (WMI)

Wireless Array

512 Index

maximum lease 444

Maximum Lease Time 444

Megabit 71

menu behavior

WMI 375

Message Integrity Check 454

messages

syslog counters 89

MIC 16, 454

MIMO (Multiple-In Multiple-Out) 36

mode

cluster operating mode 355

monitoring

intrusion detection 119

see intrusion detection 331

mounting 62

mounting plate 62

mounting the unit 62

MTU 171

size 171

multiple data streams 38

NAT

table - see connection tracking 110

neighbors, CDP 111

Netflow 187

netflow

CLI command 411

network

interfaces 169

settings 171

network assurance 112, 225

network connections 59, 92, 454

network installation 23, 441

network interface ports 66

network interfaces 171, 443

network status

ARP table window 109

connection

tracking window 110

routing table window 109

viewing leases 110

Network Time Protocol 71, 161, 185

network tools

ping, traceroute, RADIUS ping 369

nomenclature 2

non-overlapping channels 15

NTP 71, 161, 185, 444

NTP Server 185

Open (encryption method) 210

optimization, VLAN 291

options

WMI 373

overview 5

page loading

WMI 375

PAP (Password Authentication Proto-

col)

Admin RADIUS settings 219

RADIUS ping 370

web page redirect 258

passphrase 46, 71, 161

Password 448, 454

password 92

PEAP 16, 340

performance 14

Performance Manager

see RPM 16

Ping 359

ping 369

planning 42, 45, 46, 52

failover 42

network management 52

port failover 42

power 45

Wireless Array

Index 513

security 46

switch failover 42

WDS 53

PoGE 23

see Power over Gigabit Ethernet 12

PoGE Power Injectors 1

port failover 42

port requirements 48

power outlet 23

Power over Gigabit Ethernet 2, 23, 45,

Power over Gigabit Ethernet (PoGE) 12

power planning 45

pre-shared key 46, 56, 454

Print button 84

print button 91

probe

see Netflow 187

product installation 23, 441

product overview 5

product specifications 22

PSK 56, 446

PuTTY 23, 52, 71, 161, 454

PuTTy 24

QoS 16, 249, 446, 452, 500

conflicting values 247

levels defined 250, 267

priority 249

SSID 244, 250

about setting QoS 453

default QoS 446

user group 267

quality

of user experience 320

Quality of Service 16

see QoS 250, 267

quick reference guide 443

quick start

express setup 161

radio

assurance (self-test) 314, 315

radio assurance (loopback testing) 313

radio assurance (loopback) mode 314,

315

radio distribution 14

radios

naming 2

RADIUS 5, 23, 46, 56, 208, 227, 262,

444, 454

admin authentication 218

setting admin privileges 218

setting user VSAs 234

Vendor Specific Attributes (VSAs)

463

RADIUS ping

CHAP Challenge Handshake Au-

thentication Protocol) 370

PAP (Password Authentication

Protocol) 370

RADIUS Ping command 369

RADIUS Server 444

RADIUS server 25

RADIUS settings

web page redirect 258

RAM (RF Analysis Manager) 18

reauthentication 280

reboot 362

redirect (WPR) 368

refresh interval

WMI 374

remote boot image

automatic update from remote

TFTP server 363

remote configuration

automatic update from remote

server 363

Wireless Array

514 Index

remote TFTP server

automatic update of boot image,

configuration 363

Reset 359, 444

reset configuration

to factory defaults 366

restore command 416

restrictions

date/time 268

stations 268

traffic 268

intrusion detection 313

spectrum management 313

RF Analysis Manager

see RAM 18

RF configuration 313

RF management

see channel 313

RF Performance Manager

see RPM 16

RF resilience 313

RF Security Manager

see RSM 17

roaming 15, 106, 291

see fast roaming 273

Rogue AP 5, 52, 119, 240, 454

rogue AP

blocking 331

settings for blocking 328

Rogue AP List 119

rogue APs

auto block settings 331

blocking 313

Rogue Control List 240

rogue detection 15

rogues

setting as known or approved 120

root command prompt 381

route

trace route utility 369

routing table window 109

RPM (RF Performance Manager) 16

RSM (RF Security Manager) 17

RSSI 119

RTS 293, 298

RTS threshold 293, 298

Safari 24

sample Perl and CSS files for 368

save

with reboot 362

Save button 84

saved.conf 364

scalability 3

schedule

auto channel configuration 313

Secondary Port 444

Secondary Server 444

secret 444

Secure Shell 24

secure Shell 23

security 5, 16, 208, 452, 454

certificate, see certificate 225

Security Manager

see RSM 17

see group 264

self-monitoring 331

radio assurance 438

radio assurance options 314, 315

self-test

radio assurance mode 314, 315

serial port 24, 66, 454

server, VTun

see VTun 203

servers

connectivity, see network assur-

ance 112, 225

Service Set Identifier 71

Wireless Array

Index 515

Services 184, 452

servicing the unit 441

settings 161

setup, express 161

sharp cell 313

setting in WMI 317

short retry limit 280

signal processing

MIMO 36

skin

changing WMI appearance 373

SNMP 5, 13, 71, 161, 171, 184, 194, 445

required for XMS 194, 195

software

upgrade license key 363

software image

upgrading via CLI 464

Software Upgrade 359

software upgrade 362

spatial multiplexing 38

specifications 22

spectrum (RF) management 313

speed 3, 66, 171

11 Mbps 3

54 Mbps 3

splash page

web page redirect 257, 368

web page redirect, customize 258

SSH 23, 24, 52, 71, 161, 171, 209, 448,

454

SSH-2 209

SSID 5, 71, 84, 119, 161, 240, 249, 446,

452, 457

about usage 452

active IAPs 261

QoS 244, 250

about using 453

QoS, about usage 452

web page redirect settings 253

web page redirect settings, about

255, 259, 260

SSID Access List 262

SSID address 262

SSID Management 249, 446, 452

standby mode 314

stateful filtering

disabling 346

static IP 71, 161, 171

station

assurance 320

station assurance 320

station timeout period 280

Stations 452

stations

limits and interactions 268

rogues 120

statistics 148

statistics per station 149

statistics 161

filters 147

netflow 187

per-station 149

stations 148

WDS 145

status bar 84, 91

style

WMI appearance 373

submitting comments 91

subnet 23, 42, 71, 171

switch failover 42

synchronize 71, 161, 185

Syslog 71, 84, 161, 184, 190, 444

time-stamping 71

syslog messages

counters 89

Syslog reporting 190

Syslog Server 190

system commands

ping, trace route, RADIUS ping

369

Wireless Array

516 Index

System Configuration Reset 359

System Log 190

system log

viewing window 150, 156

System Reboot 359

System Tools 359

system tools 360

tag, WiFi 188

T-bar 62

T-bar clips 62

TCP

port requirements 48

technical support

contact information 469

frequently asked questions 452

Telnet 209, 448, 454

Temporal Key Integrity Protocol 454

TFTP server

automatic update of boot image,

configuration 363

Time Out 444

time zone 71, 161, 185

timeout 280, 359

Tips 451

TKIP 16, 46, 56, 71, 161, 446, 454

TKIP encryption

and XN Arrays 231

tool

ping, trace route, RADIUS ping

369

Tools 359, 454

tools, network 369

tools, system 360

trace route utility 369

traffic

filtering 344

limits and interactions 268

transmit power 28

Trap Host 445

trap port 194, 445

tunneled

fast roaming 291

Tunnels 204

tunnels

see VTun 199, 203

UDP

port requirements 48

Unit 62

attaching 62

mounting 62

unknown

setting rogues 120

upgrade

license key 363

software image 362

upgrading software image

via CLI 464

user accounts

setting RADIUS VSAs 234

user group 264

QoS 267

user group limits and interactions 268

user interface 83

utilities

ping, trace route, RADIUS ping

369

utility buttons 91

Vendor Specific Attributes (VSAs)

RADIUS, for Xirrus 463

virtual tunnels

see VTun 203

VLAN 5, 56, 249, 446, 452, 457

broadcast optimization 291

dynamic

Wireless Array

Index 517

overridden by group 267

group (vs. dynamic VLAN) 267

vlan

CLI command 424

VLAN ID 249

VLANs 199

and fast roaming 273

voice

fast roaming 273

implementing on Array 26, 199,

244

Voice-over IP 298

VoIP 298

VoWLAN 16

VPN 71, 161, 454

VTS

Virtual Tunnel Server 199, 203

VTun

specifying tunnel server 199, 203

understanding 199

wall thickness considerations 26

warning messages 89

WDS 338, 340

about 53

long distance 278, 339

planning 53

statistics 145

timeouts 278, 339

WDS Client Links 340

Web interface

structure and navigation 88

web interface 83

Web Management Interface 52, 62, 63,

66, 92, 452

Web Management Interface (WMI) 83

web page redirect 368

also called WPR 368

CHAP (Challenge-Handshake Au-

thentication Protocol) 258

customize internal login/splash

page 258

HTTPS port 255, 259, 260

install files for 368

internal login page 256

internal splash page 257

PAP, CHAP 258

RADIUS settings 258

remove files for 369

sample WPR files 369

SSID settings 253

SSID settings, about 255, 259, 260

WEP 16, 46, 71, 161, 208, 249, 446, 454

WEP (Wired Equivalent Privacy)

encryption method 210

WEP encryption

and XN Arrays 232

Wi-Fi Protected Access 5, 46, 71, 161,

454

WiFi tag 188

wifi-tag

CLI command 425

window loading

WMI 375

Wired Equivalent Privacy 71, 454

Wireless Distribution System 338

wireless LAN 3

wireless security 161

WLAN 161

WMI 5, 52, 56, 66, 83, 274

appearance options 373

appearance, changing 373

certificate error 212, 225

executing CLI commands 371

menu behavior 375

options 373

page loading 375

refresh interval 374

workflow 57

Wireless Array

518 Index

WPA 5, 56, 71, 161, 208, 249, 446, 454

WPA (Wi-Fi Protected Access) and

WPA2

encryption method 210

WPA2 5

WPR

see web page redirect 368

wpr.pl 368, 369

X.509

certificate 212, 225

Xirrus

certificate authority 225

Xirrus Advanced RF Analysis Manag-

see RAM 18

Xirrus Advanced RF Performance

Manager

see RPM 16

Xirrus Advanced RF Security Manager

see RSM 17

Xirrus Management System 5, 13, 15,

23, 25, 52, 454

SNMP required 194, 195

Xirrus Management System (XMS) 1

Xirrus PoGE Power Injectors 1

Xirrus Power over Gigabit Ethernet 23

Xirrus Roaming Protocol 15, 106, 291

XMS 5, 13, 15, 25

port requirements 48

setting IP address of 194

SNMP required 194, 195

XN Array

management 159, 359

XN Arrays

Cambium Networks XR520 Xirrus Wireless Array User Manual xirrus PDF

Xirrus, Inc. Xirrus Wireless Array xirrus PDF

Contents

User manual 2 rev

Navigation menu

Namespaces

Views

Navigation
