Camden Door Control TXLF KeyFob Transmitter Manual
User Manual
Lazerpoint™ CM-TXLF Series
FOB Style Transmitters
Installation Instructions
Page 1 of 2
Section 1
General Description
Camden Lazerpoint™ Radio Controls comprise the following
models:
• CM-TXLF-1, CM-TXLF-2, & CM-TXLF-4 Key Fob
Transmitters, as well as;
• CM-TX-9 Wall switch ready transmitter
• CM-TX-99 Plug-in 2-Channel Transmitter
• CM-RX-91 Basic Receiver
• CM-RX-92 Full function (dual relay) Receiver.
These instructions cover the TXLF transmitters.
Camden Key Fob transmitters utilize readily available
CR-2032 Lithium batteries, and special circuitry to assure
long life. A proprietary bi-colour LED circuit is used to
annunciate wireless activation, low battery, & Battery Gas
Gauge™ conditions.
Section 2
Installation
Mounting
Camden TXLF Fobs can be attached to a key chain using the
included ring.
Fobs can also be mounted to a wheelchair by using accessory
number # CM-TXLFB Mounting Base. This unique accessory
converts any of the Mini Fobs to a full size unit which may be
clipped to a belt or sun-visor, or fastened to a desk or counter
for reception use. See our Lazerpoint™ spec sheet or TXLFB
Instruction manual for further details.
The CR-2032 battery is pre-installed in the Fob. Simply press
the button and observe the GREEN LED, which indicates
proper transmission.
Test the battery strength by pressing and holding the button
for approximately 5 seconds. The LED should ash RED
5 times, meaning the battery is at full capacity. This is the
Battery Gas Gauge™ feature. If the LED ashes RED only 1 - 2
times, you should change the battery for a fresh (new) one.
See instructions at right.
When the battery is low and needs to be changed, the LED
will indicate a slow red ash — 1 ash per second. The unit will
still continue to function (transmit) for a time, but the battery
should be changed as soon as possible.
Learning the Transmitter(s) to the Receiver
To learn the transmitter into an RX-91 or RX-92 receiver, press
the PB1 (or PB2) button on the Receiver using a small blunt
object such as a small blade screwdriver or similar. Within
10 seconds, press the button on the TXLF transmitter. The
Green LED Array will ash once to conrm enrollment. Repeat
with any additional transmitters. Pressing the learned transmitter
again will signal the receiver that you are nished programming
and LED’s 1 & 2 will ash, in an alternating sequence.
Pressing the transmitter a third time will activate the relay
and corresponding LED, and also the device connected to the
relay contacts.
For multiple button FOBS – TXLF-2 & TXLF-4, learn the desired
button into one receiver, and the other button(s) into additional
receivers. (You could also learn Button 1 into Channel 1 of the
RX-92, and Button 2 into Channel 2 of the same RX-92.)
Refer to the RX-91 or RX-92 receiver for further programming
instructions.

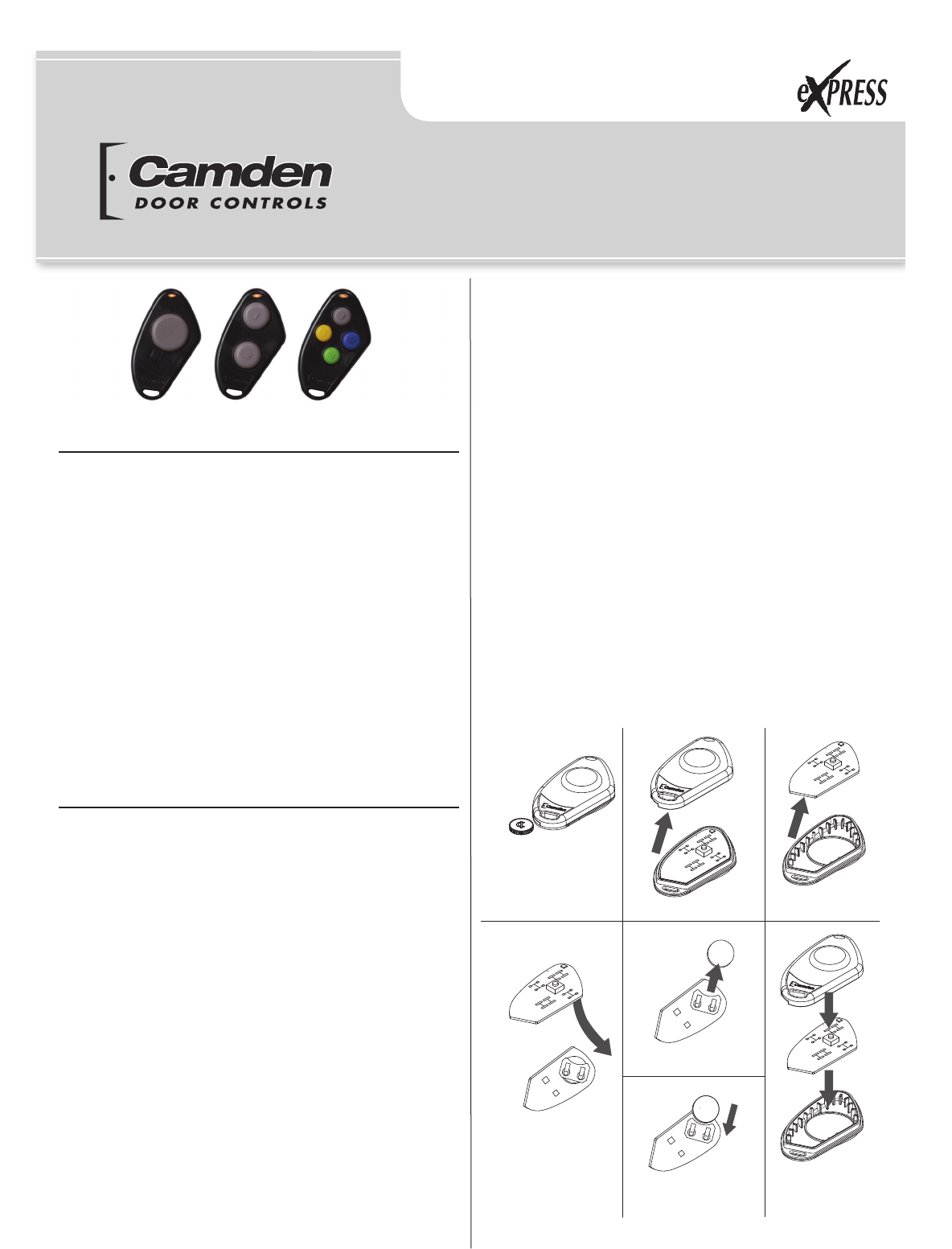

Replacing the Battery
Camden
PWA-201-0329-051
Camden
PWA-201-0329-051
Camden
PWA-201-0329-051
+
Panasonic
CR2032
3V
+
Camden
PWA-201-0329-051
Panasonic
CR2032
3V
+
1
4 5
6
7
2 3
Twist a coin in slot to
open transmitter case
Turn over the PCB
Separate 2 halves
Remove old battery
Insert new battery
Remove PCB from
bottom half
Insert PCB. Snap
the case together.
Lazerpoint™ CM-TXLF Series FOB Style Transmitters Installation Instructions
Page 2 of 2
Section 3
Technical Data
Models: TXLF-1 (FVIN: 3A)
TXLF-2 (FVIN: 3B)
TXLF-4 (FVIN: 3C)
Buttons / Channels: 1, 2, & 4 respectively.
Frequency: Operates in the 902 – 928 MHz
ISM Band
Codes: 1 million (20 bit) codes
Size: 2 9/16” L x 1 9/16” W x 5/8” D
(102mm x 42mm x 16mm)
LED Indicator: Used for transmit status (green),
Low Battery, and Battery Gas
Gauge™ indicator (red).
Power: 1 x CR-2032 Lithium battery
Battery life: Minimum 115,000 operations
Range: Over 250 ft (76 m) open area
Temperature rating: -40°F to 185°F (-40°C to +85°C)
Section 4
Warranty
Camden Door Controls guarantees the CM TXLF series
transmitters to be free from manufacturing defects for
3 years from date of sale. If during the rst 3 years a TXLF
transmitter fails to perform correctly, it may be returned to our
factory where it will be repaired or replaced (at our discretion)
without charge. Except as stated herein, Camden extends
no warranties expressed or implied regarding function,
performance or service.
Batteries are exempt from this warranty.

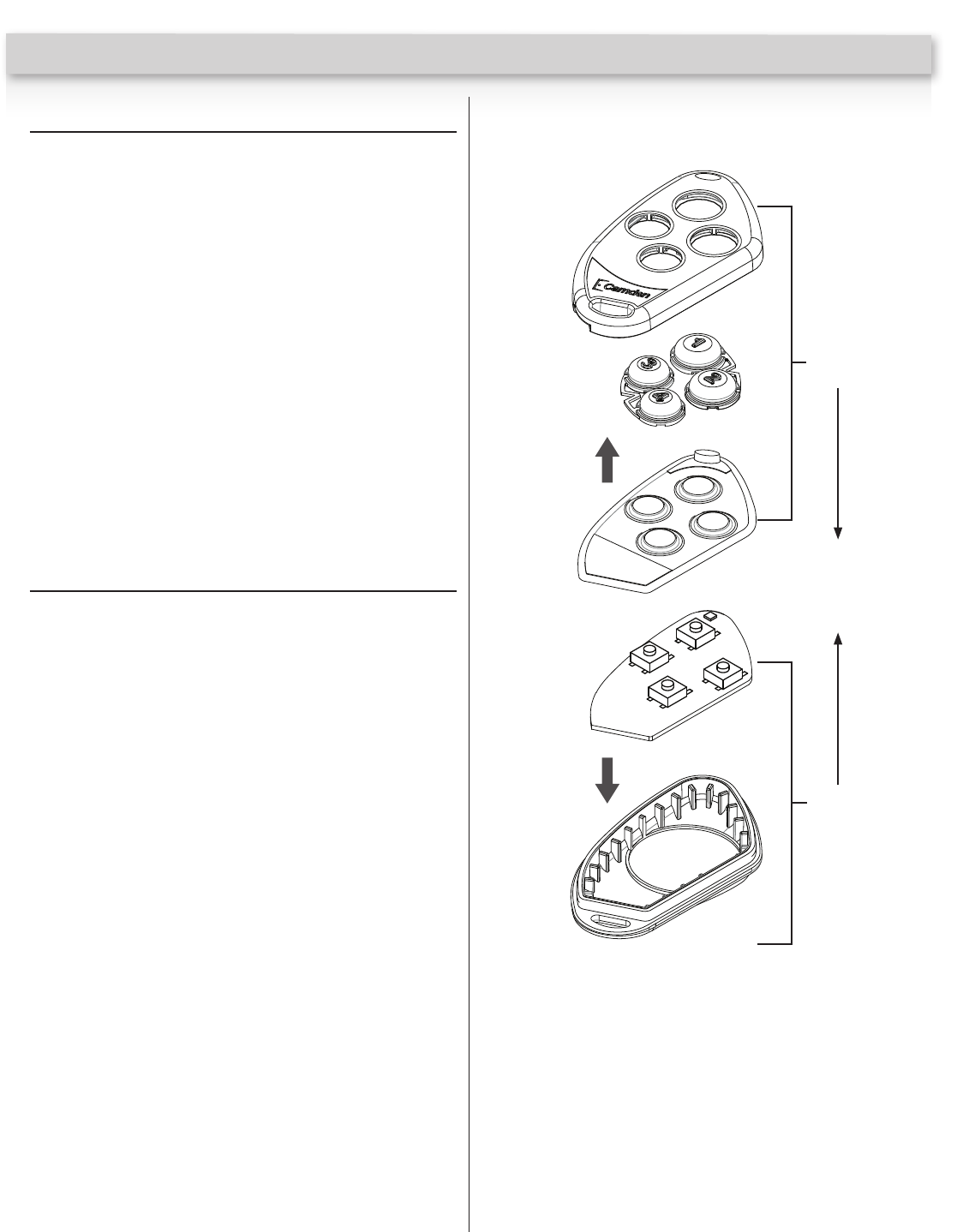

Assembly Instructions
PWA-201-0329-051
Camden
Plastic
Case FOB
Top
Assembly
Top + Bottom
Assemblies
Snap Together
Bottom
Assembly
Plastic Case
Bottom
Plastic
Buttons
Translucent
Rubber
Membrane
Circuit
Board
IC & FCC INFORMATION FOR USERS
IC: 8725A-TXLF
This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux
conditions suivantes :
1) l’appareil ne doit pas produire de brouillage;
2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
FCC ID: 2AHAB-TXLF
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
Changes or modications made to this equipment not expressly approved by Camden Door Controls could void the user’s authority to operate the equipment.
Page 3 of 3
Lazerpoint™ CM-TXLF Series FOB Style Transmitters Installation Instructions
Push Buttons Keypads Strikes Magnetic Locks Key Switches Relays & Timers Access Control
5502 Timberlea Blvd.,
Mississauga, ON Canada
L4W 2T7
www.camdencontrols.com
Toll Free: 1.877.226.3369
File: CM-TXLF Transmitter
Manual.indd- Rev.5
Revised: 25/05/2016
Part No: 40-82B160
