Manual 2
![](/img.php?id=684098&img=bg1.png)

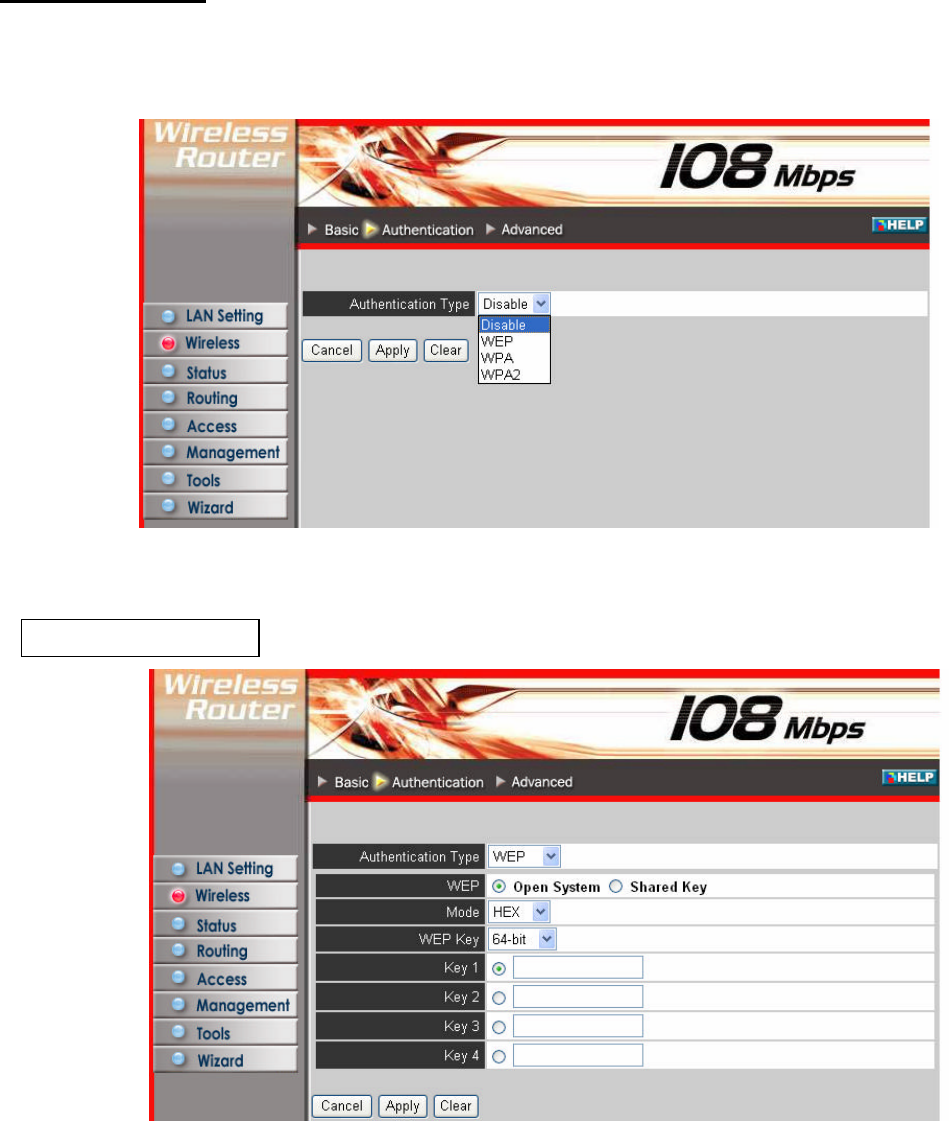

Authentication
The authentication type default is set to disable. There are four options: Disable,
WEP, WPA, and WPA2.
Authentication Type: The authentication type default is set to open system.
There are three options: Open System; Shared Key, WPA and WPA-PKS.
WEP Encryption
WEP: Open System allows public access to the router via wireless
communications; Shared Key requires the user to set a WEP key to exchange data
with other wireless clients that have the same WEP key..
Mode: Select the key mode in ASCII or HEX
WEP Key: Select the level of encryption from the drop-down list. The router
supports, 64- and 128-bit encryption.
![](/img.php?id=684098&img=bg2.png)
Key 1 ~ Key 4: Enables user to create an encryption scheme for Wireless LAN
transmissions. Manually enter a set of values for each key. Select a key to use by
clicking the radio button next to the key. Click “Clear” to erase key values.

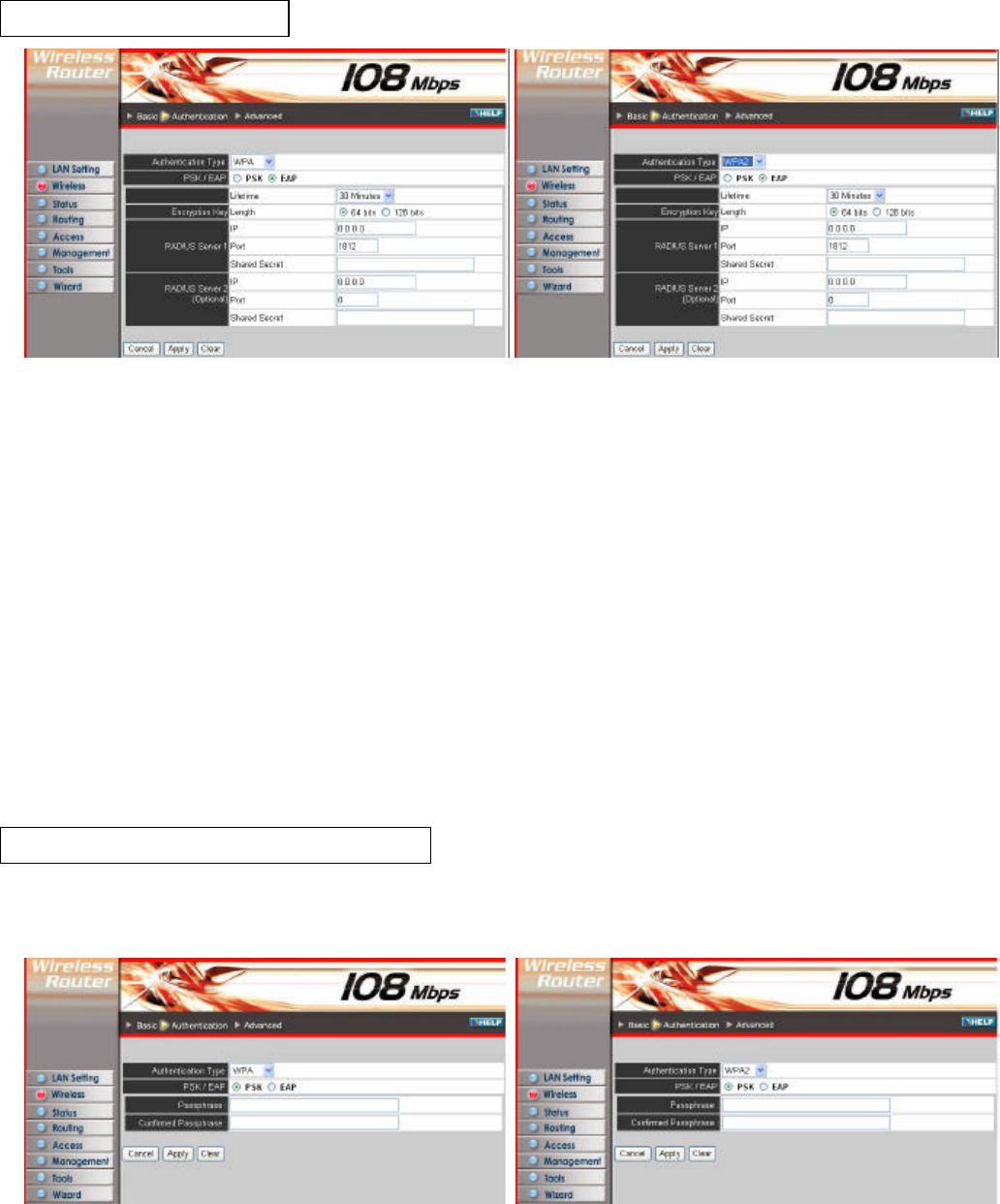

WPA/WPA2 Security
If WPA or WPA2 is selected, the below screen is shown. Please set the length of
the encryption key and the parameters for the RADIUS server.
Lifetime: Select the Lifetime of the Encryption Key from 5 Minutes to 1 Day. As
soon as the lifetime of the Encryption Key is over, the Encryption Key will be
renewed by the Radius server.
Encryption Key: Select the Encryption Key Length Size ranging from 64 to 128
Bits that you would like to use.
RADIUS Server:
1. Enter the IP address, Port used and Shared Secret by the Primary Radius
Server.
2. Enter the IP address, Port used and Shared Secret by the Secondary Radius
Server.
WPA-PSK/WPA2-PSK Security
If WPA-PSK or WPA2-PSK is selected, please set the PSK key in the pass phrase
field. The length should be 8 characters at least.
![](/img.php?id=684098&img=bg3.png)

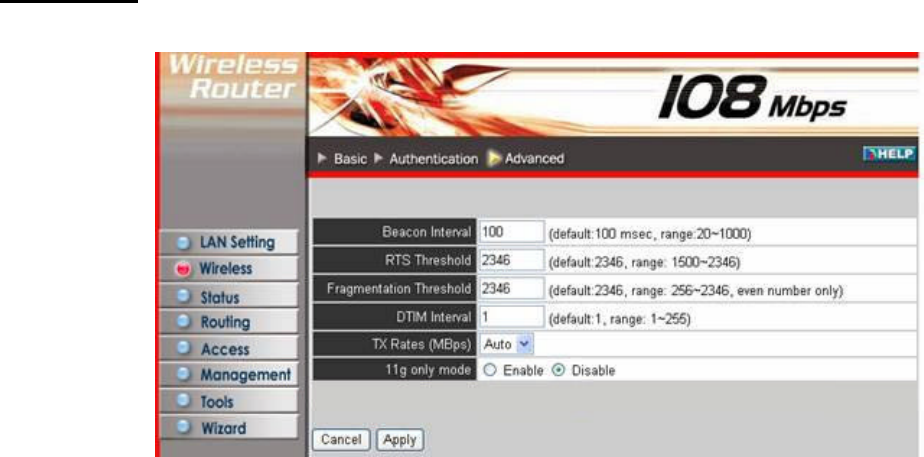

Advanced
This screen enables user to configure advanced wireless functions.
Beacon Interval: Type the beacon interval in the text box. User can specify a value
from 1 to 1000. The default beacon interval is 100.
RTS Threshold: Type the RTS (Request-To-Send) threshold in the text box. This
value stabilizes data flow. If data flow is irregular, choose values between 256 and
2432 until data flow is normalized.
Fragmentation Threshold: Type the fragmentation threshold in the text box. If
packet transfer error rates are high, choose values between 256 and 2432 until
packet transfer rates are minimized. (NOTE: set this fragmentation threshold value
may diminish system performance.)
DTIM Interval: Type a DTIM (Delivery Traffic Indication Message) interval in
the text box. User can specify a value between 1 and 65535. The default value is 1.
TX Rates (Mbps): Select one of the wireless communications transfer rates,
measured in megabytes per second, based upon the speed of wireless adapters
connected to the WLAN.
11g only mode: If selected the Enable, only allow 802.11g WLAN client
communicate with this WLAN Router.
![](/img.php?id=684098&img=bg4.png)
Status
This selection enables user to view the status of the router LAN, WAN and
Wireless connections, and view logs and statistics pertaining to connections and
packet transfers.

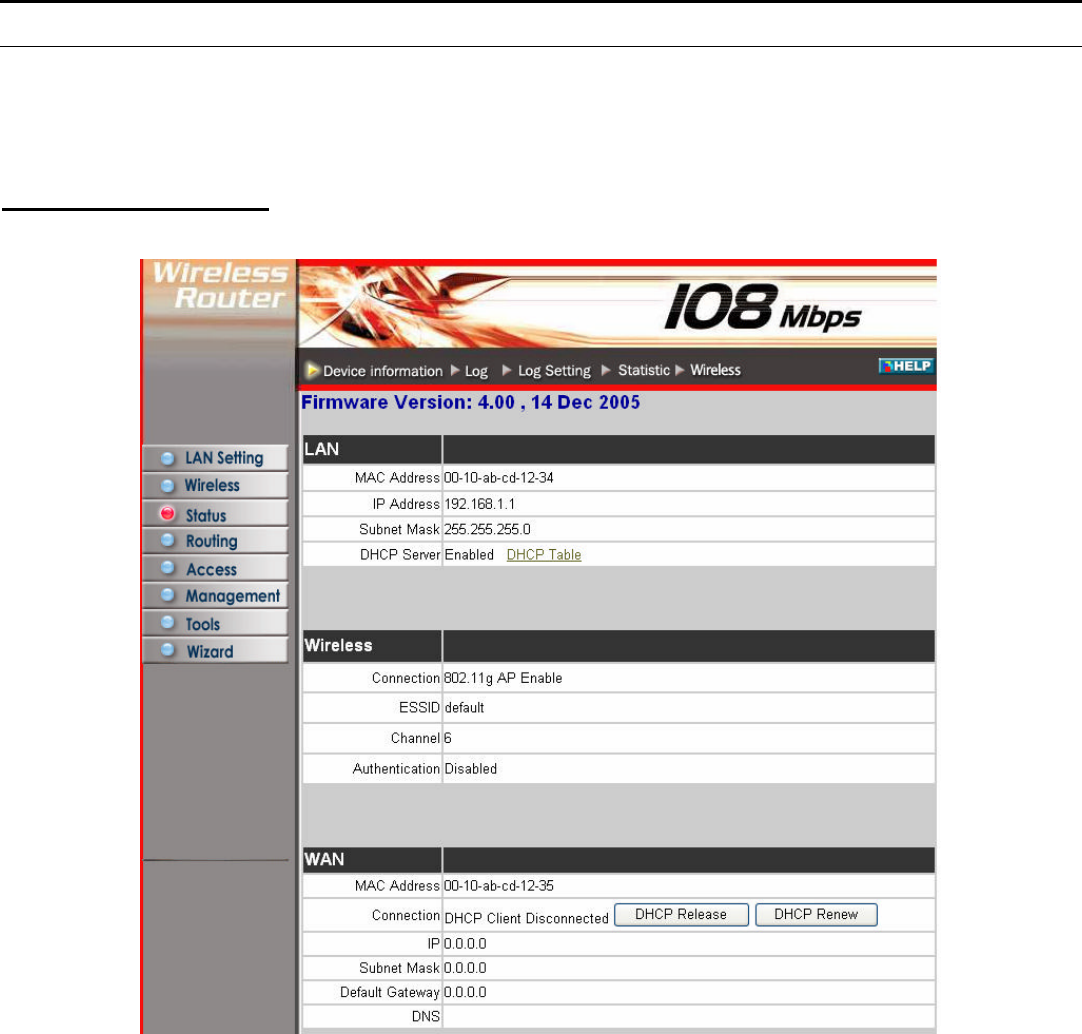

Device Information
This screen enables user to view the router LAN, Wireless and WAN configuration.
Firmware Version: Displays the latest build of the router firmware interface. After
updating the firmware in Tools - Firmware, check this to ensure that the firmware
was successfully updated.
LAN: This section displays the LAN interface configuration including the MAC
address, IP address, subnet mask, and DHCP server status. Click “DHCP Table” to
view a list of client stations currently connected to the router LAN interface.
Wireless: This section displays the wireless configuration information, including
the MAC address, the Connection status, SSID, Channel and Authentication type.
![](/img.php?id=684098&img=bg5.png)
WAN: This section displays the WAN interface configuration including the MAC
address, Connection status, DHCP client status, IP address, Subnet mask, Default
gateway, and DNS.
Click “DHCP Release” to release all IP addresses assigned to client stations
connected to the WAN via the router. Click “DHCP Renew” to reassign IP
addresses to client stations connected to the WAN.

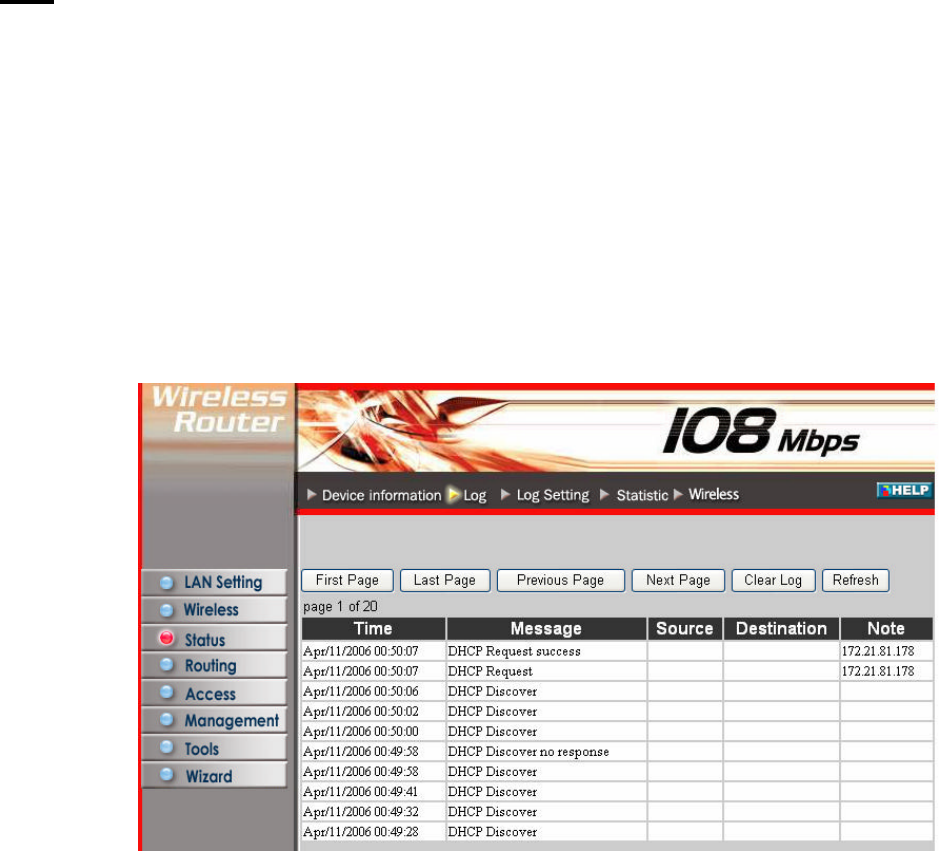

Log
This screen enables user to view a running log of router system statistics, events,
and activities. The log displays up to 200 entries. Older entries are overwritten by
new entries. The Log screen commands are as follows:
Click “First Page” to view the first page of the log
Click “Last Page” to view the final page of the log
Click “Previous Page” to view the page just before the current page
Click “Next Page” to view the page just after the current page
Click “Clear Log” to delete the contents of the log and begin a new log
Click “Refresh” to renew log statistics
Time: Displays the time and date that the log entry was created.
Message: Displays summary information about the log entry.
Source: Displays the source of the communication.
Destination: Displays the destination of the communication.
Note: Displays the IP address of the communication
![](/img.php?id=684098&img=bg6.png)

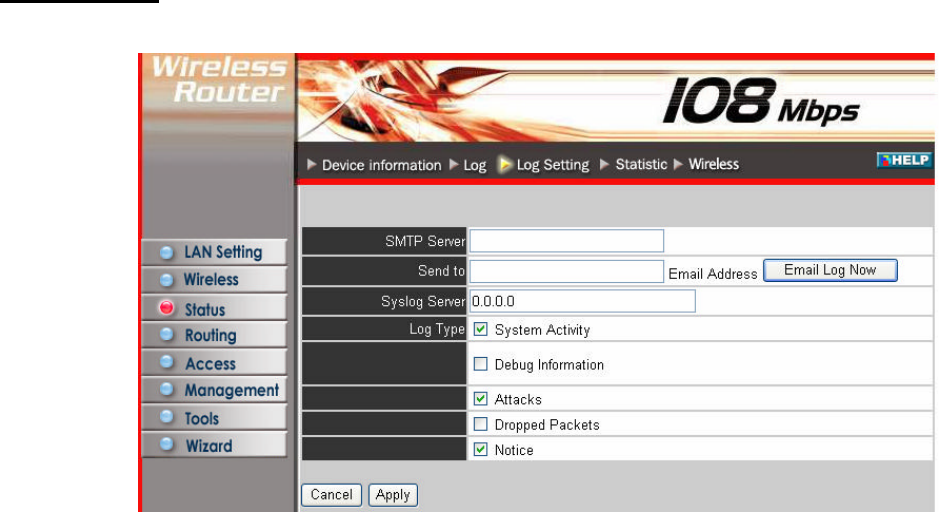

Log Setting
This screen enables user to set router logging parameters.
SMTP Server: Type the SMTP server address for the email that the log will be
sent to in the next field.
Send to: Type an email address for the log to be sent to. Click “Email Log Now” to
immediately send the current log.
Syslog Server: Type the IP address of the Syslog Server if user wants the router to
listen and receive incoming Syslog messages.
Log Type: Enables user to select what items will be included in the log:
System Activity: Displays information related to router operation.
Debug Information: Displays information related to errors and system
malfunction.
Attacks: Displays information about any malicious activity on the network.
Dropped Packets: Displays information about packets that have not been
transferred successfully.
Notice: Displays important notices by the system administrator.
![](/img.php?id=684098&img=bg7.png)
Statistic
This screen displays a table that shows the rate of packet transmission via the router
LAN, Wireless and WAN ports (in bytes per second).
Click “Reset” to erase all statistics and begin logging statistics again.
Wireless
This screen enables user to view information about wireless devices that are
connected to the WLAN Router.
Connected Time: Displays how long the wireless device has been connected to the
LAN via the router.
MAC Address: Displays the devices wireless LAN interface MAC address.
![](/img.php?id=684098&img=bg8.png)
Routing
This selection enables user to set how the router forwards data: Static and Dynamic.
Routing Table enables user to view the information created by the router that
displays the network interconnection topology.

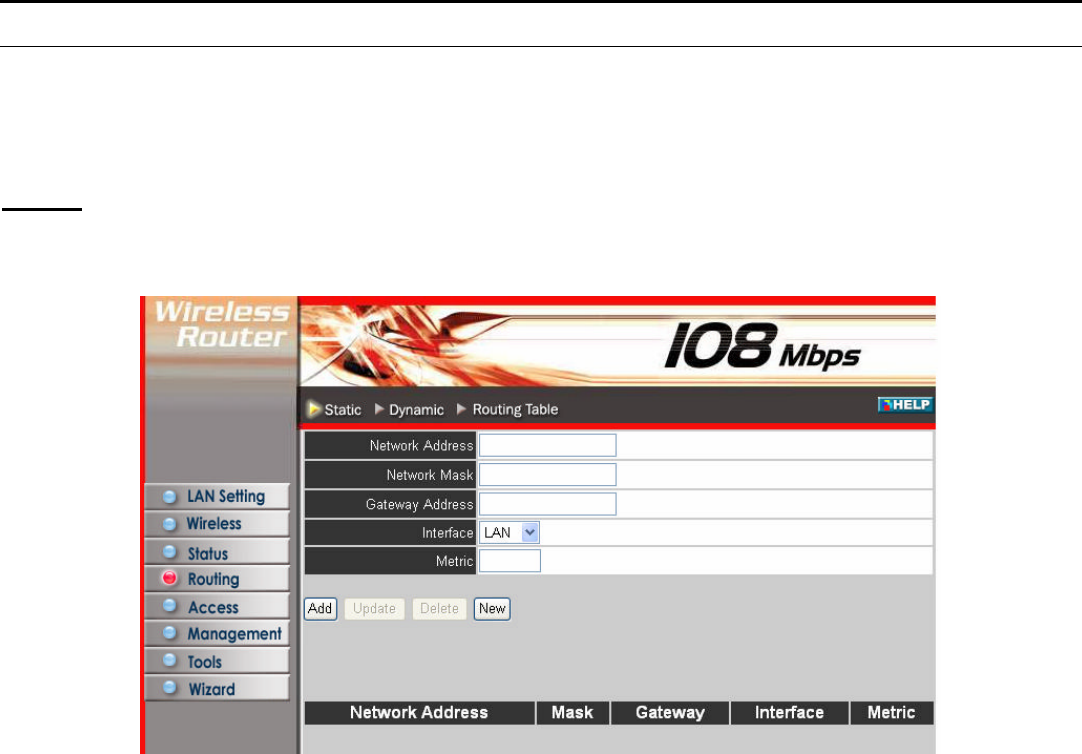

Static
It enables user to set parameters by which the router forwards data to its destination
if user’s network has a static IP address.
Network Address: Type the static IP address user’s network uses to access the
Internet. User’s ISP or network administrator provides user with this information.
Network Mask: Type the network (subnet) mask for user’s network. If user does
not type a value here, the network mask defaults to 255.255.255.255. User’s ISP or
network administrator provides user with this information.
Gateway Address: Type the gateway address for network. User’s ISP or network
administrator provides user with this information.
Interface: Select an interface, WAN or LAN, to connect to the Internet.
Metric: Select which metric that user want to apply to this configuration.
Add: Click to add the configuration to the static IP address table at the bottom of
the page.
Update: Select one of the entries in the static IP address table at the bottom of the
page and, after changing parameters, click “Update” to confirm the changes.
Delete: Select one of the entries in the static IP address table at the bottom of the
page and click “Delete” to remove the entry.
New: Click “New” to clear the text boxes and add required information to create a
new entry.
![](/img.php?id=684098&img=bg9.png)

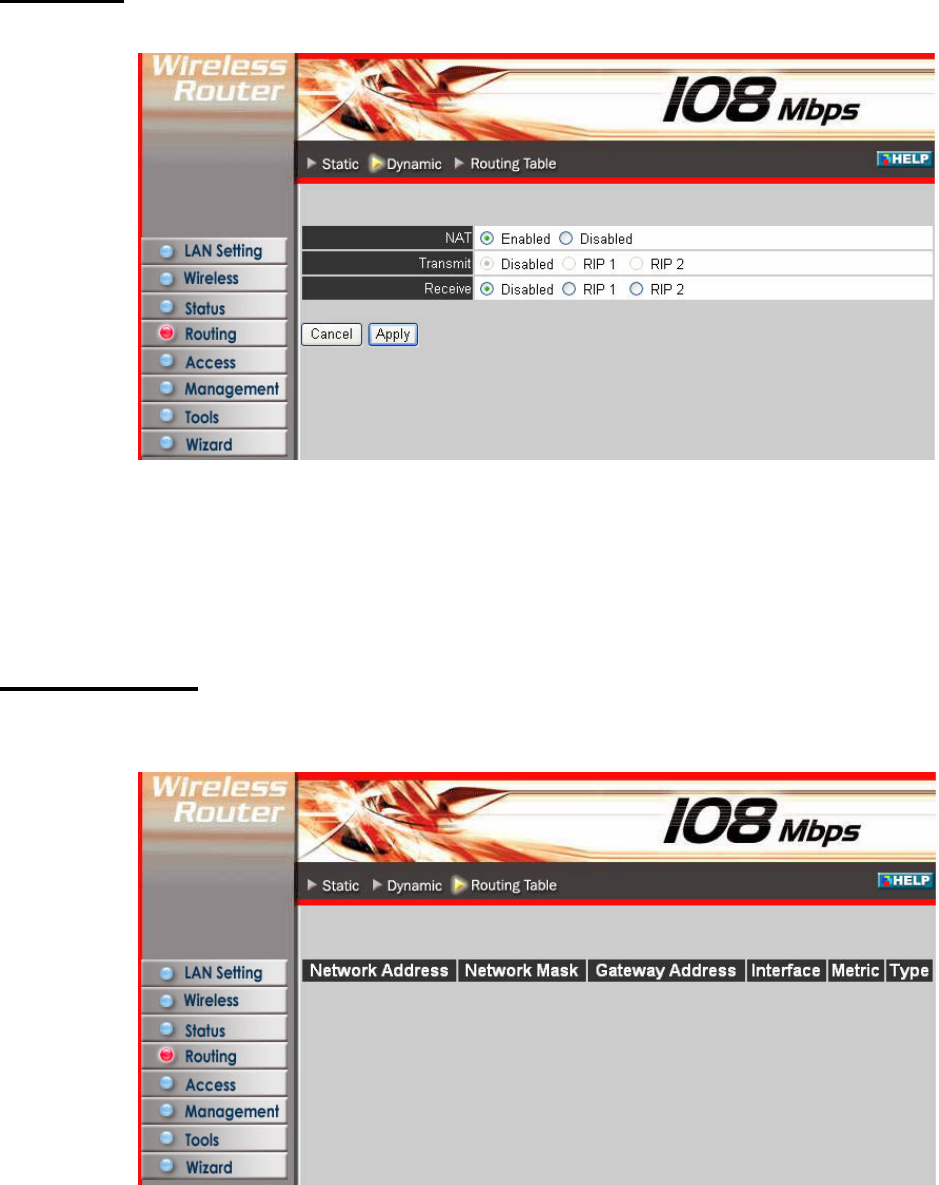

Dynamic
This screen enables user to set NAT parameters.
NAT: Click the radio buttons to enable or disable the NAT function.
Transmit: Click the radio buttons to set the desired transmit parameters, disabled,
RIP 1, or RIP 2.
Receive: Click the radio buttons to set the desired transmit parameters, disabled,
RIP 1, or RIP 2.
Routing Table
This screen enables user to view the routing table for the router. The routing table is
a database created by the router that displays the network interconnection topology.
Network Address: Displays the network IP address of the connected node.
Network Mask: Displays the network (subnet) mask of the connected node.
Gateway Address: Displays the gateway address of the connected node.
Interface: Displays whether the node is connected via a WAN or LAN.
Metric: Displays the metric of the connected node.
Type: Displays whether the node has a static or dynamic IP address
![](/img.php?id=684098&img=bga.png)
Access
This page enables you to define access restrictions, set up protocol and IP filters,
create virtual servers, define access for special applications such as games, and set
firewall rules.

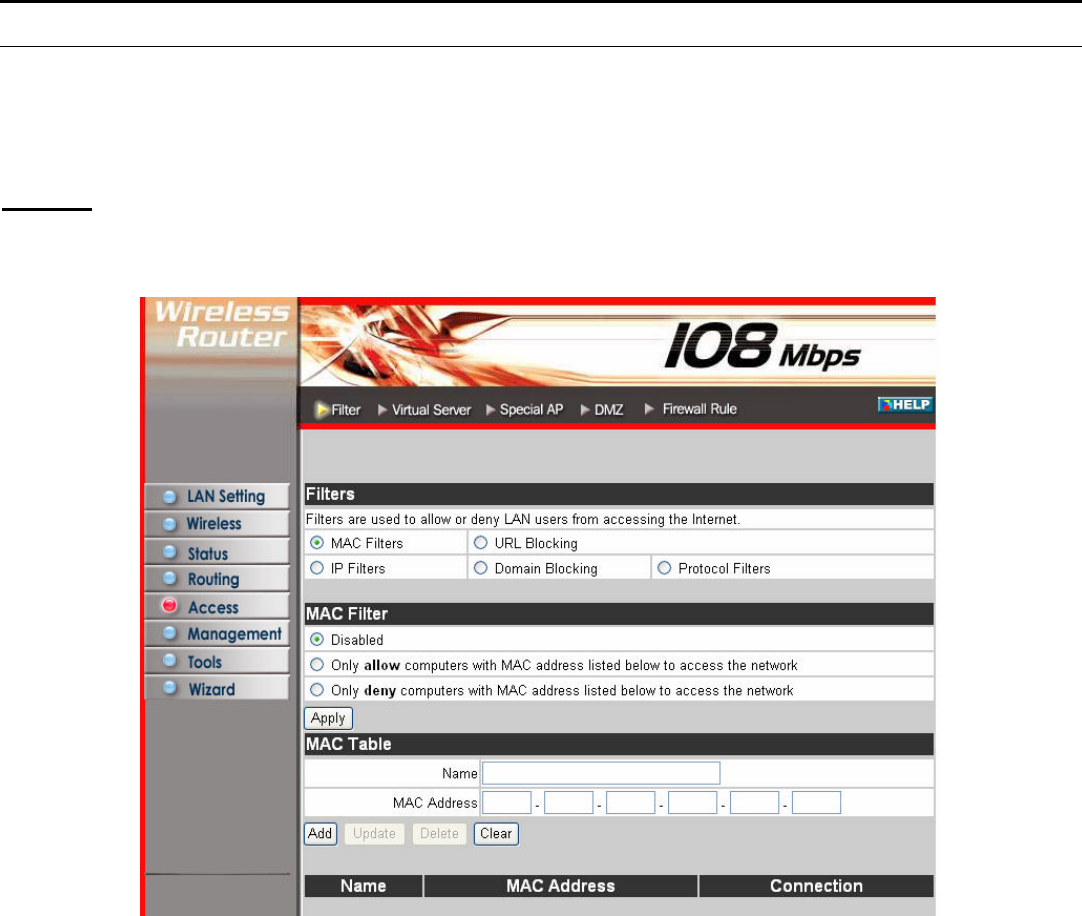

Filters

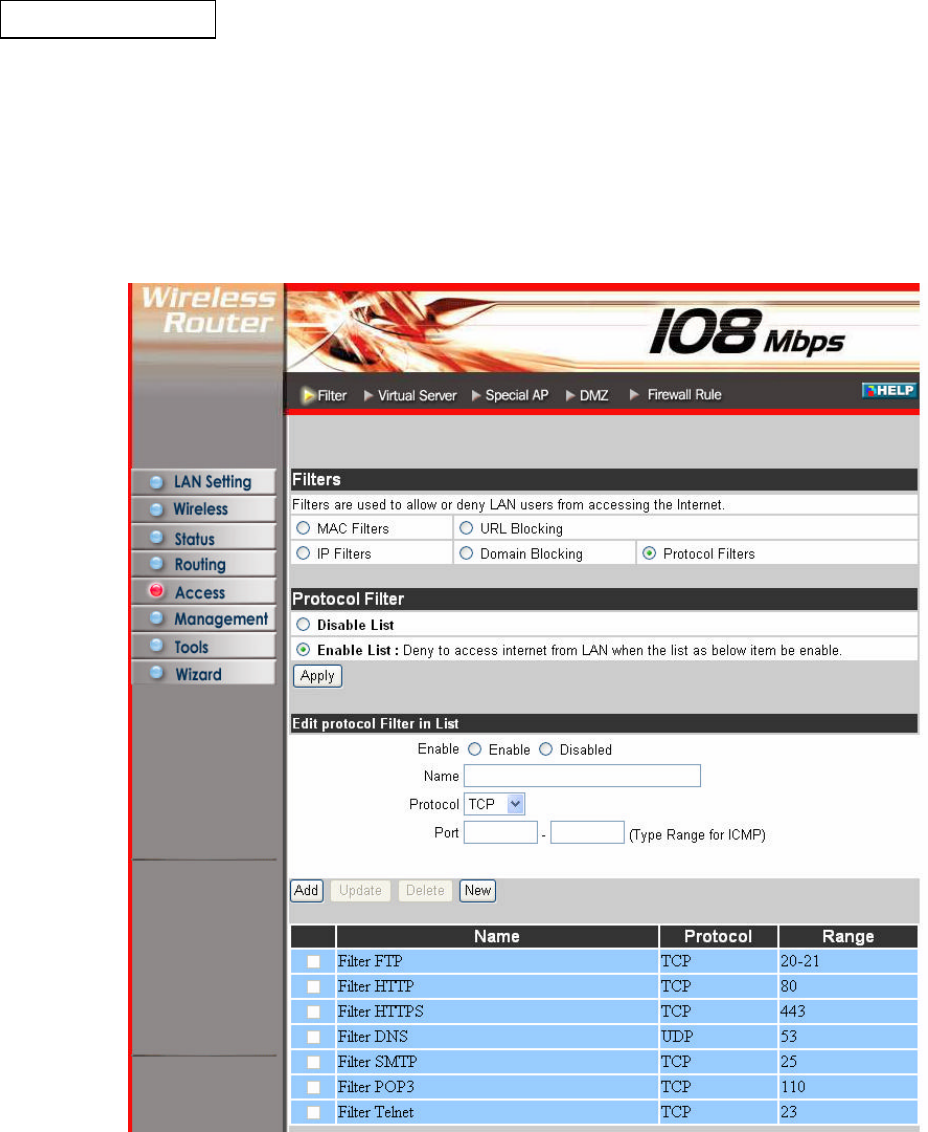

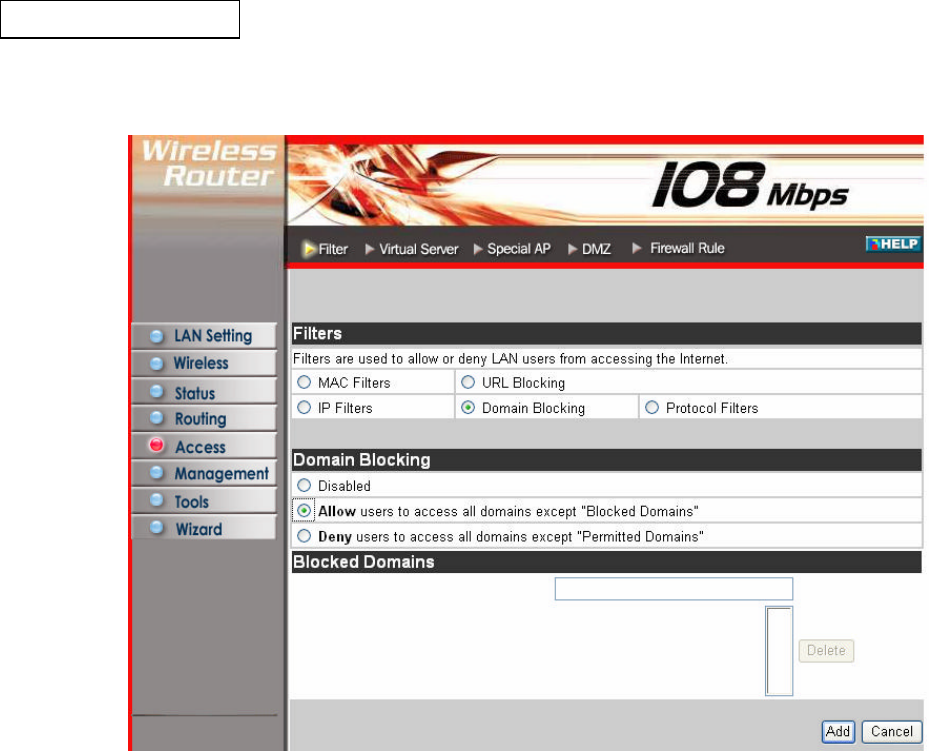

Using filters to deny or allow the users to access. Five types of filters to select:
MAC, URL blocking, IP, Protocol filter and Domain blocking.
![](/img.php?id=684098&img=bgb.png)

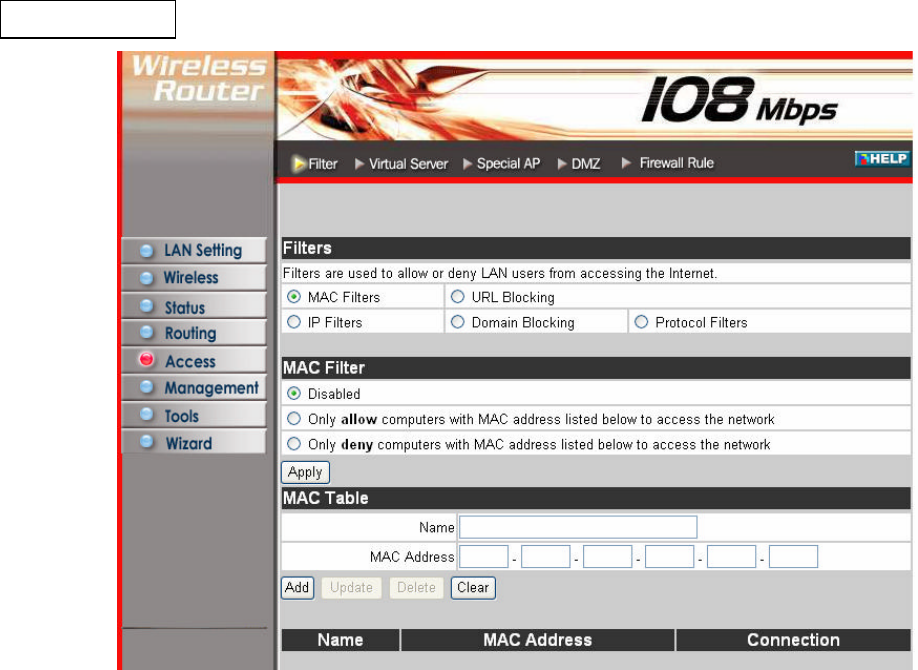

MAC Filters
MAC Filter: Enables you to allow or deny Internet access to users within the
LAN based upon the MAC address of their network interface. Click the radio
button next to Disabled to disable the MAC filter.
Disable: The function of MAC filter is disable.
Allow: Only allow computers with MAC address listed in the MAC Table.
Deny: All users are allowed Internet access except those computers in the MAC
Table are deny Internet access.
MAC Table: Use this section to create a user profile which Internet access is
denied or allowed. The user profiles are listed in the table at the bottom of the
page. (Note: Click anywhere in the item. Once the line is selected, the fields
automatically load the item's parameters, which you can edit.)
Name: Type the name of the user to be permitted/denied access.
MAC Address: Type the MAC address of the user's network interface.
Add: Click to add the user to the list at the bottom of the page.
Update: Click to update information for the user, if you have changed any of the
fields.
Delete: Select a user from the table at the bottom of the list and click Delete to
remove the user profile.
New: Click New to erase all fields and enter new information.
![](/img.php?id=684098&img=bgc.png)

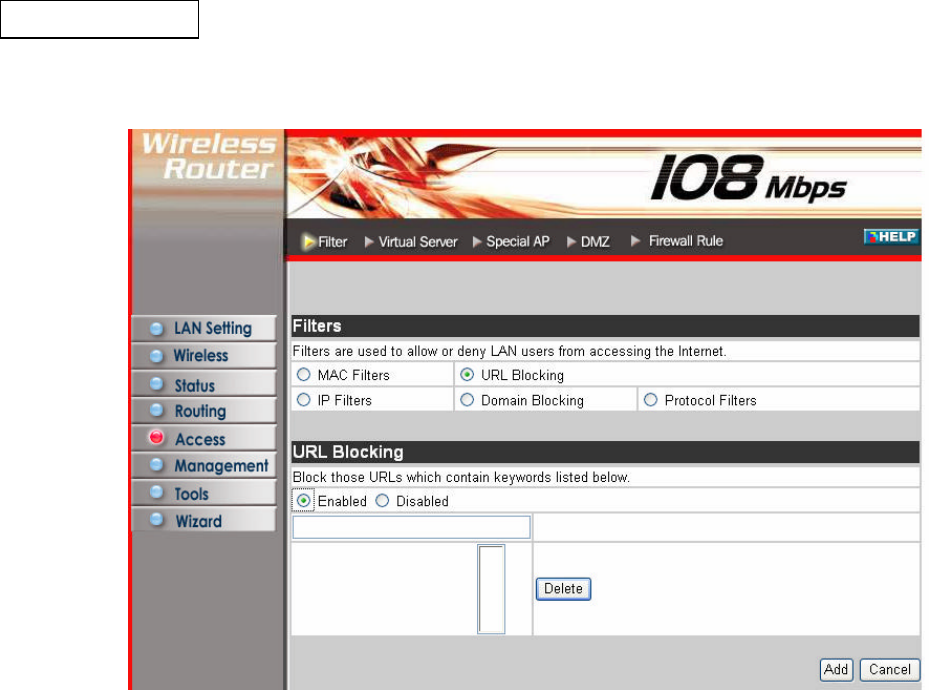

URL Blocking
You could enable URL blocking to deny the users from accessing the specified
URL. Add those specified URL in the text box.
![](/img.php?id=684098&img=bgd.png)

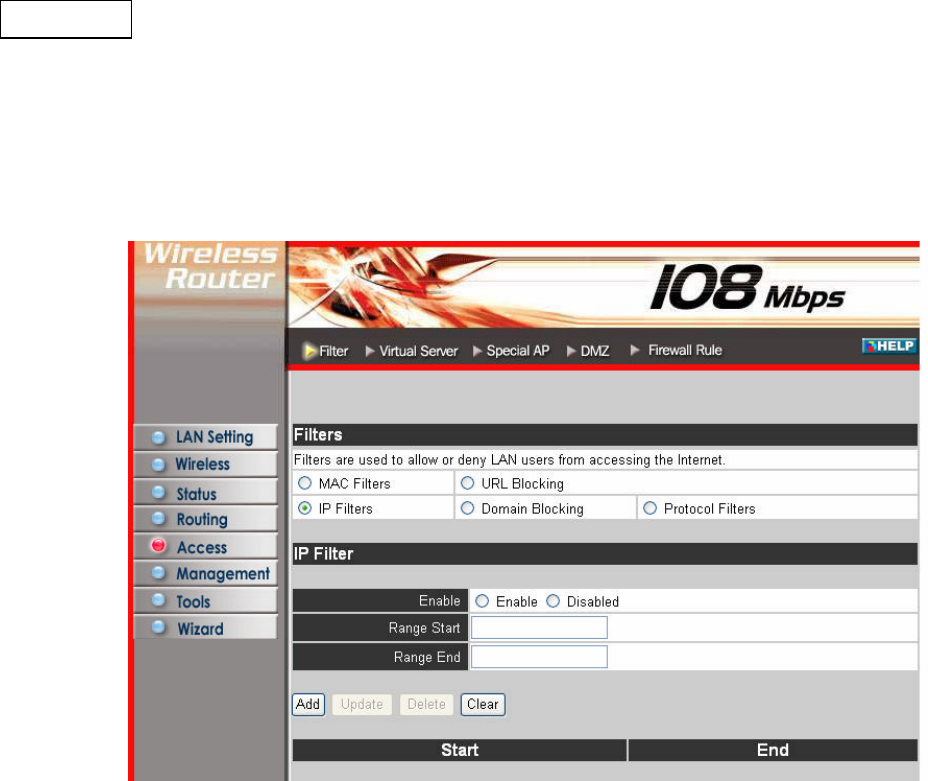

IP Filters
This screen enables you to define a minimum and maximum IP address range
filter; all IP addresses falling in the range are not allowed Internet access. The IP
filter profiles are listed in the table at the bottom of the page. (Note: Click
anywhere in the item. Once the line is selected, the fields automatically load the
item's parameters, which you can edit.)
Enable: Click to enable or disable the IP address filter.
Range Start: Type the minimum address for the IP range. IP addresses falling
between this value and the Range End are not allowed to access the Internet.
Range End: Type the minimum address for the IP range. IP addresses falling
between this value and the Range Start are not allowed to access the Internet.
Add: Click to add the IP range to the table at the bottom of the screen.
Update: Click to update information for the range if you have selected a list item
and have made changes.
Delete: Select a list item and click Delete to remove the item from the list.
New: Click New to erase all fields and enter new information.
![](/img.php?id=684098&img=bge.png)
Domain Blocking
You could specify the domains that allow users to access or deny by clicking one
of the two items. Also, add the specified domains in the text box.
![](/img.php?id=684098&img=bgf.png)
Protocol Filters
This screen enables you to allow and deny access based upon a communications
protocol list you create. The protocol filter profiles are listed in the table at the
bottom of the page.
Note: When selecting items in the table at the bottom, click anywhere in the item.
The line is selected, and the fields automatically load the item's parameters, which
you can edit.
