MARK-IV VHF BROADBAND SIGNAL BOOSTER
M4BBDAV
OPERATIONS & MAINTENANCE (O&M) MANUAL
REVISION 0
SUBMITTED BY:
CANAM TECHNOLOGY, INC.
April, 2015
CANAM TECHNOLOGY, INC. (CTI)
MARK-IV VHF BROADBAND SIGNAL BOOSTER M4BBDAV O&M MANUAL
Page 2 of 39
Rev0 April/2015
Part 90 Signal Boosters THIS IS A 90.219 CLASS B DEVICE
WARNING. This is NOT a CONSUMER device. It is designed for installation by
FCC LICENSEES and QUALIFIED INSTALLERS. You MUST have an FCC LICENSE
or express consent of an FCC Licensee to operate this device. You MUST
register Class B signal boosters (as defined in 47 CFR 90.219) online
at www.fcc.gov/signal-boosters/registration. Unauthorized use may result in
significant forfeiture penalties, including penalties in excess of $100,000 for
each continuing violation.”
CANAM TECHNOLOGY, INC. (CTI)
MARK-IV VHF BROADBAND SIGNAL BOOSTER M4BBDAV O&M MANUAL
Page 3 of 39
Rev0 April/2015
TABLE OF CONTENTS
Section A. INTRODUCTION ..................................................................................... 6
Section B. GLOSSARY ............................................................................................. 8
Section C. SAFETY PRECAUTIONS .......................................................................... 9
C.1 EQUIPMENT HANDLING AND INSTALLATION ............................................... 9
C.2 POWER SUPPLIES ............................................................................................. 9
C.3 MCPA MODULES ............................................................................................ 9
C.4 RF EXPOSURE ................................................................................................... 9
C.5 MOVING PARTS ............................................................................................ 10
Section D. THEORY OF OPERATION .................................................................... 11
D.1 DESCRIPTION ................................................................................................. 11

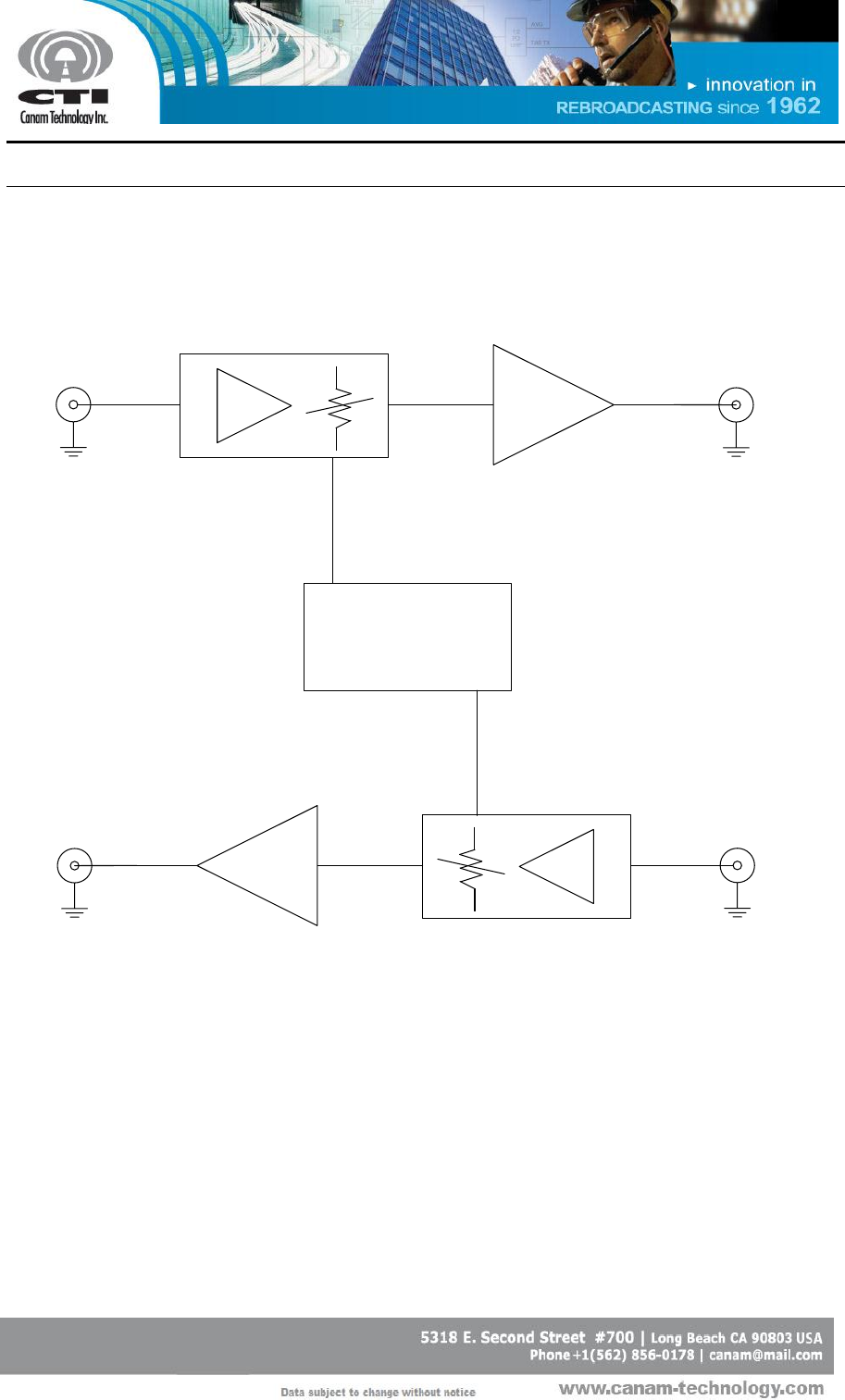

D.2 FUNCTIONAL BLOCK DIAGRAM ................................................................. 12
D.3 FEATURES ........................................................................................................ 13
D.4 SPECIFICATIONS ............................................................................................ 14
D.5 FRONT AND REAR PANEL PORTS AND INTERFACES.................................. 17
D.6 LCD-DISPLAY & KEYPAD ASSEMBLY ........................................................... 19
Section E. INITIAL CONFIGURATION ................................................................... 22
E.1 GENERAL GUIDELINES REGARDING RF CONNECTIONS & OPERATIONS
WITH TEST INSTRUMENTS ......................................................................................... 23
E.2 ANTENNA INSTALLATION .............................................................................. 24
Section F. WEB-SERVER GRAPHICAL USER INTERFACE .................................... 25
F.1 FIRST-TIME START CONFIGURATION ............................................................ 25
F.1.1 CONNECTING SYSTEM DIRECTLY TO PC COMPUTER ........................... 25
F.1.2 CONNECTING SYSTEM TO LOCAL AREA NETWORK ............................. 28
F.2 WEB SERVER OPERATIONS ........................................................................... 30
F.2.1 MAIN STATUS PAGE ................................................................................... 31
F.2.2 MAIN SETTINGS PAGE ............................................................................... 35
F.2.2.1 iALC Control ........................................................................................... 35
F.2.2.2 MCPA Control: ....................................................................................... 36
F.2.2.3 Updating operational settings ............................................................ 37
CANAM TECHNOLOGY, INC. (CTI)
MARK-IV VHF BROADBAND SIGNAL BOOSTER M4BBDAV O&M MANUAL
Page 4 of 39
Rev0 April/2015
TABLES
Table 1 – Front Panel details ................................................................................................................... 17
Table 2 – Rear Panel details. .................................................................................................................. 18
Table 3 – Alarm available at the Front Panel LCD ............................................................................. 20
Table 4 – Meters available at the Front Panel LCD............................................................................ 21
Table 5 – Network Settings available at the Front Panel LCD.......................................................... 21
CANAM TECHNOLOGY, INC. (CTI)
MARK-IV VHF BROADBAND SIGNAL BOOSTER M4BBDAV O&M MANUAL
Page 5 of 39
Rev0 April/2015
TABLE OF FIGURES
Figure 1 – M4BBDAV General Block Diagram ..................................................................................... 12

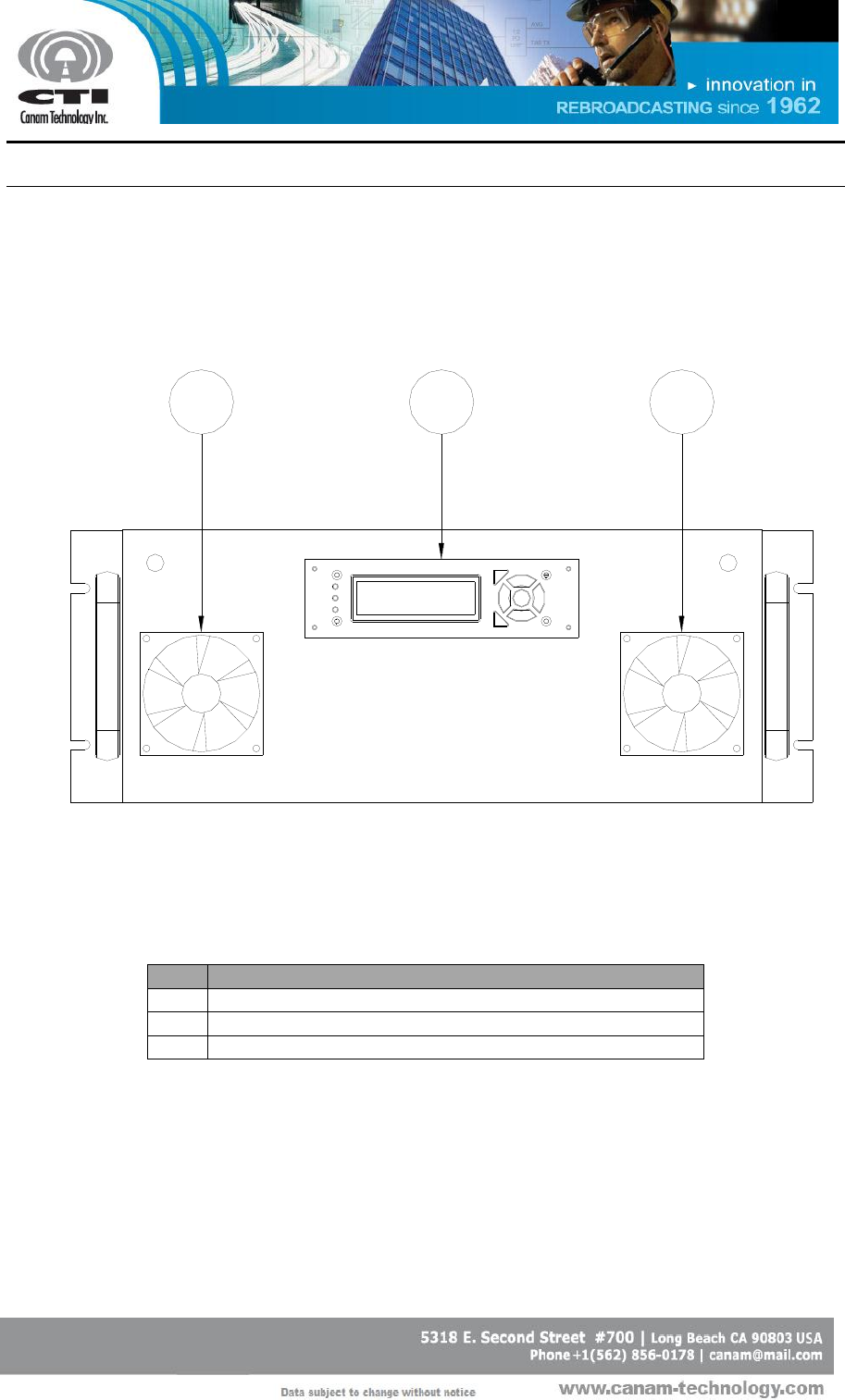

Figure 2 - Front Panel details .................................................................................................................. 17

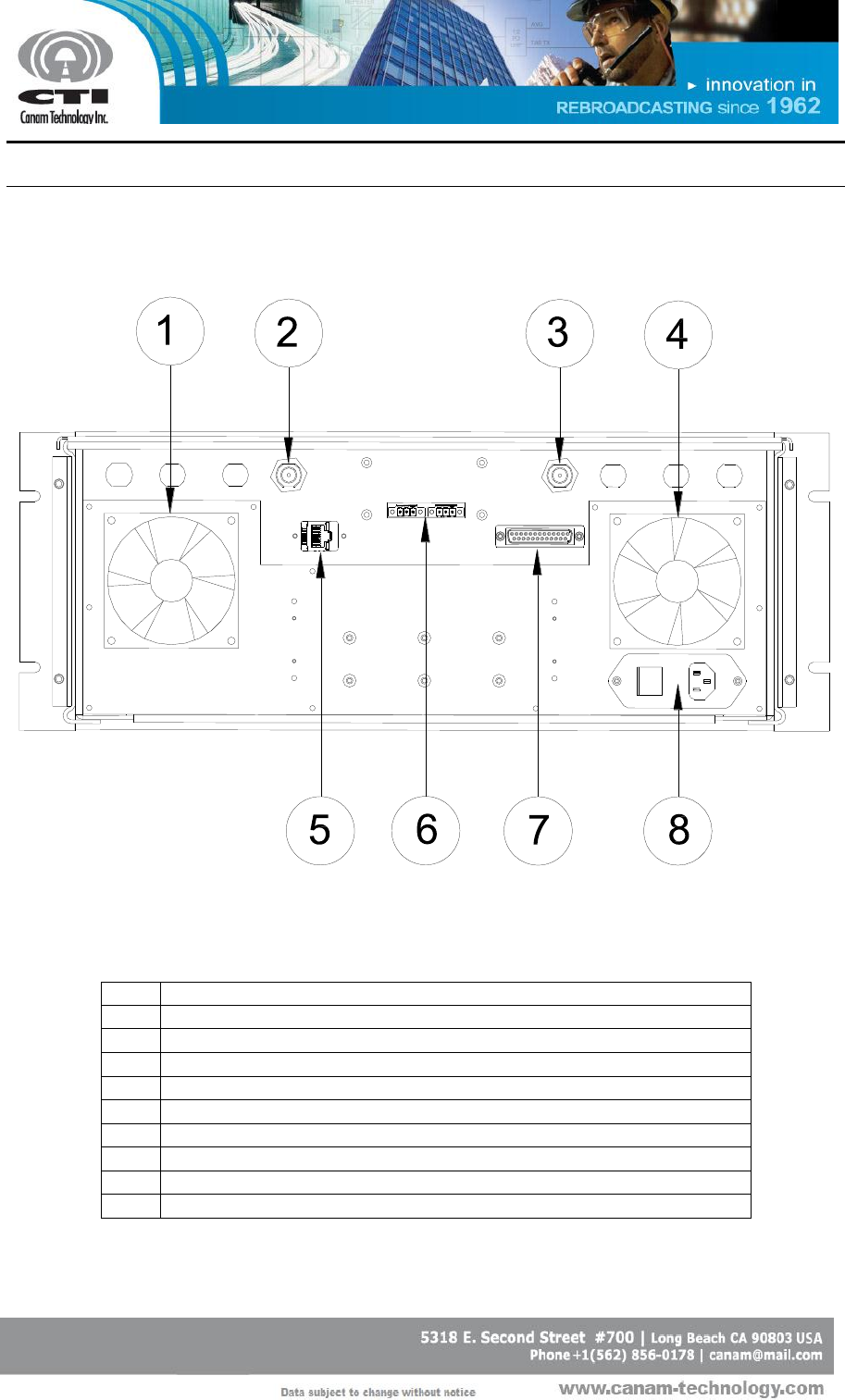

Figure 3 - Rear Panel details. .................................................................................................................. 18

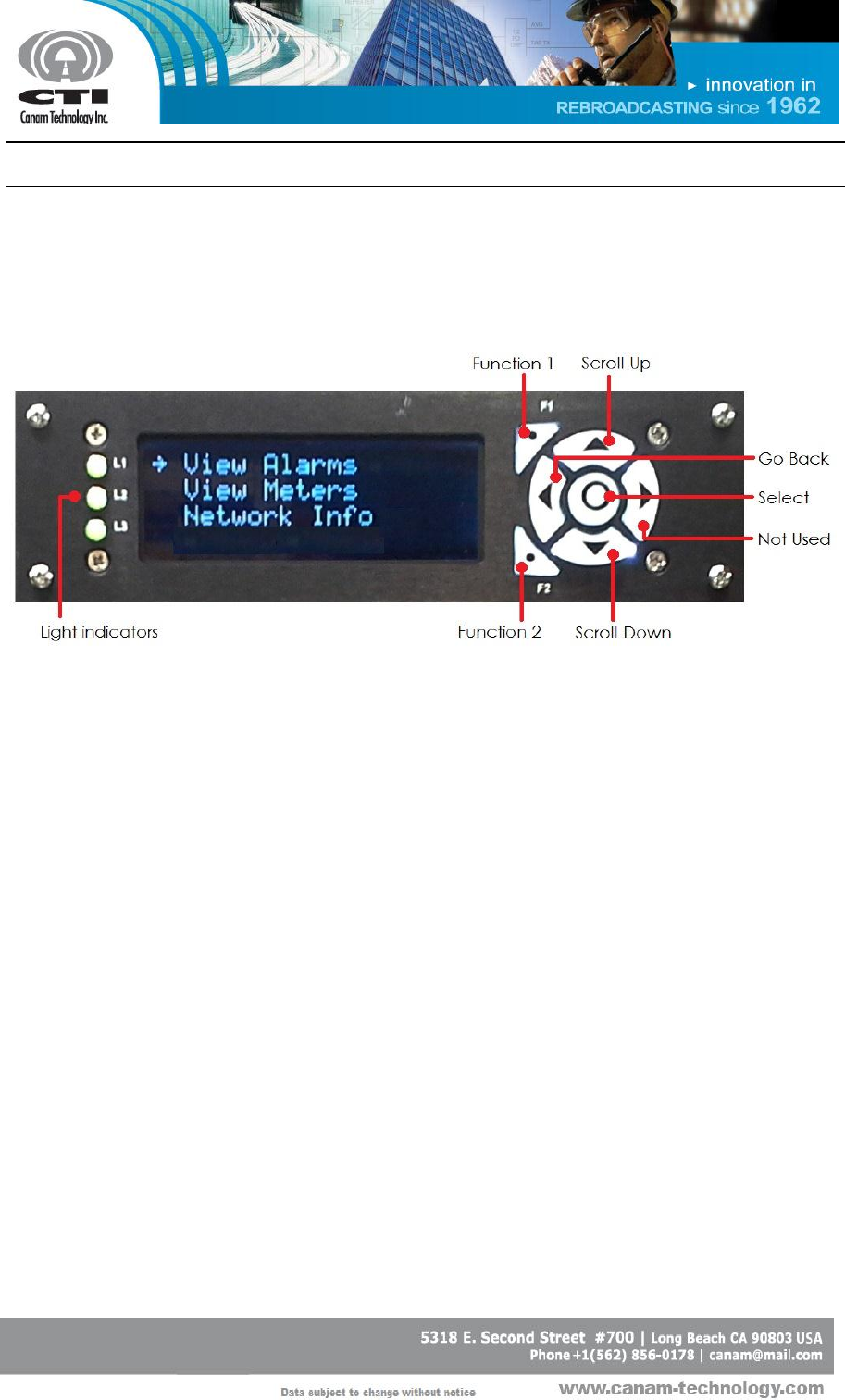

Figure 4 – LCD and Keypad Interface .................................................................................................. 19
Figure 5 – System connected directly to PC computer. ................................................................... 25

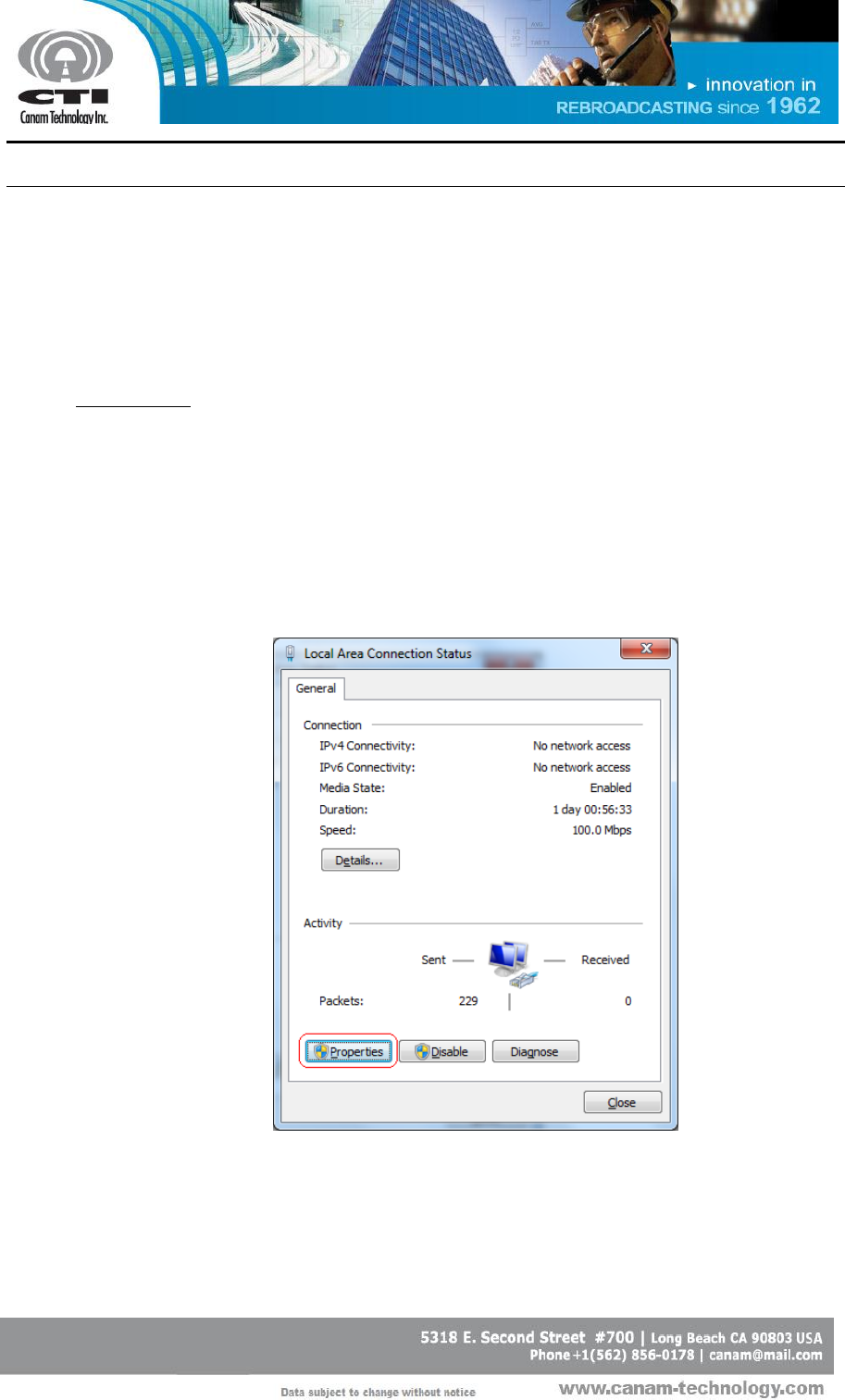

Figure 6 – Local Area Connection Status. ........................................................................................... 26

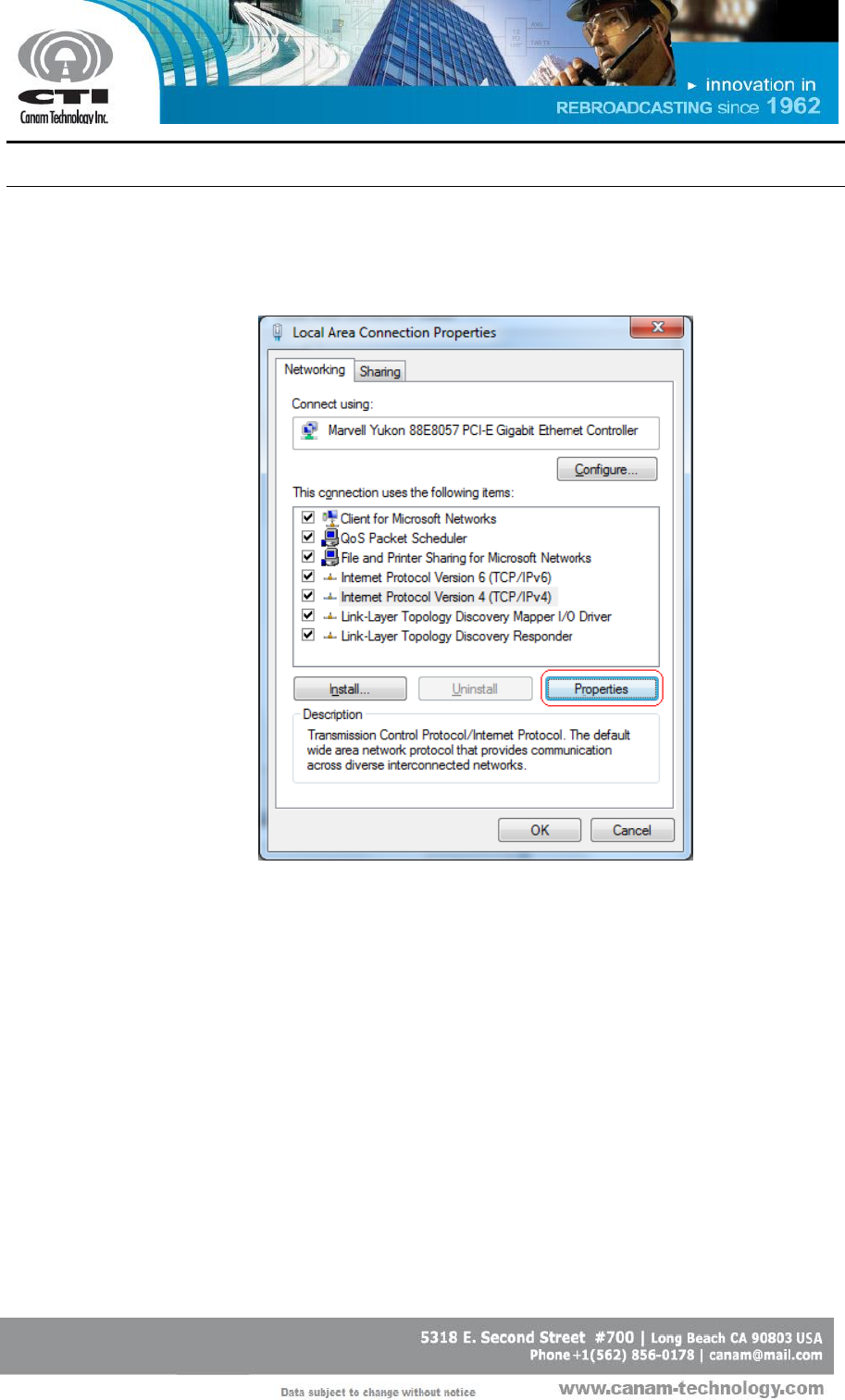

Figure 7 – Local Area Connection Properties. .................................................................................... 27
Figure 8 – System connected into local area network. .................................................................... 28
Figure 9 – Main Status page ................................................................................................................... 31

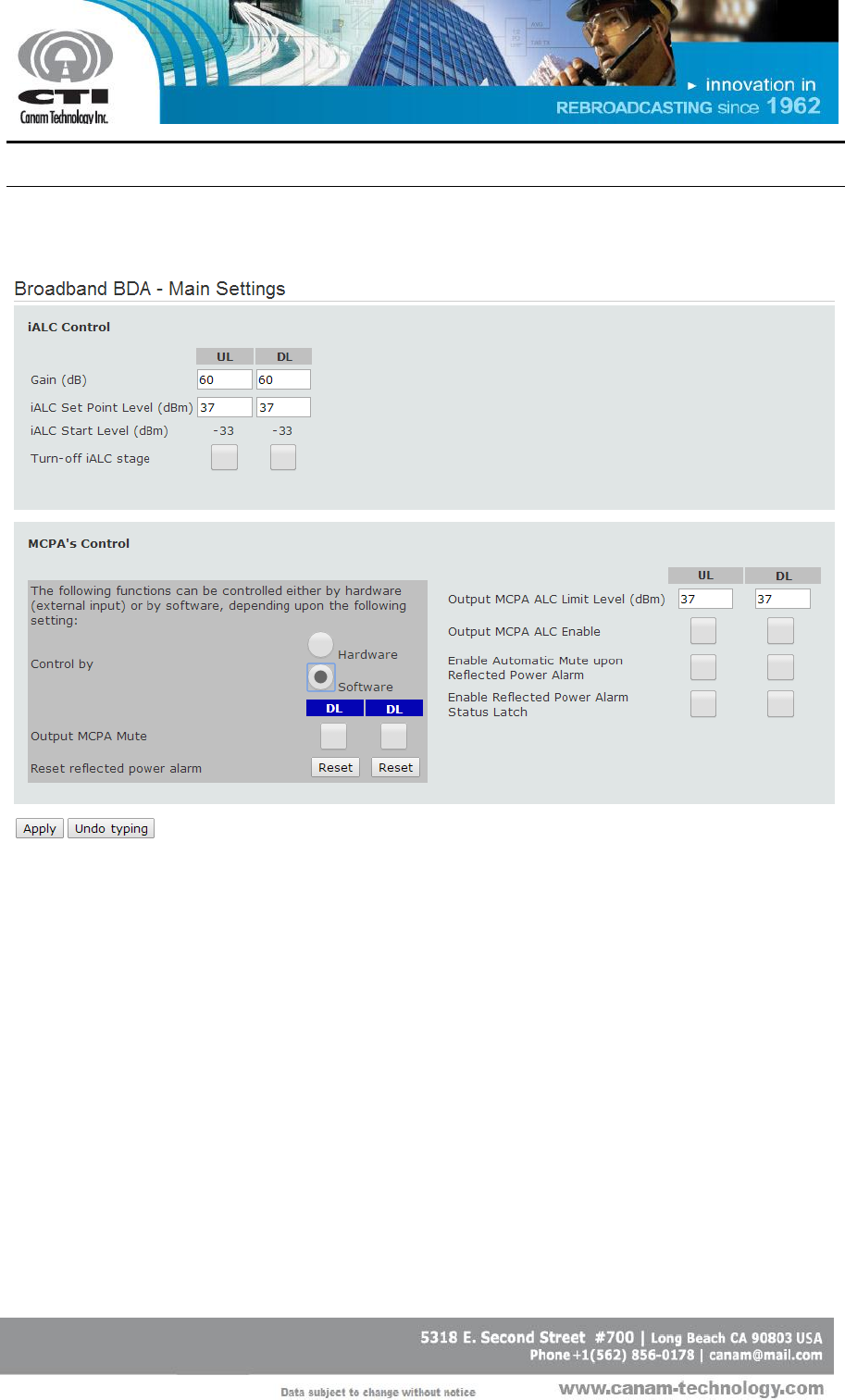

Figure 10 – Main Settings page .............................................................................................................. 35

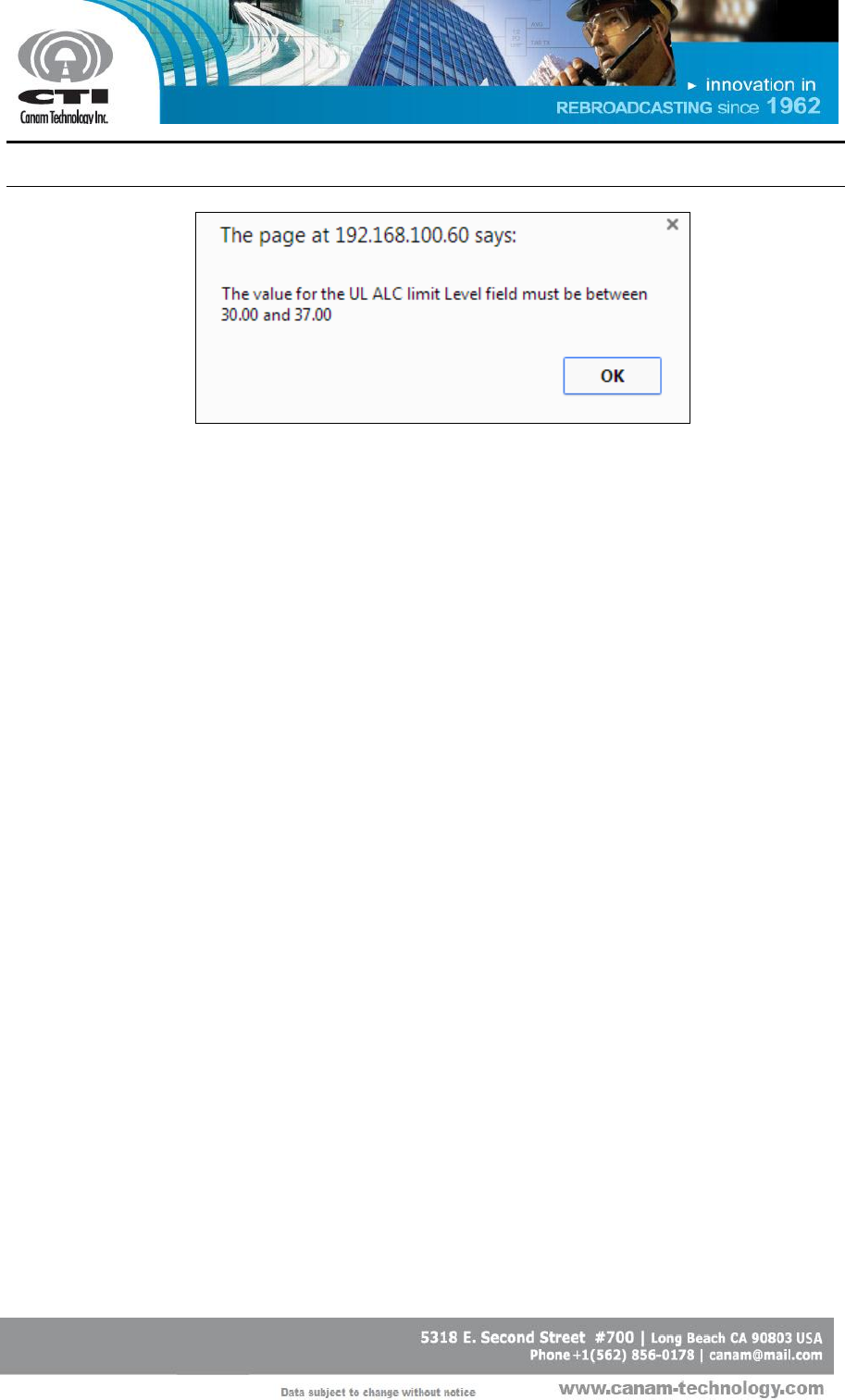

Figure 11 – Value is not into valid range error message ................................................................... 38
CANAM TECHNOLOGY, INC. (CTI)
MARK-IV VHF BROADBAND SIGNAL BOOSTER M4BBDAV O&M MANUAL
Page 6 of 39
Rev0 April/2015
Section A. INTRODUCTION
The MARK-IV VHF Broadband Signal Booster (M4BBDAV) is a Class “B”
Industrial Signal Booster for FCC Part 90 PLMRS Public Safety Agencies used to
operate within range 150-174 MHz for Land Mobile Radio.
This document is the M4BBDAV Operations and Maintenance Manual,
intended for the Radio Technical Personnel.
This manual is intended to be used with the M4BBDAV Equipment only. It is
not to be used with any other equipment unless it is authorized by Canam
Technology, Inc.
Canam Technology, Inc. provide this document “as is” without any
warranty of any kind. Canam Technology may make changes to the
equipment, software or specifications in this document at any time
without notice to the user. These changes will be notified to the
party responsible for FCC compliance and they will be incorporated
in future releases of this document.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment.
This document may contain typographical errors and technical
inaccuracies. Canam Technology will not accept any liability from
the use and misuse of this manual, the information contained within,
or the consequences of any actions resulting from the use of this
information.
CANAM TECHNOLOGY, INC. (CTI)
MARK-IV VHF BROADBAND SIGNAL BOOSTER M4BBDAV O&M MANUAL
Page 7 of 39
Rev0 April/2015
Signal boosters such as the M4BBDAV generate radio signals and,
therefore, electromagnetic fields. The technical personnel should
have a complete understanding of FCC CFR Title 47 sections 1.1307
and 1.1310. Recommendations are included in this Manual, but
they do not substitute the FCC guidelines.
M4BBDAV Key Features:
Broadband Class B Signal Booster, per FCC Part 90.
Maximum Output Power at the antenna port +37 dBm per
carrier.
This device may require the use of antennas for proper functioning,
depending on the application. The installation of the antennas
should be performed by qualified technical personnel. All antennas
should be fixed mounted and physically secured to one location
The people must be away from the antennas at least 1.0 meters to
comply with the RF Human Maximum Permissible Exposure limits, as
long as the antenna system gain is lower than 7 dBi. If greater gain is
used the separation should be increased, please refer to the FCC
Rules.
If service should be performed on the antenna, please shut down
the transmitter or lower its power in order to comply with the
maximum permissible exposure.
CANAM TECHNOLOGY, INC. (CTI)
MARK-IV VHF BROADBAND SIGNAL BOOSTER M4BBDAV O&M MANUAL
Page 8 of 39
Rev0 April/2015
Section B. GLOSSARY
AC: Alternate Current.
AGC: Automatic Gain Control, typically used on narrowband channel
filters.
DL: Downlink. Transmission link from the base station to the mobile
station.
DSP: Digital Signal Processing/Processor
ECM: Embedded Control Module (also named as M4-ECM)
GUI: Graphical User Interface
iALC: Input Automatic Level Control (Input broadband limiter).
MCPA: Multi-Carrier High-Power Amplifier
PSU: Power Supply Unit
Relay: Electromechanical switch. The system uses Form-C (SPDT) relays
for external alarms
o COM: Common contact or port
o NC: Normally-Closed contact or port
o NO: Normally-Open contact or port
RF: Radio Frequency
Rx: Receiver
SNMP: Simple Network Management Protocol.
Tx: Transmitter
UL: Uplink. Transmission link from the mobile station to the base station.
CANAM TECHNOLOGY, INC. (CTI)
MARK-IV VHF BROADBAND SIGNAL BOOSTER M4BBDAV O&M MANUAL
Page 9 of 39
Rev0 April/2015
Section C. SAFETY PRECAUTIONS
Ensure that All Operating and Maintenance Personnel do follow INDUSTRY
standard Safety Methods and Precautions. There are system-specific
precautions that must be enforced, such as:
Site Safety Policies
Equipment Handling and Installation
AC power feeds and Power Supply Converters
Multi-Carrier (High) Power Amplifier (MCPA) modules hot surfaces
RF Exposure
C.1 EQUIPMENT HANDLING AND INSTALLATION
1. The enclosure has a weight of 30 kg approximately.
C.2 POWER SUPPLIES
1. When servicing the internal Power Supply and wiring unit, be aware
that power lines are in screw terminal blocks.
2. CAUTION: Removal and Installation requires that the main power
switch be in the OFF position, and the power cord be disconnected
from the enclosure.
C.3 MCPA MODULES
1. Internal MCPA modules are mounted to their corresponding heat
sinks and are used to dissipate DC power. Both the Heat Sink and the
MCPA module MAY be hot.
C.4 RF EXPOSURE
The RF Field Strengths that an individual will be exposed to while doing
maintenance is well below the limits set forth by the FCC & State Laws.
CANAM TECHNOLOGY, INC. (CTI)
MARK-IV VHF BROADBAND SIGNAL BOOSTER M4BBDAV O&M MANUAL
Page 10 of 39
Rev0 April/2015
Nevertheless, there are Safety Precautions that should be adhered when
performing any RF Tests:
1. Never Operate a Transmitter, or Booster Amplifier without adequate
Load/Termination on the Output Port.
2. Ensure all Connections are tight and secured.
3. Ensure all Coaxial Cable Insulation covers the Outer Shield of the
cable.
4. Do Not Touch Exposed System Ports or Coaxial Cable if system is
Transmitting.
38

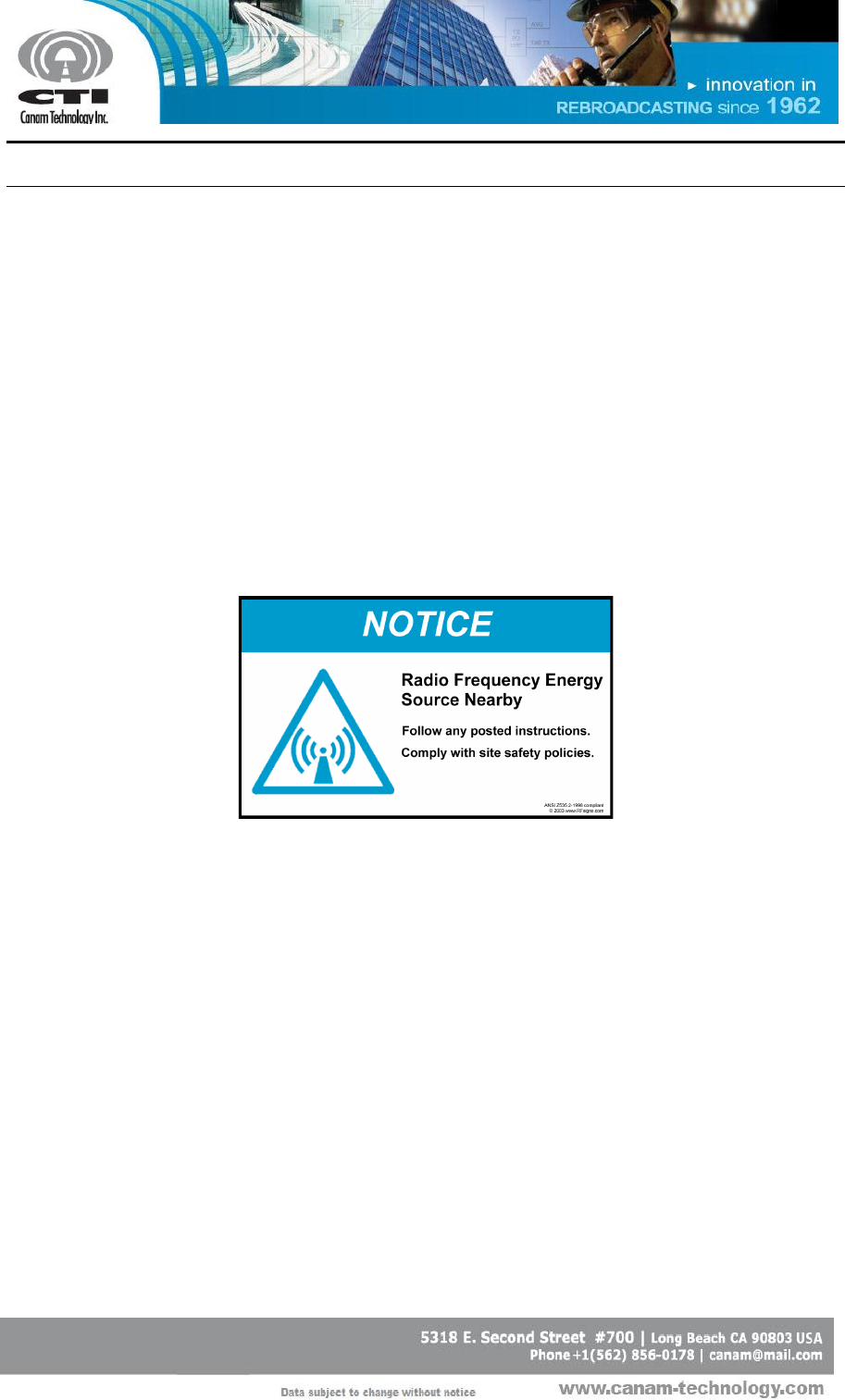

RF Signs
Sign Examples
C.5 MOVING PARTS
1. The system has moving parts as fans.
2. Keep your hands and tools away from moving parts.
3. When servicing and wiring unit, be aware main power switch be in
the OFF position and all moving parts are stopped.
CANAM TECHNOLOGY, INC. (CTI)
MARK-IV VHF BROADBAND SIGNAL BOOSTER M4BBDAV O&M MANUAL
Page 11 of 39
Rev0 April/2015
Section D. THEORY OF OPERATION
D.1 DESCRIPTION
The MARK-IV VHF Broadband Signal Booster (M4BBDAV) is a stand-alone
Broadband bi-directional & multi-channel two-way radio signal suitable to
drive its internal high-power amplifiers that feed the service-side transmit
signals and/or a fiber-optic distribution.
The system houses multi-carrier linear broadband power amplifiers and
automatic level control. The amplifiers are designed with special linear
characteristics for continuous operation, 100% duty cycle 24 hours/7 days a
week. Its modular construction allows easy access to the amplifier modules
and power supply.
It has a maximum gain around 60 dB across the band. The output power
amplifier P1dB Compression point is around 20 Watts (+43 dBm). They also
have an automatic gain control range greater than 25 dB.
The amplifiers modules are bolted down onto a heat-sink base. These heat
sinks have adequate capacity to dissipate five times the maximum
anticipated heat being generated by the amplifiers. It is recommended the
temperature of the room be maintained below 800 F to assure the longest
possible life of the amplifier transistors. The power supply has +28 VDC module
for the amplifiers, equipped with over current and over voltage protection
among other features. It will immediately drop the supply voltage to prevent
damage to other components.
The unit’s operational parameters are stored in the non-volatile memory of
the embedded controller; this allows the booster to operate on a standalone
basis. The built-in Web Server provides a Graphical User Interface (GUI) to
ease in remote monitoring & control. Access is obtained via a PC’s Web
Browser and a TCP/IP connection to the Unit. The system can be connected
directly to a PC computer or can be plugged into the local area network.
Discrete Digital I/O alarms are available for external monitoring.
CANAM TECHNOLOGY, INC. (CTI)
MARK-IV VHF BROADBAND SIGNAL BOOSTER M4BBDAV O&M MANUAL
Page 12 of 39
Rev0 April/2015
D.2 FUNCTIONAL BLOCK DIAGRAM
MCPA
Micro-Controller
MCPA
Clk
64MHz
RF IN
RF
Clk
25MHz
RF OUT
RF IN
RF
RF OUT
Clk
25MHz
UPLINK PATH
DOWNLINK PATH
Figure 1 – M4BBDAV General Block Diagram
CANAM TECHNOLOGY, INC. (CTI)
MARK-IV VHF BROADBAND SIGNAL BOOSTER M4BBDAV O&M MANUAL
Page 13 of 39
Rev0 April/2015
D.3 FEATURES
Two-way Radio Broadband Bi-Directional Amplifier system
>10 W output compression point (P1dB) highly linear multi-carrier power
amplifier (MCPA) with 55 dBm OIP3 delivers very low in-band
Intermodulation products, plenty of head-room for the multi-carriers
peak envelope power.
Integrated high-power amplifiers (MCPA).
Embedded microcontroller for control and self-monitoring functions.
Remote control via web-server and SNMPv2 industry standard protocol.
Discrete Digital I/O alarm signals available,
Opto-coupler inputs and relay contact outputs
o Opto-coupler inputs and relay contact outputs
AC powered.
CANAM TECHNOLOGY, INC. (CTI)
MARK-IV VHF BROADBAND SIGNAL BOOSTER M4BBDAV O&M MANUAL
Page 14 of 39
Rev0 April/2015
D.4 SPECIFICATIONS
Parameters
(Downlink & Uplink)
Typical Specifications
Electrical
Available Operating Frequency Bands
Custom build sub-bands between 150-174 MHz
General Duplexer specs:
One window per path (DL & UL), non-interleaved
channel frequencies, minimum 3 MHz separation
between DL & UL frequency band edges, to be
specified upon order.
Downlink Output Power 1dB Compression (P1dB CW)
20 Watt (standard) or 5 Watt.
Low Power option available (+17 dBm for service
fiber DAS)
Downlink Third Order Intercept Point (OIP3), cascaded
system after custom BPF loss.
* Two-tone test, 2W each * 25kHz-1MHz spacing
NOTE: MCPA module OIP3 is +53 dBm (20Watt option)
> +50 dBm
Maximum Recommended Downlink Operating Power
Levels, 10 dB back-off from P1dB (20W).
2 carriers: +30 dBm each; 4 carrier: +27 dBm each
8 carrier: +24 dBm each; 16 carrier: +21 dBm each
Downlink Maximum Gain (net)
60 dB
Downlink maximum input level for normal operation
-20 dBm
Downlink Noise Figure (at system level including
custom BPF loss)
<6 dB
Uplink Output Power 1dB Compression (P1dB CW)
options
20 Watt (standard) or 5 Watt.
Low Power option available (+17 dBm for service
fiber DAS)
Uplink Maximum Operating Output Power Setting
0 dBm (to feed fiber transmitter)
Uplink Maximum Gain (net)
60 dB
Uplink Maximum input level for normal operation
-20 dBm
Uplink Noise Figure (at system level including custom
BPF loss), for low level signal outside of OLC range.
Note: active stages NF is 2 dB typ.
<6 dB
Downlink and Uplink RF Input Limit Control (iALC) range
Activation of the ILC does not create inter-modulation
products or spurious outputs with levels greater than -
60 dBc over the entire range of operation of the ILC,
for any frequency spacing including down to 25 kHz. It
prevents internal saturation of the amplifier stages
> 25 dB (30 dB typ)
Gain Control range (UL & DL)
>25 dB (30 dB typ), 1dB digital step
System Signal Gain Flatness (UL & DL)
±1.5 dB
System Input/Output Interface (UL & DL)
50 Ohm, coaxial Type-N; VSWR 1.5:1 typ
CANAM TECHNOLOGY, INC. (CTI)
MARK-IV VHF BROADBAND SIGNAL BOOSTER M4BBDAV O&M MANUAL
Page 15 of 39
Rev0 April/2015
Control Interfaces
Local Human-Machine-Interface
LCD display with 7-button keypad
LED Indicators
Computer Network Interface (RJ45 Ethernet 10/100)
Embedded Web-server and SNMPv2 support over
TCP/IP
Serial Port
USB (factory debug)
Factory-Programmable-function Discrete Digital I/O
(Dry contact, voltage-free)
4 Relay output contacts 4 Opto-isolated inputs
Mechanical & Environmental
Wall-mount enclosure
Painted or Stainless-steel NEMA-4X (option)
Actual Size depends on Frequency Plan
Rack-mount
19 inches depth
Height depends on actual frequency plan
Operating ambient temperature range
-20 to + 60° Celsius, 100% duty cycle
Cooling
Natural Convection (wallmount)
Forced ventilation (rackmount)
MBTF
> 100,000 hours
> 70,000 hours (fiber-fed versions)
Power Requirements
400W, 100-240 Vac 50/60Hz
Internal Built-in Sensors
DC Voltage(s), DC Current(s), Composite Forward
RF output power, Composite Reverse RF power,
ALC level
Optional Optical Interface over Single-mode fiber
(optional)
Laser Optical Output Power
4 mW
Operating Wavelength
1310 nm
Frequency Response (380-512 MHz )
± 1.5 dB
Input/Output Impedance
50 Ohm
Input/Output VSWR (50-2500 MHz)
1.5:1
RF Link Gain
0 dB
Input Noise Floor
-137 dBm/Hz
Input Third Order Intercept
+30 dBm
Custom Build Options
Duplexer for common Tx/Rx antennas, or completely separate DL and UL paths. 50-Ohm Coaxial Type-N
Fiber-fed, integrated very low noise RF/Optic transceivers
CANAM TECHNOLOGY, INC. (CTI)
MARK-IV VHF BROADBAND SIGNAL BOOSTER M4BBDAV O&M MANUAL
Page 16 of 39
Rev0 April/2015
Multi Carrier Power Amplifiers (MCPA) on donor and service interfaces are optional per system requirements
NFPA72-2010 compliant or Custom Input/Output status/monitoring functionality, for example: Open door,
Low-Battery, AC Power Failure, Smoke detector, Strobe light or Siren indicator, etc.
Sensors DC Voltage Buffered Outputs 0-5V for external SCADA monitoring: MCPA DC Voltage/Current,
Composite RF Output power, Temperature, RF output, ALC monitor, or others upon custom demand.
CANAM TECHNOLOGY, INC. (CTI)
MARK-IV VHF BROADBAND SIGNAL BOOSTER M4BBDAV O&M MANUAL
Page 17 of 39
Rev0 April/2015
D.5 FRONT AND REAR PANEL PORTS AND INTERFACES
Figure 2 shows the system front panel. A brief explanation is given in Table 1.
13
2
Figure 2 - Front Panel details
Table 1 – Front Panel details
Item
Description
1
AIR INTAKE FAN 1
2
LCD DISPLAY/KEYPAD
3
AIR INTAKE FAN 2
CANAM TECHNOLOGY, INC. (CTI)
MARK-IV VHF BROADBAND SIGNAL BOOSTER M4BBDAV O&M MANUAL
Page 18 of 39
Rev0 April/2015
Figure 3 shows the system rear panel. A brief explanation of each connector
is given in Table 2.
Figure 3 - Rear Panel details.
Table 2 – Rear Panel details.
Item
Description
1
AIR EXHAUST FAN 1
2
RF IN PORT
3
RF OUT PORT
4
AIR EXHAUST FAN 2
5
ETHERNET 10/100 NETWORK PORT
6
EXHAUST FANS HEADER RECEPTACLES
7
DB-25 I/O CONNECTOR
8
AC POWER "IEC" INLET
13
AC MAINS ON/OFF POWER SWITCH
CANAM TECHNOLOGY, INC. (CTI)
MARK-IV VHF BROADBAND SIGNAL BOOSTER M4BBDAV O&M MANUAL
Page 19 of 39
Rev0 April/2015
D.6 LCD-DISPLAY & KEYPAD ASSEMBLY
The LCD Display/keypad assembly allows the user/technician to read the
system’s meters, alarm status signals and system information.
Figure 4 – LCD and Keypad Interface
Up and Down arrow are used to scroll up and down in the given menus,
while the round button in the middle are used to select a desired option in
the menus.
The information shown by the light indicators is factory configurable. The
Function 1, Function 2 and the Right arrow buttons are not used in the model
described in this document.
The Indicator LEDs show the alarm status as below:
L1: Summary Alarm
L2: UL Subsystem Alarm (if applicable)
L3: DL Subsystem Alarm (if applicable)
If the user wishes to go back to the main menu, use the Left arrow Key. It is
possible to press the Left arrow or the select keys at any time, to jump directly
to the desired menu.
CANAM TECHNOLOGY, INC. (CTI)
MARK-IV VHF BROADBAND SIGNAL BOOSTER M4BBDAV O&M MANUAL
Page 20 of 39
Rev0 April/2015
Table 3 – Alarm available at the Front Panel LCD
Parameter
Possible values
Remarks
Summary Alarm
OK /BAD
Master Summary Alarm
SubSystem UL
OK /BAD
UL SubSystem Status
SubSystem DL
OK /BAD
DL SubSystem Status
Fan Alarm
OK /BAD/ON/OFF
Fans Status
UL FWD Alarm
“N/A”/OK/BAD
UL MCPA Forward Power Alarm
UL REF Alarm
LAT/“N/A”/OK/BAD
UL MCPA Reflected Power Alarm
DL FWD Alarm
“N/A”/OK/BAD
DL MCPA Forward Power Alarm
DL REF Alarm
LAT/“N/A”/OK/BAD
DL MCPA Reflected Power Alarm
I PA UL
OK /BAD
UL MCPA DC current within expected range
I PA DL
OK /BAD
DL MCPA DC current within expected range
I PSU 5V
OK /BAD
PSU 5V DC current within expected range
I PSU 12V
OK /BAD
PSU 12V DC current within expected range
8DL TEMPERATURE
OK /BAD
UL MCPA temperature within expected range
AIC UL Status
OK /BAD
UL Analog Interface Module Status
AIC DL Status
OK /BAD
DL Analog Interface Module Status
IALC ATT UL
OK /BAD
UL Analog Interface Module Attenuation Status
IALC ATT DL
OK /BAD
DL Analog Interface Module Attenuation Status
Fan 1
OK / BAD
Front Panel Fan summary alarm
Fan 2
OK / BAD
Rear Panel Fan summary alarm
Fan 3
OK / BAD
Front Panel Fan summary alarm
Fan 4
OK / BAD
Rear Panel Fan summary alarm
Possible values for Alarms
OK
There is not alarm condition.
BAD
There is an alarm condition.
LAT
Applies only for High Reflected Power Alarm when a previous alarm has not
been cleared.
N/A
Applies only for High Reflected Power Alarm and Forward Power Alarm. It will
be displayed when is not possible determinate the alarm status due the
read power is lower than minimum readable.
CANAM TECHNOLOGY, INC. (CTI)
MARK-IV VHF BROADBAND SIGNAL BOOSTER M4BBDAV O&M MANUAL
Page 21 of 39
Rev0 April/2015
Table 4 – Meters available at the Front Panel LCD
Parameters
Possible values
Remarks
Units
UL FWD (1)
---
UL Output Forward RF power (Composite)
dBm
UL REF(1)
---
UL Output Reflected RF power (Composite)
dBm
DL FWD(1)
---
DL Output Forward RF power (Composite)
dBm
DL REF(1)
---
DL Output Reflected RF power (Composite)
dBm
I PA UL
---
UL MCPA current drain
A
I PA DL
---
DL MCPA current drain
A
I PSU 5V
---
5V DC current drain
A
I PSU 12V
---
12V DC current drain
A
IALC UL
---
UL Analog Interface current drain
A
IALC DL
---
DL Analog Interface current drain
A
Temp UL
---
UL MCPA Temperature
ºC
Temp DL
---
DL MCPA Temperature
ºC
iATT UL
---
UL Fixed Input Attenuation
dB
iATT DL
---
DL Fixed Input Attenuation
dB
Table 5 – Network Settings available at the Front Panel LCD
Parameters
Possible values
Remarks
Model Name
---
System Model Name
Serial Number
---
System Serial Number
Filter Model
---
Depends on firmware
IP Address
---
System IP ADDRESS
Subnet Mask
---
System Subnet Mask
Default Gateway
---
System Default Gateway
Notes:
1
These values can appear as “< ##.#”, when the read power is lower than minimum readable.
CANAM TECHNOLOGY, INC. (CTI)
MARK-IV VHF BROADBAND SIGNAL BOOSTER M4BBDAV O&M MANUAL
Page 22 of 39
Rev0 April/2015
Section E. INITIAL CONFIGURATION
Canam Technology’s Equipment is factory configured. All setup
and wiring is performed by Canam’s Personnel. There is no need to
disconnect the equipment unless the units should be serviced.
If any module should be disconnected, it should only be done by
qualified technical personnel.
The unit operates stand-alone and only requires initial configuration, by
means of the Web Server Interface (over its LAN Ethernet interface).
The following guidelines provide information on how to get started with the
unit.
Make sure the power switch is OFF, and plug the AC power cord into
the IEC inlet receptacle.
Provide a connection from the off-air antenna interface to Antenna Rx
Input.
Provide a connection from the in-tunnel (in-building) antenna point-of-
interface to the DONOR/BASE T/R PORT and SERVICE/SIDE T/R PORT.
The dry-contact alarms are available on a pluggable mini-terminal
block on the shelf’s rear panel DB-25 connector.
Additional I/O signals are available on a 6-contacts pluggable terminal
block.
The technician’s computer shall be networked with the device, by
means of an Ethernet switch/hub or a direct PC-to-device connection
using a crossover cable. The computer shall have a Mozilla’s Firefox
web-browser software installed, or similar.
CANAM TECHNOLOGY, INC. (CTI)
MARK-IV VHF BROADBAND SIGNAL BOOSTER M4BBDAV O&M MANUAL
Page 23 of 39
Rev0 April/2015
Provide a network connection to the system, directly into the ECM LAN
port.
o Use an Ethernet crossover cable for direct connection to a PC
computer LAN port.
o Use a standard straight-thru cord when using a network
switch/hub connection
Once the physical connection has been established, power-on the device.
Wait a 2 minutes period for the embedded management software to load-
up.
After the load up is completed, the device’s LCD display will look like this
once:
→ View alarms
View meters
Network Info
Now the device is ready for management functions using the web-browser
on the PC computer.
E.1 GENERAL GUIDELINES REGARDING RF CONNECTIONS &
OPERATIONS WITH TEST INSTRUMENTS
Mute the MCPA prior to connect a signal source to the RF IN PORT.
Avoid excessive input power.
o Do not drive the input signal above -20 dBm, which is the
recommended maximum input level (composite).
Make sure your RF Test Instrument (Communications Monitor, Spectrum
Analyzer, etc) has an input port rated for high RF power.
o Do not exceed the test-instrument’s input rating.
CANAM TECHNOLOGY, INC. (CTI)
MARK-IV VHF BROADBAND SIGNAL BOOSTER M4BBDAV O&M MANUAL
Page 24 of 39
Rev0 April/2015
E.2 ANTENNA INSTALLATION
The corresponding antennas are not included with this equipment.
Nevertheless, if this device is used in an application that requires direct
connection to an antenna, Canam Technology recommends
following the FCC guidelines for its installation:
Antenna Installation should be performed by qualified technical
personnel.
The installations instructions are for the purpose of complying with
FCC RF Exposure and are not optional.
All antennas should be fixed mounted and physically secured to
one location.
Non-building mounted antennas must be greater than 10 meters
above ground.
Minimum Separation to any body part of any person is 25cm.
CANAM TECHNOLOGY, INC. (CTI)
MARK-IV VHF BROADBAND SIGNAL BOOSTER M4BBDAV O&M MANUAL
Page 25 of 39
Rev0 April/2015
Section F. WEB-SERVER GRAPHICAL USER INTERFACE
F.1 FIRST-TIME START CONFIGURATION
The system can be connected directly to PC computer using an Ethernet
crossover cable or to LAN using a standard straight-thru cord when using a
network switch/hub connection.
Section F.1.1 shows how to interface a computer directly to the system using
a cross-over cable in case there is no network switch available.
Section F.1.2 shows how to interface the computer to the RF device by
means of a network Ethernet switch.
Before to access system built-in Web Server verify your web browser is
working with java script enabled.
These are some web links showing HOW-TO enable java script.
https://support.microsoft.com/en-us/gp/howtoscript
F.1.1 CONNECTING SYSTEM DIRECTLY TO PC COMPUTER
Use an Ethernet crossover CAT5 cable for direct connection to a PC
computer LAN port.

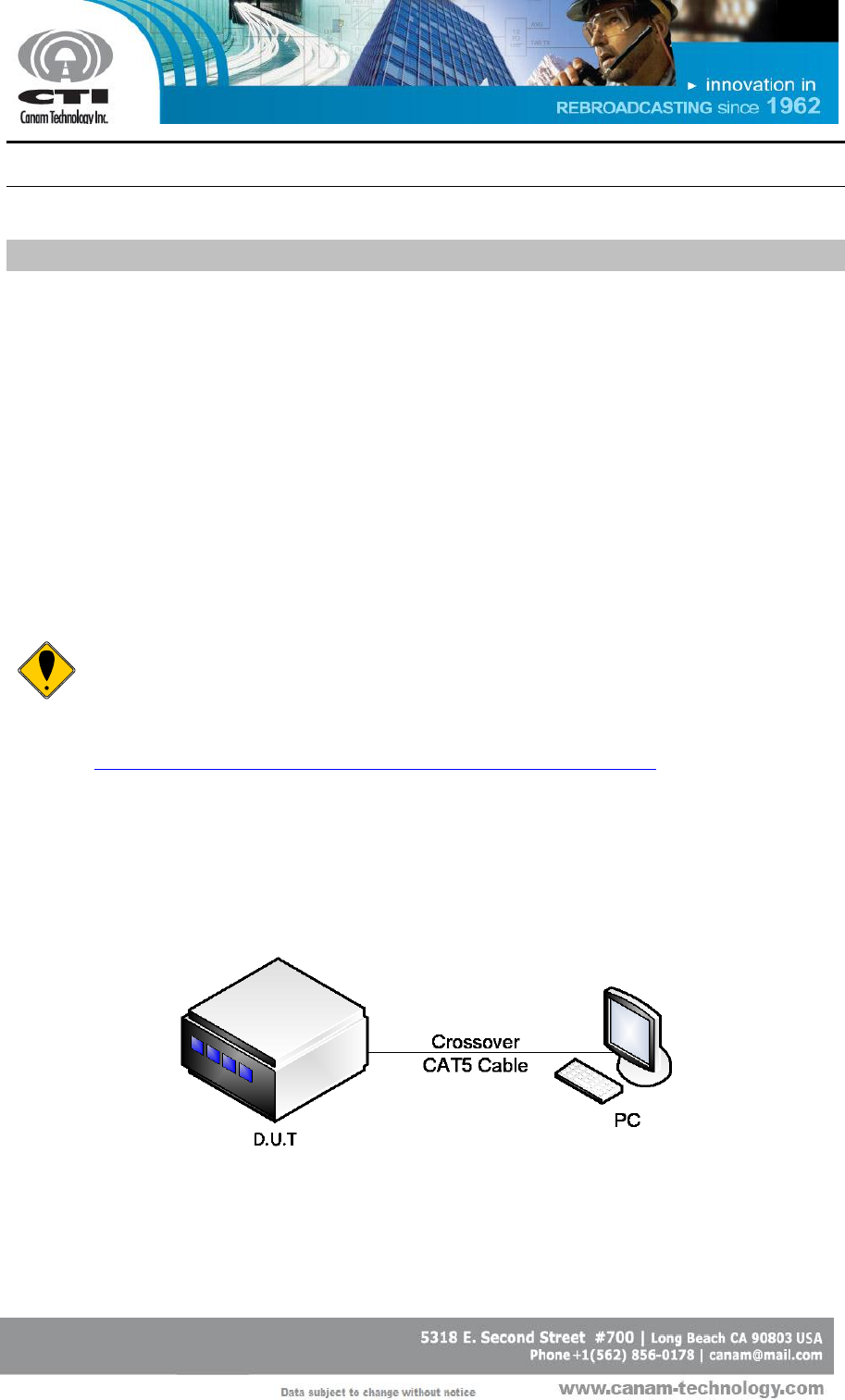

Figure 5 – System connected directly to PC computer.
Connect the system to PC computer directly into the ECM LAN port.
The equipment IP address and Network Mask (255.255.255.0) are shown
in the LCD display.
CANAM TECHNOLOGY, INC. (CTI)
MARK-IV VHF BROADBAND SIGNAL BOOSTER M4BBDAV O&M MANUAL
Page 26 of 39
Rev0 April/2015
o To verify IP address press the Down key in LCD Display and
Keypad assembly until get IP ADDRESS and SUBNET MASK values.
Configure the local computer IP address and Network Mask to allow
access to the controller, within the same sub-net.
Windows 7
1. Go to “Start >> Control Panel >>Network and Internet”.
2. Left-click on “View network status and tasks”.
3. In “Network and Sharing Center”, right click on “Local Area
Connection” and go to “Properties”.
Figure 6 – Local Area Connection Status.
CANAM TECHNOLOGY, INC. (CTI)
MARK-IV VHF BROADBAND SIGNAL BOOSTER M4BBDAV O&M MANUAL
Page 27 of 39
Rev0 April/2015
4. Look for “Internet Protocol Version 4 (TCP/IPv4)” and click
“Properties”.
Figure 7 – Local Area Connection Properties.
5. Follows steps 4 and 5 as for Windows XP.
Open a web browser and access the equipment by typing, in the
address bar, the IP address of the equipment (ex.: http://192.168.100.75).
o Login with username = operator, password = operator.
CANAM TECHNOLOGY, INC. (CTI)
MARK-IV VHF BROADBAND SIGNAL BOOSTER M4BBDAV O&M MANUAL
Page 28 of 39
Rev0 April/2015
F.1.2 CONNECTING SYSTEM TO LOCAL AREA NETWORK
Use standard straight-thru cable for network switch/hub connection.
To connect system to LAN, it is necessary to know the subnet the PC
computer is currently plugged into.
If no network is available the user shall remain using the crossover
interconnection

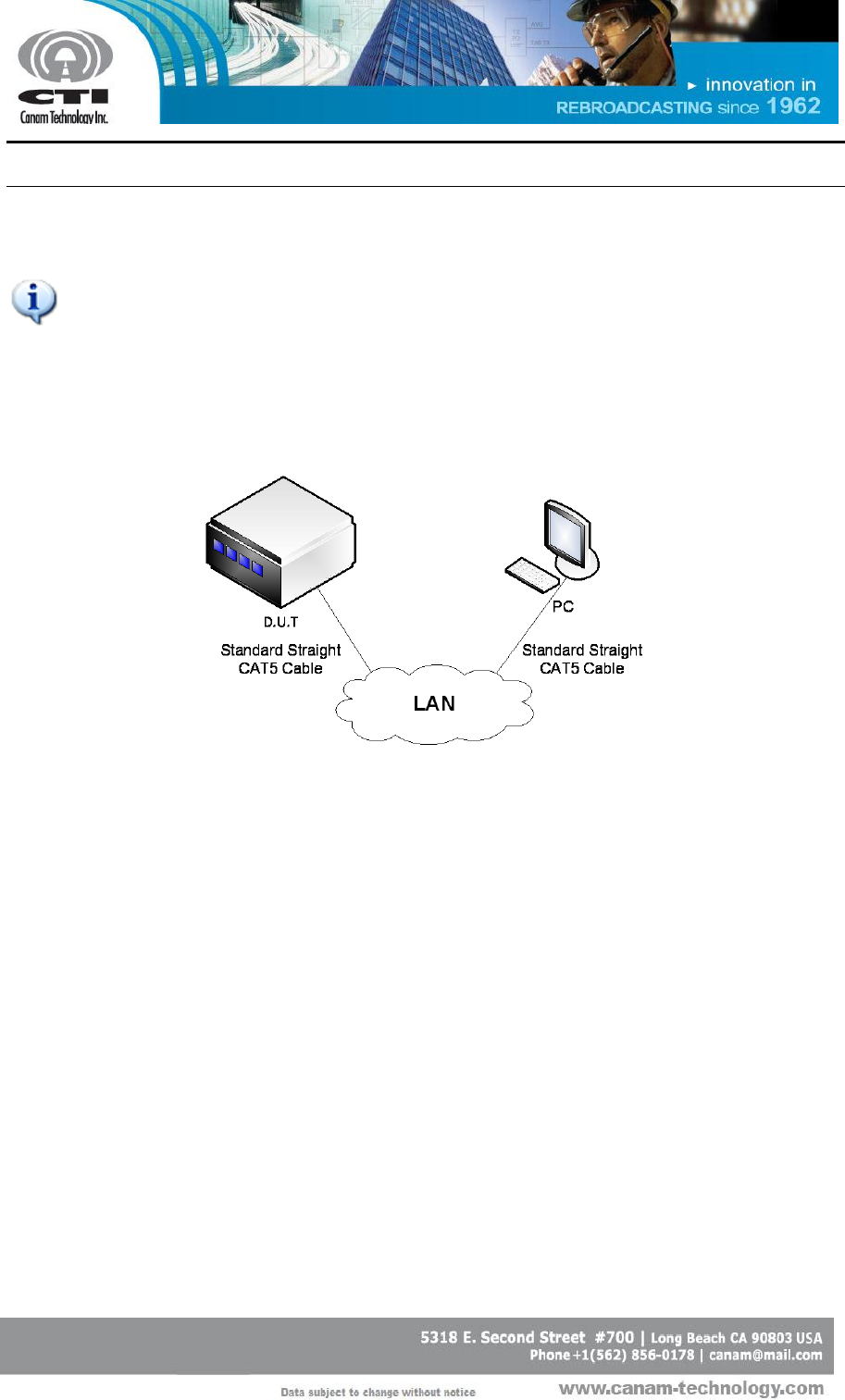

Figure 8 – System connected into local area network.
The following steps are necessary to connect system to LAN:
1. Connect the radio system and the computer together by means of
ethernet switch.
2. The radio system has a default IP address (S.M. 255.255.255.0).
3. Configure the computer’s IP address within the same subnet as the
radio system, 192.168.100.X (for example 192.168.100.75, S.M =
255.255.255.0) as shown in previous section.
4. Open a web browser and access the equipment by typing, in the
address bar, the IP address of the radio equipment.
5. Login with username = operator, password = operator
CANAM TECHNOLOGY, INC. (CTI)
MARK-IV VHF BROADBAND SIGNAL BOOSTER M4BBDAV O&M MANUAL
Page 29 of 39
Rev0 April/2015
User may change the radio system’s IP Address to a different subnet setting if
desired.
1. First, it is necessary to connect system directly to PC Computer using
the crossover cable.
2. Open a web browser and access the equipment by typing, in the
address bar, the IP address of the equipment.
o Login with username = technician, password = technician.
3. Go to the “Network Settings” page (see left-side menu) to change the
current settings to be assigned by the network administrator.
o IP Address, Network Mask, Gateway Address.
o The controller requires a fix address; it does not allow DHCP settings.
o Enter or press “Apply” button to apply the new parameters, and
then restart the system.
o Now the system controller can be plugged into the local area
network served by your LAN Switch or Router.
CANAM TECHNOLOGY, INC. (CTI)
MARK-IV VHF BROADBAND SIGNAL BOOSTER M4BBDAV O&M MANUAL
Page 30 of 39
Rev0 April/2015
F.2 WEB SERVER OPERATIONS
The built-in Web Server provides a Graphical User Interface (GUI) to ease in
remote monitoring & control. Some pages shown by the Web Server are the
following:
“Main Status”: depicts status alarm indicators and meters.
“Main Settings”: is used to configure system-level macro settings
CANAM TECHNOLOGY, INC. (CTI)
MARK-IV VHF BROADBAND SIGNAL BOOSTER M4BBDAV O&M MANUAL
Page 31 of 39
Rev0 April/2015
F.2.1 MAIN STATUS PAGE

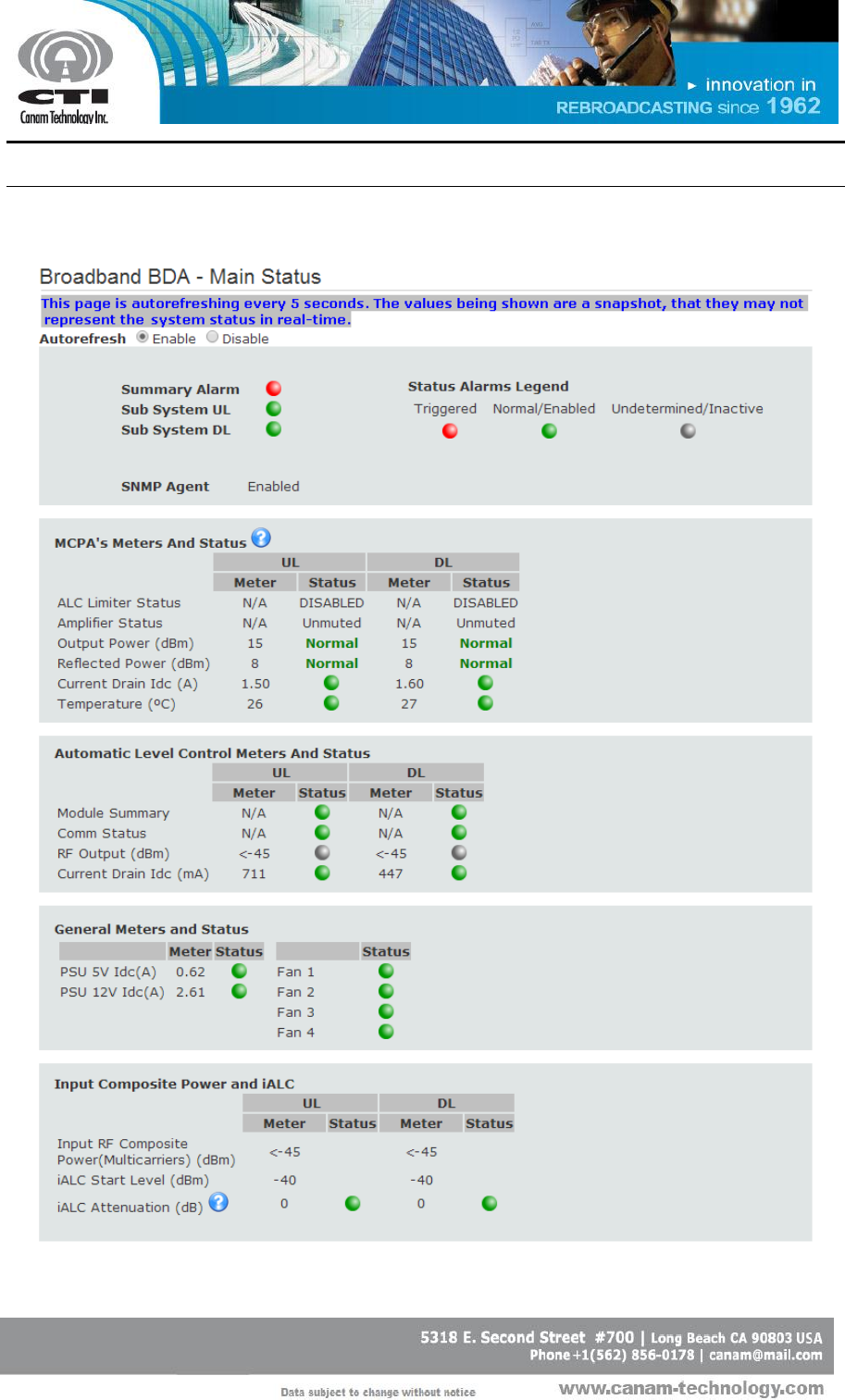

Figure 9 – Main Status page
CANAM TECHNOLOGY, INC. (CTI)
MARK-IV VHF BROADBAND SIGNAL BOOSTER M4BBDAV O&M MANUAL
Page 32 of 39
Rev0 April/2015
This page shows meters and the different alarms as well as the iALC (input
ALC). The auto-refresh radio-button allows periodic page updates every 10
seconds approximately.
Summary Alarm
Master Summary alarm Indicator. Green if no single
alarm is present in the system, red otherwise.
This alarm is mapped to ECM I/O DB25 Connector and
can be access through pins; 14, 15 and 16.Also, it is
shown as status indicators LED 1and LED5 in ECM
panel.
UL Subsystem
Shows the UL subsystem current status.
Indicator is Green if UL iALC modules are active
without alarms; red otherwise.
DL Subsystem
Shows the DL subsystem current status.
Indicator is Green if 8DL & 7DL MCPA Reflected Power
Alarm is cleared and iALC modules are active without
alarms; red otherwise.
SNMP Agent
Shows the SNMP Agent current status. Enabled subject
to license.
CANAM TECHNOLOGY, INC. (CTI)
MARK-IV VHF BROADBAND SIGNAL BOOSTER M4BBDAV O&M MANUAL
Page 33 of 39
Rev0 April/2015
MCPA’s Meters and Status
ALC Limiter Status
The Output Automatic Level Control (MCPA ALC)
limits the composite multi-carriers output power
from exceeding the preset level. The indicator is
ON when the MCPA is limiting; OFF otherwise. If the
option is disabled in Main Settings, the Limiter
Status will show DISABLED.
Amplifier Status
Indicates if the MCPA Output is “Unmuted”,
“Muted” or “Muted by Alarm”(in case the MCPA
Reflected Power Alarm is “Triggered” or
“Latched” and the option “Enable Automatic
Mute upon Reflected Power Alarm” has been
selected in Main Settings page).
Output Power (dBm)
Composite Output Power.
The Status will be “Undetermined” when the power
is not readable; “Normal” when it is above the
threshold and “Triggered” if it is below the
threshold.
Reflected Power
(dBm)
Composite Reflected Power.
The Status will be “Undetermined” when the power
is not readable; “Normal” when it is below the
threshold; “Triggered” if it is above the threshold
and “Latched” when a previous Reflected Power
Alarm has not been cleared.
Current Drain Idc (A)
MCPA DC current drain.
The Status indicator will be green when the current
is within the operating levels, red otherwise.
CANAM TECHNOLOGY, INC. (CTI)
MARK-IV VHF BROADBAND SIGNAL BOOSTER M4BBDAV O&M MANUAL
Page 34 of 39
Rev0 April/2015
Temperature (ºC)
MCPA heat-sink temperature.
The Status indicator will be green when the
temperature is within the operating levels, red
otherwise.
Automatic Level Control Meters and Status
Modules Summary
Indicator is Green if module is active with no alarms,
red otherwise.
Comm Status
Indicator is Green if Analog Interface Card
communication is working, red otherwise.
RF Output (dBm)
Composite Output Power. This is the multi-carriers
signal, used to drive the broadband output.
The Status indicator will be green if the power is
above the threshold, gray otherwise (no traffic).
Current Drain Idc
(mA)
Analog-Module DC Current Drain (mA).
The Status indicator will be green when the current is
above the threshold, red otherwise.
General Meters and Status
PSU 5V Idc (A)/
PSU 12V Idc (A)
5Vdc/12Vdc current meter. Indicator is green if
current is within the operating levels, red otherwise.
Fan 1/Fan 2/Fan 3/Fan 4
Indicator. Green if front fans are fully operational
as detected by the air flow sensors; red otherwise.
Both of them are shown as a status indicator LED 8
in shelf rear panel.
CANAM TECHNOLOGY, INC. (CTI)
MARK-IV VHF BROADBAND SIGNAL BOOSTER M4BBDAV O&M MANUAL
Page 35 of 39
Rev0 April/2015
F.2.2 MAIN SETTINGS PAGE
Figure 10 – Main Settings page
The Main Settings page is for configuring general system-level macro settings.
F.2.2.1 iALC Control
The Main Settings page is for configuring general system-level macro settings.
Gain (dB)
Maximum gain expected per path.
Set Point Level (dBm)
Desired output power to limit the input RF
composite power when it is greater than iALC
Start Level.
CANAM TECHNOLOGY, INC. (CTI)
MARK-IV VHF BROADBAND SIGNAL BOOSTER M4BBDAV O&M MANUAL
Page 36 of 39
Rev0 April/2015
Start Level (dBm)
The “Start Level” is a read-only value; it is
automatically set by the system in order to
comply with expected Gain and Set Point
Level.
It is the input Automatic Level Control limiter
threshold. If the Input RF Composite Power is
greater than iALC Start Level, it will be
attenuated to avoid system saturation.
Turn-off iALC stage
Turn-off iALC stage output power causing the
output power being down.
F.2.2.2 MCPA Control:
For the “Output MCPA Mute” and “Reset Reflected Power Alarm Reset”
commands, the user can set the preferred control method by choosing
Software or Hardware in the “Control by” field.
a. If the user chooses hardware control, the controller will respond to the
opto-isolated inputs located in the ECM I/O DB25 Connector and the
software commands for these two parameters will have no effect.
The Reset Reflected Power Alarm command mapped to ECM I/O DB25
Connector can be controlled through pins 7 and 8 for both Service Side
(DL Tx) and Donor Base (UL Tx) outputs.
The Power Amplifier Mute command mapped to ECM I/O DB25
Connector can be controlled through pins 5 and 6 for both Service Side
(DL Tx) and Donor Base (UL Tx) outputs.
When “Control by Hardware” is selected the UL and DL MCPAs are
automatically un-muted unless the corresponding opto-isolated input is
energized.
Output MCPA Mute
Mute/un-mute MCPA
Reset Reflected Power Alarm
Clear the Reflected Power Alarm Latch.
CANAM TECHNOLOGY, INC. (CTI)
MARK-IV VHF BROADBAND SIGNAL BOOSTER M4BBDAV O&M MANUAL
Page 37 of 39
Rev0 April/2015
b. On the other hand, if the user chooses software control, the controller
will respond to these software commands instead of to the opto-isolated
inputs.
Also, there are four M4-BBDA settings that can be controlled using software
commands:
Output MCPA ALC Limit
Level
Output limiter set point 30 to 37 dBm.
Output MCPA ALC Enable
Check-box to enable/disable the output ALC.
Enable Automatic Mute
upon Reflected Power
Alarm
Check-box to enable/disable automatic
MCPA mute upon excessive reflected power.
Enable Reflected Power
Alarm Status Latch
Check-box to enable/disable the alarm status
latch.
F.2.2.3 Updating operational settings
Using the checkboxes click to check/un-check.
Press enter or “Apply” button for the system to validate the data and
apply changes.
o If the value is not valid, an error message will be displayed (see
Figure 11) and the new value will be not accepted keeping the
previous value.
The current state applied to system is saved to the controller’s internal
nonvolatile memory for effective recovery after a power loss or system
reset.
CANAM TECHNOLOGY, INC. (CTI)
MARK-IV VHF BROADBAND SIGNAL BOOSTER M4BBDAV O&M MANUAL
Page 38 of 39
Rev0 April/2015
Figure 11 – Value is not into valid range error message
CANAM TECHNOLOGY, INC. (CTI)
MARK-IV VHF BROADBAND SIGNAL BOOSTER M4BBDAV O&M MANUAL
Page 39 of 39
Rev0 April/2015
(This Page was intentionally left blank)

Navigation menu
