V4.0User ManualBluetooth Handsfree Car Kit With Caller ID Display & Phonebook Installation (Multi-point)BLUE MIRRORFor Model BTHF010DNotice 1You are cautioned that changes or modications not expressly approved by the party  responsible  for  compliance  could  void  the  user  authority  to  operate  the equipment.Notice 2This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential instal-lation. This  equipment  generates,  uses and  can  radiate  radio  frequency  energy and,  if  not  installed  and  used  in  accordance  with  the  instructions,  may  cause harmful interference to radio communications.This equipment  complies  with FCC radiation  exposure limits set forth  for an un-controlled environment. End users must follow the specic operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

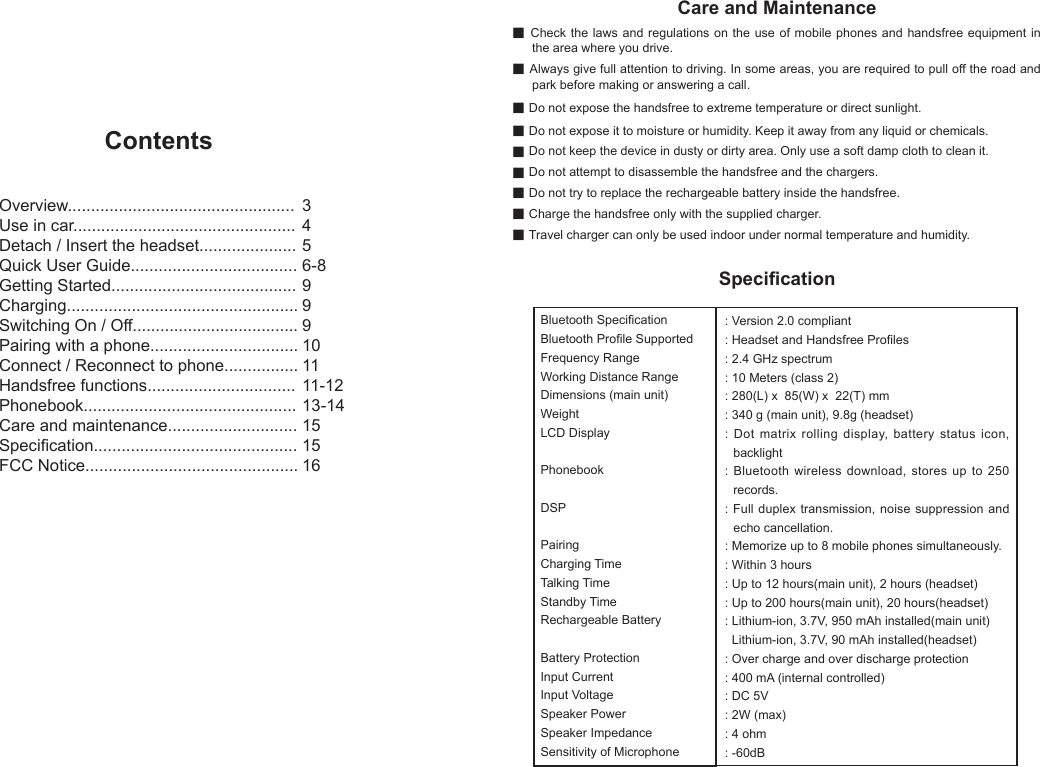

ContentsOverview.................................................Use in car................................................Detach / Insert the headset.....................Quick User Guide....................................Getting Started........................................Charging..................................................Switching On / Off....................................Pairing with a phone................................Connect / Reconnect to phone................Handsfree functions................................Phonebook..............................................Care and maintenance............................Specication............................................FCC Notice..............................................3456-8999101111-1213-14151516Care and Maintenanceg  Check  the laws and regulations on  the use of mobile  phones  and handsfree equipment in the area where you drive.g Always give full attention to driving. In some areas, you are required to pull off the road and park before making or answering a call.g Do not expose the handsfree to extreme temperature or direct sunlight.g Do not expose it to moisture or humidity. Keep it away from any liquid or chemicals.g Do not keep the device in dusty or dirty area. Only use a soft damp cloth to clean it.g Do not attempt to disassemble the handsfree and the chargers.g Do not try to replace the rechargeable battery inside the handsfree.g Charge the handsfree only with the supplied charger.g Travel charger can only be used indoor under normal temperature and humidity.SpecicationBluetooth SpecicationBluetooth Prole SupportedFrequency RangeWorking Distance RangeDimensions (main unit)WeightLCD DisplayPhonebookDSPPairingCharging TimeTalking TimeStandby TimeRechargeable BatteryBattery ProtectionInput CurrentInput VoltageSpeaker PowerSpeaker ImpedanceSensitivity of Microphone: Version 2.0 compliant: Headset and Handsfree Proles: 2.4 GHz spectrum: 10 Meters (class 2): 280(L) x  85(W) x  22(T) mm: 340 g (main unit), 9.8g (headset): Dot  matrix rolling display, battery status  icon, backlight: Bluetooth wireless  download, stores up to  250 records.: Full  duplex transmission, noise suppression and echo cancellation.: Memorize up to 8 mobile phones simultaneously.: Within 3 hours: Up to 12 hours(main unit), 2 hours (headset): Up to 200 hours(main unit), 20 hours(headset): Lithium-ion, 3.7V, 950 mAh installed(main unit)  Lithium-ion, 3.7V, 90 mAh installed(headset): Over charge and over discharge protection: 400 mA (internal controlled): DC 5V: 2W (max): 4 ohm: -60dB

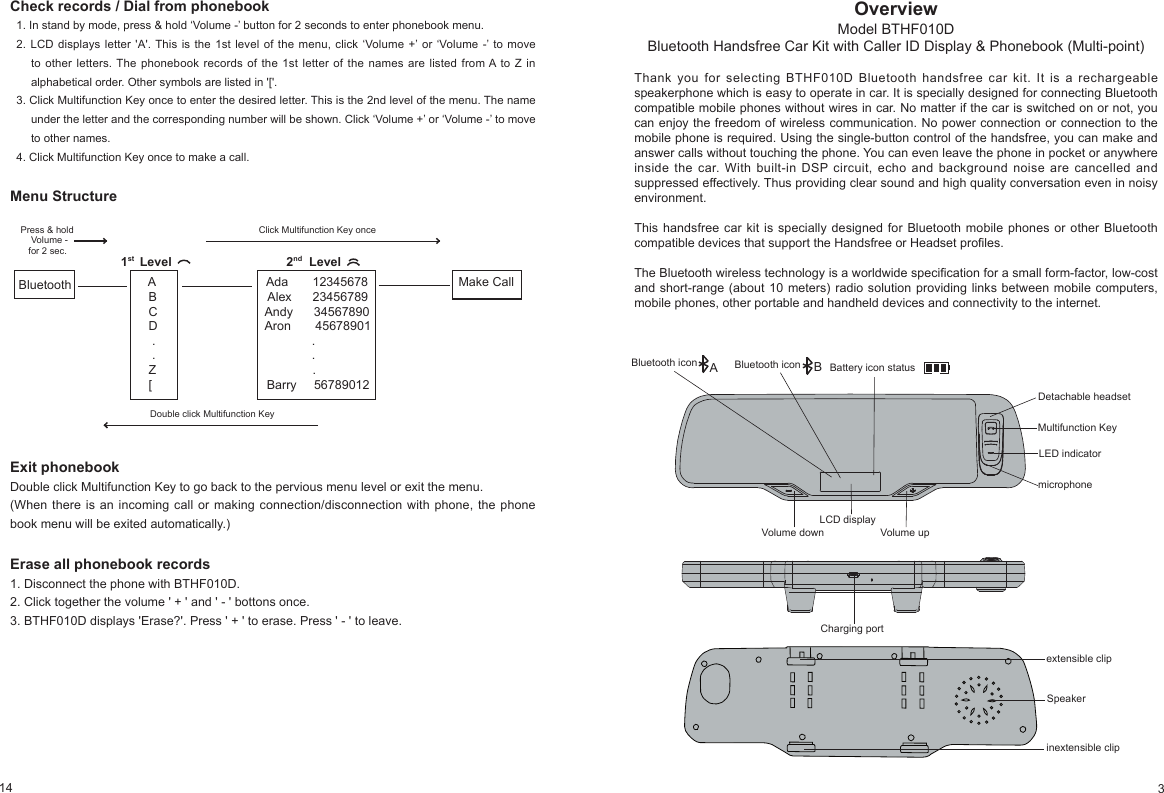

14OverviewModel BTHF010DBluetooth Handsfree Car Kit with Caller ID Display & Phonebook (Multi-point)Thank you  for selecting BTHF010D Bluetooth  handsfree car kit.  It is a rechargeable speakerphone which is easy to operate in car. It is specially designed for connecting Bluetooth compatible mobile phones without wires in car. No matter if the car is switched on or not, you can enjoy the freedom of wireless communication. No power connection or connection to the mobile phone is required. Using the single-button control of the handsfree, you can make and answer calls without touching the phone. You can even leave the phone in pocket or anywhere inside the  car. With built-in DSP circuit, echo and  background noise are cancelled  and suppressed effectively. Thus providing clear sound and high quality conversation even in noisy environment.This handsfree car  kit is specially designed  for Bluetooth mobile phones  or other Bluetooth compatible devices that support the Handsfree or Headset proles.The Bluetooth wireless technology is a worldwide specication for a small form-factor, low-cost and short-range  (about 10 meters) radio solution  providing links between  mobile  computers, mobile phones, other portable and handheld devices and connectivity to the internet.LED indicatorMultifunction KeyVolume upVolume downmicrophoneextensible clipLCD displayCharging portinextensible clipSpeakerBattery icon statusDetachable headsetBluetooth icon ABluetooth icon B3Check records / Dial from phonebook1. In stand by mode, press & hold ‘Volume -’ button for 2 seconds to enter phonebook menu.2.  LCD  displays letter 'A'. This  is the  1st  level  of  the menu,  click  ‘Volume  +’ or ‘Volume -’ to move to other  letters. The  phonebook records of the 1st  letter of the  names are  listed from A to Z in alphabetical order. Other symbols are listed in '['.3. Click Multifunction Key once to enter the desired letter. This is the 2nd level of the menu. The name under the letter and the corresponding number will be shown. Click ‘Volume +’ or ‘Volume -’ to move to other names.4. Click Multifunction Key once to make a call.Menu Structure    Press & hold                                                                       Click Multifunction Key once        Volume -       for 2 sec.                                                           Bluetooth                                 Double click Multifunction Key1st  Level                                 2nd  Level                           A                                    Ada       12345678                          Make Call              B                                Alex      23456789        C                               Andy      34567890        D                               Aron       45678901         .                                             .         .                                             .        Z                                             .        [                                 Barry     56789012Exit phonebookDouble click Multifunction Key to go back to the pervious menu level or exit the menu.(When there is  an incoming call  or  making connection/disconnection with  phone, the phone      book menu will be exited automatically.)Erase all phonebook records1. Disconnect the phone with BTHF010D. 2. Click together the volume ' + ' and ' - ' bottons once.3. BTHF010D displays 'Erase?'. Press ' + ' to erase. Press ' - ' to leave.

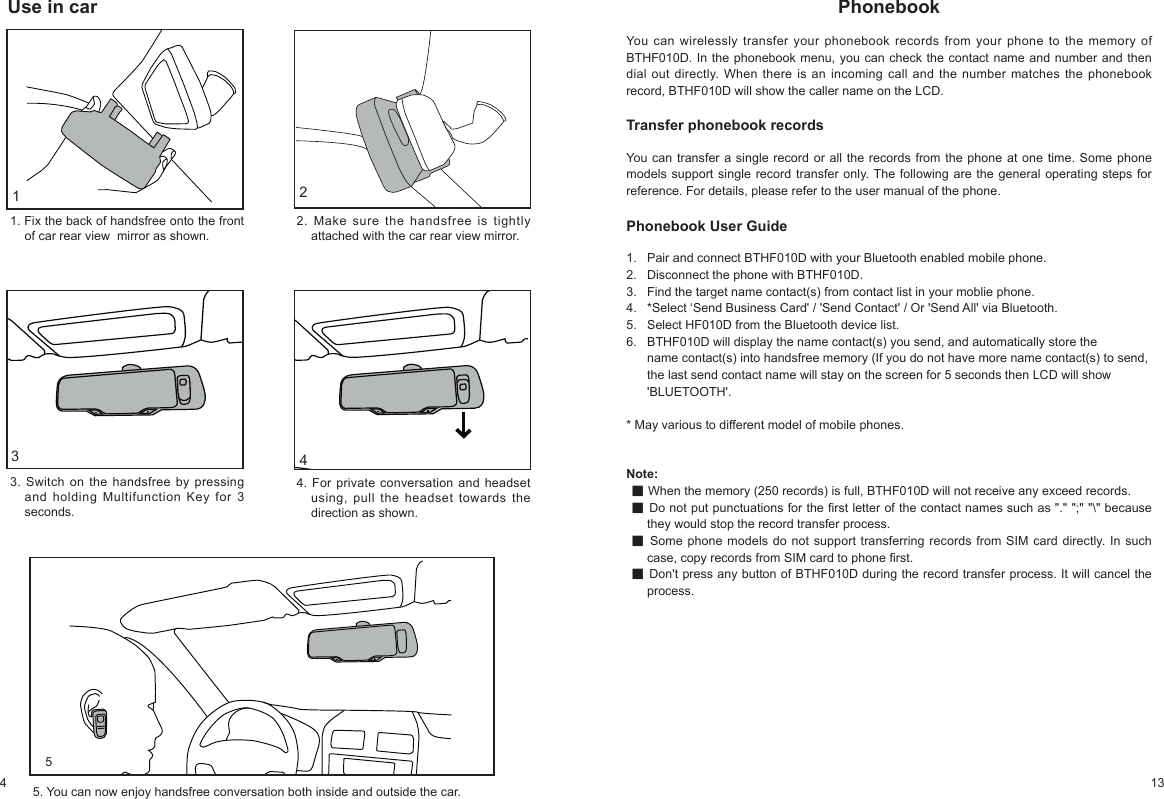

4 13PhonebookYou can wirelessly  transfer your phonebook  records from your phone  to the memory of BTHF010D. In the  phonebook menu, you can  check the contact name  and number and then dial out  directly. When there  is an incoming  call and the number  matches the phonebook record, BTHF010D will show the caller name on the LCD.Transfer phonebook recordsYou can transfer a single record  or all the records from the phone  at one time. Some phone models support  single record transfer  only. The following  are the general  operating steps for reference. For details, please refer to the user manual of the phone.   Note:g When the memory (250 records) is full, BTHF010D will not receive any exceed records.g Do not put punctuations for the rst letter of the contact names such as "." ";" "\" because they would stop the record transfer process.g  Some phone  models do not support transferring records  from SIM card directly.  In  such case, copy records from SIM card to phone rst. g Don't press any button of BTHF010D during the record transfer process. It will cancel the process. Phonebook User Guide1.   Pair and connect BTHF010D with your Bluetooth enabled mobile phone.2.   Disconnect the phone with BTHF010D.3.   Find the target name contact(s) from contact list in your moblie phone.4.   *Select ‘Send Business Card' / 'Send Contact' / Or 'Send All' via Bluetooth.5.   Select HF010D from the Bluetooth device list.6.   BTHF010D will display the name contact(s) you send, and automatically store the       name contact(s) into handsfree memory (If you do not have more name contact(s) to send,       the last send contact name will stay on the screen for 5 seconds then LCD will show      'BLUETOOTH'.* May various to different model of mobile phones.5Use in car241. Fix the back of handsfree onto the front of car rear view  mirror as shown.2. Make  sure the handsfree is  tightly attached with the car rear view mirror.3.  Switch  on  the  handsfree  by  pressing and holding  Multifunction Key for 3 seconds.4. For  private conversation and headset using,  pull  the  headset  towards  the direction as shown.5. You can now enjoy handsfree conversation both inside and outside the car.13

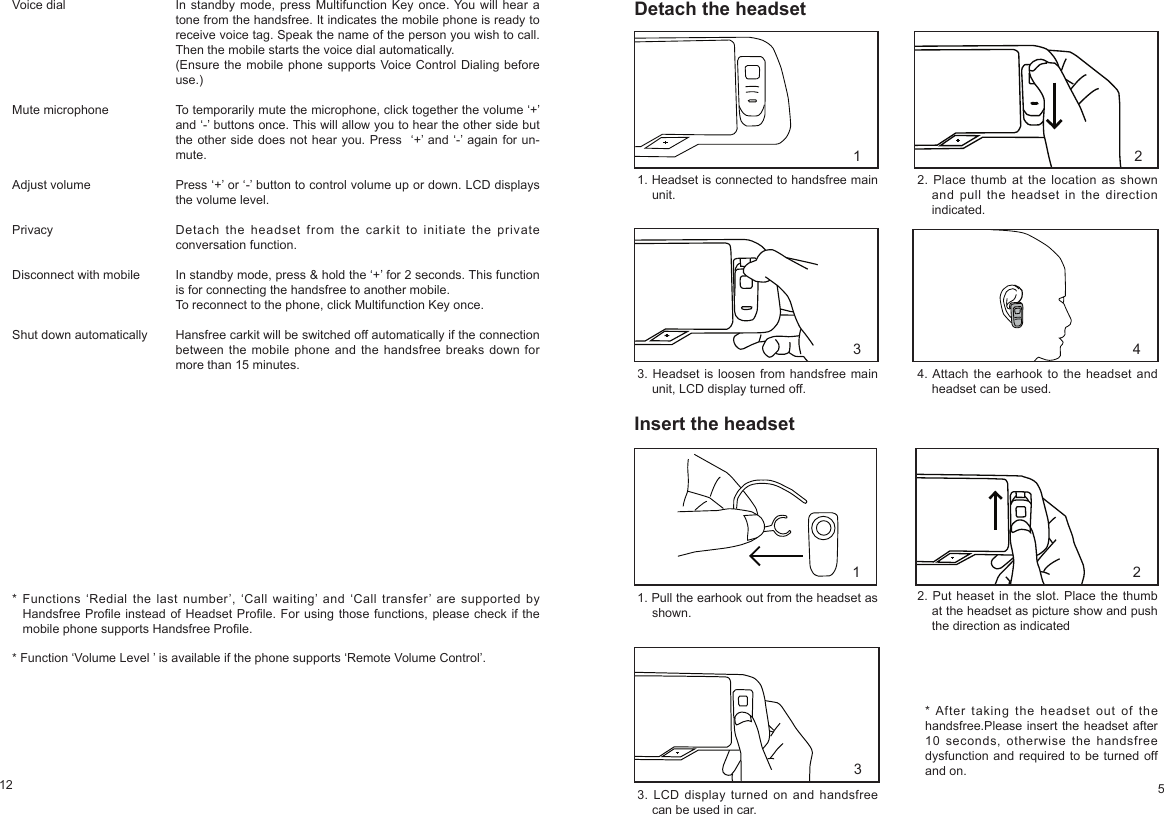

12 5Voice dialMute microphoneAdjust volumePrivacyDisconnect with mobileShut down automaticallyIn standby  mode, press Multifunction Key  once. You  will hear a tone from the handsfree. It indicates the mobile phone is ready to receive voice tag. Speak the name of the person you wish to call. Then the mobile starts the voice dial automatically.(Ensure the  mobile phone supports Voice Control Dialing before use.) To temporarily mute the microphone, click together the volume ‘+’ and ‘-’ buttons once. This will allow you to hear the other side but the other side  does not hear you.  Press  ‘+’ and ‘-’ again  for un-mute.Press ‘+’ or ‘-’ button to control volume up or down. LCD displays the volume level. Detach the  headset from the carkit  to initiate the private conversation function.In standby mode, press & hold the ‘+’ for 2 seconds. This function is for connecting the handsfree to another mobile. To reconnect to the phone, click Multifunction Key once.Hansfree carkit will be switched off automatically if the connection between the  mobile phone and the  handsfree breaks down for more than 15 minutes.* Functions  ‘Redial the last number’, ‘Call waiting’ and ‘Call  transfer’ are supported by Handsfree Prole  instead of Headset Prole.  For using those functions,  please check if the mobile phone supports Handsfree Prole. * Function ‘Volume Level ’ is available if the phone supports ‘Remote Volume Control’.  Detach the headset1. Headset is connected to handsfree main unit.2. Place thumb  at the location as  shown and pull the  headset in the direction indicated.3. Headset  is loosen from handsfree  main unit, LCD display turned off.Insert the headset4. Attach  the earhook to the  headset and headset can be used.1. Pull the earhook out from the headset as shown.2. Put  heaset in the slot.  Place the thumb at the headset as picture show and push the direction as indicated3. LCD  display turned on and  handsfree can be used in car.1 23 41 23*  After  taking  the  headset  out  of  the handsfree.Please insert the headset after 10 seconds, otherwise  the handsfree dysfunction and required  to be turned off and on.

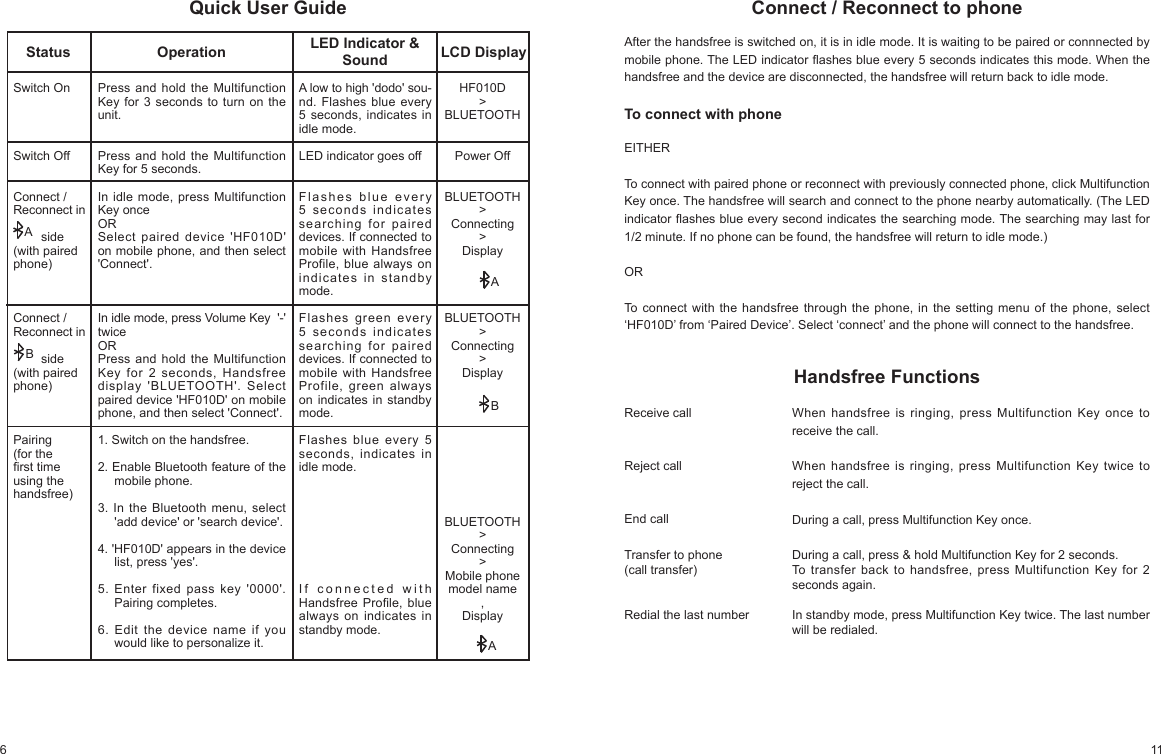

611Connect / Reconnect to phoneAfter the handsfree is switched on, it is in idle mode. It is waiting to be paired or connnected by mobile phone. The LED indicator ashes blue every 5 seconds indicates this mode. When the handsfree and the device are disconnected, the handsfree will return back to idle mode.To connect with phoneEITHERTo connect with paired phone or reconnect with previously connected phone, click Multifunction Key once. The handsfree will search and connect to the phone nearby automatically. (The LED indicator ashes blue every second indicates the searching mode. The searching may last for 1/2 minute. If no phone can be found, the handsfree will return to idle mode.)ORTo  connect with the handsfree  through the phone, in  the setting menu of  the phone, select ‘HF010D’ from ‘Paired Device’. Select ‘connect’ and the phone will connect to the handsfree.Handsfree FunctionsReceive callReject callEnd callTransfer to phone(call transfer)Redial the last numberWhen handsfree is  ringing, press Multifunction  Key  once to receive the call.When handsfree  is ringing, press Multifunction  Key twice to reject the call.During a call, press Multifunction Key once.During a call, press & hold Multifunction Key for 2 seconds. To transfer  back  to  handsfree,  press Multifunction  Key  for  2 seconds again.In standby mode, press Multifunction Key twice. The last number will be redialed. Quick User GuideStatus Operation LED Indicator & Sound LCD DisplaySwitch OnSwitch OffConnect / Reconnect in              side (with paired phone)Connect / Reconnect in              side (with paired phone)Pairing(for the rst time using the handsfree)Press and  hold the Multifunction Key for  3 seconds to turn  on the unit.Press and  hold the Multifunction Key for 5 seconds.In idle  mode, press Multifunction Key once ORSelect paired  device 'HF010D' on mobile phone, and then select 'Connect'.In idle mode, press Volume Key  '-' twice ORPress and  hold the Multifunction Key for 2  seconds, Handsfree display 'BLUETOOTH'. Select paired device 'HF010D' on mobile phone, and then select 'Connect'.1. Switch on the handsfree.2. Enable Bluetooth feature of the mobile phone.3. In the  Bluetooth menu, select 'add device' or 'search device'.4. 'HF010D' appears in the device list, press 'yes'.5. Enter  fixed pass key '0000'. Pairing completes.6. Edit  the device name if  you would like to personalize it.A low to high 'dodo' sou-nd. Flashes  blue every 5 seconds,  indicates in idle mode.LED indicator goes offFlashes blue  every 5 seconds indicates searching for  paired devices. If connected to mobile with  Handsfree Profile, blue  always on indicates in  standby mode.Flashes green  every 5 seconds indicates searching for  paired devices. If connected to mobile with  Handsfree Profile, green always on indicates in  standby mode.Flashes blue every  5 seconds, indicates in idle mode.If connected  with Handsfree Prole,  blue always on  indicates in standby mode.HF010D>BLUETOOTHPower OffBLUETOOTH>Connecting>DisplayBLUETOOTH>Connecting>DisplayBLUETOOTH>Connecting>Mobile phone model name,DisplayAABAB

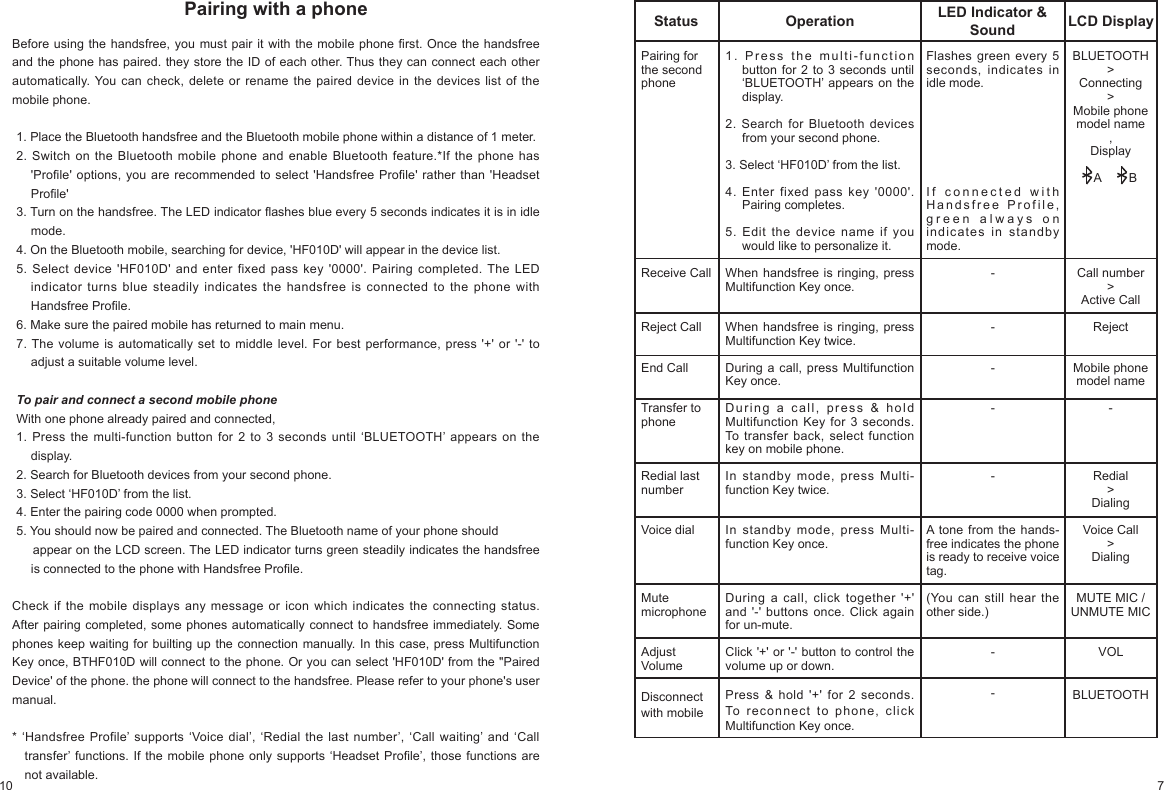

10 7Pairing with a phoneBefore using  the handsfree, you must  pair it with the  mobile phone rst. Once  the handsfree and the phone has paired. they store the ID of each other. Thus they can connect each other automatically. You  can check, delete or  rename the paired device  in the devices list  of the mobile phone.1. Place the Bluetooth handsfree and the Bluetooth mobile phone within a distance of 1 meter.2. Switch on  the Bluetooth mobile phone  and enable Bluetooth feature.*If the  phone has 'Prole' options, you  are recommended to select  'Handsfree Prole' rather than 'Headset Prole'3. Turn on the handsfree. The LED indicator ashes blue every 5 seconds indicates it is in idle mode.4. On the Bluetooth mobile, searching for device, 'HF010D' will appear in the device list.5. Select device  'HF010D' and enter fixed  pass key '0000'. Pairing  completed. The  LED indicator turns blue  steadily indicates the handsfree  is connected to the  phone with Handsfree Prole.6. Make sure the paired mobile has returned to main menu.7. The  volume is  automatically  set to  middle level. For  best  performance,  press  '+' or  '-' to adjust a suitable volume level.To pair and connect a second mobile phoneWith one phone already paired and connected,1. Press the  multi-function button for 2  to 3 seconds until  ‘BLUETOOTH’ appears on the display.2. Search for Bluetooth devices from your second phone.3. Select ‘HF010D’ from the list.4. Enter the pairing code 0000 when prompted.5. You should now be paired and connected. The Bluetooth name of your phone should    appear on the LCD screen. The LED indicator turns green steadily indicates the handsfree is connected to the phone with Handsfree Prole.Check if  the mobile displays any  message or icon which  indicates the connecting status. After pairing completed,  some phones automatically  connect  to handsfree immediately. Some phones keep waiting  for builting up the  connection manually. In this case,  press Multifunction Key once, BTHF010D will connect to the phone. Or you can select 'HF010D' from the "Paired Device' of the phone. the phone will connect to the handsfree. Please refer to your phone's user manual.* ‘Handsfree Profile’ supports  ‘Voice dial’, ‘Redial the  last number’, ‘Call  waiting’ and  ‘Call transfer’ functions.  If the mobile phone  only supports ‘Headset Prole’,  those functions are not available.Status Operation LED Indicator & Sound LCD DisplayPairing forthe secondphoneReceive CallReject CallEnd CallTransfer to phoneRedial last numberVoice dialMute microphoneAdjust VolumeDisconnect with mobile1. Press  the multi-function button for 2  to 3 seconds until ‘BLUETOOTH’  appears on the display.2. Search for  Bluetooth devices from your second phone.3. Select ‘HF010D’ from the list.4. Enter  fixed pass key '0000'. Pairing completes.5. Edit  the device name if  you would like to personalize it.When handsfree  is ringing, press Multifunction Key once.When handsfree  is ringing, press Multifunction Key twice.During a  call, press Multifunction Key once.Du r i n g  a  c a l l ,   pr e s s   &  ho l d Multifunction Key for  3 seconds. To  transfer back, select function key on mobile phone.In standby  mode, press Multi-function Key twice.In standby  mode, press Multi-function Key once.During a  call, click together '+' and '-'  buttons once. Click again for un-mute.Click '+' or '-' button to control the volume up or down.Press & hold  '+' for 2 seconds. To  reconnect to phone,  click   Multifunction Key once.Flashes green every  5 seconds, indicates in idle mode.If connected with Handsfree Profile, green always  on indicates in  standby mode.-----A  tone  from the hands-free indicates the phone is ready to receive voice tag.(You can still  hear the other side.)--BLUETOOTH>Connecting>Mobile phone model name,DisplayCall number>Active CallRejectMobile phone model name-Redial>DialingVoice Call>DialingMUTE MIC / UNMUTE MICVOLBLUETOOTHAB
