Users Manual Revised

Getting Started

For the first time using the handsfree, please:

 Charge handsfree with the provided saver charger for 3 hours.

 Ensure a Bluetooth function supporting mobile phone is ready for pairing.

Charging

Notes:

Switch On/Off

Switch on handsfree

Press and hold the Multifunction Key for 4/5 seconds until you hear a low to high ‘dodo’ sound and indicator

light flashes blue.

Switch off headset

Press and hold the Multifunction Key for 4/5 seconds until you hear a high to low ‘dodo’ sound and indicator

light flashes red and then goes off.

 Charge the handsfree only with the saver charger supplier provided.

 Maximum charging time: 3 hours

 Indicator light stops flashing red when fully charged.

 Talking time: up to 10 hours

Standby time: up to 200 hours

Low battery signals: indicator light flashes red and ‘do’ sound until handsfree is

recharged.

 Do not charge up to 24 hours.

Pairing with a phone

Before using the handsfree, you must pair it with the mobile phone first. Once the handsfree and the phone

has paired, they store the ID of each other. Thus they can connect to each other automatically. You can check,

delete or rename the paired device in the devices list of the mobile phone.

1. Place the Bluetooth handsfree and the Bluetooth mobile within a distance of 1 meter.

2. Switch on the Bluetooth mobile and enable Bluetooth feature. *If the phone have ’Profile’ options, you are

recommended to select ‘Handsfree/Car Kit Profile’ rather than ‘Headset Profile’.

3. Turn on the handsfree. The indicator light flashes blue every 5 second indicates it is in idle mode.

4. On the Bluetooth mobile, searching for device, ‘HF009’ will appear in the device list.

5. Select device ‘HF009’ and enter pass key ‘8888’. The indicator light turns blue steadily. Pairing completed.

6. Make sure the paired mobile has returned to main menu. Check if the mobile displays any Bluetooth

status info.

7. The volume is automatically set to middle level. For best performance, press ‘+’ or ‘-’ to adjust a suitable

volume level.

* Some phones automatically connect to headset as the pairing is completed. Some phones require

manually built up the connection. Please refer to your phone’s user manual.

You should now be able to make wireless communication with the handsfree. Keep the distance between the

handsfree and the mobile within 10 meters and free from obstacles. You can dial and receive calls by the

phone, or activate the voice dialing, redial the last number and receive calls through the handsfree.

* ‘Handsfree/Car Kit Profile’ supports ‘Caller ID display’, ‘Redial the last number’, ‘Call waiting’ and ‘Call

transfer’ functions. If the mobile phone only supports ‘Headset Profile’, those functions are not available.

Charge with saver charger(cigarette light adaptor)

Switch on the handsfree.

Connect the saver charger to the in car cigarette

socket, and then to the charging port of the

handsfree.

Indicator light flashes red and blue alternately.

Switch to/

from

waiting call

Transfer to

phone

Re-dial last

number

Voice dial

Mute/Un-

mute

microphone

Adjust

Volume

Privacy call

Disconnect

with mobile

Low battery

Charging

completed

During a call, when another call dials in,

press multifunction twice for switching to

the 2nd call. Press twice again to switch

back.

During a call, press and hold multifunc-

tion key.

In standby mode, press multifunction key

twice.

In standby mode, press multifunction key

once.

During a call, press together ‘+’ and ‘-’

buttons once.

Click ‘+’ or ‘-’ button to control the voice

gain.

Connect external headphone to head-

phone port.

Press and hold ‘+’ or ‘-’ button.

Connect to charger and switch on the power

Within 3 hours

‘do’ sound

A tone from the handsfree in-

dicates the phone is ready to

receive voice tag.

‘do’ sound. You can still hear

the other side.

Red on and ‘do’ sound.

Flashes red & blue

Stops flashing red

CALLER

NUMBER

TRANSFER

REDIAL

VOICEDIAL >

CALLING

displays volume

level

DISCON

LOWBATT

CHARGING

BLUETOOTH

Operation Indicator Light &

Sound LCD DisplayStatus

Connect/Reconnect to phone

When the handsfree is switched on, press the Multifunction Key once and the handsfree will automatically

connects to the paired mobile phones nearby. If the handsfree has paired with many mobile phones and they

are within 10 meters, the handsfree will connect to the last connected mobile phone.

Different phones connect with handsfree in different methods. The following are the 2 methods, namely A

and B:

A: When the handsfree is in standby mode and is dialing or receiving a call by the phone, the phone

connects to handsfree automatically.

When receiving a call, redialing or activating the voice dial through the handsfree, the handsfree

connects to the phone automatically.

B: After the handsfree and the phone are connected, the handsfree sends signals to the phone to keep

the connection.

For method B, if the handsfree and the phone are disconnected, manual reconnection is required:

Press Multifunction Key once, the handsfree will connect to the phone again. If the

phone confirms to the reconnection signal, reconnection completed.

In the setting menu of the phone, select ‘HF009’ from ‘Paired Device’. Select the

‘connect’ and the phone will connect to the handsfree.

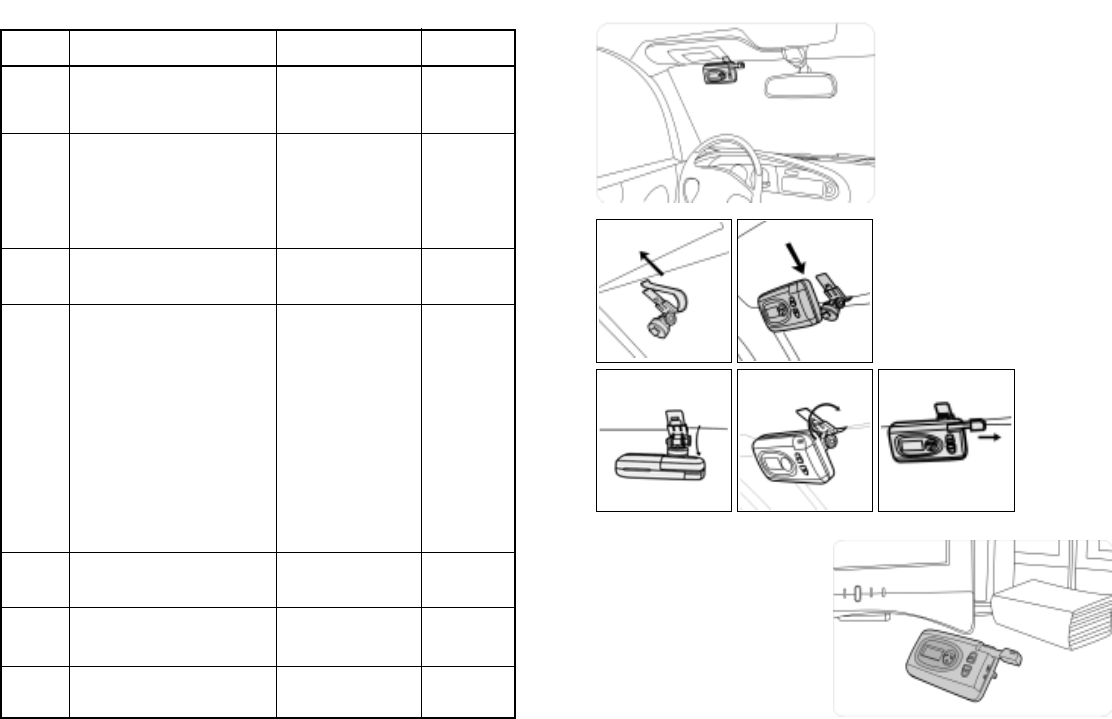

EITHER

1. Inside the car, clip the provided

bracket to the sun visor as shown.

2. Fix the handsfree on the bracket.

3. To flip the handsfree up or down,

first release the screw of the bracket

a little bit.

4. After the handsfree has adjusted to a com-

fortable view angle facing you, lock the

screw.

5. Make sure the microphone handle is pull

out.

Use in car

Use in office / home

1. Pull up the stand at the backside.

2. Put it on a flat surface and pull out the

microphone handle.

3 4 5

A low to high ‘dodo’ sound.

Flashes blue every 5 second

indicates in idle mode.

Flashes blue every half sec-

ond indicates searching for

paired devices. If connected

to mobile, blue always on in-

dicates in standby mode.

A high to low ‘dodo’ sound &

indicator light off.

Flashes blue every 5 second

indicates in idle mode.

Blue always on, indicates in

standby mode.

POWERON >

BLUETOOTH

CONNECTED

POWEROFF

PAIRED

CALLER

NUMBER

REJECT

Quick User Guide

Switch on

Connect/

Reconnect

(with paired

phone.)

Switch off

Pairing

(for the first

time using

the

handsfree)

Receive

call

Reject call

End call

Operation Indicator Light &

Sound

From off mode, press and hold multifunc-

tion key for 4/5 sec. Pull out the microphone

handle.

In Idle mode, press multifunction key once,

On mobile phone, select paired device

‘HF009’ and then ‘Connect’.

In standby mode, press and hold multi-

function key for 4/5 sec.

1. Switch on the handsfree.

2. Enable Bluetooth feature of the mobile

phone.

3. In the Bluetooth menu, select ‘add

device’ or ‘search device’.

4. ‘HF009’ appears in the device list, press

‘yes’.

5.Enter pass key ‘8888’. Pairing

completed.

6. Edit the device name if you would like to

personalize it.

When handsfree is ringing, press multi-

function key once.

When handsfree is ringing, press multi-

function key twice.

During a call, press multifunction key

once.

LCD DisplayStatus

1 2

Receive call

Reject call

End call

Switch to/from waiting call

(Call waiting)

Transfer to phone

(Call transfer)

Redial the last number

Voice dial

Muting/Un-muting

Adjust volume

Privacy call

Disconnect with mobile

* Functions ‘Caller ID display’, ‘Redial the last number’, ‘Call waiting’ and ‘Call transfer’ are supported by

Handsfree Profile instead of Headset Profile. For using those functions, please check if the mobile phone

supports Handsfree Profile.

* Function ‘Volume Level Display’ is available if the phone supports ‘Remote Volume Control’.

When handsfree is ringing, the LCD displays the calling number. Press

Multifunction Key once to receive the call and ‘CONNECTED’ will be

displayed.

When handsfree is ringing, the LCD displays the calling number. Press

Multifunction Key twice to reject the call and ‘REJECT’ will be displayed.

During a call, press Multifunction Key once. LCD displays ‘REJECT’.

When a second call dials in during a call, the LCD displays the second

calling number and ‘dodo’ sound from the handsfree. Press Multifunction

Key twice to switch to the second call. Press twice again to switch back to the

first call.

During a call, press and hold Multifunction Key once. LCD displays

‘TRANSFER’.

In standby mode, press Multifunction Key twice. The last number will be

redialed. LCD displays ‘REDIAL’.

Ensure that the mobile phone supports Voice Control Dialing. In standby

mode, press Multifunction Key once. LCD displays ‘VOICEDIAL’. You will

hear a tone from the handsfree. It indicates the mobile phone is ready to

receive voice tag. Speak the name of the person you wish to call. Then the

mobile starts the voice dial automatically.

To temporarily mute the microphone, press together the volume ‘+’ and ‘-’

buttons once. You will hear ‘do’ sounds. This will allow you to hear the other

side but the other side does not hear you.

Press ‘+’ and ‘-’ buttons to a suitable volume level. LCD displays the volume

level.

Connect external headphone. This will allow you to hear the other side but the

other people inside the car do not hear the other side.

For connecting the handsfree to another mobile, in standby mode, press and

hold the handsfree ‘+’ and ‘-’ buttons. LCD displays ‘DISCON’.

Handsfree functions Overview

Bluetooth Portable Handsfree Car Kit

Model BTHF009

Thank you for selecting BTHF009 Bluetooth portable handsfree car kit. It is a rechargeable speakerphone

which is easy to operate in car and portable to use anywhere. It is specially designed for connecting Bluetooth

compatible mobile phones in car. No matter the car is ignited or not, you can enjoy the freedom to make and

receive calls without connecting with wires.

This handsfree car kit is specially designed for Bluetooth mobile phones or other Bluetooth com-

patible devices that support the Handsfree or Headset profiles.

The Bluetooth wireless technology is a worldwide specification for a small form-factor, low-cost

and short-range (about 10 meters) radio solution providing links between mobile computers, mo-

bile phones, other portable and handheld devices and connectivity to the internet.

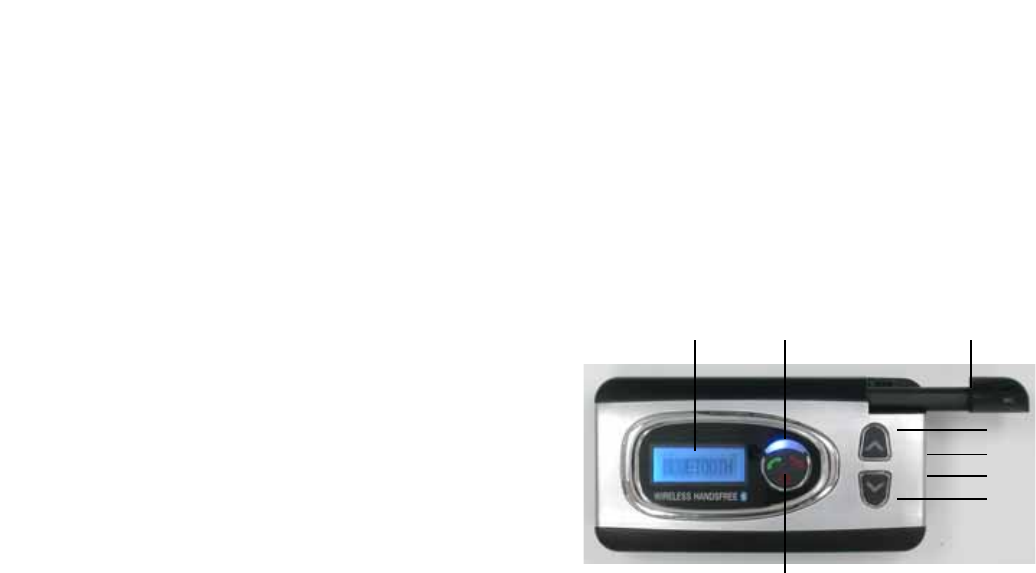

microphone on the pull-out handle

volume +

charging port

headphone port

volume -

indicator light

multifunction key

LCD display

4-5

Overview ....................................................................

Quick User Guide ...................................................

Getting Started .........................................................

Charging ..................................................................

Switching On/Off ......................................................

Pairing with a phone .................................................

Connect/Reconnect to phone ...................................

Use in car .................................................................

Use in office/home ....................................................

Handsfree functions .................................................

Care and maintenance .............................................

Specification .............................................................

FCC Notice ..............................................................

Contents

: Version 1.2 compliant

: Headset and Handsfree Profiles

: 2.4 GHz spectrum

: 10 meters (class 2)

: 108 (L) x 57 (W) x 31 (T) mm

: 129 g

: Full duplex transmission, noise suppres-

sion and echo cancellation.

: Up to 4 mobile phones

: Within 3 hours

: Up to 10 hours

: Up to 200 hours

: Lithium Ion, 3.6 V, 1100 mAh installed

: Over charge and over discharge protection

: 350 mA (internal controlled)

: DC 5 V

: 2 W (max.)

: 8 ohm

: -47 dB

Bluetooth Specification

Bluetooth Profile Supported

Frequency Range

Working Distance Range

Dimensions (main unit)

Weight (main unit)

DSP

Pairing

Charging Time

Talking Time

Standby Time

Rechargeable Battery

Battery Protection

Input Current

Input Voltage

Speaker Power

Speaker Impedance

Sensitivity of Microphone

Care and maintenance

 Switch off the handsfree if not in use.

 Do not try to replace the rechargeable battery inside handsfree.

 Charge handsfree only with the supplied charger.

 Do not try to open the supplied charger.

Specification

User Manual

For Model BTHF009

Bluetooth Portable Handsfree Car Kit

Notice 1

You are cautioned that changes or modifications not expressly approved by the party

responsible for compliance could void the user’s authority to operate the equipment.

Notice 2

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC rules. These limits are designed to provide reason-

able protection against harmful interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment. End users must follow the specific operating instructions for satisfying RF

exposure compliance. This transmitter must not be co-located or operating in conjunction

with any other antenna or transmitter.

Canhold HF009 Bluetooth Handsfree Car Kit User Manual

Canhold International Ltd. Bluetooth Handsfree Car Kit

Users Manual Revised

Navigation menu

Namespaces

Views

Navigation
