USERS MANUAL
ENGINEERING SPECIFICATION DOCUMENT
Project: CALGARY
rfid-hardware_REV4.doc
CONFIDENTIAL
Page 1 of 16
Design Specification
Radio Frequency Identification Board
Department: R&D Richmond
Document#: 301010xxxx
Authors:
Kevin Deane-Freeman
Yanchun Zhang
Darren Rafferty
Current Revision: 4
Revision Description Author Date
1 Initial Need/Want documentation Kevin Deane-Freeman
Yan chun Zhang, Darren Rafferty 27/02/07
10/05/07
2 Added RF Output plots, revised
features table Kevin Deane-Freeman 19/06/07
3 Simply some logic implementation Yan chun Zhang, Darren Rafferty 09/07/07
4 Add Compliance Statements Colin Soutar 12/14/2007
Océ Display Graphics Systems
Richmond Office
13231 Delf Place, #501
Richmond, BC
V6V 2C3
Canada
Phone: 604-232-2310 or
604-232-2328
ENGINEERING SPECIFICATION DOCUMENT
Project: CALGARY
rfid-hardware_REV4.doc
CONFIDENTIAL
Page 2 of 16
1.0 Compliance Statements ..........................................................................................................4
Compliance Standards ................................................................................................................4
2.0 Communication Protocol .........................................................................................................5
2.1 Addressing.............................................................................................................................5
RFID Board PCI Shadow Memory Address Map ........................................................................5
2.2 Hardware Capabilities..........................................................................................................6
Planned Features ........................................................................................................................6
RF Output Characteristics ...........................................................................................................7
3.0 Hardware Control.....................................................................................................................7
CODE1 Label IC Memory Definition............................................................................................8
4.0 Register Definition ...................................................................................................................9
Registers Initialization for Communication ..................................................................................9
Access the Reader Internal Registers .......................................................................................10
I.CODE1 Commands.................................................................................................................11
2.1.6 Access Label IC memory..................................................................................................11
5.0 Appendix................................................................................................................................15
ENGINEERING SPECIFICATION DOCUMENT
Project: CALGARY
rfid-hardware_REV4.doc
CONFIDENTIAL
Page 3 of 16
Figure 1.1 RFID PCI Address Map ..................................................................................................5
Figure 1.2 Features Table................................................................................................................6
Figure 1.3 TX1 Output, No Load......................................................................................................7
Figure 1.4 TX2 Output, No Load......................................................................................................7
Figure 2.1 I.CODE1 Label ICs EEPROM Memory...........................................................................8
Figure 2.2 Reader Registers Initialization......................................................................................10
ENGINEERING SPECIFICATION DOCUMENT
Project: CALGARY
rfid-hardware_REV4.doc
CONFIDENTIAL
Page 4 of 16
1.0 Compliance Statements
FCC Statement:
Any change or modification not expressly approved by the manufacturer could void the users
authority to operate this equipment.
FCC Notice: Any change or modification not expressly approved by the manufacturer could
void the users authority to operate this equipment.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any interference received, including interference
that may cause undesired operation
Compliance Standards
The product is intended for a worldwide market. ODGS tests to FCC and EU standards for
CE marking. Operational companies will test to local standards. Compliance with the
following standards should meet the requirements of all markets:
Immunity: Criterion A
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-6
Emissions: Class B
EN 55022
CFR 47 FCC Part 15
Industry Canada RSS 210
EN300300-1
EN300330-2
ENGINEERING SPECIFICATION DOCUMENT
Project: CALGARY
rfid-hardware_REV4.doc
CONFIDENTIAL
Page 5 of 16
2.0 Communication Protocol
2.1 Addressing
RFID Board PCI Shadow Memory Address Map
HEAD
(15~11) BID
8~6 MODULE SEL (BIT5~2) REGISTER SEL (BIT1~0) WR RD PCI
OFFSET ID
00 BID WRITE X 680
01 RESERVED 682
10 RESET / WATCHDOG X 684
10101/
10110 101 0000
PCI INTERFACE
11 LINK ACK CNTRL X X 686
00 BLOCK ADDR REG X 688
01 IRQ MASK X 68A
10 WR DATA(L) X 68C
101 0001
RFID
WRITE MEMORY
ACCESS 11 WR DATA(H) X 68E
00 CONTROL REG X 690
01 READ ADDR REG X 692
10 WRITE ADDR REG X 694
101 0010 RFID
REGISTER
CONTROL 11 WRITE DATA REG X 696
00 REGISTER DATA X 698
01 INTERNAL EEPROM RFU* 69A
10 MEM DATA (L) X 69C
101 0011
RFID DATA READ
11 MEM DATA (H) X 69E
00 READ MEM ADDR X 6A0
01 BLOCK NUMBER X 6A2
10 READ DATA REQ X 6A4
101 0100 RFID
READ MEMORY
ACCESS 11 SPI BUSY FLAG (RFU) X 6A6
00 MEM DATA READY X X 6A8
01 BMEM UPDATED X X 6AA
10 ANTENNA SELECT X 6AC
101 0101
RFID READ
STATUS
11 MEM WRITE DONE X X 6AE
00 X 6B0
01 X 6B2
10 X 6B4
101 0110
RFU
11 X 6B6
00 X 6B8
01 X 6BA
10 X 6BC
101 0111
RFU
11 X X 6BE
00 X 6C0
01 X X 6C2
10 X 6C4
101 1000
RFU
11 X X 6C6
00 X X 6C8
01 X X 6CA
10 X X 6CC
101 1001
RFU
11 X 6CE
00 X 6D0
01 X 6D2
10 X 6D4
101 1010
RFU
11 X 6D6
00 X 6D8
01 X 6DA
10 X 6DC
101 1011
RFU
11 X 6DE
00 X 6E0
01 X X 6E2
10 X 6E4
101 1100
RFU
11
X 6E6
00 X 6E8
01 X X 6EA
10 X X 6EC
101 1101
RFU
11 X X 6EE
00 X 6F0
01 X 6F2
10 X 6F4
101 1110
RFU
11 X 6F6
00 X 6F8
01 X 6FA
10 X 6FC
101
101 1111
RFU
11
X 6FE
#1
Figure 1.1 RFID PCI Address Map
*Reserved for future use
ENGINEERING SPECIFICATION DOCUMENT
Project: CALGARY
rfid-hardware_REV4.doc
CONFIDENTIAL
Page 6 of 16
2.2 Hardware Capabilities
Planned Features
Feature Minimum Required Desired/Future Performance
Reader Channels 5 6
Polling speed 1channel per second 1channel per < 200ms
Ch. Read Range 1.25” 2”
Ch. Write Range As above As above
Write/Verify No Yes
Antenna Spacing 78mm 78mm
Figure 1.2 Features Table
ENGINEERING SPECIFICATION DOCUMENT
Project: CALGARY
rfid-hardware_REV4.doc
CONFIDENTIAL
Page 7 of 16

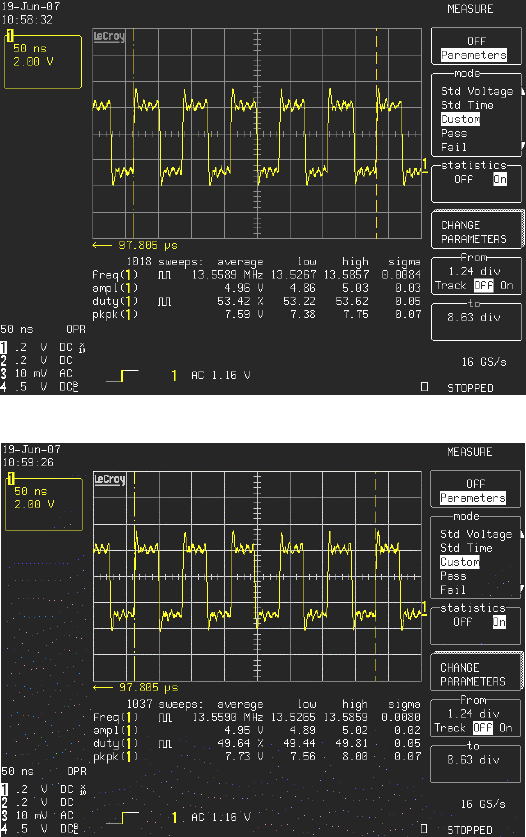

RF Output Characteristics
Figure 1.3 TX1 Output, No Load
Figure 1.4 TX2 Output, No Load
3.0 Hardware Control
CL RC 632 is a new family of highly integrated reader ICs for contactless
communication at 13.56MHz, which includes 64 registers (8bits/each), 64 byte
FIFO, as well as 32*16 byte EEprom. I.CODE1 Label IC is a dedicated 512 bit
memory chip for electronic label applications such as detecting the presence of ink
bag. RFID system operates in a so called “reader talks first” principle. The reader
sends a command first, and the labels execute the instruction and send back their
response to the buffer of the reader.
ENGINEERING SPECIFICATION DOCUMENT
Project: CALGARY
rfid-hardware_REV4.doc
CONFIDENTIAL
Page 8 of 16
Based on current Calgary structure, a RFID PCB board is designed to
communicate with the Data Relay Card using the fourth SPI generic port. It is
eventually intended to replace the third party board Smart RFID Multiplex Reader
Board. There is only one single reader with five antennas and one CPLD on the
PCB board. Due to current specific SPI interface is designed for the RFID board,
the fourth SPI port cannot be used as a generic SPI communication port any more.
CPLD is used to select which antenna will be communicated with the Reader.
Serial data clock is 4.16MHz. The bit decoding of Label IC is fast mode with a
13.56Mhz carrier: each command consists of a start pulse (18.88us modulation),
followed by one 8-bit instruction byte, five 8-bit parameter bytes, and two CRC
bytes (16-bit CRC).
The basic rules for software accessing Label IC is that software is required to first
select antenna, switch on the RF, enable CRC16, force the RFID reader state
machine back to idle, clear the reader buffer, and finally to set block start address
and block numbers which software needs read/write data from/to the Label IC.
Once software gets data back from the Label IC, software may need to issue a
switch off RF command so as to reduce the interference from RFID board, except
when software needs to hold the Label IC in selected condition.
CODE1 Label IC Memory Definition
The 512 bit EEprom memory is divided into 16 blocks. A block is the smallest
access unit. Each block consists of 4 bytes. Bit 0 in each byte represents the LSB
(least significant bit) and bit 7 the MSB (most significant bit). The following table
shows the definition for each block.
Byte0 Byte1 Byte2 Byte3
Figure 3.1 I.CODE1 Label ICs EEPROM Memory
SNR0 SNR1 SNR2 SNR3
SNR4 SNR5 SNR6 SNR7
F0 FF FF FF
x x x x
x x x x
x x x x
x x x x
x x x x
x x x x
x x x x
x x x x
x x x x
x x x x
x x x x
x x x x
x x x x
Block 0
Block 1
Block 2
Block 3
Block 4
Block 5
Block 6
Block 7
Block 8
Block 9
Block 10
Block 11
Block 12
Block 13
Block 14
Block 15
Serial Number
Write Access Conditions
Special Functions (EAS/QUIET)
User Data
.
.
.
.
.
.
.
.
.
User Data
ENGINEERING SPECIFICATION DOCUMENT
Project: CALGARY
rfid-hardware_REV4.doc
CONFIDENTIAL
Page 9 of 16
4.0 Register Definition
1. Antenna Select Register
There is only one single reader with five antennas (five Label ICs) on the PCB RFID
board; hence the defined antenna select register is used to select which antenna will
be communicated with data relay card (only one bit for each command is allowed to
be active). Allow 1ms for switch settling time.
Antenna Select Register
Bit 7~5
4 3 2 1 0
RFU
Antenna
5 Antenna
4 Antenna
3 Antenna
2 Antenna
1
2. Reader Internal Registers
The RFID register control (Module Sel Addr:0010) used in this module include:
CONTROL REG (12 bits): Command Register
WRITE ADDR REG (6 bits): Write register address
READ ADDR REG (6 bits): Read register address
WRITE DATA REG (8 bits): Write data register
Control Register
Bit 11 10 9 8 7~5
4 3 2 1 0
TX
Start Rst
Quiet Unsel
Rd EAS
Test RFU
Sel
En Reg
Wr Reg
Rd Mem
Wr Mem
Sel Rd
Bit0 (Mem Sel Rd): Label IC Memory Selected Read
Bit1 (Mem Wr): Label IC Memory Write Block X
Bit2 (Reg Rd): Reader Register Read
Bit3 (Reg Wr): Reader Register Write
Bit4 (Mem Sel Rd): Label IC Anticollision/Select
Bit 5~7 (RFU): Reserved for future use
Bit8 (Mem Wr): Label IC EAS test
Bit9 (Unsel Rd): Label IC unselected memory read
Bit10 (Rst Quiet): Label IC Reset QUIET Bit
Bit11 (TX Start): Transmit Start, default should be set to high. It is used for
debugging, and once this bit is set to zero, the data in reader buffer cannot be
transmitted.
Registers Initialization for Communication
In order to enable the I.CODE1 functionality, the following table lists the reader
register initial values. Some of them may need change according to requirements
with different RFID boards.
ENGINEERING SPECIFICATION DOCUMENT
Project: CALGARY
rfid-hardware_REV4.doc
CONFIDENTIAL
Page 10 of 16
Register Name Register Address Value
Page 10 00
TxControl 11 58
CWConductance 12 3F
ModConductance 13 01
CoderControl 14 35
ModWidth 15 3F
ModWidthSOF 16 73
TypeBFraming 17 00
Page 18 00
RxControl1 19 8B
DecoderControl 1A 00
BitPhase 1B 54
RxThreshold 1C 68
BPSKDemControl 1D 00
RXControl2 1E 41
ClockQControl 1F 00
Page 20 00
RxWait 21 08
ChannelRedundancy 22 0C
CRCPresetLSB 23 FE
CRCPresetMSB 24 FF
TimeSlotPeriod 25 00
MFOUTSelect 26 00
PreSet27 27 00
Page 28 00
FIFOLevel 29 3E
TimerClock 2A 0B
TimerControl 2B 02
TimerReload 2C 00
IRQPinConfig 2D 02
PreSet2E 2E 00
PreSet2F 2F 00
Figure 2.2 Reader Registers Initialization
Access the Reader Internal Registers
(1). When writing data to the reader internal register, the following three data packets
should be sent:
First data packet: write 694 to register address
Second data packet: write 696 to register data
Third data packet: write 690 to 08 (write command)
(2). When reading data from Reader internal register, the following three data
packets should be sent:
First data packet: write 692 to register address
Second data packet: write 690 to 04 (read command)
Third data packet: read register data from address 698
ENGINEERING SPECIFICATION DOCUMENT
Project: CALGARY
rfid-hardware_REV4.doc
CONFIDENTIAL
Page 11 of 16
I.CODE1 Commands
A selection of the Label IC is necessary for valid execution of the following
commands:
• Selected Read
• Write
• Halt (Reserved for future use)
Once an I.CODE1 Label IC is selected, it does not respond to the following
command:
• Anticollision/Select
• Unselected Read
The following commands work for both the selected and unselected states:
• EAS
• Reset QUIET Bit
After the Label IC has been selected, if the unselected command should be issued,
you need to re-enter Label IC or switch off the RF.
2.1.6 Access Label IC memory
Communication normally begins with the software sending a command and the Label
IC responding. Commands always initiate a response except Reset Quiet Bit
command. Some commands have prerequisite parameters such as memory
read/write.
Current RFID firmware code supports the following commands:
• Reset QUIET Bit
• Unselected Read
• Anticollision/Select
• Write Block X
• Selected Read
• EAS Test
Manufacturer delivers the Label IC with the following configuration:
(1) Serial number (block 0 and block 1) is unique, read only.
(2) Write Access Conditions determine if blocks 3 through 15 can be accessed for writing.
For Byte 0 in block 2:
If set bit5 and bit4 to 1|1: Write access enabled.
If set bit5 and bit4 to 0|0: Write access disabled.
Be aware that writing of bit pairs 1|0 or 0|1 to block 2 is not allowed! Also the label must
not be moved out of the communication field of the antenna during writing operation!
(3) EAS test mode default setting is not defined. If you want to do an EAS test, you have to
enable EAS test first by writing 1|1 to bit1 and bit0 in byte 0 of block 3.
(4) Quiet mode default setting is not defined at delivery. Reset Quiet Bit command should be
executed on the Label IC first, otherwise the Label IC does not respond to any command
ENGINEERING SPECIFICATION DOCUMENT
Project: CALGARY
rfid-hardware_REV4.doc
CONFIDENTIAL
Page 12 of 16
(except EAS command if the EAS mode is enabled) if the two bits (bit2 and bit3 in byte0
of block 3) are set to one (quiet mode is enabled).
(5) Family Code/Application Identifier and User data memory is not defined.
In order to implement the above commands, an antenna select command should be
issued first by software so that hardware knows which antenna should be
communicated, and the data packages (See appendix) should be sent by sequence.
Since the internal register setting of the reader is similar for each command, firmware
FPGA will implement these setting packages (A, B, C, D, E, F, J/I) automatically
when it receives a command as described below from software.
Also be aware that before you send a memory write command or an
anticollision/select command, set Unselected Read command first, as the second
byte of the serial number is used to calculate a quit value as a result of critical timing
issue with SPI interface, this quit value is required when issuing an
anticollision/select or memory write command.
(1) Reset QUIET Bit
Action: QUIET bits are cleared for all I.CODE1 Label ICs in the antenna
field, which are in QUIT mode.
Parameters: None
Commands: N package
Response: None
(2) Unselected Read
Before issuing an unselected read command, software needs to set read block
start address and the number of blocks first. The Label IC will respond with its
required data bytes, which are stored to the buffer of the reader.
Action: Each of the unselected I.CODE1 Label ICs responds with the
requested number of block
Parameters: Required block start address of data to be read
Required number of blocks to be read
Commands: G, K package
Response: Data bits of X blocks, 16 bit CRC
There are 16*32bit dual port block memory locations for latching the data read
from the reader memory. After sending these packages, software needs to read
the busy flag status from the PCI shadow memory address 6A8. Once this bit
has been set to one, software needs to send a read data command (6A4) and
immediately clear the busy flag. The read data command definition is as follows:
Reading IC buffer data command (6A4)
Bit 4 3~0
Read Command Block number
ENGINEERING SPECIFICATION DOCUMENT
Project: CALGARY
rfid-hardware_REV4.doc
CONFIDENTIAL
Page 13 of 16
Once this command has been sent, the firmware will read 32 bits word data from
internal block memory to PCI shadow memory responding to this command.
When PCI shadow memory address 6AA (BMEM UPDATED) has been set to one,
software can get the 32bits data from PCI shadow memory address 69C, and
also software is required to clear this bit (BMEM UPDATED) as well.
For whole memory data read requires at least 25ms.
(3) Anticollision/Select
When firmware receives the serial numbers after issuing an Anticollision/Select
command, it will transmit a QUIT byte immediately. The Label IC will remain in
the timeslot chosen at this command for all further commands, such as memory
write and selected read, until it leaves (and re-enters) the RF field.
Action: Each of the unselected the Label IC responds with its 64 bits
serial number in different timeslots
Parameters: None
Commands: M package
Response: 64 bit SNR (Serial Number), 16 bit CRC
(4) Write Block X
Remember that this command is required to a selection of the Label IC
(Anticollision/Select). Before issuing a write command, software needs to set the
block address and 4 bytes of data. Once each of the selected Label IC responds
with its 64 bit serial number, firmware will send a quit value immediately so that
the given 4 bytes of data are written to the address block if Label IC receives a
QUIT from the reader in its timeslot.
Action: Given 4 bytes of data are written to the address block if Label IC
receives a QUIT from the reader in its timeslot.
Parameters: Required block address of data to be written
Required 4 bytes data to be written
Commands: H, O package
Response: 64 bit SNR (Serial Number), 16 bit CRC
In addition, a minimum delay time of 4852.16 µs (included in ‘total time*’) is
required before the starting of a new command or switching off the RF due to
EEPROM programming in Label IC. After software issuing a memory write
command, firmware will send memory write done flag (6AE) to inform software,
this flag means that firmware already finished sending a QUIT value to Label IC,
therefore, the waiting time should be considered by software.
ENGINEERING SPECIFICATION DOCUMENT
Project: CALGARY
rfid-hardware_REV4.doc
CONFIDENTIAL
Page 14 of 16
Total time: 18.88 + 2416.64 + n * (325.68 + 3020.8 + 269.04 + 311.52) + 4852.16 =
7287.68 + n * 3927.04
µ
s
Here, n = number of timeslots
(5) Selected Read
The operation is similar to the Unselected Read except this command
is required to a selection of the Label IC (Anticollision/Select).
Each Label IC has his own antenna, and also the space between any two
antennas is big enough to prevent from the interference among them, therefore
this command is no necessary for current application.
Action: Each of the selected the Label IC responds with the given number
of blocks in its timeslot at which the Label IC was fixed with the
Anticollision/ Select command
Parameters: Required block start address of data to be read
Required number of blocks to be read
Commands: G, P package
Response: Data bits of X blocks, 16 bit CRC
(6) EAS Test
Once again, EAS test mode default setting is not defined by manufacture. Enable
EAS test is required by writing 1|1 to bit1 and bit0 in byte 0 of block 3 before
issuing EAS test.
Action: I.CODE1 Label IC responds with a special predefined EAS
pattern (256bits)
Parameters: None
Commands: Q package
Response: 256 bit special EAS response
After Label IC receives this command, the corresponding 32 bytes in
hexadecimal notation as follows:
2F B3 62 70 D5 A7 90 7F
E8 B1 80 38 D2 81 49 76
82 DA 9A 86 6F AF 8B B0
F1 9C D1 12 A5 72 37 EF
ENGINEERING SPECIFICATION DOCUMENT
Project: CALGARY
rfid-hardware_REV4.doc
CONFIDENTIAL
Page 15 of 16
5.0 Appendix
Antenna select should be issued first by software before the following package commands:
A package: switching on RF
Addr Data
694 11 (16bits); Tx Control register address
696 4B (16bits);
690 08 (16bits); Write command
B package: Enable 16bits CRC
Addr Data
694 22 (16bits);
696 0C (16bits);
690 08 (16bits);
C package: Preset LSB for the CRC register
Addr Data
694 23 (16bits);
696 FE (16bits);
690 08 (16bits);
D package: Preset MSB for the CRC register
Addr Data
694 24 (16bits);
696 FF (16bits);
690 08 (16bits);
E package: Force Reader back to idle state
Addr Data
694 01 (16bits)
696 00 (16bits)
690 08 (16bits)
F package: Clear buffer
Addr Data
694 09 (16bits)
696 01 (16bits)
690 08 (16bits)
G package: Set memory read start address and block numbers
Addr Data
6A0 X (16bits); Set memory start block address (x-1=0…15)
6A2 y (16bits); Set number of blocks (0…15)
H package: Set memory write address and block number
Addr Data
688 x (16bits); Set memory block address (0…15)
68C x (32bits); Set writing data to Label IC
ENGINEERING SPECIFICATION DOCUMENT
Project: CALGARY
rfid-hardware_REV4.doc
CONFIDENTIAL
Page 16 of 16
I package: Set time slot period
Addr Data
694 25 (16bits);
696 5F (16bits);
690 08 (16bits);
J package: clear time slot period
Addr Data
694 25 (16bits);
696 00 (16bits);
690 08 (16bits);
K package: Sending unselected read command
Addr Data
690 A0016bits);
L package: Switching off RF (preventing from interference)
Addr Data
694 11 (16bits);
696 58 (16bits);
690 08 (16bits);
M package: Sending Anticollision/Select command
Addr Data
690 810(16bits);
N package: Sending Reset Quiet Bit command (Respond, None)
Addr Data
690 C00 (16bits);
O package: Sending write block x command
Addr Data
690 802 (16bits);
P package: Sending selected read memory command (Responds memory data of
numbers of blocks)
Addr Data
690 801 (16bits);
Q package: Sending EAS test command (Corresponding 32 bytes data in
hexadecimal)
Addr Data
690 900 (16bits);
