Canon Production Printing Netherlands OCE01085 pba rfid_reader ( model oce01085 ) User Manual RFID READER User Manualx

Oce Technologies B.V. pba rfid_reader ( model oce01085 ) RFID READER User Manualx

rfid_reader_user_manual

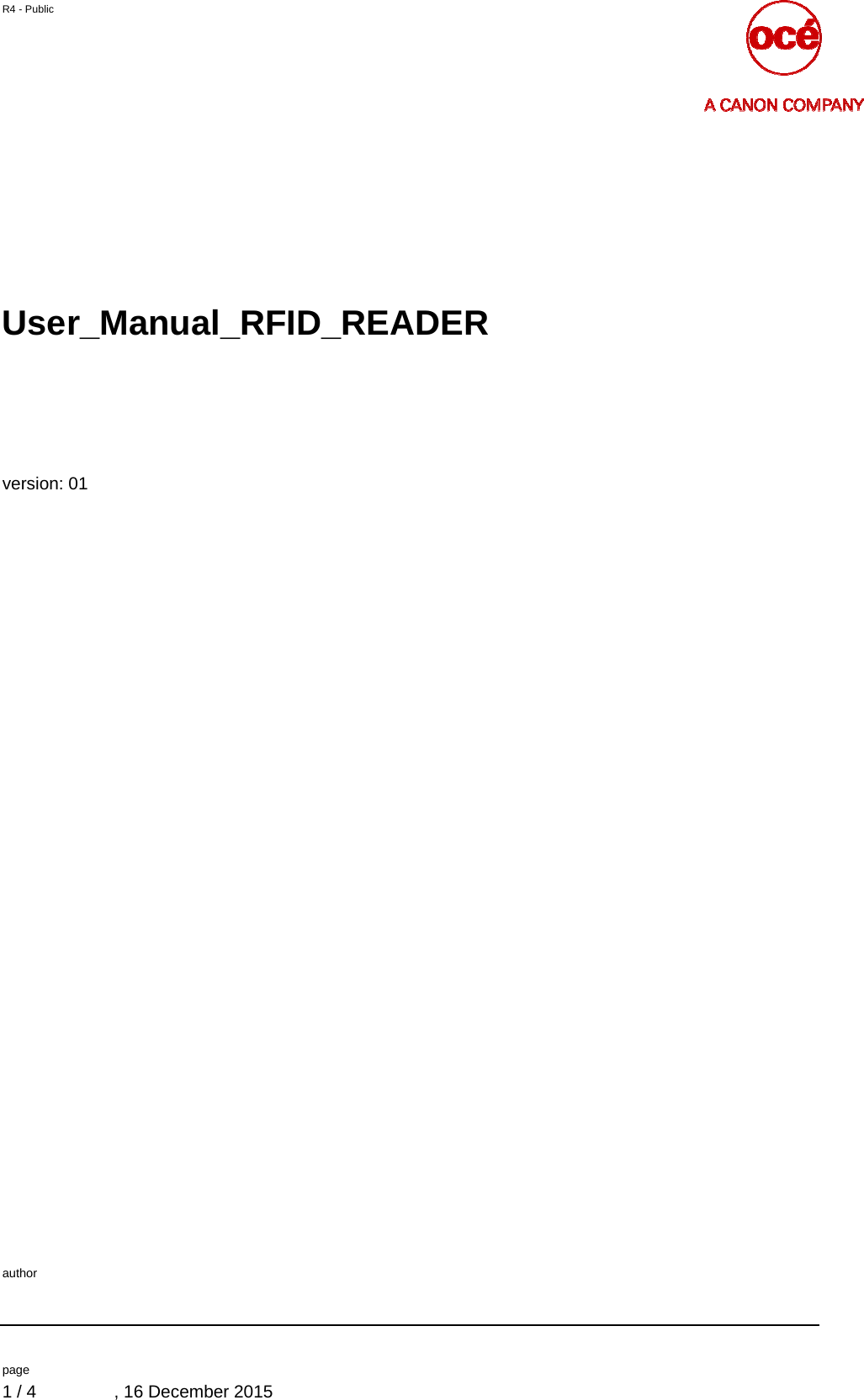

R4 - Public        author    page   1 / 4  , 16 December 2015      User_Manual_RFID_READER     version: 01

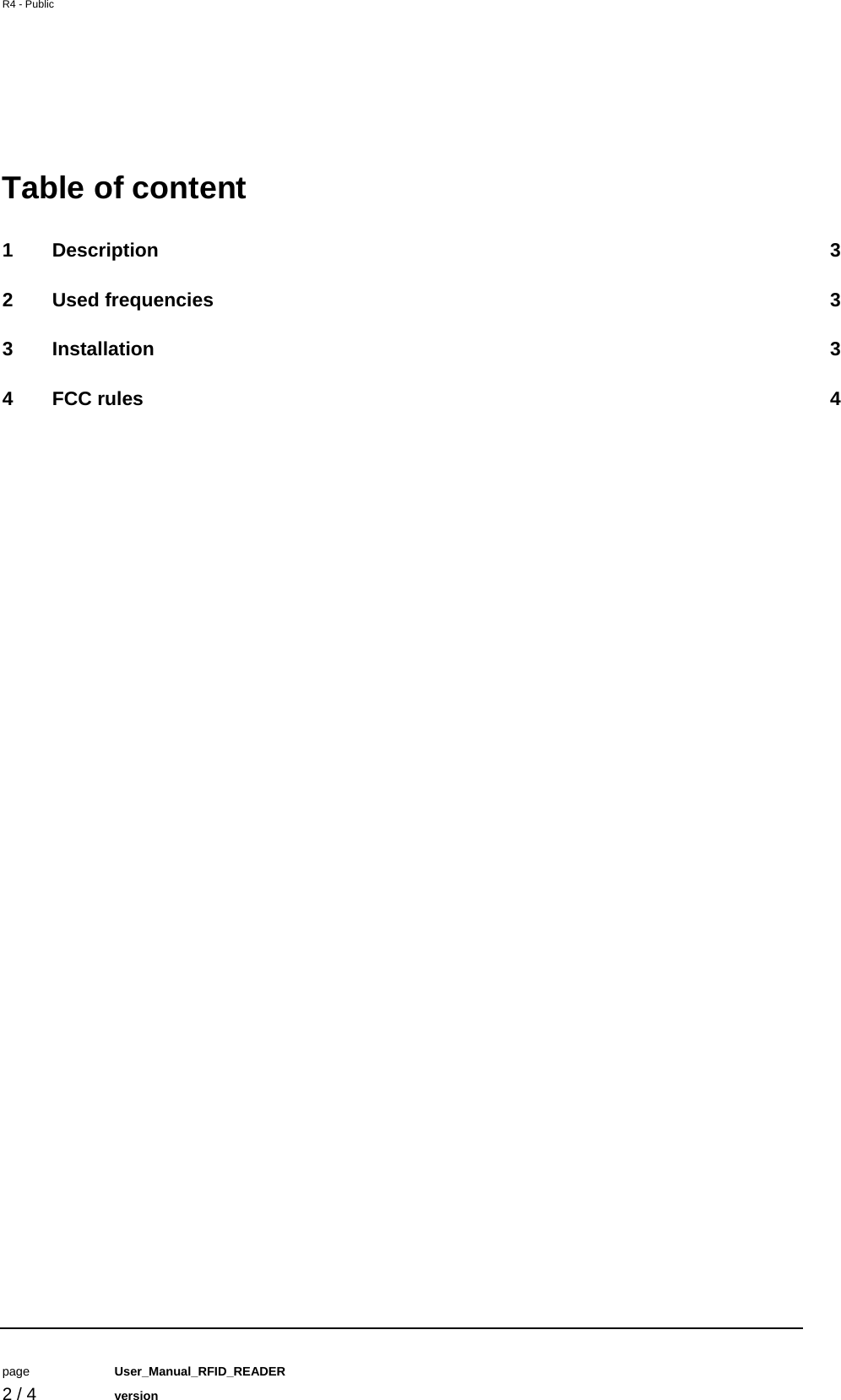

R4 - Public         page   User_Manual_RFID_READER    2 / 4   version   Table of content 1Description  32Used frequencies  33Installation  34FCC rules  4

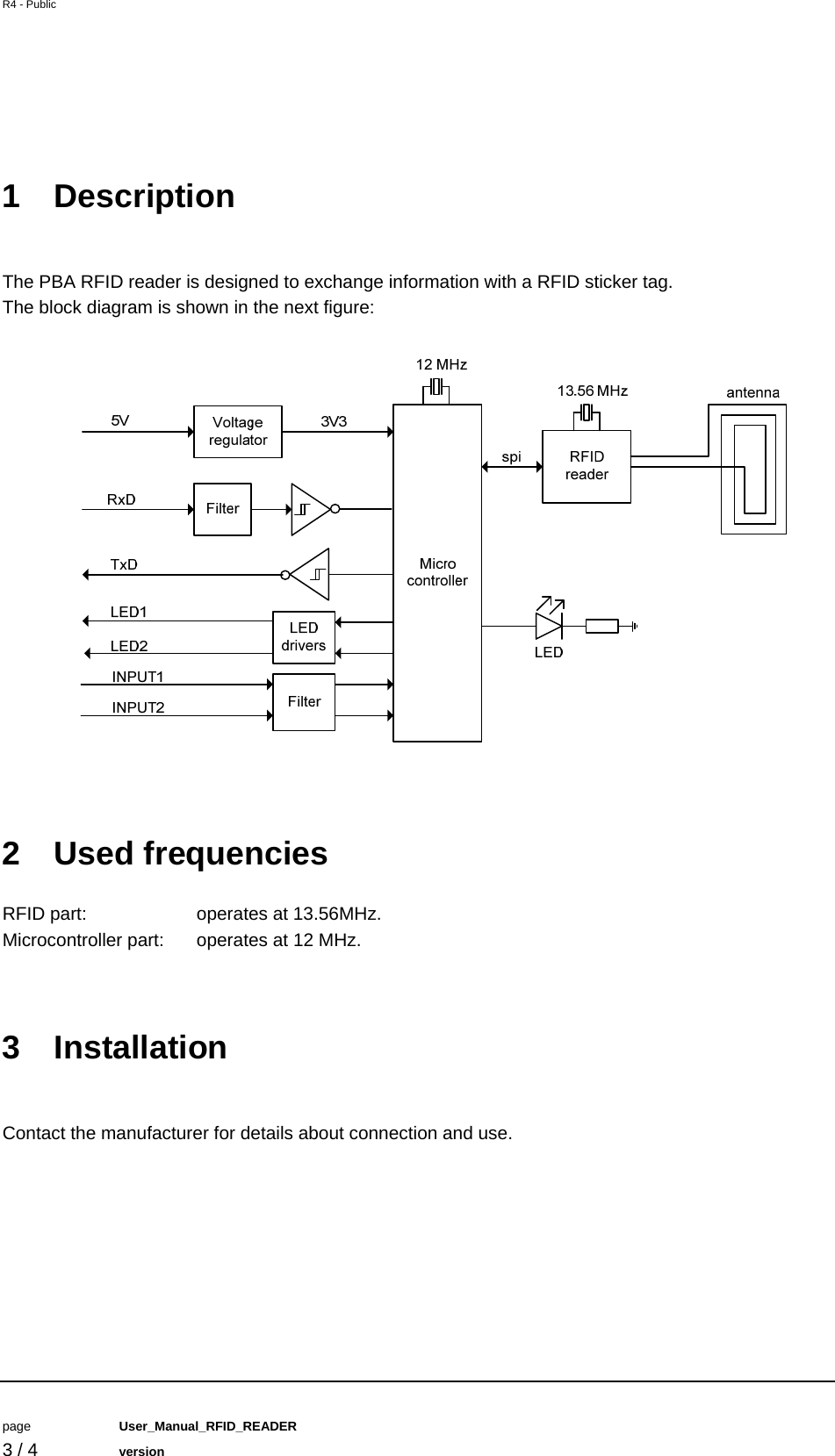

R4 - Public         page   User_Manual_RFID_READER    3 / 4   version   1 Description  The PBA RFID reader is designed to exchange information with a RFID sticker tag. The block diagram is shown in the next figure:   2 Used frequencies RFID part:    operates at 13.56MHz. Microcontroller part:  operates at 12 MHz.   3 Installation  Contact the manufacturer for details about connection and use.

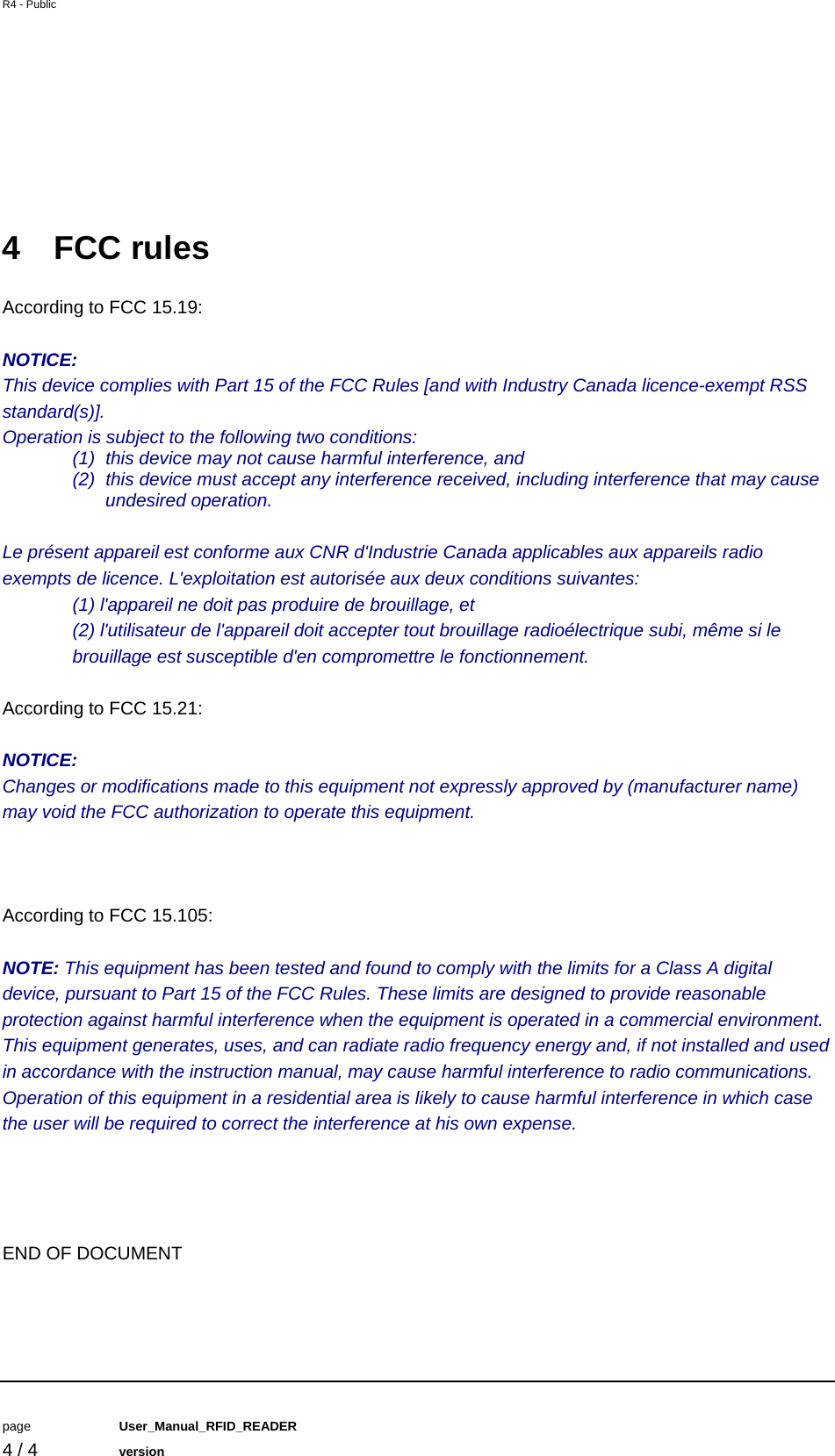

R4 - Public         page   User_Manual_RFID_READER    4 / 4   version    4 FCC rules According to FCC 15.19:  NOTICE: This device complies with Part 15 of the FCC Rules [and with Industry Canada licence-exempt RSS standard(s)]. Operation is subject to the following two conditions: (1)  this device may not cause harmful interference, and  (2)  this device must accept any interference received, including interference that may cause undesired operation.  Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et  (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.  According to FCC 15.21:  NOTICE: Changes or modifications made to this equipment not expressly approved by (manufacturer name) may void the FCC authorization to operate this equipment.    According to FCC 15.105:  NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.     END OF DOCUMENT
