Quick View- Perform Useful Tasks
Next
Page
Before Using the Machine
P. 1 - 1
1
Document and Paper Handling
P. 2 - 1
2
Copying
P. 3 - 1
3
Printing from a Computer
P. 4 - 1
4
Registering Destinations
in the Address Book
P. 5 - 1
5
Using the Fax Functions
P. 6 - 1
6
Using the Scan Functions
P. 7 - 1
7
Maintenance
P. 8 - 1
8
Troubleshooting
P. 9 - 1
9
Registering/
Setting the Various Functions
P.
10
-1
10
Appendix
P.
11
-1
11
Basic Operation Guide
Be sure to read the manual before using
the machine.
Keep the manual for future reference.
Network Setting Procedure
Security Functions
Searching the Installation and
Connection Procedure
See the Starter Guide.
See the e-Manual.
User Software CD-ROM
Searching in Detail
Copy
Adjusting the Image Quality According to the Document
For details, see "Copying" from p. 3-1.
Print Fax Scan
You can adjust the density of copies according to the
document.
<Light> <Dark>
Image Quality Adjustment
Enlarged/Reduced Copies Reduced Layout
Copying ID Card
2 on 1
4 on 1
2-Sided Copying (MF4570dn Only)
Collating
Density Adjustment
You can adjust the image quality according to the types of
documents.
A correct selection is necessary for the optimal
reproduction of the document.
<Text/Photo> <Photo> <Text>
Various Copy Functions
For details, see "Copying" from p. 3-1.
You can enlarge or reduce standard size documents to copy
on standard size paper or specify the copy ratio in
percentage.
You can copy 1-sided documents on both sides of paper.
You can sort copies into sets arranged in page order.
You can reduce multiple documents to copy them onto one
sheet.
You can make a copy of a 2-sided card onto one side of
paper.
3
2
11
1
1
2
2
2
3
3
3
3
2
1
3
2
1
3
2
1
Network Settings & Remote UI
Quick View- Perform Useful Tasks
There are a variety of copy functions that are explained in later pages of this manual as well as in the e-Manual. You
can enlarge or reduce copies as well as copy multiple documents onto one sheet. Additionally, you can adjust the
density and image quality before copying.
Below is a quick overview of highlighted copy features that you can utilize in your everyday use.
Sharpness Adjustment
You can emphasize the outline of the image in the
document or decrease the contrast.
Set <−> Set <+>
Copy Print Fax Scan
Network Settings & Remote UI
Quick View- Perform Useful Tasks
You can enlarge or reduce standard size documents to copy
on standard size paper or specify the copy ratio in
percentage.
You can print on both sides of paper.
You can reduce multiple documents to print them onto one
sheet.
Booklet printing allows you to make a booklet by folding
printouts in half.
You can magnify and divide a single page image to print it out
on multiple sheets of paper. You can make one large poster
by joining these printouts together.
You can superimpose watermarks (such as [COPY] and
[DRAFT]) over the documents created by an application.
You can check the printout result on a computer display.
Some printer driver settings are provided as "Profiles"
beforehand.
You can perform printing which suits your needs only by
selecting a "Profile."
Various Printing Functions
For details, see "Printing from a Computer" from p. 4-1.
Miscellaneous Printing Functions
For details, see "Print" in the e-Manual.
Enlarged/Reduced Printing
Booklet Printing (MF4570dn Only) Watermark Printing
Displaying a Preview before Printing
Selecting a "Profile"
Poster Printing
Reduced Layout
2-Sided Printing (MF4570dn Only)
There are a variety of print functions that are explained in later pages of this manual as well as in the e-Manual.
Enlarge or reduce documents and print multiple-page data onto one sheet. If you are using the MF4570dn, you can
also perform 2-sided printing.
Below is a quick overview of highlighted print features that you can utilize in your everyday use.
One-touch keys
Coded dialing
Group dialing
Fax driver screen
You can send a document or image created in an application
as a fax directly using the fax driver from a computer on a
network. Because you do not need to print the document, you
can reduce the paper cost as well as send a clear document
which has little dirt or blur.
You can import the address book using the fax driver,
enabling you to send a fax to a destination easily without
mistakes.
You can also create a cover sheet for when sending a fax.
You can forward received faxes stored in the
memory to a specified destination.
By registering destinations for sending faxes
beforehand, you can save many steps to enter
the destinations when sending the documents.
Copy Print Fax Scan
Quick View- Perform Useful Tasks
Network Settings & Remote UI
Sending a Document Directly from a Computer (PC Fax)
For details, see "Fax" in the e-Manual.
Forwarding the Received Fax (Manual Forwarding)
Registering Destinations in the Address Book
For details, see "Registering Destinations in the Address Book" from p. 5-1.
For details, see "Using the Fax Functions" from p. 6-1.
There are a variety of fax functions that are explained in later pages of this manual as well as in the e-Manual. The
machine is equipped with a Super G3 fax, with high transmission speeds as well as the PC function which can send
a document from a computer directly, which reduces paper costs.
Below is a quick overview of highlighted fax features that you can utilize in your everyday use.
Received Fax Forward
* You need to install the fax driver in a computer.
* If you are a Macintosh user, see the following.
To install the Fax Driver
ĺ
Starter Guide or Fax Driver Guide
To view how to use each function
ĺ
Fax Driver's Help
To view how to display the Fax Driver Guide or Fax Driver's Help,
VHH)RU0DFLQWRVK8VHUVĺ3
Send
Data is created
in a computer
Copy Print Fax Scan
Network Settings & Remote UI
Quick View- Perform Useful Tasks
Various Sending Functions
Various Receiving Functions
Various Methods for Specifying a Destination
You can register fax destinations in the address book. You can
specify the destinations using various methods, enabling you to
send documents quickly and easily.
By registering destinations in one-touch keys, you can specify
a destination in one step.
<RXFDQUHJLVWHUXSWRGHVWLQDWLRQVLQRQHWRXFKNH\V
Because you can register up to 100 destinations under coded
dial codes, you can register destinations which cannot be
registered under one-touch keys.
If you forget the coded dial codes, you can specify the
destination by searching it in the address book.
Received documents are normally printed immediately.
However, you can store the documents temporarily in the
memory without printing.
You can print the stored documents at any time. If you do not
need them, you can delete them, saving paper to be used.
If an external telephone is connected, you can switch to the
fax receiving mode immediately by dialing the ID number for
fax receiving using the dial buttons of the telephone during a
phone call.
You can combine multiple destinations and register them as a
group.
Up to 50 destinations can be combined.
By scanning a document once, you can send the same
document to multiple destinations.
Various Sending/Receiving Functions
For details, see "Using the Fax Functions" from p. 6-1.
Destination search
Destination Group
Sequential broadcast
Specifying from the sending history
One-touch keys
Coded dialing
Receiving in the Memory Remote Receiving
BBBBB
AAAAA
CCCCC
A A A
BBB
# # #
Dial Code
A A AA
BBBB
CCCC
The previous setting
The second previous setting
The third previous setting
AAA
CCC
MMM
SSS
Copy Print Fax Scan
Network Settings & Remote UI
Saving in a Computer
There are two methods for saving scanned documents in a computer.
Scanning with the MF Toolbox*
Scanning is performed by operating the
software supplied with the machine.
Scanning from an Application
Scanning is performed using
your application.
This allows you to open the
scanned data as is in your
application.
You can easily save scanned documents
in a computer only by operating the
operation panel of the machine.
Various scanning settings have been
prepared for your purposes. Therefore,
you can create a "Searchable PDF*" file,
which can be used for text retrieval or as
text data, without specifying special
settings.
Scanning with the WIA Driver (Windows XP/Vista/7 Only)
Scanning is performed using the driver system supplied with
Windows operating systems.
There are various scanning methods.
Scanning from the [Scanner and Camera Wizard] dialog box
Scanning from the [Windows Fax and Scan] dialog box
Scanning from Windows Photo Gallery
Scanning from an Application
Saving the Documents Using the Operation Panel of the Machine
Saving the Documents Using Operations from a Computer
For details, see "Scan" in the e-Manual.
For details, see "Using the Scan Functions" from p. 7-1.
Quick View- Perform Useful Tasks
There are a variety of scan functions that are explained in later pages of this manual as well as in the e-Manual. You
can easily send scanned documents to your computer.
Below is a quick overview of highlighted scan features that you can utilize in your everyday use.
* If you are using Macintosh, you may not
create "Searchable PDF."
* MF Toolbox for Macintosh and MF Toolbox for Windows
may be different in some features.
For details, see the Scanner Driver Guide.
1
2
3
Documents
Data
1
2 3
Documents
Data
Remote UI Functions

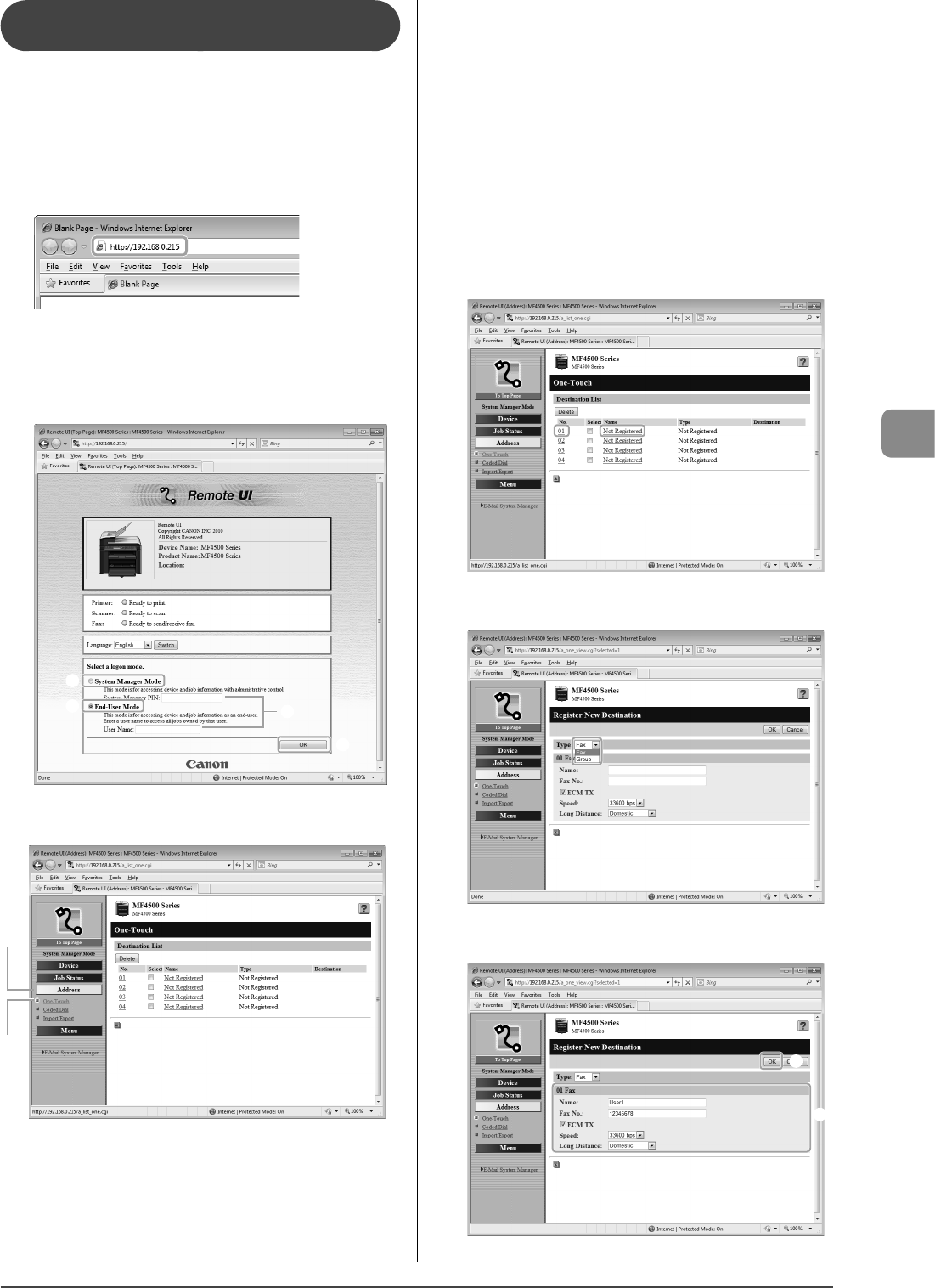

1
2
Start the web browser.
Enter "http://<the IP address of the
machine>/" in the address field, and
then press the [ENTER] key on your
keyboard.
3Log on to the Remote UI.
(1) Select [System Manager Mode] or [End-User Mode].
(2) For [System Manager Mode], enter [System
Manager PIN].
For [End-User Mode], enter [User Name].
(3) Click [OK].
(1)
(1) (2)
(3)
Copy Print Fax Scan
Network Settings & Remote UI
How to start the Remote UI
Quick View- Perform Useful Tasks
Basic Network Settings
Setting the IP address (IPv6)
Setting the IP address (IPv4)
System administrator settings
Checking the status and information
of the machine
Job Management
System settings
IP address range settings
Allowed Mac address settings
SNMP settings
Allowing the HTTP communication
Setting a port number
Dedicated port settings
Address book PIN
Restricting new destinations
Restricting the PC fax
Restricting sending from history
Fax number confirmation re-entry
Restricting sequential broadcast
Restricting displaying the job history
Restricting USB connection
Device information
Remote UI On/Off
Configuring the machine Communication mode/
Communication speed
Waiting time for connection
DNS
Configuring a computer
- IP address
- Subnet mask
- Gateway address
As needed
Configuration for communicating
with a computer
- LPD, RAW, WSD
- Port settings
- Sharing settings for the printer
As needed
Miscellaneous Settings
Administration Settings
- Manager PIN/Name
- Device name/Location
Restricting Connection
to a Network or Computer
Restricting Destination Operations/
Sending Functions
Various Network Settings
For details, see "Network Settings" in the e-Manual.
Security Settings
For details, see "Security" in the e-Manual.
Configuring Using the Remote UI
For details, see "Setting and Managing from Computer" in the e-Manual.
H0DQXDOĺ6WDUWLQJWKH5HPRWH8,
MF4570dn is equipped with the network function.
There are a variety of network settings that are explained in the e-Manual. Since the machine has a built-in network
board, you can print, fax, and scan from a computer via a network. You can also perform efficient management by
configuring the machine using the Remote UI.
Below is a quick overview of highlighted network settings that you can utilize in your everyday use.
Address book management
Device settings
ii
Contents
Contents ii
Manuals for the Machine v
Available Features vi
How to Use This Manual vi
Important Safety Instructions vii
Installation Requirements and Handling xi
Legal Notices xiii
Laser Safety xvii
1. Before Using the Machine 1-1
Names and Functions on Each Part of the Machine 1-2
Front Side 1-2
Back Side 1-3
Interior 1-3
Multi-purpose Tray 1-4
Paper Cassette 1-4
Operation Panel 1-5
LCD (Standby Mode) 1-6
Copy Mode 1-6
Fax Mode 1-6
Scan Mode 1-6
Navigating the Menu 1-7
Entering the Menu Screen 1-7
Scrolling Through Menu Items 1-7
Selecting a Menu Item 1-7
Specifying values using the navigation keys 1-8
Returning to the Default Screen 1-8
Text Input Method 1-9
Entering Text Except for IP Address 1-9
Changing the Entry Mode 1-9
Entering Text, Symbols, and Numbers 1-9
Moving the Cursor (Entering a Space) 1-9
Deleting text, symbols, or numbers 1-9
Entering IP Address (MF4570dn Only) 1-10
Setting the Sleep Timer 1-11
Setting the Current Date and Time 1-12
2. Document and Paper
Handling 2-1
Document Requirements 2-2
Scanning Range 2-2
Copy 2-2
FAX 2-3
Scan 2-3
Placing Documents 2-4
Placing Documents on the Platen Glass 2-4
Loading Document in the Feeder 2-4
Paper Requirements 2-6
Paper Size 2-6
Paper Type 2-7
Printable Range 2-8
Loading Paper 2-9
In the Paper Cassette 2-9
In the Multi-Purpose Tray 2-11
Precautions when Loading Paper 2-12
Paper Loading Capacity 2-12
Paper Loading Orientation 2-13
When printing paper with a letterhead or logo
(previously printed paper) 2-13
Printing on Envelopes 2-13
Setting a Paper Size and Type 2-14
Setting a Custom Paper Size 2-14
Selecting Print Side (MF4570dn Only) 2-16
When setting this item to <Print Speed Priority>
(the default setting) 2-16
When setting this item to <Print Side Priority> 2-16
3. Copying 3-1
Basic Copying Method 3-2
Checking and Canceling Copy Jobs 3-3
Canceling using the Stop Key 3-3
Checking and Canceling using the Status Monitor/Cancel Key 3-3
Copy Settings 3-4
Adjusting the Density 3-4
Selecting Image Quality (Copy) 3-4
2-Sided Copying (MF4570dn Only) 3-5
Enlarging/Reducing Copies 3-6
Multiple Documents onto One Sheet (N on 1) 3-6
Collating Copies 3-7
Emphasize the Outline of an Image (Sharpness) 3-7
Copying an ID Card 3-8
Changing the Default Values 3-9
4. Printing from a Computer 4-1
Installing the Printer Driver 4-2
Printing from a Computer 4-3
Scaling Documents 4-3
Printing Multiple Pages on One Sheet 4-3
2-sided Printing (MF4570dn Only) 4-4
Checking and Canceling Print Jobs 4-5
iii
5. Registering Destinations in the
Address Book 5-1
Address Book 5-2
One-touch Keys 5-2
Coded Dialing 5-2
Group Dialing 5-2
Registering and Editing One-Touch Keys 5-3
Registering and Editing via the Operation Panel 5-3
Registering and Editing One-Touch Keys via the Remote UI
(MF4570dn Only) 5-5
Registering and Editing Coded Dial Codes 5-6
Registering and Editing via the Operation Panel 5-6
Registering and Editing a coded Dial Code via the Remote UI
(MF4570dn Only) 5-8
Registering and Editing Recipients for Group Dialing 5-9
Registering and Editing a Destination Group via
the Operation Panel 5-9
Registering and Editing a Destination Group via the Remote UI
(MF4570dn Only) 5-12
6. Using the Fax Functions 6-1
Basic Method for Sending Faxes 6-2
Fax Settings 6-3
Image Quality Settings 6-3
Density Settings 6-3
Sharpness Settings 6-3
Specifying Destinations 6-4
Specifying Destinations by Entering a Fax Number 6-4
Specifying Destinations with the One-Touch Keys 6-4
Specifying Destinations Using Coded Dialing 6-4
Specifying Destinations Using Group Dialing 6-5
Specifying Destinations Using the Address Book 6-5
Redialing (Manual Redialing) 6-6
Useful Fax Sending Methods 6-7
Sending a Fax after Making a Phone Call (Manual Sending) 6-7
Push-button Telephone Service Using a Dial-line 6-7
Sending a Fax Abroad (Adding Pauses) 6-8
Sending to Multiple Destinations at a Time
(Sequential Broadcast) 6-9
Receiving Faxes 6-10
Receive Mode 6-10
Changing the Receive Mode 6-12
Detailed Settings for the Fax/Tel Auto Switch Mode 6-13
Forwarding Received Fax Documents in Memory to
Other Destinations (Manual Forwarding) 6-14
Checking and Managing Fax Documents in Memory 6-15
Checking and Canceling Fax Jobs 6-15
Printing Received Fax Documents 6-15
Checking and Deleting Received Fax Documents 6-16
Checking the History of Received/Sent Fax Documents 6-17
Changing the Default Values for Fax 6-18
Changing the Fax Settings (Items Specified Using the
[Menu] Button) 6-19
Setting Procedure for Sending Faxes 6-19
Setting Items 6-19
Register Unit Name 6-20
Register Unit Telephone Number 6-20
Select Line Type 6-20
Public Line Connection 6-20
Off-Hook Alarm 6-20
Sender ID 6-20
Change Defaults 6-20
ECM TX 6-20
Pause Time 6-21
Auto Redial 6-21
Check Dial Tone Before Sending 6-21
Setting Procedure for Receiving Faxes 6-21
Setting Items for the Receive Settings 6-22
2-Sided Printing (MF4570dn Only) 6-22
Reduce RX Size 6-22
RX Page Footer 6-22
Continue Print. When Toner Is Nearly Out 6-22
ECM RX 6-22
Incoming Ring 6-23
Remote RX 6-23
Auto RX Switch 6-23
System Settings Procedure 6-23
Setting Items 6-24
TX Start Speed 6-24
RX Start Speed 6-24
Memory Lock Settings 6-24
Select Country/Region 6-24
Address Book PIN 6-25
Restrict New Destinations 6-25
Allow Driver Faxing 6-25
Restrict Sending From History 6-25
Fax No. Confirmation Re-Entry 6-25
Restrict Sequential Broadcast 6-25
Canceling Fax Jobs 6-26
7. Using the Scan Functions 7-1
Basic Operation Methods for Scanning 7-2
8. Maintenance 8-1
Cleaning the Machine 8-2
Cleaning the Exterior 8-2
Cleaning the Interior 8-2
Cleaning the Fixing Unit 8-3
Cleaning the Platen Glass 8-4
Cleaning the Feeder 8-4
Precautions When Cleaning the Machine 8-4
Replacing Toner Cartridges 8-6
When a Message Appears 8-6
When White Streaks Appear On the Printouts or
Some Parts Are Faded 8-6
iv
About the Supplied Toner Cartridge 8-7
About Replacement Toner Cartridge 8-7
Handling Toner Cartridge 8-7
Checking the Toner Level 8-8
Using the Toner Saver Mode 8-8
Before Replacing the Toner Cartridge 8-9
Replacing the Toner Cartridge 8-10
Precautions when Replacing Toner Cartridge 8-11
Purchase Consumables 8-12
Recycling Used Cartridges 8-13
The Clean Earth Campaign 8-13
U.S.A. PROGRAM 8-13
Packaging 8-13
Shipping 8-14
CANADA PROGRAM-CANADA PROGRAMME 8-15
Transporting the Machine 8-16
Precautions when Transporting the Machine 8-17
9. Troubleshooting 9-1
Clearing Jams 9-2
Document Jams in the Feeder 9-3
Paper Jams Inside the Machine 9-3
Display Message 9-6
Error Codes 9-6
If <Incorrect Size/Setting> Appears 9-8
Troubleshooting 9-9
Check the Following First 9-9
Is the power switched ON? 9-9
Has the power switch been just turned ON? 9-9
Is the machine in Sleep mode? 9-9
Are the settings proper? 9-9
Is the Error indicator on or blinking? 9-9
Does a message appear on the display? 9-10
Is the telephone line connected or configured properly? 9-10
If You Cannot Solve a Problem 9-10
If a Power Failure Occurs 9-11
If You Cannot Solve a Problem 9-12
Customer Support (U.S.A.) 9-12
Customer Support (Canada) 9-12
Print Result Is Not Good 9-13
Paper Curls 9-13
Paper Creases 9-14
Printing Is Uneven 9-14
White Specks Appear 9-15
The Toner Does Not Fix onto the Paper Well 9-16
The Printed Paper Has Vertical Streaks 9-16
Smudge Marks of Spattering Toner Appear around the Text
or Patterns 9-17
The Overall Print Result Is Dark 9-17
Copied Lines and Text Appear Faded 9-18
Printed Bar Codes Cannot Be Scanned 9-18
Paper Jams Occur Frequently When Performing
2-Sided Printing (MF4570dn Only) 9-18
10. Registering/Setting the Various
Functions 10-1
Setting Menu List 10-2
Printing a User Data List 10-2
Contents of the Setting Menu 10-2
11. Appendix 11-1
Main Specifications 11-2
Machine Specifications 11-2
Copy Specifications 11-2
Printer Specification 11-2
Scanner Specifications 11-3
Fax Specifications 11-3
Telephone Specifications 11-3
For Macintosh Users 11-4
Displaying Driver Guides (PDF Files) 11-4
Displaying a Drivers Help System 11-4
Content of the e-Manual about Features that Are Unavailable
on the Macintosh 11-4
Index 11-5
v
Manuals for the Machine
Starter Guide
e-Manual
Basic Operation Guide
Read this manual first.
This manual describes the settings for
setting up the machine and installing
the software. Be sure to read this
manual before using the machine.
Read the desired chapter
to suit your needs.
The e-Manual is categorized by subject
to find desired information easily.
Read this manual next.
This manual describes the basic use of
the machine.
Preface
Installing the Machine
Configuring and Connecting the Fax
Connecting to a Computer and Installing the Drivers
Appendix
Basic Operation
Copy
Fax *2
Print *2
Scan *2
Network Settings *1
Security
Before Using the Machine
Document and Paper Handling
Copying
Printing from a Computer
Registering Destinations
in the Address Book
Using the Fax Functions
Using the Scan Functions
Maintenance
Troubleshooting
Registering/Setting
Functions
Appendix
This manual
* The e-Manual is included in the User Software CD-ROM.
Setting and Managing
from Computer *1
Troubleshooting
Maintenance
Setting Menu List
Specifications
*1 The network function is available only for MF4570dn.
*2 If you are using Macintosh, see the following Driver Guides or Help for more details on
these functions.
You can find the driver guides in the following locations on the User Software CD-ROM.
Fax: User Software CD-ROM [Manuals] [GUIDE-FAX-US.pdf]
Print: User Software CD-ROM [Manuals] [GUIDE-UFR II-US.pdf]
Scan: User Software CD-ROM [Manuals] [GUIDE-SCAN-US.pdf]
vi
Available Features
Symbols Used in This Manual
WARNING
Indicates a warning concerning operations that may lead to death or injury to persons if not performed correctly. To
use the machine safely, always pay attention to these warnings.
CAUTION
Indicates a caution concerning operations that may lead to injury to persons if not performed correctly. To use the
machine safely, always pay attention to these cautions.
IMPORTANT
Indicates operational requirements and restrictions. Be sure to read these items carefully to operate the machine
correctly, and avoid damage to the machine or property.
NOTE
Indicates a clarification of an operation, or contains additional explanations for a procedure. Reading these notes is
highly recommended.
Indicates an operation that must not be performed. Read these items carefully, and make sure not to perform the
described operations.
Keys and Buttons Used in This Manual
The following symbols and key names are a few examples of how keys to be pressed are expressed in this manual.
Operation panel keys: [Key icon] + (Key name)
Example: [ ] (Stop)
Display: <Specify destination.>
Buttons and items on the computer display: [Preferences]
Illustrations Used in This Manual
Illustrations used in this manual
Illustrations of the model MF4570dn are used in this manual. When there is any difference
among the machines, it is clearly indicated in the text, e.g., “MF4450.
For information on the standard features for each model, see the followings.
Available Features” (P.vi)
Displays used in this manual
The display used in this manual is the factory preset display for the MF4570dn. Depending on the system configuration and
product purchased, the appearance of the display may differ.
How to Use This Manual
The following features are available for each model.
: available
— : not available
Copy Print 2-sided Printing Fax (PC Fax) Scan
(USB)
Scan
(Network)* Remote UI ADF (1-sided) ADF (2-sided)
MF4570dn ○ ○ ○○○○
MF4450 ○○ ○○ ——
* You may use network scan function only in the Windows environment.
vii
Important Safety Instructions
Please read these “Important Safety Instructions thoroughly before operating the machine.
As these instructions are intended to prevent injury to the user and other persons or to prevent destruction of property, always pay
attention to these instructions and operational requirements.
Also, as it may result in unexpected accidents or injuries, do not perform any operation unless otherwise specified in the manual.
Installation
WARNING
Do not install the machine in a location near alcohol, paint
thinner, or other flammable substances. If flammable
substances come into contact with electrical parts inside
the machine, this may result in a fire or electrical shock.
Do not place the following items on the machine.
- Necklaces and other metal objects
- Cups, vases, flowerpots, and other containers filled with
water or liquids
If these items come into contact with a high-voltage area
inside the machine, this may result in a fire or electrical
shock. If these items are dropped or spilled inside the
machine, immediately turn off the power switches of the
machine and computer (1) and disconnect the interface
cable if it is connected (2). Then, unplug the power plug
from the AC power outlet (3) and contact your local
authorized Canon dealer.
OFF
OFF
(1)
(1)
(2)
(3)
(3)
CAUTION
Do not install the machine in unstable locations, such as on
unsteady platforms or inclined floors, or in locations subject
to excessive vibrations, as this may cause the machine to fall
or tip over, resulting in personal injury.
The ventilation slots are provided for proper ventilation of
working parts inside the machine. Never place the machine
on a soft surface, such as a bed, sofa, or rug. Blocking the
slots can cause the machine to overheat, resulting in a fire.
Do not install the machine in the following locations, as this
may result in a fire or electrical shock.
- A damp or dusty location
- A location exposed to smoke and steam, such as near a
cookery or humidifier
- A location exposed to rain or snow
- A location near a water faucet or water
- A location exposed to direct sunlight
- A location subject to high temperatures
- A location near open flames
When installing the machine, gently lower the machine to
the installation site so as not to catch your hands between
the machine and the floor or between the machine and
other equipment, as this may result in personal injury.
When connecting the interface cable, connect it properly by
following the instructions in this manual. If not connected
properly, this may result in malfunction or electrical shock.
When moving the machine, follow the instructions in this
manual to hold it correctly. Failure to do so may cause you
to drop the machine, resulting in personal injury.
Transporting the Machine” (P.8-16)
Power Supply
WARNING
Do not damage or modify the power cord. Also, do not
place heavy objects on the power cord or pull on or
excessively bend it. This can cause electrical damage,
resulting in fire or electrical shock.
Keep the power cord away from all heat sources. Failure to
do so can cause the power cord insulation to melt, resulting
in a fire or electrical shock.
The power cord should not be taut, as this may lead to a
loose connection and cause overheating, which could result
in a fire.
The power cord may become damaged if it is stepped on,
fixed with staples, or if heavy objects are placed on it.
Continued use of a damaged power cord can lead to an
accident, such as a fire or electrical shock.
Do not plug or unplug the power plug with wet hands, as
this can result in electrical shock.
Do not plug the power cord into a multiplug power strip, as
this can result in a fire or electrical shock.
Do not bundle up or tie up the power cord in a knot, as this
can result in a fire or electrical shock.
Insert the power plug completely into the AC power outlet.
Failure to do so can result in a fire or electrical shock.
If excessive stress is applied to the connection part of the
power cord, it may damage the power cord or the wires
inside the machine may disconnect. This could result in a
fire. Avoid the following situations:
- Connecting and disconnecting the power cord
frequently.
- Tripping over the power cord.
viii
- The power cord is bent near the connection part, and
continuous stress is being applied to the power outlet or
the connection part.
- Applying a shock to the power connector.
Do not use power cords other than the one provided, as
this can result in a fire or electrical shock.
As a general rule, do not use extension cords. Using an
extension cord may result in a fire or electrical shock.
Remove the power plug from the AC power outlet
and refrain from using the machine during a thunder
storm. Lightening can result in a fire, electrical shock or
malfunction.
CAUTION
Do not use a power supply voltage other than that listed
herein, as this may result in a fire or electrical shock.
Always grasp the power plug when unplugging the power
plug. Do not pull on the power cord, as this may expose the
core wire of the power cord or damage the cord insulation,
causing electricity to leak, resulting in a fire or electrical
shock.
Leave sufficient space around the power plug so that it can
be unplugged easily. If objects are placed around the power
plug, you may be unable to unplug it in an emergency.
Handling
WARNING
Do not disassemble or modify the machine. There are
high-temperature and high-voltage components inside the
machine which may result in a fire or electrical shock.
Electrical equipment can be hazardous if not used properly.
Do not allow children to touch the power cord, cables,
internal gears, or electrical parts.
If the machine makes an unusual noise or emits smoke,
heat, or an unusual smell, immediately turn off the power
switches of the machine and computer and disconnect the
interface cable if it is connected. Then, unplug the power
plug from the AC power outlet and contact your local
authorized Canon dealer. Continued use can result in a fire
or electrical shock.
Do not use flammable sprays near the machine. If
flammable substances come into contact with electrical
parts inside the machine, this may result in a fire or
electrical shock.
Always turn off the power switches of the machine and
computer, and then unplug the power plug and interface
cables before moving the machine. Failure to do so can
damage the cables or cords, resulting in a fire or electrical
shock.
Confirm that the power plug or power connector is inserted
completely after moving the machine. Failure to do so can
result in an overheating and fire.
Do not drop paper clips, staples, or other metal objects
inside the machine. Also, do not spill water, liquids, or other
flammable substances (alcohol, benzene, paint thinner,
etc.) inside the machine. If these items come into contact
with a high-voltage area inside the machine, this may result
in a fire or electrical shock. If these items are dropped or
spilled inside the machine, immediately turn off the power
switches of the machine and computer and disconnect the
interface cable if it is connected. Then, unplug the power
plug from the AC power outlet and contact your local
authorized Canon dealer.
When plugging or unplugging a USB cable when the power
plug is plugged into an AC power outlet, do not touch the
metal part of the connector, as this can result in electrical
shock.
CAUTION
Do not place heavy objects on the machine. The object or
the machine may fall, resulting in personal injury.
Turn off the power switch when the machine will not be
used for a long period of time, such as overnight. Turn off
the machine and unplug the power plug if the machine
will not be used for an extended period of time, such as for
several days.
Open or close covers and install or remove cassettes gently
and carefully. Be careful not to hurt your fingers.
Keep your hands and clothing away from the roller in the
output area. Even if the machine is not printing, the roller
may suddenly rotate and catch your hands or clothing,
resulting in personal injury.
The output slot is hot during and immediately after
printing. Do not touch the area surrounding the output slot,
as this may result in burns.
Printed paper may be hot immediately after being output.
Be careful when removing the paper and aligning the
removed paper, especially after continuous printing. Failure
to do so may result in burns.
When performing copy with a thick book placed on the
platen glass, do not press the feeder forcefully. This may
damage the platen glass and cause personal injury.
Be careful not to drop a heavy object, such as a dictionary,
on the platen glass. This may damage the platen glass and
cause personal injury.
Close the feeder gently so as not to catch your hand. This
may result in personal injury.
The laser beam can be harmful to the human body. The
laser beam is confined in the laser scanner unit by a cover,
so there is no danger of the laser beam escaping during
normal machine operation. Read the following remarks and
instructions for safety.
- Never open covers other than those indicated in this
manual.
- Do not remove the caution label attached to the cover of
the laser scanner unit.
- If the laser beam should escape and enter your eyes,
exposure may cause damage to your eyes.
If you operate this machine in manners other than the
control, adjustment, and operating procedures prescribed
in this manual, this may result in hazardous radiation
exposure.
This machine is confirmed as the class 1 laser product in
IEC60825-1:2007.
ix
Maintenance and Inspections
WARNING
When cleaning the machine, turn off the machine and
computer, and unplug the interface cables and power plug.
Failure to do so can result in a fire or electrical shock.
Unplug the power plug from the AC power outlet
periodically and clean the area around the base of the
power plugs metal pins and the AC power outlet with a
dry cloth to remove all dust and grime. In damp, dusty,
or smoky locations, dust can build up around the power
plug and become damp, which can cause a short circuit,
resulting in a fire.
Clean the machine with a well wrung out cloth dampened
with water or mild detergent diluted with water. Do not
use alcohol, benzene, paint thinner, or other flammable
substances. If flammable substances come into contact
with electrical parts inside the machine, this may result in a
fire or electrical shock.
Some areas inside the machine are subject to high voltage.
When removing jammed paper or when inspecting inside
of the machine, be careful not to allow necklaces, bracelets,
or other metal objects to touch the inside of the machine,
as this can result in burns or electrical shock.
Do not dispose of used toner cartridges in open flames.
This may cause the toner remaining inside the cartridges to
ignite, resulting in burns or fire.
Confirm that the power plug or power connector is inserted
completely after cleaning the machine. Failure to do so can
result in an overheating and fire.
Check the power cord and plug regularly. The following
conditions may result in fire, so please contact your local
authorized Canon dealer or the Canon help line.
- There are burn marks on the power plug.
- The blade on the power plug is deformed or broken.
- The power is turned OFF or ON when bending the power
cord.
- The coating of the power cord is damaged, cracked, or
dented.
- A part of the power cord becomes hot.
Check regularly that the power cord and plug are not
handled in the following manner. Failure to do so can result
in a fire or electrical shock.
- The power connector is loosened.
- Stress is being applied to the power cord by a heavy
object or by fixing it with staples.
- The power plug is loosened.
- The power cord is tied in a bundle.
- A part of the power cord is put in an aisle.
- The power cord is put in front of the heating appliance.
CAUTION
The fixing unit and its surroundings inside the machine
become hot during use. When removing jammed paper or
when inspecting the inside of the machine, do not touch
the fixing unit and its surroundings, as this may result in
burns.
When removing jammed paper or when inspecting the
inside of the machine, do not expose yourself to the heat
emitted from the fixing unit and its surroundings for a
prolonged period of time. Doing so may result in low
temperature burns, even though you did not touch the
fixing unit and its surroundings directly, as this may result
in burns.
If paper is jammed, remove the jammed paper so that
any pieces of paper do not remain inside the machine
according to the displayed message. Also, do not put your
hand in an area other than indicated areas, as this may
result in personal injuries or burns.
When removing jammed paper or replacing a toner
cartridge, be careful not to get any toner on your hands or
clothing, as this will dirty your hands or clothing. If toner
gets on your hands or clothing, wash them immediately
with cold water. Washing with warm water sets the toner,
making it impossible to remove the toner stains.
When removing jammed paper, be careful not to allow the
toner on the paper to scatter. The toner may get into your
eyes or mouth. If toner gets into your eyes or mouth, wash
them immediately with cold water and consult a physician.
When loading paper or removing jammed documents or
paper, be careful not to cut your hands with the edges of
the paper.
When removing a toner cartridge, remove the toner
cartridge carefully so as to prevent the toner from
scattering and getting into your eyes or mouth. If toner gets
into your eyes or mouth, wash them immediately with cold
water and consult a physician.
Do not attempt to disassemble the toner cartridge. The
toner may scatter and get into your eyes or mouth. If toner
gets into your eyes or mouth, wash them immediately with
cold water and consult a physician.
If toner leaks from the toner cartridge, be careful not to
inhale the toner or allow it to come into direct contact with
your skin. If the toner comes into contact with your skin,
wash with soap. If the skin becomes irritated or you inhale
the toner, consult a physician immediately.
x
Consumables
WARNING
Do not dispose of used toner cartridges in open flames. This
may cause the toner to ignite, resulting in burns or fire.
Do not store toner cartridges or paper in a location exposed
to open flames. This may cause the toner or paper to ignite,
resulting in burns or fire.
When disposing of a toner cartridge, place the toner
cartridge into a bag to prevent the toner from scattering,
and then dispose of the toner cartridge according to local
regulations.
CAUTION
Keep the toner cartridges and other consumables out of
the reach of small children. If the toner or other parts are
ingested, consult a physician immediately.
Do not attempt to disassemble the toner cartridge. The
toner may scatter and get into your eyes or mouth. If toner
gets into your eyes or mouth, wash them immediately with
cold water and consult a physician.
If toner leaks from the toner cartridge, be careful not to
inhale the toner or allow it to come into direct contact with
your skin. If the toner comes into contact with your skin,
wash with soap. If the skin becomes irritated or you inhale
the toner, consult a physician immediately.
Do not pull out the sealing tape forcefully or stop at
midpoint, as this may cause toner to spill out. If toner gets
into your eyes or mouth, wash them immediately with cold
water and consult a physician.
Others
WARNING
If you are using a cardiac pacemaker
This machine generates a low level magnetic field. If you
use a cardiac pacemaker and feel abnormalities, please
move away from this machine and consult your physician
immediately.
Telephone Equipment
When using telephone equipment, basic safety precautions
should always be followed to reduce the risk of fire, electric
shock, and injury to persons, including the following:
1. Do not use this machine near water (i.e., near a bathtub,
kitchen sink, or laundry tub), or in a wet basement or near a
swimming pool.
2. Avoid using the telephone during an electrical storm, as
there may be a remote risk of electric shock from lightning.
3. Do not use the telephone to report a gas leak in the vicinity
of the leak.
xi
Installation Requirements and Handling
In order to use this machine in a safe and trouble-free manner, install the machine in a place that fulfills the following conditions.
Also, read the remarks carefully.
Temperature and Humidity Conditions
Temperature range: 50 to 86°F (10 to 30°C)
Humidity range: 20 to 80 % RH (no condensation)
IMPORTANT
Protecting the machine from condensation
To prevent condensation from forming inside the machine
in the following cases, let the machine adjust to the
ambient temperature and humidity for at least two hours
before use.
- When the room where the machine is installed is heated
rapidly
- When the machine is moved from a cool or dry location
to a hot or humid location
If water droplets (condensation) form inside the machine,
this can result in paper jams or poor print quality.
When using an ultrasonic humidifier
When you are using an ultrasonic humidifier, it is therefore
recommended that you use purified water or other water that
is free of impurities.
If you use tap water or well water, impurities in the water will
be dispersed through the air. This can be trapped inside the
machine, causing degradation in print quality.
Power Supply Requirements
120 to 127 V, 60 Hz
IMPORTANT
Precautions when connecting the power cord
Do not connect this machine to an uninterruptible power
source.
Use an AC power outlet exclusively for the machine. Do not
use the other sockets of the AC power outlet.
Do not plug the power plug into the auxiliary outlet on a
computer.
Do not use the same AC power outlet for both the machine
and any of the following equipment.
- Copy machine
- Air conditioner
- Shredder
- Equipment that consumes a large amount of electricity
- Equipment that generates electrical noise
When unplugging the power cord, keep interval of 5
seconds or more before plugging it again.
Miscellaneous precautions
The maximum power consumption of the machine is
1,090 W or less.
Electrical noise or a dramatic drop in supplied voltage may
cause the machine or computer to operate incorrectly or
lose data.
Installation Requirements
A location with sufficient space
A location with good ventilation
A location with a flat, even surface
A location able to fully support the weight of the machine
IMPORTANT
Do not install the machine in the following locations, as
this may result in damage to the machine.
A location subject to dramatic changes in temperature or
humidity
A location subject to condensation
A poorly ventilated location
(If you use the machine for a long time or to perform a large
amount of printing in a poorly ventilated room, the ozone
or other odors generated by the machine may create an
uncomfortable working environment. In addition, chemical
particles are dispersed during printing; therefore, it is
important to provide adequate ventilation.)
A location near equipment that generates magnetic or
electromagnetic waves
A laboratory or location where chemical reactions occur
A location exposed to salt air, corrosive gases, or toxic gases
A location, such as on a carpet or mat, that may warp from
the weight of the machine or where the machine is liable
to sink.
Installation Space
Required installation space
MF4570dn
31 5/8" (804 mm)
4" (100 mm)
4" (100 mm)
4"
(100 mm)
4"
(100 mm) 24 1/4"
(617 mm)
29"
(735 mm)
4" (100 mm)
Paper
cassette
Feeder
cover
MF4450
30 7/8" (783.1 mm) 4" (100 mm)
24 1/4"
(616.2 mm)
4" (100 mm)
4" (100 mm)
29"
(734.7 mm)
4"
(100 mm) 4"
(100 mm)
Feeder
cover
Paper
cassette
xii
Maintenance and Inspections
IMPORTANT
Follow the instructions in the caution label attached to this
machine.
Avoid shaking or applying a shock to this machine.
To prevent a paper jam, do not turn the power ON/OFF,
open/close the operation panel or rear cover, and load/
unload paper in the middle of printing operation.
Be sure to remove the toner cartridge from the machine
when transporting the machine to a distance.
To avoid exposing the toner cartridge to light, place it in the
protective bag included with this machine or wrap it in a
thick cloth.
Clean this machine regularly. If this machine becomes
dusty, it may operate improperly.
Use a modular cable of 3 m or shorter in length.
Depending on your locale or your telephone connection,
you may be unable to perform data communication. In this
case, contact your local authorized Canon dealer or the
Canon help line.
The repairing parts and toner cartridges for the machine
will be available for at least seven (7) years after production
of this machine model has been discontinued.
Customer Support
Customer Support (U.S.A.)
Your machine is designed with the latest technology to
provide trouble-free operation. If you encounter a problem
with the machine’s operation, try to solve it by using the
information in Chapter 9. If you cannot solve the problem
or if you think your machine needs servicing, contact Canon
Customer Care Center at 1-800-OK-CANON between the hours
of 8:00 A.M. to 8:00 P.M. EST Monday through Friday. On-line
support for 24 hours is also available at the website.
http://www.canontechsupport.com/
Customer Support (Canada)
Canon Canada Inc., offers a full range of customer technical
support options*:
For step-by-step troubleshooting, e-mail technical support,
the latest driver or document downloads, and answers to
frequently asked questions, visit http://www.canon.ca/
Free live technical support 9 A.M. to 8 P.M. EST Monday
through Friday (excluding holidays) for products still under
warranty 1-800-OK-CANON
For the location of the authorized service facility nearest
you, visit http://www.canon.ca/ or 1-800-OK-CANON
If the problem cannot be corrected by using one of the
above technical support options, repair options are
available at the time of your call to the live technical
support number above or via the website at
http://www.canon.ca/
* Support program specifics are subject to change without notice.
xiii
Legal Notices
International ENERGY STAR Program
As an ENERGY STAR® Partner, Canon U.S.A., Inc. has
determined that this product meets the ENERGY
STAR Program for energy efficiency.
The International ENERGY STAR Office Equipment
Program is an international program that promotes
energy saving through the use of computers and
other office equipment.
The program backs the development and
dissemination of products with functions that
effectively reduce energy consumption. It is an
open system in which business proprietors can
participate voluntarily.
The targeted products are office equipment, such
as computers, displays, printers, facsimiles, and
copiers. The standards and logos are uniform
among participating nations.
IPv6 Ready Logo
The protocol stack included in this machine has
obtained the IPv6 Ready Logo Phase-1 established
by the IPv6 Forum.
Trademarks
Canon, the Canon logo, and imageCLASS are registered
trademarks of Canon Inc. in the United States and may also be
trademarks or registered trademarks in other countries.
Apple, Mac OS, and Macintosh are trademarks or registered
trademarks of Apple Inc. in the U.S. and/or other countries.
Microsoft, Windows and Windows Vista are either trademarks
or registered trademarks of Microsoft Corporation in the
United States and/or other countries.
All other product and brand names are registered trademarks,
trademarks or service marks of their respective owners.
Copyright
© 2011 by Canon Inc. All rights reserved.
No part of this publication may be reproduced, transmitted,
transcribed, stored in a retrieval system, or translated into any
language or computer language in any form or by any means,
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise, without the prior written permission of Canon Inc.
Third Party Software
A. This Canon product (the “PRODUCT”) includes third-party
software modules. Use and distribution of these software
modules (the “SOFTWARE”) are subject to the conditions
below.
(1) You agree that you will comply with any applicable export
control laws, restrictions or regulations of the countries
involved in the event that this product including the
SOFTWARE is shipped, transferred or exported into any
country.
(2) Rights holders of the SOFTWARE retain in all respects the
title, ownership and intellectual property rights in and to
the SOFTWARE. Except as expressly provided herein, no
license or right, expressed or implied, is hereby conveyed or
granted by rights holders of the SOFTWARE to you for any
intellectual property of rights holders of the SOFTWARE.
(3) You may use the SOFTWARE solely for use with the
PRODUCT.
(4) You may not assign, sublicense, market, distribute, or
transfer the SOFTWARE to any third party without prior
written consent of rights holders of the SOFTWARE.
(5) Notwithstanding the foregoing, you may transfer the
SOFTWARE only when (a) you assign to a transferee all of
your rights to the PRODUCT and all rights and obligations
under the conditions governing the SOFTWARE and
PRODUCT and (b) such transferee agrees in writing to be
bound by all these conditions.
(6) You may not decrypt, decompile, reverse engineer,
disassemble or otherwise reduce the code of the
SOFTWARE to human readable form.
(7) You may not modify, adapt, translate, rent, lease or loan
the SOFTWARE or create derivative works based on the
SOFTWARE.
(8) You are not entitled to remove or make separate copies of
the SOFTWARE from the PRODUCT.
(9) The human-readable portion (the source code) of the
SOFTWARE is not licensed to you.
B. Notwithstanding A above, in case any other license
conditions accompany third-party software modules, these
software modules are subject to these other conditions, as
well.
ACCEPTANCE
THE TERMS OF THIS THIRD PARTY SOFTWARE STATED HERE
OR IN RELATED WARRANTY PROVISIONS SHALL BE DEEMED
ACCEPTED UPON YOUR USE OF THE PRODUCT FOR ONE OR
MORE OF ITS NORMAL PURPOSES, IF THERE HAS BEEN NO
OTHER PRIOR EXPRESS ACCEPTANCE.
THE TERMS OF THIS THIRD PARTY SOFTWARE GOVERN THE
THIRD PARTY SOFTWARE AS DELIVERED WITH THE PRODUCT
AND ALL UPDATED VERSIONS OF THE THIRD PARTY SOFTWARE
PROVIDED UNDER MAINTENANCE AGREEMENTS OR OTHER
SERVICE ARRANGEMENTS FOR THE PRODUCT WITH CANON
USA OR CANON CANADA OR THEIR RESPECTIVE AUTHORIZED
SERVICE ORGANIZATIONS.
The Software Subjected to Other Conditions
Please refer to eManual on a CD-ROM bundled with this
product, for more detail and corresponding license conditions.
xiv
Disclaimers
The information in this document is subject to change without
notice.
CANON INC. MAKES NO WARRANTY OF ANY KIND WITH
REGARD TO THIS MATERIAL, EITHER EXPRESS OR IMPLIED,
EXCEPT AS PROVIDED HEREIN, INCLUDING WITHOUT
LIMITATION, THEREOF, WARRANTIES AS TO MARKETABILITY,
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE
OF USE OR NON-INFRINGEMENT. CANON INC. SHALL NOT BE
LIABLE FOR ANY DIRECT, INCIDENTAL, OR CONSEQUENTIAL
DAMAGES OF ANY NATURE, OR LOSSES OR EXPENSES
RESULTING FROM THE USE OF THIS MATERIAL.
For CA, USA only
Included battery contains Perchlorate Material - special
handling may apply.
See http://www.dtsc.ca.gov/hazardouswaste/perchlorate/ for
details.
Legal Limitations on the Usage of Your Product and the Use of Images
Using your product to scan, print or otherwise reproduce
certain documents, and the use of such images as scanned,
printed or otherwise reproduced by your product, may be
prohibited by law and may result in criminal and/or civil
liability.
A non-exhaustive list of these documents is set forth below.
This list is intended to be a guide only. If you are uncertain
about the legality of using your product to scan, print or
otherwise reproduce any particular document, and/or of the
use of the images scanned, printed or otherwise reproduced,
you should consult in advance with your legal advisor for
guidance.
Paper Money
Money Orders
Certificates of Deposit
Postage Stamps (canceled or uncanceled)
Identifying Badges or Insignias
Selective Service or Draft Papers
Checks or Drafts Issued by Governmental Agencies
Motor Vehicle Licenses and Certificates of Title
Travelers Checks
Food Stamps
Passports
Immigration Papers
Internal Revenue Stamps (canceled or uncanceled)
Bonds or Other Certificates of Indebtedness
Stock Certificates
Copyrighted Works/Works of Art without Permission of
Copyright Owner
FCC (Federal Communications Commission)
imageCLASS MF4570dn: F159302
imageCLASS MF4450: F159502
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply
with the limits for a class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Connect the equipment to an outlet on a circuit different
from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician
for help.
Use of shielded cable is required to comply with class B limits
in Subpart B of Part 15 of the FCC Rules. Do not make any
changes or modifications to the equipment unless otherwise
specified in this manual. If you make such changes or
modifications, you could be required to stop operation of the
equipment.
Canon U.S.A., Inc.
One Canon Plaza, Lake Success, NY 11042, U.S.A.
TEL No. 1-800-OK-CANON
Users in the U.S.A.
Pre-Installation Requirements for Canon Facsimile Equipment
A. Location
Supply a suitable table, cabinet, or desk for the machine.
See Chapter 11, Appendix, for specific dimensions and
weight.
B. Order Information
1. A single telephone line (touch-tone or rotary) should be
used.
2. Order an RJ11-C telephone wall jack (USOC), which
should be installed by the telephone company. If the
RJ11-C wall jack is not present, telephone/facsimile
operation is not possible.
3. Order a normal business line from your telephone
company’s business representative. The line should be
a regular voice grade line or an equivalent one. Use one
line per unit.
DDD (Direct Distance Dial) line
-or-
IDDD (International Direct Distance Dial) line if you
communicate overseas
NOTE
Canon recommends an individual line following industry
standards, i.e., 2,500 (touch-tone) or 500 (rotary/pulse dial)
telephones. A dedicated extension off a PBX (Private Branch
eXchange) unit without “Call Waiting” can be used with your
facsimile unit. Key telephone systems are not recommended
because they send nonstandard signals to individual
telephones for ringing and special codes, which may cause a
facsimile error.
xv
C. Power Requirements
The machine should be connected to a standard 120 volt
AC, three-wire grounded outlet only.
Do not connect this machine to an outlet or power line
shared with other appliances that cause electrical noise. Air
conditioners, electric typewriters, copiers, and machines of
this sort generate electrical noise that often interferes with
communications equipment and the sending and receiving
of documents.
Connection of the Equipment
This equipment complies with Part 68 of the FCC rules and the
requirements adopted by the ACTA. On the rear panel of this
equipment is a label that contains, among other information,
a product identifier in the format of US:AAAEQ##TXXXX. If
requested, this number must be provided to the telephone
company.
The REN (Ringer Equivalence Number) is used to determine the
number of devices that may be connected to a telephone line.
Excessive RENs on a telephone line may result in the devices
not ringing in response to an incoming call. In most, but not all
areas, the sum of the RENs should not exceed five (5.0).
To be certain of the number of devices that may be connected
to a line, as determined by the total RENs, contact the local
telephone company. The REN for this product is part of the
product identifier that has the format US: AAAEQ##TXXXX. The
digits represented by ## are the REN without a decimal point
(e.g., 10 is a REN of 1.0).
An FCC compliant telephone line cable and modular plug is
provided with this equipment. This equipment is designed
to be connected to the telephone network or premise wiring
using a compatible modular jack that is Part 68 compliant.
This equipment may not be used on coin service provided by
the telephone company. Connection to party lines is subjected
to state tariffs.
In Case of Equipment Malfunction
Should any malfunction occur which cannot be corrected
by the procedures described in this guide or the e-Manual,
disconnect the equipment from the telephone line cable and
disconnect the power cord.
The telephone line cable should not be reconnected or the
power switch turned ON until the problem is completely
resolved. Users should contact Canon Authorized Service
Facilities for servicing of equipment, Information regarding
Authorized Service Facility locations can be obtained by calling
Canon Customer Care Center (1-800-OK-CANON).
Rights of the Telephone Company
If this equipment (imageCLASS MF4570dn/MF4450) causes
harm to the telephone network, the telephone company may
temporarily disconnect service. The telephone company also
retains the right to make changes in facilities and services
that may affect the operation of this equipment. When such
changes are necessary, the telephone company is required to
give adequate prior notice to the user.
However, if advance notice is not possible, the telephone
company will notify the customer as soon as possible. Also,
the customer will be advised of his/her right to file a complaint
with the FCC if he/she believes it is necessary.
WARNING
The Telephone Consumer Protection Act of 1991 makes it
unlawful for any person to use a computer or other electronic
device, including FAX machines, to send any message unless
such message clearly contains in a margin at the top or
bottom of each transmitted page or on the first page of the
transmission, the date and time it is sent and an identification
of the business or other entity, or other individual sending the
message and the telephone number of the sending machine
or such business, other entity, or individual.
(The telephone number provided may not be a 900 number
or any other number for which charges exceed local or long-
distance transmission charges.)
NOTE
In order to program this information into your machine, you
should complete the procedure for registering your name,
unit’s telephone number, time, and date in the Starter Guide.
Users in Canada
Pre-Installation Requirements for Canon Facsimile Equipment
A. Location
Supply a suitable table, cabinet, or desk for the machine.
See Chapter 11, Appendix, for specific dimensions and
weight.
B. Order Information
1. A single telephone line (touch-tone or rotary) should be
used.
2. Order a CA11A modular jack, which should be installed
by the telephone company. If the CA11A jack is not
present, installation cannot occur.
3. Order a normal business line from your telephone
company’s business representative. The line should be
a regular voice grade line or an equivalent one. Use one
line per unit.
DDD (Direct Distance Dial) line
-or-
IDDD (International Direct Distance Dial) line if you
communicate overseas
NOTE
Canon recommends an individual line following industry
standards, i.e., 2,500 (touch-tone) or 500 (rotary/pulse dial)
telephones. A dedicated extension off a PBX (Private Branch
eXchange) unit without “Call Waiting” can be used with your
facsimile unit. Key telephone systems are not recommended
because they send nonstandard signals to individual
telephones for ringing and special codes, which may cause a
facsimile error.
C. Power Requirements
The power outlet should be a three-prong grounded
receptacle (Single or Duplex). It should be independent
from copiers, heaters, air conditioners, or any electric
equipment that is thermostatically controlled. The rated
value is 115 volts and 15 amperes. The CA11A modular jack
should be relatively close to the power outlet to facilitate
installation.
xvi
Notice
This product meets the applicable Industry Canada
technical specifications.
The Ringer Equivalence Number is an indication of the
maximum number of devices allowed to be connected to
a telephone interface. The termination of an interface may
consist of any combination of devices subject only to the
requirement that the sum of the RENs of all the devices
does not exceed five.
The REN of this product is 1.0.
Before installing this equipment, users should ensure that
it is permissible to be connected to the facilities of the local
telecommunications company. The equipment must also
be installed using an acceptable method of connection. In
some cases, the companys inside wiring associated with a
single line individual service may be extended by means of
a certified connector assembly (telephone extension cord).
The customer should be aware that compliance with the
above conditions may not prevent deterioration of service
in some situations.
Repairs to certified equipment should be made by an
authorized Canadian maintenance facility designated by
the supplier. Any repairs or alterations made by the user to
this equipment, or equipment malfunctions, may give the
telecommunications company cause to request the user to
disconnect the equipment.
Users should ensure for their own protection that the
electrical ground connections of the power utility,
telephone lines, and internal metallic water pipe system, if
present, are connected together. This precaution may be
particularly important in rural areas.
CAUTION
Users should not attempt to make such connections
themselves, but should contact the appropriate electric
inspection authority, or electrician, as appropriate.
NOTE
This equipment complies with the Canadian ICES-003 Class B
limits.
Utilisation au Canada
Conditions à Remplir Préalablement à L’installation d’un
Télécopieur Canon
A. Emplacement
Prévoir une table, un meuble, ou un bureau suffisamment
solide et de taille appropriée (voir le chapitre 11, Annexe
(Appendix), pour les indications de poids et dimensions).
B. Installation téléphonique
1. Une seule ligne téléphonique (tonalités ou impulsions)
doit être utilisée.
2. Il faut commander un jack modulaire CA11A qui sera
installé par la compagnie téléphonique. Sans ce jack, la
mise en place serait impossible.
3. Si vous vous abonnez à une nouvelle ligne, demandez
une ligne d’affaires normale de qualité téléphonique
courante ou équivalente. Prenez un abonnement d’une
ligne par appareil.
Ligne automatique interurbaine
ou
Ligne automatique internationale (si vous communiquez
avec les pays étrangers)
NOTE
Canon vous conseille d’utiliser une ligne individuelle conforme
aux normes industrielles, à savoir:
ligne téléphonique 2,500 (pour appareil à clavier) ou 500
(pour appareil à cadran/impulsions). Il est également possible
de raccorder ce télécopieur à un système téléphonique à
poussoirs car la plupart de ces systèmes émettent des signaux
d’appel non normalisés ou des codes spéciaux qui risquent de
perturber le fonctionnement du télécopieur.
C. Condition d’alimentation
Raccordez le télécopieur à une prise de courant plus terre
à trois branches, du type simple ou double, et qui ne sert
pas à alimenter un copieur, un appareil de chauffage, un
climatiseur ou tout autre appareil électrique à thermostat.
L’alimentation doit être de 115 volts et 15 ampères. Pour
faciliter l’installation, le jack CA11A doit être assez proche
de la prise de courant.
Remarques
Le présent matériel est conforme aux spécifications
techniques applicables d’Industrie Canada.
Avant d’installer cet appareil, l’utilisateur doit s’assurer quil
est permis de le connecter à l’équipement de la compagnie
de télécommunication locale et doit installer cet appareil
en utilisant une méthode de connexion autorisée. Il se
peut qu’il faille étendre la circuiterie intérieure de la ligne
individuelle d’abonné, qui a été installée par la compagnie,
au moyen d’un jeu de connecteurs homologués (rallonge
téléphonique).
L’attention de l’utilisateur est attirée sur le fait que le respect
des conditions mentionnées ci-dessus ne constitue pas une
garantie contre les dégradations de qualité du service dans
certaines circonstances.
L’indice d’équivalence de la sonnerie (IES) sert à indiquer le
nombre maximal de terminaux qui peuvent être raccordés
à une interface téléphonique. La terminaison d’une
interface peut consister en une combinaison quelconque
de dispositifs, à la seule condition que la somme d’indices
d’équivalence de la sonnerie de tous les dispositifs nexcède
pas 5.
Le nombre d’équivalents sonnerie (REN) de ce produit est
1,0.
Les réparations sur un appareil certifié doivent être
faites par une société d’entretien canadienne autorisée
par le Gouvernement canadien et désignée par le
fournisseur. Toute réparation ou modification que
pourrait faire I’utilisateur de cet appareil, ou tout
mauvais fonctionnement, donne à la compagnie de
télécommunication le droit de débrancher I’appareil.
Pour sa propre protection, I’utilisateur doit s’assurer que
les prises de terre de I’appareil d’alimentation, les lignes
téléphoniques et les tuyaux métalliques internes, sil y
en a, sont bien connectés entre eux. Cette précaution est
particulièrement importante dans les zones rurales
CAUTION
Au lieu d’essayer de faire ces branchements eux-mêmes, les
utilisateurs sont invités à faire appel à un service d’inspection
faisant autorité en matière d’électricité ou à un électricien,
selon le cas.
NOTE
Respecte les limites de la classe B de la NMB-003 du Canada.
xvii
This machine complies with 21 CFR Chapter 1 Subchapter J as
a Class 1 laser product under the U.S. Department of Health
and Human Services (DHHS) Radiation Performance Standard
according to the Radiation Control for Health and Safety
Act of 1968. This means that the machine does not produce
hazardous radiation.
Since radiation emitted inside the machine is completely
confined within protective housings and external covers, the
laser beam cannot escape from the machine during any phase
of user operation.
CDRH Regulations
The Center for Devices and Radiological Health (CDRH) of the
U.S. Food and Drug Administration implemented regulations
for laser products on August 2, 1976. These regulations
apply to laser products manufactured from August 1, 1976.
Compliance is mandatory for products marketed in the United
States.
CAUTION
Use of controls, adjustments, or performance of procedures
other than those specified in this manual may result in
hazardous radiation exposure.
The label is attached to the laser scanner machine inside the
machine and is not in a user access area.
Laser Safety
xviii
1-1
Chapter 1
Before Using the Machine
This category describes the features of the machine and its useful functions.
Names and Functions on Each Part of the
Machine 1-2
Front Side 1-2
Back Side 1-3
Interior 1-3
Multi-purpose Tray 1-4
Paper Cassette 1-4
Operation Panel 1-5
LCD (Standby Mode) 1-6
Copy Mode 1-6
Fax Mode 1-6
Scan Mode 1-6
Navigating the Menu 1-7
Entering the Menu Screen 1-7
Scrolling Through Menu Items 1-7
Selecting a Menu Item 1-7
Specifying values using the navigation keys 1-8
Returning to the Default Screen 1-8
Text Input Method 1-9
Entering Text Except for IP Address 1-9
Changing the Entry Mode 1-9
Entering Text, Symbols, and Numbers 1-9
Moving the Cursor (Entering a Space) 1-9
Deleting text, symbols, or numbers 1-9
Entering IP Address (MF4570dn Only) 1-10
Setting the Sleep Timer 1-11
Setting the Current Date and Time 1-12
1-2
Before Using the Machine
This section describes the parts and functions of the machine.
Front Side
(15)
(1)
(2)
(3)
(4)
(10)
(11)
(13)
(14)
(5)
(6)
(7)
(8)
(9)
(12)
Names and Functions on Each Part of the Machine
(1) Document guides
Adjust to the width of the document.
(2) Feeder cover
Open this cover to clear paper jams.
(3) Lift handles
Hold this handle to lift or transport the machine.
(4) Tray extension
Pull out the tray extension when the paper is hanging out of the
document feeder tray such as Legal size paper.
(5) Document feeder tray
Place documents here.
(6) Document return tray
Documents are returned here.
(7) Operation panel
Controls the machine using this panel.
“Operation Panel” (P.1-5)
(8) Output tray
Copies, printed documents, and faxes are output here.
(9) Paper cassette
Load paper here.
“Paper Cassette” (P.1-4)
(10) Feeder
The feeder can automatically scan documents continuously.
(11) Scanning area
Scans documents from the feeder.
(12) Output tray extension
Extends the tray for large paper sizes.
(13) Paper stopper
Prevents paper from falling from the output tray.
(14) Platen glass
Place a document here.
(15) Ventilation slots (MF4570dn only)
Allows inside of the machine to cool down.
Leave enough space around the machine to allow heat to
escape sufficiently.
1-3
Before Using the Machine
Back Side
MF4570dn MF4450
(2)
(1)
HAND
SET EXT.
LINE
HAND
SET EXT.
LINE
(3)
(4)
(5)
(6)
(7)
(8)
HAND
SET EXT.
LINE
HAND
SET EXT.
LINE
(3)
(5)
(6)
(7)
(8)
(1)
(1) Rating label
The average values of the required voltage and current are
specified.
(2) Rear cover (MF4570dn only)
Open this cover to clear paper jams.
(3) USB port
Connect to a computer via a USB cable.
(4) LAN port (MF4570dn only)
Connect to a network via a LAN cable.
(5) Power switch
Turn the power ON or OFF.
(6) External device jack
Connect an external telephone.
(7) Telephone line jack
Connect a telephone line.
(8) Power socket
Connect the power cord.
Interior
(1)
(2)
(3)
(4)
(5)
(1) Scanning platform
Open this platform to replace the toner cartridge or clear paper
jams.
(2) Toner cover
Open this cover to replace the toner cartridge or clear paper
jams.
(3) Paper exit guide
Open this guide to clear paper jams.
(4) Toner guides
When inserting the toner cartridge, fit the protrusions on the
toner cartridge into these guides.
(5) Transfer roller
Transfers toner onto paper.
1-4
Before Using the Machine
Multi-purpose Tray
(1)
(1) Paper guides
Adjust to the width of the paper.
Paper Cassette
(1)
(2)
(1) Dust cover
Protects paper in the paper cassette from dirt and dust.
(2) Paper guides
Adjust the paper guides to the paper.
1-5
Before Using the Machine
Operation Panel
(3)
(5)
(2)
(6)
(4)
(1)
(1) Mode switching keys Press to switch the mode to copy, fax, or scan.
(2)
[One-touch Speed Dial] keys
([01]/[02]/[03]/[04] keys) Press to specify recipients registered under one-touch keys.
[Address Book] key Press to search recipients registered under one-touch keys or coded dial codes.
[Redial] key When faxing, press to redial the last number.
[Pause] key When entering a fax number, press to insert a pause.
[Hook] key Press to dial a number without lifting the telephone handset.
[Menu] key Press to specify or register various settings.
[Paper Settings] key Press to specify paper size and type for the paper cassette or multi-purpose tray.
[Report] key Press to manually print reports and lists. You can also specify whether to print a report
automatically.
[Status Monitor/Cancel] key Press to view or cancel jobs. You can also check the status of the network* and machine.
(3) LCD During normal operation, displays messages and prompts. When adjusting the settings,
displays your selections, text, and numbers.
(4)
[Reset] key Press to reset the settings. (Press to reset the copy/scan/fax mode to the standard mode.)
[Back] key Press to return to the previous screen.
[] key Press to scroll up or to increase a value.
[] key Press to scroll down or to decrease a value.
[] key Press to return to the previous screen or move the cursor to the left. While fax
communication sound is ringing, press to decrease the volume.
[] key Press to proceed to the next screen or move the cursor to the right. While fax
communication sound is ringing, press to increase the volume.
[OK] key Press to confirm an action or setting.
(5)
Numeric keys ([0]-[9] keys) Enter letters and numbers.
[*] key Press to switch the character entry mode. When sending a fax, press to switch between
pulse and tone dialing.
[#] key Press to enter symbols.
[Clear] key Deletes letters and numbers.
[Energy Saver] key Press to manually set or cancel the Sleep mode. The Energy Saver light will be green when
in Sleep mode.
[Stop] key Press to cancel jobs.
[Start] key Press to start copying, scanning, or sending a fax.
(6) [Processing/Data] indicator The indicator blinks while sending or receiving faxes and remains lit when jobs are
waiting in memory.
[Error] indicator The indicator blinks when an error occurs.
* The function is only for MF4570dn.
1-6
Before Using the Machine
LCD (Standby Mode)
This section describes the following screens.
Copy Mode
Fax Mode
Scan Mode
NOTE
Display of the standby mode
You can change the standby display which appears when the
power switch is turned ON.
e-Manual Basic Operation Customizing Display
Settings Setting the Default Screen
When the machine is idle for 2 minutes, the display returns to
standby mode.
e-Manual Basic Operation Customizing Timer Settings
Specifying the Auto Reset Timer
Copy Mode
When using the copy function, press [ ] to switch
to the standby display.
Copy: Press Start
100% LTR
Density: 0
Original Type: Text
...
2-Sided: Off
1
+
-
01
When the copy mode screen is displayed, you can select
items by pressing [ ] or [ ].
The currently selected item will be highlighted with a black
background, and pressing [OK] will advance to the next
screen.
Copy: Press Start
100% LTR
Density: 0
Original Type: Text
...
2-Sided: Off
1
+
-
01
Fax Mode
When using the fax function, press [ ] to switch to
the standby display.
Specify destination.
01/01/2011 12:52AM
RX Mode: Auto
Resolution: 200 x 1
...
When the fax mode screen is displayed, you can select
items by pressing [ ] or [ ].
The currently selected item will be highlighted with a black
background, and pressing [OK] will advance to the next
screen.
Specify destination.
01/01/2011 12:52AM
RX Mode: Auto
Resolution: 200 x 1
...
Scan Mode
When using the scan function, press [ ] to switch
to the standby display.
When the scan mode screen is displayed, you can select
items by pressing [ ] or [ ].
The currently selected item will be highlighted with a black
background, and pressing [OK] will advance to the next
screen.
Select the scan type.
Computer
Remote Scanner
1-7
Before Using the Machine
This section describes how to navigate the menu and specify
values on the menu screen.
Keys to be used for this operation
Menu
OKBack
Entering the Menu Screen
Press [ ] (Menu) to enter the menu screen.
Scrolling Through Menu Items
The scrollbar at the right side of the screen indicates that
more items are available.
To select an item that is not shown on the screen, press [ ]
or [ ] to scroll through menu items.
The currently selected item is highlighted with a black
background.
Menu
Preferences
Timer Settings
Copy Settings
Fax TX Settings
Selecting a Menu Item
Press [OK] to select a highlighted menu.
If there are submenus available, you can also press [ ] to
select the item and proceed to the next screen.
You can return to the previous screen by pressing [ ]
(Back) or [ ].
Menu
Preferences
Timer Settings
Copy Settings
Fax TX Settings
Timer Settings
Time & Date Settings
Sleep Timer
Auto Reset Timer
Screen After Auto R
...
[Back] or [Ż][OK] or [Ź]
Navigating the Menu
1-8
Before Using the Machine
Specifying values using the navigation keys
Specifying values
Situation Screen example Procedure
When moving through the bars to
adjust levels such as density
Correct Density
- +
Press [ ] or [ ] to adjust the level.
When selecting a value to set a
timer
Auto Reset Timer
2 minutes
(0=Off, 1-9)
Numeric key icon
Press [ ] or [ ] to specify the value.
NOTE
Available values
You can specify any value shown in the parentheses at
the bottom of the screen.
When the numeric key icon is displayed on the
screen
You can also enter values with the numeric keys.
Text Input Method” (P.1-9)
When entering a series of numbers
or letters such as PIN
System Manager PIN
*******
<Apply>
1 2 3 4 5 6 7 8 9 0
<BS>
Press [ ], [ ], [ ], or [ ] to select a number or
character, and then press [OK] to enter the number or
character.
To clear a number or character, select <BS>, and then press
[OK].
NOTE
You can also use the numeric keys
You can also enter values with the numeric keys.
Text Input Method” (P.1-9)
Confirming the input
To confirm the input:
Press [OK].
When <Apply> appears on the display, press [ ] or [ ] to select <Apply>, and then press [OK].
Returning to the Default Screen
From the menu screen, press [ ] (Menu) to exit the
menu screen and return to the default screen.
NOTE
If you press [ ] (Menu) before you press [OK]
The specified settings will not be saved.
1-9
Before Using the Machine
Text Input Method
When entering the followings, see “Entering IP Address
(MF4570dn Only).
IP address
Subnet mask
Gateway address
DNS server address
Entering Text Except for IP Address
Enter information (text, symbols, and numbers) into the
machine using the following keys.
Keys to be used for this operation
OK
Tone, Numeric keys,
SYMBOLS, Clear
Changing the Entry Mode
Register Unit Name
<Apply>
Entry Mode: A
Press [ ] to select <Entry Mode>, and then press [OK]. You
can also press [ ] (Tone) to change the entry mode.
Entry mode Available text
<A> Alphabet (capital letters) and symbols
<a> Alphabet (small letters) and symbols
<12> Numbers
Entering Text, Symbols, and Numbers
Enter with the numeric keys or [ ] (Symbols)
Keys
used
Entry mode:
<A>
Entry mode:
<a>
Entry mode:
<12>
@ . - _ / 1
ABC abc 2
DEF def 3
GHI ghi 4
JKL jkl 5
MNO mno 6
PQRS pqrs 7
TUV tuv 8
WXYZ wxyz 9
(Not available) 0
- . * # ! ” , ; : ^ ` _ = / | ’ ?
$ @ % & + \ ( ) [ ] { } < > (Not available)
Moving the Cursor (Entering a Space)
Move the cursor by pressing [ ] or [ ].
To enter a space, move the cursor to the end of the text and
press [ ].
Deleting text, symbols, or numbers
To delete text, numbers, or symbols, press [ ] (Clear).
To delete all text, numbers, or symbols, press and hold
[] (Clear).
Example: Enter <CANON>.
1 Ensure that the input mode is <A>.
2 Press [ ] until the letter “C” appears on the
display.
Register Unit Name
C
<Apply>
Entry Mode: A
3 Press [ ] until the letter A appears on the
display.
Register Unit Name
CA
<Apply>
Entry Mode: A
4 Press [ ] until the letter “N” appears on the
display.
Register Unit Name
CAN
<Apply>
Entry Mode: A
5 Press [ ] until the letter “O” appears on the
display.
Register Unit Name
CANO
<Apply>
Entry Mode: A
1-10
Before Using the Machine
6 Press [ ] until the letter “N” appears on the
display.
Register Unit Name
CANON
<Apply>
Entry Mode: A
7 Press [ ] or [ ] to select <Apply>, and then
press [OK].
Entering IP Address (MF4570dn Only)
Enter numbers using the following keys.
Keys to be used for this operation
OK
Numeric keys, Clear
1 Use the numeric keys to enter numbers.
IP Address
192.168.000.080
<Apply>
1 2 3 4 5 6 7 8 9 0
<BS>
* Enter numbers by three digits.
To specify “192.168.0.80, enter “192.168.000.080.
(If the number is less than three digits, add “0” before the
number.)
Deleting numbers
To delete a number, press [ ] (Clear).
To delete all numbers, press and hold [ ] (Clear).
2 When you are finished entering, press [ ] or [ ]
to select <Apply>, and then press [OK].
IP Address
192.168.000.080
<Apply>
1 2 3 4 5 6 7 8 9 0
<BS>
1-11
Before Using the Machine
Setting the Sleep Timer
The entry is applied. The machine returns to sleep mode
automatically when it is idle for a specified length of time.
Keys to be used for this operation
Menu
OK
1 Press [ ] (Menu).
2 Press [ ] or [ ] to select <Timer Settings>, and
then press [OK].
Menu
Preferences
Timer Settings
Copy Settings
Fax TX Settings
3 Press [ ] or [ ] to select <Sleep Timer>, and
then press [OK].
Timer Settings
Time & Date Settings
Sleep Timer
Auto Reset Timer
Screen After Auto R
...
4 Press [ ] or [ ] to specify the time, and then
press [OK].
You can also enter values using the numeric keys.
* We recommend that you use this option in the default setting.
Sleep Timer
10 minutes
(10-240)
NOTE
Specifying the auto sleep timer
You may specify the auto sleep timer between <10> minutes and
<240> minutes, in one minute interval. The default value for this
setting is <10> minutes.
5 Press [ ] (Menu) to close the menu
screen.
NOTE
When entering sleep mode
[ ] (Energy Saver) will be lit green.
To enter sleep mode manually
Press [ ] (Energy Saver).
* The machine does not enter the sleep mode, if you press
[ ] (Energy Saver) in 10 seconds after the machine resumes
from the sleep mode.
The machine will not enter sleep mode when
the machine is in operation
the Processing/Data indicator is lit or blinking
a message appears on the display and the Error indicator blinks
(except when <Prepare toner cartridge.> is displayed)
the machine is performing adjustment or cleaning
there is a paper jam
the handset of the external telephone is off the hook
documents are set in the feeder
The machine will wake from sleep mode when
you press [ ] (Energy Saver)
receiving a fax or phone call
the external telephone is off the hook
a print job from a computer begins
documents are set in the feeder
the machine is connected to a computer via a USB cable
1-12
Before Using the Machine
Setting the Current Date and Time
Specify a display format for the date and time and set the
current date and time.
The specified date and time are used for some fax functions
and reports.
Keys to be used for this operation
Menu
OK
1 Press [ ] (Menu).
2 Press [ ] or [ ] to select <Timer Settings>, and
then press [OK].
Menu
Preferences
Timer Settings
Copy Settings
Fax TX Settings
3 Press [ ] or [ ] to select <Time & Date Settings>,
and then press [OK].
Timer Settings
Time & Date Settings
Sleep Timer
Auto Reset Timer
Screen After Auto R
...
4 Press [ ] or [ ] to select a setting item, and then
press [OK].
Time & Date Settings
Date Display Type
12/24 Hour Clock
Current Time Settings
Daylight Savings
Settings Overview Operation
<Date
Display
Type>
Specifies
the display
format for
dates.
Press [ ] or [ ] to select one of
following display formats, and then
press [OK].
You can select a display format from
the following three options.
• MM/DD/YYYY
• DD/MM YYYY
• YYYY MM/DD
<12/24
Hour
Clock>
Specifies
the display
format for
time.
Press [ ] or [ ] to select a display
format, and then press [OK].
You can select a display format from
the following two options.
• 12 Hour (AM/PM)
• 24 Hour
<Current
Time
Settings>
Specifies
the current
time and
date.
Use the numeric keys to enter the date
and time, and then press [OK].
You can also enter the date and time
by pressing [ ] or [ ] to move the
cursor, and then pressing [ ] or [ ] to
select a number.
Press [ ] or [ ] to switch between
<AM> and <PM>.
Current Time Settings
01/01 2011 12:52 AM
<Daylight
Savings>
Specifies
the daylight
savings
time.
To use daylight savings time,
1. Press [ ] or [ ] to select <On>,
and then press [OK].
2. Specify the starting date of the
daylight savings time.
- Press [ ] or [ ] to select
<Month>, and then press [OK].
- Select the starting month, and
then press [OK].
- Press [ ] or [ ] to select <Day>,
and then press [OK].
- Select the starting week, and then
press [OK].
- Select the starting day, and then
press [OK].
- Press [ ] or [ ] to select
<Apply>, and then press [OK].
3. Repeat step 2 to specify the ending
date.
5 Press [ ] (Menu) to close the menu
screen.
2-1
Chapter 2
Document and Paper Handling
Document Requirements 2-2
Scanning Range 2-2
Copy 2-2
FAX 2-3
Scan 2-3
Placing Documents 2-4
Placing Documents on the Platen Glass 2-4
Loading Document in the Feeder 2-4
Paper Requirements 2-6
Paper Size 2-6
Paper Type 2-7
Printable Range 2-8
Loading Paper 2-9
In the Paper Cassette 2-9
In the Multi-Purpose Tray 2-11
Precautions when Loading Paper 2-12
Paper Loading Capacity 2-12
Paper Loading Orientation 2-13
When printing paper with a letterhead or logo
(previously printed paper) 2-13
Printing on Envelopes 2-13
Setting a Paper Size and Type 2-14
Setting a Custom Paper Size 2-14
Selecting Print Side (MF4570dn Only) 2-16
When setting this item to <Print Speed Priority>
(the default setting) 2-16
When setting this item to <Print Side Priority> 2-16
2-2
Document and Paper Handling
Platen glass Feeder
Document type
• Plain paper
• Heavy paper
• Photograph
• Small documents (e.g., index cards)
• Special types of paper (e.g., tracing paper, transparencies, etc.) *1
• Booklet (Up to 3/4” (20 mm) thickness)
Plain paper
(Multi-page documents of the same size, thickness and
weight/onepage documents)
Size (W x L) Maximum 8 1/2” x 11 3/4” (215.9 mm x 297 mm) Maximum 8 1/2” x 14” (216 mm x 356 mm)
Minimum 5 7/8” x 4 1/8” (148 mm x 105 mm)
Weight Maximum 4.4 lb (2 kg) 13.3 to 27.9 lb Bond (50 to 105 g/m2)
Paper Capacity 1 sheet Maximum 35 sheets *2
*1 When copying transparent documents such as tracing paper or transparencies, use a piece of plain white paper to cover the document after
placing it face-down on the platen glass.
*2 21 lb Bond (80 g/m2) paper
IMPORTANT
When placing document
Place the document after glue, ink or correction fluid on the document is completely dry.
To prevent paper jams in the feeder
Do not use any of the following.
Wrinkled or creased paper
Carbon paper or carbon-backed paper
Curled or rolled paper
Coated paper
Torn paper
Onion skin or thin paper
Documents with staples or paper clips attached
Paper printed with a thermal transfer printer
Transparency
Document Requirements
Scanning Range
Ensure your document’s text and graphics fall within the area specified in the following diagram.
* Note that the margin widths listed below are rough standards and there may be slight variations in actual use.
* The loading orientation of documents is as follows.
- Platen glass: With the document facing down
- Feeder: With the document loaded in the document feeder tray
Copy
Platen Glass Feeder
1/4 in.
(5 mm)
1/4 in.
(5 mm)
1/4 in.
(5 mm)
1/4 in.
(5 mm)
1/4 in.
(5 mm)
1/4 in.
(5 mm)
1/4 in.
(5 mm)
1/4 in.
(5 mm)
2-3
Document and Paper Handling
FAX
Platen Glass Feeder
1/8 in.
(3 mm)
1/8 in.
(3 mm)
3/64 in.
(1 mm)
3/64 in.
(1 mm)
1/8 in.
(3 mm)
1/8 in.
(3 mm)
3/64 in.
(1 mm)
3/64 in.
(1 mm)
Scan
Platen Glass Feeder
1/16 in.
(1.5 mm)
1/16 in.
(1.5 mm)
2-4
Document and Paper Handling
This section describes placing the documents on the platen
glass or loading them in the feeder.
Placing Documents on the Platen Glass
1 Open the feeder.
2 Place a document face down.
3 Align the document with the appropriate paper
size marks.
If your document does not match any of the paper size marks, align
the center of your document with the arrow mark.
A4
B4
A5
A5
B4
A4
4 Close the feeder gently.
The machine is ready to scan the document.
When scanning is complete, remove the document from the
platen glass.
Loading Document in the Feeder
1 Open the document feeder.
2 Spread the document guides a little wider than
the document width.
3 If loading large-sized documents, pull out the tray
extension.
Pull out the tray extension when the document is hanging out of
the document feeder tray.
Placing Documents
CAUTION
Precautions when closing the feeder
Be careful not to get your fingers caught. This may
cause personal injury.
Do not press down the feeder forcefully. This may
damage the platen glass and cause personal injury.
2-5
Document and Paper Handling
4 Fan the document stack and align the edges of
the pages.
Thoroughly fan in
small batches
Align the edges on a
at surface a few times
5 Neatly place the documents face up.
Load the document under the load limit guides (A).
Ensure that the paper stack does not exceed the load limit marks
(B).
(A)
(B)
6 Align the document guides to fit the width of the
document.
The machine is ready to scan the document.
IMPORTANT
Up to 35 documents can be loaded
If more than 35 documents are loaded, paper jams may occur, or
the documents may not be scanned.
While scanning a document
Do not add or remove documents.
When scanning documents is complete
Remove the documents from the document delivery tray to avoid
paper jams.
Avoid scanning the same document more than 30 times.
When scanned repeatedly, documents can become folded or torn,
which may cause paper jams.
Be sure to align the document guides with the width of
the paper
If the document guides are too loose or too tight, this may result
in misfeeds or paper jams.
Printouts may be askew depending on the printing environment.
Properly load paper to reduce the symptom.
2-6
Document and Paper Handling
Paper Size
The available paper sizes are as follows.
: Available : Not available
Paper size Paper source
Paper cassette Multi-purpose tray
A4 (8 1/4” x 11 3/4” (210 mm x 297 mm)) *1 *2 ○○
B5 (7 1/8” x 10 1/8” (182 mm x 257 mm)) ○○
A5 (5 7/8” x 8 1/4” (148 mm x 210 mm)) ○○
Legal (8 1/2” x 14” (216 mm x 356 mm)) *1 ○○
Letter (8 1/2” x 11” (216 mm x 279 mm)) *1 *2 ○○
Statement (5 1/2” x 8 1/2” (140 mm x 216 mm)) ○○
Executive (7 1/4” x 10 1/2” (184 mm x 267 mm)) ○○
Officio (8 1/2” x 12 1/2” (216 mm x 318 mm)) *1 ○○
B-officio (8 1/2” x 14” (216 mm x 355 mm)) *1 ○○
M-officio (8 1/2” x 13 3/8” (216 mm x 341 mm)) *1 ○○
Government - Letter (8” x 10 1/2” (203 mm x 267 mm)) ○○
Government - Legal (8” x 13” (203 mm x 330 mm)) ○○
Foolscap (8 1/2” x 13” (216 mm x 330 mm)) *1 ○○
A-foolscap (8 1/8” x 13 3/8” (206 mm x 338 mm)) ○○
Envelope COM10 (4 1/8” x 9 1/2” (104.7 mm x 241.3 mm)) *3 ○○
Envelope Monarch (3 7/8” x 7 1/2”(98.4 mm x 190.5 mm)) *3
Envelope C5 (6 3/8” x 9” (162 mm x 229 mm)) *3 ○○
Envelope B5 (6 7/8” x 9 7/8” (176 mm x 250 mm)) *3 ○○
Envelope DL (4 3/8” x 8 5/8” (110 mm x 220 mm)) *3 ○○
Index Card (3” x 5” (76 mm x 127 mm))
Custom Paper Size *4 *5
*1 Only in MF 4570dn, auto 2-sided print is available.
*2 Received documents, reports, or lists can be printed.
*3 Use envelopes with the flap closed.
*4 You can load paper of the following custom paper sizes.
* Width 3” to 8 1/2” (76.2 to 216 mm); Length 8 1/4” to 14” (210 to 356 mm)
*5 You can load paper of the following custom paper sizes.
* Width 3” to 8 1/2” (76.2 to 216 mm); Length 5” to 14” (127 to 356 mm)
NOTE
Default paper size
The default paper size is Letter. If you use a different paper size, change the paper size settings.
“Setting a Paper Size and Type” (P.2-14)
Paper Requirements
2-7
Document and Paper Handling
Paper Type
The available paper types are as follows.
Paper Type Printer Driver Setting
Paper Source
Paper Capacity
(Paper Cassette)
Paper Capacity
(Multi-purpose Tray)
Plain paper *1 16 to 21 lb Bond (60 to 80 g/m²) [Plain Paper]
[Plain Paper L]*2
250 sheets 1 sheet
21 to 24 lb Bond (80 to 90 g/m²) 170 sheets
Heavy paper
24 to 28 lb Bond (90 to 105 g/m²) [Heavy Paper 1] 170 sheets 1 sheet
28 to 32 lb Bond (105 to 120 g/m²) 100 sheets 1 sheet
45 to 60 lb Cover (120 to 163 g/m²) [Heavy Paper 2] 100 sheets 1 sheet
Rough paper
16 to 24 lb Bond (60 to 90 g/m²) [Rough Paper 1] 100 sheets 1 sheet
24 to 32 lb Bond (90 to 120 g/m²) [Rough Paper 2] 100 sheets 1 sheet
45 to 60 lb Bond (120 to 163 g/m²) [Rough Paper 3] 100 sheets 1 sheet
Recycled paper *1 16 to 21 lb Bond (60 to 80 g/m²) [Recycled Paper] 250 sheets 1 sheet
Color paper *1 16 to 21 lb Bond (60 to 80 g/m²) [Color Paper] 250 sheets 1 sheet
Transparency *3 [Transparency] 50 sheets 1 sheet
Label [Labels] 100 sheets 1 sheet
Index Card [Index Card] Not available 1 sheet
Envelope *4 [Envelope] 20 envelopes 1 envelope
*1 Only in MF4570dn, auto 2-sided print is available.
*2 If printed paper curls when [Plain Paper] is selected, set paper type to [Plain Paper L]. However, the toner fixation may be not as good when
[Plain Paper L] is set.
*3 Use only the transparencies designed for laser printers.
*4 You can set Envelope Monarch only in the multi-purpose tray.
To prevent paper jams, do not use the following types of paper.
Wrinkled or creased paper
Curled or rolled paper
Torn paper
Damp paper
Very thin paper
Paper printed with a thermal transfer printer (Do not copy on the reverse side.)
The following types of paper do not print well:
Highly textured paper
Very smooth paper
Glossy paper
Make sure the paper is free from dust, lint, and oil stains.
Make sure to test paper before purchasing large quantities.
Store all paper wrapped and on a flat surface until ready
for use. Keep opened packs in their original packaging in a cool,
dry location.
Store paper at 64.4 to 75.2°F (18 to 24°C), 40 % to 60 % RH.
CAUTION
If you print on damp paper
The following problems may occur.
Steam is emitted from the printer output
area.
Water droplets form on the back side of
the operation panel and in the output
area.
Because moisture in the paper is evaporating
due to the heat generated when toner fixes,
this is not a malfunction. (This is likely to
occur when the room temperature is low.)
If you smell a burnt odor, however,
immediately turn OFF the machine, unplug
the power plug from the AC power outlet,
and then contact your local authorized
Canon dealer or the Canon help line.
Continued use can result in a fire or electrical
shock.
2-8
Document and Paper Handling
The shaded area indicates the approximate printable area of A4 paper. Note that the margin widths listed below are rough
standards and there may be slight variations in actual use.
1/4 in.
(5 mm)
1/4 in.
(5 mm) 1/4 in.
(5 mm)
1/4 in.
(5 mm)
Printable Range
2-9
Document and Paper Handling
This section describes how to load paper in the paper cassette
and the multi-purpose tray.
NOTE
If you use paper of a different size or type
The default paper size/type is set to <Letter> and <Plain (16 lb
Bond-24 lb Bond)> in the setting menu. If you use a different paper
size or paper type, you need to change the paper settings.
“Setting a Paper Size and Type” (P.2-14)
In the Paper Cassette
Before loading paper in the paper cassette, see “Precautions
when Loading Paper (P.2-12).
1 Lift the dust cover.
2 Spread the paper guides a little wider than the
paper size.
* If you want to change the size of the paper to be loaded, be
sure to register the paper size in “Setting a Paper Size and Type”
(P.2-14).
3 Gently load the paper into the paper cassette
with the print side face up, until the edge of the
paper stack meets the back of the paper cassette.
“Paper Loading Capacity (P.2-12)
“Paper Loading Orientation (P.2-13)
Ensure that the paper stack does not exceed the load limit guides
(A).
(A)
When loading envelopes
(1) Close the envelope flap.
(2) Place the stack of envelopes on a flat surface, flatten them to
release any remaining air, and ensure that the edges are pressed
tightly.
Loading Paper
2-10
Document and Paper Handling
(3) Loosen any stiff corners of the envelopes and flatten curls as
shown in the figure.
(4) Align the edges of the envelopes on a flat surface.
(5) Gently load the envelopes into the paper cassette with the print
side face up, until the edge of the envelope stack meets the
back of the paper cassette.
4 Adjust the paper guides to the width of the paper.
5 Adjust the paper guide to the length of the paper.
6 Close the dust cover.
When loading paper that is longer than the length of the
paper cassette
Lift the dust cover extension.
7 Pull out the output tray extension, and then lift
the paper stopper.
(1)
(2)
8 Specify the loaded paper size and type.
“Setting a Paper Size and Type” (P.2-14)
2-11
Document and Paper Handling
In the Multi-Purpose Tray
Before loading paper in the multi-purpose tray, see
“Precautions when Loading Paper (P.2-12).
Use the multi-purpose tray when you want to copy or print on
a paper that is different from what is in the paper cassette.
You can load a single sheet of paper in the multi-purpose tray.
1 Spread the paper guides a little wider than the
paper.
2 Gently insert the paper into the multi-purpose
tray with the print side face up.
“Paper Loading Capacity (P.2-12)
“Paper Loading Orientation (P.2-13)
Ensure that the paper stack does not exceed the load limit guides
(A).
(A)
When loading envelopes
(1) Close the envelope flap.
(2) Loosen any stiff corners of the envelope and flatten curls as
shown in the figure.
(3) Gently insert the envelope into the multi-purpose tray with the
print side face up.
3 Adjust the paper guides to the paper.
4 Pull out the output tray extension, and then lift
the paper stopper.
(1)
(2)
5 Specify the loaded paper size and type.
“Setting a Paper Size and Type” (P.2-14)
2-12
Document and Paper Handling
CAUTION
Be careful when handling paper
Handle paper carefully not to cut your hands with the edges
of the paper.
Precautions when inserting the paper cassette
Be careful not to catch your fingers.
Precautions when Loading Paper
IMPORTANT
Be sure to align the paper guides with the width of the
paper.
If the paper guides are too loose or too tight, this may result in
misfeeds or paper jams.
Printouts may be askew depending on the printing environment.
Properly load paper to reduce the symptom.
When using paper that has been poorly cut
If you use paper that has been poorly cut, multiple sheets of paper
may be fed at once. In this case, fan the paper thoroughly, and then
align the edges of the stack properly on a hard, flat surface.
Do not exceed the load limit mark when loading paper.
Ensure that the paper stack does not exceed the line of the load
limit mark. If the paper stack exceeds the load limit mark lines, this
may result in misfeeds.
When printing on envelopes
Load envelopes with the front side (non-glued side) facing up. You
cannot print on the reverse side of envelopes.
Also, be sure to close the flap before loading envelopes.
NOTE
Detailed information about usable paper
“Paper Requirements” (P.2-6)
Size abbreviation on the paper guides of the paper
cassette
Paper size Paper guide
Legal LGL
Letter LTR
Executive EXEC
Paper Loading Capacity
(A)
(B)
Paper type
Paper source
(A)
Multi-purpose
tray
(B)
Paper cassette
Plain paper (Ex. 21 lb
Bond (80 g/m²)) 1 sheet Approx. 250 sheets
Heavy paper (Ex. 25
lb Bond (91 g/m²)) 1 sheet Approx. 170 sheets
Heavy paper (Ex. 34
lb Bond (128 g/m²)) 1 sheet Approx. 100 sheets
Transparency 1 sheet Approx. 50 sheets
Label 1 sheet Approx. 100 sheets
Envelope 1 envelope Approx. 20
envelopes
2-13
Document and Paper Handling
Paper Loading Orientation
NOTE
Paper loading orientation when loading in the multi-
purpose tray
Paper loading orientation for the multi-purpose tray is same as
which for the paper cassette.
When printing paper with a letterhead or logo
(previously printed paper)
Load the paper as shown below.
( : Feeding direction)
Portrait layout Landscape layout
1-sided
printing *1
(with the printed side
face up)
(with the printed side
face up)
1-sided
printing *2
(with the printed side
face down)
(with the printed side
face down)
Automatic
2-sided
printing *3
(with the front side
face down)
(with the front side
face down)
*1 When <Paper Feed Method Switch> is set to
<Print Speed Priority> (the default setting)
“Selecting Print Side (MF4570dn Only)” (P.2-16)
*2 When <Paper Feed Method Switch> is set to <Print Side Priority>
“Selecting Print Side (MF4570dn Only)” (P.2-16)
*3 MF4570dn only
Printing on Envelopes
Load envelopes with the front side (non-glued side) facing
up as follows.
( : Feeding direction)
Envelope, No.10, DL, ISO-C5
Load the envelopes so that the flap is toward the left of the
paper cassette when they are viewed from the front.
Close the flap and
load the envelope.
Envelope ISO-B5
Load the envelopes so that the flap is toward the back of
the paper cassette when they are viewed from the front.
Close the flap and
load the envelope.
2-14
Document and Paper Handling
Whenever you change the paper size and type loaded in the
cassette or tray, follow the procedure in this section to adjust
the paper size and type settings.
IMPORTANT
If the setting is different from the size of the loaded
paper
An error message appears, or printing is not performed correctly.
Keys to be used for this operation
Paper Settings
OK
1 Press [ ] (Paper Settings).
2 Press [ ] or [ ] to select <MP Tray> or
<Drawer 1>, and then press [OK].
Paper Settings
MP Tray
Drawer 1
1
3 Press [ ] or [ ] to select a paper size, and then
press [OK].
“Paper Requirements” (P.2-6)
* When registering the custom paper, see “Setting a Custom Paper
Size (P.2-14).
Paper Size
LTR
LGL
STMT
EXEC
4 Press [ ] or [ ] to select a paper type, and then
press [OK].
“Paper Requirements” (P.2-6)
Paper Type
Plain (16 lb Bond-24
Plain L (16 lb Bond
...
Recycled
Color
5 Press [ ] (Paper Settings) to close
<Paper Settings> screen.
Setting a Custom Paper Size
To use custom paper, you must specify a paper size and type.
Keys to be used for this operation
Paper Settings
OK
Numeric keys
1 Press [ ] (Paper Settings).
2 Press [ ] or [ ] to select <MP Tray> or
<Drawer 1>, and then press [OK].
Paper Settings
MP Tray
Drawer 1
1
3 Press [ ] or [ ] to select <Custom Size>, and
then press [OK].
Paper Size
A4
A5
B5
Custom Size
Setting a Paper Size and Type
2-15
Document and Paper Handling
4 Specifies the size of <X> direction and <Y>
direction.
(1) Press [ ] or [ ] to select the direction, and then press [OK].
Specify Size
<Apply>
X: 0"
Y: 0"
X
Y
(2) Press [ ] or [ ] to specify the size, and then press [OK].
You can also enter values using the numeric keys.
Set Length for X
3 "
(3-8_1/2)
(3) Press [ ] or [ ] to select <Apply>, and then press [OK].
Specify Size
<Apply>
X: 3"
Y: 8_1/4"
X
Y
5 Press [ ] or [ ] to select a paper type, and then
press [OK].
Paper Type
Plain (16 lb Bond-24
Plain L (16 lb Bond
...
Recycled
Color
6 Press [ ] (Paper Settings) to close <Paper
Settings> screen.
2-16
Document and Paper Handling
You can specify whether to match the sides to be printed for
2-sided printing and 1-sided printing.
Depending on the setting for this item, the side to be printed
changes. When using previously printed paper, read “Paper
Loading Orientation (P.2-13) thoroughly to load the paper in
the proper orientation.
When setting this item to <Print Speed
Priority> (the default setting)
Because the sides to be printed for 2-sided printing and
1-sided printing are different, the printing sides do not match.
* When using previously printed paper, you need to switch
the sides of loaded paper between 2-sided printing and
1-sided printing.
1 2 3 4
1 2 3 4
1-sided
printing
2-sided
printing
Front Back
Specify the setting in the following cases.
When not using previously printed paper
When performing only 1-sided printing on previously
printed paper
When setting this item to <Print Side
Priority>
The sides to be printed for 2-sided printing and 1-sided
printing match.
* Even when using previously printed paper, you do not
need to switch the sides of loaded paper between 2-sided
printing and 1-sided printing.
1 2 3 4
1 2 3 4
1-sided
printing
2-sided
printing
Front Back
Specify the setting in the following case.
When performing 2-sided printing and 1-sided printing on
previously printed paper
Keys to be used for this operation
Menu
OK
1 Press [ ] (Menu).
2 Press [ ] or [ ] to select <Preferences>, and
then press [OK].
Menu
Preferences
Timer Settings
Copy Settings
Fax TX Settings
3 Press [ ] or [ ] to select <Paper Feed Method
Switch>, and then press [OK].
Preferences
Sound Volume Control
Display Settings
Toner Saver Mode
Paper Feed Method Swi
4 Press [ ] or [ ] to select a paper source, and
then press [OK].
Paper Feed Method
Multi-Purpose Tray
Drawer 1
5 Press [ ] or [ ] to select <Print Speed Priority>
or <Print Side Priority>, and then press [OK].
Multi-Purpose Tray
Print Speed Priority
Print Side Priority
Selecting Print Side (MF4570dn Only)
2-17
Document and Paper Handling
<Print
Speed
Priority>
When specifying <Print Speed Priority>, load paper
as follows.
(: Feeding direction)
* For details on the procedure for loading paper
when printing pages of the landscape layout, see
“Paper Loading Orientation (P.2-13).
When performing
1-sided printing
When performing
2-sided printing
Load paper with the
printed side face up.
Load paper with the
front side (first page)
face down.
<Print Side
Priority>
When specifying <Print Side Priority>, load paper as
follows.
(: Feeding direction)
* For details on the procedure for loading paper
when printing pages of the landscape layout, see
“Paper Loading Orientation (P.2-13).
The procedure for loading paper is the same
for 2-sided printing and 1-sided printing.
• When performing 1-sided printing, load
paper with the printed side face down.
• When performing 2-sided printing, load
paper with the front side (first page) face
down.
6 Press [ ] (Menu) to close the menu
screen.
2-18
Document and Paper Handling
3-1
Chapter 3
Copying
This category describes the copying features.
Basic Copying Method 3-2
Checking and Canceling Copy Jobs 3-3
Canceling using the Stop Key 3-3
Checking and Canceling using the Status
Monitor/Cancel Key 3-3
Copy Settings 3-4
Adjusting the Density 3-4
Selecting Image Quality (Copy) 3-4
2-Sided Copying (MF4570dn Only) 3-5
Enlarging/Reducing Copies 3-6
Multiple Documents onto One Sheet (N on 1) 3-6
Collating Copies 3-7
Emphasize the Outline of an Image (Sharpness) 3-7
Copying an ID Card 3-8
Changing the Default Values 3-9
3-2
Copying
This section describes the basic procedure for copying.
1
Place documents.
“Placing Documents” (P.2-4)
“Document Requirements ” (P.2-2)
* A maximum of 35 pages can be loaded into the feeder.
2
Press [ ].
3
Specify the copy settings as needed.
You can specify up to 7 items.
(for details, see P.3-3 to P.3-6 .)
Density
Image quality
2-Sided (MF4570dn only)
Enlarged/reduced
Reduced layout
Collating
Sharpness
The settings that are specified here apply only to
copy operation which you are currently performing.
To apply the valid settings for all copy operations, see
“Changing the Default Values” (P.3-9).
4
Use numeric keys to enter the desired copy
quantity (1 to 99).
* Press [ ] (Clear) to delete a number.
5
Press [ ] (Start).
Basic Copying Method
3-3
Copying
Checking and Canceling Copy Jobs
You can check detailed information about copy jobs. Also, you
can cancel copy jobs while the jobs are in process.
NOTE
If the processing/Data indicator on the operation panel
is:
Turned on/blinking A job is being processed.
Turned off No jobs are in the memory.
Canceling using the Stop Key
1 Press [ ] (Stop).
* If only one job is processing or waiting, you can stop the job by
pressing [ ] (Stop) twice.
2 When multiple jobs are being processed, press
[ ] or [ ] to select a job to be canceled, and then
press [OK].
3 When <Cancel?> appears, press [ ] or [ ] to
select <Yes>, and then press [OK].
You can cancel the print job also by pressing [ ] (Stop).
The copy job is canceled.
Cancel?
<No>
<Yes>
Details
* To check the job before canceling, press [ ] or [ ] to select
<Details>, and then press [OK].
Checking and Canceling using the Status
Monitor/Cancel Key
1 Press [ ] (Status Monitor/Cancel).
2 Press [ ] or [ ] to select <Copy Job Status>, and
then press [OK].
Status Monitor/Cancel
Device Status
Copy Job Status
Fax Job Status/Hist
...
Print Job Status
The detailed information is displayed.
Copy Job Status
<Cancel>
Job Number: 0001
Status: Copying
Time: 01/01 12:52 AM
For canceling
(1) Press [ ] or [ ] to select <Cancel>, and then press
[OK].
Copy Job Status
<Cancel>
Job Number: 0001
Status: Copying
Time: 01/01 12:52 AM
(2) Press [ ] or [ ] to select <Yes>, and then press [OK].
The copy job is canceled.
Cancel?
NoYes
(3) Press [ ] (Status Monitor/Cancel) to close the
screen.
For checking only
Press [ ] (Status Monitor/Cancel) to close the screen.
3-4
Copying
Copy Settings
Adjusting the Density
Copy mode screen Setting screen
Copy: Press Start
100% LTR
Density: 0
Original Type: Text
...
2-Sided: Off
1
+
-
01
Density
Auto Density
Manual Density
- +
Press [ ] or [ ] to adjust the
density [OK]
* Select <Auto Density> to copy with the density that is suitable for the
document. If other than <Text> is set as <Original Type>, <Original Type> will
be changed to <Text> when you select <Auto Density>.
* You can adjust <Manual Density> by pressing [ ] or [ ], when either of
<Auto Density> or <Manual Density> is selected.
[ ]Makes the copy density lighter.
[ ]Makes the copy density darker.
Press [ ] or [ ] to select
<Density>
Selecting Image Quality (Copy)
Copy mode screen Setting screen
Copy: Press Start
100% LTR
Density: 0
Original Type: Text/
2-Sided: Off
1
+
-
01
Original Type
Text
Text/Photo (High Spee
Text/Photo
<Text> This setting is suitable for documents that contain text without photos or illustrations.
<Text/Photo (High Speed)>
This setting is suitable for documents that contain text and photos. This setting scans the document at a low
resolution.
This setting scans the document at a low resolution.
<Text/Photo> This setting is suitable for documents that contain text and photos.
<Photo> This setting is suitable for the documents that contain photos printed in a magazine.
Press [ ] or [ ] to select the appropriate settings
for the document [OK]
Press [ ] or [ ] to select <Original
Type>
* If <Density> is set to <Auto Density>, <Density> will be changed to <Manual Density> when you select <Text/Photo (High Speed)>,
<Text/Photo>, <Photo>.
3-5
Copying
Copy Settings
To next page
2-Sided Copying (MF4570dn Only)
Copy mode screen Setting screen
Copy: Press Start
100% LTR
Density: 0
Original Type: Text
...
2-Sided: Off
1
+
-
01
2-Sided
Off
1 2-Sided
Format Settings
Press [ ] or [ ] to select <12-Sided> [OK]
Press [ ] or [ ] to select
<2-Sided>
If you want to specify 2-Sided copying format
(1) Press [ ] or [ ] to select <Format Settings>
[OK]
2-Sided
Off
1 2-Sided
Format Settings
(2) Press [ ] or [ ] to select <1 2-Sided>
[OK]
Format Settings
1 2-Sided
(3) Press [ ] or [ ] to select the orientation of
the document [OK]
Original Orientation
Portrait
Landscape
(4) Press [ ] or [ ] to select the finishing
format [OK]
Finishing Format
Book Type
Calendar Type
If you place documents on the platen glass
(1) Place the next document, and the press [ ]
(Start).
* Repeat the procedure until all documents are scanned.
Scan Next: Press Start
<Start Copying>
<Cancel>
SheetxCopy:001x01
Density: 0
+
-
(2) Press [ ] or [ ] to select <Start Copying>,
and then press [OK].
3-6
Copying
Copy Settings
Enlarging/Reducing Copies
Copy mode screen Setting screen
Copy: Press Start
100% LTR
Original Type: Text
...
2-Sided: Off
Copy Ratio: 100% Dir
101
Copy Ratio
Custom Ratio
100% Direct
400% Max
200%
Press [ ] or [ ] to select the copy ratio [OK]
Load paper of the output size (P.2-9)
Register the output paper size (P.2-14)
For the preset zoom, you can select
from the following setting values.
• 100% Direct • 50%
• 400% Max • 25% Min
200%
• 129% STMT LTR
• 78% LGL LTR
• 64% LTR STMT
For custom ratio
(1) Press [ ] or [ ] to select <Custom Ratio>
[OK]
Copy Ratio
Custom Ratio
100% Direct
400% Max
200%
(2) Press [ ] or [ ] to specify the ratio [OK]
You can also enter the copy ratio using the numeric keys.
Custom Ratio
100 %
(25-400)
Press [ ] or [ ] to select <Copy
Ratio>
Multiple Documents onto One Sheet (N on 1)
Copy mode screen Setting screen
Copy: Press Start
100% LTR
2-Sided: Off
Copy Ratio: 100% Di
...
N on 1: Off
101
N on 1
Off
2 on 1
4 on 1
ID Card Copy
Scan Size
LTR
LGL
STMT
Press [ ] or [ ] to select
<2 on 1> or <4 on 1>
Press [ ] or [ ] to select the size of the
original document [OK]
Press [ ] or [ ] to select <N on 1>
About margins among
documents
When you copy in an N
on 1 layout, margins are
created among the reduced
documents.
When specifying the layout
(1) Press [ ] or [ ] select <Select Layout> [OK]
N on 1
2 on 1
4 on 1
ID Card Copy
Select Layout
(2) Press [ ] or [ ] select the layout [OK]
Select Layout
2 on 1 (1)
2 on 1 (2)
4 on 1 (1)
4 on 1 (2)
<2 on 1>
Reduce two-page documents to fit
on one sheet of paper.
<4 on 1>
Reduce four-page documents to fit
on one sheet of paper.
3-7
Copying
Copy Settings
Collating Copies
Copy mode screen Setting screen
Copy: Press Start
100% LTR
Copy Ratio: 100% Di
...
N on 1: Off
Collate: Off
101
Collate
Off
On
<Off>
Printouts of a complete job are grouped.
For example, if you are copying three copies of a three-page
document, printouts of a complete job are grouped and arranged
in this page order: “1, 1, 1”, “2, 2, 2”, “3, 3, 3”.
<On>
Printouts of a complete job are collated.
For example, if you are printing three copies of a three-page
document, printouts of a complete job are grouped and arranged
in this page order: “1, 2, 3”, “1, 2, 3”, “1, 2, 3”.
Press [ ] or [ ] to select <On> [OK]
Emphasize the Outline of an Image (Sharpness)
Copy mode screen Setting screen
Copy: Press Start
100% LTR
N on 1: Off
Collate: Off
Sharpness: 0
101
+
-
Sharpness
- +
[ ]
Reduces distorted pattern (moire).
It is appropriate for documents that
contain halftone such as printed
photos.
[ ]
Raise the sharpness and emphasize the
outline of text or lines.
It is appropriate for documents which
are blueprints or thinly penciled.
Press [ ] or [ ] to select
<Sharpness>
Press [ ] or [ ] to adjust the
sharpness [OK]
Press [ ] or [ ] to select <Collate>
3-8
Copying
You can make a copy of a 2-sided card onto one side of a
paper.
Keys to be used for this operation
Start
COPY
OK
1 Place a card on the platen glass, and then close
the feeder.
Place the card with a 1/4” (5 mm) space created from the left edge
of the platen glass.
Additionally, align the center of the card with the arrow mark.
If you want to arrange the cards horizontally
A4
B4
A5
A5
B4
A4
If you want to arrange the cards vertically
A4
B4
A5
A5
B4
A4
2 Press [ ].
3 Press [ ] or [ ] to select <N on 1>, and then
press [OK].
Copy: Press Start
100% LTR
2-Sided: Off
Copy Ratio: 100% Di
...
N on 1: Off
101
4 Press [ ] or [ ] to select <ID Card Copy>, and
then press [OK].
N on 1
Off
2 on 1
4 on 1
ID Card Copy
5 Press [ ] (Start).
After scanning the document completely, proceed to the next step.
6 Turn and place the card.
Place the card with a 1/4” (5 mm) space created from the left edge
of the platen glass.
Additionally, align the center of the card with the arrow mark.
If you want to arrange the cards horizontally
A4
B4
A5
A5
B4
A4
If you want to arrange the cards vertically
A4
B4
A5
A5
B4
A4
7 Press [ ] (Start).
NOTE
Placing a document (card)
Place a card on the left half of the platen glass.
Copy ratio
The copy ratio will automatically be set to <100%>.
Usable paper size
A size larger than A4 or Letter
Unavailable functions in combination
You cannot use an ID card copy together with the following
functions.
2 on 1/4 on 1
Collating
2-Sided
Copy ratio
Copying an ID Card
3-9
Copying
The default values of the copy are the function which is
applied when [ ] (Reset) is pressed or the power is turned
ON. You can change the default values to suit your needs.
You can register the following types of settings as the default
values.
Quantity
Density
Original type
2-Sided
Copy ratio
N on 1
Collating
Sharpness
Keys to be used for this operation
Menu
OK
1 Press [ ] (Menu).
2 Press [ ] or [ ] to select <Copy Settings>, and
then press [OK].
Menu
Preferences
Timer Settings
Copy Settings
Fax TX Settings
3 Press [ ] or [ ] to select <Change Defaults>, and
then press [OK].
Copy Settings
Change Defaults
Correct Density
4 Press [ ] or [ ] to select a setting item, and then
press [OK].
Change Defaults
<Apply>
No. of Copies: 01
Density: 0
Original Type: Text...
+
-
For details on the settings, see the following items.
Adjusting the Density (P.3-4)
“Selecting Image Quality (Copy)” (P.3-4)
“2-Sided Copying (MF4570dn Only)” (P.3-5)
“Enlarging/Reducing Copies (P.3-6)
“Multiple Documents onto One Sheet (N on 1)” (P.3-6)
“Collating Copies (P.3-7)
“Emphasize the Outline of an Image (Sharpness)” (P.3-7)
5 After you are finished press [ ] or [ ] to select
<Apply>, and then press [OK].
Change Defaults
<Apply>
No. of Copies: 01
Density: 0
Original Type: Text...
+
-
6 Press [ ] (Menu) to close the menu
screen.
Changing the Default Values
3-10
Copying
4-1
Chapter 4
Printing from a Computer
This category describes how to print from computers.
* If you are a Macintosh user, see the following.
To install the Print Driver
Starter Guide or Print Driver Guide
To view how to use each function
Print Driver’s Help
To view how to display the Print Driver Guide or Print Driver’s Help, see “For Macintosh Users (P.11-4).
Installing the Printer Driver 4-2
Printing from a Computer 4-3
Scaling Documents 4-3
Printing Multiple Pages on One Sheet 4-3
2-sided Printing (MF4570dn Only) 4-4
Checking and Canceling Print Jobs 4-5
4-2
Printing from a Computer
The following procedures are required as the preparations for printing.
Step 1 Select USB or network connection.
Starter Guide 4 Connecting to a Computer and
Installing the Drivers
Step 2 Install the printer driver.
NOTE
When changing the port number of the machine
Change the port number of the machine.
e-Manual Security Restricting Network Connection Setting the Print Port Number
Change the computer settings.
e-Manual Network Settings Setting Up a Computer for Printing/Sending a Fax Specifying Computer Settings
About the printer driver
The printer driver is software required for printing from an application. The printer driver will convert application softwares print data to print data
for the printer.
The printer driver for this machine has the following features.
The printer driver for this machine enables you to output print data at an optimum speed by dividing the workload using a computer and the
printer.
As well as providing faster and more stable printing than conventional models, the printer driver for this machine uses less memory to operate.
In addition to the conversion of print data, the printer driver for this machine is equipped with the functions capable of spooling print data and
configuring the print condition, and various types of print finishing can be set such as scaling or gutter adjustment.
Installing the Printer Driver
4-3
Printing from a Computer
Scaling Documents
You can enlarge or reduce documents to match the output
paper size.
There are two methods for scaling a document: select the
output size of the document to scale it automatically, or
specify the scaling value manually.
1 Click [Page Setup].
For instructions on how to display the printer driver screen, see
“Printing or “Configuring the Default Print Settings” in the e-Manual.
2 Select paper size of the document you created in
the application from [Page Size].
3 Select output size of the document from [Output
Size].
The document is scaled automatically according to the settings
made in [Page Size] and [Output Size].
4 If you want to increase or decrease the
magnification manually, select [Manual Scaling]
specify the scaling ratio for [Scaling].
5 Click [OK].
NOTE
Depending on the printer model you are using, you may not
be able to magnify the document to the optimum ratio for the
selected page size.
The display may differ according to the operating system, as well
as the type and version of the printer driver.
Printing Multiple Pages on One Sheet
You can reduce and print multiple pages on a single sheet of
paper. You can place 2, 4, 6, 8, 9, and 16 pages of documents
on a single sheet of paper. Using this feature, you can make
materials that are easy to view. Also, this feature helps you to
save paper, and save space when storing.
1 Click [Page Setup].
For instructions on how to display the printer driver screen, see
“Printing or “Configuring the Default Print Settings” in the e-Manual.
Printing from a Computer
4-4
Printing from a Computer
2 Select the page layout from [Page Layout].
3 Select the page order from [Page Order].
The output image is displayed in the preview area.
4 Click [OK].
NOTE
You cannot enlarge and reduce manually when using this
function.
Although there may be a function for printing multiple copies
depending on the application you are using, do not use it
together with this function. If you do, printing may not be
executed correctly.
The display may differ according to the operating system, as well
as the type and version of the printer driver.
2-sided Printing (MF4570dn Only)
Two-sided printing prints a document on both sides of the
paper. You can reduce paper consumption by half.
1 Click [Finishing].
For instructions on how to display the printer driver screen, see
“Printing or “Configuring the Default Print Settings” in the e-Manual.
2 Select [2-sided Printing] from [Print Style].
3 Select the binding edge from [Binding Location].
The output image is displayed in the preview area.
4 Click [OK].
NOTE
The page sizes for which two-sided printing is available differ
according to printer model. For details, view the online help.
The display may differ according to the operating system, as well
as the type and version of the printer driver.
4-5
Printing from a Computer
Checking and Canceling Print Jobs
You can check detailed information about print jobs in the
middle of currently printing or waiting.
NOTE
Document name and user name displayed in the
operation panel
Some file name may be displayed incorrectly depending on the
type of the file to be printed.
If the Processing/Data Indicator on the operation panel
is:
Turned on/blinking A job is being processed.
Turned off No jobs are in the memory.
Keys to be used for this operation
OK
Status Monitor/Cancel
1 Press [ ] (Status Monitor/Cancel).
2 Press [ ] or [ ] to select <Print Job Status> and
then press [OK].
Status Monitor/Cancel
Device Status
Copy Job Status
Fax Job Status/Hist
...
Print Job Status
3 Press [ ] or [ ] to select a job to be checked or
canceled, and then press [OK].
Print Job Status
09:42AM Printing
09:43AM Waiting
The detailed information is displayed.
Details
<Cancel>
Job Number: 0020
Status: Printing
Time: 01/01 09:42 AM
For canceling
(1) Press [ ] or [ ] to select <Cancel>, and then press [OK].
Details
<Cancel>
Job Number: 0020
Status: Printing
Time: 01/01 09:42 AM
(2) Press [ ] to select <Yes>, and then press [OK].
The print job is canceled.
Cancel?
NoYes
(3) Press [ ] (Status Monitor/Cancel) to close the
screen.
NOTE
Pressing [ ] (Stop) can also delete the print jobs
You can delete the print jobs also by pressing [ ] (Stop).
* If only one print job is processing or waiting, you can stop the
job by pressing [ ] (Stop) twice.
For checking only
Press [ ] (Status Monitor/Cancel) to close the screen.
4-6
Printing from a Computer
5-1
Chapter 5
Registering Destinations in the Address Book
This section describes the procedures for registering destinations in the address book and
changing or deleting the registered settings.
Address Book 5-2
One-touch Keys 5-2
Coded Dialing 5-2
Group Dialing 5-2
Registering and Editing One-Touch Keys 5-3
Registering and Editing via the Operation Panel 5-3
Registering and Editing One-Touch Keys via the Remote UI
(MF4570dn Only) 5-5
Registering and Editing Coded Dial Codes 5-6
Registering and Editing via the Operation Panel 5-6
Registering and Editing a coded Dial Code via the Remote UI
(MF4570dn Only) 5-8
Registering and Editing Recipients for
Group Dialing 5-9
Registering and Editing a Destination Group via the
Operation Panel 5-9
Registering and Editing a Destination Group via the Remote UI
(MF4570dn Only) 5-12
5-2
Registering Destinations in the Address Book
When faxing documents, you can specify a destination by
manually entering characters with the numeric keys or by
selecting a pre-registered destination from the address book.
You can register frequently used destinations under one-touch
keys and coded dial codes.
You can also save one-touch keys and coded dial codes as a
group.
You can register destinations using the operation panel.
* If you are using MF4570dn, you can also use the Remote UI to
register destinations.
One-touch Keys
You can register up to 4 destinations to one-touch keys. Once
registered, pressing the appropriate one-touch key will recall
the destination number.
“Registering and Editing One-Touch Keys” (P.5-3)
Coded Dialing
You can register up to 100 destinations to coded dial codes.
Once registered, entering the coded dial code will recall the
destination number.
“Registering and Editing Coded Dial Codes” (P.5-6)
Group Dialing
You can group the registered recipients (up to 50 recipients)
under one-touch keys and coded dial codes. Group addresses
are to be registered for an unused one-touch key or coded dial
code. Simply specifying the one-touch key or coded dial code
allow you to specify multiple addresses registered as a group.
“Registering and Editing Recipients for Group Dialing”
(P.5-9)
NOTE
Saving/Reading the address book
The address book can be saved as a file in your computer using the
Remote UI, and the saved file can be read in the machine.
e-Manual Setting and Managing from Computer
Managing the Address Book
However, you cannot edit the address book saved as a file.
Viewing destinations registered in the address book
You can view destinations by printing destination lists.
e-Manual Basic Operation Printing a List Printing an
Address Book List
Address Book
5-3
Registering Destinations in the Address Book
This section describes the following procedure.
Storing one-touch keys
Editing one-touch keys
Deleting one-touch keys
Registering and Editing via the
Operation Panel
Keys to be used for this operation
OK
FAX
Address Book
Back
Tone, Numeric keys
1 Press [ ].
2 Press [ ] (Address Book).
When storing a one-touch key newly
(1) If there are destinations registered, press [ ].
If you are registering a destination for the first time,
proceed to step (2).
(2) Press [ ] or [ ] to select <Register New Destination to
Address Book>, and then press [OK].
Register New Destina
Edit Address Book
Address Book Details
All A-Z
When the address book PIN is specified
Use the numeric keys to enter the PIN, and then press
[OK].
Address Book PIN
(Apply: Press OK)
*******
(3) Press [ ] or [ ] to select <One-Touch>, and then press
[OK].
Register Location
Coded Dial
One-Touch
(4) Press [ ] or [ ] to select <Fax>, and then press [OK].
Destination Type
Fax
Group
(5) Press [ ] or [ ] to select the number to be registered,
and then press [OK].
Enter Registration No.
01 Not Registered
02 Not Registered
03 Not Registered
04 Not Registered
(6) Press [ ] or [ ] to select <Name>, and then press [OK].
Fax
<Apply>
Name:
Destination:
One-Touch: 01
(7) Use the numeric keys to specify <Name>.
Text Input Method” (P.1-9)
Name (Max 16 char.)
CANON
<Apply>
Entry Mode: A
(8) Press [ ] or [ ] to select <Apply>, and then press [OK].
Name (Max 16 char.)
CANON
<Apply>
Entry Mode: A
(9) Press [ ] or [ ] to select <Destination>, and then press
[OK].
Fax
<Apply>
Name: CANON
Destination:
One-Touch: 01
(10) Use the numeric keys to specify <Destination>.
Press [OK] to specify <Settings> as needed.
Destination (Max 40)
0123456789
<Apply>
Settings
Registering and Editing One-Touch Keys
5-4
Registering Destinations in the Address Book
(11) Press [ ] or [ ] to select <Apply>, and then press [OK].
Destination (Max 40)
0123456789
<Apply>
Settings
(12) Press [ ] or [ ] to select <Apply>, and then press [OK].
Fax
<Apply>
Name: CANON
Destination: 0123456
...
One-Touch: 01
Editing a one-touch key
(1) Press [ ].
CANON 0123456789
All A-Z
(2) Press [ ] or [ ] to select <Edit Address Book>, and then
press [OK].
Register New Destin
...
Edit Address Book
Address Book Details
All A-Z
When the address book PIN is specified
Use the numeric keys to enter the PIN, and then press
[OK].
Address Book PIN
(Apply: Press OK)
*******
(3) Press [ ] or [ ] to select a destination that you want to
edit, and then press [OK].
CANON 0123456789
All A-Z 0-9
(4) Press [ ] or [ ] to select an item that you want to edit,
and then press [OK].
- Name
- Destination
- One-Touch
Fax
<Apply>
Name: CANON02
Destination: 9876543
...
One-Touch: 02
(5) When you finish editing, press [ ] or [ ] to select
<Apply>, and then press [OK].
(6) Press [ ] or [ ] to select <Apply>, and then press [OK].
Fax
<Apply>
Name: CANON02
Destination: 9876543
...
One-Touch: 02
Deleting a one-touch key
(1) Press [ ].
CANON 0123456789
All A-Z
(2) Press [ ] or [ ] to select <Delete From Address Book>,
and then press [OK].
Edit Address Book
Address Book Details
Delete From Address
All A-Z
When the address book PIN is specified
Use the numeric keys to enter the PIN, and then press
[OK].
Address Book PIN
(Apply: Press OK)
*******
(3) Press [ ] or [ ] to select a destination that you want to
delete, and then press [OK].
CANON 0123456789
All A-Z 0-9
(4) Press [ ] to select <Yes>, and then press [OK].
Delete from
address book?
NoYes
3 Press [ ] (Back) to close the menu screen.
5-5
Registering Destinations in the Address Book
Registering and Editing One-Touch Keys
via the Remote UI (MF4570dn Only)
1 Start the web browser.
2 Enter “http://<the IP address of the machine>/” in
the address field, and then press the [ENTER] key
on your keyboard.
Input Example: “http://192.168.0.215/”
3 Log on to the Remote UI.
(1) Select [System Manager Mode].
(2) Enter [System Manager PIN].
(3) Click [OK].
(1)
(1) (2)
(3)
4 Click [Address] [One-Touch].
(1)
(2)
Storing a one-touch key newly
Proceed to Step 5.
Editing a one-touch key
(1) Click the number or name.
(2) Click [Edit].
(3) Specify the required settings in the edit screen for
destinations, and then click [OK].
Deleting a one-touch key
(1) Select the check box for which you want to delete the
number, and then click [Delete].
5 Click [Not Registered] or the number which is not
registered.
6 Select [Fax] from the drop-down list.
7 Specify the required settings, and then click [OK].
(1)
(2)
5-6
Registering Destinations in the Address Book
This section describes the following procedure.
Storing coded dial codes
Editing coded dial codes
Deleting coded dial codes
Registering and Editing via the
Operation Panel
Keys to be used for this operation
OK
FAX
Address Book
Back
Tone, Numeric keys
1 Press [ ].
2 Press [ ] (Address Book).
Storing a coded dial code newly
(1) If there are destinations registered, press [ ].
If you are registering a destination for the first time,
proceed to step (2).
(2) Press [ ] or [ ] to select <Register New Destination to
Address Book>, and then press [OK].
Register New Destina
Edit Address Book
Address Book Details
All A-Z
When the address book PIN is specified
Use the numeric keys to enter the PIN, and then press
[OK].
Address Book PIN
(Apply: Press OK)
*******
(3) Press [ ] or [ ] to select <Coded Dial>, and then press
[OK].
Register Location
Coded Dial
One-Touch
(4) Press [ ] or [ ] to select <Fax>, and then press [OK].
Destination Type
Fax
Group
(5) Press [ ] or [ ] to select <Name>, and then press [OK].
Fax
<Apply>
Name:
Destination:
Coded Dial: 001
(6) Use the numeric keys to specify <Name>.
Text Input Method” (P.1-9)
Name (Max 16 char.)
CANON
<Apply>
Entry Mode: A
(7) Press [ ] or [ ] to select <Apply>, and then press [OK].
Name (Max 16 char.)
CANON
<Apply>
Entry Mode: A
(8) Press [ ] or [ ] to select <Destination>, and then press
[OK].
Fax
<Apply>
Name: CANON
Destination:
Coded Dial: 001
(9) Use the numeric keys to specify <Destination>.
Press [OK] to specify <Settings> as needed.
Destination (Max 40)
0123456789
<Apply>
Settings
(10) Press [ ] or [ ] to select <Apply>, and then press [OK].
Destination (Max 40)
0123456789
<Apply>
Settings
Registering and Editing Coded Dial Codes
5-7
Registering Destinations in the Address Book
(11) Press [ ] or [ ] to select <Coded Dial>, and then press
[OK].
Fax
<Apply>
Name: CANON
Destination: 0123456
...
Coded Dial: 001
(12) Press [ ] or [ ] to select the number to be registered,
and then press [OK].
Enter Registration No.
001 Not Registered
002 Not Registered
003 Not Registered
004 Not Registered
(13) Press [ ] or [ ] to select <Apply>, and then press [OK].
Fax
<Apply>
Name: CANON
Destination: 0123456
...
Coded Dial: 001
Editing a coded dial code
(1) Press [ ].
CANON 0123456789
All A-Z
(2) Press [ ] or [ ] to select <Edit Address Book>, and then
press [OK].
Register New Destin
...
Edit Address Book
Address Book Details
All A-Z
When the address book PIN is specified
Use the numeric keys to enter the PIN, and then press
[OK].
Address Book PIN
(Apply: Press OK)
*******
(3) Press [ ] or [ ] to select a destination that you want to
edit, and then press [OK].
CANON 0123456789
All A-Z 0-9
(4) Press [ ] or [ ] to select an item that you want to edit,
and then press [OK].
Name
Destination
Coded Dial
Fax
<Apply>
Name: CANON02
Destination: 9876543
...
Coded Dial: 002
(5) When you finish editing, press [ ] or [ ] to select
<Apply>, and then press [OK].
(6) Press [ ] or [ ] to select <Apply>, and then press [OK].
Fax
<Apply>
Name: CANON02
Destination: 9876543
...
Coded Dial: 002
Deleting a coded dial code
(1) Press [ ].
CANON 0123456789
All A-Z
(2) Press [ ] or [ ] to select <Delete From Address Book>,
and then press [OK].
Edit Address Book
Address Book Details
Delete From Address
All A-Z
When the address book PIN is specified
Use the numeric keys to enter the PIN, and then press
[OK].
Address Book PIN
(Apply: Press OK)
*******
(3) Press [ ] or [ ] to select a destination that you want to
delete, and then press [OK].
CANON 0123456789
All A-Z 0-9
(4) Press [ ] to select <Yes>, and then press [OK].
Delete from
address book?
NoYes
3 Press [ ] (Back) to close the menu screen.
5-8
Registering Destinations in the Address Book
Registering and Editing a coded Dial Code
via the Remote UI (MF4570dn Only)
1 Start the web browser.
2 Enter “http://<the IP address of the machine>/” in
the address field, and then press the [ENTER] key
on your keyboard.
Input Example: “http://192.168.0.215/”
3 Log on to the Remote UI.
(1) Select [System Manager Mode].
(2) Enter [System Manager PIN].
(3) Click [OK].
(1)
(1) (2)
(3)
4 Click [Address] [Coded Dial].
(1)
(2)
Storing a coded dial code newly
Proceed to Step 5.
Editing a coded dial code
(1) Click the number or name.
(2) Click [Edit].
(3) Specify the required settings in the edit screen for
destinations, and then click [OK].
Deleting a coded dial code
(1) Select the check box for which you want to delete the
number, and then click [Delete].
5 Click [Not Registered] or the number which is not
registered.
6 Select [Fax] from the drop-down list.
7 Specify the required settings, and then click [OK].
(1)
(2)
5-9
Registering Destinations in the Address Book
You can perform the following procedures.
Registering group addresses
Adding a recipient to group addresses
Deleting a recipient from group addresses
Changing a group name
Deleting group addresses
IMPORTANT
Before registering group addresses
Register group addresses for an unused one-touch key or coded
dial codes. Keep a one-touch key or coded dial available for
group dialing.
Recipients must be registered to one-touch keys or coded dial
codes before they can be added to a group.
Registering and Editing a Destination
Group via the Operation Panel
Keys to be used for this operation
OK
FAX
Address Book
Back
Tone, Numeric keys
1 Press [ ].
2 Press [ ] (Address Book).
CANON01 012345678
CANON02 98765432
...
CANON03 00112233
...
All A-Z
Registering group addresses newly
(1) Press [ ].
(2) Press [ ] or [ ] to select <Register New Destination to
Address Book>, and then press [OK].
Register New to Addr
Edit Address Book
Address Book Details
All A-Z
When the address book PIN is specified
Use the numeric keys to enter the PIN, and then press
[OK].
Address Book PIN
(Apply: Press OK)
*******
(3) Press [ ] or [ ] to select <One-Touch> or <Coded Dial>,
and then press [OK].
Register Location
Coded Dial
One-Touch
(4) Press [ ] or [ ] to select <Group>, and then press [OK].
Destination Type
Fax
Group
(5) If you selected <One-Touch> in Step (3), press [ ] or
[ ] to select the number to be registered, and then press
[OK].
Enter Registration No.
01 CANON01 012345
...
02 CANON02 987654
...
03 Not Registered
04 Not Registered
(6) Press [ ] or [ ] to select <Name>, and then press [OK].
Group
<Apply>
Name:
Destinations: 000
One-Touch: 03
(7) Use the numeric keys to specify <Name>.
Text Input Method” (P.1-9)
Name (Max 16 char.)
GROUP
<Apply>
Entry Mode: A
(8) Press [ ] or [ ] to select <Apply>, and then press [OK].
Name (Max 16 char.)
GROUP
<Apply>
Entry Mode: A
Registering and Editing Recipients for Group Dialing
5-10
Registering Destinations in the Address Book
(9) Press [ ] or [ ] to select <Destinations>, and then press
[OK].
Group
<Apply>
Name: GROUP
Destinations::000
One-Touch: 03
(10) Press [ ] or [ ] to select <Add>, and then press [OK].
Destination
<Apply>
<Add>
(11) Press [ ] or [ ] to select a destination that you want to
add, and then press [OK].
CANON01 012345678
CANON02 98765432
...
CANON03 00112233
...
All A-Z 0-9
(12) Repeat Step (10) and (11) to select the destinations to be
added.
(13) Press [ ] or [ ] to select <Apply>, and then press [OK].
Destination
<Apply>
<Add>
CANON01 0123456789
CANON02 9876543210
(14) Press [ ] or [ ] to select <Apply>, and then press [OK].
Group
<Apply>
Name: GROUP
Destinations: 002
One-Touch: 03
Adding destinations to a group
(1) Press [ ].
(2) Press [ ] or [ ] to select <Edit Address Book>, and then
press [OK].
Register New Destin
...
Edit Address Book
Address Book Details
All A-Z
When the address book PIN is specified
Use the numeric keys to enter the PIN, and then press
[OK].
Address Book PIN
(Apply: Press OK)
*******
(3) Press [ ] or [ ] to select a group to which destinations
are added, and then press [OK].
CANON02 9876543
...
CANON03 0011223
...
GROUP 02 Destina
All A-Z 0-9
(4) Press [ ] or [ ] to select <Destinations>, and then press
[OK].
Group
<Apply>
Name: GROUP
Destinations: 002
One-Touch: 03
(5) Press [ ] or [ ] to select <Add>, and then press [OK].
Destination
<Apply>
<Add>
CANON01 0123456789
CANON02 9876543210
(6) Press [ ] or [ ] to select a destination to be added, and
then press [OK].
CANON01 01234567
...
CANON02 98765432
...
CANON03 001122334
All A-Z 0-9
(7) Press [ ] or [ ] to select <Apply>, and then press [OK].
Destination
<Apply>
<Add>
CANON01 01234567
...
CANON02 98765432
...
(8) Press [ ] or [ ] to select <Apply>, and then press [OK].
Group
<Apply>
Name: GROUP
Destinations: 003
One-Touch: 03
5-11
Registering Destinations in the Address Book
Deleting destinations from a group
(1) Press [ ].
(2) Press [ ] or [ ] to select <Edit Address Book>, and then
press [OK].
Register New Destin
...
Edit Address Book
Address Book Details
All A-Z
When the address book PIN is specified
Use the numeric keys to enter the PIN, and then press
[OK].
Address Book PIN
(Apply: Press OK)
*******
(3) Press [ ] or [ ] to select a group in which destinations
are deleted, and then press [OK].
CANON02 9876543
...
CANON03 0011223
...
GROUP 03 Destina
All A-Z 0-9
(4) Press [ ] or [ ] to select <Destinations>, and then press
[OK].
Group
<Apply>
Name: GROUP
Destinations: 003
One-Touch: 03
(5) Press [ ] or [ ] to select a destination to be deleted,
and then press [OK].
Destination
<Add>
CANON01 01234567
...
CANON02 98765432
...
CANON03 001122334
(6) Press [ ] or [ ] to select <Delete From Group>, and
then press [OK].
Fax
<Delete From Group>
Name: CANON03
Destination: 0011223
...
Coded Dial: 003
(7) Press [ ] to select <Yes>, and then press [OK].
Delete from group?
NoYes
(8) Press [ ] or [ ] to select <Apply>, and then press [OK].
Destination
<Apply>
<Add>
CANON01 0123456789
CANON02 9876543210
(9) Press [ ] or [ ] to select <Apply>, and then press [OK].
Group
<Apply>
Name: GROUP
Destinations: 002
One-Touch: 03
Changing the name of a group
(1) Press [ ].
(2) Press [ ] or [ ] to select <Edit Address Book>, and then
press [OK].
Register New Destin
...
Edit Address Book
Address Book Details
All A-Z
When the address book PIN is specified
Use the numeric keys to enter the PIN, and then press
[OK].
Address Book PIN
(Apply: Press OK)
*******
(3) Press [ ] or [ ] to select a group for which the group
name is changed, and then press [OK].
CANON02 9876543
...
CANON03 0011223
...
GROUP 02 Destina
All A-Z 0-9
(4) Press [ ] or [ ] to select <Name>, and then press [OK].
Group
<Apply>
Name: GROUP
Destinations: 002
One-Touch: 03
(5) Change <Name>.
Text Input Method” (P.1-9)
Name (Max 16 char.)
GROUP A
<Apply>
Entry Mode: A
5-12
Registering Destinations in the Address Book
(6) Press [ ] or [ ] to select <Apply>, and then press [OK].
Name (Max 16 char.)
GROUP A
<Apply>
Entry Mode: A
(7) Press [ ] or [ ] to select <Apply>, and then press [OK].
Group
<Apply>
Name: GROUP A
Destinations: 002
One-Touch: 03
Deleting a group
(1) Press [ ].
(2) Press [ ] or [ ] to select <Delete From Address Book>,
and then press [OK].
Edit Address Book
Address Book Details
Delete From Address
All A-Z
When the address book PIN is specified
Use the numeric keys to enter the PIN, and then press
[OK].
Address Book PIN
(Apply: Press OK)
*******
(3) Press [ ] or [ ] to select a group that you want to
delete, and then press [OK].
CANON02 9876543
...
CANON03 0011223
...
GROUP 03 Destina
All A-Z 0-9
(4) Press [ ] to select <Yes>, and then press [OK].
Delete from
address book?
NoYes
3 Press [ ] (Back) to close the menu screen.
Registering and Editing a Destination
Group via the Remote UI (MF4570dn Only)
1 Start the web browser.
2 Enter “http://<the IP address of the machine>/” in
the address field, and then press the [ENTER] key
on your keyboard.
Input Example: “http://192.168.0.215/”
3 Log on to the Remote UI.
(1) Select [System Manager Mode].
(2) Enter [System Manager PIN].
(3) Click [OK].
(1)
(1) (2)
(3)
4 Click [Address] [One-Touch] or [Coded Dial].
(1)
(2)
Registering group addresses newly
Proceed to Step 5.
5-13
Registering Destinations in the Address Book
Adding destinations to a group
(1) Click the number or name.
(2) Click [Edit].
(3) Click [Address Book].
(4) Click [One-Touch] or [Coded Dial] from the drop-down
list, select the check box for the number to be added in a
group, and then click [OK].
Deleting a destination from a group
(1) Click the number or name.
(2) Click [Edit].
(3) Select the destination from [Members List] to be deleted,
and then click [Delete].
(4) Click [OK].
Changing the name of a group
(1) Click the number or name.
(2) Click [Edit].
(3) Change a name of [Group Name], and then click [OK].
Deleting a destination from a group
(1) Select the check box for which you want to delete the
number, and then click [Delete].
5 Click [Not Registered] or the number which is not
registered.
6 Select [Group] from the drop-down list.
7 Enter a name in [Group Name], and then click
[Address Book].
(1)
(2)
8 Click [One-Touch] or [Coded Dial] from the drop-
down list, select the check box for the number to
be registered in a group, and then click [OK].
(1)
(3)
(2)
9 Check if the registered destinations are displayed
in [Members List], and then click [OK].
(1)
(2)
5-14
Registering Destinations in the Address Book
6-1
Chapter 6
Using the Fax Functions
This section describes the procedure for using the fax functions.
Basic Method for Sending Faxes 6-2
Fax Settings 6-3
Image Quality Settings 6-3
Density Settings 6-3
Sharpness Settings 6-3
Specifying Destinations 6-4
Specifying Destinations by Entering a Fax Number 6-4
Specifying Destinations with the One-Touch Keys 6-4
Specifying Destinations Using Coded Dialing 6-4
Specifying Destinations Using Group Dialing 6-5
Specifying Destinations Using the Address Book 6-5
Redialing (Manual Redialing) 6-6
Useful Fax Sending Methods 6-7
Sending a Fax after Making a Phone Call (Manual Sending) 6-7
Push-button Telephone Service Using a Dial-line 6-7
Sending a Fax Abroad (Adding Pauses) 6-8
Sending to Multiple Destinations at a Time
(Sequential Broadcast) 6-9
Receiving Faxes 6-10
Receive Mode 6-10
Changing the Receive Mode 6-12
Detailed Settings for the Fax/Tel Auto Switch Mode 6-13
Forwarding Received Fax Documents in Memory to
Other Destinations (Manual Forwarding) 6-14
Checking and Managing Fax Documents in
Memory 6-15
Checking and Canceling Fax Jobs 6-15
Printing Received Fax Documents 6-15
Checking and Deleting Received Fax Documents 6-16
Checking the History of Received/Sent Fax Documents 6-17
Changing the Default Values for Fax 6-18
Changing the Fax Settings (Items Specified
Using the [Menu] Button) 6-19
Setting Procedure for Sending Faxes 6-19
Setting Items 6-19
Register Unit Name 6-20
Register Unit Telephone Number 6-20
Select Line Type 6-20
Public Line Connection 6-20
Off-Hook Alarm 6-20
Sender ID 6-20
Change Defaults 6-20
ECM TX 6-20
Pause Time 6-21
Auto Redial 6-21
Check Dial Tone Before Sending 6-21
Setting Procedure for Receiving Faxes 6-21
Setting Items for the Receive Settings 6-22
2-Sided Printing (MF4570dn Only) 6-22
Reduce RX Size 6-22
RX Page Footer 6-22
Continue Print. When Toner Is Nearly Out 6-22
ECM RX 6-22
Incoming Ring 6-23
Remote RX 6-23
Auto RX Switch 6-23
System Settings Procedure 6-23
Setting Items 6-24
TX Start Speed 6-24
RX Start Speed 6-24
Memory Lock Settings 6-24
Select Country/Region 6-24
Address Book PIN 6-25
Restrict New Destinations 6-25
Allow Driver Faxing 6-25
Restrict Sending From History 6-25
Fax No. Confirmation Re-Entry 6-25
Restrict Sequential Broadcast 6-25
Canceling Fax Jobs 6-26
6-2
Using the Fax Functions
Basic Method for Sending Faxes
This section describes the basic procedure for sending faxes.
1
Place documents.
“Placing Documents” (P.2-4)
“Document Requirements ” (P.2-2)
2
Press [ ].
4
Specify the destination.
These are the following methods to specify a destination.
(For details, see P.6-4 to 6-5.)
Entering the fax number
One-touch keys
Coded dialing
Group dialing
Address book
- Sequential broadcast
(P.6-9)
5
Press [ ] (Start).
When placing documents in the feeder
Document scanning is started. The fax is sent when the scanning is
finished.
When placing documents on the platen glass
Perform the following procedure.
(1) Press [ ] or [ ] to select the size of the original document,
and then press [OK].
(2) Press [ ] (Start) for each document.
(3) When all documents are scanned completely, select <Start
Sending>, and then press [OK].
3
Set scanning settings for documents as needed.
There are the three items you can specify.
(For details, see P.6-3.)
Image Quality Settings
Density Settings
Sharpness Settings
The settings specified here are effective only for the
current sending operation. To make the settings
effective for all the fax operations, see “Changing the
Default Values for Fax (P.6-18).
6-3
Using the Fax Functions
Fax Settings
Image Quality Settings
Fax mode screen Setting screen
Resolution
200 x 100 dpi (Normal
200 x 200 dpi (Fine)
200 x 200 dpi (Photo)
200 x 400 dpi (Super
...
Specify destination.
01/01/2011 12:52AM
RX Mode: Auto
Resolution: 200 x 10
Density Settings
Fax mode screen Setting screen
Specify destination.
01/01/2011 12:52AM
Resolution: 200 x 1
...
Density: 0
Density
- +
+
-
Sharpness Settings
Fax mode screen Setting screen
Specify destination.
01/01/2011 12:52AM
Density: 0
Sharpness: 0
Sharpness
- +
+
-+
-
Specify the scanning resolution.
Higher resolutions will result in better image
quality, but also longer transmission times.
Specify the scanning density.
You can emphasize the outline of the image in
the document or decrease the contrast.
Press [ ] or [ ] to select
<Sharpness>.
<200 dpi x 100 dpi (Normal)> For text documents
<200 dpi x 200 dpi (Fine)> For fine text documents
<200 dpi x 400 dpi (Superfine)> For fine text documents
<200 dpi x 200 dpi (Photo)> For documents that contain photographs
[ ] Makes the scanning density lighter.
[ ] Makes the scanning density darker.
[ ] If you want to clearly scan halftone images adjust the sharpness to
<->. This can reduce the moire effect (patchy patterns called “moire”).
[ ]
If you want to clearly scan text or lines, adjust the sharpness to <+>.
This is appropriate for scanning documents with fine markings, such
as blueprint or thinly penciled documents.
Press [ ] or [ ] to select
<Resolution>.
Press [ ] or [ ] to select
<Density>.
6-4
Using the Fax Functions
Specifying Destinations
Specifying Destinations
Specifying Destinations by Entering a Fax Number
Specifying Destinations with the One-Touch Keys
Specify the fax number with the numeric keys, [ ] (Tone),
and [ ] (SYMBOLS).
Press the one-touch key (01 to 04) of the destination.
To use this feature, you need to pre-register destinations in one-touch keys.
“Registering and Editing One-Touch Keys” (P.5-3)
Specifying Destinations Using Coded Dialing
Fax mode screen
Specify destination.
01/01/2011 12:52AM
Sharpness: 0
Specify Destination
+
-
Setting screen
Specify Destination
Fax (New)
Address Book
Coded Dial
Enter the three-digit registration number (001 to 100) with
the numeric keys.
To use this feature, you need to pre-register destinations in
coded dials.
“Registering and Editing One-Touch Keys” (P. 5-3)
Enter coded dial no.
*001
*
Press [ ] or [ ] to select <Specify
Destination>.
Press [ ] or [ ] to select <Coded
Dial>.
Correcting destinations
To cancel a destination
Press and hold [ ] (Clear).
To delete the last character of a destination
Press [ ] (Clear).
If you press an incorrect key
(1) Press [ ] (Clear).
(2) Press [ ] to select <Yes>, and then press [OK].
* If you want to repeat the procedure from specifying the settings for the
document scanning, press [ ] (Reset).
If you press an incorrect key
(1) Press [ ] (Clear).
(2) Press [ ] to select <Yes>, and then press [OK].
* If you want to repeat the procedure from specifying the
settings for the document scanning, press [ ] (Reset).
6-5
Using the Fax Functions
Specifying Destinations
Specifying Destinations Using Group Dialing
When the numbers are registered in a one-touch key
Press the one-touch key (01 to 04) assigned to the group.
When the numbers are registered in a coded dial code
Fax mode screen
Specify destination.
01/01/2011 12:52AM
Sharpness: 0
Specify Destination
+
-
Setting screen
Specify Destination
Fax (New)
Address Book
Coded Dial
Enter the three-digit registration number (001 to 100) with
the numeric keys.
To use this feature, you need to pre-register destinations in
coded dials.
Registering and Editing Recipients for Group Dialing”
(P.5-9)
Enter coded dial no.
*001
*
Press [ ] or [ ] to select <Specify
Destination>.
Press [ ] or [ ] to select <Coded
Dial>.
If you press an incorrect key
(1) Press [ ] (Clear).
(2) Press [ ] to select <Yes>, and then press [OK].
* If you want to repeat the procedure from specifying the
settings for the document scanning, press [ ] (Reset).
Specifying Destinations Using the Address Book
After entering the characters from the operation panel and searching the abbreviation of destinations from the
registered address book (one-touch keys, coded dial, or group dialing), the destinations to be specified appear on the
display. You can specify the displayed address as a destination.
To use this feature, you need to pre-register destinations in the address book.
“Registering Destinations in the Address Book” (P.5-1)
1 Press [ ] (Address Book).
2 Press [ ] or [ ] to select search for the
recipient.
Select <All> to displays all the recipients.
Select < > at the bottom left of the screen to add or
edit recipients.
Registering Destinations in the Address Book”
(P.5-1)
CANON 0123456789
GroupA 2 Destin
...
User01 01234567
...
All A-Z
3 Press [ ] or [ ] to select a recipient, and
then press [OK].
CANON 0123456789
GroupA 2 Destin
...
User01 012345678
All A-Z
6-6
Using the Fax Functions
To redial a number, follow the procedures below.
Keys to be used for this operation
OK
FAX
Redial
Start
1 Place documents.
“Placing Documents” (P.2-4)
“Document Requirements ” (P.2-2)
2 Press [ ].
3 Press [ ] (Redial).
4 Press [ ] or [ ] to select a recipient, and then
press [OK].
Redial
012XXXXXX
5 Press [ ] (Start).
NOTE
Destinations that can be redialed
A destination entered with the numeric keys
(You may not redial multiple destinations when entering
destinations with the numeric keys.)
Up to the last three destinations
(Only the last destination when using [ ] (Hook))
when sending from history is restricted
Redialing is not available.
“Restrict Sending From History (P.6-25)
When turning this machine OFF
Recently dialed numbers are cleared.
When sending by automatic redialing
Auto Redial” (P.6-21)
Redialing (Manual Redialing)
6-7
Using the Fax Functions
Sending a Fax after Making a Phone Call
(Manual Sending)
Send a fax manually in the following cases.
If you want to make a phone call before sending fax
documents
If the recipients fax machine cannot automatically receive
faxes
Keys to be used for this operation
FAX
Start
Numeric keys
1 Connect an external telephone to this machine.
For details on connecting, see the following.
e-Manual Setting Up the Machine Specifying Initial Fax
Settings and Connecting a Telephone Cable Connecting a
Telephone Line
2 Place documents in the feeder.
“Placing Documents” (P.2-4)
“Document Requirements ” (P.2-2)
3 Press [ ].
4 Set scanning settings for documents as needed.
“Fax Settings (P.6-3)
5 Check the dial tone via the handset of the
external telephone.
The dial tone sounds.
6 Dial the recipient’s fax number.
7 Talk through the handset to the recipient.
When you hear a beep, proceed to Step 9.
8 Ask the recipient to set their fax machine to
receive faxes.
9 When you hear a beep, press [ ] (Start), and
hang up the handset.
After completing the scanning, you can send the fax documents.
NOTE
Restrictions for manual sending
Scanning from the platen glass is not available.
The group dialing function is not available.
Scanning 2-sided documents is not available. (Only one side of
the documents will be scanned.)
Check the dial tone before entering a fax number.
If you enter the number before checking the dial tone, the call may
not be connected or the wrong number may be dialed.
Push-button Telephone Service Using a
Dial-line
Some types of push-button telephone services require
the availability of a push-button line (e.g., banks, airline
reservations, and hotel reservations). If this machine is
connected using a dial-line, you can send the tone signal
temporarily using the following procedures.
Keys to be used for this operation
Start
Hook Tone, Numeric keys
FAX
1 Press [ ].
2 Press [ ] (Hook), and check the dial tone.
The dial tone sounds.
3 Use the numeric keys to dial the desired
information service.
Specify destination.
01/01/2011 12:52AM
012XXXXXX
Start Receiving
Resolution: 200 x 1
...
4 After responding to the recorded message of the
information service, press [ ] (Tone).
You can switch to the tone signal.
Specify destination.
01/01/2011 12:52AM
012XXXXXXT
Start Receiving
Resolution: 200 x 1
...
Useful Fax Sending Methods
6-8
Using the Fax Functions
5 Use the numeric keys to enter the required
numbers for the information service.
Specify destination.
01/01/2011 12:52AM
012XXXXXXT3456
Start Receiving
Resolution: 200 x 1
...
6 If you want to receive faxes, press [ ] (Start).
NOTE
Telephone call
The external telephone must be connected to this machine.
Check the dial tone before entering a fax number.
If you enter the number before checking the dial tone, the call may
not be connected or the wrong number may be dialed.
Sending a Fax Abroad (Adding Pauses)
When sending a fax abroad, you may need to insert a pause
within the number.
When communicating abroad, the signal distance is extreme
and the signal route complicated. Because of this, you may not
be able to connect to a recipient by dialing an international
telephone identification number, country code, and the
recipient’s fax number at the same time. In this case, add a
pause after the international telephone identification number.
Because adding a pause provides a point where wait time can
be added when dialing, it is easier to connect to the recipient.
Keys to be used for this operation
Pause FAX Numeric keys
Start
1 Place documents.
“Placing Documents” (P.2-4)
“Document Requirements ” (P.2-2)
2 Press [ ].
3 Set scanning settings for documents as needed.
“Fax Settings” (P.6-3)
4 Use the numeric keys to enter the international
access code.
For details on international access codes, contact your telephone
company.
Fax Number
012
(Apply: Press OK)
5 Press [ ] (Pause) to enter a pause as
needed.
- The letter <p> indicating a pause is displayed.
- The default pause is two seconds*. To change the pause time,
see “Pause Time” (P.6-21).
- When you are adding pauses consecutively, press [ ]
(Pause) again.
* The default value varies depending on the country where you
are using the machine.
Fax Number
012P
(Apply: Press OK)
6 Enter the country code, the area code, and the
fax/telephone number using the numeric keys.
Fax Number
012p031XXXXXX
(Apply: Press OK)
7 Press [ ] (Pause) to add a pause at the
end of the fax/telephone number as needed.
The letter <P> is displayed at the end of the fax number.
The pause added to the end of the number is fixed at 10
seconds.
Fax Number
012p031XXXXXXP
(Apply: Press OK)
8 Press [ ] (Start).
6-9
Using the Fax Functions
Sending to Multiple Destinations at a
Time (Sequential Broadcast)
You can send the same document to multiple destinations.
Keys to be used for this operation
OK
Numeric keys
Start
1 Place documents.
“Placing Documents” (P.2-4)
“Document Requirements ” (P.2-2)
2 Press [ ] or [ ] to select <Specify Destination>,
and then press [OK].
Specify destination.
01/01/2011 12:52AM
Sharpness: 0
Specify Destination
+
-
3 Press [ ] or [ ] to select a method for specifying
destinations, and then press [OK].
Fax (New)
Address Book
Coded Dial
“Specifying Destinations” (P.6-4)
Specify Destination
Fax (New)
Address Book
Coded Dial
4 Repeat Step 2 and 3 to enter all the destinations.
5 Press [ ] (Start).
NOTE
The number of destinations capable of sequential
broadcast
You can select destinations in the following combinations.
Specifying destinations using numeric keys: Up to 10
destinations
One-touch keys: Up to 4 destinations
Coded dial codes: Up to 100 destinations
When specifying destinations using the numeric keys
Enter the numbers, and then press [OK].
When checking the specified destinations
Press [ ] or [ ] to select <Confirm/Edit Destination>, and then
press [OK].
Specify destination.
01/01/2011 12:52AM
Specify Destination
Confirm/Edit Destina
6-10
Using the Fax Functions
This section describes the procedure for receiving faxes.
Receive Mode
Your machine provides multiple methods for automatically or manually receiving faxes.
To select the receive mode that best suits your needs, refer to the flowcharts that follow.
The default receive setting is <Auto> mode.
Auto mode Receives faxes automatically.
The receiving method depends on whether an external telephone is connected.
Operation for when an incoming call is received
* You can change the number of times the incoming call rings in "Incoming Ring" on P. 6-23.
Without an external telephone connected
When the call is a fax
When the call is a fax When the call is a faxWhen the call is a
voice call
When the call is a
voice call
When you pick up the handset while the
incoming call rings
When you do not pick up the handset while
the incoming call rings
When the call is a voice call
An incoming call rings for the specified number of times.*
The machine receives
the fax automatically.
The machine does not respond.
You can start talking
as is.
The machine receives the
fax automatically. You cannot start talking.
With an external telephone connected
You can hear a beep.
Following the procedure
below, receive the fax.
(1) Press [Fax].
(2) Press [ ] or [ ] to select
<Start Receiving>, and
then press [OK].
(3) Hang up the handset.
Receiving Faxes
6-11
Using the Fax Functions
For details about the ring start time,
incoming ring time, and after ring option,
see "Detailed Settings for the Fax/Tel Mode" on P. 6-13.
*1 You can change the number of times the incoming
ringing in "Incoming Ring" on P. 6-23.
*2 To adjust the delay before the telephone rings during
an incoming call, set the <Ring Start Time>.
*3 To adjust the length of the incoming ring, set the
<Incoming Ring Time>.
*4 To specify how the machine behaves when you do not
answer an incoming call, set the <Action After Ring>
option.
Operation for when an incoming call is received
An incoming call rings for the specified number of times.*1
When you do not pick up the handset
within the specified number of times
When you pick up the handset within
the specified number of times
When the call is a fax When the call
is a voice call
You can hear a
beep.Following the
procedure below, receive the
fax.
(1) Press [Fax].
(2) Press [ ] or [ ] to select
<Start Receiving>, and
then press [OK].
(3) Hang up the handset.
You can start
talking as is.
The machine judges whether the
incoming call is a fax or voice call.*2
When the call is
a fax
When the call is
a voice call
The machine receives
the fax automatically.
The telephone rings.*3
When you pick up the
handset during ringing
When you do not pick up
the handset during ringing
You can start talking as is. The machine hangs up the
telephone or switches to the fax
receive mode.*4
Receives faxes automatically. (When a call comes in, the telephone will ring. To disable the incoming ring,
see "Incoming Ring" (ĺP.6-23))
Respond to a telephone call by picking up the handset.
Fax/Tel Auto
Switch mode
The telephone rings the number of times specified for the built-in
answering machine.*1
When you pick up the handset during
ringing
When the built-in answering machine
starts up
When the call is a fax When the call is a
voice call
The built-in answering
machine records the
message.*2
You can start talking as
is.
When the call is a
voice call
When the call is a fax
The machine receives the
fax automatically.
You can hear a beep.
Following the procedure
below, receive the fax.
(1) Press [Fax].
(2) Press [ ] or [ ] to select
<Start Receiving>, and
then press [OK].
(3) Hang up the handset.
Answer mode Receives faxes automatically.
The built-in answering machine will record messages for unanswered incoming calls.
*1 Set your answering machine to answer after a few rings.
*2 Record a message on your answering machine.
(It is recommend that you insert about 4 seconds of silence at the
beginning of the message or limit the message within 20 seconds.)
Operation for when an incoming call is received
6-12
Using the Fax Functions
Operation for when an incoming call is received
*1 If "Auto RX Switch" (P. 6-23) is set to <On>, the machine switches to the fax
receive operation automatically when the machine rings for a certain time.
*2 When "Remote RX" (P. 6-23) is set, you can also receive fax documents by
dialing from your telephone.
The external phone rings.
When you pick up the handset while the
telephone rings
When the call is a fax When the call is a voice call
When you do not pick up the handset while
the telephone rings
The machine cannot receive a call or fax.*1
You can start talking as is.
You can hear a beep.
Following the procedure
below, receive the fax.*2
(1) Press [Fax].
(2) Press [ ] or [ ] to select
<Start Receiving>, and
then press [OK].
(3) Hang up the handset.
Manual mode
In manual mode, you must pick up the handset to answer calls or receive faxes.
Use this mode if you expect to receive more incoming telephone calls than faxes or expect to seldom receive faxes.
The DRPD service allows you to assign distinctive ring patterns for two phone numbers on a single telephone line.
Your machine will automatically monitor incoming calls and, based on the ring pattern, will let you know if the incoming call is a fax or
voice call. Set the fax ring pattern that matches the pattern assigned by your telephone company. Contact your telephone company
for availability.
DRPD
(Distinctive Ring
Pattern Detection)
mode
Changing the Receive Mode
Select the fax receive mode that best suits your needs.
Keys to be used for this operation
OK
FAX
1 Press [ ].
2 Press [ ] or [ ] to select <RX Mode>, and then
press [OK].
Specify destination.
01/01/2011 12:52AM
RX Mode: Auto
Resolution: 200 x 1
...
3 Press [ ] or [ ] to select a receive mode, and
then press [OK].
RX Mode
Auto
Fax/Tel Auto Switch
Manual
Answer
If you select <Fax/Tel Auto Switch>
You need to specify the detailed settings. See “Detailed Settings
for the Fax/Tel Auto Switch Mode” (P.6-13) and specify the
settings.
If you select <DRPD: Select Fax>
Press [ ] or [ ] to select a ring pattern, and then press [OK].
NOTE
Depending on the connected telephone
Sending or receiving may not work properly.
6-13
Using the Fax Functions
Detailed Settings for the Fax/Tel Auto
Switch Mode
Set the ringing time or the operations for the Fax/Tel Auto
Switch mode.
Keys to be used for this operation
OK
FAX
1 Press [ ].
2 Press [ ] or [ ] to select <RX Mode>, and then
press [OK].
Specify destination.
01/01/2011 12:52AM
RX Mode: Auto
Resolution: 200 x 1
...
3 Press [ ] or [ ] to select <Fax/Tel Auto Switch>,
and then press [OK].
RX Mode
Auto
Fax/Tel Auto Switch
Manual
Answer
4 Press [ ] or [ ] to select an item to be specified,
and then press [OK].
Fax/Tel Auto Switch
<Apply>
Ring Start Time: 6
Incoming Ring Time:
...
After Ring: RX
<Ring Start Time>
Specify how long the machine will attempt
to detect a fax tone before the handset
starts ringing. Specify a duration between
4 seconds and 30 seconds, and then press
[OK].
<Incoming Ring Time>
Set how long the handset will ring during
an incoming call. Specify a duration
between 15 seconds and 300 seconds, and
then press [OK].
<Action After Ring>
Specify how the machine should behave
when an incoming call is not answered.
Select <End> or <RX>, and then press
[OK].
- <End>: Disconnects the call.
- <RX>: Receives a fax.
5 Press [ ] or [ ] to select <Apply>, and then
press [OK].
The receive mode is changed.
Fax/Tel Auto Switch
<Apply>
Ring Start Time: 6
Incoming Ring Time:
...
After Ring: RX
6-14
Using the Fax Functions
When a fax is stored in memory, you can manually forward it to
a specified destination.
Keys to be used for this operation
OK Start
Status Monitor/Cancel
1 Press [ ] (Status Monitor/Cancel).
2 Press [ ] or [ ] to select <Fax Job Status/
History>, and then press [OK].
Status Monitor/Cancel
Device Status
Copy Job Status
Fax Job Status/Histo
Print Job Status
3 Press [ ] or [ ] to select <RX Job Status>, and
then press [OK].
Fax Job Status/History
TX Job Status
RX Job Status
Job History
4 Press [ ] or [ ] to select a job that you want to
forward, and then press [OK].
You cannot forward received faxes during
- a receiving operation
- a normal printing operation after completion of receiving
Fax RX Job Status
12:52AM Receiving
12:54AM Waiting:RX
5 Press [ ] or [ ] to select <Forward>, and then
press [OK].
Details
<Delete>
<Forward>
Job Number: 0004
Status: Waiting to
...
6 Specify the forwarding destination.
You can specify the destination via one of the following methods.
“Specifying Destinations with the One-Touch Keys” (P.6-4)
“Specifying Destinations Using Coded Dialing” (P.6-4)
“Specifying Destinations Using the Address Book” (P.6-5)
CANON 0123456789
GroupA 2 Destin
...
User01 01234567
...
All A-Z
7 Press [ ] (Start).
Forwarding Received Fax Documents in Memory to Other
Destinations (Manual Forwarding)
6-15
Using the Fax Functions
You can check the status of or manage fax documents that are
in the machine’s memory.
Checking and Canceling Fax Jobs
You can check detailed information about fax jobs currently
being sent or received, or waiting to be sent or received. Also,
you can also cancel unnecessary jobs (documents).
Keys to be used for this operation
OK
Status Monitor/Cancel
1 Press [ ] (Status Monitor/Cancel).
2 Press [ ] or [ ] to select <Fax Job Status/
History>, and then press [OK].
Status Monitor/Cancel
Device Status
Copy Job Status
Fax Job Status/Histo
Print Job Status
3 Press [ ] or [ ] to select <TX Job Status> or <RX
Job Status>, and then press [OK].
Fax Job Status/History
TX Job Status
RX Job Status
Job History
4 Press [ ] or [ ] to select a job to be checked or
canceled, and then press [OK].
Fax TX Job Status
12:52AM Sending
12:54AM Waiting:Scan
The detailed information is displayed.
Details
<Cancel>
Job Number: 0004
Status: Sending
Time: 01/01 12:52 AM
For canceling
(1) Press [ ] or [ ] to select <Cancel>, and then press [OK].
Details
<Cancel>
Job Number: 0004
Status: Sending
Time: 01/01 12:52 AM
(2) Press [ ] to select <Yes>, and then press [OK].
Cancel?
NoYes
The sending or receiving job is canceled. Fax transmission to all
the destinations will be canceled for sequential broadcast.
(3) Press [ ] (Status Monitor/Cancel) to close the screen.
NOTE
Pressing [ ] (Stop) can also cancel the fax jobs <h6>
You can cancel the fax job also by pressing [ ] (Stop).
* If only one job is processing or waiting to be sent or received,
you can stop the job by pressing [ ] (Stop) twice.
For checking only
Press [ ] (Status Monitor/Cancel) to close the screen.
Printing Received Fax Documents
You can print fax documents saved in the memory.
NOTE
When printing received documents
You cannot specify a particular document to print. All received
faxes that are stored in memory will be printed.
No preview function is available for stored faxes.
If time is specified in <Memory Lock Time>
Fax documents are printed automatically at <Memory Lock End
Time>.
Keys to be used for this operation
Menu
OK
Checking and Managing Fax Documents in Memory
6-16
Using the Fax Functions
1 Press [ ] (Menu).
2 Press [ ] or [ ] to select <System Management
Settings>, and then press [OK].
Menu
Fax TX Settings
Fax RX Settings
Adjustment/Maintena...
System Management Se
When the system manager PIN is specified
Enter the system manager PIN.
Text Input Method” (P.1-9)
When you finished entering, press [ ] or [ ] to select <Apply>,
and then press [OK].
System Manager PIN
*******
<Apply>
1 2 3 4 5 6 7 8 9 0
<BS>
3 Press [ ] or [ ] to select <Communication
Management Settings>, and then press [OK].
System Settings
System Manager Info
...
Device Information
...
Network Settings
Communication Manage
4 Press [ ] or [ ] to select <Memory Lock
Settings>, and then press [OK].
If <Memory Lock PIN> is specified, use the numeric keys to enter it,
and then press [OK].
Communication Mgt. Set
Fax Settings
Memory Lock Settings
5 Press [ ] or [ ] to select <Off>, and then press
[OK].
Memory Lock Settings
Off
On
Fax documents saved in the memory are printed.
6 Press [ ] (Menu) to close the menu
screen.
Checking and Deleting Received Fax
Documents
You can check detailed information about fax documents
saved in memory. Also, you can delete unnecessary
documents.
NOTE
Stored documents in memory
You can specify the destination to forward the documents.
“Forwarding Received Fax Documents in Memory to Other
Destinations (Manual Forwarding)” (P.6-14)
You can print stored documents.
“Printing Received Fax Documents” (P.6-15)
Keys to be used for this operation
OK
Status Monitor/Cancel
1 Press [ ] (Status Monitor/Cancel).
2 Press [ ] or [ ] to select <Fax Job Status/
History>, and then press [OK].
Status Monitor/Cancel
Device Status
Copy Job Status
Fax Job Status/Histo
Print Job Status
3 Press [ ] or [ ] to select <RX Job Status>, and
then press [OK].
Fax Job Status/History
TX Job Status
RX Job Status
Job History
4 Press [ ] or [ ] to select a job to be checked or
deleted, and then press [OK].
Fax RX Job Status
12:52AM Receiving
12:54AM Waiting:RX
The detailed information is displayed.
Details
<Delete>
<Forward>
Job Number: 0004
Status: Receiving
6-17
Using the Fax Functions
For canceling
(1) Press [ ] or [ ] to select <Delete>, and then press [OK].
Details
<Delete>
<Forward>
Job Number: 0004
Status: Receiving
(2) Press [ ] to select <Yes>, and then press [OK].
Delete?
NoYes
The received job is deleted.
(3) Press [ ] (Status Monitor/Cancel) to close the screen.
For checking only
Press [ ] (Status Monitor/Cancel) to close the screen.
Checking the History of Received/Sent
Fax Documents
You can check the history of received or sent faxes
Keys to be used for this operation
OK
Status Monitor/Cancel
1 Press [ ] (Status Monitor/Cancel).
2 Press [ ] or [ ] to select <Fax Job Status/
History>, and then press [OK].
Status Monitor/Cancel
Device Status
Copy Job Status
Fax Job Status/Histo
Print Job Status
3 Press [ ] or [ ] to select <Job History>, and then
press [OK].
Fax Job Status/History
TX Job Status
RX Job Status
Job History
4 Press [ ] or [ ] to select a job to be checked, and
then press [OK].
The detailed information is displayed.
Fax History
02:07AM Failed #018
11:19PM Failed #018
00:00AM Failed #099
5 Press [ ] or [ ] to select an item to be checked,
and then press [OK].
Details
Job Number: 0004
Result: Failed #018
Started: 01/01 12:5
...
Duration: 00'00
6 Press [ ] (Status Monitor/Cancel) to close
the screen.
6-18
Using the Fax Functions
The default values for fax are those functions which are
applied automatically when [ ] (Reset) is pressed or the
power is turned ON. You can change the default values to suit
your needs.
You can register the following types of settings as the default
values.
Resolution
Density
Sharpness
Keys to be used for this operation
Menu
OK
1 Press [ ] (Menu).
2 Press [ ] or [ ] to select <Fax TX Settings>, and
then press [OK].
Menu
Preferences
Timer Settings
Copy Settings
Fax TX Settings
3 Press [ ] or [ ] to select <TX Function Settings>,
and then press [OK].
Fax TX Settings
Basic Settings
TX Function Settings
Fax Setup Guide
4 Press [ ] or [ ] to select <Change Defaults>, and
then press [OK].
TX Function Settings
Change Defaults
ECM TX
Pause Time
Auto Redial
5 Press [ ] or [ ] to select a setting item, and then
press [OK].
- Resolution/Density/Sharpness
For details on settings, see “Fax Settings (P.6-3).
Change Defaults
<Apply>
Resolution: 200 x 100
Density: 0
Sharpness: 0
+
-+
-
6 After specifying the setting, press [ ] or [ ] to
select <Apply>, and then press [OK].
Change Defaults
<Apply>
Resolution: 200 x 10
...
Density: 0
Sharpness: 0
+
-+
-
7 Press [ ] (Menu) to close the menu
screen.
Changing the Default Values for Fax
6-19
Using the Fax Functions
Change the settings for sending and receiving faxes.
For details on the procedure for setting specifications or the
setting items, see the next items.
“Setting Procedure for Sending Faxes (P.6-19)
“Setting Items (P.6-19)
“Setting Procedure for Receiving Faxes” (P.6-21)
“Setting Items for the Receive Settings” (P.6-22)
“System Settings Procedure (P.6-23)
“Setting Items (P.6-24)
Setting Procedure for Sending Faxes
Specify the settings for sending faxes using the following
procedure.
This section describes the procedure for changing the setting
for “ECM TX” as an example.
Keys to be used for this operation
Menu
OK
1 Press [ ] (Menu).
2 Press [ ] or [ ] to select <Fax TX Settings>, and
then press [OK].
Menu
Preferences
Timer Settings
Copy Settings
Fax TX Settings
3 Press [ ] or [ ] to select <TX Function Settings>,
and then press [OK].
Fax TX Settings
Basic Settings
TX Function Settings
Fax Setup Guide
4 Press [ ] or [ ] to select <ECM TX>, and then
press [OK].
TX Function Settings
Change Defaults
ECM TX
Pause Time
Auto Redial
5 Press [ ] or [ ] to select <Off> or <On>, and
then press [OK].
ECM TX
Off
On
* When <Apply> appears in the screen, you must select <Apply>
and press [OK] after specifying the setting.
6 Press [ ] (Menu) to close the menu
screen.
The setting is complete.
Setting Items
The following settings are available for sending faxes.
Send/Receive Settings
Basic
Settings
“Register Unit Name (P.6-20)
“Register Unit Telephone Number” (P.6-20)
“Select Line Type” (P.6-20)
“Public Line Connection (P.6-20)
“Off-Hook Alarm (P.6-20)
“Sender ID” (P.6-20)
TX Function
Settings
“Change Defaults (P.6-20)
“ECM TX” (P.6-20)
“Pause Time” (P.6-21)
Auto Redial” (P.6-21)
“Check Dial Tone Before Sending” (P.6-21)
Changing the Fax Settings (Items Specified Using the [Menu] Button)
6-20
Using the Fax Functions
Register Unit Name
Your name or company’s name must be registered as the
machine’s name.
When you send a document, the name that you registered
will appear at the top of the recipient’s paper.
How to display the settings
[ ] (Menu) <Fax TX Settings> <Basic Settings>
<Register Unit Name>
Settings
You can enter characters (up to 24 characters).
Text Input Method” (P.1-9)
NOTE
How to use a username
When you send a document, the sender information that you
registered is printed on the recipient’s paper.
Sending Date/Time
Fax/Telephone Number
(FAX No.)
Page Number
Sender Name
(Unit Name)
Telephone Number
Mark
01/01/2011 02:07 PM FAX 123XXXXXXX CANON P.0001
Register Unit Telephone Number
Register your machines fax number.
How to display the settings
[ ] (Menu) <Fax TX Settings> <Basic Settings>
<Register Unit Telephone Number>
Settings
You can enter numbers with the numeric keys (up to 20
characters).
Select Line Type
If you cannot send a fax, change this setting.
If you are not sure about your telephone line type, contact
your local telephone company.
How to display the settings
[ ] (Menu) <Fax TX Settings> <Basic Settings>
<Select Line Type>
Settings
(Bold: Default settings)
Dial 10 PPS Specify when you are using a dial-line.
Tone Specify when you are using a tone-line.
Public Line Connection
The following problems may occur when fax receive mode
is selected to <Fax/Tel Auto Switch>.
The external telephone does not ring.
Cannot make a call using the external telephone.
You can solve these problems by changing this setting.
How to display the settings
[ ] (Menu) <Fax TX Settings> <Basic Settings>
<Public Line Connection>
Settings
(Bold: Default settings)
Direct Use this setting under normal conditions
Adapter 1 Select this option if a problem occurs when
<Direct> is selected.
Adapter 2 Select this option if the problem continues
when <Adapter 1> is selected.
Off-Hook Alarm
Specify whether or not to sound an alarm when the
telephone handset is off the hook.
You can also set the volume of the alarm sound.
How to display the settings
[ ] (Menu) <Fax TX Settings> <Basic
Settings> <Select Line Type>
Settings
(Bold: Default settings)
Off No alarm will sound.
On Off-Hook Alarm Volume:
1 to 5
An alarm will sound at the
specified volume.
Sender ID
You can specify whether the sender ID is added to a
document to be sent.
The sender ID is printed on the top of the sent document.
Information such as your fax number and name is printed,
enabling the recipient to know who sent the document.
How to display the settings
[ ] (Menu) <Fax TX Settings> <Basic
Settings> <Sender ID>
Settings
(Bold: Default settings)
Off No sender ID is added.
On
Print Location:
On Image, Above Image
Select the location where the
sender ID is printed.
Mark No. as TEL/FAX:
FAX, TEL
Select a character to be added
in front of a telephone number.
Change Defaults
You can change the settings for when turning the power
ON or pressing [ ] (Reset).
How to display the settings
[ ] (Menu) <Fax TX Settings> <TX Function
Settings> <Change Defaults>
Settings
For details on the settings, see the following item.
“Changing the Default Values for Fax (P.6-18)
ECM TX
The ECM (Error Correction Mode) is a function for detecting
and correcting errors during fax communication. Using
the ECM function can diminish send errors even over poor
connections
NOTE
Check the settings for the recipient’s machine also.
The ECM function is available only when the setting for the
machine and recipient’s machine are enabled.
Even if the ECM function is enabled
An error may occur due to the telephone line.
When the ECM function is enabled
It may take additional time to send documents if a problem occurs
with the telephone line.
6-21
Using the Fax Functions
How to display the settings
[ ] (Menu) <Fax TX Settings> <TX Function
Settings> <ECM TX>
Settings
(Bold: Default settings)
Off Does not use the ECM function.
On Uses the ECM function.
Pause Time
Specify the length of a pause when [ ] (Pause) is
pressed.
For deatails on adding pauses, see “Sending a Fax Abroad
(Adding Pauses)” (P.6-8)
How to display the settings
[ ] (Menu) <Fax TX Settings> <TX Function
Settings> <Pause Time>
Settings
(Bold: Default settings)
1 to 2 to 15 (seconds)
Auto Redial
Set auto redialing to automatically reattempt to connect to
a destination if the line is busy or a send error occurs. You
can also specify the how many time to redial a number and
an interval between attempts.
How to display the settings
[ ] (Menu) <Fax TX Settings> <TX Function
Settings> <Auto Redial>
Settings
(Bold: Default settings)
Off
Does not redial automatically.
When redialing manually, see
“Redialing (Manual Redialing)”
(P.6-6).
On
Redial Times:
1 to 2 to 10 (times)
Set the number of redial
attempts.
Redial Interval:
2 to 99 (minutes)
Set an interval (in minutes)
between redial attempts.
Redial When Err
Occurs: Off, On
Specifies whether or not to redial
when a send error occurs.
Check Dial Tone Before Sending
When sending a fax, you can specify whether or not to
verify the dial tone before dialing.
How to display the settings
[ ] (Menu) <Fax TX Settings> <TX Function
Settings> <Check Dial Tone Before Sending>
Settings
(Bold: Default settings)
Off Does not check the dial tone.
On Checks the dial tone before dialing.
Setting Procedure for Receiving Faxes
Specify the settings for receiving faxes using the following
procedure.
This section describes the procedure for changing the setting
for “ECM RX” as an example.
Keys to be used for this operation
Menu
OK
1 Press [ ] (Menu).
2 Press [ ] or [ ] to select <Fax RX Settings>, and
then press [OK].
Menu
Timer Settings
Copy Settings
Fax TX Settings
Fax RX Settings
3 Press [ ] or [ ] to select <Fax Settings>, and
then press [OK].
Fax RX Settings
RX Function Settings
Fax Settings
4 Press [ ] or [ ] to select <ECM RX>, and then
press [OK].
Fax Settings
ECM RX
Incoming Ring
Remote RX
Auto RX Switch
6-22
Using the Fax Functions
5 Press [ ] or [ ] to select <Off> or <On>, and
then press [OK].
ECM RX
Off
On
* When <Apply> appears in the screen, you must select <Apply>
and press [OK] to apply the setting.
6 Press [ ] (Menu) to close the menu
screen.
The setting is complete.
Setting Items for the Receive Settings
The receive settings include the following items.
Fax RX Settings
RX Function
Settings “2-Sided Printing (MF4570dn Only)” (P.6-22)
“Reduce RX Size (P.6-22)
“RX Page Footer (P.6-22)
“Continue Print. When Toner Is Nearly Out (P.6-
22)
Fax Settings “ECM RX” (P.6-22)
“Incoming Ring” (P.6-23)
“Remote RX” (P.6-23)
Auto RX Switch (P.6-23)
2-Sided Printing (MF4570dn Only)
Use this option to save paper by printing on both sides of
each sheet.
How to display the settings
[ ] (Menu) <Fax RX Settings> <RX Function
Settings> <2-Sided Printing>
Settings
(Bold: Default settings)
Off Prints on only one side of each sheet.
On Prints on both sides of each sheet.
Reduce RX Size
Use this option to scale images so they fit the selected
paper size or at a specified ratio, when receiving faxes.
How to display the settings
[ ] (Menu) <Fax RX Settings> <RX Function
Settings> <Reduce RX Size>
Settings
(Bold: Default settings)
Off No image reduction.
On
Ratio: Auto, 97%,
95%, 90%, 75%
<Auto>: Reduces the image size by
automatically
adjusting the reduction ratio.
<97%>, <95%>, <90%>, <75%>:
Reduces the image according to
the specified ratio.
Reduction Direction:
Vertical/Horizontal,
Vertical Only
<Vertical/Horizontal>: Reduces
the image size both vertically and
horizontally.
<Vertical Only>: Reduces the image
vertically only.
RX Page Footer
Specify whether or not to print a received date, day of the
week, time, number, and page number at the bottom of
documents when printing received documents.
How to display the settings
[ ] (Menu) <Fax RX Settings> <RX Function
Settings> <RX Page Footer>
Settings
(Bold: Default settings)
Off Does not include the page footer.
On Includes the page footer.
Continue Print. When Toner Is Nearly Out
Specify whether or not to continue printing received
documents when the toner is nearly out.
IMPORTANT
When using this option, some documents may be light or blurry,
due to low toner. Beware that data is erased when a received fax is
printed, so you will not be able to reprint a received fax that is too
light or blurred to read.
How to display the settings
[ ] (Menu) <Fax RX Settings> <RX Function
Settings> <Continue Print. When Toner Is Nearly
Out>
Settings
(Bold: Default settings)
Off Printing does not continue when the toner is low.
On Printing continues when the toner is low.
ECM RX
The ECM (Error Correction Mode) is a function for detecting
and correcting errors during fax communication. Using the
ECM function can diminish receive errors even over poor
connections.
NOTE
Check the settings for the recipient’s machine also
The ECM function is available only when the setting for both the
senders and recipient’s machines are enabled.
Even if the ECM function is enabled
An error may occur due to a poor connection.
When the ECM function is enabled
It may take time to receive documents if a problem occurs with the
telephone line.
How to display the settings
[ ] (Menu) <Fax RX Settings> <Fax Settings>
<ECM RX>
Settings
(Bold: Default settings)
Off Does not use the ECM function.
On Uses the ECM function.
6-23
Using the Fax Functions
Incoming Ring
Specify whether or not the external telephone will ring
during an incoming call if <RX Mode> is set to <Auto> or
<Fax/Tel Auto Switch>.
You can also specify the number of ringing times.
After the external telephone rings for specified times, the
machine automatically starts receiving when receiving a
fax. When receiving a call, only when <RX Mode> is set to
<Fax/Tel Auto Switch>, the machine’s speaker rings.
How to display the settings
[ ] (Menu) <Fax RX Settings> <Fax Settings>
<Incoming Ring>
Settings
(Boldface: Default settings)
Off The telephone does not ring
during an incoming call.
On Ring Times: 1 to 2 to 99
(times)
The telephone rings during an
incoming call.
You can specify the number of
ringing times in <Ring Times>.
Remote RX
If an external telephone is connected, you can switch to the
fax receiving mode immediately by dialing the ID number
for fax receiving using the dial buttons of the telephone
during a phone call.
How to display the settings
[ ] (Menu) <Fax RX Settings> <Fax Settings>
<Remote RX>
Settings
(Boldface: Default settings)
Off Remote receiving is disabled.
On Remote RX ID:
00 to 25 to 99
Remote receiving is enabled.
You can specify an ID number for fax
receiving in <Remote Receive ID>.
Auto RX Switch
Specify how long an incoming call should ring before the
machine automatically switches to fax mode. This option is
available when the <RX Mode> is set to <Manual>.
How to display the settings
[ ] (Menu) <Fax RX Settings> <Fax Settings>
<Auto RX Switch>
Settings
(Bold: Default settings)
Off
The machine will not
automatically switch to fax
mode.
On Incoming Ring Time: 1
to 15 to 99 (seconds)
The machine will
automatically switch to fax
mode after the specified
period.
System Settings Procedure
Specify the system settings using the following procedure.
This section describes the procedure for changing the setting
for TX Start Speed” as an example.
Keys to be used for this operation
Menu
OK
1 Press [ ] (Menu).
2 Press [ ] or [ ] to select <System Management
Settings>, and then press [OK].
Menu
Fax TX Settings
Fax RX Settings
Adjustment/Maintena...
System Management Se
When the system manager PIN is specified
Enter the system manager PIN.
Text Input Method” (P.1-9)
When you are finished entering, press[ ] or [ ] to select <Apply>,
and then press [OK].
System Manager PIN
*******
<Apply>
1 2 3 4 5 6 7 8 9 0
<BS>
3 Press [ ] or [ ] to select <Communication
Management Settings>, and then press [OK].
System Settings
System Manager Info
...
Device Information
...
Network Settings
Communication Manage
4 Press [ ] or [ ] to select <Fax Settings>, and
then press [OK].
Communication Mgt. Set
Fax Settings
Memory Lock Settings
6-24
Using the Fax Functions
5 Press [ ] or [ ] to select <TX Start Speed>, and
then press [OK].
Fax Settings
TX Start Speed
RX Start Speed
6 Press [ ] or [ ] to select the send start speed,
and then press [OK].
TX Start Speed
33600 bps
14400 bps
9600 bps
7200 bps
* When <Apply> appears in the screen, you must select <Apply>
and press [OK] after specifying the setting.
7 Press [ ] (Menu) to close the menu
screen.
The setting is complete.
Setting Items
The following system management settings are available.
System Settings
Communications
Settings
Fax Settings TX Start Speed” (P.6-24)
“RX Start Speed” (P.6-24)
“Memory Lock Settings” (P. 6-24)
“Select Country/Region” (P.6-24)
Restrict Sending
Address Book PIN” (P.6-25)
“Restrict New Destinations” (P.6-25)
Allow Driver Faxing” (P.6-25)
“Restrict Sending From History (P.6-25)
“Fax No. Confirmation Re-Entry” (P.6-25)
“Restrict Sequential Broadcast” (P.6-25)
TX Start Speed
Change the transmission start speed if you have difficulty
starting a fax transmission.
How to display the settings
[ ] (Menu) <System Management Settings>
<Communication Management Settings> <Fax
Settings> <TX Start Speed>
Settings
(Bold: Default settings)
33600 bps, 14400 bps, 9600 bps, 7200 bps, 4800 bps, 2400 bps
RX Start Speed
Specify the receive start speed if you have difficulty
receiving faxes.
How to display the settings
[ ] (Menu) <System Management Settings>
<Communication Management Settings> <Fax
Settings> <RX Start Speed>
Settings
(Bold: Default settings)
33600 bps, 14400 bps, 9600 bps, 7200 bps, 4800 bps, 2400 bps
Memory Lock Settings
Normally, received documents are immediately printed.
However, you can specify whether or not to store received
faxes in memory before printing. You can then print the
stored faxes at any time or delete them without printing to
save paper.
How to display the settings
[ ] (Menu) <System Management Settings>
<Communication Management Settings> <Memory
Lock Settings>
Settings
(Bold: Default settings)
Off Does not use the Memory Lock mode.
On
Memory
Lock PIN:
Seven-digit
number
If you set a PIN, it will be necessary to
enter the PIN whenever you want to
change the Memory Lock mode settings,
or cancel the Memory Lock mode.
Print Report:
Off, On
You can specify whether or not to print
the receive results when receiving a fax.
To use this feature, you must also
activate the “Receive Results” feature.
Memory
Lock Time:
Off, On
If you specify <On>, documents are
received in the memory only within a
specified time.
Enter <Memory Lock Start Time> and
<Memory Lock End Time> respectively.
NOTE
Memory Lock PIN
If you do not want to set the PIN, press [OK] without entering
any numbers.
You cannot register consecutive digits that consist of only “0” as a
PIN, such as <0000000>.
If you register a number that starts from <0>, the PIN changes
as follows.
Example: When you enter <02> or <002>, the PIN is specified as
<0000002>.
Select Country/Region
Specify the country or region where the machine is to be
used.
IMPORTANT
After configuration
Restart the machine to activate the settings.
How to display the settings
[ ] (Menu) <System Management Settings>
<Select Country/Region>
Settings
(Bold: Default settings)
UnitedStates (US), Canada (CA),
Brazil (BR), Mexico (MX), Other
6-25
Using the Fax Functions
Address Book PIN
Specify a PIN to protect the address book. The PIN will be
required to register, edit, or delete destinations.
How to display the settings
[ ] (Menu) <System Management Settings>
<Restrict TX Function> <Address Book PIN>
Settings
Enter a 7-digit number.
To cancel the PIN option, clear any numbers entered and
press [OK].
Restrict New Destinations
Restrict the destinations that can be specified to pre-
registered one-touch keys or coded dial codes.
Restricting destinations will prevent the following
operations.
Specifying a destination with the numeric keys
Registering new destinations to the address book, one-
touch keys, coded dial codes
Changing destinations that are registered to the address
book, one-touch keys, coded dial codes
How to display the settings
[ ] (Menu) <System Management Settings>
<Restrict TX Function> <Restrict New Destinations>
Settings
(Bold: Default settings)
Off No restriction.
On Performs restriction. Specifies destinations registered
under the one-touch keys and coded dial codes.
Allow Driver Faxing
Specify whether or not to allow faxes to be sent via a
computer’s fax driver.
How to display the settings
[ ] (Menu) <System Management Settings>
<Restrict TX Function> <Allow Driver Faxing>
Settings
(Bold: Default settings)
Off Faxes cannot be sent by a computer’s fax driver.
On Faxes can be sent from a computer’s fax driver.
Restrict Sending From History
Specify whether or not to restrict sending faxes from
history.
How to display the settings
[ ] (Menu) <System Management Settings>
<Restrict TX Function> <Restrict Sending From
History>
Settings
(Bold: Default settings)
Off Sending from a history is permitted.
On Sending from a history is not permitted.
Fax No. Confirmation Re-Entry
Specify whether or not to require a confirmation before
sending a fax. If you activate this feature, you must re-enter
the fax number before the fax will be sent.
How to display the settings
[ ] (Menu) <System Management Settings>
<Restrict TX Function> <Fax No. Confirmation Re-
Entry>
Settings
(Bold: Default settings)
Off Does not require confirmation.
On Requires you to re-enter the fax number for confirmation.
Restrict Sequential Broadcast
Specify whether or not to restrict faxes to multiple
recipients.
How to display the settings
[ ] (Menu) <System Management Settings>
<Restrict TX Function> <Restrict Sequential
Broadcast>
Settings
(Bold: Default settings)
Off Allows you to send a fax to multiple
recipients.
Confirm
Sequential
Broadcast
Displays a confirmation screen when you
send a fax to multiple recipients.
Reject Sequential
Broadcast
Does not allow you to send a fax to multiple
recipients.
6-26
Using the Fax Functions
You can cancel fax jobs that are sending or receiving, or
waiting to be sent or received.
1 Press [ ].
2 Press [ ] (Stop).
* If only one job is processing or waiting to be sent or received,
you can stop the job by pressing [ ] (Stop) twice.
3 When <Cancel?> appears, Press [ ] or [ ] to
select <Yes>, and then press [OK].
* You can also press [ ] (Stop) to cancel the job.
Transmission or reception is canceled.
Canceling Fax Jobs
7-1
Chapter 7
Using the Scan Functions
The documents scanned by the machine can be stored in a computer.
* If you are a Macintosh user, see the Scanner Driver Guide.
To view how to display the Scanner Driver Guide, see “For Macintosh Users” (P.11-4).
Basic Operation Methods for Scanning 7-2
7-2
Using the Scan Functions
You can scan a document using the keys on the operation
panel.
NOTE
To scan documents by operating a computer
See “Scan” in the e-Manual.
Keys to be used for this operation
OK
SCAN
1 Place documents.
“Placing Documents” (P.2-4)
“Document Requirements ” (P.2-2)
NOTE
When scanning using the operation panel
You cannot scan multiple documents from the platen glass.
2 Press [ ].
3 Press [ ] or [ ] to select <Computer>, and then
press [OK].
Select the scan type.
Computer
Remote Scanner
4 Press [ ] or [ ] to specify a destination, and then
press [OK].
When multiple computers are connected
The computer connected by a USB cable is listed on the top.
When a computer is connected by a USB cable
This screen is not displayed.
If eleven or more computers are connected via a network
The eleventh and subsequent computers are not displayed (you
cannot scan). Reduce the number of computers connected to
this machine via a network.
e-Manual Scan Registering the Scanner in MF Network
Scan Utility (MF4570dn Only)
* You can change the names for the displayed computers.
e-Manual Scan Using the MF Toolbox
Specify destination.
EXAMPLE1
EXAMPLE2
5 Press [ ] or [ ] to specify the scanner settings
and then press [OK].
The scanner settings are specified by default as follows.
Scan
Mode Resolution File
Type
PDF
Settings
Color Scan Color 300 dpi PDF Searchable/
High
B&W Scan Black and
White 300 dpi TIFF -
Custom 1 Color 300 dpi JPEG/
Exif -
Custom 2 Color 300 dpi PDF Searchable/
Standard
Select Scan Type
Scan: Press OK
Color Scan
B&W Scan
Custom 1
Scanning operation starts, and the scan mode screen reappears
after saving the data.
Basic Operation Methods for Scanning
7-3
Using the Scan Functions
If you cannot scan
You cannot scan when the setting screen of the MF Toolbox is
displayed.
Click [ ] to close the setting screen before scanning.
The location to save the scanned images
The folder where the images are saved opens automatically
after scanning.
By default, the folder for the date when you scanned the
data is created in the [Pictures] folder. (For Windows 2000/
XP, the folder is created in the [My Pictures] folder in [My
Documents].)
Note
To change the scanner settings
You can change the settings for the location to save, the file format,
or the resolution from a computer.
e-Manual Scan Using the MF Toolbox
7-4
Using the Scan Functions
8-1
Chapter 8
Maintenance
This section describes the maintenance of this machine, replacement of the toner cartridges, and so on.
Cleaning the Machine 8-2
Cleaning the Exterior 8-2
Cleaning the Interior 8-2
Cleaning the Fixing Unit 8-3
Cleaning the Platen Glass 8-4
Cleaning the Feeder 8-4
Precautions When Cleaning the Machine 8-4
Replacing Toner Cartridges 8-6
When a Message Appears 8-6
When White Streaks Appear On the Printouts or Some Parts Are
Faded 8-6
About the Supplied Toner Cartridge 8-7
About Replacement Toner Cartridge 8-7
Handling Toner Cartridge 8-7
Checking the Toner Level 8-8
Using the Toner Saver Mode 8-8
Before Replacing the Toner Cartridge 8-9
Replacing the Toner Cartridge 8-10
Precautions when Replacing Toner Cartridge 8-11
Purchase Consumables 8-12
Recycling Used Cartridges 8-13
The Clean Earth Campaign 8-13
U.S.A. PROGRAM 8-13
Packaging 8-13
Shipping 8-14
CANADA PROGRAM-CANADA PROGRAMME 8-15
Transporting the Machine 8-16
Precautions when Transporting the Machine 8-17
8-2
Maintenance
Cleaning the Exterior
Clean the exterior of the machine and ventilation slots.
1 Turn OFF the power switch and disconnect the
power cord.
2 Clean the exterior of the machine with a soft, well
wrung out cloth dampened with water or mild
detergent diluted with water.
3 Wait for the printer to dry completely before
reconnecting the power cord, and then turn ON
the power.
Cleaning the Interior
Clean the machine’s print area periodically to prevent toner
powder and paper dust from accumulating inside.
1 Turn OFF the power switch and disconnect the
power cord.
2 Hold the operation panel.
3 Lift the scanning platform.
If you cannot lift the scanning platform
Ensure that the feeder is completely closed.
Do not try to forcefully lift the scanning platform, as this may
damage the machine.
* If you set thick documents such as a book, the feeder may not
be completely closed. Remove the documents.
4 Hold the grip on the left front side of the toner
cover.
5 Open the toner cover.
Cleaning the Machine
8-3
Maintenance
6 Remove the toner cartridge.
7 Remove any toner or paper debris from interior of
the machine, with a clean, soft, dry, and lint-free
cloth.
8 Insert the toner cartridge.
Fit the protrusions (A) on each side of the toner cartridge into the
guides located on each side of the machine, and then slide the
toner cartridge into the machine until the toner cartridge meets
the back of the machine.
(A)
(A)
9 Close the toner cover.
If you cannot close the toner cover
Ensure that the toner cartridge is properly set in the machine.
Do not try to forcefully close the toner cover, as this may damage
the machine.
10
Lower the scanning platform.
11
Connect the power cord and turn ON the power
switch.
Cleaning the Fixing Unit
In the following cases, the fixing unit may be dirty. Clean the
fixing unit.
When black streaks appear on the printed paper
When a toner cartridge is replaced
Keys to be used for this operation
Menu
OK
1 Press [ ] (Menu).
2 Press [ ] or [ ] to select <Adjustment/
Maintenance>, and then press [OK].
Menu
Copy Settings
Fax TX Settings
Fax RX Settings
Adjustment/Maintenan
3 Press [ ] or [ ] to select <Clean Fixing Unit>,
and then press [OK].
Adjustment/Maintenance
Special Processing
Clean Fixing Unit
4 Load Letter size plain paper in the multi-purpose
tray, and then press [OK].
The cleaning process will start. Cleaning takes approximately 90
seconds.
Clean Fixing Unit
Load paper larger than
A4/LTR in MP Tray.
Start
* It is recommended that you use plain paper to clean the fixing
unit.
If cleaning does not begin
When there are jobs stored in memory, this function is not
available.
5 Press [ ] (Menu) to close the menu
screen.
8-4
Maintenance
Cleaning the Platen Glass
Follow this procedure to clean the platen glass and under
surface of the feeder.
1 Turn OFF the power switch and disconnect the
power cord.
2 Open the feeder.
3 Clean the platen glass and the under surface of
the feeder.
(1) Clean the areas with a cloth dampened with water.
(2) Wipe the areas with a soft, dry cloth.
4 Close the feeder.
5 Connect the power cord and turn ON the power
switch.
Cleaning the Feeder
If your documents have black streaks or appear dirty after
scanning using the feeder, the roller inside the feeder may be
dirty. Clean the feeder scanning area and roller.
1 Turn OFF the power switch and disconnect the
power cord.
2 Open the feeder cover.
3 Clean the rollers (A) inside the feeder with a well
wrung out cloth dampened with water, and then
wipe the area with a soft, dry cloth.
(A)
4 Close the feeder cover.
5 Connect the power cord and turn ON the power
switch.
Precautions When Cleaning the Machine
Before cleaning the machine, check the following.
Ensure no jobs are stored in memory, then turn OFF the
power switch and disconnect the power cord.
Use a soft cloth to avoid scratching the components.
Do not use tissue paper, paper towels, or similar materials
for cleaning. They can stick to the components or
generate static charges.
8-5
Maintenance
CAUTION
Precautions when cleaning the feeder
Do not dampen the cloth too much, as this may tear the
document or damage the machine.
Precautions when closing the feeder
Be careful not to get your fingers caught.
Do not touch the fixing unit (A).
Touching the fixing unit (A) may cause burns as it becomes
very hot during use.
(A)
Precautions if you get toner on your hands or clothing
If toner gets on your hands or clothing, wash them
immediately with cold water.
Washing with warm water sets the toner, making it
impossible to remove the toner stains.
IMPORTANT
Do not touch the transfer roller (A).
Touching the transfer roller (A) may damage the machine.
(A)
NOTE
Sending or receiving faxes
When the power plug is unplugged, the machine cannot send or
receive faxes.
If there is data waiting to be printed
The data is deleted when you turn OFF the power switch.
Data received in memory, reserved sending data, etc.
They can be kept for approximately 5 minutes after the power plug
is unplugged. To view jobs stored in memory, see the following.
“Checking and Managing Fax Documents in Memory (P.6-15)
8-6
Maintenance
Toner cartridges are consumable products. When the toner has
almost or completely run out in the middle of operating this
machine, a message appears in the display, or the symptoms
described below appears. Follow a proper resolution
depending on the message or symptom.
A message appears in the display
When a Message Appears” (P.8-6)
White streaks appear on the printouts or some parts
are faded
When White Streaks Appear On the Printouts or Some
Parts Are Faded” (P.8-6)
IMPORTANT
About toner cartridges
For details on the toner cartridge yields and the procedures for
handling toner cartridges and checking the toner level, see the
following.
About the Supplied Toner Cartridge (P.8-7 )
About Replacement Toner Cartridge (P.8-7 )
Handling Toner Cartridge (P.8-7 )
Checking the Toner Level (P.8-8 )
Using the Toner Saver Mode (P.8-8 )
Purchase Consumables (P.8-12 )
* The yields of the toner cartridges included in this machine differ
from those of replacement toner cartridges.
When a Message Appears
When the toner becomes nearly out in the middle of operating
this machine, a message appears in the display.
Message When It Is
Displayed Description and Solutions
<Prepare
toner
cartridge.>
When
a toner
cartridge
soon needs
to be
replaced.
Redistribute the toner.
“Before Replacing the Toner Cartridge“
(P.8-9)
It is recommended that you replace the
toner cartridge before printing a large
amount of data.
“Replacing the Toner Cartridge“
(P.8-10)
<Toner
is nearly
out.>
When
a toner
cartridge
has reached
the end of
its life.
Redistribute the toner.
“Before Replacing the Toner Cartridge“
(P.8-9)
If this message does not disappear, replace
the toner cartridge.
“Replacing the Toner Cartridge“
(P.8-10)
If this message is displayed, the incoming
fax will be stored in the memory without
being printed. Also, reports may not be
printed, even if they are set to be printed
automatically.
If <Continue Printing When Toner Is Low>
in <RX Function Settings> is set to <On>,
however, printing will be continued, but
white streaks or smudges may appear on
printouts.
e-Manual Basic Operation Setting
the Report to Print Automatically
“Continue Print. When Toner Is Nearly
Out“ (P.6-22)
IMPORTANT
White streaks appear or some parts are faded
If white streaks appear on the printouts or some parts are faded,
the toner cartridge has almost reached the end of its life, even if no
messages appear on the screen. If print quality declines, refer to the
following to resolve the problem.
When White Streaks Appear On the Printouts or Some Parts Are
Faded” (P.8-6)
When White Streaks Appear On the
Printouts or Some Parts Are Faded
If the toner almost runs out, white streaks appear on the
printouts or some parts are faded.
* No message appears on the display even if the toner almost runs
out. Replace the toner cartridge when white streaks appear on
the printouts or some parts of the printout are faded.
If the above symptoms appear
Follow the procedure in the section below before replacing
the toner cartridge. You may print for some
time, until the toner completely runs out.
“Before Replacing the Toner Cartridge“ (P.8-9)
If print result is not improved
If white streaks or faded parts continue to appear after
following the procedure in the section above, replace the
toner cartridge.
“Replacing the Toner Cartridge“ (P.8-10)
Replacing Toner Cartridges
8-7
Maintenance
About the Supplied Toner Cartridge
The average yield of the included toner cartridge is as follows.
Canon Cartridge
128 Starter Average yield*1: 1,000 sheets
*1 The average yield is on the basis of “ISO/IEC 19752”*2 when printing
A4 size paper with the default print density setting.
*2 ISO/IEC 19752” is the global standard related to “Method for
the determination of toner cartridge yield for monochromatic
electrophotographic printers and multi-function devices that
contain printer components issued by ISO (International
Organization for Standardization).
The average yield of the replacement toner cartridge is
different from which of the supplied toner cartridge.
About Replacement Toner Cartridge
Purchase the toner cartridge at your local authorized Canon
dealer.
Replace the toner cartridge according to the description in the
following charts. However, you may need to replace the toner
cartridge earlier than the described life time depending on
installation environment of the machine, the printing paper
size, or the document type.
Toner cartridge Target for replacing toner cartridge
Canon Cartridge 128 Average yield*1 : 2,100 sheets
*1 The average yield is on the basis of “ISO/IEC 19752”*2 when printing
A4 size paper with the default print density setting.
*2 ISO/IEC 19752” is the global standard related to “Method for
the determination of toner cartridge yield for monochromatic
electrophotographic printers and multi-function devices that
contain printer components issued by ISO (International
Organization for Standardization).
IMPORTANT
About Replacement Toner Cartridge
For optimum print quality, replacing the toner cartridge with
Canon genuine ones is recommended.
Model name Supported Canon genuine toner cartridge
MF4570dn
MF4450 Canon Cartridge 128
Handling Toner Cartridge
Note the following when handling the toner cartridge.
IMPORTANT
Handling toner cartridge
Keep the toner cartridge away from computer screens, disk
drives, and floppy disks. They may be damaged by magnet
which is in inside of the toner cartridge.
Avoid locations subject to high temperature, high humidity, or
rapid changes in temperature.
Do not expose the toner cartridge to direct sunlight or bright
light for more than five minutes.
Store the toner cartridge in its protective bag. Do not open
the bag until you are ready to install the toner cartridge in the
machine.
Keep the protective bag for the toner cartridge. They are
required when transporting the machine such as during
relocation.
Do not store the toner cartridge in a salty atmosphere or where
there are corrosive gases such as from aerosol sprays.
Do not remove the toner cartridge from the machine
unnecessarily.
Print quality may deteriorate if the drum surface is exposed to
light or is damaged.
Always hold the toner cartridge by its handle to avoid touching
the drum.
Do not place the toner cartridge in an upright or an upside
down position. If the toner is kept upright or upside down, the
toner will solidify and may not return to its original condition
even if it is shaken.
When disposing of a used toner cartridge, place the toner
container into its protective bag to prevent the toner from
scattering, and then dispose of the toner cartridge according to
local regulations.
Be careful of counterfeit toner cartridges.
Please be aware that there are counterfeit Canon toner cartridges
in the marketplace.
Use of counterfeit toner cartridges may result in poor print quality
or machine performance.
Canon is not responsible for any malfunction, accident or damage
caused by the use of counterfeit toner cartridge.
For more information, see http://www.canon.com/counterfeit.
CAUTION
Do not place the toner cartridge in fire.
This may cause toner remaining inside the cartridge to ignite
and result in burns.
If toner leaks from the toner cartridge
Be careful not to inhale the toner or allow it to come into
direct contact with your skin. If the toner comes into contact
with your skin, wash with soap. If the skin becomes irritated
or you inhale the toner, consult a physician immediately.
When removing a toner cartridge
Ensure to remove it carefully. If not removed with care, the
toner powder may scatter and come in contact with your
eyes and mouth. If toner gets into your eyes or mouth, wash
them immediately with cold water and consult a physician.
Keep the toner cartridge away from small children.
If the toner or other parts are ingested, consult a physician
immediately.
Do not disassemble the toner cartridge.
The toner may scatter and get into your eyes or mouth. If
toner gets into your eyes or mouth, wash them immediately
with cold water and consult a physician.
8-8
Maintenance
Checking the Toner Level
Keys to be used for this operation
OK
Status Monitor/Cancel
1 Press [ ] (Status Monitor/Cancel).
2 Press [ ] or [ ] to select <Device Status>, and
then press[OK].
Status Monitor/Cancel
Device Status
Copy Job Status
Fax Job Status/Hist
...
Print Job Status
3 Press [ ] or [ ] to select <Toner Gauge>, and
then press[OK].
Device Status
Paper Information
Toner Gauge
Check Counter
The toner level is displayed.
Toner Gauge
OK
NOTE
Displaying the toner level
The toner level is displayed in three stages.
<OK>
<Low>
The message <Prepare toner cartridge.> appears in the display.
<Nearly Out>
The message <Toner is nearly out.> appears in the display.
For details on solution, see the following.
e-Manual Troubleshooting Display Messages
4 Press [ ] (Status Monitor/Cancel) to close
<Toner Gauge> screen.
Using the Toner Saver Mode
Set whether or not to conserve toner when copying or faxing.
NOTE
If you want to conserve toner when printing
Set to use [Toner Save] on the [Quality] tab of the printer driver.
e-Manual Print Printing Functions [Quality] Sheet
Keys to be used for this operation
Menu
OK
1 Press [ ] (Menu).
2 Press [ ] or [ ] to select <Preferences>, and
then press [OK].
Menu
Preferences
Timer Settings
Copy Settings
Fax TX Settings
3 Press [ ] or [ ] to select <Toner Saver Mode>,
and then press [OK].
Preferences
Sound Volume Control
Display Settings
Toner Saver Mode
Paper Feed Method Sw
...
4 Press [ ] or [ ] to apply the toner saver mode to
an operation, and then press [OK].
Toner Saver Mode
Copy
Fax
5 Press [ ] or [ ] to select <Off> or <On>, and
then press [OK].
Copy
Off
On
8-9
Maintenance
<Off> Do not use the toner saver mode.
<On> Use the toner saver mode.
NOTE
When the <Toner Saver Mode> is set to <On>
You may conserve toner, however, the output may be less clear and
thin lines or light colors may be printed unclearly.
6 Press [ ] (Menu) to return to standby
mode.
Before Replacing the Toner Cartridge
Before replacing the toner cartridge, see “Replacing the Toner
Cartridge (P.8-10)
If the toner almost runs out, follow the procedure below
before replacing the toner cartridge. You may print for some
time, until the toner is completely run out.
1 Hold the operation panel.
2 Lift the scanning platform.
If you cannot lift the scanning platform
Ensure that the feeder is completely closed.
Do not try to forcefully lift the scanning platform, as this may
damage the machine.
* If you set thick documents such as a book, the feeder may not be
completely closed. Remove the documents.
3 Hold the grip on the left front side of the toner
cover.
4 Open the toner cover.
5 Remove the toner cartridge.
6 Gently shake the toner cartridge five or six times
to evenly distribute the toner.
8-10
Maintenance
7 Insert the toner cartridge.
Fit the protrusions (A) on each side of the toner cartridge into the
guides located on each side of the machine, and then slide the
toner cartridge into the machine until the toner cartridge meets
the back of the machine.
(A)
(A)
8 Close the toner cover.
If you cannot close the toner cover
Ensure that the toner cartridge is properly set in the machine.
Do not try to forcefully close the toner cover, as this may damage
the machine.
9 Lower the scanning platform.
Replacing the Toner Cartridge
Before replacing toner cartridges, see “Precautions when
Replacing Toner Cartridge (P.8-11)
NOTE
Checking the toner cartridge status
You can check the level of remain toner on the operation panel.
“Checking the Toner Level” (P.8-8)
1 Hold the operation panel.
2 Lift the scanning platform.
If you cannot lift the scanning platform
Ensure that the feeder is completely closed.
Do not try to forcefully lift the scanning platform, as this may
damage the machine.
* If you set thick documents such as a book, the feeder may not
be completely closed. Remove the documents.
3 Hold the grip on the left front side of the toner
cover.
4 Open the toner cover.
8-11
Maintenance
5 Remove the toner cartridge.
6 Take out the new toner cartridge from the
protective bag.
You can open the protective bag with your hands from the notch.
7 Gently shake the toner cartridge five or six times
to evenly distribute the toner.
8 Place the toner cartridge on a flat surface, lift the
tab, and gently pull the sealing tape completely
out.
The full length of the sealing tape is approximately 20” (50 cm).
(2)
(1)
9 Insert the toner cartridge.
Fit the protrusions (A) on each side of the toner cartridge into the
guides located on each side of the machine,and then slide the
toner cartridge into the machine until the toner cartridge meets
the back of the machine.
(A)
(A)
10
Close the toner cover.
If you cannot close the toner cover
Ensure that the toner cartridge is properly set in the machine.
Do not try to forcefully close the toner cover, as this may damage
the machine.
11
Lower the scanning platform.
Precautions when Replacing Toner Cartridge
See “Maintenance and Inspections” (P.ix) in “Important
Safety Instructions” as well.
WARNING
Do not dispose of a used toner cartridge in open
flames
This may cause the toner remaining inside the cartridges
to ignite, resulting in burns or fire.
CAUTION
Precautions if you get toner on your hands or
clothing
If toner gets on your hands or clothing, wash them
immediately with cold water.
Washing with warm water sets the toner, making it
impossible to remove the toner stains.
Be careful not to allow the toner to scatter
Do not pull out the sealing tape forcefully or stop at
midpoint, as this may cause toner to spill out.
If toner gets into your eyes or mouth, wash them
immediately with cold water and consult a physician.
Precautions when lowering the scanning platform
Be careful not to catch your fingers.
8-12
Maintenance
IMPORTANT
About replacement toner cartridge
For optimum print quality, replacement is recommended using
genuine Canon toner cartridge.
Model name Supported Canon genuine toner
cartridge
MF4570dn
MF4450 Canon Cartridge 128
Shake the toner cartridge before setting
If toner is not distributed evenly, this may result in a deterioration in
print quality.
Hold the toner cartridge properly
When handling the toner cartridge, hold them properly as shown
in the figure. Do not place them vertically or upside-down.
Do not touch the toner cartridge memory (A) or the
electrical contacts (B)
This may result in damage to the cartridge.
(A)
(B)
Do not open the drum protective shutter (A).
Print quality may deteriorate if you touch or damage the drum
inside of the drum protective shutter (A). Do not touch or open the
drum protective shutter (A).
(A)
When pulling out the sealing tape
Do not pull the sealing tape diagonally or sideways. If the tape
breaks, this may become difficult to pull out completely.
Even if the sealing tape stops at midpoint, pull it out of the toner
cartridge completely.
If any tape remains in the toner cartridge, this may result in poor
print quality.
Disposing of the removed sealing tape
Dispose of the sealing tape according to local regulations.
Keep the protective bag
Keep the protective bag for the toner cartridge. You will need them
when you remove the toner cartridge for machine maintenance or
other purposes.
Do not touch the high-voltage contacts (A)
This may result in damage to the machine.
(A)
Do not leave the toner cover open for a long time with
the toner cartridge installed.
This may result in a deterioration in print quality.
NOTE
About the packing materials
The packing materials may be changed in form or placement, or
may be added or removed without notice.
When the message <Toner is nearly out.> appears when
receiving a fax
Printing of the fax is interrupted and the received data will be
stored in the memory.
If <Continue Print. When Toner Is Nearly Out> is set to
<On>
You can keep printing fax documents or reports without replacing
a toner cartridge. However, the printed documents may be light
or blurred because of lack of toner. The data is erased when
the documents are printed out, so you cannot print the same
documents again.
“Continue Print. When Toner Is Nearly Out (P.6-22)
Collecting used toner cartridges
“Recycling Used Cartridges” (P.8-13)
Purchase Consumables
Purchase at your local authorized Canon dealer.
If you are not sure, contact the Canon help line.
8-13
Maintenance
Canon has instituted a worldwide recycling program for cartridges called The Clean Earth Campaign.
This program preserves precious natural resources by utilizing a variety of materials found in the used
cartridges
that are of no further use, to remanufacture new cartridges which, at the same time, keeps the
environment cleaner by reducing landfill waste.
Complete details concerning this program are enclosed in each Cartridge box.
The Clean Earth Campaign
THE Canon CARTRIDGE RECYCLING PROGRAM
The Canon Cartridge Recycling Program fulfills the first initiative of Canons Clean Earth Campaign, which
supports four critical environmental areas:
Recycling in the Workplace
Conserving Environmental Resources
Scientific Research and Education
Encouraging Outdoors Appreciation
The remaining “Clean Earth” initiatives are supported in the U.S. through sponsorships of the National Park Foundation, the National
Wildlife Federation, and The Nature Conservancy and in Canada through donations to the World Wildlife Fund Canada and The
Nature Conservancy of Canada.
Since its inception, The Canon Cartridge Recycling Program has collected huge amount of cartridges that otherwise would have
been discarded into landfills or similar facilities.
Instead, this rapidly growing program returns used cartridges to the manufacturing process, thus conserving an array of resources.
Becoming a part of this worthwhile program is easy. When your cartridge is of no further use, simply follow the instructions
detailed for U.S. or Canadian residents.
We appreciate your support of The Canon Cartridge Recycling Program.
Working together we can make a significant contribution to a cleaner planet.
Cartridges collected through this program are not refilled.
You are not entitled to a tax deduction or rebate for the return of empty cartridges.
This program may be modified or discontinued without notice.
U.S.A. PROGRAM
Packaging
Option A-1: Single Box Return
Repackage the empty cartridge utilizing the wrapper and pulp mould end-blocks from the new cartridge’s box.
Place the empty cartridge in the box of your new cartridge. Seal the box.
Recycling Used Cartridges
8-14
Maintenance
Option B: Volume Box Return
We encourage you to use this option as a more efficient way to ship cartridges.
Place as many cartridges as possible into one box.
Carefully seal the box with tape;
or
Call 1-800-OK-Canon to receive your free eight cartridge collection box.
Option A-2: Multiple Box Return
We encourage you to use this option as a more efficient way to ship cartridges.
Complete Option A-1.
Bundle multiple cartridge boxes together securely with tape.
Please be sure that the shipment does not exceed UPS specifications.
Maximum weight = 70 lb. (31.8 kg)
Maximum length = 108” (2,743 mm)
Maximum girth (length + 2 x width + 2 x height) = 130” (3,302 mm)
If your shipment exceeds the above limits, please call 1-800-OK-Canon for special shipping information.
Please Note:
Do not send defective cartridges for replacement.
Defective cartridges under warranty should be exchanged by an authorized dealer or service facility as provided in the
warranty.
Shipping
Apply the UPS authorized returning label provided in this guide.
Residents of Alaska and Hawaii: Do not use the UPS authorized returning label. For Alaska and Hawaii Canon set up alternative
mail service with the U.S. Postal Service.
Please call 1-800-OK-Canon to receive U.S. Postal Service merchandise returning label.
Give the shipment to your UPS driver when you receive your next regular delivery; (UPS may charge a fee for customers who
call UPS to pick up a cartridge shipment if they do not already have a delivery scheduled.)
or
Take the shipment to your local UPS receiving point.
8-15
Maintenance
CANADA PROGRAM-CANADA PROGRAMME
Option A: Single Box Return
Repackage the empty cartridge utilizing the wrapper and pulp mould end-blocks from the new cartridge’s box.
Place the empty cartridge in the box of your new cartridge. Seal the box.
Apply the Canon Canada Inc./Canada Post label provided in this brochure. Canons labels are specially marked so that Canon
pays the postage.
Deposit your empty cartridge in any full size street mailbox or take it to your local Canada Post outlet or franchise.
Option B: Volume Box Return (eight or more cartridges)
We encourage you to use this option as a more efficient way to ship cartridges.
Call 1-800-667-2666 to receive your free Canon collection box kit.
The collection box can accommodate eight individual cartridge boxes.
Place your eight individually packaged boxes of empty cartridges into the Canon collection box. Seal the box.
Apply the Canon Canada Inc./Canada Post label provided in this brochure.
Canons labels are specially marked so that Canon pays the postage.
Deliver to any local Canada Post outlet or franchise. Customers who hold a Commercial pick-up agreement with Canada Post
may have their collection box picked up.
Working to preserve endangered species is a long-standing Canon interest.
To this end, for every cartridge collected, Canon Canada donates $1, shared equally between World Wildlife Fund Canada and the
Nature Conservancy of Canada. This donation is utilized in Canada.
For further information about The Clean Earth Campaign in Canada, please call or write to Canon.
1-800-667-2666
Canon Canada Inc.
Corporate Customer Relations
6390 Dixie Road
Mississauga, ON L5T 1P7
8-16
Maintenance
Before transporting the machine, see “Precautions when
Transporting the Machine (P.8-17)
When changing the location of the machine or moving the
machine for maintenance, be sure to perform the following
procedure.
1 Turn OFF the machine and any connected
computer.
OFF
OFF
2 Disconnect all cables and the power cord from the
machine.
(1)
(2)
(4)
(5)
(3)
How to remove the cables and cord
USB cable* (1) Remove it from the machine.
LAN cable* (2) Remove it from the machine.
Power cord
(3) Unplug the power plug from the AC
power outlet.
(4) Remove it from the machine.
Telephone
cables* (5) Remove it from the machine.
* Whether the cable is connected or not varies depending on
your environment.
3 Close the document feeder tray.
NOTE
If documents are set in the document feeder tray
Remove all documents from the document feeder tray.
4 Fold the paper stopper, and then push the output
tray extension into the machine.
(2)
(1)
(2)
(1)
NOTE
If paper is in the output tray
Remove the paper from the output tray.
5 Lift the dust cover.
NOTE
If paper is set in the multi-purpose tray
Remove the paper from the multi-purpose tray.
Transporting the Machine
8-17
Maintenance
6 Remove any paper from the paper cassette.
NOTE
If the paper guide at the front projects from the paper
cassette
Push the paper guide into the paper cassette.
7 Lower the dust cover.
8 Close the paper cassette.
9 Move the machine.
Ensure that all covers and trays are closed, and hold the lift handles
with the front side of the machine facing you.
Check the weight of the machine to carry it safely.
“Main Specifications (P.11-2)
10
Carefully set the machine down on the new
installation site.
NOTE
When reinstalling the machine
Refer to the supplied Starter Guide.
Precautions when Transporting the
Machine
IMPORTANT
Do not carry the machine with covers or trays open.
Make sure that the scanning platform and paper cassette are closed
before carrying the machine.
CAUTION
Set the machine down slowly and carefully.
Be careful not to hurt your hands or fingers.
WARNING
When transporting the machine
Be sure to turn off the power switches of the machine
and your computer, and then unplug the power plug and
interface cables.
Failure to do so can damage the cables or cords, resulting in
a fire or electrical shock.
When transporting the machine long distance
To prevent damage to the machine during transportation,
refer to the following.
Remove the toner cartridge.
Securely pack the printer in its original box with the
original packing materials.
* If the original box and packing materials are not available,
find an appropriate box along with packing materials and
pack the machine and the parts appropriately.
8-18
Maintenance
9-1
Chapter 9
Troubleshooting
This section describes solutions for cases such as paper jam and when problems are not
solved.
Clearing Jams 9-2
Document Jams in the Feeder 9-3
Paper Jams Inside the Machine 9-3
Display Message 9-6
Error Codes 9-6
If <Incorrect Size/Setting> Appears 9-8
Troubleshooting 9-9
Check the Following First 9-9
Is the power switched ON? 9-9
Has the power switch been just turned ON? 9-9
Is the machine in Sleep mode? 9-9
Are the settings proper? 9-9
Is the Error indicator on or blinking? 9-9
Does a message appear on the display? 9-10
Is the telephone line connected or configured properly? 9-10
If You Cannot Solve a Problem 9-10
If a Power Failure Occurs 9-11
If You Cannot Solve a Problem 9-12
Customer Support (U.S.A.) 9-12
Customer Support (Canada) 9-12
Print Result Is Not Good 9-13
Paper Curls 9-13
Paper Creases 9-14
Printing Is Uneven 9-14
White Specks Appear 9-15
The Toner Does Not Fix onto the Paper Well 9-16
The Printed Paper Has Vertical Streaks 9-16
Smudge Marks of Spattering Toner Appear around the Text or
Patterns 9-17
The Overall Print Result Is Dark 9-17
Copied Lines and Text Appear Faded 9-18
Printed Bar Codes Cannot Be Scanned 9-18
Paper Jams Occur Frequently When Performing
2-Sided Printing (MF4570dn Only) 9-18
9-2
Troubleshooting
Keys to be used for this operation
When <Paper jam.> appears on the display, a paper jam has
occurred in the feeder or inside the machine. To remove the
jammed document or paper, follow the instructions on the
display. Press [ ] to view the next step.
Paper jam.
Press [ ] to
display steps.
“Document Jams in the Feeder” (P.9-3)
“Paper Jams Inside the Machine” (P.9-3)
IMPORTANT
If the jammed paper is torn
Remove all torn pieces to avoid further jams.
If repeated paper jams occur
Check the following.
Ensure that the following packing material is completely
removed.
This part (a plastic part
attached to the end of
paper) is also a packing
material. Be sure to
remove it.
Fan the paper stack and tap the edge on a flat surface to align
the paper before loading it into the machine.
Ensure that the paper you are using meets the requirements for
use.
“Paper Requirements” (P.2-6)
Ensure that you have removed all scraps of paper from the inside
of the machine.
Do not touch the transfer roller (A).
Touching the transfer roller (A) may damage the machine.
(A)
NOTE
Do not force the jammed document or paper out of the
machine
Contact your local authorized Canon dealer or the Canon help line
for assistance, if needed.
Clearing Jams
WARNING
When removing the jammed document or paper
Use caution to avoid cutting your hands.
When removing jammed paper or when inspecting the
inside of the machine
Do not allow necklaces, bracelets, or other metal objects to
touch the inside of the machine, as this may result in burns
or electrical shock.
CAUTION
If loose toner comes into contact with your skin or
clothing
Wash with cold water. Avoid warm water, as this will set the
toner and cause it to stain your skin or clothing.
When removing the jammed document or paper
If paper is jammed, remove the jammed paper so that any
pieces of paper do not remain inside the machine according
to the displayed message. Also, do not put your hand in an
area other than indicated areas, as this may result in personal
injuries or burns.
Do not touch the fixing unit (A).
Touching the fixing unit (A) may cause burns as it becomes
very hot during use.
(A)
9-3
Troubleshooting
Document Jams in the Feeder
Referring to the procedure on the display, follow the steps
below to remove jammed documents.
1 Remove any document loaded in the feeder.
2 Open the feeder cover.
3 Remove any jammed document by pulling it
gently.
4 Close the feeder cover.
5 Place documents in the feeder.
Paper Jams Inside the Machine
Referring to the procedure on the display, follow the steps
below to remove jammed paper.
1 Hold the operation panel.
2 Lift the scanning platform.
If you cannot lift the scanning platform
Ensure that the feeder is completely closed.
Do not try to forcefully lift the scanning platform, as this may
damage the machine.
* If you set thick documents such as a book, the feeder may not be
completely closed. Remove the documents.
3 Hold the grip on the left front side of the toner
cover.
9-4
Troubleshooting
4 Open the toner cover.
5 Remove the toner cartridge.
6 Remove any jammed paper by pulling it gently.
If you do not see the leading edge of the jammed paper
Do not force to pull the paper, and proceed to step 7.
7 Push up the green colored part (A), and then pull
the paper exit guide to open.
(A)
(1)
(2)
(3)
8 Remove any jammed paper by pulling it gently.
If you do not see the leading edge of the jammed paper
Do not force to pull the paper, and proceed to step 9.
9 Lift the paper exit guide, and then firmly close it.
Ensure that each end of the paper exit guide is closed.
(1)
(2)
10
Remove any jammed paper by pulling it gently.
(1) Gently pull any jammed paper downward from between the
fixing unit (A) and transfer roller (B) until the leading edge
emerges from the machine.
(B)
(A)
(2) When the leading edge emerges, hold both sides of the
jammed paper and carefully pull it out.
9-5
Troubleshooting
11
Remove any jammed paper by pulling it gently.
12
Lift the dust cover.
13
Remove any paper loaded in the paper cassette.
14
Remove any jammed paper by pulling it gently.
15
Reload paper into the paper cassette and lower
the dust cover.
For MF4570dn
Next, proceed to step 16.
For MF4450
Proceed to step 19.
16
Open the rear cover.
17
Remove any jammed paper by pulling it gently.
18
Close the rear cover.
19
Insert the toner cartridge.
Fit the protrusions (A) on each side of the toner cartridge into the
guides located on each side of the machine,and then slide the
toner cartridge into the machine until the toner cartridge meets
the back of the machine.
(A)
(A)
20
Close the toner cover.
If you cannot close the toner cover
Ensure that the toner cartridge properly set in the machine. Do
not try to forcefully close the toner cover, as this may damage the
machine.
21
Lower the scanning platform.
The machine is ready to print.
9-6
Troubleshooting
If messages appear, see the following and solve the problem.
e-Manual Troubleshooting Display Messages
An error code is a 3-digit code recorded as an error log when an error occurs.
You can view the code in the following locations.
Error codes for fax jobs
• Error send report
• Error receive report
• Job history in the system status screen
***********************
***********************
*** ***
Error Report (Send)
Send job resulted in error.
Job No.
Address
Name
Start Time
Call Length
Sheets
Result
0123
0123456789
name
01/01 02:07 AM
01'15
1
NG
#018 Busy/No Signal
Error code
01/01/2011 02:07 PM FAX 123XXXXXXX CANON P.0001
For details on the reports, refer to the following.
e-Manual Basic Operation Setting the Report to Print Automatically
For details on the error code, see the following.
#001 Cause A document may be jammed.
Action Remove the jammed document.
#003
Cause A high volume of data is causing the transmission to take a very long time.
Action 1 Reduce the scanning resolution, and then try to send the document again.
Action 2 Reduce the scanning resolution or ask the sender to divide the document before sending it again.
#005
Cause 1 A fax recipient did not respond within 35 seconds.
Action Repeat the procedure from the first step. Additionally, ask the recipient to check the fax machine. If you are making an
overseas call, add a pause to the fax number.
Cause 2 The recipient may not be using a G3 fax machine.
Action
Ask the recipient what type of fax machine is being used, and then send the document to the recipient’s G3 fax
machine. If the recipient does not have a G3 fax machine, send the document again using a communication mode
compatible with the recipient’s fax machine.
#012 Cause The recipient’s machine has run out of paper.
Action Ask the recipient to ensure that paper is loaded in their machine.
#018
Cause 1 Redialing was not able to obtain any response. The line may be in use or disconnected.
Action Wait a moment, and then try again. If you are still unable to send the document, ask the recipient to verify that the fax
machine is turned ON. If the line is busy, wait a few moments, and try to send the document again.
Cause 2 You were not able to send the document because the line is busy or disconnected.
Action Verify that the recipient can communicate with you, and then try again.
Cause 3 The settings on the recipient’s machine are incompatible with yours.
Action Verify that the recipient can communicate with you, and then try again.
Cause 4 No pause was added to the fax number when attempting an international fax transmission.
Action
Add a pause after the country code or the recipient’s fax number, and then redial the number. If you want to send the
document to a recipient that is registered under a onetouch key, change the settings for international sending in the
detailed setting screen.
Display Message
Error Codes
9-7
Troubleshooting
#022
Cause Sending faxes from a computer is restricted.
Action
The restriction needs to be canceled. Contact your administrator for more details.
e-Manual Security Restricting Destination Operations/Sending Functions Restricting Fax Sending from a
Computer
#037
Cause 1 The machines memory is full.
Action 1 Print, send, or delete any documents stored in the memory.
Action 2 For a copy job, divide the document into two or set <Original Type> to <Text/Photo (High Speed)> before copying.
e-Manual Copy Selecting Image Quality (Copy)
Cause 2 The data size exceeds the machine’s available memory.
Action Reduce the data resolution or change the file format to reduce the data volume.
#054
Cause 1 A user abbreviation or a user fax number is not registered when sending a fax from a computer.
Action Register the user abbreviation and the user fax number.
Cause 2 The recipient’s fax number exceeds 40 digits when sending a fax from a computer or importing a destination from the
address book.
Action Reduce the recipient’s fax number under 40 digits.
#099
Cause You unintentionally canceled a job.
Action Try to resend the job.
#995 Cause The job waiting to be sent or received has canceled by a user.
Action Retry to send or receive the job as needed.
9-8
Troubleshooting
The message appears when the paper size specified in <Drawer 1>, or <MP Tray> in the <Paper Settings> menu is different from
the size of the paper loaded in the paper cassette or multi-purpose tray. If the message appears, perform the following operations.
NOTE
When printing using the printer driver
To ignore the message and proceed to print on paper that is currently set, press [ ] or [ ] to select <Resume>, and then press [OK]. However,
images may be printed improperly, for example, part of images may not be printed.
Change the <Paper Settings> menu according to the size of the loaded paper
Cancel the job, see “Setting a Paper Size and Type (P.2-14) , and then change <Paper Settings>.
IMPORTANT
When printing using the printer driver
Check that the paper size setting on the computer is also correct.
Loading paper of the size specified in the <Paper Settings> menu
(1) See “Loading Paper” (P.2-9) and reload the paper specified in the <Paper Settings> menu.
(2) Press [ ] or [ ] to select <Resume>, and then press [OK].
If <Incorrect Size/Setting> Appears
9-9
Troubleshooting
If one of the following problems occurs during use, try the actions suggested here before contacting technical support.
Check the Following First
Is the power switched ON?
Ensure that the power cord is securely plugged into the machine and into the wall outlet.
Ensure that electricity is supplied from the power cord. Use another power cord or verify that cord is broken using a voltmeter.
Turn ON the power switch.
If there is no problem
Has the power switch been just turned ON?
Wait a moment for the machine starts and warm up.
If there is no problem
Is the machine in Sleep mode?
Press [ ] (Energy Saver) on the operation panel to exit the Sleep mode.
If there is no problem
Are the settings proper?
If the machine emits the entry error tone and does not start operating when you press [ ] (Start), your combination of
settings may be invalid. Recheck the settings.
If there is no problem
Is the Error indicator on or blinking?
Ensure that paper is loaded properly in the paper cassette or multi-purpose tray.
“Loading Paper” (P.2-9)
Check if paper is jammed.
“Clearing Jams” (P.9-2)
Turn OFF the power switch of the machine, wait for more than 10 seconds, and then turn it ON. If the problem is solved, the
Error indicator will turn off and the display will return to standby mode. If the Error indicator keeps blinking, unplug the power
cord and contact your local authorized Canon dealer or the Canon help line.
If there is no problem
Troubleshooting
9-10
Troubleshooting
Does a message appear on the display?
If an error message appears on the display, refer to the following section to locate the appropriate corrective action.
“Display Message” (P.9-6)
Print the transmission management report to see if any errors are listed.
e-Manual Basic Operation Printing a List Printing a Communication Management Report
If there is no problem
Is the telephone line connected or configured properly?
Ensure that the telephone cable is properly connected. Check if the cables for the telephone line port and external device
port on the back of the machine are connected inversely.
“Configuring and Connecting the Fax” ( Starter Guide)
Ensure that the line type setting (dial or push) corresponds to the type of telephone line that is connected to the machine.
“Select Line Type” (P.6-20)
Ensure that the telephone line is not receiving interference from nearby devices such as a microwave oven. This may affect
status of the telephone line.
If there is no problem
If You Cannot Solve a Problem
See “Troubleshooting in the e-Manual, then solve the problem.
9-11
Troubleshooting
The machine cannot be used while power supply is cut off.
The fax function during a power failure
Documents cannot be sent or received.
You may not be able to make a call using the external telephone depending on your telephone.
You may be able to get a call using the external telephone depending on your telephone.
IMPORTANT
Data storage for when power supply is cut off
Even if power is lost due to a power failure or accidental unplugging, any sent or received documents stored in the memory are backed up for
approximately 5 minutes.
NOTE
Charging the built-in battery
It takes approximately 24 hours to fully charge the built-in battery after the machine is turned ON.
If the built-in battery has not been charged fully charged, documents stored in the memory may not be properly backed up.
If a Power Failure Occurs
9-12
Troubleshooting
Customer Support (U.S.A.)
If you cannot solve the problem after having referred to the
information in this chapter, contact Canon Customer Care
Center at 1-800-OK-CANON Monday through Friday between
the hours of 8:00 A.M. to 8:00 P.M. EST. On-line support is also
available 24 hours a day at the website
http://www.canontechsupport.com.
Please have the following information ready when you
contact Canon:
Product name (imageCLASS MF4570dn/MF4450)
Serial number (a character string which consists of three
alphabets and a 5-digit number and is indicated on the
rating label located on the rear side of the machine)
MF4570dn MF4450
Rating label Rating label
Place of purchase
Nature of problem
Steps you have taken to solve the problem and the results
IMPORTANT
If you attempt to repair the machine by yourself
It may void the limited warranty.
Customer Support (Canada)
Canon Canada Inc., offers a full range of customer technical
support options*:
* Support program specifics are subject to change without notice.
For step-by-step troubleshooting, e-mail technical support,
the latest driver or document downloads, and answers to
frequently asked questions, visit http://www.canon.ca/
Free live technical support 9 A.M. to 8 P.M. EST Monday
through Friday (excluding holidays) for products still under
warranty 1-800-OK-CANON
For the location of the authorized service facility nearest
you, visit http://www.canon.ca/ or 1-800-OK-CANON
If the problem cannot be corrected by using one of the
above technical support options, repair options are
available at the time of your call to the live technical
support number above or via the website at
http://www.canon.ca/
* Support program specifics are subject to change without notice.
Please have the following information ready when you
contact Canon:
Product name (imageCLASS MF4570dn/MF4450)
Serial number (a character string which consists of three
alphabets and a 5-digit number and is indicated on the
rating label located on the rear side of the machine)
MF4570dn MF4450
Rating label Rating label
Place of purchase
Nature of problem
Steps you have taken to solve the problem and the results
IMPORTANT
If you attempt to repair the machine by yourself
It may void the limited warranty.
If You Cannot Solve a Problem
WARNING
If the machine makes strange noises or emits smoke or
odd odor
Turn OFF the power switch immediately, disconnect the
power cord, and contact Canon Customer Care Center.
Do not attempt to disassemble or repair the machine
yourself.
WARNING
If the machine makes strange noises or emits smoke or
odd odor
Turn OFF the power switch immediately, disconnect the
power cord, and contact Canon Customer Care Center.
Do not attempt to disassemble or repair the machine
yourself.
9-13
Troubleshooting
NOTE
Contacting your local authorized Canon dealer
If a problem that is not indicated in the e-Manual occurs, if none of the suggested measures solve the problem, or if you cannot determine the
problem, contact your local authorized Canon dealer.
Paper Curls
Perform one of the following solutions according to the cause.
<Cause 1> Damp paper is used.
Solution 1 Replace the paper with new paper in an unopened package.
“Paper Requirements” (P.2-6)
Solution 2
Perform the following procedure in the printer driver when you are using plainpaper (60 to 90 g/m2).
1. Display the [Page Setup] tab.
2. Set [Paper Type] to [Plain Paper L].
Solution 3
Change the <Special Mode V> settings from the operation panel.
e-Manual Maintenance Special Mode
The level of improvement according to the setting option is as following.
<Off> <Mode 1> <Mode 2> <Mode 3>
(low) (high)
* Change of paper type or environment may reduce the curl or wrinkle problem, even without changing the setting.
* This setting is available when
• the <Paper Size> is set to <B5>, <A5>, <STMT>, or <EXEC>
• the <Paper Type> is set to <Plain (16 lb Bond-24 lb Bond)>, <Plain L (16 lb Bond-24 lb Bond)>, <Recycled>,
<Color>, <Rough 1 (16 lb Bond-24 lb Bond)>, or <Envelope>
* As you select an option that has higer effect, printing speed becomes slower.
<Cause 2> Appropriate paper is not being used.
Solution Replace the paper with which can be used with this printer.
“Paper Requirements” (P.2-6)
Print Result Is Not Good
9-14
Troubleshooting
Paper Creases
Perform one of the following solutions according to the cause.
<Cause 1> The paper is not loaded properly.
Solution Load the paper properly.
“Loading Paper” (P.2-9)
<Cause 2> Damp paper is used.
Solution Replace the paper with new paper in an unopened package.
“Paper Requirements” (P.2-6)
<Cause 3> Appropriate paper is not being used.
Solution Replace the paper with which can be used with this printer.
“Paper Requirements” (P.2-6)
<Cause 4> There is a foreign object inside the printer.
Solution Remove the foreign object inside the printer.
<Cause 5> Depending on the paper type or the operating environment, the paper may be creased.
Solution
Change the <Special Mode V> settings from the operation panel.
e-Manual Maintenance Special Mode
The level of improvement according to the setting option is as following.
<Off> <Mode 1> <Mode 2> <Mode 3>
(low) (high)
* Change of paper type or environment may reduce the curl or wrinkle problem, even without changing the setting.
* This setting is available when
• the <Paper Size> is set to <B5>, <A5>, <STMT>, or <EXEC>
• the <Paper Type> is set to <Plain (16 lb Bond-24 lb Bond)>, <Plain L (16 lb Bond-24 lb Bond)>, <Recycled>,
<Color>, <Rough 1 (16 lb Bond-24 lb Bond)>, or <Envelope>
* As you select an option that has higer effect, printing speed becomes slower.
Printing Is Uneven
Perform one of the following solutions according to the cause.
9-15
Troubleshooting
<Cause 1> Paper is too moist or Too dry.
Solution Replace the paper with new paper in an unopened package.
“Paper Requirements” (P.2-6)
<Cause 2> Toner is nearly out.
Solution To view the solution, refer to the following.
“Replacing the Toner Cartridge” (P.8-10)
<Cause 3> The drum in the toner cartridge is deteriorated.
Solution Replace the toner cartridge with a new one.
“Replacing the Toner Cartridge” (P.8-10)
<Cause 4> Unevenness may appear when thin lines are printed.
Solution
Change the <Special Mode J> setting to <On> from the operation panel.
e-Manual Maintenance Special Mode
* If you use this mode, the following problems may occur.
• The output is less fine.
• Toner smears even on unnecessary parts.
• Toner consumption increases.
White Specks Appear
Perform one of the following solutions according to the cause.
<Cause 1> Appropriate paper is not being used.
Solution Replace the paper with which can be used with this printer.
“Paper Requirements” (P.2-6)
<Cause 2> Damp paper is used.
Solution Replace the paper with new paper in an unopened package.
“Paper Requirements” (P.2-6)
<Cause 3> The drum in the toner cartridge is deteriorated.
Solution Replace the toner cartridge with a new one.
“Replacing the Toner Cartridge” (P.8-10)
<Cause 4> When you print a document of highly contrasting density, white specks may appear on the outlines of the text or
images.
Solution
Change the [Special Print Mode] setting to [Special Settings 2] from the printer driver.
e-Manual Maintenance Special Mode
* When [Special Settings 2] is selected, printing density is lower than when [Off] or [Special Settings 1] is selected.
Also, text or lines may be less clear.
9-16
Troubleshooting
The Toner Does Not Fix onto the Paper Well
Perform one of the following solutions according to the cause.
<Cause 1> Paper type setting is not specified properly.
Solution
Properly specify the paper type setting.
* If you are using coarse paper, select one of the followings.
• <Rough 1 (16 lb Bond-24 lb Bond)>
• <Rough 2 (24 lb Bond-32 lb Bond)>
• <Rough 3 (45 lb Cover-60 lb Cover)>
“Setting a Paper Size and Type (P.2-14)
<Cause 2> Appropriate paper is not being used.
Solution Replace the paper with which can be used with this printer.
“Paper Requirements” (P.2-6)
<Cause 3> Depending on the environment (in low temperature environments), toner may not be fixed sufficiently, and
output may be less clear.
Solution
Change the <Special Mode K> setting to <On> from the operation panel.
e-Manual Maintenance Special Mode
* Change of environment may improve the toner fixation, even without changing the setting.
* If you use this mode, printing speed becomes slow.
The Printed Paper Has Vertical Streaks
Perform one of the following solutions according to the cause.
<Cause 1> Depending on the paper type or the operating environment, vertical streaks may appear on the printed paper.
Solution 1 Replace the paper with new paper in an unopened package.
“Paper Requirements” (P.2-6)
Solution 2
When copying or printing received faxes
Change the <Special Mode Z> setting from the operation panel.
When printing from a computer
Change the [Special Print Adjustment] setting from the print driver.
e-Manual Maintenance Special Mode
The level of improvement according to the setting option is as following.
<Off> <Mode 1> <Mode 2> <Mode 3> <Mode 4>
(low) (high)
* Change of paper type or environment may reduce the streaks, even without changing the setting.
* As you select an option that has higher effect, printing density becomes lower. Outlines of printed text or images
may be less clear, or images may be slightly jagged.
9-17
Troubleshooting
Solution 3
When printing received faxes
Change the <Special Mode C> setting to <On> from the operation panel.
When printing from a computer
Change the <Special Mode D> setting to <On> from the print driver.
e-Manual Maintenance Special Mode
* Change of paper type or environment may reduce the streaks, even without changing the setting.
* This mode is more effective than <Special Mode Z>, however, printing speed becomes slow.
* This mode has higher priority than <Special Mode Z>.
<Cause 2> The toner cartridge was replaced, or the printer was not printed for a long period of time.
Solution
Change the <Special Mode B> setting from the operation panel.
e-Manual Maintenance Special Mode
The level of improvement according to the setting option is as following.
<Off> <Mode 1> <Mode 2> <Mode 3>
(low) (high)
* Change of paper type or environment may reduce the streaks, even without changing the setting.
* As you select an option that has higher effect, printing speed becomes slower.
Smudge Marks of Spattering Toner Appear around the Text or Patterns
Perform one of the following solutions according to the cause.
<Cause 1> Appropriate paper is not being used.
Solution Replace the paper with which can be used with this printer.
“Paper Requirements” (P.2-6)
<Cause 2> Depending on the paper type (especially for heavy paper) or the operating environment (especially in dry
environments), smudge marks of spattering toner may appear.
Solution
Change the <Special Mode U> settings to <On> from the operation panel.
e-Manual Maintenance Special Mode
* Maintain this setting <Off> in normal conditions. Change the setting only when the problems mentioned above
occur.
* If you use this mode, printing quality may become lower depending on the paper type (especially for thin paper) or
environment (especially in wet environments)
The Overall Print Result Is Dark
Perform one of the following solutions according to the cause.
9-18
Troubleshooting
<Cause 1> The copy density is not properly set.
Solution
Adjust the <Density> or <Correct Density> lower from the operation panel.
Adjusting the Density (P.3-4)
e-Manual Copy Adjusting the Density Finely Adjusting the Density
<Cause 2> The machine is exposed to direct sunlight or strong light.
Solution Move the machine.
e-Manual Maintenance Transporting the Machine
Copied Lines and Text Appear Faded
A
B
C
A
B
C
C
A
B
C
A
B
C
C
Perform the following procedure.
<Cause> <Original Type> is set to <Text/Photo (High Speed)> (default).
Solution Set <Original Type> to <Text>, and then try to copy again.
“Selecting Image Quality (Copy)” (P.3-4)
Printed Bar Codes Cannot Be Scanned
Perform the following procedure.
<Cause> When printing a bar code with the default printing preferences, the bar code may not be able to
be scanned.
Solution
Change the [Special Print Mode] setting to [Special Settings 1] from the print driver.
e-Manual Maintenance Special Mode
* When [Special Settings 1] is selected, printing density is lower than when [Off] is selected. Also, text or lines may be
less clear.
Paper Jams Occur Frequently When Performing 2-Sided Printing (MF4570dn Only)
Perform the following procedure.
<Cause> Depending on the paper type (especially for thin paper or curled paper), paper jams occur frequently when
performing 2-sided printing.
Solution
Change the <Special Mode I> settings from the operation panel.
e-Manual Maintenance Special Mode
* Maintain this setting <Off> in normal conditions. Change the setting only when the problems mentioned above
occur.
* If you use this mode when you are not using thin paper, images may become white.
10-1
Chapter 10
Registering/Setting the Various Functions
You can set or change machine functions from the setting menu according to your purpose.
Setting Menu List 10-2
Printing a User Data List 10-2
Contents of the Setting Menu 10-2
10-2
Registering/Setting the Various Functions
Printing a User Data List
Contents of the Setting Menu
P. 1 - 11
Timer Settings
YYYY MM/DD
MM/DD/YYYY
DD/MM YYYY
Date Display Type
Time&Date Settings
This area represents the first hierarchy in the menu.
This area represents hierarchies for "setting item."
This area represents
hierarchies for "setting values."
The setting values with the
gray background or of the
boldface represents the default
settings.
These represents reference areas in this manual.
For the items with the icon, see the e-Manual.
Register the size and type of the
paper to be used.
You can also register a custom paper
size.
[Paper Settings] key
Configure the machine settings.
You can perform adjustment and
cleaning.
[Menu] key
You can specify the settings for
various report output conditions and
output a report.
[Report] key
Returns to the previous hierarchy.
Proceeds to the next hierarchy.
Selects an upper item/setting value.
Selects a lower item/setting value.
Proceeds to the next hierarchy. Also, a setting
value is determined, and an operation is performed.
* When <Apply> appears in the screen, you need to select <Apply>
and press [OK] after specifying the setting.
Returns to the previous hierarchy.
Cancels the setting and returns to the initial screen.
Menu Operations
Back
Reset
Viewing the Route Map
Register the following types of destination.
- One-touch keys
- Coded dialing
- Group dialing
[Address Book] key
- Settings or values with "*" mark appear only in MF4570dn.
Setting Menu List
To see the contents of current settings, print out user’s data list.
Keys to be used for this operation
OK
Report
1 Press [ ] (Report).
2 Press [ ] or [ ] to select <Print Report Lists>,
and then press [OK].
Reports
Reports Settings
Print Report Lists
3 Press [ ] or [ ] to select <User Data List>, and
then press [OK].
Print Report Lists
Address Book List
User Data List
Communication Manage
...
4 Ensure that the paper is loaded, and then press
[OK].
Load the paper indicated in the display.
Supported paper:
Size: A4, LTR
OK
5 Press [ ] to select <Yes>, and then press [OK].
Printing starts.
Print user data
list?
NoYes
6 Press [ ] (Report) to close <Print Report
Lists> screen.
10-3
Registering/Setting the Various Functions
Keys to be used for this operation
1
2
Keys to be used for this operation
1
2
3
4
Keys to be used for this operation
Off
On
- TX Done Volume: 1 to 5
Sound Only When Error Occurs
- TX Done Volume: 1 to 5
Off
On
- RX Done Volume: 1 to 5
Sound Only When Error Occurs
- RX Done Volume: 1 to 5
Off
On
- Scanning Done Volume:
1 to 5
Sound Only When Error Occurs
- Scanning Done Volume:
1 to 5
Coded Dial
Max 16 characters
Address Book
1
2
<How to display>
Press [FAX].
Press [Address Book].
The address book is displayed.
Press [ ] to select [ ], and then press [OK].
3
4
Menu
1
2
<How to display>
Press [Menu].
The setting menu is displayed.
Paper Settings
<How to display>
Press [Paper Settings].
Fax
Name
Coded Dial:Registration No.
Max 40
Destination
Max 16 characters
Group
Name
Select Coded Dial/One-Touch Dial
Destination
Settings
ECM TX
Speed
Off
On
33600 bps
14400 bps
9600 bps
2400 bps
Long Distance Domestic
International (1)
International (2)
International (3)
P. 5 - 6
One-Touch Dial
Max 16 characters
Fax
Name
Enter Registration No.
One-Touch Dial:Registration No.
Max 40
Destination
Max 16 characters
Group
Name
Enter Registration No.
Select Coded Dial/One-Touch Dial
Destination
One-Touch Dial: Registration No.
Settings
ECM TX
Speed
Off
On
Long Distance Domestic
International (1)
International (2)
International (3)
P. 5 - 3
"Setting a Paper Size and Type" (P. 2-16)
Preferences
Sound Volume Control
Continues to the next page
7200 bps
4800 bps
Off
Display Settings
On
Off
On
Off
On
Off
On
Off
On
Off
On
33600 bps
14400 bps
9600 bps
2400 bps
7200 bps
4800 bps
Copy
Fax
Scan
Status Monitor/Cancel
English
French
Portuguese
Spanish
English
-2 to 0 to +2
French
Portuguese
Spanish
Off
On
Off
On
Invert Screen Colors
mm
Inch
mm/Inch Entry Switch
Fax Tone
Select Default Screen
Language
Remote UI Language *
Contrast
Status Monitor/Cancel Device Priority
- Fax Volume: 1 to 5
Entry Tone
- Entry Tone Volume:
1 to 5
Entry Error Tone
- Entry Err. Tone Volume:
1 to 5
Warning Tone
- Warning Tone Volume:
1 to 5
Job Done Tone
- Job Done Tone Volume:
1 to 5
Ring Tone
- Ring Tone Volume: 1 to 5
TX Done Tone
RX Done Tone
Scanning Done Tone
CD-ROM
CD-ROM
10-4
Registering/Setting the Various Functions
Redial Interval
Redial When Error Occurs
Redial Times
RX Function Settings
Fax RX Settings
10 to 240 (minutes)
Sleep Timer
-4 to 0 to +4
Correct Density
0=Off
1 to 2 to 9 (minutes)
Auto Reset Timer
Default Screen
Selected Screen
Screen After Auto Reset
0=Off
1 to 5 to 60 (minutes)
Auto Offline Time
1 to 2 to 15 (seconds)
2 to 99 (minutes)
Off
On
Change Defaults
Off
On
ECM TX
Off
On
Auto Redial
Off
On
Check Dial Tone Before Sending
1 to 2 to 15 (seconds)
Pause Time
Off
Mode 1
Mode 2
Mode 3
Mode 4
TX Function Settings
Fax Setup Guide
Copy
Off
Mode 1
Mode 2
Mode 3
Mode 4
Fax
Continues to the upper right
Continues from the previous page Continues from the lower left
Off
On
2-Sided Printing
Special Processing
Adjustment/Maintenance
Off
On
Special Mode U
Off
On
Special Mode C
Off
Mode 1
Mode 2
Mode 3
Special Mode V
Off
Mode 1
Mode 2
Mode 3
Special Mode B
Special Mode Z
Fax Settings
Off
On
ECM RX
Off
Incoming Ring
Off
On
RX Page Footer
Off
On
Continue Print. When Toner Is Nearly Out
Reduce RX Size Off
On
- Ratio: Auto, 97, 95, 90, 75(%)
- Direction: Vertical/Horizontal,
Vertical Only
Timer Settings
Time & Date Settings
Copy Settings
Change Defaults
Toner Saver Mode
Paper Feed Method Switch
Gram
Pound
Gram/Pound Switch
Off
On
Copy
Off
On
Fax
Print Speed Priority
Print Side Priority
Multi-Purpose Tray
Print Speed Priority
Print Side Priority
Drawer 1
Auto
Manual
Cursor Movement
Normal
Fast
1 to 2 to 5 (seconds)
Message Display Time
Slow
Scrolling Speed
12 Hour (AM/PM)
24 Hour
12/24 Hour Clock
Off
Daylight Savings
Current Time Settings
DD/MM YYYY
YYYY MM/DD
MM/DD/YYYY
Date Display Type
On
- Start (M/W/D)
- End (M/W/D)
Fax TX Settings
Basic Settings
Dial 10 PPS
Tone
Select Line Type
off
on
Sender ID
Off
Off-Hook Alarm
Direct
Adapter 1
Adapter 2
Public Line Connection
Register Unit Name
Register Unit Telephone Number
On
- Offhook Alarm Volume:
1 to 5
On Image
Above Image
FAX
TEL
Print Location
Mark No. as: Tel/FAX
Continues to the next page
On
- Ring Times: 1 to 2 to 99
(times)
Off
Remote RX
On
- Remote RX ID: 00 to 25
to 99
Off
Auto RX Switch
On
- Incoming Ring Time: 1 to
15 to 99 (seconds)
CD-ROM
CD-ROM
CD-ROM
CD-ROM
CD-ROM
CD-ROM
CD-ROM
P. 8 - 8
P. 1 - 11
P. 1 - 1 0
P. 3 - 9
P.6-20
P.6-20
P.6-20
P.6-20
P.6-20
P.6-20
P.6-18
P.6-20
P.6-21
P.6-21
P.6-21
P.6-22
P.6-22
P.6-22
P.6-22
P.6-22
P.6-23
P.6-23
P.6-23
10-5
Registering/Setting the Various Functions
IPv4 Address Range Settings
On
Off
Read-Write (RW)
Off
On
Allowed RX MAC Address Settings Off
On
Off
On
Dedicated Port Settings
Off
On
DNS Settings
DNS Host Name/Domain Name Settings
DNS Dynamic Update Settings
mDNS Settings
LPD Settings
Off
On
Copy
IPv4 Settings
IPv6 Settings
Off
On
Print
Special Mode D
Continues from the previous page Continues from the lower left
Clean Fixing Unit
Continues to the upper right Continues to the next page
System Manager Information Settings
System Manager PIN: Up to seven digits
System Manager Name: Up to 32 characters
Device Information Settings
Device Name: Up to 32 characters
Network Settings *
TCP/IP Settings
Location: Up to 32 characters
IP Address Settings
PING Command
Auto Obtain
Select Protocol
Manual Obtain
IP Address
Off
On
Special Mode I
Off
On
Special Mode J
Off
On
Special Mode K
Off
DHCP
Auto IP Off
0.0.0.0
Subnet Mask 0.0.0.0
Gateway Address
View Settings
Auto Obtain
IP Address
Off
On
Primary DNS Server
Secondary DNS Server
Subnet Mask
Gateway Address
0.0.0.0
On
BOOTP
RARP
Off
On
View Settings
DNS Settings
DNS Server Settings
mDNS Settings
Use IPv6
Off
On
View Settings
Stateless Address Settings
Off
On
View Settings
Use DHCPv6
Off
On
Host Name
Domain Name
DNS Host Name/Domain Name Settings
DNS Dynamic Update Settings
mDNS Name
0.0.0.0
0.0.0.0
0.0.0.0
Use IPv4 Host/Domain
DNS Host Name/Domain Name Settings
On
Off (mDNS Name)
Off
On
Auto Detect
MAC Address
SNMP Settings
Community Name 1 Public
Writable SNMP 2
Off
On
Off
Startup Settings
Ethernet Driver Settings
0 to 300 (seconds)
Printer Management Information From Host
Read-Only (RO)
Dedicated Community Settings
Community Name 2
Writable SNMP 1
On
Off
On
Use HTTP Off
On
Off
On
On
Port Number Settings
LPD: 0 to 515 to 65535
RAW: 0 to 9100 to 65535
HTTP: 0 to 80 to 65535
SNMP: 0 to 161 to 65535
IP Address Range Settings
Off
Only Allowed Addresses On
Only Denied Addresses On
Allowed/Denied Addresses On
IPv6 Address Range Settings Off
Only Allowed Addresses On
Only Denied Addresses On
Allowed/Denied Addresses On
RAW Settings Off
On
Off
WSD Settings
Use WSD Print
Off
On
Use WSD Browsing
Off
On
Use Multicast Discovery
Off
- Host Name
- Domain Name
On
- Register Manual Add.:
Off, On
- Register Stateful Add.:
Off,On
- Register Stateless Add.:
Off, On
Off
- Communication Mode :
Half Duplex, Full Duplex
- Ethernet Type:
10 Base-T, 100 Base-TX
P. 8 - 3
CD-ROM
CD-ROM
CD-ROM
System Management Settings
10-6
Registering/Setting the Various Functions
Keys to be used for this operation
12
Preferences
Timer Settings
Copy Settings
Fax TX Settings
Fax RX Settings
Special Processing
Initialize All
Initialize Menu
On
Off
Communication Management Settings
Continues from the previous page
Continues to the upper right
Continues from the lower left
Fax Settings
Restrict TX Function
Address Book PIN
Restrict New Destinations
On
Off
Allow Driver Faxing
On
Off
Restrict Sending From History
On
Off
Fax No. Confirmation Re-Entry
Confirm Sequential Broadcast
Reject Sequential Broadcast
Off
Restrict Sequential Broadcast
Select Country/Region
Memory Lock Settings
United States (US)
Canada (CA)
Brazil (BR)
Mexico (MX)
Initialize System Settings
System Manager Information Settings
Device Information Settings
Network Settings *
Communication Management Settings
Select Country/Region
Remote UI On/Off *
Restrict TX Function
Display Job History
USB Device On/Off
Initialize All
Other
33600 bps
14400 bps
Off
On
Off
On
9600 bps
7200 bps
4800 bps
2400 bps
Remote UI On/Off * Off
On
Display Job History Off
On
USB Device On/Off Off
On
Update Firmware
Initialize Address Book
TX Start Speed
RX Start Speed
Memory Lock PIN
Report Print
Off
On
Memory Lock Time
Report With TX Image
Off
On
Print Reports Lists
Off
On
Only When Error Occurs
TX Result Report
Coded Dial
One-Touch
Group
Address Book List
Off
On
Only When Error Occurs
RX Result Report
User Data List
Communication Management Report
Communication Management Report
Reports Settings
CD-ROM
CD-ROM
Auto Print After 40 Transmissions Off
On
Separate TX/RX Off
On
Reports
1
2
<How to display>
Press [Report].
The report output menu is displayed.
- Memory Lock Start Time
- Memory Lock End Time
P.6-24
P.6-24
P. 6 - 2 5
P.6-25
P. 6 - 2 5
P. 6 - 2 5
P. 6 - 2 5
P. 6 - 2 5
P. 6 - 2 5
P. 6 - 2 5
CD-ROM
CD-ROM
CD-ROM
CD-ROM
CD-ROM
CD-ROM
CD-ROM
CD-ROM
CD-ROM
CD-ROM
CD-ROM
CD-ROM
11-1
Chapter 11
Appendix
This section describes the specifications of the machine and information for Macintosh users.
Main Specifications 11-2
Machine Specifications 11-2
Copy Specifications 11-2
Printer Specification 11-2
Scanner Specifications 11-3
Fax Specifications 11-3
Telephone Specifications 11-3
For Macintosh Users 11-4
Displaying Driver Guides (PDF Files) 11-4
Displaying a Drivers Help System 11-4
Content of the e-Manual about Features that Are Unavailable
on the Macintosh 11-4
Index 11-5
11-2
Appendix
Machine Specifications
Machine Specifications
Type Personal Desktop
Power Supply
120 to 127 V, 60 Hz (Power requirements
differ depending on the country in which
you purchased the product.)
Power Consumption
• Maximum: 1,090 W or less
Average consumption during standby
mode: Approx. 10 W
Average consumption during sleep mode:
Approx. 3 W
Warm-up Time
• 12 seconds or less*
(Temperature: 68 °F (20 °C), humidity: 65%
RH ;
from when the machine is turned on with
the power switch to when the standby
display appears)
* Warm-up time may vary depending on
the condition and environment around
the machine.
Weight
• MF4570dn
Main unit (including toner cartridge):
Approx. 27.1 lb (12.3 kg)
• MF4450
Main unit (including toner cartridge):
Approx. 25.8 lb (11.7 kg)
Dimensions
(W x L x H)
15 3/8” x 16 5/8” x 14 1/2”
(390 mm x 421 mm x 370 mm)
Installation Space
(W x L x H)
• MF4570dn
24 1/4” x 31 5/8” x 29”
(617 mm x 804 mm x 735 mm)
• MF4450
24 1/4” x 30 7/8” x 29”
(617 mm x 784 mm x 735 mm)
Environmental
Conditions
Temperature: 50 to 86°F (10 to 30°C)
Humidity: 20% to 80% RH (no condensation)
Acceptable
Documents “Document Requirements ” (P.2-2)
Acceptable Paper
Stock “Paper Requirements” (P.2-6)
Printable Range “Printable Range (P.2-8)
Scanning Range “Scanning Range (P.2-2)
Copy Specifications
Copy Specifications
Scanning Resolution
• Text/Photo (High Speed): 300 dpi x 300
dpi
• Text/Photo, Photo, Text: 600 dpi x 600 dpi
Output Resolution 600 dpi x 600 dpi
Copy Ratio
• Direct 1:1 ± 1.0 %
• Enlargement 1:4.00, 1:2.00, 1:1.29
• Reduction 1:0.78, 1:0.64, 1:0.50, 1:0.25
• Zoom 0.25 to 4.00, 1% increments
Copy Speed (Letter
Plain Direct)*
• MF4570dn
26 cpm
• MF4450
24 cpm
Successive Copying
Capacity Maximum 99 copies
First Copy Time
(Letter)
• Platen glass
8.7 seconds or less
• Feeder
12 seconds or less
* Speed when using Letter size Plain paper and copying the same
data continuously. Depending on the type, size, or feeding
direction of the paper, such as when using small size paper, copy
speed may become slower. Also, operation may pause or become
slow to readjust the temperature or print quality of the machine,
when copying continuously.
Printer Specification
Printer Specification
Printing Method Indirect electrostatic system (On-demand
fixing)
Paper Capacity
Multi-purpose tray: 1 sheet
Paper cassette: Approx. 250 sheets (16 to 21
lb Bond (60 to 80 g/m2))
Output Tray Capacity
(Letter size paper
which has been just
opened)
Approx. 100 sheets
(16 to 21 lb Bond (60 to 80 g/m²))*1
Print Speed (Letter
Plain Direct)*2
• MF4570dn
26 cpm
• MF4450
24 cpm
Output Resolution 600 dpi x 600 dpi
Gradation 256 gradations
Toner Cartridge “Replacing Toner Cartridges“ (P.8-6)
* 1 Actual paper capacity varies depending on the installation
environment and paper type to be used.
* 2 Speed when using Letter size Plain paper and printing the same
data continuously. Depending on the type, size, or feeding
direction of the paper, such as when using small size paper, print
speed may become slower. Also, operation may pause or become
slow to readjust the temperature or print quality of the machine,
when printing continuously.
Main Specifications
11-3
Appendix
Scanner Specifications
Scanner Specifications
Type Color scanner
Maximum Scanning
Size
• Platen glass: 8 1/2” x 11 5/8”
(215.9 mm x 297 mm)
• Feeder: 8 1/2” x 14”
(215.9 mm x 355.6 mm)
Scanning Resolution
• Optical resolution
Platen glass: 600 x 600 dpi
Feeder: 300 x 300 dpi
• Software interpolation resolution
• 9600 dpi x 9600 dpi
Scanning Speed
(Letter, 300 x 300
dpi)*
• Platen glass
Grayscale: 3 seconds/sheet
Color: 15 seconds/sheet
• Feeder
Grayscale: 3 seconds/sheet
Color: 15 seconds/sheet
Host Interface
• 100 Base-TX (Windows only)
• 10 Base-T (Windows only)
• Hi-Speed USB
• USB
Operating System
• Windows 2000/XP/Vista/7
• Mac OS 10.4.9 or later (excluding Classic
environment)
Driver
• TWAIN
• WIA 1.0 (Windows XP/Vista/7)
• WIA 2.0 (Windows Vista/7)
• ICA (Mac OS X 10.6.x)
* The communication time is not included.
Fax Specifications
Fax Specifications
Applicable Line Public Switched Telephone Network
(PSTN)*1
Communication
Mode G3, Super G3
Data Compression
Type MH, MR, MMR
Modem Speed 33.6 Kbps
Automatic Fallback
Transmission Speed
Approx. 3 seconds per page*2
(ECM-MMR, transmitting from the memory
at 33.6 Kbps)
Sending/Receiving
Memory
Maximum approx. 256 pages*2
(Total pages of transmission/reception)
Fax Resolution
• (Normal): 200 dpi x 100 dpi
• (Fine): 200 dpi x 200 dpi
• (Photo): 200 dpi x 200 dpi
• (Superfine): 200 dpi x 400 dpi
Dialing System
• One-touch keys (4 destinations)
• Coded dialing (100 destinations)
• Group dialing (50 destinations)
• Address book dialing
• Regular dialing (with numeric keys)
• Automatic redialing
• Manual redialing
• Sequential broadcast (114 destinations)
Receiving System
• Automatic reception
• Remote reception by telephone (Default
ID: 25)
Report Output
• Send Results
• Transmission management report (Auto
output every 40 destinations)
• Receive Results
*1 The Public Switched Telephone Network (PSTN) currently supports
28.8 Kbps modem speed or lower. However, this depends on the
telephone line condition.
*2 Based on ITU-T Standard Chart No. 1, MMR standard mode.
Telephone Specifications
Telephone Specifications
Available Telephone External telephone/External telephone with
built-in answering machine/Data modem
11-4
Appendix
Displaying Driver Guides (PDF Files)
Double-click the following PDF files from the [Manuals] folder
on the provided CD-ROM.
Printer Driver Guide
[GUIDE-UFR II-US.pdf]
Fax Driver Guide
[GUIDE-FAX-US.pdf]
Scanner Driver Guide
[GUIDE-SCAN-US.pdf]
Displaying a Driver’s Help System
You can use drivers’ help systems after you install each driver.
Printer Driver’s Help
From the below panels in the [Print] dialog, click [ ].
[Basic] panel
[Advanced] panel
Fax Driver’s Help
From the below panels in the [Print] dialog, click [ ].
[General Settings] panel
[Special Features] panel
[Cover Sheet] panel
Content of the e-Manual about Features
that Are Unavailable on the Macintosh
Among the features explained in the e-Manual, the followings
are unavailable on the Macintosh.
Installing or uninstalling the e-Manual
Reference in the e- Manual “Installing the e-Manual”
“Uninstalling the e-Manual”
Accessory software
Presto! PageManager
Reference in the e- Manual “User Software CD-ROM”
Using WSD network
Reference in the e- Manual “Installing the MF Drivers Via the WSD
Network “
Some print features
<Examples>
Operating in the print server environment
Watermark printing
PageComposer (Combining and printing multiple files)
Changing the halftone
Adjusting the gamma value
For information on the features that are available on the
Macintosh, see the Printer Drivers help system.
Reference in the e- Manual “Print”
Some scan features
<Examples>
Scanning with a network connection
Creating a “Searchable PDF”
For information on the features that are available on the
Macintosh, see the Scanner Driver Guide.
Reference in the e- Manual “Scan
In this manual, methods to operate in the Windows environment are explained as examples. To view how to use printer drivers or
utilities for Macintosh, see the following driver guides (PDF files) or driver help systems.
Function Object Reference
Print function
Installing the Printer Driver • Starter Guide
• Printer Driver Guide
Printing • Printer Driver Guide
Using each feature • Printer Driver’s Help
Fax function
Installing the Fax Driver • Starter Guide
• Fax Driver Guide
Sending a fax • Fax Driver Guide
Using each feature • Fax Driver’s Help
Scan function Installing the Scanner Driver • Starter Guide
• Scanner Driver Guide
Scanning (Setting the MF Toolbox or ScanGear MF) • Scanner Driver Guide
For Macintosh Users
11-5
Appendix
Index
C
Canceling
Fax Jobs ......................................................................... 6-26
Changing the Default Values
Copy ................................................................................... 3-9
Fax .................................................................................... 6-18
Cleaning the Machine .......................................... 8-2
Exterior ............................................................................. 8-2
Fixing Unit ...................................................................... 8-3
Platen Glass.................................................................... 8-4
Coded Dial Codes
Editing ............................................................................... 5-6
Storing .............................................................................. 5-6
Coded Dialing ......................................................... 5-2
Contents of the Setting Menu ....................... 10-2
Copying ..................................................................... 3-1
2-Sided Copying ......................................................... 3-5
Collating Copies ......................................................... 3-7
Enlarging/Reducing Copies ................................ 3-6
ID Card .............................................................................. 3-8
N on 1 ................................................................................ 3-6
Copy Mode .............................................................. 1-6
Copyright ................................................................. xiii
D
Date Settings ........................................................ 1-11
Density
Copy ................................................................................... 3-4
Fax ....................................................................................... 6-3
Disclaimers ............................................................... xiv
Display ....................................................................... 1-6
Display Messages ....................................................... 9-6
LCD (Standby Mode) ............................................... 1-6
Document feeder tray ......................................... 1-2
Document guides.................................................. 1-2
Documents
Clearing Jams ............................................................... 9-2
Placing .............................................................................. 2-4
Receiving Faxes ........................................................ 6-10
Requirements ............................................................... 2-2
Scanning Range ......................................................... 2-2
Sending Faxes .............................................................. 6-2
Documents Requirements ................................. 2-2
E
Error Code ................................................................ 9-6
F
Fax Documents in the Memory
Forwarding ................................................................. 6-14
History............................................................................ 6-17
Received Fax Documents .................................. 6-16
Transmission Documents .................................. 6-15
Fax mode .................................................................. 1-6
Fax Settings .......................................................... 6-19
Feeder ........................................................................ 1-2
G
Group Dialing ......................................................... 5-2
Editing ............................................................................... 5-9
Storing .............................................................................. 5-9
H
Handling ................................................................... viii
11-6
Appendix
I
If a Power Failure Occurs .................................. 9-11
If <Incorrect size/setting> Appears ................ 9-8
If You Cannot Solve a Problem....................... 9-12
Image Quality
Copy ................................................................................... 3-4
Fax ....................................................................................... 6-3
Installation ................................................................. vii
Requirements ................................................................... xi
Space ..................................................................................... xi
L
LAN port ................................................................... 1-3
M
Main Specifications ............................................ 11-2
Copy specifications................................................ 11-2
Fax Specifications.................................................... 11-3
Machine Specifications ....................................... 11-2
Printer Specification .............................................. 11-2
Scanner Specifications ........................................ 11-3
Telephone Specifications ................................... 11-3
Maintenance and Inspections ...................... ix, xii
Manual Sending ..................................................... 6-7
Multi-purpose Tray
Paper guide ................................................................... 1-4
O
One-Touch Keys ..................................................... 5-2
Editing ............................................................................... 5-3
Storing .............................................................................. 5-3
Operation Panel ............................................ 1-2, 1-5
Output tray .............................................................. 1-2
P
Paper
Clearing Jams ............................................................... 9-2
Loading ............................................................................ 2-9
Paper Size and Type............................................... 2-14
Printable Range ........................................................... 2-8
Requirements ............................................................... 2-6
Paper Cassette ............................................... 1-2, 1-4
Paper Requirements ............................................. 2-6
Platen glass .............................................................. 1-2
Power Supply ............................................................ vii
Requirements ................................................................... xi
Printable Range ...................................................... 2-8
Printing a User Data List ................................... 10-2
Printing from a Computer .................................. 4-1
R
Rear cover................................................................. 1-3
Receive Mode ...................................................... 6-10
Answer mode ............................................................ 6-11
Auto mode .................................................................. 6-10
Changing ..................................................................... 6-12
Fax/Tel Auto Switch mode ................................ 6-11
Manual mode ............................................................ 6-12
Registering/Setting the Various Functions 10-1
S
Scan Functions ....................................................... 7-1
Scan Mode ............................................................... 1-6
Scanning area ......................................................... 1-2
Scanning Range ..................................................... 2-2
Selecting Print Side ............................................ 2-16
Sequential Broadcast ........................................... 6-9
11-7
Appendix
Sharpness
Copy ................................................................................... 3-7
Fax ....................................................................................... 6-3
Sleep Timer ........................................................... 1-10
Specifying Destinations ...................................... 6-4
T
Telephone Equipment ............................................. x
Telephone line jack ............................................... 1-3
Text Input Method ................................................ 1-9
Time Settings ....................................................... 1-11
Toner Cartridge ...................................................... 8-6
Checking the Toner Level ..................................... 8-8
Handling .......................................................................... 8-7
Replacing Toner Cartridge ................................ 8-10
Trademarks .............................................................. xiii
Transporting the Machine ............................... 8-16
Tray extension ........................................................ 1-2
Troubleshooting .................................................... 9-1
Clearing Jams ............................................................... 9-2
Error Code ...................................................................... 9-6
If a Power Failure Occurs .................................... 9-11
If <Incorrect Size/Setting> Appears .............. 9-8
If You Cannot Solve a Problem ....................... 9-12
U
USB port .................................................................... 1-3
FT5-3366 (010) XXXXXXXXXX © CANON INC. 2011 PRINTED IN KOREA
CANON INC.
30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan
CANON MARKETING JAPAN INC.
16-6, Konan 2-chome, Minato-ku, Tokyo 108-8011, Japan
CANON U.S.A., INC.
One Canon Plaza, Lake Success, NY 11042, U.S.A.
CANON EUROPA N.V.
Bovenkerkerweg, 59-61, 1185 XB Amstelveen, The Netherlands
CANON CHINA CO. LTD.
15F Jinbao Building No.89, Jinbao Street, Dongcheng District, Beijing 100005, PRC
CANON SINGAPORE PTE LTD
1 HarbourFront Avenue, #04-01 Keppel Bay Tower, Singapore 098632
CANON AUSTRALIA PTY LTD
1 Thomas Holt Drive, North Ryde, Sydney NSW 2113, Australia
CANON GLOBAL WORLDWIDE SITES
http://www.canon.com/

Navigation menu
