Canon Scanfront 300P Users Manual ScanFront300/300P INSTRUCTIONS

Canon-Imageformula-Scanfront-300-Instruction-Guide-587456 canon-imageformula-scanfront-300-instruction-guide-587456

300P to the manual 9da83d56-bc41-418e-b201-3b86566c3e18

2015-01-23

: Canon Canon-Scanfront-300P-Users-Manual-242606 canon-scanfront-300p-users-manual-242606 canon pdf

Open the PDF directly: View PDF .
Page Count: 193 [warning: Documents this large are best viewed by clicking the View PDF Link!]

ScanFront300/300P INSTRUCTIONS

Please read this manual before using the scanner.

After you finish reading this manual, keep it in a safe place

for future reference.

INSTRUCTIONS

International ENERGY STAR® Office Equipment

Program

As an ENERGY STAR® Partner, Canon

Electronics Inc. has determined that this

machine meets the ENERGY STAR® Program

guidelines for energy efficiency.

The International ENERGY STAR® Office

Equipment Program is an international program that promotes

energy saving through the use of computers and other office

equipment.

The program backs the development and dissemination of

products with functions that effectively reduce energy

consumption. It is an open system in which business

proprietors can participate voluntarily. The targeted products

are office equipment, such as computers, monitors, printers,

fax, machine, copiers, and scanners. The standards and logos

are uniform among participating nations.

Under factory default settings, the scanner will enter Low

Power mode after 12 minutes of inactivity. Although you can

change the period of time before the scanner enters Low

Power mode to up to 230 minutes, we recommend using the

default setting.

FCC REGULATIONS (For 120 V model)

Network Scanner, Model M11-1041/M11-1051

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions: (1) This

device may not cause harmful interference, and (2) this device

must accept any interference received, including interference

that may cause undesired operation.

Note: This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant to Part 15

of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation. This equipment generates, uses, and

can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no

guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference

to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try

to correct the interference by one or more of the following

measures:

– Reorient or relocate the receiving antenna.

– Increase the separation between the equipment and

receiver.

– Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

– Consult the dealer or an experienced radio/TV technician

for help.

Use of shielded cable is required to comply with class B limits

in Subpart B of Part 15 of FCC Rules.

Do not make any changes or modifications to the equipment

unless otherwise specified in the manual. If such changes or

modifications should be made, you could be required to stop

operation of the equipment.

Canon U.S.A. Inc.

One Canon Plaza, Lake Success NY 11042, U.S.A.

Tel. No. (516)328-5000

RADIO INTERFERENCE REGULATIONS (For 120 V

models)

This digital apparatus does not exceed the Class B limits for

radio noise emissions from digital apparatus as set out in the

Interference-causing equipment standard entitled “Digital

Apparatus”, ICES-003 of the Industry Canada.

RÈGLEMENT SUR LE BROUILLAGE

RADIOÉLECTRIQUE (For 120 V models)

Cet appareil numérique respecte les limites de bruits

radioélectriques applicables aux appareils numériques de

Classe B prescrites dans la norme sur le matériel brouilleur:

“Appareils Numériques”, NMB-003 édictée par l’Industrie

Canada.

For CA, USA Only

Included battery contains Perchlorate Material - special

handling may apply.

See http://www.dtsc.ca.gov/hazardouswaste/perchlorate/ for

detail.

European Union (and EEA) only

This symbol indicates that this product is not to be

disposed of with your household waste, according

to the WEEE Directive (2002/96/EC) and your

national law. This product should be handed over

to a designated collection point, e.g., on an

authorized one-for-one basis when you buy a new similar

product or to an authorized collection site for recycling waste

electrical and electronic equipment (EEE). Improper handling

of this type of waste could have a possible negative impact on

the environment and human health due to potentially

hazardous substances that are generally associated with EEE.

At the same time, your cooperation in the correct disposal of

this product will contribute to the effective usage of natural

resources. For more information about where you can drop off

your waste equipment for recycling, please contact your local

city office, waste authority, approved WEEE scheme or your

household waste disposal service. For more information

regarding return and recycling of WEEE products, please visit

www.canon-europe.com/environment.

(EEA: Norway, Iceland and Liechtenstein)

Model Names

The following names may be provided for the safety

regulations in each sales region of the Network Scanner.

ScanFront 300: Model M11-1041

ScanFront 300P: Model M11-1051

Trademarks

• Canon and the Canon logo are registered trademarks of

Canon Inc. in the United States and may also be trademarks

or registered trademarks in other countries.

• imageFORMULA is a trademark of Canon Electronics Inc.

• Microsoft, Windows, Internet Explorer, and Active

Directory are registered trademarks or trademarks of

Microsoft Corporation in the United States and other

countries.

• Adobe, Acrobat, and Adobe Reader are registered

trademarks or trademarks of Adobe Systems Incorporated in

the United States and other countries.

• Other product and company names herein may be the

trademarks of their respective owners.

Disclaimers

The information in this document is subject to change without

notice.

CANON ELECTRONICS INC. MAKES NO WARRANTY

OF ANY KIND WITH REGARD TO THIS MATERIAL,

EITHER EXPRESS OR IMPLIED, EXPECT AS

PROVIDED HEREIN, INCLUDING WITHOUT

LIMITATION, THEREOF, WARRANTIES AS TO

MARKETABILITY, MERCHANTABILITY, FITNESS

FOR A PARTICULAR PURPOSE OF USE OR NON-

INFRINGEMENT. CANON ELECTRONICS INC. SHALL

NOT BE LIABLE FOR ANY DIRECT, INCIDENTAL, OR

CONSEQUENTIAL DAMAGES OF ANY NATURE, OR

LOSSES OR EXPENSES RESULTING FROM THE USE

OF THIS MATERIAL.

CANON ELECTRONICS INC. IS NOT LIABLE FOR THE

STORAGE AND HANDLING OF DOCUMENTS

SCANNED WITH THIS PRODUCT, OR THE STORAGE

AND HANDLING OF RESULTING SCANNED IMAGE

DATA.

IF YOU INTEND TO DISCARD THE ORIGINALS OF

SCANNED DOCUMENTS, YOU THE CUSTOMER ARE

RESPONSIBLE FOR INSPECTING THE SCANNED

IMAGES AND VERIFYING THAT DATA IS INTACT.

THE MAXIMUM LIABILITY OF CANON

ELECTRONICS INC. UNDER THIS WARRANTY IS

LIMITED TO THE PURCHASE PRICE OF THE

PRODUCT COVERED BY THE WARRANTY.

libtiff

Permission to use, copy, modify, distribute, and sell this

software and its documentation for any purpose is hereby

granted without fee, provided that (i) the above copyright

notices and this permission notice appear in all copies of the

software and related documentation, and (ii) the names of

Sam Leffler and Silicon Graphics may not be used in any

advertising or publicity relating to the software without the

specific, prior written permission of Sam Leffler and Silicon

Graphics.

THE SOFTWARE IS PROVIDED “AS-IS” AND

WITHOUT WARRANTY OF ANY KIND, EXPRESS,

IMPLIED OR OTHERWISE, INCLUDING WITHOUT

LIMITATION, ANY WARRANTY OF

MERCHANTABILITY OR FITNESS FOR A

PARTICULAR PURPOSE.

IN NO EVENT SHALL SAM LEFFLER OR SILICON

GRAPHICS BE LIABLE FOR ANY SPECIAL,

INCIDENTAL, INDIRECT OR CONSEQUENTIAL

DAMAGES OF ANY KIND, OR ANY DAMAGES

WHATSOEVER RESULTING FROM LOSS OF USE,

DATA OR PROFITS, WHETHER OR NOT ADVISED OF

THE POSSIBILITY OF DAMAGE, AND ON ANY

THEORY OF LIABILITY, ARISING OUT OF OR IN

CONNECTION WITH THE USE OR PERFORMANCE OF

THIS SOFTWARE.

libjpeg

Portions of this software are based in part on the work of the

Independent JPEG Group.

MD5

derived from the RSA Data Security, Inc. MD5 Message-

Digest Algorithm

Redistribution and use in source and binary forms, with or

without modification, are permitted provided that the

following conditions are met:

Redistributions of source code must retain the above

disclaimer. Redistributions in binary form must reproduce the

above copyright notice, this list of conditions and the

following disclaimer in the documentation and/or other

materials provided with the distribution.

Neither the name of the author nor the names of its

contributors may be used to endorse or promote products

derived from this software without specific prior written

permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT

HOLDERS AND CONTRIBUTORS “AS IS” AND ANY

EXPRESS OR IMPLIED WARRANTIES, INCLUDING,

BUT NOT LIMITED TO, THE IMPLIED WARRANTIES

OF MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE ARE DISCLAIMED. IN NO

EVENT SHALL THE COPYRIGHT OWNER OR

CONTRIBUTORS BE LIABLE FOR ANY DIRECT,

INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR

CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT

LIMITED TO, PROCUREMENT OF SUBSTITUTE

GOODS OR SERVICES; LOSS OF USE, DATA, OR

PROFITS; OR BUSINESS INTERRUPTION) HOWEVER

CAUSED AND ON ANY THEORY OF LIABILITY,

WHETHER IN CONTRACT, STRICT LIABILITY, OR

TORT (INCLUDING NEGLIGENCE OR OTHERWISE)

ARISING IN ANY WAY OUT OF THE USE OF THIS

SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY

OF SUCH DAMAGE.

Windows CE 6.0

Depending upon which components you are running, your

product may contain the following third party technologies:

Portions of this software are based on NCSA Mosaic. NCSA

Mosaic was developed by the National Center for

Supercomputing Applications at the University of Illinois at

Urbana-Champaign.Distributed under a licensing agreement

with Spyglass, Inc.

Contains security software licensed from RSA Data Security,

Inc.

Portions of IPSec and related services jointly developed by

Microsoft Corporation and Cisco Systems, Inc.

The names of actual companies and products mentioned

herein may be the trademarks of their respective owners.

reserved.

No part of this publication may be reproduced or transmitted

in any form or by any means, electronic or mechanical,

including photocopying and recording, or by any information

storage or retrieval system without the prior written

permission of CANON ELECTRONICS INC.

Hg LAMP(S) INSIDE THIS PRODUCT CONTAIN

MERCURY AND MUST BE RECYCLED OR DISPOSED

OF ACCORDING TO LOCAL, STATE OR FEDERAL

LAWS.

Introduction

Thank you for purchasing the Canon imageFORMULA ScanFront 300/300P network scanner.

Please read this manual thoroughly before using the scanner to familiarize yourself with its capabilities, and to make the most of its

many functions. After reading this manual, store it in a safe place for future reference.

About ScanFront 300/300P

The ScanFront 300/300P is a network scanner that you can use without connecting to a computer.

You can transfer the data of an image scanned with the ScanFront 300/300P to a shared folder on a server PC or client PC on the

network or to an FTP server*, send it to a printer for printing**, or deliver it to a remote location via e-mail or Internet fax service.

When using the scanner without a network environment, you can also save the image files to USB memory.

* To send image files to a shared folder on a computer on a different segment of the network, the supplied ScanFront Service software must be

installed on a computer on the network.

** To send image files to a printer, the supplied ScanFront Service software must be installed on a computer on the network.

Mail Server

Internet Fax Service

Network

Conceptual Diagram of the ScanFront

Shared Folder

(Server PC, Client PC)

FTP Server

Save File

Save File Send E-mail

USB Memory

ScanFront

Printer

❏Manuals for the Scanner

The following manuals are provided with the Canon

ScanFront 300/300P. Be sure to read these manuals

thoroughly before using the scanner.

Setup Guide

Describes the procedure for setting up the scanner for

scanning. Set up the ScanFront in accordance with the

Setup Guide. For details on the ScanFront, refer to the

Operation Guide and ScanFront 300/300P

INSTRUCTIONS (electronic manuals).

Operation Guide*

Provides an overview of the functions of the scanner, and

describes the basic operations for using the ScanFront. For

details on the settings of the ScanFront, refer to the

ScanFront 300/300P INSTRUCTIONS (electronic

manual).

* The printed version of Operation Guide may vary depending on

your region. PDF files of the Operation Guide in other

languages can be found on the INSTRUCTIONS AND

UTILITIES CD-ROM.

INSTRUCTIONS (Electronic Manual): This

Manual

Describes how to use the scanner, and includes

instructions for configuring the scanner settings, as well as

handling, maintenance, and troubleshooting information.

This manual is stored as a PDF file on the supplied

INSTRUCTIONS AND UTILITIES CD-ROM and

requires Adobe Reader to open. (You can download

Adobe Reader from the Adobe Web site.)

❏Symbols Used in This Manual

The following symbols are used in this manual to explain

procedures, restrictions, handling precautions, and

instructions that should be observed for safety.

WARNING

Indicates a warning concerning operations that may lead to

death or injury to persons if not performed correctly. To

use the scanner safely, always pay attention to these

warnings.

CAUTION

Indicates a caution concerning operations that may lead to

injury to persons, or damage to property if not performed

correctly. To use the scanner safely, always pay attention

to these cautions.

IMPORTANT

Indicates operational requirements and restrictions. Be

sure to read these items carefully to operate the scanner

correctly, and avoid damage to the scanner.

Hint

Indicates a clarification of an operation, or contains

additional explanations for a procedure. Reading these

notes is highly recommended.

iii

❏How This Manual is Organized

This manual consists of the following chapters.

Chapter 1 Before Use

This chapter provides an overview of the ScanFront.

Chapter 2 Handling

This chapter describes the types of documents that can be

scanned, and the basic operations of the scanner.

Chapter 3 ScanFront Setup

This chapter describes the setup procedures and

Administrator Settings of the scanner.

Chapter 4 ScanFront Service

This chapter describes the how to use and configure

ScanFront Service.

Chapter 5 Operating Procedures

This chapter describes the basic operating procedures for

the scanner.

Chapter 6 Web Menu (Administrator Mode)

This chapter describes the Web menu for the administrator

to configure settings.

Chapter 7 ScanFront Administration Tool

This chapter describes how to install and use ScanFront

Administration Tool.

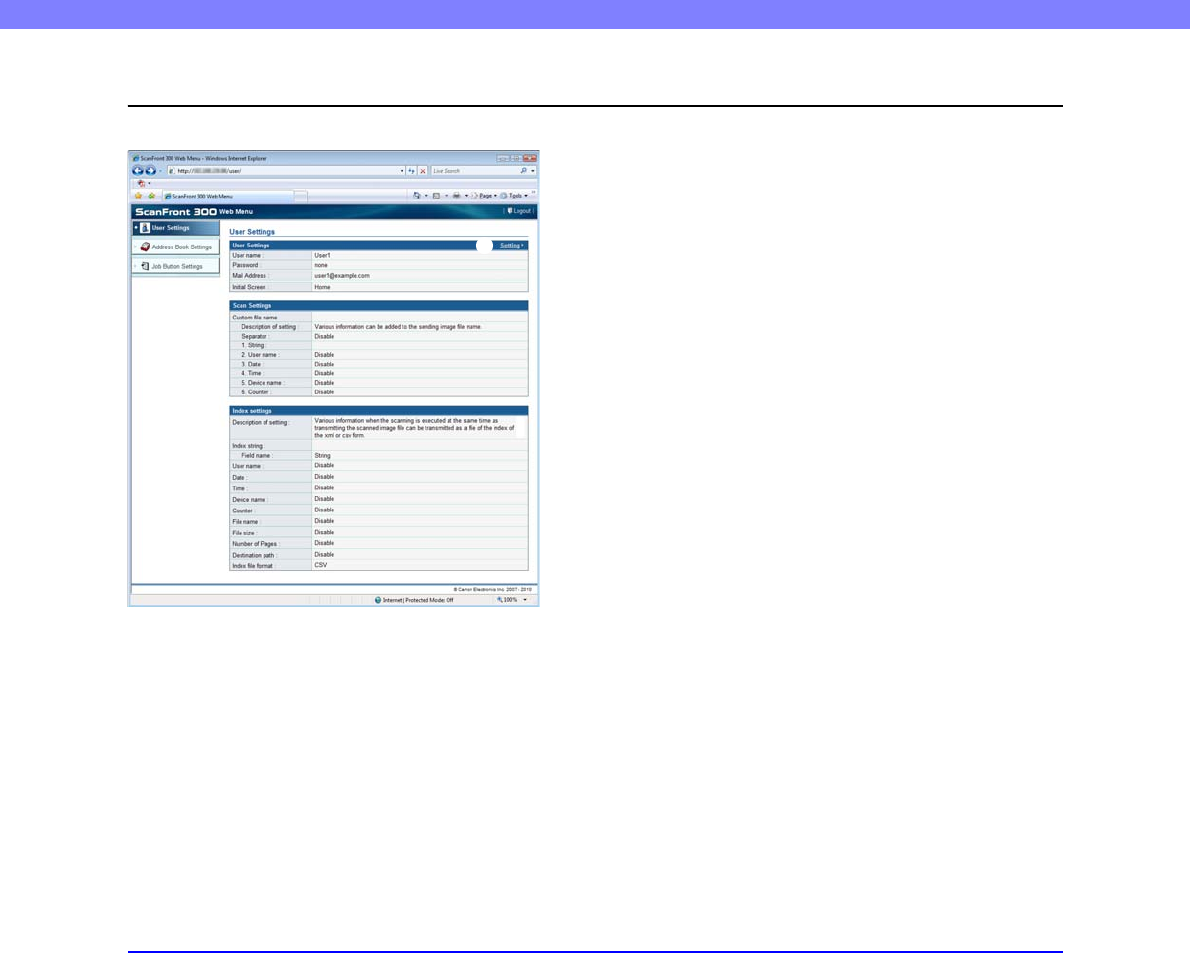

Chapter 8 Web Menu (User Mode)

This chapter describes the Web menu for the user to

configure settings.

Chapter 9 Maintenance

This chapter describes how to clean the scanner and

replace the consumable parts such as rollers.

Chapter 10 Troubleshooting

This chapter describes how to respond when problems

occur or warning messages appear.

Chapter 11 Appendices

This chapter describes the scanner specifications.

❏Table of Contents

Introduction............................................................... i

Manuals for the Scanner ..........................................ii

Symbols Used in This Manual..................................ii

How This Manual is Organized................................ iii

Chapter 1 Before Use

1. Important Safety Instructions............................1-2

Installation Location.............................................. 1-2

Power ................................................................... 1-2

Moving the Scanner.............................................. 1-3

Handling ............................................................... 1-3

About the Fingerprint Sensor

(ScanFront 300P only).......................................... 1-5

Disposal................................................................ 1-5

2. Features of the ScanFront 300/300P ...............1-6

ScanFront 300/300P............................................. 1-6

ScanFront 300P.................................................... 1-7

3. Names and Functions of Parts .........................1-8

Front and Document Feed and Eject Trays.......... 1-8

Side and Rear....................................................... 1-9

4. Network Environment .....................................1-10

Network Environment ......................................... 1-10

Directory Service Support................................... 1-10

Limitations .......................................................... 1-11

Chapter 2 Handling

1. Documents .......................................................2-2

Plain Paper........................................................... 2-2

Business Card ...................................................... 2-2

Card...................................................................... 2-3

2. Preparing the Scanner .....................................2-4

Preparing the Document Feed Tray and

Eject Tray ............................................................. 2-4

Feed Selection Lever............................................ 2-5

USB Port............................................................... 2-5

3. Placing Documents ..........................................2-6

Placing a Document ............................................. 2-6

Placing a Folded Document ................................. 2-7

Placing a Long Document .................................... 2-7

Placing a Card...................................................... 2-8

4. Clearing a Paper Jam or Double Feed Error.... 2-9

5. Fingerprint Sensor (ScanFront 300P) ............ 2-11

Cautions for Handling the Fingerprint Sensor .... 2-11

Fingerprint Authentication................................... 2-12

Chapter 3 ScanFront Setup

1. Before Setting Up the Scanner ........................3-2

Installation Location.............................................. 3-2

Connecting the AC Adapter.................................. 3-3

Connecting the Network Cable............................. 3-3

2. Turning the Power ON and OFF ...................... 3-4

Turning the Power ON.......................................... 3-4

Turning the Power OFF ........................................ 3-4

3. Configuring the Scanner Settings .................... 3-5

Administrator Settings .......................................... 3-5

Web Menu (Administrator Mode).......................... 3-6

4. Configuring Administrator Settings................... 3-8

Logging In to the Administrator Settings............... 3-8

Network Settings .................................................. 3-9

Administrator Password........................................ 3-9

Backup/Restore Setting Information................... 3-10

Select Login Type............................................... 3-10

Roller Counter Reset.......................................... 3-11

Format ScanFront 300........................................ 3-11

Touch Panel Adjustment .................................... 3-11

Display Language Setting................................... 3-12

Network Test ...................................................... 3-12

Chapter 4 ScanFront Service

1. About ScanFront Service ................................. 4-2

2. Installing ScanFront Service ............................ 4-3

System Requirements .......................................... 4-3

Installation ............................................................ 4-3

3. ScanFront Service Setup ................................. 4-6

ScanFront Settings............................................... 4-6

Changing the Port Number Used for

Communication..................................................... 4-6

Chapter 5 Operating Procedures

1. Flow of Scanner Operations.............................5-2

2. Turning the Power ON and OFF ......................5-3

Turning the Power ON.......................................... 5-3

Turning the Power OFF ........................................ 5-3

3. Login Screen ....................................................5-4

When Using Server Authentication....................... 5-4

List Type Login ..................................................... 5-5

Key in Type Login................................................. 5-6

Fingerprint Authentication (Only Available

with the ScanFront 300P)..................................... 5-7

4. Screen Displayed after Login ...........................5-8

Home Screen........................................................ 5-8

Job Button Screen................................................ 5-8

5. User Settings Screen .......................................5-9

Change Password ................................................ 5-9

Fingerprint Registration ........................................ 5-9

6. Fingerprint Registration (Only Available

with the ScanFront 300P)...............................5-10

Fingerprint Authentication................................... 5-10

Registering a Fingerprint .................................... 5-11

7. Scanning Procedures .....................................5-13

Scanning From the Home Screen ...................... 5-13

Scanning From the Job Button Screen............... 5-14

Address Selection Screen .................................. 5-15

USB Memory Screen.......................................... 5-16

Print Settings Screen.......................................... 5-17

Scanning............................................................. 5-18

8. Registering and Editing Addresses ................5-22

Registering a New Address................................ 5-22

Modifying an Address......................................... 5-25

Copying an Address ........................................... 5-25

9. Scan/Delivery Options....................................5-27

Scan Settings ..................................................... 5-28

File Formats........................................................ 5-32

Security Settings for PDF Files........................... 5-33

Delivery Options ................................................. 5-34

Chapter 6 Web Menu (Administrator Mode)

1. Web Menu Overview........................................ 6-2

2. Logging In to the Web Menu............................ 6-5

3. User Administration.......................................... 6-6

Registering New Users......................................... 6-7

Restricting User Functions ................................. 6-10

Editing Users ...................................................... 6-11

Exporting and Importing Users........................... 6-12

4. Address Book Settings................................... 6-14

Registering New Addresses ............................... 6-15

Copying Addresses ............................................ 6-18

Exporting and Importing Address Books ............ 6-18

5. Job Button Settings ........................................ 6-20

Registering New Job Buttons ............................. 6-21

Scan Settings Overview ..................................... 6-22

Copying Job Buttons .......................................... 6-26

Editing Jobs........................................................ 6-27

Exporting and Importing Job Buttons ................. 6-27

6. Device Configuration...................................... 6-29

Network Setting .................................................. 6-30

Language/Timezone........................................... 6-30

Device Operation................................................ 6-31

Administrator Settings ........................................ 6-32

7. Server Settings............................................... 6-33

E-mail Server/Fax Settings................................. 6-34

Authentication Server ......................................... 6-35

Address Book Server.......................................... 6-36

FTP server.......................................................... 6-36

NTP Server......................................................... 6-37

ScanFront Service Server .................................. 6-37

8. System Settings ............................................. 6-38

Backup and Restore........................................... 6-39

Module Version Information/Update................... 6-40

Log Settings........................................................ 6-42

Chapter 7 ScanFront Administration Tool

1. About ScanFront Administration Tool...............7-2

2. Installing ScanFront Administration Tool..........7-3

System Requirements .......................................... 7-3

Installation ............................................................ 7-3

3. ScanFront Administration Tool Setup...............7-5

Starting ScanFront Administration Tool................ 7-5

Registering ScanFront Scanners.......................... 7-5

4. Managing the ScanFront Scanners..................7-6

Selecting a ScanFront .......................................... 7-6

Checking ScanFront Connections........................ 7-6

Changing Passwords............................................ 7-6

Changing IP Addresses and Device Names ........ 7-7

Checking Detailed Information on the

ScanFront............................................................. 7-7

Displaying the Web Menu..................................... 7-7

Batch Processing.................................................. 7-7

Importing/Exporting Administration Data.............. 7-8

Chapter 8 Web Menu (User Mode)

1. Web Menu Overview ........................................8-2

2. Logging In to the Web Menu ............................8-3

3. User Settings....................................................8-4

User Settings........................................................ 8-5

4. Address Book Settings .....................................8-8

Registering New Addresses ............................... 8-10

Copying Addresses ............................................ 8-13

Exporting and Importing Address Books ............ 8-13

5. Job Button Settings ........................................8-15

Registering New Job Buttons ............................. 8-17

Scan Settings Overview ..................................... 8-18

Copying Job Buttons .......................................... 8-22

Editing Jobs........................................................ 8-23

Exporting and Importing Job Buttons ................. 8-23

Chapter 9 Maintenance

1. Routine Cleaning.............................................. 9-2

Cleaning the Scanner Unit.................................... 9-2

Cleaning the Touch Panel .................................... 9-2

Cleaning the Fingerprint Sensor

(ScanFront 300P) ................................................. 9-2

Cleaning the Scanning Glass and Rollers............ 9-3

Cleaning the Retard Roller ................................... 9-5

Cleaning the Feed Roller...................................... 9-6

2. Replacing the Rollers and Document

Holding Guide .................................................. 9-8

Exchange Roller Kit.............................................. 9-8

Replacement Method ........................................... 9-8

Checking the Page Count and Resetting

the Counter........................................................... 9-9

Chapter 10 Troubleshooting

1. Troubleshooting ............................................. 10-2

2. Error Messages (ScanFront).......................... 10-6

3. Error Messages (Web Menu)......................... 10-9

4. Adjusting the Touch Panel ........................... 10-11

5. Initializing ScanFront.................................... 10-13

Chapter 11 Appendices

1. Specifications................................................. 11-2

Unit Specifications .............................................. 11-2

Network Specifications ....................................... 11-3

Transfer Destinations ......................................... 11-3

AC Adapter......................................................... 11-3

Consumable Parts.............................................. 11-4

External Dimensions........................................... 11-5

2. Index .............................................................. 11-6

Chapter 1 Before Use

1. Important Safety Instructions........................... 1-2

Installation Location ..............................................1-2

Power....................................................................1-2

Moving the Scanner ..............................................1-3

Handling ................................................................1-3

About the Fingerprint Sensor

(ScanFront 300P only) ..........................................1-5

Disposal ................................................................1-5

2. Features of the ScanFront 300/300P............... 1-6

ScanFront 300/300P .............................................1-6

ScanFront 300P ....................................................1-7

3. Names and Functions of Parts ........................ 1-8

Front and Document Feed and Eject Trays ..........1-8

Side and Rear .......................................................1-9

4. Network Environment .................................... 1-10

Network Environment..........................................1-10

Directory Service Support ...................................1-10

Limitations ...........................................................1-11

1-2

Chapter 1 Before Use

1. Important Safety Instructions

To ensure the safe operation of this scanner, be sure to read the safety warnings and precautions described below.

❏Installation Location

The performance of this scanner is affected by the

environment in which it is installed. Make sure that the

location where the scanner is installed meets the following

environmental requirements.

●Provide adequate space around the scanner for

operation, maintenance, and ventilation.

●Avoid installing the machine in direct sunlight. If

this is unavoidable, use curtains to shade the

scanner.

●Avoid locations where a considerable amount of

dust accumulates.

●Avoid warm or humid locations, such as in the

vicinity of a water faucet, water heater, or

humidifier, and avoid locations where the fumes

from ammonia, paint thinner, or other volatile

chemicals may be present.

●Avoid locations that are subject to vibration.

●Avoid exposing the scanner to rapid changes in

temperature. If the room in which the scanner is

installed is cold but rapidly heated, water droplets

(condensation) may form inside the scanner. This

may result in a noticeable degradation in scanning

quality.

The following conditions are recommended for

optimal scanning quality:

Room temperature: 10 °C to 32.5 °C (50 °F to

90.5 °F)

Humidity: 20% to 80% RH

●Avoid installing the scanner near equipment that

generates a magnetic field (e.g. speakers,

televisions, or radios).

❏Power

●Connect only to a power outlet of the rated voltage

and power supply frequency (either 120 V, 60 Hz

or 220-240 V, 50/60 Hz, depending on your

region).

●Do not connect other electrical equipment to the

same power outlet to which the scanner is

connected. Also, when using an extension cord,

make sure that the extension cord is rated for the

current requirements of the scanner.

●Never try to disassemble the AC adapter or modify

it in any way, as this is extremely dangerous.

●The power cord and AC adapter may become

damaged if they are often stepped on or if heavy

objects are placed on them. Continued use of a

damaged power cord and AC adapter can lead to

an accident, such as a fire or electrical shock.

●Do not use the power cord while it is coiled.

At least

15.75"

(40 cm) At least

23.62" (60 cm)

1-3

Chapter 1 Before Use

●Do not pull directly on the power cord. When

disconnecting the power cord, grasp the plug and

remove it from the outlet.

●Keep the area around the power plug clear of

objects so that the power cord can be

disconnected easily in an emergency.

●Use only the AC adapter provided with this

scanner. Also, do not use the AC adapter provided

with the scanner with any other electrical devices.

Model: MG1-4314

●If you have any questions regarding the power

supply, contact your local authorized Canon dealer

or service representative for further information.

❏Moving the Scanner

●When moving the scanner, always hold it with both

hands to avoid dropping it. The weight of the

scanner unit is approximately 7.9 lbs (3.6 kg).

●Before moving the scanner, make sure the

document tray is closed and the interface cable

and AC adapter are disconnected. If the scanner is

transported with these items connected, the plugs

and connectors may be damaged due to

excessive force applied to them during movement.

❏Handling

WARNING

Note the following precautions whenever using the

scanner. Failure to do so may result in a fire or

electric shock.

■Never use alcohol, benzene, paint thinner, aerosol

sprays, or any other highly flammable substance

near the scanner.

■Do not cut, damage, or modify the power cord or

AC adapter. Do not place heavy objects on the

power cord or AC adapter, and do not pull or

excessively bend the power cord.

■Never connect the power cord when your hands

are wet.

■Do not connect the scanner to a multiplug power

strip.

■Do not knot or coil the power cord, as this may

result in a fire or electric shock. When connecting

the power cord, make sure that the power plug is

securely and completely inserted into the power

outlet.

■Do not use power cords and AC adapters other

than the power cord and AC adapter provided with

this scanner.

■Never try to take the scanner apart or modify it in

any way.

■Never try to take the AC adapter apart or modify it

in any way, as this is dangerous and may lead to a

fire or electric shock.

■Do not use flammable aerosol sprays near the

scanner.

■When cleaning the scanner, turn the power OFF

and disconnect the power cord from the power

supply.

■Clean the scanner using a slightly dampened cloth

which has been well wrung out. Never use alcohol,

benzene, paint thinner, or any other flammable

substances.

1-4

Chapter 1 Before Use

■If the scanner makes strange noises, or gives off,

smoke, heat, or strange odors, or the scanner

does not function or other abnormalities occur

when you use the machine, immediately turn the

power OFF, and disconnect the power plug from

the power outlet. Then, contact your local

authorized Canon dealer or service representative

for further information.

■Do not drop the scanner, or subject it to impact or

strong shock. Should the scanner ever become

damaged, immediately turn the power OFF, and

disconnect the power plug from the power outlet.

Then, contact your local authorized Canon dealer

or service representative to have the unit serviced.

■Before moving the scanner, make sure to turn the

power OFF, and disconnect the power plug from

the power outlet.

CAUTION

■Do not install the scanner on a surface that is

unstable or tilted, or in an area subject to

excessive vibrations, as this may cause the

scanner to fall, resulting in personal injury or

damage to the scanner.

■Do not block the ventilation openings. Doing so

could cause the scanner to overheat, creating a

risk of fire.

■Never place small metal objects such as staples,

paper clips, or jewelry on the scanner. These items

may fall into the scanner, and cause a fire or

electric shock. Should such objects ever fall inside

the scanner, immediately turn the power OFF, and

disconnect the power plug from the power outlet.

Then, contact your local authorized Canon dealer

or service representative to have the unit serviced.

■Do not install the scanner in a humid or dusty

location. Doing so may result in a fire or electric

shock.

■Do not place objects on top of the scanner, as they

may tip over and fall, resulting in personal injury.

■Do not use the scanner with a power supply

voltage other than 120/220-240 VAC. Doing so

might cause fire or electric shock.

■When disconnecting the power cord, grasp it firmly

by its plug. Do not pull directly on the power cord,

as this may damage or expose the cord’s internal

wiring, resulting in a fire or electric shock.

■Leave sufficient space around the power plug so

that it can be disconnected easily. If objects are

placed around the power plug, you will be unable

to disconnect it in an emergency.

■Do not allow water or flammable substances

(alcohol, paint thinner, benzene, etc.) to spill into

the scanner, as this may result in a fire or electric

shock.

■Turn OFF the power for safety when not using the

scanner for a long period of time, such as

overnight. Also, turn OFF the power, and

disconnect the AC adapter from the scanner and

disconnect the power cord from the power outlet

for safety when the machine will not be used for an

extended period of time, such as during

consecutive holidays.

■Do not wear loose clothing or jewelry that may get

caught in the scanner while you are using it. This

may result in personal injury. Be extra careful of

neckties and long hair. If anything becomes caught

in the scanner, immediately disconnect the power

cord to stop the scanner.

■Be careful when placing paper in the scanner and

when removing jammed paper. It is possible to cut

your hand on the edge of a sheet of paper.

1-5

Chapter 1 Before Use

❏About the Fingerprint Sensor

(ScanFront 300P only)

●The following actions may damage the sensor or

cause it to malfunction:

– Dropping an object on the fingerprint sensor, or

otherwise subjecting it to a strong impact

– Scratching the surface of the fingerprint sensor,

or poking it with a pointed object

– Pressing a hard object such as a fingernail or

metal item against the fingerprint sensor

– Touching the fingerprint sensor with dirty hands

– Placing a sticker on the surface of the fingerprint

sensor, or covering the surface with ink or

another substance

●If fingerprint authentication fails frequently, the

fingerprint sensor may be dirty. Clean the surface

of the fingerprint sensor regulary.

●When cleaning the fingerprint sensor, use a soft

dry cloth to wipe dirt off the surface.

●Do not use a pointed object to remove any dirt that

accumulates around the fingerprint sensor. Doing

so may cause the fingerprint sensor to

malfunction.

●Touching the fingerprint sensor while charged with

static electricity may cause the fingerprint sensor

or scanner unit to malfunction. Before touching the

fingerprint sensor, discharge any static electricity

by touching a piece of metal. Be especially careful

during dry periods, such as the winter season,

when the likelihood of being charged with static

electricity is high.

❏Disposal

●Prior to disposing of the scanner, initialize the

scanner to ensure that the registered data is

deleted.

●When disposing of the scanner, make sure to

follow all local ordinances and laws or consult with

the retailer who sold you the scanner.

1-6

Chapter 1 Before Use

2. Features of the ScanFront 300/300P

The main features of the ScanFront 300/300P are described below.

❏ScanFront 300/300P

●Compact Network Document Scanner

The network document scanner has a compact design of

12.20" (W) × 8.66" (D) × 6.34" (H) (310 mm (W) ×

220 mm (D) × 161 mm (H)). You can scan documents

in a range of sizes from business cards to Legal/A4 size.

●Supports Transfer to a Variety of Destinations

You can transfer scanned image files to the following

types of destinations via a network.

– Shared folders (excluding folders on a computer on a

different segment of a network for which a WINS

server is not configured)

– FTP Servers (excluding FTP servers that require

firewall settings)

– E-mail addresses

– Fax (via an Internet fax service)

●ScanFront Service

By installing ScanFront Service on a computer on the

network, you can also send scanned images to shared

folders and devices, such as the following, for which

direct transfer from the scanner is normally unavailable.

– Shared folders on a computer on a different segment

of a network for which a WINS server is not

configured

–Printers

●Variety of Scanning Modes

The scanner is equipped with five scanning modes:

Black and White, Error Diffusion, Text Enhance, Gray,

and Color.

●Long Document Scanning

The scanner is equipped with a scanning mode that can

automatically detect long document sizes.

*The available scanning modes vary depending on the file

format of the image to be transferred.

●Fast Document Feeding

The scanner can scan a maximum of 30 Legal/A4

documents per minute.

*Scanning conditions: Black and white, simplex, 200 dpi

●Supports USB Memory

The scanner supports saving image files to USB

memory to enable you to move them to destinations not

connected to or not using a network.

●Touch Panel Operation

The 8.4-inch TFT SVGA (800 x 600 dots) screen with

a touch panel enables you to perform all scanner

operations by touching the screen.

●Configuration via the Web Menu

A web browser (Web Menu) is used for configuring the

basic settings of the ScanFront, user registration, and

job button registration.

*The Web Menu has an Administrator Mode for the

administrator to configure settings and a User mode for

users to register addresses and job buttons.

●ScanFront Administration Tool

By installing the supplied ScanFront Administration

Tool software, you can simultaneously manage

multiple ScanFront scanners on the network.

●Job Buttons

Pre-registering destinations and scan conditions as jobs

enables you to scan by selecting a job button.

●Shared Address Book and Shared Job Button

The Shared Address Book and Shared Job Buttons are

available for use by all users.

●My Address Book and My Job Button

In addition to the address book and job buttons shared

by all users, a My Address Book and My Job Button are

available for each user.

1-7

Chapter 1 Before Use

●Supports Mouse and Keyboard

In addition to touch-panel operation, you can also use a

mouse and keyboard to operate the scanner. (See

p. 2-5.)

●Supports Directory Services

The scanner supports directory services (Active

Directory and OpenLDAP), which enables you to

reference and use user accounts and e-mail addresses

registered on a domain server and LDAP server.

●Functional Restrictions

The scanner enables you to restrict, for example, the

destinations and Home screen available to each user.

●Auto Size Detection

The scanner can detect the size of a scanned document

and erase the white space around the image.

●Auto Color Detection

The scanner can automatically detect whether a

document is color or black and white, and save the

scanned images accordingly.

●Folio Scanning

The scanner can scan both sides of a document folded

in half and create a single scanned image.

●Text Enhance Mode

The background color of the text are processed to

enhance the text portions and make them easy to read.

*This function may not work effectively for some documents.

●Double Feed Detection by Length

When the scanner detects a double feed by comparing

the lengths of documents, it stops feeding.

*Using the length of the first document as a reference, the

scanner detects a double feed when a document of a

different length is fed.

●Skip Blank Page Function

The scanner scans both sides of a document and skips

saving the image of any side it determines to be a blank

page.

●Deskew

If the scanner detects from a scanned image that the

document was fed askew, the image is straightened.

●Image Rotation

The scanner can rotate a scanned image in 90°

increments, or detect the text orientation within the

document, and then rotate the image in 90° increments

so that the orientation of the text is correct.

●Eliminates Bleed-Through

The scanner prevents the images on the reverse side of

thin documents from appearing on the scanned pages.

●Dropout and Color Enhancement Functions

The scanner is equipped with a dropout function that

allows you to specify one color (red, blue, or green) to

omit, and a function to enhance a specified color when

scanning.

●Card Scanning

You can scan credit cards and IC cards that conform to

ISO standards.

●Prescan

This function prescans the first page of a document at

the start of scanning, and then stops scanning so that

you can view the results to adjust the brightness and

contrast before scanning the entire document.

❏ScanFront 300P

●Fingerprint Authentication

The authentication system that uses a fingerprint sensor

to authenticate users enables you to log in to the

ScanFront 300P without entering your user name and

password.

●Double Feed Detection by Ultrasonic Function

In addition to the double feed detection function that

compares the lengths of documents, the scanner is

equipped with a double feed detection function that uses

an ultrasonic sensor.

1-8

Chapter 1 Before Use

3. Names and Functions of Parts

The names and functions of the parts of the ScanFront 300/300P are shown below.

❏Front and Document Feed and Eject Trays

aTray Extension

Open this to prevent scanned documents from slipping off.

bDocument Eject Tray

Open this tray when using the ScanFront. If scanned

documents curl in the document eject tray, remove the

entire tray. (See p. 2-4.)

cPanel Unit

Open this when there is a paper jam or to perform

maintenance. (See p. 2-10.)

dTouch Panel

Touch this screen to operate the ScanFront.

eLock Lever

Locks the panel unit. Pull the lever toward you to unlock

the panel unit. (See p. 2-10.)

fDocument Guides

Adjust these to match the width of the document. (See

p. 2-6.)

gDocument Feed Tray

Place documents here. (See p. 2-4.)

hUSB Port (Front)

Connect a USB1.1/Hi-Speed USB2.0 compatible USB

memory device, USB keyboard, or USB mouse.

iPower Switch

Use this to turn the power ON. (See p. 3-4.)

*Use the Power OFF button on the touch panel to turn the

power OFF.

jFeed Selection Lever

Use this lever to change the feed method for documents.

(See p. 2-5.)

kPower Indicator

Lights when the power is ON. (See p. 3-4.)

lFingerprint Authentication Sensor (Only Available

with the ScanFront 300P)

This fingerprint sensor is for fingerprint registration and

authentication. (See p. 2-11.)

1-9

Chapter 1 Before Use

❏Side and Rear

mUSB Port (Rear Left)

Connect a USB1.1/Hi-Speed USB2.0 compatible USB

memory device, USB keyboard, or USB mouse.

nPower Connector (24 VDC)

Connect the plug of the supplied AC adapter. (See p. 3-3.)

oKensington Slot

This is an anti-theft slot that enables a key chain or lock to

be connected to prevent theft.

pService Switch

This is a service switch. Do not insert any object into this

hole.

qLAN Port (RJ-45)

Connect an RJ-45 (10Base-T/100Base-TX) compatible

network cable. (See p. 3-3.)

rUSB Ports (Rear Right)

Connect a USB1.1/Hi-Speed USB2.0 compatible USB

memory device, USB keyboard, or USB mouse.

sVentilation Holes

1-10

Chapter 1 Before Use

4. Network Environment

The network environment required to use the ScanFront is described below. To obtain details on your network environment, contact

your network administrator.

❏Network Environment

●Microsoft Windows Network

Use the scanner in a Microsoft Windows Network

environment.

●Network Protocol

The scanner uses TCP/IP protocol to connect to the

network.

●IP Address Assignment

The TCP/IP protocol uses one IP address for each

device connected to the network. Consult your network

administrator to determine the IP address to assign to

the scanner.

●DHCP Support

The scanner supports DHCP (Dynamic Host

Configuration Protocol). A DHCP server provides a

network environment in which IP addresses can be

obtained automatically from the DHCP server, so there

is no need to set an IP address for the scanner.

*The number of IP addresses that can be obtained using

DHCP is managed by the network administrator. For

details, consult your network administrator.

●100Base-TX Support

The scanner supports 100Base-TX. However,

communication may be slower than the communication

speed of the network, depending on the other devices

connected to the network and the type of hub.

●SMTP (E-mail) Server

The scanner supports an SMTP server, so you can send

image files directly from the scanner by e-mail.

●FTP Server

The FTP server function supports an FTP server

configured within the local network, and is unable to

send to an FTP server that requires firewall settings.

●Fax

Scanned images can be sent to specified addresses as

fax documents by sending e-mails that include the

scanned images as attachments to an Internet fax

service. Therefore, you must specify message formats

and addresses in the method prescribed by your Internet

fax service.

●Printer

By specifying a printer connected to the same network

as the ScanFront as the destination, you can print

scanned images. In such cases, a computer on which

ScanFront Service is installed must exist on the same

network as the ScanFront scanner.

❏Directory Service Support

●Active Directory

Active Directory is a directory service adopted by

Windows 2000, and information registered to Active

Directory can be used on other computers. The

ScanFront allows user information registered to the

domain server registered as the authentication server to

be used for authentication to log in to the ScanFront.

*A domain server that uses Windows NT Server for the

operating system cannot be registered as an

authentication server.

●OpenLDAP Server

The scanner supports OpenLDAP servers that can be

connected to with the LDAP (Lightweight Directory

Access Protocol) protocol.

You can authenticate ScanFront users and reference e-

mail addresses for registration to the address book using

the user information registered on the OpenLDAP

server.

1-11

Chapter 1 Before Use

❏Limitations

●Limitations in Browsing for Shared Folders

A problem in browsing for shared folders on computers

running the Windows 7 or Windows Server 2008 R2

operating system has been determined to exist. You will

not be able to browse for shared folders to act as image

file destinations by pressing the [Browse] button on the

ScanFront touch panel. (Similarly, you will not be able

to browse for shared folders in the screen that appears

after you click [Browse] in the ScanFront Web Menu.)

This problem is due to the specifications of Windows 7

and Windows Server 2008 R2.

As a result, if you want to specify a shared folder on a

computer running these operating systems as the

destination for image files, you must enter the shared

folder manually. (When operating the ScanFront touch

panel to specify a shared folder as the destination

address, for example, enter the folder path in [Folder

path].) Instead of entering the full path in such cases,

you can press the [Browse] button after entering the

computer name and the path up until the top-most folder

of that computer, and then specify the rest of the path in

the screen that appears.

This problem does not occur when the supplied

ScanFront Service software is installed on the network.

●Limitations for Network Environments without

ScanFront Service

To send image files to destinations and devices, such as

the following, the supplied ScanFront Service software

must be installed on a computer on the same network as

the ScanFront scanner.

– Destinations (folders on computers, printers, etc.)

located on different segments of a network on which

a WINS server is not configured

– Printers on the network

– Certain NAS (network-attached storage)

Chapter 2 Handling

1. Documents....................................................... 2-2

Plain Paper............................................................2-2

Business Card.......................................................2-2

Card ......................................................................2-3

2. Preparing the Scanner..................................... 2-4

Preparing the Document Feed Tray and

Eject Tray..............................................................2-4

Feed Selection Lever ............................................2-5

USB Port ...............................................................2-5

3. Placing Documents.......................................... 2-6

Placing a Document ..............................................2-6

Placing a Folded Document ..................................2-7

Placing a Long Document .....................................2-7

Placing a Card.......................................................2-8

4. Clearing a Paper Jam or Double Feed Error ... 2-9

5. Fingerprint Sensor (ScanFront 300P)............ 2-11

Cautions for Handling the Fingerprint Sensor .....2-11

Fingerprint Authentication ...................................2-12

2-2

Chapter 2 Handling

1. Documents

The ScanFront can scan documents in a range of sizes from business cards to Legal/A4.

It is possible to feed documents of the following sizes and thicknesses depending on the feeding method used.

❏Plain Paper

Size

Width: 2" to 8 1/2" (50.8 mm to 216 mm)

Length: 2 1/8" to 14" (53.9 mm to 355.6 mm)

(up to 39.3" (1,000 mm) in Long Document mode)

Thickness for Page Separation ON

14 lb to 57 lb bond (52 g/m2 to 209 g/m2)

Thickness for Page Separation OFF

11 lb to 57 lb bond (40 g/m2 to 209 g/m2)

IMPORTANT

A document must meet the following criteria to be scannable:

• When scanning a multipage document, pages must be

grouped together so that they have the same size, thickness,

and weight. Scanning different types of paper at one time can

cause the scanner to jam.

• Always make sure that the ink on a document is dry before

scanning it. Scanning documents with the ink still wet may soil

the rollers or scanning glass, cause lines or smudges to

appear on images, or dirty other documents.

• Always clean the rollers or scanning glass after scanning a

document written in pencil. Scanning documents with pencil

written on them may soil the rollers or scanning glass, cause

stripes to appear in images, or dirty other documents.

• When scanning a two-sided document that is printed on thin

paper, the image on the opposite side of each page may show

through. Adjust the brightness in the scanning conditions

before scanning the document.

• Note that scanning the following types of documents can

cause a paper jam or malfunction. To scan such a document,

make a photocopy of the document and then scan the

photocopy.

❏Business Card

Size

Width: 2" (50.8 mm) and above

Length: 2 1/8" (53.9 mm) and above

Thickness

82 lb Cover (300 g/m2) and below

IMPORTANT

• If the stack of business cards that you placed is not fed

properly, reduce the number business cards.

• Business cards may sometimes be stacked in the wrong order

when they are ejected, depending on the size and thickness

of the business cards, and the orientation that they are loaded.

Wrinkled or creased

documents Carbon paper

Curled documents Coated paper

Torn documents Extremely thin,

translucent paper

Documents with

paper clips or staples

Document with square

punch holes

2-3

Chapter 2 Handling

❏Card

Size

2.12" × 3.37" (53.9 × 85.5 mm) (Conforming to ISO

Standards)

Thickness

0.0299" (0.76 mm) and below

Insertion orientation

Landscape

IMPORTANT

• Insert cards one at a time.

• Be careful when inserting cards to avoid damaging them.

2-4

Chapter 2 Handling

2. Preparing the Scanner

When placing a document in the scanner, pull out the document eject tray so that it matches the size of the document, and then move

the feed selection lever to the appropriate position for the desired feed method (Page Separation ON or OFF) for the document.

❏Preparing the Document Feed Tray and

Eject Tray

Prepare the trays in accordance with the type of document.

1. Open the document feed tray a.

2. Open the document eject tray b.

Hint

Open the center tray extension when output documents are

likely to fall out of the tray.

Hint

If the output documents curl in the eject tray when scanning

particularly thin documents, remove the eject tray.

To remove the document eject tray, push in on the illustrated

portions of the tray on both sides in the direction of the arrows

a and pull out b.

To reattach the eject tray, insert the protrusions on both sides of

the tray into the holes on the scanner.

After connecting the tray, make sure that it is attached securely.

2-5

Chapter 2 Handling

❏Feed Selection Lever

Change the position of the lever to the desired feed method

for the document.

Page Separation ON

Move the lever downward to separate a stack of documents

one page at a time in order to continuously feed the

documents.

Page Separation OFF

Move the lever upward to feed a document with multiple

pages attached together such as an invoice one page at a

time without separating the pages.

IMPORTANT

Moving the lever upward (Page Separation OFF) and then

scanning a stack of documents will cause multiple pages to be

fed at the same time.

❏USB Port

You can insert a USB memory device to store image files.

You can also connect a USB keyboard and USB mouse to

operate the ScanFront.

IMPORTANT

• The scanner will not start if you turn the power ON while a USB

memory device is inserted. Insert the USB memory device

after the scanner has started up.

• Use USB memory that is not write-protected. If the USB

memory is write-protected, data cannot be written to the USB

memory.

• This scanner does not support USB memory equipped with

password security, data encryption, or functions other than

data storage.

• Make sure that the USB memory has sufficient space to store

images.

Feed selection lever

Page Separation

OFF

USB Memory

2-6

Chapter 2 Handling

3. Placing Documents

When placing documents into the scanner, place them face down into the tray with the top edge of the document at the bottom of

tray.

❏Placing a Document

Follow the procedure below to place a document.

1. Adjust the document guides to be wider than the

width of the document.

2. Fan the document to offset the pages so that the top

edge of the first page is the lowest.

3. Place the document face down with its top edge at

the bottom of the tray.

4. Adjust the document guides to fit the width of the

document.

2-7

Chapter 2 Handling

IMPORTANT

Make sure that document stacks placed in the feed tray do not

exceed the document guides.

The number of sheets that you can place in the scanner at

one time varies by paper size as follows.

Legal/A4 Size or Smaller:

50 sheets (stack 5 mm thick) or less

Sizes Larger than Legal/A4:

30 sheets (stacks 3 mm thick) or less

❏Placing a Folded Document

Folio Scan enables you to scan documents that are larger

than Legal/A4 and therefore do not fit in the feeder. (The

maximum size is 11" X 17"/A3.) To use the function, fold

the document in half lengthwise and place it into the

feeder. The ScanFront 300/300P will scan both sides and

combine the scanned images into a single image.

IMPORTANT

• When folding the document, align the right and left sides and

create a sharp, straight fold. Otherwise the document may jam

or the image may not be aligned properly.

• The fold line itself will not be scanned. Keep this in mind if

there is content such as photos, diagrams, or text that spans

the fold.

• For Folio scanning, only the Page Separation OFF mode can

be used. Place documents one at a time.

• Adjust the document guides to fit the width of the document.

Otherwise, the image may scan as skewed or shifted.

Hint

• When scanning folded documents, switch the feed selection

lever to OFF. (See p. 2-5.)

• When placing folded documents, place the document into the

scanner so that the fold is on the right side. The side of the

folded document facing you will become the right side of the

combined image.

• When scanning a document that is folded in half, set

[Scanning Side] to [Folio].

• The maximum size for combined images is A3. When

scanning a folded document of a size other than the standard

formats, set [Page Size] to [Auto size].

• When scanning a document that is folded in half, set

[Resolution (dpi)] to 300 dpi or less.

• When scanning a document that is folded in half, the [Double

feed detection by Ultrasonic] function cannot be used.

❏Placing a Long Document

You scan documents up to 39.3" (1,000 mm) in length.

IMPORTANT

• When scanning a long document, set [Page Size] to [Auto size

(Long)].

• When scanning a long document, set [Resolution (dpi)] to 200

dpi or less.

• You cannot set [Scanning Side] to [Folio] when scanning a

long document.

Loading mark

2-8

Chapter 2 Handling

❏Placing a Card

When you want to scan a card, follow the procedure below

to place the card.

1. Move the feed selection lever upward (OFF).

IMPORTANT

When scanning cards, set the feed selection lever to OFF and

make sure to scan the cards one at a time.

2. Adjust the document guides to match the width of the

card.

3. Place the card face down with the top edge at the

bottom of the tray.

CAUTION

• A card placed into the document feed tray in the portrait

orientation may not be output properly because a load is

placed on it during feeding. Furthermore, removing a card that

has caused a feeding error may damage the card, so make

sure to correctly insert the card.

• Pull the lock lever and open the panel unit before removing a

placed card. Inserting a finger into the scanner while the panel

unit is closed may result in an injury.

Lock lever

2-9

Chapter 2 Handling

4. Clearing a Paper Jam or Double Feed Error

When a paper jam or double feed error is detected, feeding and scanning stops.

1. Check the displayed message.

If a paper jam or double feed error is detected at the first

page of a document, the following messages appear.

Hint

• If you press [Complete], the display returns to the previous

screen.

• If you want to continue scanning, reset the document before

progressing with screen operations. Press [Continue] to

resume scanning.

If a paper jam or double feed error is detected in the middle

of a document, the following messages appear.

Hint

• If you press [Abort], the scanned images are canceled, and

the display returns to the previous screen.

• If you want to continue scanning, clear the document first

before touching the screen. After you reset the cleared

document, press [Continue] to resume scanning.

• If you press [Complete], the scanned images up until the

paper jam or double feed error are saved and scanning

completes. The display switches to the Send screen.

2-10

Chapter 2 Handling

IMPORTANT

When the message above is displayed and the scanner

transitions to Low Power Mode, all of the data scanned up until

that point is discarded. (See “Low Power Mode” on p. 6-31.)

2. Remove the scanned documents from the document

eject tray, and any documents remaining in the

document feed tray.

3. Pull the lock lever toward you and then fully open the

panel unit.

CAUTION

The open/close movement of the panel unit is linked to the up/

down movement of the document eject tray. Do not press on the

document eject tray when you open the panel unit.

4. Pull out the jammed document in the direction that

seems the easiest to remove it.

5. Close the panel unit and then place the document

again.

6. Press [Continue] to resume scanning.

IMPORTANT

• If double feed errors occur repeatedly, reduce the number of

sheets you place in the document feed tray to about 10.

• A dirty or worn feed roller, or documents stuck together as a

result of static electricity are common causes of paper jams or

double feed errors.

If the feed roller is dirty, clean it. If paper jams or double feed

errors continue to occur even after cleaning, purchase an

Exchange Roller Kit and replace the rollers (feed roller and

retard roller), and document holding guides. (See p. 9-8.)

Lock lever

2-11

Chapter 2 Handling

5. Fingerprint Sensor (ScanFront 300P)

The ScanFront 300P is equipped with a fingerprint sensor for registering fingerprints and authenticating users.

The fingerprint sensor is a precision component. Be careful when handling this sensor.

❏Cautions for Handling the Fingerprint

Sensor

●The following actions may damage the fingerprint

sensor or cause it to malfunction. Read this

information carefully to avoid damaging the

sensor.

– Dropping an object on the fingerprint sensor, or

otherwise subjecting it to a strong impact

– Scratching the surface of the fingerprint sensor,

or poking it with a pointed object

– Pressing a hard object such as a fingernail or

metal item against the fingerprint sensor

– Touching the fingerprint sensor with dirty hands

– Placing a sticker on the surface of the fingerprint

sensor, or covering the surface with ink or

another substance

●If fingerprint authentication fails frequently, the

fingerprint sensor may be dirty. Clean the surface

of the fingerprint sensor regularly.

●When cleaning the fingerprint sensor, use a soft

dry cloth to wipe dirt off the surface.

●Do not use a pointed object to remove any dirt that

accumulates around the fingerprint sensor. Doing

so may cause the fingerprint sensor to

malfunction.

●Touching the fingerprint sensor while charged with

static electricity may cause the fingerprint sensor

or scanner unit to malfunction. Before touching the

fingerprint sensor, discharge any static electricity

by touching a piece of metal. Be especially careful

during dry periods, such as the winter season,

when the likelihood of being charged with static

electricity is high.

Fingerprint Sensor

2-12

Chapter 2 Handling

❏Fingerprint Authentication

●Follow the procedure below to use fingerprint

registration and authentication.

1. Align the first joint of a finger on the sensor and

press the finger on the fingerprint sensor.

2. Keep the finger pressed while slowly sliding it

straight at a constant speed to scan the

fingerprint.

●Fingerprint authentication uses the unique

information of fingerprints. The fingerprint

authentication function may not work properly for a

finger with a fingerprint that is worn down or has

few distinguishable features.

●The same finger needs to be scanned three times

to register the fingerprint.

●The authentication performance differs depending

on the condition of the fingerprint when it is

registered and when it is authenticated. The

following conditions may cause an error in

fingerprint authentication:

– The finger is wet or sweaty

– The finger is dirty

– The grooves of the fingerprint are filled with

sweat or oil

– The finger is dry (dry skin)

– Part of the fingerprint is missing because of, for

example, a wound or burn injury

– The fingerprint has worn thin

●Authentication performance may improve if the

condition of the fingerprint is improved as a result

of washing your hands or applying hand cream.

●Authentication may not be performed properly

depending on the speed with which you slide your

finger over the sensor. In this case, adjust the

speed with which you slide your finger in

accordance with the message that appears.

●Fingerprint authentication does not necessarily

guarantee the authentication and verification of the

identity of a person.

Hint

For details on the procedures for fingerprint registration and

authentication, see Chapter 5 “Operating Procedures”.

Chapter 3 ScanFront Setup

1. Before Setting Up the Scanner........................ 3-2

Installation Location ..............................................3-2

Connecting the AC Adapter ..................................3-3

Connecting the Network Cable .............................3-3

2. Turning the Power ON and OFF...................... 3-4

Turning the Power ON ..........................................3-4

Turning the Power OFF.........................................3-4

3. Configuring the Scanner Settings .................... 3-5

Administrator Settings ...........................................3-5

Web Menu (Administrator Mode) ..........................3-6

4. Configuring Administrator Settings .................. 3-8

Logging In to the Administrator Settings ...............3-8

Network Settings ...................................................3-9

Administrator Password ........................................3-9

Backup/Restore Setting Information ...................3-10

Select Login Type ...............................................3-10

Roller Counter Reset...........................................3-11

Format ScanFront 300 ........................................3-11

Touch Panel Adjustment.....................................3-11

Display Language Setting ...................................3-12

Network Test.......................................................3-12

3-2

Chapter 3 ScanFront Setup

1. Before Setting Up the Scanner

Before setting up the scanner, you need to move it to the installation site, and connect the AC adaptor and network cable.

❏Installation Location

The performance of this scanner is affected by the

environment in which it is installed. Make sure that the

location where the scanner is installed meets the following

environmental requirements.

●Provide adequate space around the scanner for

operation, maintenance, and ventilation.

●Avoid installing the machine in direct sunlight. If

this is unavoidable, use curtains to shade the

scanner.

●Avoid locations where a considerable amount of

dust accumulates.

●Avoid warm or humid locations, such as in the

vicinity of a water faucet, water heater, or

humidifier, and avoid locations where the fumes

from ammonia, paint thinner, or other volatile

chemicals may be present.

●Avoid locations that are subject to vibration.

●Avoid exposing the scanner to rapid changes in

temperature. If the room in which the scanner is

installed is cold but rapidly heated, water droplets

(condensation) may form inside the scanner. This

may result in a noticeable degradation in scanning

quality.

The following conditions are recommended for

optimal scanning quality:

Room temperature: 10 °C to 32.5 °C (50 °F to

90.5 °F)

Humidity: 20% to 80% RH

●Avoid installing the scanner near equipment that

generates a magnetic field (e.g. speakers,

televisions, or radios).

At least

15.75"

(40 cm) At least

23.62" (60 cm)

3-3

Chapter 3 ScanFront Setup

❏Connecting the AC Adapter

Follow the procedure shown below to connect the AC adapter.

CAUTION

Make sure to use only the AC adapter and power cord included with the scanner.

aConnect the power cord and AC adapter.

bInsert the plug of the AC adapter into the power connector.

cConnect the power cord to the wall outlet.

❏Connecting the Network Cable

Insert the network cable connector (RJ-45) into the LAN port.

The shape of the power plug

varies by country and region.

3-4

Chapter 3 ScanFront Setup

2. Turning the Power ON and OFF

Use the power switch to turn the scanner ON, and press the [Power off] button on the touch panel to turn it OFF.

❏Turning the Power ON

Press the power switch to turn the scanner ON. The power

indicator lights, and the Home screen or the login screen

appears.

IMPORTANT

• It takes approximately 40 seconds for the Home screen to

appear after the power switch is turned on.

• When the power indicator is lit but nothing appears on the

touch panel, Display Off has activated to turn the panel display

off. You can touch the panel to restore the display. (See

“Display Off” on p. 6-31.)

• When the power indicator is flashing but nothing appears on

the touch panel, the Low Power mode has activated to

temporarily stop scanner operations. To switch out of Low

Power mode, press the power switch or touch the touch panel.

(See “Low Power Mode” on p. 6-31.)

❏Turning the Power OFF

Press the [Power off] button displayed at the bottom left of

the panel to turn the scanner OFF.

IMPORTANT

• When restarting the scanner, wait at least 5 seconds after

turning the power OFF before turning it ON again.

• If the scanner stops responding, press and hold the power

switch to shut down the system, and then press the power

switch to turn the scanner ON again. In such cases, settings

configured immediately before shutting down may be lost.

Home screen Power

indicator

Power switch

3-5

Chapter 3 ScanFront Setup

3. Configuring the Scanner Settings

The scanner setup consists of configuring the initial network settings from the [Administrator setting] screen, and then configuring

the settings needed to use the scanner as described in Chapter 6 “Web Menu (Administrator Mode)”.

❏Administrator Settings

The following items are available for administrator settings. For details, see “Configuring Administrator Settings” on p. 3-8.

Hint

Except for the scanner maintenance items (roller counter reset, touch panel adjustment, and initialization), the administrator setting items

can be configured from the Web Menu (Administrator Mode). For details, see “Web Menu (Administrator Mode)” on p. 3-6 or Chapter 6 “Web

Menu (Administrator Mode)”.

Setting Item Description Administrator setting Web Menu

(Administrator Mode)

Network settings Set the Device Name and IP Address needed to

connect to the network. Yes Yes

Change administrator

password

Set the password required for logging in to

[Administrator setting] and the Web Menu. Yes Yes

Backup / Restore all

settings Back up or restore the scanner settings. Yes Yes

Roller Counter Reset Reset the counter after replacing the feed roller. Yes No

Format ScanFront 300

Use to delete all of the current settings, such as

when changing the operating environment of the

scanner.

Yes No

Touch panel adjustment Adjust the touch panel when it does not operate as

expected. Yes No

Display language setting Set the language displayed on the touch panel. Yes Yes

Network Test

Confirm whether communication is enabled

between the ScanFront and other devices on the

network.

Yes No

3-6

Chapter 3 ScanFront Setup

❏Web Menu (Administrator Mode)

The following setting items are available from the Web Menu (Administrator Mode). For details, see Chapter 6 “Web Menu

(Administrator Mode)”.

Hint

From the Web Menu (User Mode), which is available to all users, the configuration of some functions is restricted.

Setting Item Description Web Menu

(Administrator Mode)

Web Menu

(User Mode)

User Administration

User Mode, only the editing of user settings is

available, and some settings cannot be edited.

Yes (See p. 6-6) Yes, partially. (See

p. 8-4)

Address Book Settings

Book. From User Mode, you can register and edit

entries in the My Address Book.

Yes (See p. 6-14) Yes (See p. 8-8)

Job Button Settings

User Mode, you can register and edit the My Job

Button.

Yes (See p. 6-20) Yes (See p. 8-15)

Device Configuration Configure the scanner settings.

Network Settings Confirm the [Device Name] and [IP Address]

settings of the scanner. Yes (See p. 6-30) No

Language/Timezone Set the language displayed on the touch panel and

the geographic region where it will be used. Yes (See p. 6-30) No

Device Operation Set the Auto Logout and Low Power Mode

settings for users. Yes (See p. 6-31) No

Administrator Settings Register the password and e-mail address of the

administrator. Ye s (See p. 6-32) No

3-7

Chapter 3 ScanFront Setup

Setting Item Description Web Menu

(Administrator Mode)

Web Menu

(User Mode)

Server Settings Register the mail server, address book server and

authorization server.

E-mail Server / Fax

Settings

mail and faxes. Yes (See p. 6-34) No

Authentication Server Register a domain server that can search users with

Active Directory. Yes (See p. 6-35) No

Address Book Server Register an LDAP server that can search e-mail

address books. Yes (See p. 6-36) No

FTP Server Configure settings for saving image files to the

FTP server. Yes (See p. 6-36) No

NTP Server Register an NTP server to enable automatic

adjustment of the scanner’s clock. Yes (See p. 6-37) No

ScanFront Service

Server

ScanFront Service is installed. Yes (See p. 6-37) No

System Settings Configure the settings for managing the scanner.

Backup / Restore Back up or restore the scanner settings. Yes (See p. 6-39) No

Module Version

Information

Display the version information, and update the

version, of the ScanFront module. Yes (See p. 6-40) No

Log Settings Record usage statistics to a log file. Yes (See p. 6-42) No

3-8

Chapter 3 ScanFront Setup

4. Configuring Administrator Settings

Enter the administrator password and log in to configure administrator settings.

❏Logging In to the Administrator Settings

Follow the procedure below to configure the [Device

name] and [IP address] needed to connect the scanner to a

network.

1. Press [Administrator setting].

The [Administrator Password] input box appears.

2. Press [OK] to display the [Administrator setting]

screen.

No administrator password is set by default.

3. Select the setting item to configure.

3-9

Chapter 3 ScanFront Setup

❏Network Settings

Under Network Settings, configure the device name and IP

address needed to connect the scanner to a network.

IMPORTANT

• Configure network settings while the network cable is

connected to the scanner. If the network cable is not

connected to the scanner, you will not be able to verify or

modify settings in the network settings screen.

• The device name is the name for the scanner used on the

network. When changing this setting, make sure to select a

unique name that is different from those of all other devices.

• The device name can be a combination of letters (A-Z, a-z),

numbers (0-9), and hyphens (-) up to 15 characters long.

• The device name must begin with a letter. You cannot end the

device name with a hyphen.

• When a DHCP server is not used to assign IP addresses,

clear the [DHCP server Enable] check box, and enter a fixed

address. For details, contact your network administrator.

• If the DHCP server is enabled and the DNS server and WINS

server information is not obtained properly, clear the

[Automatic retrieval of DNS (WINS) server] check box, and

enter the appropriate server addresses.

To send image files to devices or shared folders on a different

segment of the network, you must configure a WINS server in

the network settings. Alternatively, you can incorporate a

computer on which ScanFront Service is installed onto the

network.

❏Administrator Password

Set the password required to log in to [Administrator

setting] and the Web Menu (Administrator Mode).

CAUTION

Be careful with the administrator password. If you forget the

password, you will have to reformat the scanner, and all

registered data will be lost.

3-10

Chapter 3 ScanFront Setup

❏Backup/Restore Setting Information

Back up/restore setting information using a shared folder

on the network or USB memory device at the following

times.

When adding another ScanFront

When adding, for instance, another ScanFront, back up the

setting information that was set on the first ScanFront, and

then restore the setting information on the other

ScanFront.

When updating the version of the ScanFront

Back up the setting information before you update the

version of the ScanFront, and then restore the setting

information after the version update is finished.

When submitting the ScanFront for repairs

Before you submit the ScanFront for repairs, back up the

setting information of the ScanFront.

IMPORTANT

Before you submit the ScanFront for repairs, back up the setting

information and then initialize the ScanFront. (See “Initializing

ScanFront” on p. 10-13.)

Hint

• Scanner setting information can be backed up to a folder on a

USB memory device if the device is inserted when [Backup /

Restore all settings] is pressed.

• Backup / Restore all settings can also be configured from the

[System Settings] screen (see p. 6-38) of the Web Menu

(Administrator Mode).

❏Select Login Type

Set the screen that appears when users log in.

For details, see “Login Screen” on p. 5-4.

3-11

Chapter 3 ScanFront Setup

❏Roller Counter Reset

Reset the counter after replacing the feed roller when the

scanner no longer feeds properly. For details, see

“Replacing the Rollers and Document Holding Guide” on

p. 9-8.

❏Format ScanFront 300

Initialize the ScanFront 300 clears all the settings

registered to the ScanFront.

Initialize the ScanFront 300 at the following times. For

details, see “Initializing ScanFront” on p. 10-13.

When submitting the ScanFront for repairs

Before you submit the ScanFront for repairs, initialize the

ScanFront to protect the saved user information.

When changing the operating environment

Delete all the user information registered on the ScanFront

when, for instance, the users have changed because you

have changed the installation location.

❏Touch Panel Adjustment

You can adjust the touch panel when it does not operate as

expected. For details, see “Adjusting the Touch Panel” on

p. 10-11.

3-12

Chapter 3 ScanFront Setup

❏Display Language Setting

You can select the language displayed on touch panel. If

you change this setting, restart the scanner.

Hint

The display language setting can also be configured in

[Language/Timezone] on the Web Menu (Administrator Mode)

(see p. 6-30).

❏Network Test

Confirm whether communication is enabled between the

ScanFront and other devices on the network. Enter the IP

address of a device and press the [Execute] button to ping

the specified IP address and confirm whether

communication with the device is enabled.

Chapter 4 ScanFront Service

1. About ScanFront Service................................. 4-2

2. Installing ScanFront Service............................ 4-3

System Requirements...........................................4-3

Installation .............................................................4-3

3. ScanFront Service Setup................................. 4-6

ScanFront Settings................................................4-6

Changing the Port Number Used for

Communication .....................................................4-6

4-2

Chapter 4 ScanFront Service

1. About ScanFront Service

ScanFront Service is software that supplements the network functions of the ScanFront. To use this software, install it on a computer

connected to the same network as the ScanFront. (The computer on which ScanFront Service is installed will be herein referred to

as the “ScanFront Service Server”.)

By configuring a ScanFront Service Server, you can send

scanned images to locations on the network, such as the

following, where direct transfer from the ScanFront is

disabled.

●Destinations (folders on computers, printers, etc.)

located on different segments of a network on which

a WINS server is not configured

●Printers on the network

●Shared folders on a computer that is specified by IP

address

●Certain NAS (network-attached storage)

Scanned images from the ScanFront are sent via the

ScanFront Service Server to the user specified destination.

Up to 100 ScanFront scanners can be connected to a single

ScanFront Service Server. However, only up to 15 ScanFront

scanners can communicate with the ScanFront Service Server

at any one time.

4-3

Chapter 4 ScanFront Service

2. Installing ScanFront Service

❏System Requirements

Install ScanFront Service on a computer that is connected

to the same network as the ScanFront, and that meets the

following requirements.

Operating System

●Windows XP

●Windows Server 2003

●Windows Vista

●Windows Server 2008

●Windows 7

IMPORTANT

ScanFront Service is compatible with only the 32-bit editions of

the above operating systems. Installation and use on the 64-bit

editions is not supported.

❏Installation

1. Insert the INSTRUCTIONS AND UTILITIES

CD-ROM into the computer.

2. Start the ScanFront Service installer.

Use Windows Explorer, for example, to locate the installer

in the following folder on the CD-ROM, and double-click

the installer to start it.

For Windows 7, Windows Vista, or Windows Server

2008:

Q:\ScanFrontService\Vista and 2008Server

English\setup.exe (“Q” is the letter assignment for the

CD-ROM drive)

For Windows XP or Windows Server 2003:

Q: \ScanFrontService\XP and 2003Server

English\setup.exe (“Q” is the letter assignment for the

CD-ROM drive)

Hint

An installer for the Japanese version of ScanFront Service is

also stored on the INSTRUCTIONS AND UTILITIES CD-ROM.

If necessary, you can install the Japanese version of ScanFront

Service by replacing “English” in the folders mentioned above

with “Japanese”.

You can only install one version of the software. Do not install

both versions on the same computer.

3. Click [Next].

The license agreement appears.

4-4

Chapter 4 ScanFront Service

4. Read the license agreement, click [I Agree] if you

agree to it, and then click [Next].

A screen for selecting the installation folder appears.

5. Click [Next].

A screen for entering account information appears.

6. Enter the account information, and click [Next].

Use an administrator account on the computer on which

the service will be installed.

• When entering a local account on the computer, include

“./” at the beginning of the account name.

• If the computer is part of a domain and you are entering

the domain account here, enter the account in one of the

following formats.

• Confirm the password by entering it again in [Password

(Re-input)].

IMPORTANT

Make sure to specify an administrator account. In addition, be

aware that ScanFront Service will not function properly with

accounts for which a password is not configured.

A screen for specifying whether to start the service

immediately appears.

Entry Format Example

<NetBIOS name>\<domain user

name> area1\SFUser

<domain user name>@<FQDN

domain name> SFUser@area1.example.com

4-5

Chapter 4 ScanFront Service

7. Specify [Execute now] if you want to start the service

immediately, or [Execute later] if you want to start the

service after restarting the computer, and then click

[Next].

An install confirmation screen appears.

8. Click [Next].

Installation starts. When installation is complete, a screen

indicating that installation is complete appears.

9. Click [Close].

Notes on Installing ScanFront Service

• When you install ScanFront Service on a computer

running Windows Vista, Windows 7, or Windows Server

2008, the following event will be registered to the

System log of the Windows logs. However, you can

proceed and use ScanFront Service safely.

Level: Warning

Event ID: 3004

Source: Windows Defender

• If installation of ScanFront Service fails, a temporary file

(i.e., file with extension ".tmp") will remain in the install

destination folder specified during setup.

• Before reinstalling ScanFront Service, uninstall the

previous installation. Do not perform a repair

installation. Doing so may result in an error or cause

ScanFront Service to shut down during operations.

• ScanFront Service creates log files during operations. As

a result, these log files and the install destination folder

will not be deleted, even after ScanFront Service is

uninstalled.

4-6

Chapter 4 ScanFront Service

3. ScanFront Service Setup

❏ScanFront Settings

You must configure the following setting on the ScanFront

to send scanned images using the ScanFront Service

Server.

1. Log in to the Web Menu in Administrator Mode (see

p. 6-5).

2. Click [Server Settings], and then [Extended Service

Server].

3. Enter the computer name (host name) of the

ScanFront Service Server.

IMPORTANT

• ScanFront Service uses port number 50000 to communicate

with the ScanFront. Do not change the port number value from

50000.

• To use ScanFront Service, you must start the ScanFront

Service Server before turning ON the ScanFront.

❏Changing the Port Number Used for

Communication

If port number 50000 is already in use, for example, and

you want to use a different port number for

communication with the ScanFront, modify the following

ini file before specifying the new port number.

Folder:

C:\Program Files\Canon Electronics Inc\ScanFront

Service\etc

File name:

ScanFront.ini

Area to be modified:

Replace the port number that appears in “port=50000”

with the port number you want to use.

Settings for Environments with Firewalls

If a firewall is installed on the computer on which

ScanFront Service is installed and the firewall is enabled,

ScanFront Service will not run. In such cases, you must

change the firewall settings and restrictively open the port

used by ScanFront Service. For details, refer to the

operating instructions for your firewall.

Chapter 5 Operating Procedures

1. Flow of Scanner Operations.............................5-2

2. Turning the Power ON and OFF ......................5-3

Turning the Power ON.......................................... 5-3

Turning the Power OFF ........................................ 5-3

3. Login Screen ....................................................5-4

When Using Server Authentication....................... 5-4

List Type Login ..................................................... 5-5

Key in Type Login................................................. 5-6

Fingerprint Authentication

(Only Available with the ScanFront 300P)............ 5-7

4. Screen Displayed after Login ...........................5-8

Home Screen........................................................ 5-8

Job Button Screen................................................ 5-8

5. User Settings Screen .......................................5-9

Change Password ................................................ 5-9

Fingerprint Registration ........................................ 5-9

6. Fingerprint Registration

(Only Available with the ScanFront 300P)......5-10

Fingerprint Authentication................................... 5-10

Registering a Fingerprint .................................... 5-11

7. Scanning Procedures..................................... 5-13

Scanning From the Home Screen ...................... 5-13

Scanning From the Job Button Screen............... 5-14

Address Selection Screen .................................. 5-15

USB Memory Screen.......................................... 5-16

Print Settings Screen.......................................... 5-17

Scanning............................................................. 5-18

8. Registering and Editing Addresses ................ 5-22

Registering a New Address ................................ 5-22

Modifying an Address ......................................... 5-25

Copying an Address ........................................... 5-25

9. Scan/Delivery Options.................................... 5-27

Scan Settings ..................................................... 5-28

File Formats........................................................ 5-32

Security Settings for PDF Files........................... 5-33

Delivery Options ................................................. 5-34

5-2

Chapter 5 Operating Procedures

1. Flow of Scanner Operations

The procedure and screen transitions for the process from turning the scanner ON, to sending an image file are as follows. For

descriptions of the various settings, refer to the appropriate reference pages.

Turn the power ON

(See p. 5-3.)

No user is registered

* When no user is registered and only

the Shared Address Book and Shared

Job Button are used

Home screen

(See p. 5-8.)

* Set the screen that appears after login in the user settings.

* When you use server authentication, the user that logged in

is registered automatically.

Job Button screen

(See p. 5-8.) * Users restricted by [Use only Job

Buttons] in the function

restrictions cannot scan from the

Home screen.

Scanning starts immediately after a

job button is pressed.

User Settings screen

(See p. 5-9.)

* The User Settings screen enables

setting a password for the user that

logged in, and registration for the

ScanFront 300P.

Scan/Delivery Options screen

(See p. 5-27.)

Scan (The process after scanning differs depending on the Delivery Options)

(See p. 5-34.)

Scanning finishes (A document confirmation message appears)

(See p. 5-19.)

The document and

image are not checked

After scanning of the

document ends, the image is

sent as is and the process

ends.

Send/Image Confirmation screen

(See p. 5-20.)

Address Confirmation screen

(See p. 5-21.)

The image is sent

without the address

being confirmed.

Send (The screen displayed after sending differs depending on the Delivery Options)

(See p. 5-34.)

Home screen Job Button screen Login screen

(See p. 5-4.)

Address selection screen

(See p. 5-15.)

Password setting screen

(See p. 5-9.)

Fingerprint registration screen

(See p. 5-10.)

* Delivery Options

settings are also applied

to job buttons.

Users are registered (device/server authentication)

5-3

Chapter 5 Operating Procedures

2. Turning the Power ON and OFF

Use the power switch to turn the scanner ON, and press the [Power off] button on the touch panel to turn it OFF.

❏Turning the Power ON

Press the power switch to turn the scanner ON. The power

indicator lights, and the Home screen or the login screen

appears.

Hint

• It takes approximately 40 seconds for the Home screen to

appear after the power switch is turned on.

• If users have been registered, the login screen appears. (See

“Login Screen” on p. 5-4.)

• When the power indicator is lit but nothing appears on the

touch panel, Display Off has activated to turn the panel display

off. You can touch the panel to restore the display. (See

“Display Off” on p. 6-31.)

• When the power indicator is flashing but nothing appears on

the touch panel, the Low Power mode has activated to

temporarily stop scanner operations. To switch out of Low

Power mode, press the power switch or touch the touch panel.

(See “Low Power Mode” on p. 6-31.)

❏Turning the Power OFF

Press the [Power off] button displayed at the bottom left of

the panel to turn the scanner OFF.

IMPORTANT

• When restarting the scanner, wait at least 5 seconds after

turning the power OFF before turning it ON again.

• If the scanner stops responding, press and hold the power

switch to shut down the system, and then press the power

switch to turn the scanner ON again. In such cases, settings

configured immediately before shutting down may be lost.

Home screen Power

indicator

Power switch

5-4

Chapter 5 Operating Procedures

3. Login Screen

The login screen appears at the startup when the scanner is turned ON.

❏Login Screen Types

There are two types of login screen: a list type login screen

for selecting from a list of registered users, and a key in

type login screen for entering a user name and password.

List Type Login Screen

Key in Type Login Screen

Hint

• Set the type of login screen from [Device Operation] of the

Web menu (see p. 6-31) or [Login type setting] in the

administrator settings of the ScanFront (see p. 3-10).

• Fingerprint authentication is enabled when you are using the

ScanFront 300P. (See “Fingerprint Authentication (Only

Available with the ScanFront 300P)” on p. 5-7.)

❏When Using Server Authentication

The login screen when you use server authentication is a

key in type, and a list box is displayed for selecting Device

Authentication and Server Authentication.

IMPORTANT

When you use server authentication to log in, you are registered

as a new user of server authentication.

5-5

Chapter 5 Operating Procedures

❏List Type Login

Use the procedure below to log in to the list type login

screen.

1. Select the user to log in as from the list, and then

press [Next].

The password input screen appears.

2. Press [Password].

The keyboard screen appears.

3. Enter a password and then press [OK].

IMPORTANT

Passwords are case-sensitive. Make sure to enter the password

correctly.

4. Press [Login] to log in to the scanner.

5. The Home screen (or Job Button screen) appears.

5-6

Chapter 5 Operating Procedures

❏Key in Type Login

In the key in type login screen, enter your user name and

password to log in.

1. Press [User name] ([Password]).

The keyboard screen appears.

2. Enter your user name (password) and then press

[OK].

IMPORTANT

• User names and passwords are case-sensitive. Make sure to

enter the user and password registered during device

authentication correctly.

• If you do not know the user name and password registered for

server authentication, contact the domain server

administrator.

3. Press [Login] to log in to the scanner.

4. The Home screen (or Job Button screen) appears.

5-7

Chapter 5 Operating Procedures

❏Fingerprint Authentication (Only

Available with the ScanFront 300P)

Use the procedure below for fingerprint authentication.

For details on fingerprint registration, see “Fingerprint

Registration (Only Available with the ScanFront 300P)”

on p. 5-10.

1. Perform fingerprint authentication using the finger

with the registered fingerprint.

IMPORTANT

Perform finger authentication by gently pressing the finger while

slowly sweeping it at a constant speed to scan the fingerprint.

2. The Home screen (or Job Button screen) appears if

the fingerprint is authenticated correctly.

Hint

• When fingerprint authentication fails, the cause of the failure

and a solution appear on the screen. Follow the instructions in

the solution, and perform fingerprint authentication again.

• If a user fingerprint is registered for server authentication, and

the user password is changed on the server while the user is

logged in via fingerprint authentication, the following message

will appear on the screen. In this case, without using

fingerprint authentication, enter your user name and changed

password to log in, and then re-register your fingerprints.

5-8

Chapter 5 Operating Procedures

4. Screen Displayed after Login

You can set the screen (Home screen or Job Button screen) that is displayed after a user logs in. (See p. 6-7 and p. 8-4.)

❏Home Screen

aSelect destination (E-mail, FTP, FAX, Shared

folder, USB memory, and Printer) buttons

These buttons open an address selection screen. (See

“Scanning Procedures” on p. 5-13.)

Hint

• The USB memory button is enabled when USB memory is

inserted in a USB port.

• [Printer] is enabled when the ScanFront is connected to a

network environment that is running ScanFront Service.

b[User settings] button

Enables setting of the user password and fingerprint

registration (only with the ScanFront 300P). (See “User

Settings Screen” on p. 5-9.)

c[Administrator setting] button

Opens the Administrator Settings screen. For details,

see “Configuring Administrator Settings” on p. 3-8.

IMPORTANT

If a user whose use of the Home screen is restricted logs in, the

Home screen is not available. For details, contact the

administrator.

❏Job Button Screen

This screen enables you to select a job button to scan using

the conditions registered to the job button, and then send

the image file. (See “Scanning Procedures” on p. 5-13.)

IMPORTANT

• The document is scanned immediately after you press the job

button. Make sure to place your document before you press

the job button. (See “Placing Documents” on p. 2-6.)

• Perform job button registration and editing via the Web menu.

• If you are unable to edit a job button, the editing of job buttons

has been restricted by the ScanFront administrator. For

details, contact the administrator.

5-9

Chapter 5 Operating Procedures

5. User Settings Screen

The User Settings screen enables you to edit the user password and register a fingerprint (only available with the ScanFront 300P).

❏Change Password

You can register a new user password or change a user

password registered via the Web menu.

Hint

The old password does not need to be entered in order to

change a password. The new password that you entered is

registered.

❏Fingerprint Registration

Fingerprint registration is enabled when you are using the

ScanFront 300P. For details on fingerprint registration, see

“Fingerprint Registration (Only Available with the

ScanFront 300P)” on p. 5-10.

5-10

Chapter 5 Operating Procedures

6. Fingerprint Registration (Only Available with the ScanFront 300P)

Fingerprint authentication is a function for registering the fingerprints of users that will log in when the device authentication or

server authentication method is used, and enables users to log in by authenticating their fingerprints. When fingerprint

authentication is used, there is no need to select a user in the list type login screen or enter a user name and password in the key in

type login screen. For details on handling the fingerprint sensor, see “Fingerprint Sensor (ScanFront 300P)” on p. 2-11.

❏Fingerprint Authentication

●Follow the procedure below to use fingerprint

registration and authentication.

1. Align the first joint of a finger on the sensor and

press the finger on the fingerprint sensor.

2. Keep the finger pressed while slowly sliding it

straight at a constant speed to scan the

fingerprint.

●Fingerprint authentication uses the unique

information of fingerprints. The fingerprint

authentication function may not work properly for a

finger with a fingerprint that is worn down or has

few distinguishable features.

●The same finger needs to be scanned three times

to register the fingerprint.

●The authentication performance differs depending

on the condition of the fingerprint when it is

registered and when it is authenticated. The

following conditions may cause an error in

fingerprint authentication:

– The finger is wet or sweaty

– The finger is dirty

– The grooves of the fingerprint are filled with

sweat or oil

– The finger is dry (dry skin)

– Part of the fingerprint is missing because of, for

example, a wound or burn injury

– The fingerprint has worn thin

●Authentication performance may improve if the

condition of the fingerprint is improved as a result

of washing your hands or applying hand cream.

●Authentication may not be performed properly

depending on the speed with which you slide your

finger over the sensor. In this case, adjust the

speed with which you slide your finger in

accordance with the message that appears.

●Fingerprint authentication does not necessarily

guarantee the authentication and verification of the

identity of a person.

5-11

Chapter 5 Operating Procedures

❏Registering a Fingerprint

accessed from the Home screen.

IMPORTANT

If the Home screen is not displayed, use of the Home screen

has been restricted for the user by the ScanFront administrator.

Confirm this with the administrator.

1. Press [User settings].

The User Settings screen appears.

2. Press [Fingerprint Registration].

The Fingerprint Registration screen appears.

3. Scan your fingerprint.

Repeat scanning until the same fingerprint has been

successfully scanned three times.

IMPORTANT

• If any of the messages below appears, there was an error

scanning the fingerprint. Try scanning your fingerprint again.

– Failed to read fingerprint. Please try again.

– Sweep speed was too fast. Please sweep more slowly.

– Sweep speed was too slow. Please sweep more faster.

• If any of the messages below appears, start fingerprint

registration again from the beginning.

– Can not verify the fingerprint data. Start registration again.

– Time out error has occurred. Start registration again.

4. After you have successfully scanned your fingerprint

three times, press [Register/Test].

The Test Mode screen appears.

5-12

Chapter 5 Operating Procedures

5. Perform an authentication test for the registered

fingerprint by scanning your fingerprint.

6. Press [Close] to end fingerprint registration.

IMPORTANT

If you want to change the registered fingerprint, start registration

again from the beginning.

5-13

Chapter 5 Operating Procedures

7. Scanning Procedures

You can perform scanning from the Home screen or the Job Button screen.

❏Scanning From the Home Screen

Press a destination selection (E-mail, FTP, Fax, Shared

folder, or USB memory) button to open an address

selection screen and then select an address to send an

image file.

If you press the USB memory destination selection button,

press [Downward] and specify the folder in the USB

memory to which you want to save the image file.

If you press the Printer destination selection button,

configure the printer settings.

IMPORTANT

If the network environment to which the ScanFront is connected

is not running ScanFront Service, [Printer] is grayed out and

cannot be selected.

If you select an address and then press [Next], the Scan/

Delivery Options screen appears. Set the scanning

conditions and then start scanning.

5-14

Chapter 5 Operating Procedures

❏Scanning From the Job Button Screen

If you press a job button, the Scan/Delivery Options screen

appears. Confirm the address and scanning settings

registered to the job button and then start scanning.

For details on the scanning procedure, read from the

setting of scanning conditions in Step 5.

IMPORTANT

• The settings screen display and the screen displayed after

scanning differ depending on the job button settings. For

details on the overall flow from configuring settings to sending

an image file, see “Flow of Scanner Operations” on p. 5-2.

• Job buttons cannot be used to save image files to USB

memory or send them to printers for printing.

5-15

Chapter 5 Operating Procedures

❏Address Selection Screen

From the address selection screen, you can select the address to send an image file and register addresses.

aAddress Book type

Selects the address book type (Shared Address Book or

My Address Book). If the address book server setting is

enabled, [LDAP Address Book] is added.

bAddress type

If you select the type of address (e-mail, fax, shared

folder, FTP, and groups) to display in the address list,

addresses of the selected type are displayed.

cAddress List

Displays registered addresses and enables you to select

the address to send an image file.

Hint

• The following icons are used to indicate the types of address.

:E-mail :Shared folder :Fax

:FTP :Group

• Pressing an address adds a checkmark ( ) to the icon and

selects the address. Pressing a selected address again clears

the selection.

• An address is not selected as an address if there is no

checkmark added to the icon, even if the background of the

address is colored and the address appears selected.

• Each time you press an e-mail or group icon, the send

condition changes (To, Cc, Bcc).

:To :Cc :Bcc :Selection cleared

dJump Keys

If there are many addresses and the address you want is

not displayed in the address list, you can use these keys

to specify a keyword to search for and display the

address.

e[Clear All] button

Clears all address selections.

f[Edit] button

Enables you to register new addresses and edit

addresses.

g[Details] button

Displays detailed information for the address.

5-16

Chapter 5 Operating Procedures

❏USB Memory Screen

The USB Memory screen enables you to specify the folder in the USB memory to save the image file.

aPath

Enter the folder path of the USB memory. You can also

press [Downward] to select a folder.

bUSB Memory Display

Displays the inserted USB memory.

Hint

• lIf you insert two or more USB memory sticks, numbers are

allocated to sticks from the second one onwards. For

example, the first one that was inserted is displayed as “USB

memory”, and the second one inserted is displayed as “USB

memory 2”.

• If you want to insert or replace a USB memory stick while the

USB memory screen is open, press the [Back] button to return

to the Home screen, update the USB memory information,

and then reopen the USB memory screen.

c[Upward] button

Enables you to move to a higher level folder when a

lower level folder is selected in the memory.

d[Downward] button

Enables you to move to a lower level folder in the USB

memory.

e[Edit] button

Enables you to register new folders and edit folders.

f[Format] button

Enables you to format the USB memory.

5-17

Chapter 5 Operating Procedures

❏Print Settings Screen

The print settings screen enables you to specify the printer, paper size, and other print settings.

aPrinter name

Select the printer that will be used to print the scanned

images. Printers that are compatible with the ScanFront

Service Server can be selected.

bPaper size

Select the paper size.

cPrint format

Specify the method in which the scanned image is

scaled for printing.

• Actual size

Prints the scanned image in the same size as the

original document.

• Fit to paper

Prints while expanding or reducing the scanned image

to fit the paper size.

• Actual pixel

Prints while matching the resolution of the scanned

image.

dOrientation

Press [Portrait] or [Landscape] to specify the

orientation for printing.

eCopy number

Specify the number of copies to print.

fDuplex print

When you want to perform duplex printing, light this

button by pressing it.

gColor print

When you want to perform color printing, light this

button by pressing it.

IMPORTANT

The print settings you can configure will vary depending on your

printer. Settings and functions that are not supported by your

printer cannot be configured in this screen.

5-18

Chapter 5 Operating Procedures

❏Scanning

This section describes the procedure for scanning.

If you want to save the image file to USB memory, specify

the folder in the USB memory to save the image file in

Steps 2 to 4. (See “USB Memory Screen” on p. 5-16.)

1. Select a destination.

Press a destination button to select a destination.

The address selection screen appears.

2. Use [Address Book type] and [Address type] to

display the address to send the image file.

3. Press a displayed address to select it.

A checkmark ( ) is added to the icon for the selected

address. Pressing a selected address again clears the

selection.

IMPORTANT

An address is not selected as an address to send data to if there

is no checkmark, even if the background is shaded.

4. Make sure the selected address has a checkmark

and then press [Next].

Hint

When a different type of address is selected, you can confirm

the selected address by pressing [Selected address] in the

Address type drop-down list.

The Scan/Delivery Options screen appears.

5-19

Chapter 5 Operating Procedures

5. Set the scan conditions. (See “Scan/Delivery

Options” on p. 5-27.)

IMPORTANT

When you use a job button for scanning, the subsequent

procedure varies as follows in accordance with the job button

settings. For details, see “Registering New Job Buttons” on

p. 6-21.

• If [When you select this Job Button] is set to [Skip Scan Setting

Screen] and you press a job button, scanning is started

without displaying the Scan/Delivery Options screen of Step 4.

• If [Send the files immediately after scanning] is set to [ON],

scanning ends without displaying the continue to scan

confirmation screen of Step 7 and then the address

confirmation screen of Step 10 appears.

• If [Confirm addresses before sending] is set to [OFF], the

image is sent without displaying the address confirmation

screen of Step 10 and the operation ends.

6. Press [Start] to start scanning.

Scanning stops after the document has been scanned.

IMPORTANT

• If [Send the files immediately after scanning] is set to [ON] in

Delivery Options of the Scan/Delivery Options screen,

scanning ends without displaying the continue to scan

confirmation screen, and the address confirmation screen of

Step 10 appears.

• When the confirmation message is left displayed and the

scanner transitions to Low Power Mode, all of the data

scanned up until that point is discarded. (See “Low Power

Mode” on p. 6-31.)

7. Check the document and go to the next step.

• Press [Abort] to cancel the scanned images and return to the

Scan/Delivery Options screen.

• Press the [Continue] button to resume scanning.

• Press [Complete] to go to the Send screen.

5-20

Chapter 5 Operating Procedures

8. Check the scanned images.

: Display the image of the next page.

: Display the image of the previous page.

: Move the viewing area around an image

when an enlarged view of the image is shown.

: Rotate the image 90 degrees counterclockwise.

: Rotate the image 90 degrees clockwise.

: Enlarge the image.

: Reduce the image.

Hint

When the preview image is enlarged, you can drag your finger

on the image to scroll.

5-21

Chapter 5 Operating Procedures

9. Press [Send].

The address confirmation message appears.

IMPORTANT

If [Confirm addresses before sending] is set to [OFF] in Delivery

Options of the Scan/Delivery Options screen, the image is sent

without displaying the address confirmation screen and the

operation ends.

10.

Confirm the address and press [OK] to send the

scanned image.

IMPORTANT

If a send error message appears, check the address settings

and send destination and try again.

11.

Returns to the screen set for [Screen after sending]

in Delivery Options of the Scan/Delivery Options

screen.

5-22

Chapter 5 Operating Procedures

8. Registering and Editing Addresses

If an address to which you want to send an image file is not registered in the address book or the information of a registered address

has not been updated, use the procedure below to register a new address or modify an address in the address book.

❏Registering a New Address

1. Make selections for [Address Book type] and

[Address type], press [Edit], and then press [New].

2. Register the address in accordance with the setting

conditions of the address type.

E-mail Registration Screen

•Name

Enter the name to appear in the address book.

• E-mail address

Enter the sender’s address for when image files are sent

by e-mail.

Shared Folder Registration Screen

•Name

Enter the name to appear in the address book.

•Host name

Enter the name of the computer containing the publicly

shared folder. When the ScanFront Service is running,

you can enter the IP address instead of a host name.

• Folder path

Enter the name of the shared folder and the path of the

sub-folder to register.

5-23

Chapter 5 Operating Procedures

Hint

If the path of the sub-folder is unknown, use the procedure

below to specify the sub-folder.

1. Enter the host name, user name, password, and domain, and

then press [Browse] to access the computer that is making

the shared folder public.

Sub-folders on computers running Windows 7 or Windows

Server 2008 R2 cannot be browsed by pressing the [Browse]

button. In such cases, enter the computer name and path up

until the top-most folder of that computer in [Folder path], and

then press [Browse].

2. Specify any sub-folder within the displayed folder.

3. Press [Downward] to move to a level lower than the selected

folder, or press [Edit] and [Create a new folder] to create a

new folder.

• User name/Password

Enter the user name and password of an account with

write permission for the shared folder.

• Domain/Workgroup

If the computer containing the shared folder is part of a

domain, enter the domain name.

• Save password

Save the entered password.

FTP Registration Screen

•Name

Enter the name to appear in the address book.

• FTP server

Enter the address of the FTP server.

• Folder path

Enter the path of the sub-folder when specifying a sub-

folder on the FTP server.

Hint

If the path of the sub-folder is unknown, use the procedure

below to specify the sub-folder.

1. Enter the server address, user name, and password, and

click [Browse] to log in to the FTP server.

2. Specify any sub-folder at the level of the displayed folder and

click [OK].

• User name/Password

Enter the user name and password for logging in to the

FTP server.

IMPORTANT

Enter the user name and password of an account with write

permission for the FTP server.

• Port number

Enter the port number. The standard port number is 21.

• Save password

Save the entered password.

• Use passive mode

Use passive mode for sending to the FTP server.

IMPORTANT

Use passive mode when normal communication with the FTP

server cannot be established. However, be aware that

communication may not be possible if the network is not

functioning properly.

5-24

Chapter 5 Operating Procedures

Fax Registration Screen

•Name

Enter the name to appear in the address book.

• Fax number

Enter the recipient fax number.

Group Registration Screen

•Name

Enter the name that you want to appear in the address

book.

• [Add] button

Select addresses to register to the group from [Address

Book type] and [Address type]. The selected addresses

are displayed in the list.

IMPORTANT

• When you add shared folders to groups, do not add multiple

shared folders with different access privileges to one group.

• Using a group to simultaneously send to shared servers and

the like and multiple shared folders with different access

privileges may result in a send error.

5-25

Chapter 5 Operating Procedures

❏Modifying an Address

Modify an address when there is a send error because the

information of the transfer destination registered for the

address is wrong or has been changed.

1. Select the type of the address to modify and press

[Details].

Detailed information for the address appears.

2. Check the detailed information for the selected

address.

3. Press [Edit], and then press [Modify].

The edit screen for the address appears.

4. Modify the address.

Hint

For details on editing items, see “Registering a New Address”

on p. 5-22.

❏Copying an Address

You can copy addresses between My Address Book and

Shared Address Book.

1. Select the address book entry to copy.

2. Select the address, press [Edit], and then press

[Copy].

The selected address is copied to memory.

3. Select the address book type, press [Edit], and then

press [Paste].

5-26

Chapter 5 Operating Procedures

A confirmation message appears.

4. Press [New] and paste the address.

Hint

If the address book already has an address with the same name

as the pasted one, the following message appears.

• If you select [New], an address with the same name is created

in the address book.

• If you select [Overwrite], the existing address with the same

name is overwritten.

5-27

Chapter 5 Operating Procedures

9. Scan/Delivery Options

This section describes the scan settings and send settings for the scanner.

aAddress Display Area

Displays the selection that you made on the address

selection screen or the addresses registered to the job

button.

bDetails

Displays detailed information for the address with the

colored background.

cScan Settings

Sets the scan conditions. (See “Scan Settings” on p. 5-28.)

dDetailed settings

Configures detailed settings for scan conditions. (See

“Detailed Settings” on p. 5-29.)

eFile format

Checks the displayed file format and press the [File

format] button to configure the settings. (See “File

Formats” on p. 5-32.)

fDelivery Options

Sets the send conditions. (See “Delivery Options” on

p. 5-34.)

g[Default] button

Resets any modified settings to the default values of the

scanner.

IMPORTANT

If you press [Default] in the Scan/Delivery Options screen

opened from a job button, the settings are reset not to the

setting values registered to the job button, but to the default

values of the scanner.

h[Start] button

Starts scanning.

i[Deskew] button

The scanner detects from the scanned image that the

document was fed askew and then straightens the image.

j[Prescan] button

When scanning starts, the first page of the document is

scanned and then scanning stops. You can view the image

of the first page to check and adjust the brightness and

contrast before scanning the entire document.

Hint

• Scanning pauses after the first page of the document is

scanned, and the image of the first page is displayed.

• Use the displayed image to confirm and adjust the brightness

and contrast. Press [Continue] to confirm the adjusted

brightness and contrast for the first image and continue

scanning.

k[Back] button

Returns the display to the previous screen.

5-28

Chapter 5 Operating Procedures

❏Scan Settings

The scan settings include basic condition settings (page

size, mode, resolution, scanning side, and brightness) and

detailed settings for scanning.

Basic Condition Settings

Paper Size

Select the size of the document you want to scan.

Hint

• Select [Auto size] to automatically detect the size of the

scanned document.

• When scanning a long document, select [Auto size (Long)].

IMPORTANT

A resolution of [300 dpi] or more cannot be set when [Auto size

(Long)] is selected.

Mode

Select the mode for scanning.

IMPORTANT

• The selection of modes is limited depending on the setting set

for File Format (see p. 5-32).

• When [Text enhance] is selected, [Bleed-through reduction] in

the Detailed Settings screen is grayed out and cannot be

selected.

• The [Auto Color Detection] function cannot be used

simultaneously with the color drop-out or prescan function.

• The scanning speed may be reduced when the Auto Color

Detection function is used.

Resolution

Select the resolution for scanning.

IMPORTANT

• A resolution of [300 dpi] or more cannot be set when [Auto size

(Long)] is selected for [Page Size].

• A resolution of [400 dpi] or more cannot be set when [Folio] is

selected for [Scanning Side].

Scanning Side

Select the method for scanning the document (Simplex,

Duplex, Skip Blank Page).

Hint

• The Skip Blank Page option scans both sides of a document

and skips saving any image it determines to be a blank page.

• Selecting Skip Blank Page enables the skip blank page setting

in the detailed settings. (See “Skip Blank Page” on p. 5-29.)

• When you select Folio, documents that are folded in half for

which duplex scanning is performed can be scanned as a

single image.

IMPORTANT

• The scanning speed may be reduced when [Skip Blank Page]

is selected.

• A resolution of [400 dpi] or more cannot be set when [Folio] is

selected. In addition, [Double feed detection by Ultrasonic] is

grayed out and cannot be selected.

Paper size Mode Resolution Scanning

side

TIFF JPEG PDF

5-29

Chapter 5 Operating Procedures

Brightness

Adjust the brightness to match the density of the

document.

Hint

When you want to scan both sides of a document that has front

and back sides of different densities, you can change the

settings for the brightness of the front side and back side

separately in the detailed settings and then perform scanning.

Detailed Settings

Press the [Detailed settings] button to open the Detailed

Settings screen.

Double feed detection by Ultrasonic (Only

Available with the ScanFront 300P)

The scanner uses an ultrasonic sensor to detect when two

or more documents are fed together, and stops feeding

when a double feed is detected.

IMPORTANT

• This method is effective when documents overlap by 1.97"

(50 mm) or more. It does not function if only a slight portion of

the document is overlapping.

• When using the ScanFront 300, the [Double feed detection by

Ultrasonic] setting is set to [OFF].

• When [Scanning Side] is set to [Folio], [Double feed detection

by Ultrasonic] is grayed out and cannot be selected.

Double feed detection by length

The scanner detects by document length when two or more

documents are fed together, and stops feeding when a

double feed is detected.

IMPORTANT

• Using the length of the first page of the document as a

reference, the scanner determines a double feed when it

detects a document with a length at least 1.38" (35 mm)

longer or shorter than the reference length.

• Set [Double feed detection by length] to [OFF] when scanning

a document that contains pages of different lengths.

Skip Blank Page

When [Skip Blank Page] is selected in the scanning side

settings, this setting is enabled, and you can adjust the

sensitivity level for skipping blank pages.

5-30

Chapter 5 Operating Procedures

Hint

• The initial value for the Skip Blank Page option is set to “90.”

• As you lower the value from the default setting, pages of the

document with text become more likely to be skipped as well.

• As you raise the value from the default setting, pages of the

document that are blank become less likely to be skipped.

IMPORTANT

• As you lower the Skip Blank Page value from the default

setting, it is then set so that pages of the document with text

are more likely to be skipped.

• As you raise the Skip Blank Page value from the default

setting, it is then set so that blank pages of the document are

less likely to be skipped.

Document orientation

Rotates the scanned image a specified amount.

Hint

If you select [Auto], the orientation of text within the document is

detected and the image is rotated so that the orientation of the

text is correct.

IMPORTANT

The scanning speed may be reduced when [Auto] is selected.

Deskew

The scanner detects from the scanned image that the

document was fed askew and then straightens the image.

• Prefer Quality

Image processing is performed to minimize the loss of

quality of an image that has deteriorated as result of

deskewing.

• Prefer Speed

The image deteriorates slightly as a result of deskewing.

IMPORTANT

If you select [Prefer Quality], the scanning speed is reduced. If

you are scanning a large number of pages, select [Prefer

Speed] to prevent a decrease in scanning speed.

Bleed-through reduction

Eliminates bleed-through images, in which images on the

reverse side of a scanned document appear on the scanned

page, such as when scanning thin documents with text or

images on both sides.

IMPORTANT

Bleed-through reduction cannot be set when the [Text enhance]

mode is selected.

5-31

Chapter 5 Operating Procedures

Hint

When using bleed-through reduction, adjust the bleed-through

reduction level to match the type of document.

Contrast

Adjust the contrast for the images to scan.

Back side Brightness/contrast

This is enabled when you scan both sides of a document

and should be used when the document has front and back

sides of different density. Select [Use back side brightness

(contrast)] to change the settings for the brightness and

contrast of the front and back sides of the document.

Front side (Back side) color drop-out

The color drop-out function has a “drop-out” effect that

leaves out a specified color (red, blue, or green) while

scanning, and a “color enhancement” effect that

emphasizes a specified color. You can set each of these

effects for the front side and back side.

IMPORTANT

The color drop-out settings are disabled when the scanning

mode is set to [Color].

Auto Color Detection Settings

This is enabled when Auto Color Detection is selected, and

allows you to configure the following detection settings

for determining whether to scan a document in color or

black and white.

• Mode in case of binary

Specify the scanning mode to use when a black and white

document is detected.

• Threshold intensity to judge the document as color

Adjust the sensitivity to colors in a document.

• Aresize to judge the document as color

Specify the ratio of colored regions in a document.

IMPORTANT

• The [Auto Color Detection] function cannot be used

simultaneously with the color drop-out or prescan function.

• The scanning speed may be reduced when the Auto Color

Detection function is used.

5-32

Chapter 5 Operating Procedures

❏File Formats

You can select from the three available file formats TIFF,

JPEG, and PDF, and the modes available for scanning

vary, depending on the file format setting. (See “Mode” on

p. 5-28.)

TIFF format

Select [Single page (Front/back separate file)] to save each

side of each page as a separate image file, [Single page

(Front/back same file)] to save each page as a separate

image file, or [Multi page] to save one image file

containing multiple pages when scanning multiple pages.

JPEG format

Select the compression rate for JPEG compression.

PDF format

Configure the following settings for saving in PDF format.

• Compression

Select the compression method.

• Quality

Adjust the quality for the specified compression method.

• Multi page settings

Select [Single page (Front/back separate file)] to save

each side of each page as a separate image file, [Single

page (Front/back same file)] to save each page as a

separate image file, or [Multi page] to save one image

file containing multiple pages when scanning multiple

pages.

• OCR (Character Recognition)

If OCR is set to On, character recognition is performed

for the text within the scanned document, and the text is

embedded in the PDF file as text information.

The [Language setting] button enables you to select the

language for character recognition.

• Encryption (Security)

If you set encryption to On and then press the [Security

settings] button, the Security settings screen appears, and

you can configure the security settings for the PDF file.

For details, see “Security Settings for PDF Files” on

p. 5-33.

5-33

Chapter 5 Operating Procedures

❏Security Settings for PDF Files

Apply security to the PDF file.

Encryption Level

High (128-bit RC4) and low (40-bit RC4) level settings are

available.

IMPORTANT

Using the High (128-bit RC4) level setting is recommended. The

Low (40-bit RC4) level setting provides less security.

Requires a password to open the document

Viewing of the document is restricted by a password.

IMPORTANT

Take care not to forget the password once it is set. If you forget

the password, the document can no longer be opened.

Use permissions password to restrict editing

security settings

The following settings are restricted by the permissions

password.

• Printing allowed

This permits printing of the PDF file with a printer.

• Changes allowed

This permits editing of the PDF file; for example, adding

and deleting pages.

• Enable copying of text, images, and accessibility.

This enables the copying of text information embedded

with OCR software and reading of the PDF file with

voice software.

IMPORTANT

• Password protection is recommended when the permissions

of the PDF file are restricted.

• You can change the permissions and cancel password

protection for a password protected PDF file in an application

capable of editing PDF files such as Adobe Acrobat.

5-34

Chapter 5 Operating Procedures

❏Delivery Options

E-mail settings (subject, message)

Set the subject and message for sending via e-mail.

File name

Specify a name for the image file to be sent.

Auto file name

The scanner adds 17 digits that indicate the date and time

to the file name of the image to be sent.

Ex.) May 14, 2010, 3:40:30 p.m.

yyyymmdd: File name + 20100514154030123

mmddyyyy: File name + 05142010154030123

ddmmyyyy: File name + 14052010154030123

*The last three digits indicate the number of milliseconds.

When custom file name settings are configured in the Web

Menu, you can select [Custom] to add the custom file

name to the file name of the scanned image (see p. 6-8).

IMPORTANT

• Make sure you set either [File name] or [Auto file name]. A

message appears if you do not enter a file name and then set

[Auto file name] to [None].

• If you select [Single page] of TIFF format, or JPEG format, a

4-digit sequential number starting with “0001” is added

automatically to the end of file names.

• The following characters cannot be used to set the custom file

name:

/ : ? * " < > |

Action when the same named file exists

Set the action to perform when there is already a file of the

same name at the destination.

• Display a message

Display a message to confirm overwriting of the file.

• Abort sending

Cancel sending.

• Overwrite the file

Overwrite the file at the destination.

Send the files immediately after scanning

Send images without checking them when scanning

completes.

Confirm addresses before sending

Confirm the addresses before sending images when

scanning completes.

5-35

Chapter 5 Operating Procedures

Screen after sending

Select the screen to display after sending images.

• Home screen (Job Button screen)

Redisplay the Home screen (Job Button screen) after

sending images.

IMPORTANT

• The [Screen after Login] setting that is set via the Web menu

by the user applies to the Home screen (Job Button screen)

setting.

• The Job Button screen is displayed for a user for which use of

the Home screen is restricted by the ScanFront administrator.

• Logout

The user is logged out after sending images.

• Select screen after sending

A dialog box for selecting the screen after sending

images is displayed.

Hint

When no user is registered, the Logout option does not appear.

Send index file

Specify whether to send index files (metadata) with

images.

When sending index files, enter an index string.

Index files are created according to the settings configured

in the Web Menu (see p. 6-9).

IMPORTANT

The following characters cannot be used in strings contained in

the index file:

& " ' < >
