K30306
Wireless LAN Module
IEEE802.11b/g
K30306
Data Sheet
22-May-2008 Ver.0.8
Confidential
2/12
K30306
Document constituent list
Control name Control No. Document Page
General Items HD-AG-A****** 1/1
Absolute maximum ratings HD-AM-A****** 1/1
Electrical characteristics HD-AE-A****** 1/2-2/2
Circuit schematic HD-MC-A****** 1/1
Outline / Appearance HD-AD-A****** 1/1
Outline / Appearance HD-AD-B****** 1/1
Rev. record
19-Mar.-2008> Ver.0.5 Draft
08-Apr.-2008> Ver.0.6 Draft
17-Apr.-2008> Ver.0.7 Draft
22-May-2008> Ver.0.8 Draft
22-May-2008 Ver.0.8
Confidential
3/12
K30306
Control No.
HD-AG-A****** (1/1)
Control name
General Items
Scope
This specification (“Specification”) applies to the hybrid IC “K30306” for use Wireless LAN module
(“Product”).
1. Type: K30306
2. Function: Radio frequency transfer Module. (IEEE802.11bg standard conformity)
3. Application: PC peripheral
4. Structure: Hybrid IC loaded with silicon monolithic and GaAs semiconductor
Ability of lead free mounting at customer's assembly (Heat resistance of this Product) : Yes
Containment of hazardrous substance in this Product
*This product conforms to RoHS Directive (2002/95/EC).
5. Outline: 5-pin Connector
6. Marking: Type, MAC address, Lot number
7. Features:
-IEEE802.11b/g standard conformity
Transmit speed: 11g (54/48/36/24/18/12/9/6Mbps)
11b (11/5.5/2/1 Mbps)
Modulation: 11g (OFDM): BPSK, QPSK, 16QAM, 64QAM
11b (DSSS): BPSK, QPSK, CCK
Channel Number: 1 to 11 channels
Interface: USB
Embedded ARM MPU for reducing loads on host processor
Built-in EEPROM (128kbit), OSC (40MHz), Antenna (Vertical monopole pattern printing antenna),
Connector
8. Security: WEP (64/128bit), TKIP (WPA), AES (WPA2)
9. Packing:
Packaging method: Trey
10. Notes:
a. Any question arising from this Specification shall be solved through mutual discussion by the parties
hereof.
b. This Product is not designed for radiation durable and should not be used under the circumstance of
radiation.
c. The operating conditions of this Product are as shown in this Specification.
d. This Product mentioned in this Specification is manufactured for use in PC peripheral.
This Product shall not be used in any special equipment (such as medical equipment, space equipment, air craft,
disaster prevention equipment), where higher safety and reliability are duly required. Also, evaluation of the
safety function of this Product even for use in general electronics equipment shall be thoroughly made and when
necessary, a protective circuit shall be added at design stage, all at the customer’s sole risk.
e. Communication between this Product and others might not be established nor maintained depending
upon radio environment or operating conditions of this Product and other ISM band at 2.4GHz
products.
f. This Product operates in the unlicensed ISM band at 2.4GHz. In case this Product is used around the
other wireless devices which operate in same frequency band of this Product, there is a possibility that
interference occurs between this Product and such other devices. If such interference occurs, please stop
the operation of other devices or relocate this Product before using this Product or do not use this
Product around the other wireless devices.
22-May-2008 Ver.0.8
Confidential
4/12
K30306
Control No.
HD-AM-A****** (1/1)
Control name
Absolute maximum ratings
Absolute maximum ratings
Rating
Item Symbol
Min. Typ. Max. Unit Remark
Supply voltage VDD -0.3 4.0 V
Storage temperature range Tstg -40 100 Degrees C
Operation temperature range Topr -5 25 55 Degrees C
Recommendation operating range
Rating
Item Symbol
Min. Typ. Max. Unit Remark
Supply voltage VDD 2.943 3.27 3.597 V
22-May-2008 Ver.0.8
Confidential
5/12
K30306
Control No.
HD-AE-A****** (1/2)
Control name
Electrical characteristics
DC Specifications
The Specification applies for Topr.= 25 degrees C, Supply voltage=Typical voltage
No. Parameter Condition Symbol Min. Typ. Max. Unit Remark
1 Operating Voltage 1 VDD - 3.27 - V
2 Peak Current1 Ip1 - - 537 mA
3 Power consumption1
Continuous (11g/6Mbps) Pc1 - 1550 1756 mW
4 Power consumption2 Burst Tx (11g/54Mbps) Pc2 - 820 850 mW Duty 17.8%
5 Power consumption3 Burst Rx (11g/54Mbps) Pc3 - 804 847 mW
6 Power consumption4 Burst Tx (11b/11Mbps) Pc4 - 1035 1099 mW Duty 46.8%
7 Power consumption5 Burst Rx (11b/11Mbps) Pc5 - 731 753 mW
22-May-2008 Ver.0.8
Confidential
6/12
K30306
Control No.
HD-AE-A****** (2/2)
Control name
Electrical characteristics
RF Specifications (WLAN 11g/54Mbps, OFDM)
The Specification applies for Ta=25 degrees C, Supply voltage =Typical voltage
No. Parameter Condition Symbol Min Typ Max Unit Remark
1 RF frequency range FREQ 2412 2462 MHz
2 TX Power Po 10 12 14 dBm
1st Side Lobe M1 - -20 dBc
2nd Side Lobe M2 - -28 dBc
3 Spectrum Mask
3rd Side Lobe M3 - -40 dBc
4 Symbol clock tolerance Ft -25 25 ppm
5 Frequency tolerance Ft -25 25 ppm
6 EVM RMS EVM - 5.6 %
7 TX Out of band spurious1 f<2387MHz,
2496.5MHz<f TOS1 - 2.5 uW
8 TX Out of band spurious2
2387MHz<f<2400MHz,
2483.5MHz<f<2496.5M
Hz
TOS2 - 25 uW
9 Rx sensitivity PER<10% SEN - -71 -65 dBm
10 Maximum Input Level PER<10% MIL -20 - dBm
11 RX Out of band spurious1 f<1GHz ROS1 - 4 nW
12 RX Out of band spurious2 f>1GHz ROS2 - 20 nW
RF Specifications (WLAN 11b/11Mbps, CCK)
The Specification applies for Ta=25 degrees C, Supply voltage=Typical voltage
No. Parameter Condition Symbol Min Typ Max Unit Remark
1 RF frequency range FREQ 2412 2462 MHz
2 TX Power Po 11 13 15 dBm
1st Side Lobe M1 - -30 dBc
3 Spectrum Mask 2nd Side Lobe M2 - -50 dBc
Power up TU - 2 us
4 Power up-down rump Power down TD - 2 us
5 Frequency tolerance Ft -25 25 ppm
6 EVM Peak EVM - 35 %
7 TX Out of band spurious1 f<2387MHz,
2496.5MHz<f TOS1 - 2.5 uW
8 TX Out of band spurious2
2387MHz<f<2400MHz,
2483.5MHz<f<2496.5M
Hz
TOS2 - 25 uW
9 Rx sensitivity PER<8% SEN -85 -76 dBm
10 Maximum Input Level PER<8% MIL -10 dBm
11 RX Out of band spurious1 f<1GHz ROS1 - 4 nW
12 RX Out of band spurious2 f>1GHz ROS2 - 20 nW
22-May-2008 Ver.0.8
Confidential
7/12
K30306

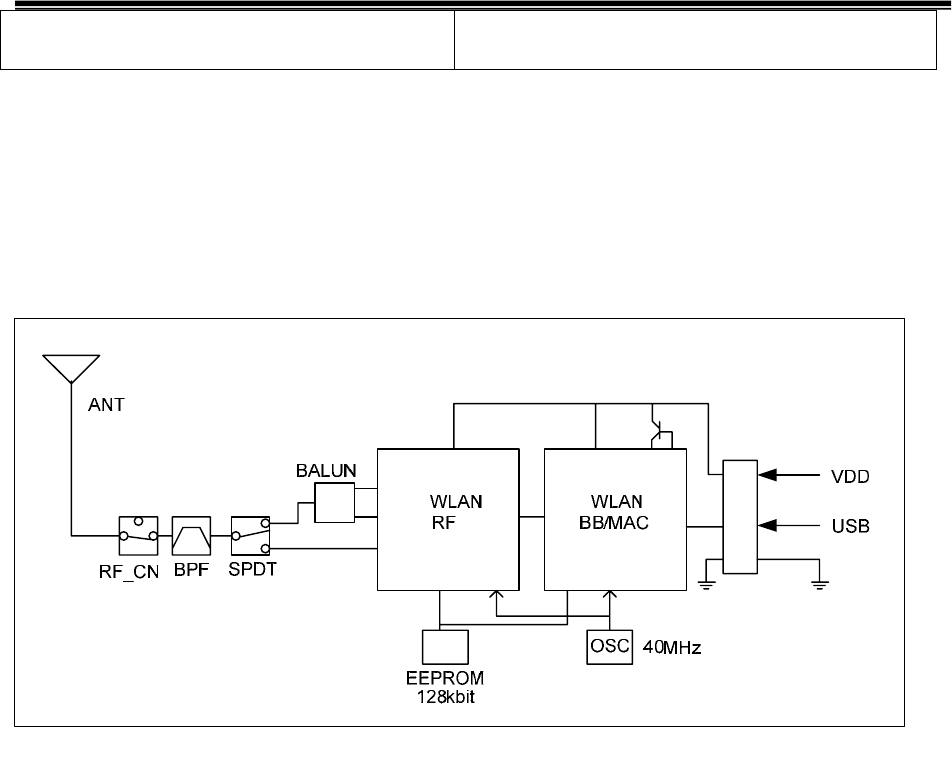

Block Diagram
Connector
Control No.
HD-MC-A****** (1/1)
Control name
Circuit Schematic
22-May-2008 Ver.0.8
Confidential
8/12
K30306
Control No.
HD-AD-A****** (1/1)
Control name

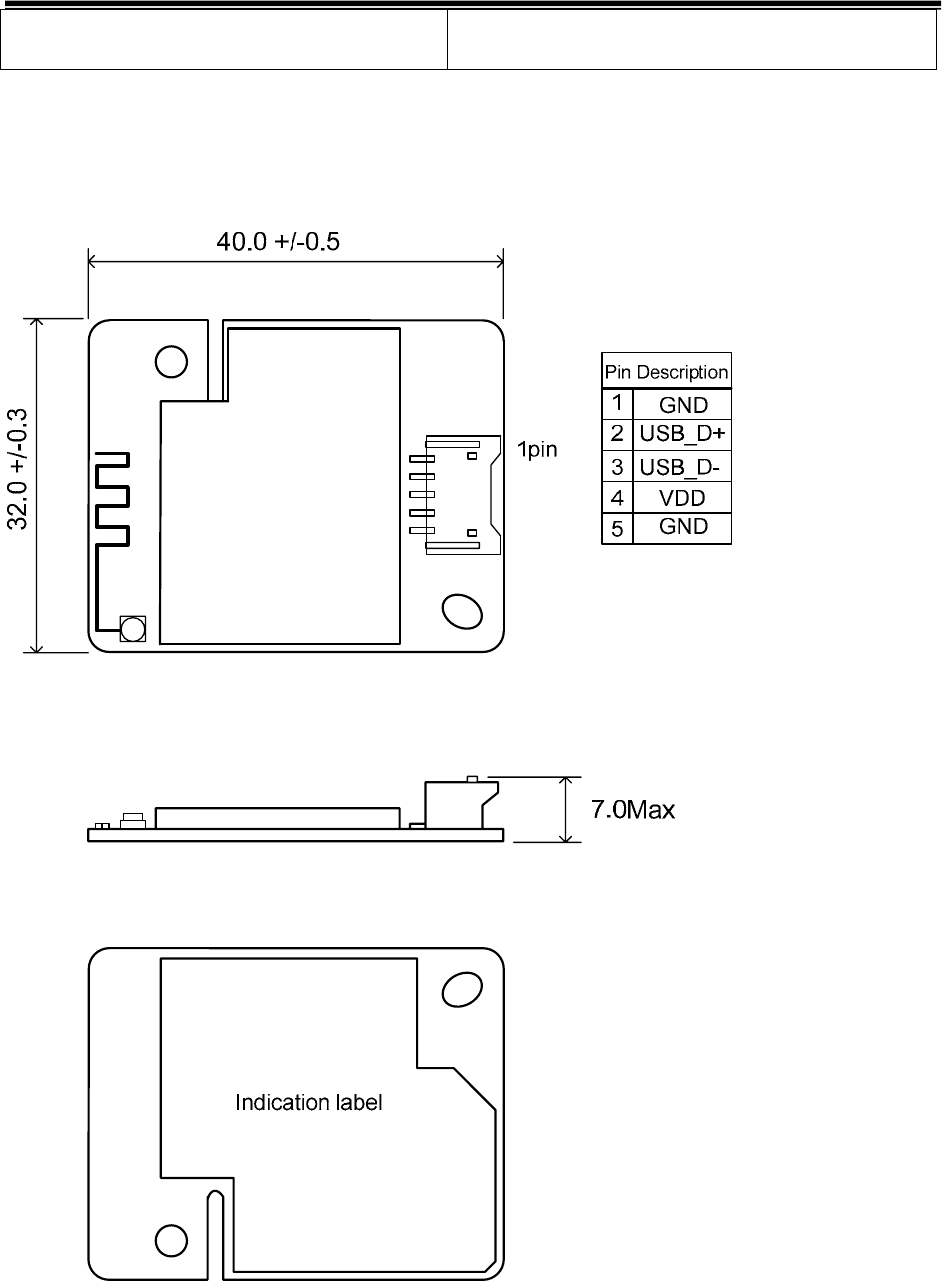

Outline/Appearance

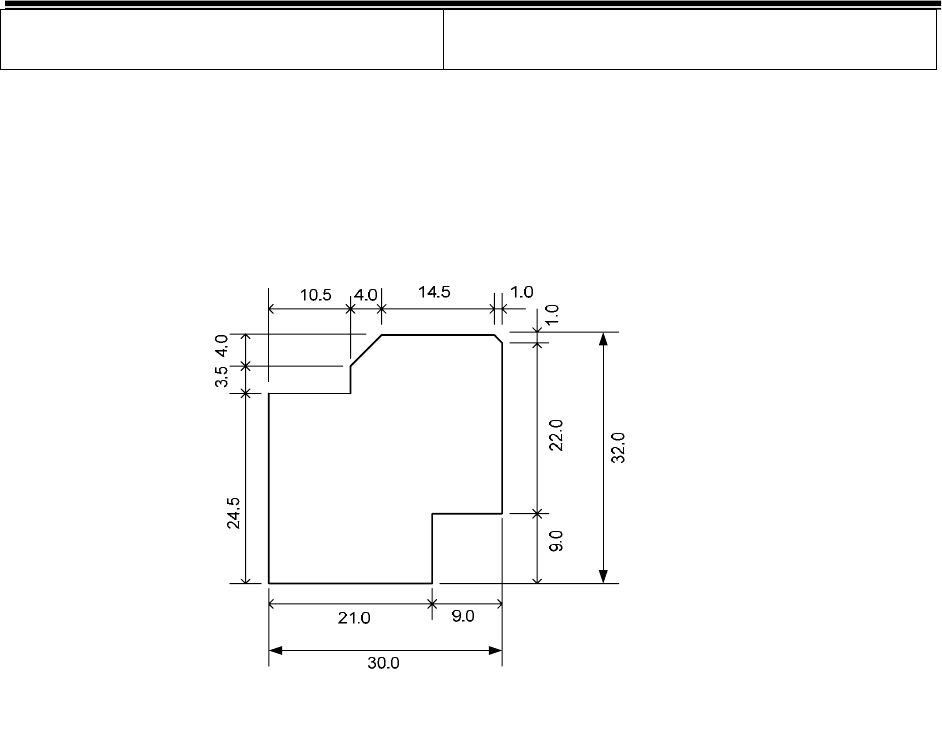

OUTLINE
Unit: mm
22-May-2008 Ver.0.8
Confidential
9/12
K30306
Control No.
HD-AD-B****** (1/1)
Control name
Outline/Appearance
Indication label
Size
Material: PET (UL969)/ Label color: White
22-May-2008 Ver.0.8
Confidential
10/12
K30306
FCC Regulatory Information
Canada Regulatory Information
CAUTION: This device should be used in separation distance of at least 20 centimeters maintained
between transmitter’s radiating structure and the body of the user or nearby persons.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may Cause
undesired operation.
CAUTION: This device should be used in separation distance of at least 20 centimeters maintained
between transmitter’s radiating structure and the body of the user or nearby persons.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired
operation of the device.
L'utilisation de ce dispositif est autorisée seulement aux conditions suivantes :
(1) il ne doit pas produire de brouillage et
(2) l'utilisateur du dispositif doit être prêt à accepter tout brouillage radioélectrique reçu,
même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif.
22-May-2008 Ver.0.8
Confidential
11/12
K30306
R&TTE Directive Information
This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in all EU member
states and EFTA countries, except in France and Italy where restrictive use applies.
For Italy and France, this device may be limited to USE INDOOR only.
CAUTION
- Please note that this users manual should not be provided to end-users.
Any changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the requirement.
Hereby CANON INC. declares that this Wireless LAN Module (Model No.: K30306) is in
compliance with the essential requirements and other relevant provisions of Directive
1999/5/EC.
The declaration of Conformity may be obtained at;
CANON INC. 451, Tsukagoshi 3-chome, Saiwai-ku, Kawasaki-shi,
Kanagawa 212-8530, Japan
Telephone No.) 81-44-542-0164; Fax No.) 81-44-548-7524
22-May-2008 Ver.0.8
Confidential
12/12
K30306
Notice
- At the installation of our Wireless LAN Module (Model No.: K30306) into the device, following information
should be provided with end-user under the responsibility of the manufacture who integrates it into their device.
The following sentence has to be displayed on the outside of the device in which the module is
installed:
"Contains Transmitter Module FCC ID: AZDK30306 / IC ID: 498C-K30306", or "Contains FCC
ID: AZDK30306 / IC ID: 498C-K30306 "
FCC Regulatory information
CAUTION: This device should be used in separation distance of at least 20 centimeters maintained
between transmitter’s radiating structure and the body of the user or nearby persons.
To maintain compliance with FCC’s RF exposure guidelines, use only the supplied antenna.
Unauthorized antenna, modification, or attachments could damage the transmitter and may
violate FCC regulations.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may
Cause undesired operation.
Canada Regulatory information
Operation is subject to the following two conditions:
(3) this device may not cause interference, and
(4) this device must accept any interference, including interference that may cause undesired
operation of the device.
L'utilisation de ce dispositif est autorisée seulement aux conditions suivantes :
(3) il ne doit pas produire de brouillage et
l'utilisateur du dispositif doit être prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage
est susceptible de compromettre le fonctionnement du dispositif.
CAUTION: This device should be used in separation distance of at least 20 centimeters maintained
between transmitter’s radiating structure and the body of the user or nearby persons.
R&TTE Directive information
This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in all EU
member states and EFTA countries, except in France and Italy where restrictive use applies.
For Italy and France, this device may be limited to USE INDOOR only.
Hereby [Name of manufacture(*)], declares that this [type of equipment(*)] is in compliance
with the essential requirements and other relevant provisions of Directive 1999/5/EC
(*) Note: Please write in your company name and type of equipment into [ ].
