This specification (“Specification”) applies to the hybrid IC “K30316” for use Wireless LAN module
(“Product”).
1. Product No. : K30316
2. Function: Radio frequency transfer Module. (IEEE802.11bg standard conformity)
3. Application: Printer
4. Structure: Hybrid IC loaded with silicon monolithic and GaAs semiconductor
Ability of lead free mounting at customer's assembly (Heat resistance of this Product) : Yes
Containment of hazardrous substance in this Product
*This product conforms to RoHS Directive (2002/95/EC).
5. Outline: 6-pin Connector
6. Marking: Type, MAC address, Lot number
7. Features:
-IEEE802.11b/g standard conformity
Transmit speed: 11g (54/48/36/24/18/12/9/6Mbps)
11b (11/5.5/2/1 Mbps)
Modulation: 11g (OFDM): BPSK, QPSK, 16QAM, 64QAM
11b (DSSS): BPSK, QPSK, CCK
Channel Number: 1 to 11 channels
Interface: USB
Embedded ARM MPU for reducing loads on host processor
Built-in EEPROM (8kbit), OSC (40MHz), Chip Antenna (Monopole antenna), Connector
8. Security: WEP (64/128bit), TKIP (WPA), AES (WPA2)
9. Packing:
Packaging method: Trey
10. Notes:
a. Any question arising from this Specification shall be solved through mutual discussion by the parties
hereof.
b. This Product is not designed for radiation durable and should not be used under the circumstance of
radiation.
c. The operating conditions of this Product are as shown in this Specification.
d. This Product mentioned in this Specification is manufactured for use in Printer.
This Product shall not be used in any special equipment (such as medical equipment, space equipment, air craft,
disaster prevention equipment), where higher safety and reliability are duly required. Also, evaluation of the
safety function of this Product even for use in general electronics equipment shall be thoroughly made and when
necessary, a protective circuit shall be added at design stage, all at the customer’s sole risk.
e. Communication between this Product and others might not be established nor maintained depending
upon radio environment or operating conditions of this Product and other ISM band at 2.4GHz
products.
f. This Product operates in the unlicensed ISM band at 2.4GHz. In case this Product is used around the
other wireless devices which operate in same frequency band of this Product, there is a possibility that
interference occurs between this Product and such other devices. If such interference occurs, please stop
the operation of other devices or relocate this Product before using this Product or do not use this
Product around the other wireless devices.
6-Mar.-2009 Ver.2.1US
Confidential
4/16
K30316
Control No.
HD-AM-A****** (1/1)
Control name
Absolute maximum ratings
Absolute maximum ratings
Rating
Item Symbol
Min. Typ. Max. Unit Remark
Vbus -0.3 6.0
Supply voltage PE -0.3
Vbus
+0.3
V
Storage temperature range Tstg -40 100 Degrees C
Operation temperature
range Topr -5 25 55 Degrees C
Recommendation operating range
Rating
Item Symbol
Min. Typ. Max. Unit Remark
Vbus 3.4 3.6 4.0
PE (SL) - - 0.2
Supply voltage
PE (SH) 1.1 - Vbus
V
Note:
1. Operation temperature range is set to satisfy products electrical characteristics for a short
period of time.
Refer reliability condition to check the product life cycle if you use this module for a long period
of time in the condition other than the Typ. standard.
6-Mar.-2009 Ver.2.1US
Confidential
5/16
K30316
Control No.
HD-AE-A****** (1/2)
Control name
Electrical characteristics

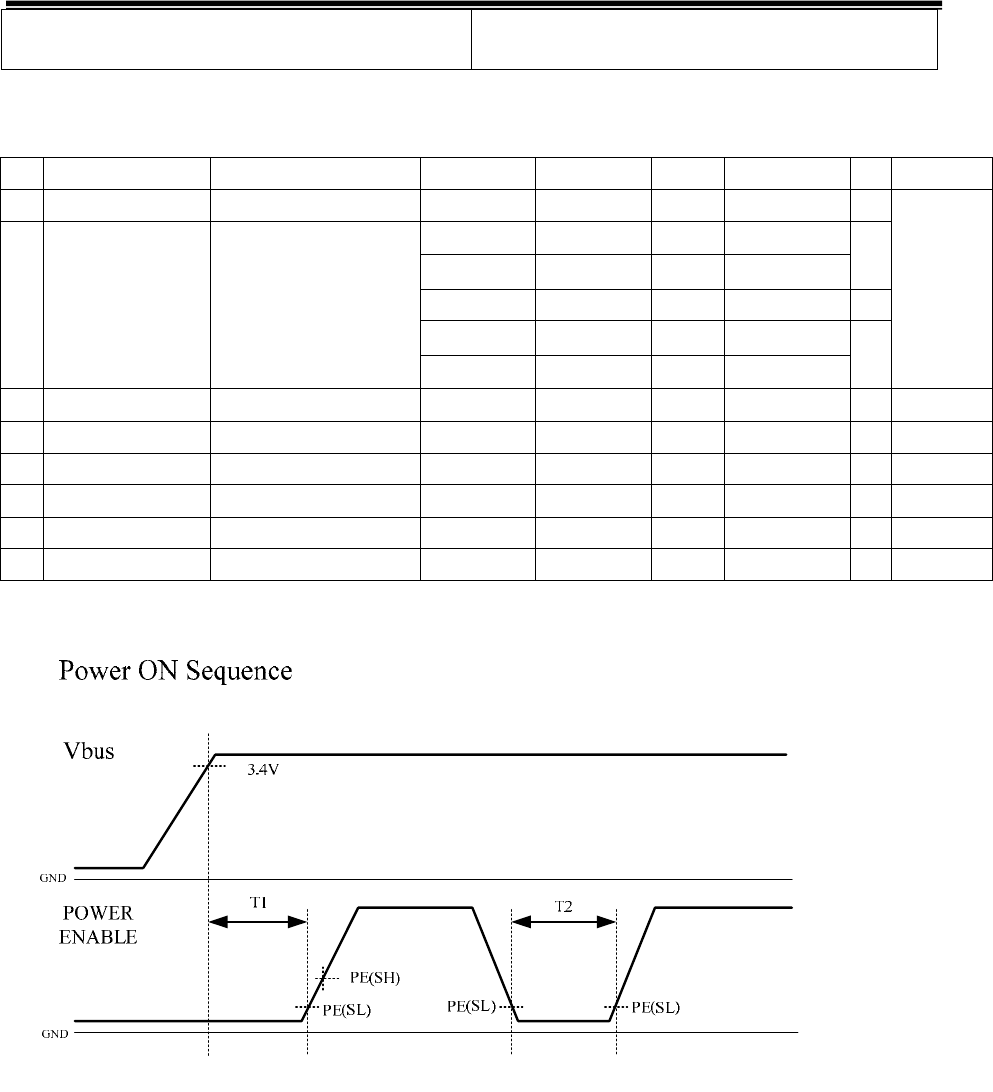

DC Specifications
The Specification applies for Topr.= 25 degrees C, Supply voltage=Typical voltage
No. Parameter Condition Symbol Min. Typ. Max. Unit Remark
1 Operating Voltage 1 Vbus - 3.6 - V
PE(SL) - - 0.2
PE(SH) 1.1 - Vbus
V
PEI SL -50 - - uA
T1 500 - -
2 Operating Voltage 2 Power Enable *1
T2 500 - -
ms
3 Peak Current1 Ip1 - - 370 mA
3 Power consumption1
Continuous (11g/6Mbps) Pc1 - 943 1080 mW
4 Power consumption2 Burst Tx (11g/54Mbps) Pc2 - 663 701 mW Duty 10.8%
5 Power consumption3 Burst Rx (11g/54Mbps) Pc3 - 705 723 mW
6 Power consumption4 Burst Tx (11b/11Mbps) Pc4 - 713 802 mW Duty57.3 %
7 Power consumption5 Burst Rx (11b/11Mbps) Pc5 - 618 635 mW
*1) Power Enable pin connected to the Vbus pin and pulled up with 100kohm inside of the module.
6-Mar.-2009 Ver.2.1US
Confidential
6/16
K30316
Control No.
HD-AE-A****** (2/2)
Control name
Electrical characteristics
RF Specifications (WLAN 11g/54Mbps, OFDM)
The Specification applies for Ta=25 degrees C, Supply voltage =Typical voltage
No. Parameter Condition Symbol Min Typ Max Unit Remark
1 RF frequency range FREQ 2412 2462 MHz
2 TX Power Po 10 12 14 dBm
1st Side Lobe M1 - -20 dBc
2nd Side Lobe M2 - -28 dBc
3 Spectrum Mask
3rd Side Lobe M3 - -40 dBc
4 Symbol clock tolerance Ft -25 25 ppm
5 Frequency tolerance Ft -25 25 ppm
6 EVM RMS EVM - 5.6 %
7 TX Out of band spurious1 f<2387MHz,
2496.5MHz<f TOS1 - 2.5 uW
8 TX Out of band spurious2
2387MHz<f<2400MHz,
2483.5MHz<f<2496.5M
Hz
TOS2 - 25 uW
9 Rx sensitivity PER<10% SEN - -71 -65 dBm
10 Maximum Input Level PER<10% MIL -20 - dBm
11 RX Out of band spurious1 f<1GHz ROS1 - 4 nW
12 RX Out of band spurious2 f>1GHz ROS2 - 20 nW
RF Specifications (WLAN 11b/11Mbps, CCK)
The Specification applies for Ta=25 degrees C, Supply voltage=Typical voltage
No. Parameter Condition Symbol Min Typ Max Unit Remark
1 RF frequency range FREQ 2412 2462 MHz
2 TX Power Po 11 13 15 dBm
1st Side Lobe M1 - -30 dBc
3 Spectrum Mask 2nd Side Lobe M2 - -50 dBc
Power up TU - 2 us
4 Power up-down rump Power down TD - 2 us
5 Frequency tolerance Ft -25 25 ppm
6 EVM Peak EVM - 35 %
7 TX Out of band spurious1 f<2387MHz,
2496.5MHz<f TOS1 - 2.5 uW
8 TX Out of band spurious2
2387MHz<f<2400MHz,
2483.5MHz<f<2496.5M
Hz
TOS2 - 25 uW
9 Rx sensitivity PER<8% SEN -85 -76 dBm
10 Maximum Input Level PER<8% MIL -10 dBm
11 RX Out of band spurious1 f<1GHz ROS1 - 4 nW
12 RX Out of band spurious2 f>1GHz ROS2 - 20 nW
6-Mar.-2009 Ver.2.1US
Confidential
7/16
K30316

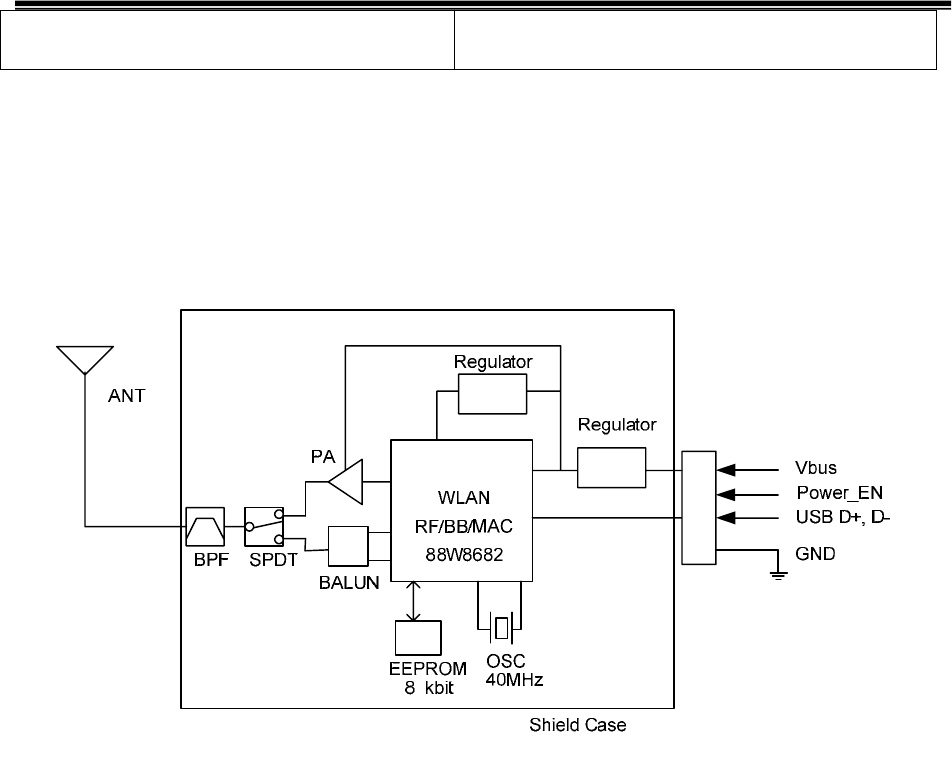

Block Diagram
Connector
Control No.
HD-MC-A****** (1/1)
Control name
Circuit Schematic
6-Mar.-2009 Ver.2.1US
Confidential
8/16
K30316
Control No.
HD-AD-A****** (1/1)
Control name
Outline/Appearance

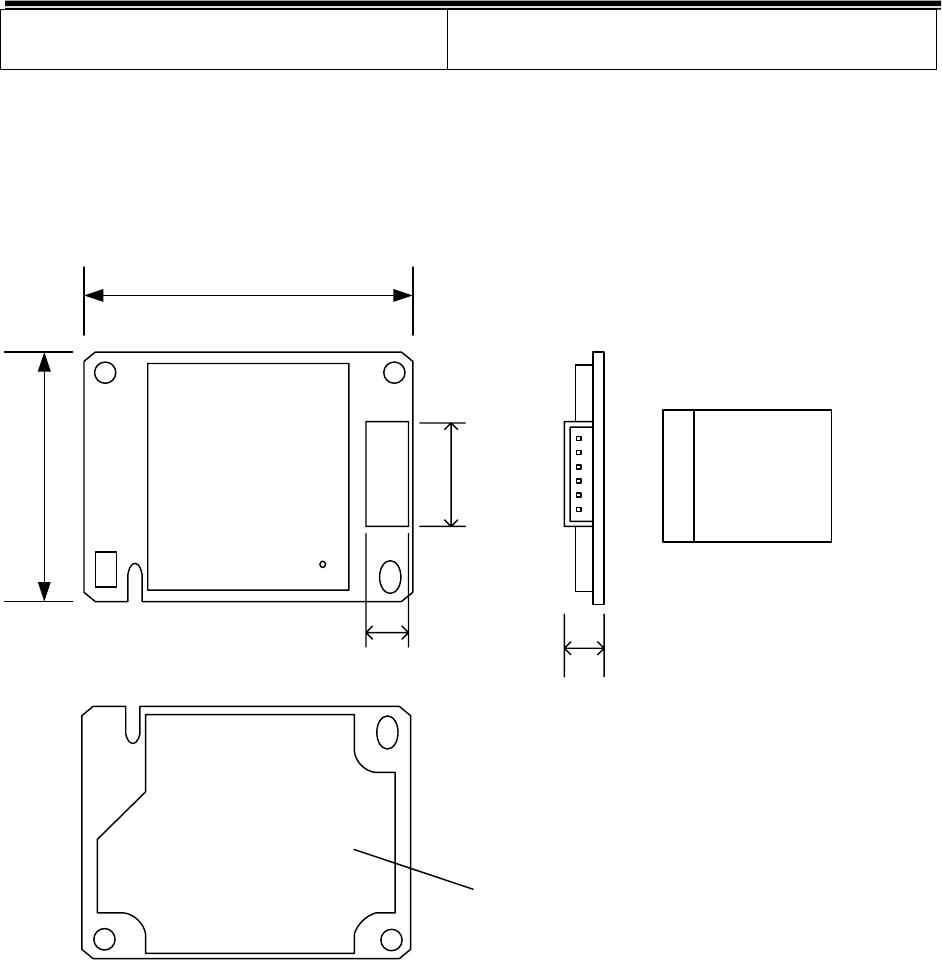

OUTLINE
LABEL
GND
Power_Enable
USB D+
USB D-
VBUS
GND
1
2
3
4
5
6
30.0+/-0.3
24.3+/-0.3
4.3Max
8.0
4.3
Unit: mm
6-Mar.-2009 Ver.2.1US
Confidential
9/16
K30316
Control No.
HD-AD-B****** (1/2)
Control name
Outline/Appearance

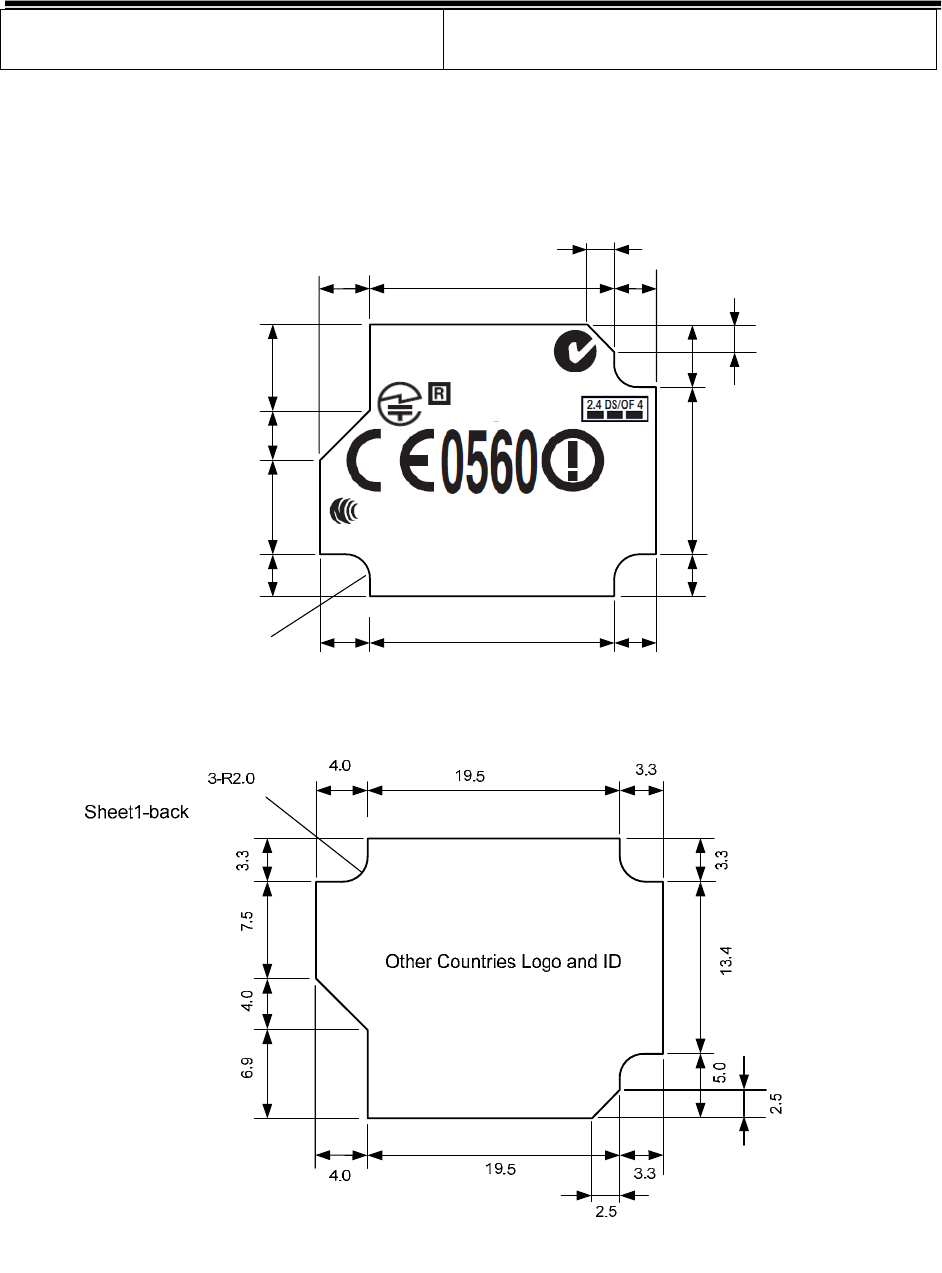

Indication label
This label is consisted of two sheets.
19.5
19.5
5.0
13.4
3.3
3.3
4.0
3.3 7.5 6.94.0
4.0 3.3
2.5
2.5
Product Number:K30316
WLAN Module
MAC: XXXXXXXXXXXX XXXX
3-R2.0
FCC ID:AZDK30316
IC:498C-K30316
XXXXXXXXXXX
CANON INC. Made in Japan
QK1-5700-DB01-01
Nxxx
XXXXXXXXXXXXXX

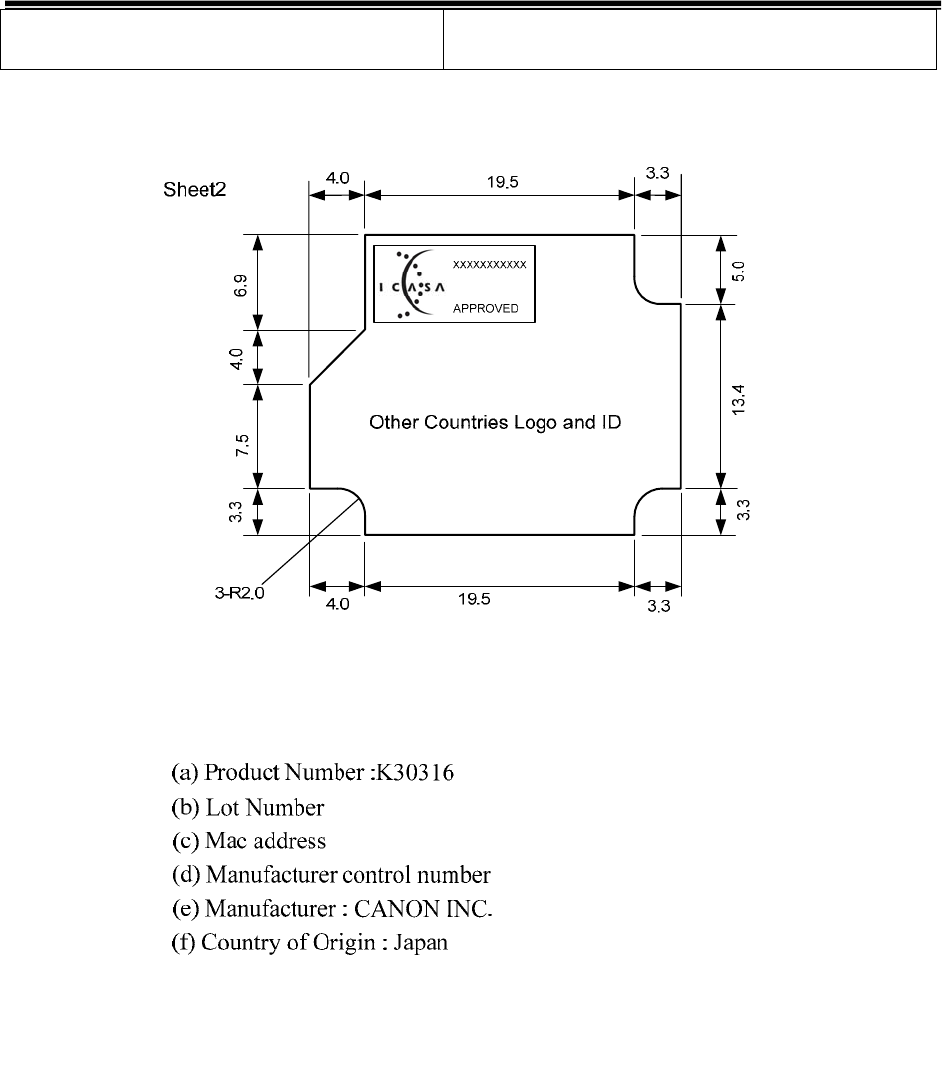

Sheet1-front
(a)
(b)(c)
(d)
(e) (f)
Unit: mm
6-Mar.-2009 Ver.2.1US
Confidential
10/16
K30316
Control No.
HD-AD-B****** (2/2)
Control name
Outline/Appearance
Material: PET (UL969)/ Label color: White
6-Mar.-2009 Ver.2.1US
Confidential
11/16
K30316
Control No.
****** (1/2)
Control name
Mounting Location of Module

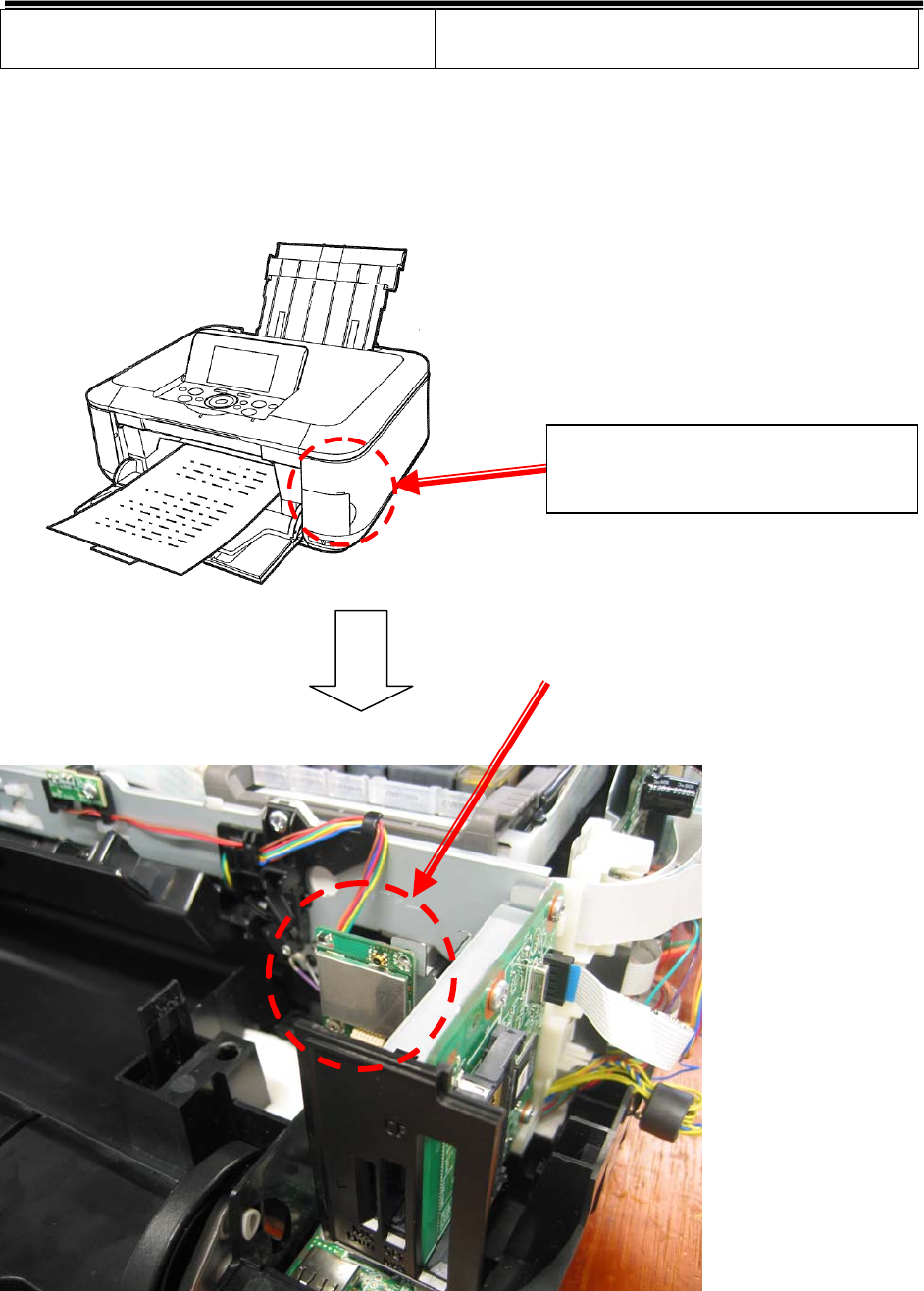

Mounting Location of Wireless LAN Module ( Example)
Module is placed inside of the right
corner of the printer.
Wireless LAN
Module
6-Mar.-2009 Ver.2.1US
Confidential
12/16
K30316
Control No.
****** (2/2)
Control name
Mounting Location of Module

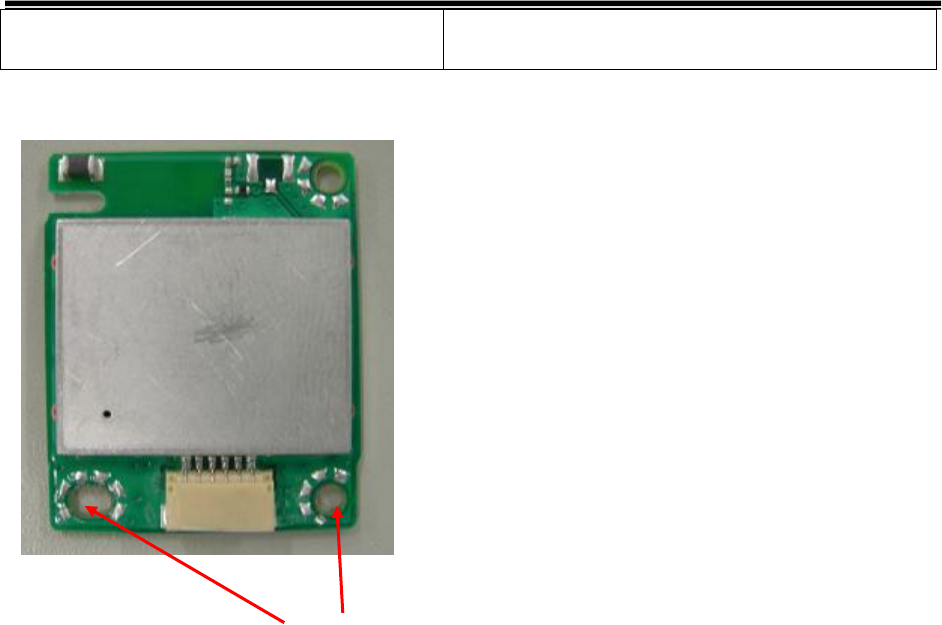

How to attach the plate to the module:
When you install the module into your final set, please leave space between the module and the metal plate
more than 4mm. (Except the screw-hole areas.)
Please do not place metal plate around the antenna area for antenna performance.
Front Screw
6-Mar.-2009 Ver.2.1US
Confidential
13/16
K30316
FCC Regulatory Information
Canada Regulatory Information
CAUTION: This device should be used in separation distance of at least 20 centimeters maintained
between transmitters radiating structure and the body of the user or nearby persons.
The antenna used for this transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may Cause
undesired operation.
CAUTION: This device should be used in separation distance of at least 20 centimeters maintained
between transmitters radiating structure and the body of the user or nearby persons.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired
operation of the device.
L'utilisation de ce dispositif est autorisée seulement aux conditions suivantes :
(1) il ne doit pas produire de brouillage et
(2) l'utilisateur du dispositif doit être prêt à accepter tout brouillage radioélectrique reçu,
même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif.
6-Mar.-2009 Ver.2.1US
Confidential
14/16
K30316
R&TTE Directive Information
This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in all EU member
states and EFTA countries, except in France and Italy where restrictive use applies.
For Italy and France, this device may be limited to USE INDOOR only.
CAUTION
- Please note that this users manual should not be provided to end-users.
Any changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the requirement.
Hereby CANON INC. declares that this Wireless LAN Module (Model No.: K30316) is in
compliance with the essential requirements and other relevant provisions of Directive
1999/5/EC.
The declaration of Conformity may be obtained at;
CANON INC. 451, Tsukagoshi 3-chome, Saiwai-ku, Kawasaki-shi,
Kanagawa 212-8530, Japan
Telephone No.) 81-44-542-0164; Fax No.) 81-44-548-7524
6-Mar.-2009 Ver.2.1US
Confidential
15/16
K30316
Notice
- At the installation of our Wireless LAN Module (Model No.: K30316) into the device, following information
should be provided with end-user under the responsibility of the manufacture who integrates it into their device.
FCC Regulatory information
CAUTION: This device should be used in separation distance of at least 20 centimeters maintained
between transmitters radiating structure and the body of the user or nearby persons.
To maintain compliance with FCC’s RF exposure guidelines, use only the supplied antenna.
Unauthorized antenna, modification, or attachments could damage the transmitter and may
violate FCC regulations.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may
Cause undesired operation.
Canada Regulatory information
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired
operation of the device.
L'utilisation de ce dispositif est autorisée seulement aux conditions suivantes :
(1) il ne doit pas produire de brouillage et
(2) l'utilisateur du dispositif doit être prêt à accepter tout brouillage radioélectrique reçu, même si ce
brouillage est susceptible de compromettre le fonctionnement du dispositif.
CAUTION: This device should be used in separation distance of at least 20 centimeters maintained
between transmitters radiating structure and the body of the user or nearby persons.
R&TTE Directive information
This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in all EU
member states and EFTA countries, except in France and Italy where restrictive use applies.
For Italy and France, this device may be limited to USE INDOOR only.
Hereby [Name of manufacture(*)], declares that this [type of equipment(*)] is in compliance
with the essential requirements and other relevant provisions of Directive 1999/5/EC
(*) Note: Please write in your company name and type of equipment into [ ].
The following sentence has to be displayed on the outside of the device in which the module is
installed:
"Contains Transmitter Module FCC ID: AZDK30316 / IC ID: 498C-K30316", or "Contains FCC ID:
AZDK30316 / IC ID: 498C-K30316"
6-Mar.-2009 Ver.2.1US
Confidential
16/16
K30316
NCC Regulatory information
經型式認證合格之低功率射頻電機,非經許可,公司、商號或使用者均不得擅自變更頻率、加大
功率或變更原設計之特性及功能。
低功率射頻電機之使用不得影響飛航安全及干擾合法通信;經發現有干擾現象時,應立即停用,
並改善至無干擾時方得繼續使用。前項合法通信,指依電信法規定作業之無線電通信。低功率射
頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
Note:
1. 本模組於取得認證後將依規定於模組本體標示審驗合格標籤
2. 產內
系統廠商應於平台上標示「本 品 含射頻模組: XXXyyyLPDzzzz-x (NCC ID) 」字樣
NTC Regulatory information
This telecommunication equipment conforms to NTC technical requirement.

Navigation menu
