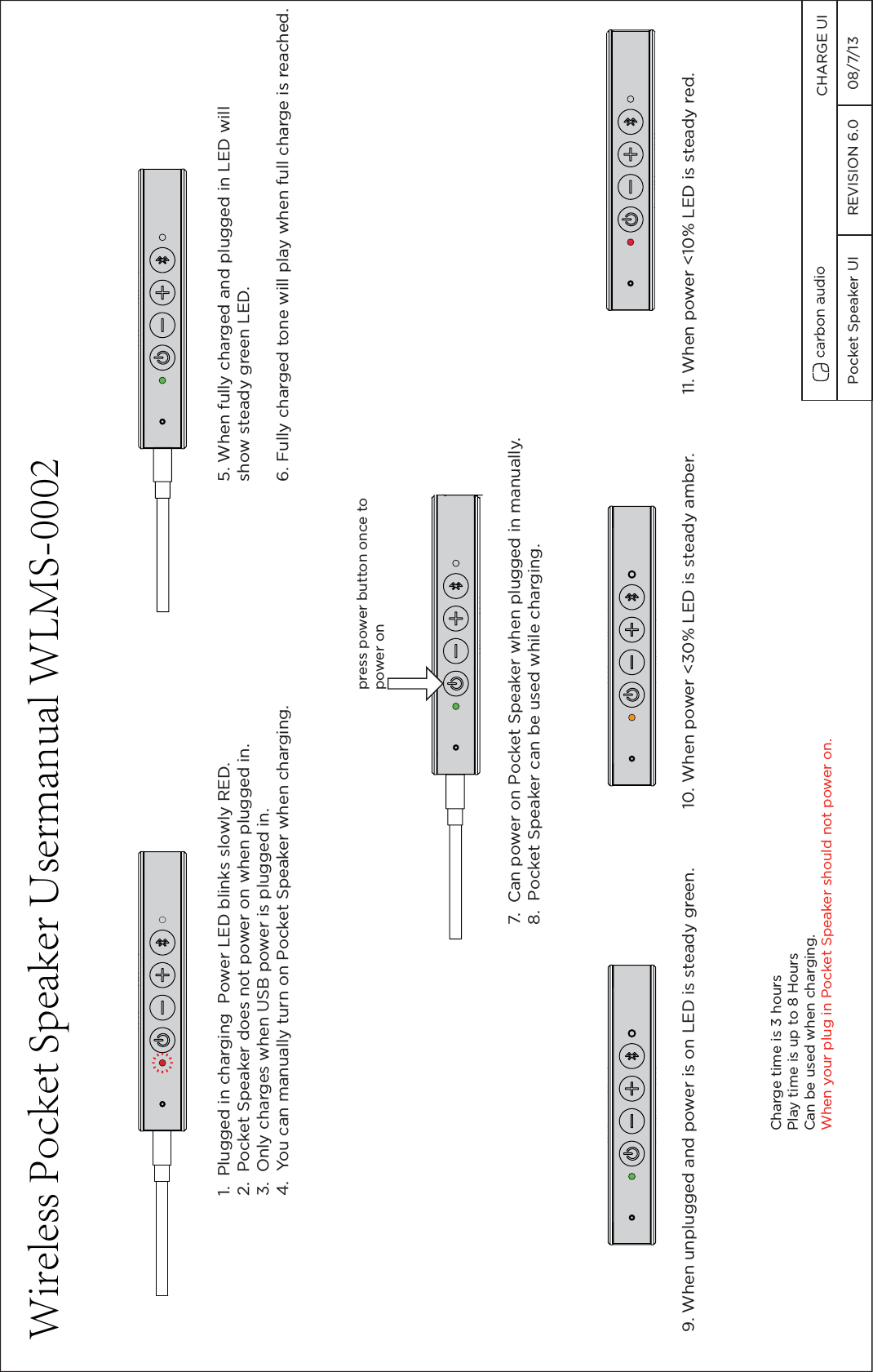

 CHARGE / BATTERY UI1.  Plugged in charging  Power LED blinks slowly RED.2.  Pocket Speaker does not power on when plugged in.3.  Only charges when USB power is plugged in.4.  You can manually turn on Pocket Speaker when charging.5. When fully charged and plugged in LED willshow steady green LED.  6. Fully charged tone will play when full charge is reached.Pocket Speaker UI  REVISION 6.0  08/7/13 CHARGE UICharge time is 3 hoursPlay time is up to 8 Hours Can be used when charging.When your plug in Pocket Speaker should not power on.7.  Can power on Pocket Speaker when plugged in manually.8.  Pocket Speaker can be used while charging.press power button once topower on9. When unplugged and power is on LED is steady green. 10. When power <30% LED is steady amber. 11. When power <10% LED is steady red.Wireless Pocket Speaker Usermanual WLMS-0002

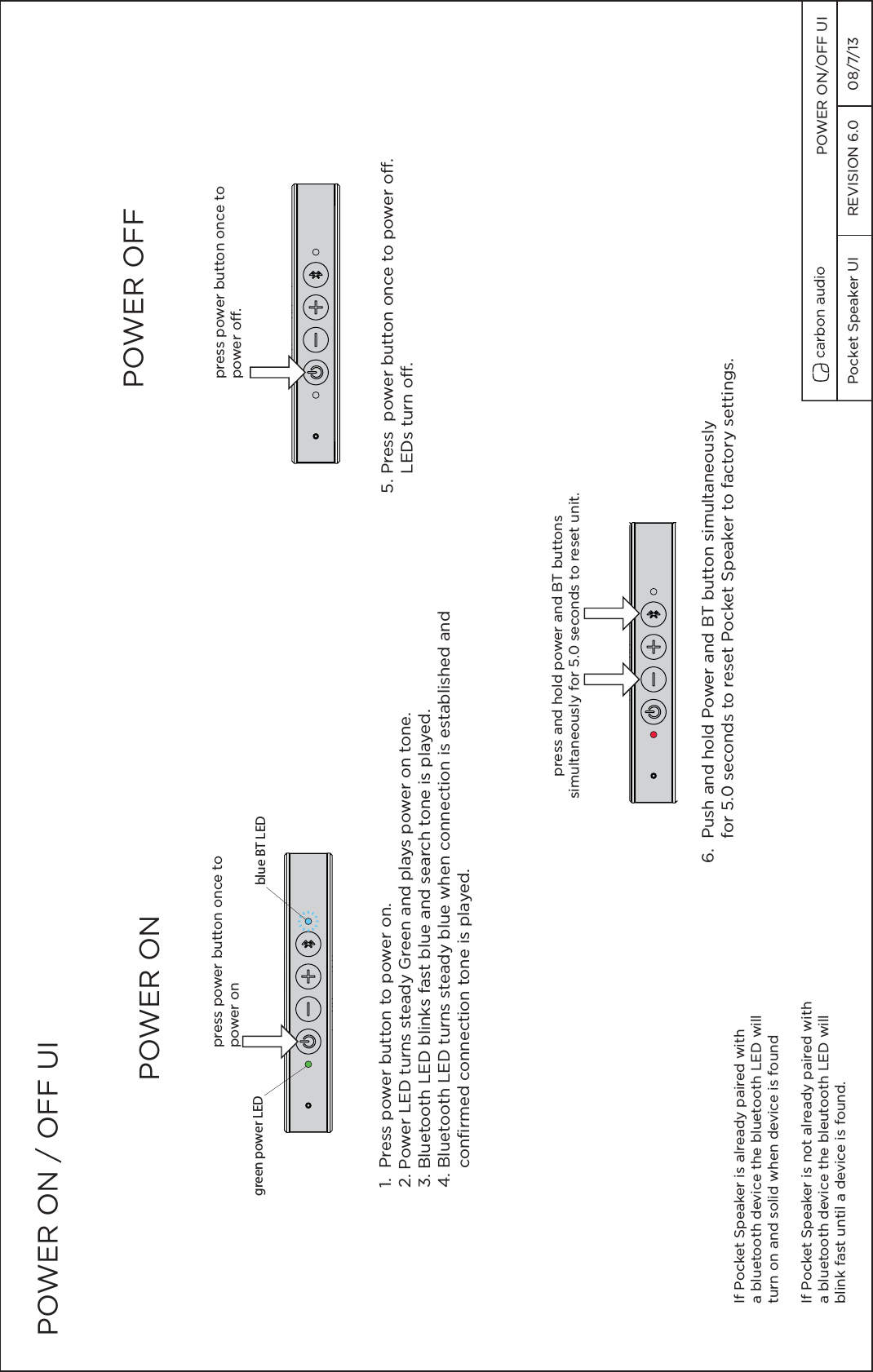

POWER ON / OFF UI1.  Press power button to power on.  2. Power LED turns steady Green and plays power on tone.  3. Bluetooth LED blinks fast blue and search tone is played.4. Bluetooth LED turns steady blue when connection is established and     confirmed connection tone is played.press power button once topower on5. Press  power button once to power off.    LEDs turn off.press power button once to power off.POWER ON  POWER OFF If Pocket Speaker is already paired with a bluetooth device the bluetooth LED will turn on and solid when device is foundIf Pocket Speaker is not already paired with a bluetooth device the bleutooth LED willblink fast until a device is found.green power LED blue BT LED6.  Push and hold Power and BT button simultaneously     for 5.0 seconds to reset Pocket Speaker to factory settings.press and hold power and BT buttonssimultaneously for 5.0 seconds to reset unit.Pocket Speaker UI  REVISION 6.0  08/7/13 POWER ON/OFF UI

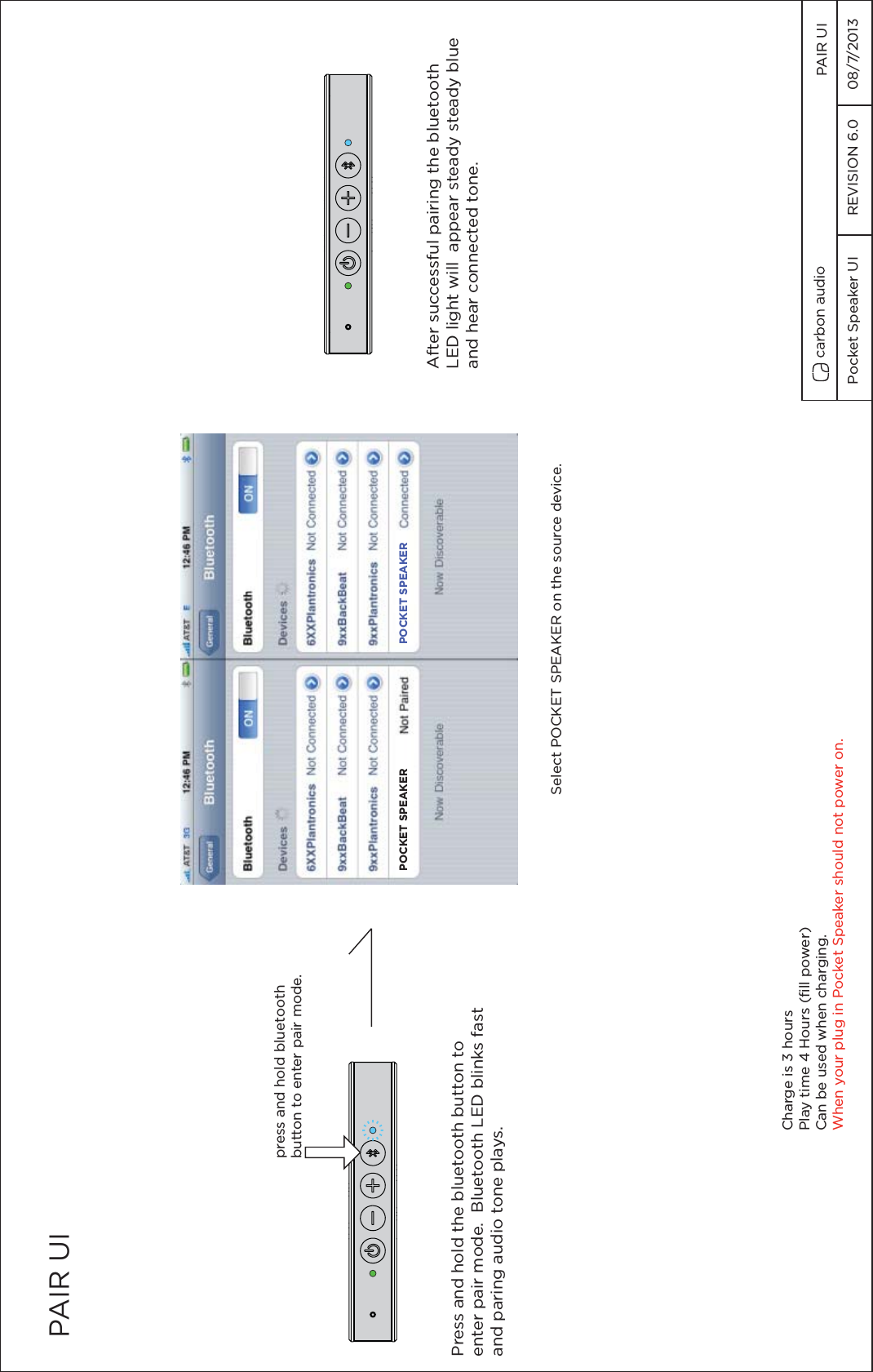

PAIR UIPress and hold the bluetooth button to enter pair mode.  Bluetooth LED blinks fastand paring audio tone plays.Charge is 3 hoursPlay time 4 Hours (fill power)Can be used when charging.When your plug in Pocket Speaker should not power on.press and hold bluetoothbutton to enter pair mode.After successful pairing the bluetoothLED light will  appear steady steady blue and hear connected tone.POCKET SPEAKER POCKET SPEAKERSelect POCKET SPEAKER on the source device.Pocket Speaker UI  REVISION 6.0  08/7/2013  PAIR UI

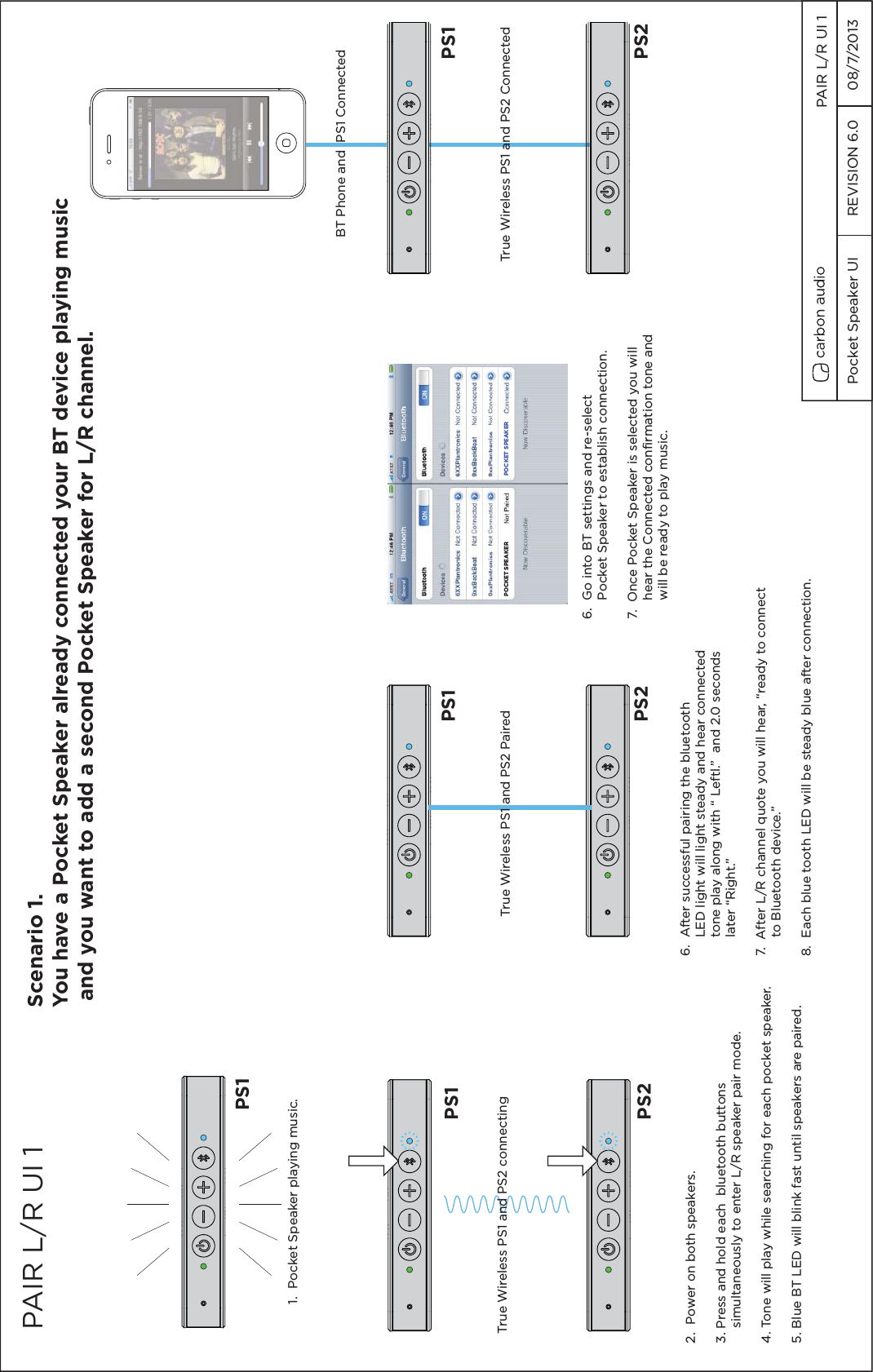

PAIR L/R UI 16.  After successful pairing the bluetooth     LED light will light steady and hear connected     tone play along with “ Leftl.”  and 2.0 seconds     later “Right.”7.  After L/R channel quote you will hear, “ready to connect     to Bluetooth device.” 8.  Each blue tooth LED will be steady blue after connection.2.  Power on both speakers.3. Press and hold each  bluetooth buttons    simultaneously to enter L/R speaker pair mode.4. Tone will play while searching for each pocket speaker.5. Blue BT LED will blink fast until speakers are paired.Scenario 1. You have a Pocket Speaker already connected your BT device playing music and you want to add a second Pocket Speaker for L/R channel.  POCKET SPEAKER POCKET SPEAKERPS1PS2PS1PS2 PS2PS11.  Pocket Speaker playing music.True Wireless PS1 and PS2 PairedPS1True Wireless PS1 and PS2 ConnectedTrue Wireless PS1 and PS2 connectingBT Phone and  PS1 Connected6.  Go into BT settings and re-select      Pocket Speaker to establish connection.7.  Once Pocket Speaker is selected you will     hear the Connected confirmation tone and     will be ready to play music.Pocket Speaker UI  REVISION 6.0  08/7/2013  PAIR L/R UI 1

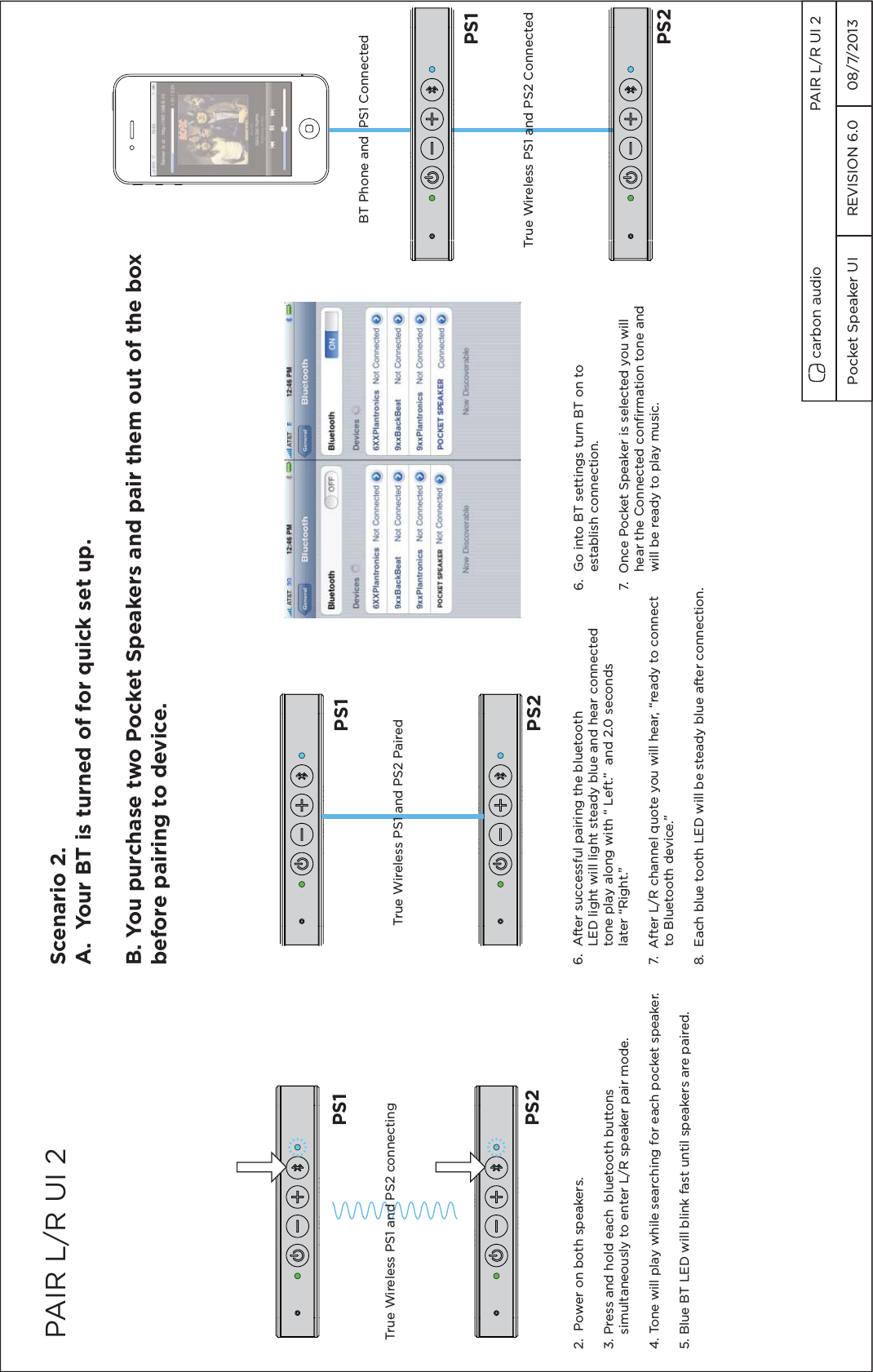

PAIR L/R UI 26.  After successful pairing the bluetooth     LED light will light steady blue and hear connected     tone play along with “ Left.”  and 2.0 seconds     later “Right.”7.  After L/R channel quote you will hear, “ready to connect     to Bluetooth device.” 8.  Each blue tooth LED will be steady blue after connection.2.  Power on both speakers.3. Press and hold each  bluetooth buttons    simultaneously to enter L/R speaker pair mode.4. Tone will play while searching for each pocket speaker.5. Blue BT LED will blink fast until speakers are paired.Scenario 2. A.  Your BT is turned of for quick set up.B. You purchase two Pocket Speakers and pair them out of the boxbefore pairing to device.PS1PS2PS1PS2PS2True Wireless PS1 and PS2 PairedPS1True Wireless PS1 and PS2 ConnectedTrue Wireless PS1 and PS2 connectingBT Phone and  PS1 Connected6.  Go into BT settings turn BT on to     establish connection.7.  Once Pocket Speaker is selected you will     hear the Connected confirmation tone and     will be ready to play music.Pocket Speaker UI  REVISION 6.0  08/7/2013  PAIR L/R UI 2

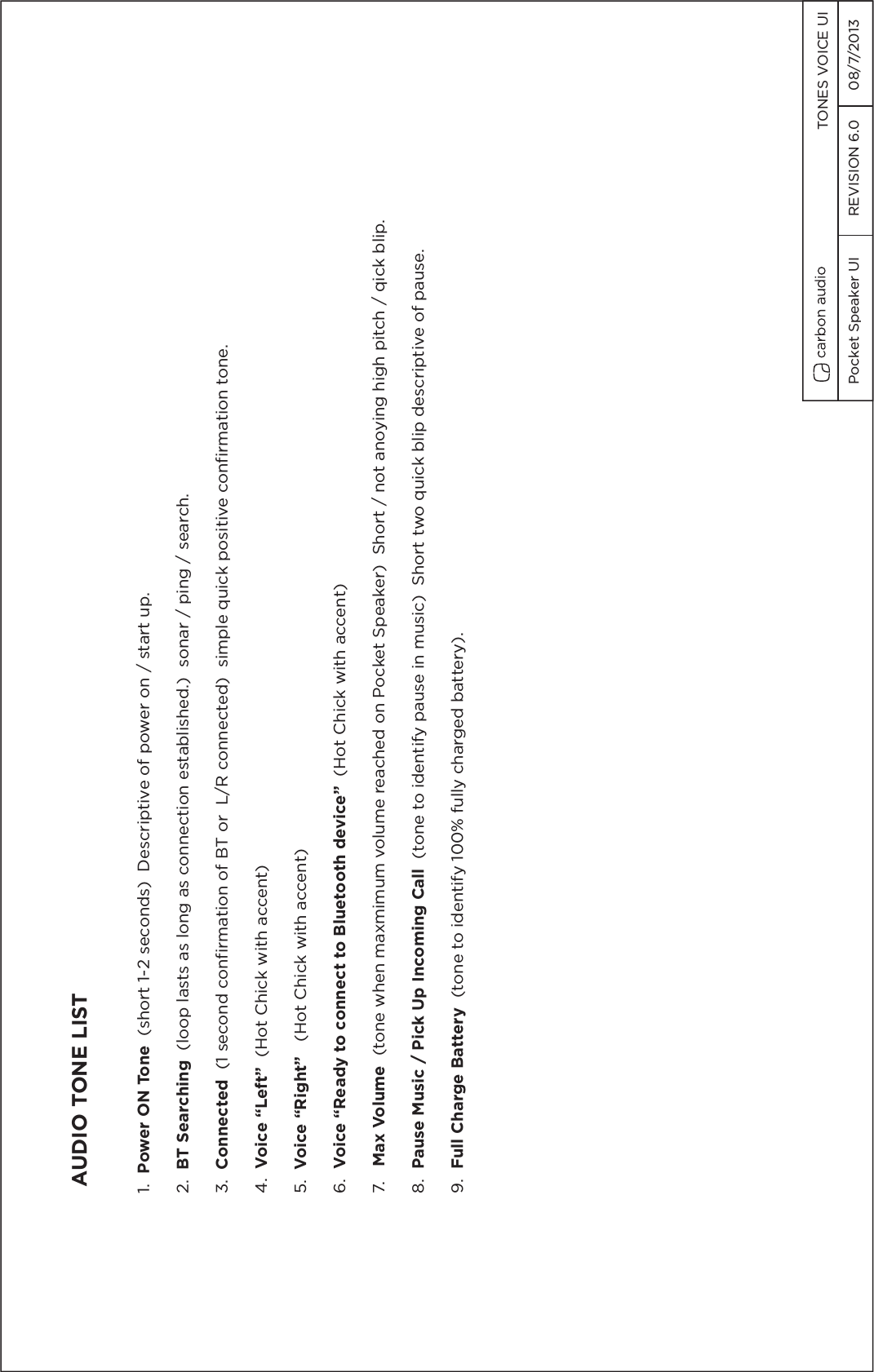

Pocket Speaker UI  REVISION 6.0  08/7/2013  TONES VOICE UIAUDIO TONE LIST1.  Power ON Tone  (short 1-2 seconds)  Descriptive of power on / start up.2.  BT Searching  (loop lasts as long as connection established.)  sonar / ping / search.3.  Connected  (1 second confirmation of BT or  L/R connected)  simple quick positive confirmation tone.4.  Voice “Left”  (Hot Chick with accent)5.  Voice “Right”   (Hot Chick with accent)6.  Voice “Ready to connect to Bluetooth device”  (Hot Chick with accent)7.   Max Volume  (tone when maxmimum volume reached on Pocket Speaker)  Short / not anoying high pitch / qick blip.8.  Pause Music / Pick Up Incoming Call  (tone to identify pause in music)  Short two quick blip descriptive of pause.9.  Full Charge Battery  (tone to identify 100% fully charged battery).

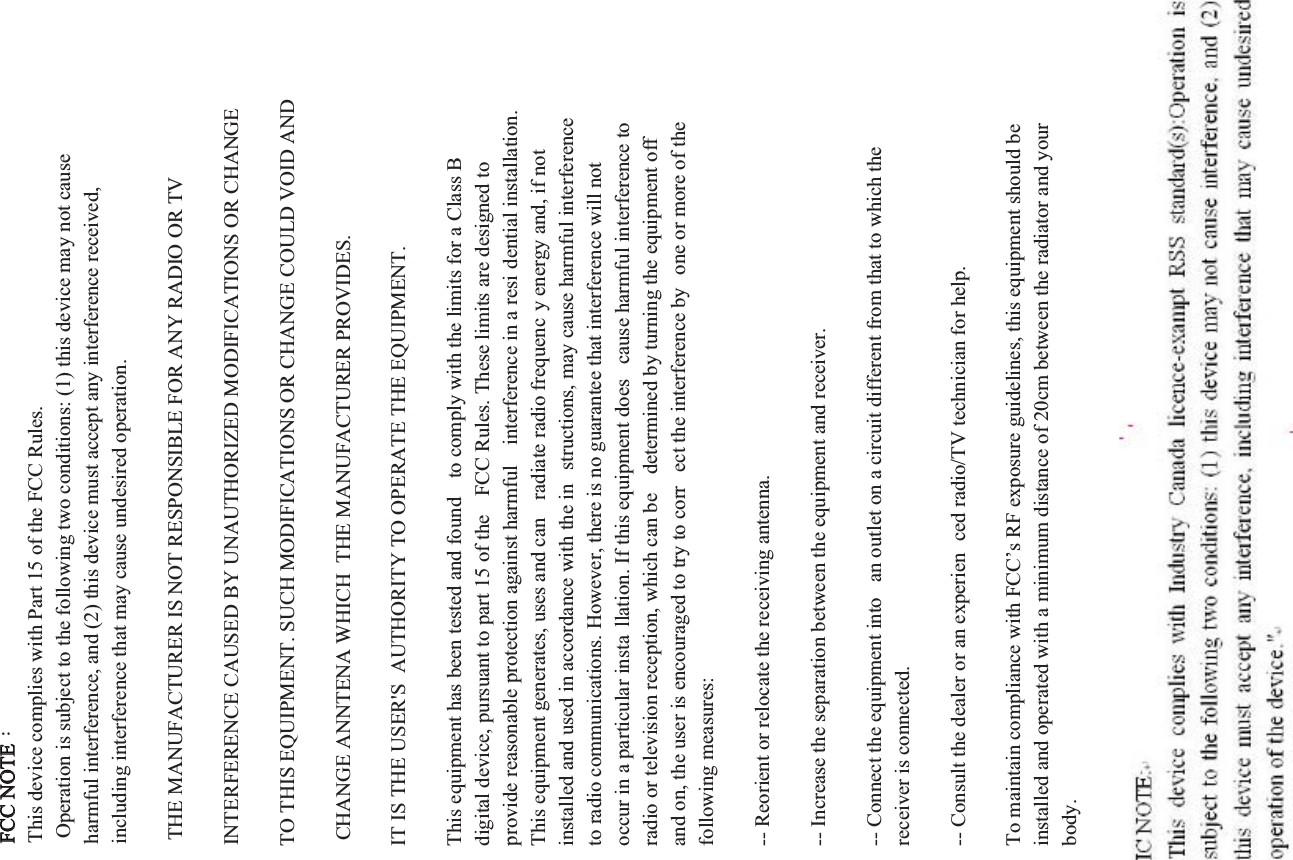

FCC NOTE:This device complies with Part 15 of the FCC Rules.  Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS OR CHANGE TO THIS EQUIPMENT. SUCH MODIFICATIONS OR CHANGE COULD VOID AND CHANGE ANNTENA WHICH  THE MANUFACTURER PROVIDES. IT IS THE USER'S  AUTHORITY TO OPERATE THE EQUIPMENT.This equipment has been tested and found  to comply with the limits for a Class B digital device, pursuant to part 15 of the  FCC Rules. These limits are designed to provide reasonable protection against harmful  interference in a resi dential installation. This equipment generates, uses and can  radiate radio frequenc y energy and, if not installed and used in accordance with the in structions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular insta llation. If this equipment does  cause harmful interference to radio or television reception, which can be  determined by turning the equipment off and on, the user is encouraged to try to corr ect the interference by  one or more of the following measures:-- Reorient or relocate the receiving antenna.-- Increase the separation between the equipment and receiver.-- Connect the equipment into  an outlet on a circuit different from that to which the receiver is connected.-- Consult the dealer or an experien ced radio/TV technician for help. To maintain compliance with FCC’s RF exposure guidelines, this equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body.
