Card Access Z2IR ZIGBEE TO IR INTERFACE DEVICE User Manual
Card Access Inc ZIGBEE TO IR INTERFACE DEVICE
User Manual
Regulatory Compliance
The Card Access Z2iR ZigBee-to-IR Module complies with relevant standards
established by the following regulatory bodies: Federal Communications
Commission (FCC), Conformité Européene (CE), Industry Canada, and
Restriction of Hazardous Substances (RoHS).
FCC
FCC ID: MHIZ2IR. This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Re-orient or relocate the Z2iR Module.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
by Card Access, Inc. void the user’s authority to operate the
equipment.
CE
We, Card Access, Inc. of 11778 South Election Road, Suite 260, Salt Lake
City, Utah, 84020 USA, declare under our sole responsibility that the product,
the Card Access Z2iR Module, Model Number Z2IR10A-ZP, to which this
declaration relates, is in conformity with the following standards and / or other
normative documents:
EN60950, EN55022, EN55024
We hereby declare that the above named product is in conformity with the
essential requirements and other relevant provisions of Directive 1999/5/EC.
The conformity assessment procedure referred to in Article 10(3) and detailed
in Annex II of Directive 1999/5/EC has been followed.
Industry Canada
IC: 3681C-Z2IR10A
This class B digital apparatus complies with Canadian ICES-003.
CET appareil numerique de la classe B est conforme a la norme NMB-003 du
Canada’

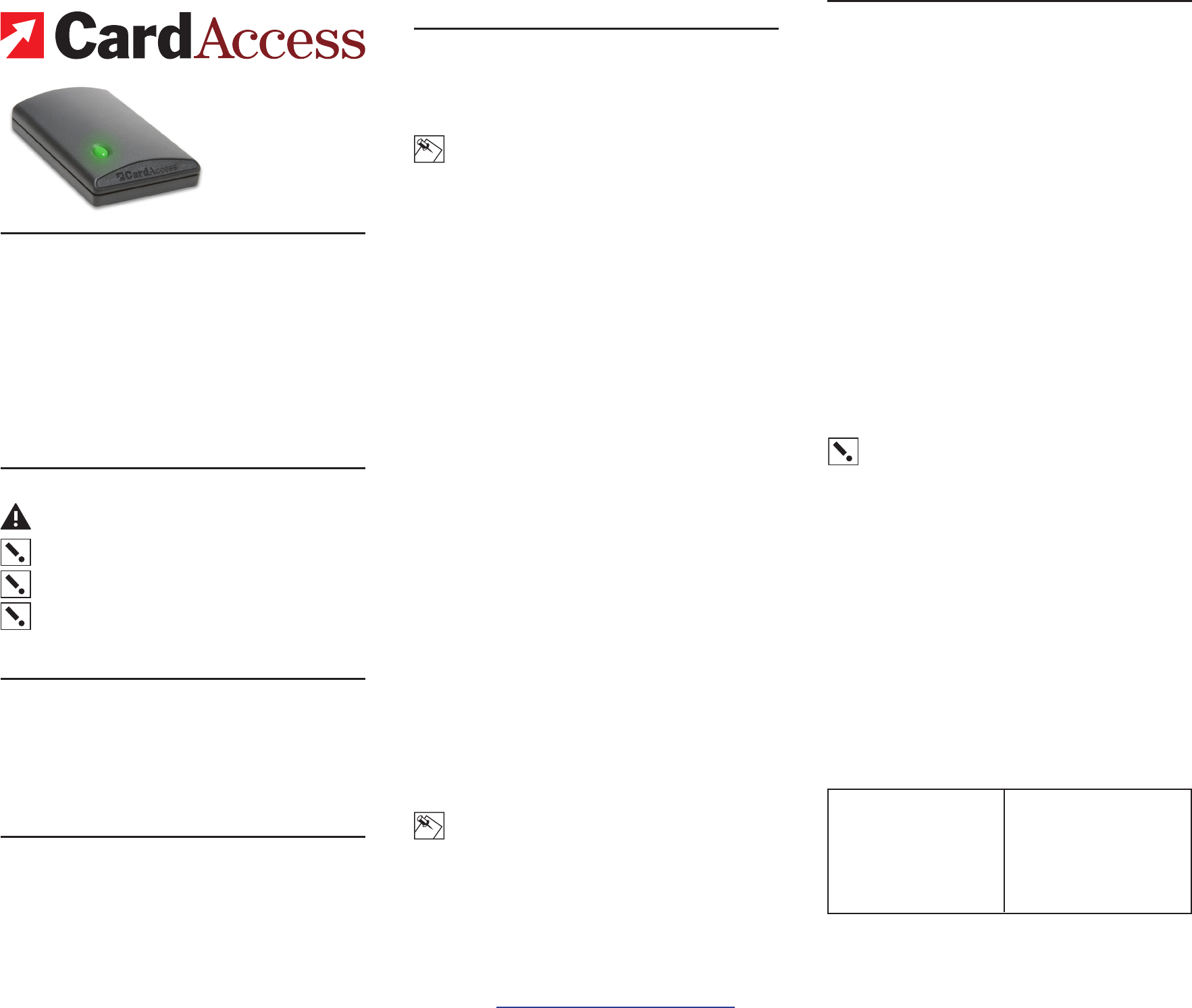

ZigBee-to-IR
Module
Installation
Guide
Put MORE Automation in
Home Automation.™
Features
The Card Access Z2iR ZigBee-to-IR Module is a wireless ZigBee interface
with two independent IR emitter ports. It is powered from any 5V USB
2.0-compliant port supplying continuous power (even when the device with
the USB port is turned off). The Module can connect any IR device into a
Control4 home automation environment. The Z2iR Module also operates as
a ZigBee® (IEEE 802.15.4) parent-rounting node which can improve ZigBee
mesh density and footprint-often solving ZigBee problems when devices are
installed on the edges of a mesh network.
Supported Models and Requirements
This documentation applies to the following Card Access products
Z2IR10A-ZP ZigBee-to-IR Module (single pack)
Z2IR10A-ZP-10P ZigBee-to-IR Module (10 Pack)
Important Safety Instructions
WARNING! You should install this device in accordance with all
national and local electrical codes.
IMPORTANT! This product is not intended for direct connections to
IMPORTANT! Improper use or installation of this device can result
in LOSS OF/DAMAGE TO PROPERTY.
IMPORTANT! Using this product in any manner other than outlined
in this document voids your warranty. Also, Card Access is NOT
responsible or otherwise liable in any way for any damage resulting
from the misuse of this product. See the section of this document
entitled WARRANTY for details.
What Is Included
Power Source: 5VDC Power Supply
Power Usage: 100mA at 5VDC, fully active
Device Temperature Range: Operational -20°F to 158°F (-28°C to
70°C)
Humidity 5% to 95% Non-Condensing
Storage -20°F to 158°F (-28°C to 70°C)
Dimensions (LxWxD): 2.80”(L) x 1.75”(W) x 0.57(D)” (77.1mm x
44.5mm x 14.4mm)
Communications: ZigBee (IEEE 802.15.4) 2.4 GHz,
15-channel, spread spectrum radio
Installation
1 Place the ZigBee-to-IR Module in a location which ensures:
Easy access to a power outlet
Close proximity to the device(s) to be controlled
NOTE: Make sure the ZigBee-to-IR Module gets good ZigBee
wireless reception by:
Ensuring it is within 150 feet of another ZigBee device.
Ensuring the device is not installed by other electrical equipment
that may cause interference with the ZigBee signal (such as some
cordless telephones or other devices that operate on the 2.4 GHz
frequency).
Avoiding exposure to extreme environmental conditions.
2 Download the Z2iR DriverWorks Driver using Composer’s
Online Driver Database or from the Card Access web site: www.
cardaccess-inc.com/automation/drivers. (Copy the Driver to the
“Control4 / Drivers” folder on your PC. The Control4 / Drivers folder
should be located under “My Documents” on your PC.)
3 Launch Composer. If Composer is already running, shut it down
and restart it.
4 Using Composer, make a connection to Director. Select the System
Design Tab to add the Z2iR Driver. The Driver can be found by
selecting the Search Tab and then the Local Database. The device
type is “other” and the manufacturer is Card Access. NOTE: The
Driver can be added to any room in the project.
5 Power up the Z2iR Module using the supplied USB Power Supply
and Mini USB cable. In Composer, choose Connections and click
Z2iR” device. Identify the Z2iR in Composer by pressing the clear
Once the Z2iR’s MAC ID address appears in the Identify dialog
box, click “Close” to close the dialog.
After a few seconds, the Z2iR Module’s LED should change to a
the Control4 project.
Troubleshooting
If the Z2iR Module is not working it may need to be reset back to factory
settings. To perform a factory reset, do the following:
While the Z2iR Module is still powered on, press the button on the
top cover 13 times.
After the Z2iR Module has performed its reboot sequence, the LED
NOTE: Any IR codes that were cached in the Z2iR Module will
be lost and will need to be re-transmitted and again cached
in the Module. In most instances, there may be a slight delay
device is cached or re-cached.
Card Access Product Support
For help on the installation or operation of this product, email or call Card
Access Product Support. Please provide your exact model number and the
MAC ID/Serial Number for the device. You may contact Product Support by
phone (801-748-4900 x 1), by e-mail (dealersupport@cardaccess-inc.com) or
on the Internet at http://www.cardaccess-inc.com/automation/support.
This device complies with Industry
Canada license-exempt RSS
standard(s). Operation is subject to the
following two conditions: (1) this device
may not cause interference, and (2) this
device must accept any interference,
including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux
CNR d’Industrie Canada applicables
aux appareils radio exempts de licence.
L’exploitation est autorisée aux deux
conditions suivantes: (1) l’appareil ne
doit pas produire de brouillage, et (2)
l’utilisateur de l’appareil doit accepter tout
brouillage radioélectrique subi, même
si le brouillage est susceptible d’en
compromettre le fonctionnement.
Restriction of Hazardous Substances (RoHS)
All parts in the Card Access Z2iR ZigBee-to-IR Module meet the material
restrictions of RoHS, as proposed by the RoHS Technical Adaptation
Committee. This is based upon information provided by suppliers of the raw
materials used by Card Access, Inc. to manufacture these products. As such,
Card Access, Inc. makes no independent representations or warranties,
expressed or implied, and assumes no liability in connection with the use of
this information.
One-Year Limited Warranty
This product is warranted to be free of defects in material and workmanship
for one year from date of original purchase from Card Access, Inc. (“Card
Access”).
Card Access will, at its election and as the purchaser’s or end user’s sole and
exclusive remedy for any breach of the limited warranty set forth above, repair
and communicated to Card Access within the one-year period described
above. Card Access is not responsible for removal or reinstallation costs. This
warranty is not valid in cases where damage to this product is the result or
arises out of misuse, abuse, incorrect repair or improper wiring or installation.
To notify Card Access of any breach of the foregoing limited warranty and to
obtain warranty service, contact Card Access Customer Support by e-mail to
dealersupport@cardaccess-inc.com or by calling 801-748-4900, extension 1,
to obtain a Return Materials Authorization (“RMA”) number and instructions
for returning your defective product to Card Access.
IMPLIED WARRANTIES, INCLUDING THOSE OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE, ARE EXPRESSLY
DISCLAIMED, EXCEPT WHERE SUCH DISCLAIMER IS PROHIBITED
BY APPLICABLE LAW. CARD ACCESS AND/OR THE SELLER
DISCLAIM(S) ANY AND ALL LIABILITY FOR SPECIAL, INCIDENTAL
AND CONSEQUENTIAL DAMAGE IN ANY WAY ASSOCIATED WITH OR
RELATED TO THE PURCHASE, INSTALLATION AND/OR USE OF THIS
PRODUCT.
Some states/provinces do not allow limitations on how long an implied
warranty lasts, or the exclusion or limitation of special, incidental or
consequential damages, so these limitations and exclusions may not apply
rights which vary from state/province to state/province.
This is Card Access’ exclusive written warranty.
About This Document
Copyright © 2012, Card Access, Inc. All rights reserved.
Card Access and Put MORE Automation in Home Automation are trademarks
of Card Access, Inc.
ZigBee and ZigBee PRO are marks of the ZigBee Alliance.
Control4 and DriverWorks are marks of Control4 Corp.
Other marks may be the property of their respective owners.
Contact Card Access
Web: http://www.cardaccess-inc.com/automation
Email: dealersupport@cardaccess-inc.com
Phone: +1.801.748.4900
Support: Extension 1
Sales: Extension 2
Fax: +1.801.748.4901
QSG-Z2IR-INST10
