scala-rider TeamSet TM
CARDO SYSTEMS INC.
2
Driver unit (yellow logo)
(with BT and Intercom capabilities)
Passenger unit (green logo)
(with Intercom capability only)
INTRODUCTION
This Quick Guide will get you started
using the scala-rider TeamSet. For more
detailed information, including safety
precautions, please download the
User Manual from our website at
www.cardowireless.com. Before
using the scala-rider TeamSet, please
familiarize yourself with the Bluetooth®
functionality of your cellular phone.
The retail box of the scala-rider TeamSet
contains two headset units: One device
for the driver and a second device for
the passenger.
The driver unit (yellow logo) includes a
Bluetooth module that connects with a
Bluetooth phone, and an intercom module
to communicate with the passenger.
The passenger unit (green logo) contains
only an intercom module that allows
communication with the driver. The
passenger unit cannot connect to a phone.

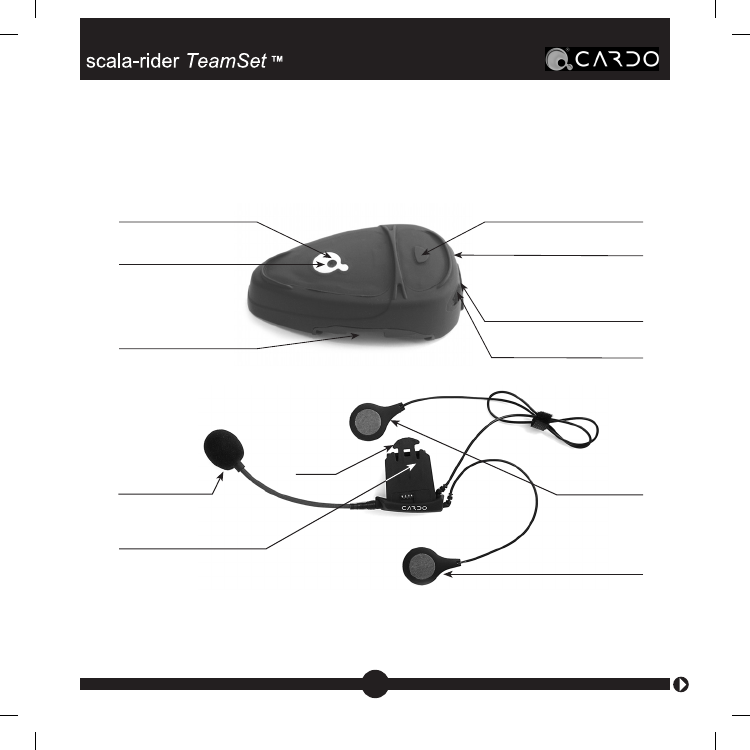

COMPONENTS
One headset for the driver and one headset for the passenger.
3
NOTE: The use of two speakers may be illegal in certain
jurisdictions. Please check the local regulations and act accordingly.
Microphone
Sliding Plate Left speaker
(short cord)
Right speaker
(long cord)
Control Button
Status Light
Sliding Panel
Volume Up
Intercom Button
Charging Jack
(Here shown with
closed cover tongue)
Volume Down
Tab
IMPORTANT
The scala-rider TeamSet is a water-resistant device, designed for use
under moderate rain or snow conditions. However, the headset is not
waterproof and should not be used under severe weather conditions.
The cover tongue protecting the Charging Jack should be kept tightly
closed at all times to prevent moisture from entering the device.
BEFORE USING (CHARGING THE HEADSET)
Make sure that both headsets are fully charged for at least 5 hours
before initial use.
1. Connect the wall charger to the headset’s Charging Jack (located
between the two Volume buttons).
2. While charging, the red Status Light illuminates (it may take up to 15
seconds until the red Status Light illuminates). When charging is
complete the Status Light will turn off.
GENERAL INSTRUCTIONS
All headset functions are controlled either by:
• Pressing the Control or Intercom Button either for a short period of less
than a second or a long period of over three seconds
Or
• Short pressing the volume up and volume down buttons.
4
TURNING THE DRIVER HEADSET ON FOR THE FIRST TIME
The driver unit (yellow logo): The driver unit permits two communication
modes:
• Mobile Phone connections with third parties
• Intercom connection with the passenger
In order for the headset to work with your cellular phone, they must first
recognize each other. This process is called “pairing”, and only needs
to be performed once for each phone.
1. Turn on your phone and make sure its Bluetooth function is activated.
2. With the headset turned off, press and hold the Control Button for ten
seconds until the red and blue Status Lights begin flashing.
3. Search for Bluetooth devices on your phone by following the phone’s
instructions.
4. After a few seconds the phone will list the scala-rider TeamSet as
a discovered device. Select it and follow your phone’s instructions to
accept the pairing.
5. When prompted enter 0000 (four zeros) as your PIN or passkey.
6. Your phone will confirm that pairing has succeeded.
Note: If pairing is not completed within two minutes the headset will
return to Standby mode.
Your headset can pair with up to eight phones, and will automatically
connect to the last phone connected to the headset.
5
The Passenger Unit (green logo): This unit is solely intended for intercom
connection with the driver and it cannot initiate or receive a phone call.
To turn on the Passenger Unit, press the Control Button until the blue
Status Light illuminates.
NOTE: The Driver and Passenger Units are already factory-synchronized
for Intercom communication with each other, and do not require any
synchronization by you.
SYNCHRONIZING INTERCOM BETWEEN THE PASSENGER AND
DRIVER HEADSETS
The two headset units (Driver and Passenger units) are supplied factory
synchronized for Intercom communication with each other. Therefore,
you do not need to perform the synchronization between these devices.
However, if you have purchased these units separately and not in the
TeamSet Retail box, you need to synchronize the devices yourself by
proceeding as follows:
1. Simultaneously press and hold the Intercom Buttons of both devices for
at least 10 seconds while watching the Status Light on the Passenger unit.
2. Once the Status Light on the Passenger unit lights steady red, wait three
seconds and then release both Intercom Buttons.
3. If successful, the steady red Status light on the Passenger unit will switch
to a steady blue light for a few seconds, then begin flashing blue. Your
two headsets are now synchronized for Intercom communication.
4. If the synchronization has failed, the steady red Status light on the
Passenger unit will turn off without switching to steady blue for a few
seconds, and you must repeat the synchronization procedure.
6
Back Plate
Allen Wrench
7

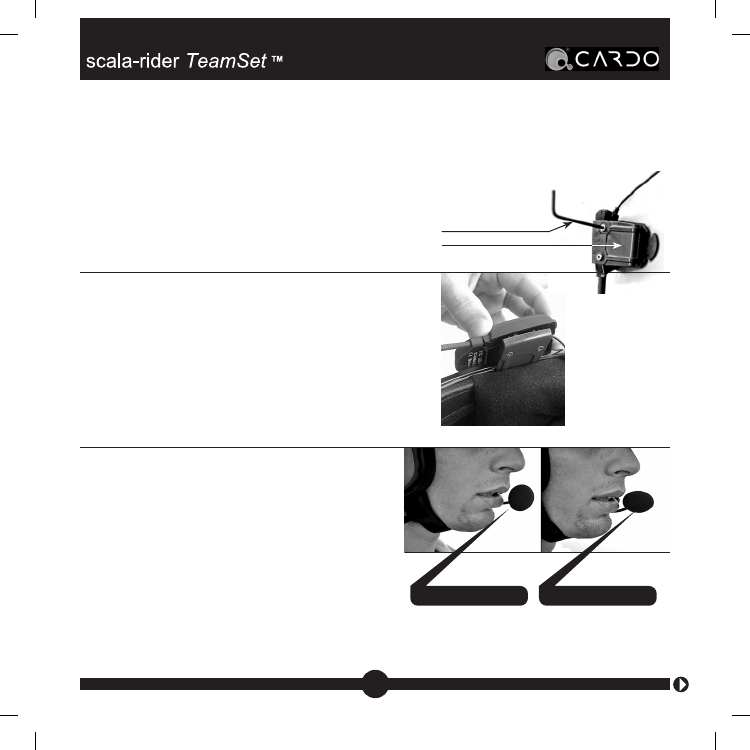

ATTACHING THE SCALA-RIDER UNITS TO YOUR HELMETS
Perform this procedure for both the driver and passenger helmets.
1. Use the enclosed Allen Wrench to
loosen the two screws on the Back
Plate.
2. Slide the Back Plate between the
internal padding and the external
shell of the helmet. (If the external
shell is too thick, use the supplied
plastic Extension Pad by loosening
the screws and fitting the extention
pad between the Back Plate and the
main body of the clamp).
3. Adjust the clamp’s location so that
the microphone is located in front of
your mouth, and then tighten the
screws. Attach the speakers to the
Velcro inside your helmet opposite
your ears (short speaker cord for left
ear & long speaker cord for right ear),
or use the supplied Velcro pad. INCORRECT
NOTE: The microphone must be positioned vertically and
not horizontally.
CORRECT
8
4. Slide the headset downwards along
the sliding panel until a clicking sound
indicates that the headset is locked
in place.

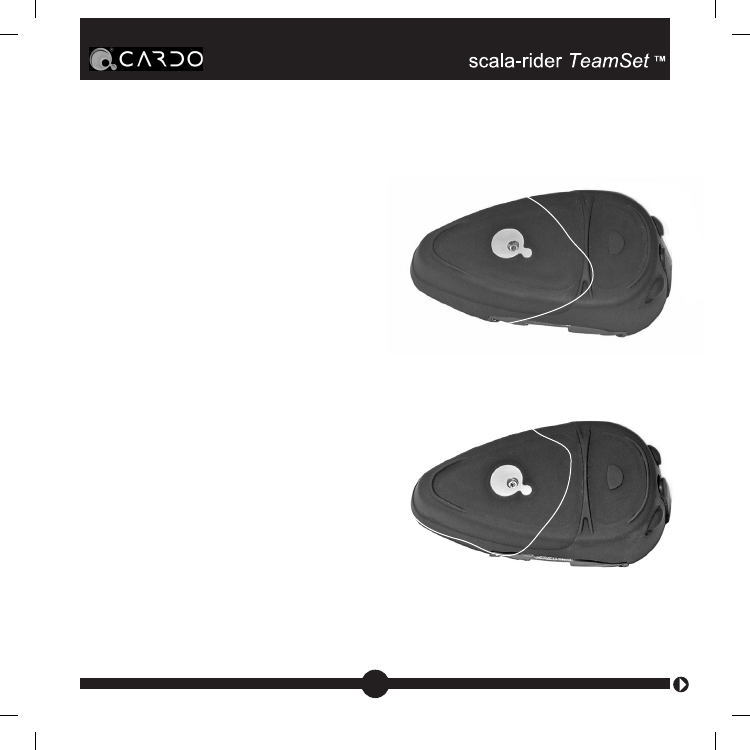

REMOVING THE HEADSET FROM THE HELMET
Your headset can be removed for charging and storage by pressing
your finger gently against the tab and sliding the headset up with the
other hand.
We recommend that you store your headset in the enclosed carrying
pouch when not in use.
Press here to
remove
DRIVER’S UNIT FUNCTIONS
DESIRED RESULT: REQUIRED ACTION:
GENERAL FUNCTIONS
Turn on the headset Press the Control Button steadily for at least 6 seconds
Turn off the headset Press the Control Button steadily for at least 3 seconds
Increase the volume Short press the Volume Up Button.
Decrease the volume Short press the Volume Down Button.
PHONE FUNCTIONS
Answer a call Short press the Control Button or speak loudly any word
of your choice.
Reject a call Short press the Intercom Button or remain silent for 15
seconds.
Terminate a call Long press the Intercom Button. For some mobile phones
you may need to press the Control Button to end the call.
Voice Dial During standby, short press the Control Button and state
the name of the person you wish to call. This feature is
supported only by mobile phones that support the Voice
Dial feature.
Redial During standby, long press the Intercom Button
Enable/Disable voice Long press the volume up and down buttons
command feature simultaneously until you hear a beep. The default status
is voice command enabled.
9
DRIVER’S UNIT FUNCTIONS (continued)
DESIRED RESULT: REQUIRED ACTION:
INTERCOM FUNCTIONS
Start using the intercom During standby, start speaking loudly to activate the
intercom
Terminate the operation Stop speaking. The audio connection will be terminated
of intercom within 25 seconds.
Conference Call (add During an active phone call, tap the Intercom Button.
passenger to an active
call)
End Conference Call During a conference call, tap the Intercom Button.
(release passenger
from a conference call)
Enable/Disable Voice Long press the volume up and down buttons until you
Command feature hear a beep. The default status is Voice Command
enabled.
PASSENGER’S UNIT FUNCTIONS
DESIRED RESULT: REQUIRED ACTION:
Turn on the headset Press the Control Button steadily for at least 3 seconds
Turn off the headset Press the Control Button steadily for at least 3 seconds
Start using the intercom During standby, start speaking loudly to activate the
intercom
Terminate operation Stop speaking. The audio connection will be terminated
of intercom within 25 seconds.
Enable/disable During standby, short press the Control Button.
Always On Intercom One tone = Always On intercom.
Two tones = Voice Controlled (VOX) intercom
Increase intercom volume Short press Volume Up Button
Decrease intercom volume Short press Volume Down Button
10
DRIVER’S UNIT STATUS LIGHTS
The Driver Headset uses the following Status Lights to display its current
state:
Status Light Status
None Headset is off
Alternating Red/blue flashes Pairing mode
1 blue flash every 3 seconds Standby – No call is in progress
2 blue flashes every 3 seconds Call being initiated or in progress
1 red flash every 3 seconds Battery is low
2 red flashes every 3 seconds Call being initiated or in progress and battery
is low
Steady red Headset is being charged
PASSENGER’S UNIT STATUS LIGHTS
The Passenger Headset uses the following Status Lights to display
its current state:
Status Light Status
None Headset is off
One blue flash every 3 seconds Headset is on
Steady red Headset is being charged
11
AUDIO TONES
With the exception of the actions below, all other actions are followed
by a single tone to confirm that the headset has accepted the command.
Action Tone
Enable/Disable Always On One tone = Always On intercom
intercom Two tones = Voice Controlled (VOX) intercom
Intercom on other side is 2 beeps to alert you that the other side is not
not enabled or off and you available
start speaking
TROUBLESHOOTING
Problem Action
Phone-Related Problems (Driver Unit with Bluetooth Phone)
Unsuccessful Bluetooth Pairing 1. If listed, delete scala-rider from your paired
device list of your phone.
2. Turn off the phone and headset.
3. Remove the battery from the phone, then place
the battery back in the phone.
4. Repeat the pairing process as described above.
I cannot hear stereo sound The two speakers provide only dual mono signals.
Can’t answer calls or perform 1. Make sure that the scala-rider headset is turned
voice dialing by pressing the ON and in standby mode with the blue Status
Control Button Light slowly flashing.
2. Verify that the Bluetooth function on your phone
is set to ON.
12
3. Verify that the scala-rider headset is the paired
headset to your phone.
4. Reconnect the phone and headset by short
pressing the Control Button on the headset, or
connecting them manually by using your
phone’s menu.
5. Check the definitions and settings on your
phone.
6. Repeat the pairing process as described in
TURNING THE DRIVER HEADSET ON FOR
THE FIRST TIME, page 5.
Cannot terminate calls using Your phone supports only the Bluetooth headset
the intercom button profile and not the handsfree profile. Therefore
you must use the Control button to answer or
terminate calls.
Can’t answer phone calls 1. Make sure that you speak the word loudly after
using the Voice Command prompting
(VC) feature. 2. Close the helmet visor.
3. Make sure that the VC feature is activated (see
Driver’s Unit Functions, page 9)
4. The VC feature works well while driving up to
70 km/h or 44 mph with a 3/4 helmet and up to
120 km/h or 75 mph with a closed full faced
helmet. High-end helmets may get better results.
I cannot perform redial 1. Make sure that the call list on your phone is
not empty.
2. The Redial feature works only with mobile
phones that also support the Bluetooth
handsfree profile. Check whether your phone
supports this profile.
13
Battery does not provide at 1. Make sure your scala-rider headset is fully
least five hours of talk time charged. Charging time is up to 5 hours for an
empty battery. When the headset is connected
to the charger and it is fully charged, the red
Status Light turns off.
2. You may have inadvertently left the
Always-On Intercom on.
I’m trying to reject incoming 1. Make sure the VC feature is enabled
calls by remaining silent, but 2. Reject feature works only with mobile phones
the phone continues to ring. that support Bluetooth hands-free profile. Make
sure your mobile phone supports this profile.
Red Status Light does not 1. Make sure the Charging Jack is firmly plugged
light steady when charger into the headset and wait 5 seconds
is connected. 2. Disconnect the Charging Jack wait a few
seconds and plug it back in.
3. When the headset is fully charged the red light
turns off.
I hear crackling noises 1. Possibly caused by nearby interference. If you
have a GSM phone and your headset is too
close to phone, noises may be heard.
2. Headset and mobile phone are more than 30
ft. (10 m) apart or there are major obstacles
(such as concrete walls) between the headset
and mobile phone.
Sound deteriorates when the Some mobile phones emit weaker Bluetooth
phone is in my back pocket. signals than others, resulting in reduced sound
quality, especially when the phone is close to your
body. Suggestion: Move the phone to your breast
14
pocket or at least to a front pocket on the same
side you wear your headset.
The party I am speaking to 1. Close helmet cover under high speed conditions.
complains about insufficient 2. Make sure the microphone is in front of your
audio quality mouth. The microphone should be positioned
vertically as described on page 7.
Intercom-Related Problems (driver/passenger)
Cannot initiate conversation 1. Try speaking louder.
with other party 2. Make sure the microphone is located in the
(driver/passenger) correct place as described in this guide
3. Make sure that intercom is not disabled in both
driver and passenger units. (To toggle Intercom
operation, tap the intercom button. You will
hear one beep when enabled; two beeps means
that the intercom is disabled.)
I keep hearing the speaker 1. If you drive with an open face helmet at 60
even though no-one is km/h (37 mph) or use a closed helmet above
speaking (audio connection 110km/h (68 mph), the wind noise may activate
is not released). the intercom connection between passenger
and driver.
2. You can disable the intercom by following the
instructions shown above.
3. Make sure the microphone is placed at the
correct location as described in this guide
When I receive an incoming This is normal behavior. The driver may choose
call, the intercom disconnects to bring the passenger into a conference call by
short pressing the Intercom Button.
15
Federal Communications Commission (FCC) Statement
15.21
You are cautioned that changes or modifications not expressly approved by the part
responsible for compliance could void the user’s authority to operate the equipment.
| NOTICES
15.105(b)
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Operation is subject to the following two conditions:
1) this device may not cause interference and
2) this device must accept any interference, including interference that may cause
undesired operation of the device.
FCC RF Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. End users must follow the specific operating instructions for satisfying
RF exposure compliance. This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
Industry Canada (IC) Statement
15.21
You are cautioned that changes or modifications not expressly approved by the part
responsible for compliance could void the user’s authority to operate the equipment.
15.105(b)
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the IC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the
following measures:
¥ Reorient or relocate the receiving antenna.
¥ Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
¥ Consult the dealer or an experienced radio/TV technician for help.
Operation is subject to the following two conditions:
1) this device may not cause interference and
2) this device must accept any interference, including interference that may cause
undesired operation of the device.
IC RF Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled
environment. End users must follow the specific operating instructions for satisfying
RF exposure compliance. This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
European CE Notice
The scala-rider TeamSet Driverô headset (the “Product”) is in conformity with the
following essential requirements of Council Directive 1999/5/EC (referred to as R&TTE
Directive): Articles 3.1a, 3.1.b and 3.2. The Product is manufactured in accordance
with Annex II of the above directive.
Declaration of Conformity (DOC)
The scala-rider TeamSet Driverô headset is compliant with and adopts the Bluetooth
Specification 2.0 and has successfully passed all interoperability tests that are specified
in the BluetoothÆ specification.
However, interoperability between the device and other Bluetooth- enabled products
is not guaranteed.
WAIVER AND GENERAL RELEASE
By using the scala-rider TeamSet Driver you will waive substantial legal rights
including the right to sue. Please read the following carefully before using the
device. If you do not accept all terms of this agreement, you should immediately
return the product for a full refund. By using the headset you agree to be bound
to this agreement and forfeit the right to sue.
Using a communication device while riding a motorcycle, scooter, moped, ATV, quad-
bike or any other vehicle or equipment, whether on land, water or air (jointly referred
to as ìVehicleî) requires your complete and undivided attention. Cardo Systems, Inc.,
including its Officers, Directors, Affiliates, Parent Company, Representatives, Agents,
Contractors, Sponsors, Employees, Suppliers and Resellers (jointly referred to as
the “Company” or “Cardo”) strongly advises you to take all necessary precautions
and remain alert to the traffic, weather and road conditions if you choose to use the
scala-rider TeamSet Driver headset, including all derivative models irrespective of
its commercial name or branding (the “Device”), and stop your Vehicle on the roadside
prior to initiating or receiving calls. Any publications, advertisements, announcements
or similar notes that refer to using the Device while riding a Vehicle are solely intended
to address its technical capabilities and should not be misconstrued as if encouraging
users to operate the Device while actively involved in traffic.
By way of purchasing this Device and not returning it for a full refund (see
below), you are irrevocably releasing, indemnifying from any liability, loss,
claim and expense (including attorneys fees) and holding Cardo harmless
for any bodily injuries, harm or death as well as losses or damages in
goods, to any Vehicles including your own, or to any property or asset that
belong to you or to third parties, any of which may result from using the
Device under any circumstances or conditions and irrespective of jurisdiction.
Cardo will not be responsible for any physical damages, irrespective of
reasons, conditions or circumstances, including malfunctioning of the Device,
and all risks associated with operating it rest solely and entirely with the
user of this Device, irrespective of whether the Device is used by the original
purchaser or any third party.
Cardo hereby notifies you that using this Device may also be in contravention
to local, federal, state or national laws or regulations, and that any use of
the Device is entirely at your sole risk and responsibility.
1. You, your heirs, legal representatives, successors or assigns, hereby
voluntarily and forever release, discharge, indemnify and hold harmless
Cardo from any and all litigation, claims, debts, demands, actions and
liability which may arise, directly or indirectly, from using the Device for
any distress, pain, suffering, discomfort, loss, injury, death, damages to
or in respect to any person or property however caused, WHETHER
ARISING FROM THE NEGLIGENCE OR OTHERWISE, and which may
hereafter accrue to you on some future date as a result of said use, to
the fullest extent permitted by law.
2. You fully understand and assume the risks in using the Device, including
risk of negligent acts or omissions by others.
3. You confirm that you are physically capable to use the Device and that
you have no medical conditions or needs that may infringe upon your
abilities to do so in a safe manner. You confirm that you are at least
eighteen (18) years of age and that you have been advised of the risks
associated with the use of the Device. You further confirm that you will
not consume any alcohol that may affect your alertness or any mind-
altering substance, and will not carry, use or consume these substances
before or during the use of the Device.
4. You fully acknowledge our warnings and understand that: (a) risks and dangers
exist in using the Device while in traffic, including but not limited to injury or illness,
strains, fractures, partial and/or total paralysis, death or other ailments that could
cause serious disability; (c) these risks and dangers may be caused by the negligence
of the manufacturers or its agents or
any third party involved in designing or manufacturing the Device; (d) these risks and
dangers may arise from foreseeable or unforeseeable causes. You hereby assume
all risks and dangers and all responsibility for any losses and/or damages, whether
caused in whole or in part by the negligence or other conduct of others, including the
Company.
5. You confirm that you have read this release of liability and fully understand its
terms and that you have given up substantial rights by not returning the Device for
a full refund (see refund option below).
Disclaimer of Warranty
CARDO DISCLAIMS ALL EXPRESS AND IMPLIED WARRANTIES WITH REGARD
TO THE ENCLOSED DEVICE, INCLUDING WITHOUT LIMITATION ANY IMPLIED
WARRANTIES OF MERCHA NTABILITY, FITNESS FOR A PARTICULAR
PURPOSE, AND NON-INFRINGEMENT. THE DEVICE AND ITS ACCESSORIES
ARE PROVIDED ìAS ISî AND ìAS AVAILABLEî WITHOUT WARRANTY OF ANY
KIND BEYOND THOSE ASSUMED IN THE ENCLOSED MANUAL.
Limitation of Liability
IN NO EVENT SHALL CARDO BE LIABLE FOR ANY SPECIAL, INDIRECT, PUNITIVE,
INCIDENTAL, EXEMPLARY OR CONSEQUENTIAL DAMAGES, OR ANY DAMAGES
WHATSOEVER RESULTING FROM THE USE OF THE DEVICE, WHETHER BASED ON
BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY OR
OTHERWISE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. YOU
ACKNOWLEDGE AND AGREE THAT THE LIMITATIONS SET FORTH ABOVE ARE
FUNDAMENTAL ELEMENTS OF THIS AGREEMENT AND THE DEVICE WOULD NOT BE
PROVIDED TO YOU ABSENT SUCH LIMITATIONS. SOME STATE STATUTES MIGHT APPLY
REGARDING LIMITATION OF LIABILITY.
RETURN FOR FULL REFUND
IF YOU ARE UNWILLING TO ACCEPT AND AGREE TO THE ABOVE CONDITIONS, YOU
MAY RETURN THIS DEVICE TO CARDO FOR A FULL REFUND, PROVIDED THAT YOU DO
SO NO LATER THAN 7 BUSINESS DAYS FOLLOWING THE PURCHASE OF THE DEVICE
(proof of purchase required) AND SUBJECT TO THE WRAPPING BEING INTACT. WHEN
DOING SO, PLEASE REFER TO THIS SECTION.
BY NOT RETURNING THE DEVICE FOR REFUND WITHIN THE PERIOD PROVIDED, YOU
ARE EXPLICITLY IN AGREEMENT WITH THE ABOVE, AND RENOUNCE ALL RIGHTS TO
FUTURE CLAIMS AND DEMANDS AGAINST CARDO AS DEFINED ABOVE.
QGTS_027_0566
PLEASE NOTE: THE USE OF THIS PRODUCT IS AT YOUR SOLE RISK AND MAY BE
ILLEGAL IN CERTAIN JURISDICTIONS. ALL WAIVER PROVISIONS CONTAINED IN THE
COMPREHENSIVE USER MANUAL APPLY. IF YOU ARE UNWILLING TO ACCEPT ANY
OF THE SAID WAIVER CONDITIONS YOU MAY RETURN THE PRODUCT FOR A FULL
REFUND ACCORDING TO COMPANY POLICY TERMS.
SUPPORT
For additional information visit our website at
www.cardowireless.com, or call us at:
Toll-free USA: 1-800 488-0363
Europe: +49 89 450-36819
Developed and Manufactured by:
www.cardowireless.com
