AA2204_en | 2012-07-27 1–1
1
Overview
The Laser Imaging System is a continuous-tone laser imager with an internal
photothermographic film processor. Heat, rather than photo chemicals, is used to
develop the film. This easy-to-use and reliable imager provides high-quality prints. Use
the prints from this system for:
• Diagnostic purposes to determine patient treatments, including imaging for full field
digital mammography
• Referral, sharing, or educational purposes
The system receives and prints from qualified image sources such as medical electrical
equipment (modalities) and workstations over the network. You can send print jobs
simultaneously from multiple image sources. The open design lets you connect to
modalities of all types and vendors.

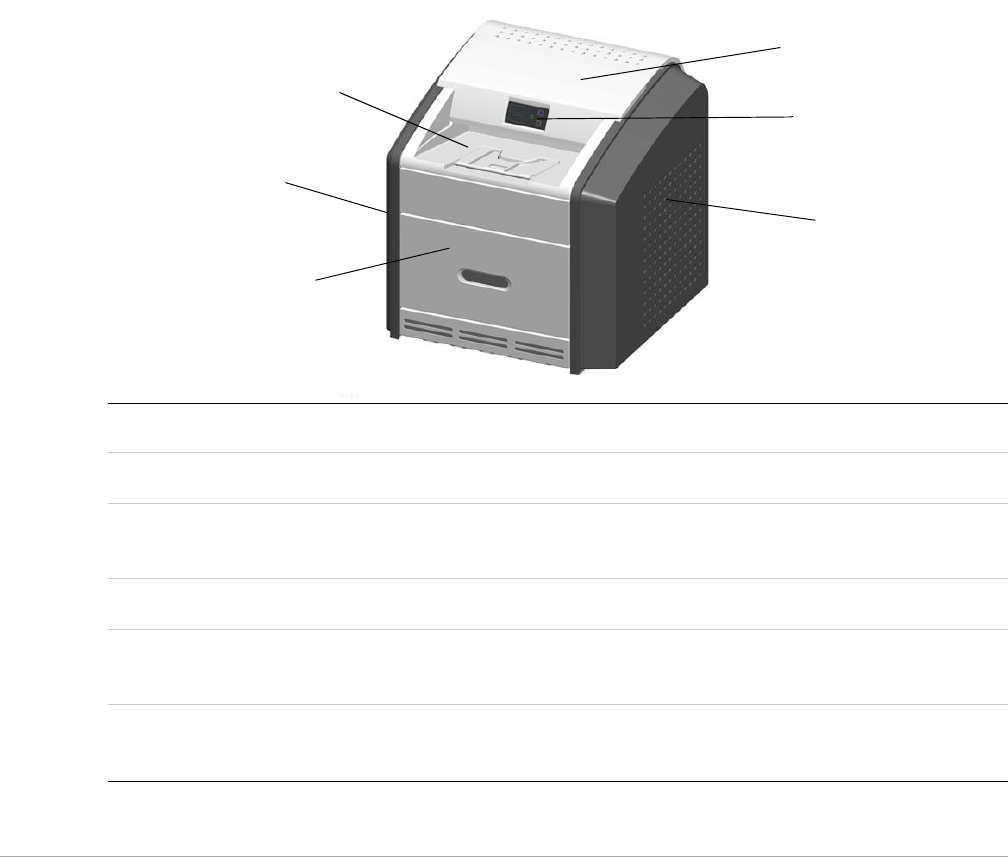

1Top cover. Covers the processor rollers. The top cover is interlocked.
2Display screen. Provides an interface to the imager, with status and error information.
3Right cover. Protects sensitive electronic equipment. The right cover is interlocked and
is only accessed by service personnel.
4Film supply cover. Covers the upper and lower film supplies. Supports five film sizes.
5Left cover. Covers the left side of the imager. You might remove the left cover to clear
an occasional film jam. The left cover is interlocked.
6Exit tray. Holds up to 50 processed sheets of film. Extend the exit tray to hold large film
(35 x 43 cm, or 14 x 17 in.) as it finishes printing.
1
2
4
6
5
3
SHORT TERM CONFIDENTIAL
Overview
1–2 AA2204_en | 2012-07-27
Major Internal Assemblies
1Airflow manifolds. Remove heat and processing odors from the processor assembly.
2Exit rollers. Move the film from the processor area to the exit tray.
3Optics module. Writes the image onto the film while the film is moved through the
exposure transport.
4Charcoal filter. Absorbs the odors caused by heat processing.
5Accumulator. Receives the film as it is imaged. When imaging is complete, the film is
sent from the accumulator up to the processor assembly where the heat is applied to
process the image.
H241_0003DC
H241_0003DCA
1
2
3
4
5
6
7
8
9
10
11
SHORT TERM CONFIDENTIAL
Overview
AA2204_en | 2012-07-27 1–3
6Rollback assemblies (upper and lower). Roll the film cartridge cover back so the
pickup assembly can lift the film. When the imager is not printing, the cover is closed
over the film cartridge to protect the film from light.
7Feed rollers. Move the film through the imager.
8Pickup assemblies (upper and lower). Lift a single sheet of film from the supply
cartridge and feed it into the rollers.
9Transport guides. Orient and center the film while moving the film from the supply to
the imaging portion of the imager.
10 Exposure transport. Moves the film past the scanning laser beam.
11 Processor drum. Provides the heat that processes the image on the film.
SHORT TERM CONFIDENTIAL
Overview
1–4 AA2204_en | 2012-07-27
How the Imager Works
The imager receives, processes, manages, and prints the images on film. The imager has
limited storage to hold a small number of digital images. As images are received for
printing, they are stored in memory, placed in a sequential print queue, and printed in
order. The imager can continue to accept incoming print jobs even if temporarily unable
to print (if the film supply is empty, etc.).
During normal operation, the imager requires very little attention. It prints automatically
in response to print requests from the configured image sources. Information sent with
the images by the image source, such as film type and size and image quality settings, is
applied unless you set the imager to override information that comes from the image
source.
Print Sequence
SHORT TERM CONFIDENTIAL
Overview
AA2204_en | 2012-07-27 1–5

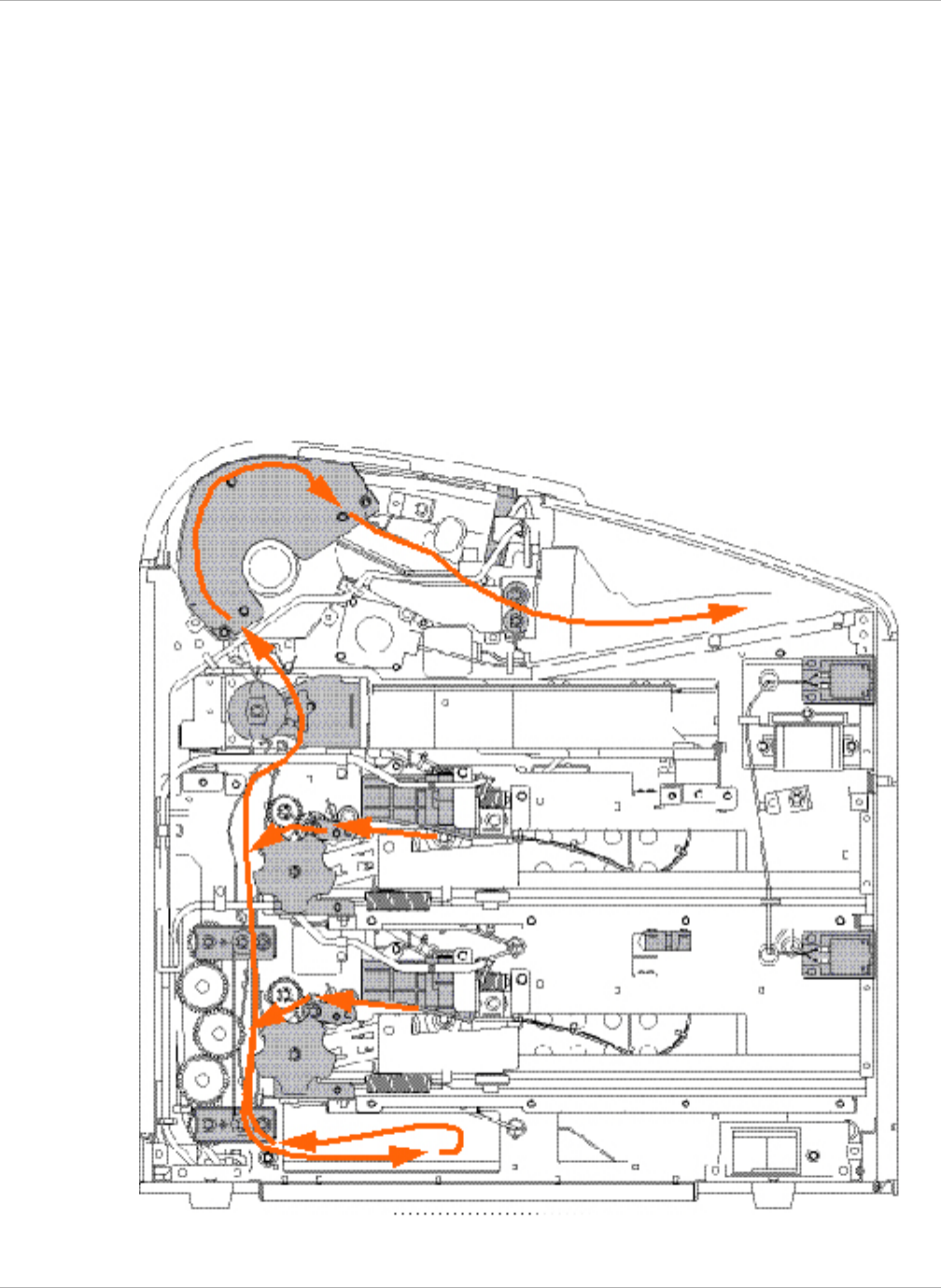

Each time the imager receives a print request, the following print sequence occurs. The
arrows show the film path.
1. Suction cups in the pickup area lift a single sheet of film out of one of the supply
cartridges and feed the film into the transport rollers.
2. The transport rollers move the film down into the exposure transport area.
3. The film moves down during imaging (as the optics module writes the image onto
film), reverses direction at the conclusion of imaging, and then the film moves up into
the processor.
4. As the film passes over the processor drum, the heat generated by the drum develops
the film.
5. The exit rollers move the developed film to the exit tray.
Film Sizes
The imager supports five sizes:
• 35 x 43 cm (14 x 17 in.)
• 35 x 35 cm (14 x 14 in.)
• 28 x 35 cm (11 x 14 in.)
• 25 x 30 cm (10 x 12 in.)
• 20 x 25 cm (8 x 10 in.)
Clear, blue, and mammography film types are supported.
Mammography Imaging
To manage and support mammography imaging, the imager provides these features:
• You can load mammography film in one or both film supplies.
• The imager only prints mammography images on mammography film. If a
mammography image request is received, and:
– a cartridge with mammography film is not loaded,
and/or
– the requested mammography film size is not loaded,
then the imager will request the appropriate film size and type. You must load the
requested size and type to print the mammography job.
• Several mammography-specific test prints are provided, including a default test print
for the routine calibration of mammography film (for example, a density wedge
print). The default mammography test print is configured during installation and can
be changed from the Web Portal.
Note
For help with the quality control process for mammography, see the Quality Control Manual.
Requirements for mammography quality control vary by region.
SHORT TERM CONFIDENTIAL
Overview
1–6 AA2204_en | 2012-07-27
Automatic Image Quality and Processing
An internal densitometer enables the imager to automatically adjust image processing
parameters using Automatic Image Quality Control (AIQC) to produce an optimal image.
The imager adjusts these parameters each time it prints a calibration film.
A calibration film is printed when:
• A film cartridge is inserted in the imager with film of a new lot number.
• You request a calibration film at the display screen or the Web Portal.
• A film cartridge is inserted into the imager for which a current calibration is not
stored.
Related topics
Calibrate the Imager for the Loaded Film
Configure and Monitor the System (Using the Web
Portal)
The Web Portal is your interface to additional features. In addition to the installation and
setup of your system, you can view and manage the imager's connections over the
network, configure features, view error messages, and access general status information
at the Web Portal. You can also check film count, film size, and film type.
Related topics
Access the Web Portal
Enhanced Serviceability with Remote Monitoring
Remote Management Services is set up through the Web Portal, and is designed to
enhance efficient system serviceability and simplify analytical and service processes
through the monitoring of your equipment. Additionally, this simplifies the service
process by providing qualified service personnel with faster, easier, and more complete
access to the operational history of each system.
Remote Management Services provides the following for the imager:
• Ability to monitor and diagnose error conditions without introducing “downtime”
• Firewall-safe, Internet transmission of machine data, while complying with patient
confidentiality regulations
• Minimal effort to set up communication
• Flexibility to facilitate specific configurations at each site
Agency Compliance
See the Safety Manual.
SHORT TERM CONFIDENTIAL
Overview
AA2204_en | 2012-07-27 1–7
User Manual Conventions
The following special messages emphasize information or indicate potential risks to
personnel or equipment.
Note
Notes provide additional information, such as expanded explanations, hints, or reminders.
Important
Important notes highlight critical policy information that affects how you use this guide and this
product.
Caution
Cautions point out procedures that you must follow precisely to avoid damage to the system or
any of its components, loss of data, or corruption of files in software applications.
DANGER
Danger identifies procedures that you must follow precisely to avoid injury to yourself or others.
Laser Warning
Laser warnings warn personnel that access to laser radiation is possible and all personnel must
avoid direct exposure to the beam.
SHORT TERM CONFIDENTIAL
SHORT TERM CONFIDENTIAL
AA2204_en | 2012-07-27 2–1
2
Basic Operating Tasks
During normal operation, the imager receives and automatically prints images sent by
modalities over a network. Very little interaction is required. You can do the following:
• Turn the power on (|) and off (0).
• Load the film cartridges.
• Monitor the display screen for status and operating conditions.
Sometimes it will be necessary to perform preventive maintenance, filter replacement,
and other corrective actions such as a restart.
You also may access the Web Portal to perform additional configuration, optimize image
quality, or do troubleshooting tasks.
Related topics
Maintenance and Troubleshooting
Access More Functionality with the Web Portal
SHORT TERM CONFIDENTIAL
Basic Operating Tasks
2–2 AA2204_en | 2012-07-27
The Display Screen
The display screen communicates the status of the imager.

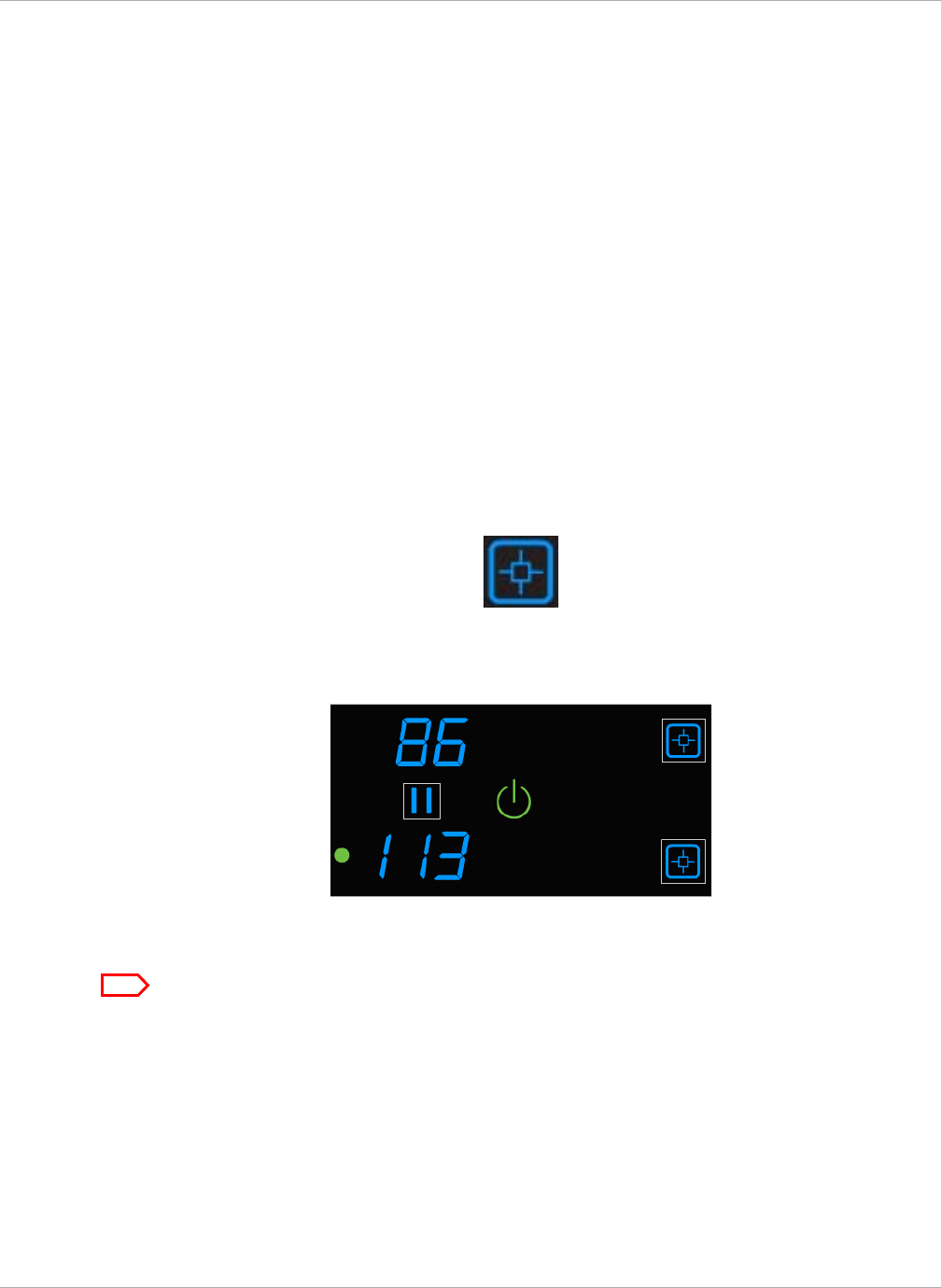

Figure 1: Display screen: normal state, processing a print job from the upper supply. In this
example, there are 86 sheets of film in the upper cartridge and 113 sheets in the lower cartridge.
Symbol or code Description
Upper and lower
left side:
Film counts. Displays the number of films that are remaining in the upper
and lower film cartridges.
If a blue number does not display while the imager is powered on, the
associated film cartridge is not inserted (or not fully inserted) into the
imager.
Center right: Error or status code. The 3-digit code displays when the error or status
condition is present. If the imager is on and a 3-digit code does not
display, the imager is operating normally.
• If a different film size or type has been requested than either of the
loaded sizes, the requested film size displays. For mammography film,
an M displays in front of the film size; B indicates the blue base film,
and C indicates the clear base film.
• When the imager is starting, a countdown displays the number of
minutes until the imager will be ready to print (for example, -4 means
4 minutes until the imager will be ready to print).
SHORT TERM CONFIDENTIAL
Basic Operating Tasks
AA2204_en | 2012-07-27 2–3

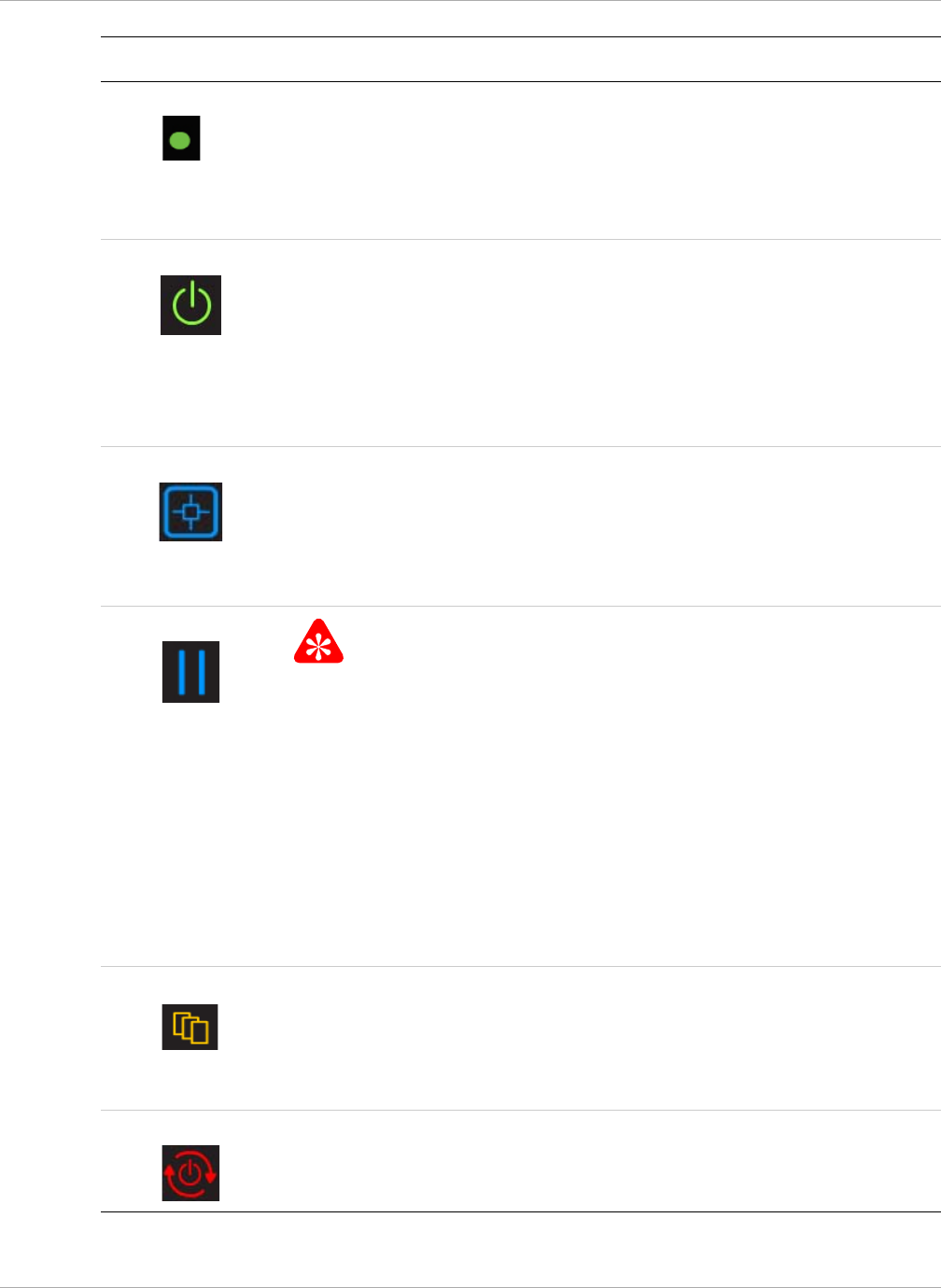

Indicator light The light indicates the active cartridge. For example, when printing from
the upper supply, the indicator light appears next to the upper film count.
• When green, operation is normal.
• When amber, the light indicates that there is an issue with the film
supply, such as a jammed film.
Power When the symbol is green, the power is on and the imager is ready to
print.
• The symbol flashes while the imager is processing, calibrating, or
making a test print.
• When the symbol is amber, the imager is not ready to print. Examples
are when the imager has just been started, when a film cartridge is
empty or jammed, and when a cover is removed.
Calibrate Press to initiate film calibration for the film cartridge (upper or lower).
• The symbol flashes while the calibration is in process, when making a
test print (upper or lower), and when the filter must be reset.
• When amber, there is an error such as a failed calibration. The
indicator light associates the error code to the film cartridge.
Pause
Important
To avoid exposing the film to light, do not open the film supply until the
Pause symbol is off. Wait until the symbol is off to replace a cartridge.
• During most normal operation, including when the imager is idle, the
symbol is off.
• The symbol is on while the imager is processing images, test prints,
and during calibration.
• The symbol flashes when a film cartridge cover is being removed and
when the cartridge is open.
If the Pause symbol is on, you can press the symbol to temporarily pause
printing. Any jobs in progress finish printing, then the film cartridge cover
closes.
Film Size When this symbol appears, the requested print job requires a different
film size. The required film size flashes in the location of the error or
status code.
You can also press the symbol to delete the pending jobs that require a
different film size.
Restart Restart the imager. An error code also displays to indicate the reason for
the restart.
Symbol or code Description
SHORT TERM CONFIDENTIAL
Basic Operating Tasks
2–4 AA2204_en | 2012-07-27
Related topics
Maintenance and Troubleshooting
Load a Different Film Size to Match a Print Request
Calibrate the Imager for the Loaded Film
Delete All Pending Jobs
Make a Test Print
Restart the Imager
Preventive Maintenance

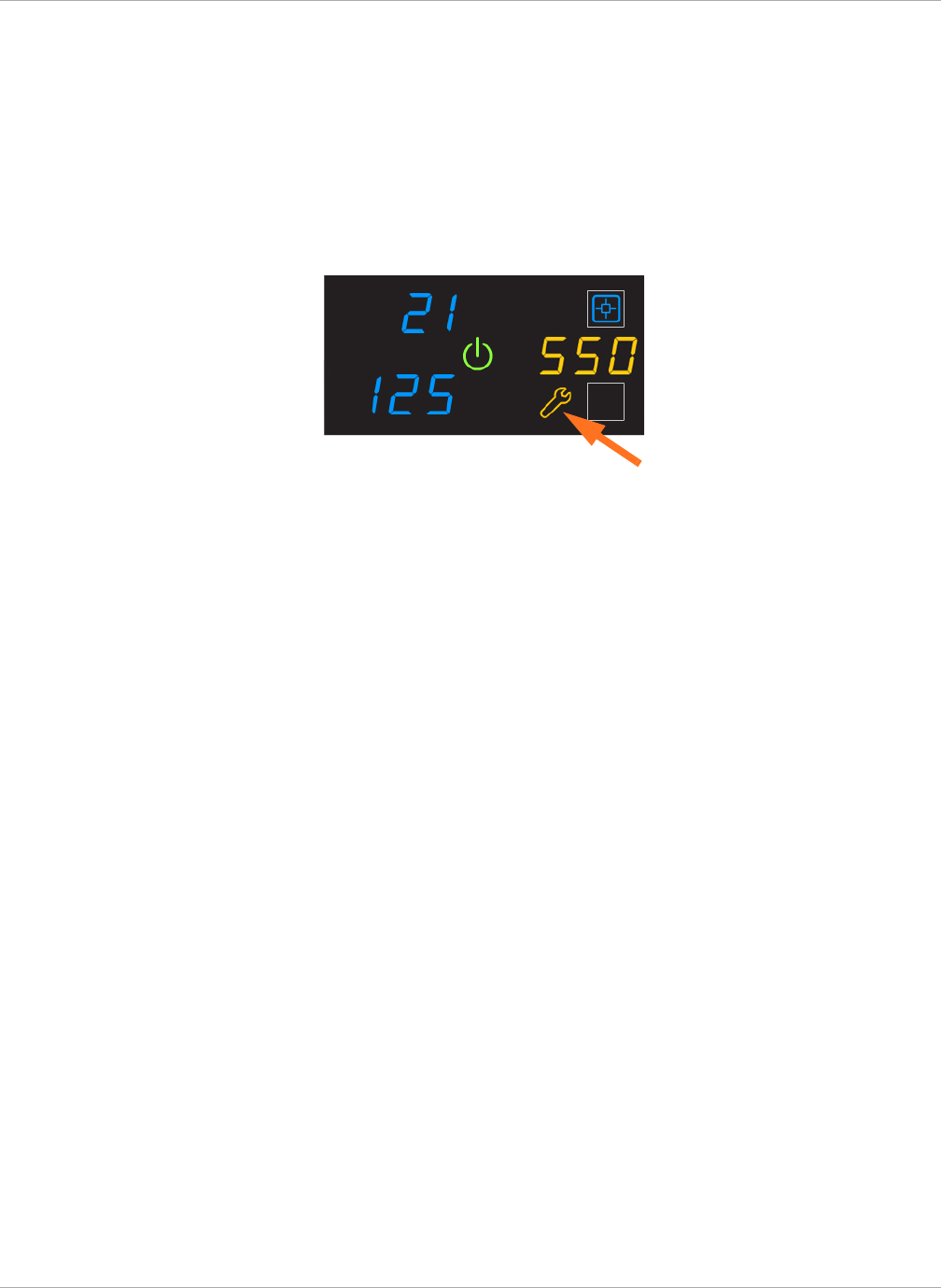

Film Jam Film is jammed from the upper or lower cartridge. The error code
confirms the film jam and gives direction on where to find the film inside
the imager. The indicator light associates the error code with the film
cartridge.
Maintenance Preventive maintenance is required. An error code also displays to
indicate the action to take.
Symbol or code Description
SHORT TERM CONFIDENTIAL
Basic Operating Tasks
AA2204_en | 2012-07-27 2–5
Imager Power
Power Switch Location
The power switch is on the lower back panel.
Start the Imager
1. Press the power switch on the back of the imager on.
2. Wait as the imager warms up.
The warm-up period might last up to 30 minutes. The display screen shows the
progress as the imager becomes ready to print.
Figure 2: The imager counts up to zero (0) to indicate how soon the imager will be ready to
print. In this example, the imager will be ready to print in 7 minutes. The amber power symbol
also indicates that the imager is not ready to print.
The warm-up period varies depending on the amount of time the imager has been
off and the ambient temperature. During the warm-up period, the imager can
receive and store images but cannot print films.
When the imager reaches operating temperature, the display screen changes to show
that the system is ready to print, and the imager prints any images that were received
during the warm-up period.
SHORT TERM CONFIDENTIAL
Basic Operating Tasks
2–6 AA2204_en | 2012-07-27
Figure 3: The green power symbol indicates that the imager is ready to process job requests.
Emergency Shutdown or Power Loss
In the event of a power loss, or if an emergency requires an immediate shutdown of the
imager, films in process will not be completed. However, when power is restored, the
imager will restart. After warming up, the imager automatically reprints any films that
were in process when the power was interrupted.
Restart the Imager
If the imager encounters an error that is usually corrected with a restart, the display
screen shows the Restart symbol.

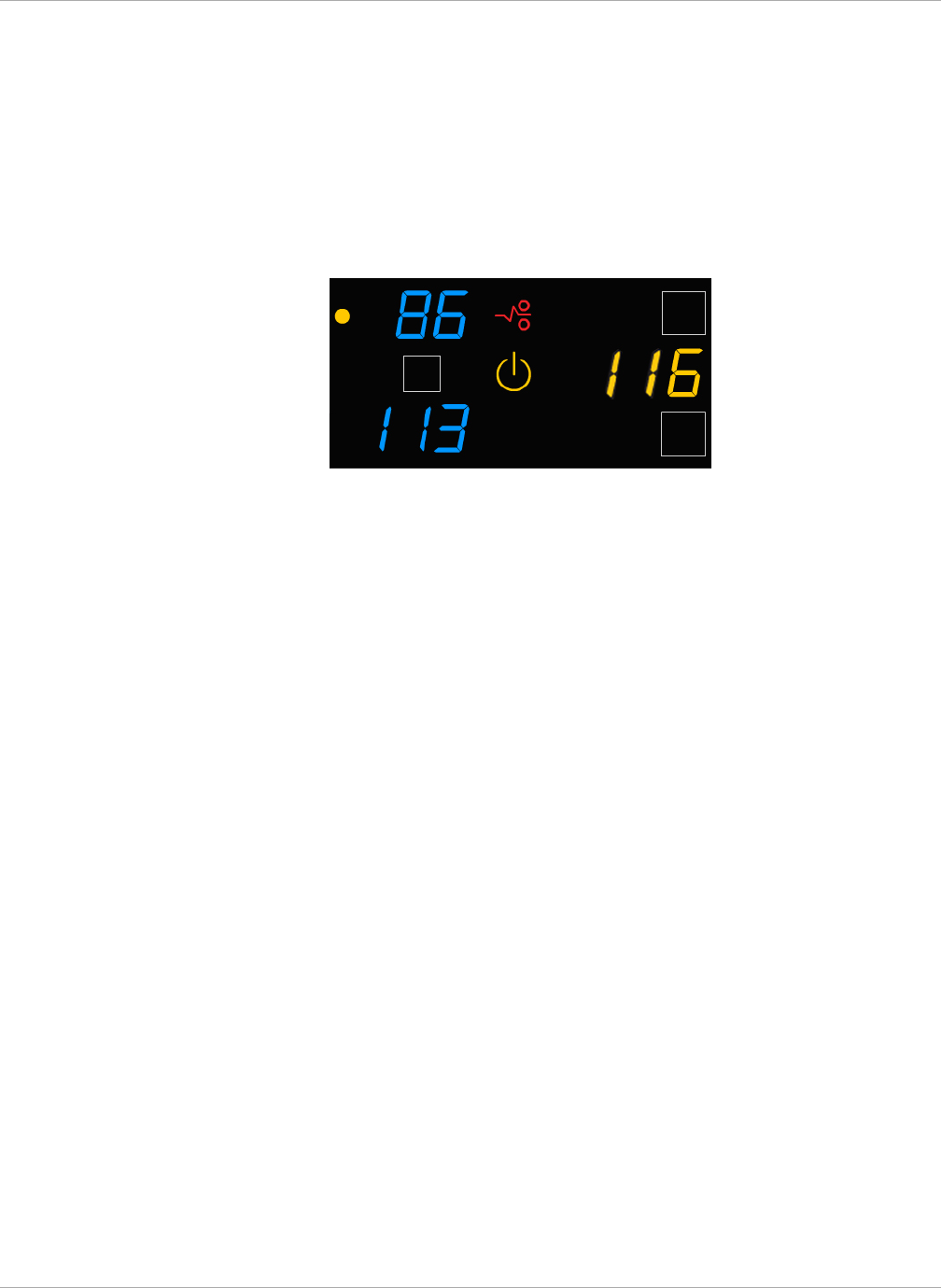

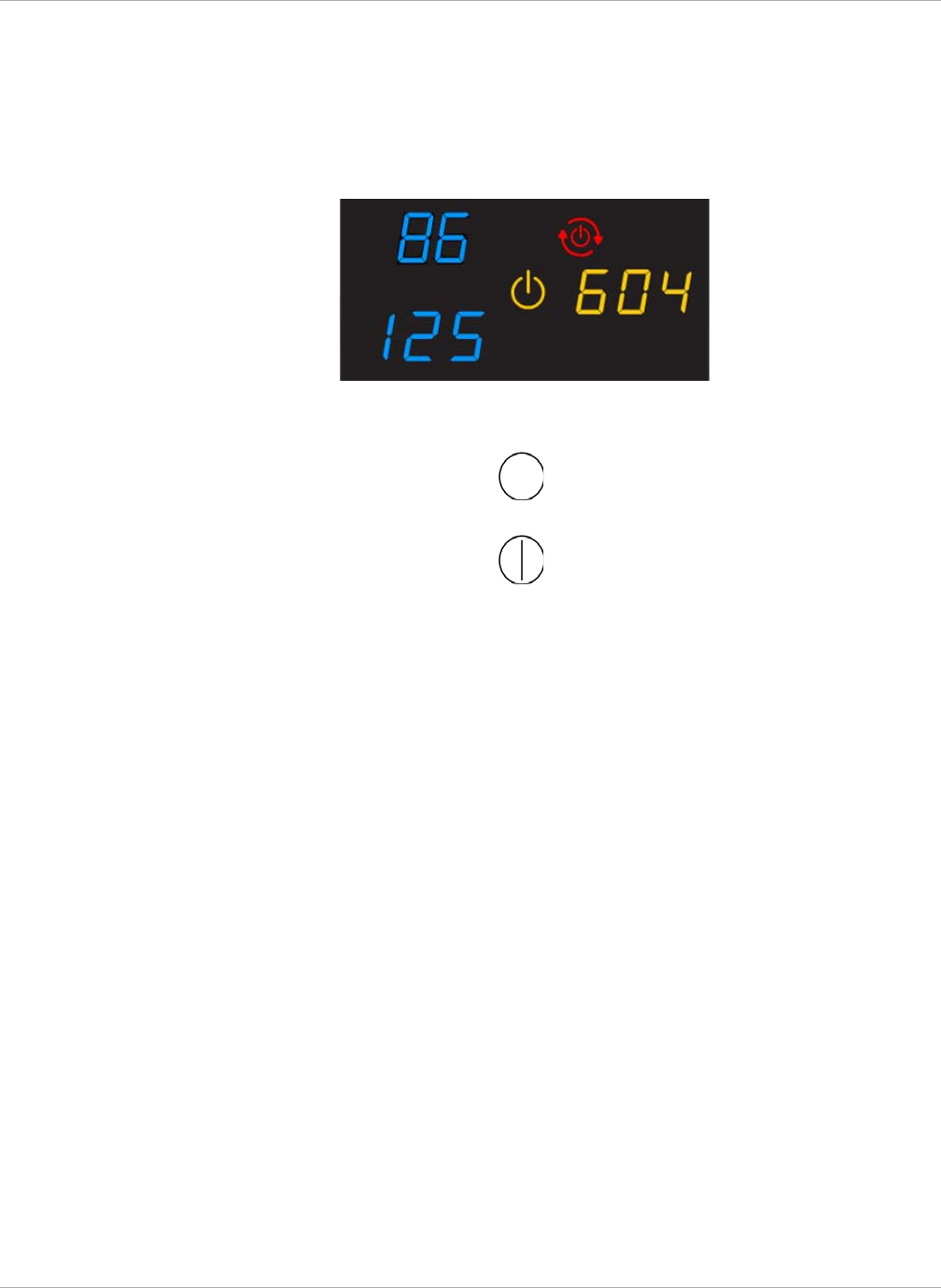

Figure 4: A restart is required, and the error code indicates the error condition.
Note
Check the Troubleshooting chapter or the Quick Reference Card to identify the error code.
1. Press the power switch on the back of the imager off.
2. Press the power switch on.
If the error does not clear after the restart, it might be necessary to contact a qualified
service provider.
SHORT TERM CONFIDENTIAL
Basic Operating Tasks
AA2204_en | 2012-07-27 2–7
View the Film Cartridge Information
Film Count
The upper and lower film counts appear on the display screen.

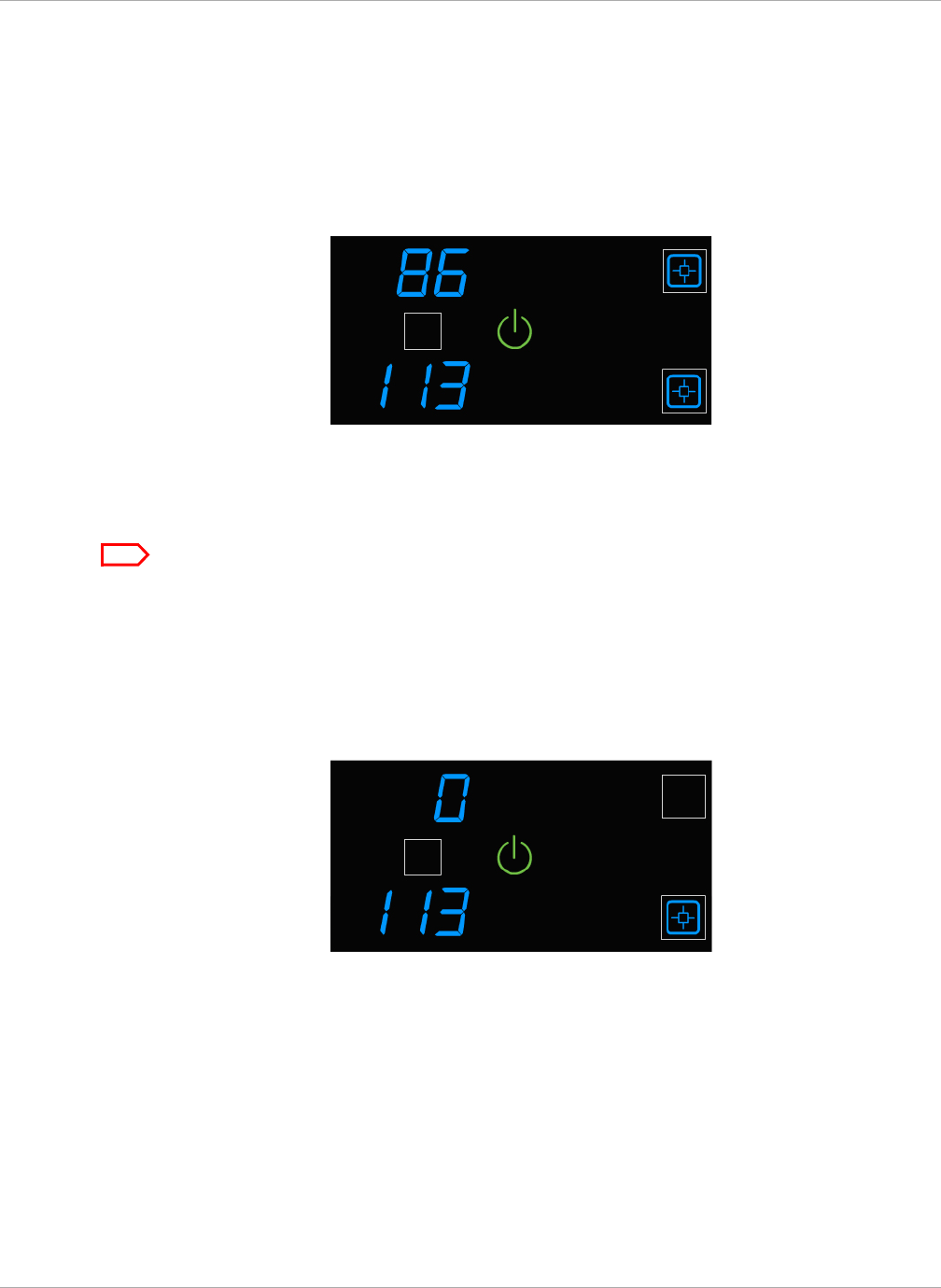

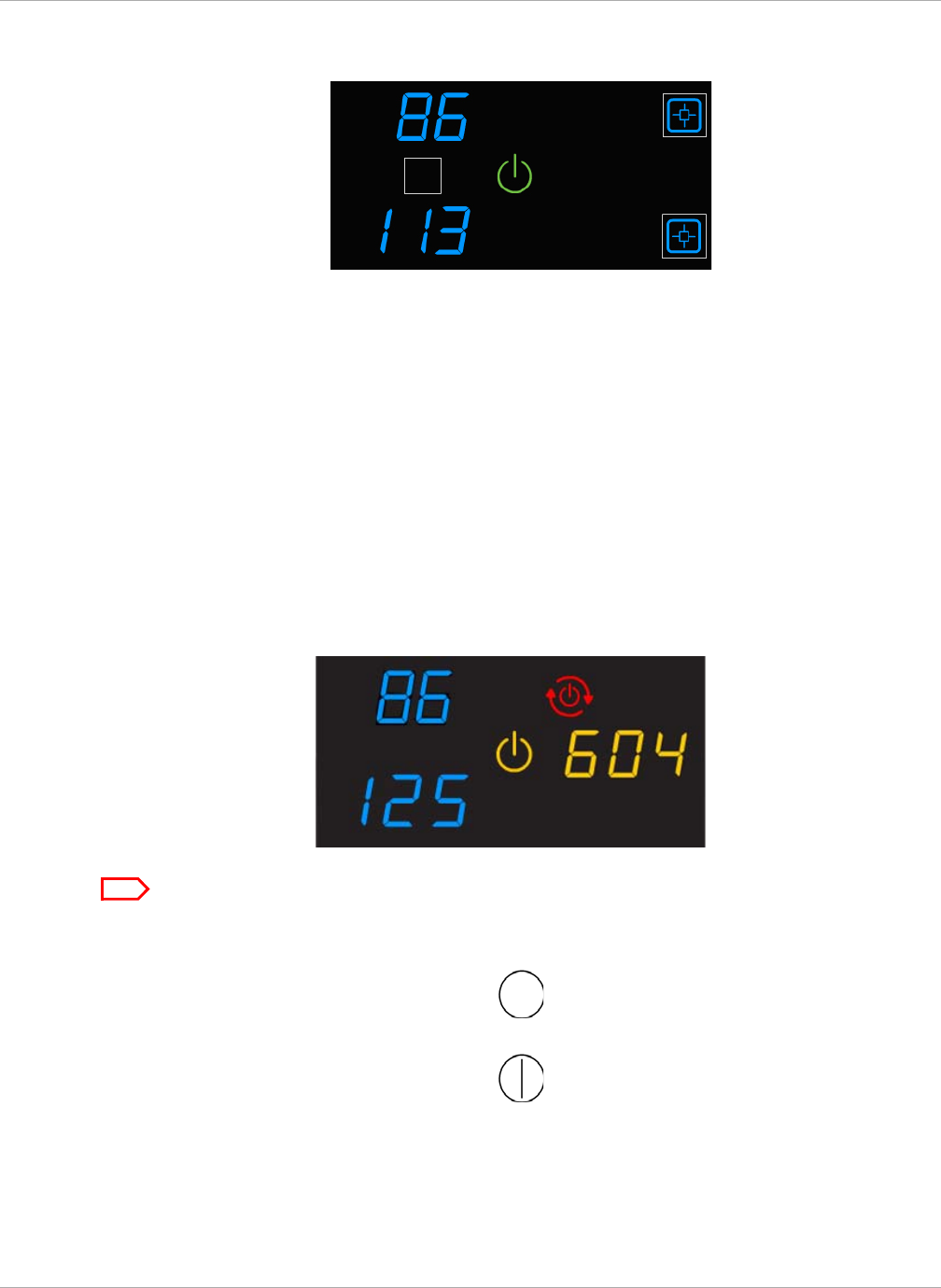

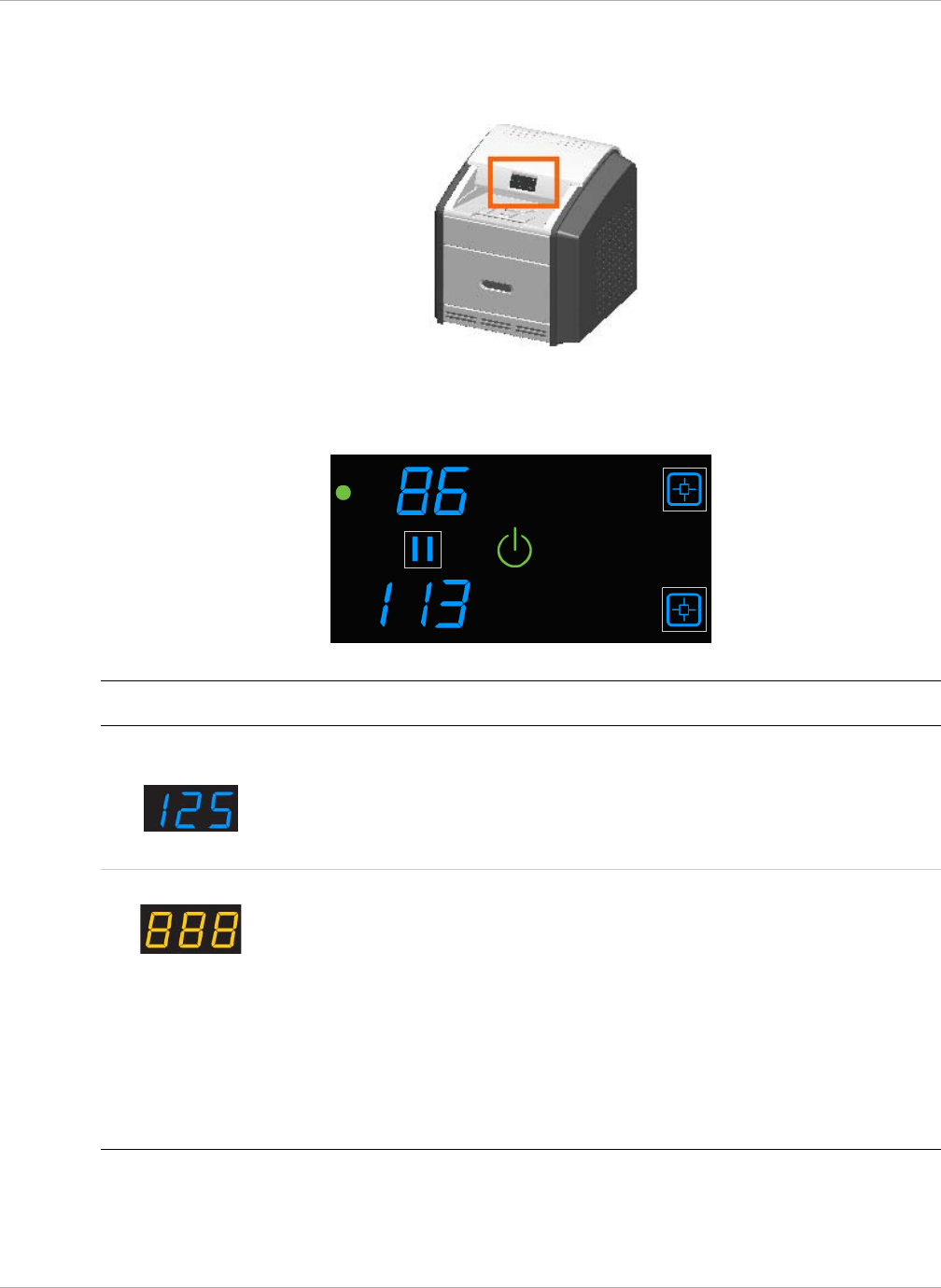

Figure 5: In this example, the upper cartridge has 86 sheets of film, and the lower has 113.
Size/Type of the Loaded Film
To check the size of the loaded film, open the film supply and view the loaded cartridges.
Note
Make sure the Pause symbol is off before you open the film supply.
Film Count Flashes “0”
When either cartridge is empty, the film count flashes “0.” Replace the cartridge.
Figure 6: In this example, the upper film cartridge is empty. Replace the upper cartridge.
SHORT TERM CONFIDENTIAL
Basic Operating Tasks
2–8 AA2204_en | 2012-07-27
Film Size/Type Flashes
When a film size/type is requested that is not loaded, the Film Size symbol appears, and
the requested film flashes. Change the loaded film to match the print request.

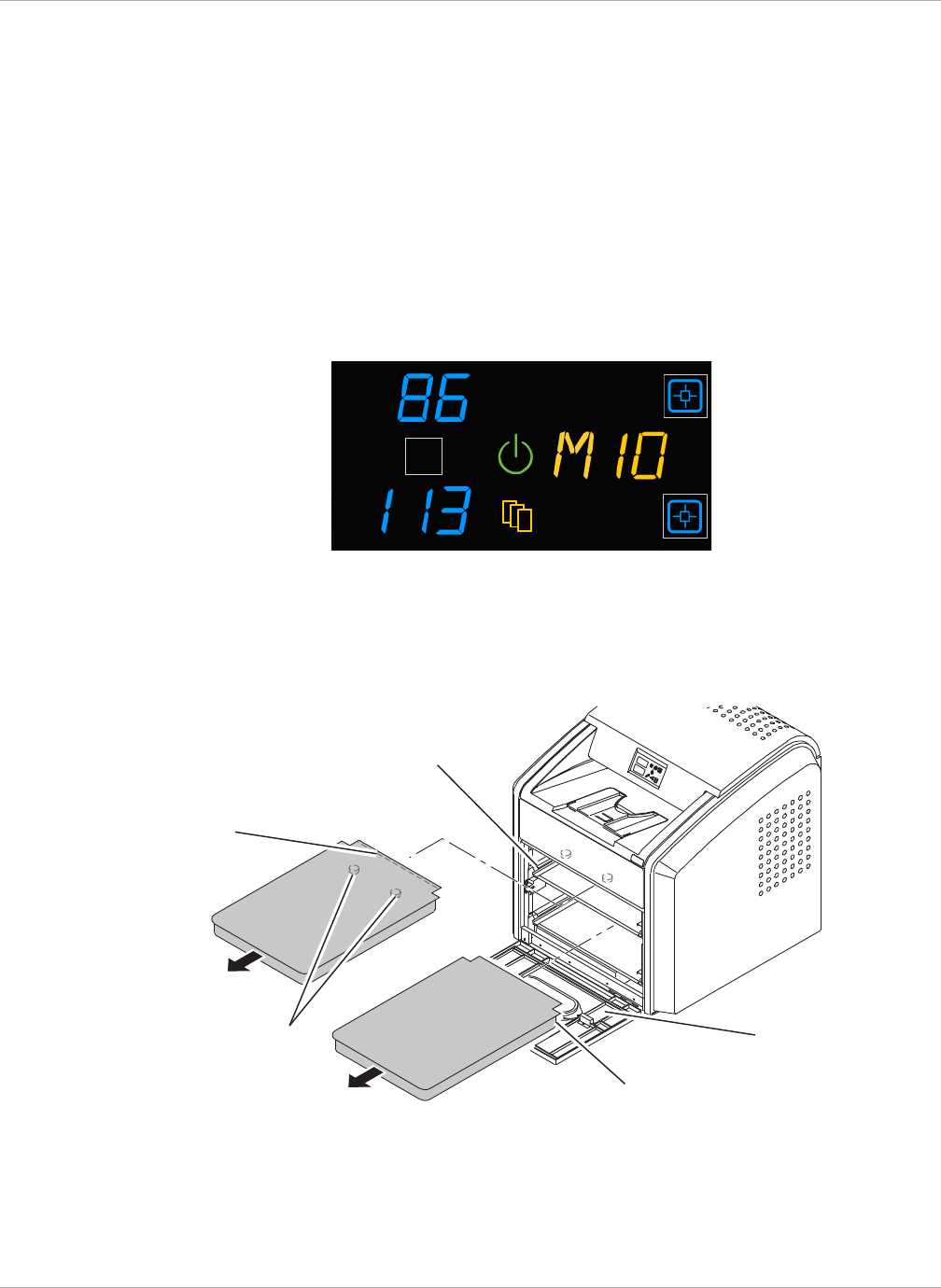

Figure 7: View and load the requested film size/type in the error code location (amber text). In
this example, “M” represents a request for mammography film.
Related topics
Replace an Empty Film Cartridge
Load a Different Film Size to Match a Print Request
SHORT TERM CONFIDENTIAL
Basic Operating Tasks
AA2204_en | 2012-07-27 2–9
Replace an Empty Film Cartridge
When a film cartridge is empty, the film count appears as 0 on the display screen.
Note
Before you load a new film cartridge, make sure that the Pause symbol is off. During normal
operation, the symbol is off. When the film cartridge cover is open, the symbol is on. To avoid
exposing the film to light, do not open the film supply until the Pause symbol is off.
1. If the Pause symbol is on, press the symbol to close the film cartridge cover.
2. Open the film supply.
3. Hold the edges of the film cartridge and lift the empty cartridge out of the film
supply.
4. Discard the empty cartridge.

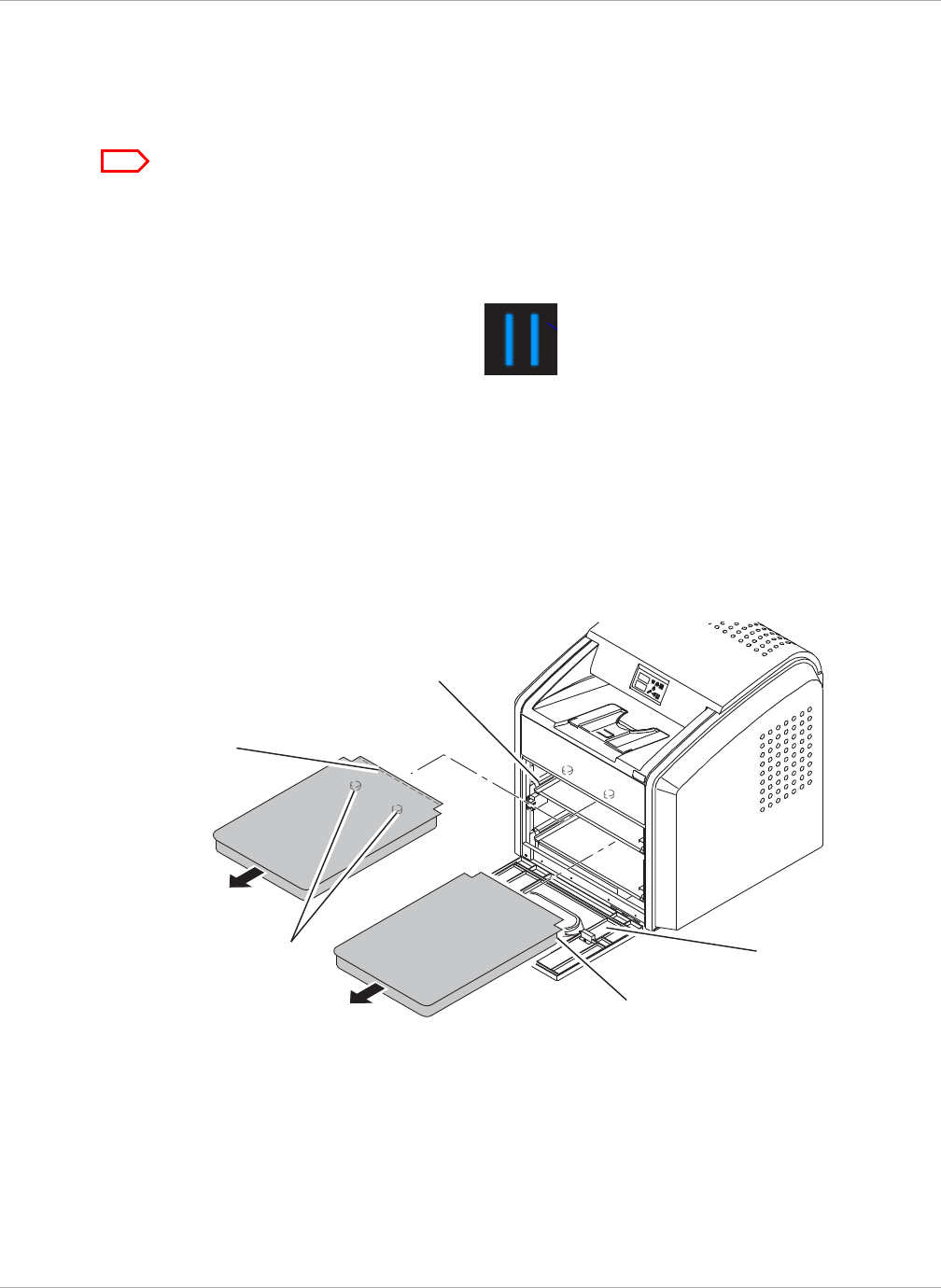

5. Insert the new film cartridge. Align the cartridge with the label facing up and the
perforations to the front. Set the leading edge on the cartridge guides, and then slide
the film cartridge into the imager to engage the detents in the bottom of the
cartridge.
6. Close the film supply.
7. Check that the display screen changes to reflect the new film count. A new film
cartridge contains 125 sheets.
H241_0006BC
H241_0006BCA
cartridge guide
perforations
detents film supply
leading edge
SHORT TERM CONFIDENTIAL
Basic Operating Tasks
2–10 AA2204_en | 2012-07-27
Load a Different Film Size to Match a Print Request
If a print request requires a different film size, the requested film size flashes on the
display screen. Change the installed film to match the print request.
•M = mammography film
•B = blue base film
•C = clear base film

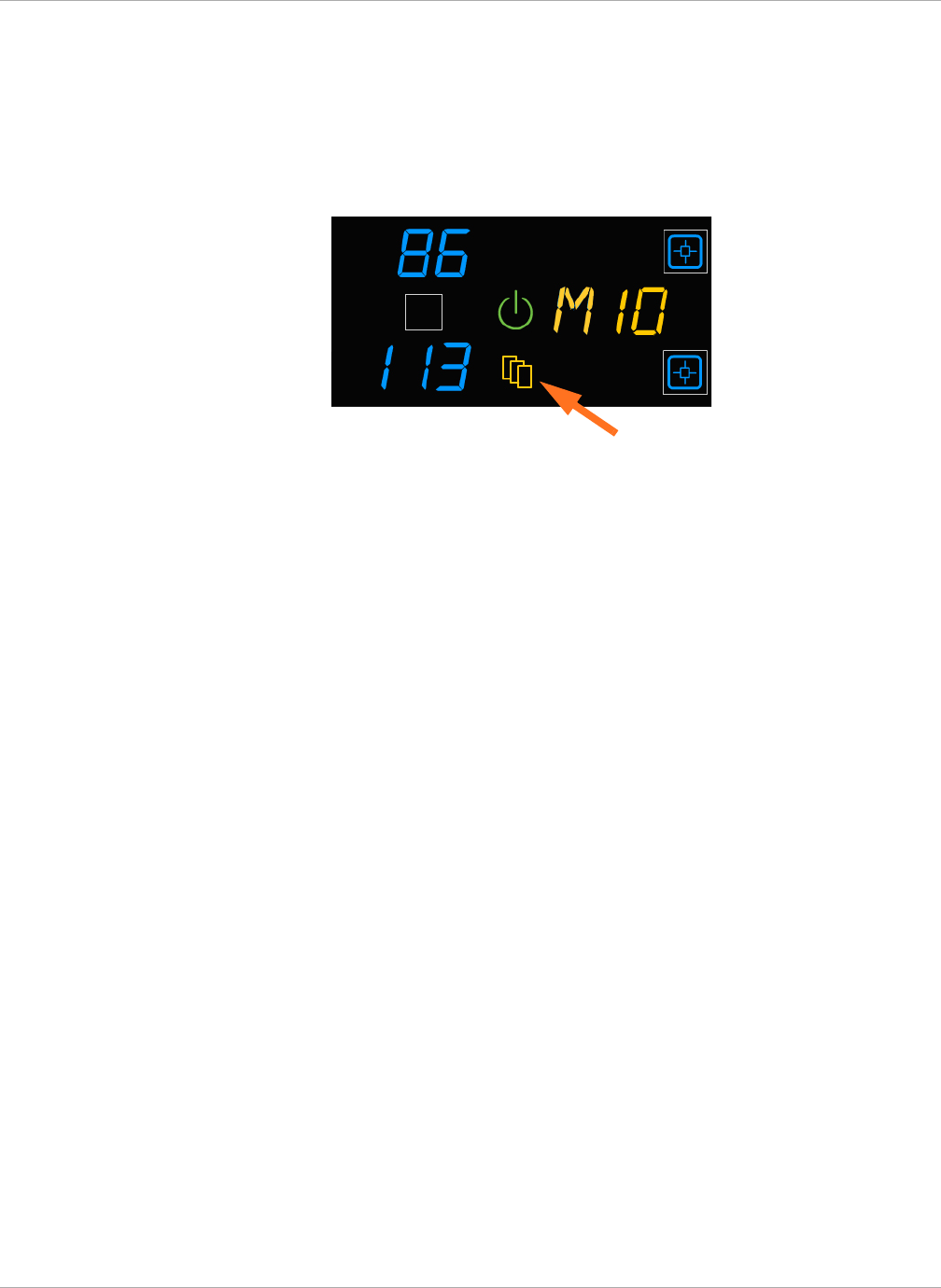

Figure 8: The requested film size flashes, and the Film Size symbol indicates the need to load a
different film size and/or type. In this example, mammography 10 x 12 in. film is requested. The
amber text changes between “M10” and “M12.” Load it to continue with the print request.
1. If the Pause symbol is on, press it and wait until it turns off.
2. Open the film supply.
3. Hold the edges of the film cartridge and lift the cartridge out of the film supply.
4. Insert the new film cartridge:
a. Align the cartridge with the label facing up and the perforations to the front.
b. Set the leading edge on the cartridge guides.
c. Slide the film cartridge into the imager to engage the detents in the bottom of
the cartridge.
H241_0006BC
H241_0006BCA
cartridge guide
perforations
detents film supply
leading edge
SHORT TERM CONFIDENTIAL
Basic Operating Tasks
2–8 AA2204_en | 2012-07-27
Film Size/Type Flashes
When a film size/type is requested that is not loaded, the Film Size symbol appears, and
the requested film flashes. Change the loaded film to match the print request.
Figure 7: View and load the requested film size/type in the error code location (amber text). In
this example, “M” represents a request for mammography film.
Related topics
Replace an Empty Film Cartridge
Load a Different Film Size to Match a Print Request
SHORT TERM CONFIDENTIAL
Basic Operating Tasks
2–12 AA2204_en | 2012-07-27
Calibrate the Imager for the Loaded Film

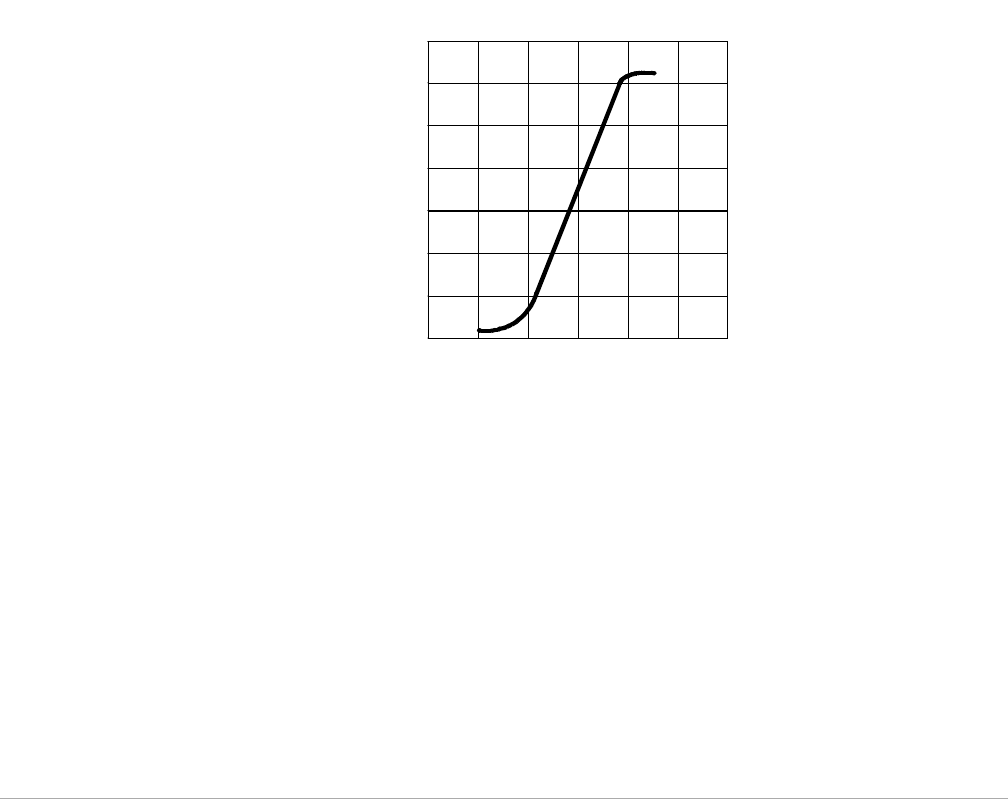

Automatic vs. Manual Calibration
The imager automatically calibrates film with a new media lot number.
The calibration initiates a test print with a step wedge pattern. The pattern has a series
of 21 step wedges of increasing optical density.
Occasionally, it will be necessary to manually calibrate the imager for the film. Run a
calibration manually when:
• Code 001 appears on the display screen.
• A calibration error occurred, indicated by codes 624, 631, or 632 on the display screen.
•A Not Calibrated message appears on the Web Portal Home screen.
Manual Calibration

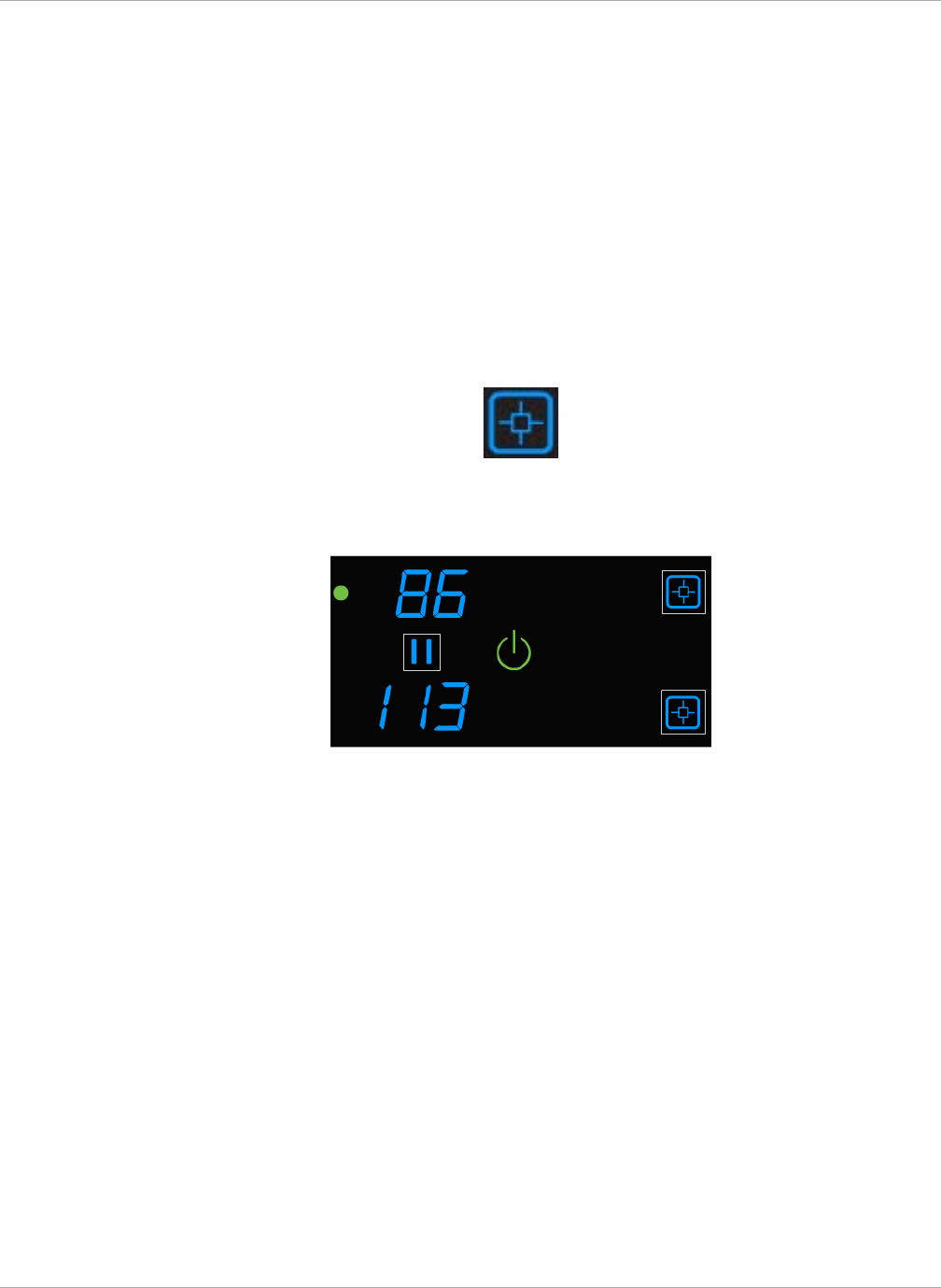

1. Press the Calibrate symbol for the film cartridge (upper or lower).
Figure 9: In this example, the imager is running a calibration on the lower cartridge. The
Calibration and Power symbols both flash while the calibration is in progress.
2. When the symbols stop flashing, the calibration is complete.
Note
If the Calibration symbol turns from blue to amber, there was a problem with the calibration
process. An error code will display, and the indicator light associates the error code to the film
cartridge. When a calibration error occurs, it might be necessary to address the error before you
can continue printing to that film cartridge.
Related topics
Error Indicators on the Display Screen
Access the Web Portal
SHORT TERM CONFIDENTIAL
Basic Operating Tasks
AA2204_en | 2012-07-27 2–13
Make a Test Print
Make a test print to verify that you can print. The type of test print varies depending on
whether you have clear/blue or mammography film loaded.
There are several options for mammography calibration prints; the default is configured
during installation. If you need a different type of test print for mammography film, you
can change the default at the Web Portal.
SMPTE Image Prints
1. Press and hold the Calibrate symbol for the film cartridge (upper or lower) for three
seconds.
Figure 10: In this example, the imager is printing a test image from the upper cartridge. The
Calibration and Power symbols both flash while the test print is in progress.
2. When the symbols stop flashing, the test print is complete.
SHORT TERM CONFIDENTIAL
Basic Operating Tasks
2–14 AA2204_en | 2012-07-27
Mammography Test Prints
There are several options for mammography calibration prints, for example, QC wedges,
multipurpose QC, TG18-PQC or QC, TG18-UN10 or 80, or TG18-UNL10 or 80. The default
is configured during installation, and you can change it any time from the Web Portal.
Press and hold the Calibrate symbol for the film cartridge (upper or lower, where the
mammography film is loaded) for three seconds.

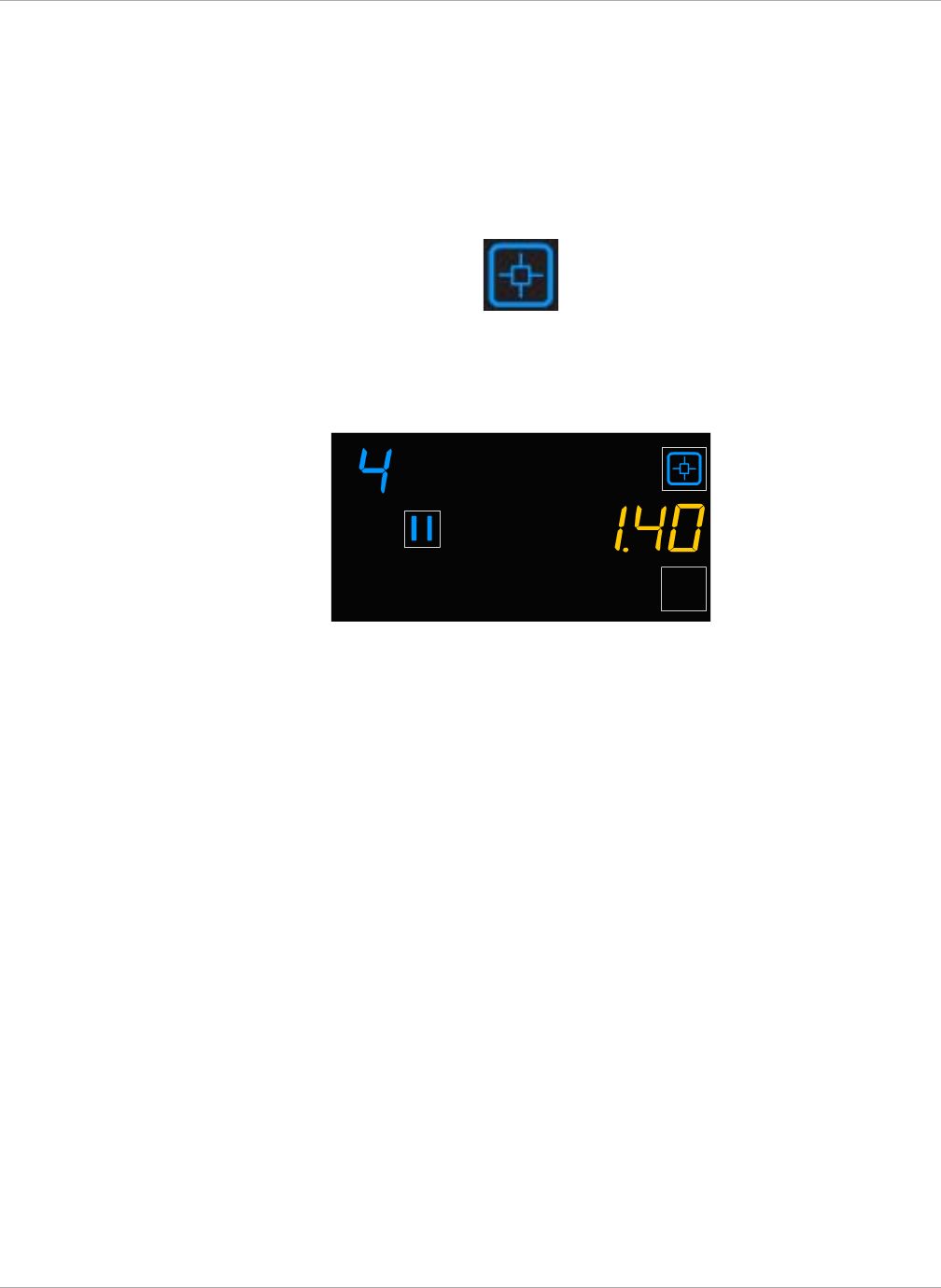

Figure 11: In this example, the imager is printing a QC step wedge test. The density value
identifier displays at the upper left (1–4), and the density displays on the right side (1.40 in this
example).
Related topics
Access the Web Portal
SHORT TERM CONFIDENTIAL
Basic Operating Tasks
AA2204_en | 2012-07-27 2–15

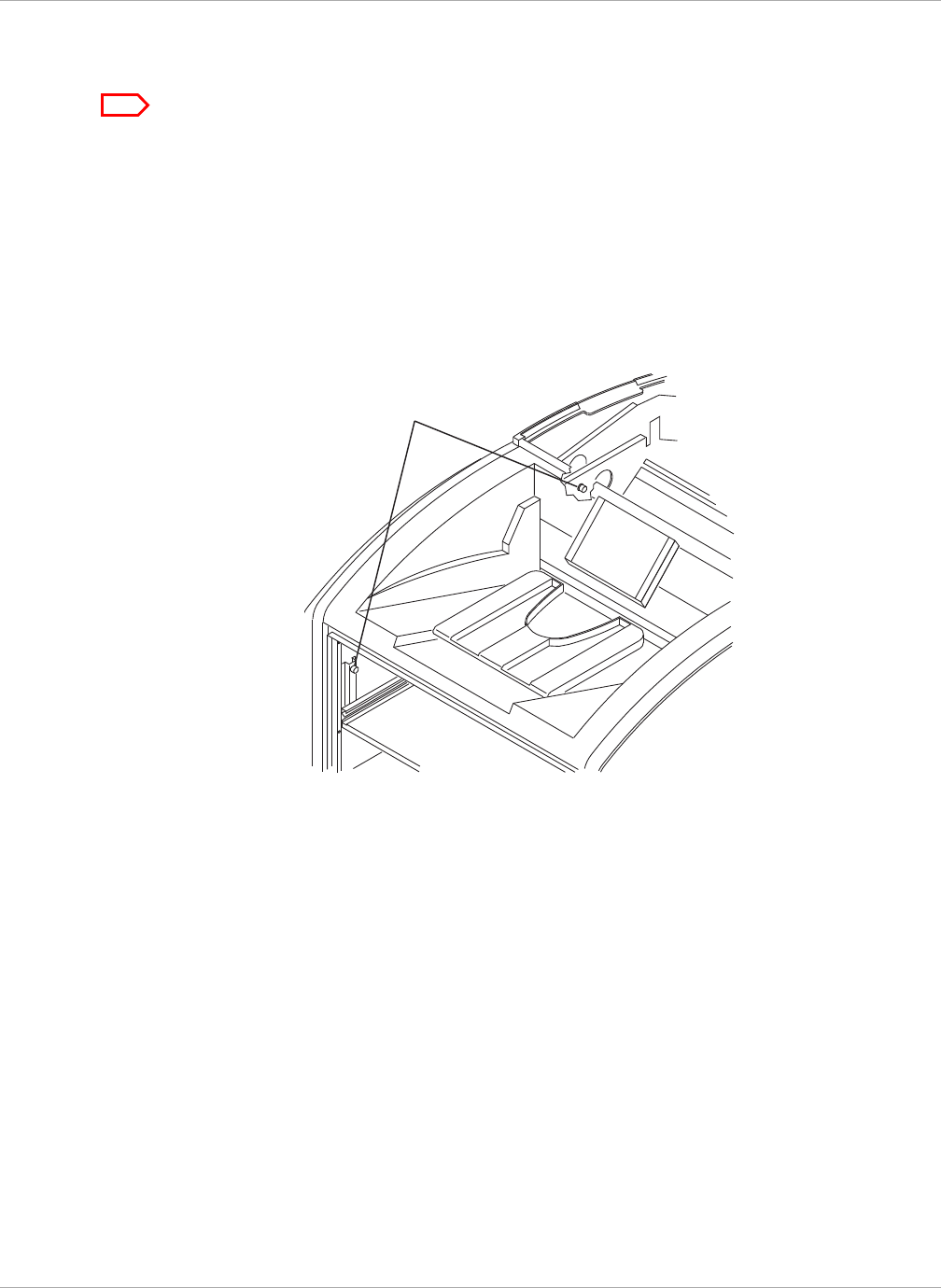

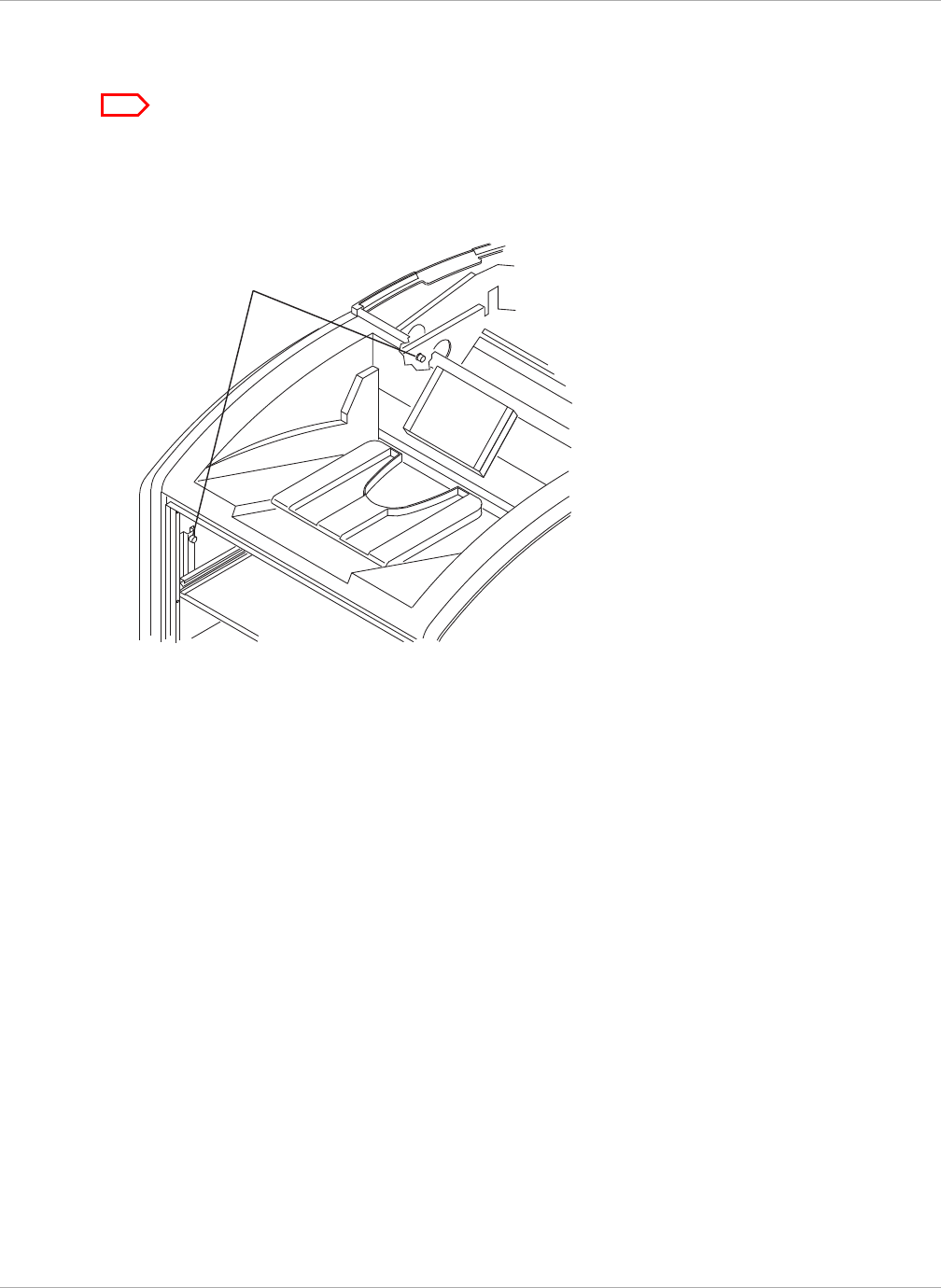

Open or Remove a Cover
You can open or remove the imager’s top cover, left cover, and film supply. The covers
are protected with an interlock mechanism to keep the imager from printing when they
are open, to keep you safe.
Code 701 alerts you that a cover and an interlock are open, and internal power to the
imager is turned off.
You might remove the top cover or left cover to search for film jams.
Related topics
Recognize and Handle a Film Jam
SHORT TERM CONFIDENTIAL
Basic Operating Tasks
2–16 AA2204_en | 2012-07-27
Access More Functionality with the Web Portal
The Web Portal is your interface to additional features. In addition to the installation and
setup of your system, you can view and manage the imager's connections over the
network, configure features, view error messages, and access general status information
at the Web Portal. You can also check film count, film size, and film type.
Troubleshooting tools include:
• Optimization of image quality for modalities.
• Diagnostic utilities, including backup and restore.
The Web Portal provides an online Help system and a user’s guide to assist you.
Access the Web Portal
Prerequisites:
A desktop or laptop computer connected to the network
1. On a desktop or laptop computer, start WINDOWS INTERNET EXPLORER (version 6, 7,
or 8).
2. In the address field, type: http://<imager’s IP address>
Note
If you do not know the IP address, check with your network administrator or the person who
installed the imager.
3. Click Go.
• The main window for the Web Portal shows the general status, the number of
print jobs queued, the number of jobs waiting for film, and the film count.
• The center panel displays the screens where you view and perform tasks. Online
Help is available by selecting Documentation from the left panel, and the Help
icon provides context-sensitive Help for fields and pages.
• The left panel also provides the links to all other screens.
Note

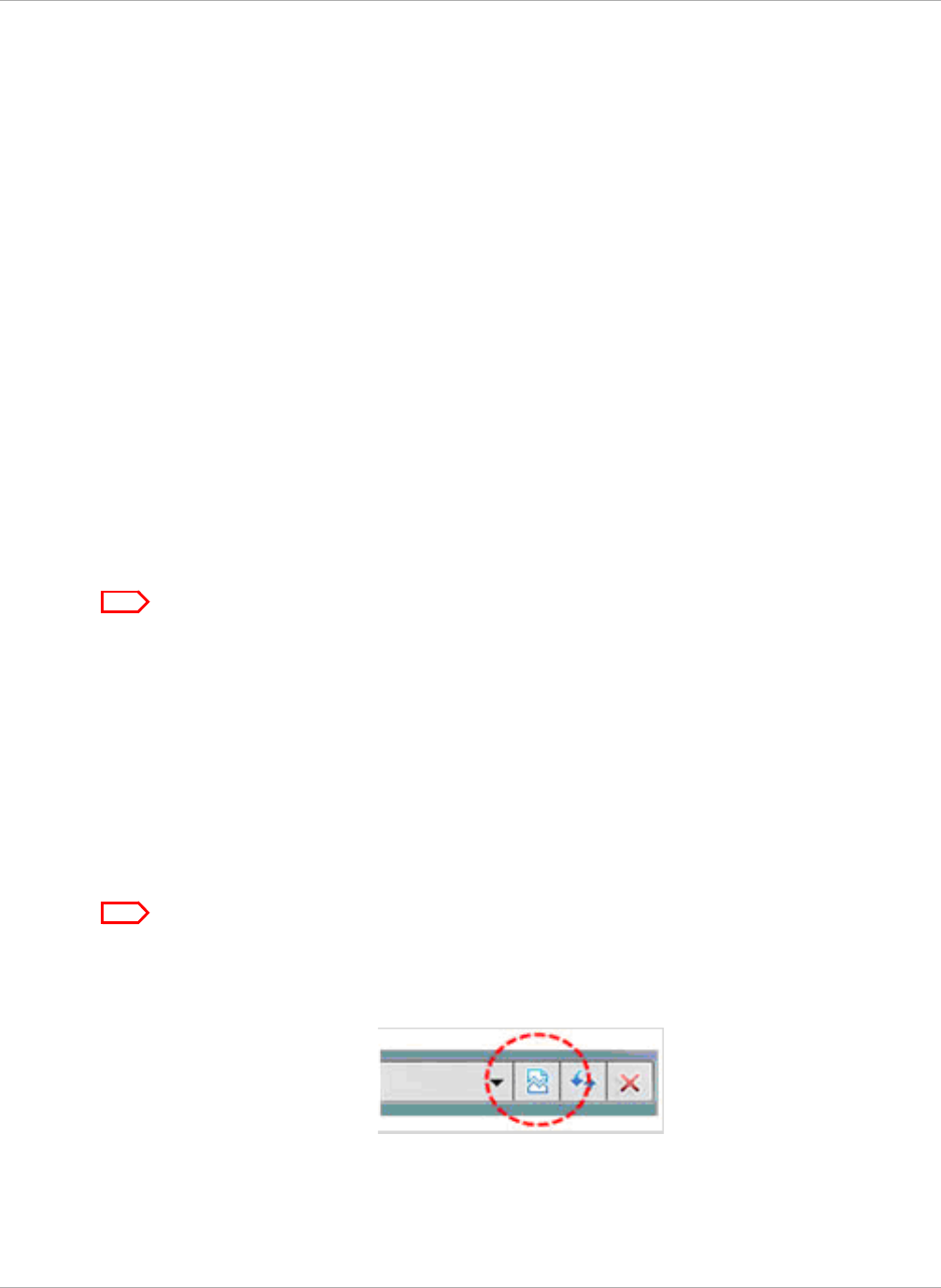

If you are using WINDOWS INTERNET EXPLORER 8, place the INTERNET EXPLORER (IE) window
into compatibility view. After you have opened the IE 8 window, click the Compatibility View
toolbar button. This will correct some potential viewing issues with IE 8. If the icon is not on the
toolbar, select Compatibility View from the Tools menu.
SHORT TERM CONFIDENTIAL
AA2204_en | 2012-07-27 3–1
3
Maintenance and Troubleshooting
Use the information in this chapter to keep the imager in the best condition and to
correct minor problems.
• Overview: Status and Error Messages and Codes—Review this overview for
information about where and when the messages and codes appear.
• Preventive Maintenance—Learn how to respond to the Maintenance symbol.
• Error Indicators on the Display Screen—Learn about the amber and red error symbols.
• Using the Web Portal to Gain More Information on Errors—Learn how and why to
access the Web Portal.
• Subsystem Error Codes and Messages—Refer to this section for error codes and
messages.
• Condition Codes—Refer to this section for all condition codes.
• Film Jam Indication and Areas—See instructions to locate and correct jammed films.
• Display Screen is Not Functional—Learn what to do if the display screen is not
responding.
• Call for Support—Learn how to get help.
SHORT TERM CONFIDENTIAL
Maintenance and Troubleshooting
3–2 AA2204_en | 2012-07-27
Overview: Status and Error Messages and Codes
The imager detects errors and other conditions and reports them to you in multiple ways.
Some conditions require your action. This section provides a list of the codes, explains the
condition, and provides recommended actions when appropriate. View the codes:
•At the imager’s display screen, on the top left. The display screen reports 3-digit
codes.
Some codes are associated with symbols on the display screen, such as the Film Jam
symbol, to help you quickly understand the condition.
•At the Web Portal. Access the Web Portal using your personal computer, keyboard,
and mouse to gain more information about the errors and conditions. Using the Web
Portal is optional, but you may find it useful. The Web Portal can report more
information than the imager’s display screen due to the limited size of the display
screen.
Related topics
Using the Web Portal to Gain More Information on Errors
SHORT TERM CONFIDENTIAL
Maintenance and Troubleshooting
AA2204_en | 2012-07-27 3–3
Preventive Maintenance
Note
These conditions are also reported at the Web Portal.
About the Charcoal Filter
Caution
In the U.S., exhausted filters are considered to be non-hazardous waste according to the US
Environmental Protection Agency Resource Conservation Recovery Act (RCRA). Municipality
owned and licensed solid waste management facilities are an appropriate disposal option.
Contact your local or state solid waste authorities to determine if additional disposal requirements
apply. In other regions, contact local or regional solid waste authorities for proper disposal
guidance.
The filter traps the odors that are generated in the imager during film processing. The
filter must be replaced after 7500 prints. Keep at least one new filter available to replace
the used filter when needed.
SHORT TERM CONFIDENTIAL
Maintenance and Troubleshooting
3–4 AA2204_en | 2012-07-27
Replace the Filter
When the filter must be replaced, the display screen shows the error code and the
Maintenance symbol:
1. Remove the filter cover.
2. Remove the filter by lifting it up and pulling it forward.
H241_0007AC
SHORT TERM CONFIDENTIAL
Maintenance and Troubleshooting
AA2204_en | 2012-07-27 3–5
3. Install a new filter.
4. Re-install the filter cover.
5. To reset the imager for the new filter and to clear the Maintenance symbol, press and
then release the Maintenance and Calibrate symbols at the same time.
550 Code and Maintenance Symbol
If the imager needs a preventive maintenance service call, the 550 code and Maintenance
symbol appear:
When the 550 code displays, contact a qualified service provider.
SHORT TERM CONFIDENTIAL
Maintenance and Troubleshooting
3–6 AA2204_en | 2012-07-27
Error Indicators on the Display Screen
The imager can detect errors and other conditions that require a response. Some errors
or abnormal conditions are reported on the display screen in the form of condition codes
and symbols.
Note
These errors are also reported at the Web Portal.
Recognize and Handle a Calibration Error
When the calibration has failed, the display screen shows a 624, 631, or 632 error and the
Calibrate symbol is amber.

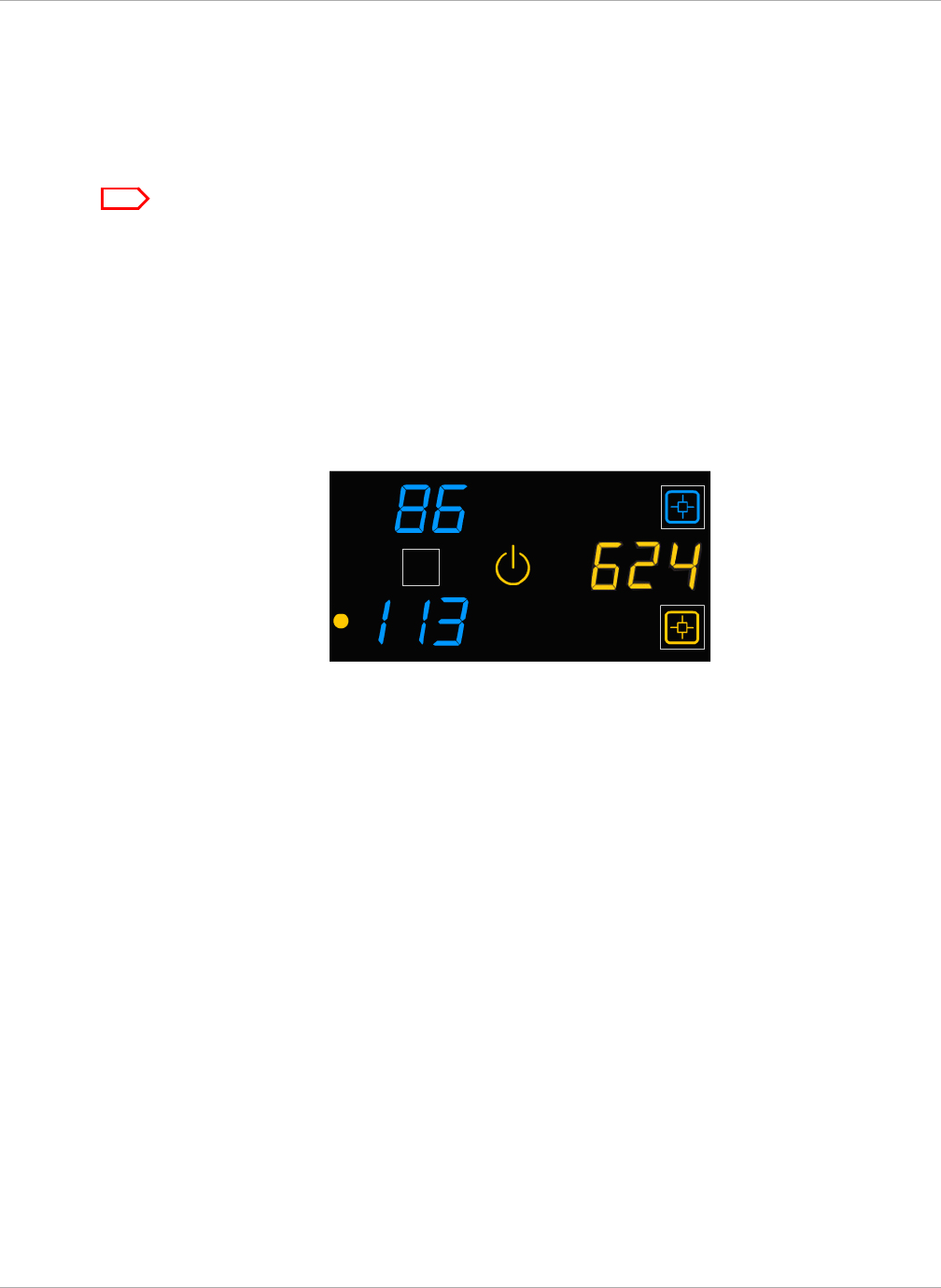

Figure 1: In this example, the amber indicator light and Calibration symbol indicate that
calibration of the film in the lower cartridge has failed.
The most common cause is a film-related problem. Depending on the cause, you may be
able to keep printing, but the imager may not be optimally calibrated for this film lot.
Attempt a manual calibration. If the calibration fails again, load a new film cartridge.
Related topics
Calibrate the Imager for the Loaded Film
SHORT TERM CONFIDENTIAL
Maintenance and Troubleshooting
AA2204_en | 2012-07-27 3–7
Handle a Required Restart
When the Restart symbol appears, you must restart the imager.
Figure 2: The amber Power symbol, together with the Restart symbol, indicates that you must
restart the imager to continue printing.
1. Press the power switch on the back of the imager off.
2. Press the power switch on.
If the error does not clear after the restart, it might be necessary to contact a qualified
service provider.
Related topics
Restart the Imager
SHORT TERM CONFIDENTIAL
Maintenance and Troubleshooting
3–8 AA2204_en | 2012-07-27
Recognize and Handle a Film Jam
When the Film Jam symbol appears, you must clear the jam before the imager can
continue to print. After the jam has been cleared, the imager will reprint the image on a
new sheet of film.

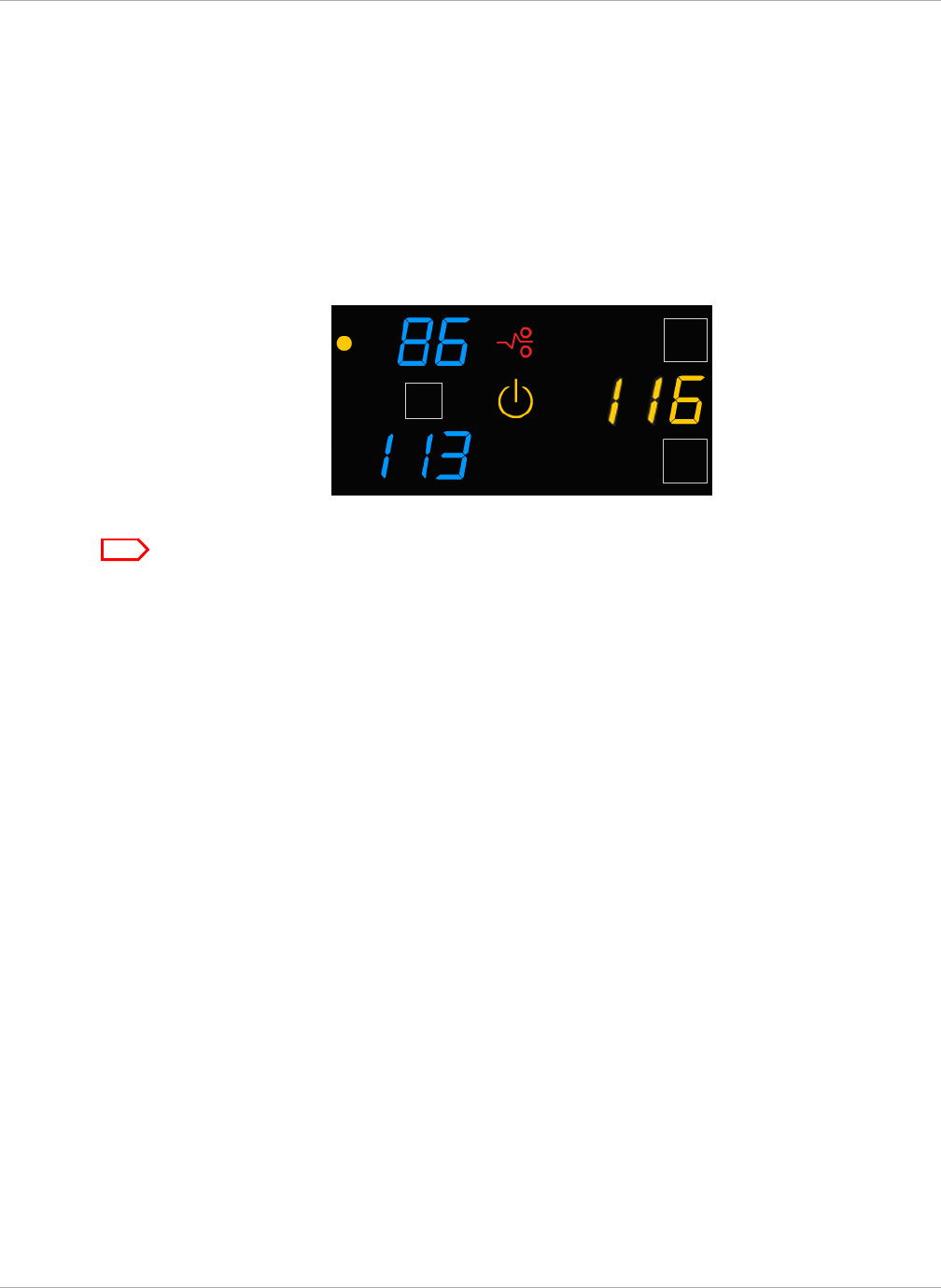

Figure 3: In this example, the red jam symbol alerts you to the jam, and the amber indicator
light shows you that the jam is related to the upper film cartridge. The error code also indicates a
film jam.
Related topics
Film Jam Indication and Areas
SHORT TERM CONFIDENTIAL
Maintenance and Troubleshooting
AA2204_en | 2012-07-27 3–9
Using the Web Portal to Gain More Information on
Errors
The Web Portal is your interface to additional functions on the imager. You can view and
correct error messages and access general status information at the Web Portal.
About Codes on the Web Portal and the Display Screen
The 3-digit error and status codes on the display screen are reported at the Web Portal
as 5-digit codes. The last three digits on the Web Portal codes match the three digits on
the display screen. For example, code 701 on the display screen is the same as code 20701
on the Web Portal. Use the information in this section to understand the information at
the display screen and/or at the Web Portal and to respond appropriately.
Related topics
Access the Web Portal
SHORT TERM CONFIDENTIAL
Maintenance and Troubleshooting
3–10 AA2204_en | 2012-07-27
Subsystem Error Codes and Messages
Use the information in this section to interpret the codes and messages that appear on
the display screen and at the Web Portal.
DICOM (Digital Imaging and Communications in Medicine)
In response to a DICOM printer N-GET status request from a modality, a printer status
message and a printer status info message are returned to the requesting service class
user (SCU). Every error has an associated printer status info message. If more than one
error exists when a printer N-GET request is received, a status message is sent in response,
according to an established priority. The table shows the DICOM printer status and info
message.
Printer
Printer Status Printer Status Info Printer Status Printer Status Info
FAILURE ELEC DOWN
PRINTER DOWN
PROC DOWN
WARNING BAD SUPPLY MGZ
CALIBRATION ERR
CHECK PRINTER
COVER OPEN
EMPTY MEDIASZ MEDIATP
FILM JAM
FILM TRANS ERR
PROC INIT
PRINTER INIT
PRINTER OFFLINE
Printer
Status Display Screen Web Portal DICOM Status Description
Cover is
open
Code: 701
Power symbol is
yellow
20701:
Cover Open
WARNING /
COVER OPEN
The top cover or one of
the side panels may be
off. The imager is not
ready to print.
Failed Power symbol is
yellow
Failed See Condition
Code
An error has occurred
that prevents printing.
Cartridge
closure is
requested
Power symbol is
green and/or
flashing
Pause symbol is on
Not Ready Not
Applicable
The imager completes any
prints in progress before
closing the cartridge
cover.
Offline Power symbol is
yellow
20704:
Printing
Disabled
WARNING /
PRINTER
OFFLINE
The imager has been
disabled and does not
have a network
connection.
SHORT TERM CONFIDENTIAL
Maintenance and Troubleshooting
AA2204_en | 2012-07-27 3–11
Film Cartridge
Printing Power symbol is
green and flashing
Printing NORMAL The imager is currently
printing films.
Ready Power symbol is
green
Film count displays
Ready NORMAL The imager is online and
the processor has reached
operating temperature.
Self-test Power symbol is
yellow and
flashing
Code and film
count are replaced
by dashes
Self-test WARNING /
PRINTER INIT
This occurs when power
is first applied to the
imager.
Service
Mode
Status code: 700
Power symbol is
yellow
20700:
Service
Mode
WARNING /
PRINTER
OFFLINE
The service switch is
enabled. The imager is
not ready to print.
Warming Power symbol is
yellow and
flashing
Number of
minutes count
down until ready
Warming=xx WARNING /
PROC INIT
The processor is warming
up and will not be ready
to print for xx minutes.
Printer
Status Display Screen Web Portal DICOM Status Description
Film
Cartridge
State Display Screen Web Portal Description
Failed Power symbol is yellow
Pause and Calibrate
symbols are off
Film count is replaced by
dashes
Failed An error has occurred that
affects normal operation. This
film cartridge is currently not
usable. Reinsert the cartridge. If
error reoccurs, insert a new film
cartridge.
Calibrating Power symbol is green and
flashing
Pause symbol is on
Calibrate symbol is blue
and flashing
Calibrating A calibration is in progress for
the film cartridge.
SHORT TERM CONFIDENTIAL
Maintenance and Troubleshooting
3–12 AA2204_en | 2012-07-27
Related topics
Calibrate the Imager for the Loaded Film
Film
cartridge is
empty
Power symbol is yellow
Pause and Calibrate
symbols are off
Film count is flashing “0”
Empty
and/or sheet
count of 0
The film cartridge is inserted,
but the sheet count is 0. Insert a
new cartridge.
Manual
mode
Status code: 002
Power symbol is green
Calibrate symbol is yellow
AIQC Off
(with normal
tray
information)
The film in this cartridge does
not meet AIQC standards.
However, the imager prints if
ready.
Invalid film
cartridge
Power symbol is yellow
Pause and Calibrate
symbols are off
Film count is replaced by
dashes
Invalid Film
Tray
There is a film cartridge in the
film supply, but it does not
contain a liner/RF tag. Install a
new film cartridge.
Ready Power symbol is green
Calibrate symbol is on
Normal Tray
Info
The film cartridge is ready for
use.
Requires
calibration
Power symbol is yellow
Calibrate symbol is on
Requires
Calibration
The film cartridge must be
calibrated before the imager can
print.
Film
cartridge is
not detected
Power symbol is yellow
Pause and Calibrate
symbols are off
Film count is blank
No Film Tray The film cartridge is not fully
inserted in the imager. Insert the
cartridge.
Not ready Various Not Ready When the conditions are
corrected, the imager can print.
Cartridge
closure is
pending
Power symbol is green
Calibrate symbol is off
Pause symbol is on
Pause
Requested
You pressed the Pause button,
but the rollback has not started
because films are still moving
through the imager. When the
closure is complete, the Pause
symbol is off. At this time, you
can remove the film cartridge.
Film
Cartridge
State Display Screen Web Portal Description
SHORT TERM CONFIDENTIAL
Maintenance and Troubleshooting
AA2204_en | 2012-07-27 3–13
Job Manager
Related topics
Load a Different Film Size to Match a Print Request
Restart the Imager
Job
Manager
Status Display Screen Web Portal Description
Active Not Applicable Shows how
many print
requests have
been
initiated.
The imager is accepting DICOM job
requests and film is available for all
current jobs.
No Media Power symbol is
green
Film Size symbol is
yellow
The required film size
is shown on the
display screen
Shows how
many jobs
with this
status are in
the job
queue.
The imager is accepting DICOM job
requests, but film of the correct size
and type is not available for at least
one current job.
Offline Status code: 704
Power symbol is
green
DICOM
Offline
The imager cannot accept any DICOM
job requests. Restart the imager.
SHORT TERM CONFIDENTIAL
Maintenance and Troubleshooting
3–14 AA2204_en | 2012-07-27
Condition Codes
Condition codes are shown on the display screen in the order in which they are
generated. If there is more than one code associated with the current condition of the
imager, the first code is shown on the display screen for six seconds, while other codes in
the list display for three seconds as the list is cycled. You can also view these codes and
messages at the Web Portal.
Display
Screen
Web
Portal
Web Portal
Message Action
004 01004 MIM Core: Internal
Software Error
Restart the imager.
If the error persists, call for service.
200 04200 MIM Core: Disk Full Load the requested film type and size for jobs
that are waiting for media.
If the error persists, call for service.
400 06400 MIM Core: Image
Page Error
Resend the print job from the image source.
If the error persists, call for service.
410 06410 MIM Core: Image
Rendering Error
Resend the print job from the image source.
If the error persists, call for service.
411 06411 MIM Core: Image
Data Error
Resend the print job from the image source.
If the error persists, call for service.
420 06420 MIM Core: Internal
Software Error
Resend the print job from the image source.
If the error persists, call for service.
430 06430 MIM Core: Internal
Software Error
Resend the print job from the image source.
If the error persists, call for service.
001 10001 MIS: Internal
Software Error
Restart the imager.
If the error persists, call for service.
003 10003 MIS: Image Buffer
Error
Restart the imager.
If the error persists, call for service.
015 10015 MIS: Database Error Restart the imager.
If the error persists, call for service.
910 10910 MIS: MCS
Communication
Failure
Restart the imager.
If the error persists, call for service.
006 20006 Disconnected or
faulty network cable
Check and reconnect the network cable on both
ends.
If the error persists, call for service.
SHORT TERM CONFIDENTIAL
Maintenance and Troubleshooting
AA2204_en | 2012-07-27 3–15
154 20154 MCS: Internal
Communications
Failure
Restart the imager.
If the error persists, call for service.
155 20155 Incompatible MCS
Printer
Configuration for
Hardware
Restart the imager.
If the error persists, call for service.
156 20156 Incompatible
Software Versions
Installed
Restart the imager.
If the error persists, call for service.
209 20209 Laser Imager
Opened During Self
Tes t
Replace the cover.
Restart the imager.
If the error persists, call for service.
449 20449 None Change the charcoal filter.
550 20550 None Call service for preventive maintenance.
700 20700 None Restart the imager.
If the error persists, call for service.
701 20701 None Replace the cover.
704 20704 None The network connection to the imager has been
lost. Restart the imager.
705 20705 None The imager is restarting (for example, during a
software update). Wait until the restart is
complete.
706 20706 None A shutdown that was initiated remotely is
complete. Restart the imager.
915 20915 Internal Image Data
Transfer Failed
Restart the imager.
If the error persists, call for service.
919 20919 Internal Image Data
Render Failed
Restart the imager.
If the error persists, call for service.
002 21002 None No action. The error may remain until the film
cartridge is empty. The film cartridge is
operating in manual mode and AIQC is off.
116 21116 Film Jam in Area 1 Clear the jam.
Display
Screen
Web
Portal
Web Portal
Message Action
SHORT TERM CONFIDENTIAL
Maintenance and Troubleshooting
3–16 AA2204_en | 2012-07-27
118 21118 Film Supply: Internal
Hardware Failure
If the Pause symbol is on, press it to cover the
film cartridge. When the Pause symbol stops
flashing, remove the film cartridge from the
imager. Then reinsert the film cartridge into the
imager.
If the error persists, call for service.
119 21119 Film Supply: Internal
Hardware Failure
If the Pause symbol is on, press it to cover the
film cartridge. When the Pause symbol stops
flashing, remove the film cartridge from the
imager. Then reinsert the film cartridge into the
imager.
If the error persists, call for service.
125 21125 Film Supply: Internal
Hardware Failure
If the Pause symbol is on, press it to cover the
film cartridge. When the Pause symbol stops
flashing, remove the film cartridge from the
imager. Then reinsert the film cartridge into the
imager.
If the error persists, call for service.
139 21139 Film Supply: Unable
to Identify Film
Cartridge
If the Pause symbol is on, press it to cover the
film cartridge. When the Pause symbol stops
flashing, remove the film cartridge from the
imager. Then reinsert the film cartridge into the
imager.
If the error persists, call for service.
145 21145 Film Supply:
Unsupported Film
Typ e
The imager does not support the loaded film
type. Install a cartridge with a supported film
type.
If the error persists, call for service.
146 21146 Film Supply:
Unsupported Film
Size
The imager does not support the loaded film
size. Install a cartridge with a supported size.
If the error persists, call for service.
175 21175 Rollback Failed to
Engage Cartridge
If the Pause symbol is on, press it to cover the
film cartridge. When the Pause symbol stops
flashing, remove the film cartridge from the
imager. Then reinsert the film cartridge into the
imager.
If the error persists, call for service.
Display
Screen
Web
Portal
Web Portal
Message Action
SHORT TERM CONFIDENTIAL
Maintenance and Troubleshooting
AA2204_en | 2012-07-27 3–17
177 21177 Film Cartridge Failed
to Close
Open the film supply. Manually close the film
cartridge, using the manual rollback knob, to
prevent the film from fogging.
If the error persists, call for service.
178 21178 Rollback Failed to
Leave Home
If the Pause symbol is on, press it to cover the
film cartridge. When the Pause symbol stops
flashing, remove the film cartridge from the
imager. Then reinsert the film cartridge into the
imager.
If the error persists, call for service.
624 21624 Film Supply: Film
Calibration Failure
Calibrate again.
If the error still displays, install a new film
cartridge.
If the error still displays, restart the imager.
If the error persists, call for service.
631 21631 Film Supply: Film
Calibration Failure -
Dmin Outside
Tar g et
The minimum density of the film is too high.
Calibration results for this film are outside the
normal range. Printing will continue with these
parameters.
If the prints are not optimal, do the calibration
procedure again or install another film cartridge.
632 21632 Film Supply: Film
Calibration Failure -
Dmax Outside
Tar g et
The maximum density of the film is lower than
the target density. Calibration results for this film
are outside the normal range. Printing will
continue with these parameters.
If the prints are not optimal, do the calibration
procedure again or install another film cartridge.
922 25922 RF Tag: Internal
Diagnostic Failure
Restart the imager.
If the error persists, call for service.
323 26323 Film Jam in Area 2 Clear the jam.
324 26324 Film Jam in Area 2 Clear the jam.
325 26325 Film Jam in Area 2 Clear the jam.
326 26326 Film Jam in Area 2
or 3
Clear the jam.
543 26543 Film Jam in Area 3 Clear the jam.
544 26544 Film Jam in Area 3 Clear the jam.
Display
Screen
Web
Portal
Web Portal
Message Action
SHORT TERM CONFIDENTIAL
Maintenance and Troubleshooting
3–18 AA2204_en | 2012-07-27
123 27123 Optics: Internal
Hardware Failure
Restart the imager.
If the error persists, call for service.
601 27601 Optics: Calibration
Failed
Restart the imager.
If the error persists, call for service.
604 27604 Optics: Calibration
Failed
Restart the imager.
If the error persists, call for service.
607 27607 Optics: Calibration
Failed
Restart the imager.
If the error persists, call for service.
611 27611 Optics: Internal
Hardware Failure
Restart the imager.
If the error persists, call for service.
646 27646 Optics: Internal
Hardware Failure
Restart the imager.
If the error persists, call for service.
650 27650 Optics: Internal
Hardware Failure
Restart the imager.
If the error persists, call for service.
501 28501 Processor: Internal
Hardware Failure
Restart the imager.
If the error persists, call for service.
509 28509 Processor Warm-up
Failure
Restart the imager.
If the error persists, call for service.
510 28510 Processor: Internal
Hardware Failure
Restart the imager.
If the error persists, call for service.
551 28551 Processor Heater
Failure
Restart the imager.
If the error persists, call for service.
554 28554 Processor Over
Tem per a ture
Restart the imager.
If the error persists, call for service.
924 29924 Densitometer:
Internal Diagnostic
Failure
Restart the imager.
If the error persists, call for service.
925 29925 Densitometer:
Internal Diagnostic
Failure
Restart the imager.
If the error persists, call for service.
Display
Screen
Web
Portal
Web Portal
Message Action
SHORT TERM CONFIDENTIAL
Maintenance and Troubleshooting
AA2204_en | 2012-07-27 3–19
Related topics
Restart the Imager
Load a Different Film Size to Match a Print Request
Replace the Filter
550 Code and Maintenance Symbol
Calibrate the Imager for the Loaded Film
Clear Film Jam Code 116 / Jam in Area 1
Clear Film Jam Code 323 / Jam in Area 2
Clear Film Jam Code 324 or 325 / Jam in Area 2
Clear Film Jam Code 326 / Jam in Area 2 or 3
Clear Film Jam Code 543 / Jam in Area 3
Clear Film Jam code 544 / Jam in Area 3
931 29931 Densitometer:
Internal
Communications
Failure
Restart the imager.
If the error persists, call for service.
935 36935 Local Panel: No
Communications
from MCS
Restart the imager.
If the error persists, call for service.
Display
Screen
Web
Portal
Web Portal
Message Action
SHORT TERM CONFIDENTIAL
Maintenance and Troubleshooting
3–20 AA2204_en | 2012-07-27
Film Jam Indication and Areas
Jam Areas
When film is jammed, the display screen indicates a jam and an error code that provides
guidance on where to check for the jammed film.
Figure 4: In this example, the indicator light shows you that the jam is related to the upper
cartridge.
Note
These errors are also reported at the Web Portal.
SHORT TERM CONFIDENTIAL
Maintenance and Troubleshooting
AA2204_en | 2012-07-27 3–21

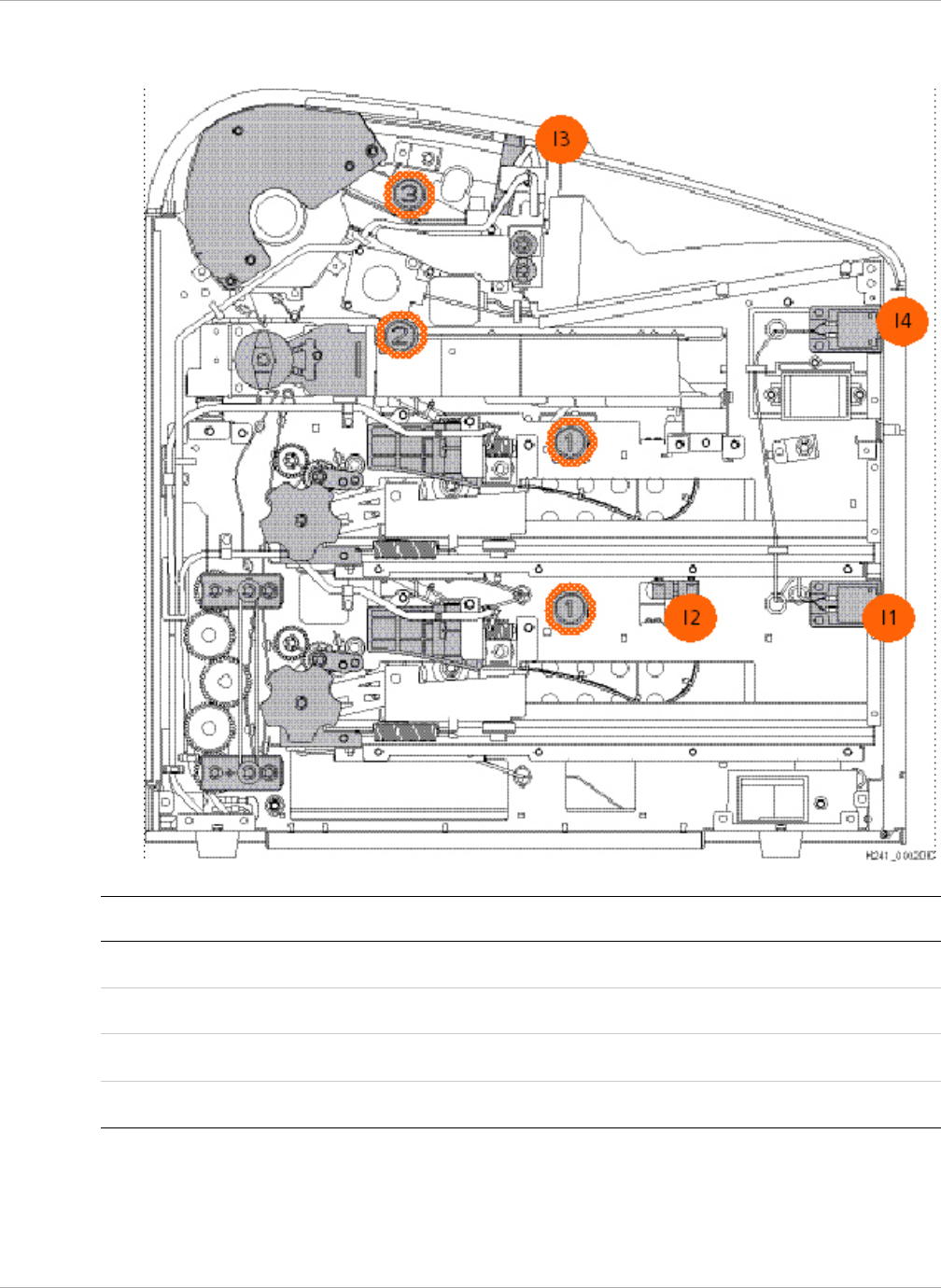

Figure 5: Film Jam Areas
Jam Areas Description Interlocks Description
1 Upper and Lower film supply I1 Lower film supply
2 Film path I2 Left cover
3 Processor / densitometer I3 Top cover
I4 Upper film supply
SHORT TERM CONFIDENTIAL
Maintenance and Troubleshooting
3–22 AA2204_en | 2012-07-27
Roller Knobs
For some jams, you can remove the film by turning a knob to move the film out of the
imager. See details in the film jam instructions.
Figure 6: Knobs for manual film removal
Knobs Description
1 Exit Roller
2 Exposure Transport
H241_000
2
1
SHORT TERM CONFIDENTIAL
Maintenance and Troubleshooting
AA2204_en | 2012-07-27 3–23
Clear Film Jam Code 116 / Jam in Area 1
Note
This error displays as code 21116 at the Web Portal.
1. If the Pause symbol is on, press it and wait until it goes off.
2. Open the film supply and remove the film cartridge from the imager.
3. Look in Area 1 (the upper or lower film supply) and remove any film.
4. Reinsert the film cartridge in the imager.
Related topics
Film Jam Indication and Areas
Clear Film Jam Code 323 / Jam in Area 2
Note
This error displays as code 26323 at the Web Portal.
1. If the Pause symbol is on, press it and wait until it goes off.
2. Open the film supply.
3. Check that the film cartridge is closed. If it is not closed, carefully close the cartridge
cover.
4. Remove any loose film near, in, or partially in the film cartridge.
5. Close the film supply.
Related topics
Film Jam Indication and Areas
SHORT TERM CONFIDENTIAL
Maintenance and Troubleshooting
3–24 AA2204_en | 2012-07-27
Clear Film Jam Code 324 or 325 / Jam in Area 2
Note
This error displays as code 26324 or 26325 at the Web Portal.
1. If the Pause symbol is on, press it and wait until it goes off.
2. Remove the left cover:
a. Open the film supply.
b. Remove the top cover.
c. Turn the knurled knobs by hand.
3. Reach into Area 2 and remove any film.
4. If the film is not loose, carefully turn the exposure transport knob clockwise to
remove the film from the rollers.
5. Reinstall the covers.
Related topics
Film Jam Indication and Areas
H210_1017AC
H210_1017ACA
2 Screws
SHORT TERM CONFIDENTIAL
Maintenance and Troubleshooting
AA2204_en | 2012-07-27 3–25
Clear Film Jam Code 326 / Jam in Area 2 or 3
Note
This error displays as code 26326 at the Web Portal.
1. If the Pause symbol is on, press it and wait until it goes off.
2. Remove the left cover:
a. Open the film supply.
b. Remove the top cover.
c. Turn the knurled knobs by hand.
3. Rotate the exit roller knob clockwise until a film exits the imager.
4. If a film does not exit:
a. Reach into Area 2 and remove any film.
b. If the film is not loose, carefully turn the exposure transport knob clockwise to
remove the film from the rollers.
5. Reinstall the covers.
Related topics
Film Jam Indication and Areas
H210_1017AC
H210_1017ACA
2 Screws
SHORT TERM CONFIDENTIAL
Maintenance and Troubleshooting
3–26 AA2204_en | 2012-07-27
Clear Film Jam Code 543 / Jam in Area 3
Note
This error displays as code 26543 at the Web Portal.
1. If the Pause symbol is on, press it and wait until it goes off.
2. Remove the left cover:
a. Open the film supply.
b. Remove the top cover.
c. Turn the knurled knobs by hand.
3. Rotate the exit roller handle clockwise until a film exits the imager.
4. Reinstall the covers.
Related topics
Film Jam Indication and Areas
Clear Film Jam code 544 / Jam in Area 3
Note
This error displays as code 26544 at the Web Portal.
1. Remove any film that is jammed in the exit tray.
2. If the Pause symbol is on, press it and wait until it goes off.
3. Remove the top cover and remove any films.
4. Close the top cover.
Related topics
Film Jam Indication and Areas
SHORT TERM CONFIDENTIAL
Maintenance and Troubleshooting
AA2204_en | 2012-07-27 3–27
Display Screen is Not Functional
If the display screen is not responding, use the power switch on the imager to turn power
off, and then on. If the display screen is still non-responsive, turn the imager off and
contact a qualified service provider.
Call for Support
If you cannot correct a condition and need help, call for support. Have the following
information ready when you call:
• Model number
• K-number
• Error code from the display screen and/or code and error message from the Web
Portal
SHORT TERM CONFIDENTIAL
SHORT TERM CONFIDENTIAL
AA2204_en | 2012-07-27 4–1
4
Film Technical Information
This section describes the characteristics of Laser Imaging Film, not the operation of the
imager. The Laser Imaging Film is a high-resolution, infrared-sensitive,
photothermographic film designed specifically for the imager.
Spectral Sensitivity of the Film
The Laser Imaging Film is infrared sensitive and has been sensitized to the infrared laser
diode of the imagers. When handled according to instructions on the daylight-load film
package, safelights are not needed. If you remove undeveloped film from the
daylight-load package, you will need a darkroom setting and a green safelight.
Figure 1: Relative Log Exposure (Example)
0 0.5 1 1.5 2 2.5 3
0
0.5
1
1.5
2
2.5
3
3.5
SHORT TERM CONFIDENTIAL
Film Technical Information
4–2 AA2204_en | 2012-07-27
Film Image Quality
The Laser Imaging Film delivers diagnostic-quality, continuous-tone images along with
sharp alphanumerics and optimum contrast. This high-quality, silver-based film provides
health care providers with the same diagnostic information they are accustomed to
viewing—including the spatial resolution, contrast, and gray levels. Because it is a totally
dry imaging process, there is no image quality variability due to wet chemistry.
Environmental Impact
Tests show that the Laser Imaging Film is not considered hazardous to the environment.
As a result, you can develop, recycle, and dispose of film with less impact on the
environment than if you were using wet-developed silver halide films.
Table 1: Laser Imaging Film—US Environmental Regulations Comparison
Wet (Silver Halide) Film Dry Film
Developer Fixer Wash Film Film
Product Regulations
OSHA MSDS
Required Required Not
required
Not
required
Provided
DOT Hazardous Hazardous No limits No limits No limits
Use permits Local Local None None None
Disposal Regulationsab
a. There is no Superfund liability with dry Laser Imaging Film.
b. State and local laws vary. Consult appropriate regulations or authorities prior to disposal.
EPA Hazardous Hazardous No No No
DOT Hazardous Hazardous No No No
SHORT TERM CONFIDENTIAL
Film Technical Information
AA2204_en | 2012-07-27 4–3
Undeveloped Film Handling and Storage
To achieve consistent results up to the expiration date indicated on the film package, the
Laser Imaging Film must be stored in a cool, dry place (5–25 °C, or 41–77 °F) and protected
from radiation and chemistry fumes.
The film can withstand short-term temperature spikes (up to 35 °C, or 95 °F) for several
hours without any significant effect on film quality or performance. Temperatures above
35 °C (95 °F) will gradually diminish shelf life.
Developed Film Handling and Archival
Handling the Laser Imaging Film requires reasonable care. Spills, humidity, and other
moisture typically have no significant effect on developed films. However, prolonged
exposure to intense light or excessive heat (equal to or greater than 54.4 °C or 130 °F) for
more than three hours may cause some gradual darkening of images. Leaving films in
vehicles in hot climates for extended periods of time is not recommended.
For best results, store the film in sleeves when not being reviewed. The Laser Imaging
Film can be left on a light box for more than 24 hours. In extreme cases in which the light
boxes are exceptionally hot (equal to or greater than 49° C or 120° F), the manufacturer
recommends removing them prior to eight hours of continuous exposure.
Take care when using spotlight viewing for more than 30 seconds because temperatures
near the light source may exceed 82.2 °C (180 °F). Use in slide projectors is not
recommended due to the high temperatures generally found in these devices.
With dry technology, a small amount of final development occurs when the film exits the
imager and is initially exposed to ambient or view-box lighting. This is virtually
undetectable and has no effect on image quality (typically 0.02 change in density). This
small density increase is uniform and permanent upon full exposure of the film under
normal handling conditions (room light or view box).
The Laser Imaging Film has been tested and can be archived for more than 100 years
when stored at American National Standards Institute (ANSI) recommended storage
conditions (equal to or less than 25 °C or 77 °F). Developed films may be stored at higher
temperatures; however, that will reduce the number of years the film can be stored. For
example, storing films at a constant elevated temperature of 32.2 °C (90 °F) may reduce
archive capability to 30 years.
SHORT TERM CONFIDENTIAL
Film Technical Information
4–4 AA2204_en | 2012-07-27
Exposing Film to Moisture
The Laser Imaging Films typically withstand humidity, spills, and other forms of water
without any significant effect on image quality or film integrity. If needed, film can be
cleaned with a clean, damp cloth.
Odor Dissipation
Dry technology eliminates virtually all unpleasant odors. While some low-level odors are
produced during the development process, they pose no known adverse health risks.
Processing odor levels are further reduced by a non-hazardous, recyclable filter in the
imager. This filter traps most low-level odors and prevents them from dissipating into the
work environment. To help maintain optimum performance, the filter requires periodic
replacement. The imager requires no special venting.
Heat Dissipation
The imagers use controlled heat to develop the Laser Imaging Film. The heat has virtually
no effect on the air temperature of the work area. The amount of heat dissipated into
an area during a day is typically less than the heat generated by two to four 100-watt
light bulbs.
Film Recycling
According to the Environmental Protection Agency (EPA) standards, the Laser Imaging
Film is not considered hazardous and requires no special disposal procedures. However,
the film does contain silver and polyester that may be recovered by using one of several
recycling processes.
SHORT TERM CONFIDENTIAL
AA2204_en | 2012-07-27 5–1
5
Specifications
This section identifies the system specifications and the site requirements to operate the
imager.
Equipment Specifications
Operating Space Requirements
• Allow 31 cm (12 in.) clearance around the top, sides, and back of the imager. This
space is required to let the imager perform normal operator functions.
• Place the imager in an area with good ventilation. A small, confined room is not
recommended.
• Avoid placing the imager in direct or excessive sunlight (for example, near a large
window).
Unpacked Packed
These are all subject to change / preliminary.
Height 66.55 cm (26.20 in.) TBD cm (TBD in.)
Width 62.56 cm (24.63 in.) TBD cm (TBD in.)
Depth 75.63 cm (29.77 in.) TBD cm (TBD in.)
Weight 95 kg (210 lb) TBD kg (TBD lb)
SHORT TERM CONFIDENTIAL
Specifications
5–2 AA2204_en | 2012-07-27
Environmental Requirements
Temperature
• Operating: 15 to 35 °C (59 to 95 °F)
• Storage: -40 to 60 °C (-40 to 140 °F)
Relative Humidity
• Operating: 20–85 % RH, non-condensing
• Storage: 10–93 % RH, non-condensing
Altitude
30 m (100 ft) below sea level to 3,048 m (10,000 ft) above sea level
Surface Levelness
The surface where the imager is placed must be level within 1 °.
Environmental Effects
Acoustical noise:
• Less than 48 dB at 1 m during idle or standby
• Less than 75 dB momentary at 1 m during normal operation
Power Requirements
A power cord is provided with this equipment. All countries must use an
Agency-approved power cord with a plug type suitable for the country of use. Contact a
qualified dealer for help.
Connect the equipment to a power source that is suitable for the voltage and current
ratings shown on the rating label. The single-phase power source, with grounding, must
be provided within 2.5 m (8.0 ft) of the imager.
The wire must be insulation-rated for 600 V (ac). A dedicated line is recommended.
Network Requirements
The imager receives digital images from medical imaging devices (modalities) over a
10/100Base-T or 1000Base-T Ethernet Network.
SHORT TERM CONFIDENTIAL
AA2204_en | 2012-07-27 6–1
6
Publication History
Revision Date Reason for Change
A 2012-07-27 Preliminary - for Gate 2 (preliminary) review
SHORT TERM CONFIDENTIAL
Carestream Health, Inc.
150 Verona Street
Rochester, NY 14608
United States
© Carestream Health, Inc., 2012
Printed in China.
CARESTREAM and DRYVIEW are trademarks of Carestream Health, Inc.
Pub No. AA2204_en
Rev A (preliminary)
SHORT TERM CONFIDENTIAL
