The Flotronic™ Plus Chiller Com-

bines These Extra-Performance Fea-

tures for Increased Energy Savings:

• microprocessor-based control

system

• electronic expansion valve

• increased part-load efficiency

• multiple compressors — extra ca-

pacity steps

Features/Benefits

30HR,HS units are designed

for easy installation and

maintenance

Starting with installation, these ma-

chines keep costs low. Each is

completely factory engineered and

assembled to ensure a perfectly bal-

anced refrigeration system that can be

installed with minimal field labor.

Only external fluid and power connec-

tions need to be completed at the

jobsite to make the fluid-cooled (30HR)

units operational. Condenserless (30HS)

units require the addition of a remote

condenser.

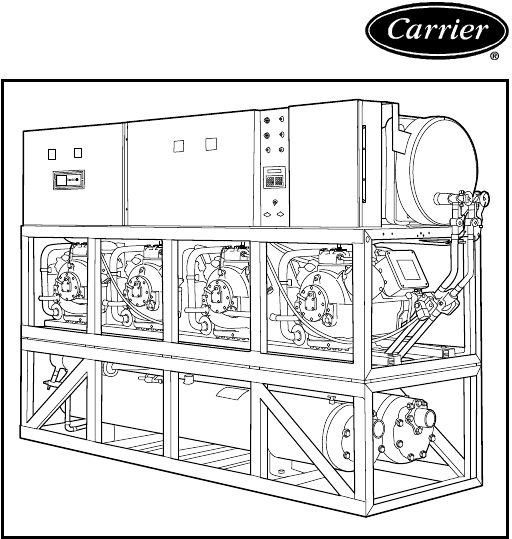

The 30HR model is a packaged

unit complete with cooler, condensers,

compressors, controls, refrigerant

and oil charge, and internal piping and

wiring. The 30HS unit is a condens-

erless version of the basic 30HR,

shipped with a holding charge of refrig-

erant and specially designed for ap-

plications with remote fluid- or

air-cooled, or evaporative type, con-

densers. All the easy-rigging 30H

series chillers are extremely trim and

compact. They can pass easily

through standard doorways, and re-

quire minimal floor space on the job.

Product

Data

30HR,HS

Model E

Reciprocating Liquid Chillers

Nominal Capacities:

70 to 160 Tons (250 to 560 kW)

Copyright 1994 Carrier Corporation Form 30HR,HS-4PD

Rated in accordance with

ARI Standard 590-92.

Additional features ensure smooth,

trouble-free operation. Compres-

sors are mounted on heavy-duty spring

vibration isolators to minimize poten-

tially damaging vibration transmis-

sion to the building structure. Sound-

deadening mufflers dampen hot gas

pulsations. Servicing is made easy by

bolted, readily-accessible semi-hermetic

compressors that can be removed

with minimal field labor when adjust-

ments or repairs are needed.

Flotronic™ Plus control sys-

tem regulates the refriger-

ant cycle for optimum

efficiency

The 30HR,HS Flotronic Plus chillers

feature an electronic expansion valve

(EXV) operated by a microprocessor-

based control system. The system

monitors safety functions and controls

unit capacity to maintain leaving

chilled fluid temperature. The micro-

processor controls loading and un-

loading of compressors to match

changing cooling load requirements.

The control system consists of a

control box with a keypad and display

module, an EXV for each refrigera-

tion circuit, and thermistors (tempera-

ture sensors) which provide analog

inputs to the microprocessor. The

control also operates a quick test pro-

gram to check input and output sig-

nals to and from the microprocessor.

The 30HR,HS control system is self

contained and can operate on a

stand-alone basis if desired.

Components

The control box — All the

microprocessor-based controls re-

quired to optimize chiller operation

and protect it against unsafe con-

ditions are contained in the control

box. This includes the processor mod-

ule, relay module, EXV driver mod-

ule, keypad and display module, relays,

and transformers. The box has a

hinged door for ready access.

The EXV driver — The driver posi-

tions the EXVs (based on commands

from the microprocessor) and

monitors the status of the oil and

refrigerant pressure switches.

The keypad and display module

—This module consists of a key-

pad with 11 function keys and 12 nu-

meric keys (0 to 9,.,-)andan

alphanumeric 8-character liquid crystal

display. The module allows the op-

erator to perform the following

functions:

• read and change set point

• configure unit

• run quick test unit checkout

• observe diagnostic information

• schedule chiller operation

Control features

Leaving fluid temperature control

with return compensation —

The rate at which the compressors

are turned on will depend on the dif-

ference between the actual leaving

fluid temperature and the set point,

the rate of change of leaving fluid

temperature, the return fluid tempera-

ture, and the number of compressor

stages on. The control is primarily

from leaving fluid temperature, and

the other factors are used as compen-

sation. Because the control operates

from leaving fluid, the chiller is in-

dependent of cooling gpm (L/s). It is a

true droopless control.

Return temperature reset — The

control system is capable of han-

dling leaving fluid temperature reset

based on return cooler temperature.

Because the change in temperature

through the cooler is a measure of the

building load, the return temperature

reset is in effect an average build-

ing load reset method. All sensors re-

quired to activate return reset are

standard with the unit.

Space and outdoor-air tempera-

ture reset — Space temperature

reset and outdoor-air temperature

reset allow for the reset of the leaving

fluid temperature based on an exter-

nal temperature sensor. (Accessory

thermistor required.)

Energy management system reset

—Many energy management sys-

tems have the capability to transmit a

4 to 20 mA signal in proportion to

the desired leaving chilled-fluid set

point. The Flotronic Plus chillers have

the ability to recognize a propor-

tioned signal to establish the reset

condition (field-installed components

are required).

Remote alarm — Upon initialization

of an alarm condition, an internal

contact will close to activate a signal

suitable for remote alarm activation.

Load shed (demand limit) — A

2-step demand limit can be pro-

grammed through the Flotronic Plus

controls. The control limits total power

draw of the unit by controlling the

number of steps of capacity operating

during the demand limiting period.

Pulldown control — Pulldown con-

trol is used to minimize compressor

usage and reduce the peak kW that

occurs at start-up, when the cooler

fluid temperature is very warm but the

load is small. When activated, this

feature limits the pulldown rate to

1° F (.56° C) per minute.

Unit checkout (quick test) — The

quick test feature allows determination

of the status (on or off) of various

Flotronic Plus control components (i.e.,

solenoid valves, compressors, and

unloaders). When the unit is in standby

mode, these steps will energize these

components and indicate whether

or not the components are operational.

Diagnostics — The Flotronic Plus

control system features extensive self-

diagnostics as standard. The display

will show a 2-digit diagnostic code,

and will scroll an explanation of the

code for failures that cause the unit to

shut down, terminate a reset option,

or use a default value as set point.

Time schedule — The Flotronic Plus

control system has an integral func-

tion that allows scheduling of the cir-

culating pump and chiller operation

for up to 8 occupied/unoccupied peri-

ods per schedule, with 7 different

schedule days.

Table of contents Page

Features/Benefits ........................................ 1-4

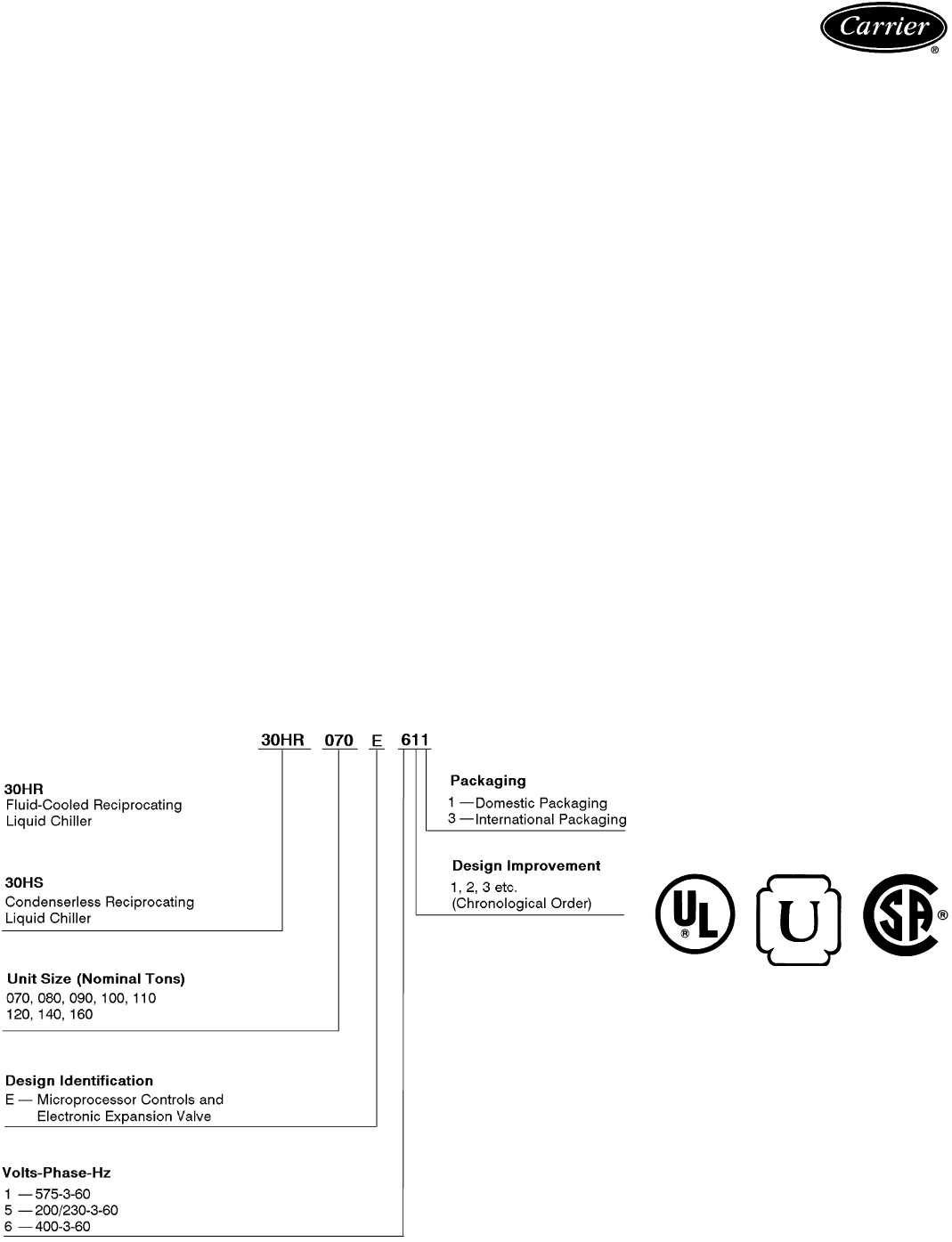

Model Number Nomenclature ............................... 4

Physical Data ........................................... 5-8

Accessories (Field Installed) ................................. 9

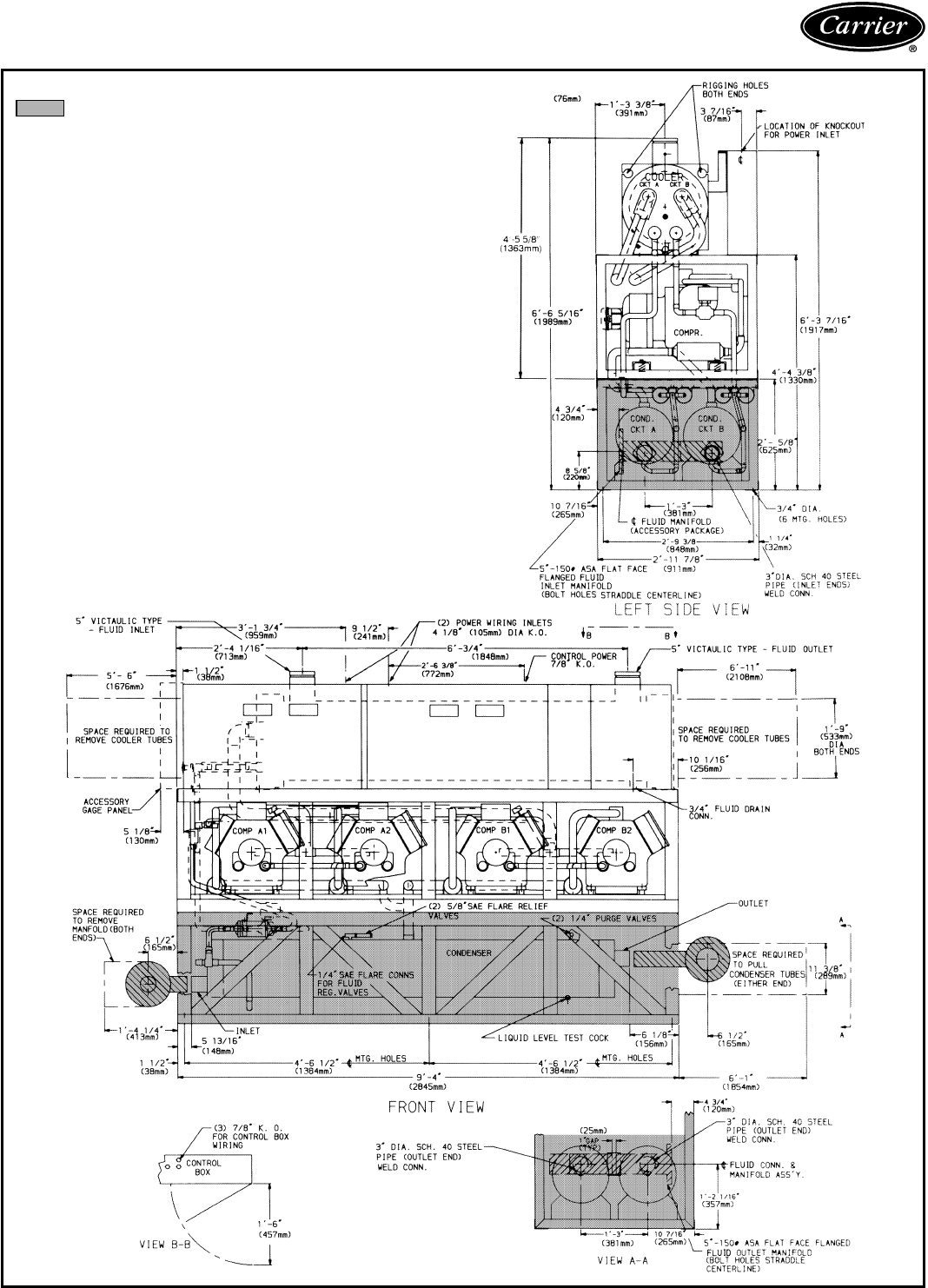

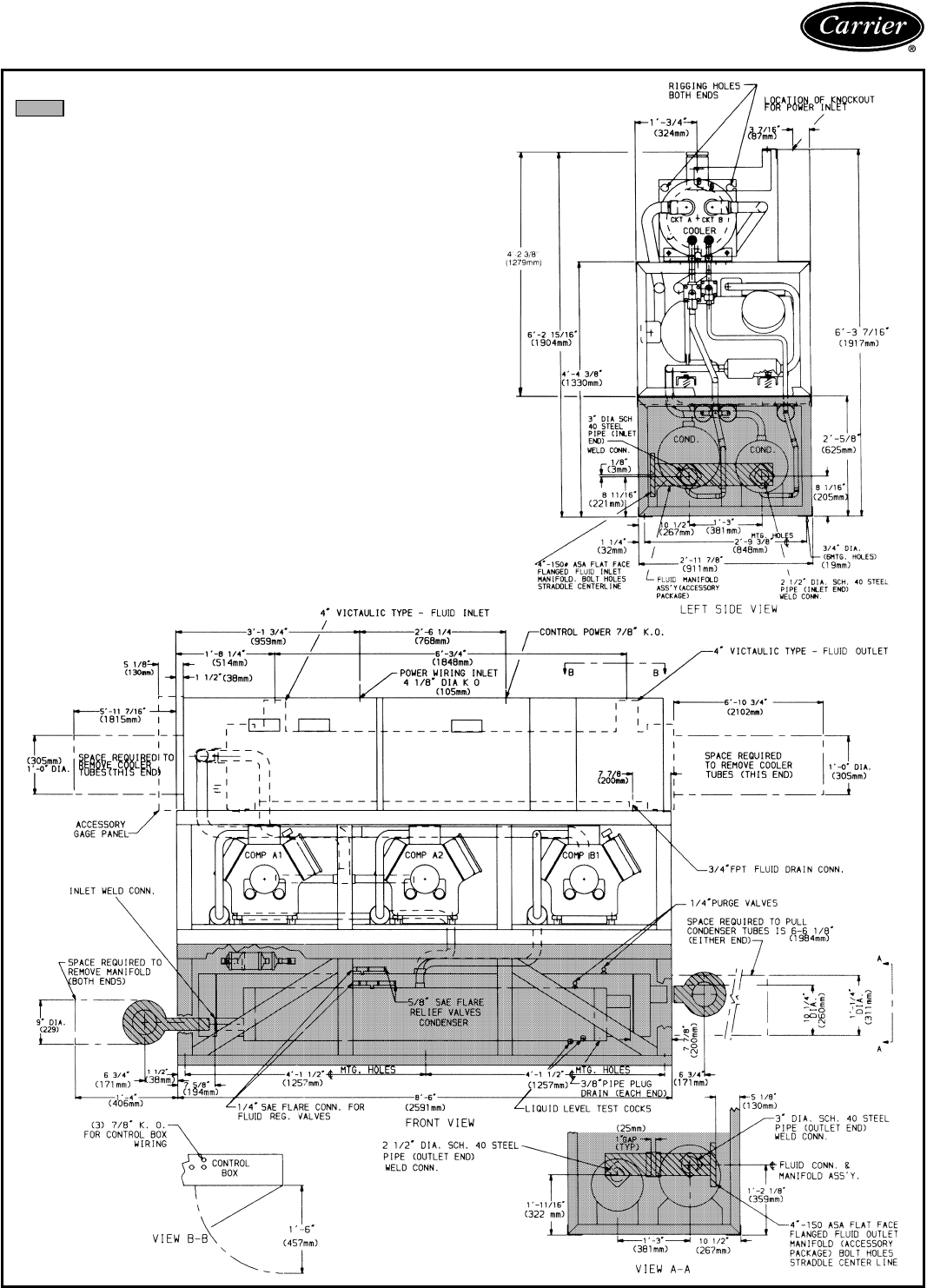

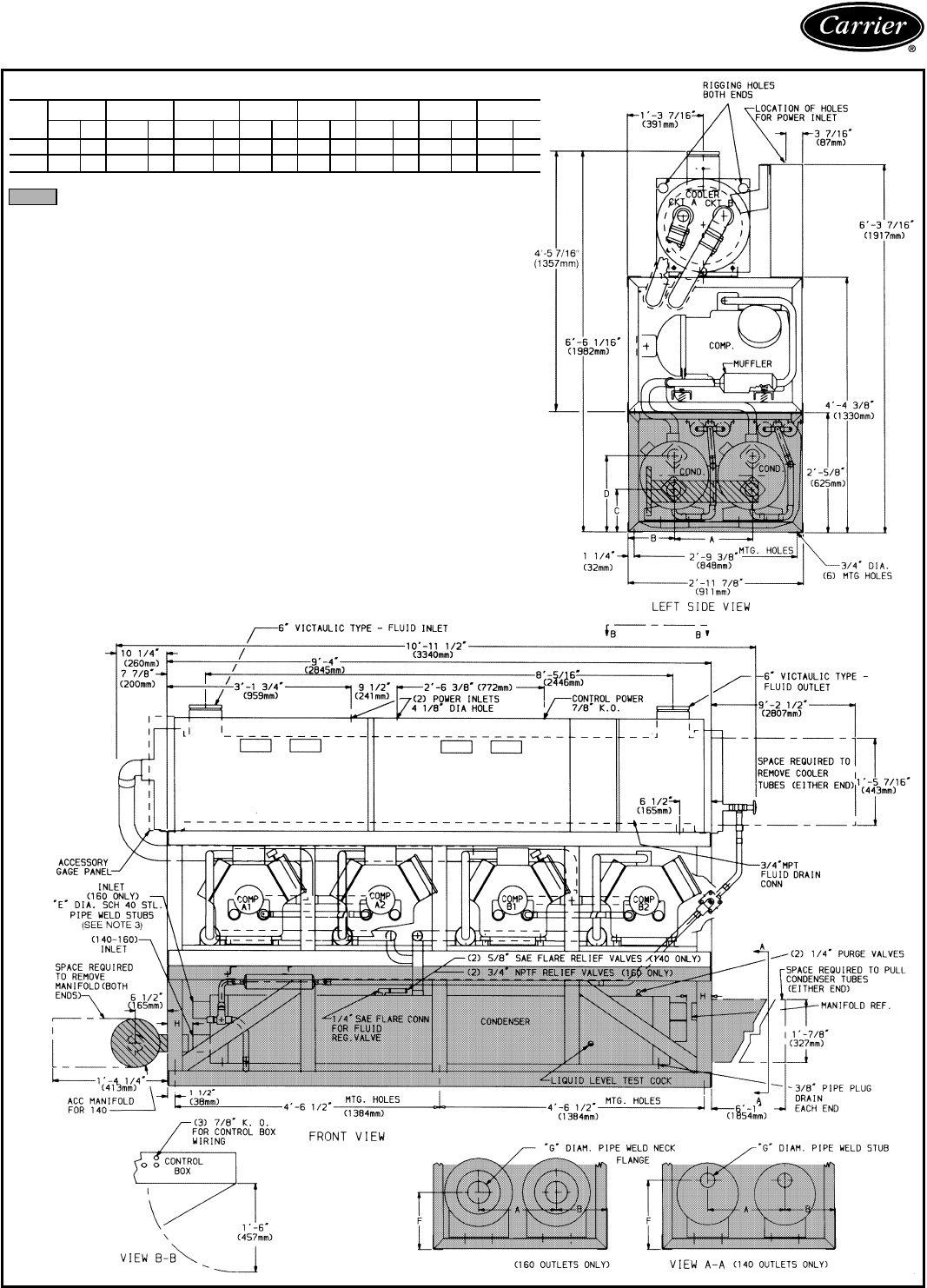

Base Unit Dimensions .................................... 10-12

Application Data ........................................13-16

Selection Procedure ....................................... 17

Performance Data .......................................18-28

Electrical Data ............................................29

Typical Field Control Wiring ..................................30

Controls ............................................... 31

Typical Piping and Wiring ................................... 32

Guide Specifications ......................................33-36

2

Increased part-load perfor-

mance reduces operating

costs

Multiple compressors — Multiple

compressors on a refrigerant cir-

cuit further enhance part-load effi-

ciency. This allows compressor to

operate fully loaded with 100% of

cooler and condenser surface active at

50% unit capacity, optimizing evapo-

rating and condensing temperatures.

Since the chiller normally works at

part load for 97% of its operating

time, a substantial reduction in operat-

ing cost can be realized.

Suction cutoff unloading — Un-

loading on 06E compressors eliminates

unnecessary pumping of refrigerant

gases during unloader operation. This

substantially reduces part-load power

consumption.

Liquid refrigerant subcooling —

Integral subcooler uses coldest

condenser fluid to increase system

capacity without extra horsepower.

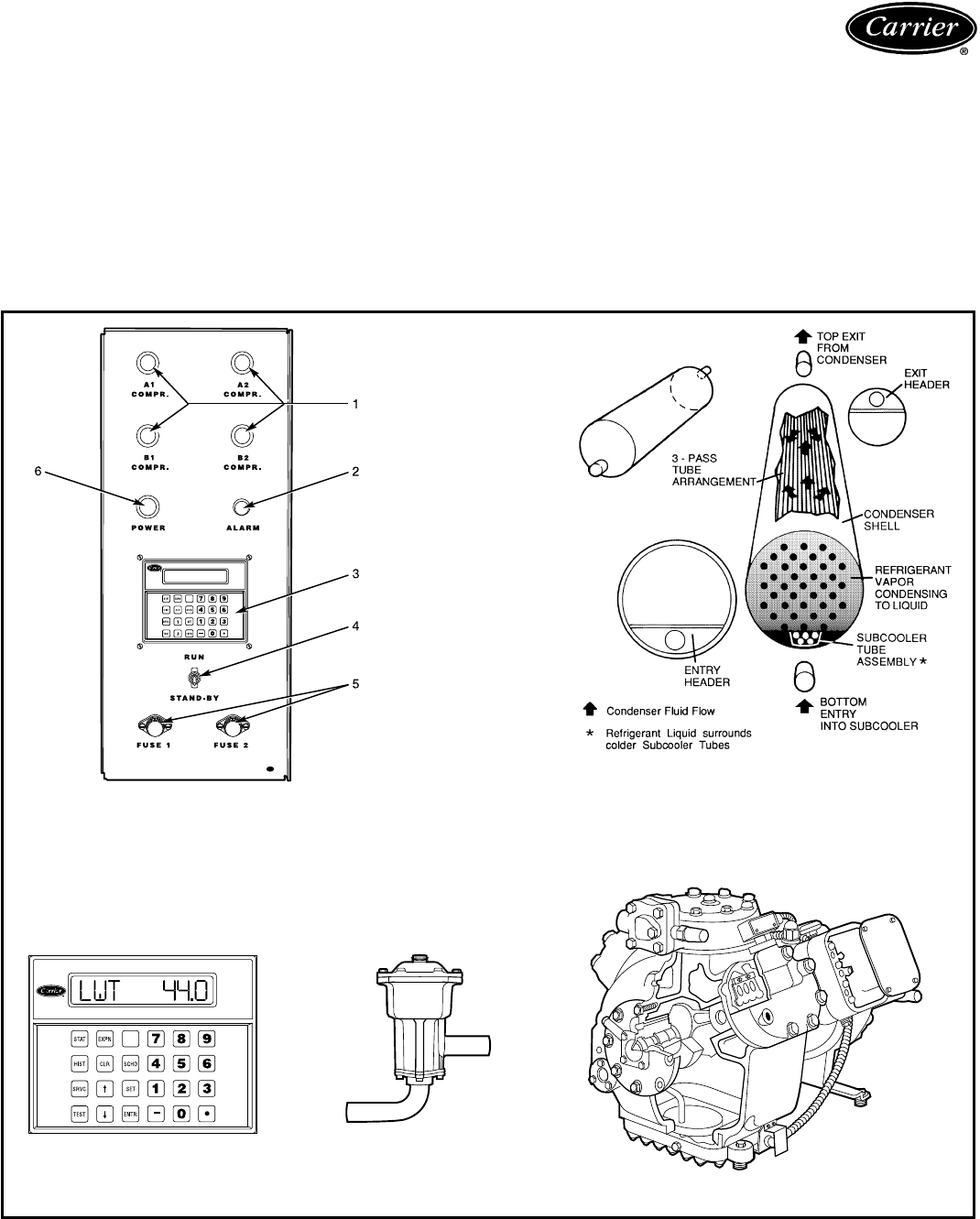

CONTROL PANEL

1—Compressor ON Lights

2—Alarm Light

3—Keypad and Display

Module

4—RUN/STANDBY

Switch

5—Control Circuit Fuses

6—Control Power ON

Light

–

KEYPAD AND DISPLAY

MODULE ELECTRONIC EXPANSION

VALVE (EXV)

SUBCOOLER

06E COMPRESSOR

3

Features/Benefits (cont)

Safety features provide

protection and increase

reliability

Auto. lead/lag control — Control

balances operating hours between

refrigerant circuits.

Standby protection — If a malfunc-

tion or safety cutout occurs, these

2-circuit chillers have the capability for

standby operation. This benefit is

especially desirable in commercial ap-

plications where even brief equip-

ment shutdowns can be extremely

costly.

Electronic expansion valve (EXV)

—The EXV is controlled to main-

tain approximately 20 F (11 C) refrig-

erant superheat entering the

compressor cylinders. (Ordinary ther-

mostatic expansion valves typically

operate at 45 F [25 C] superheat

entering compressor cylinders.) Pre-

cise superheat control is obtained

through actuation of the 760-step,

long-stroke,

3

⁄

4

-in. (19 mm) valve

positioner to ensure optimized refrig-

erant metering. The accurate refrig-

erant metering provided by the EXV

reduces compressor motor temperature

and extends motor life.

Filter drier — Refrigerant circuits are

kept free of harmful moisture and

contaminants by a factory-installed

filter drier.

Crankcase heater — The compres-

sor crankcase heater protects the

compressors against refrigerant migra-

tion and oil dilution.

Moisture-indicating sight glass —

Easy-to-read color indicator immedi-

ately shows moisture content of refrig-

erant system.

Oil pressure safety switch —

Safety switch shuts compressor(s) off if

the oil pressure drops below a safe

operating point.

Protection against single-phasing

—Manual reset, magnetic trip cir-

cuit breakers protect the compressor

motors against both overload and

single-phasing, and eliminate potential

problems before they become ser-

vice headaches.

Motor overtemperature protec-

tion — Servicing dollars are saved

because the compressor motors are

thoroughly protected against overheat-

ing by quick-sensing elements.

Other safeties — Additional safeties

include: Loss of refrigerant charge

protection, low fluid flow protection,

low chilled fluid temperature pro-

tection, low and high superheat pro-

tection, low oil protection for each

compressor circuit, and low con-

trol voltage (to unit) protection.

Thermistors — Six thermistors are

used for temperature sensing inputs to

microprocessor (a seventh may be

used as a remote temperature sensor

for space or outdoor-air tempera-

ture reset):

• Cooler leaving and entering (return)

chilled fluid temperature control

• Cooler saturation temperatures —

Circuit A and Circuit B

• Return gas temperatures entering

compressor cylinder —Circuit A

and Circuit B

• Remote temperature sensor

(accessory)

Model number nomenclature

NOTE: Refrigerant 134a is not available for these units.

These units are listed with Underwrit-

ers’ Laboratories (UL) and Cana-

dian Standards Association (CSA), and

these pressure vessels have ASME

(American Society of Mechanical

Engineers) certification.

UNDERWRITERS’

LABORATORIES ASME

‘U’ STAMP CANADIAN

STANDARDS

ASSOCIATION

4

Physical data — English

30HR,HS UNIT AND COMPRESSOR

UNIT 30HR,HS SIZE 070 080 090 100 110 120 140 160

APPROXIMATE OPERATING

WEIGHT (lb)* HR 4760 4945 5070 6436 6575 6714 7355 7775

HS 3305 3360 3420 4360 4420 4480 5065 5175

REFRIGERANT (R-22)

OPERATING CHG (lb)† HR 104 119 129 138 146 154 172 192

HS 15.3 15.3 15.3 21.0 21.0 21.0 27.0 27.0

COMPRESSOR 06E**

(Reciprocating,

Semi-Hermetic,

1750 rpm)

HR Ckt A 2150 A150 6175 A150 6175 F175 6175 A150 6175 F175 6175 F175 6299 F175 6299 F299

Ckt B 6175 6175 6175 6175 A150 6175 A150 6175 F175 6299 F175 6299 F299

HS Ckt A 2250 A250 6275 A250 6275 F275 6275 A250 6275 F275 6275 F275 6299 F275 6299 F299

Ckt B 6275 6275 6275 6275 A250 6275 A250 6275 F275 6299 F275 6299 F299

Capacity Control Steps

(see page 31) 66688888

Circuit Split, % Capacity Ckt A 57 62.5 67 50 55 50 50 50

Ckt B 43 37.5 33 50 45 50 50 50

CONDENSER PART NO. 09RP---

HR Ckt A 043 054 070 054 070 070 070 084

Ckt B 033 033 033 054 054 070 070 084

REFRIGERANT CONN. (in. ODM)

Liquid Line

HS

Ckt A

7

⁄

8

1

1

⁄

8

1

1

⁄

8

1

1

⁄

8

1

1

⁄

8

1

1

⁄

8

1

1

⁄

8

1

1

⁄

8

Ckt B

7

⁄

87

⁄

87

⁄

8

1

1

⁄

8

1

1

⁄

8

1

1

⁄

8

1

1

⁄

8

1

1

⁄

8

Discharge Line Ckt A 1

5

⁄

8

1

5

⁄

8

2

1

⁄

8

1

5

⁄

8

2

1

⁄

8

2

1

⁄

8

2

1

⁄

8

2

1

⁄

8

Ckt B 1

3

⁄

8

1

3

⁄

8

1

3

⁄

8

1

5

⁄

8

1

5

⁄

8

2

1

⁄

8

2

1

⁄

8

2

1

⁄

8

LEGEND

ODM — Outside Diameter Male

*Includes refrigerant operating charge.

†The 30HR unit is shipped with full operating charge; 30HS unit is shipped with holding charge only

(cooler operating charge shown — condenser and interconnecting piping charge must be added for

total system charge).

**Prefix (no. of unloaders): A, F = none; 2, 6 = one.

5

Physical data — English (cont)

COOLER

30HR,HS SIZE 070,080,090 100,110,120 140,160

COOLER PART NO. 10HA401--- 664 684 704

DIMENSIONS

OD (ft-in.) 1-

3

⁄

4

1- 4 1-4

Length (ft-in.)* 6-9 6-11 9-0

NET FLUID VOLUME (gal.)† 21.7 40.4 52.4

REFRIGERANT CIRCUITS 222

MAXIMUM DESIGN WORKING

PRESSURE (psig)

Refrigerant Side 235 235 235

Fluid (Shell) Side 300 300 300

FLUID CONN. (in.)

Inlet and Outlet 4** 5** 6**

Drain

3

⁄

4

FPT

3

⁄

4

MPT

3

⁄

4

MPT

*Between tube sheets.

†Includes nozzles.

**Victaulic-type water connections.

CONDENSER

CONDENSER PART NO. 09RP--- 033 043 054 070 084

DIMENSIONS

OD (in.) 10

3

⁄

4

12

3

⁄

4

12

3

⁄

4

12

3

⁄

4

14

Length (in.)* 67

1

⁄

2

77 83

3

⁄

8

95

1

⁄

4

83

NET FLUID VOLUME (gal.) 5.7 8.5 9.9 11.4 13.7

FLUID CONN. — in. diameter†

Inlet IPS** 2

1

⁄

2

3332

1

⁄

2

††

Outlet IPS** 2

1

⁄

2

333 4

FLUID PASSES 33333or6

MAXIMUM DESIGN WORKING Refrigerant Side — 385

PRESSURE (psig) Fluid Side — 250

LEGEND

IPS — Iron Pipe Size

OD — Outside Diameter

*Between tube sheets.

†On part no. 084 condensers, data is for 3-pass only. For 6-pass, inlet and outlet connections are 2

1

⁄

2

inches.

**Field welded (flange with weld stub provided for all connections).

††The 09RP084 has 2 inlet connections.

NOTES:

1. The 2

1

⁄

2

-in. and 3-in. condenser connections are equipped with slip-on flanges bolted to the condensers and

designed for field welding of field-supplied 2

1

⁄

2

-in. and 3-in. schedule 40 pipe.

The 4-in. condenser connections are equipped with welding neck flanges bolted to the condensers and designed

for field welding of field-supplied 4-in. schedule 40 pipe.

2. Standard 30HR,HS160 unit is supplied with 3-pass condensers. To convert from 3 to 6 pass, proceed as follows:

a. Remove 4-in. outlet flanges.

b. Cover 4-in. (09RP084) 3-pass condenser water outlets with blind flanges (field supplied).

3. Water outlet and inlet connections are rated according to ANSI/ASME B 16.5 (American National Standards

Institute/American Society of Mechanical Engineers) latest revision.

6

Physical data —SI

30HR,HS UNIT AND COMPRESSOR

UNIT 30HR,HS SIZE 070 080 090 100 110 120 140 160

APPROXIMATE OPERATING

WEIGHT (kg)* HR 2159 2243 2300 2919 2982 3045 3336 3527

HS 1499 1524 1551 1978 2005 2032 2297 2347

REFRIGERANT (R-22)

OPERATING CHG (kg)† HR 47 54 59 63 66 70 78 87

HS 6.9 6.9 6.9 9.5 9.5 9.5 12.2 12.2

COMPRESSOR 06E**

(Reciprocating,

Semi-Hermetic,

29.2 r/s)

HR Ckt A 2150 A150 6175 A150 6175 F175 6175 A150 6175 F175 6175 F175 6299 F175 6299 F299

Ckt B 6175 6175 6175 6175 A150 6175 A150 6175 F175 6299 F175 6299 F299

HS Ckt A 2250 A250 6275 A250 6275 F275 6275 A250 6275 F275 6275 F275 6299 F275 6299 F299

Ckt B 6275 6275 6275 6275 A250 6275 A250 6275 F275 6299 F275 6299 F299

Capacity Control Steps

(see page 31) 66688888

Circuit Split, % Capacity Ckt A 57 62.5 67 50 55 50 50 50

Ckt B 43 37.5 33 50 45 50 50 50

CONDENSER PART NO. 09RP---

HR Ckt A 043 054 070 054 070 070 070 084

Ckt B 033 033 033 054 054 070 070 084

REFRIGERANT CONN. (in. ODM)

Liquid Line

HS

Ckt A

7

⁄

8

1

1

⁄

8

1

1

⁄

8

1

1

⁄

8

1

1

⁄

8

1

1

⁄

8

1

1

⁄

8

1

1

⁄

8

Ckt B

7

⁄

87

⁄

87

⁄

8

1

1

⁄

8

1

1

⁄

8

1

1

⁄

8

1

1

⁄

8

1

1

⁄

8

Discharge Line Ckt A 1

5

⁄

8

1

5

⁄

8

2

1

⁄

8

1

5

⁄

8

2

1

⁄

8

2

1

⁄

8

2

1

⁄

8

2

1

⁄

8

Ckt B 1

3

⁄

8

1

3

⁄

8

1

3

⁄

8

1

5

⁄

8

1

5

⁄

8

2

1

⁄

8

2

1

⁄

8

2

1

⁄

8

LEGEND

ODM — Outside Diameter Male

*Includes refrigerant operating charge.

†The 30HR unit is shipped with full operating charge; 30HS unit is shipped with holding charge only

(cooler operating charge shown — condenser and interconnecting piping charge must be added for

total system charge).

**Prefix (no. of unloaders): A, F = none; 2, 6 = one.

7

Physical data — SI (cont)

COOLER

30HR,HS SIZE 070,080,090 100,110,120 140,160

COOLER PART NO. 40HA401--- 664 684 704

DIMENSIONS

OD (mm) 324 406 406

Length (mm)* 2057 2108 2743

NET WATER VOLUME (L)† 82.1 152.9 198.3

REFRIGERANT CIRCUITS 222

MAXIMUM DESIGN WORKING

PRESSURE (kPa)

Refrigerant Side 1620 1620 1620

Fluid (Shell) Side 2068 2068 2068

FLUID CONN. (in.)

Inlet and Outlet 4** 5** 6**

Drain

3

⁄

4

FPT

3

⁄

4

MPT

3

⁄

4

MPT

*Between tube sheets.

†Includes nozzles.

**Victaulic-type water connections.

CONDENSER

CONDENSER PART NO. 09RP--- 033 043 054 070 084

DIMENSIONS

OD (mm) 273 324 324 324 356

Length (mm)* 1715 1956 2118 2419 2108

NET FLUID VOLUME (L) 21.6 32.2 37.5 43.1 51.9

FLUID CONN. — in. diameter†

Inlet IPS** 2

1

⁄

2

3332

1

⁄

2

††

Outlet IPS** 2

1

⁄

2

333 4

FLUID PASSES 33333or6

MAXIMUM DESIGN WORKING Refrigerant Side — 2654

PRESSURE (kPa) Fluid Side — 1724

LEGEND

IPS — Iron Pipe Size

OD — Outside Diameter

*Between tube sheets.

†On part no. 084 condensers, data is for 3-pass only. For 6-pass, inlet and outlet connections are 2

1

⁄

2

inches.

**Field welded (flange with weld stub provided for all connections).

††The 09RP084 has 2 inlet connections.

NOTES:

1. The 2

1

⁄

2

-in. and 3-in. condenser connections are equipped with slip-on flanges bolted to the condensers and

designed for field welding of field-supplied 2

1

⁄

2

-in. and 3-in. schedule 40 pipe.

The 4-in. condenser connections are equipped with welding neck flanges bolted to the condensers and designed

for field welding of field-supplied 4-in. schedule 40 pipe.

2. Standard 30HR,HS160 unit is supplied with 3-pass condensers. To convert from 3 to 6 pass, proceed as follows:

a. Remove 4-in. outlet flanges.

b. Cover 4-in. (09RP084) 3-pass condenser fluid outlet with blind flanges (field supplied).

3. Water outlet and inlet connections are rated according to ANSI/ASME B 16.5 (American National Standards

Institute/American Society of Mechanical Engineers) latest revision.

8

Accessories (field installed)

Condenser manifold package — This accessory is avail-

able for all 30HR models except the size 160 unit. The

manifold provides common fluid inlet and outlet connec-

tions and consists of 2 steel manifolds, each in 2 sections.

Field welding is required.

Control circuit transformer—Fieldinstalledtransformer

provides 115-v control circuit power if separate control

power source is not available.

Remote reset thermistor — Enables control for space

and outdoor-air temperature reset.

Unit sound enclosure panels — These panels, with fi-

berglass insulation, completely enclose the compressor and

condenser sections.

Gage panel package — One package is required per unit.

Package includes one suction pressure gage and one dis-

charge pressure gage per circuit mounted on a common

panel. Each gage is equipped with a shutoff valve.

Temperature reset — Leaving fluid temperature reset ac-

cessory board may be installed in chiller to provide reset of

LCWT (leaving chilled fluid temperature) in constant fluid

flow systems. Three reset control options are: from return-

fluid temperature, space temperature, and outdoor-air

temperature.

Demand limit control — This control provides 2 demand

limit steps: 1) between 50% and 100% of maximum com-

pressor displacement; or 2) between 0% and 49% displace-

ment. The external switching device determines when to

limit unit capacity.

Chilled Fluid Flow Switch — Although low fluid flow de-

tection is provided by the unit internal control devices, this

accessory is available for field installation for redundant

protection.

Oil-pressure safety switch — Standard on condenser-

less (30HS) models, accessory on fluid-cooled (30HR) mod-

els. Switch protects compressors against loss of oil pressure

in the event of a loss of lubricating oil. One switch package

is needed for each lead compressor.

9

Base unit dimensions — 30HR,HS070-090

CONDENSER SECTION — 30HR ONLY

LEGEND

ASA — American Standards Association

COMP — Compressor

COND — Condenser

CONN — Connection

KO — Knockout

MTG — Mounting

REG — Regulatory

SAE — Society of Automotive Engineers (U.S.A.)

SCH 40 — Schedule 40 Pipe

NOTES:

1. Allow 24 in. in front of unit to fully open electric panel door.

2. Shaded piping indicates accessory manifold fluid package available with

weld connections for connections to stub of condenser fluid connec-

tions. Sleeve coupling permits customer adjustment before welding.

10

Base unit dimensions — 30HR,HS100-120

CONDENSER SECTION — 30HR ONLY

LEGEND

ASA — American Standards Association

COMP — Compressor

COND — Condenser

CONN — Connection

KO — Knockout

MTG — Mounting

REG — Regulatory

SAE — Society of Automotive Engineers (U.S.A.)

SCH 40 — Schedule 40 Pipe

NOTES:

1. Allow 24 in. in front of unit to fully open electric panel door.

2. Shaded piping indicates accessory manifold fluid package avail-

able with weld connections for connections to stub of condenser

fluid connections. Sleeve coupling permits customer adjustment

before welding.

11

Base unit dimensions — 30HR,HS140,160

DIMENSIONS

UNIT

30HR,

HS

‘‘A’’ ‘‘B’’ ‘‘C’’ ‘‘D’’ ‘‘E’’ ‘‘F’’ ‘‘G’’ ‘‘H’’

Ft-in. mm Ft-in. mm Ft-in. mm Ft-in. mm Ft-in. mm Ft-in. mm Ft-in. mm Ft-in. mm

140 1-2

5

⁄

8

371 0-10

7

⁄

16

265 0-8

11

⁄

16

224 1-2

1

⁄

8

359 0-3 76 1-2

1

⁄

8

359 0-3 76 0-5

1

⁄

8

146

160 1-4 406 0-9

7

⁄

16

240 0-7

5

⁄

8

193 1-3

5

⁄

8

397 0-3 76 0-11

5

⁄

8

295 0-4 102 0-6

5

⁄

16

160

CONDENSER SECTION — 30HR ONLY

LEGEND

ASA — American Standards Association

COMP — Compressor

COND — Condenser

CONN — Connection

KO — Knockout

MTG — Mounting

REG — Regulatory

SAE — Society of Automotive Engineers (U.S.A.)

SCH 40 — Schedule 40 Pipe

NOTES:

1. Allow 24 in. in front of unit to fully open electric panel door.

2. Shaded piping indicates accessory manifold fluid package available with weld con-

nections for connections to stub of condenser fluid connections. Sleeve coupling

permits customer adjustment before welding.

3. A total of 4 condenser inlet connections are required for the 30HR160.

12

Application data

Leveling unit

To assure proper oil return, be sure that unit is level,

particularly in its major lengthwise dimension, as com-

pressor oil return piping runs in that direction.

Determine prior to installation if any special treat-

ment is required to assure a level installation.

Cooler fluid temperature

1. Maximum leaving chilled fluid temperature (LCWT) is

70 F (21 C). Unit can start and pull down with up to

95F (35C) enteringfluid temperaturedue toMOP (maxi-

mum operating pressure) feature of the expansion valve.

For sustained operation, it is recommended that enter-

ing fluid temperature not exceed 85 F (29 C).

2. Minimum LCWT is 40 F (4 C) for standard units. Spe-

cial order medium temperature brine units must be

ordered for operation with leaving fluid temperatures

in the range of 39 to 15 F (4 to −9 C). For ratings

below 40 F (4 C) LCWT, contact your local Carrier

representative.

Condenser fluid temperature

1. Maximum leaving condenser fluid temperature is

104 F (40 C) on all 30HR models (except 30HR160,

which has a maximum temperature of 120 F [49 C]).

2. Minimum entering condenser fluid temperature without

condenser flow regulation is 70 F (21 C).

MINIMUM COOLER AND CONDENSER FLUID

FLOW RATES AND MINIMUM LOOP VOLUME

UNIT

30HR,HS

MINIMUM FLOW MINIMUM

VOLUME†

Cooler Condenser*

Gpm L/s Gpm L/s Gal. L

070 95 5.99 110 6.94 208 787.3

080 95 5.99 115 7.26 232 878.1

090 95 5.99 124 7.82 257 972.7

100 135 8.52 128 8.08 294 1112.8

110 135 8.52 138 8.71 315 1192.3

120 135 8.52 150 9.46 336 1271.8

140 156 9.84 150 9.46 405 1532.9

160 156 9.84 243 15.30 449 1699.5

LEGEND

ARI — Air Conditioning and Refrigeration Institute (U.S.A.)

N—Liters per kW

V—Gallons per ton

*Applicable to 30HR units only.

†Minimum system fluid volumes:

Gallons=VxARICapacity in Tons

Liters = N x ARI Capacity in kW

(Based on Normal Air Conditioning value)

APPLICATION V N

Normal Air Conditioning 3 3.25

Process Type Cooling 6 to 10 6.5 to 10.8

Low Ambient Operation 6 to 10 6.5 to 10.8

NOTE: Minimum condenser fluid flow based on 3 ft/sec (0.9 m/s) to

minimize condenser fouling. Flow rates below 3 ft/sec (0.9 m/s) may

require more frequent tube cleaning.

Cooler and fluid-cooled condenser

temperature rise

Ratings and performance data in this publication are for a

cooling temperature rise of 10° F (5.6° C). Units may be

operated at a different temperature rise, provided flow lim-

its are not exceeded and corrections to capacity, etc., are

made. For minimum flow rates, see Minimum Cooler and

Condenser Fluid Flow Rates and Minimum Loop Volume

table on this page. High flow rate is limited by pressure drop

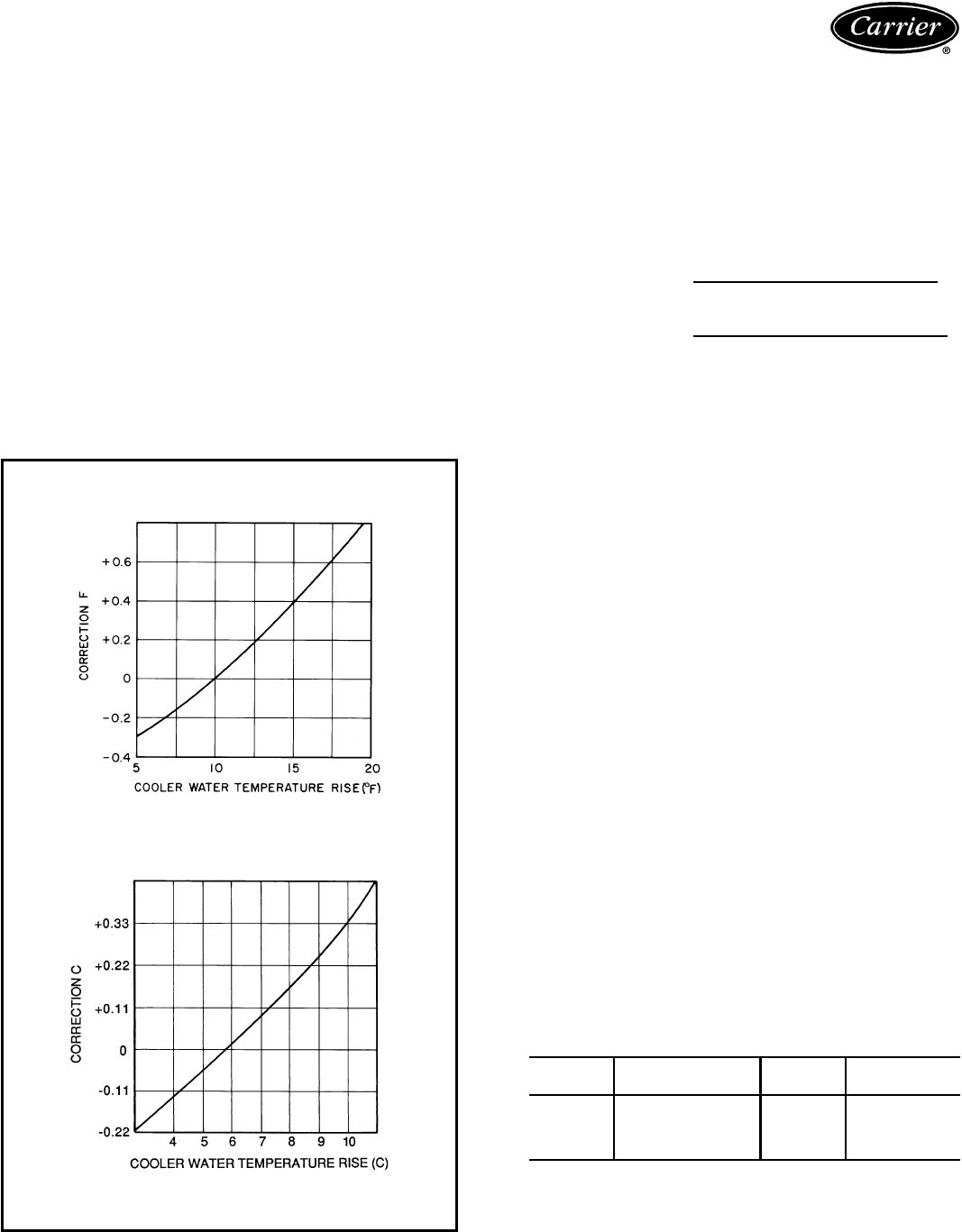

that can be tolerated. If another temperature rise is used,

apply LCWT correction as given in Selection Procedure sec-

tion on page 17.

Minimumcooler flow—This value (maximumcooler tem-

peraturerise) for standard units isshown in Minimum Cooler

and Condenser Fluid Flow Rates and Minimum Loop Vol-

ume table. When gpm (L/s) required is lower (or rise is

higher), follow recommendations below:

a. Multiple smaller chillers may be applied in series, each

providing a portion of the design temperature rise.

b. Chilled fluid may be recirculated to raise flow rate. How-

ever, mixed temperature entering cooler must be main-

tained at a minimum of at least 5° F (2.8° C) above the

leaving chilled fluid temperature.

c. Special cooler baffling is required to allow minimum flow

rate to be reduced 12%.

NOTE: Recirculation flow is shown below.

Maximum cooler flow (.5 gpm/ton or ,5° F rise

[.0.09 L/s •kW or ,2.7° C rise]) — The rise results

in practical maximum pressure drop through cooler.

Return fluid may bypass the cooler to keep pressure drop

throughcooler withinacceptable limits. Thispermits ahigher

DT with lower fluid flow through cooler and mixing after

the cooler.

Special cooler baffling is available by special order, to per-

mit a cooler flow rate increase of 10%.

NOTE: Bypass flow is shown below.

RECIRCULATION FLOW

BYPASS FLOW

13

Application data (cont)

Minimum fluid-cooled condenser flow — This value

(maximum rise) is shown in Minimum Cooler and Con-

denser Fluid Flow Rates and Minimum Loop Volume table

on page 13. Condensers may be piped in series. Ensure

leaving fluid temperature does not exceed 104 F (40 C).

Variable cooler flow rates —These rates may be applied

to standard chillers. However, the unit will attempt to main-

tainaconstant leavingchilledfluid temperature.Insuch cases,

minimum flow must be in excess of minimum flow given in

the Minimum Cooler and Condenser Fluid Flow Rates and

Minimum Loop Volume table, and flow rate must change

in steps of less than 10% per minute. Apply 6 gal per ton

(6.5 L per kW) fluid loop volume minimum if flow rate

changes more rapidly.

Chilled fluid loop volume — The volume in circulation

must equal or exceed 3 gal per nominal ton of cooling

(3.25 L per kW) for temperature stability and accuracy in

normal air conditioning applications. See Minimum Cooler

and Condenser Fluid Flow Rates and Minimum Loop Vol-

ume table on page 13. (For example, a 30HR100 would

require 294 gal [1112.8 L] in circulation in system loop —

see Minimum Cooler and Condenser Fluid Flow Rates and

Minimum Loop Volume table on page 13.) For process jobs

where accuracy is vital, or for operation at ambient tem-

perature below 32 F (0° C) with low unit loading conditions,

there should be from 6 to 10 gal. per ton (6.5 to 10.8 L

per kW). To achieve this volume, it is often necessary to

install a tank in the loop. Tank should be baffled to ensure

there is no stratification, and that water (or brine) entering

tank is adequately mixed with liquid in the tank.

NOTE: Tank installation is shown below.

Fouling factor — The fouling factor used to calculate tabu-

lated ratings was 0.00025 ft

2

•hr •F/Btu (0.000044 m

2

•

KW). As fouling factor is increased, unit capacity decreases

and compressor power increases. Standard ratings should

be corrected using following multipliers:

FOULING FACTOR CORRECTION

FOULING FACTOR COOLER CONDENSER

English SI Cap. Power Cap. Power

0.0005 0.000088 0.995 1.000 0.990 1.005

0.001 0.000176 0.980 1.000 0.969 1.033

0.002 0.000352 — — 0.908 1.098

Rating tables are based on 10° F (5.6° C) DT in the cooler and 0.00025

ft

2

•hr •F/Btu (0.000044 m

2

•K/W) fouling factor in both cooler and con-

denser. Also, 10° F (5.6° C) DT in condenser for 3-pass parallel, 20° F

(11.1° C) DT for 6-pass parallel, and 40° F (22.2° C) DT for 6-pass se-

ries circuiting arrangements.

PERFORMANCE CORRECTIONS

1. Corrected Cooling Capacity = Rated Cooling Capacity x all correc-

tion factors.

2. Corrected Compressor Power Input = Rated Power Input x all cor-

rection factors.

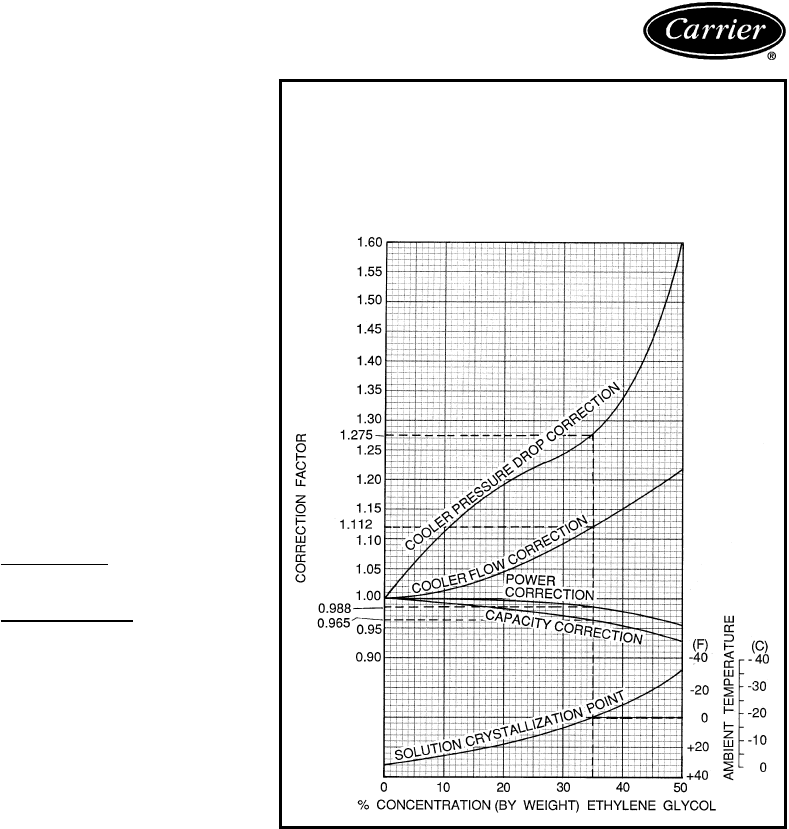

Cooler and fluid-cooled condenser freeze

protection

If chiller or fluid lines are in an area where ambient con-

ditions fall below 32 F (0° C), it is recommended that an

antifreeze solution be added to protect the unit and fluid

piping to a temperature 15° F (8.3° C) below the lowest

anticipated temperature. Corrections to performance as in-

dicated in Capacity Correction and Selection Procedure sec-

tions on pages 15 and 17 must be applied.

Useonly antifreeze solutions approved forheat exchanger

duty. Use of automotive antifreezes is not recommended

because of the fouling that can occur once their relatively

short-lived inhibitor breaks down.

Ifnot protectedwith anantifreeze solution, draining cooler

and outdoor piping is recommended if system is not to be

used during freezing weather conditions.

30HS condenser requirements

1. Ensure each refrigerant circuit has its own head pres-

sure control.

2. Condenser must provide 15° F (8.3° C) subcooling, a

maximum of 40° F (22.2° C) difference between satura-

ted condensing temperature and outdoor ambient

temperature (to prevent overload at high ambient

temperatures), and a minimum of 20° F (11.1° C) dif-

ference (to assure subcooling).

3. Do not manifold independent refrigerant circuits into a

single condenser.

4. Condenser should not be located more than 50 ft

(15 m) below chiller to maintain subcooling.

5. Design discharge and liquid piping according to Carrier

System Design Manual.

TANK INSTALLATION

14

Oversizing chillers

Oversizing chillers by more than 15% at design conditions

must be avoided as the system operating efficiency would

be adversely affected (resulting in greater and/or excessive

electrical demand and cycling of compressors). When future

expansion of equipment is anticipated, install a single chiller

tomeet present loadrequirements, and installa second chiller

to meet the additional load demand.

It is also recommended that the installation of 2 smaller

chillers be considered where operation at minimum load is

critical. The operation of a smaller chiller loaded to a greater

percent of minimum is preferred to operating a single chiller

at or near its minimum recommended value.

Hot gas bypass should not be used as a means to allow

oversizing chillers. Hot gas bypass should be given consid-

eration where substantial operating time is anticipated be-

low the minimum unloading step.

Multiple chillers

Where chiller capacities required are greater than can be

furnished by a 30H chiller, or where standby capability is

desired, chillers may be installed in parallel. Units of equal

size help to ensure balanced fluid flows. Where a large tem-

perature drop (.25° F [13.9° C]) is desired, chillers may

be installed in series. Fluid temperature sensors need not

be moved for multiple chiller operation.

Part-wind start

Part-wind start is not generally required on 30H chillers due

to use of multiple small compressors allowing smaller elec-

trical load increments, but it is available if required. Maxi-

mum instantaneous current flow (see ICF in Electrical Data

table on page 29) should be used in determining need.

Vibration isolation

Compressors are spring isolated. External vibration isola-

tion is not generally required.

Strainers

For 30HR units, a strainer with a minimum of 20 mesh

should be installed in both the cooler and condenser fluid

inlet lines just ahead of the cooler and condenser, and as

close to the cooler and condenser as possible. For 30HS

units, this recommendation applies only to the cooler.

Capacity correction (antifreeze)

If unit or fluid lines connected to the unit are in an area

where ambient temperature falls below 32 F (0° C), it is

stronglyrecommended that antifreeze(or other suitablebrine)

be used in the chilled fluid circuit. Unit performance data

must be corrected as shown in the following example (us-

ing inhibited ethylene glycol solution):

EXAMPLE — ENGLISH

I Determine concentration of inhibited ethylene

glycol (EG) solution required to protect the sys-

tem to 0° F (at zero flow).

From Solution Crystallization Point correction curve on

page 16: 35% EG concentration is required for solu-

tion crystallization at 0° F.

Consider the 30HR080 unit selected in the Selection

Procedure section on page 17.

II Correct unit capacity.

On Capacity Correction curve on page 16, read 0.965

correction factor at 35% concentration.

Corrected Capacity = 0.965 x Rated Capacity

= 0.965 x 77.2

= 74.5 Tons

III Correct cooler water flow rate (Gpm).

On Cooler Flow Correction curve on page 16, read

1.112 correction factor at 35% concentration.

Cooler Water Flow

(at corrected capacity) ==

Tonsx24 74.5 x 24

DT10

= 178.8 Gpm

Cooler Water Flow

(35% EG) = 1.112x 178.8 = 198.8Gpm

IV Correct cooler pressure drop.

On Cooler Pressure Drop Correction curve on

page 18, read 1.28 correction factor at 35%

concentration.

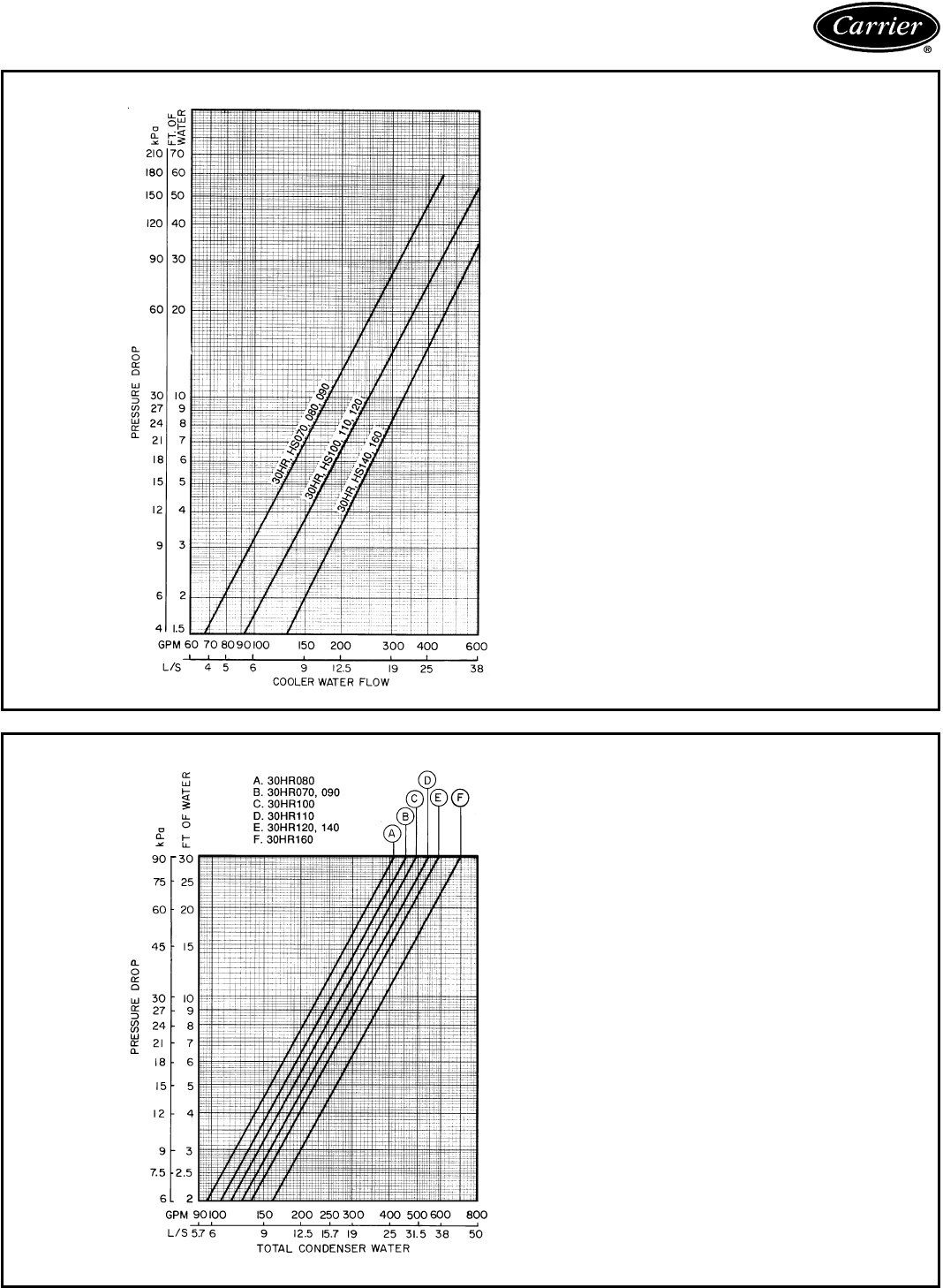

On Cooler Pressure Drop curve, (page 19) for

198.8 gpm of water, Pressure Drop = 12.1 ft of

water.

For 35% EG solution,

Pressure Drop = 1.28 x 12.1

= 15.5 ft of water

V Correct compressor power input (kW).

On Power Correction curve on page 16, read 0.988

correction factor at 35% concentration.

Corrected Power Input = 0.988 x 68.6

= 67.8 kW

15

Application data (cont)

EXAMPLE — SI

I Determine concentration of inhibited ethylene

glycol (EG) solution required to protect the sys-

tem to −17.8 C (at zero flow).

From Solution Crystallization Point correction curve at

right: 35% EG concentration is required for solution

crystallization at −17.8 C.

Consider the 30HR080 unit selected in the Selection

Procedure section on page 17.

II Correct unit capacity.

On Capacity Correction curve at right, read 0.965 cor-

rection factor at 35% concentration.

Corrected Capacity = 0.965 x Rated Capacity

= 0.965 x 273.1

= 263.4 kW

III Correct cooler water flow rate (L/s).

On Cooler Flow Correction curve at right, read 1.112

correction factor at 35% concentration.

Cooler Water Flow

(at corrected capacity) =kW x .239

DT

=263.4 x .239

5.6

= 11.2 L/s

Cooler Water Flow

(35% EG) =1.112 x 11.2 = 12.5 L/s

IV Correct cooler pressure drop.

On Cooler Pressure Drop Correction curve at right,

read 1.28 correction factor at 35% concentration.

OnCooler Pressure Drop curve (page19), for 12.5 L/s

of water, Pressure Drop = 36.4 kPa.

For 35% EG solution,

Pressure Drop = 1.28 x 36.4

= 46.6 kPa

V Correct compressor power input (kW).

On Power Correction curve at right, read 0.988 cor-

rection factor at 35% concentration.

Corrected Power Input = 0.988 x 69.6

= 68.8 kW

ETHYLENE GLYCOL PERFORMANCE

CORRECTION FACTORS AND SOLUTION

CRYSTALLIZATION POINTS

Correction factors apply to published chilled water

performance ratings from 40 to 60 F

(4.4 to 15.6 C) leaving water temperature.

16

Selection procedure (with example)

ENGLISH

NOTE: Contact your local Carrier representative for a com-

puter selection (based on the Reciprocating Chiller Selec-

tion program of Carrier’s electronic catalog), or follow the

procedure below.

I Determine unit size and operating conditions

required to meet given capacity at given

conditions.

Given:

Capacity .........................77Tons

Leaving Chilled Water Temp (LCWT) .......44F

Cooler Water Temp Rise ...............10°F

Entering Condenser Water Temp .......... 85F

Condenser Water Temp Rise ............ 10°F

Fouling Factor (Cooler and

Condenser) ..................... .00025

NOTE: For other than 10° F temperature rise, data

correctionsmust bemade; also, on some units a change

of controls is necessary.

FOR HR (Fluid-Cooled Condenser):

Enter the Performance data table on page 21 at 44 F

LCWT and 85 F Condenser Entering Water Tempera-

ture. Read down the capacity column to a capacity that

equals or exceeds the given capacity. Read across to

obtain the operating conditions required to obtain the

listedcapacity. Usecooler and condenser pressure drop

curves to determine the respective pressure drops. Fi-

nal unit selection should be based on present and fu-

ture job requirements and the economics of the job.

FOR 30HS (Condenserless):

Use same method. For remote condenser data,

refer to appropriate Carrier condenser Product Data

literature.

Contact your local Carrier representative for a com-

puter selection of chiller system combinations with

Carrier air-cooled condensers other than those shown

in Performance Data tables.

II From Performance Datatable andpressuredrop

curves, determine operating data for selected

unit.

Unit ...........................30HR080

Capacity ........................ 77.2 tons

Compressor Motor Power Input ........68.6 kW

Cooler Water Flow..................185gpm

Cooler Pressure Drop .................10.6 ft

Condenser Water Flow .............229.3 gpm

Condenser PressureDrop ..............10.0 ft

SI

NOTE: Contact your local Carrier representative for a com-

puter selection (based on the Reciprocating Chiller Selec-

tion program of Carrier’s electronic catalog), or follow the

procedure below.

I Determine unit size and operating conditions

required to meet given capacity at given

conditions.

Given:

Capacity .........................270kW

Leaving Chilled Water Temp (LCWT) ........7C

Cooler Water Temp Rise ...............5.6° C

Entering Condenser Water Temp ..........30C

Condenser Water Temp Rise ............5.6° C

Fouling Factor (Cooler and

Condenser) ....................... .044

NOTE: For other than 5.6° C temperature rise, data

correctionsmust bemade; also, on some units a change

of controls is necessary.

FOR 30HR (Fluid-Cooled Condenser):

Enter the Performance Data table on page 25 at 7 C

LCWT and 30 C Condenser Entering Water Tempera-

ture. Read down the capacity column to a capacity that

equals or exceeds the given capacity. Read across to

obtain the operating conditions required to obtain the

listedcapacity. Usecooler and condenser pressure drop

curves to determine the respective pressure drops. Fi-

nal unit selection should be based on present and fu-

ture job requirements and the economics of the job.

FOR 30HS (Condenserless):

Use same method. For remote condenser data,

refer to appropriate Carrier condenser Product Data

literature.

Contact your local Carrier representative for a com-

puter selection of chiller system combinations with

Carrier air-cooled condensers other than those shown

in Performance Data tables.

II From Performance Datatable andpressuredrop

curves, determine operating data for selected

unit.

Unit ...........................30HR080

Capacity ........................273.0 kW

Compressor Motor Power Input ........69.6 kW

Cooler Water Flow .................11.6 L/s

Cooler Pressure Drop ...............31.5 kPa

Condenser Water Flow ..............14.5 L/s

Condenser Pressure Drop ............29.8 kPa

17

Performance data

Ratings

Performance Data tables for 30HR fluid-cooled condenser

models appear on pages 21 and 25. Ratings for 30HS con-

denserless models appear on pages 22 and 26. Ratings for

30HS condenserless models in combination with air-cooled

condensers appear on pages 23-24, and 27-28. Ratings

data beyond limits shown and/or brine ratings are available

in Carrier Application Data publications.

1. All performance data is based on:

a. Coolerwater temperaturerise of10° F (5.6° C). When

more accuracy is desired, correct LCWT by amount

determined from LCWT Correction curve below be-

fore entering Performance Data tables.

b. Cooler fouling factor of .00025 (.000044) (same for

condenser on 30HR).

c. 10° F (5.6° C) subcooling (30HS).

d. Refrigerant 22.

2. Whencorrected LCWT isused, cooler pressuredrop must

also be corrected for the new LCWT:

a. Enter Performance Data table at corrected LCWT.

By interpolation, determine corrected Capacity (tons

or kW), saturated discharge temperature (in Perfor-

mance Data tables on pages 21 and 25 for 30HS

condenserlessunits),andkW (compressor motorpower

input at rated voltage).

b. Calculate:

corrected gpm = corrected capacity (tons) x 24

temperature rise (°F)

corrected L/s = corrected capacity (kW) x .239

temperature rise (°C)

c. Enter Cooler Pressure Drop curve at corrected gpm

(L/s) and find pressure drop.

Where cooler water temperature rise is less than 7° F

(3.9° C), the high flow rate will normally be accom-

plished by excessive pressure drop. In these cases, con-

tact your local Carrier representative for selection of a

cooler with suitable baffle spacing.

Combining 30HS units with remote condensers which

have greater than (less than) the 10° F (5.6° C)

subcooling in the ratings increases (decreases) system

capacity. To adjust capacity, multiply capacity ratings by

0.96; then adjust this result upward by 0.4% for each

degree F (0.7% for each degree C) of available

subcooling.

30HS ARI (Air Conditioning and Refrigeration Institute,

U.S.A.) ratings are based on:

• Leaving chilled water temperature of 44 F (6.7 C).

• Entering cooler water temperature of 54 F (12.2 C).

• Saturated discharge temperature of 120 F (48.9 C).

30HR ARI ratings are based on:

• Leaving chilled water temperature of 44 F (6.7 C).

• Entering cooler water temperature of 54 F (12.2 C).

• Entering condenser water temperature of 85 F

(29.4 C).

• Condenser flow of 3 gpm per ton (0.054 L/s per kW).

Performance data for 30HS chillers in combination with

remote air-cooled condensers includes the following sys-

tem combinations:

CHILLER AIR-COOLED

CONDENSER CHILLER AIR-COOLED

CONDENSER

30HS070 09DK044/09DK034 30HS110 (2) 09DK064

30HS080 09DK054/09DK034 30HS120 (2) 09DK064

30HS090 09DK064/09DK034 30HS140 (2) 09DK084

30HS100 (2) 09DK054 30HS160 (2) 09DK094

NOTE: Numbers in ( ) are quantities.

LCWT CORRECTION

ENGLISH

NOTE: For rise above 10° F, ADD correction to design LCWT; below

10° F, SUBTRACT.

SI

NOTE: For rise above 5.6° C, ADD correction to design LCWT;

below 5.6° C, SUBTRACT.

18

COOLER PRESSURE DROP

NOTE: Ft of water = 2.31 x change in psig.

CONDENSER PRESSURE DROP

NOTE: Ft of water = 2.31 x change in psig.

19

Performance data (cont)

ARI RATINGS

UNIT

30

CAPACITY INPUT

POWER

(kW)

COOLER FLOW COOLER

PRESSURE DROP CONDENSER

FLOW CONDENSER

PRESSURE DROP EER IPLV

Tons kW Gpm L/s Ft of

Water kPa Gpm L/s Ft of

Water kPa

HR070 69.4 244.1 60.1 166.3 10.49 8.6 25.7 208.2 13.14 7.0 20.9 13.9 17.5

HR080 77.2 271.5 68.6 185.1 11.68 10.6 31.7 231.6 14.61 10.2 30.5 13.5 17.1

HR090 85.5 300.7 77.4 204.9 12.93 12.9 38.5 256.5 16.18 9.8 29.3 13.3 17.3

HR100 98.0 344.7 85.4 234.8 14.81 9.0 26.9 294.0 18.55 11.5 34.3 13.8 18.4

HR110 105.0 369.3 93.8 251.6 15.87 10.3 30.8 315.0 19.87 10.8 32.2 13.4 18.3

HR120 112.0 393.9 102.3 268.6 16.95 11.7 34.9 336.0 21.20 10.3 30.8 13.1 18.2

HR140 135.0 474.8 126.0 323.7 20.42 9.4 28.1 405.0 25.55 14.4 43.0 12.9 16.3

HR160 149.8 526.8 141.6 359.2 22.66 11.6 34.6 449.4 28.35 10.4 31.1 12.7 16.4

LEGEND

EER — Energy Efficiency Ratio (Capacity

[Btuh] 4Input Power [W])

IPLV — Integrated Part-Load Value

Rated in accordance with ARI Standard 590-92.

NOTES:

1. Rated in accordance with ARI Standard 590-92 at standard rating

conditions.

2. Standard rating conditions are as follows:

Cooler Conditions:

Leaving water temperature: 44 F (6.7 C)

Entering water temperature: 54 F (12.2 C)

Condenser Conditions:

Entering water temperature: 85 F (29.4 C)

Flow: 3 gpm per ton (0.054 L/s per kW)

Fouling Factor (Cooler and Condenser): 0.00025 hr-sq ft-F per Btuh

(0.000044 m

2

x C per W)

3. IPLV is a single number part-load efficiency value calculated from

100, 75, 50, and 25% system full-load efficiency values and corrected

for a typical building air-conditioning application.

4. All data in this table is certified in accordance withARI Standard 590-92

as represented in the Reciprocating Chiller Selection Program (E-

Cat) version 2.13.

20

Performance data

30HR Water-Cooled — English

30HR

UNIT

SIZE

LCWT

(F)

CONDENSER ENTERING WATER TEMPERATURE (F)

75.0 80.0 85.0 90.0

Cap.

(Tons) Input

kW

Cooler

Flow

Rate

(Gpm)

Cond

Flow

Rate

(Gpm)

Cap.

(Tons) Input

kW

Cooler

Flow

Rate

(Gpm)

Cond

Flow

Rate

(Gpm)

Cap.

(Tons) Input

kW

Cooler

Flow

Rate

(Gpm)

Cond

Flow

Rate

(Gpm)

Cap.

(Tons) Input

kW

Cooler

Flow

Rate

(Gpm)

Cond

Flow

Rate

(Gpm)

070

40.0

67.6 53.9 161.9 196.7 65.7 56.4 157.2 193.7 63.7 58.8 152.4 190.5 61.7 61.1 147.6 187.3

080 75.3 61.5 180.2 219.9 73.2 64.3 175.3 216.8 71.1 67.0 170.2 213.6 68.9 69.6 165.0 210.2

090 83.3 69.5 199.3 244.2 81.0 72.6 194.0 240.9 78.8 75.6 188.6 237.6 76.5 78.4 183.0 233.9

100 95.8 76.5 229.4 278.8 93.3 80.2 223.4 275.3 90.8 83.7 217.4 271.7 88.2 87.1 211.2 267.9

110 102.7 84.3 246.0 300.3 100.1 88.1 239.7 296.7 97.5 91.9 233.4 293.0 94.8 95.6 227.0 289.1

120 109.6 91.9 262.4 321.7 106.9 96.1 255.9 318.0 104.2 100.0 249.6 314.4 101.4 103.9 242.8 310.2

140 131.9 113.5 315.8 388.9 128.4 118.2 307.5 383.8 125.0 122.7 299.2 378.6 121.5 127.1 290.7 373.2

160 146.3 127.9 350.1 432.4 142.5 132.8 341.2 426.9 138.8 137.7 332.3 421.3 135.1 142.3 323.3 415.6

070

42.0

70.5 54.4 168.9 203.9 68.5 57.0 164.1 200.9 66.5 59.5 159.2 197.7 64.4 61.9 154.3 194.5

080 78.4 62.2 187.8 227.8 76.3 65.0 182.7 224.7 74.1 67.8 177.5 221.4 71.9 70.5 172.2 218.0

090 86.6 70.2 207.6 252.7 84.4 73.4 202.1 249.5 82.1 76.5 196.6 246.1 79.7 79.5 190.9 242.5

100 99.4 77.2 238.2 287.9 96.9 80.9 232.2 284.5 94.3 84.6 225.8 280.6 91.7 88.1 219.6 276.8

110 106.6 85.0 255.3 310.0 103.9 89.0 248.8 306.2 101.2 92.9 242.4 302.5 98.5 96.7 235.9 298.6

120 113.6 92.8 272.0 331.7 110.8 97.0 265.5 328.0 108.1 101.2 259.0 324.4 105.2 105.3 251.9 320.1

140 137.0 114.8 328.3 402.1 133.5 119.7 319.8 396.9 129.9 124.4 311.2 391.6 126.3 129.0 302.6 386.2

160 151.9 129.4 363.9 447.0 148.1 134.6 354.8 441.5 144.3 139.6 345.6 435.8 140.4 144.5 336.4 430.0

070

44.0

73.5 54.9 176.1 211.4 71.4 57.6 171.1 208.2 69.4 60.1 166.3 208.2 67.2 62.8 161.0 201.7

080 81.5 62.7 195.5 235.8 79.4 65.7 190.4 232.7 77.2 68.6 185.1 231.6 74.9 71.5 179.7 225.9

090 90.1 70.9 215.9 261.4 87.8 74.2 210.4 258.2 85.5 77.4 204.9 256.5 83.0 80.6 199.0 251.2

100 103.1 77.9 247.1 297.1 100.5 81.7 240.9 293.6 98.0 85.4 234.8 294.0 95.2 89.1 228.2 285.9

110 110.4 85.7 264.6 319.6 107.7 89.9 258.2 316.0 105.0 93.8 251.6 315.0 102.2 97.9 244.9 308.3

120 117.6 93.6 281.8 341.9 114.9 98.0 275.3 338.4 112.0 102.3 268.6 336.0 109.1 106.5 261.5 330.5

140 142.3 116.0 341.1 415.5 138.6 121.1 332.4 410.2 135.0 126.0 323.7 405.0 131.3 130.8 314.8 399.4

160 157.7 130.9 378.0 461.9 153.8 136.4 368.6 456.2 149.8 141.6 359.2 449.4 145.9 146.6 349.8 444.6

070

46.0

76.4 55.4 183.3 218.8 74.4 58.2 178.4 215.9 72.2 60.9 173.3 212.6 70.1 63.6 168.0 209.2

080 84.8 63.2 203.4 243.9 82.6 66.4 198.1 240.7 80.4 69.4 192.8 237.5 78.1 72.4 187.2 234.0

090 93.6 71.5 224.5 270.3 91.3 74.9 218.9 267.0 88.8 78.4 213.1 263.6 86.4 81.6 207.3 260.0

100 106.8 78.3 256.1 306.3 104.2 82.4 249.9 302.8 101.5 86.3 243.5 299.1 98.8 90.1 236.9 295.2

110 114.3 86.3 274.1 329.4 111.6 90.6 267.6 325.8 108.8 94.8 260.9 322.1 106.0 98.9 254.2 318.1

120 121.7 94.4 291.9 352.3 118.8 98.9 285.0 348.5 116.0 103.4 278.3 344.8 113.0 107.7 271.1 340.7

140 147.6 117.2 354.1 429.1 143.9 122.5 345.2 423.8 140.2 127.6 336.2 418.4 136.4 132.6 327.2 412.8

160 163.6 132.4 392.4 477.1 159.6 138.0 382.8 471.3 155.6 143.5 373.2 465.5 151.5 148.7 363.5 459.5

070

48.0

79.5 55.9 190.9 226.6 77.4 58.7 185.7 223.4 75.2 61.6 180.6 220.2 73.0 64.4 175.3 216.9

080 88.1 63.7 211.4 252.1 85.8 67.0 206.0 248.9 83.5 70.2 200.5 245.6 81.2 73.3 194.9 242.2

090 97.2 72.0 233.2 279.3 94.8 75.7 227.5 276.0 92.4 79.1 221.7 272.6 89.9 82.6 215.7 269.0

100 110.6 78.9 265.4 315.8 107.8 83.0 258.8 312.1 105.2 87.0 252.5 308.6 102.4 91.0 245.8 304.6

110 118.2 87.0 283.7 339.3 115.5 91.4 277.1 335.7 112.6 95.7 270.3 331.9 109.8 100.0 263.5 328.1

120 125.9 95.0 302.1 362.8 123.0 99.8 295.1 359.1 120.1 104.4 288.2 355.3 117.0 108.9 280.9 351.1

140 153.2 118.4 367.6 443.2 149.3 123.9 358.3 437.6 145.5 129.2 349.1 432.1 141.6 134.3 339.9 426.5

160 169.6 133.8 407.1 492.5 165.5 139.6 397.3 486.7 161.4 145.3 387.4 480.7 157.3 150.8 377.4 474.6

070

50.0

82.6 56.3 198.3 234.2 80.4 59.3 193.1 231.1 78.2 62.2 187.9 227.9 76.0 65.1 182.5 224.5

080 91.4 64.2 219.5 260.5 89.1 67.6 214.0 257.3 86.8 70.9 208.4 254.0 84.5 74.1 202.8 250.6

090 100.8 72.6 242.1 288.4 98.4 76.3 236.2 285.1 95.9 80.0 230.3 281.6 93.4 83.6 224.3 278.1

100 114.4 79.4 274.7 325.4 111.7 83.6 268.2 321.8 108.9 87.8 261.4 317.9 106.2 91.8 254.9 314.2

110 122.3 87.5 293.5 349.4 119.4 92.1 286.7 345.7 116.6 96.6 279.9 342.0 113.7 101.0 273.1 338.2

120 130.0 95.7 312.1 373.1 127.1 100.6 305.3 369.6 124.2 105.3 298.2 365.8 121.1 110.0 290.7 361.6

140 158.8 119.5 381.2 457.4 154.9 125.1 371.9 451.9 151.0 130.7 362.5 446.3 146.9 136.0 352.8 440.4

160 175.7 135.3 422.0 508.2 171.6 141.3 411.9 502.2 167.4 147.1 401.8 496.2 163.1 152.8 391.7 490.1

070

55.0

90.6 57.2 217.8 254.2 88.3 60.5 212.3 250.9 86.0 63.7 206.7 247.5 83.7 66.8 201.1 244.1

080 100.2 65.2 240.8 282.3 97.8 68.9 235.0 279.0 95.3 72.5 229.1 275.5 92.8 76.1 223.1 272.0

090 110.4 73.7 265.3 312.1 107.7 77.8 258.9 308.6 105.1 81.8 252.6 305.0 102.5 85.8 246.4 301.6

100 124.4 80.4 298.9 350.0 121.5 85.0 292.1 346.4 118.6 89.5 285.1 342.5 115.7 94.0 278.0 338.5

110 132.6 88.7 318.6 375.0 129.6 93.7 311.6 371.4 126.7 98.5 304.4 367.6 123.7 103.2 297.4 363.8

120 140.9 97.1 338.6 400.2 137.8 102.4 331.1 396.4 134.7 107.6 323.7 392.6 131.6 112.5 316.4 388.7

140 173.2 122.1 416.3 493.8 169.1 128.3 406.4 488.1 164.9 134.3 396.4 482.4 160.8 140.1 386.4 476.4

160 191.7 138.6 460.8 548.8 187.3 145.2 450.1 542.6 182.8 151.6 439.4 536.3 178.2 157.8 428.4 529.7

070

60.0

99.2 58.0 238.5 275.3 96.7 61.5 232.5 271.7 94.0 64.9 226.1 267.6 91.3 68.2 219.5 263.4

080 109.4 66.0 263.0 304.9 106.8 70.0 256.9 301.4 104.3 73.9 250.9 298.1 101.4 77.8 244.0 294.0

090 120.3 74.6 289.4 336.7 117.7 79.1 283.2 333.5 114.9 83.4 276.3 329.6 111.8 87.7 269.0 325.3

100 134.7 81.3 324.0 375.4 131.7 86.2 316.9 371.7 128.7 91.0 309.7 367.9 125.7 95.8 302.4 363.9

110 143.5 89.7 345.1 401.9 140.4 95.0 337.8 398.2 137.3 100.4 330.2 394.3 134.1 105.4 322.5 390.1

120 152.1 98.3 366.0 428.2 149.0 103.9 358.4 424.4 145.7 109.6 350.6 420.5 142.5 115.0 342.8 416.5

140 188.3 124.4 453.1 531.8 184.0 131.1 442.7 526.0 179.7 137.7 432.2 520.0 175.2 144.0 421.4 513.7

160 208.4 141.7 501.4 591.0 203.7 148.8 490.1 584.6 199.0 155.8 478.7 578.0 194.2 162.5 467.3 571.4

indicates performance data rated in accordance with ARI 590-92.

See ARI Ratings table on page 20 for more details.

LEGEND

ARI — Air Conditioning and Refrigeration Institute (U.S.A.)

Cap. — Capacity

kW — Compressor Motor Power Input at Rated Voltage

LCWT — Leaving Chilled Water Temperature

21

Performance data

30HS Condenserless — English

30HS

UNIT

SIZE

LCWT

(F)

SATURATED DISCHARGE TEMPERATURE (F)

95.0 110.0 120.0 135.0

Cap.

(Tons) Input

kW

Cooler

Flow

Rate

(Gpm)

THR

(Tons) Cap.

(Tons) Input

kW

Cooler

Flow

Rate

(Gpm)

THR

(Tons) Cap.

(Tons) Input

kW

Cooler

Flow

Rate

(Gpm)

THR

(Tons) Cap.

(Tons) Input

kW

Cooler

Flow

Rate

(Gpm)

THR

(Tons)

070

40.0

67.8 54.2 162.3 81.8 61.5 61.7 147.3 77.5 57.2 66.1 137.0 74.3 50.6 71.7 121.1 69.1

080 75.0 62.3 179.5 91.1 68.4 70.6 163.7 86.7 63.8 75.5 152.8 83.4 56.8 81.7 136.0 78.0

090 83.0 70.5 198.6 101.2 75.9 79.6 181.8 96.5 71.1 84.9 170.2 93.1 63.6 91.8 152.3 87.4

100 95.2 77.9 228.0 115.4 87.3 88.6 209.0 110.2 81.8 95.1 195.8 106.4 73.3 103.6 175.4 100.1

110 102.2 85.8 244.7 124.4 94.0 97.3 225.0 119.2 88.3 104.2 211.4 115.3 79.4 113.3 190.1 108.8

120 109.1 93.6 261.2 133.3 100.6 105.7 240.7 127.9 94.7 113.1 226.6 123.9 85.5 122.7 204.7 117.2

140 132.1 113.9 316.3 161.6 121.2 128.0 290.3 154.4 113.9 136.4 272.6 149.2 102.7 147.6 245.8 140.9

160 148.2 132.5 354.7 182.5 136.3 147.7 326.4 174.6 128.4 156.9 307.5 169.0 116.5 169.2 279.0 160.3

070

42.0

70.8 54.6 169.6 84.9 64.4 62.4 154.3 80.6 60.0 67.1 143.8 77.4 53.2 73.2 127.5 72.2

080 78.2 62.8 187.4 94.5 71.5 71.5 171.2 90.0 66.8 76.6 160.1 86.7 59.7 83.3 142.9 81.2

090 86.5 71.0 207.2 104.9 79.3 80.6 190.0 100.2 74.4 86.3 178.1 96.7 66.7 93.6 159.8 90.9

100 98.9 78.3 237.0 119.2 90.9 89.6 217.7 114.1 85.3 96.4 204.3 110.2 76.6 105.5 183.5 103.9

110 106.1 86.3 254.2 128.5 97.8 98.3 234.2 123.2 92.0 105.6 220.3 119.3 82.9 115.3 198.7 112.8

120 113.2 94.2 271.1 137.6 104.5 106.9 250.4 132.2 98.4 114.6 235.8 128.1 89.2 124.8 213.6 121.5

140 137.5 114.9 329.4 167.3 126.4 129.7 302.7 159.9 118.8 138.5 284.6 154.7 107.3 150.3 257.1 146.2

160 154.3 133.9 369.6 188.9 142.0 149.8 340.1 180.7 133.8 159.4 320.6 175.1 121.6 172.4 291.2 166.2

070

44.0

73.9 54.9 177.1 88.1 67.4 63.1 161.5 83.7 62.9 68.1 150.7 80.5 55.9 74.6 134.0 75.2

080 81.5 63.1 195.4 97.9 74.6 72.2 178.9 93.3 69.9 77.7 167.6 90.0 62.6 84.9 150.0 84.5

090 90.1 71.4 216.0 108.6 82.8 81.5 198.4 103.8 77.7 87.5 186.3 100.3 69.9 95.4 167.5 94.6

100 102.8 78.7 246.3 123.1 94.5 90.4 226.6 117.9 88.8 97.6 212.9 114.1 80.0 107.2 191.7 107.7

110 110.1 86.8 263.9 132.6 101.6 99.3 243.5 127.3 95.7 106.9 229.4 123.4 86.5 117.2 207.4 116.8

120 117.3 94.7 281.3 141.9 108.5 108.0 260.2 136.5 102.5 116.1 245.8 132.6 92.9 126.9 222.7 125.8

140 143.0 115.7 342.9 173.0 131.6 131.2 315.4 165.5 123.8 140.5 296.9 160.2 112.0 153.0 268.6 151.7

160 160.2 135.0 384.1 195.2 147.7 151.7 354.1 187.0 139.3 161.8 334.0 181.2 126.7 175.6 303.8 172.2

070

46.0

77.1 55.1 184.8 91.3 70.4 63.7 168.8 86.9 65.8 68.9 157.8 83.6 58.7 75.9 140.8 78.3

080 84.9 63.4 203.7 101.3 77.9 73.0 186.8 96.8 73.0 78.8 175.2 93.4 65.5 86.4 157.2 87.9

090 93.8 71.8 224.9 112.4 86.3 82.3 207.0 107.6 81.1 88.7 194.6 104.1 73.1 97.1 175.4 98.2

100 106.6 79.1 255.6 127.0 98.2 91.2 235.6 121.8 92.4 98.7 221.8 118.0 83.4 108.9 200.2 111.6

110 114.2 87.2 273.8 136.7 105.5 100.2 253.1 131.4 99.5 108.2 238.7 127.5 90.1 119.0 216.2 120.9

120 121.6 95.2 291.6 146.2 112.6 109.0 270.1 140.8 106.4 117.5 255.2 136.8 96.7 128.9 232.0 130.1

140 148.7 116.5 356.6 178.8 136.9 132.6 328.5 171.3 129.0 142.5 309.4 165.9 116.9 155.7 280.4 157.2

160 166.5 136.2 399.3 201.7 153.6 153.6 368.4 193.3 145.0 164.2 347.8 187.5 132.0 178.6 316.7 178.3

070

48.0

80.3 55.3 192.7 94.6 73.5 64.3 176.4 90.1 68.8 69.8 165.0 86.8 61.5 77.1 147.6 81.5

080 88.4 63.7 212.1 104.8 81.2 73.7 194.9 100.3 76.2 79.7 183.0 96.9 68.6 87.8 164.6 91.3

090 97.5 72.1 234.1 116.2 89.9 83.1 215.7 111.4 84.6 89.8 203.1 107.9 76.4 98.7 183.4 102.0

100 110.5 79.3 265.2 131.0 102.0 92.0 244.8 125.8 96.1 99.8 230.7 122.0 87.0 110.5 208.7 115.6

110 118.3 87.5 283.9 140.9 109.5 101.1 262.7 135.6 103.4 109.4 248.1 131.7 93.9 120.8 225.3 125.1

120 125.9 95.6 302.1 150.7 116.8 110.0 280.3 145.3 110.5 118.8 265.1 141.2 100.6 130.8 241.5 134.5

140 154.4 117.1 370.6 184.7 142.4 134.0 341.8 177.1 134.3 144.3 322.3 171.6 121.9 158.2 292.5 162.8

160 172.8 137.2 414.8 208.3 159.6 155.4 382.9 199.8 150.8 166.5 361.9 193.9 137.5 181.7 329.9 184.5

070

50.0

83.5 55.4 200.5 97.9 76.6 64.8 184.0 93.4 71.9 70.6 172.6 90.1 64.4 78.3 154.7 84.7

080 91.9 63.9 220.7 108.4 84.6 74.3 203.1 103.8 79.5 80.6 191.0 100.4 71.7 89.2 172.2 94.8

090 101.4 72.3 243.4 120.1 93.6 83.8 224.7 115.3 88.2 90.8 211.8 111.7 79.8 100.3 191.7 105.8

100 114.5 79.5 274.9 135.1 105.9 92.6 254.3 129.9 99.9 100.8 239.9 126.0 90.6 112.0 217.5 119.6

110 122.5 87.8 294.1 145.2 113.5 101.8 272.6 139.9 107.3 110.6 257.7 135.9 97.6 122.5 234.5 129.3

120 130.3 96.0 312.8 155.1 121.0 110.9 290.6 149.7 114.6 120.1 275.2 145.7 104.5 132.7 250.9 138.8

140 160.2 117.6 384.7 190.7 148.0 135.3 355.4 183.0 139.7 146.0 335.4 177.5 127.0 160.7 304.9 168.6

160 179.3 138.1 430.6 215.1 165.9 157.1 398.4 206.6 156.7 168.7 376.3 200.4 143.0 184.6 343.4 190.8

070

55.0

92.1 55.5 221.3 106.5 84.7 65.8 203.7 101.8 79.7 72.2 191.6 98.4 72.0 81.1 173.2 93.0

080 101.1 64.0 242.9 117.6 93.4 75.5 224.5 112.9 88.1 82.6 211.7 109.5 79.8 92.4 191.9 103.7

090 111.4 72.6 267.7 130.2 103.2 85.3 248.0 125.3 97.5 93.1 234.4 121.6 88.7 103.9 213.2 115.6

100 124.8 79.7 300.0 145.5 115.8 94.0 278.4 140.2 109.7 103.0 263.6 136.3 99.9 115.6 240.1 129.8

110 133.3 88.2 320.4 156.1 124.0 103.5 298.0 150.8 117.5 113.1 282.5 146.8 107.4 126.4 258.2 140.1

120 141.6 96.5 340.3 166.6 132.0 112.8 317.2 161.1 125.3 122.9 301.1 157.1 114.8 137.0 275.9 150.3

140 175.7 118.5 422.2 206.3 162.6 138.0 390.9 198.4 153.8 150.0 369.7 192.6 — — — —

160 196.3 139.8 471.8 232.5 181.9 160.9 437.1 223.5 172.8 173.8 414.1 217.3 157.6 191.7 378.7 207.2

070

60.0

101.2 55.2 243.4 115.5 93.0 66.4 223.8 110.2 86.9 73.3 209.0 105.9 77.4 82.7 186.2 98.8

080 110.7 63.8 266.4 127.2 102.5 76.3 246.7 122.3 96.6 84.1 232.3 118.4 87.2 94.8 209.6 111.7

090 121.9 72.4 293.2 140.6 113.0 86.3 271.9 135.3 106.7 94.9 256.6 131.2 96.9 106.7 233.0 124.5

100 135.7 79.6 326.4 156.3 126.4 95.0 304.0 150.9 119.9 104.8 288.4 147.0 109.4 118.6 263.1 140.1

110 144.6 88.1 347.8 167.4 134.9 104.7 324.5 162.0 128.2 115.1 308.4 158.0 117.4 129.8 282.4 151.0

120 153.4 96.5 369.0 178.4 143.4 114.2 344.9 172.9 136.4 125.3 328.1 168.8 125.5 140.9 301.9 162.0

140 191.8 118.7 461.5 222.5 178.2 140.1 428.6 214.4 168.7 153.4 405.9 208.4 — — — —

160 214.1 140.8 515.1 250.6 198.9 164.0 478.3 241.3 188.6 178.3 453.6 234.7 173.0 198.2 416.1 224.3

LEGEND

ARI — Air Conditioning and Refrigeration Institute (U.S.A.)

Cap. — Capacity

kW — Compressor Motor Power Input at Rated Voltage

LCWT — Leaving Chilled Water Temperature

THR — Total Heat Rejection

22

Performance data

30HS/Air-Cooled Condenser Combinations

— English

Performance data for 30HS chillers in combination with remote air-cooled con-

densers includes the following system combinations:

CHILLER AIR-COOLED CONDENSER CHILLER AIR-COOLED CONDENSER

30HS070 09DK044/09DK034 30HS110 (2) 09DK064

30HS080 09DK054/09DK034 30HS120 (2) 09DK064

30HS090 09DK064/09DK034 30HS140 (2) 09DK084

30HS100 (2) 09DK054 30HS160 (2) 09DK094

NOTE: Numbers in ( ) indicate quantity.

30HS

UNIT

SIZE

LCWT

(F)

CONDENSER ENTERING AIR TEMPERATURE (F)

85.0 95.0 105.0 115.0 125.0

Cap.

(Tons) Input

kW

Cooler

Flow

Rate

(Gpm)

Cap.

(Tons) Input

kW

Cooler

Flow

Rate

(Gpm)

Cap.

(Tons) Input

kW

Cooler

Flow

Rate

(Gpm)

Cap.

(Tons) Input

kW

Cooler

Flow

Rate

(Gpm)

Cap.

(Tons) Input

kW

Cooler

Flow

Rate

(Gpm)

070

40.0

62.1 61.7 148.6 58.1 65.7 139.1 54.1 69.2 129.5 50.0 72.3 119.6 — — —

080 68.9 70.7 164.9 64.7 75.1 154.9 60.4 79.0 144.6 56.0 82.4 134.1 — — —

090 76.6 79.5 183.5 72.1 84.4 172.7 67.5 88.8 161.7 62.9 92.6 150.5 — — —

100 87.6 89.4 209.6 82.4 95.3 197.4 77.3 100.6 185.0 71.9 105.3 172.2 — — —

110 93.5 99.5 223.9 88.2 105.6 211.1 82.7 111.0 198.1 — — — — — —

120 101.3 105.9 242.4 95.8 112.6 229.3 90.2 118.7 215.8 84.4 124.2 202.0 — — —

140 123.1 127.0 294.6 116.2 134.8 278.2 109.2 141.9 261.4 102.2 148.4 244.6 — — —

160 142.2 139.6 340.4 134.7 148.8 322.4 127.1 157.3 304.2 119.4 165.2 285.8 111.8 172.5 267.5

070

42.0

64.7 62.9 154.9 60.6 67.1 145.2 56.5 70.8 135.3 52.3 74.1 125.3 — — —

080 71.7 72.1 171.8 67.4 76.7 161.5 63.0 80.9 150.9 58.5 84.5 140.3 — — —

090 79.7 81.1 191.0 75.1 86.2 179.9 70.4 90.8 168.7 65.6 94.9 157.2 — — —

100 90.8 91.0 217.4 85.6 97.1 205.1 80.3 102.6 192.3 74.9 107.6 179.4 — — —

110 96.9 101.4 232.1 91.5 107.7 219.1 85.9 113.4 205.8 — — — — — —

120 104.9 107.7 251.3 99.3 114.7 237.8 93.6 121.2 224.1 87.7 126.9 210.0 — — —

140 127.7 129.4 305.9 120.7 137.5 289.2 113.6 145.0 272.2 106.4 151.7 254.8 — — —

160 147.6 141.9 353.6 139.9 151.5 335.1 132.1 160.4 316.4 124.3 168.7 297.7 116.3 176.3 278.7

070

44.0

67.3 64.1 161.4 63.2 68.5 151.5 59.0 72.4 141.3 54.7 75.9 131.0 — — —

080 74.6 73.5 178.7 70.2 78.3 168.2 65.7 82.7 157.4 61.1 86.5 146.5 — — —

090 82.8 82.6 198.6 78.1 88.0 187.3 73.3 92.8 175.8 68.4 97.1 164.0 — — —

100 94.1 92.6 225.5 88.8 98.9 212.8 83.4 104.7 199.8 — — — — — —

110 100.3 103.2 240.5 94.8 109.8 227.3 89.2 115.8 213.7 — — — — — —

120 108.6 109.6 260.3 102.8 116.8 246.5 97.0 123.5 232.5 91.0 129.6 218.2 — — —

140 132.5 131.7 317.6 125.3 140.2 300.4 118.0 148.0 283.0 110.7 155.1 265.3 — — —

160 153.1 144.2 367.0 145.2 154.1 348.0 137.2 163.4 328.9 129.2 172.1 309.6 — — —

070

46.0

70.0 65.4 167.9 65.8 69.9 157.8 61.5 74.0 147.4 57.1 77.7 136.9 — — —

080 77.5 74.9 185.8 73.0 79.9 175.1 68.4 84.5 164.0 — — — — — —

090 86.0 84.2 206.4 81.2 89.8 194.8 76.3 94.8 183.0 71.3 99.4 171.0 — — —

100 97.4 94.2 233.7 92.0 100.8 220.7 86.5 106.8 207.4 — — — — — —

110 103.8 105.1 249.1 98.3 112.0 235.7 92.5 118.2 221.9 — — — — — —

120 112.3 111.5 269.5 1-6.5 119.0 255.4 100.5 125.9 241.0 — — — — — —

140 137.4 134.0 329.5 130.0 142.9 311.8 122.5 151.0 294.0 115.0 158.5 275.9 — — —

160 158.8 146.5 380.9 150.6 156.8 361.2 142.4 166.5 341.6 134.2 175.5 321.8 — — —

23

Performance data

30HS/Air-Cooled Condenser Combinations

— English (cont)

30HS

UNIT

SIZE

LCWT

(F)

CONDENSER ENTERING AIR TEMPERATURE (F)

85.0 95.0 105.0 115.0 125.0

Cap.

(Tons) Input

kW

Cooler

Flow

Rate

(Gpm)

Cap.

(Tons) Input

kW

Cooler

Flow

Rate

(Gpm)

Cap.

(Tons) Input

kW

Cooler

Flow

Rate

(Gpm)

Cap.

(Tons) Input

kW

Cooler

Flow

Rate

(Gpm)

Cap.

(Tons) Input

kW

Cooler

Flow

Rate

(Gpm)

070

48.0

72.8 66.6 174.7 68.4 71.3 164.3 64.0 75.6 153.7 — — — — — —

080 80.5 76.3 193.1 75.9 81.5 182.0 71.2 86.3 170.8 — — — — — —

090 89.3 85.7 214.4 84.4 91.6 202.5 79.4 96.9 190.4 — — — — — —

100 100.9 95.9 242.1 95.3 102.6 228.8 89.7 108.9 215.3 — — — — — —

110 107.5 107.0 257.9 101.7 114.1 244.1 95.8 120.6 229.9 — — — — — —

120 116.1 113.3 278.7 110.2 121.1 264.5 104.1 128.3 249.7 — — — — — —

140 142.4 136.4 341.8 134.8 145.6 323.5 127.2 154.1 305.2 — — — — — —

160 164.5 148.8 394.8 156.1 159.5 374.7 147.7 169.6 354.5 139.3 179.0 334.3 — — —

070

50.0

75.6 67.8 181.5 71.2 72.7 170.9 66.7 77.2 160.0 — — — — — —

080 83.5 77.7 200.5 78.8 83.1 189.2 74.0 88.1 177.7 — — — — — —

090 92.7 87.2 222.5 87.6 93.3 210.4 82.5 98.9 198.0 — — — — — —

100 104.3 97.5 250.5 98.8 104.5 237.1 92.9 111.0 223.2 — — — — — —

110 111.0 108.9 266.6 105.2 116.2 252.6 99.2 123.0 238.2 — — — — — —

120 120.0 115.2 288.1 114.0 123.3 273.6 107.7 130.8 258.7 — — — — — —

140 147.5 138.8 354.1 139.7 148.3 335.5 131.8 157.1 316.6 — — — — — —

160 170.4 151.1 409.2 161.8 162.2 388.5 153.2 172.6 367.8 144.5 182.4 347.0 — — —

070

55.0

82.8 70.9 199.0 78.2 76.3 187.9 73.4 81.3 176.5 — — — — — —

080 91.3 81.3 219.5 86.4 87.2 207.6 81.3 92.7 195.4 — — — — — —

090 101.3 91.2 243.4 96.0 97.8 230.6 90.5 104.0 217.6 — — — — — —

100 113.3 101.6 272.3 107.4 109.2 258.2 101.3 116.4 243.6 — — — — — —

110 120.3 113.7 289.1 114.2 121.7 274.5 — — — — — — — — —

120 129.9 119.9 312.2 123.5 128.7 296.9 117.0 136.9 281.3 — — — — — —

140 160.7 145.0 386.2 152.4 155.3 366.3 — — — — — — — — —

160 185.5 156.8 445.9 176.4 168.9 424.1 167.4 180.3 402.2 158.0 191.0 379.8 — — —

070

60.0

89.6 73.8 215.6 84.0 79.2 202.1 78.3 84.2 188.4 — — — — — —

080 99.2 84.8 238.6 93.7 91.1 225.4 87.9 96.8 211.6 — — — — — —

090 109.8 95.1 264.2 103.9 102.1 250.0 97.9 108.6 235.5 — — — — — —

100 122.5 105.8 294.6 116.4 114.0 280.0 109.9 121.7 264.4 — — — — — —

110 129.9 118.6 312.5 123.5 127.2 297.2 — — — — — — — — —

120 140.1 124.6 337.1 133.5 134.1 321.2 126.7 143.0 304.9 — — — — — —

140 174.4 151.2 419.5 165.7 162.3 398.7 — — — — — — — — —

160 201.4 162.4 484.5 191.8 175.5 461.3 182.1 187.9 438.0 172.3 199.7 414.4 — — —

LEGEND

Cap. — Capacity

kW — Compressor Motor Power Input at Rated Voltage

LCWT — Leaving Chilled Water Temperature

24

Performance data

30HR Water-Cooled — SI

30HR

UNIT

SIZE

LCWT

(C)

CONDENSER ENTERING WATER TEMPERATURE (C)

25.0 30.0 35.0 40.0

Cap.

(kW) Input

kW

Cooler

Flow

Rate

(L/s)

Cond

Flow

Rate

(L/s)

Cap.

(kW) Input

kW

Cooler

Flow

Rate

(L/s)

Cond

Flow

Rate

(L/s)

Cap.

(kW) Input

kW

Cooler

Flow

Rate

(L/s)

Cond

Flow

Rate

(L/s)

Cap.

(kW) Input

kW

Cooler

Flow

Rate

(L/s)

Cond

Flow

Rate

(L/s)

070

4.0

231.1 54.7 9.9 12.2 218.7 59.0 9.4 11.8 205.9 62.9 8.8 11.4 — — — —

080 257.6 62.4 11.1 13.6 244.4 67.1 10.5 13.2 230.9 71.6 9.9 12.9 — — — —

090 285.1 70.5 12.2 15.1 271.0 75.7 11.6 14.7 256.5 80.6 11.0 14.3 — — — —

100 328.5 77.7 14.1 17.3 312.8 84.0 13.4 16.9 296.2 89.8 12.7 16.4 — — — —

110 352.5 85.5 15.1 18.6 336.0 92.2 14.4 18.2 319.0 98.4 13.7 17.7 — — — —

120 376.3 93.2 16.2 20.0 359.1 100.3 15.4 19.5 341.7 106.9 14.7 19.1 — — — —

140 452.0 114.8 19.4 24.1 430.2 122.9 18.5 23.5 408.0 130.4 17.5 22.9 — — — —

160 501.3 129.2 21.5 26.8 478.0 137.8 20.5 26.2 454.6 145.8 19.5 25.5 — — — —

070

5.0

240.1 55.2 10.3 12.6 227.4 59.6 9.8 12.2 214.3 63.8 9.2 11.8 — — — —

080 267.2 63.0 11.5 14.0 253.8 67.9 10.9 13.7 240.0 72.6 10.3 13.3 — — — —

090 295.6 71.1 12.7 15.6 281.2 76.6 12.1 15.2 266.5 81.7 11.5 14.8 — — — —

100 340.0 78.4 14.6 17.8 323.5 84.8 13.9 17.4 306.9 90.9 13.2 16.9 — — — —

110 364.3 86.2 15.6 19.2 347.5 93.1 14.9 18.7 330.2 99.7 14.2 18.3 — — — —

120 388.6 94.1 16.7 20.5 371.4 101.4 16.0 20.1 353.3 108.3 15.2 19.6 — — — —

140 468.0 116.1 20.1 24.8 445.6 124.5 19.1 24.2 423.0 132.3 18.2 23.6 — — — —

160 518.9 130.7 22.3 27.6 495.0 139.6 21.3 27.0 471.1 148.0 20.2 26.3 — — — —

070

6.0

249.2 55.7 10.7 13.0 236.2 60.3 10.2 12.6 222.9 64.7 9.6 12.2 — — — —

080 277.1 63.5 11.9 14.5 263.4 68.7 11.3 14.1 249.4 73.5 10.7 13.7 — — — —

090 306.3 71.8 13.2 16.1 291.7 77.5 12.5 15.7 276.7 82.8 11.9 15.3 — — — —

100 351.3 79.0 15.1 18.3 334.9 85.7 14.4 17.9 317.8 92.0 13.7 17.4 — — — —

110 376.4 86.9 16.2 19.7 359.2 94.1 15.4 19.3 341.6 100.9 14.7 18.8 — — — —

120 401.1 94.8 17.2 21.1 383.4 102.5 16.5 20.7 365.3 109.6 15.7 20.2 — — — —

140 484.2 117.3 20.8 25.6 461.5 126.0 19.8 25.0 438.2 134.2 18.8 24.3 — — — —

160 536.8 132.2 23.1 28.4 512.4 141.4 22.0 27.8 487.9 150.1 21.0 27.1 — — — —

070

7.0

258.6 56.2 11.1 13.4 245.3 61.0 10.6 13.0 231.8 65.5 10.0 12.7 — — — —

080 287.1 64.1 12.4 14.9 273.0 69.6 11.6 14.5 258.9 74.5 11.1 14.2 — — — —

090 317.2 72.4 13.6 16.6 302.4 78.4 13.0 16.2 287.1 83.9 12.3 15.8 — — — —

100 362.8 79.6 15.6 18.8 346.2 86.5 14.9 18.4 329.0 93.0 14.2 18.0 — — — —

110 388.5 87.6 16.7 20.3 371.2 95.0 16.0 19.8 353.2 102.0 15.2 19.4 — — — —

120 413.8 95.6 17.8 21.7 395.9 103.5 17.0 21.2 377.4 110.9 16.2 20.8 — — — —

140 500.9 118.5 21.5 26.3 477.6 127.5 20.5 25.7 453.8 136.0 19.5 25.1 — — — —

160 555.2 133.6 23.9 29.3 530.1 143.2 22.8 28.6 505.1 152.2 21.7 27.9 — — — —

070

8.0

268.0 56.6 11.5 13.8 254.6 61.6 11.0 13.5 240.7 66.3 10.4 13.1 — — — —

080 297.4 64.6 12.8 15.4 283.2 70.2 12.2 15.0 268.6 75.4 11.6 14.6 — — — —

090 328.4 73.0 14.1 17.1 313.1 79.2 13.5 16.7 297.7 85.0 12.8 16.3 — — — —

100 374.4 80.0 16.1 19.4 357.7 87.2 15.4 18.9 340.3 94.1 14.6 18.5 — — — —

110 400.8 88.2 17.2 20.8 383.3 95.9 16.5 20.4 365.0 103.1 15.7 19.9 — — — —

120 426.9 96.4 18.4 22.3 408.7 104.5 17.6 21.8 390.0 112.1 16.8 21.4 — — — —

140 517.8 119.6 22.3 27.1 494.0 129.0 21.3 26.5 469.8 137.8 20.2 25.8 — — — —

160 573.9 135.0 24.7 30.1 548.3 144.9 23.6 29.5 522.6 154.3 22.5 28.8 — — — —

070

9.0

277.8 57.1 12.0 14.3 264.1 62.2 11.4 13.9 250.0 67.1 10.8 13.5 — — — —

080 307.7 65.1 13.2 15.9 293.3 70.9 12.6 15.5 278.5 76.3 12.0 15.1 — — — —

090 339.7 73.6 14.6 17.6 324.3 79.9 14.0 17.2 308.4 86.0 13.3 16.8 — — — —

100 386.2 80.6 16.6 19.9 369.4 87.9 15.9 19.5 351.6 95.0 15.1 19.0 — — — —

110 413.3 88.8 17.8 21.4 395.5 96.7 17.0 21.0 377.2 104.2 16.2 20.5 — — — —

120 440.1 97.0 18.9 22.9 421.5 105.4 18.1 22.4 402.6 113.4 17.3 22.0 — — — —

140 535.3 120.7 23.0 27.9 510.8 130.4 22.0 27.3 486.0 139.6 20.9 26.6 — — — —

160 592.9 136.3 25.5 31.0 566.8 146.6 24.4 30.3 540.6 156.3 23.3 29.7 — — — —

070

10.0

287.4 57.5 12.4 14.7 273.6 62.8 11.8 14.3 259.4 67.8 11.2 13.9 — — — —

080 318.3 65.6 13.7 16.4 303.6 71.5 13.1 16.0 288.5 77.2 12.4 15.6 — — — —

090 351.2 74.1 15.1 18.1 335.5 80.7 14.5 17.7 319.4 86.9 13.8 17.3 — — — —

100 398.6 81.1 17.2 20.4 380.9 88.7 16.4 20.0 363.1 96.0 15.6 19.6 — — — —

110 426.0 89.3 18.4 22.0 407.9 97.5 17.6 21.5 389.4 105.3 16.8 21.1 — — — —

120 453.1 97.6 19.5 23.5 434.6 106.3 18.7 23.0 415.2 114.5 17.9 22.6 — — — —

140 552.9 121.8 23.8 28.7 528.1 131.8 22.7 28.1 502.6 141.3 21.6 27.4 — — — —

160 612.2 137.7 26.4 31.9 585.6 148.3 25.2 31.2 558.6 158.4 24.1 30.5 — — — —

070

13.0

317.8 58.6 13.7 16.1 303.1 64.4 13.1 15.7 288.0 70.0 12.4 15.3 — — — —

080 351.5 66.8 15.2 17.8 335.9 73.3 14.5 17.5 319.7 79.6 13.8 17.0 — — — —

090 387.3 75.5 16.7 19.7 370.4 82.7 16.0 19.3 353.4 89.7 15.2 18.9 — — — —

100 436.2 82.4 18.8 22.1 417.8 90.7 18.0 21.7 399.1 98.5 17.2 21.2 — — — —

110 465.1 90.8 20.1 23.7 446.3 99.8 19.2 23.3 426.9 108.1 18.4 22.8 — — — —

120 494.3 99.3 21.3 25.3 474.4 108.8 20.5 24.9 454.8 117.8 19.6 24.4 — — — —

140 607.5 124.8 26.2 31.2 581.2 135.8 25.1 30.5 554.4 146.3 23.9 29.9 — — — —

160 672.6 141.5 29.0 34.7 644.2 153.2 27.8 34.0 615.1 164.4 26.5 33.2 — — — —

070

16.0

347.3 59.5 15.0 17.4 329.4 65.5 14.2 16.9 311.0 71.4 13.4 16.3 — — — —

080 385.6 67.7 16.6 19.4 368.1 74.8 15.9 18.9 350.1 81.6 15.1 18.4 — — — —

090 424.0 76.6 18.3 21.4 405.3 84.4 17.5 20.9 386.5 92.0 16.7 20.4 — — — —

100 475.4 83.4 20.5 23.9 456.3 92.3 19.7 23.4 436.8 100.8 18.9 23.0 — — — —

110 506.5 92.0 21.9 25.5 486.7 101.6 21.0 25.1 466.2 110.8 20.1 24.6 — — — —

120 537.1 100.7 23.2 27.2 516.6 110.9 22.3 26.8 495.6 120.8 21.4 26.3 — — — —

140 665.0 127.5 28.7 33.8 637.2 139.5 27.5 33.1 608.4 150.9 26.3 32.4 — — — —

160 736.0 145.1 31.8 37.6 705.8 157.8 30.5 36.8 675.4 169.9 29.2 36.0 — — — —

LEGEND

Cap. — Capacity

kW — Compressor Motor Power Input at Rated Voltage

LCWT — Leaving Chilled Water Temperature

25

Performance data

30HS Condenserless — SI

30HS

UNIT

SIZE

LCWT

(C)

SATURATED DISCHARGE TEMPERATURE (C)

35.0 45.0 50.0 55.0

Cap.

(kW) Input

kW

Cooler

Flow

Rate

(L/s)

THR

(kW) Cap.

(kW) Input

kW

Cooler

Flow

Rate

(L/s)

THR

(kW) Cap.

(kW) Input

kW

Cooler

Flow

Rate

(L/s)

THR

(kW) Cap.

(kW) Input

kW

Cooler

Flow

Rate

(L/s)

THR

(kW)

070

4.0

234.3 54.1 10.1 283.5 208.0 62.7 8.9 265.1 194.4 66.5 8.3 254.9 180.5 69.8 7.7 244.0

080 259.3 62.1 11.1 315.8 231.5 71.7 9.9 296.8 217.1 75.9 9.3 286.2 202.5 79.6 8.7 274.9

090 287.0 70.3 12.3 350.9 257.4 80.8 11.0 330.9 242.1 85.4 10.4 319.8 226.4 89.4 9.7 307.8

100 329.7 77.7 14.2 400.4 296.4 90.2 12.7 378.5 279.0 95.8 12.0 366.2 261.1 100.9 11.2 352.9

110 354.1 85.6 15.2 432.0 319.4 98.9 13.7 409.5 301.4 104.9 12.9 396.8 282.8 110.3 12.1 383.2

120 378.0 93.3 16.2 462.9 342.0 107.5 14.7 439.8 323.4 113.8 13.9 426.9 304.2 119.5 13.1 413.0

140 457.3 113.5 19.6 560.6 411.7 129.9 17.7 529.9 388.6 137.1 16.7 513.4 365.2 143.7 15.7 496.0

160 512.8 132.0 22.0 632.9 463.5 149.7 19.9 599.7 438.7 157.6 18.8 582.2 413.9 164.9 17.8 564.0

070

5.0

243.7 54.4 10.5 293.2 216.9 63.5 9.3 274.7 203.0 67.5 8.7 264.4 188.9 71.0 8.1 253.5

080 269.4 62.6 11.6 326.3 241.1 72.6 10.4 307.2 226.5 77.0 9.7 296.5 211.5 80.9 9.1 285.2

090 298.0 70.8 12.8 362.4 267.8 81.8 11.5 342.3 252.2 86.6 10.8 331.1 236.3 91.0 10.2 319.1

100 341.4 78.1 14.7 412.5 307.5 91.2 13.2 390.5 289.8 97.0 12.5 378.1 271.7 102.4 11.7 364.9

110 366.3 86.1 15.7 444.7 331.1 100.0 14.2 422.2 312.8 106.3 13.4 409.5 294.0 112.0 12.6 395.9

120 390.8 93.9 16.8 476.3 354.3 108.7 15.2 453.2 335.4 115.3 14.4 440.3 315.9 121.3 13.6 426.3

140 474.1 114.4 20.4 578.3 427.5 131.5 18.4 547.2 403.8 139.1 17.3 530.5 379.9 146.1 16.3 512.9

160 532.0 133.2 22.9 653.3 480.8 151.7 20.7 618.9 455.4 159.9 19.6 601.0 430.0 167.6 18.5 582.5

070

6.0

253.3 54.7 10.9 303.0 226.0 64.2 9.7 284.4 211.9 68.4 9.1 274.1 197.4 72.2 8.5 263.1

080 279.7 62.9 12.0 337.0 250.9 73.4 10.8 317.7 236.0 78.1 10.1 307.0 220.7 82.3 9.5 295.6

090 309.2 71.2 13.3 374.0 278.5 82.7 12.0 353.8 262.6 87.9 11.3 342.5 246.3 92.5 10.6 330.5

100 353.0 78.5 15.2 424.5 318.8 92.1 13.7 402.6 300.9 98.2 12.9 390.2 282.4 103.8 12.1 377.0

110 378.8 86.5 16.3 457.5 343.0 101.0 14.7 435.0 324.4 107.6 13.9 422.3 305.3 113.6 13.1 408.7

120 403.8 94.4 17.4 489.8 366.8 109.8 15.8 466.8 347.3 116.7 14.9 453.5 327.8 123.0 14.1 439.7

140 491.3 115.2 21.1 596.2 443.6 133.1 19.1 564.8 419.4 141.1 18.0 547.8 394.9 148.4 17.0 530.0

160 550.6 134.3 23.7 672.9 498.6 153.6 21.4 638.4 472.5 162.2 20.3 620.2 446.4 170.3 19.2 601.4

070

7.0

263.3 54.9 11.3 313.3 235.3 64.8 10.1 294.3 220.9 69.3 9.5 284.0 206.2 73.3 8.9 272.9

080 290.2 63.2 12.5 347.8 260.9 74.2 11.2 328.4 245.7 79.1 10.6 317.7 230.1 83.5 9.9 306.2

090 320.7 71.6 13.8 385.8 289.4 83.6 12.4 365.5 273.2 89.0 11.7 354.2 256.6 93.9 11.0 342.1

100 365.6 78.8 15.7 437.3 330.3 92.9 14.2 414.9 312.1 99.3 13.4 402.5 293.4 105.3 12.6 389.2

110 391.4 86.9 16.8 470.6 355.2 102.0 15.3 448.0 336.3 108.8 14.5 435.3 316.8 115.1 13.6 421.6

120 417.1 94.9 17.9 503.5 379.5 110.8 16.3 480.4 360.2 118.1 15.5 467.7 339.8 124.7 14.6 453.4

140 508.9 116.0 21.9 614.4 460.1 134.6 19.8 582.6 435.4 142.9 18.7 565.5 410.3 150.6 17.6 547.4

160 570.0 135.4 24.5 693.2 516.7 155.5 22.2 658.2 490.0 164.5 21.1 639.7 463.2 172.9 19.9 620.6

070

8.0

273.2 55.1 11.8 323.4 244.8 65.5 10.5 304.4 230.1 70.1 9.9 294.0 215.1 74.4 9.3 282.8

080 301.0 63.5 13.0 358.8 271.1 74.9 11.7 339.3 255.6 80.1 11.0 328.5 239.8 84.8 10.3 316.9

090 332.4 71.9 14.3 397.8 300.5 84.5 12.9 377.4 284.0 90.1 12.2 366.0 267.1 95.3 11.5 353.8

100 377.5 79.1 16.2 449.5 342.0 93.7 14.7 427.3 323.5 100.4 13.9 414.9 304.5 106.6 13.1 401.6

110 404.3 87.3 17.4 483.8 367.5 102.9 15.8 461.1 348.3 110.0 15.0 448.4 328.5 116.6 14.1 434.7

120 430.6 95.3 18.5 517.3 392.4 111.9 16.9 494.3 372.6 119.4 16.0 481.2 352.1 126.4 15.2 467.1

140 526.8 116.6 22.7 633.0 477.0 136.0 20.5 600.8 451.7 144.7 19.4 583.4 426.1 152.8 18.3 565.2

160 589.8 136.4 25.4 713.9 535.2 157.3 23.0 678.4 507.8 166.7 21.9 659.6 480.3 175.5 20.7 640.1

070

9.0

283.5 55.3 12.2 333.8 254.7 66.0 11.0 314.8 239.6 70.9 10.3 304.1 224.3 75.4 9.7 292.9

080 312.0 63.7 13.4 370.0 281.5 75.6 12.1 350.4 265.8 81.0 11.4 339.5 249.6 85.9 10.7 327.8

090 344.4 72.1 14.8 410.0 311.9 85.3 13.4 389.5 295.0 91.2 12.7 378.0 277.8 96.6 12.0 365.7

100 390.0 79.3 16.8 462.2 354.0 94.5 15.2 439.9 335.2 101.4 14.4 427.5 315.9 107.9 13.6 414.1

110 417.4 87.6 18.0 497.1 380.0 103.7 16.4 474.5 360.5 111.1 15.5 461.7 340.5 118.1 14.7 448.0

120 444.3 95.7 19.1 531.4 405.6 112.8 17.5 508.3 385.4 120.6 16.6 495.2 364.6 128.0 15.7 481.1

140 545.1 117.2 23.5 651.8 494.3 137.3 21.3 619.3 468.4 146.4 20.2 601.7 442.2 154.9 19.0 583.2

160 610.1 137.3 26.3 735.0 553.7 158.9 23.8 698.4 526.1 168.8 22.7 679.8 497.9 178.1 21.4 660.0

070

10.0

293.7 55.4 12.7 344.2 264.5 66.5 11.4 325.1 249.4 71.7 10.7 314.6 233.6 76.4 10.1 303.1

080 323.2 63.9 13.9 381.3 292.2 76.2 12.6 361.6 276.1 81.8 11.9 350.6 259.6 87.1 11.2 338.9

090 356.6 72.3 15.4 422.4 323.5 86.0 13.9 401.8 306.3 92.2 13.2 390.2 288.7 97.9 12.4 377.8

100 402.6 79.5 17.3 475.0 366.1 95.1 15.8 452.7 347.0 102.4 14.9 440.2 327.4 109.2 14.1 426.8

110 430.7 87.8 18.6 510.6 392.8 104.5 16.9 487.9 373.0 112.2 16.1 475.2 352.6 119.4 15.2 461.4

120 458.2 96.0 19.7 545.6 418.9 113.7 18.0 522.4 398.4 121.9 17.2 509.3 377.3 129.5 16.3 495.2

140 563.4 117.6 24.3 670.5 511.9 138.6 22.0 638.0 485.4 148.1 20.9 620.2 458.6 157.0 19.8 601.5

160 630.7 138.1 27.2 756.4 573.5 160.6 24.7 719.7 544.8 170.9 23.5 700.3 515.9 180.5 22.2 680.2

070

13.0

326.4 55.5 14.1 376.9 295.1 67.8 12.7 356.8 279.0 73.6 12.0 345.9 262.9 79.0 11.3 334.8

080 358.1 64.0 15.4 416.4 325.4 77.8 14.0 396.2 308.4 84.1 13.3 385.0 291.0 90.1 12.5 373.0

090 394.6 72.6 17.0 460.6 359.7 87.8 15.5 439.6 341.5 94.8 14.7 427.8 322.9 101.4 13.9 415.2

100 441.9 79.7 19.1 514.5 403.7 96.9 17.4 491.9 383.9 104.9 16.6 479.4 363.3 112.6 15.7 465.7

110 471.9 88.2 20.3 552.2 432.3 106.5 18.6 529.3 411.6 115.1 17.7 516.4 390.3 123.3 16.8 502.5

120 501.2 96.5 21.6 589.1 460.2 116.0 19.8 565.8 438.8 125.1 18.9 552.7 416.7 133.7 18.0 538.4

140 622.2 118.5 26.8 730.1 566.9 141.9 24.4 696.1 538.7 152.6 23.2 677.6 — — — —

160 695.2 139.9 30.0 822.5 634.0 165.1 27.3 784.3 603.5 176.7 26.0 764.4 572.2 187.6 24.7 743.0

070

16.0

359.4 55.1 15.5 409.5 321.1 68.5 13.9 383.5 301.4 74.6 13.0 369.3 281.4 80.3 12.1 354.5

080 394.6 63.7 17.0 452.6 357.7 78.8 15.4 429.4 338.2 85.7 14.6 416.2 316.5 92.1 13.7 400.3

090 433.8 72.3 18.7 499.6 394.6 89.0 17.0 475.7 374.3 96.8 16.2 462.4 353.3 104.0 15.2 447.9

100 483.4 79.5 20.9 555.8 443.6 98.1 19.1 532.9 422.7 107.0 18.2 520.1 397.4 115.2 17.2 502.2

110 515.0 88.1 22.2 595.1 473.7 108.1 20.4 572.1 452.1 117.5 19.5 559.0 427.6 126.4 18.5 542.6

120 546.2 96.5 23.6 634.0 503.5 117.8 21.7 610.7 481.1 127.8 20.8 597.4 458.0 137.4 19.8 583.0

140 684.0 118.6 29.5 792.0 625.1 144.5 27.0 756.6 593.3 156.3 25.6 735.6 — — — —

160 763.4 140.9 32.9 891.7 698.2 168.9 30.1 852.0 665.3 181.8 28.7 830.8 632.4 194.0 27.3 809.0

LEGEND

Cap. — Capacity

kW — Compressor Motor Power Input at Rated Voltage

LCWT — Leaving Chilled Water Temperature

THR — Total Heat Rejection

26

Performance data

30HS/Air-Cooled Condenser Combinations

—SI

Performance data for 30HS chillers in combination with remote air-cooled con-

densers includes the following system combinations:

CHILLER AIR-COOLED CONDENSER CHILLER AIR-COOLED CONDENSER

30HS070 09DK044/09DK034 30HS110 (2) 09DK064

30HS080 09DK054/09DK034 30HS120 (2) 09DK064

30HS090 09DK064/09DK034 30HS140 (2) 09DK084

30HS100 (2) 09DK054 30HS160 (2) 09DK094

NOTE: Numbers in ( ) indicate quantity.

30HS

UNIT

SIZE

LCWT

(C)

CONDENSER ENTERING AIR TEMPERATURE (C)

30.0 35.0 40.0 45.0 50.0

Cap.

(kW) Input

kW

Cooler

Flow

Rate

(L/s)

Cap.

(kW) Input

kW

Cooler

Flow

Rate

(L/s)

Cap.

(kW) Input

kW

Cooler

Flow

Rate

(L/s)

Cap.

(kW) Input

kW

Cooler

Flow

Rate

(L/s)

Cap.

(kW) Input

kW

Cooler

Flow

Rate

(L/s)

070

4.0

213.4 61.6 9.2 201.0 65.1 8.6 188.3 68.3 8.1 175.4 71.0 7.5 — — —

080 237.0 70.6 10.2 223.7 74.5 9.6 210.3 78.0 9.0 196.7 81.0 8.4 — — —

090 263.7 79.4 11.3 249.6 83.7 10.7 235.2 87.6 10.1 220.5 91.0 9.5 — — —

100 301.6 89.4 12.9 285.6 94.5 12.3 269.4 99.3 11.6 252.6 103.5 10.8 — — —

110 322.2 99.4 13.8 305.6 104.7 13.1 288.5 109.6 12.4 271.1 113.9 11.6 — — —

120 349.3 105.9 15.0 332.1 111.8 14.3 314.3 117.2 13.5 296.2 122.1 12.7 — — —

140 423.9 126.8 18.2 402.4 133.7 17.3 380.4 140.0 16.3 358.5 145.8 15.4 — — —

160 490.0 139.6 21.0 466.4 147.7 20.0 442.6 155.3 19.0 418.6 162.3 18.0 394.7 168.9 16.9

070

5.0

221.5 62.8 9.5 208.8 66.4 9.0 195.9 69.7 8.4 182.7 72.6 7.9 — — —

080 245.7 71.9 10.6 232.2 75.9 10.0 218.5 79.6 9.4 204.6 82.8 8.8 — — —

090 273.3 80.9 11.7 258.9 85.3 11.1 244.2 89.4 10.5 229.2 93.0 9.8 — — —

100 311.8 90.8 13.4 295.3 96.2 12.7 278.8 101.1 12.0 261.9 105.5 11.3 — — —

110 332.9 101.1 14.3 315.9 106.6 13.6 298.5 111.7 12.8 — — — — — —

120 360.4 107.5 15.5 342.9 113.7 14.7 325.2 119.3 14.0 306.6 124.5 13.2 — — —

140 438.5 129.0 18.8 416.5 136.1 17.9 394.4 142.7 16.9 371.7 148.8 16.0 — — —

160 506.9 141.7 21.8 482.7 150.1 20.7 458.4 158.0 19.7 434.0 165.4 18.6 409.2 172.2 17.6

070

6.0

229.7 63.9 9.9 216.8 67.7 9.3 203.6 71.1 8.8 190.2 74.2 8.2 — — —

080 254.7 73.2 10.9 240.9 77.4 10.4 226.9 81.2 9.8 212.7 84.6 9.1 — — —

090 283.1 82.3 12.2 268.3 86.9 11.5 253.3 91.2 10.9 238.1 95.0 10.2 — — —

100 322.2 92.3 13.8 305.4 97.8 13.1 288.4 102.9 12.4 271.3 107.6 11.7 — — —

110 343.7 102.8 14.8 326.4 108.5 14.0 308.7 113.8 13.3 — — — — — —

120 372.0 109.2 16.0 354.2 115.6 15.2 335.8 121.5 14.4 317.3 126.9 13.6 — — —

140 453.4 131.1 19.5 430.9 138.5 18.5 408.3 145.4 17.6 385.1 151.7 16.6 — — —

160 524.0 143.8 22.5 499.3 152.5 21.5 474.4 160.7 20.4 449.4 168.4 19.3 424.1 175.5 18.2

070

7.0

238.1 65.0 10.2 224.9 68.9 9.7 211.5 72.5 9.1 197.8 75.8 8.5 — — —

080 263.7 74.4 11.3 249.7 78.8 10.7 235.4 82.8 10.1 220.9 86.4 9.5 — — —

090 293.1 83.7 12.6 278.0 88.5 12.0 262.7 93.0 11.3 247.1 97.0 10.6 — — —

100 332.7 93.8 14.3 315.7 99.5 13.6 298.4 104.8 12.8 280.7 109.6 12.1 — — —

110 354.6 104.5 15.3 337.0 110.4 14.5 319.0 115.9 13.7 — — — — — —

120 383.8 110.9 16.5 365.4 117.5 15.7 346.7 123.6 14.9 327.8 129.2 14.1 — — —

140 468.5 133.3 20.2 445.6 140.9 19.2 422.4 148.1 18.2 399.0 154.8 17.2 — — —

160 541.5 145.9 23.3 516.3 154.9 22.2 490.8 163.4 21.1 465.2 171.4 20.0 439.4 178.9 18.9

27

Performance data

30HS/Air-Cooled Condenser Combinations

— SI (cont)

30HS

UNIT

SIZE

LCWT

(C)

CONDENSER ENTERING AIR TEMPERATURE (C)

30.0 35.0 40.0 45.0 50.0

Cap.

(kW) Input

kW

Cooler

Flow

Rate

(L/s)

Cap.

(kW) Input

kW

Cooler

Flow

Rate

(L/s)

Cap.

(kW) Input

kW

Cooler

Flow

Rate

(L/s)

Cap.

(kW) Input

kW

Cooler

Flow

Rate

(L/s)

Cap.

(kW) Input

kW

Cooler

Flow

Rate

(L/s)

070

8.0

246.7 66.1 10.6 233.2 70.2 10.0 219.5 73.9 9.4 205.6 77.4 8.8 — — —

080 273.0 75.7 11.7 258.7 80.2 11.1 244.1 84.4 10.5 229.3 88.2 9.9 — — —

090 303.2 85.1 13.0 287.9 90.1 12.4 272.2 94.8 11.7 256.3 99.0 11.0 — — —

100 343.2 95.2 14.8 326.0 101.2 14.0 308.5 106.7 13.3 290.5 111.7 12.5 — — —

110 365.9 106.2 15.7 348.0 112.4 15.0 329.7 118.1 14.2 — — — — — —

120 395.7 112.6 17.0 377.1 119.4 16.2 358.1 125.8 15.4 338.5 131.6 14.6 — — —

140 484.0 135.4 20.8 460.5 143.4 19.8 436.8 150.8 18.8 412.9 157.7 17.8 — — —

160 559.5 148.1 24.1 533.4 157.4 23.0 507.5 166.2 21.8 481.3 174.4 20.7 454.9 182.2 19.6

070

9.0

255.4 67.2 11.0 241.7 71.4 10.4 227.7 75.4 9.8 213.5 79.0 9.2 — — —

080 282.4 77.0 12.2 267.8 81.7 11.5 252.9 86.0 10.9 237.8 90.0 10.2 — — —

090 313.6 86.5 13.5 297.9 91.7 12.8 281.9 96.6 12.1 265.7 101.0 11.4 — — —

100 354.1 96.7 15.2 336.5 102.8 14.5 318.7 108.6 13.7 — — — — — —

110 377.2 107.9 16.2 359.0 114.3 15.5 340.2 120.2 14.6 — — — — — —

120 407.8 114.3 17.6 388.9 121.3 16.7 369.5 127.9 15.9 349.6 134.0 15.1 — — —

140 499.9 137.6 21.5 475.7 145.8 20.5 451.5 153.6 19.4 427.0 160.8 18.4 — — —

160 577.6 150.1 24.9 551.0 159.8 23.7 524.4 168.9 22.6 497.7 177.5 21.4 470.6 185.6 20.3

070

10.0

264.4 68.3 11.4 250.3 72.7 10.8 236.0 76.8 10.2 221.5 80.5 9.5 — — —

080 292.0 78.3 12.6 277.1 83.1 11.9 261.9 87.7 11.3 — — — — — —

090 324.1 87.9 14.0 308.1 93.3 13.3 291.8 98.4 12.6 275.3 103.0 11.9 — — —

100 365.0 98.2 15.7 347.3 104.5 15.0 329.1 110.4 14.2 — — — — — —

110 388.4 109.7 16.7 369.9 116.2 15.9 351.0 122.4 15.1 — — — — — —

120 419.9 116.0 18.1 400.8 123.3 17.3 381.1 130.0 16.4 — — — — — —

140 516.0 139.8 22.2 491.4 148.3 21.2 466.5 156.3 20.1 — — — — — —

160 596.4 152.2 25.7 569.0 162.2 24.5 541.7 171.6 23.3 514.4 180.5 22.2 486.7 188.9 21.0

070

13.0

291.7 71.7 12.6 276.8 76.6 11.9 262.0 81.2 11.3 — — — — — —

080 321.7 82.2 13.9 305.9 87.5 13.2 289.8 92.6 12.5 — — — — — —

090 356.7 92.2 15.4 339.9 98.2 14.7 322.6 103.8 13.9 — — — — — —

100 398.9 102.7 17.2 380.2 109.6 16.4 360.9 116.1 15.6 — — — — — —

110 423.6 114.9 18.3 404.2 122.1 17.4 384.3 128.9 16.6 — — — — — —

120 457.4 121.2 19.7 437.1 129.1 18.8 416.5 136.6 18.0 — — — — — —

140 566.0 146.5 24.4 539.6 155.8 23.3 — — — — — — — — —

160 653.7 158.5 28.2 624.8 169.4 26.9 595.9 179.8 25.7 566.2 189.6 24.4 — — —

070

16.0

313.4 74.4 13.5 295.6 79.2 12.8 277.6 83.7 12.0 — — — — — —

080 349.9 85.8 15.1 331.2 91.3 14.3 311.7 96.3 13.5 — — — — — —

090 387.6 96.2 16.7 368.8 102.6 15.9 349.6 108.6 15.1 — — — — — —

100 433.9 107.3 18.7 414.5 114.8 17.9 389.6 121.0 16.8 — — — — — —

110 460.2 120.3 19.9 439.6 128.0 19.0 — — — — — — — — —

120 496.4 126.4 21.4 475.3 135.0 20.5 453.7 143.1 19.6 — — — — — —

140 619.0 153.4 26.7 587.7 163.0 25.4 — — — — — — — — —

160 714.0 164.7 30.8 683.6 176.6 29.5 652.4 187.9 28.2 621.2 198.8 26.8 — — —

LEGEND

Cap. — Capacity

kW — Compressor Motor Power Input at Rated Voltage

LCWT — Leaving Chilled Water Temperature

28

Electrical data

COMPLETE UNIT

VOLT-

AGE

NOMINAL 208/230-3-60 460-3-60 575-3-60 06E COMPRESSOR

USAGE†

Supply

Range* 187-253 414-508 518-632 Circuit A Circuit B

Compressor Number

UNIT 30 MkW MCA ICF Rec MFA MCA ICF Rec MFA MCA ICF Rec MFAA1A2B1B2Fuse Fuse Fuse

Amps Amps Amps

HR

070 73.4 218 503 250 300 101 249 125 125 93 188 110 125 2150 A150 6175

—080 82.3 244 529 300 300 114 262 125 150 105 200 125 125 6175 A150 6175

090 91.2 270 612 300 350 127 301 150 150 117 236 150 150 6175 F175 6175

100 103.8 161 529 200 225 140 262 150 175 129 200 150 150 6175 A150 6175 A150

110 112.7 187 669 225 250 153 327 175 175 141 260 150 175 6175 F175 6175 A150

161 200 225

120 121.6 187 695 225 250 166 340 200 200 153 272 175 175 6175 F175 6175 F175

140 155.8 241 816 300 350 112 403 150 150 95 323 110 125 6299 F175 6299 F175

160 190.0 284 1068 350 400 131 519 150 175 106 417 125 150 6299 F299 6299 F299

HS

070 84.7 271 579 300 350 113 282 125 150 102 203 125 125 2250 A250 6275

—080 95.3 298 606 350 350 128 297 150 150 113 214 125 150 6275 A250 6275

090 105.9 325 706 350 400 143 341 175 175 124 252 150 150 6275 F275 6275

100 120.0 198 618 225 250 157 297 175 200 140 223 150 175 6275 A250 6275 A250

110 130.6 225 779 250 300 172 370 200 200 151 279 175 175 6275 F275 6275 A250

198 225 250

120 141.2 225 806 250 300 187 385 200 225 162 290 175 175 6275 F275 6275 F275

140 176.8 279 892 350 400 121 419 150 175 105 329 125 150 6299 F275 6299 F275

160 212.4 322 1119 400 450 138 528 175 175 120 435 150 150 6299 F299 6299 F299

INDIVIDUAL COMPRESSORS

UNIT 30 COMPRESSOR 208/230-3-60 460-3-60 575-3-60

06E kW RLA LRA MTA RLA LRA MTA RLA LRA MTA

HR 150 21.5 57 283 88 26 142 40 24 98 33

175 30.4 83 446 128 39 223 56 36 164 50

299 47.5 126 690 196 58 345 90 47 276 73

HS 250 24.7 73 345 112 29 173 45 27 120 40

275 35.3 100 506 156 44 253 68 38 176 57

299 53.1 143 690 222 61 345 95 53 276 82

LEGEND AND NOTES

Two electrical power circuits are required. A separate

entrance and a terminal block are provided for each cir-

cuit. Run 6 wires to unit from disconnect switch, 3 to

each circuit.

For size 110 units, the upper value is circuit A and lower

value is circuit B. For other size units, the value given is

per electrical circuit.

For all unshaded areas: Only 1 power circuit is required,

with a single entrance. Run 3 wires to unit, to a single

terminal block.

ICF — Maximum Instantaneous Current Flow during starting (the

point in the compressor starting sequence where the

sum of the LRA for the starting compressor plus the RLA

for all running compressors is maximum).

Not for wire

sizing.

kW — Maximum allowable power input (each compressor).

LRA — Locked Rotor Amps.

MCA — Minimum Circuit Amps (for wire sizing); complies with

NEC, Section 430-24 (U.S.A. Standard).

MFA — Maximum FuseAmps; 225% of largest compressor RLA

plus 100% of remaining compressor RLA. Size down to

the next standard fuse size.

MkW — Maximum unit power input.

MTA — Must Trip Amps (compressor circuit breaker).

NEC — National Electrical Code (U.S.A.).

Rec Fuse

Amps —Recommended dual element fuse amps; 150% of larg-

est compressor RLA plus 100% of remaining compres-

sor RLA. Size up to next standard fuse size.

RLA — Rated Load Amps.

*Units are suitable for use on electrical systems where voltage supplied

to the unit terminals is not below or above the listed range limits.

†Circuits and compressors are numbered from left to right when viewed

from the front of the unit.

NOTES:

1. Maximum incoming wire size for 208/230 v is as follows:

Units 070-090 have one terminal block, 3 wires, 500 kcmil.

Units 100-160 have 2 terminal blocks, 3 wires per block, 500 kcmil.

2. Maximum incoming wire size for 460 and 575 v is as follows:

Wire size maximum is 500 kcmil for units 070-160.

Units 070-120 have one terminal block, 3 wires; units 140 and 160

have 2 terminal blocks, 3 wires per block.

3. Across-the-start is standard at all voltages.

4. Control circuit requires a separate-fused (15 amp), 115-v, single-ph,

60 Hz power supply, or accessory control power transformer.

5. Control circuit MCA is 7.2 and control circuit MFA is 15.

6. Compressor motors on all units are thermally protected by overtem-

perature sensors in the discharge side of the compressor.

7. Maximum allowable phase imbalance is: volts 2%; amps 10%.

8. Use copper, copper-clad aluminum, or aluminum conductors for field

power wiring.

29

Typical field control wiring

CHILLED FLUID PUMP RELAY

CHILLED FLUID PUMP STARTER

AUXILIARY CONTACTS

FIELD-SUPPLIED TEMPERATURE RESET

TWO-STAGE DEMAND LIMIT

CONTACTOR COIL FOR CONDENSER FLUID PUMP

OR FOR FAN MOTORS

CONNECTIONS FOR EXTERNAL

CARRIER COMFORT NETWORK (CCN)

COMMUNICATIONS (RS485)

LEGEND

C—Common

CR — Control Relay

J—Jumper

NO—Normally Open

OL — Overload

TB — Terminal Block

Field Wiring

Factory Wiring

REMOTE ALARM

30

Controls

Control sequence

Standby—During unit offcycle whenthe RUN/STANDBY

switch is in the STANDBY position, the crankcase heaters

and the control system are energized.

NOTE: The control circuit power must be on at all times

even when the main unit power is off.

Run — When the RUN/STANDBY switch is moved from

STANDBY to RUN position, there will be a 1

1

⁄

2

minute de-

lay while the microprocessor monitors data. If in occupied

mode, after 1

1

⁄

2

minutes the chilled fluid pump will start. If

there is a call for cooling, the first compressor will start un-

loaded. The first circuit to start may be circuit A or B due to

the automatic and random lead/lag feature.

Capacity control sequence

On a call for cooling, the control system starts the initial

compressor. The control will randomly select either circuit

A or B. The liquid line solenoid valve remains closed for 10

seconds after the initial compressor on that refrigeration

circuit starts (unless the compressor has run in the 15 min-

utes prior to the latest call for cooling). This permits a pum-

pout cycle at start-up to minimize refrigerant floodback to

the compressor. If the compressor has run in the 15 min-

utes before the call for cooling, the pumpout cycle is

eliminated.

After the pumpout, the liquid line solenoid valve and the

EXV open.

The EXV will open gradually to provide a controlled

start-up to prevent liquid floodback to the compressor. Also

during this period, the oil pressure switch will be bypassed

for one minute.

As additional cooling is required, the control system will

ramp up through the capacity steps available until the load

requirement is satisfied. As capacity steps are added, com-

pressors are added, alternating between the lead and lag

refrigerant circuits. The speed at which capacity is increased

or decreased is controlled by the temperature deviation from

the set point and the rate of change in the chilled fluid

temperature.

When the second or lag refrigeration circuit is started,

that circuit will go through a 10-second pumpout unless the

circuit has been operating in the 15 minutes prior to this

start.

Upon load reduction, the control system will unload the

unit in the reverse order of loading until the capacity nearly

matches the load. Each time the lead compressor in a cir-

cuit is cycled off, the liquid solenoid valve and EXV will be

closedfor 10 seconds prior tocompressor shutdown to clear

the cooler of liquid refrigerant.

To stop unit, move the RUN/STANDBY switch to the

STANDBY position. Any refrigeration circuit that is oper-

ating at this time will continue to run for 10 seconds to

complete the pumpout cycle.

CAPACITY CONTROL STEPS

UNIT

30HR,

30HS

CONTR

STEPS

SEQUENCE A SEQUENCE B

%

Disp.

Oper Cylinders

%

Disp.

Oper Cylinders

Tot.

Ckt A Ckt B

Tot.

Ckt A Ckt B

Compr Compr

A1 A2 B1 B2 A1 A2 B1 B2

070

1 14.3 2 2 — — — 28.6 4 — — 4 —

2 42.9 6 2 — 4 — 42.9 6 2 — 4 —

3 57.2 8 2 — 6 — 57.2 8 4 — 4 —

4 71.2 10 4 — 6 — 71.2 10 4 — 6 —

5 85.7 12 2 4 6 — 85.7 12 2 4 6 —

6 100.0 14 4 4 6 — 100.0 14 4 4 6 —

080

1 25.0 4 4 — — — 25.0 4 — — 4 —

2 50.0 8 4 — 4 — 50.0 8 4 — 4 —

3 62.5 10 4 — 6 — 62.5 10 6 — 4 —

4 75.0 12 6 — 6 — 75.0 12 6 — 6 —

5 87.5 14 4 4 6 — 87.5 14 4 4 6 —

6 100.0 16 6 4 6 — 100.0 16 6 4 6 —

090

1 22.2 4 4 — — — 22.2 4 — — 4 —

2 44.4 8 4 — 4 — 44.4 8 4 — 4 —

3 55.5 10 4 — 6 — 55.5 10 6 — 4 —

4 66.7 12 6 — 6 — 66.7 12 6 — 6 —

5 88.8 16 4 6 6 — 88.8 16 4 6 6 —

6 100.0 18 6 6 6 — 100.0 18 6 6 6 —

100

1 20.0 4 4 — — — 20.0 4 — — 4 —

2 40.0 8 4 — 4 — 40.0 8 4 — 4 —

3 50.0 10 4 — 6 — 50.0 10 6 — 4 —

4 60.0 12 6 — 6 — 60.0 12 6 — 6 —

5 70.0 14 4 4 6 — 70.0 14 6 — 4 4

6 80.0 16 6 4 6 — 80.0 16 6 — 6 4

7 90.0 18 4464 90.0 18 6444

8 100.0 20 6464100.0 20 6464

110

1 18.2 4 4 — — — 18.2 4 — — 4 —

2 36.3 8 4 — 4 — 36.3 8 4 — 4 —

3 45.4 10 4 — 6 — 45.4 10 6 — 4 —

4 54.5 12 6 — 6 — 54.5 12 6 — 6 —

5 72.7 16 4 6 6 — 63.6 14 6 — 4 4

6 81.8 18 6 6 6 — 72.7 16 6 — 6 4

7 90.9 20 4664 90.9 20 6644

8 100.0 22 6664100.0 22 6664

120,

160

1 16.6 4 4 — — — 16.6 4 — — 4 —

2 33.3 8 4 — 4 — 33.3 8 4 — 4 —

3 41.6 10 4 — 6 — 41.6 10 6 — 4 —

4 50.0 12 6 — 6 — 50.0 12 6 — 6 —

5 66.7 16 4 6 6 — 66.7 16 6 — 4 6

6 75.0 18 6 6 6 — 75.0 18 6 — 6 6

7 91.6 22 4666 91.6 22 6646

8 100.0 24 6666100.0 24 6666

140

1 19.0 4 4 — — — 19.0 4 — — 4 —

2 38.0 8 4 — 4 — 38.0 8 4 — 4 —

3 47.6 10 4 — 6 — 47.6 10 6 — 4 —

4 57.0 12 6 — 6 — 57.0 12 6 — 6 —

5 69.0 16 4 6 6 — 69.0 16 6 — 4 6

6 78.6 18 6 6 6 — 78.6 18 6 — 6 6

7 90.4 22 4666 90.4 22 6646

8 100.0 24 6666100.0 24 6666

LEGEND

Ckt — Circuit

Compr — Compressor

CONTR — Control

Disp. — Displacement

Oper — Operating

Tot — Total

NOTE: Circuits and compressors designated from left to right when viewed from

front of unit.

31

Typical piping and wiring

FD FD FD FD FD

ST ST ST ST

POWER

SUPPLY ROOM THERMOSTAT

CONDENSER

WATER

TO AND FROM

COOLING TOWER

COOLER

OUT

IN

AIR HANDLING

UNIT

EXPANSION

TANK

FROM OTHER

AIR HANDLING

UNITS

TO OTHER

AIR HANDLING

UNITS

CHILLED WATER

30HR 100

SHOWN

FD — Field-Supplied

Disconnect

ST — Starter

Power Wiring

Control Wiring

Piping

NOTES:

1. Wiring and piping shown are general points-of-connection guides only and are not intended

to be used for, or to include all details of, a specific installation.

2. All wiring must comply with applicable local and national codes.

3. All piping must follow standard piping techniques. Refer to Carrier System Design Manual

for details.

32

Guide specifications — 30HR

Fluid-Cooled Reciprocating Liquid Chiller

HVAC Guide Specifications

Size Range: 70 to 160 Tons (250 to 560 kW)

Carrier Model Number: 30HR070-160

Part 1 — General

1.01 SYSTEM DESCRIPTION

A. Electronicallycontrolled reciprocating-typeliquidchiller

utilizing semi-hermetic type compressors.

1.02 QUALITY ASSURANCE

A. Unit performance shall be rated in accordance with

ARI Standard 590 (U.S.A.) at standard rating

conditions.

B. Unit construction shall comply with ASHRAE 15 lat-

est revision safety standard, NEC, and applicable

ASME codes (U.S.A.).

C. Unit(s) shall be UL (U.S.A.) listed and CSA certified.

D. Unit shall be certified in accordance with ISO 9002

manufacturing quality standard.

1.03 DELIVERY, STORAGE AND HANDLING

A. Unit shall be shipped factory assembled with all re-

frigerant piping and control wiring factory installed.

B. Unit shall be shipped pre-charged with a complete

operating charge of R-22.

C. Unit to be stored and handled according to manufac-

turer’s recommendations.

Part2—Products

2.01 EQUIPMENT

A. General:

Factory-assembled, single-piece, liquid chiller consist-

ing of motors, compressors, direct expansion cooler,

condensers,initialoiland refrigerant operatingcharges,

and all controls, safeties, and hardware required prior

to start-up.

B. Compressor(s):

1. Reciprocating, serviceable, semi-hermetic type

only.

2. Each compressor shall be equipped with an auto-

matically reversible oil pump, operating oil charge,

suction and discharge shutoff valves and oil sight

glass.

3. Factory mounted on spring vibration isolators.

4. Motors shall be cooled by suction gas passing

around motor windings and shall be thermally

protected.

5. Each compressor shall be factory equipped with

an insert-type crankcase heater to control oil di-

lution during shutdown.

6. Motorspeed shallnot exceed 1750 rpm (29.2 r/s).

7. Equipped with electrically-actuated suction cut-off

cylinder unloaders.

8. Same manufacturer as chiller.

C. Cooler:

1. Shell-and-tube type with removable heads. Seam-

less copper tubes shall be rolled into tube sheets.

2. Singlefluid pass typewith multipleinternalpolypro-

pylene baffles.

3. Design shall be dual independent, direct expan-

sion, refrigerant circuit type.

4. Shell shall be insulated with

3

⁄

4

-in. (19 mm) closed

cell polyvinyl chloride foam insulation or suitable

alternate.

5. Cooler shall be tested and stamped in accordance

withASME code (U.S.A.) for refrigerantside work-

ing pressure of 235 psig (1620 kPa). Cooler shall

have a maximum fluid side working pressure of

300 psig (2068 kPa).

D. Condensers:

1. Two fluid-cooled shell-and-tube type with seam-

less integrally finned copper tubes and removable

heads.

2. Design and construction shall provide positive sub-

cooling of liquid refrigerant.

3. Each equipped with a pressure relief device, purge

cock and liquid line shutoff valve.

4. Condensers shall be tested and stamped in accor-

dancewith ASMEcode (U.S.A.) for refrigerant side

working pressure of no less than 385 psig

(2654kPa). Condensershall have a maximum fluid

side working pressure of 250 psig (1724 kPa).

E. Refrigerant Components:

Eachrefrigerant circuitshall includethe following mini-

mum components:

1. Hot gas muffler.

2. Moisture indicating sight glass.

3. Hermetic filter drier.

4. Maximum operating pressure type electronic

expansion valve with a minimum of 760-step

control and

3

⁄

4

-in. (19 mm) variable refrigerant

metering.

5. Liquid line solenoid valve.

6. Charging valve.

7. Discharge gas thermostat.

8. Close-fitting cellular foam insulation on all suction

lines.

33

Guide specifications — 30HR (cont)

F. Controls, Safeties and Diagnostics:

1. Controls:

a. Unit controls shall include the following mini-

mum components:

1) Microprocessor.

2) Power and control circuit terminal blocks.

3) RUN/STANDBY control power switch.

4) Replaceable solid-state relay panel and

electronic expansion valve control.

5) Control panel with keypad and display

module.

6) Thermistors.

7) External communication port.

b. Capable of performing the following

functions:

1) Pumpout at beginning and end of every

circuit cycle.

2) Return temperature reset based on return

cooler fluid temperature outdoor-air tem-

perature, space temperature, or 4-20 mA

signal.

3) Scheduling of circulating pump and chiller

operationforoccupied/unoccupiedperiods.

4) Capacity control based on leaving chilled

fluidtemperature and compensatedby rate

of change of return fluid temperature.

5) Limit the chilled fluid temperature pull-

down rate at start-up to 1° F (.56° C) per

minuteto prevent excessivedemand spikes

(charges) at start-up.

6) Automatic lead/lag control of refrigerant

circuits.

7) Two-stage demand limiting from remote

signal.

8) Remote alarm activation.

2. Safeties:

a. Unit shall be equipped with thermistors and

all necessary components in conjunction with

the control system to provide the unit with

the following protections:

1) Loss of refrigerant charge protection.

2) Low fluid flow protection.

3) Low chilled fluid temperature protection.

4) Low and high superheat protection.

5) Low oil protection for each compressor

circuit.

6) Low control voltage (to unit) protection.

b. Compressors shall be equipped with the fol-

lowing manual reset type protections:

1) Thermal overload.

2) Pressure overload.

3) Electrical overload through the use of con-

tactors and calibrated, ambient compen-

sated, magnetic trip circuit breakers. Cir-

cuit breakers shall open all 3 phases in the

event of either an overload in any one

phase, or a single-phasing condition.

3. Diagnostics:

a. Diagnostic display module shall be capable of

indicating the safety lockout condition by dis-

playing a code for which an explanation may

bescrolled atthe display.Protections included

for display shall be:

1) Compressor lockout.

2) Loss of charge.

3) Low fluid flow.

4) Low oil pressure.

5) Cooler freeze protection.

6) High or low suction superheat.

7) Thermistor malfunction.

b. Unitcontrol must also be capableof perform-

ing a run test to verify operation of every

switch, thermistor, solenoid valve, unloader,

and compressor before chiller is started.

G. Electrical Requirements:

1. Control voltage shall be 115-v, single-phase, sepa-

rate power supply.

2. Unit shall be shipped with factory control and

power wiring installed.

3. Each primary electrical power supply shall be con-

nected at a single location.

H. Special Features:

Certain standard features are not applicable when the

features designated by * are specified.

* 1. Condensermanifoldpackage(070-140),fieldwelded.

* 2. Control circuit transformer (115 v), field installed.

* 3. Remote reset thermistor, field installed.

4. Unit sound enclosure panels, field installed.

5. Suction and discharge pressure gages with valves,

field installed.

* 6. Oil-pressure safety switch, field installed.

* 7. Leavingchilled fluidtemperature reset.LCWT shall

be reset from occupied space, outdoor air, or re-

turn fluid temperature.

* 8. Demand limit control. Unit shall be equipped with

a 2-point demand limit control (0-49% and 50-

100%) actuated remotely by an electronic signal.

9. Chilled fluid flow switch, field installed.

34

Guide specifications — 30HS

Condenserless Reciprocating Liquid Chiller

HVAC Guide Specifications

Size Range: 70 to 160 Tons (250 to 560 kW)

Carrier Model Number: 30HS070-160

Part 1 — General

1.01 SYSTEM DESCRIPTION

A. Electronically controlled reciprocating-type liquid

condenserless chiller utilizing semi-hermetic type

compressors.

1.02 QUALITY ASSURANCE

A. Unit performance shallbe basedon ARIStandard 590

(U.S.A.) at standard rating conditions.

B. Unit construction shall comply with ASHRAE 15 lat-

est revision safety standard, NEC, and applicable

ASME codes (U.S.A.).

C. Unit(s) shall be UL (U.S.A.) listed and CSA certified.

D. Unit shall be certified in accordance with ISO 9002

manufacturing quality standard.

1.03 DELIVERY, STORAGE AND HANDLING

A. Unit shall be shipped factory assembled with all re-

frigerant piping and control wiring factory installed.

B. Unit shall be shipped pre-charged with a holding

charge of R-22.

C. Unit to be stored and handled according to manufac-

turer’s recommendations.

Part2—Products

2.01 EQUIPMENT

A. General:

Factory-assembled, single-piece, liquid chiller consist-

ing of motors, compressors, direct expansion cooler,

initialoil operating charge, refrigerantholding charge,

and all controls, safeties, and hardware required prior

to start-up.

B. Compressors:

1. Reciprocatingserviceable semi-hermetictype only.

2. Each compressor shall be equipped with an auto-

matically reversible oil pump, operating oil charge,

suction and discharge shutoff valves, and oil sight

glass.

3. Factory mounted on spring vibration isolators.

4. Motors shall be cooled by suction gas passing

around motor windings and shall be thermally

protected.

5. Each compressor shall be factory equipped with

an insert-type crankcase heater to control oil di-

lution during shutdown.

6. Motorspeed shallnot exceed 1750 rpm (29.2 r/s).

7. Equipped with electrically-actuated suction cut-off

cylinder unloaders.

8. Same manufacturer as chiller.

C. Cooler:

1. Shell-and-tube type with removable heads. Seam-

less copper tubes shall be rolled into tube sheets.

2. Singlefluid pass typewith multipleinternalpolypro-

pylene baffles.

3. Design shall be dual independent, direct expan-

sion, refrigerant circuit type.

4. Shell shall be insulated with

3

⁄

4

-in. (19 mm) closed

cell polyvinyl chloride foam insulation or suitable

alternate.

5. Cooler shall be tested and stamped in accordance

withASME code (U.S.A.) for refrigerantside work-

ing pressure of 235 psig (1620 kPa). Cooler shall

have a maximum fluid-side working pressure of

300 psig (2068 kPa).

D. Condensers:

1. Remotely located type (normally air-cooled).

2. Design and construction shall provide positive sub-

cooling of liquid refrigerant.

E. Refrigerant Components:

Eachrefrigerant circuitshall includethe following mini-

mum components:

1. Hot gas muffler.

2. Moisture indicating sight glass.

3. Hermetic filter drier.

4. Maximum operating pressure type electronic ex-

pansion valve with a minimum 760-step control

with

3

⁄

4

-in. (19 mm) variable refrigerant metering.

5. Liquid line solenoid valve.

6. Charging valve.

7. Discharge gas thermostat.

8. Close-fitting cellular foam insulation on all suction

lines.

F. Controls, Safeties and Diagnostics:

1. Controls:

a. Unit controls shall include the following mini-

mum components:

1) Microprocessor.

2) Power and control circuit terminal blocks.

3) RUN/STANDBY control power switch.

4) Replaceable solid-state relay panel and

electronic expansion valve control.

5) Control panel with keypad and display

module.

6) Thermistors.

7) External communication port.

35

Guide specifications — 30HS (cont)

b. Capable of performing the following

functions:

1) Pumpout at beginning and end of every

circuit cycle.

2) Return temperature reset based on return

cooler fluid temperature, outdoor-air tem-

perature, space temperature, or 4-20 mA

signal.

3) Scheduling of circulating pump and chiller

operation for occupied/unoccupied

periods.

4) Capacity control based on leaving chilled

fluidtemperature and compensatedby rate

of change of return fluid temperature.

5) Limit the chilled fluid temperature pull-

down rate at start-up to 1° F (.56° C) per

minuteto prevent excessivedemand spikes

(charges) at start-up.

6) Automatic lead/lag control of refrigerant

circuits.

7) Two-stage demand limiting from remote

signal.

8) Remote alarm activation.

2. Safeties:

a. Unit shall be equipped with thermistors and

all necessary components in conjunction with

the control system to provide the unit with

the following protections:

1) Loss of refrigerant charge protection.

2) Low fluid flow protection.

3) Low chilled fluid temperature protection.

4) Low and high superheat protection.

5) Low oil protection for each compressor

circuit.

6) Low control voltage (to unit) protection.

b. Compressors shall be equipped with the fol-

lowing manual reset type protections:

1) Thermal overload.

2) Pressure overload.

3) Electrical overload through the use of con-

tactors and calibrated, ambient compen-

sated, magnetic trip circuit breakers. Cir-

cuit breakers shall open all 3 phases in the

event of either an overload in any one

phase, or a single-phasing condition.

3. Diagnostics:

a. Diagnostic display module shall be capable of

indicating the safety lockout condition by dis-

playing a code for which an explanation may

bescrolled atthe display.Protections included

for display shall be:

1) Compressor lockout.

2) Loss of charge.

3) Low fluid flow.

4) Low oil pressure.

5) Cooler freeze protection.

6) High or low suction superheat.

7) Thermistor malfunction.

b. Unitcontrol must also be capableof perform-

ing a run test to verify operation of every

switch, thermistor, solenoid valve, unloader

and compressor before chiller is started.

G. Electrical Requirements:

1. Control voltage shall be 115-v, single-phase, sepa-

rate power supply.

2. Unit shall be shipped with factory control and

power wiring installed.

3. Each primary electrical power supply shall be con-

nected at a single location.

H. Special Features:

Certain standard features are not applicable when the

features designated by * are specified.

* 1. Control circuit transformer (115 v), field installed.

* 2. Remote reset thermistor, field installed.

3. Unit sound enclosure panels, field installed.

4. Suction and pressure gages and valves, field

installed.

* 5. Leavingchilled fluidtemperature reset.LCWT shall

be reset from occupied space, outdoor air, or re-

turn fluid temperature.

* 6. Demand limit control. Unit shall be equipped with

a 2-point demand limit control (0-49% and 50-

100%) activated remotely by an electronic signal.

7. Chilled fluid flow switch, field installed.

Carrier Corporation • Syracuse, New York 13221 12-94

Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.

Book 2

Tab 5c

Page 36 Catalog No. 523-033 Printed in U.S.A. PC 903 Form 30HR,HS-4PD

Replaces: 30HR,HS-3PD
