Copyright 2000 Carrier Corporation

Form 48GS-2SB Replaces 48GS-1SB Printed in U.S.A. 9-00 Catalog No. 514-896

48GS(N)-2SB

48GS(N)018-060

STANDARD EFFICIENCY

48GX(N)024-060

HIGH-EFFICIENCY

SINGLE-PACKAGE GAS HEATING

ELECTRIC COOLING UNITS

— PERFORMANCE DATA

— CERTIFIED DIMENSION PRINT

— CERTIFIED ROOF CURB

DIMENSION PRINT

2

M

A

N

U

F

A

C

T

U

R

E

R

C

E

R

T

I

F

I

E

D

T

O

A

R

I

A

S

C

O

M

P

L

Y

I

N

G

W

I

T

H

A

R

I

S

T

A

N

D

A

R

D

2

1

0

U

N

I

T

A

R

Y

A

I

R

C

O

N

D

I

T

I

O

N

I

N

G

E

Q

U

I

P

M

E

N

T

Date: Supersedes:

48GS(N)018-060/48GX(N)024-060

Single-Package

Gas Heating/

Electric Cooling Units

48GS-2SB Rev.:

JOB DATA: LOCATION:

BUYER: BUYER P.O. # CARRIER #

UNIT NUMBER: MODEL NUMBER:

PERFORMANCE DATA CERTIFIED BY: DATE:



3

2



5



A

2

DESCRIPTION

48GS(N)/48GX(N) units are self-contained, gas heating/electric cooling

units designed for easy installation and maintenance and dependable per-

formance. All units have discharge openings for either horizontal or

downflow configuration, and all have low sound levels. Units are intend-

ed for outdoor installation and may be located on a rooftop, or a ground-

level concrete slab, or directly on the ground if local codes permit.

• Standard one year limited warranty for both 48GS and

48GX.

• 10 year warranty on the 48GX(N) compressor.

• 5 year warranty on the 48GS(N) compressor.

• 15 year warranty on the 48GX(N) gas-fired heat ex-

changer.

• 10 year warranty on the 48GS(N) gas-fired heat exchanger.

• Units certified and listed by UL and c-UL. Units are rated

in accordance with ARI Standard 210.

• Low sound ratings.

• Units are pre-wired, pre-piped, and pre-charged for min-

imum installation expense.

• 12 SEER cooling efficiency.

• Lightweight.

• Compressor vibration isolation provides quieter operation.

• Energy saving, direct spark ignition.

• Easily converted for downflow operation with included

horizontal duct covers.

• Cabinets are constructed of heavy-duty, phosphated, zinc

coated pre-painted steel capable of withstanding 500

hours in salt spray.

• Easy-to-service cabinets with single-panel accessibility.

• Direct-drive multi-speed, permanent split capacitor

(PSC) indoor motor is standard.

• Direct-drive, PSC outdoor fan motor.

• Integrated gas control board provides safe and efficient

control of gas heating.

• Corrosion resistant gas heat exchangers.

• Coils constructed of aluminum fins bonded to copper

tubes.

• Wire grille provides additional protection.

• “Envirotuff” composite rust-proof unit base pan.

• Sloped drain pan minimizes standing water in the unit.

• Refrigerant service connections make checking operat-

ing pressures easier.

• Copper & pre-coated fin coils are available from the fac-

tory by special order, for use in corrosive environments.

• Low NOx units available for use in California.

•Three-phase units available.

FEATURES

Unit Operating Weight________lb (unit); ________lb

(curb)

COOLING

Net Total Capacity____________________________Btuh

Net Sensible Capacity ________________________ Btuh

Compressor Power Input__________kW @ ________ °F

Outdoor-Air Temperature

Indoor Entering-Air db__________°F –wb _________ °F

Seasonal Energy Efficiency Ratio ___________________

CFM__________ Ext. Static Pressure___________in. wg

Indoor Fan Motor______ Hp________ Rpm________Bhp

HEATING

Input______________________________________ Btuh

Output ____________________________________ Btuh

AFUE_______________________________________ %

Power Input to Unit ___________________________ kW

Integrated Capacity __________________________ Btuh

Indoor Operating Temp _______________________°F db

Outdoor-Air Temp________________°F (Winter Design)

COP/HSPF _________________Hi _______________ Lo

PERFORMANCE DATA

3

ELECTRICAL DATA

Unit Power Supply______Volts______Phase______ Hz

Minimum Circuit Amps______Maximum Overcurrent Protection______

FIELD INSTALLED ACCESSORIES

Economizer

Manual air Damper

Filter Rack

Flat Roof Curb

8 in .Height

14 in. Height

Thermostat

Programmable

Non-Programmable

Crankcase Heater

Time Guard® II Device

Compressor Hard Start Kit

LP conversion Kit

0°F Low Ambient Kit (Motormaster® II)

Square-to-Round Duct Transition Kit

High Altitude Kit

Controls Upgrade Kit

Lifting Kit

NOTES: ___________________________________________________________________________________

__________________________________________________________________________________________

__________________________________________________________________________________________

__________________________________________________________________________________________

__________________________________________________________________________________________

__________________________________________________________________________________________

__________________________________________________________________________________________

4

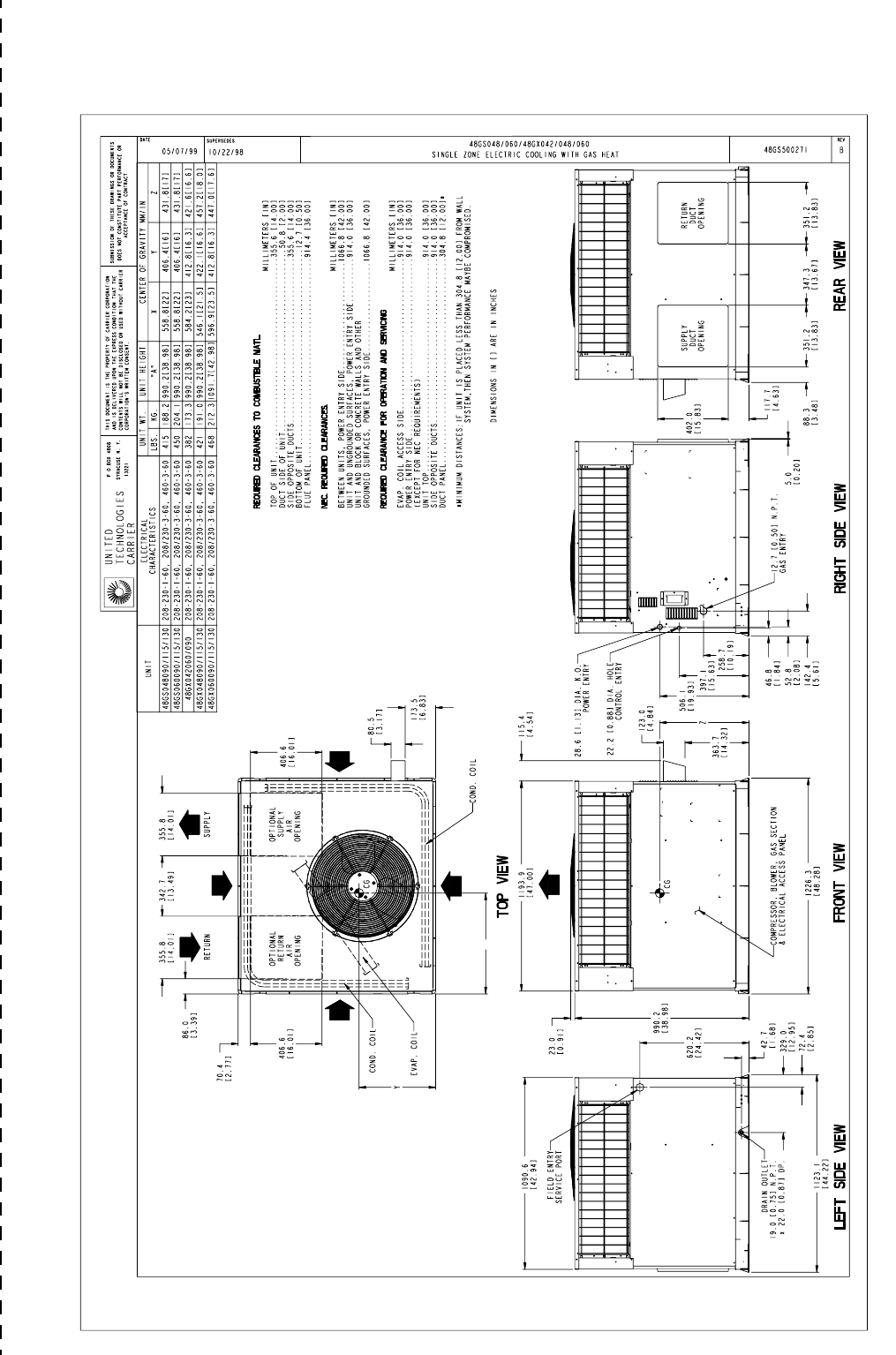

CERTIFIED DIMENSION PRINT

Cut along dotted line

C00090

5

C00091

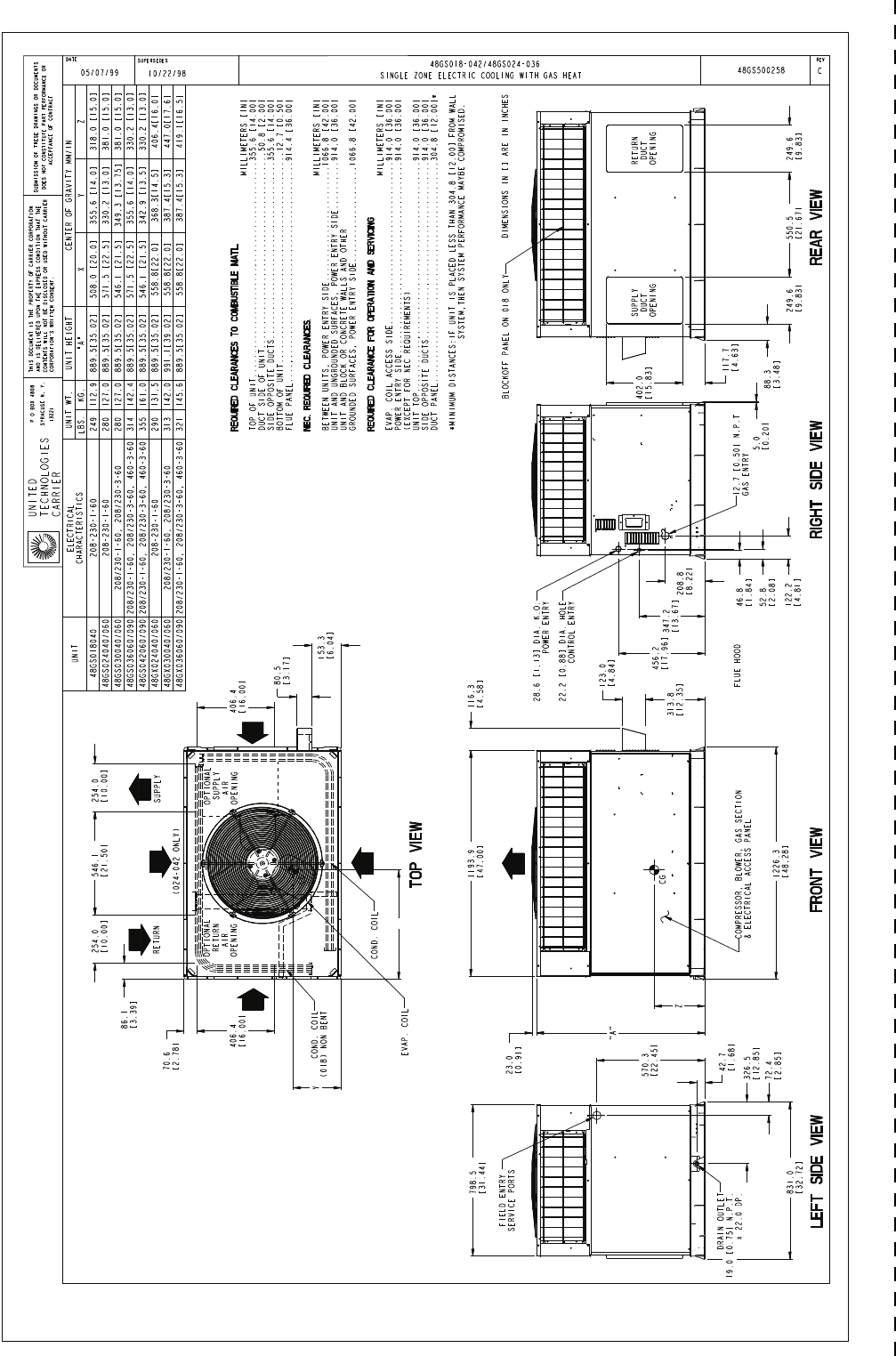

CERTIFIED DIMENSION PRINT

Cut along dotted line

C00091

6

3"

*10

*10

28

17

44

SUBMITTED T O

COMPANY:

DRAWN BY :

JOB NAME:

EQUIPMENT:

NOTES:

S U B M I T T A L 

A.L.L.

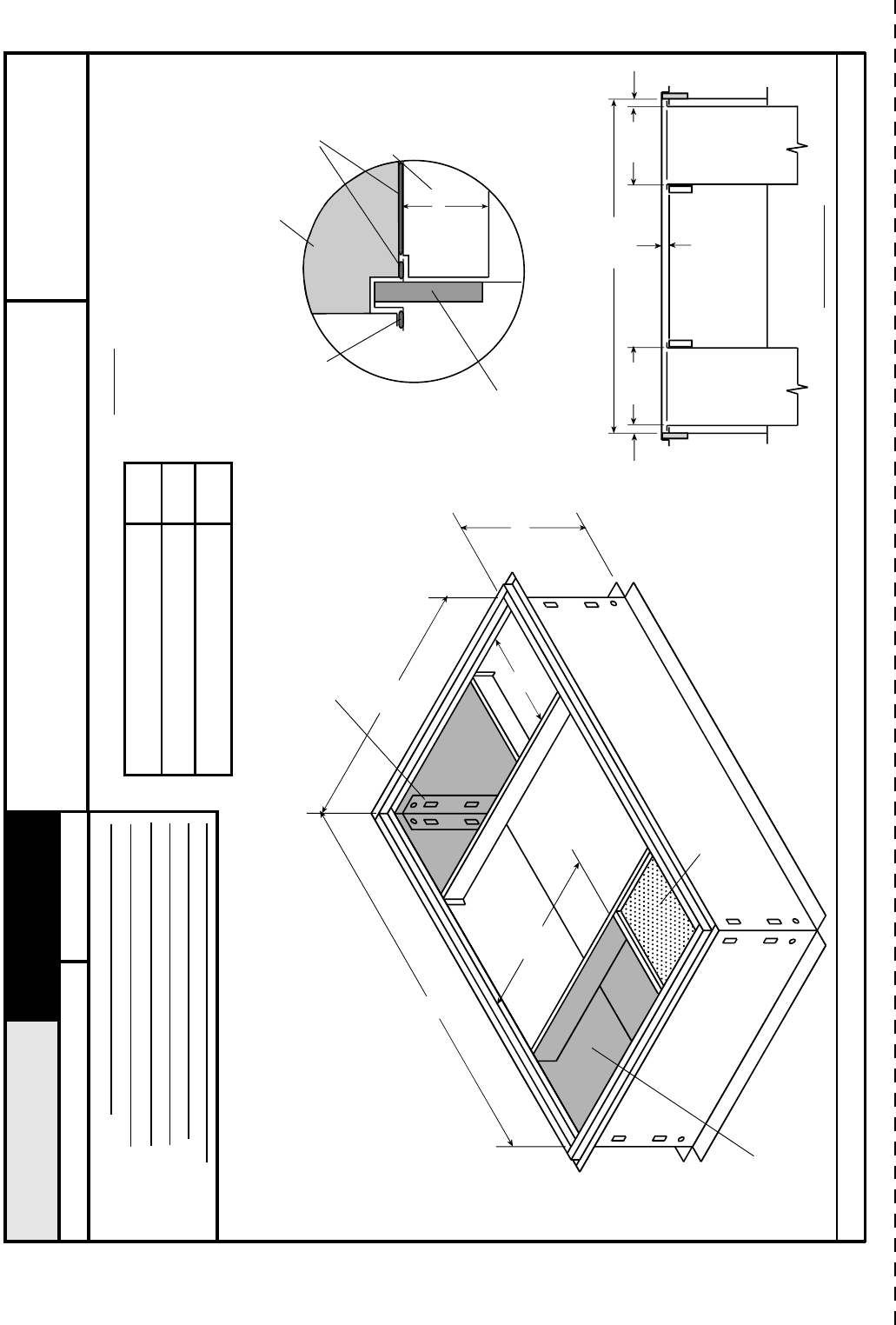

Roof Curb for Small Cabinet

Feature:

• Constructed of heavy gage  galvanized steel.

• Roofcurb ships knocked down in corrugated

box.

• Quick-clip design for easy field assembly.

• Insulated deck pan.

• Gasketing package and hardware included.

• Wood nailer provided.

HVAC unit

base pan Gasketing

Support

Wood Nailer

Gasketing

SIDE VIEW

R/A duct S/A duct

44 5/16"

3/4" 3/4" 1"

1"

1"

3/4"

3/8"

5/16"

A

Supply opening

(11" X 16 1/2" clear)

Insulated

deck pan

Return opening

(11" X 16 1/2" clear)

* Duct siz e

11"

ODS Catalog Ordering No.  A

CPC RFCU RB00 6A00 8"

CPC RFCU RB00 7A00 14 "

CERTIFIED DIMENSION PRINT

Cut along dotted line C00077

7

S U B M I T T A L 

SUBMITTED T O:

COMPANY:

DRAWN BY: M. HARGIS

JOB NAME:

EQUIPMENT:

NOTES:

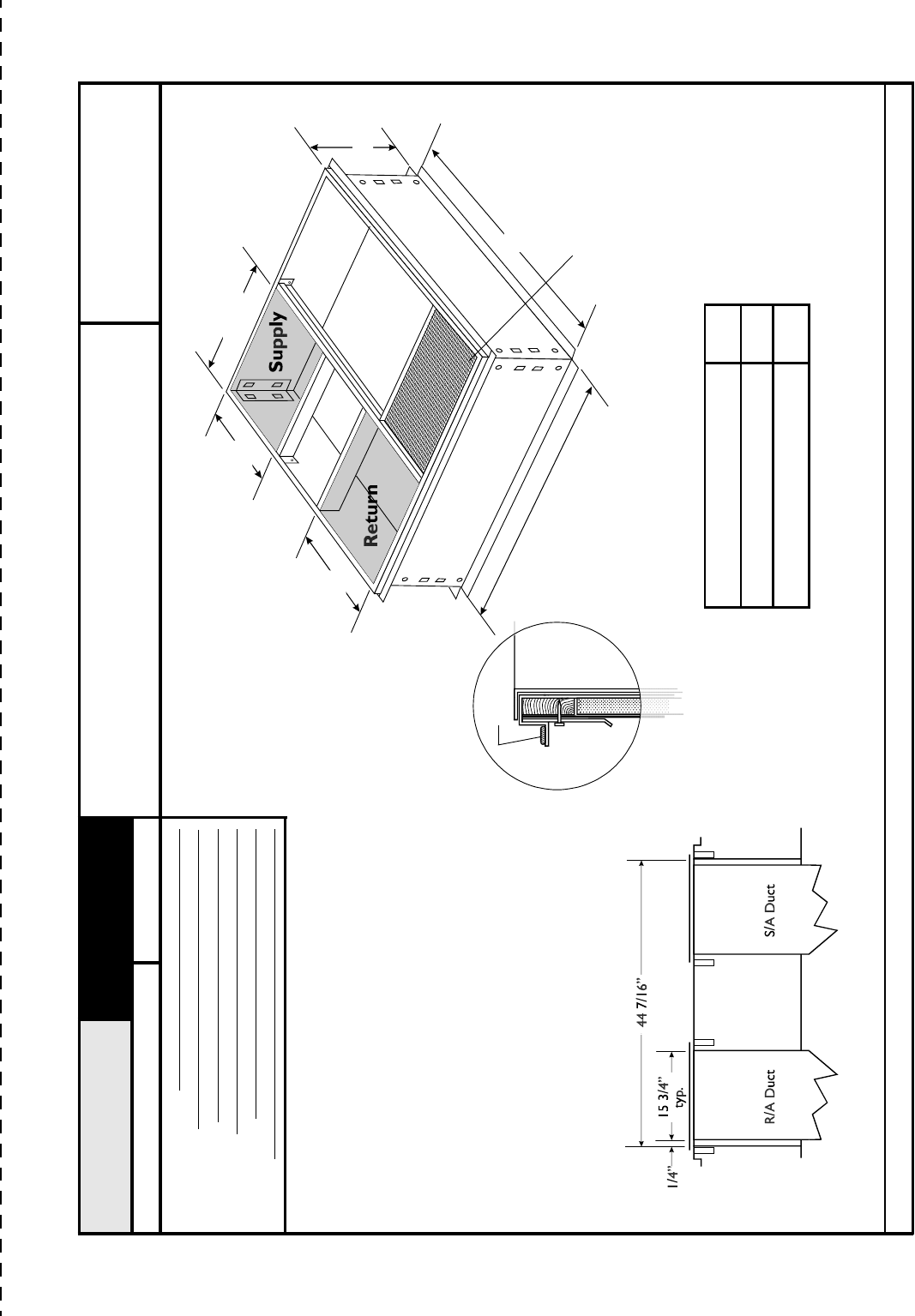

Roof Curb for Large Cabinet

FEATURES:

• Constr ucted of heavy gage galyanized steel.

• Quic k-clip design for easy field assembly.

• Ships knocked down w/corrugated box.

• Gask et package for complete outer perimeter

flange and around duct openings.

• W ood nailer provided. 44 7/16"

40 5/16"

16 3/16"

16 3/16" 17 3/8"

A

Deck pan (insulated)

Side View

Gasketing

ODS Catalog Ordering No.  A

CPRFCURB008A00 8"

CPRFCURB009A00 14"

CERTIFIED ROOF CURB DIMENSION PRINT

Cut along dotted line

C00078

8
