ARCHITECTS AND ENGINEERS’ MANUAL

December 2004 Copyright Carrier Corporation Cat. No. 592-085

CONTENTS

Page

APPLICATIONS ............................ 3,4

NewConstruction..............................3

Retrofit/Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

CarrierWarranty...............................3

ApplicationConsiderations ......................4

PRODUCT OVERVIEW .......................5

PRODUCT FEATURES AND BENEFITS ....6-13

QuietOperation ...............................6

MostEfficientPerformance......................6

EfficientFanMotor ............................6

No-Rust Weather Last™ Wall Sleeve and

FrontPanel .................................7

RemovableFrontPanel .........................7

Anti-TheftKnobs..............................7

Two-PieceLifetimeIndoorFilter..................8

Washable Vent Air Filter . . . . . . . . . . . . . . . . . . . . . . . . 8

Bi-Directional Discharge Grille . . . . . . . . . . . . . . . . . . . 8

PowerCordfor265-VUnits .....................9

Power Cord Protection for 230/208-V Units . . . . . . . . . 9

Bi-MoldedCondenserShroud....................9

SnowBaffle ..................................9

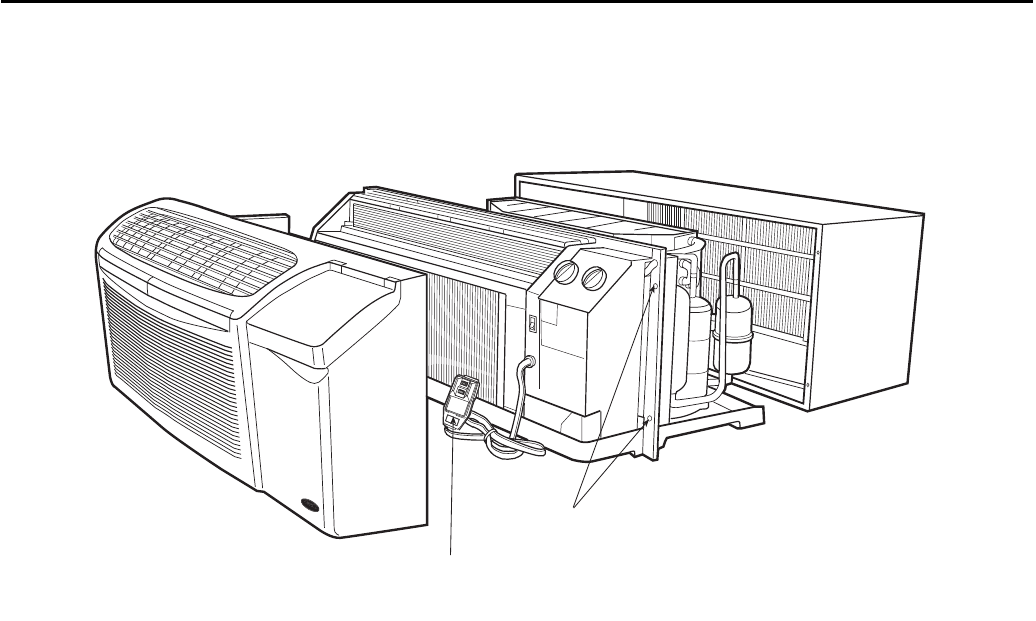

Easy Access to Chassis. . . . . . . . . . . . . . . . . . . . . . . . . 10

HiddenControls..............................10

EnhancedCopperTubing.......................11

Page

SeamlessBasepan ............................11

CondensateDrainValve........................11

CondensateRemovalSystem....................11

HeatPumpsPayTheirOwnWay.................12

HeatPumpEnergySavings.....................13

ORDERING DATA ...........................14

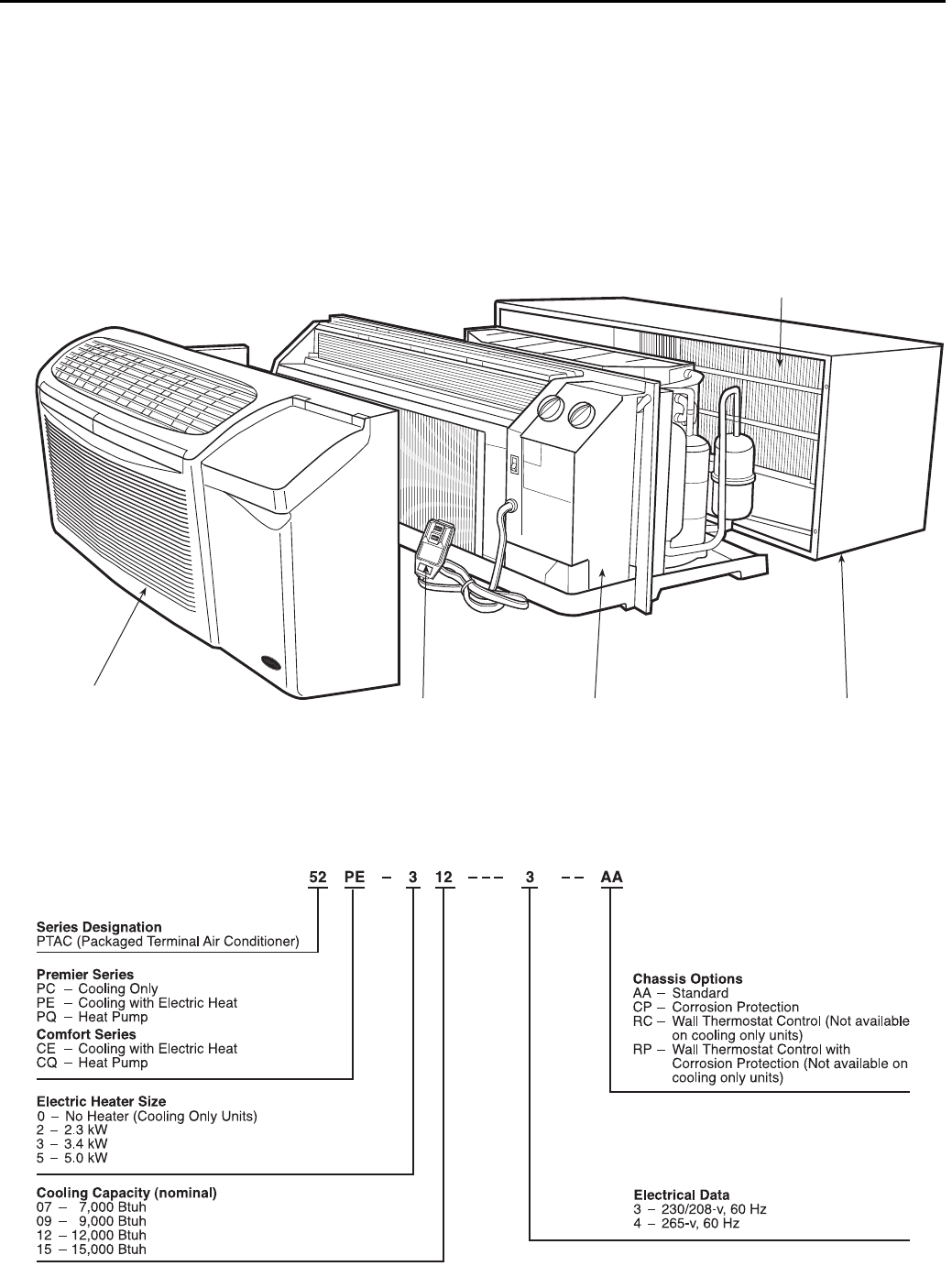

ProductCatalogNumber.......................14

FACTORY-INSTALLED OPTIONS ...........15

FIELD-INSTALLED ACCESSORIES ...... 16-26

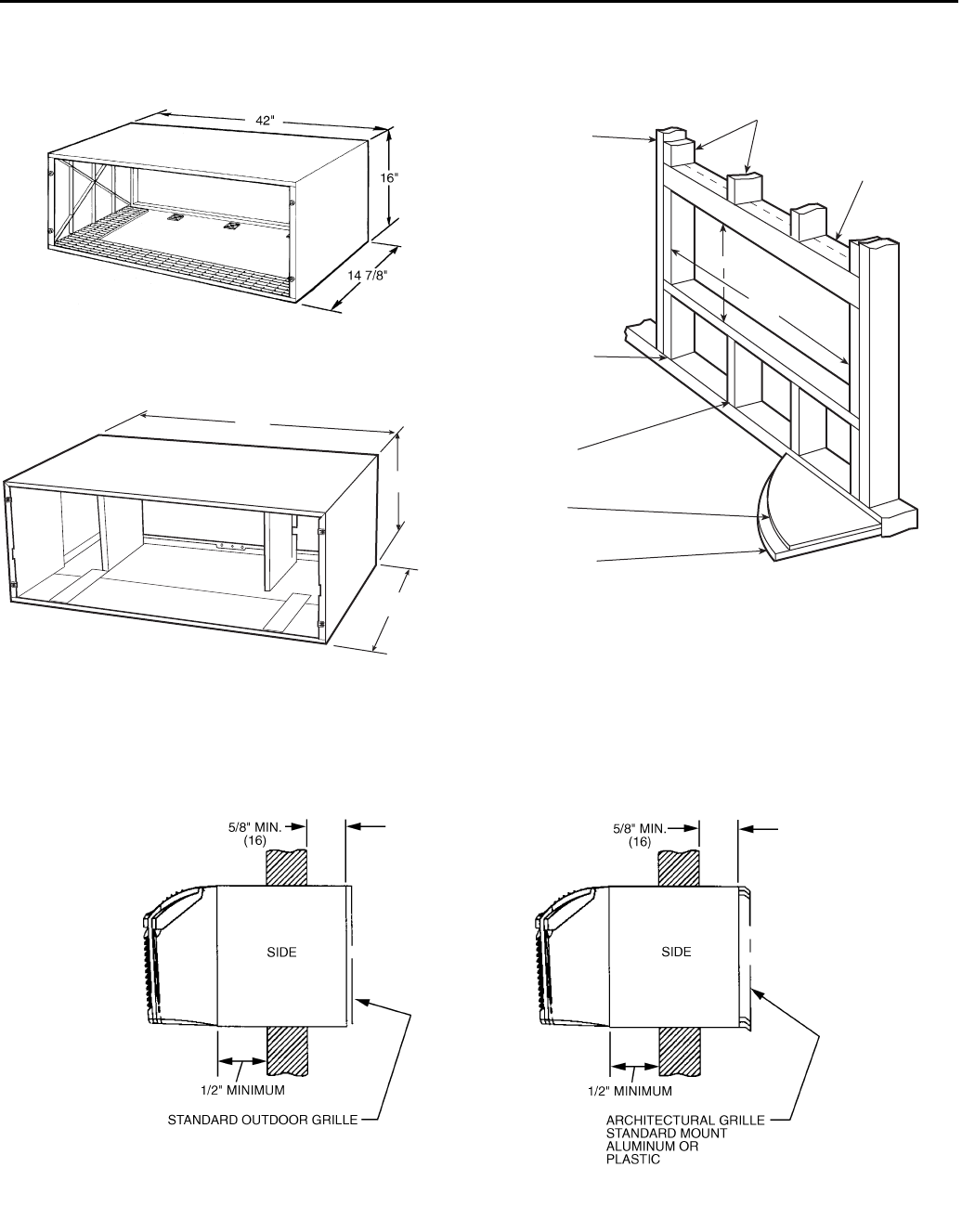

DIMENSION DRAWINGS AND

INSTALLATION DATA — NEW

CONSTRUCTION......................... 27-33

PRODUCT DATA ......................... 34-41

EXPANDED RATINGS DATA...............42,43

SOUND DATA ...............................44

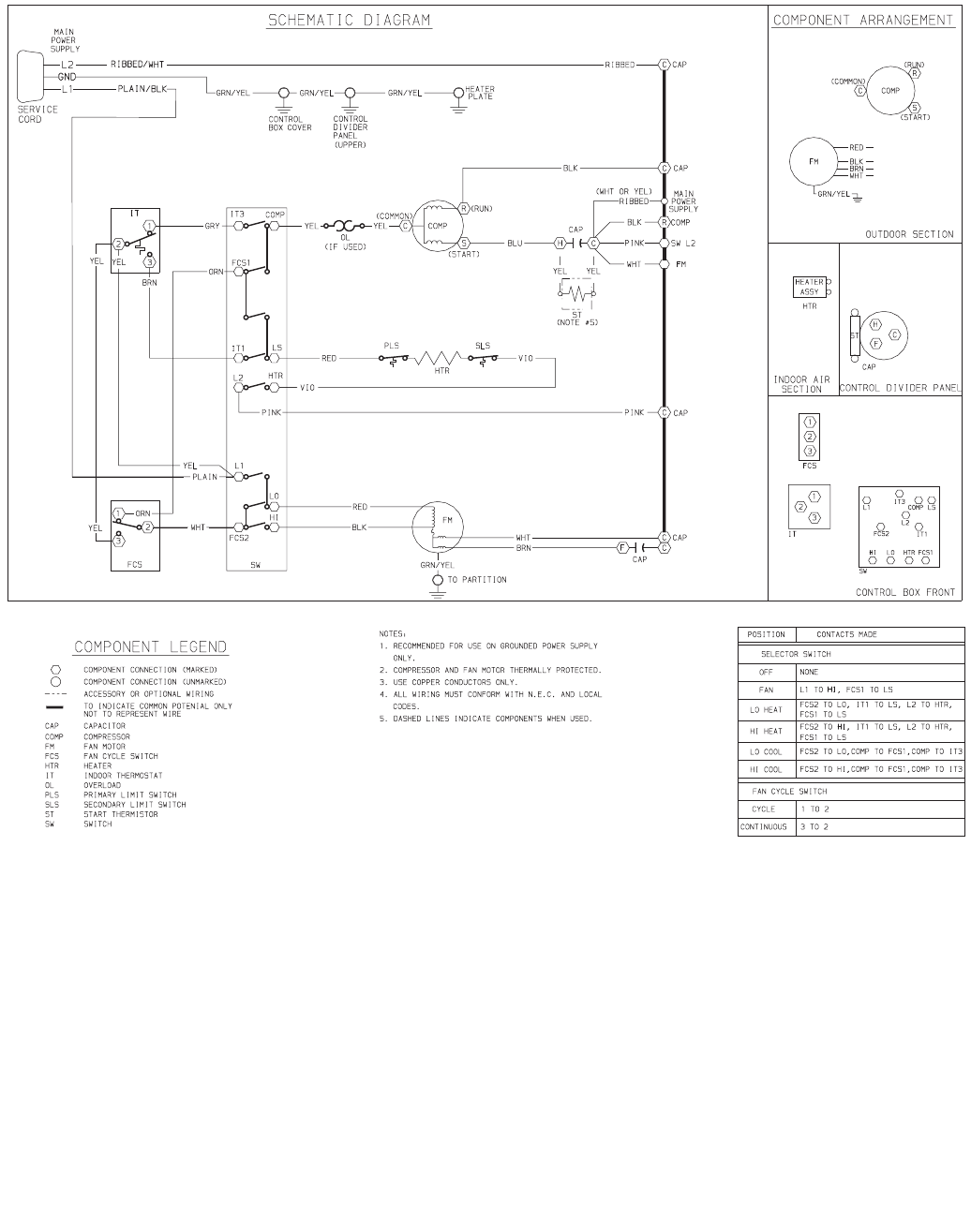

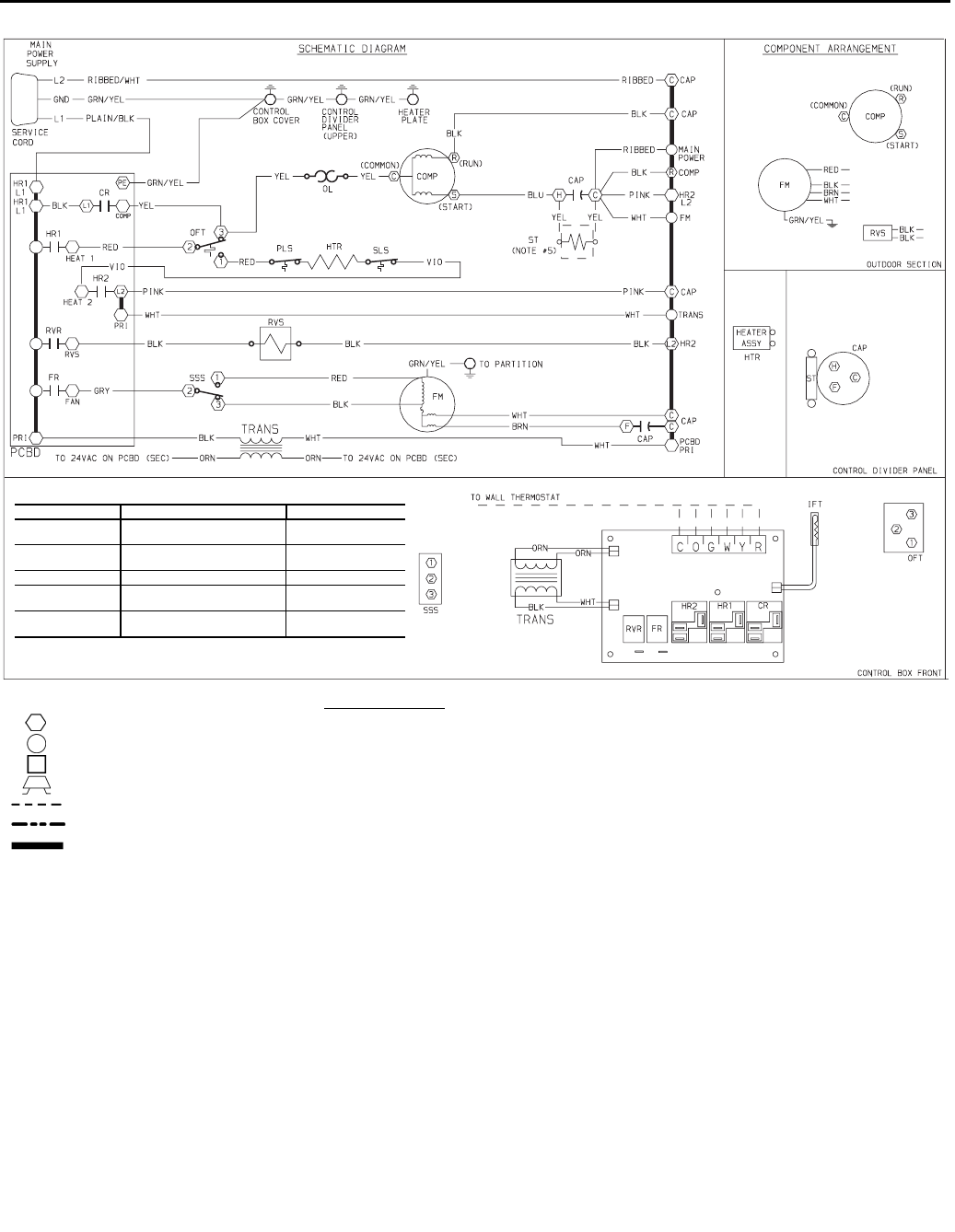

WIRING DIAGRAMS ..................... 45-50

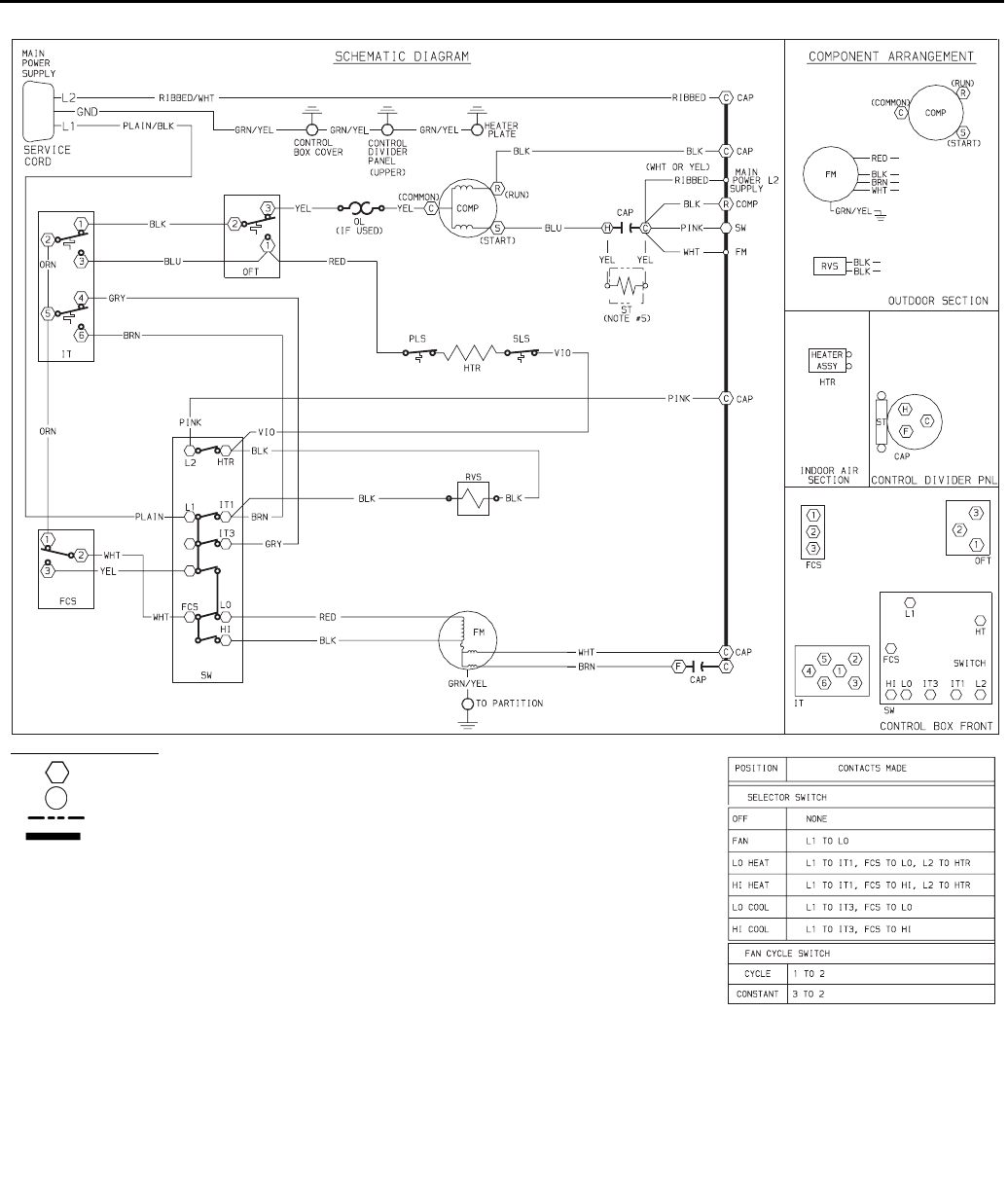

52PQand52CQ............................45,46

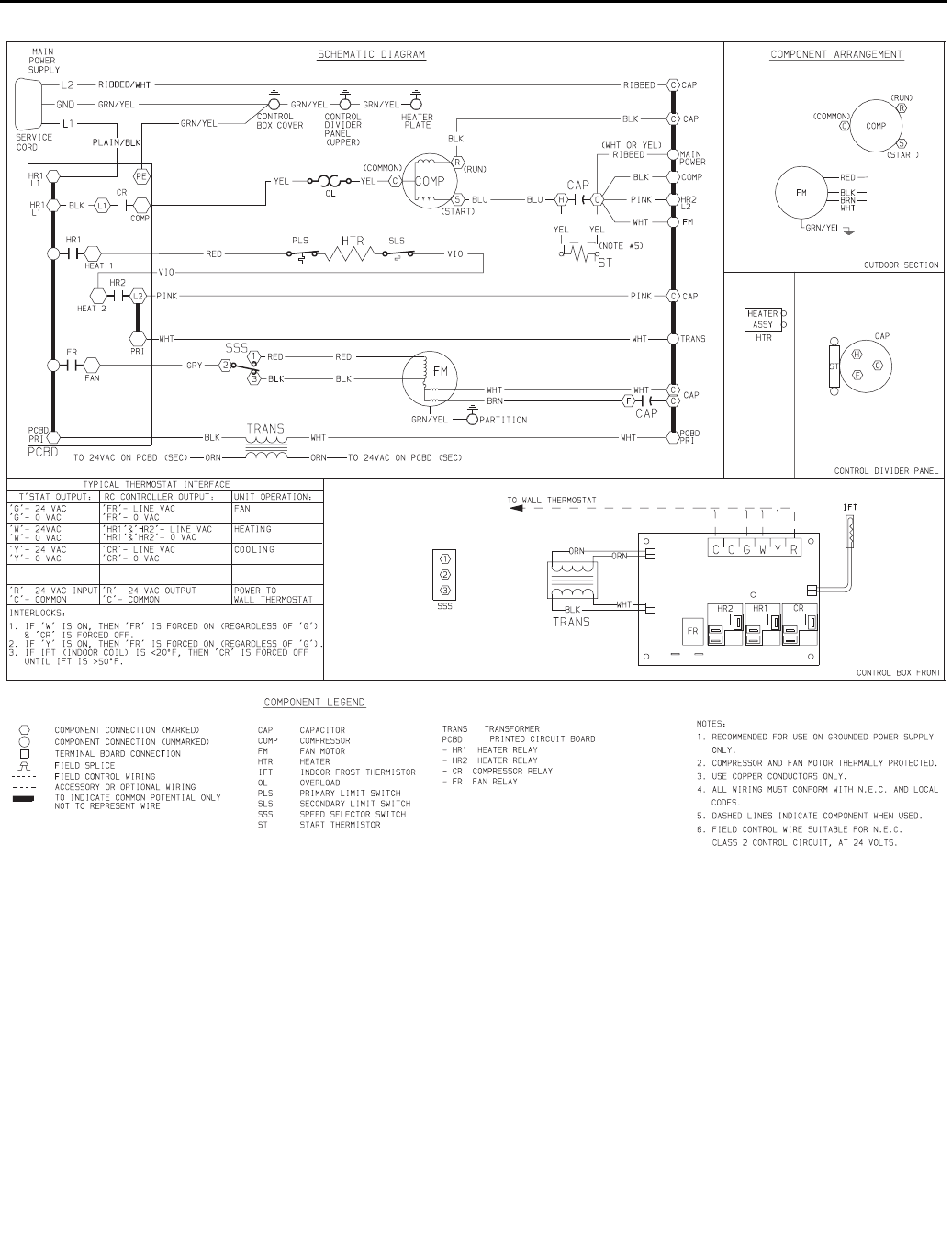

52PEand52CE ............................47,48

EnergyManagement/FrontDeskControl ..........49

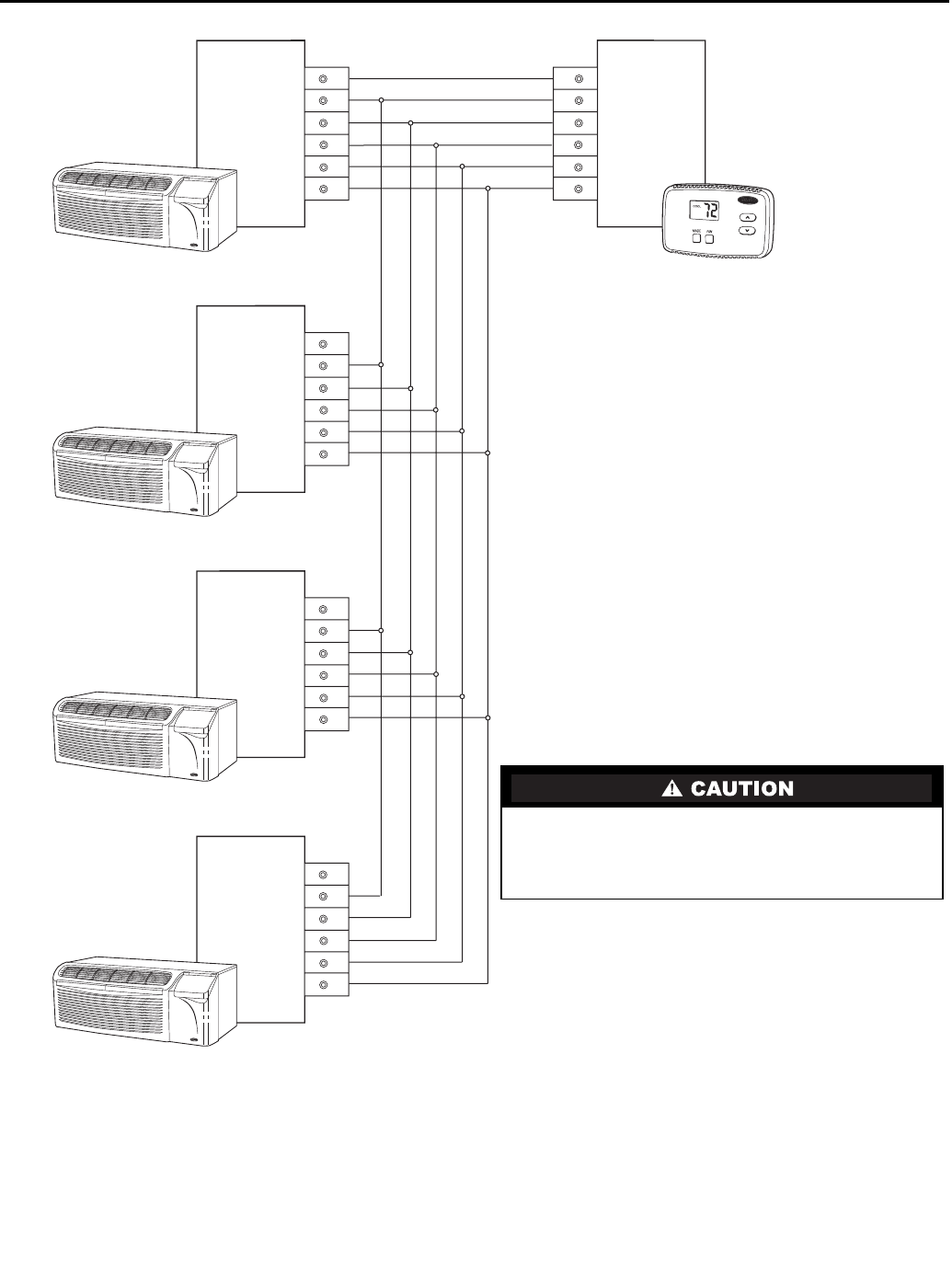

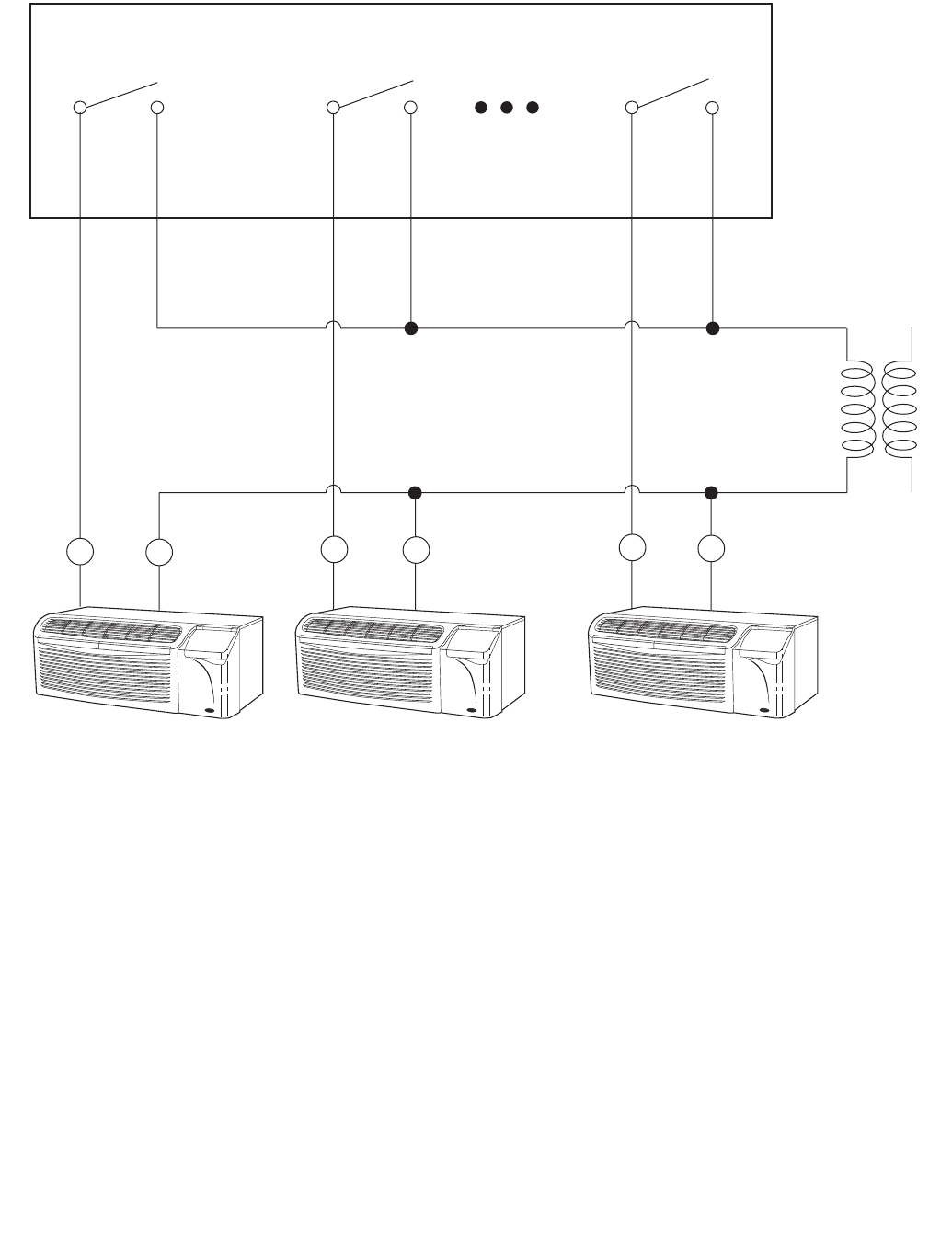

Single Thermostat/Multiple PTAC Units . . . . . . . . . . . 50

GUIDE SPECIFICATIONS ................ 51-53

TYPICAL WARRANTY ....................54,55

ACCESSORY LIST ..........................56

For more information available on the internet, see the www.carrier.com or www.lodgingAC.com web sites.

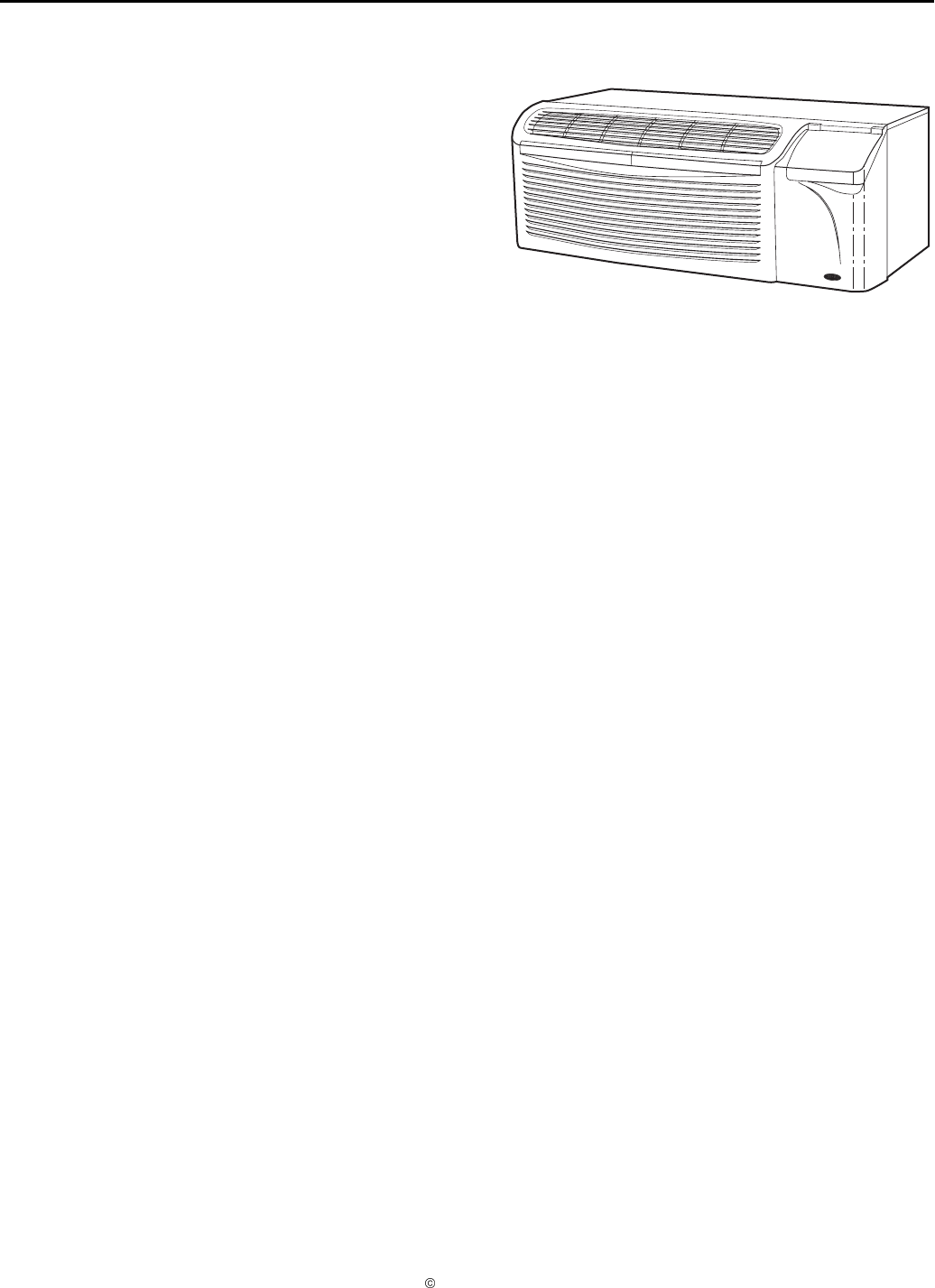

PREMIER SERIES 52P

COMFORT SERIES 52C

PACKAGED TERMINAL

AIR CONDITIONERS

AND HEAT PUMPS

Valued Carrier Customer,

Carrier’s Architects and Engineer’s manual has been specifically developed to make your

product and accessory selection easier and faster. This manual will help you customize

your application to ensure the greatest comfort for your guests and the highest reliability

and lowest costs for you.

Enjoy the ultimate in comfort, humidity control, and energy savings with Carrier’s com-

plete line of Packaged Terminal Air Conditioning (PTAC) products. Choose from either

the Premier series (52P) which is Carrier's most energy efficient PTAC unit ever, or the

Comfort series (52C) for mid-range energy efficiency and outstanding value.

The Premier and Comfort series PTAC lines have many common features and benefits.

The 52P and 52C units are both built on the same platform with common components and

airflow systems to ensure the highest quality product for your money. The most significant

difference between the 52P and 52C products is the refrigerant system. The Premier refrig-

erant system utilizes Carrier's highest efficiency compressors and coil design to achieve

maximum energy efficiency. The Comfort refrigerant system uses our standard efficiency

compressors and coils to attain competitive efficiency levels which exceed the industry

standard ARI minimum-efficiency levels.

It’s your choice. Choose the Premier series and start recovering your investment immedi-

ately through energy savings, or choose our Comfort series and enjoy years of economical,

trouble-free operation and comfort.

Thank you for choosing Carrier and investing in the highest quality air conditioning and

heating system ever.

Best regards,

Lodging Products Group

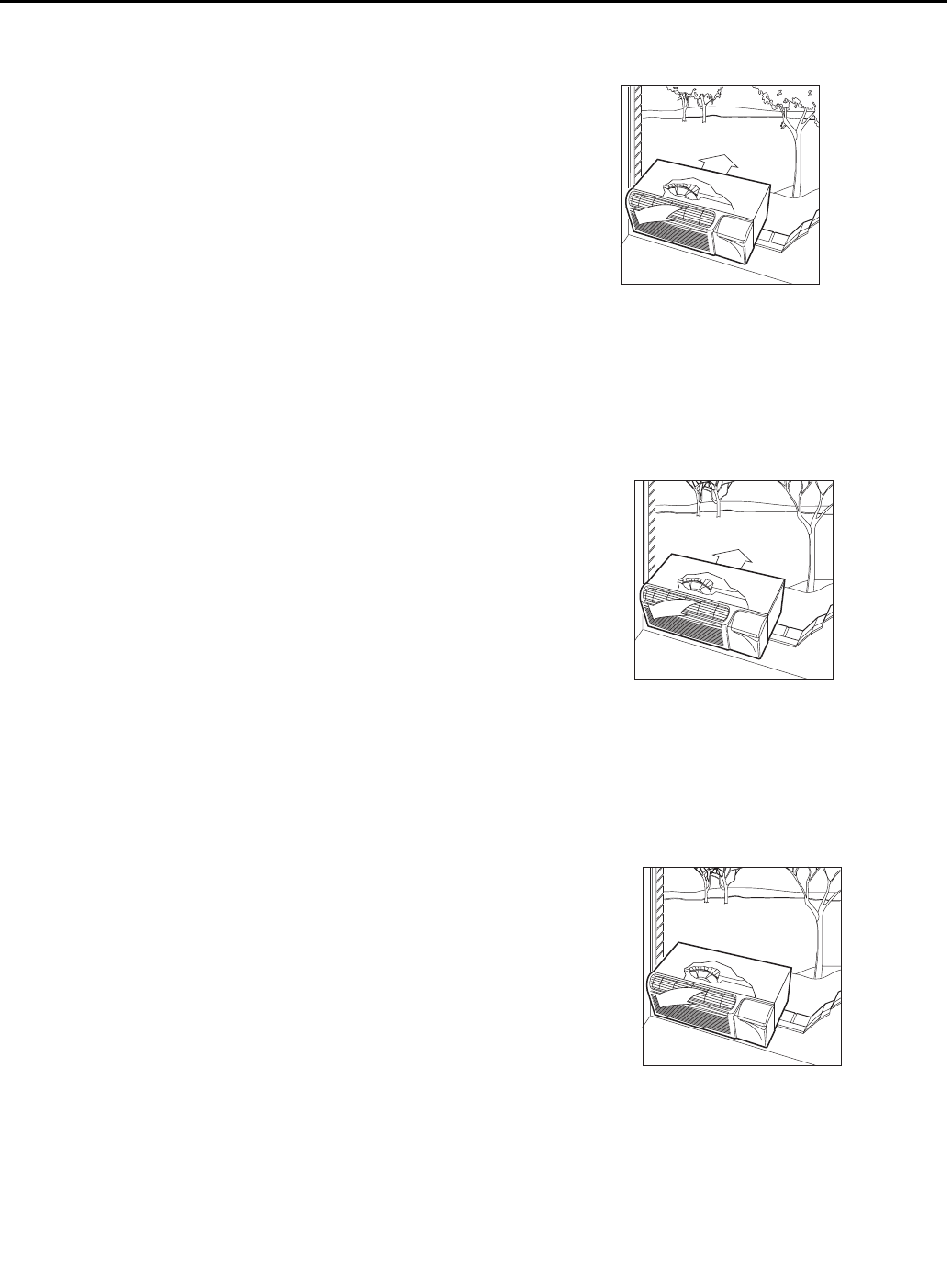

Whether you are designing a new structure or replac-

ing packaged terminal air conditioning units in an

existing building, Carrier will meet your needs.

• Hotels and motels

• Nursing homes and assisted living care centers

•Offices

• Apartments

• Single-family dwellings

• Home conversions and residential add-ons

NEW CONSTRUCTION

The Carrier 52P and 52C Packaged Terminal Air Con-

ditioning (PTAC) unit is designed to meet the needs of

the architect, engineer, and contractor. For unit instal-

lation, Carrier’s expert support network will assist in

all applicable aspects of the construction project, from

preparing a budget to start-up.

ADVANTAGES FOR NEW CONSTRUCTION

Design Flexibility For The Architect/Engineer

• Super-quiet performance, indoors and out

• No bulky duct system

• No separate equipment room

• No water towers or additional cooling equipment

• No complex match-up of different HVAC

components

• Less sensitivity to building orientation (sun, wind,

shade)

• Optional architectural grille to permit custom exte-

rior appearance

Initial Cost Savings For The Building Owner

• No expensive component HVAC system purchase

• No equipment room or maintenance engineering

staff

• Two-part delivery to minimize on-site damage

• Weather-protected wall sleeve that goes in place

during construction; chassis that slides in place after

construction

• No seasonal changeover required for cooling or

heating — units are self-contained comfort systems

Lower Operating Costs And Reliable Comfort

For The Occupant

• Heat pump models offer substantial savings over

models with conventional electric resistance heaters

• Individual units allow tenants to choose the degree

of comfort and operating economy.

• Rapid servicing reduces downtime: complete chas-

sis can be replaced in minutes without disrupting

other occupants.

• Each unit operates independently of other units in

the building. No dependency by building on central

HVAC system.

RETROFIT/REPLACEMENT

If you are replacing a unit in an existing wall sleeve,

your options include:

• Replace the existing wall sleeve with a Carrier

Weather Last™ sleeve. See accessory sleeve sec-

tion for selecting the correct sleeve for your appli-

cation. Note, in most cases, when replacing the wall

sleeve, the exterior grille must also be replaced.

• Use an existing sleeve and exterior grille. The

Carrier 52P and 52C series PTAC will fit into most

major competitors wall sleeves/grilles, including

GE, Amana, Trane, Bryant, Carrier 52S and Carrier

52B, and NO accessory retrofit kit is required.

Carrier units will also retrofit into Friedrich T series

and ZoneAire wall sleeves, with a required wall

sleeve extension (see accessory Friedrich Retrofit

Wall Sleeve Adapter).

CARRIER WARRANTY

Carrier’s five-year warranty is the most comprehen-

sive in the industry. Carrier provides:

• Full coverage for parts and labor for first year.

• Four additional years of full coverage on sealed

refrigeration systems.

• Limited second through fifth year coverage on non-

refrigeration system parts.

IMPORTANT: All other sleeve or exterior grille

retrofit applications need prior approval from

Carrier. Please contact your Carrier representative

for assistance.

APPLICATIONS

APPLICATION

CONSIDERATIONS

Installation instructions are shipped with all PTAC

units. It is important that air conditioning systems be

properly sized and installed for each application in

order to achieve the desired temperature and humidity

levels within the space to be conditioned. It is strongly

recommended that a professional engineer match the

PTAC units with the building structure and climate.

The following application considerations are all

important in choosing the proper PTAC system for the

building structure.

Undersizing

If a PTAC unit is undersized (cooling capacity is less

than required capacity for an application), the unit will

not be able to cool the space down to the desired tem-

perature during very hot days. The result could be

warm and humid or warm and dry conditioned space.

Oversizing

If a PTAC unit is oversized (cooling capacity is greater

than required capacity for the specific application), the

unit will cool the space down to the desired tempera-

ture too quickly.

The unit will cycle on and off, however, dehumidifica-

tion only takes place when the unit is operating. The

result of this type of application in a hot and/or humid

climate would be a cool, yet excessively humid, space.

Air Infiltration

Excessive air infiltration can intensify problems asso-

ciated with undersizing or oversizing a PTAC unit.

This can be the cause of insufficient cooling, dehumid-

ification, or heating. Sources of air infiltration include

vents, gaps around windows and doors, and improp-

erly sealed floors, ceilings or wall joints.

APPLICATIONS (cont)

This section summarizes product features covered in

detail in later sections of this manual:

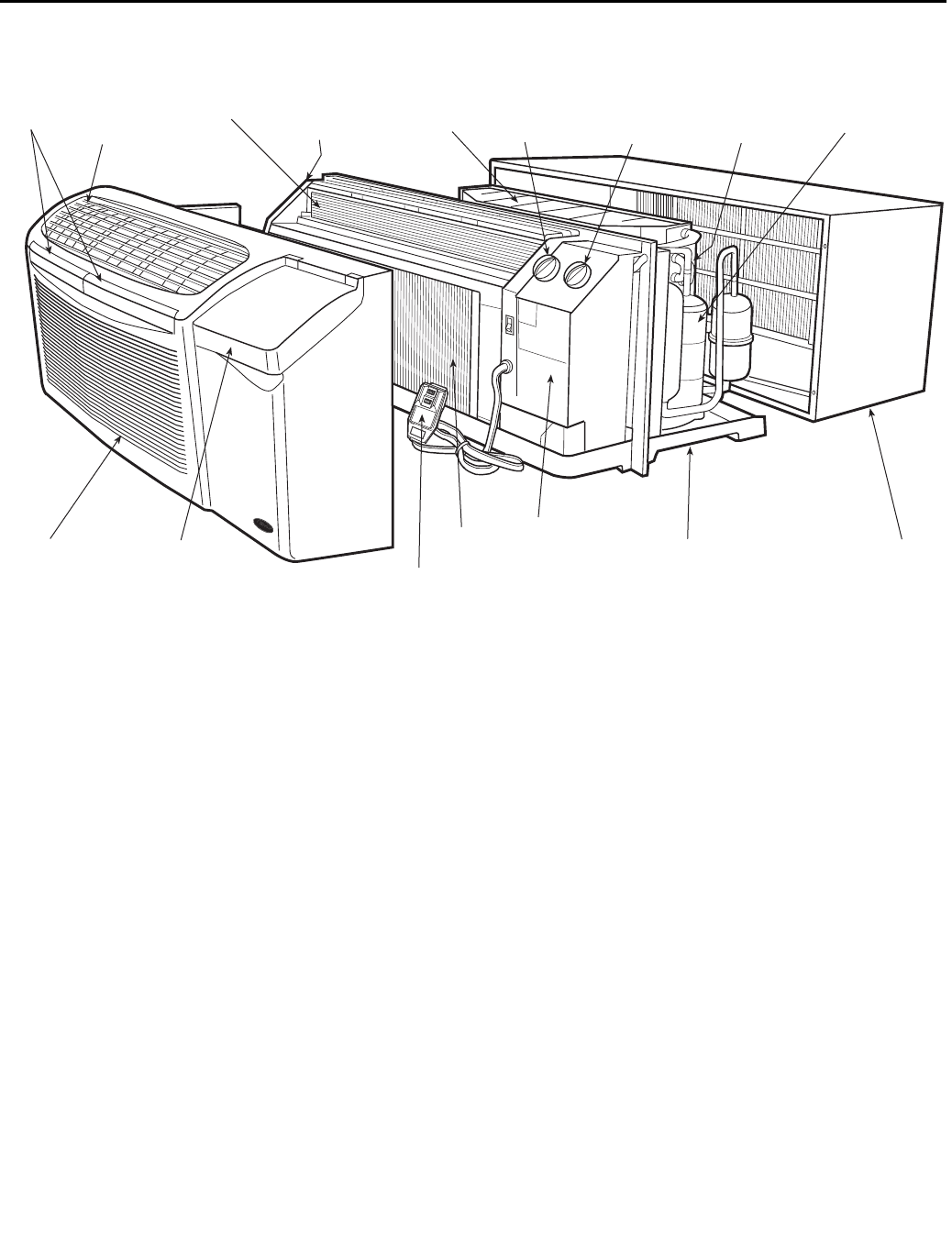

PRODUCT OVERVIEW (52P AND 52C)

COPPER TUBE

ALUMINUM

FIN COILS

DISCHARGE

GRILLE

WIRE SCREEN

LOUVERED

FRONT

PANEL

INDOOR

COIL BASEPAN FOR

CONDENSATE

REMOVAL

2 AIR

FILTERS

FRESH AIR

CONTROL

ARM

ROTARY

COMPRESSORS

WALL

SLEEVE

ACCESS TO ELECTRICAL

COMPONENTS THROUGH

CONTROL BOX DOOR

CONTROL

DOOR

MODE

SELECTION

SWITCH

THERMOSTAT WITH

TEMPERATURE

LIMITER

2-WAY BI-MOLDED

CONDENSER

SHROUD

1.PRESSRESETBUTTON.

2.PLUGINTOPOWER

RECEPTACLE.

3.PRESSTESTBUTTONUNIT

SHOULDLIGHT.

4.PRESS RESETBUTTONAGAIN

FORUSE.

TESTING

DONOTUSEISTESTABOVEFAILS

PLUG TEST/

RESET BUTTONS

Polymer, Metal or Extended Wall Sleeve — Designed for rugged duty, acoustic absorption, and attractive appearance for years to

come.

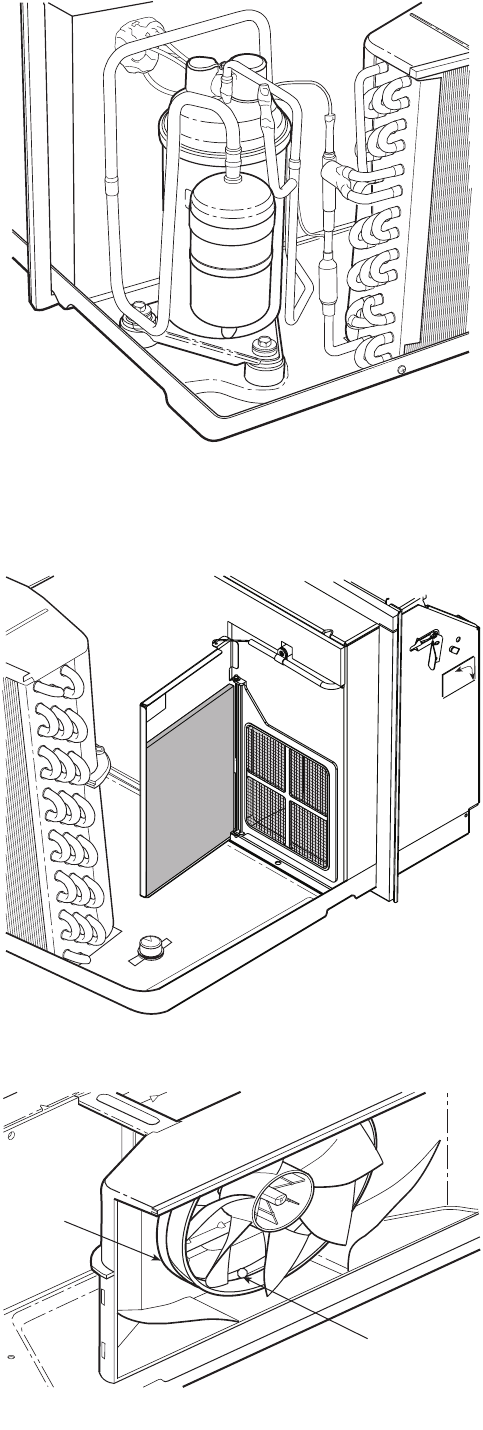

Rotary Compressors — Provide quiet, reliable operation.

Copper Tube Aluminum Fin Coils — Enhanced coils provide durability, high performance, and ease of operation.

Fresh Air Control Arm — Allows outdoor air into room through vent filter for improved air quality.

Fan Cycle Switch — Dual options:

(1) Continuous fan operation.

(2) Cycle fan ON and OFF with compressor operation.

Thermostat with Temperature Limiter — Provides improved temperature control with a temperature limiter that allows tempera-

ture range restraints for the unit by making a simple adjustment.

Anti-Theft Knobs — Provides protection against theft of the thermostat knob and the mode selection knob.

Control Door — Provides protection for controls and enhances appearance.

Easy Access to Electrical Components — Simply remove two screws and drop down the control box door.

Improved Condensate Removal — Minimizes condensate water on outside of building.

New Two-Piece Filter Design — Provides improved air filtration and can be removed easily for cleaning.

Durable Discharge Grille — Made of polycarbonate; holds up under the toughest conditions.

Louvered Front Panel — Made of high impact polystyrene. Provides improved performance and quiet operation.

Mode Selection Switch — Rotary switch allows for easy selection of operating mode.

Bi-Molded Condenser Shroud — The two-piece condenser shroud allows easy access for service and maintenance to the out-

door coil and other components.

Power Cord Protection — Power cord for the 230/208-v unit provides power cord protection.

The 52P and 52C models are a single-package,

through-the-wall unit for heating and cooling hotel

rooms, offices, apartments, condominiums, and resi-

dential additions. Features include:

• Improved sound quality for quiet operation

• Exceeds ARI (Air Conditioning and Refrigeration

Institute) efficiency requirements with exceptional

energy efficiency ratios (EERs)

• Easy access, lifetime filters

• User friendly controls

• Easytoreaddials

• Enhanced temperature and humidity control

• Improved condensate removal system

• Multi-room structure design

• Fixed wall sleeve, slide-out chassis

• Attractive, durable cabinet featuring new design

• Chassis that easily retrofits to most major competi-

tors’ sleeves without use of retrofit kit

• Low operating costs

• No bulky duct system

• No seasonal changeover

QUIET OPERATION

Occupants and neighbors are protected against noise

intrusion. Indoor sound reduction is achieved because

of the unit’s design and its louvered front cover, indoor

scroll and blower, and heavy gage unit partition.

Rotary compressors provide quiet, reliable operation.

The indoor scroll provides a more uniform air

discharge.

The new aerodynamic split condenser shroud design

improves airflow and reduces outdoor noise, providing

a more relaxing outdoor environment. The new split

design allows for easy access to the outdoor coil to

facilitate routine cleaning of the coil. The propeller-type

fan design allows for efficient low-speed operation.

MOST EFFICIENT

PERFORMANCE

High EERs provide excellent operating economy. The

system operates without bulky ductwork, separate

equipment room, and complex match-up of different

components. Heating and Cooling modes are available

without seasonal changeover.

EFFICIENT FAN MOTOR

An efficient, totally enclosed PSC (permanent split

capacitor) fan motor provides a choice of high or low

speeds for heating and cooling. A fan-only setting

provides air circulation. Thefanmotorrequiresno

maintenance and no lubrication.

PRODUCT FEATURES AND BENEFITS

(52P AND 52C)

NO-RUST WEATHER LAST™

WALL SLEEVE AND FRONT

PANEL

The indoor front panel and polymer wall sleeve use

nonmetallic compounds that never rust or corrode, do

not support combustion, and do not give off toxic

fumes. The weather-resistant feature exceeds require-

ments of Underwriters’ Laboratories and resists dam-

age caused by impact and scratching. The Weather

Last feature also insulates and has up to 10 times the

acoustic absorption of metal cabinets.

Insulated polymer wall sleeves combine all of the

above features with factory-installed insulation. The

insulation helps to reduce heat loss, save energy, pro-

vide better sound absorption, and reduce the risk of

sleeve sweating.

Carrier’s metal wall sleeves are available in a variety

of sizes for most standard and deep wall applications.

All metal wall sleeves come with factory-installed

insulation, designed to minimize heat loss and reduce

outdoor noise transmissions into the room.

REMOVABLE FRONT PANEL

The louvered front panel fits firmly onto the chassis

and features easy removal for service. It provides front

air intake to enhance performance and quiet operation.

It also allows the option of flush mounting PTAC unit

to the floor. If desired, the front panel can be

secured to the unit with field-supplied screws. The

2 locking screws (if installed) are located behind the

removable filter handles.

ANTI-THEFT KNOBS

The anti-theft knobs are captured underneath the front

panel of the unit to prevent the knobs from being

removed or stolen.

REMOVABLE

FILTER LOCATION OF

REMOVED FILTER

LOCKING SCREW

(NOTE: 2nd LOCKING SCREW

IS LOCATED BEHIND

2nd FILTER)

42 in.

16 in.

14/18/24/26/28 in.

TEMPERATURE MODE

OFF

COOL

FAN

HEAT

COOLER

WARMER

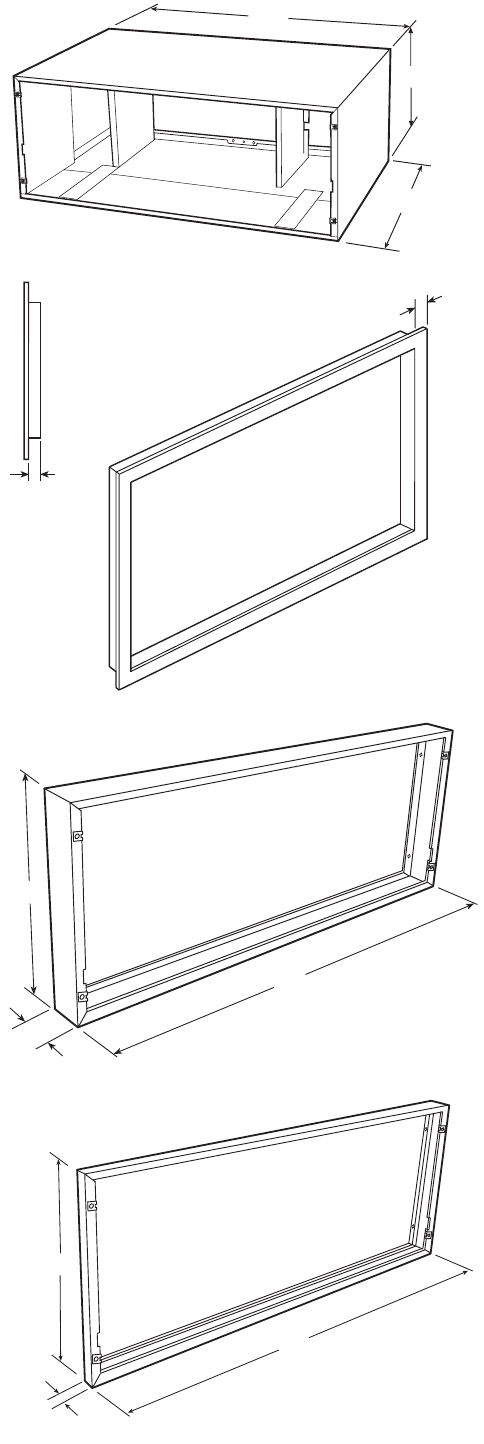

Removable Front Panel

Standard Wall Sleeve (Polymer)

Standard and Deep Wall Sleeve (Metal)

Anti-Theft Knobs

TWO-PIECE LIFETIME

INDOOR FILTER

New two-piece removable filters easily slide in and

out from the front of the PTAC unit and are inter-

changeable. The front panel does not need to be

removed to access or change the filters. The filters are

washable and permanent.

WASHABLE VENT AIR FILTER

The unique vent system is activated by a two-position

control. Fresh outside air is redirected by the vent door

to an inside low-pressure area. A molded plastic filter

prevents dirt and debris from entering the room side of

the unit. The vent mechanism is made from noncorro-

sive material ensuring reliable operation. A magnet on

the door and high-pressure airflow create a tight, draft-

free seal when the vent door is closed.

Theventwillprovide50cfmoffreshair.

NOTE: If more fresh air cfm is required, a Power-Vent

Kit is available (see accessories).

BI-DIRECTIONAL

DISCHARGE GRILLE

The discharge grille is constructed of durable polycar-

bonate and is reversible. Air flows upward at a

40 degree angle to the floor but can easily be adjusted

to an 80 degree angle to the floor.

PRODUCT FEATURES AND BENEFITS (cont)

80 DEGREE

AIR FLOW

40 DEGREE

AIR FLOW

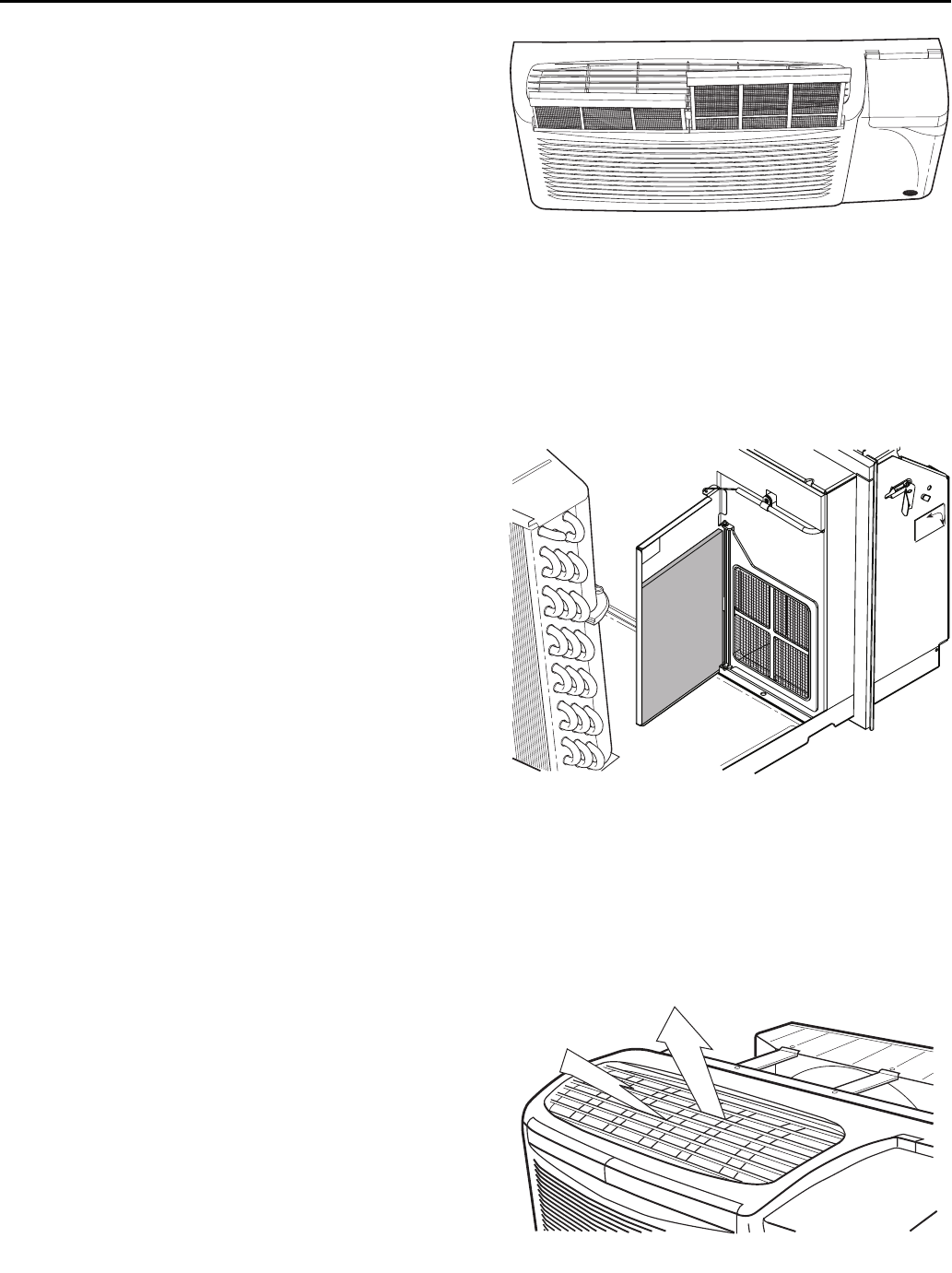

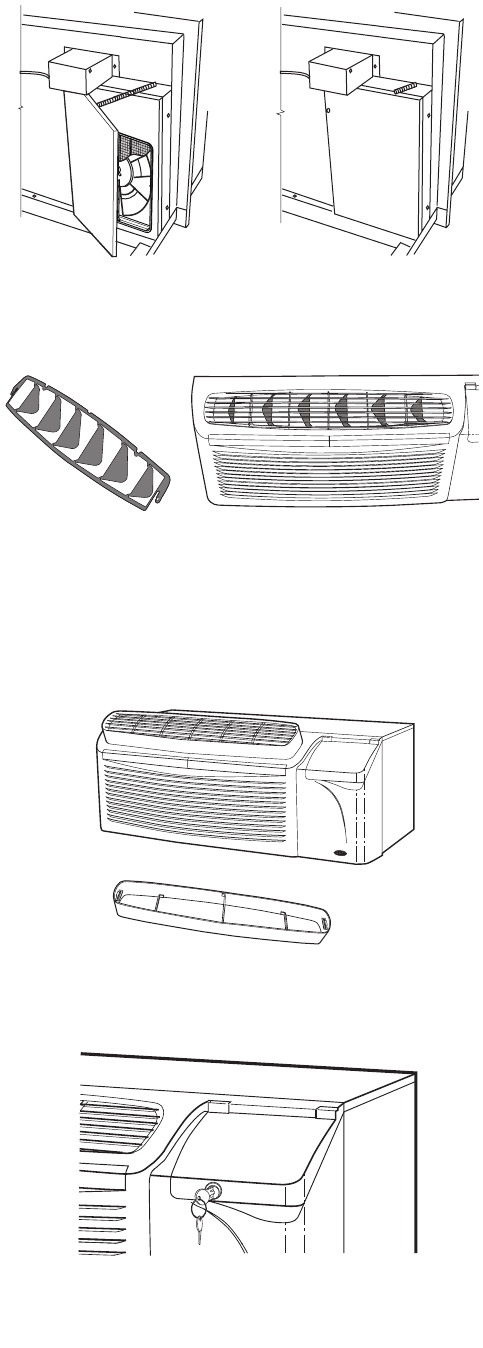

Outdoor Vent Filter Location

Reversible Polycarbonate Discharge Grille

Two-Piece Indoor Filter

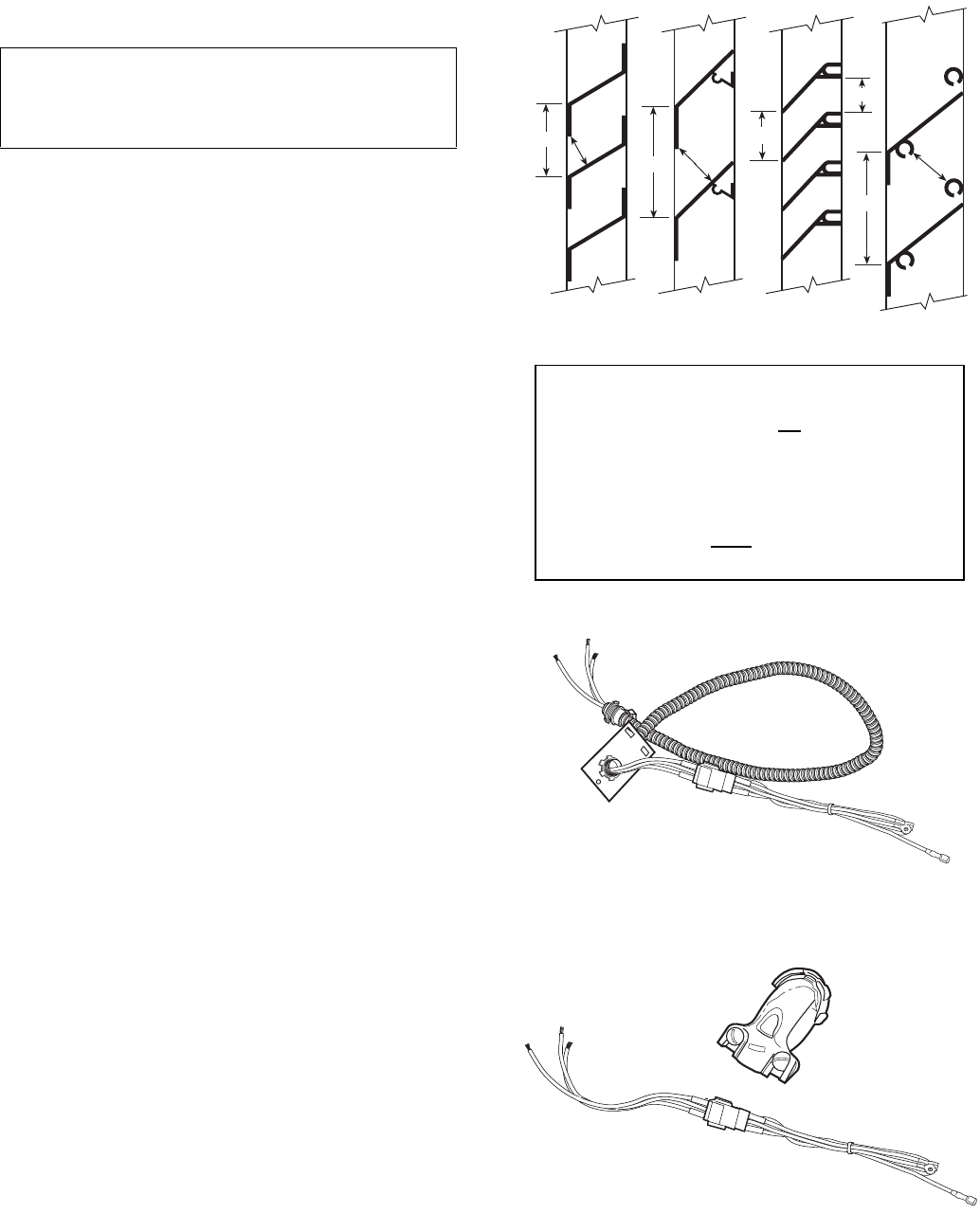

POWER CORD FOR 265-V

UNITS

A power cord is included for 265-v units. The power

cord is 18 in. long (cord extends 15 in. from bottom of

front panel) and per UL and National Electrical codes

must plug into an electrical subbase.

POWER CORD PROTECTION

FOR 230/208-V UNITS

The power cord for the 230/208-v unit provides power

cord protection by automatically disconnecting power

during an unsafe condition. Power can be restored by

pressing the RESET button.

BI-MOLDED CONDENSER

SHROUD

The bi-molded condenser shroud provides easy access

for service and maintenance of the condenser coil and

related components.

SNOW BAFFLE

The snow baffle is provided to keep snow from blow-

ing into the intake and landing on the internal compo-

nents of the PTAC unit. Melted snow can form ice on

moving parts and cause damage to the unit.

Bi-Molded Condenser Shroud

BI-MOLDED

CONDENSER

SHROUD

265-V Unit with Power Cord

SNOW

BAFFLE

Snow Baffle

30 Amp In-line 15/20 Amp Power

Power Cord Cord Plug Head

EASY ACCESS TO CHASSIS

Access to the chassis simply requires removing four

screwsandthenslidingthechassisoutofthesleeve

for service.

HIDDEN CONTROLS

The factory-wired control box houses all control com-

ponents and is quickly accessible without removing

the chassis from the wall sleeve. By simply removing

two screws on control box, the hinged door lowers,

providing quick access to all the electrical compo-

nents. The wiring diagram is located on the front of the

control box door.

Temperature Limiter and Control

Knob

The limiter reduces operating costs by allowing the

owner to control the range of cooling and heating tem-

peratures available to the occupant. It is located under

the front panel on control box, out of the occupant’s

sight. Each setting on the limiter is equivalent to 5° F

and the range of temperature settings available to the

owner is from 60 to 90 F. The limiter is not pre-set at

the factory (providing full range for the occupant).

Outdoor Air Vent Control

Control of the outdoor-air vent is handled by a vent

handle located under the front panel on the left side of

the unit. This handle rotates to manually open and

close the outdoor vent.

Theventwillprovide50cfmoffreshair.

NOTE: If more fresh air cfm is required, a Power-Vent

Kit is available (see accessories).

Fan Cycle Switch

The fan cycle switch allows the fan to operate in

2modes:

• Continuous — This setting allows the fan to run

continuously, circulating air even when the temper-

ature setting has been satisfied. This setting, which

helps to keep the room temperature closer to the

thermostat setting, is used for maximum comfort.

• Cycle — This setting allows the fan to cycle on and

off with the compressor during heating or cooling.

The fan stops when the temperature setting is

reached. The longer unit off-time makes this option

more energy-efficient with only slightly wider vari-

ations in room temperature.

NOTE: On wall thermostat models, the fan cycle/

continuous feature is typically located at the wall

thermostat.

PRODUCT FEATURES AND BENEFITS (cont)

CHASSIS ATTACHMENT SCREWS

(SAME LOCATION ON OPPOSITE SIDE)

1.PRESSRESETBUTTON.

2.PLUGINTOPOWER

RECEPTACLE.

3.PRESSTESTBUTTONUNIT

SHOULDLIGHT.

4.PRESSRESETBUTTONAGAIN

FORUSE.

TESTING

DONOTUSEISTESTABOVEFAILS

PLUG TEST/

RESET BUTTONS

Easy Service Access

ENHANCED COPPER TUBING

Enhanced copper tubing is more efficient and durable

and can be repaired in the field, if required.

Because copper is a very stable metal, it is durable and

resists corrosion. Enhanced copper tubing increases:

• heat transfer capability

• the efficiency of the cooling and heating processes

• thermal conductivity (by creating additional tube

surface and turbulent refrigerant gas flow)

Every Carrier PTAC coil undergoes thorough leak test-

ing and pressure testing up to 350 lb per square inch.

SEAMLESS BASEPAN

Seamless drawn basepan walls add protection against

water accumulation resulting from storm-driven rain

with heavy wind.

Carrier’s deep basepan holds up to 11/2gallons of

water without spilling. Closed cell foam insulators are

located between the basepan and coils, keeping coils

from direct contact with the basepan and providing

additional protection against corrosion.

CONDENSATE DRAIN VALVE

The temperature-activated drain valve opens when the

outdoor temperature drops below 45 F to prevent

water from freezing in the basepan.

CONDENSATE REMOVAL

SYSTEM

Carrier’s 52P and 52C Series units have an improved

condensate (water) disposal system. In addition to

slinger ring technology, Carrier has developed and pat-

ented a Condensate Suction Port. The suction port,

alongwiththeslingerring,drawsinwaterwhichis

sprayed up onto the outdoor coil. The water then evap-

orates, thus providing better disposal of excess con-

densate, improving unit efficiency.

NOTE: If it is necessary to remove 100% of the con-

densate, the Carrier Drain Kit (Part No.: DRAIN-KIT-

4PK) is recommended.

SLINGER

RING

CONDENSER SECTION

CONDENSATE

SUCTION PORT

Condensate Disposal System

Condensate Drain Valve Prevents

Water from Freezing in Basepan

Enhanced Copper Tubing

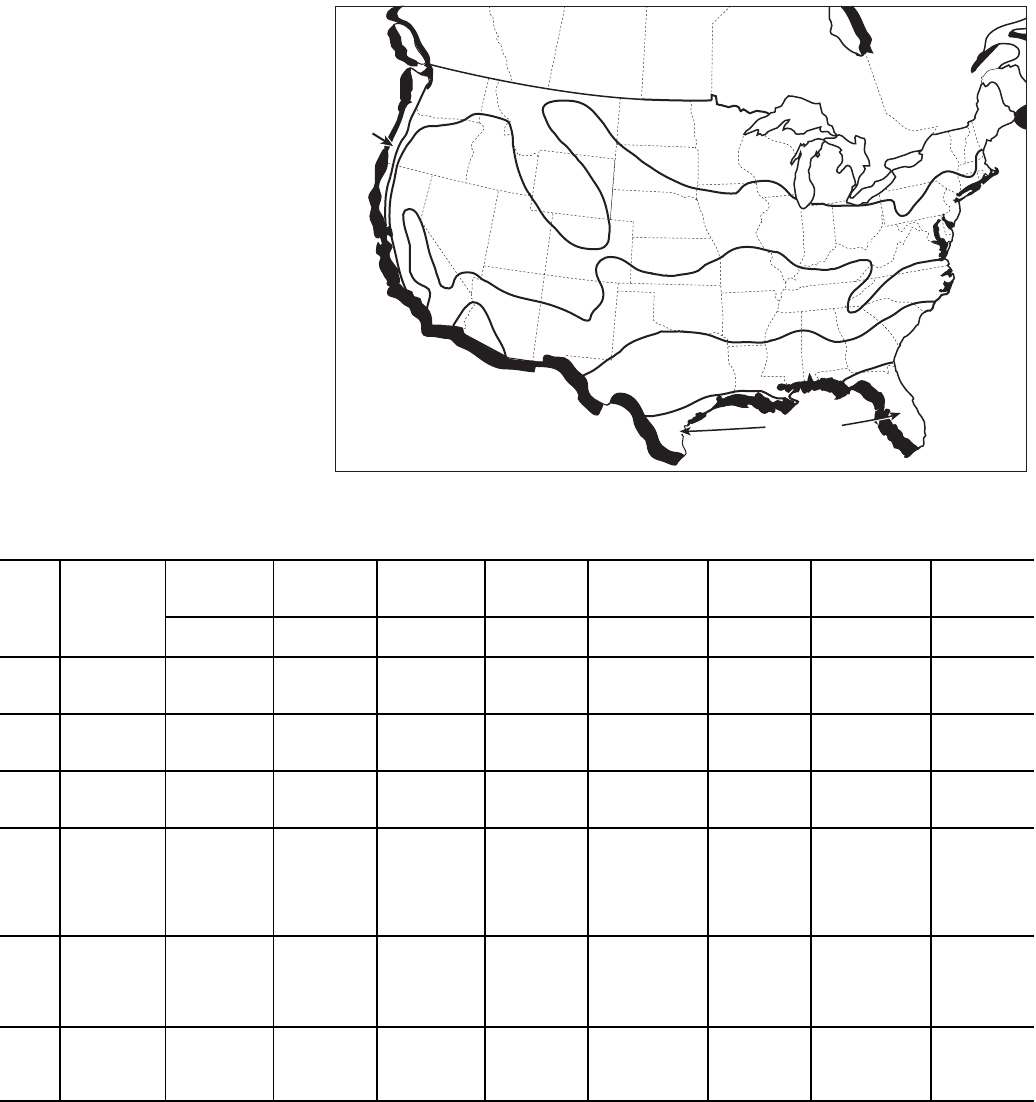

HEAT PUMPS PAY THEIR

OWN WAY

Heat pump models are available at a nominal addi-

tional cost. In many locales, the payback is realized in

just a few months. Cost and payback details are pro-

vided on the next page.

Special Features

Two-Stage Indoor Thermostat:

The indoor thermostat senses the indoor temperature

and automatically turns on the electric heat to warm

the room quickly. After the desired temperature condi-

tions have been satisfied, the thermostat automatically

switches to heat pump mode. If compressor failure

occurs, the thermostat will provide backup electric

heat automatically.

Outdoor Thermostat:

During the heating cycle, the outdoor thermostat

senses outdoor coil temperature. It switches the unit to

electric heat mode when the outdoor coil temperature

is 20 F or below (approximately 35 F outdoor-air tem-

perature). The thermostat switches the unit back to

heat pump mode when the outdoor coil temperature

rises above 40 F, which is enough to provide heat

to meet demand. The entire operation is completely

automatic.

Reversing Valve:

The reversing valve provides quiet refrigerant flow

after the unit shuts off. The valve controls the direction

of refrigerant flow for both heating and cooling func-

tions and remains energized as long as the controls are

in the heat position. When the cooling controls are

activated, the valve automatically reverses to the cool-

ing position.

Manual Compressor Override Switch:

This switch completely locks out the compressor. Note

that the compressor and heater do not operate at the

same time, thus conserving energy.

PRODUCT FEATURES AND BENEFITS (cont)

How The Heat Pump Works

In Hot Weather:

Carrier’s PTAC units provide indoor comfort in the

same manner as conventional air conditioners, remov-

ing heat and humidity from indoor air. The heat and

humidity is released to the outdoors. Carrier’s high-

efficiency design saves energy and reduces cooling

costs.

In Cool Weather:

When the outdoor coil temperature is above 20 F

(approximately 35 F outdoor-air temperature), the

heat pump draws heat from outdoor air and uses it to

heat indoor air. Since heat is transferred and not pro-

duced, Carrier’s heat pump uses less electricity and

reduces energy costs significantly.

In Sub-Freezing Weather:

When the outdoor coil temperature falls below 20 F

(approximately 35 F outdoor-air temperature), the

unit automatically switches on a built-in electric

heater. The compressor stops and a blower circulates

warm air produced by the heater. When the outdoor

coil temperature rises above 40 F, heat pump operation

resumes automatically.

HEAT PUMP ENERGY

SAVINGS

CARRIER HEAT PUMP INITIAL COST VERSUS SAVINGS OVER HEAT/COOL MODELS

LEGEND

*Computer projections based on full cooling load at 95° F. Sav-

ings projected for 230 v ratings.

1Heating load is 5,000 Btuh at winter design point temperature.

2Heating load is 10,000 Btuh at winter design point temperature.

3Heating load is 15,000 Btuh at winter design point temperature.

For precise energy savings in your geographical location, go to www.lodgingAC.com to

use Carrier’s energy calculator.

ZONE ELECTRIC

COST/kWH

7000 BTUH1

COOLING

CAPACITY

$60

PREMIUM

9000 BTUH2

COOLING

CAPACITY

$75

PREMIUM

12000 BTUH2

COOLING

CAPACITY

$90

PREMIUM

15000 BTUH3

COOLING

CAPACITY

$110

PREMIUM

Annual

Savings*

Payback

in Months

Annual

Savings*

Payback

in Months

Annual

Savings*

Payback

in Months

Annual

Savings*

Payback

in Months

I$.06 $ 34.26 21 $ 43.08 21 $ 58.20 19 $ 68.34 19

$.08 $ 45.68 16 $ 57.44 16 $ 77.60 14 $ 91.12 14

$.10 $ 57.10 13 $ 71.80 13 $ 97.00 11 $113.90 12

$.06 $ 57.12 13 $ 71.76 13 $ 96.96 11 $113.64 12

$.08 $ 76.16 9 $ 95.68 9 $129.28 8 $151.52 9

$.10 $ 95.20 8 $119.60 8 $161.60 7 $189.40 7

III

$.06 $ 58.02 12 $ 72.84 12 $ 98.40 11 $115.38 11

$.08 $ 77.36 9 $ 97.12 9 $131.20 8 $153.84 9

$.10 $ 96.70 7 $121.40 7 $164.00 7 $192.30 7

$.06 $ 82.02 9 $103.02 9 $139.14 8 $163.14 8

$.08 $109.36 7 $137.36 7 $185.52 6 $217.52 6

$.10 $136.70 5 $171.70 5 $231.90 5 $271.90 5

$.12 $164.04 4 $206.04 4 $278.28 4 $326.28 4

$.14 $191.38 4 $240.38 4 $324.66 3 $380.66 3

$.16 $218.72 3 $274.72 3 $371.04 3 $435.04 3

$.06 $ 57.36 13 $ 71.94 13 $ 97.26 11 $113.94 12

$.08 $ 76.48 9 $ 95.92 9 $129.68 8 $151.92 9

$.10 $ 95.60 8 $119.90 8 $162.10 7 $189.90 7

$.12 $114.72 6 $143.88 6 $194.52 6 $227.88 6

$.14 $133.84 5 $167.86 5 $272.33 4 $265.86 5

$.06 $ 93.72 8 $117.66 8 $159.00 7 $186.48 7

$.08 $124.96 6 $156.88 6 $212.00 5 $248.64 5

$.10 $156.20 5 $196.10 5 $265.00 4 $310.80 4

$.12 $187.44 4 $235.32 4 $318.00 3 $372.96 4

kWH — Kilowatt Hour

ZONE V

ZONE IV

ZONE III

ZONE I

ZONE

ZONE II

Heat pumps save more on operat-

ing costs during the heating cycle

than heat/cool models. The table

below shows that the higher initial

cost of purchasing a heat pump is

quickly made up in lower operating

costs.

Usethemaptoidentifytheclimate

zone’s designated number. Reading

down the left-hand column of the

table, select the cost/kWh rate in

this zone that most closely approxi-

mates your local rate. The approxi-

mated savings and payback period

is found at the intersection of your

zone/rate line and the desired Btuh

Cooling Capacity column. Exact

savings are determined by lifestyle,

local electrical rates, and climatic

conditions.

For immediate assistance, call 1-800-827-7435 or contact

your local Carrier dealer.

Standard Unit

• Chassis with front panel

• Electro-mechanical controls

• Cord-connected chassis for 230/208-v and 265-v

units

Lead-time: Many models are in stock for immediate

delivery; call for lead-times.

PRODUCT CATALOG

NUMBER

ORDERING DATA (52P AND 52C)

FRONT

PANEL

(STANDARD)

EXTERIOR

GRILLE

(ACCESSORY)

CHASSIS

(STANDARD)

WALL SLEEVE

(ACCESSOR

1.PRESSRESETBUTTON.

2.PLUGINTOPOWER

RECEPTACLE.

3.PRESSTESTBUTTONUNIT

SHOULDLIGHT.

4.P

RESSRESETBUTTONAGAIN

FORUSE.

TESTING

DONOTUSEISTESTABOVEFAILS

PLUG TEST/

RESET BUTTONS

Standard 52P or 52C Unit

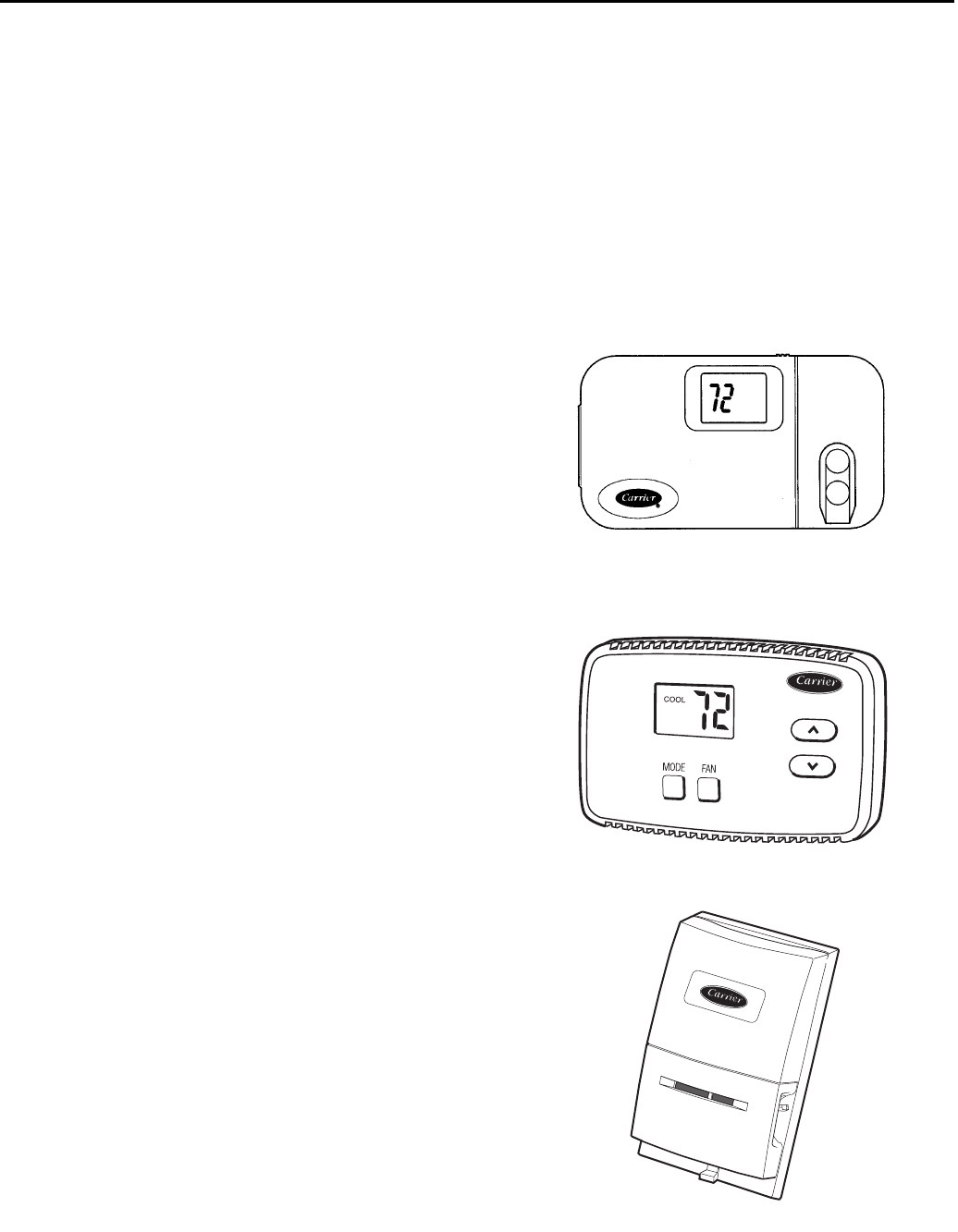

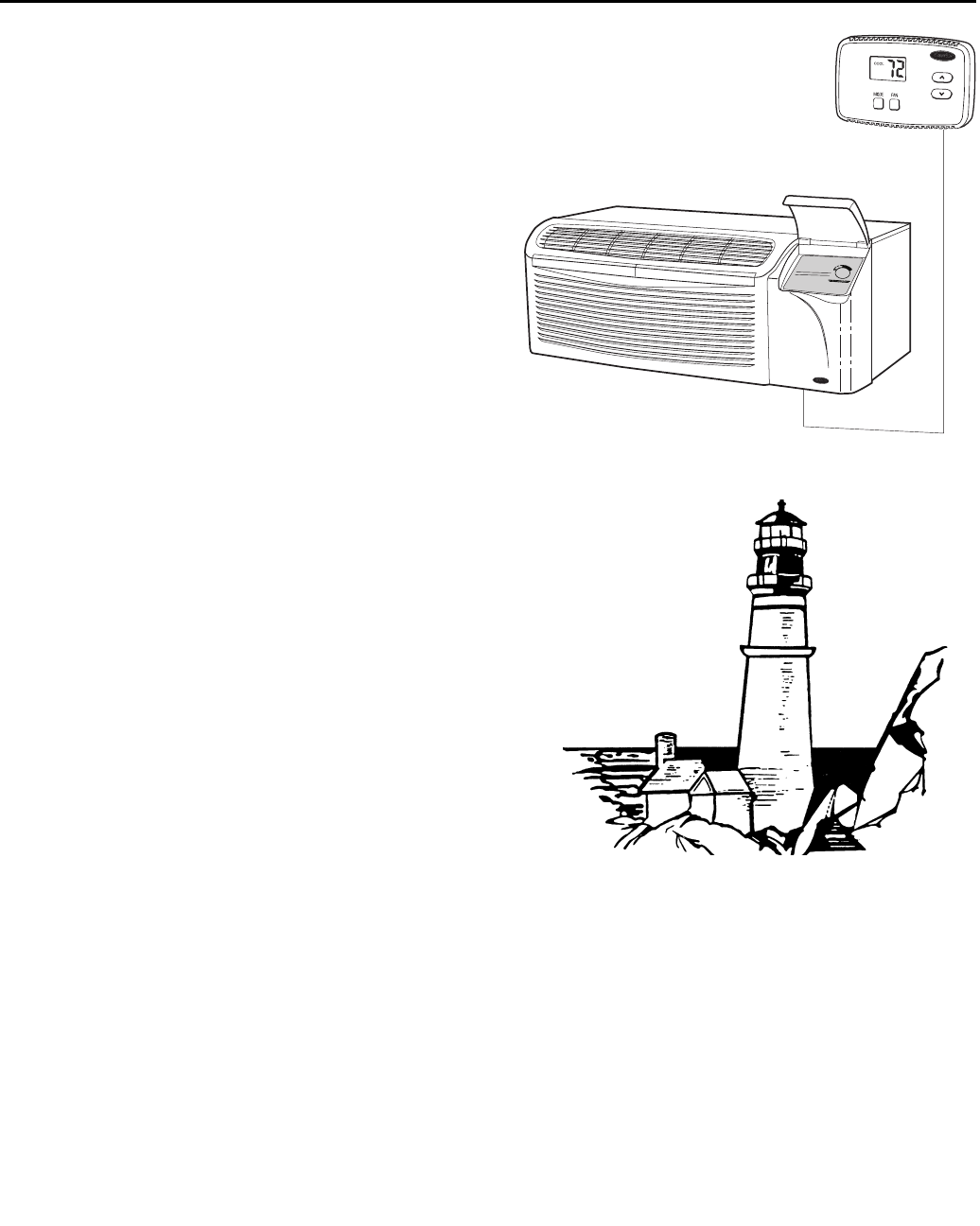

WALL THERMOSTAT

CONTROL (RC,RP)

Carrier’s wall thermostat control option includes:

• a standard chassis with front panel

• factory-installed low voltage controls for remote

thermostat operation

• indoor coil freeze protection

• user accessible selector switch for high or low fan

speed

Wall thermostat and wall thermostat wire must be

ordered separately.

See page 50 for a diagram of multiple PTAC units con-

trolled by a single thermostat.

NOTE: Be sure to connect reversing valve wiring to

the O connection of the thermostat for heat pump

applications.

NOTE: Do not use a power stealing digital thermostat

(common must be connected for digital thermostats).

CORROSION PROTECTION

(CP,RP)

To protect against the corrosive effects of a seacoast

environment, this option includes:

• a standard chassis with front panel

• special protections consisting of:

— painted control box and unit partitions

— pre-coated aluminum coils with copper tubing

— stainless steel tube sheets (outdoor coil)

— totally enclosed fan motor with moisture-

resistant windings

NOTE: All installations within one mile of the sea

coast or other corrosive environment must use Corro-

sion Protection (CP).

FACTORY-INSTALLED OPTIONS (52P AND 52C)

Comfort

WALLTHERMOSTATCOMFORT

FANSPEED

WALL SLEEVES

Weather Last™ Wall Sleeve

For the best performance and longest life, Carrier

recommends genuine Carrier wall sleeves for all

installations.

All Carrier wall sleeves are built with a pitch of 1/4 in.

per foot; for self-pitching of the unit, the wall sleeve

must be installed level (any error should be pitched to

the outside). Overflow slots on the outside of the

sleeve are in place to divert excess water during severe

weather.

Polymer Wall Sleeves

Choose a polymer wall sleeve for maximum protec-

tion and appearance.

All Carrier’s polymer wall sleeves are made from a

molded polymer that is designed for strength and dura-

bility. This material has excellent corrosion resistance

and a flammability rating of UL94-5V.

The sleeve surface is textured to prevent shine and

hide scratches. The rib configuration on the sleeve bot-

tom, allows easy chassis removal and aids in drainage.

The locating holes in the side and top panels, allow

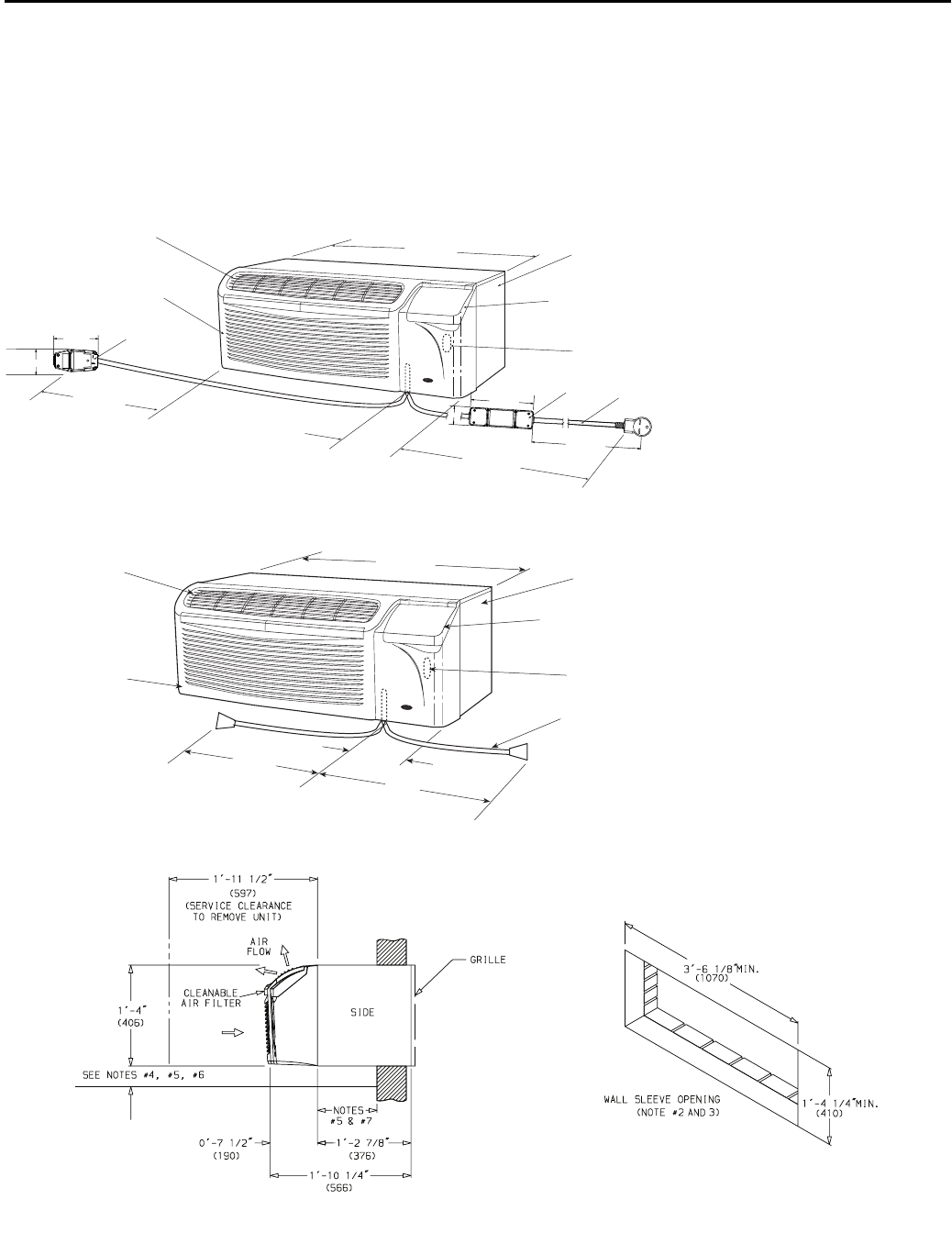

easy fastening of the sleeve to wall openings. Refer to

dimension drawings (pages 28 and 29) for typical wall

installation and dimensions.

The sleeve's alpine mist color (a shade of beige)

closely matches the front panel and blends in well with

any inside or outside decor.

The polymer wall sleeve comes in both insulated (fac-

tory installed) or non-insulated, to meet the require-

ments of every application.

Insulated Polymer Wall Sleeve

Part No.: SLEEVE-INSUL-1PK

Carrier’s accessory insulated polymer wall sleeve, with

factory-installed insulation, provides superior sound

absorption, reduces heat loss and prevents sleeve

sweating, a condition that can occur when the outside

temperature is cold and the indoor conditions are warm

and humid.

Non-Insulated Polymer Wall

Sleeve

Part No.: WALL-SLEEVE-1PK

Part No.: WALL-SLEEVE-9PK

Carrier’s accessory non-insulated polymer wall sleeve,

provides a superior appearance and protection for

many applications.

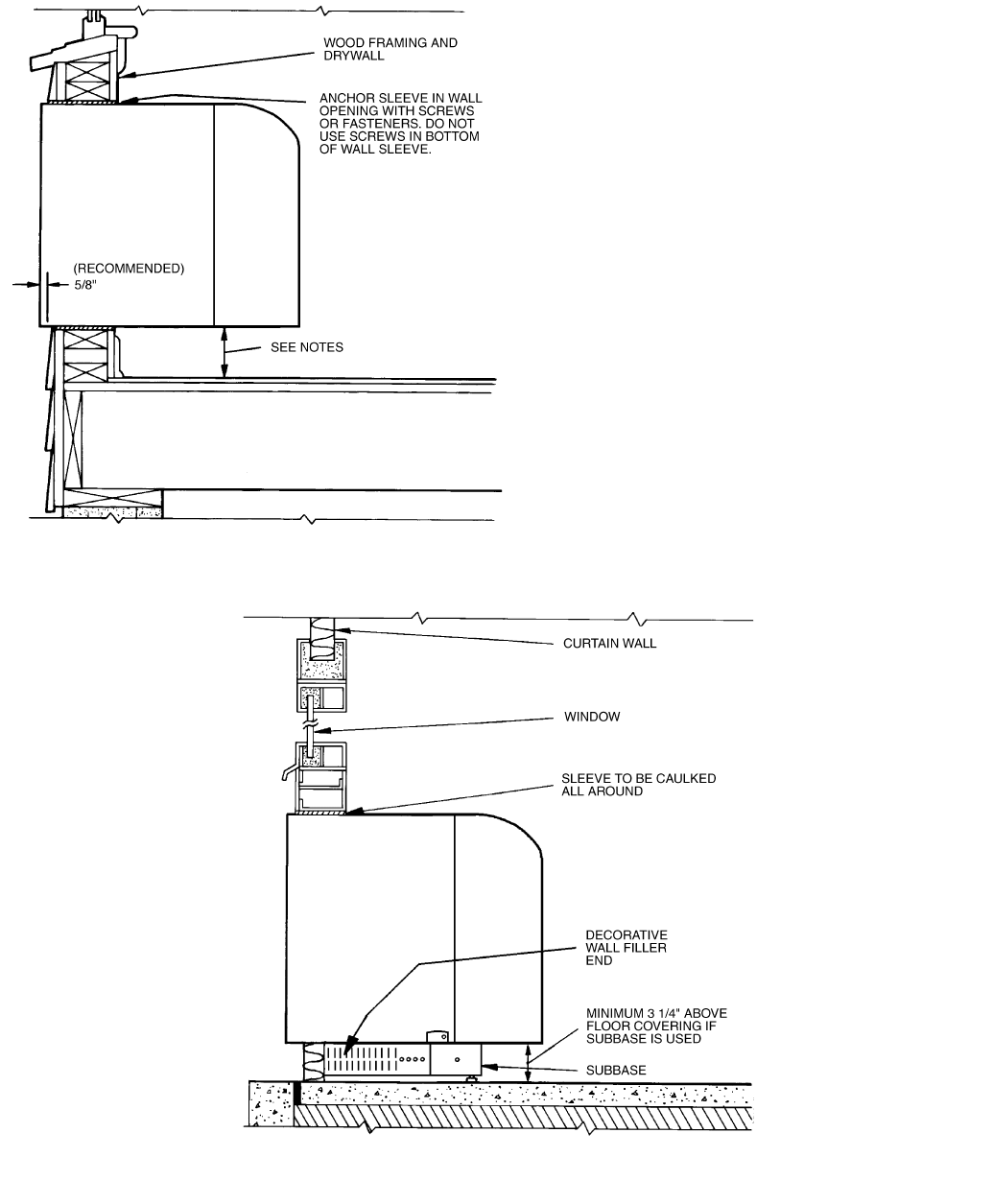

Important Sleeve Installation Considerations:

• All Carrier's sleeves are self pitching and must be

mounted level in all directions. (Do not use rails

to level sleeve.)

• The sleeve should be caulked on all sides, includ-

ing both inside and outside the building.

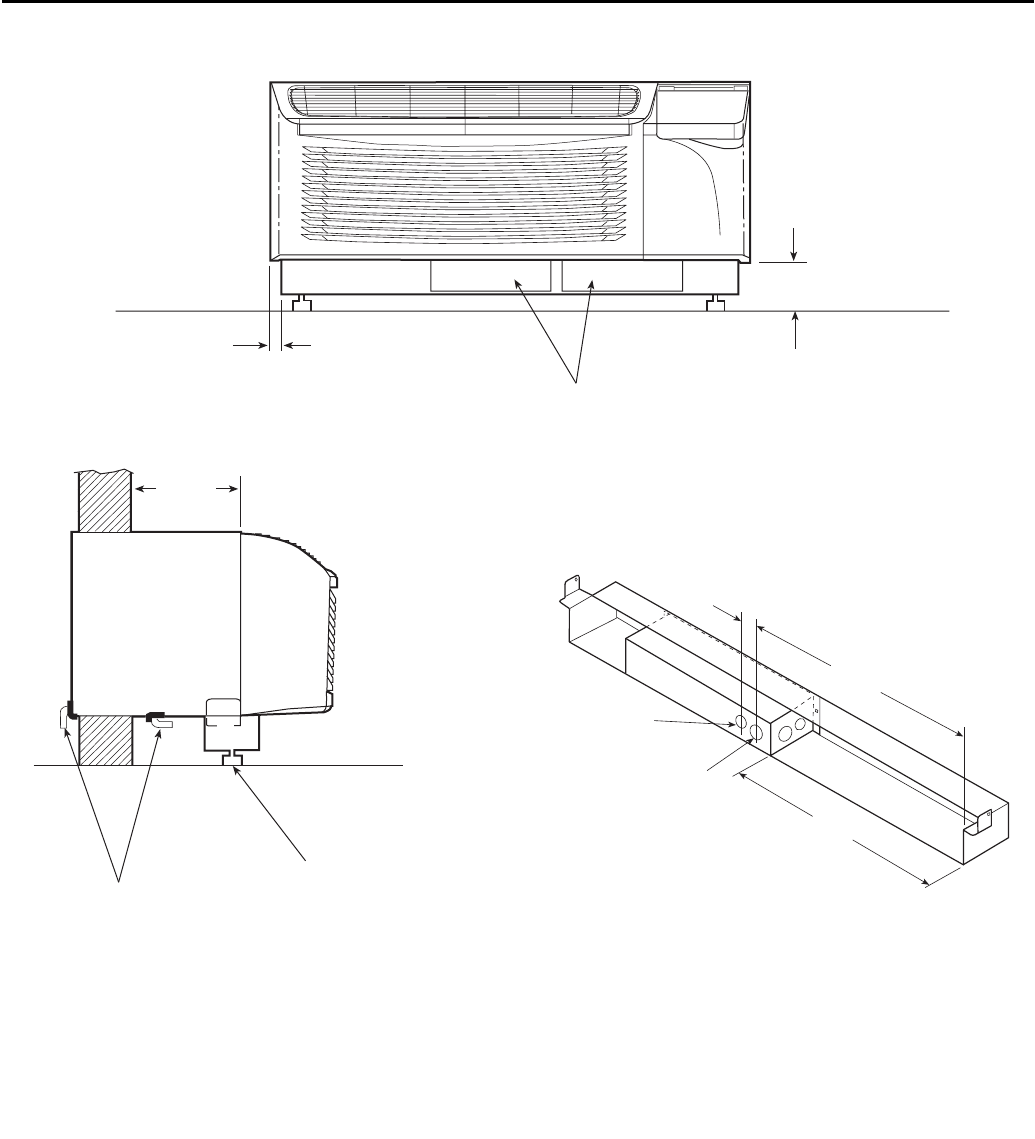

• If more than 4 in. of wall sleeve projects into the

room, an accessory subbase must be used for

support.

• For all applications with an accessory subbase,

wall sleeve must extend 31/4in. minimum into

room and must be 31/4in. minimum to 51/2in.

maximum above floor (including carpeting) to

allow for proper fit of subbase.

• For applications where the wall sleeve is

mounted flush to the exterior of the building

(or recessed in), Carrier recommends a field-

supplied drip edge be installed to prevent water

infiltration into the building.

• Insulated wall sleeves should be considered for

superior sound absorption, to reduce heat loss

and to prevent sleeve sweating, a condition that

can occur when the outside temperature is cold

and the indoor conditions are warm and humid.

IMPORTANT: Insulated Polymer Wall sleeve pro-

vides superior sound absorption, reduces heat loss

and prevents sleeve sweating.

For applications where weather conditions could

influence sleeve sweating, a condition that can occur

when the outside temperature is cold and the indoor

conditions are warm and humid, the Insulated Poly-

mer Wall sleeve should be considered.

FIELD-INSTALLED ACCESSORIES (52P AND 52C)

Corrosion-Protected Polymer Sleeve

Insulated Metal Wall Sleeves

Part No.: SLEEVE-STEEL-1PK

Part No.: SLEEVE-EXT18-1PK

Part No.: SLEEVE-EXT24-1PK

Part No.: SLEEVE-EXT26-1PK

Part No.: SLEEVE-EXT28-1PK

Carrier's metal wall sleeves are available in a variety

of sizes for most applications and difficult installa-

tions. Choose from 14 in., 18 in., 24 in., 26 in., or

28 in. standard depth sizes. All metal wall sleeves

come with factory-installed insulation, designed to

minimize heat loss, reduce outdoor noise transmis-

sions into the room and prevent sleeve sweating. In

addition, the metal wall sleeve provides a flammability

rating higher than UL94-5V.

Wall Sleeve Molding Kit

Part No.: SLEEVE-MOLDING

For a superior look and to hide any construction

imperfections, use Carrier's wall sleeve molding kit to

trim the wall sleeve to the wall. The molding kit is a

perfect solution and can be used with any Carrier wall

sleeve (matches Carrier wall sleeve color).

Friedrich (and ZoneAire) Retro-

fit Wall Sleeve Adapter

Part No.: FR-SLEEVE-EXT

The Friedrich (and ZoneAire) wall sleeve adapter is

constructed of sheet metal and is designed to increase

the depth of an existing Friedrich T-series or ZoneAire

wall sleeve to accommodate Carrier’s industry stan-

dard PTAC units.

Climate Master Wall Sleeve

Adapter

Part No.: CM-SLEEVE-EXT

The Climate Master wall sleeve adapter is constructed

of sheet metal and is designed to increase the depth of

an existing Climate Master 121/2in. wall sleeve to

accommodate Carrier’s industry standard PTAC units.

42 IN.

16 IN.

14/18/24/26/28 IN.

1/2 IN.

1 IN.

42 IN.

16 IN.

3IN.

42 IN.

16 IN.

1 1/2 IN.

Standard and Extended Metal Wall Sleeve

Wall Sleeve Molding Kit

Friedrich Wall Sleeve Adapter Kit

Climate Master Wall Sleeve Adapter Kit

OUTDOOR GRILLES

Carrier recommends only the use of Carrier-supplied

grilles for use on the 52P and 52C series units. How-

ever, the architectural designs of a building may dic-

tate the use of special or oversized grilles and/or

louvers. Special louvers or any special architectural

treatment of the building façade that may restrict free

circulation of condenser airflow should be referred to

Carrier Corporation for evaluation and approval.

Aluminum Architectural

Outdoor Grilles (Louvered)

Part No.: GRILLE-ALU-CLEAR (anodized aluminum)

Part No.: GRILLE-ALU-WHITE

Part No.: GRILLE-ALU-BEIGE

Part No.: GRILLE-ALU-ALPIN (color matches

Carrier wall sleeve)

Part No.: GRILLE-ALU-BRONZ

Part No.: GRILLE-ALU-MBRNZ

Part No.: GRILLE-ALU-BROWN

Part No.: GRILLE-ALU-LGREY

Part No.: GRILLE-ALU-SGREY

Part No.: GRILLE-ALU-PEACH

Part No.: GRILLE-ALU-MELON

Part No.: GRILLE-ALU-RDBRK

Part No.: GRILLE-ALU-BLUE

Part No.: GRILLE-ALU-GREEN

This premium line of decorative outdoor grilles will

enhance the appearance of any building. The grilles

are made of strong, durable, extruded, anodized alumi-

num and are designed to be mounted easily from

inside the room. These elegant grilles, available in

many standard colors, have baked enamel finishes

containing 50% kynar resin, for a superior finish that

will withstand the most extreme conditions. See inside

of back cover for standard colors and color samples.

For more information on custom colors and sizes, con-

tact Reliable Products at 1-800-239-4621.

Standard Outdoor Aluminum

Grille

Part No.: GRILLE-ALU-STAMP

This cost-effective, one-piece standard grille is made

from durable anodized aluminum. The grille is light-

weight, has a clear finish, and is easy to install from

inside the room.

Polymeric Architectural Outdoor

Grilles (Louvered)

Part No.: GRILLE-PLA-BROWN

Part No.: GRILLE-PLA-BEIGE

Part No.: GRILLE-PLA-ALPIN (color matches

Carrier wall sleeve)

This value line of polymeric architectural outdoor

grilles will blend attractively with most building exte-

riors. Mounted easily from inside the room, the one-

piece, molded grille is designed for protection,

enhanced appearance, and superior weather-resistance.

The grille is made of durable polymer and has a color-

fast, lightly textured finish that blends well with most

exterior finishes.

FIELD-INSTALLED ACCESSORIES

(52P AND 52C) (cont)

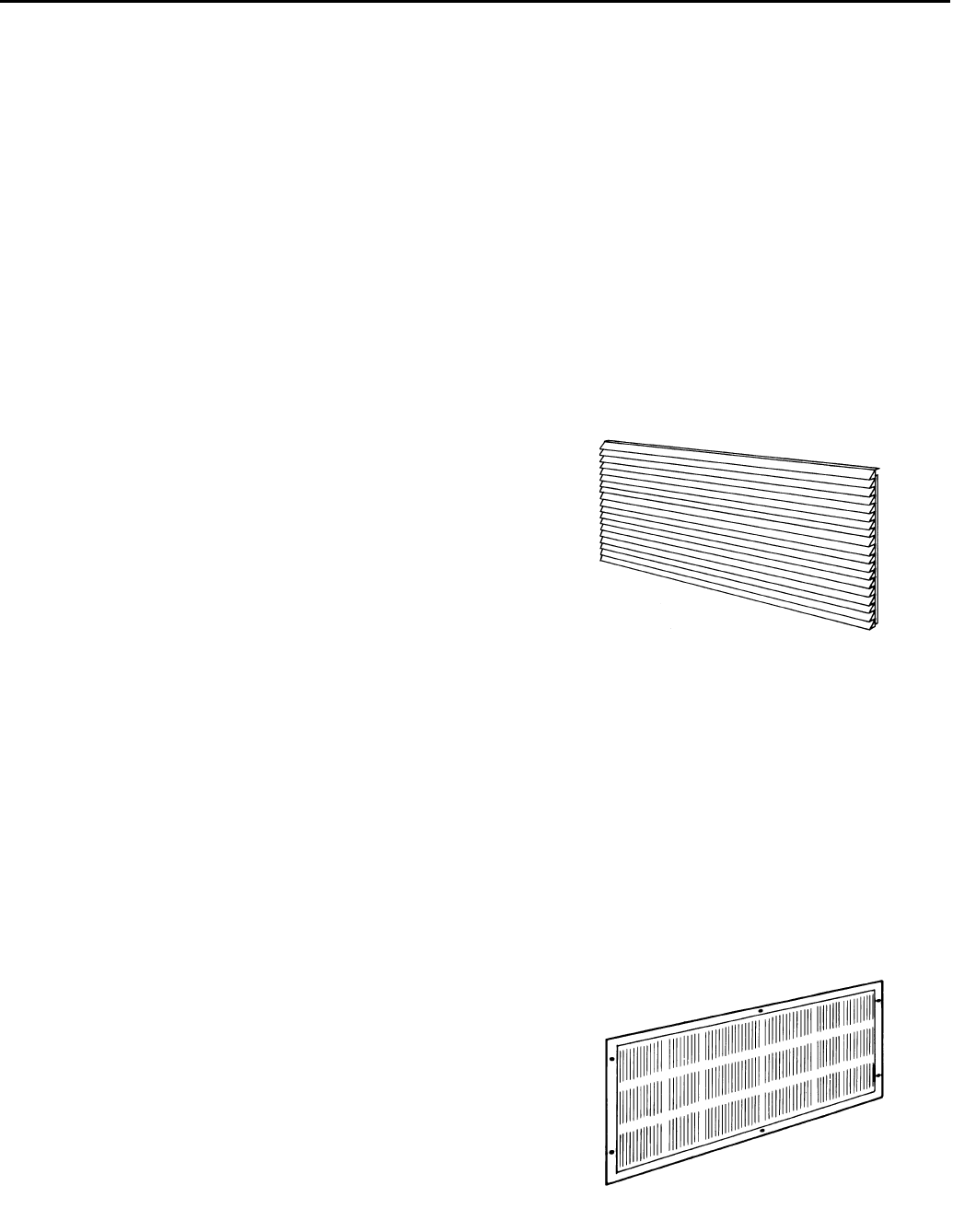

Architectural Grille in

Aluminum or Polymeric

Standard Grille

Outdoor Grille Selection

The following guidelines must be followed in the ini-

tial selection of any alternate exterior grille or louver:

1. The louver must have a minimum of 65% free area.

Free area is the minimum area of the opening in an

air inlet or outlet in which air can pass. Free Area

(%) = X/Y.

2. The louver should be attached to the wall sleeve in a

manner that will prevent recirculation of condenser

discharge air into the inlet. In most applications, baf-

fles, splitters, and/or gasket will be required between

the chassis tube end sheets and the louver to prevent

air recirculation.

The above criteria must be followed, since a louver

that is restrictive or allows recirculation will result in a

reduction of the unit’s capacity and efficiency and will

ultimately shorten the compressor life.

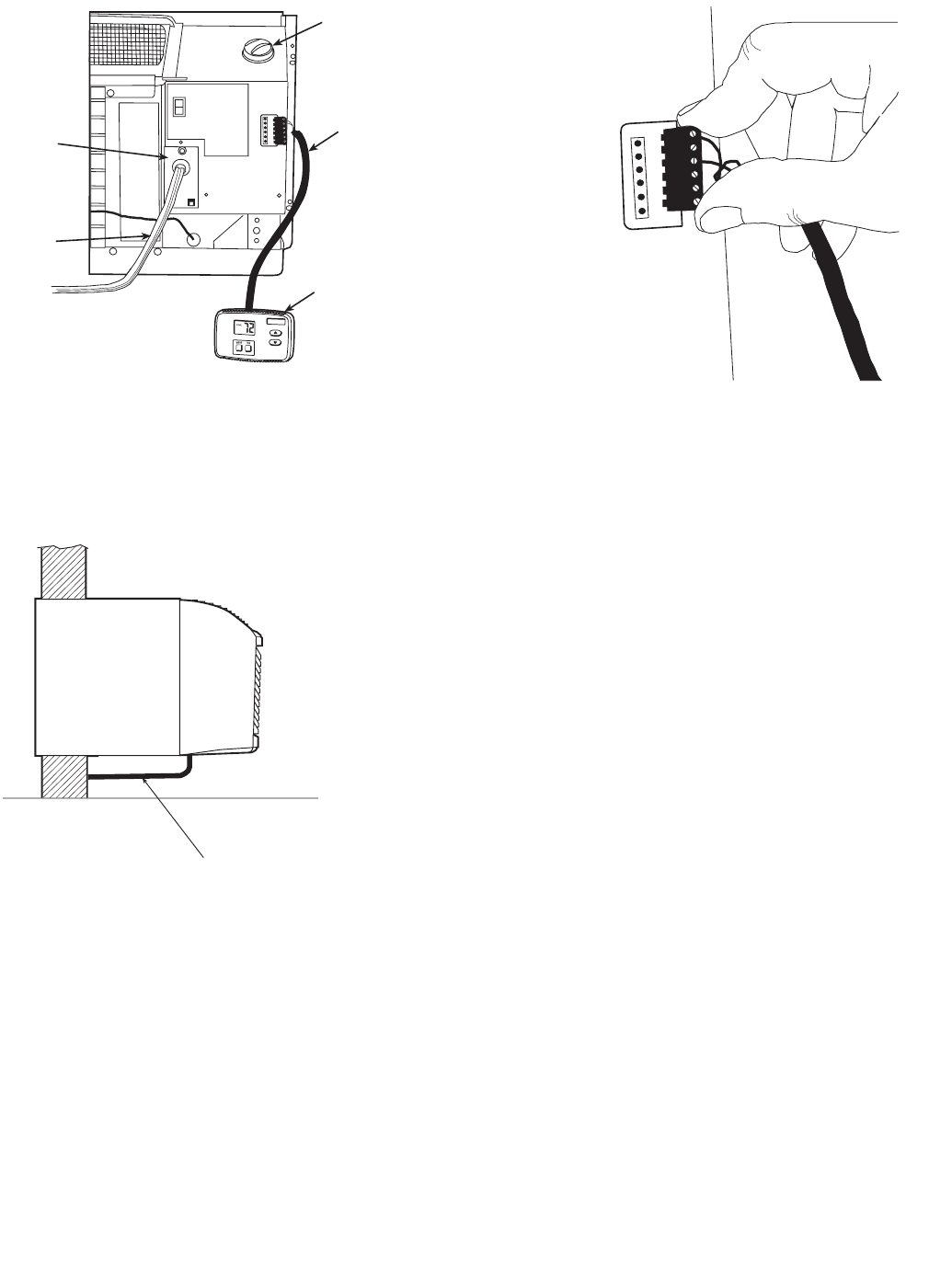

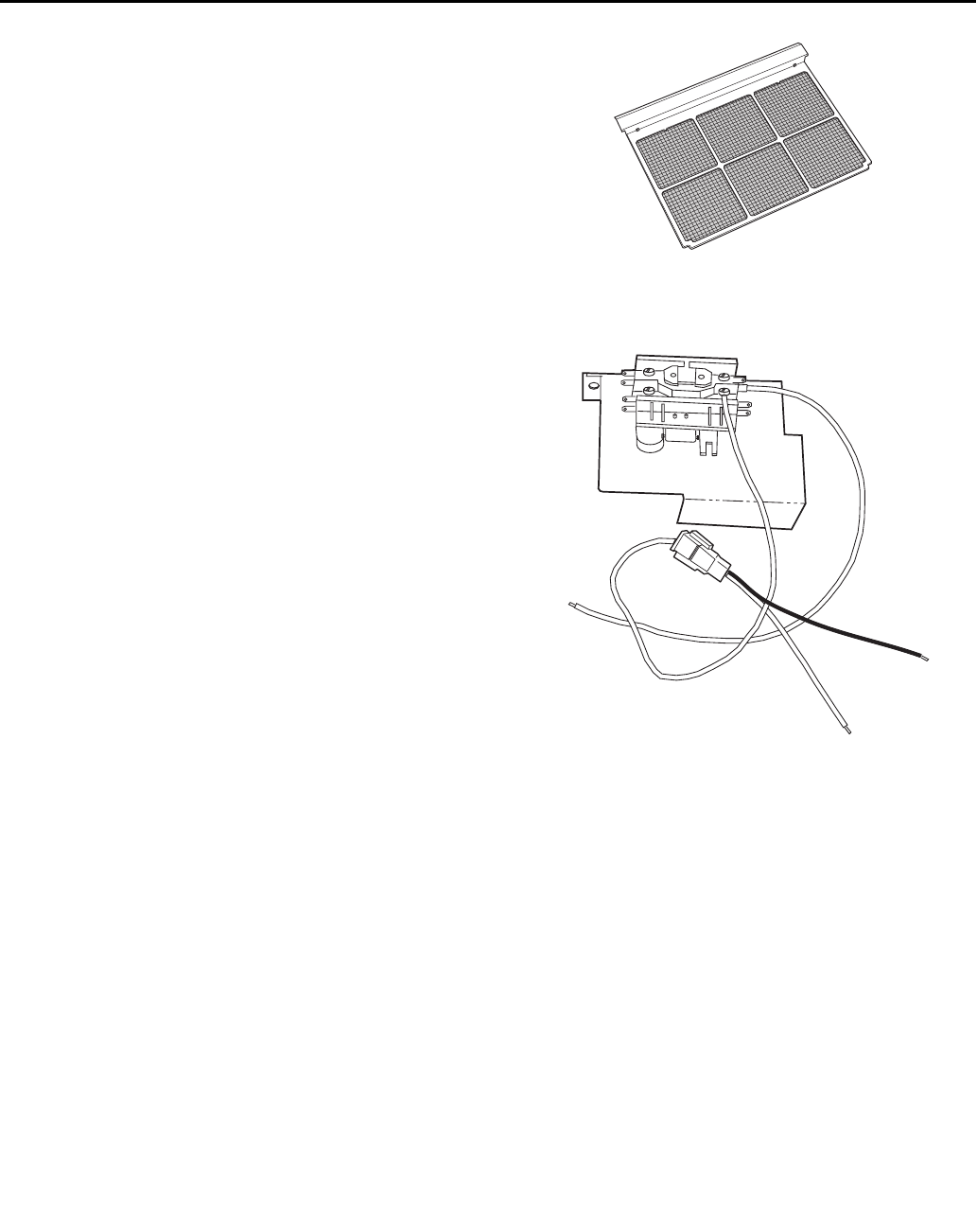

Hardwire Kit

Part No.: HARDWIRE-KIT-1PK

This accessory hardwire kit provides a permanent con-

nection to the unit. Electrical hard wiring is required

when NEC (National Electrical Code) or local codes

restrict the use of power cord and plug connections.

The hardwire kit mounts on the front right side of the

unit and comes with 36 inches of flexible steel conduit

and a Molex connector for easy connect/disconnect.

Conduit Interface Kit

Part No.: CONDUIT-INTF-4PK

The conduit interface accessory kit provides the wire

connection to the unit to interface to field-supplied

conduit.

IMPORTANT: If you wish to use a grille not

made by Carrier for your Carrier unit(s), con-

tact the Carrier Application Engineering Group

at 1-800-894-6449.

Sample Calculations

Free Area (%) = xx 100

x=1″

y=1.5″

F.A. (%) = 1x 100 = 66.7%

1.5

Louver Dimensional Reference

Hardwire Kit

Conduit Interface Kit

SUBBASE

This decorative subbase supports the unit and is avail-

able in three basic models: non-electrical, electrical,

and hardwired.

A subbase (or leveling legs) is required for installa-

tions where the wall sleeve extends 4 or more inches

into the room or the wall is less than 2 in. thick.

The minimum clearance between the bottom of the

sleeve and the floor is 31/4in., and the maximum clear-

ance is 51/2inches.

All subbase models are pre-assembled, mount to the

wall sleeve, and come with adjustable legs and side

skirting to provide a finished appearance.

Non-electrical subbase

The easy to install, non-electrical subbase provides

mechanical support and requires no wiring.

Electrical subbase

The electrical subbase has a factory-installed electrical

junction box containing a receptacle for corded pack-

aged terminal air conditioner (PTAC) units. The elec-

trical subbase series offers models from 230-v, 15 amp

up to 265-v, 30 amp. Knockouts are provided for

power source connections.

Hardwired subbase

The hardwired electrical subbase has a factory-

installed junction box containing 19 in. of flexible

conduit (for a perfect fit to the PTAC unit) and all mat-

ing connections for easy assembly to PTAC units.

Knockouts are provided for power source connections.

Part No.: SUBBASE-NON-ELEC Part No.: SUBBASE-230V-30A Part No.: SUBBASE-265V-30A

Part No.: SUBBASE-230V-15A Part No.: SUBBASE-265V-15A Part No.: SUBBASE-HARDWIRE

Part No.: SUBBASE-230V-20A Part No.: SUBBASE-265V-20A Part No.: LEVELING-LEGS

IMPORTANT: All standard cord-connected 265-v

PTAC units will require a field-installed electrical

subbase accessory per UL and NEC electrical codes.

FIELD-INSTALLED ACCESSORIES

(52P AND 52C) (cont)

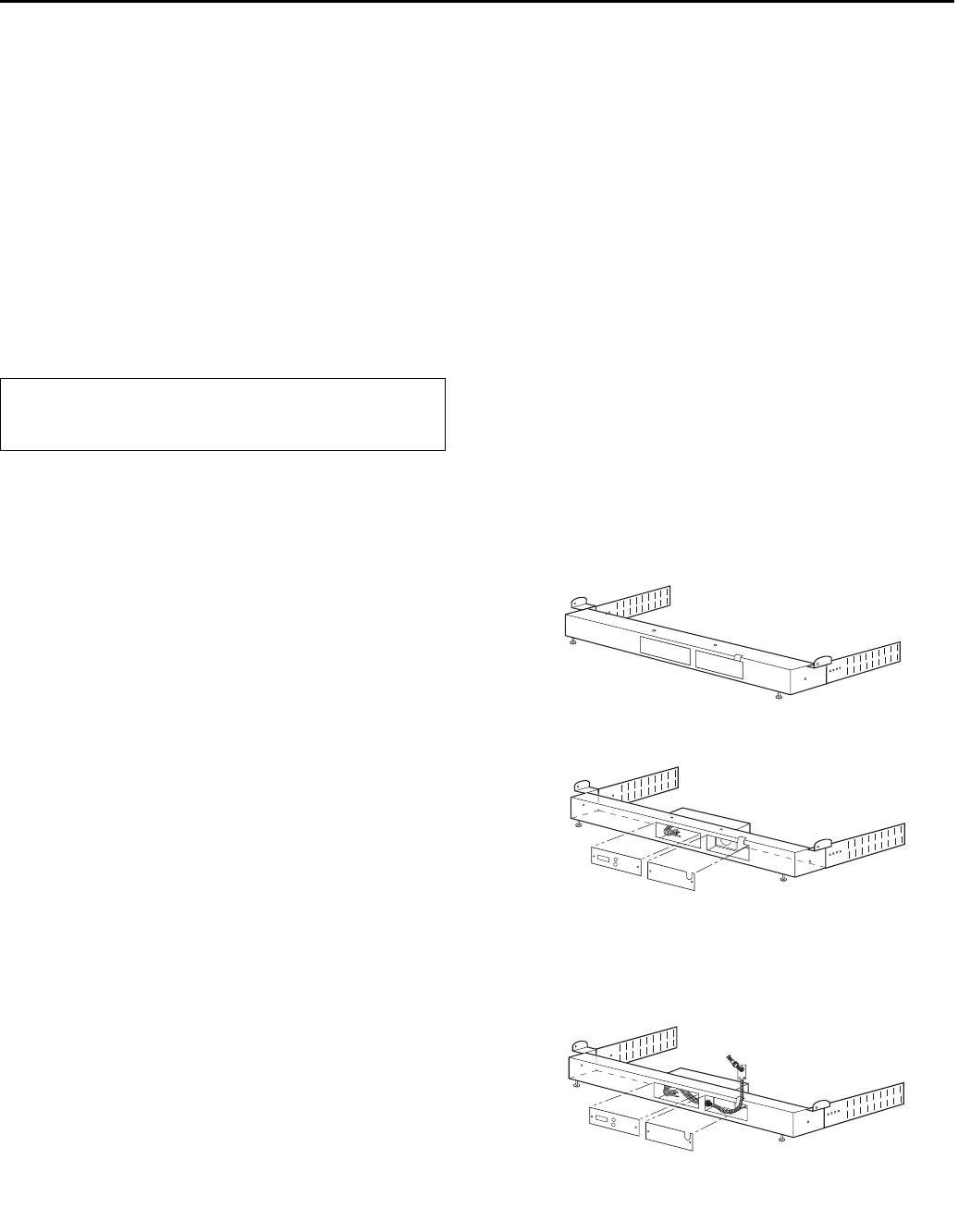

Non-Electrical Subbase Assembly

Electrical Subbase Assembly

Hardwired Subbase Assembly

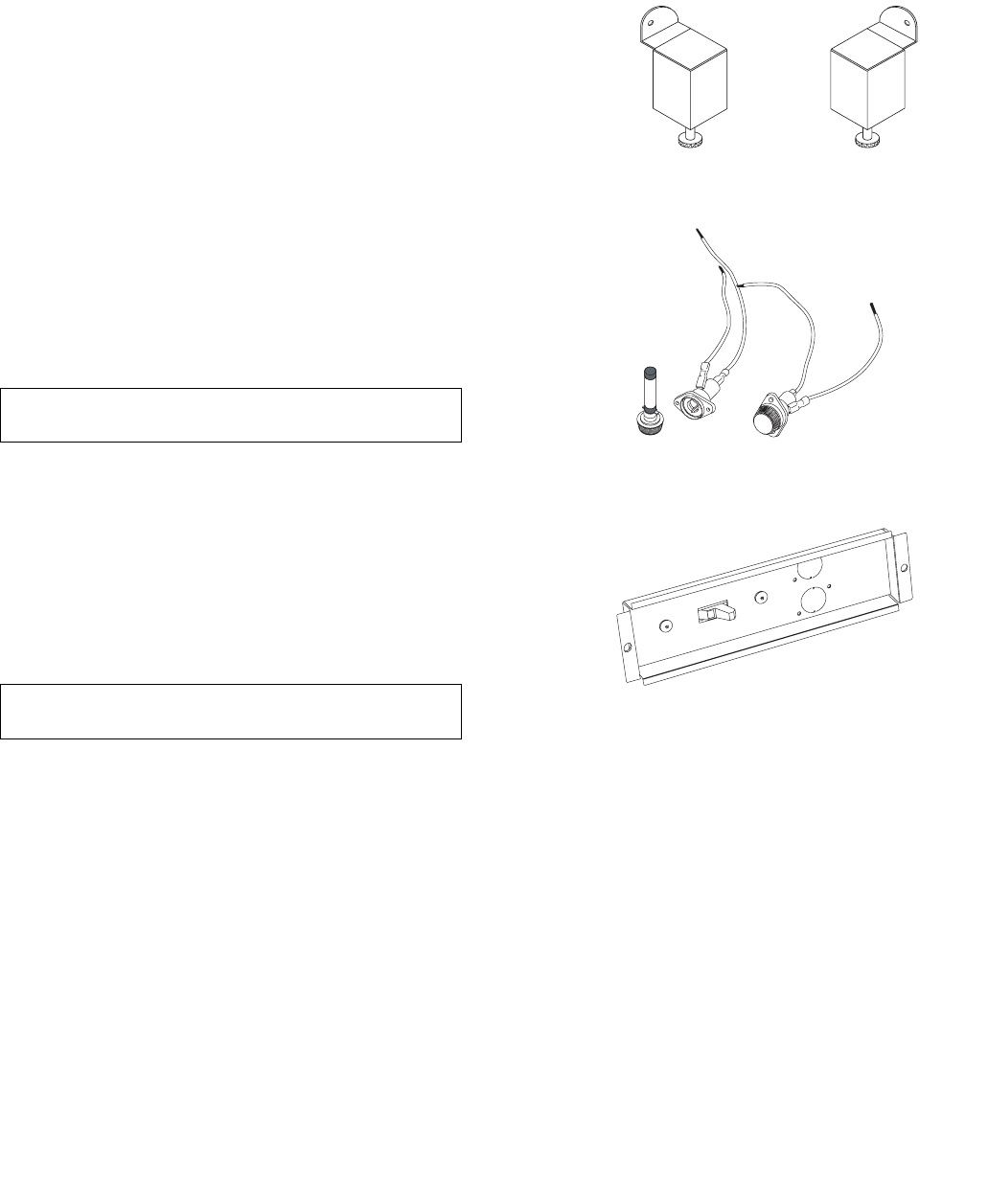

Leveling legs

Part No.: LEVELING-LEGS

Leveling legs attach easily to Carrier’s wall sleeve and

offer accurate leveling and support for units without a

subbase. Leveling legs are adjustable from 31/4in. to

51/2in.

Subbase Fuse Kit

Part No.: SUBBASE-FUSE-15A

Part No.: SUBBASE-FUSE-20A

Part No.: SUBBASE-FUSE-30A

The fuse kit provides in-line overcurrent protection at

the unit when required by NEC (National Electric

Code) or local codes.

Subbase Power Disconnect

Switch

Part No.: SUBBASE-SWITCH

The subbase power disconnect 2-pole switch provides

a recessed power disconnect for the PTAC unit when

required by NEC or local codes.

IMPORTANT: The Fuse Kit can only be used with

the electrical or hardwired subbase.

IMPORTANT: This accessory can only be used

with the electrical or hardwired subbase.

Subbase Fuse Kit

Power Disconnect Switch Assembly

Leveling-Legs

THERMOSTATS

Carrier’s full line of wall thermostats are designed to

enhance every PTAC application. Wall thermostats are

simple and easy to use. Wall thermostats provide bet-

ter temperature and humidity control as they can be

placed in an optimal position in the room.

NOTE: See page 50 for a wiring diagram of multiple

PTAC units controlled by one thermostat.

Digital Programmable

Thermostat

Part No.: TSTATCCPAC01-B (for heat/cool models)

Part No.: TSTATCCPHP01-B (for heat pump models)

This microcomputer-controlled, 7-day programmable

wall thermostat has enhanced features that provide

automatic control for both heat pumps and heating/

cooling units. It is used only on wall thermostat con-

trol (RC,RP) models.

Non-Programmable Thermostat

Part No.: TSTATCCBPC01-B (for heat/cool models)

Part No.: TSTATCCBPH01-B (for heat pump models)

This low-voltage, easy-to-use non-programmable ther-

mostat provides maximum guest comfort. This ther-

mostatcanonlybeusedonwallthermostat(RC,RP)

models.

Manual Changeover Wall

Thermostat

Part No.: HH01AD045 (for heat/cool and heat pump

models)

This manual changeover wall thermostat provides a

reliable and consistent level of occupant temperature

control for both heat pumps and heating/cooling units.

The thermostat consists of a conventional vented

cover and a coiled bimetal element. It is used only on

wall thermostat control (RC,RP) models.

Non-Programmable Thermostat

Programmable Thermostat

Heat

Off

Cool

Auto

FAN

•60•70•80•90•

Manual Thermostat

FIELD-INSTALLED ACCESSORIES

(52P AND 52C) (cont)

Wall Thermostat Interface

Retrofit Kit

Part No.: RC-FIELDKIT230HC

Part No.: RC-FIELDKIT230HP

Part No.: RC-FIELDKIT265HC

Part No.: RC-FIELDKIT265HP

The Wall Thermostat Interface Retrofit Kit allows

PTAC units with standard unit-mounted controls to be

field converted for use with wall thermostat controls.

NOTE: To obtain retrofit kits for previous 52S Carrier

models, contact your Carrier sales representative.

2-Speed Fan Control from Wall

Thermostat

Part No.: 2SPEED-TSTAT-KIT

This kit includes an automatic heat/cool changeover

thermostat and relay logic for allowing multiple fan

speed control from the wall thermostat. The thermostat

is simple to operate and install, and provides features

designed for the lodging industry, such as, Hi and Low

fan speed control, freeze guard, set point limits and

large, easy to read display.

Part No.: 2SPEED-RCFAN-KIT

This kit only contains the relay logic for allowing mul-

tiple fan speed control from a wall thermostat.

NOTE: When selecting a thermostat, ensure that the

thermostat is capable of 2-fan speed control.

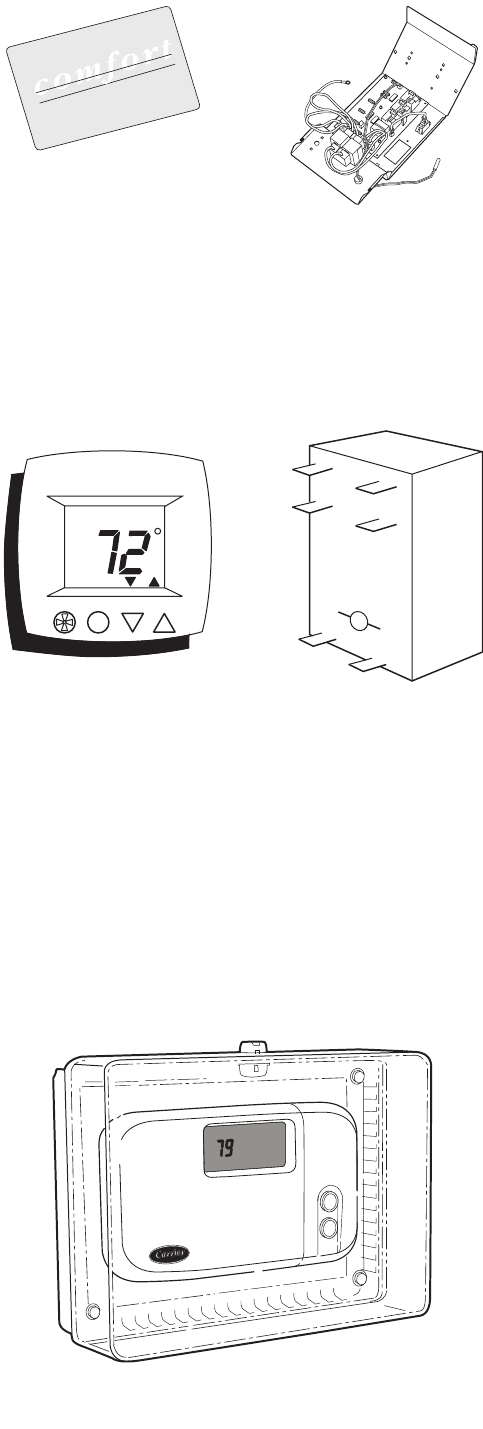

Thermostat Locking Cover

Part No.: TSTAT-COVER-6X7

Part No.: TSTAT-COVER-7X10

The thermostat locking cover prevents unauthorized

access to the thermostat.

WALLTHERMOSTATCOMFORT

FAN AUTO

TO SET PRESS OR

FAN COOLER WARMER

F/C

Wall Thermostat Interface Retrofit Kit

Thermostat Locking Cover

Auto Changeover Thermostat and

Speed Control Relay

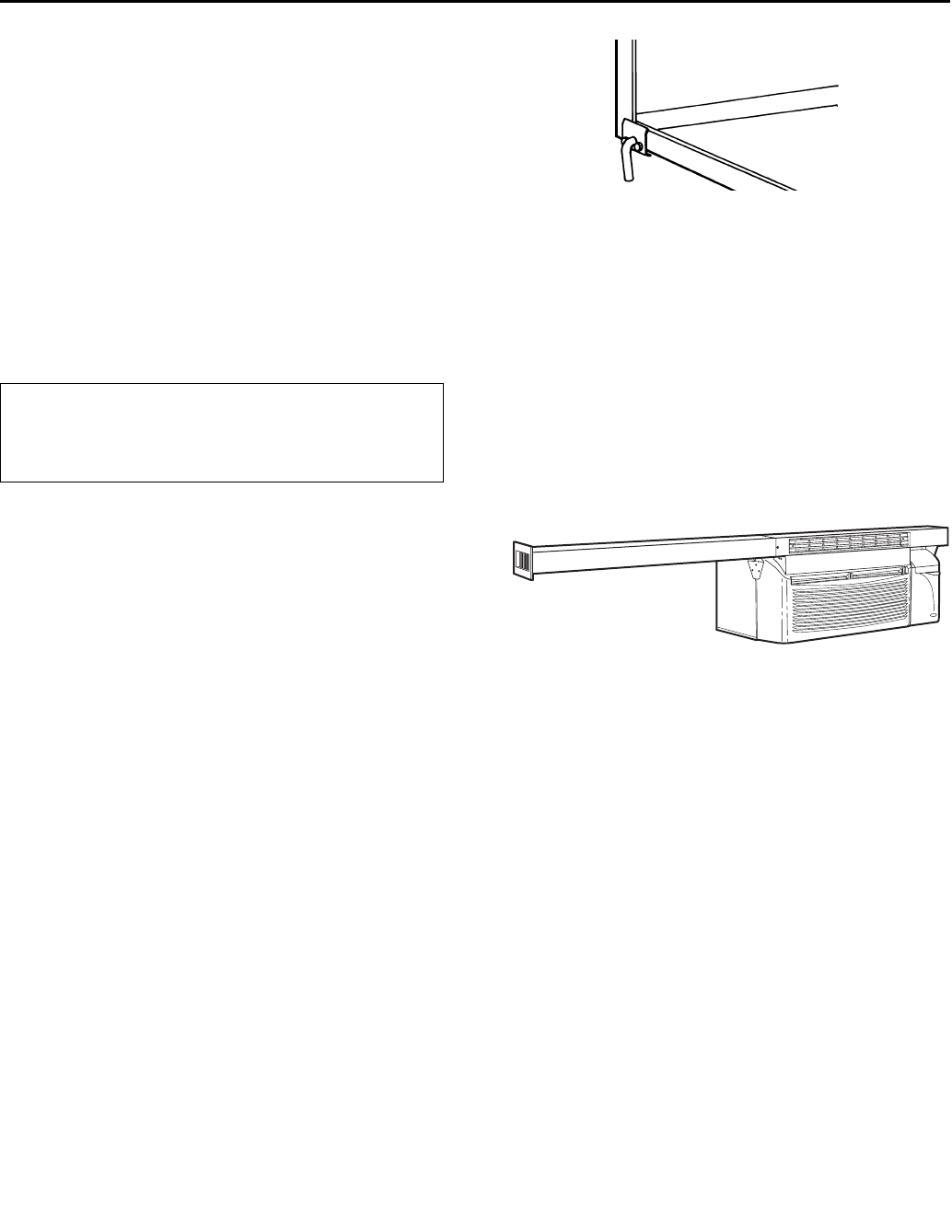

Condensate Drain Kit

Part No.: DRAIN-KIT-4PK

This universal drain kit may be used internally or

externally to route condensate to a drainage system. It

can be field-installed on any Carrier wall sleeve.

Although Carrier’s units are designed to dissipate all

the condensate generated during normal cooling, there

may be times when abnormal conditions cause more

condensate than the unit can dissipate. If condensate

that drips from the wall sleeve is objectionable, this

internal/external drain kit should be installed.

The drain kit may be attached to the exterior right or

left side of the wall sleeve for external draining or may

be mounted to the room side of the wall sleeve for

internal draining.

LateralDuctKit

Part No.: LATERAL-DUCT (Adapter Plenum and

Extension)

The accessory lateral duct kit allows one unit to heat

or cool two rooms. The kit provides substantial sav-

ings for apartments, hotel suites, and office suites by

eliminating the need for separate units for every room.

The amount of air that can be diverted to an adjoining

room is adjustable from 20 to 30 percent.

The lateral duct kit consists of two main components,

the plenum and the extension duct. The kit mounts to

the wall sleeve and allows either right or left side duct-

ing. Consider the following when designing a ducted

application.

• The maximum extension of the duct length is 4 feet.

• The duct run must be straight and horizontal; no

bends or turns.

• The minimum recommended clearance between the

unit and the adjoining room wall is 6 inches.

• You must provide for return air from the adjoining

room.

• Carrier 52P and 52C units are not qualified for use

with any other ducting scheme.

See page 31 for more information.

NOTES:

1. Lateral Duct Kit includes wall register for duct

extension and a molding kit to trim the wall open-

ing.

2. The sleeve should extend a minimum of 3-in. into

the room to install mounting brackets.

3. The Lateral Duct Kit is not compatible with previ-

ous PTAC models.

IMPORTANT: For internal drains installed in the

plastic wall sleeve, the drain must be installed on

the flat area of the sleeve. It cannot be installed in

the wafer area.

Lateral Duct Kit

Drain Kit

FIELD-INSTALLED ACCESSORIES

(52P AND 52C) (cont)

Power Vent with Power Door Kit

Part No.: PWR-VENT-DOOR230

Part No.: PWR-VENT-DOOR265

Carrier's power vent kit, utilizing a specially designed

fan, when installed in the unit's fresh air vent, will sup-

ply up to 95 cfm of outside air into the room. The

power vent will only operate when the unit fan runs,

and the unit will automatically open or close the vent

door, depending on the operation of the fan. The kit

comes pre-assembled from the factory and is very easy

to install.

Lateral Air Deflector

Part No.: DEFLECTOR-1PK

Carrier’s exclusive lateral air deflector allows dis-

charge air to be directed right or left in a room. This

field-installed accessory is equipped with indepen-

dently adjustable louvers to enhance air circulation.

Lateral air deflectors are recommended for units

mounted in a corner or off-center in a room.

NOTE: The lateral air deflector is not compatible with

previous PTAC models.

Curtain Deflector

Part No.: CURTDFL-52CP-1PK

The curtain deflector is used to prevent curtains from

being blown into the discharge air.

Security Door Kit

Part No.: SECURITY-DOOR

This key-locking security door kit prevents unautho-

rized access to the unit’s heating and cooling controls

and prevents tampering with units in public locations

and institutions. This field-installed accessory includes

two matching keys and fits all Carrier 52P and 52C

models. Keys are common to all Security Door kits.

Security Door Kit

Accessory Air Deflector

Curtain Deflector Kit

Power Vent with Door Kit

Replacement Filters

Part No.: AIR-FILTER-10PK

The Carrier 52P and 52C model replacement air filters

come in packages of 10. The filters save energy by pre-

venting the evaporator coils from being plugged with dirt

and lint. These economical and sturdy filters are inter-

changeable and may be washed, vacuumed, and reused.

Energy Management Kit

Part No.: EM-KIT

This field-installed accessory kit allows individual

units to be turned on and off from a remote location.

The kit incorporates Carrier’s Freeze Guard protection

that prevents rooms from freezing during extreme or

extended cold periods. Under these conditions, the

Freeze Guard automatically disables front desk control

and allows the unit to maintain a temperature of at

least 50 F in the room. When the room reaches 65 F,

the Freeze Guard feature returns the unit control to the

front desk.

This kit interfaces to most energy management sys-

tems. When installed in locations other than the front

desk, the kit can control unit operation by receiving

signals from field-supplied devices such as motion

sensors or heat sensing detectors.

Control devices connected to the Energy Management

Kit must have normally open sets of contacts (when

the switch is open, the unit operates). A 24-volt trans-

former must be field supplied and connected to the

Energy Management Kit. (See typical wiring diagram

on page 49.)

Easily Replaceable Filters

Energy Management Kit

FIELD-INSTALLED ACCESSORIES

(52P AND 52C) (cont)

TYPICAL WALL

INSTALLATION

Proper building practices must be used when con-

structing a wall opening to support a PTAC wall sleeve

and chassis.

If practices are unknown, consult your local architect

or building contractor.

Installed wall sleeve must be level from side to side

and front to back.

DIMENSION DRAWINGS AND INSTALLATION

DATA — NEW CONSTRUCTION

DISCHARGE

GRILLE

REMOVABLE

FRONT PANEL

1 -10

(558.8)

(152.4) 4-4

(1320.8)

3-6

(1067)

HINGED CONTROL

ACCESS DOOR

(SEE NOTE #8)

ACCESSORY

WALL SLEEVE

208/230-V

SERVICE CORD

15/20 AMP

PLUG HEAD

2.03"

(51.6)

3.94"

(100)

7.24"

(184)

12"

(304.8)

30 AMP

2.00"

(50.7)

30 AMP IN-LINE

CORD

REMOVABLE

FRONT PANEL

6”

(152.4)

3’-6”

(1067)

HINGED CONTROL

ACCESS DOOR

(SEE NOTE #8)

15”

(381)

15”

(381)

ACCESSORY

WALL SLEEVE

265-V

SERVICE CORD

(SEE NOTE #9)

DISCHARGE

GRILLE

52P and 52C Dimension Drawing

NOTES:

1. Dimensions in parenthesis are in

millimeters.

2. Minimum opening sizes apply to

all wall openings.

3. Proper building practices must

be used when constructing a

wall opening to support a PTAC

wall sleeve and chassis. If prac-

tices are unknown consult your

local architect or building

contractor.

4. Installed wall sleeve must be

level from side to side and front

to back (do not use rails to level

sleeve).

5. If wall sleeve extends into the

room more than 4-in., an acces-

sory subbase or field fabricated

front support should be used to

prevent wall sleeve from tipping

forward.

6. For all applications with an

accessory subbase, wall sleeve

must extend into room 31/4-in.

(83 mm) minimum and 31/4-in.

(83 mm) minimum from floor.

7. For all applications with an

accessory lateral duct, sleeve

must extend into the room 3-in.

(76.2 mm) minimum. In applica-

tions where the sleeve will not

extend a minimum 3-in., the lat-

eral duct mounting brackets

must be mounted on the

wall sleeve prior to wall sleeve

installation.

8. Remote control models, “RC”

and “RP” units, use low voltage

connections (24 volt AC).

9. 265 volt cord connected units

must plug into a 265 volt electri-

cal subbase per UL requirement

(or hardwire can be used).

10. The 265 volt electrical cord is

approximately 15-in. long from

where it exits the front panel.

208/230-V UNITS

265-V UNITS

WALL SLEEVE MOUNTING DIMENSIONS FOR STANDARD

AND ACCESSORY GRILLES

MAIN STUD

JACK STUD

CRIPPLE

FLOOR

SUB-FLOOR

42 1/8”

16 1/4”

JACK STUDS

HEADER- 4’ x 4’ OR

(2) 2’ x 4’ ON EDGE

42 in.

16 in.

14/18/24/26/28 in.

Standard Polymer Non-Insulated Wall Sleeve

Standard Polymer Insulated Wall Sleeve

Framing and Minimum Wall Sleeve Opening

Wall Sleeve Mounting (All Models)

Standard and Extended Metal Insulated Wall Sleeve

NOTES (ALL SLEEVES):

1. Never install fasteners through bottom of sleeve.

2. Never use rails to level sleeve.

DIMENSION DRAWINGS AND INSTALLATION

DATA — NEW CONSTRUCTION (cont)

TYPICAL WALL INSTALLATION

NOTES:

1. Sleeve may be flush mounted to floor, but front panel may have

to be notched to accommodate service cord.

2. If more than 4 in. of sleeve projects into room, an accessory

subbase must be used for support.

3. For walls 2 in. thick or less, an accessory subbase must be

used for support.

4. Caulk around sleeve on both indoor and outdoor sides.

Typical Wall Sleeve Installation

Typical Curtain Wall Installation (All Models)

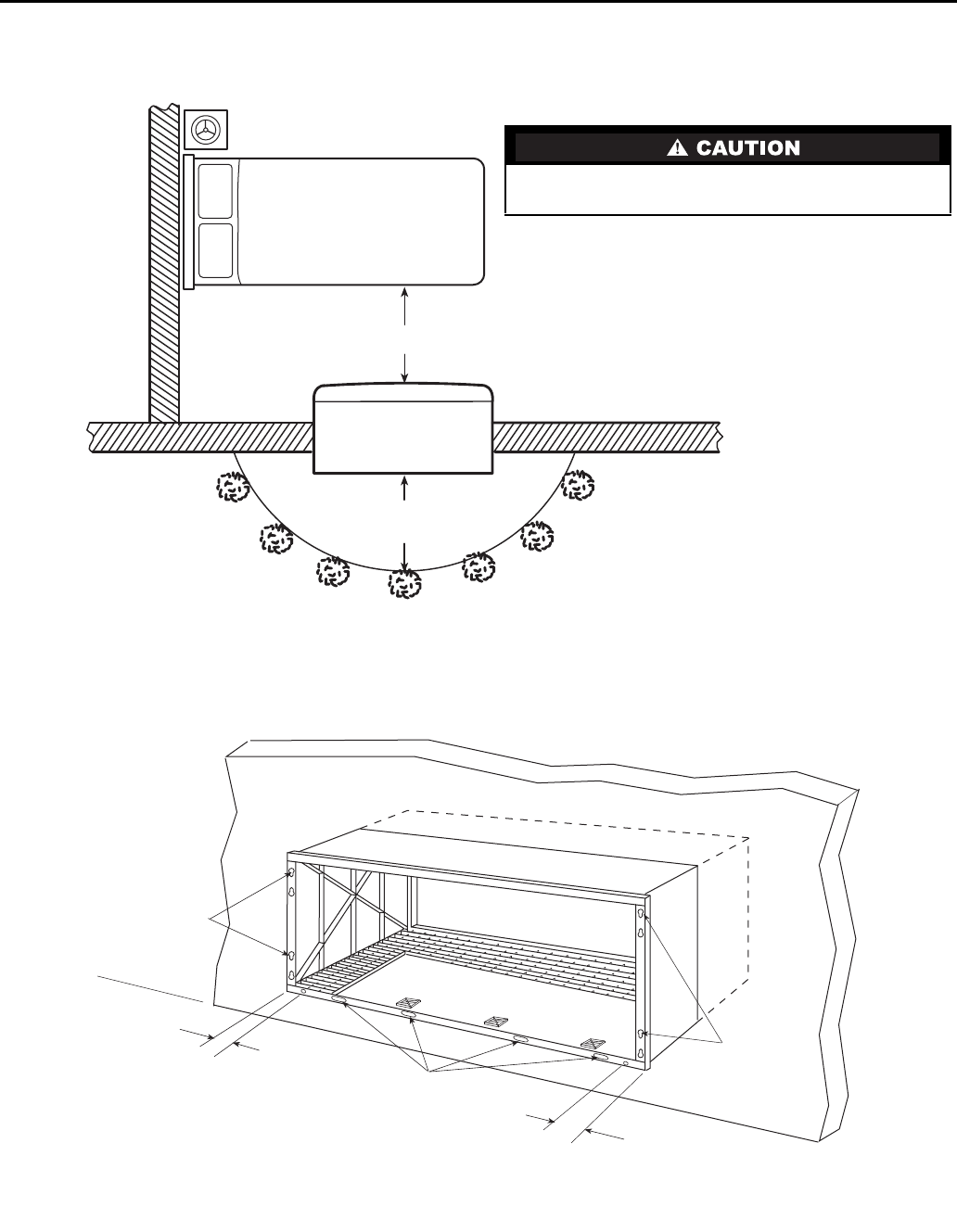

MINIMUM CLEARANCE FOR INDOOR AND

OUTDOOR DISCHARGE AIR

36" MINIMUM DISTANCE FROM

SLEEVE TO BUILDING WALLS,

SHRUBS, etc.

15” MINIMUM DISTANCE FROM

FRONT PANEL TO OBJECTS IN ROOM

2 3/8”

(60.3)

GRILLE

MOUNTING

HOLES

WALL SLEEVE-(2)

DRAIN LOCATIONS CONDENSATE

OVERFLOW

HOLES

2 3/8”

(60.3)

OUTDOOR VIEW

(OUTSIDE)

WALL SLEEVE

GRILLE

MOUNTING

HOLES

52P and 52C Indoor and Outdoor Discharge Air Circulation

Blocking indoor or outdoor discharge air could

cause premature failure of unit.

Back of Polymer Wall Sleeve

DIMENSION DRAWINGS AND INSTALLATION

DATA — NEW CONSTRUCTION (cont)

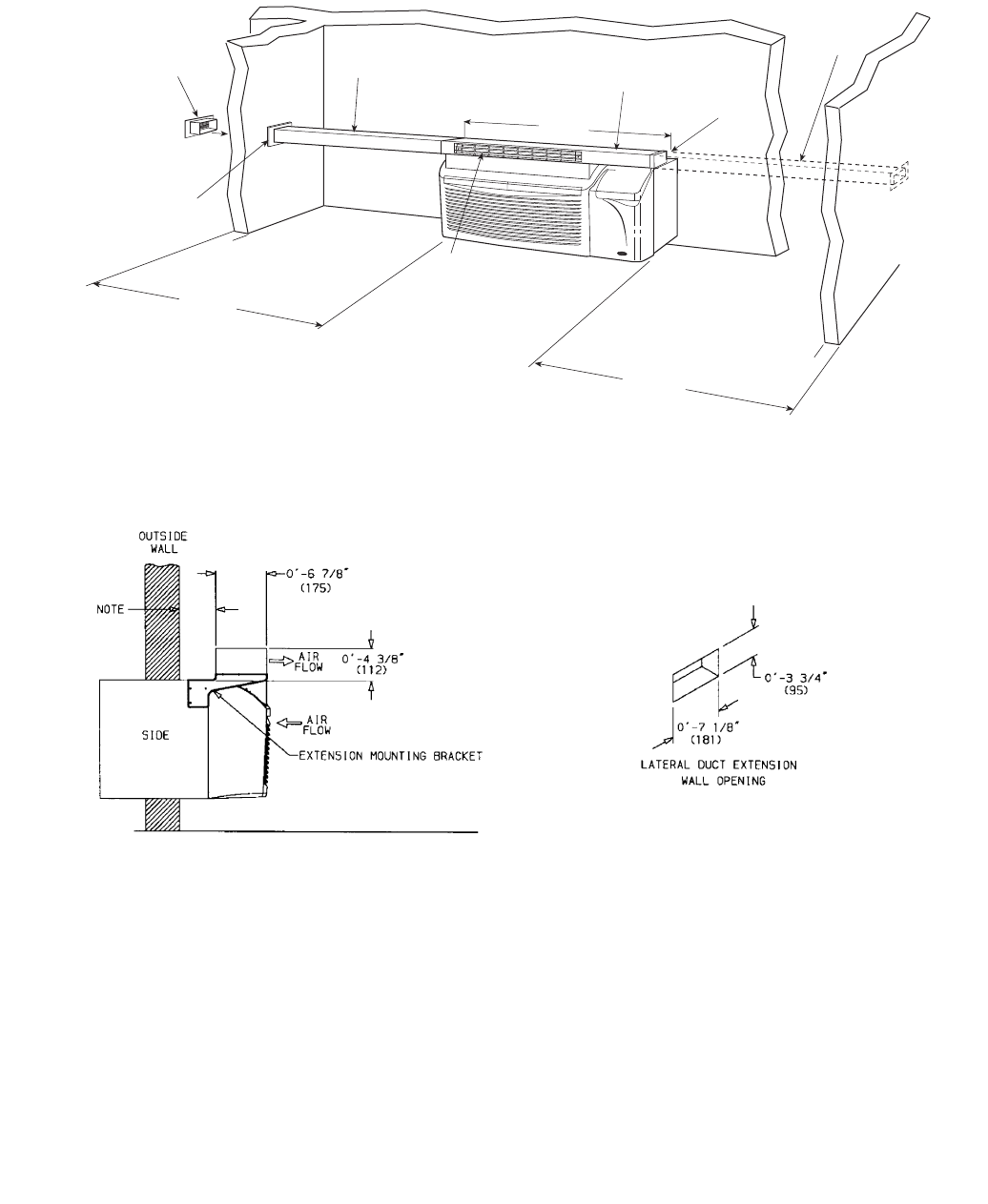

TYPICAL LATERAL DUCT INSTALLATION

3’-11 1/2”

(1206.5)

MAX.

3’-11 1/2”

(1206.5)

MAX.

3’-8”

(117.6)

WALL

MOLDING

WALL

LATERAL DUCT

EXTENSION

REVERSIBLE

AIR GRILLE

PLENUM

END

CAP

ALTERNATE

EXTENSION

POSITION*

NOTE: For all applications with an accessory lateral duct, sleeve

must extend into the room a minimum of 3 inches. In applications

where the sleeve will not extend a minimum of 3 in., the lateral duct

mounting brackets will need to be mounted on the sleeve prior to

installation to the wall.

52P and 52C Lateral Duct

*Only one Lateral Duct Extension may be installed per

unit. Lateral duct extensions may be installed on either

side of the unit.

52P AND 52C WITH SUBBASE

0’-0 7/8”

(22)

SUBBASE ACCESS COVERS

0’-3 1/4” MIN. (83)

0’-5 1/2” MAX. (140)

OUTSIDE

WALL

SIDE

SUBBASE LEVELING BOLTS

ACCESSORY DRAIN

(EXTERNAL OR INTERNAL)

SEE

NOTES

(3) 1 1/8” (28.6) DIA.

KNOCKOUTS

19 1/2”

(495.3)

17”

(431.8)

1 9/16”

(39.7)

(3) 7/8” (22.2)

DIA. KNOCKOUTS

REAR VIEW

ACCESSORY SUBBASE

ELECTRICAL CONNECTIONS

NOTES:

1. Accessory subbase is required for applications where:

• Wall sleeve extends 4 or more inches into the room.

• Wall thickness is less than 2 inches.

• All 265-v cord-connected applications.

2. For all applications with an accessory subbase:

• Wall sleeve must extend 4 in. minimum into the room and 31/4in. minimum above the floor.

• Subbase height is adjustable from 31/4in. minimum to 51/2in. maximum above floor (including carpeting).

Refer to wall sleeve installation instructions.

DIMENSION DRAWINGS AND INSTALLATION

DATA — NEW CONSTRUCTION (cont)

WALL THERMOSTAT CONNECTIONS

POWER

CORD

ACCESS

COVER

POWER

CORD

FAN SPEED

CONTROL

KNOB

THERMOSTAT

WIRE (FIELD-

SUPPLIED)

THERMOSTAT

THERMOSTAT WIRE ROUTING (UNDER

SLEEVE, BEHIND FRONT PANEL)

Control Box Wire Terminal for

Wall Thermostat Models Terminal Connector

Removal and Replacement

Terminal Wire Routing

NOTE: Thermostat wire is field supplied. Recommended wire gage is

18 to 20 gage solid thermostat wire. Thermostat wire should always be

routed around or under, NEVER through, the wall sleeve. The wire

should then be routed behind the front panel to the easily accessible

terminal connector.

PERFORMANCE AND ELECTRICAL DATA

MODEL 52PQ (230/208-1-60)

LEGEND

EER — Energy Efficiency Ratio

*Rated in accordance with ARI Standard 380-93.

†Coefficient of Performance (COP) at 47 F outdoor ambient

temperature.

**Electric resistance heater power and fan motor power.

††Fan motor indoor CFM (LO/HI) shown for 230-1-60 units.

RECEPTACLES AND FUSE TYPES

LEGEND

*May be used for 15-amp applications if fused for 15 amps.

MODEL

NUMBER

52PQ

CAPACITY* (Btuh) HEATER

kW EER COP†

VOLTAGE

RANGE

(Volts)

AMPS WATTS

Cooling Heating Cooling Heating** Cooling Heating

Rev.Cyc.Electric

207---3 7,200/ 7,100 6,300/ 6,300 7,800/ 6,400 2.3 12.7/12.7 3.4/3.4

187-253

2.7/2.9 10.4/ 9.5 567/ 559 2393/1985

307---3 7,200/ 7,100 6,300/ 6,300 11,600/ 9,700 3.4 12.7/12.7 3.4/3.4 2.7/2.9 15.2/14.1 567/ 559 3493/2935

209---3 9,100/ 9,000 7,900/ 7,900 7,800/ 6,400 2.3 11.5/11.5 3.2/3.2 3.7/3.8 10.4/ 9.5 791/ 783 2393/1985

309---3 9,100/ 9,000 7,900/ 7,900 11,600/ 9,700 3.4 11.5/11.5 3.2/3.2 3.7/3.8 15.2/14.1 791/ 783 3493/2935

212---3 12,100/12,000 11,000/11,000 7,800/ 6,400 2.3 11.1/10.7 3.2/3.2 4.8/5.3 10.8/ 9.9 1090/1122 2470/2047

312---3 12,100/12,000 11,000/11,000 11,600/ 9,700 3.4 11.1/10.7 3.2/3.2 4.8/5.3 15.6/14.5 1090/1122 3570/2997

512---3 12,100/12,000 11,000/11,000 17,000/13,600 5.0 11.1/10.7 3.2/3.2 4.8/5.3 22.5/20.0 1090/1122 5170/4147

215---3 14,800/14,300 14,100/13,500 7,800/ 6,400 2.3 9.7/ 9.5 3.0/3.0 6.5/7.1 10.8/ 9.9 1526/1505 2470/2047

315---3 14,800/14,300 14,100/13,500 11,600/ 9,700 3.4 9.7/ 9.5 3.0/3.0 6.5/7.1 15.6/14.5 1526/1505 3570/2997

515---3 14,800/14,300 14,100/13,500 17,000/13,600 5.0 9.7/ 9.5 3.0/3.0 6.5/7.1 22.5/20.0 1526/1505 5170/4147

MODEL

NUMBER

52PQ

POWER

FACTOR

(%)

FAN MOTOR MAXFUSE

SIZE

(Amps)

MIN.

CIRCUIT

AMPS

RECEP-

TACL E

TYPE

R-22

CHARGE

(oz)

DEHUMIDIFI-

CATION

(Pints/Hr)

SENSIBLE

HEAT

FACTOR

APPROX.

CHASSIS

SHIP WT.

(lb)

Horsepower

Full

Load

Amps

Indoor

CFM

LO/HI††

207---3 100 0.075 0.44 220/260 15 13.0 A 24 1.5 0.78 125

307---3 20 19.0 B

209---3 99 0.075 0.44 220/260 15 13.0 A 24 2.4 0.73 125

309---3 20 19.0 B

212---3

99 0.125 0.75 270/350

15 13.3 A

34 3.4 0.71 140312---3 20 19.3 B

512---3 30 27.9 C

215---3

99 0.125 0.75 250/320

15 13.3 A

32 4.6 0.67 150315---3 20 19.3 B

515---3 30 27.9 C

New York City Department of Buildings, Material and Equipment

Acceptance — MEA #242-04-E

UNIT NAMEPLATE VOLTAGE 230/208

OUTLET RATED VOLTS/AMPS 250/15 250/20 250/30

OUTLET BLADE CONFIGURATION

ABC

NEMA CONFIGURATION 6-15R 6-20R 6-30R

TIME DELAYFUSE OR HACR

CIRCUIT BREAKER (AMPS) 15 20* 30

HEAT E R (K ILOWATTS) 2.3 3.4 5.0

HACR — Heating, Air Conditioning, and Refrigeration

NEMA — National Electrical Manufacturers Association

PRODUCT DATA (52P)

PERFORMANCE AND ELECTRICAL DATA

MODEL 52PQ (265-1-60)

LEGEND

EER — Energy Efficiency Ratio

*Rated in accordance with ARI Standard 380-93.

†Coefficient of Performance (COP) at 47 F outdoor ambient

temperature.

**Electric resistance heater power and fan motor power.

††All 265-v units require an electrical subbase (receptacle or hard-

wire model).

RECEPTACLES AND FUSE TYPES

LEGEND

MODEL

NUMBER

52PQ

CAPACITY* (Btuh) HEATER

kW EER COP† VOLTAGE

RANGE

AMPS WATTS

Cooling Heating Cooling Heating** Cooling Heating

Rev.Cycle Electric

207---47,200 6,300 7,800 2.3 12.3 3.4

239-292

2.4 9.2 585 2396

307---47,200 6,300 11,600 3.4 12.3 3.4 2.4 13.3 585 3496

209---49,100 7,700 7,800 2.3 11.5 3.2 3.1 9.2 791 2396

309---49,100 7,700 11,600 3.4 11.5 3.2 3.1 13.3 791 3496

212---412,100 10,800 7,800 2.3 11.1 3.2 4.2 9.4 1090 2470

312---412,100 10,800 11,600 3.4 11.1 3.2 4.2 13.5 1090 3570

512---412,100 10,800 17,000 5.0 11.1 3.2 4.2 19.6 1090 5170

215---414,700 14,100 7,800 2.3 9.7 3.0 5.7 9.4 1515 2470

315---414,700 14,100 11,600 3.4 9.7 3.0 5.7 13.5 1515 3570

515---414,700 14,100 17,000 5.0 9.7 3.0 5.7 19.6 1515 5170

MODEL

NUMBER

52PQ

POWER

FACTOR

FAN MOTOR MAX. FUSE

SIZE

(Amps)

MIN.

CIRCUIT

AMPS

RECEP-

TACLE

TYPE††

R-22

CHARGE

(oz)

DEHUMIDI-

FICATION

(Pints/Hr)

SENSIBLE

HEAT

FACTOR

APPROX.

CHASSIS

SHIP WT

(lb)

Horsepower

Full

Load

Amps

Indoor

CFM

LO/HI

207---497 0.075 0.46 220/260 15 11.3 A 26 1.5 0.78 125

307---420 16.5 B

209---497 0.075 0.46 220/260 15 11.3 A 24 2.4 0.73 125

309---420 16.5 B

212---4

99 0.125 0.71 270/340

15 11.6 A

34 3.4 0.71 140312---420 16.7 B

512---425 24.3 C

215---4

96 0.125 0.71 250/320

15 11.6 A

33 4.6 0.67 150315---420 16.7 B

515---425 24.3 C

New York City Department of Buildings, Material and Equipment

Acceptance — MEA #242-04-E

UNIT NAMEPLATE VOLTAGE 265

OUTLET RATED VOLTS/AMPS 277/15 277/20 277/30

OUTLET BLADE CONFIGURATION

ABC

NEMA CONFIGURATION 7-15R 7-20R 7-30R

TIME DELAYFUSE OR HACR

CIRCUIT BREAKER (AMPS) 15 20 30

HEAT E R (K ILOWATTS) 2.3 3.4 5.0

HACR — Heating, Air Conditioning, and Refrigeration

NEMA — National Electrical Manufacturers Association

PERFORMANCE AND ELECTRICAL DATA

MODEL 52PC AND PE (230/208-1-60)

52PC performance and electrical data is the same as 52PE without electric heat.

LEGEND

EER — Energy Efficiency Ratio

*Rated in accordance with ARI Standard 310-93.

†Electric resistance heater power and fan motor power.

**Fan motor indoor CFM (LO/HI) shown for 230-1-60 units.

RECEPTACLES AND FUSE TYPES

LEGEND

*May be used for 15-amp applications if fused for 15 amps.

MODEL

NUMBER

52PE

CAPACITY* (Btuh) HEATER

kW EER

VOLTAGE

RANGE

(Volts)

AMPS WATTS

Cooling Heating Cooling Heating† Cooling Heating

007---3 7,200/ 7,100 — — 12.7/12.7

187-253

2.7/2.9 — 567/ 559 —

207---3 7,200/ 7,100 7,800/ 6,400 2.3 12.7/12.7 2.7/2.9 10.4/ 9.5 567/ 559 2393/1985

307---3 7,200/ 7,100 11,600/ 9,700 3.4 12.7/12.7 2.7/2.9 15.2/14.1 567/ 559 3493/2935

009---3 9,100/ 9,000 — — 11.7/11.9 3.0/3.1 — 778/ 756 —

209---3 9,100/ 9,000 7,800/ 6,400 2.3 11.7/11.9 3.0/3.1 10.4/ 9.5 778/ 756 2393/1985

309---3 9,100/ 9,000 11,600/ 9,700 3.4 11.7/11.9 3.0/3.1 15.2/14.1 778/ 756 3493/2935

012---3 12,100/12,000 — — 11.1/10.7 4.8/5.3 — 1090/1122 —

212---3 12,100/12,000 7,800/ 6,400 2.3 11.1/10.7 4.8/5.3 10.8/ 9.9 1090/1122 2470/2047

312---3 12,100/12,000 11,600/ 9,700 3.4 11.1/10.7 4.8/5.3 15.6/14.5 1090/1122 3570/2997

512---3 12,100/12,000 17,000/13,600 5.0 11.1/10.7 4.8/5.3 22.5/20.0 1090/1122 5170/4147

015---3 15,000/14,700 — — 9.8/ 9.8 6.4/7.1 — 1531/1500 —

215---3 15,000/14,700 7,800/ 6,400 2.3 9.8/ 9.8 6.4/7.1 10.8/ 9.8 1531/1500 2470/2047

315---3 15,000/14,700 11,600/ 9,700 3.4 9.8/ 9.8 6.4/7.1 15.6/14.5 1531/1500 3570/2997

515---3 15,000/14,700 17,000/13,600 5.0 9.8/ 9.8 6.4/7.1 22.5/20.0 1531/1500 5170/4147

MODEL

NUMBER

52PE

POWER

FACTOR

(%)

FAN MOTOR MAX.

FUSE

SIZE

(Amps)

MIN.

CIRCUIT

AMPS

RECEP-

TACLE

TYPE

R-22

CHARGE

(oz)

DEHUMIDIFI-

CATION

(Pints/Hr)

SENSIBLE

HEAT

FACTOR

APPROX.

SHIP WT.

(lb)

Horsepower

Full

Load

Amps

Indoor

CFM

LO/HI**

007---3

100 0.075 0.44 220/260

15 4.8 A

24 1.5 0.78 125207---3 15 13.0 A

307---3 20 19.0 B

009---3

99 0.075 0.44 220/260

15 5.4 A

23 2.4 0.73 125209---3 15 13.0 A

309---3 20 19.0 B

012---3

99 0.125 0.75 270/350

15 8.4 A

34 3.4 0.71 140

212---3 15 13.3 A

312---3 20 19.3 B

512---3 30 27.9 C

015---3

95 0.125 0.75 250/320

15 11.1 A

32 4.8 0.66 150

215---3 15 13.3 A

315---3 20 19.3 B

515---3 30 27.9 C

New York City Department of Buildings, Material and Equipment

Acceptance — MEA #242-04-E

UNIT NAMEPLATE VOLTAGE 230/208

OUTLET RATED VOLTS/AMPS 250/15 250/20 250/30

OUTLET BLADE CONFIGURATION

ABC

TIME DELAYFUSE OR HACR

CIRCUIT BREAKER (AMPS) 15 20* 30

HEAT E R (K ILOWATTS) 2.3 3.4 5.0

HACR — Heating, Air Conditioning, and Refrigeration

NEMA — National Electrical Manufacturers Association

PRODUCT DATA (52P) (cont)

PERFORMANCE AND ELECTRICAL DATA

MODEL 52PC AND PE (265-1-60)

52PC performance and electrical data is the same as 52PE without electric heat.

LEGEND

EER — Energy Efficiency Ratio

*Rated in accordance with ARI Standard 310-93.

†Electric resistance heater power and fan motor power.

**All 265-v units require an electrical subbase (receptacle or hard-

wire model).

RECEPTACLES AND FUSE TYPES

LEGEND

MODEL

NUMBER

52PE

CAPACITY* (Btuh) HEATER

kW EER

VOLTAGE

RANGE

(Volts)

AMPS WATTS

Cooling Heating Cooling Heating† Cooling Heating

007---47,200 — — 12.7

239-292

2.4 — 567 —

207---47,200 7,800 2.3 12.7 2.4 9.2 567 2396

307---47,200 11,600 3.4 12.7 2.4 13.3 567 3496

009---49,100 — — 11.7 3.0 — 778 —

209---49,100 7,800 2.3 11.7 3.0 9.2 778 2396

309---49,100 11,600 3.4 11.7 3.0 13.3 778 3496

012---412,100 — — 11.1 4.2 — 1090 —

212---412,100 7,800 2.3 11.1 4.2 9.4 1090 2470

312---412,100 11,600 3.4 11.1 4.2 13.5 1090 3570

512---412,100 17,000 5.0 11.1 4.2 19.6 1090 5170

015---415,100 — — 10.0 5.7 — 1510 —

215---415,100 7,800 2.3 10.0 5.7 9.4 1510 2470

315---415,100 11,600 3.4 10.0 5.7 13.5 1510 3570

515---415,100 17,000 5.0 10.0 5.7 19.6 1510 5170

MODEL

NUMBER

52PE

POWER

FACTOR

FAN MOTOR MAX. FUSE

SIZE

(Amps)

MIN.

CIRCUIT

AMPS

RECEP-

TACL E

TYPE**

R-22

CHARGE

(oz)

DEHUMIDI-

FICATION

(Pints/Hr)

SENSIBLE

HEAT

FACTOR

APPROX.

CHASSIS

SHIP WT.

(lb)

Horsepower

Full

Load

Amps

Indoor

CFM

LO/HI

007---4

97 0.075 0.46 220/260

15 3.7 A

26 1.5 0.78 125207---415 11.3 A

307---420 16.5 B

009---4

97 0.075 0.46 220/260

15 4.7 A

24 2.4 0.73 125209---415 11.3 A

309---420 16.5 B

012---4

99 0.125 0.71 270/340

15 6.7 A

34 3.4 0.71 140

212---415 11.6 A

312---420 16.7 B

512---425 24.3 C

015---4

100 0.125 0.71 250/320

15 8.7 A

32 5.0 0.66 150

215---415 11.6 A

315---420 16.7 B

515---425 24.3 C

New York City Department of Buildings, Material and Equipment

Acceptance — MEA #242-04-E

UNIT NAMEPLATE VOLTAGE 265

OUTLET RATED VOLTS/AMPS 277/15 277/20 277/30

OUTLET BLADE CONFIGURATION

ABC

NEMA CONFIGURATION 7-15R 7-20R 7-30R

TIME DELAYFUSE OR HACR

CIRCUIT BREAKER (AMPS) 15 20 30

HEAT E R (K ILOWATTS) 2.3 3.4 5.0

HACR — Heating, Air Conditioning, and Refrigeration

NEMA — National Electrical Manufacturers Association

PERFORMANCE AND ELECTRICAL DATA

MODEL 52CQ (230/208-1-60)

LEGEND

EER — Energy Efficiency Ratio

*Rated in accordance with ARI Standard 380-93.

†Coefficient of Performance (COP) at 47 F outdoor ambient

temperature.

**Electric resistance heater power and fan motor power.

††Fan motor indoor CFM (LO/HI) shown for 230-1-60 units.

RECEPTACLES AND FUSE TYPES

LEGEND

*May be used for 15-amp applications if fused for 15 amps.

MODEL

NUMBER

52CQ

CAPACITY* (Btuh) HEATER

kW EER COP†

VOLTAGE

RANGE

(Volts)

AMPS WATTS

Cooling Heating Cooling Heating** Cooling Heating

Rev.Cyc.Electric

207---3 7,000/ 6,900 6,100/ 6,000 7,800/ 6,400 2.3 11.1/11.1 3.1/3.1

187-253

3.0/3.2 10.4/ 9.5 631/ 622 2393/1985

307---3 7,000/ 6,900 6,100/ 6,000 11,600/ 9,700 3.4 11.1/11.1 3.1/3.1 3.0/3.2 15.2/14.1 631/ 622 3493/2935

209---3 9,000/ 8,900 7,900/ 7,800 7,800/ 6,400 2.3 10.7/10.7 3.1/3.1 4.3/4.7 10.4/ 9.5 841/ 832 2393/1985

309---3 9,000/ 8,900 7,900/ 7,800 11,600/ 9,700 3.4 10.7/10.7 3.1/3.1 4.3/4.7 15.2/14.1 841/ 832 3493/2935

212---3 12,000/11,900 10,800/10,700 7,800/ 6,400 2.3 10.1/10.1 3.0/3.0 5.1/5.5 10.8/ 9.9 1188/1178 2470/2047

312---3 12,000/11,900 10,800/10,700 11,600/ 9,700 3.4 10.1/10.1 3.0/3.0 5.1/5.5 15.6/14.5 1188/1178 3570/2997

512---3 12,000/11,900 10,800/10,700 17,000/13,600 5.0 10.1/10.1 3.0/3.0 5.1/5.5 22.5/20.0 1188/1178 5170/4147

215---3 14,600/14,300 14,100/13,500 7,800/ 6,400 2.3 9.5/ 9.5 3.0/3.0 6.5/7.1 10.8/ 9.9 1537/1505 2470/2047

315---3 14,600/14,300 14,100/13,500 11,600/ 9,700 3.4 9.5/ 9.5 3.0/3.0 6.5/7.1 15.6/14.5 1537/1505 3570/2997

515---3 14,600/14,300 14,100/13,500 17,000/13,600 5.0 9.5/ 9.5 3.0/3.0 6.5/7.1 22.5/20.0 1537/1505 5170/4147

MODEL

NUMBER

52CQ

POWER

FACTOR

(%)

FAN MOTOR MAXFUSE

SIZE

(Amps)

MIN.

CIRCUIT

AMPS

RECEP-

TACLE

TYPE

R-22

CHARGE

(oz)

DEHUMIDIFI-

CATION

(Pints/Hr)

SENSIBLE

HEAT

FACTOR

APPROX.

CHASSIS

SHIP WT.

(lb)

Horsepower

Full

Load

Amps

Indoor

CFM

LO/HI††

207---3 100 0.075 0.44 220/260 15 13.0 A 26 1.5 0.78 125

307---3 20 19.0 B

209---3 99 0.075 0.44 220/260 15 13.0 A 28 2.4 0.73 125

309---3 20 19.0 B

212---3

99 0.125 0.75 270/350

15 13.3 A

28 3.4 0.71 140312---3 20 19.3 B

512---3 30 27.9 C

215---3

99 0.125 0.75 250/320

15 13.3 A

32 4.6 0.67 150315---3 20 19.3 B

515---3 30 27.9 C

New York City Department of Buildings, Material and Equipment

Acceptance — MEA #242-04-E

UNIT NAMEPLATE VOLTAGE 230/208

OUTLET RATED VOLTS/AMPS 250/15 250/20 250/30

OUTLET BLADE CONFIGURATION

ABC

NEMA CONFIGURATION 6-15R 6-20R 6-30R

TIME DELAYFUSE OR HACR

CIRCUIT BREAKER (AMPS) 15 20* 30

HEAT E R (K ILOWATTS) 2.3 3.4 5.0

HACR — Heating, Air Conditioning, and Refrigeration

NEMA — National Electrical Manufacturers Association

PRODUCT DATA (52C)

PERFORMANCE AND ELECTRICAL DATA

MODEL 52CQ (265-1-60)

LEGEND

EER — Energy Efficiency Ratio

*Rated in accordance with ARI Standard 380-93.

†Coefficient of Performance (COP) at 47 F outdoor ambient

temperature.

**Electric resistance heater power and fan motor power.

††All 265-v units require an electrical subbase (receptacle or hard-

wire model).

RECEPTACLES AND FUSE TYPES

LEGEND

MODEL

NUMBER

52CQ

CAPACITY* (Btuh) HEATER

kW EER COP† VOLTAGE

RANGE

AMPS WATTS

Cooling Heating Cooling Heating** Cooling Heating

Rev.Cycle Electric

207---47,000 6,100 7,800 2.3 11.1 3.1

239-292

2.6 9.2 631 2396

307---47,000 6,100 11,600 3.4 11.1 3.1 2.6 13.3 631 3496

209---48,900 7,700 7,800 2.3 10.7 3.1 3.6 9.2 832 2396

309---48,900 7,700 11,600 3.4 10.7 3.1 3.6 13.3 832 3496

212---412,000 10,800 7,800 2.3 10.1 3.0 4.7 9.4 1188 2470

312---412,000 10,800 11,600 3.4 10.1 3.0 4.7 13.5 1188 3570

512---412,000 10,800 17,000 5.0 10.1 3.0 4.7 19.6 1188 5170

215---414,600 14,100 7,800 2.3 9.5 3.0 5.7 9.4 1537 2470

315---414,600 14,100 11,600 3.4 9.5 3.0 5.7 13.5 1537 3570

515---414,600 14,100 17,000 5.0 9.5 3.0 5.7 19.6 1537 5170

MODEL

NUMBER

52CQ

POWER

FACTOR

FAN MOTOR MAX. FUSE

SIZE

(Amps)

MIN.

CIRCUIT

AMPS

RECEP-

TACLE

TYPE††

R-22

CHARGE

(oz)

DEHUMIDI-

FICATION

(Pints/Hr)

SENSIBLE

HEAT

FACTOR

APPROX.

CHASSIS

SHIP WT.

(lb)

Horsepower

Full

Load

Amps

Indoor

CFM

LO/HI

207---497 0.075 0.46 220/260 15 11.3 A 26 1.5 0.78 125

307---420 16.5 B

209---497 0.075 0.46 220/260 15 11.3 A 28 2.4 0.73 125

309---420 16.5 B

212---4

99 0.125 0.71 270/340

15 11.6 A

29 3.4 0.71 140312---420 16.7 B

512---425 24.3 C

215---4

96 0.125 0.71 250/320

15 11.6 A

33 4.6 0.67 150315---420 16.7 B

515---425 24.3 C

New York City Department of Buildings, Material and Equipment

Acceptance — MEA #242-04-E

UNIT NAMEPLATE VOLTAGE 265

OUTLET RATED VOLTS/AMPS 277/15 277/20 277/30

OUTLET BLADE CONFIGURATION

ABC

NEMA CONFIGURATION 7-15R 7-20R 7-30R

TIME DELAYFUSE OR HACR

CIRCUIT BREAKER (AMPS) 15 20 30

HEAT E R (K ILOWATTS) 2.3 3.4 5.0

HACR — Heating, Air Conditioning, and Refrigeration

NEMA — National Electrical Manufacturers Association

PERFORMANCE AND ELECTRICAL DATA

MODEL 52CE (230/208-1-60)

LEGEND

EER — Energy Efficiency Ratio

*Rated in accordance with ARI Standard 310-93.

†Electric resistance heater power and fan motor power.

**Fan motor indoor CFM (LO/HI) shown for 230-1-60 units.

RECEPTACLES AND FUSE TYPES

LEGEND

*May be used for 15-amp applications if fused for 15 amps.

MODEL

NUMBER

52CE

CAPACITY* (Btuh) HEATER

kW EER

VOLTAGE

RANGE

(Volts)

AMPS WATTS

Cooling Heating Cooling Heating† Cooling Heating

207---3 7,000/ 6,900 7,800/ 6,400 2.3 11.1/11.1

187-253

3.0/3.2 10.4/ 9.5 631/ 622 2393/1985

307---3 7,000/ 6,900 11,600/ 9,700 3.4 11.1/11.1 3.0/3.2 15.2/14.1 631/ 622 3493/2935

209---3 9,000/ 8,900 7,800/ 6,400 2.3 10.7/10.7 4.0/4.3 10.4/ 9.5 841/ 832 2393/1985

309---3 9,000/ 8,900 11,600/ 9,700 3.4 10.7/10.7 4.0/4.3 15.2/14.1 841/ 832 3493/2935

212---3 12,000/11,900 7,800/ 6,400 2.3 10.1/10.1 5.4/5.8 10.8/ 9.9 1188/1178 2470/2047

312---3 12,000/11,900 11,600/ 9,700 3.4 10.1/10.1 5.4/5.8 15.6/14.5 1188/1178 3570/2997

512---3 12,000/11,900 17,000/13,600 5.0 10.1/10.1 5.4/5.8 22.5/20.0 1188/1178 5170/4147

215---3 14,600/14,300 7,800/ 6,400 2.3 9.5/ 9.5 6.4/7.1 10.8/ 9.9 1537/1505 2470/2047

315---3 14,600/14,300 11,600/ 9,700 3.4 9.5/ 9.5 6.4/7.1 15.6/14.5 1537/1505 3570/2997

515---3 14,600/14,300 17,000/13,600 5.0 9.5/ 9.5 6.4/7.1 22.5/20.0 1537/1505 5170/4147

MODEL

NUMBER

52CE

POWER

FACTOR

(%)

FAN MOTOR MAX.

FUSE

SIZE

(Amps)

MIN.

CIRCUIT

AMPS

RECEP-

TACLE

TYPE

R-22

CHARGE

(oz)

DEHUMIDIFI-

CATION

(Pints/Hr)

SENSIBLE

HEAT

FACTOR

APPROX.

SHIP WT.

(lb)

Horsepower

Full

Load

Amps

Indoor

CFM

LO/HI**

207---3 100 0.075 0.44 220/260 15 13.0 A 21 1.5 0.78 125

307---3 20 19.0 B

209---3 99 0.075 0.44 220/260 15 13.0 A 28 2.4 0.73 125

309---3 20 19.0 B

212---3

99 0.125 0.75 270/350

15 13.3 A

29 3.4 0.71 140312---3 20 19.3 B

512---3 30 27.9 C

215---3

95 0.125 0.75 250/320

15 13.3 A

32 4.8 0.66 150315---3 20 19.3 B

515---3 30 27.9 C

New York City Department of Buildings, Material and Equipment

Acceptance — MEA #242-04-E

UNIT NAMEPLATE VOLTAGE 230/208

OUTLET RATED VOLTS/AMPS 250/15 250/20 250/30

OUTLET BLADE CONFIGURATION

ABC

TIME DELAYFUSE OR HACR

CIRCUIT BREAKER (AMPS) 15 20* 30

HEAT E R (K ILOWATTS) 2.3 3.4 5.0

HACR — Heating, Air Conditioning, and Refrigeration

NEMA — National Electrical Manufacturers Association

PRODUCT DATA (52C) (cont)

PERFORMANCE AND ELECTRICAL DATA

MODEL 52CE (265-1-60)

LEGEND

EER — Energy Efficiency Ratio

*Rated in accordance with ARI Standard 310-93.

†Electric resistance heater power and fan motor power.

**All 265-v units require an electrical subbase (receptacle or hard-

wire model).

RECEPTACLES AND FUSE TYPES

LEGEND

MODEL

NUMBER

52CE

CAPACITY* (Btuh) HEATER

kW EER

VOLTAGE

RANGE

(Volts)

AMPS WATTS

Cooling Heating Cooling Heating† Cooling Heating

207---47,000 7,800 2.3 11.1

239-292

2.7 9.2 631 2396

307---47,000 11,600 3.4 11.1 2.7 13.3 631 3496

209---48,900 7,800 2.3 10.7 3.4 9.2 832 2396

309---48,900 11,600 3.4 10.7 3.4 13.3 832 3496

212---412,000 7,800 2.3 10.1 4.7 9.4 1188 2470

312---412,000 11,600 3.4 10.1 4.7 13.5 1188 3570

512---412,000 17,000 5.0 10.1 4.7 19.6 1188 5170

215---414,600 7,800 2.3 9.5 5.7 9.4 1537 2470

315---414,600 11,600 3.4 9.5 5.7 13.5 1537 3570

515---414,600 17,000 5.0 9.5 5.7 19.6 1537 5170

MODEL

NUMBER

52CE

POWER

FACTOR

FAN MOTOR MAX. FUSE

SIZE

(Amps)

MIN.

CIRCUIT

AMPS

RECEP-

TACL E

TYPE**

R-22

CHARGE

(oz)

DEHUMIDI-

FICATION

(Pints/Hr)

SENSIBLE

HEAT

FACTOR

APPROX.

CHASSIS

SHIP WT

(lb)

Horsepower

Full

Load

Amps

Indoor

CFM

LO/HI

207---497 0.075 0.46 220/260 15 11.3 A 22 1.5 0.78 125

307---420 16.5 B

209---497 0.075 0.46 220/260 15 11.3 A 29 2.4 0.73 125

309---420 16.5 B

212---4

99 0.125 0.71 270/340

15 11.6 A

28 3.4 0.71 140312---420 16.7 B

512---425 24.3 C

215---4

100 0.125 0.71 250/320

15 11.6 A

32 5.0 0.66 150315---420 16.7 B

515---425 24.3 C

New York City Department of Buildings, Material and Equipment

Acceptance — MEA #242-04-E

UNIT NAMEPLATE VOLTAGE 265

OUTLET RATED VOLTS/AMPS 277/15 277/20 277/30

OUTLET BLADE CONFIGURATION

ABC

NEMA CONFIGURATION 7-15R 7-20R 7-30R

TIME DELAYFUSE OR HACR

CIRCUIT BREAKER (AMPS) 15 20 30

HEAT E R (K ILOWATTS) 2.3 3.4 5.0

HACR — Heating, Air Conditioning, and Refrigeration

NEMA — National Electrical Manufacturers Association

COOLING PERFORMANCE

ALL 7000 NOMINAL BTUH MODELS

Evaporator entering air temp. — 80 F Evap. air — 260 CFM

LEGEND

NOTES:

1. Total current (I) based on 230-volt system.

2. Evaporator entering dry bulb air temperature is 80 F.

ALL 9000 NOMINAL BTUH MODELS

Evaporator entering air temp. — 80 F Evap. air — 260 CFM

LEGEND

NOTES:

1. Total current (I) based on 230-volt system.

2. Evaporator entering dry bulb air temperature is 80 F.

52CQ12,000 NOMINAL BTUH MODELS

Evaporator entering air temp. — 80 F Evap. air — 350 CFM

LEGEND

NOTES:

1. Total current (I) based on 230-volt system.

2. Evaporator entering dry bulb air temperature is 80 F.

52PC,PE,CE 12,000 NOMINAL BTUH MODELS

Evaporator entering air temp. — 80 F Evap. air — 350 CFM

LEGEND

NOTES:

1. Total current (I) based on 230-volt system.

2. Evaporator entering dry bulb air temperature is 80 F.

TEMP (F) AIR ENT.

COND (40%RH)

EVAP AIR — EWB (F)

57.00 62.00 67.00 72.00

MBtuh 7.05 7.23 8.04 8.85

kW 0.54 0.54 0.55 0.55

I2.35 2.36 2.37 2.39

MBtuh 6.93 7.08 7.90 8.71

kW 0.56 0.57 0.57 0.57

I2.45 2.46 2.48 2.49

MBtuh 6.85 6.95 7.72 8.54

kW 0.59 0.59 0.59 0.60

I2.56 2.56 2.58 2.59

MBtuh 6.76 6.81 7.54 8.35

kW 0.61 0.61 0.62 0.62

I2.67 2.67 2.68 2.89

100

MBtuh 6.70 6.70 7.36 8.17

kW 0.64 0.64 0.64 0.64

I2.79 2.79 2.79 2.80

105

MBtuh 6.57 6.59 7.17 7.98

kW 0.67 0.67 0.67 0.67

I2.91 2.91 2.91 2.92

110

MBtuh 6.42 6.41 6.97 7.79

kW 0.70 0.70 0.70 0.70

I3.03 3.04 3.03 3.03

115

MBtuh 6.28 6.27 6.76 7.59

kW 0.73 0.73 0.72 0.73

I3.17 3.17 3.17 3.16

EWB — Entering Wet Bulb

I—Compressor Current Amps

kW — To t al Po w er

MBtuh — Total Cooling Capacity (Btuh in thousands)

RH — Relative Humidity

TEMP (F) AIR ENT.

COND (40%RH)

EVAP AIR — EWB (F)

57.00 62.00 67.00 72.00

MBtuh 8.58 8.91 9.71 10.46

kW 0.71 0.72 0.71 0.71

I3.14 3.14 3.13 3.12

MBtuh 8.44 8.72 9.56 10.48

kW 0.75 0.75 0.74 0.74

I3.28 3.28 3.27 3.27

MBtuh 8.29 8.52 9.47 10.39

kW 0.78 0.78 0.78 0.78

I3.44 3.44 3.42 3.41

MBtuh 8.12 8.30 9.29 10.26

kW 0.82 0.82 0.81 0.81

I3.59 3.60 3.58 3.56

100

MBtuh 7.94 8.07 9.06 10.07

kW 0.85 0.85 0.85 0.85

I3.74 3.74 3.74 3.72

105

MBtuh 7.75 7.84 8.83 9.80

kW 0.89 0.89 0.89 0.88

I3.89 3.90 3.92 3.89

110

MBtuh 7.57 7.60 8.59 9.67

kW 0.92 0.93 0.93 0.92

I4.06 4.07 4.10 4.06

115

MBtuh 7.38 7.38 8.32 9.41

kW 0.96 0.97 0.97 0.97

I4.24 4.24 4.27 4.24

EWB — Entering Wet Bulb

I—Compressor Current Amps

kW — Total Power

MBtuh — Total Cooling Capacity (Btuh in thousands)

RH — Relative Humidity

TEMP (F) AIR ENT.

COND (40%RH)

EVAP AIR — EWB (F)

57.00 62.00 67.00 72.00

MBtuh 12.44 12.74 13.61 13.84

kW 1.06 1.06 1.05 1.02

I4.65 4.65 4.59 4.48

MBtuh 12.29 12.51 13.52 13.90

kW 1.10 1.10 1.09 1.07

I4.85 4.84 4.80 4.69

MBtuh 12.10 12.29 13.20 13.84

kW 1.15 1.15 1.13 1.11

I5.05 5.05 4.98 4.91

MBtuh 11.89 12.01 12.97 13.70

kW 1.20 1.20 1.18 1.17

I5.26 5.26 5.18 5.12

100

MBtuh 11.66 11.73 12.72 13.34

kW 1.25 1.25 1.23 1.21

I5.48 5.48 5.40 5.31

105

MBtuh 11.43 11.48 12.40 13.12

kW 1.30 1.30 1.28 1.26

I5.70 5.70 5.62 5.52

110

MBtuh 11.19 11.23 12.20 12.98

kW 1.35 1.35 1.33 1.31

I5.94 5.94 5.86 5.76

115

MBtuh 10.94 10.98 11.91 12.73

kW 1.41 1.41 1.39 1.37

I6.18 6.18 6.10 6.00

EWB — Entering Wet Bulb

I—Compressor Current Amps

kW — To t al Po w er

MBtuh — Total Cooling Capacity (Btuh in thousands)

RH — Relative Humidity

TEMP (F) AIR ENT.

COND (40%RH)

EVAP AIR — EWB (F)

57.00 62.00 67.00 72.00

MBtuh 12.17 12.50 12.83 13.23

kW 1.07 1.07 1.05 1.03

I4.73 4.74 4.65 4.57

MBtuh 11.95 12.35 12.72 13.19

kW 1.11 1.11 1.10 1.08

I4.93 4.95 4.86 4.79

MBtuh 11.74 12.10 12.62 13.06

kW 1.16 1.16 1.15 1.13

I5.14 5.16 5.08 5.00

MBtuh 11.54 11.90 12.50 12.95

kW 1.21 1.21 1.20 1.17

I5.36 5.38 5.31 5.21

100

MBtuh 11.37 11.68 12.35 12.80

kW 1.26 1.26 1.25 1.23

I5.58 5.60 5.54 5.45

105

MBtuh 11.19 11.47 12.17 12.63

kW 1.31 1.31 1.30 1.28

I5.81 5.83 5.78 5.68

110

MBtuh 11.04 11.28 11.93 12.44

kW 1.37 1.37 1.35 1.33

I6.06 6.07 6.01 5.92

115

MBtuh 10.86 11.02 11.59 12.19

kW 1.42 1.42 1.41 1.39

I6.31 6.31 6.25 6.17

EWB — Entering Wet Bulb

I—Compressor Current Amps

kW — Total Power

MBtuh — Total Cooling Capacity (Btuh in thousands)

RH — Relative Humidity

EXPANDED RATINGS DATA (52P AND 52C)

COOLING PERFORMANCE (cont)

52PQ12,000 NOMINAL BTUH MODELS

Evaporator entering air temp. — 80 F Evap. air — 350 CFM

LEGEND

NOTES:

1. Total current (I) based on 230-volt system.

2. Evaporator entering dry bulb air temperature is 80 F.

ALL 15,000 NOMINAL BTUH MODELS

Evaporator entering air temp. — 80 F Evap. air — 320 CFM

LEGEND

NOTES:

1. Total current (I) based on 230-volt system.

2. Evaporator entering dry bulb air temperature is 80 F.

COOLING SENSIBLE HEAT FACTORS (SHF) AT 80 F INDOOR DB

LEGEND

TEMP (F) AIR ENT.

COND (40%RH)

EVAP AIR — EWB (F)

57.00 62.00 67.00 72.00

MBtuh 11.79 11.95 12.65 13.17

kW 0.97 0.97 0.95 0.93

I4.29 4.27 4.17 4.08

MBtuh 11.60 11.74 12.48 12.97

kW 1.02 1.02 1.00 0.97

I4.49 4.48 4.38 4.27

MBtuh 11.39 11.49 12.28 12.79

kW 1.07 1.07 1.04 1.02

I4.69 4.68 4.59 4.48

MBtuh 11.17 11.24 12.05 12.58

kW 1.12 1.12 1.09 1.07

I4.90 4.90 4.80 4.69

100

MBtuh 11.66 10.97 11.78 12.33

kW 1.17 1.17 1.14 1.12

I5.12 5.12 5.02 4.91

105

MBtuh 12.16 10.70 11.50 12.04

kW 1.22 1.22 1.20 1.17

I5.34 5.34 5.25 5.13

110

MBtuh 12.69 10.45 11.17 11.75

kW 1.27 1.27 1.25 1.22

I5.57 5.57 5.48 5.36

115

MBtuh 13.23 10.19 10.83 11.39

kW 1.32 1.32 1.30 1.27

I5.81 5.81 5.72 5.59

EWB — Entering Wet Bulb

I—Compressor Current Amps

kW — To t a l P ow e r

MBtuh — Total Cooling Capacity (Btuh in thousands)

RH — Relative Humidity

TEMP (F) AIR ENT.

COND (40%RH)

EVAP AIR — EWB (F)

57.00 62.00 67.00 72.00

MBtuh — 14.77 15.82 16.74

kW — 1.39 1.36 1.33

I— 6.09 6.00 5.85

MBtuh — 14.55 15.63 16.59

kW — 1.45 1.43 1.40

I— 6.38 6.27 6.14

MBtuh — 14.20 15.39 16.39

kW — 1.53 1.49 1.46

I— 6.72 6.56 6.43

MBtuh 12.98 13.85 15.08 16.15

kW 1.67 1.61 1.56 1.53

I7.32 7.05 6.85 6.73

100

MBtuh 12.78 13.51 14.79 15.85

kW 1.74 1.68 1.63 1.60

I7.63 7.37 7.16 7.03

105

MBtuh 12.51 13.03 14.39 15.48

kW 1.81 1.75 1.70 1.67

I7.95 7.68 7.48 7.35

110

MBtuh 12.24 12.54 13.91 15.04

kW 1.88 1.82 1.78 1.75

I8.27 8.00 7.80 7.67

115

MBtuh 11.95 12.05 13.54 14.53

kW 1.96 1.89 1.85 1.82

I8.62 8.32 8.14 8.00

EWB — Entering Wet Bulb

I—Compressor Current Amps

kW — Tot al Po we r

MBtuh — Total Cooling Capacity (Btuh in thousands)

RH — Relative Humidity

MODEL

52PC,PE,PQ,CE,CQ

INDOOR WB

(F)

OUTDOOR AMBIENT DB TEMPERATURE (F)

80859095 100 105 110 115

All 7,000

Nominal Btuh

Models

57 0.91 0.91 0.91 0.91 0.91 0.90 0.90 0.90

62 0.89 0.90 0.91 0.91 0.92 0.92 0.91 0.91

67 0.71 0.72 0.72 0.74 0.74 0.75 0.76 0.77

72 0.53 0.53 0.54 0.54 0.54 0.55 0.55 0.56

All 9,000

Nominal Btuh

Models

57 0.93 0.93 0.93 0.93 0.92 0.92 0.92 0.92

62 0.86 0.87 0.88 0.89 0.90 0.91 0.92 0.92

67 0.67 0.67 0.68 0.70 0.70 0.70 0.71 0.72

72 0.51 0.51 0.51 0.51 0.52 0.52 0.52 0.53

52CQ12,000

Nominal Btuh

Models

57 0.94 0.94 0.94 0.94 0.94 0.94 0.94 0.94

52 0.88 0.89 0.91 0.92 0.93 0.93 0.93 0.93

67 0.69 0.69 0.70 0.70 0.71 0.72 0.73 0.74

72 0.50 0.51 0.52 0.52 0.53 0.53 0.54 0.54

52CE,PC,PE 12,000

Nominal Btuh

Models

57 0.92 0.91 0.90 0.90 0.90 0.90 0.90 0.90

62 0.89 0.89 0.90 0.90 0.91 0.92 0.92 0.92

67 0.68 0.69 0.70 0.72 0.72 0.73 0.74 0.75

72 0.51 0.51 0.51 0.51 0.52 0.53 0.53 0.54

52PQ12,000

Nominal Btuh

Models

57 0.93 0.93 0.93 0.93 0.93 0.93 0.93 0.93

62 0.89 0.90 0.91 0.92 0.93 0.93 0.93 0.93

67 0.69 0.70 0.71 0.71 0.72 0.73 0.74 0.75

72 0.51 0.51 0.52 0.52 0.53 0.53 0.53 0.54

All 15,000

Nominal Btuh

Models

57 — — — 0.91 0.91 0.91 0.91 0.90

62 0.86 0.86 0.86 0.87 0.88 0.89 0.90 0.91

67 0.67 0.67 0.68 0.68 0.69 0.70 0.71 0.71

72 0.50 0.50 0.51 0.51 0.51 0.52 0.52 0.53

DB — Dry Bulb

WB — Wet Bulb

INDOOR SOUND DATA

(52P AND 52C)

The tables below indicate the approximate indoor and

outdoor sound levels. Tests were conducted in the

Carrier Sound Testing Laboratory according to

ARI (Air Conditioning and Refrigeration Institute)

Noise Rating Standard 300 for non-ducted indoor air-

conditioning equipment.

INDOOR SOUND ESTIMATING TABLE

OUTDOOR SOUND ESTIMATING TABLE

SOUND TRANSMISSION CLASS (STC) = 25

OPERATING

MODE VOLTS

INDOOR SOUND ESTIMATING TABLE (dBA) INDOOR SOUND ESTIMATING TABLE (BELS)

Nominal Sizes (Btuh) Nominal Sizes (Btuh)

52PQand 52CQ52PC, PE and 52CE 52PQand 52CQ52PC, PE and 52CE

7000 9000 12000 15000 7000 9000 12000 15000 7000 9000 12000 15000 7000 9000 12000 15000

LOW

COOL

208 52.6 51.2 55.2 59.3 51.4 54.4 55.4 59.3 5.3 5.1 5.5 5.9 5.1 5.4 5.5 5.9

230 54.5 54.2 57.6 59.3 54.4 56.5 57.4 59.3 5.5 5.4 5.8 5.9 5.4 5.7 5.7 5.9

265 54.5 53.9 57.6 59.3 54.4 55.4 57.4 59.3 5.5 5.4 5.8 5.9 5.4 5.5 5.7 5.9

HIGH

COOL

208 57.1 57.1 61.4 63.7 56.9 58.9 61.8 63.7 5.7 5.7 6.1 6.4 5.7 5.9 6.2 6.4

230 57.9 57.8 63.0 63.7 57.9 58.8 63.0 63.7 5.8 5.8 6.3 6.4 5.8 5.9 6.3 6.4

265 57.9 58.9 63.0 63.7 57.9 58.3 63.0 63.7 5.8 5.9 6.3 6.4 5.8 5.8 6.3 6.4

FAN

208 56.3 57.1 61.1 63.7 56.3 57.1 61.1 63.7 5.6 5.7 6.1 6.4 5.6 5.7 6.1 6.4

230 57.2 57.7 62.4 63.7 57.2 57.7 62.4 63.7 5.7 5.8 6.2 6.4 5.7 5.8 6.2 6.4

265 57.2 57.1 62.4 63.7 57.2 57.1 62.4 63.7 5.7 5.7 6.2 6.4 5.7 5.7 6.2 6.4

LOW

HEAT

208 50.7 53.7 55.4 59.5 50.8 50.8 54.5 58.8 5.1 5.4 5.5 6.0 5.1 5.1 5.5 5.9

230 53.9 53.8 59.5 59.5 54.1 54.1 57.7 58.8 5.4 5.4 6.0 6.0 5.4 5.4 5.8 5.9

265 53.9 53.8 59.5 59.5 54.1 53.6 57.7 58.8 5.4 5.4 6.0 6.0 5.4 5.4 5.8 5.9

HIGH

HEAT

208 56.5 56.2 61.9 65.0 56.3 57.1 61.1 63.7 5.7 5.6 6.2 6.5 5.6 5.7 6.1 6.4

230 57.2 57.8 63.0 65.0 57.2 57.7 62.4 63.7 5.7 5.8 6.3 6.5 5.7 5.8 6.2 6.4

265 57.2 57.8 63.0 65.0 57.2 57.1 62.4 63.7 5.7 5.8 6.3 6.5 5.7 5.7 6.2 6.4

OPERATING

MODE VOLTS

OUTDOOR SOUND ESTIMATING TABLE (dBA) OUTDOOR SOUND ESTIMATING TABLE (BELS)

Nominal Sizes (Btuh) Nominal Sizes (Btuh)

52PQand 52CQ52PC, PE and 52CE 52PQand 52CQ52PC, PE and 52CE

7000 9000 12000 15000 7000 9000 12000 15000 7000 9000 12000 15000 7000 9000 12000 15000

LOW

COOL

208 53.9 52.6 54.9 61.1 51.0 53.1 55.5 61.1 5.4 5.3 5.5 6.1 5.1 5.3 5.6 6.1

230 55.3 55.0 57.7 61.1 54.2 56.3 57.7 61.1 5.5 5.5 5.8 6.1 5.4 5.6 5.8 6.1

265 55.3 55.0 57.7 61.1 54.2 55.2 57.7 61.1 5.5 5.5 5.8 6.1 5.4 5.5 5.8 6.1

HIGH

COOL

208 56.7 57.7 60.1 64.4 56.2 57.6 60.2 64.4 5.7 5.8 6.0 6.4 5.6 5.8 6.0 6.4

230 58.9 58.9 62.2 64.4 57.2 58.7 62.6 64.4 5.9 5.9 6.2 6.4 5.7 5.9 6.3 6.4

265 58.9 58.1 62.2 64.4 57.2 58.8 62.6 64.4 5.9 5.8 6.2 6.4 5.7 5.9 6.3 6.4

FAN

208 55.5 57.7 61.3 64.0 55.5 57.7 61.3 64.0 5.6 5.8 6.1 6.4 5.6 5.8 6.1 6.4

230 56.4 58.7 63.0 64.0 56.4 58.7 63.0 64.0 5.6 5.9 6.3 6.4 5.6 5.9 6.3 6.4

265 56.4 58.7 63.0 64.0 56.4 58.8 63.0 64.0 5.6 5.9 6.3 6.4 5.6 5.9 6.3 6.4

LOW

HEAT

208 54.7 54.3 57.8 63.9 51.2 51.2 55.0 58.7 5.5 5.4 5.8 6.4 5.1 5.1 5.5 5.9

230 57.6 57.3 59.7 63.9 54.8 54.8 57.9 58.7 5.8 5.7 6.0 6.4 5.5 5.5 5.8 5.9

265 57.6 56.6 59.7 63.9 54.8 54.9 57.9 58.7 5.8 5.7 6.0 6.4 5.5 5.5 5.8 5.9

HIGH

HEAT

208 58.2 59.6 62.2 66.5 55.5 57.9 61.3 64.0 5.8 6.0 6.2 6.7 5.6 5.8 6.1 6.4

230 59.9 60.4 63.8 66.5 56.4 58.7 63.0 64.0 6.0 6.0 6.4 6.7 5.6 5.9 6.3 6.4

265 59.9 57.8 63.8 66.5 56.4 58.8 63.0 64.0 6.0 5.8 6.4 6.7 5.6 5.9 6.3 6.4

SOUND DATA (52P AND 52C)

WIRING DIAGRAMS (52P AND 52C)

52PQand 52CQ— Typical Wiring Schematic for Standard Heat Pump Units

COMPONENT LEGEND

Component Connection (Marked)

Component Connection (Unmarked)

Accessory or Optional Wiring

To Indicate Common Potential Only

Not To Represent Wire

CAP — Capacitor

COMP — Compressor

FM — Fan Motor

FCS — Fan Cycle Switch

HTR — Heater

IT — Indoor Thermostat

OFT — Outdoor Frost Thermostat

OL — Overload

PLS — Primary Limit Switch

RVS — Reversing Valve Solenoid

SLS — Secondary Limit Switch

ST — Start Thermistor

SW — Switch

NOTES:

1. Recommended for use on grounded power sup-

ply only.

2. Compressor and fan motor thermally protected.

3. Use copper conductors only.

4. All wiring must conform with N.E.C. and local

codes.

5. Dashed lines indicate components when used.

6. OFT determines whether to bring on compres-

sor heat or electric heat.

WIRING DIAGRAMS (52P AND 52C) (cont)

TYPICAL THERMOSTAT INTERFACE

1. If ‘W’ is ON, then ‘FR’ is forced ON (regardless of ‘G’) & ‘CR’ is forced OFF.

2. If ‘Y’ is ON, then ‘FR’ is forced ON (regardless of ‘G’).

3. If IFT (indoor coil) is < 20° F, then ‘CR’ is forced OFF until IFT is > 50° F.

T’STAT OUTPUT: RC CONTROLER OUTPUT: UNIT OPERATION:

‘G’ — 24 VAC

‘G’ — 0 VAC

‘FR’ — LINE VAC

‘FR’ — 0 VAC FAN

‘Y’ — 24 VAC

‘O’ — 0 VAC

‘HR1 & HR2’ — LINE VAC

‘RVR’ — LINE VAC HEATING

‘W’ — 24 VAC ‘HR1 & HR2’ — LINE VAC HEATING

‘Y’ — 24 VAC

‘O’ — 24 VAC

‘CR’ — LINE VAC

‘RVR’ — 0 VAC COOLING

‘R’ — 24 VAC

‘C’ — COMMON

‘R’ — 24 VAC OUTPUT

‘C’ — COMMON

POWER TO WALL

THERMOSTAT

COMPONENT LEGEND

Component Connection (Marked) FM — Fan Motor ST — Start Thermistor

Component Connection (Unmarked) HTR — Heater TRANS — Transformer

Terminal Board Connection IFT — Indoor Frost Thermostat PCBD — Printed Circuit Board

Field Splice OFT — Outdoor Frost Thermostat — HR1 — Heater Relay

Field Control Wiring OL — Overload — HR2 — Heater Relay

Accessory or Optional Wiring PLS — Primary Limit Switch —CR — Compressor Relay

To Indicate Common Potential Only Not To Represent Wire RVS — Reversing Valve Solenoid —FR — Fan Relay

CAP — Capacitor SLS — Secondary Limit Switch —RVR — Reversing Valve Relay

COMP — Compressor SSS — Speed Selector Switch

NOTES:

1. Recommended for use on

grounded power supply only.

2. Compressor and fan motor

thermally protected.

3. Use copper conductors only.

4. All wiring must conform with

N.E.C. and local codes.

5. Dashed lines indicate compo-

nents when used.

6. Field control wire suitable for

N.E.C. class 2 control circuit,

at 24 volts.

7. OFT determines whether to

bring on compressor heat or

electric heat.

52PQand 52CQ— Typical Wiring Schematic for Wall Thermostat Control Heat Pump Units

52PE and 52CE — Typical Wiring Schematic for Standard Heat/Cool Units

WIRING DIAGRAMS (52P AND 52C) (cont)

52PE and 52CE — Typical Wiring Schematic for Wall Thermostat Control Heat/Cool Units

FRONT DESK SWITCH PANEL

24-V

TRANSFORMER

(SEE NOTE 1)

PTAC #1 PTAC #2 PTAC #N

ROOM 100 ROOM 101 ROOM N

BWBWBW

FIELD-SUPPLIED

LEGEND

NOTES:

1. To size transformer, use the following equation:

Quantity of PTAC units x 12 va = Transformer Size (va)

Example: 110 PTAC Units x 12 va = 1320 va Transformer

2. Following are recommended wire sizes:

AWG WIRE SIZE NO. MAXIMUM LENGTH (ft)

24 400

22 600

20 900

18 1500

16 2000

Typical Wiring Schematic for Energy Management Kit

AWG — American Wire Gage

B—Black

PTAC — Packaged Terminal Air Conditioner

W—White

WIRING DIAGRAMS (52P AND 52C) (cont)

T’STAT

MASTER

PTAC

UNIT 1

UNIT 2

UNIT 3

Typical Wiring for Multiple PTAC Units Connected to a Single Wall Thermostat

NOTES:

1. Do not daisy chain R (24 VAC).

2. Maximum of 4 PTAC units can be connected to one single wall

thermostat.

3. Wall thermostat wire is field-supplied and should be 18 to

20 gage solid thermostat wire.

All units must be connected to same ground source.

To accomplish this, be sure to connect all units to

the same breaker box. Failure to do so may cause

damage to the unit.

PACKAGED TERMINAL

COOLING UNIT WITH

HEAT PUMP OR ELECTRIC

HEATING

HVAC Guide Specifications

Size Range: Cooling: 6,900 to 15,100 Btuh

Heating: 6,000 to 14,100 Btuh Heat Pump

6,400 to 17,000 Btuh Electric

Carrier Model Numbers:

52PC Premier Series, Cooling Only

52PE Premier Series, Cooling with Electric

Heat

52PQ Premier Series, Heat Pump with

Electric Heat

52CE Comfort Series, Cooling with Electric

Heat

52CQ Comfort Series, Heat Pump with

Electric Heat

Part 1 — General

1.01 SYSTEM DESCRIPTION

Single piece, thru-the-wall electrically controlled unit

using hermetic rotary compressor for cooling and heat

pump or electric resistance heat, as shown on the con-

tract drawings.

A. Insulated Polymer Wall Sleeve:

Wall sleeve shall provide excellent thermal insula-

tion, be textured to hide scratches and prevent

shine, will have superior outdoor noise absorption

and shall be corrosion free for the life of the prod-

uct. The Wall Sleeve must have dimensions of

42 in. width x 16 in. height x 147/8in. depth and be

shipped with a rear weather barrier installed.

B. Wall Sleeve Molding:

Molding shall trim the wall sleeve to the existing

wall, to hide wall imperfections and irregularities in

the wall opening.

C. Outdoor Polymer Louvered Grille:

Outdoor grille shall resist corrosion, breakage and

match the color specified on drawing schedule and

specifications.

D. Subbase:

Subbase will support the wall sleeve when it

extends into the room more than 4 inches. Subbase

must come from the factory pre-assembled, with a

built in receptacle (size as specified on drawing

schedule and specifications) or with factory-

installed hardwire, pre-sized for an exact fit to the

unit.

1.02 QUALITY ASSURANCE

System shall be approved and certified by UL and

UL, Canada. Chassis capacity and efficiency perfor-

mance shall be certified in accordance with ARI

standard 310/380. Chassis shall meet ASHRAE

Standard 90.1 for minimum energy efficiency.

Chassis shall meet the New York City Department of

Building, Material and Equipment acceptance require-

ment (MEA).

1.03 DELIVERY, STORAGE, AND HANDLING

A. The packaging of the chassis shall be sufficient to

protect the chassis from damage during shipment

via an enclosed truck. Chassis must also be able to

withstand an impact force of 10 g’s and a random

continuous force of 1g, during shipping.

B. Chassis, wall sleeves, and grilles shall be shipped in

separate cartons. Universal handling instructions

shall be defined and visible on the carton, from

front, back and sides.

C. Chassis shall be capable of withstanding tempera-

tures from –40 F to 155 F, at 5 to 95 percent RH,

non-condensing, during shipment and storage,

without component failure.

D. Unit shall be stored and handled per manufacturer’s

recommendations.

Part 2 — Products

2.01 EQUIPMENT

A. General:

Factory-assembled, single-piece heating and/or

cooling unit. Contained within the unit enclosure

shall be compressor, coils, fans and fan motor, heat-

ing means, controls, all wiring and piping, and a

full refrigerant charge (R-22).

Packaged Terminal Air Conditioners shall be of the

sizes and capacities as shown on the contract draw-

ing schedule and in the specifications.

B. Chassis:

The chassis shall be a factory-assembled, single-

piece heating and/or cooling unit, that is simple to

install and operate. Just slide the chassis into a wall

sleeve, plug it into an outlet, and operate after

installation. The chassis dimensions shall not

exceed 42 in. wide and 16 in. high with room cabi-

net in place. The chassis shall consist of the follow-

ing functional sections and components:

1. Operating Characteristics:

Chassis shall be capable of starting and run-

ning at 115 F ambient outdoor temperature per

maximum load criteria of ARI Standard 310/

380.

2. Electrical:

Chassis shall be equipped with a 58 in. power

cord for 208/230 v models or a 15 in. power

cord for 265 v models. The chassis current

draw shall be specified on the chassis name-

plate and match electrical requirements speci-

fied on the Contract drawing schedule and

specifications. The power cord plug configura-

tion shall conform to NEMA standards and the

rating shall support the current draw of the

electric resistance heater.

For 265 v installations, UL codes require the

use of an electrical equipped subbase for

power cord usage or hardwire conduit for non-

corded installations.

C. Airflow System:

The airflow system shall consist of one permanent

split-capacitor, direct-drive permanently lubri-

cated, two-speed fan motor for the indoor and out-

door fans. The outdoor fan shall be a dynamically

balanced, corrosion-resistant polymer multi-blade

GUIDE SPECIFICATIONS

axial flow design, with integrated slinger ring. The

indoor fan shall be a dynamically balanced, poly-

mer, reverse curve blower wheel, to assure uniform

air distribution. The Fan Motor shall be of an

enclosed design to reduce the effects of moisture

and corrosion.

D. Compressor and Refrigerant:

The rotary-type Compressor shall be fully hermetic

with internal and external vibration isolation. The

refrigeration system will be sealed and contain a

full refrigerant charge (R-22).

E. Coils:

Condenser and evaporator coils to be constructed of

high-efficiency, 11 element lance sine wave

enhanced aluminum fins and 3/8-in. seamless axial

grooved copper tubing, necessary to achieve

EER and COP rating, as specified on the chassis

nameplate.

F. Factory-Installed Electric Heater:

The factory-installed, open coil type, electric heater

is standard in heat/cool and heat pump chassis. The

electric heater shall contain both an automatic reset

and a one-shot overtemperature protection device.

The heating capacity of the electric heater shall be

as identified on the Contract drawing schedule and

in the specifications.

G. Controls:

All standard models shall be equipped with electro-

mechanical controls to simplify the serviceability of

the unit.

1. The chassis shall have standard controls,

accessible and covered by a hinged door. The

mode selection control shall consist of a

mechanical rotary selector switch, which pro-

vides OFF, FAN ONLY, HEAT or COOL oper-

ations. The temperature selection control shall

be an adjustable thermostat with upper and

lower limits.

2. All standard models shall have a continuous/

fan cycle selector switch located behind the

front panel. It shall allow the selection of con-

tinuous fan operation for maximum comfort or

cycleoperation(fanonlyrunswithcooling

or heating operation) for maximum energy

savings.

3. All standard models shall have a Temperature

Limiter control located behind the front panel.

The temperature limiter allows a room temper-

ature range to be set, to avoid extreme temper-

ature settings, to maximize energy savings.

4. Emergency Heat Switch (Heat Pump Models

Only) shall disable the compressor in heating

mode and only allow the use of electric

heat during heating cycles. The Emergency

Heat switch is active at all outdoor ambient

temperatures.

5. Wall thermostat chassis (RC and RP models)

shall come from the factory ready for wall

thermostat installation, including a blank out

plate in place of the control knobs. No field-

installed kits or wire harnesses shall be

required.

6. Wall thermostat chassis (RC and RP models)

shall have a user selectable fan speed control

switch, on the control panel, to optimize fan

speed for maximum comfort.

H. Safeties:

Compressor shall have automatic reset, overtem-

perature and overcurrent protection. The fan motor

shall have an inherent, automatic reset overtemper-

ature protection. The electric heater shall have two

overtemperature protectors.

I. Front Panel (supplied with chassis):

Front panel shall be constructed of a polymer mate-

rial to resist breakage and corrosion. It shall have a

front louvered surface with integrated control

door and air filters. The air filters shall be easily

accessible without removing the front panel from

the chassis.

J. Anti-Theft Control Knobs:

All chassis knobs shall resist breakage and corro-

sion. They shall be mounted on to the control box

section and captured behind the front panel, to pre-

vent unauthorized removal.

K. Bi-Directional Discharge Grille:

Bi-directional polymer discharge grille shall resist

corrosion and breakage. It shall be easily set to

direct air at 40 degrees from horizontal or

80 degrees from horizontal. This non-metallic dis-

charge grille shall be cool to the touch during the

heating cycle.

L. Ventilation:

The chassis shall have a manual adjustable fresh air

vent with a concealed manual control. The vent

control shall allow a maximum of 50 cfm of fresh

air to be drawn into the room when the indoor fan is

operating and the door is open. The ventilation air

can be increased to approximately 95 cfm by add-

ing the Booster Ventilation accessory kit (see

section Q.13)

M. High-Efficiency Condensate Removal System:

The chassis shall have a condensate removal sys-

tem consisting of a condensate suction port, to draw

and atomize condensate, and a slinger ring inte-

grated in the outdoor fan, to disperse condensate

onto the condenser coil to be evaporated.

N. Snow Baffle:

The chassis shall contain a snow baffle to prevent

melting snow from freezing and potentially damag-

ing the outdoor fan.

O. Corrosion Protection (CP and RP Models Only):

Chassis with Corrosion Protection (CP,RP) shall be

used for coastal or corrosive environments, to pro-

long the life of the product. Minimum requirements

are:

1. All outdoor-exposed sheet metal parts shall be

coated with a polyester powder coat paint.

2. Compressor and outdoor-fan motor finish shall

be capable of withstanding 500 hours of salt

spray testing per ASTM B-117.

3. Compressor mounting screws shall be

SermaGuard™ coated.

4. Outdoor coil fin stock shall be coated and able

to withstand 1000 hours of salt spray testing

per ASTM B-117.

5. Outdoor coil tube sheets shall be made of 316L

stainless steel.

GUIDE SPECIFICATIONS (cont)

P. Lateral Duct System (optional):

The lateral duct system shall allow one system to

heat or cool two adjacent rooms, with up to a

maximum of 30% of the discharge air being

diverted to the adjoining room (a return air path

must be provided from the adjoining room). The

lateral duct kit consists of two main components,

the plenum and the extension duct. In addition, the

kit includes an adjustable chassis discharge air

grille, adjustable wall register and decorative wall

molding for duct extension.

The Lateral Duct system shall be adaptable for

either right or left side ducting, with a maximum

duct extension of 4 feet. The duct run must be

straight and horizontal; no bends or turns.

Q. Accessories:

1. Insulated Polymer Wall Sleeve (P/N:

SLEEVE-INSUL-1PK) shall be made from a

molded polymer, with factory-installed Styro-

foam insulation and a minimum flammability

rating of UL94-5V. The sleeve surface shall be

textured to prevent shine and hide scratches.

2. Deep Wall Metal Wall Sleeve (up to 28-in.)

(P/N: SLEEVE-EXTxx-1PK) shall be a one-

piece, extended wall sleeve, with factory

installed insulation and deep wall baffles

integrated.

3. Sleeve Molding (P/N: SLEEVE-MOLDING)

shall trim the wall sleeve to the existing wall to

hide wall joints and irregularities due to the

sleeve opening.

4. Architectural Grille (P/N: GRILLE-PLA-

xxxxx or GRILLE-ALU-xxxxx) shall be poly-

meric for long durable life or painted alumi-

num for a superior color match to the building.

5. Subbase (P/N: SUBBASE-xxxV-xxA) shall be

pre-assembled from the factory and UL listed.

Subbase options include:

Non-electrical subbase: The non-electrical

subbase shall be pre-assembled and provides

mechanical support and requires no wiring.

Electrical subbase: The electrical subbase

shall be pre-assembled with factory-installed

electrical junction box containing a receptacle

for corded units.

Hardwired subbase: The hardwired electrical

subbase shall be pre-assembled with factory

installed electrical junction box containing

19 in. of flexible conduit (for a perfect fit to the

unit) and all mating connections.

6. Leveling Legs (P/N: LEVELING-LEGS) shall

attach easily to Carrier’s wall sleeve to provide

accurate, adjustable leveling and support to

units without a subbase.

7. Hardwire Kit (P/N: HARDWIRE-KIT) shall

provide a permanent connection to the unit.

The hardwire kit mounts on the front right side

of the unit and shall have 36 in. of flexible steel

conduit and a Molex connector for easy

connect/disconnect.

8. Conduit Interface Kit (P/N: CONDUIT-INTF-

4PK) shall provide wire connection to the unit

to interface with field-supplied conduit.

9. Condensate Drain (P/N: DRAIN-KIT-4PK) kit

shall be used internally or externally to route

excess condensate to a drainage system. It can

be field-installed on any Carrier wall sleeve.

The drain kit shall be attached to the exterior

right or left side of the wall sleeve for external

draining or may be mounted to the bottom of

the wall sleeve for internal draining.

10. Lateral Duct (P/N: LATERAL-DUCT) kit

shall include an adapter plenum, extension

duct, wall register and wall molding. The lat-

eral duct system allows one system to heat or

cool two adjacent rooms, by directing up to

30% of the airflow to the adjacent room. See

section 4.0 for detailed specification.

11. Energy Management (P/N: EM-KIT) shall

allow individual units to be turned on and off

from a remote location or by a motion sensing

device. This kit interfaces to most energy man-

agement systems.

12. Lateral Air Deflector (P/N: DEFLECTOR-

1PK) shall allow right or left air distribution

from the chassis. Lateral air deflectors are rec-

ommended for units mounted in a corner or

off-center in a room.

13. Curtain Deflector (P/N: CURTDEL-52CP-

1PK) shall prevent curtains from being blown

into the discharge air.

14. Security door (P/N: SECURITY-DOOR) kit

shall prevent unauthorized access to the unit’s

heating and cooling controls and prevents

tampering with units in public locations and

institutions. The security door shall include

two matching keys and keys shall be common

to all Carrier Security Door kits.

15. Wall Thermostats (P/N: TSTATCCBxx01-B)

shall operate with 24 VAC, be digital and

non-programmable, easy-to-use and provide

maximum guest comfort.

16. Sleeve Molding (P/N: SLEEVE-MOLDING)

shall trim the wall sleeve to the existing wall to

hide wall joints and irregularities due to the

sleeve opening.

17. Power Fresh Air Vent (P/N: PWR-VENT-

DOORxxx) kit shall provide approximately

95 cfm of outdoor air for ventilation into the

room. The kit shall have an automatically door

that opens when the fan is on and closes when

the fan is off.

TYPICAL WARRANTY

Carrier

Packaged Terminal

Air Conditioner Warranty

FULL ONE-YEAR WARRANTY—During the first year after purchase, CARRIER

will, through its authorized independent servicing dealers or service stations*, and

free of charge to the user or subsequent users, repair or replace any parts which

are defective in material or workmanship. The replacement part can be a new or

remanufactured part as provided at CARRIER’S sole option.

FULL EXTENDED FOUR-YEAR WARRANTYON SEALED REFRIGERATION

SYSTEM ONLY—During the second through fifth years after date of original pur-

chase, CARRIER will, through its authorized servicing dealers and service stations*

and free of charge to the end user or subsequent users, repair or replace the

compressor, condenser, evaporator or connecting tubing if defective in material or

workmanship. This includes system refrigeration charge. The replacement part can

be new or a remanufactured part as provided at CARRIER’S sole option.

LIMITED EXTENDED FOUR-YEAR WARRANTYON NON-SEALED REFRIGER-

ATI O N SYSTEM ONLY—During the second through fifth years after date of origi-

nal purchase, Carrier will, through its authorized servicing dealers and service

stations and free of charge to the end user or subsequent users, repair or replace

any non-sealed system part (motor, solenoid, thermistor, thermostat, relays, switch,

capacitor, overload, drain valve, bulb heater, fan, stator) if defective in material or

workmanship. The replacement part can be new or a remanufactured part at

CARRIER’S sole option. THIS LIMITED WARRANTY DOES NOT INCLUDE

LABOR, user is responsible for labor, including cost of diagnosis of problem,

removal and transportation of the air conditioner to and from the service center, and

reinstallation charges necessary to accomplish repair.

LIMITATION OF WARRANTIES —ALL IMPLIED WARRANTIES (INCLUDING

IMPLIED WARRANTIES OF MERCHANTABILITY) ARE HEREBY LIMITED IN

DURATION TO THE PERIOD FOR WHICH EACH LIMITED WARRANTY IS GIVEN

AND APPLIES. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG

AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY

TO YOU. THE EXPRESSED WARRANTIES MADE IN THIS WARRANTY ARE

EXCLUSIVE AND MAY NOT BE ALTERED, ENLARGED, OR CHANGED BY ANY

DISTRIBUTOR, DEALER, OR OTHER PERSON WHATSOEVER.

ALL WORK UNDER THE TERMS OF THIS WARRANTY SHALL BE PERFORMED

DURING NORMAL WORKING HOURS. ALL REPLACEMENT PARTS, WHETHER

NEW OR REMANUFACTURED, ASSUME AS THEIR WARRANTY PERIOD ONLY

THE REMAINING TIME PERIOD OF THIS WARRANTY.

CARRIER WILL NOT BE RESPONSIBLE FOR:

1.CLEANING REQUIRED PRIOR TO WARRANTYREPAIR.

2. Standard maintenance, cleaning or damage resulting from failure to perform

normal maintenance as outlined in the owner’s manual.

3. Instruction on methods of control and use of air conditioning unit after initial

installation.

4. Damage or repairs needed as a consequence of faulty installation or applica-

tion. This is the responsibility of the installer.

5. Failure to start due to voltage conditions, blown fuses, open circuit breakers

or any other damages due to the inadequacy or interruption of electrical

services.

6. Damage or repairs needed as a consequence of any misapplication, abuse,

unauthorized alteration, improper servicing or operation.

7. Damage as a result of floods, winds, fires, lightning, accidents, corrosive

environment, or other conditions beyond the control of CARRIER.

EXCEPTION TO CORROSIVE ENVIRONMENT IN ABOVE PARAGRAPH —

Packaged terminal units (52 Series) built with corrosion protection are exempt

from the exclusion — “Corrosive Environment.” The unit model number is

identified on the nameplate with a CP suffix.

8. Reimbursement for replacement parts or repair services which are not sup-

plied or designated by CARRIER and which are specifically covered under

this warranty.

9. CARRIER products installed outside the continental U.S.A., Alaska, Hawaii

and Canada.

10. Shipping damage or damage as a result of transporting the unit. This is the

responsibility of the selling dealer or the authorized Room Air Conditioner

service station.

11. ANYSPECIAL, INDIRECT OR CONSEQUENTIAL PROPERTYOR COM-

MERCIAL DAMAGE OF ANYNATURE WHATSOEVER.Some states do not

allow the exclusion or limitation of incidental or consequential damages, so

the above limitation or exclusion may not apply to you.

12. Warranty coverage of accessory items (wall thermostats, wall sleeves, etc.).

NOTE: Service and Maintenance items excluded in this warranty may be covered by

a separate service agreement through the seller at time of purchase.

*Authorized independent dealers or service stations are registered with Carrier Air Conditioning through its distributor organization.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Catalog No. 530-122 (Rev. 3/02)

Carrier Corporation

IF YOUR AIR CONDITIONER DOES NOT WORK, FOLLOW THESE STEPS IN ORDER:

1. CHECK THE THINGS YOU CAN DO YOURSELF. These include

being sure the air conditioner is plugged in firmly in an appropriate

receptacle, checking the fuse or circuit breaker and ensuring its re-

placement or resetting, if necessary, and rereading the instruction

book to ensure that all controls are set properly. By doing this you

can save money. Many unnecessary service calls result in the

serviceman doing what the owner can do for him or herself.

2. CONTACT YOUR DEALER OR THE RECOMMENDED

CARRIER AUTHORIZED SERVICE CENTER. They have been set up

to handle the great majority of all possible service problems. The

quickest, surest and best way to get your air conditioner back in

service is to use this step before proceeding further.

3. CONTACT THE CARRIER DISTRIBUTOR SERVING YOUR AREA.

Your dealer can provide the distributor’s name or you can consult your

yellow pages.

4. CONTACT CARRIER IF A SATISFACTORY SOLUTION IS NOT

REACHED IN STEPS 2 AND 3.

Carrier Air Conditioning

Consumer Relations Department

Carrier Parkway, P.O. Box 4808

Syracuse, New York 13221

Telephone: 1-800-894-6449

*Custom colors are also available.

ACCESSORYFORM NUMBER PART NUMBER DESCRIPTION

Wall Sleeves 52S-48SI WALL-SLEEVE-1PK Non-Insulated Polymer Wall Sleeve, 1 per pack

WALL-SLEEVE-9PK Non-Insulated Polymer Wall Sleeve, 9 per pack

SLEEVE-INSUL-1PK Insulated Polymer Wall Sleeve, 1 per pack

52S-50SI SLEEVE-STEEL-1PK Insulated Metal Wall Sleeve, 1 per pack

52S-49SI SLEEVE-EXT18-1PK Extended Metal Wall Sleeve for Deep Wall Applications (18 in. deep), 1 per pack

SLEEVE-EXT24-1PK Extended Metal Wall Sleeve for Deep Wall Applications (24 in. deep), 1 per pack

SLEEVE-EXT26-1PK Extended Metal Wall Sleeve for Deep Wall Applications (26 in. deep), 1 per pack

SLEEVE-EXT28-1PK Extended Metal Wall Sleeve for Deep Wall Applications (28 in. deep), 1 per pack

N/A SLEEVE-MOLDING Molding kit to trim the wall sleeve to the wall

52C,P-26SI FR-SLEEVE-EXT Friedrich wall sleeve extension to retrofit Carrier PTAC unit into Friedrich 111/2

″deep

(T Series) wall sleeve. 1 per pack

52C,P-28SI CM-SLEEVE-EXT Climate Master Wall Sleeve extension to retrofit Carrier PTAC unit into Climate Master 121/2

″deep wall sleeve. 1 per pack

Exterior Grilles*52S-59SI GRILLE-ALU-STAMP Stamped Aluminum Exterior Grille, Clear Finish

52S-65SI GRILLE-PLA-BROWN Polymer Architectural Rear Grille, Brown

GRILLE-PLA-BEIGE Polymer Architectural Rear Grille, Beige

GRILLE-PLA-ALPIN Polymer Architectural Rear Grille, Alpine (matches Carrier Wall Sleeve)

52S-60SI GRILLE-ALU-CLEAR Aluminum Architectural Exterior Grille, Clear Finish

GRILLE-ALU-WHITE Aluminum Architectural Exterior Grille, White

GRILLE-ALU-BRONZ Aluminum Architectural Exterior Grille, Light Bronze

GRILLE-ALU-MBRNZ Aluminum Architectural Exterior Grille, Medium Bronze

GRILLE-ALU-BROWN Aluminum Architectural Exterior Grille, Brown (Dark Bronze)

GRILLE-ALU-BEIGE Aluminum Architectural Exterior Grille, Beige

GRILLE-ALU-ALPIN Aluminum Architectural Exterior Grille, Alpine (matches Carrier Wall Sleeve)

GRILLE-ALU-PEACH Aluminum Architectural Exterior Grille, Peach

GRILLE-ALU-MELON Aluminum Architectural Exterior Grille, Melon

GRILLE-ALU-LGREY Aluminum Architectural Exterior Grille, Light Grey

GRILLE-ALU-SGREY Aluminum Architectural Exterior Grille, Slate Gray

GRILLE-ALU-RDBRK Aluminum Architectural Exterior Grille, Red Brick

GRILLE-ALU-BLUE Aluminum Architectural Exterior Grille, Blue

GRILLE-ALU-GREEN Aluminum Architectural Exterior Grille, Green

52C,P-31SI BAFFLE-KIT-1PK Ensures good air seal and prevents air recirculation when Carrier sleeve is used with a non-Carrier grille.

Subbase 52C,P-1SI SUBBASE-NON-ELEC Non-electrical Subbase

52C,P-2SI SUBBASE-230V-15A Electrical subbase with factory-installed 208/230V, 15 amp receptacle

SUBBASE-230V-20A Electrical subbase with factory-installed 208/230V, 20 amp receptacle

SUBBASE-230V-30A Electrical subbase with factory-installed 208/230V, 30 amp receptacle

52C,P-17SI SUBBASE-265V-15A Electrical subbase with factory-installed 265V, 15 amp receptacle

SUBBASE-265V-20A Electrical subbase with factory-installed 265V, 20 amp receptacle

SUBBASE-265V-30A Electrical subbase with factory-installed 265V, 30 amp receptacle

52C,P-3SI SUBBASE-HARDWIRE Electrical subbase with factory-installed hardwire kit (230/208V and 265V)

Subbase

Field-Installed

Kits

52C,P-4SI SUBBASE-SWITCH Field-Installable Switch kit for an electrical subbase

52C,P-5SI SUBBASE-FUSE-15A Field-Installed Fuse Kit (15 amp) for electrical subbase

SUBBASE-FUSE-20A Field-Installed Fuse Kit (20 amp) for electrical subbase

SUBBASE-FUSE-30A Field-Installed Fuse Kit (30 amp) for electrical subbase

Sleeve Support 52C,P-29SI LEVELING-LEGS Attaches to wall sleeve for accurate and adjustable leveling and support for units without a subbase

Electrical

Connections

52C,P-11SI HARDWIRE-KIT-1PK Permanent power connection to the unit (includes 36″of flexible conduit and unit-mounted

connector, 230/208V and 265V) 1 per pack

52C,P-19SI CONDUIT-INTF-4PK Interface kit for field-supplied conduit to provide permanent power connection

(230/208V and 265V) to the unit. Kit includes Molex connector for easy connect/disconnect.

4perpack

Condensate

Drain Kit

52S-53SI DRAIN-KIT-4PK Attaches to wall sleeve for controlled internal or external disposal of condensate-4 per pack

Wall

Thermostats

N/A HH01AD045 Electro-mechanical Wall Thermostat (Heat/Cool and Heat Pump)

TSTATCCBPC01-B Value Series Electronic Thermostat w/Digital display (Heat/Cool Models)

TSTATCCBPH01-B Value Series Electronic Thermostat w/Digital display (Heat Pump Models)

TSTATCCPAC01-B 7-Day Programmable Electronic Thermostat (Heat/Cool Models)

TSTATCCPHP01-B 7-Day Programmable Electronic Thermostat (Heat Pump Models)

Wall Thermostat

Interface

Retrofit Kit

52C,P-30SI RC-FIELDKIT230HC Field-installed wall thermostat retrofit kit to convert a standard 230V Heat/Cool unit to an

RC unit. Wall thermostat sold separately (can be used to convert a cool only unit to RC).

RC-FIELDKIT230HP Field-installed wall thermostat retrofit kit to convert a standard 230V Heat Pump unit to an

RC unit. Wall thermostat sold separately.

RC-FIELDKIT265HC Field-installed wall thermostat retrofit kit to convert a standard 265V Heat/Cool unit to an

RC unit. Wall thermostat sold separately (can be used to convert a cool only unit to RC).

RC-FIELDKIT265HP Field-installed wall thermostat retrofit kit to convert a standard 265V Heat Pump unit to a

RC unit. Wall thermostat sold separately.

52C,P-34SI 2SPEED-TSTAT-KIT Field-installed automatic heat/cool changeover thermostat with 2-speed fan control at thermostat.

2SPEED-RCFAN-KIT Multiple fan speed control relay only. Thermostat is not included.

N/A TSTAT-COVER-6X7 Clear plastic locking thermostat cover prevents unauthorized access to thermostat.

Cover for use with non-programmable and electro-mechanical thermostats.

Outside dimensions: 61/2

″x7

1/2

″x2

15/16

″. 1 per pack

N/A TSTAT-COVER-7X10 Clear plastic locking thermostat cover prevents unauthorized access to thermostat. Cover for

use with programmable thermostats. Outside dimensions: 71/4

″x9

3/4

″x3

3/8

″.1perpack

Replacement

Filters

N/A AIR-FILTER-10PK Replacement air filters in package of 10

Energy

Management

52C,P-24SI EM-KIT Allows unit to be turned on and off from a remote location (includes freeze guard protection)

Locking Security

Control Door

52C,P-23SI SECURITY-DOOR Key-locking security door to prevent access to heating and cooling controls

Lateral Duct Kit 52C,P-25SI LATERAL-DUCT Ductwork to allow one unit to heat and cool two rooms (plenum plus extension duct and registers)

Power Vent

Retrofit Kit

52C,P-32SI PWR-VENT-DOOR230 Power vent with automatic door that opens and closes when the fan turns on and off (230V).

PWR-VENT-DOOR265 Power vent with automatic door that opens and closes when the fan turns on and off (265V).

Air/Curtain

Deflector

52C,P-9SI DEFLECTOR-1PK Lateral air deflector, with individually adjustable louvers, to enhance air circulation, 1 per pack

52C,P-21SI CURTDFL-52CP-1PK Curtain deflector for 52C and 52P models — prevents curtains from blowing into

discharge air stream. 1 per pack.

NOTE: Curtain deflector for previous models are also available. Contact Carrier Representative.

Touch-Up Paint N/A CARRIER-TOUCH-UP Touch up paint for repainting scratches or chips.

ACCESSORY LIST

Carrier 592 085 Users Manual

592-085 to the manual 39556ba7-5f45-4d63-b263-7ecb587257c2

Navigation menu

Versions of this User Manual:

Views

Navigation
