![](/img.php?id=1307265&img=bg1.png)
Confidential
殿
No.HD-SHE-GT09814-A
受付 100001
New Change
新規・変更
Tentative User’s Manual
仮 納 入 仕 様 書
User Code
品名
WYCAAVDX2
領印欄
We hereby the specification.
この書類の内容を確認し受領致しました。
Received by
〈御受領印〉 DATE: . .
DATE:
Submitted by TAIYO YUDEN CO., LTD.
太陽誘電株式会社 複合デバイス事業部 無線技術部
APPROVED
品証承認
DES.REVIEW
設計承認
CHECKED
確認
DESIGNED
担当
![](/img.php?id=1307265&img=bg2.png)
APPROVED
CHECKER DRAWN DESIGNED
Control No
.
HD-SH-
GT09814
(1/2)
Control name
Tentative specification report
仮納入仕様書
2010.06.04
(1)Revision history
改訂経歴
Revision No.
改訂経歴
Designed
担当
Rectification record
変更経歴
Checked
確認
Approved
承認
New document
初版 Newly issued
新規作成
A
TAIYO YUDEN Co.,Ltd.
![](/img.php?id=1307265&img=bg3.png)
APPROVED
CHECKER
DRAWN
DESIGNED
Control No.
HD-SH-
GT09814
(2/2)
Control name
Tentative specification report
仮納入仕様書
2010.06.04
(2)Document constituent list
構成書類リスト
Control name
書類名
Control No.
書類番号
Document page
構成ページ
General items
一般事項書 HD-AG-A100001 1/8 ~ 8/8
Absolute maximum ratings
絶対最大定格書 HD-AM-A100001 1/1
Electrical characteristics
電気的特性書 HD-AE-A100001 1/3 ~ 3/3
Electrical characteristics
電気的特性書 HD-AE-B100001 1/1
Outline・Appearance
外形・外観図 HD-AD-A100001 1/1
Outline・Appearance
外形・外観図 HD-AD-B100001 1/1

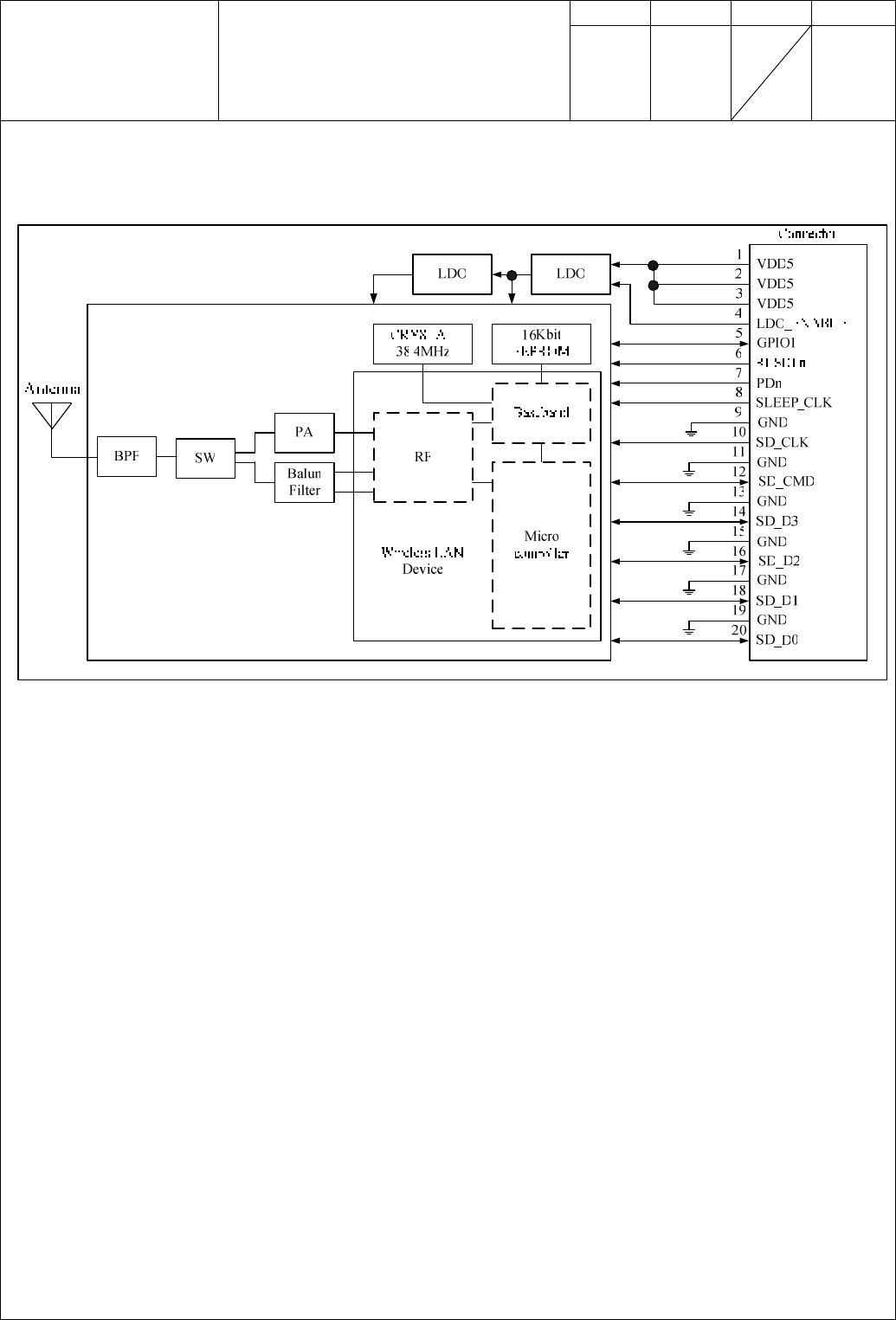

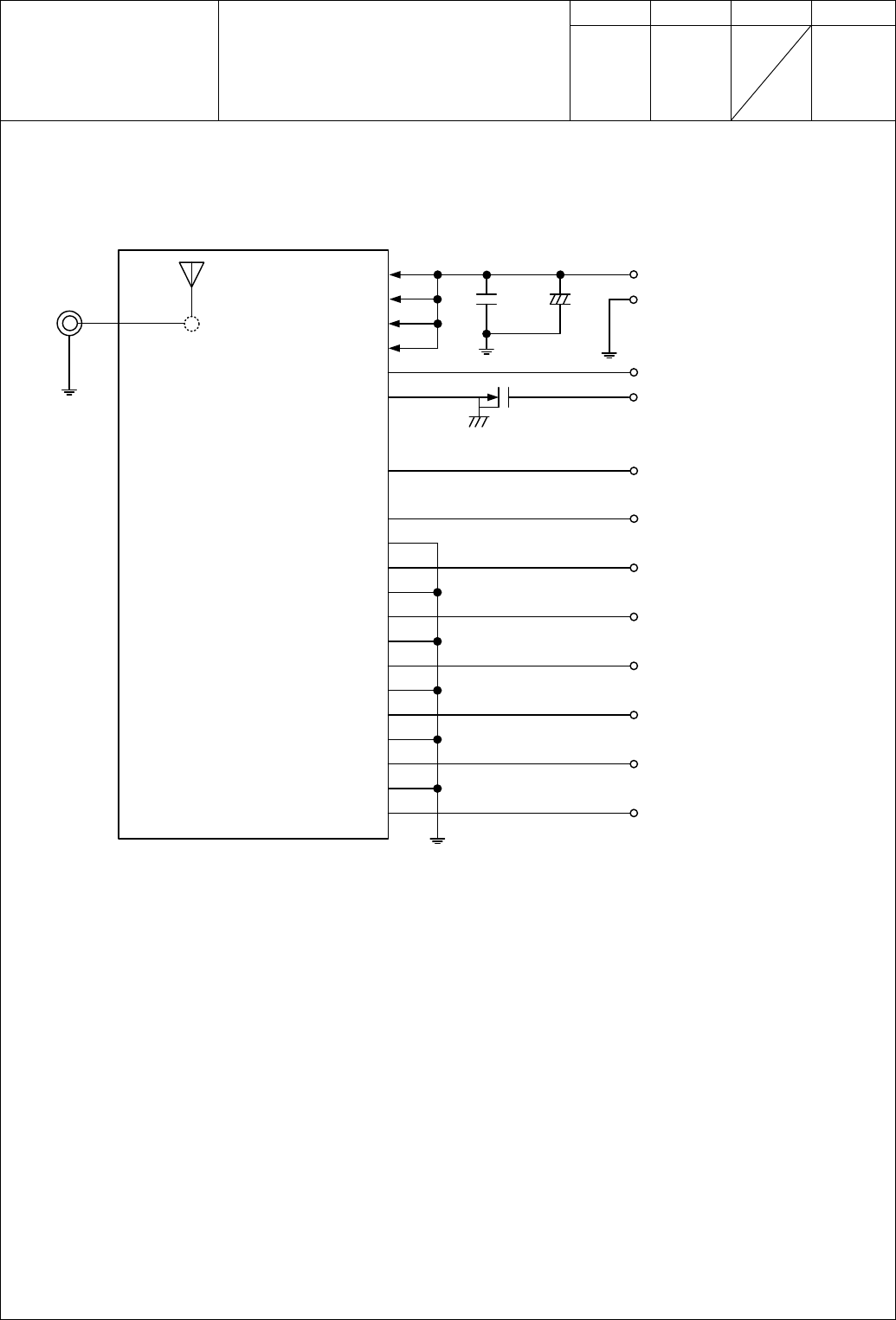

Circuit schematic
内部回路図 HD-MC-A100001 1/1
Pin layout
ピンレイアウト図 HD-BA-A100001 1/1
Test circuit
検査回路図 HD-AT-A100001 1/1
Instruction for Lot Number
ロット番号解説書 HQ-BL-503 1/1
Handling Precaution
取扱注意要領 HQ-BA-522 1/2 ~ 2/2
The Terms of Reliability
信頼性条件書 RTxxxx -xxx 1/2 ~ 2/2

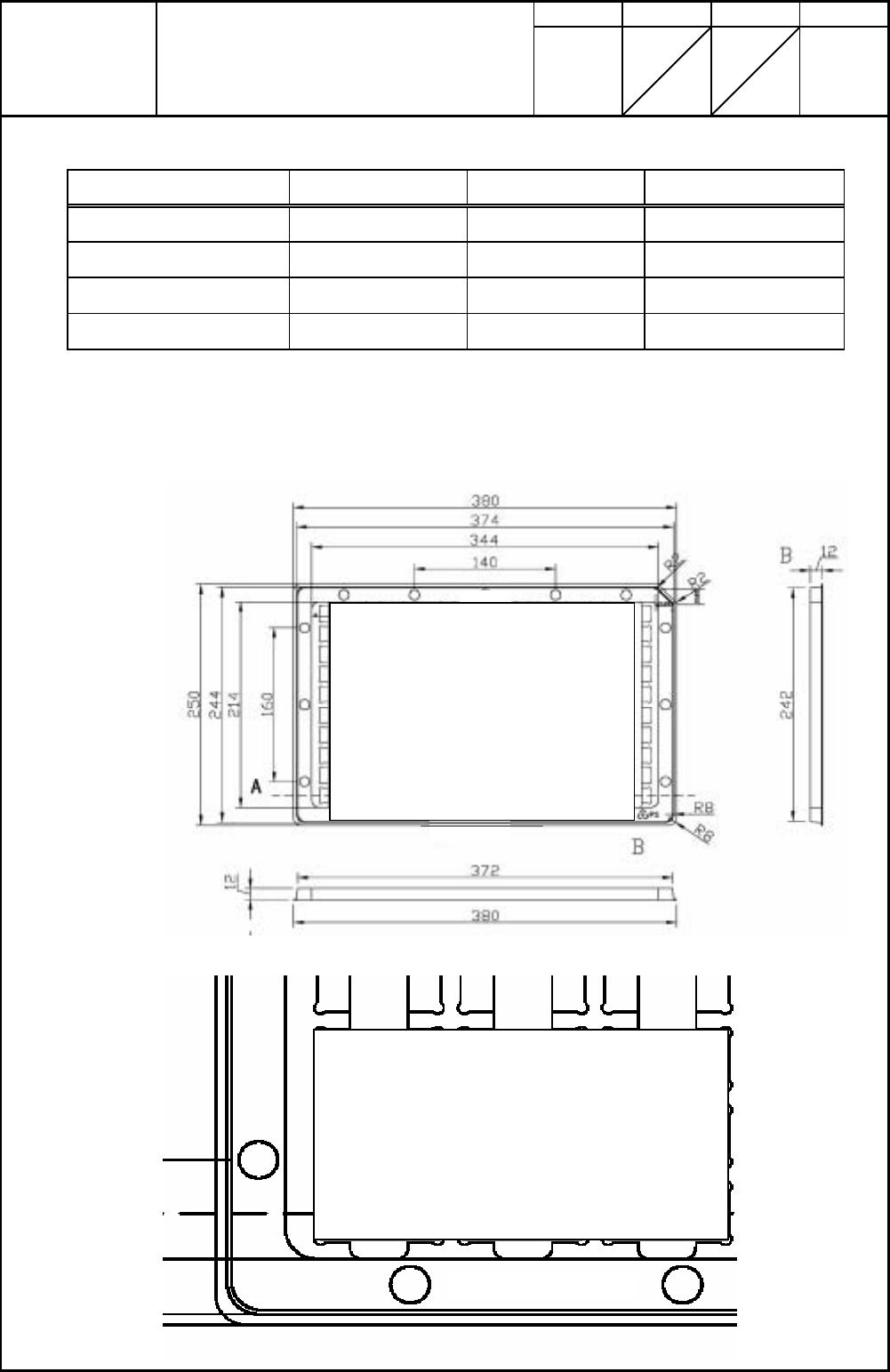

Packaging specification
梱包仕様書 HD-BB-B100001 1/2 ~ 2/2
TAIYO YUDEN Co.,Ltd.
![](/img.php?id=1307265&img=bg4.png)
APPROVED
CHECKED
DRAWN DESIGNED
Control No.
HD-AG-
A100001
(1/8)
Control name
General Items
一般事項書
2010.7.1
TAIYO YUDEN Co., Ltd.
(1)Scope
適用
This specification (“Specification”) applies to the hybrid IC “WYCAAVDX2” for use Wireless LAN UNIT
(“Product”) manufactured by TAIYO YUDEN Co., Ltd. (“TAIYO YUDEN”)
本仕様書は、太陽誘電株式会社(“弊社”)により製造されるWireless LAN用ハイブリッドIC “WYCAAVDX2”
(“本製品”)に適用する。
(2)Description
内 容
① User Code : WYCAAVDX2
品名: WYCAAVDX2
Type: WYCAAVDX2
認証型式: WYCAAVDX2
Note: Please let us know this User Code (WYCAAVDX2) to order this Product.
本製品を発注する時は、品名(WYCAAVDX2)をご使用ください。
② Function : Radio frequency transceiver Module (IEEE802.11bg standard conformity)
機 能 : 無線通信モジュール(IEEE802.11bg 規格準拠)
③ Application : Digital Art Frame
用 途 : デジタルアートフレーム
④ Structure : Hybrid IC loaded with silicon and Gallium arsenide compound monolithic semiconductor
構 造 : ガリウムヒ素化合物 モノリシック半導体を用いた混成集積回路
Containment of hazardous substance in this Product
* This product conforms to RoHS Directive (2002/95/EC).
本製品内の環境物質含有
* RoHS 指令(2002/95/EC)に適合しています。
⑤ Terminal : Data input-output … 20pin FFC/FPC Connector
“KYOCERA ELCO Corporation: 6239 020 001 800+”
RF input-output … Antenna
電 極 : データ入出力 … 20 ピン FFC/FPC コネクタ
“京セラエルコ株式会社: 6239 020 001 800+”
RF入出力 … アンテナ

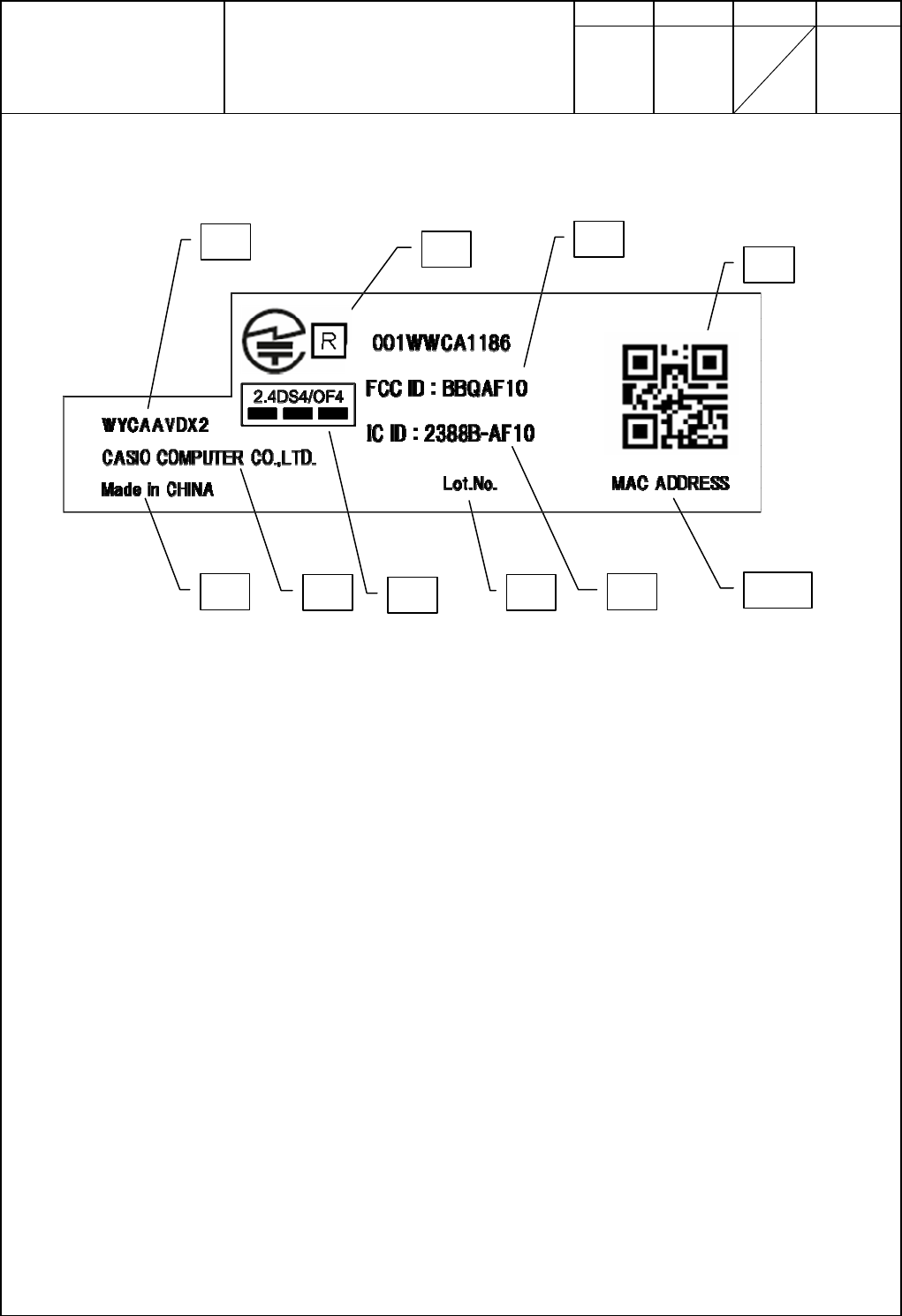

⑥ Appearance: Label on the bottom side
外 装 : 無外装
基板裏面にラベル貼付
⑦ Mount : Mounted with M2 screw
取 付 : M2 のネジによる取り付け
![](/img.php?id=1307265&img=bg5.png)
APPROVED
CHECKED
DRAWN DESIGNED
Control No.
HD-AG-
A100001
(2/8)
Control name
General Items
一般事項書
2010.7.1
TAIYO YUDEN Co., Ltd.
⑧ Notes:
その他:
a. Limitation of Warranty
保証
i) TAIYO YUDEN provide warranties only if the Product is operated under the condition set forth in this Specification.
Please note that TAIYO YUDEN shall not be liable for any defect and/or malfunction arising from use of the Product
under the terms and conditions other than the operating conditions hereof. In addition when this Product is used under
environmental conditions such as over voltage which are not guaranteed, it may be destroyed in short mode. To
ensure the security of customer’s product, please add an extra fuse or/and a protection circuit for over voltage.
本製品の保証使用条件は本仕様書の通りです。
本保証条件以外の条件で御使用になった結果発生した不良・不具合につきましては、弊社は責任を負い
兼ねますので御了承下さい。また、過電圧等本保証条件以外の条件で御使用になった場合、ショートモー
ドで破壊する場合があります。安全性の確保のために、フューズや過電流保護回路等の追加をお願い致
します。
ii) This Product is designed for use in products which comply with IEEE802.11bg Specifications. TAIYO YUDEN
disclaims and is not responsible for any liability concerning infringement by this Product under any intellectual
property right owned by third party in case the customer uses this Product in any product which does not comply with
IEEE802.11bg Specifications (the “non-complying products”). Furthermore, TAIYO YUDEN warrants only that
this Product complies with this Specification and does not grant any other warranty including warranty for application
of the non-complying products.
本製品は IEEE802.11bg の規格に従って製造された製品であり、本製品の用途が IEEE802.11bg 規格以外
もしくは当該規格に従わない製品(「IEEE802.11bg 規格外製品」)への使用の場合、弊社は第三者の知的
財産権の侵害に基づくいかなる責任を負いません。また、弊社は本製品が本仕様書に準拠することのみ
を保証するもので、上記 IEEE802.11bg 規格外製品への応用についての保証等いかなる保証を行うもので
はありません。
iii) In some cases, TAIYO YUDEN may use replacements as component parts of Products. Such replacement shall
apply only to component part of Products, which TAIYO YUDEN deems it possible to replace or substitute
according to (i) Scope of Warranty provided in this specification (e.g. Electric Characteristics, Outline, dimension,
Conditions of Use, Reliability Tests, Official Standard (Type Approvals etc.)) and (ii) Quality of Products. TAIYO
YUDEN also ensures traceability of such replacement on production lot basis.
本製品を構成する部材の一部について、代替品を使用する場合があります。代替使用は、本仕様書に記
載された保証範囲(特性、外形、使用条件、信頼性、公的規格(電波法等))、および品質に照らし、弊
社にて代替(完全な置換え)が可能と判断致しました Wireless LAN IC 以外の部材を対象とさせて頂きま
す。尚、使用した部材種についての追跡性は製造ロット毎に確保されます。
![](/img.php?id=1307265&img=bg6.png)
APPROVED
CHECKED
DRAWN DESIGNED
Control No.
HD-AG-
A100001
(3/8)
Control name
General Items
一般事項書
2010.7.1
TAIYO YUDEN Co., Ltd.
b. Instruction for Use (CAUTION)
使用上の注意事項
i) Because Product is not designed for radiation durability, please refrain from exposing Product to radiation in the use.
本製品は、耐放射線設計をしておりませんので、放射線のストレスを受ける環境下での使用は避けて下さい。
ii) Communication between this Product and other might not be established nor maintained depending upon radio
environment or operating condition of this Product and other products with wireless technology.
本製品と本製品又は他製品の通信は、周囲の電波環境及び機器環境により確立又は維持し難くなること
があります。
iii) This Product operates in the unlicensed ISM band at 2.4GHz. In case this Product is used around the other wireless
devices which operate in same frequency band of this Product, there is a possibility that interference occurs between
this Product and such other devices. If such interference occurs, please stop the operation of other devices or relocate
this Product before using this Product or do not use this Product around the other wireless devices.
本製品は 2.4GHz 帯の周波数を使用しています。本製品を本製品と同じ周波数を使用した他の無線機器
の周辺でご使用になりますと、本製品とかかる他の無線機器との間で電波干渉が発生する可能性があり
ます。電波干渉が発生した場合、他の無線機器を停止するか、本製品の使用場所を変えるなど電波干渉
の生じない環境でご使用下さい。
iv) This Product mentioned in this Specification is manufactured for use in consumer products. Before using this Product
in any special equipment (such as medical equipment, space equipment, air craft, disaster prevention equipment),
where higher safety and reliability are duly required, the applicability and suitability of this Product must be fully
evaluated by the customer at its sole risk to ensure correct and safety operation of those special equipments. Also,
evaluation of the safety function of this Product even for use in general electronics equipment shall be thoroughly
made and when necessary, a protective circuit shall be added in design stage, all at the customer’s sole risk.
本仕様書に記載されている本製品は、民生機器用として製造されております。従って、高度の安全性や
信頼性が求められる医療用機器、宇宙用機器、あるいは防災機器等にお使いになるときには、本製品の
適合性をお客様の独自の責任で十分に評価、検討され、判断下さい。又、一般機器において御使用にな
る場合にも、お客様の独自の責任で十分な安全性評価を実施され、必要に応じて設計時に保護回路等を
追加してください。
![](/img.php?id=1307265&img=bg7.png)
APPROVED
CHECKED
DRAWN DESIGNED
Control No.
HD-AG-
A100001
(4/8)
Control name
General Items
一般事項書
2010.7.1
TAIYO YUDEN Co., Ltd.
v) Japan Regulatory Information
日本規制情報
This product with a specific antenna is a radio system approved for Type Approval.
Please follow the instructions below on designing your product.
本製品は、特定アンテナとの組み合わせにおいて工事設計認証を受けた無線設備です。
御社製品に搭載される場合、下記内容を遵守願います。
a) Please notify clearly below sentences on your product or in the product manual.
This product has a radio system which was approved as a radio station in a low power data communication system
based on the Radio Law and the Telecommunication Business Law.
Name of the radio system: 001WWCA1186
御社製品あるいはマニュアルに下記文言を明示願います。
本製品には、電波法及び電気通信事業法に基づく小電力データ通信システムの無線局として、工事設
計認証を受けた無線設備を内蔵しています。
無線設備名:001WWCA1186
b) Please design your set structure in which this module can be easily attached and taken off by end users (consumer
public).
セット搭載方法は、エンドユーザー(一般消費者)にて本モジュールを容易に脱着できる構造として下さい。
c) This module is certified by Type Approval as the device which has SDIO Interface.
Please do not use other purposes except that of certified.
Please contact Taiyo Yuden for more details of purposes of this product.
本モジュールの用途は、SDIO インターフェイスを持つ装置として工事設計認証を受けています。
規定されている用途以外の機器へは使用しないで下さい。
用途の詳細につきましては、弊社までお問い合わせ願います。
![](/img.php?id=1307265&img=bg8.png)
APPROVED
CHECKED
DRAWN DESIGNED
Control No.
HD-AG-
A100001
(5/8)
Control name
General Items
一般事項書
2010.7.1
TAIYO YUDEN Co., Ltd.
vi) Canada Regulatory Information
カナダ規制情報
License-exempt low-power radiocommunication devices are required to describe following or equivalent sentences
in user manuals in section 7.1.5 User Manual of Canadian regulations RSS-GEN. Therefore TAIYO YUDEN
recommends describing an appropriate comment in your product manual.
カナダの規格 RSS-GEN では、7.1.5 User Manual の項目で、免許を免除された低電力無線通信機器に対
して、以下の文面、または同等の内容をユーザーマニュアルへ記載することを要求しております。従っ
て、同様に御社のユーザーマニュアルにも記載することを推奨します。
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this
device must accept any interference, including interference that may cause undesired operation of the device.
L'utilisation de ce dispositif est autorisée seulement aux conditions suivantes: (1) il ne doit pas produire de brouillage
et (2) l'utilisateur du dispositif doit être prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est
susceptible de compromettre le fonctionnement du dispositif.
動作は下記の 2条件に従います。
(1) 本装置は、妨害波の原因とはなりません。
(2) 本装置は、好ましくない装置動作の原因となるどのような妨害波を受信した場合も受け入れます。
The following sentence has to be displayed on the outside of the device in which the module is installed:
“Contains Transmitter Module IC ID: 2388B-AF10”, or "Contains IC ID: 2388B-AF10".
下記文章を、モジュールが搭載されているデバイスの外側に表示しなければなりません。
「IC ID: 2388B-AF10 の送信モジュールを含む。」または「IC ID: 2388B-AF10 を含む。」
To maintain compliance with IC’s RF exposure guidelines, this equipment should be installed and operated with
minimum distance 20cm between the radiator and your body.
本装置は、無線部と人体の距離を 20cm 以上離して、搭載、動作させる必要があります。
Your product has been applied to requests of ICES. In some applied regulations, there are mention requirements.
Therefore please confirm applied regulations.
また、御社製品にはICESの要求が適用されます。適用される規格によっては記載要求事項が存在いたし
ます。従って、対象規格のご確認をお願い致します。
In the case of ICES-003:
Example 1
Canadian Radio Interference Regulations
This digital apparatus does not exceed Class B limits for radio noise emissions from a digital apparatus as set out in
the interference-causing equipment standard entitled “Digital Apparatus”, ICES-003 of the Industry Canada.
Cet appareil numérique respecte les limites de bruits radio éléctiques applicables aux appareils numériques de
Classe B prescrites dans la norme sur le matériel brouilleur: "Appareils Numériques", NMB-003 édictée par
l'Industrie Canada.
Example 2
This Class [*] digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe [*] est conforme à la norme NMB-003 du Canada.
[*] Insert either "A" or "B" but not both as appropriate for the equipment requirements.
ICES-003 の場合:
例文1
カナダ無線妨害波規制
本デジタル装置は、妨害波の原因となる装置の標準規格であるカナダ産業 ICES-003 の「デジタル装置」
に設定されているとおり、デジタル装置からの無線ノイズ放射に関するクラス Bの限界を超えません。
![](/img.php?id=1307265&img=bg9.png)
APPROVED
CHECKED
DRAWN DESIGNED
Control No.
HD-AG-
A100001
(6/8)
Control name
General Items
一般事項書
2010.7.1
TAIYO YUDEN Co., Ltd.
例文2
本クラス[*]デジタル装置は、カナダの ICES-003 に遵守しています。
[*]には、装置に適用される要件として、両方ではなく、”A”または”B”のどちらかを記載ください。
vii) FCC Regulatory Information
FCC 規制情報
Please describe contents mentioned below in users manual of your company.
下記記載内容を御社のユーザーマニュアルに記載ください。
CAUTION:
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
To maintain compliance with FCC’s RF exposure guidelines, use only the supplied antenna.
Unauthorized antenna, modification, or attachments could damage the transmitter and may violate FCC
regulations.
To maintain compliance with FCC’s RF exposure guidelines, this equipment should be installed and operated
with minimum distance 20cm between the radiator and your body.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause undesired operation.
適合に責任を持つ当事者によって承認されていない変更、改造は、装置運用の認定が無効になります。
未認定のアンテナを使用すること、改造すること、部品を追加することは、送信機にダメージを与え、
FCC 規制違反となります。
本装置は、無線部と人体の距離を 20cm 以上離して、搭載、動作させる必要があります。
本装置は FCC 規則第 15 章に準拠しています。動作は下記の 2条件に従います。
(1) 本装置は、有害な妨害波の原因とはなりません。
(2) 本装置は、好ましくない装置動作の原因となるどのような妨害波を受信した場合も受け入れます。
The following sentence has to be displayed on the outside of the device in which the module is installed:
“Contains Transmitter Module FCC ID: BBQAF10”, or "Contains FCC ID: BBQAF10".
下記文章を、モジュールが搭載されているデバイスの外側に表示しなければなりません。
「FCC ID: BBQAF10 の送信モジュールを含む。」または「FCC ID: BBQAF10 を含む。」
![](/img.php?id=1307265&img=bga.png)
APPROVED
CHECKED
DRAWN DESIGNED
Control No.
HD-AG-
A100001
(7/8)
Control name
General Items
一般事項書
2010.7.1
TAIYO YUDEN Co., Ltd.
c. Term of Support
サポート条件
i) Incorporated Software was hard-wired on the Mask ROM IC. Please be informed that, by its nature, customer needs
to apply a patch trap to this Product by yourself in order to maintain fundamental characteristics of this Product.
内蔵ファームウェアは読み取り専用のMask ROMに書き込まれています。Mask ROMの性質上、本製品
の基本特性を確保・維持するためのパッチトラップを御社にて施して頂く場合がございますので、予
めご了承ください。
ii) Notwithstanding Clause i) of c above, you may frequently have no measure (including patch trap) to correct the
failure in Incorporated Software due to the nature of Mask ROM. Therefore, TAIYO YUDEN strongly
recommends you fully evaluate applicability and suitability of this Product to your products before your decision to
use this Product.
前号にかかわらず、MaskROM の性質上、不具合を是正するための対策を施せない場合がございます。
つきましては、本製品採用のご検討段階におかれましては、十分な評価・ご検証をして頂けますよう、
お願い申し上げます。
iii) Customer are requested to fully check and confirm by the start of mass production of this Product that (1)no bug,
defect or other failure is included in firmware and driver (collectively called “Software” in this document) used with
this Product, (2)no bug, defect or other failure arising from installation of this Product in which is contained
Incorporated Software into customer’s products is included in Incorporated Software, and that Incorporated Software
fully meets customer’s intended use, although TAIYO YUDEN sufficiently inspects or verifies quality of
Incorporated Software.
弊社では、本製品に適用されるファームウェアおよびドライバについて十分な品質評価・検証を行って
おりますが、お客様におかれましても本製品の量産開始前までに、適用されるファームウェアおよびド
ライバに瑕疵やその他品質上の不具合、お客様の製品への組み込み上の不具合がない事を十分に評価さ
れ、お客様での本製品の使用用途に合致するものであることをご確認頂けますようお願い申し上げます。
iv) Please note that TAIYO YUDEN is not responsible for any failure arising out of bugs or defects which you have not
found in Incorporated Software prior to reaching an agreement of this Specification between customer and TAIYO
YUDEN (including the bugs or defects found after customer’s acceptance and evaluation).
納入仕様書の取り交わし前に未検証であったバグ等に起因する不具合(お客様にて評価、承認の上、量
産後に発生した不具合)に関しては、弊社の保証範囲外とさせて頂きますので、何卒ご了承ください。
v) In the case that customer requests TAIYO YUDEN to customize the hardware or firmware of this Product in order to
meet such customer’s specific needs, TAIYO YUDEN will make commercially reasonable effort to modify such
hardware or software at customer’s expense; provide however, the customer is kindly requested to agrees it doesn’t
mean that TAIYO YUDEN has obligations to do so even in the case it is technically difficult for TAIYO YUDEN.
お客様の都合により、ハードウェアおよびファームウェアのカスタム対応が必要となった場合、弊社は
お客様の依頼により、有償にて本対応を行います。但し、カスタムの内容によりましては、対応できな
い場合がありますので、予めご了承ください。
vi) Any failure arising out of this Product will be examined by TAIYO YUDEN regardless of before or after mass
production. Customer agrees that once such failure is turned out not to be responsible for TAIYO YUDEN after
aforesaid examination, some of the technical support shall be conducted by TAIYO YUDEN at customer’s expense;
provided however, exact cost of this technical support can be agreed through the negotiation by the parties.
お客様にて、量産適用前後を問わず、本製品に起因する問題が生じた場合、弊社は問題解決のために要因
の検討を行います。この結果、問題の要因が弊社にないことが判明した後のお客様へのサポートにつきま
しては、一部有償とさせて戴きますので、予めご了承願います。なお、この際のサポート費用につきまし
ては、その都度両社協議の上、定めさせて頂きます。
![](/img.php?id=1307265&img=bgb.png)
APPROVED
CHECKED
DRAWN DESIGNED
Control No.
HD-AG-
A100001
(8/8)
Control name
General Items
一般事項書
2010.7.1
TAIYO YUDEN Co., Ltd.
vii) Do not alter hardware and/or firmware of this Product.
Please note that TAIYO YUDEN shall not be liable for any problem if it is caused by customer's alteration of
Hardware or/and Firmware without Taiyo Yuden's prior approvals.
本製品はハードウェア、及びファームウェアの変更は行わないで下さい。
弊社の許可なく変更した場合に、その変更によって生じたすべての問題に対して弊社は一切責任を負い
ません。
d. Caution for Export Control
輸出注意事項
This Product may be subject to governmental approvals, consents, licenses, authorizations, declarations, filings, and
registrations for export or re-export of the Product, required by Japanese Foreign Exchange and Foreign Trade
Law(including related laws and regulations) and/or any other country’s applicable laws or regulations related to export
control.
In case you will export or re-export this Product, you are strongly recommended to check and confirm, before
exporting or re-exporting, necessary procedures for export or re-export of this Product which is required by
applicable laws and regulations, and if necessary, you have to obtain necessary and appropriate approvals or licenses
from governmental authority at your own risk and expense.
本製品は、日本国の「外国為替及び外国貿易法」(関連法令・規則を含む)及び/又は諸外国の輸出管理
関連法規に基づく輸出(再輸出を含む)申請、承認又は許可の対象となる場合があります。本製品を輸出
(再輸出)する場合には、必ず事前にこれら関連法規が定める手続をご確認頂き、必要な場合には、お客
様の責任と費用において、適切な承認・許可をお取りください。
e. Term of Warranty
保証期間
TAIYO YUDEN warrants only that this Product is in conformity with this Specification for one year after purchase and
shall in no event give any other warranty.
弊社は納入後一年間、本製品が本仕様書を満足することを保証します。
本仕様に記載のない事項については協議の上解決するものとします。
f. Items of the Specification
仕様書の記載事項
i) Any question arising from the Specification shall be solved in good faith through mutual discussion by the parties
hereof.
本仕様書に疑義の生じた場合は、打ち合わせにより解決します。
ii) The language of this “General items” is Japanese and this “General items” shall be interpreted by Japanese Any
copies of translation is a reference purpose only and is not binding on both parties hereto.
本一般事項書は、日本語の記載を主文とし、日本語で解釈されるものとします。翻訳による副本はあく
まで参照の目的のみであり、両当事者を法的に拘束するものではありません。
![](/img.php?id=1307265&img=bgc.png)
APPROVED
CHECKED
DRAWN DESIGNED
Control No.
HD-AM-
A100001
(1/1)
Control name
Absolute maximum ratings
絶対最大定格書
2010.7.1
TAIYO YUDEN Co., Ltd.
1.Maximum rating
Item Symbol
Parameter MIN TYP MAX Unit
Condition
Supply voltage VDD5
-0.3 6 V Ta=25℃,GND reference
Input voltage 1 Vin1 Host Interface,
digital I/O -0.3 4.2 V VDD5=5.0V, Vin2: On
Input voltage 2 Vin2 LDO_ENABLE
-0.3 VDD5+0.3
V
2.Recommendation operating range
Item Symbol MIN TYP MAX Unit Condition
Operating
supply voltage VDD5 TBD 5.0 TBD V
Supply voltage
ripple and spike
noise
VDD5_rn
TBD mV/p-p
Operating
temperature range1
Module
Topr1 0 25 80 ℃ Humidity =40%RH Note1,2
Operating
temperature range2
LDO1
Topr2 0 25 100 ℃ Humidity =40%RH Note1,2
Operating
temperature range3
LDO2
Topr3 0 25 100 ℃ Humidity =40%RH Note1,2
Storage
temperature range Tstg -30 25 100 ℃ Humidity =40%RH Note3
Notes:
1. Operating temperature range is set to satisfy products electrical characteristics in the short term.
In terms of product life cycle when it is used in condition of varying from TYP standard in the long term,
please refer to the reliability condition.
動作温度範囲は短期的に製品の電気的特性を満足する温度範囲です。
TYP 規格から大きく外れた条件で、長期ご使用の場合の製品寿命につきましては信頼性条件を
ご参照願います。
2. Operational temperature range is regulations the surface temperature of the Module ,LDO1 and LDO2 in the following drawing.
動作温度範囲は下記図面のモジュール、LDO1、LDO2 の表面温度について規定したものです。
3. Storage temperature range is the condition for transportation and storage in temporary.
Please keep it under condition of “reference data” (HQ-BA-***) for long-term storage.
保存温度範囲は、輸送時や短期間の保管時の条件です。
長期保管時は、取扱注意要領の条件に従って保管して下さい。
Module
LDO1
LDO2
![](/img.php?id=1307265&img=bgd.png)
APPROVED
CHECKED
DRAWN DESIGNED
Control No.
HD-AE-
A100001
(1/3)
Control name
Electrical characteristics
電気的特性書
2010.6.4
TAIYO YUDEN Co., Ltd.
Electrical characteristics
DC Specifications
The Specification applies for Topr=25 degrees C, VDD5=5.0V
No.
Parameter Condition Symbol Min Typ Max Unit Remark
1 Normal supply voltage 1
VDD5 TBD 5.0 TBD V
2 Input low voltage 1
SD_CLK, SD_CMD,
SD_D3, SD_D2, SD_D1,
SD_D0, RESETn, PDn
VIL 1 -0.3 1.0 V
3 Input low voltage 2 LDO_ENABLE VIL 2 - - 0.3 V
4 Input high voltage 1
SD_CLK, SD_CMD,
SD_D3, SD_D2, SD_D1,
SD_D0, RESETn, PDn
VIH 1 2.0 VIO+0.3
V
5 Input high voltage 2 LDO_ENABLE VIH 2 1.0 - - V
6 Output low voltage 1 SD_CMD, SD_D3, SD_D2,
SD_D1, SD_D0 VOL 1 - 0.4 V
7 Output high voltage 1 SD_CMD, SD_D3, SD_D2,
SD_D1, SD_D0 VOH 1 2.57 - V
8 Peak Current 1 Burst Tx (54Mbps) Iccp 1 400 mA
9 Power consumption 1 Burst Tx (54Mbps) Pcca 1 TBD mW
1.024ms,
Duty 10%
10
Power consumption 2 Continuous Rx (54Mbps) Pcca 2 TBD mW
11
Power consumption 3 Burst Tx (11Mbps) Pcca 3 TBD mW
1.024ms,
Duty 57%
12
Power consumption 4 Continuous Rx (11Mbps) Pcca 4 TBD mW
![](/img.php?id=1307265&img=bge.png)
APPROVED
CHECKED
DRAWN DESIGNED
Control No.
HD-AE-
A100001
(2/3)
Control name
Electrical characteristics
電気的特性書
2010.6.4
TAIYO YUDEN Co., Ltd.

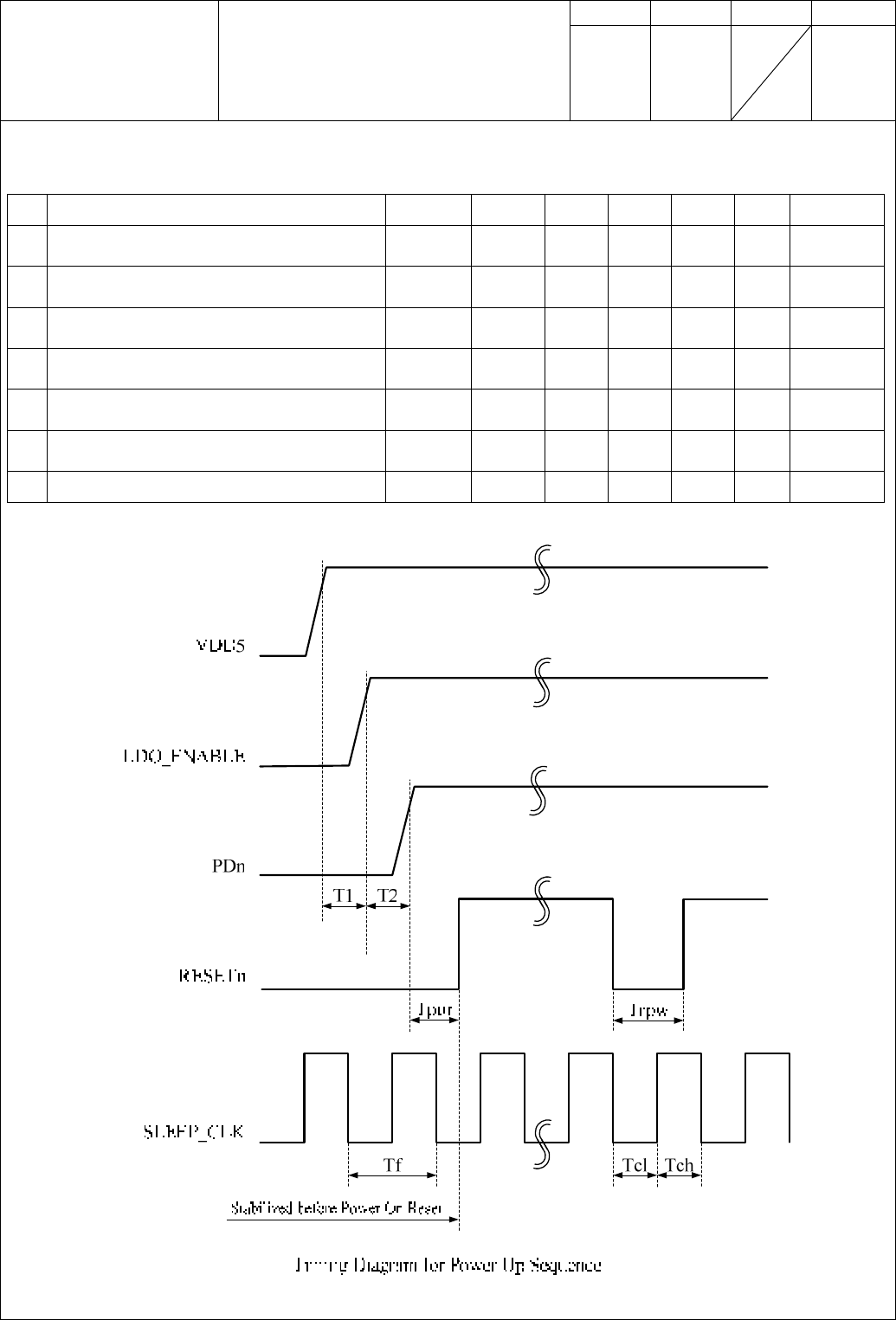

AC Specifications
The Specification applies for Topr=
25 degrees C, VDD5=5.0V
No.
Parameter Condition
Symbol
Min Typ Max Unit
Remark
1 VDD5 high to PDn high T1 0 ms
2 LDO_ENABLE high to PDn high T2 0 ms
3 PDn high to RESETn high Tpor 1 ms
4 RESETn pulse width Trpw 1 20 us
5 External sleep clock frequency Tf 32.768
kHz
6 External sleep clock high time Tcl 40 ns
7 External sleep clock low time Tch 40 ns
![](/img.php?id=1307265&img=bgf.png)
APPROVED
CHECKED
DRAWN DESIGNED
Control No.
HD-AE-
A100001
(3/3)
Control name
Electrical characteristics
電気的特性書
2010.6.4
TAIYO YUDEN Co., Ltd.

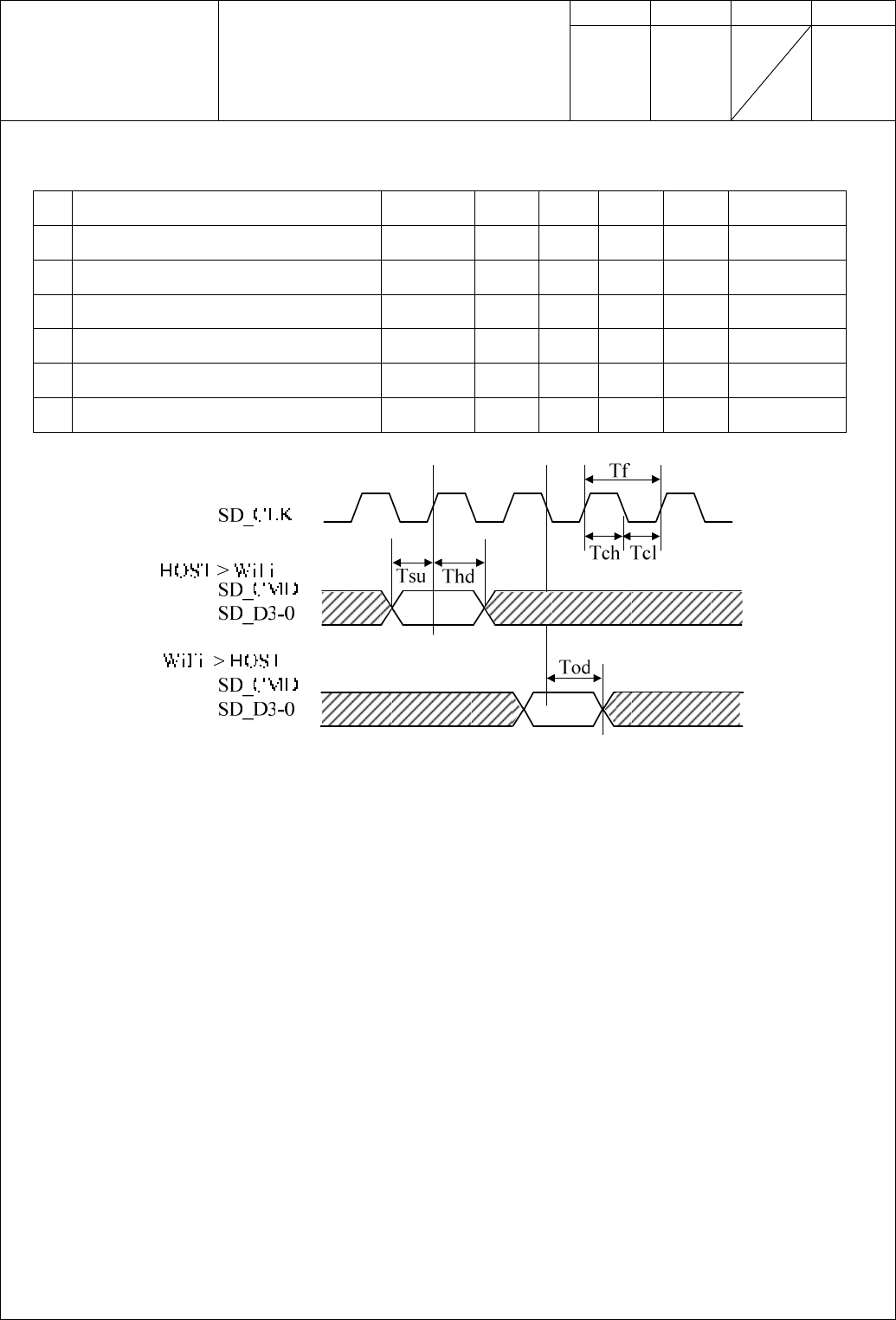

SDIO Interface Specifications
The Specification applies for Topr.= 25 degrees C , VDD5=5V
Parameter Condition Min Typ Max Unit Remark
1 Input SDIO_CLK Frequency Tf 0 25 MHz
2 Input SDIO_CLK High Time Tch 10 ns
3 Input SDIO_CLK Low Time Tcl 10 ns
4 Input SDIO_CMD, Data[3-0] Setup time Tsu 5 ns
5 Input SDIO_CMD, Data[3-0] Hold time Thd 5 ns
6 Output SDIO_CMD, Data[3-0] Delay time Tod 0 14 ns
![](/img.php?id=1307265&img=bg10.png)
APPROVED
CHECKED DRAWN DESIGNED
Control No.
HD-AE-
B100001
(1/1)
Control name
Electrical characteristics
電気的特性書
2010.6.4
These Specification applies for
VDD5= 5.0V
Ta=25 degree C
IEEE_802.11b/g
Spec
No
Prameter Symbol
Min Typ
Max
Unit
Remark
IFT1 -48 0 48 kHz
11b/11M
1 Carrier Frequency
Tolerance IFT2 -48 0 48 kHz
11g/54M
POW1 11.0 13.0
15.0 dBm
11b/11M
2 Output Power POW2 10.0 12.0
14.0 dBm
11g/54M
1
st
Side Lobe
M1b -30 dB
2
nd
Side Lobe
M2b -50 dB
11b/11Mbps @POW1
1
st
Side Lobe
M1g -20 dB
2
nd
Side Lobe
M2g -28 dB
3 Spectrum Mask
3
rd
Side Lobe
M3g -40 dB
11g/54Mbps @POW2
EVM1 35 % 11b/11M Peak @ POW1
4 EVM EVM2 5.6 % 11g/54M Rms @ POW2
SEN1 -85 -76 dBm
11b/11M @ PER<8%
5 RX Sensitivity SEN2 -71 -65 dBm
11g/54M @ PER<10%
Note
TAIYO YUDEN CO., LTD.
![](/img.php?id=1307265&img=bg11.png)
APPROVED
CHECKED
DRAWN DESIGNED
Control No.
HD-AD-
A100001
(1/1)
Control name

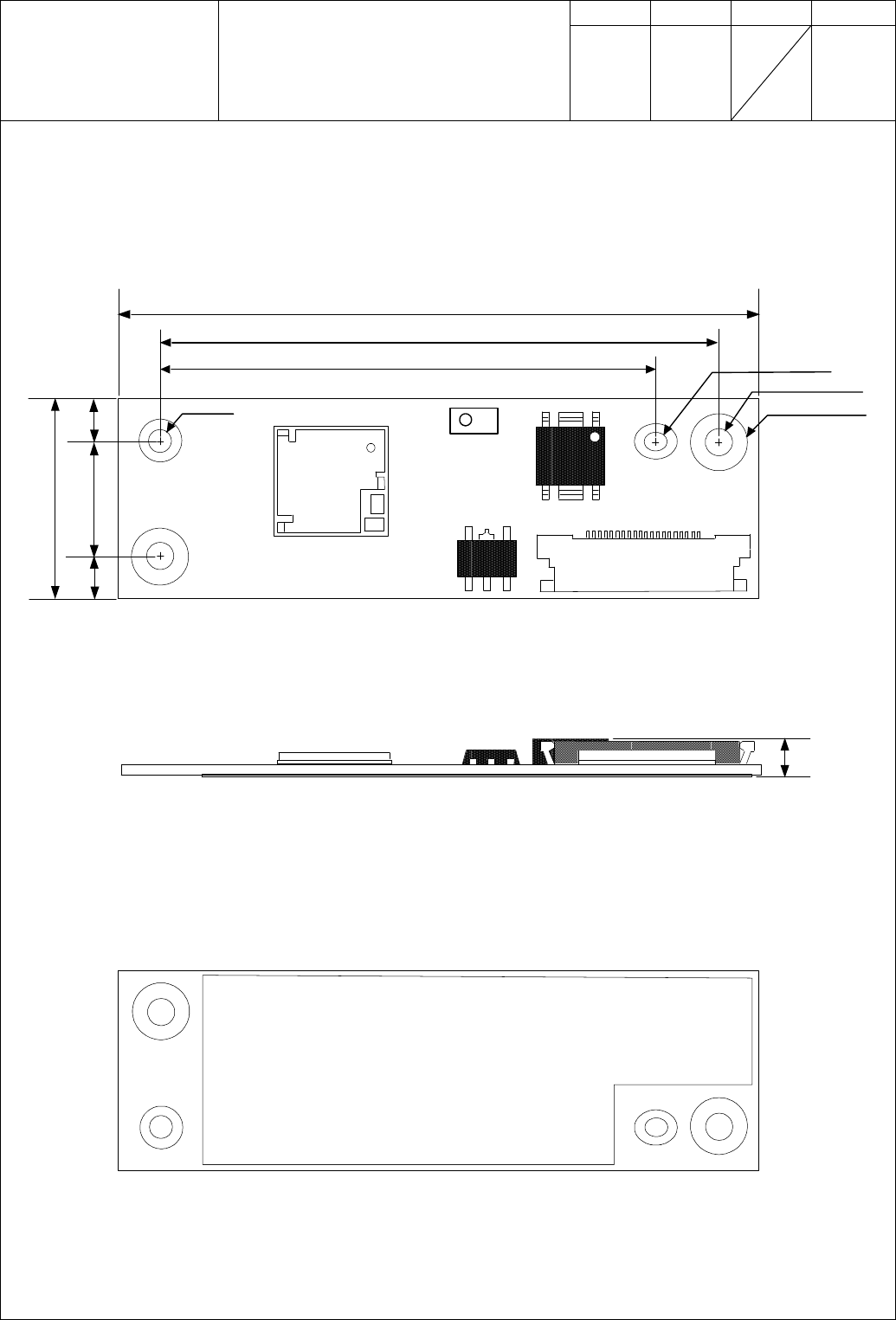

Outline・Appearance
外形・外観図
2010.6.4
TAIYO YUDEN Co., Ltd.
Indication label
Top View
Side View
Bottom View
3.0
Max.
Module
14. 50±0. 1
45.0 ± 0. 1
3.0
±0.1
3.0
±0.1 8.5
39.0
34.8 D1.6x1.9
2-D2.1
2-D4.05
φ1.6
Unit:mm,Tolerances unless otherwise specified:±0.05mm
単位:mm,指示無き公差:±0.05mm
![](/img.php?id=1307265&img=bg12.png)
APPROVED
CHECKED DRAWN DESIGNED
Control No.
HD-AD-
B100001
(1/1)
Control name
Outline・Appearance
外形・外観図
2010.7.1
1.Indication Label description
ラベル表示内容
1) Type :WYCAAVDX2
2) Manufacture :CASIO COMPUTER CO.,LTD.
3) Country of manufacture :Made in CHINA
4) Japan logo mark and ID : Specified logo mark and 001WWCA1186
5) ARIB, Actual indication : Indicates that this device is “Second Generation Low Power Data Communication System”
6) FCC ID : BBQAF10
7) Industry Canada ID : 2388B-AF10
8) Product Lot number : Four digits (Refer to 「Instruction for lot number」)
9) QR Code : MAC ADDRESS
10) MAC ADDRESS
Material :FoamedPET/ Label color:White / Printing :Black
材質 :発砲PET / ラベル色 :白 / 印字 :黒
TAIYO YUDEN Co.,Ltd.
Unit:mm,Tolerances unless otherwise specified:±0.5mm
単位:mm,指示無き公差:±0.5mm
Unit: mm
1)
2)
3
)
4)
5)
6)
7)
8)
9
)
1
0
)
![](/img.php?id=1307265&img=bg13.png)
APPROVED
CHECKED
DRAWN DESIGNED
Control No.
HD-MC-
A100001
(1/1)
Control name
Circuit schematic
内部回路図
2010.6.4
TAIYO YUDEN Co., Ltd.
Block diagram,Terminal layout diagram
ブロック図、端子配置
![](/img.php?id=1307265&img=bg14.png)
APPROVED
CHECKED
DRAWN DESIGNED
Control No.
HD-BA-
A100001
(1/1)
Control name
Pin layout
ピンレイアウト図
2010.6.4
TAIYO YUDEN Co., Ltd.

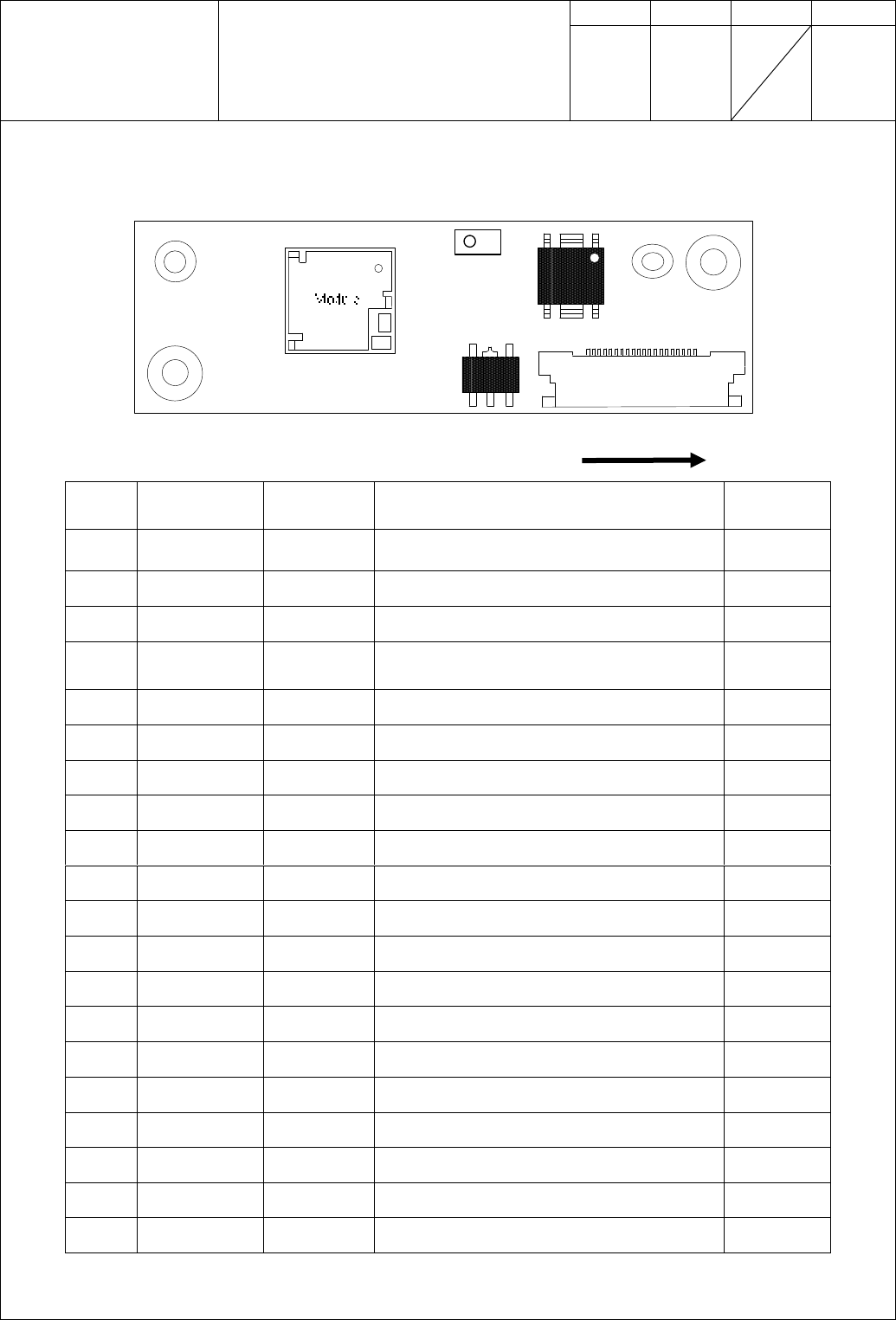

(1)Terminal layout drawing
端子配置図
Terminal
No. Terminal name Input/Output Description Remark
1 VDD5 Input DC5.0V Power supply
2 VDD5 Input DC5.0V Power supply
3 VDD5 Input DC5.0V Power supply
4 LDO_ENABLE
Input Power off signal without internal pull-up/down.
(L: Power off)
5 GPIO1 Input/Output General purpose Input/Output with internal pull-up.
6 RESETn Input Active low reset signal with internal pull-up.
7 PDn Input Full power down (L: full power down mode)
8 SLEEP_CLK Input Optional external sleep clock input (32.768kHz)
9 GND - Ground
10 SD_CLK Input SDIO: CLK
11 GND - Ground
12 SD_CMD Input/Output SDIO: CMD
13 GND - Ground
14 SD_D3 Input/Output SDIO: D3
15 GND - Ground
16 SD_D2 Input/Output SDIO: D2
17 GND - Ground
18 SD_D1 Input/Output SDIO: D1
19 GND - Ground
20 SD_D0 Input/Output SDIO: D0
① ⑳
![](/img.php?id=1307265&img=bg15.png)
APPROVED
CHECKED
DRAWN DESIGNED
Control No.
HD-AT-
A100001
(1/1)
Control name
Test circuit
検査回路図
2010.6.4
TAIYO YUDEN Co., Ltd.
WYCAAVDX2: test circuit
WYCAAVDX2: 検査回路
WYCAAVDX2
LDO_ENABLE
VDD5
VDD5
VDD5
GND
1000pF 4.7uF
+5.0±0.05V
1
2
3
4
/RESET Control
Low: RESET condition
High: Normal operation
RF_IN_OUT
50 ohm
RF Tester
OPEN
RESETn 6
SLEEP_CLK 8
GPIO1 5
PDn 7
SD_CLK 10 SD_CLK
SD_CMD 12 SD_CMD
SD_D3 14 SD_D3
SD_D2 16 SD_D2
SD_D1 18 SD_D1
SD_D0 20 SD_D0
32.768kHz
Low: Full power down mode
High: Normal operation
9
GND 11
GND 13
GND 15
GND 17
GND 19
![](/img.php?id=1307265&img=bg16.png)

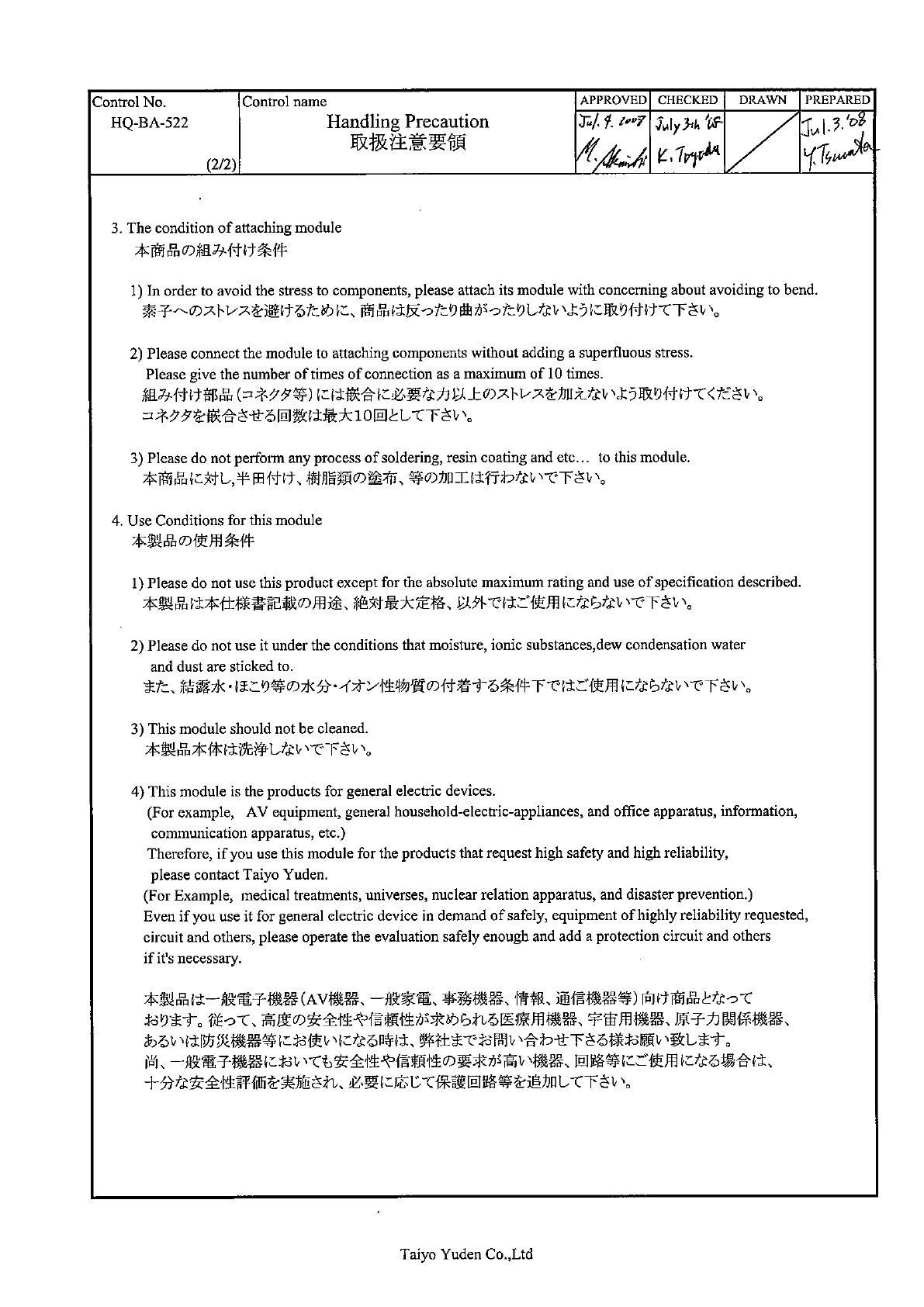

![](/img.php?id=1307265&img=bg17.png)
![](/img.php?id=1307265&img=bg18.png)
![](/img.php?id=1307265&img=bg19.png)
Tests
試験項目
High Temperature
Test (Non Biased)
高温保存
Low Temperature
Test (Non Biased)
低温保存
Humidity Test
(Non Biased)
高温高湿保存
Humidity Test
(Biased)
高温高湿連続
バイアス
High Temperature
Test (Biased)
高温連続動作
Thermal Shock Test
(Air)
温度サイクル
電気的特性に
異常ないこと。
100℃の雰囲気中に250時間放置後取り出し、常温常湿中に2時間放置
後測定。
60℃、95%RHの雰囲気中で250時間送受信共連続動作後取り出し、常
温常湿中に2時間放置後測定。
電気的特性に
異常ないこと。
Devices should show
no abnormal electrical
performance.
Devices should show
no abnormal electrical
performance.
Devices are left for 2 hours in the normal temperature and humidity after
being placed in a high temperature (70℃) environment for 100 hours,
operating the receiver and transmitter electric circuit of devices.
Devices should show
no abnormal electrical
performance.
(1/2)
70℃の雰囲気中で100時送受信共連続動作後取り出し、常温常湿中に2
時間放置後測定。
TAIYO YUDEN CO.,LTD.
電気的特性に
異常ないこと。
電気的特性に
異常ないこと。
気中で、-30℃(30分)⇔常温10秒以内⇔85℃(30分)に順次入れこれを
100サイクル繰り返した後、常温常湿中に2時間放置後測定。
85℃、85%RHの雰囲気中に250時間放置後取り出し、常温常湿中に2時
間放置後測定。
Devices should show
no abnormal electrical
performance.
電気的特性に
異常ないこと。
Devices are left for 2 hours in the normal temperature and humidity after
being placed at two different temperature (-30~85℃) in the atmosphere for
30 minutes respectively and this cycle is repeated 100 times.
Control No Control Name
The Terms of Reliability Tests
信頼性条件書
RTxxxx-xxx
Devices are left for 2 hours in the normal temperature and humidity after
being exposed to 95% humidity at 60℃ for 250 hours, operating the
receiver and transmitter electric circuit of devices.
Devices should show
no abnormal electrical
performance.
Testing Methods
Devices are left for 2 hours in the normal temperature and humidity after
being placed in a Low temperature (-30℃) environment for 250 hours, while
no voltage is applied.
DESIGNED
APPROVED
Devices are left for 2 hours in the normal temperature and humidity after
being exposed to 85% humidity at 85℃ for 250 hours, while no voltage is
applied.
電気的特性に
異常ないこと。
-30℃の雰囲気中に250時間放置後取り出し、常温常湿中に2時間放置
後測定。
判定基準
CHECKED DRAWN
Judgment criteria
Devices should show
no abnormal electrical
performance.
試験条件
Part No :WYCAAVDX2 Series
Part No :WYCAAVDX2 SeriesPart No :WYCAAVDX2 Series
Part No :WYCAAVDX2 Series
Devices are left for 2 hours in the normal temperature and humidity after
being placed in a high temperature (100℃) environment for 250 hours,
while no voltage is applied.
7.May.2010
7.May.20107.May.2010
7.May.2010
![](/img.php?id=1307265&img=bg1a.png)
Tests
試験項目
ESD
静電破壊
Vibration Test
振動
Control No
200pF, 0Ω, ±200 V 各5回実施後測定。
RTxxxx-xxx
電気的特性に
異常ないこと。
DRAWN
Testing Methods
10~82Hz:全振幅1.5mm, 82~2000Hz:加速度196m/s
2
{20G}、周期4分
でX, Y, Z各方向2時間, 計6時間振動させた後測定。
CHECKED
Devices are fixed to a vibration table.
total amplitude of vibration:1.5mm at f=10~82Hz
acceleration of vibration:196m/s
2
20G at f=82~2000Hz
sweep time:4 minutes (f=10~2000~10Hz)
X,Y and Z axis for 2 hours each for a total of 6 hours.
信頼性条件書
Control Name
TAIYO YUDEN CO.,LTD.
7.May.2010
7.May.20107.May.2010
7.May.2010
(2/2)
Judgment criteria
試験条件 判定基準
Part No :WYCAAVDX2 Series
Part No :WYCAAVDX2 SeriesPart No :WYCAAVDX2 Series
Part No :WYCAAVDX2 Series
電気的特性・外観に
異常ないこと。
C = 200pF, R = 0 Ω, ±200V, each 5 times.
DESIGNED
Devices should show
no abnormal electrical
performance and no
unusual external
appearance.
The Terms of Reliability Tests
APPROVED
Devices should show
no abnormal electrical
performance.
![](/img.php?id=1307265&img=bg1b.png)
Control No. Title
HD-BB-A100001
(
1/2
)
(1) Packaging Material
梱包材料
Name Outline Materials Note
部材名 概要 材質 備考
Tray 380x250x12mm Antistatic PS
トレイ 帯電防止PS
Pack Antistatic PE
梱包袋 帯電防止 PE
Desiccant Silica gel
乾燥剤 シリカゲル
Corrugated cardboard box 410x280x280mm
外装箱
(2) Packaging Unit
梱包数量
Max pieces/Box(Inner) Max pieces/Box(Outer)
(3) Packaging Figure
Figure of tray
トレイ図面
Direction
収納方向
Approved
72
Packaging Specification
梱包仕様書
1440
Prepared
DrawnChecked
EYBMABAXX
T.B.D
T.B.D
TAIYO YUDEN CO., LTD.
![](/img.php?id=1307265&img=bg1c.png)
Control No. Title
HD-BB-A100001
(
2/2
)
(4) Packing cindition
梱包状態
Max 20 trays
最大20段
(5) Label
ラベル
The entry item to a labe
l
ラベルへの記載内容
COMPANY NAM
E
御社名
PURCHASE ORDE
R
注文番号
DESCRIPTIO
N
品名
QUANTIT
Y
納入数量
NOT
E
備考
Drawn Prepared
Packaging Specification
Approve
d
Checke
d
梱包仕様書
Pack
袋
Corrugated cardboard box
外装箱
TAIYO YUDEN CO., LTD.
