Handheld Terminal

Series

User’s Guide

Be sure to read “Safety

Precautions” inside this

guide before trying to use

your Handheld Terminal.

After reading this guide,

keep it in a safe place for

future reference.

DT-X5

PN410388-002

DT-X5_E_Hyo_1_4.p65 2004.10.1, 9:52 AM3

•This product includes BRYCEN Co., Ltd’ s B-RAPPORE Stack, which use is governed

by a licence granted by BRYCEN Co., Ltd.

•BLUETOOTH is a trademark owned by Bluetooth SIG, Inc. and licensed to CASIO

COMPUTER CO., LTD.

•Microsoft and Windows are either registered trademarks or trademarks of Microsoft

Corporation in the United States and/or other countries.

•Datalight is a registered trademark of Datalight, Inc.

•FlashFXTM is a trademark of Datalight, Inc.

U.S. Patent Office 5,860,082

•Other company names and product names used in this guide are trademarks or registered

trademarks of their respective owners.

DT-X5_E_P00.p65 2004.10.1, 9:46 AM2

E-1

Warning

Caution

Danger

Safety Precautions

Congratulations upon your selection of this CASIO product. Be sure to read the

following Safety Precautions before trying to use it for the first time.

Markings and Symbols

The following are the meanings of the markings and symbols used in these Safety

Precautions.

This symbol indicates information that, if ignored or applied

incorrectly, creates the danger of death or serious personal injury.

This symbol indicates information that, if ignored or applied

incorrectly, creates the possibility of death or serious personal

injury.

This symbol indicates information that, if ignored or applied

incorrectly, creates the possibility of personal injury or property

damage.

•A diagonal line indicates something you should not do. The symbol shown

here indicates you should not try to take the unit apart.

•A black circle indicates something you should do. The symbol shown here

indicates you should unplug the unit from the wall outlet.

Precautions During Use

Warning

Disassembly and Modification

•Never try to disassemble or modify the Handheld Terminal and its options in

any way. High voltage inside creates the danger of electric shock.

Abnormal Conditions

•Should the Handheld Terminal and its options become hot or start to emit

smoke or a strange odor, immediately turn off the power, and contact your

original vendor or an authorized CASIO service provider. Continued use

creates the danger of fire and electric shock.

DT-X5_E_P01_10.p65 2004.10.1, 9:47 AM1

E-2

Safety Precautions

Warning

Foreign Objects

•Should any foreign matter get into the Handheld Terminal and its options,

immediately turn off the power and contact your original vendor or an

authorized CASIO service provider. Continued use creates the danger of fire

and electric shock.

Dropping and Damage

•Should you drop the Handheld Terminal and its options and damage them,

immediately turn off the power and contact your original vendor or an

authorized CASIO service provider. Continued use creates the danger of fire

and electric shock.

Moisture

•Though your Handheld Terminal is water splash-resistant, its Cradle and

other optional peripherals are not. Keep loose metal objects and containers

filled with liquids away from your Handheld Terminal and the optional

peripherals.

Also, never connect or disconnect peripherals to the Handheld Terminal

while they are wet. Water getting into the Handheld Terminal or its

peripherals creates the danger of fire and electric shock.

Laser Light

•This product scans bar codes using laser light. Never look directly into the

laser light or shine the laser light into the eyes.

DT-X5_E_P01_10.p65 2004.10.1, 9:47 AM2

E-3

Caution

Foreign Objects

•Take care to ensure that metals or combustible objects are not inserted into

the openings of the Handheld Terminal and its options. Such the objects

inside of the Handheld Terminal and its options create the danger of fire and

electric shock.

Location

•Do not locate the Handheld Terminal and its options on a surface that is

unstable or uneven. Doing so creates the danger of the Handheld Terminal

falling, which can cause personal injury.

•Do not locate the Handheld Terminal and its options in an area subject to

large amounts of humidity or dust. Doing so creates the danger of fire and

electric shock.

•Do not leave the Handheld Terminal and its options for a long period in a car

parked in direct sunlight.

Heavy Objects

•Never place heavy objects on top of the Handheld Terminal and its options.

Doing so creates the danger of loss of balance and the objects falling, which

can cause personal injury.

LCD Screen

•Should the LCD panel glass break, never touch the liquid inside. Doing so

can cause skin inflammation.

– Should liquid from the LCD panel accidentally get into your mouth,

immediately wash your mouth with water and then consult a physician.

– Should liquid from the LCD panel accidentally get into your eyes or onto

your skin, immediately rinse for at least 15 minutes with clean tap water

and then consult a physician.

DT-X5_E_P01_10.p65 2004.10.1, 9:47 AM3

E-4

Safety Precautions

This wireless transmitter uses the 2.4 GHz band. It employs the FH-SS

modulation system and has an interfering range of 20 m.

This wireless transmitter uses the 2.4 GHz band. It employs the DS-SS

modulation system and has an interfering range of 40 m.

Operation of Wireless Data Communication Function

Warning

Interference with the Operation of Other Equipment

(Using Wireless Data Communication Function)

•Please follow the instructions provided by health care facilities when using

your Handheld Terminal in hospitals or other locations where medical

equipment is in use. In particular, either switch off the wireless data

communication function of the Handheld Terminal or turn off the power in

locations such as operating rooms, intensive care units, coronary artery

disease monitoring units and other locations where use of the Handheld

Terminal is prohibited by the health care facility. Radio waves emitted by

the Handheld Terminal can affect the operation of medical equipment.

•Keep your Handheld Terminal at least 22 centimeters (85/8") away from

anyone wearing a pacemaker. Radio waves emitted by the Handheld

Terminal can affect the operation of a pacemaker.

•The use of wireless communication devices and electronic devices is

prohibited by airlines depending on the flight status of the aircraft. Switch off

the wireless data communication function of the Handheld Terminal while

onboard an aircraft. Use of the Handheld Terminal can affect electronic

devices used by the aircraft potentially causing a malfunction or accident.

Caution

Interference with the Operation of Other Equipment

(Using Wireless Data Communication Function)

The Handheld Terminal contains a built-in wireless communication device of a low-power

data communication system. The frequency band that is used is also used by microwave ovens

and other industrial, scientific and medical devices, as well as other wireless stations of the

same type, local wireless stations for identifying moving objects requiring licensing used on

factory production lines and so forth, specified low-power wireless stations not requiring

licensing, and amateur wireless stations (to be referred to as “other wireless stations”).

•Confirm that other wireless stations are not in use nearby before using the

Handheld Terminal.

•

In the case radio wave interference has been generated between the Handheld Terminal

and other wireless stations, either promptly change the location where the Handheld

Terminal is used or discontinue operation of the equipment causing the interference.

•

If other problems should occur as a result of the generation of radio wave interference,

please contact the location indicated in the section on product consultations.

(DT-X5M10R/DT-X5M30R/DT-X5M30UR)

DT-X5_E_P01_10.p65 2004.10.1, 9:47 AM4

E-5

Alkaline Battery Handling Precautions

Danger

•Since there is the risk of blindness and other serious disorders when alkaline

battery fluid enters the eyes, seek medical treatment immediately after

adequately flushing the eyes with a large amount of tap water or other clean

water without rubbing.

Warning

•Do not dispose of batteries in open flames or allow them to be heated,

disassembled or modified. This results in the risk of damaging insulation

and safety valves or causes the batteries to leak fluid, overheat or rupture.

•Do not reverse the (+) and (–) poles of the batteries. This results in the risk

of abnormal reactions during charging or short-circuiting, or causes the

batteries to leak fluid, overheating or rupture.

•Store batteries in a location out of the reach of small children. In the case a

battery should happen to be swallowed, seek medical treatment immediately.

•In the case of having ingested alkaline battery fluid, gargle immediately and

seek medical treatment.

•Since there is the risk of injury to the skin in the case alkaline battery fluid

has come in contact with the skin or clothing, immediately rinse off with a

large amount of tap water or other clean water.

•Do not allow the (+) and (–) poles of alkaline batteries to come in contact

with wires or other metal objects, and do not carry or store them together

with metal necklaces, hair pins and so on. This results in the risk of the

batteries short-circuiting resulting in the flow of excess current and causing

the batteries to leak fluid, overheat or rupture.

•Do not use a new battery with an old battery that has already been used or

use different types of batteries. Differences in properties results in the risk

of the batteries leaking fluid, overheating or rupturing.

•These batteries are not designed to be recharged. Recharging results in the

risk of damage to insulation and internal structure causing the batteries to

leak fluid, overheat or rupture.

•Do not remove or damage the battery outer label. This results in the risk of

the batteries short-circuiting, leaking fluid, overheating or rupturing.

•

Do not subject the batteries to strong impacts resulting from dropping or throwing.

This results in the risk of the batteries leaking fluid, overheating or rupturing.

•Do not allow the batteries to be deformed or damaged. This results in the

risk of damage to the insulation and safety valve causing the batteries to

leak fluid, overheat or rupture.

DT-X5_E_P01_10.p65 2004.10.1, 9:47 AM5

E-6

Safety Precautions

Caution

•Promptly remove worn out batteries from the Handheld Terminal. Allowing

worn out batteries to remain installed in the Handheld Terminal for a long

period of time results in the risk of the generation of gas from the batteries

causing the batteries to leak fluid, overheat or rupture.

•Remove the batteries from the Handheld Terminal when not using for a long

period of time. Failure to do so results in the risk of the generation of gas

from the batteries causing the batteries to leak fluid and damage the

Handheld Terminal.

•Do not attempt to solder the batteries directly. This results in the risk of heat

damaging the insulation and safety valve causing the batteries to leak fluid,

overheat or rupture.

•Do not use or place the batteries in a location subject to high temperatures

such as locations of intense direct sunlight or in an automobile on a hot day.

This results in the risk of the batteries leaking fluid, overheating or

rupturing.

•Insulate the ends of the batteries by covering with tape and so on when

storing or disposing. Allowing the batteries to contact other batteries or

metal objects results in the risk of the batteries leaking fluid, overheating or

rupturing.

•Do not allow the batteries to become wet. This results in the risk of the

batteries overheating.

•Avoid storing batteries in locations subject to direct sunlight, high

temperature or high humidity. This results in the risk of the batteries leaking

fluid. In addition, there is also the risk of reduced battery performance and

shorter battery life.

•Although these batteries may be disposed of in the same manner as ordinary

non-burnable garbage, please dispose of them in the proper manner in

accordance with the rules and regulations of your local community when

applicable.

DT-X5_E_P01_10.p65 2004.10.1, 9:47 AM6

E-7

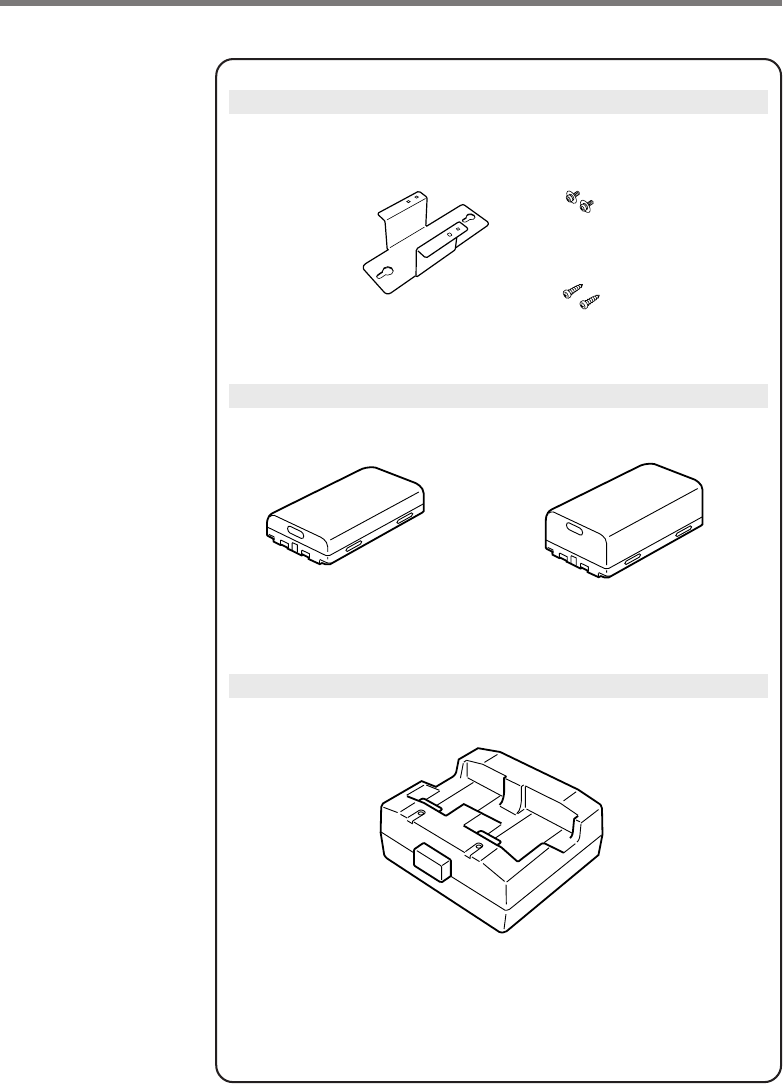

Optional Lithium-ion Battery Pack

Danger

•Never allow the battery pack to become wet. Water can create the danger of

battery pack heat emission, explosion, and fire.

•Never use or leave the battery pack next to open flame, near a stove, or any

other area exposed to high heat. Doing so creates the danger of battery pack

heat emission, explosion, and fire.

•Never use the battery pack with any device other than the Handheld

Terminal. Doing so can create the danger of battery pack heat emission,

explosion, and fire.

•Note that the battery pack’s positive (+) and negative (–) polarities must be

oriented correctly when it is loaded into battery charger or the Handheld

Terminal. Connecting the battery pack with its polarities reversed creates the

danger of battery pack fluid leakage, heat emission, explosion, and fire.

•Never dispose of the battery pack by incinerating it or otherwise expose it to

heat. Doing so creates the danger of battery pack heat emission, explosion,

and fire.

•Never allow the positive (+) and negative (–) terminals of the battery pack to

become connected (shorted) by metal. Doing so creates the danger of battery

pack heat emission, explosion, and fire.

•Never transport or store the battery pack together with a necklace, hair pins

or other metal objects. Doing so can short battery pack terminals, creating

the danger of battery pack heat emission, explosion, and fire. Be sure to

place the battery pack in its case whenever transporting or storing it.

•Never throw the battery pack or otherwise subject it to strong impact. Doing

so creates the danger of battery pack heat emission, explosion, and fire.

•Never pierce the battery pack with nails, hit it with a hammer, or step on it.

Doing so can create the danger of battery pack heat emission, explosion, and

fire.

•Never try to take apart the battery pack or modify it in any way. Doing so

creates the danger of battery pack heat emission, explosion, and fire.

•Use only the specified battery charger to charge the battery pack. Use of

other type of battery charger creates the danger of battery pack heat

emission, explosion, and fire.

DT-X5_E_P01_10.p65 2004.10.1, 9:47 AM7

E-8

Safety Precautions

Warning

•Never place the battery pack in a microwave oven or any other high-voltage

device. Doing so creates the danger of battery pack heat emission,

explosion, and fire.

•Should the battery pack emit a strange odor or heat, change color or shape,

or exhibit any other abnormal behavior, immediately stop using it.

Continued use creates the danger of battery pack heat emission, explosion,

and fire.

•If the battery pack does not achieve full charge after the normal charging

time has passed, stop charging it. Continued charging creates the danger of

battery pack heat emission, explosion, and fire.

•Should the battery pack start to leak or emit a strange odor, immediately

move it away from flame. Leaking battery fluid is combustible, and

exposure to flame creates the danger of explosion and fire.

•Should fluid from the battery pack accidentally get into your eyes, do not

rub them. Immediately rinse your eyes with clean tap water and then consult

a physician immediately.

Caution

•Never use or leave the battery pack in an area exposed to direct sunlight, in

a car parked in direct sunlight, or any other very hot area. Doing so creates

the danger of heat emission and fire, as well as deterioration of battery pack

performance and shortening of its service life.

•Do not use the battery pack in areas where static electricity is being

generated. Doing so creates the danger of battery pack heat emission,

explosion, and fire.

•Danger of explosion if the battery pack is incorrectly replaced.

Replace only with same or equivalent type recommended by CASIO.

Dispose of used batteries according to the CASIO instruction.

•Should fluid from the battery pack accidentally get onto clothing or your

skin, immediately rinse it off with clean tap water. Prolonged contact with

battery pack fluid can cause skin irritation.

•Keep the battery pack out of the reach of small children. Do not let small

children remove the battery pack from battery charger or the Handheld

Terminal while it is powered on.

DT-X5_E_P01_10.p65 2004.10.1, 9:47 AM8

E-9

AC Power Supply

Warning

•Do not use the Handheld Terminal at a voltage other than the specified

voltage. Also, do not connect the Handheld Terminal to a multi-plug power

strip. Doing so creates the danger of fire and electric shock.

•Avoid conditions that can cause damage or breaks in the power cord. Do not

place heavy objects on the power cord and keep it away from sources of

heat. Any of these conditions can damage the power cord, creating the

danger of fire and electric shock.

•Never modify, sharply bend, twist, or pull on the power cord. Doing so

creates the danger of fire and electric shock.

•When using the battery charger, Cradle and Dual Battery Charger, be sure to

use the respective AC adaptors. Use of other types of AC adaptors creates

the danger of fire and electric shock.

•Should the power cord become severely damaged (to the point that wires are

exposed or broken), contact your original vendor or an authorized CASIO

service provider about repair or replacement. Use of a damaged electrical

cord creates the danger of fire and electric shock.

Caution

•Keep the power cord away from stoves and other sources of extreme heat.

Heat can melt the covering of the power cord and create the danger of fire

and electric shock.

•Never pull on the power cord when unplugging it. Doing so can damage the

cord and create the danger of fire and electric shock. (Always hold the plug

when unplugging it from the wall outlet.)

•Never touch the plug while your hands are wet. Doing so can create the

danger of electric shock.

•Be sure to unplug the power cord from the wall outlet before moving the

battery charger, Cradle and Dual Battery Charger. Failure to do so can result

in damage to the power cord caused by pulling it, which creates the danger

of fire and electric shock.

•Be sure to unplug the power cord from the wall outlet before cleaning the

battery charger and Cradle.

•Be sure to turn the power off and unplug the power cord after use.

•

Unplug the power cord from the wall outlet whenever leaving the battery charger,

Cradle and Dual Battery Charger unattended for a long period of time.

DT-X5_E_P01_10.p65 2004.10.1, 9:47 AM9

E-10

Safety Precautions

AC Adaptor

Caution

•The housing of the AC adaptor can become warm during normal use.

•Take normal precautions against electric shock.

•At least once a year, unplug the AC adaptor from the wall outlet and clean

any dust that builds up between the prongs of the plug.

Dust built up between the prongs can lead to the danger of fire.

Backup Copies of All Important Data

Caution

•Note that CASIO Computer Co., Ltd. shall not be held liable to you or any

third party for any damages or loss caused by deletion or corruption of data

due to use of the Handheld Terminal, malfunction or repair of the Handheld

Terminal or its peripherals, or due to the batteries going dead.

•The Handheld Terminal employs electronic memory to store data, which

means that memory contents can be corrupted or deleted if power is

interrupted due to the batteries going dead or incorrect battery replacement

procedures. Data cannot be recovered once it is lost or corrupted. Be sure to

make backup copies of all important data.

DT-X5_E_P01_10.p65 2004.10.1, 9:47 AM10

E-11

Operating Precautions

Your Handheld Terminal and its options are precision digital instruments. Improper

operation or rough handling can cause problems with data storage and other problems.

Note and observe the following precautions to ensure proper operation.

•Do not continue operating the Handheld Terminal when battery power is low.

Doing so can cause data to be lost or altered. If the batteries become worn down,

either promptly replace them with new AA size alkaline batteries or charge the battery

pack.

•Do not leave dead batteries in the Handheld Terminal for a long period.

Dead batteries can leak, leading to malfunction and damage to the Handheld Terminal.

•Use the Handheld Terminal and its options only within the specified temperature

range.

Use outside of the specified temperature range creates the risk of malfunction.

•Avoid using the Handheld Terminal and its options in areas subject to the

following conditions.

Doing so can damage the Handheld Terminal or cause it to malfunction.

— Large amounts of static electricity

— Extreme heat or extreme cold

— High humidity

— Sudden temperature extremes

— Large amounts of dust

•Never use thinner, benzene, cosmetic cleaning fluids, or other volatile agents to

clean the Handheld Terminal.

To clean the Handheld Terminal, wipe it with a dry cloth or cloth moistened with

neutral detergent diluted with water. Wring all excess moisture from the cloth

before wiping.

DT-X5_E_P11_15.p65 2004.10.1, 9:47 AM11

E-12

Important

•The contents of this guide are subject to change without notice.

•Note that CASIO COMPUTER CO., LTD. shall not be held liable to you or any third

parties for any losses or damages arising from the use of this guide.

•Although the utmost care has been taken in preparing this manual, please contact the

manufacturer if you should happen to notice any inconsistencies or errors.

•This guide does not include any information about programming and download

procedures. See the applicable separate documentation for information about the

procedures.

Warranty and After Service

•Should this product ever malfunction, contact your original retailer providing

information about the product name, the date you purchased it, and details about the

problem.

DT-X5_E_P11_15.p65 2004.10.1, 9:47 AM12

E-13

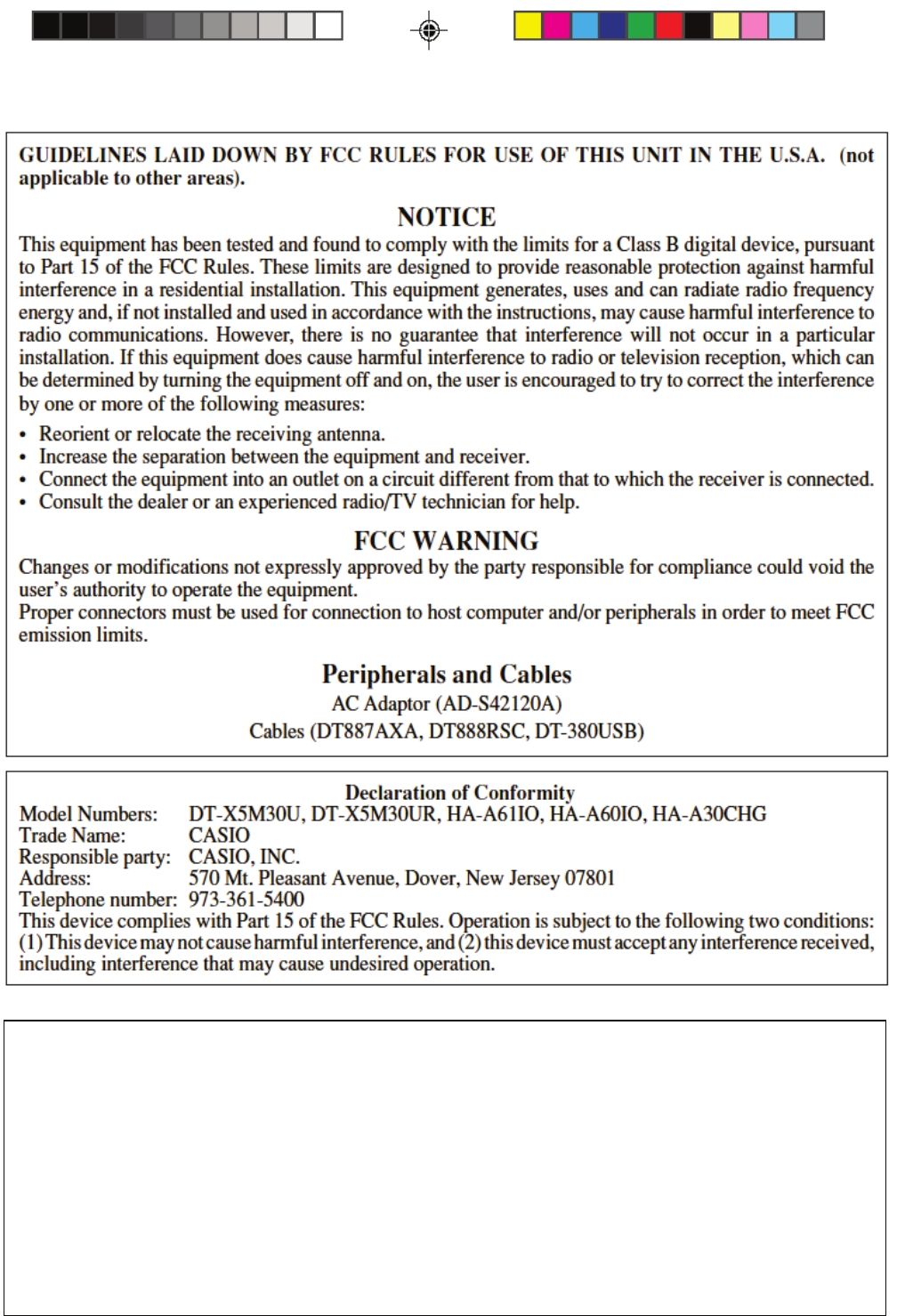

IMPORTANT NOTE:

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment. This device complies with FCC RF Exposure limits set forth for an

uncontrolled environment, under 47 CFR 2.1093 paragraph (d)(2).

This transmitter must not be co-located or operating in conjunction with any other

antenna or transmitter.

E-14

Product description / Intended use

EU/EFTA member states intended for use EU: Austria, Belgium, Denmark, Finland, France,

Germany, Greece, Ireland, Italy, Luxembourg, The

Netherlands, Portugal, Spain, Sweden, United Kingdom

EFTA: Switzerland, Iceland, Lichtenstein, Norway

Member states with restrictive use NONE

Manufacturer CASIO COMPUTER CO., LTD.

Brand CASIO

Type DT-X5M10E, DT-X5M10R, DT-X5M30E,

DT-X5M30R, DT-X5M30U, DT-X5M30UR,

are tested and found to conform with the essential requirements for protection of health and the safety of the

user and any other persons and Electromagnetic Compatibility, as included in following standards:

Standard lssue date

EN60950:2000 2002-02

EN301 489-1, 2002-08

EN301 489-17 2002-08

and are tested and found to conform with the essential radio test suites so that they effectively use the

frequency spectrum allocated to terrestrial/space radio communication and orbital resources so to as to

avoid harmful interference, as included in following standards:

DT-X5M10E;

Standard lssue date

EN300 328-1 2001-12

EN300 328-2 2001-12

and therefore comply with the essential requirements and provisions of the Directive 1999/5/EC of the

European Parliament and of the council of March 9, 1999 on Radio equipment and Telecommunications

Terminal Equipment and the mutual recognition of their conformity and with the provisions of Annex III

(Conformity Assessment procedure referred to in article 10).

DT-X5M10R;

Standard lssue date

EN300 328-1 2001-12

EN300 328-2 2001-12

EN50360 2001-07

EN50361 2001-09

and therefore comply with the essential requirements and provisions of the Directive 1999/5/EC of the

European Parliament and of the council of March 9, 1999 on Radio equipment and Telecommunications

Terminal Equipment and the mutual recognition of their conformity and with the provisions of Annex IV

(Conformity Assessment procedure referred to in article 10).

certify and declare under our sole responsibility that the following equipments:

Important

We, the undersigned.

Company CASIO Europe GmbH

Address, City Bornbarch 10, D-22848 Norderstedt

Country Germany

Phone number +49(0)40-528-65-0

Fax number +49(0)40-528-65-424

DT-X5_E_P11_15.p65 2004.10.1, 9:47 AM14

E-15

Products are for distribution within all member states of the EU.

DT-X5M10E/DT-X5M30E/DT-X5M30U; DT-X5M10R/DT-X5M30R/DT-X5M30UR;

The folowing Notified Body has been consulted in the Conformity Assessment procedure.

Notified Body number Name and Address

0560 TELEFICATION B.V., Utrechtseweg 310 - P.O. Box 60004,

NL-6800 JA ARNHEM, The Netherlands

The technical documentation as required by the Conformity Assessment procedure is kept at the following

address:

Company CASIO Europe GmbH

Address, City Bornbarch 10, D-22848 Norderstedt

Country Germany

Phone number +49(0)40-528-65-0

Fax number +49(0)40-528-65-424

0560

The information described above dates from May 2004 and maybe subjected to future changes.

DT-X5_E_P11_15.p65 2004.10.1, 9:47 AM15

E-16

Contents

Safety Precautions ............................................................................................ 1

Operating Precautions .................................................................................... 11

Important .......................................................................................................... 12

Warranty and After Service ........................................................................... 12

Before Getting Started .................................................................................... 18

When unpacking, make sure that all items are included. ............................. 18

Install the main battery. ................................................................................. 19

When Using the AA size Alkaline Batteries ......................................................... 19

When Using the Battery Pack ............................................................................... 20

Turning On the Power ................................................................................... 21

Handheld Terminal System Configuration .................................................... 22

General Guede ................................................................................................. 25

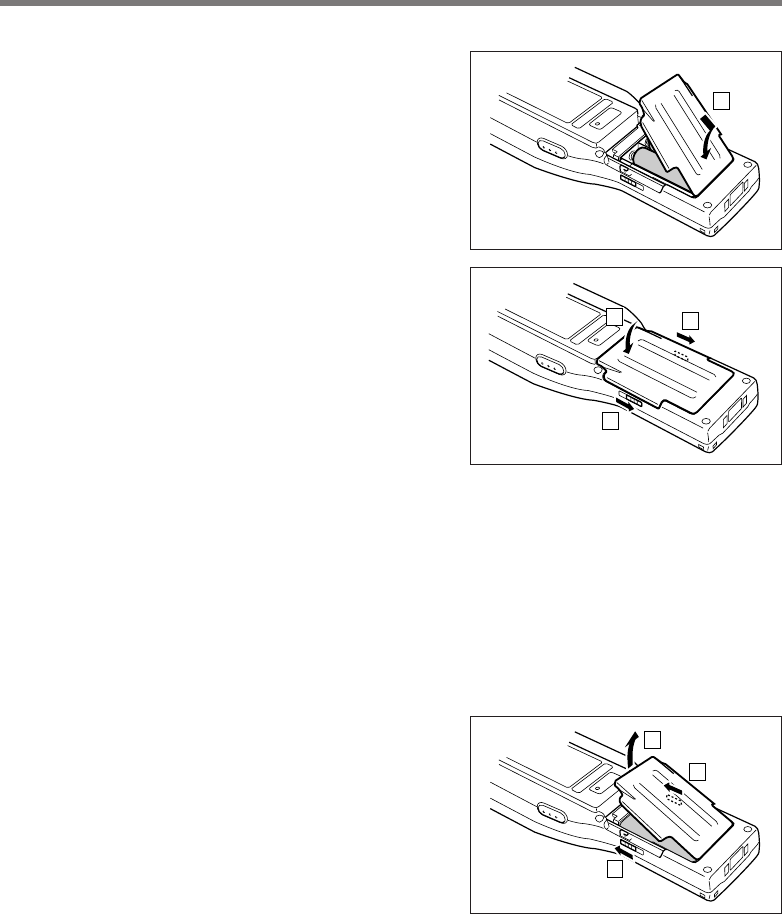

Replacing the Battery ..................................................................................... 27

Replacing the Battery Pack .......................................................................... 27

Replacing the AA size Alkaline Batteries ............................................................. 28

To replace the battery pack ................................................................................... 29

Loading the large-capacity battery pack into the Handheld Terminal .................. 31

Removing and Installing the Alkaline Battery Holder .................................. 32

Removal Procedure ...................................................................................... 32

Installation Procedure ................................................................................... 33

Attaching the Wrist Strap ............................................................................... 34

Configuring Handheld Terminal Settings ..................................................... 35

Adjusting Display Contrast ........................................................................... 35

Turning Backlight On and Off ....................................................................... 35

Using the Laser Scanner ................................................................................ 36

Warning Label .............................................................................................. 37

Bar Code Scanning Position ......................................................................... 37

Using the C-MOS Imager ................................................................................ 38

Warning Label .............................................................................................. 39

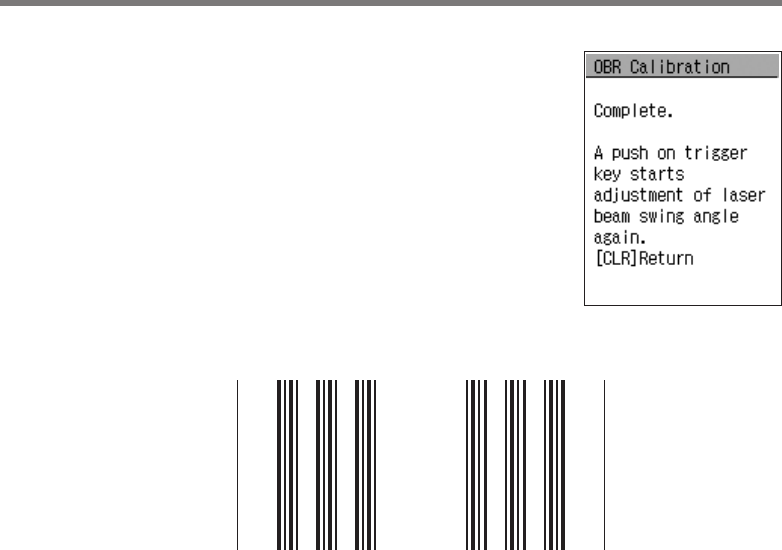

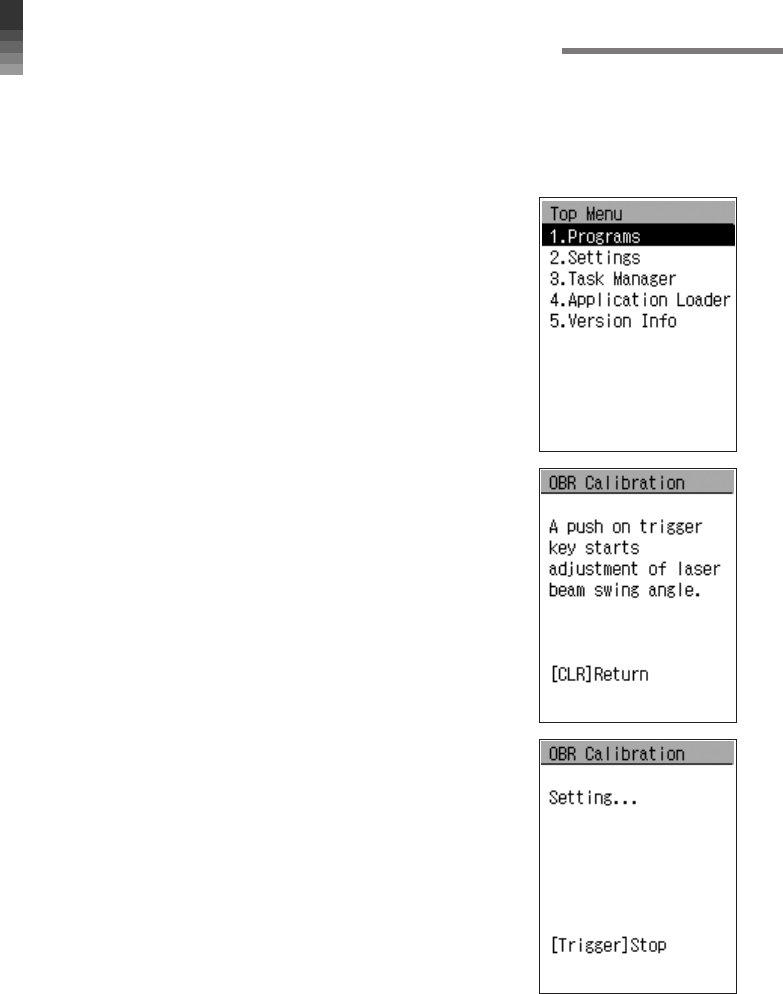

Adjusting Laser Emission Width ................................................................... 40

Emission Width Adjustment Bar code .................................................................. 41

Performing Communication ........................................................................... 42

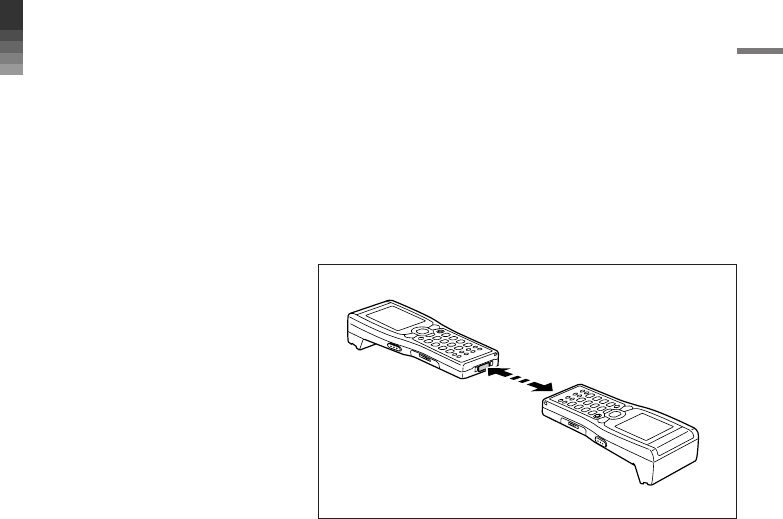

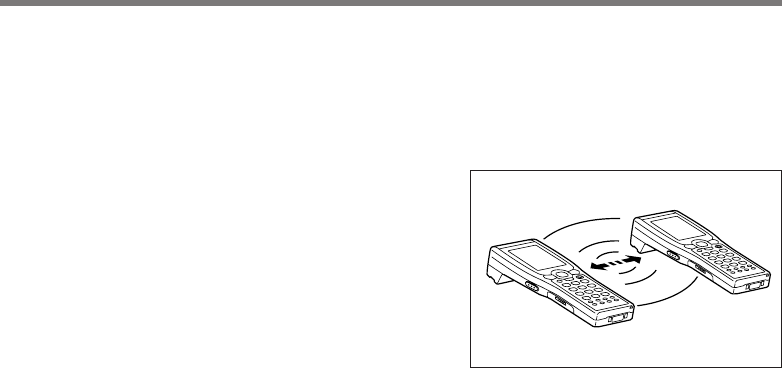

IR Communication ........................................................................................ 42

BluetoothTM Communication ......................................................................... 43

DT-X5_E_P16_17.p65 2004.10.1, 9:47 AM16

E-17

Resetting the Handheld Terminal ................................................................... 44

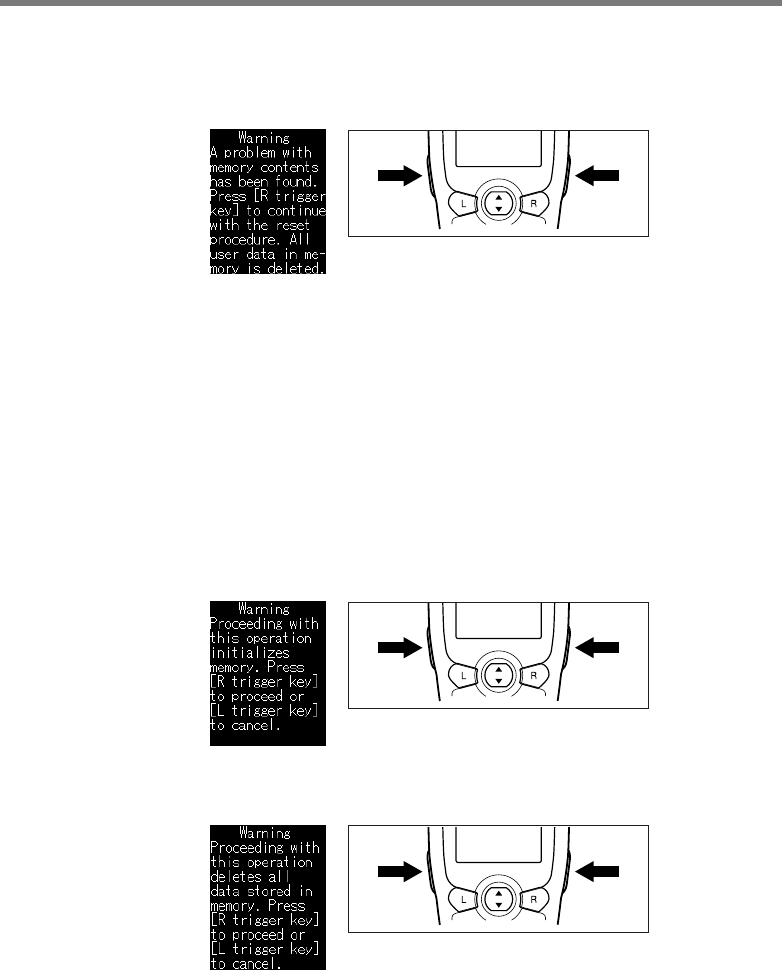

Reset and Full Reset (Memory Initialization) ................................................ 44

Reset ..................................................................................................................... 44

Performing a Full Reset (Initialization) ................................................................ 44

To perform a reset ........................................................................................ 44

If reset does not find a memory problem .............................................................. 44

If reset finds a memory problem........................................................................... 45

To perform a full reset ................................................................................... 45

DT-X5 Specifications ....................................................................................... 46

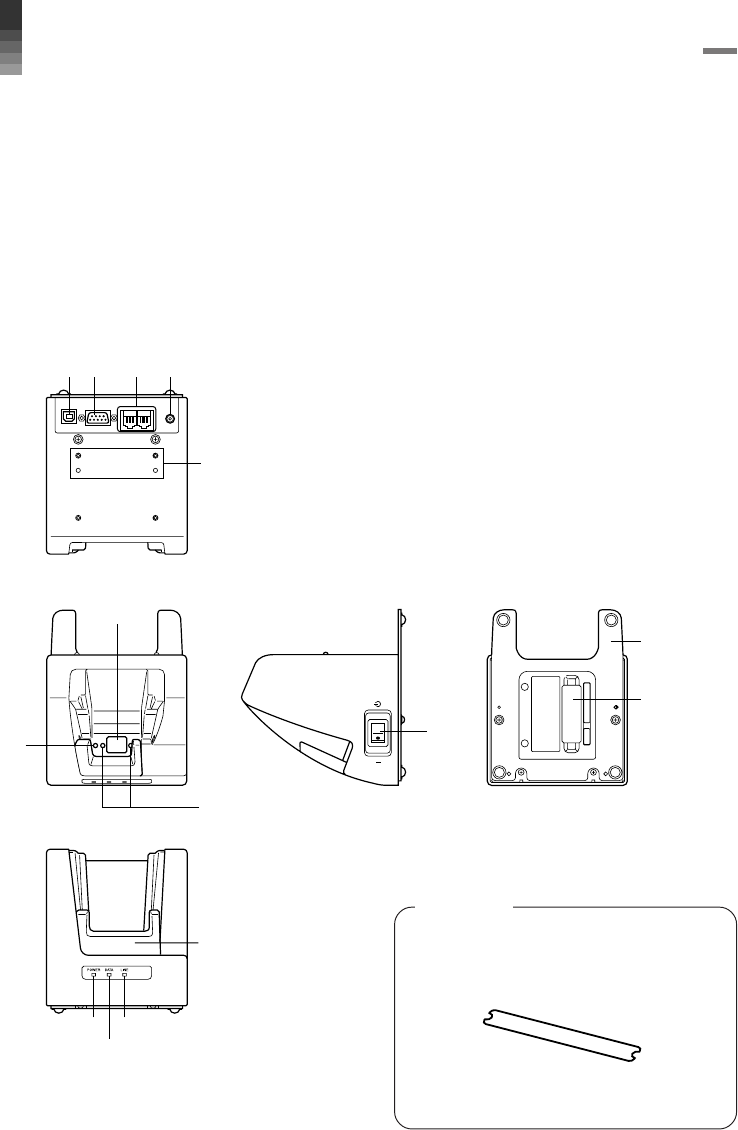

Using the Bridge Satellite Cradle (HA-A61IO)/

Bridge Basic Cradle (HA-A60IO) ............................................................ 49

General Guide .............................................................................................. 49

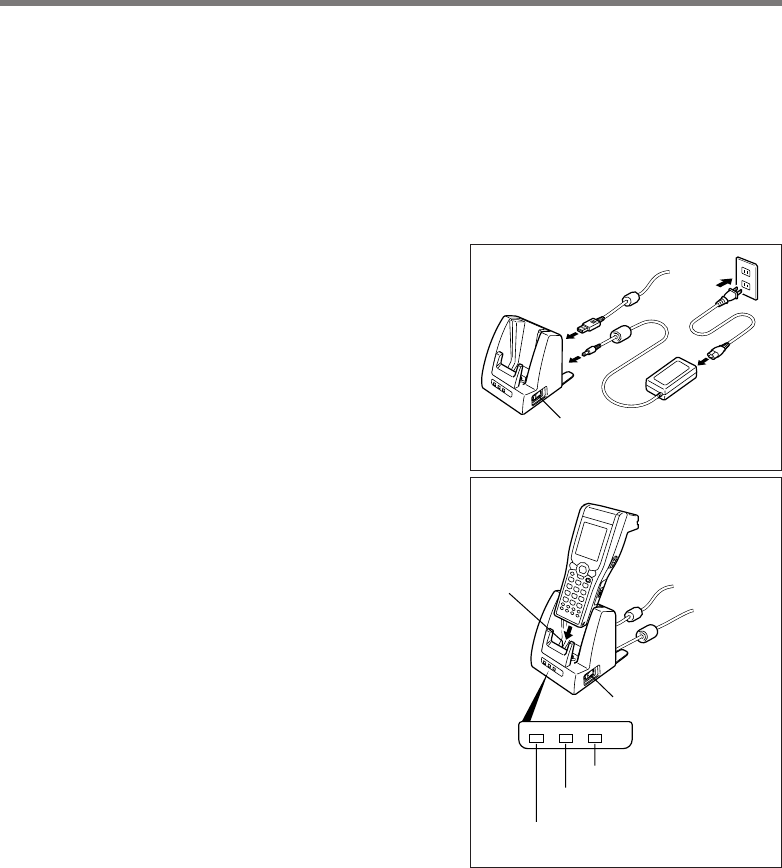

Connecting the AC Adaptor and Connecting to Computer ........................... 51

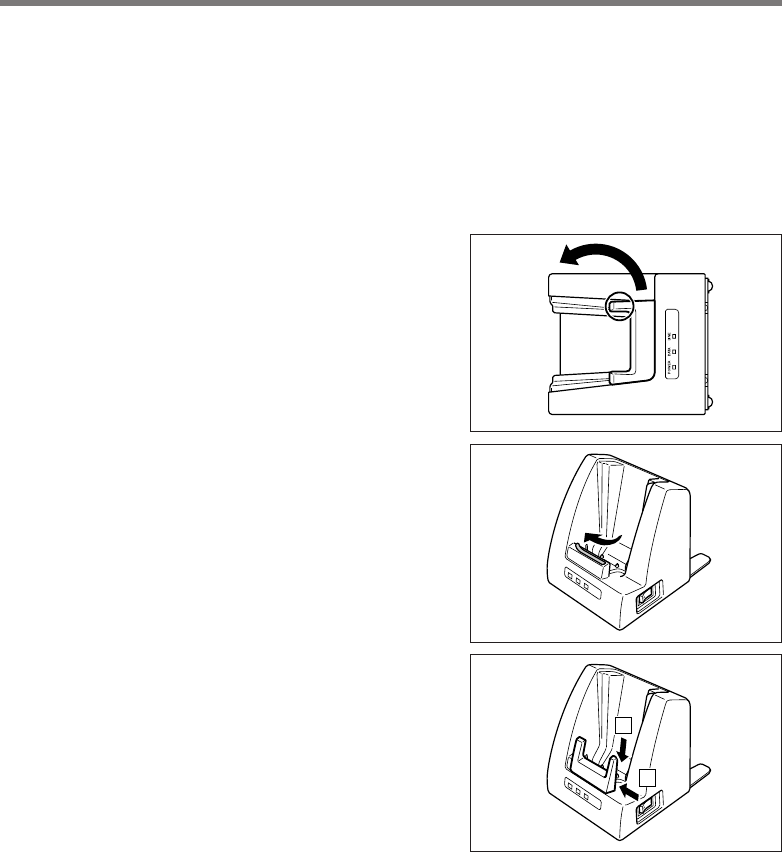

Removing the Fall Protector ......................................................................... 53

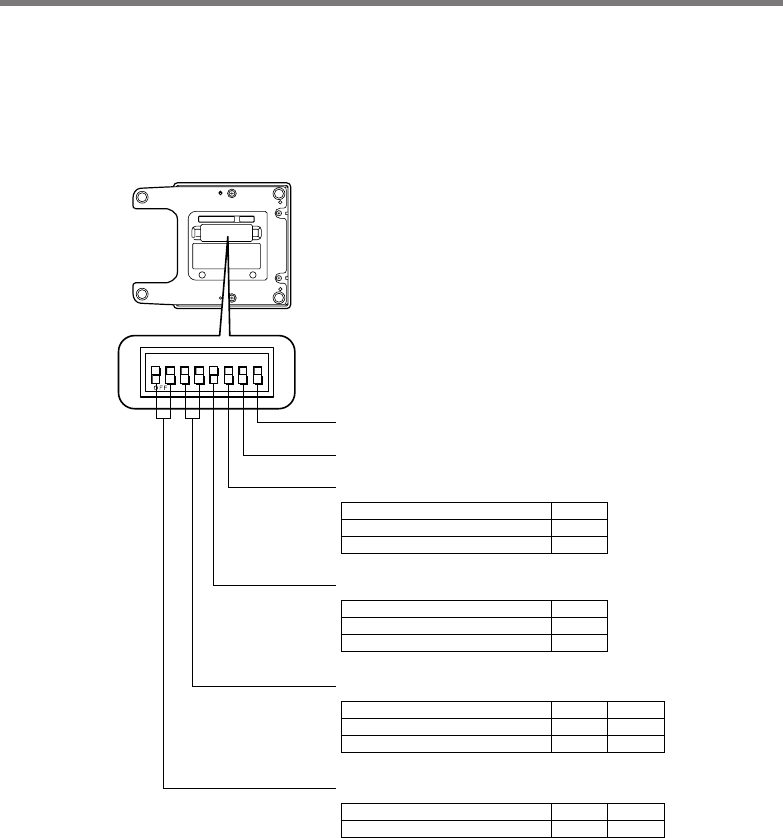

Configuring DIP Switch Settings (HA-A61IO) ............................................... 54

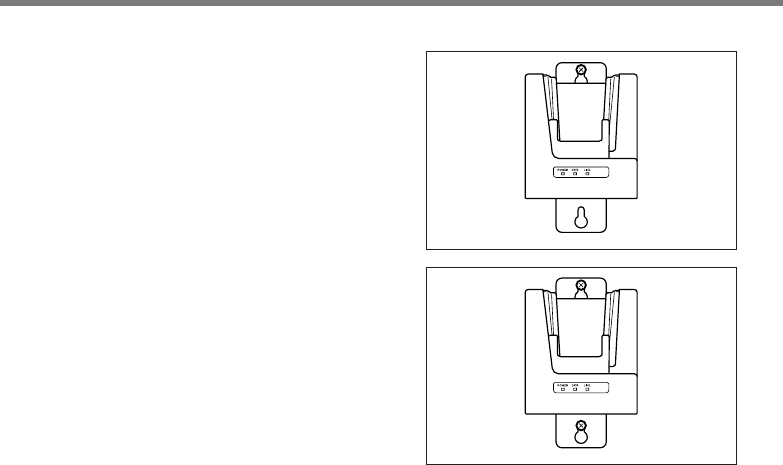

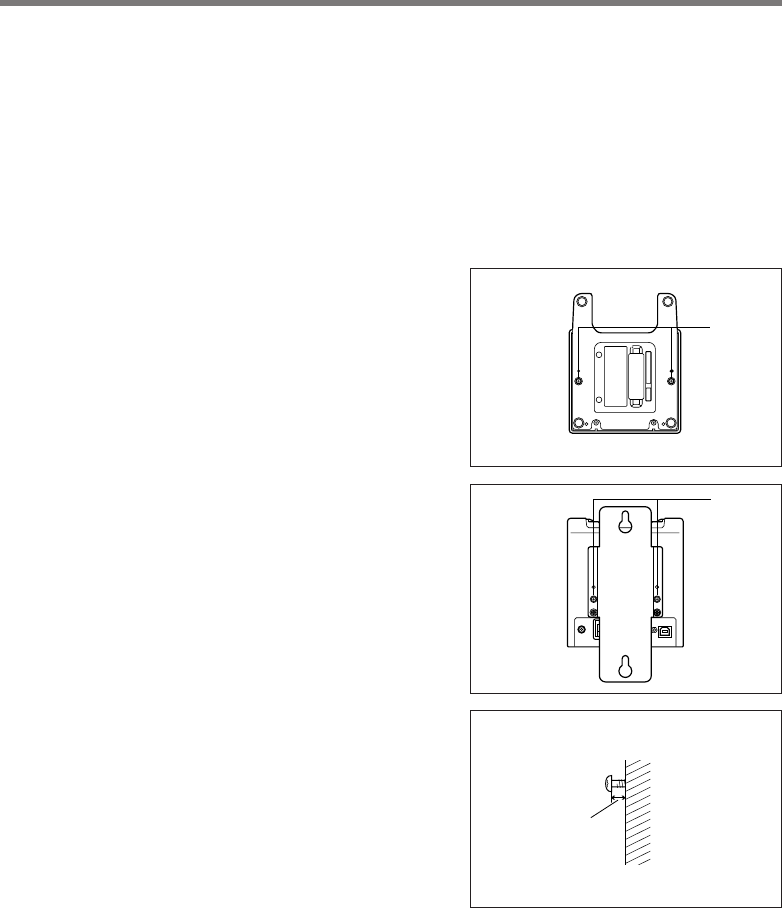

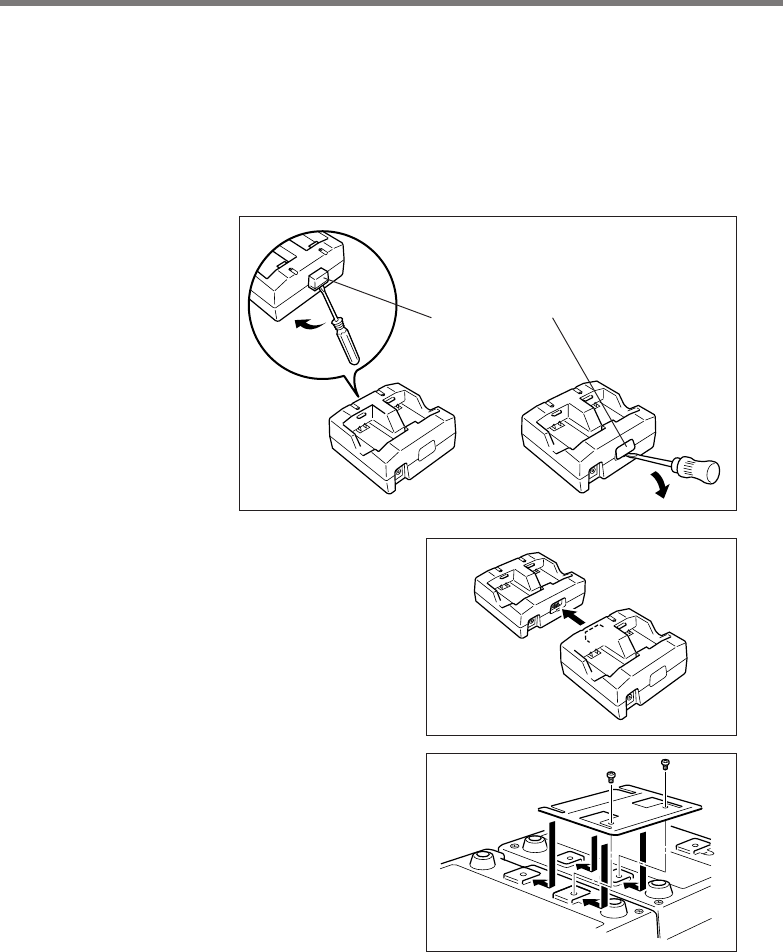

Using Wall Mount Unit .................................................................................. 55

To remove the Bridge Satellite Cradle/Bridge Basic Cradle from the wall .......... 56

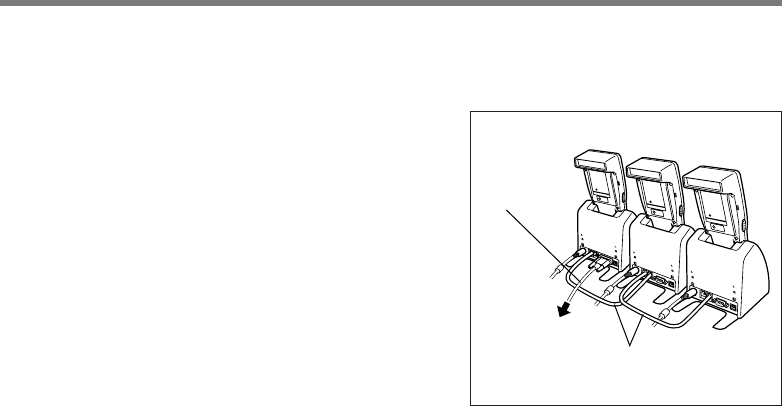

Connecting Multiple Bridge Satellite Cradles (HA-A61IO) ............................ 57

Bridge Satellite Cradle (HA-A61IO)/Bridge Basic Cradle (HA-A60IO) Specifications ....

Using the Cradle-type Battery Charger ......................................................... 59

General Guide .............................................................................................. 59

Connecting the AC Adaptor for Cradle-type Battery Charger ....................... 61

Using Wall Mount Unit .................................................................................. 62

Removing the Fall Protector ......................................................................... 62

Cradle-type Battery Charger (HA-A30CHG) Specifications ......................... 62

Using the Dual Battery Charger ..................................................................... 63

General Guide .............................................................................................. 63

Charging a Battery Pack ....................................................................................... 65

Charge Indicator Lamp ......................................................................................... 65

Connecting Multiple Dual Battery Chargers ................................................. 66

Dual Battery Charger (DT-5022CHG) Specifications .................................... 67

Using Rechargeable Battery Pack ................................................................. 68

Battery Pack Specifications .......................................................................... 68

Large-capacity Battery Pack Specifications .................................................. 68

DT-X5_E_P16_17.p65 2004.10.1, 9:47 AM17

E-18

Install the main

battery

Before Getting Started

Be sure to perform the following steps before using the Handheld Terminal for the first

time.

Handheld Terminal

Wrist Strap

User's Guide (this manual)Large-capacity battery pack Cover

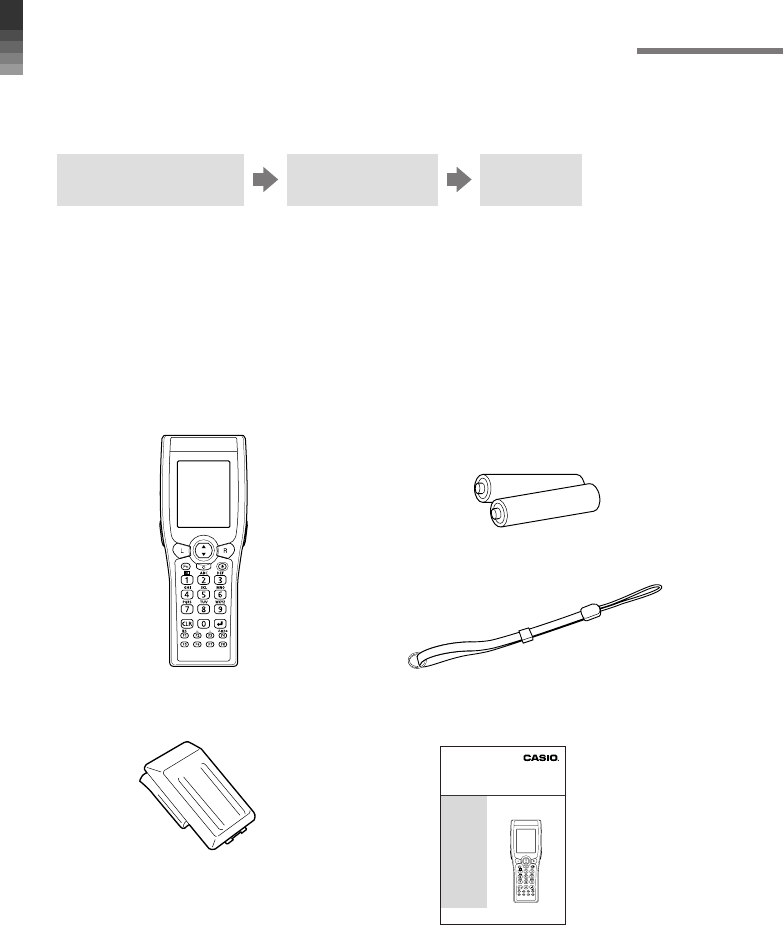

When unpacking, make sure that all items are included.

Open the box and make sure that all the items shown here are included.

Check the contents

of the box

Turn on

the power

• Using the AA size

alkaline batteries

• Using the battery pack

(charging required)

AA size Alkaline Batteries

(DT-X5M10E/DT-X5M30E/DT-X5M30U only)

Handheld Terminal

Series

User’s Guide

Be sure to read “Safety

Precautions” inside this

guide before trying to use

your Handheld Terminal.

After reading this guide,

keep it in a safe place for

future reference.

DT-X5

PN410388-002

DT-X5_E_P18_24.p65 2004.10.1, 9:48 AM18

E-19

Install the main battery

When Using the AA size Alkaline Batteries (DT-X5M10E/DT-X5M30E/

DT-X5M30U only)

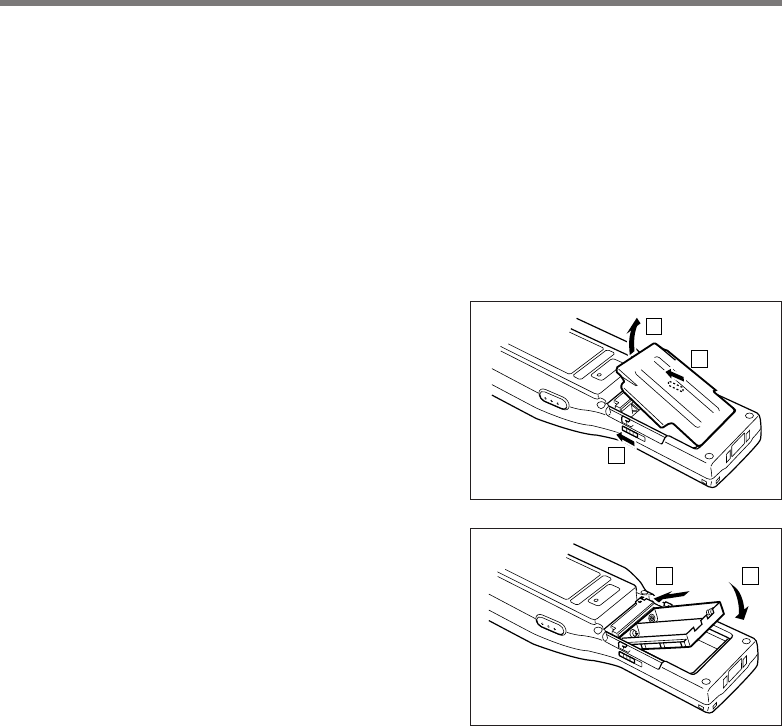

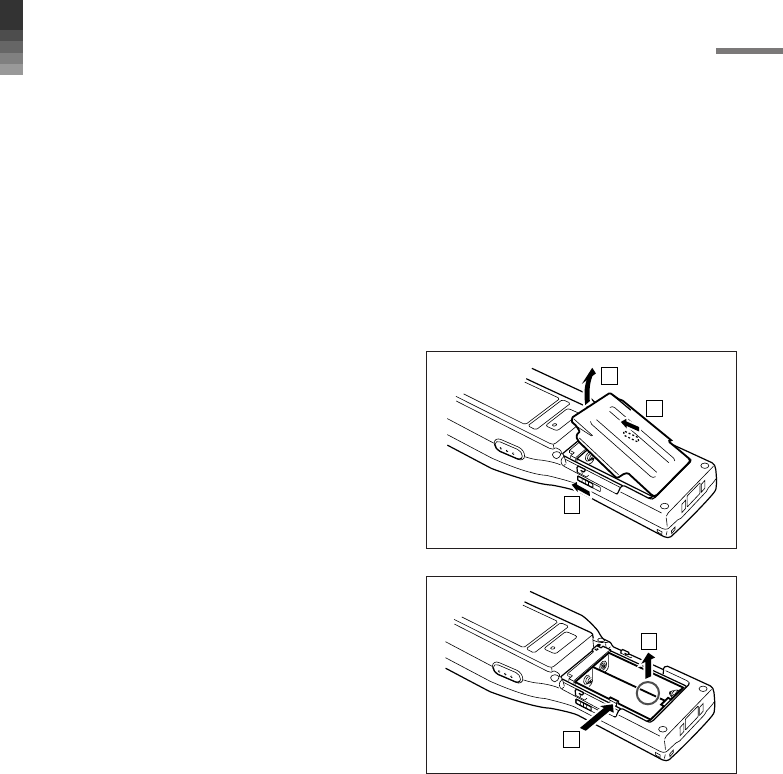

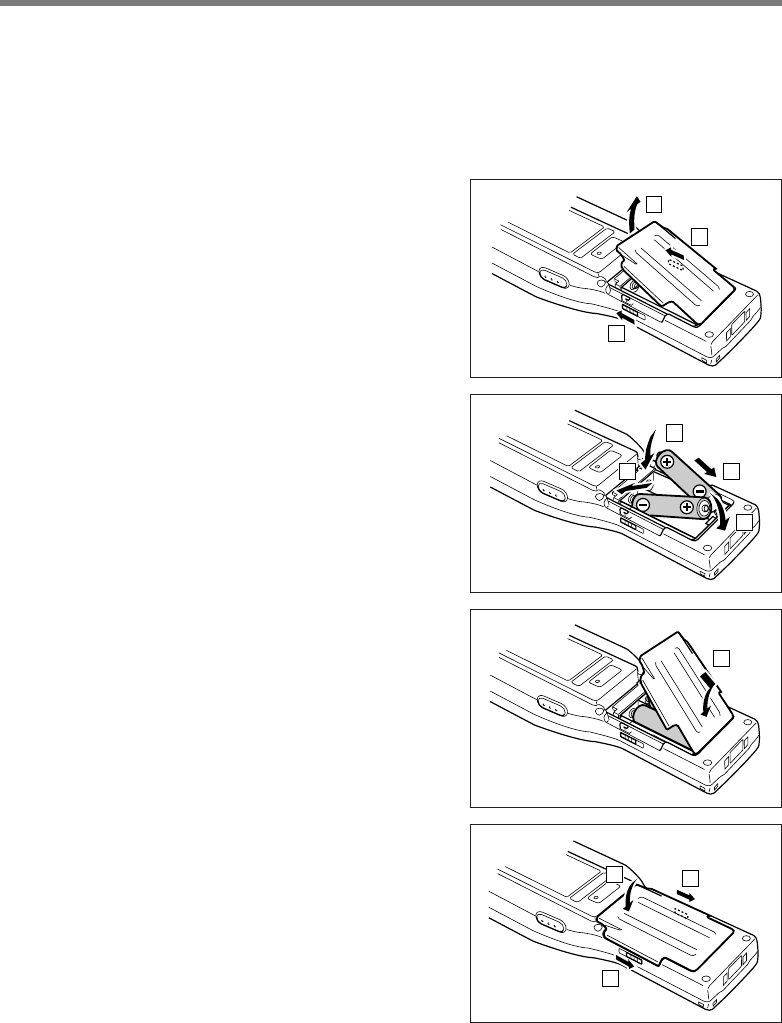

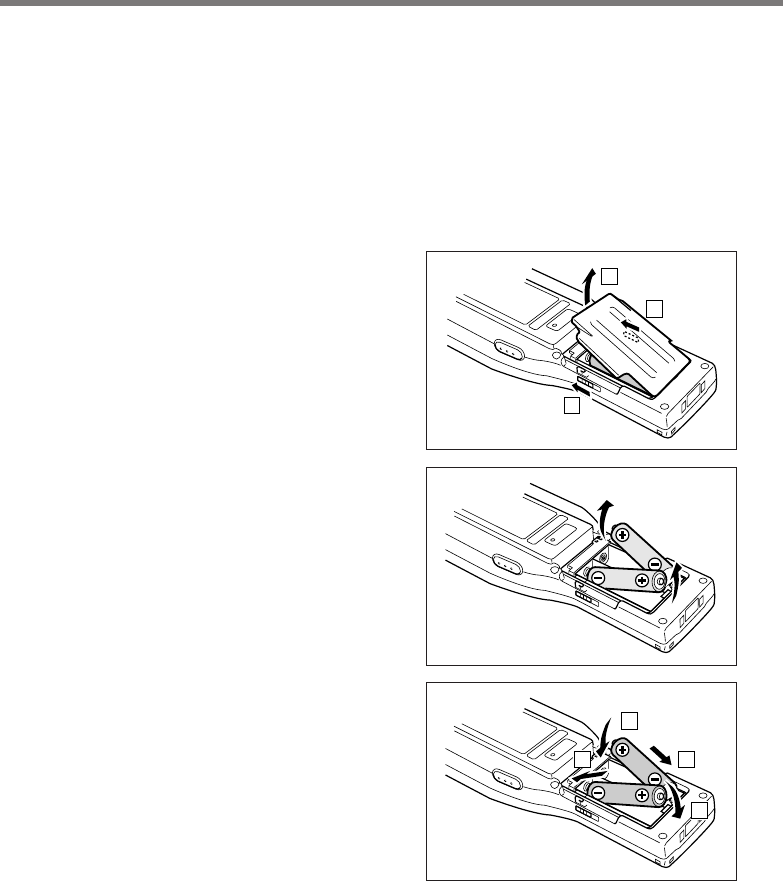

1. Install the AA size alkaline batteries.

1Slide the two main battery cover lock

switches on both sides of the Handheld

Terminal to the “FREE” position, and

remove the main battery cover.

2Install the AA size alkaline batteries.

Make sure the batteries are aligned

properly.

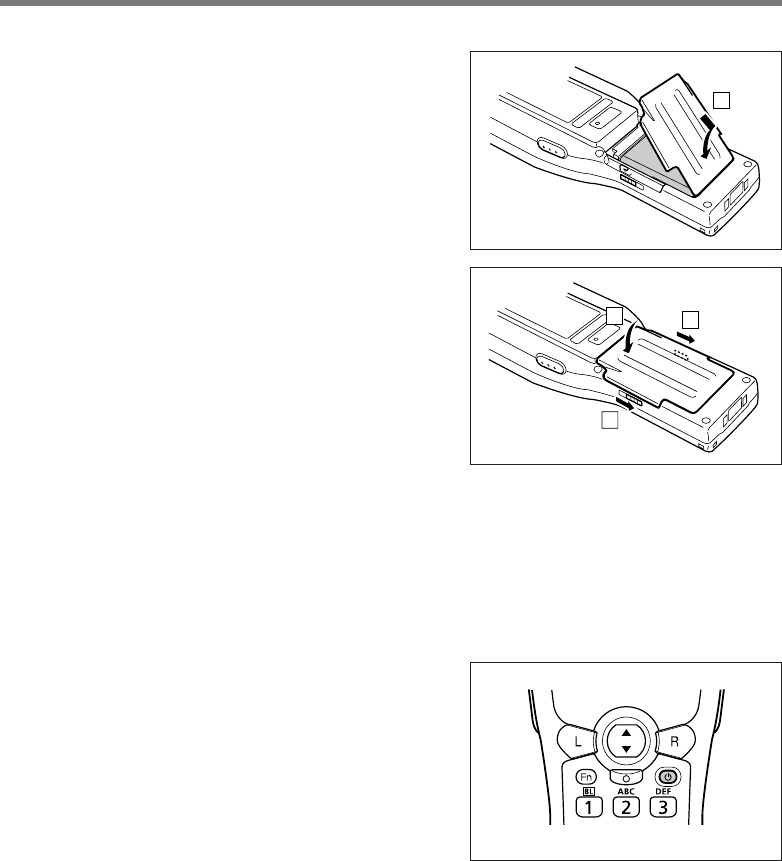

3Return the main battery cover to its

original position as shown in the

illustration, and return the two main

battery pack cover lock switches to the

“LOCK” position.

DT-X5_E_P18_24.p65 2004.10.1, 9:48 AM19

E-20

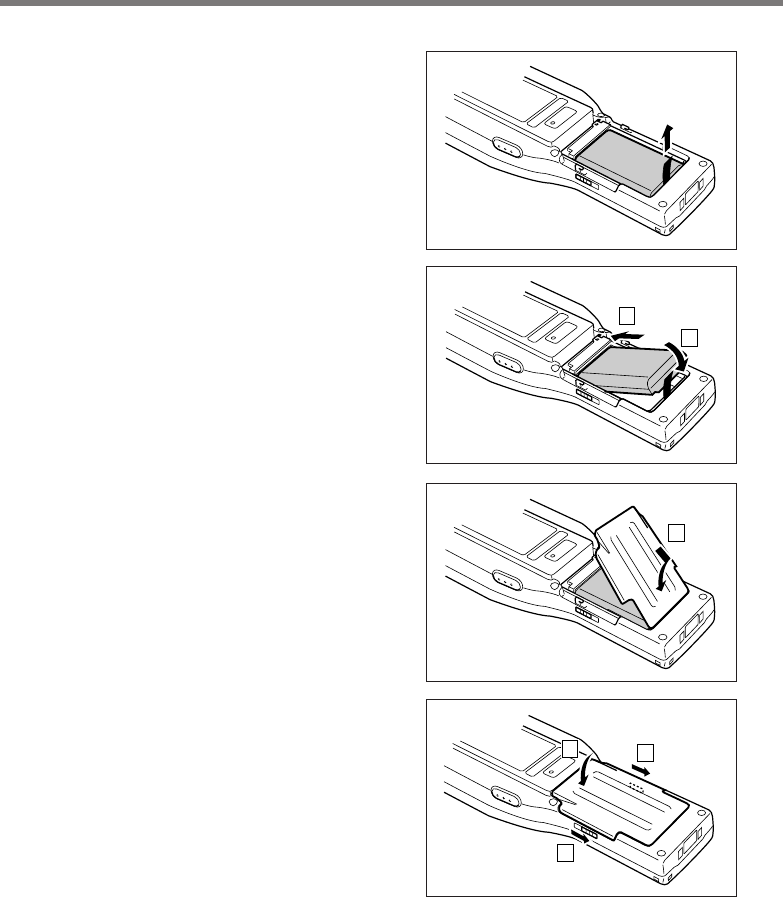

When Using the Battery Pack

Charging is required when using the battery pack (HA-A20BAT or DT-5025LBAT) sold

separately.

Use the Dual Battery Charger when charging the battery pack before installing in the

Handheld Terminal, or use the Cradle-type Battery Charger or Cradle to charge after

installing in the Handheld Terminal.

1. Remove the alkaline battery holder if it is installed.

Refer to page 32 for information on removing the alkaline battery holder.

2. Use the Dual Battery Charger when charging the battery pack in advance.

Refer to page 65 for information on the charging procedure.

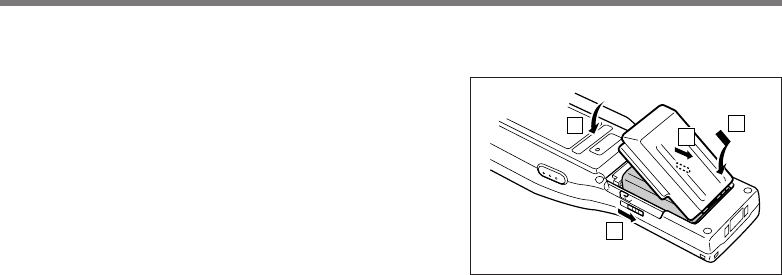

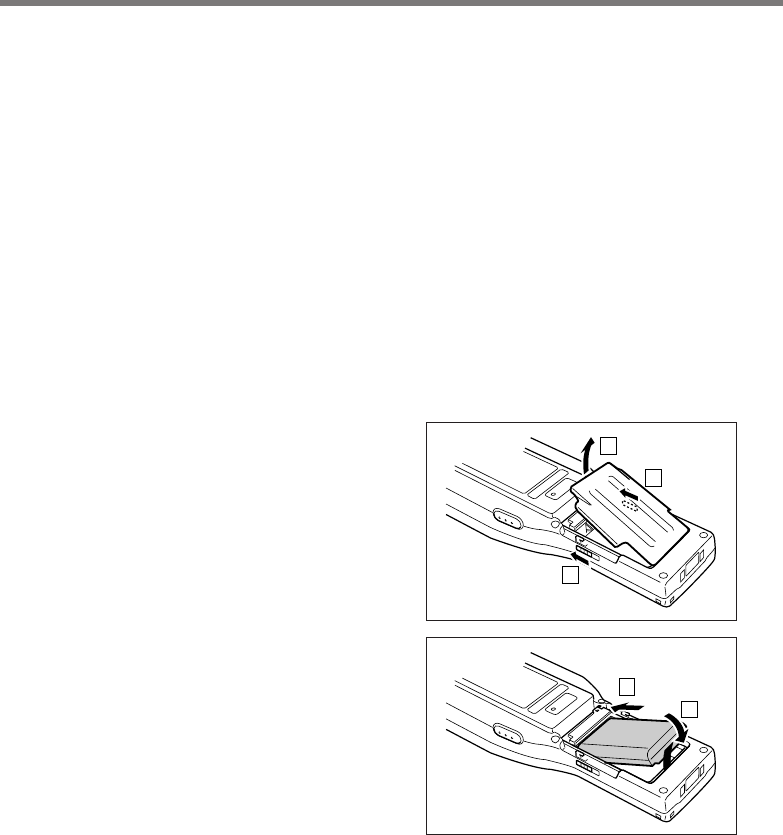

3. Load the battery pack into the Handheld Terminal.

1Slide the two main battery cover lock

switches on both sides of the Handheld

Terminal to the “FREE” position, and

then remove the main battery cover.

2Load a battery pack (HA-A20BAT) or a

large-capacity battery pack (DT-

5025LBAT).

•Take care that the battery pack is

oriented correctly when you load it.

•Install the battery pack so that the

battery pack removal tape is on top

of the battery pack.

Before Getting Started

DT-X5_E_P18_24.p65 2004.10.1, 9:48 AM20

E-21

3Return the main battery cover to its

original position as shown in the

illustration, and return the two main

battery pack cover lock switches to the

“LOCK” position.

When loading a large-capacity battery

pack, attach the large-capacity battery

pack cover.

•Make sure the battery pack removal

tape is bent to the inside so as not to

be pinched by the cover.

4. Use the Cradle-type Battery Charger or Cradle when charging the battery charger after

installing in the Handheld Terminal. Refer to pages 50 and 60 for information on the

charging procedure.

Turning On the Power

1. Turn on the Handheld Terminal by

holding down the power key for about

one second after waiting about 5 seconds

after installing the main battery.

Start up the application you want to run.

DT-X5_E_P18_24.p65 2004.10.1, 9:48 AM21

E-22

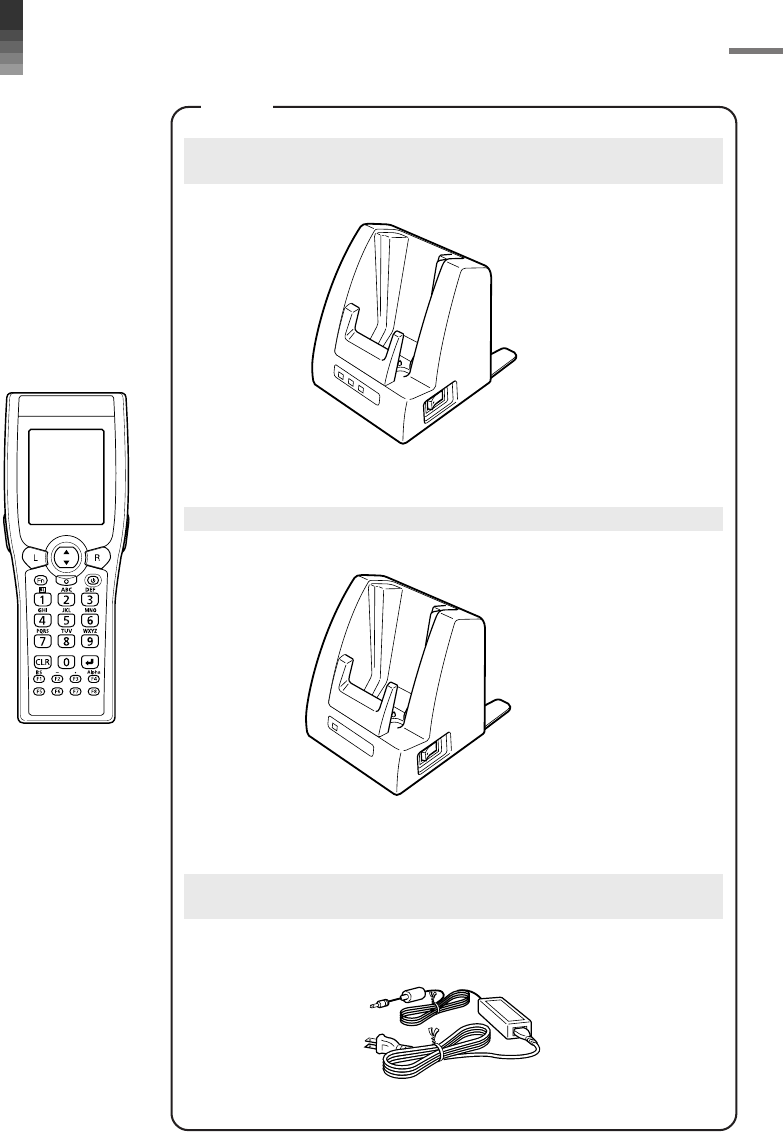

Handheld Terminal System Configuration

Options

DT-X5 Series

HA-A60IO

HA-A61IO

Bridge Satellite Cradle (HA-A61IO)

Bridge Basic Cradle (HA-A60IO)

Cradle-type Battery Charger

HA-A30CHG

Laser Scanner models

The laser scanner models

are not available in the

USA and Canada.

•DT-X5M10E

•DT-X5M10R

C-MOS Imager models

•DT-X5M30E

•DT-X5M30R

•DT-X5M30U

•DT-X5M30UR AD-S42120A

Required AC Adaptor for Bridge Satellite Cradle/

Bridge Basic Cradle/Cradle-type Battery Charager

DT-X5_E_P18_24.p65 2004.10.1, 9:48 AM22

E-23

HA-A20BAT

(Battery Pack)

DT-5025LBAT

(Large-capacity Battery Pack)

Battery Pack

DT-891WH Required

Screws

Wall Mount Unit

Dual Battery Charger

DT-5022CHG

Required AC Adaptor

(MPC-577ADP)

DT-X5_E_P18_24.p65 2004.10.1, 9:48 AM23

E-24

Cables

DT-887AXA

DT-888RSC

DT-380USB

Bridge Satellite Cradle Cable/RS-232C Dsub-9Pin (Female)

RS-422 Modular Cable

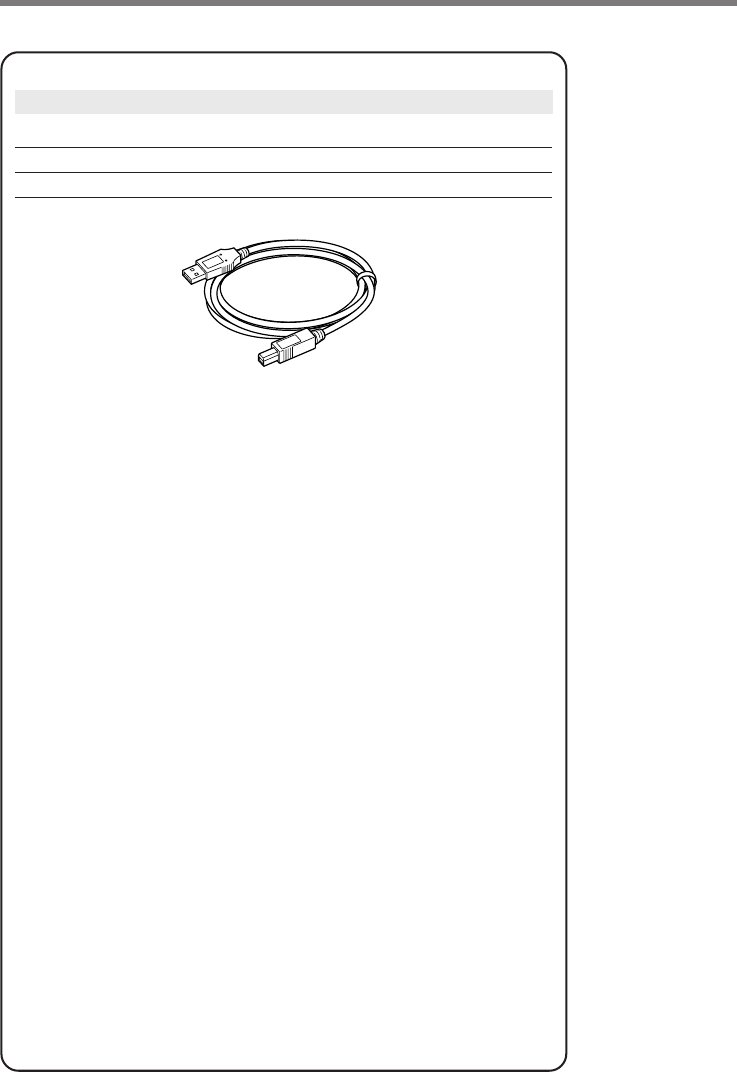

USB Cable

Handheld Terminal System Configuration

DT-X5_E_P18_24.p65 2004.10.1, 9:48 AM24

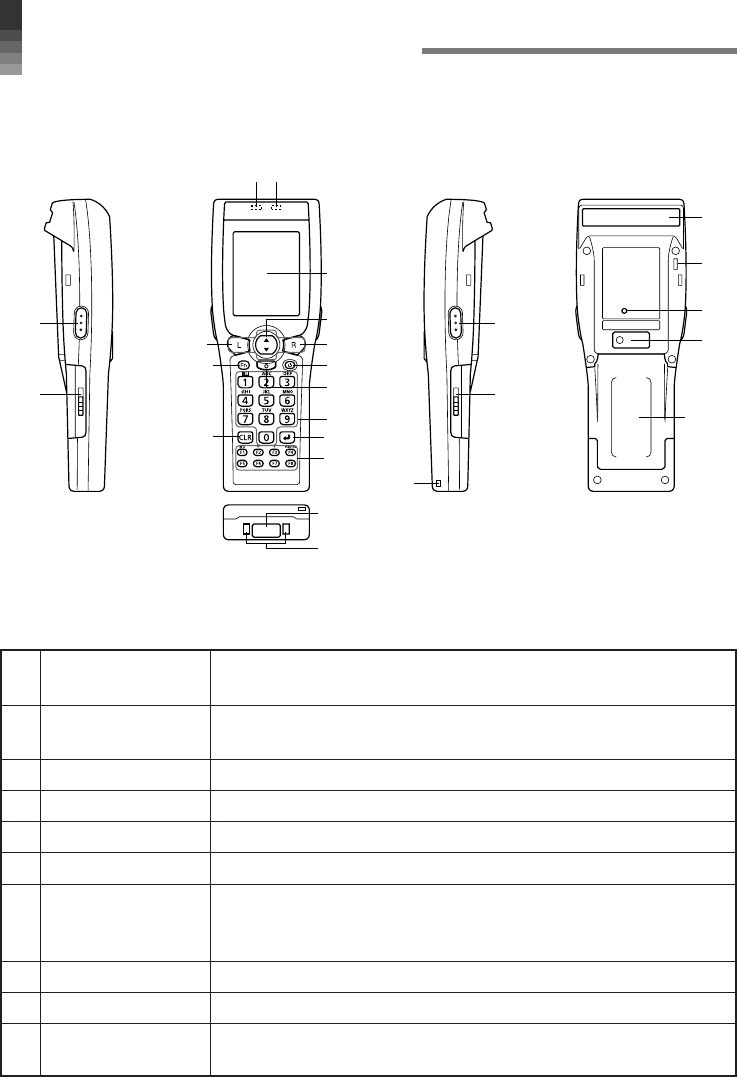

E-25

1 Indicator 1

2 Indicator 2

3 LCD Panel

4 Power Key

5 L Key

6 R Key

7 Cursor Key

8 Multi Key

9 Numeric Keys

10 Execute Key

This indicator is green when charging is completed, and red

during charging.

This indicator is green when the bar code has been read successfully,

and red when a reading error has occurred.

Displays text, operating instructions and so forth.

Switches the power on and off (press for about 1 second).

This is pressed to move the cursor to the left.

This is pressed to move the cursor to the right.

This functions in mainly the same manner as the cursor keys on a

PC. It is used when selecting items or scrolling the screen up and

down and so on.

This can be set to perform arbitrary functions.

These are pressed to input numbers and letters.

This is pressed after entering a value or when advancing to the

next step.

General Guide

Left Front Right Back

Bottom *The illustration shows the Laser Scanner model.

DT-X5_E_P25_26.p65 2004.10.1, 9:48 AM25

E-26

11 Function Keys

12 IR Port

13 Power Contacts

14 CLR Key

15 Fn Key

16 Main Battery Cover

Lock Switches

17 R Trigger Key

18 L Trigger Key

19 Wrist Strap Hook

20 Reset Switch

21 Main Battery Cover

Bar code Reader Port

23 Buzzer

24 Maintenance

Connector Cover

These can be assigned arbitrary functions other than functions for reading

bar codes. They are initially assigned the following default settings.

F1: Deletes one character to the left.

F2: Inputs a hyphen (-).

F3: Inputs a period (.).

F4: Switches character input (between numbers and alphabets

(upper case)).

F5: Inputs a space.

F6: Functions similar to the Tab key on a PC. Used to move

items for input or selection.

F7: Functions similar to the Tab key on a PC. Used to move

items for input or selection (but moves the opposite to F6).

F8: Not set.

This port is used for IR communication with another Handheld

Terminal or with the Bridge Satellite Cradle/Bridge Basic Cradle.

These are used to supply power from the Bridge Satellite Cradle/

Bridge Basic Cradle and Cradle-type Battery Charger.

This is pressed to clear the contents of all key inputs.

This is used to make various settings or start up preliminary

registered applications by sequentially pressing in combination with

a function key (F1 to F8) or numeric key (0 to 9).

The following examples show the combinations with the numeric

keys.

Fn + 1: Switches backlight on and off.

Fn + 2: Darkens contrast.

Fn + 3: Lightens contrast.

Slide these switches when opening and closing the main battery

cover.

This key is used to read bar codes. It is also pressed when

performing a full reset.

This key is used to read bar codes. It is also pressed when

canceling a full reset.

This is used when attaching the wrist strap.

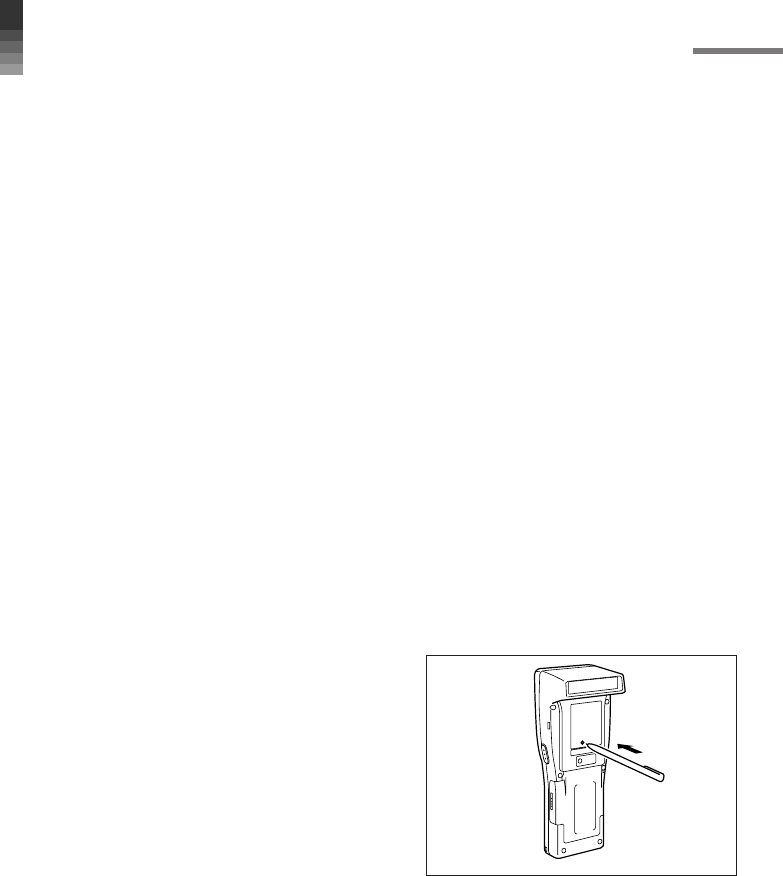

This is pressed to reset the Handheld Terminal.

Covers the compartment that holds the battery pack or AA size

alkaline batteries.

Laser light is emitted from this.

Reads bar codes (Laser Scanner models)

Reads bar codes and stacked 2D codes (C-MOS Imager models)

Produces a buzzer tone.

This is used when performing maintenance and repairs. This

cover should normally not be opened.

General Guide

DT-X5_E_P25_26.p65 2004.10.1, 9:48 AM26

E-27

Replacing the Battery

Your Handheld Terminal uses two types of battery: main battery and a memory backup

battery.

AA size alkaline batteries (DT-X5M10E/DT-X5M30E/DT-X5M30U) or the battery pack

is used for the main battery. There are two types of battery packs that can be used,

consisting of the battery pack (HA-A20BAT) and the large-capacity battery pack (DT-

5025LBAT).

The backup battery is installed inside of the Handheld Terminal.

This guide uses the following terms to refer to the batteries.

Main battery: Alkaline batteries or battery pack for operation.

Backup battery: Memory backup battery contained within the Handheld Terminal.

Battery pack: Generic name for the battery pack (HA-A20BAT) and large-capacity

battery pack (DT-5025LBAT) used for the main battery.

If the main battery becomes worn down, either replace with new AA size alkaline

batteries, promptly charge the battery pack or replace with a charged battery pack.

You can use the Dual Battery Charger, the Cradle-type Battery Charger, or the Bridge

Satellite Cradle/Bridge Basic Cradle to charge a battery pack. See the sections of this

guide that cover the Dual Battery Charger, the Cradle-type Battery Charger, and the

Bridge Satellite Cradle/Bridge Basic Cradle for information about how to use them for

charging.

Replacing the Battery Pack

Important!

Always keep backup copies of all important data!

•The main battery powers normal operation and also provides power required to

maintain memory contents, while the backup battery provides backup power to

maintain memory contents. Because of this, you should not remove the main

battery while the backup battery is dead. Removing the battery pack while the

backup battery is dead causes data in the memory to be corrupted or lost. Note

that once data is lost it cannot be recovered. Always keep separate backup copies

of all important data.

•The charge of a battery pack when you purchase it may be depleted due to testing

at the factory or natural discharge during shipment and storage. Be sure to

charge the battery pack before you use it.

•The life of a battery pack is limited, and charging a battery pack causes it to

gradually lose its ability to maintain the charge. If your battery pack seems to require

charging very frequently, it probably means it is time to purchase a new one.

•The backup battery achieves a full charge in about four days when the battery

pack is loaded.

•A fully charged backup battery can maintain memory (RAM) contents for about

three days, even when the main battery is removed.

•When using batteries for the main battery, always make sure to use AA size

alkaline batteries.

DT-X5_E_P27_35.p65 2004.10.1, 9:48 AM27

E-28

Replacing the Battery

Replacing the AA size Alkaline Batteries (DT-X5M10E/DT-X5M30E/

DT-X5M30U only)

1. Make sure the Handheld Terminal is turned off.

If the power is on, press the power key to turn it off.

2. Turn over the Handheld Terminal.

3. Slide the two main battery cover lock

switches on both sides of the Handheld

Terminal to the “FREE” position, and

remove the main battery cover.

4. Remove the AA size alkaline batteries as

shown in the illustration.

5. Install the new AA size alkaline batteries

while making sure the batteries are

aligned properly.

DT-X5_E_P27_35.p65 2004.10.1, 9:48 AM28

E-29

To replace the battery pack

1. Make sure that the Handheld Terminal is turned off.

If the power is on, press the power key to turn it off.

2. Turn over the Handheld Terminal.

3. Slide the two main battery cover lock

switches on both sides of the Handheld

Terminal to the “FREE” position, and

remove the main battery cover.

6. Return the main battery cover to its

original position as shown in the

illustration, and return the two main

battery cover lock switches to the

“LOCK” position.

DT-X5_E_P27_35.p65 2004.10.1, 9:48 AM29

E-30

Replacing the Battery

4. Remove the battery pack by pulling up on

the battery pack removal tape.

5. Install a charged battery pack in the

Handheld Terminal.

•Take care to ensure it is oriented

correctly.

•Install the battery pack so that the

battery pack removal tape is on top of

the battery pack.

6. Return the main battery cover to its

original position as shown in the

illustration, and return the two main

battery pack cover lock switches to the

“LOCK” position.

•Make sure the battery pack removal

tape is bent to the inside so as not to be

pinched by the main battery cover.

DT-X5_E_P27_35.p65 2004.10.1, 9:48 AM30

E-31

Loading the large-capacity battery pack into the Handheld Terminal

After loading the large-capacity battery

pack, you need to use the special large-

capacity battery pack cover in place of the

standard battery cover.

Attachment and removal of the large-

capacity battery pack cover are the same as

those for the main battery cover. 3

DT-X5_E_P27_35.p65 2004.10.1, 9:48 AM31

E-32

Removing and Installing the Alkaline Battery

Holder (DT-X5M10E/DT-X5M30E/DT-X5M30U only)

Removal Procedure

When using a battery pack, first remove the alkaline battery holder according to the

following procedure.

1. Make sure the Handheld Terminal is turned off. If the power is on, press the power

key to turn it off.

2. Turn over the Handheld Terminal.

3. Slide the two main battery cover lock

switches on both sides of the Handheld

Terminal to the “FREE” position, and

remove the main battery cover.

If the AA size alkaline batteries are

installed, remove the batteries by referring

to step 4 on page 28 describing “Replacing

the AA size Alkaline Batteries”.

4. Remove the alkaline battery holder by

holding the portion indicated by the circle

(™) in the illustration while pushing the

tab on the outer frame of the alkaline

battery holder to the inside.

DT-X5_E_P27_35.p65 2004.10.1, 9:48 AM32

E-33

Installation Procedure

When using AA size alkaline batteries, install the alkaline battery holder according to the

following procedure.

1. Make sure the Handheld Terminal is turned off. If the power is on, press the power

key to turn it off.

2. Turn over the Handheld Terminal.

3. Slide the two main battery cover lock

switches on both sides of the Handheld

Terminal to the “FREE” position, and

remove the main battery cover.

If the battery pack is installed, remove the

battery pack by referring to step 4

describing “To replace the battery pack”

on page 30.

4. Install the alkaline battery holder as

shown in the illustration.

Fold the battery pack removal tape so that

it is beneath the alkaline battery holder.

DT-X5_E_P27_35.p65 2004.10.1, 9:48 AM33

E-34

Attaching the Wrist Strap

Be sure to attach the wrist strap and use it to protect against dropping the Handheld

Terminal when carrying it around.

Attach the wrist strap by following the procedure described below.

1. Pass the thin cord of the wrist strap

through the wrist strap hole on the back of

the Handheld Terminal.

2. Pass the other end of the strap (the part

where you insert your wrist) through the

loop formed by the thin cord.

Important!

Do not swing the Handheld Terminal around holding the wrist strap.

DT-X5_E_P27_35.p65 2004.10.1, 9:48 AM34

E-35

Configuring Handheld Terminal Settings

Adjusting Display Contrast

Perform the following steps to adjust display contrast to make display more vivid and

easier to see.

•Press the “Fn” key and then press the “2” key or “3” key after confirming that

“F” is displayed in the lower right corner of the screen. Pressing the “2” key

adjusts for more contrast, while pressing the “3” key adjusts for less contrast.

* In order to continue to make adjustments, press the “2” key or “3” key after again first

pressing the “Fn” key.

* This can also be set by pressing the “2” key (Settings) on the system menu, and then

pressing the “2” key (Contrast and Brightness).

Turning Backlight On and Off

When operating the Handheld Terminal in a dark location, you can turn on the backlight

to facilitate viewing of the screen.

•You can switch the backlight on and off by pressing “1” after pressing the Fn key.

DT-X5_E_P27_35.p65 2004.10.1, 9:48 AM35

E-36

Using the Laser Scanner

(DT-X5M10E/DT-X5M10R only)

1. After turning on the power, position the

laser scanner close to a bar code and then

press the Trigger key (R or L).

2. The laser emits light and scans the bar

code. If scanning is completed normally,

Indicator 2 displays a green light and a

buzzer sounds. Indicator 2 displays a red

light when an error has occurred during

reading.

Important!

•If you are unable to scan a bar code, try changing the angle at which the scanner

is held or distance from the scanner to the bar code, and then try scanning again.

•This Handheld Terminal is capable of scanning bar codes at a distance of 0~

400 mm. Furthermore, the distance at which scanning is possible may vary

according to the symbology.

•The laser scanner models are not available in the USA and Canada.

DT-X5_E_P36_48.p65 2004.10.1, 9:49 AM36

E-37

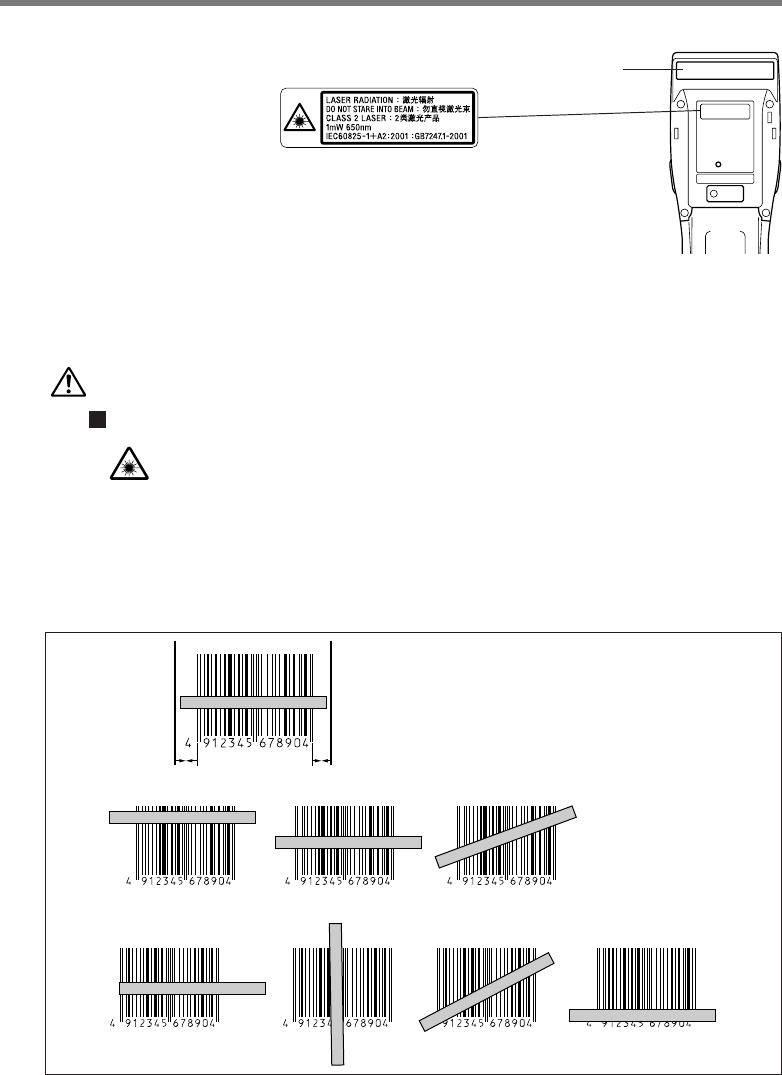

Warning Label

•This label is a warning label for Class 2 laser products that

comply with IEC60825-1+A2:2001

CAUTION

•Use of controls or adjustments or performance of procedures

other than those specified herein may result in hazardous

radiation exposure.

•The laser light emitted by this laser scanner has a maximum output of less than 1

mW and a wavelength of 650 nm.

Warning!

Never look directly into the laser light.

•This product scans using laser light. Never look directly into the laser light or

shine the laser light into the eyes.

Bar Code Scanning Position

Position the Handheld Terminal close to the bar code when scanning small bar codes.

Position the Handheld Terminal at a distance from the bar code so that the bars enter the

light when scanning large bar codes.

Margin Margin

Good Good Good

Bad Bad Bad Bad

Laser light is emitted from this port.

DT-X5_E_P36_48.p65 2004.10.1, 9:49 AM37

E-38

Using the C-MOS Imager

(DT-X5M30E/DT-X5M30R/DT-X5M30U/DT-X5M30UR only)

1. Turn on the Handheld Terminal, position its C-MOS Imager reader port near the bar

code or stacked 2D code, and then press the Trigger Key (R or L).

2. The Handheld Terminal reads the code by emitting laser and red light.

Indicator 2 (read operation indicator lamp) lights in green when the reading is successful.

Bar code and stacked 2D code Reading Guide

When you press the Trigger key (R or L), LEDs in the Handheld Terminal emit laser

and red lights. Align the laser frame with the center of the bar code or stacked 2D

code you are trying to read. Take particular care aligning the light when there are

other bar codes nearby.

When reading a large code, adjust the position of the Handheld Terminal so that the

entire code is enclosed within the laser frame.

Important!

•If you have problem not properly reading a code, change the angle and/or the

distance between the label and the Handheld Terminal and try reading the code

again.

•A bar code can be read from a distance of 40mm to 410mm (19/16" to 161/8"), and a

stacked 2D code can be read from a distance of 50mm to 250mm (11515

1515

15⁄⁄⁄⁄⁄1616

1616

16" to 91313

1313

13⁄⁄⁄⁄⁄1616

1616

16").

The actual reading distance depends on the symbology and the resolution.

•For smaller codes, move the Handheld Terminal closer to the code.

•To read a large code, move the Handheld Terminal further away from the code.

•

Note that a special reader application is required to read bar codes and stacked 2D

codes.

•The DT-X5M30E/M30R/M30U/M30UR supports reading of stacked 2D codes.

•Fingerprints, dust, dirt, or other foreign matter on the C-MOS Imager reader

port can cause abnormal reading. Should the code reader port become dirty,

wipe it clean with a soft and dry cloth.

DT-X5_E_P36_48.p65 2004.10.1, 9:49 AM38

E-39

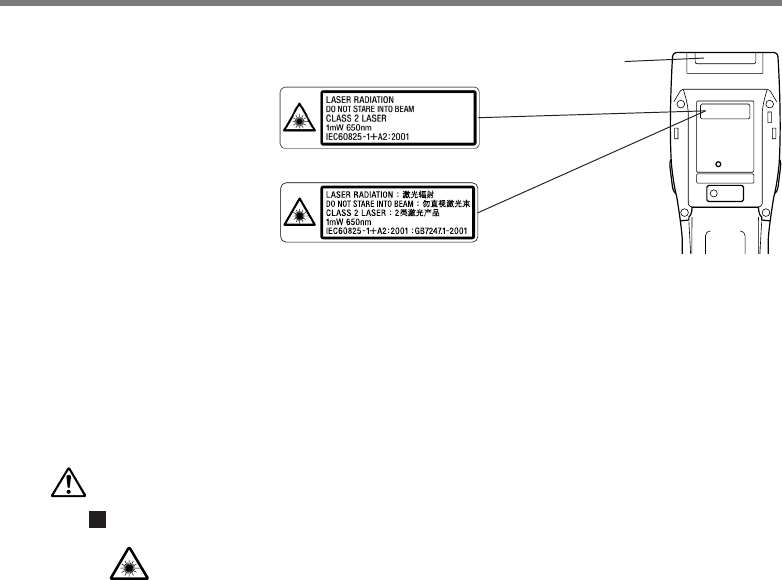

Warning Label

•This label is a warning label for Class 2 laser products that comply with

IEC60825-1+A2:2001

CAUTION

•Use of controls or adjustments or performance of procedures other than those

specified herein may result in hazardous radiation exposure.

•The laser light emitted by this laser scanner has a maximum output of less than 1

mW and a wavelength of 650 nm.

Warning!

Never look directly into the laser light.

•This product scans using laser light. Never look directly into the laser light or

shine the laser light into the eyes.

Laser light is emitted from this port.

DT-X5M30U

DT-X5M30UR

DT-X5M30E

DT-X5M30R

DT-X5_E_P36_48.p65 2004.10.1, 9:49 AM39

E-40

Adjusting Laser Emission Width

(DT-X5M10/DT-X5M10R only)

This Handheld Terminal is able to adjust the emission width of laser light. Adjust the

Handheld Terminal by following the procedure described below when the emission

width of the laser light has become off the proper emission width.

1. Press the reset switch on the back of the Handheld

Terminal to initiate the Top menu.

2. Press the keys in the order of the “2” key (Setting), “1”

key (Scanner setting) and then “4” key (OBR

calibration) to initiate the emission width adjustment

function.

3. Press the trigger key to emit laser light, and shine the

light on the emission width adjustment bar code.

•Align the laser light with the narrow bars on both

sides.

DT-X5_E_P36_48.p65 2004.10.1, 9:49 AM40

E-41

Emission Width Adjustment Bar code

Important!

•An error message is displayed when emission width has not been adjusted

properly. Repeat the adjustment procedure when this message is displayed.

4. After checking that the laser light is at the proper

position, depress the trigger key for about 1 second.

•This completes adjustment of the emission width.

DT-X5_E_P36_48.p65 2004.10.1, 9:49 AM41

E-42

Performing Communication

IR Communication

IR communication can be used to transfer data between two Handheld Terminals.

When performing IR communication, orient the IR ports of both Handheld Terminals so

they are pointing directly at each other.

The ports can be in direct contact with each other, or they can be separated by up to 30 cm

(117⁄8").

Important!

•A high-sensitivity communication element is used during IR communication.

•In order to ensure successful communication, avoid using cellular phones or other

devices that emit radio wave in the area where you are performing IR

communication.

•If you need to use such a device, move away from the communicating Handheld

Terminals. In case of a cellular phone, keep it at least 30cm (1177

7⁄⁄⁄⁄⁄88

8") away.

DT-X5_E_P36_48.p65 2004.10.1, 9:49 AM42

E-43

BluetoothTM Communication

BluetoothTM protocol can also be used to transfer data between two Handheld Terminals.

With BluetoothTM, the two Handheld Terminals should be located within about five

meters (1911⁄16") from each other, as long as there is nothing blocking the path between

them.

Important!

Observe the following precautions to help ensure that the communication is

successful.

•Make sure the BluetoothTM devices are located within five meters (191111

1111

11⁄⁄⁄⁄⁄1616

1616

16") of each

other. The particular surroundings (obstacles) may require a shorter distance

between the two devices.

•Make sure there is at least two meters (6' 7") between this device and other

devices (electrical appliances, audio-visual equipment, OA equipment, and digital

cordless telephones, facsimile machines, etc.). (Take special care with microwave

ovens. Allow at least three meters (9' 1033

3⁄⁄⁄⁄⁄88

8") between communicating devices and a

microwave oven.) When approaching such a device when its power is turned on,

proper communication may prove impossible while this may also cause

interference with TV and radio reception (images produced by certain UHF and

broadcast satellite channels may become blurry).

•Normal communication may not be possible in an area near a broadcast

transmitter or wireless transmitter. If this happens, move to a different location.

Normal communication may not be possible in areas exposed to strong radio

waves.

•Wireless LAN Interference

Because BluetoothTM and Wireless LAN use the same frequency band (2.4GHz),

radio interference can occur if there is a Wireless LAN device nearby. This can

result in lower communication speeds, or even make it impossible to establish a

connection. If this happens, try the following countermeasures.

•Move at least 10 meters (32'103⁄4") away from the Wireless LAN device.

•If you cannot keep the distance at least 10 meters (32'103⁄4") or more between the

Handheld Terminal and a Wireless LAN device, turn off the power of either the

Handheld terminal or the Wireless LAN device.

•Set the Wireless LAN mode of the Handheld Terminal to off (DT-X5M10R/DT-

X5M10UR/DT-X5M30R/DT-X5M30UR).

DT-X5_E_P36_48.p65 2004.10.1, 9:49 AM43

E-44

Resetting the Handheld Terminal

Reset and Full Reset (Memory Initialization)

Reset

Resetting the Handheld Terminal is the same as restarting a computer. Performing a reset

causes all unsaved inputs and edits to be lost, but data that is already stored in the

memory as well as all settings should be unaffected.

Use reset to restore normal operation whenever the Handheld Terminal operates

abnormally due to misoperation or some other reason.

Performing a Full Reset (Initialization)

Performing a full reset initializes memory. This means that all data stored in the memory

(RAM) is deleted and all the settings are returned to their initial factory defaults.

Perform a full reset whenever any one of the following conditions exists.

•When you want to delete all memory contents and return the settings to their initial

factory defaults.

•When you are no longer able to use the Handheld Terminal because you forgot your

password.

•When the Handheld Terminal does not operate normally due to a memory problem.

•When the message “A problem with memory contents has been found” is displayed.

To perform a reset

Press the reset switch on the back of the

Handheld Terminal with a pen or similar

object. This starts reset processing.

If reset does not find a memory problem

The Handheld Terminal restarts, and normal operation is restored.

DT-X5_E_P36_48.p65 2004.10.1, 9:49 AM44

E-45

If reset finds a memory problem

A message like the one shown below appears on the display when the reset operation

discovers a memory problem.

When this message appears, press the R trigger key to continue with the reset operation.

Note, however, that reset may not be successful depending on the condition of the

memory. In this case, perform the full reset operation described on the next page.

To perform a full reset

Important!

Performing a full reset deletes all data currently stored in the memory (RAM). If

possible, backup data of the Handheld Terminal to a computer, Flash Memory, a

memory card, or some other medium before performing a full reset.

1. The following message is displayed when the reset switch is pressed for about one

second with a pen or similar object while pressing the power key.

R trigger

key

L trigger

key

•To cancel the full reset operation, press the L trigger key instead of the R trigger key.

2. Press the R trigger key. This causes the message shown below to appear.

R trigger

key

L trigger

key

•To cancel the full reset operation, press the L trigger key instead of the R trigger key.

3. Press the R trigger key again.

•Full reset is performed, all data in the memory (RAM) are erased and the start-up

screen is displayed.

R trigger

key

L trigger

key

DT-X5_E_P36_48.p65 2004.10.1, 9:49 AM45

E-46

DT-X5 Specifications

1. Handheld Terminal

Model: DT-X5M10E, DT-X5M10R, DT-X5M30E, DT-X5M30R,

DT-X5M30U, DT-X5M30UR

CPU: 32-bit RISC type

Memory: 16MB RAM (user area: Approximately 7.5MB)

64MB Flash ROM (user area: Approximately 30MB)

OS: Microsoft® Windows® CE.NET operating system, English

Version

Display: 128 × 160 dot, monochrome FSTN LCD

2. Laser Scanner (DT-X5M10E/DT-X5M10R)

Reading symbologies: EAN8/JAN8, EAN13/JAN13, UPCA, UPCE, Code39, Codabar

(NW7), Interleaved2of5 (ITF), Code93, Code128, MSI

(Plessey), IATA, RSS-14, RSS Limited, RSS Expanded,

Industrial2of5 (IDF)

Reading distance: Within approximately 0~400 mm (0 to 153/4")

3. C-MOS Imager (DT-X5M30E/DT-X5M30R/DT-X5M30U/DT-X5M30UR)

Reading 1D Code symbologies:

EAN8/JAN8, EAN13/JAN13, UPCA, UPCE, Code39, Codabar

(NW7), Interleaved2of5 (ITF), Code93, Code128, MSI

(Plessey), IATA, Code11, RSS-14, RSS Limited, RSS Expanded,

ISBT

Reading distance: Within approximately 40 mm~410 mm (19/16" to 161/8")

Reading stacked 2D Code symbologies:

Code49, PDF417, MicroPDF, Codablock F, EAN8/13

Composite, RSS Composite, UCC/EAN128 Composite, TLC39,

RSS-14 (Stacked type), RSS Expanded (Stacked type)

Reading distance: Within approximately 50 mm to 250 mm (115/16" to 913/16")

4. Infrared Communication

Protocol: Compatible with IrDA Ver. 1.1 (max. 300 mm)

Synchronization: Asynchronous, frame synchronization

Transfer rate: 4 Mbps (max.)

5. BluetoothTM

Protocol: BluetoothTM Specification Ver. 1.1

Range: Approximately 5 m (varies according to radio wave conditions

and local surroundings)

Output: Max. 3 dBm (PowerClass 2)

6. Wireless LAN (DT-X5M10R/DT-X5M30R/DT-X5M30UR)

Protocol: Complies with IEEE802.11b

Radio frequency: 2.400-2.4835 GHz

Data rate: Max. 11 Mbps

Range: 50 m indoors, 150 m outdoors (varies according to local

surroundings)

Channels: 11 (US, Canada), 13 (ETSI)

Other functions: Roaming among multiple Access-Points

DT-X5_E_P36_48.p65 04.10.8, 10:12 AM46

E-47

7. Power

Main power supply: Two AA size alkaline batteries

HA-A20BAT battery pack

DT-5025LBAT large-capacity battery pack

Backup power supply: Rechargeable lithium battery (built-in)

Power consumption: DC 1.1A/3~5V (DT-X5M10E)

DC 1.3A/3~5V (DT-X5M30E/DT-X5M30U)

DC 1.4A/3.7~5V (DT-X5M10R)

DC 1.6A/3.7~5V (DT-X5M30R/DT-X5M30UR)

Battery life: Main battery

DT-X5M10E

Approx. 140 hours (AA size alkaline batteries × 2pcs)*

Approx. 70 hours (HA-A20BAT)*

Approx. 140 hours (DT-5025LBAT)*

DT-X5M10R Approx. 70 hours (HA-A20BAT)*

Approx. 140 hours (DT-5025LBAT)*

Approx. 12 hours (HA-A20BAT)**

Approx. 24 hours (DT-5025LBAT)**

DT-X5M30E/

Approx. 30 hours (AA size alkaline batteries

2pcs)*

DT-X5M30U Approx. 30 hours (HA-A20BAT)*

Approx. 60 hours (DT-5025LBAT)*

DT-X5M30R/ Approx. 30 hours (HA-A20BAT)*

DT-X5M30UR Approx. 60 hours (DT-5025LBAT)*

Approx. 12 hours (HA-A20BAT)**

Approx. 24 hours (DT-5025LBAT)**

* In the case of scanning two bar codes per 10 seconds at

normal temperature

** In the case of standby (6.5): Scanning (1.5): Wireless

communication(2)

Memory backup

Data protection (RAM): 3 days (when there is no power

from main battery)

Clock: 4 weeks (when there is no power from main battery)

8. Operating Environment

Temperature: –20 to 50°C

Humidity: 10% to 80% RH (no condensation)

9. Dimensions and Weight

Dimensions:

DT-X5M10E/ Approx. 54 (70)* W

179D

21.4 (41.1)* H mm

DT-X5M10R

DT-X5M30E/ Approx. 54 (70)* W

179D

21.4 (42.8)* H mm

DT-X5M30U/

DT-X5M30R/

DT-X5M30UR/

DT-X5_E_P36_48.p65 2004.10.1, 9:49 AM47

E-48

Weight

DT-X5M10E/ Approx. 245 g (when HA-A20BAT battery pack is installed)

DT-X5M30E/

DT-X5M30U

DT-X5M10R/ Approx. 250 g (when HA-A20BAT battery pack is installed)

DT-X5M30R/

DT-X5M30UR

.Drop durability: 1.8 m

.Dust and water resistance: Complies with IP54

* When all connectors and covers are closed

.Other

Clock function: Year, month, date, hour, minute, full-auto calendar, alarm

Vibrator function: Available by setting software

DT-X5 Specifications

DT-X5_E_P36_48.p65 2004.10.1, 9:49 AM48

E-49

1 2 3 4

Bottom

Front

Right

Back

Top

Fall protect cover

Accessory

Using the Bridge Satellite Cradle (HA-A61IO)/

Bridge Basic Cradle (HA-A60IO)

The optionally available Bridge Satellite Cradle (HA-A61IO)/Bridge Basic Cradle

(HA-A60IO) make it possible to transfer system data and file data between the

Handheld Terminal and a computer over an RS-232C connection or USB connection

(USB connection only for HA-A60IO). You can also use the Bridge Satellite Cradle/

Bridge Basic Cradle to charge the battery pack installed on the Handheld Terminal.

An optionally available wall mount unit (DT-891WH) lets you mount the Bridge Satellite

Cradle on a wall.

General Guide

DT-X5_E_P49_58.p65 2004.10.1, 9:49 AM49

E-50

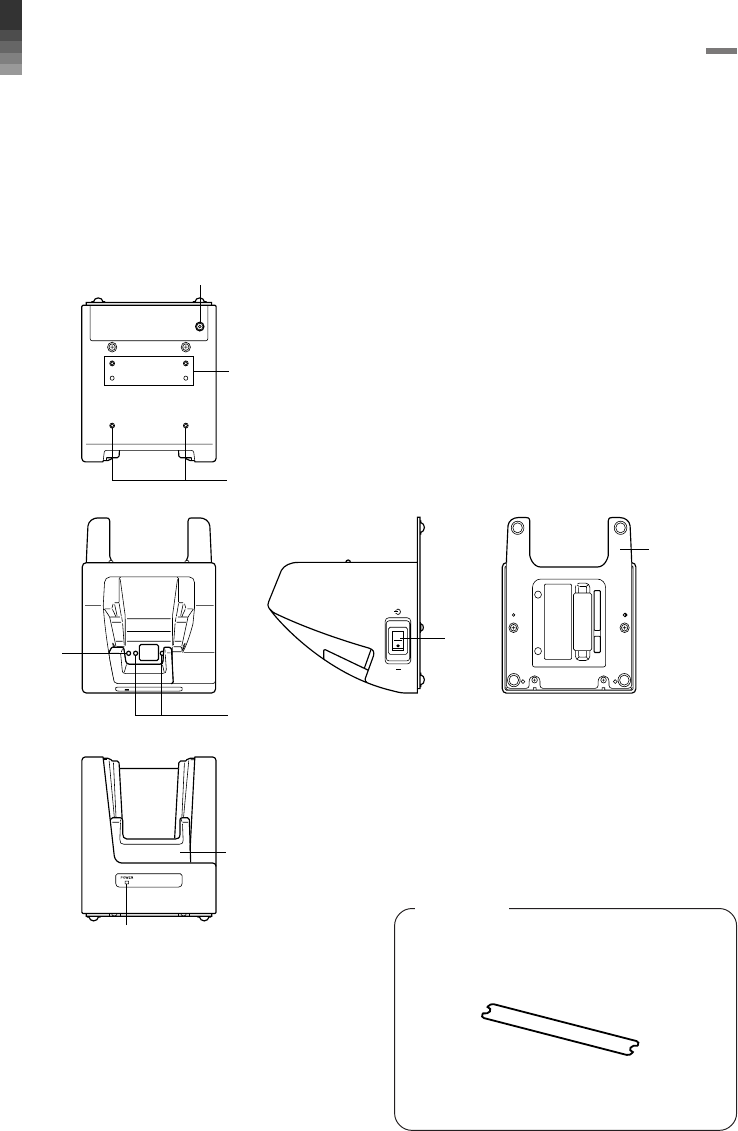

Using the Bridge Satellite Cradle (HA-A61IO)/Bridge Basic Cradle (HA-A60IO)

1 USB Port

2 RS-232C Port

(HA-A61IO only)

3 RS-422C Port

(HA-A61IO only)

4 AC Adaptor Jack

5 Wall Mount Unit

Fastening Plate

6 Terminal Detect

Switch

7 IR Port

8 Power Contacts

9 Power Indicator

Lamp

10 Communication

Indicator Lamp

(HA-A61IO only)

11 System Status

Indicator Lamp

12 Power Switch

13 Desktop Unit

14 DIP Switches

(HA-A61IO only)

15 Fall Protector

This port accepts connection of a USB cable for connection to a

computer for transfer of system data and file data. Use of the USB

port requires installation of a special driver on the PC.

This port accepts connection of an RS-232C cable for connection

to a computer for transfer of system data and file data. Use of the

RS-232C port requires installation of a special driver on the PC.

This port is used when connecting to another Bridge Satellite

Cradle.

Connect the AC adaptor sold separately to supply power.

The holes in this plate accept screws that secure the wall mount

unit in place.

This switch detects when the Handheld Terminal is not seated

correctly on the Bridge Satellite Cradle.

This port transfers data with the Handheld Terminal IR port non-

contact data communication.

Power is supplied to the Handheld Terminal via these contacts.

This lamp indicates the Power Status and the mounting status of

the Handheld Terminal.

Off: Power off

Green: Power on, Handheld Terminal mounted correctly

Red: Power on, Handheld Terminal not mounted

This lamp shows when the Handheld Terminal is performing data

communication.

Off: No data communication being performed

Green flashing: Data communication in progress

Red: Problem with a connection between two Bridge Satellite

Cradles

This lamp indicates whether the system is operating normally.

Regardless of whether or not a Handheld Terminal is mounted

this lamp indicates the system status and whether or not a

communication operation with the system can be performed.

Off: System is not operating.

Green: System is operating.

Turns the power on and off.

This is the base when using the Bridge Satellite Cradle/Bridge

Basic Cradle in a desktop configuration. Remove the desktop unit

in the case of a wall-mount configuration.

Use these switches to configure the Bridge Satellite Cradle as

required.

This is a removable attachment that prevents the Handheld

Terminal from tipping over and falling.

DT-X5_E_P49_58.p65 2004.10.1, 9:49 AM50

E-51

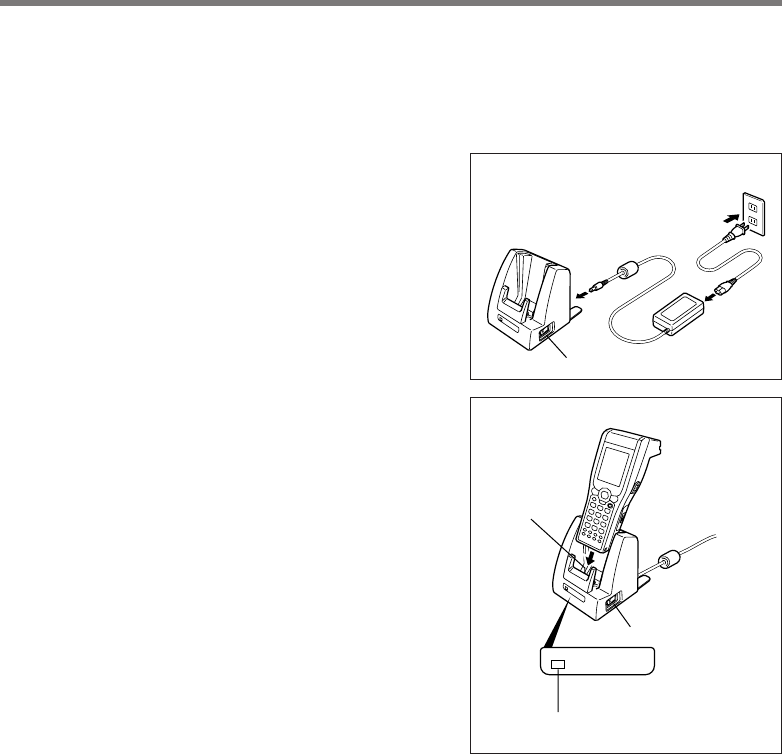

Connecting the AC Adaptor and Connecting to Computer

Use the AC adaptor sold separately from the Bridge Satellite Cradle/Bridge Basic Cradle

for the power supply of the Bridge Satellite Cradle/Bridge Basic Cradle. Always make

sure that the power is being supplied to the Bridge Satellite Cradle by the AC adaptor

before performing any type of data communication operation with the Handheld

Terminal. The Handheld Terminal draws the power via the Bridge Satellite Cradle/

Bridge Basic Cradle during data communication.

1. After making sure that the Bridge Satellite

Cradle/Bridge Basic Cradle power switch

is turned off, plug the AC adaptor into the

AC adaptor jack on the back.

2. Next, plug the AC adaptor into a power

outlet.

3. After making sure that the Bridge Satellite

Cradle/Bridge Basic Cradle and your

computer are both turned off, remove the

cap from the Bridge Satellite Cradle/

Bridge Basic Cradle connection ports, and

then perform one of the following steps to

connect to your computer.

Be sure to keep the Bridge Satellite Cradle/

Bridge Basic Cradle connection ports

covered whenever you are not using them.

RS-232C Connection

•Connect an RS-232C cable (DT-

887AXA) to the RS-232C port (HA-

A61IO only) of the Bridge Satellite

Cradle. Connect the other end to your

computer’s RS-232C port.

USB Connection

•Connect a USB cable (DT-380USB) to

the USB port of the Bridge Satellite

Cradle/Bridge Basic Cradle. Connect

the other end to your computer’s USB

port.

4. Turn on the power. This causes the Bridge

Satellite Cradle/Bridge Basic Cradle

power indicator lamp to light in red.

Power switch (OFF)

When using the USB port

POWER DATA LINE

System Status Indicator Lamp

Power Indicator Lamp

Communication Indicator Lamp

(HA-A61IO only)

Power switch (ON)

Power

contacts

DT-X5_E_P49_58.p65 2004.10.1, 9:49 AM51

E-52

Using the Bridge Satellite Cradle (HA-A61IO)/Bridge Basic Cradle (HA-A60IO)

5. Making sure that their two IR ports come into contact with each other, place the

Handheld Terminal onto the Bridge Satellite Cradle. This causes the Bridge Satellite

Cradle power indicator lamp to light in green.

•If the system is operating normally and the communication is enabled, the system

status indicator lamp lights in green.

•The communication indicator lamp flashes in green when the communication starts.

When charging is initiated, Indicator 1 on the Handheld Terminal lights up in red. When

charging has been completed, Indicator 1 on the Handheld Terminal changes color from

red to green.

Important!

•A high-sensitivity communication element is used during IR communication.

In order to ensure successful communication, avoid using cellular phones or other

devices that emit radio wave in the area where you are performing IR

communication.

If you need to use such a device, move away from the communicating Handheld

Terminals. In case of a cellular phone, keep it at least 30cm (1177

7⁄⁄⁄⁄⁄88

8") away.

•Take care to avoid allowing the Bridge Satellite Cradle/Bridge Basic Cradle

power contacts to become connected to each other, which creates a short.

Shorting the power contacts can damage the Bridge Satellite Cradle/Bridge Basic

Cradle.

DT-X5_E_P49_58.p65 2004.10.1, 9:49 AM52

E-53

Removing the Fall Protector

The Bridge Satellite Cradle and Cradle-type Battery Charger Fall Protector can also be

removed. However, it is recommended not to remove the Fall Protector if there is the

risk of the Handheld Terminal being mistakenly tipped over and falling after having been

placed in the Bridge Satellite Cradle. The Fall Protector should always be left attached

when the Handheld Terminal is mounted on a wall.

1. Remove the Fall Protector by applying

force in the direction of the arrow while

holding at the location of™in the

illustration with the Bridge Satellite

Cradle lying horizontally.

2. Affix the seal to the location where the

Fall Protector was attached.

When attaching, remove the seal and

insert the projections on the Fall Protector

into the attachment groove, and then slide

the Fall Protector to the left to fasten in

position.

DT-X5_E_P49_58.p65 2004.10.1, 9:49 AM53

E-54

Using the Bridge Satellite Cradle (HA-A61IO)/Bridge Basic Cradle (HA-A60IO)

Configuring DIP Switch Settings (HA-A61IO)

Dismounting the bottom cover of the Bridge Satellite Cradle exposes the DIP switches.

You can change the ON/OFF settings of the DIP switches to set the configuration. Please

set after first switching OFF the power.

12345678

Not used (Always off)

Host Computer Interface

Setting

RS-232C

USB

OFF

Setting

Intermediate Unit

Daisy Chain Disabled/Termination

OFF

Setting

Host Computer

Daisy Chain

OFF

Daisy Chain

Connection Type

Setting

115,200bps

*Initial factory default setting

OFF

Bridge Satellite Cradle Data Rate

Important!

Note that other DIP settings are used for testing and inspection purposes. Because

of this, you should never use any DIP settings other than those described above.

DT-X5_E_P49_58.p65 2004.10.1, 9:49 AM54

E-55

Using Wall Mount Unit

The following procedure explains how to use the optional wall mount unit (DT-891WH)

to configure the Bridge Satellite Cradle/Bridge Basic Cradle for a wall-mounted

configuration.

Important!

When mounting on a wall, always make sure to attach the Fall Protector.

1. Remove the screws on the bottom of the

Bridge Satellite Cradle/Bridge Basic

Cradle, and remove the desktop unit.

Affix the wall mount unit to the bottom of

the Bridge Satellite Cradle/Bridge Basic

Cradle, and secure it in place with the wall

mount unit screws.

3. Drive one of the provided screws into the

wall at the location where the upper hole

of the wall mount unit to be when you

mount the unit on the wall.

Do not drive the screw into the wall all the

way. Keep a space of about 2mm (1/8")

between the head of the screw and the

wall surface.

Screws

2mm (1/8")

DT-X5_E_P49_58.p65 2004.10.1, 9:49 AM55

E-56

Using the Bridge Satellite Cradle (HA-A61IO)/Bridge Basic Cradle (HA-A60IO)

4. Hook the upper wall mount unit hole onto

the upper screw.

5. Drive the other screw into the wall at the

location where the lower hole is located.

6. Drive the upper screw and lower screw

into the wall the rest of the way.

To remove the Bridge Satellite Cradle/Bridge Basic Cradle from the

wall

1. Loosen the upper screw and lower screw.

2. Raise the Bridge Satellite Cradle/Bridge Basic Cradle and remove it from the screws.

Important!

•While the Bridge Satellite Cradle/Bridge Basic Cradle is mounted on a wall, be

sure to check the wall screws periodically for looseness. Tighten them as required.

•Note use of the RS-232C cable is not supported by the wall-mounted

configuration. Connect using a USB cable or daisy chain cable.

DT-X5_E_P49_58.p65 2004.10.1, 9:49 AM56

E-57

Connecting Multiple Bridge Satellite Cradles (HA-A61IO)

Use the modular cable for the connections.

You can daisy chain multiple Bridge

Satellite Cradles by connecting the C-OUT

port of the first unit that is the nearest to the

host computer to the C-IN port of the next

unit that is sitting to the first unit with DT-

888RSC cable (RS-422 Modular cable) as

shown in the figure below.

Important!

You can use optional RS-422 Modular Cables (DT-888RSC) to link up to eight

Bridge Satellite Cradles.

To host computer

Daisy chain connection

cables (DT-888RSC)

RS-232C

cable or

USB cable

DT-X5_E_P49_58.p65 2004.10.1, 9:49 AM57

E-58

Using the Bridge Satellite Cradle (HA-A61IO)/Bridge Basic Cradle (HA-A60IO)

Bridge Satellite Cradle (HA-A61IO)/Bridge Basic Cradle

(HA-A60IO) Specifications

1. IR Communication

Interface: IR interface

Protocol: IrDA Ver. 1.1 Standard

Synchronization: Asynchronous, frame synchronization

Transfer Rate: 9,600, 115,200, 4Mbps

(4Mbps is possible during a USB connection with the host

computer only.)

2. USB

Protocol: USB Ver1.1 Standard

Transfer Rate: 12Mbps (max.)

3. RS-232C (HA-A61IO)

Protocol: Full duplex

Synchronization: Asynchronous

Transfer Rate: 115,200bps

4. RS-422 (HA-A61IO)

Protocol: Full duplex

Synchronization: Asynchronous

Transfer Rate: 115,200bps

5. Charging

Charging System: Fixed-voltage (with current limiter)

Charge Time: Approximately 5.0 hours (standard battery pack)

Approximately 10 hours (large-capacity battery pack)

6. Power Supply

Power Requirement: AC adaptor (AD-S42120A)

Power Consumption: DC12V approximately 1.0A (HA-A60IO)

DC12V approximately 0.9A (HA-A61IO)

Output to Handheld Terminal: DC5V 1.5A (max.)

7. AC Adaptor

Model: AD-S42120A

Input: 100V to 240V AC 50/60Hz

Output: 12V DC 3.5A

8. Dimensions and Weight

Dimensions:

Desktop: Approximately 110(W) × 125(D) × 128(H) mm

(43⁄8"W × 415⁄16"D × 51⁄16"H)

Wall Mount: Approximately 110(W) × 148(D) × 153(H) mm

(43⁄8"W × 57⁄8"D × 6"H)

Weight: Desktop: Approximately 520g (18.34oz) (HA-A60IO)

Approximately 530g (18.7oz) (HA-A61IO)

Wall Mount: Approximately 610g (21.52oz) (HA-A60IO)

Approximately 620g (21.87oz) (HA-A61IO)

9. Operating Environment

Temperature: 0°C to 40°C (32°F to 104°F)

Humidity: 30% to 80% RH (non-condensation)

DT-X5_E_P49_58.p65 2004.10.1, 9:49 AM58

E-59

Using the Cradle-type Battery Charger

The optionally available Cradle-type Battery Charger (HA-A30CHG) lets you charge the

Handheld Terminal’s battery simply by placing the Handheld Terminal onto the charger.

An optional wall mount unit (DT-891WH) lets you mount the Cradle-type Battery

Charger on a wall.

General Guide

Back

Top

Front

Right Bottom

Fall protect cover

Accessory

DT-X5_E_P59_70.p65 2004.10.1, 9:50 AM59

E-60

Using the Cradle-type Battery Charger

1 AC Adaptor Jack

2 Wall Mount Unit

Fastening Plate

3 Terminal Detect

Switch

4 Power Contacts

5 Power Indicator

Lamp

6 Power Switch

7 Desktop Unit

8 Fall Protector

9 Car Mounted

Battery Charger

Attachment Holes

Connect the AC adaptor (sold separately) here.

The holes in this plate accept screws that secure the wall mount

unit in place.

This switch detects when the Handled Terminal is not seated

correctly on the Cradle.

Power is supplied to the Handheld Terminal via these contacts.

This lamp indicates the power status and the mounting status of

the Handheld Terminal.

Off: Power off

Red: Power on, Handheld Terminal not mounted

Green: Power on, Handheld Terminal mounted correctly

Turns the power on and off.

This is the base when using the Cradle in a desktop configuration.

Remove the desktop unit in the case of a wall-mount

configuration.

This is a removable attachment that prevents the Handheld

Terminal from tipping over and falling.

This is used when attaching the separately sold Battery Charger

Car Mount Unit (HA-A34AT).

DT-X5_E_P59_70.p65 2004.10.1, 9:50 AM60

E-61

Connecting the AC Adaptor for Cradle-type Battery Charger

Use the special AC adaptor (sold separately) for the Cradle-type Battery Charger to

connect to a wall outlet.

1. After making sure that the Cradle-type

Battery Charger power switch is turned

off, plug the AC adaptor into the AC

adaptor jack on the back of the charger.

2. Next, plug the AC adaptor into a power

outlet.

3. Turn on the power. This causes the

Cradle-type Battery Charger power

indicator lamp to light in red.

4. Making sure that their power contacts

come into contact with each other, place

the Handheld Terminal onto the Cradle-

type Battery Charger. This causes the

Cradle-type Battery Charger power

indicator lamp to light in green.

When charging is initiated, Indicator 1 on

the Handheld Terminal lights up in red.

When charging has been completed,

Indicator 1 changes color from red to

green.

Important !

Take care to avoid allowing the Cradle-type Battery Charger power contacts to

become connected to each other, which creates a short.

Shorting the power contacts can damage the Cradle-type Battery Charger.

Power switch (OFF)

POWER

Power

contacts

Power switch (ON)

Power Indicator Lamp

DT-X5_E_P59_70.p65 2004.10.1, 9:50 AM61

E-62

Using Wall Mount Unit

To wall mount the Cradle-type Battery Charger, use the same procedure as that described

for the Bridge Satellite Cradle (HA-A61IO)/Bridge Basic Cradle (HA-A60IO) on page

55.

Removing the Fall Protector

The procedure is the same as that for the Bridge Satellite Cradle (HA-61IO)/Bridge

Basic Cradle (HA-A60IO). Refer to page 53.

Cradle-type Battery Charger (HA-A30CHG) Specifications

1. Charging

Charging System: Fixed-voltage (with current limiter)

Charge Time: Approximately 5 hours (HA-A20BAT battery pack)

Approximately 10 hours (DT-5025LBAT large-capacity battery pack)

2. Power Supply

Power Requirement: AC adaptor (AD-S42120A)

Power Consumption: 12V DC, approximately 0.9A

Output to Handheld Terminal: 5V DC 1.5A (max.)

3. AC Adaptor

Model: AD-S42120A

Input: 100V to 240V AC 50/60Hz

Output: 12V DC 3.5A

4. Dimensions and Weight

Dimensions: Desktop: Approximately

110(W) X 125(D) X 128(H) mm

⁄

"W × 4

⁄

"D × 5

⁄

"H)

Wall Mount: Approximately 110(W) × 148(D) × 153(H) mm

⁄

"W × 5

⁄

"D × 6"H)

Weight: Desktop: Approximately 510g (16.6oz)

Wall Mount: Approximately 600g (22.2oz)

5. Operating Environment

Temperature: 0°C to 40°C (32°F to 104°F)

Humidity: 30% to 80% RH (non-condensation)

Using the Cradle-type Battery Charger

DT-X5_E_P59_70.p65 2004.10.1, 9:50 AM62

E-63

Using the Dual Battery Charger

The optionally available Dual Battery Charger (DT-5022CHG) allows for parallel

charging of two rechargeable battery packs.

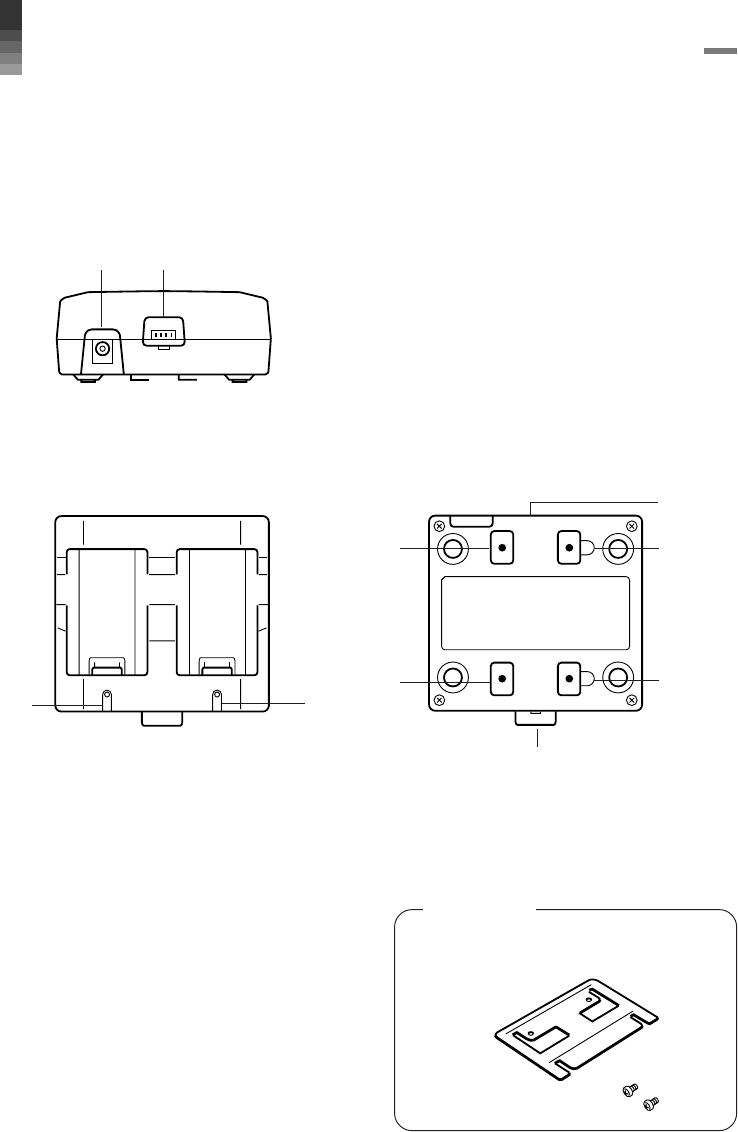

General Guide

Top Bottom

Front

2 3

Accessories

Connection Bracket

2 screws

DT-X5_E_P59_70.p65 2004.10.1, 9:50 AM63

E-64

Using the Dual Battery Charger

1 Charge Indicator

Lamp

2 AC Adaptor Jack

3 Dual Battery

Charger Connection

Port

4 Connection Bracket

Attachment Holes

This lamp indicates the charge status of the battery pack(s).

Off: Not charging

Red: Charging

Red Flashing: Battery pack problem

Green: Charging complete

Connect the AC adaptor here.

Use this port to connect multiple Dual Battery Chargers to each

other.

The connection bracket attaches here when you connect multiple

Dual Battery Chargers to each other.

Important!

Each Dual Battery Charger comes with one connection bracket.

Since only one connection bracket is required when you connect two Dual Battery

Chargers, you will always have one left over.

Simply keep the other connection bracket on hand as an extra, in case you ever

need it.

DT-X5_E_P59_70.p65 2004.10.1, 9:50 AM64

E-65

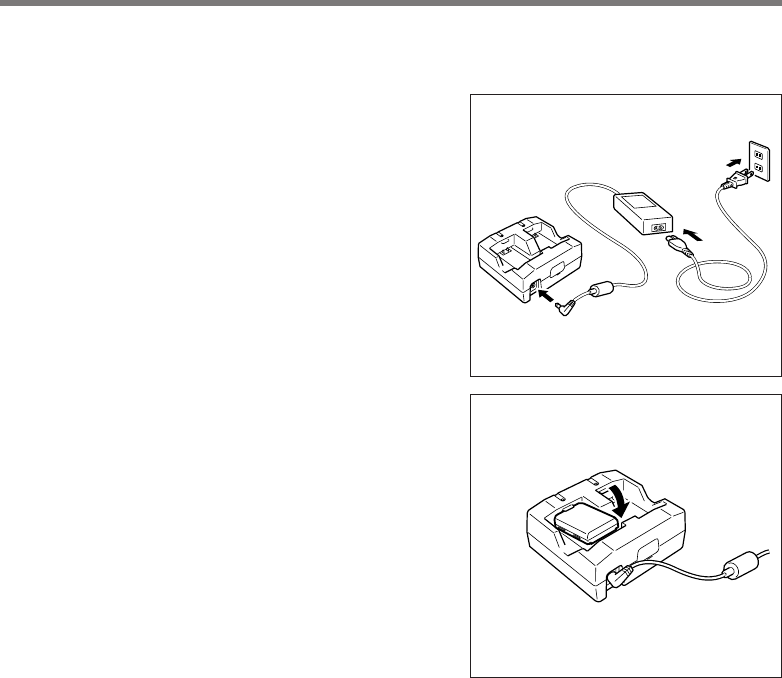

Charging a Battery Pack

1. Plug the optional AC adaptor into the AC

adaptor jack of the Dual Battery Charger.

2. Plug the other end of the AC adaptor into

a wall outlet.

3. Taking care that the battery pack is

oriented correctly, insert it into the Dual

Battery Charger.

This causes the Charge Indicator Lamp to

light in red, indicating that charging has

started.

Charge Indicator Lamp

Off: Not charging

Red: Charging

Red Flashing: Battery pack problem

Green: Charging complete

DT-X5_E_P59_70.p65 2004.10.1, 9:50 AM65

E-66

Using the Dual Battery Charger

Connecting Multiple Dual Battery Chargers

You can connect up to three Dual Battery Chargers. Doing so makes it possible to supply

power to all the Dual Battery Chargers using the AC adaptor.

1. As shown in the illustrations below, remove the connector covers of the Dual Battery

Chargers you want to connect to each other.

2. Connect the two Dual Battery Chargers as

shown below.

3. Turn over the connected Dual Battery

Chargers and attach a connection bracket,

securing it in place with screws.

You can repeat the above steps to connect

up to three Dual Battery Chargers.

Connector cover

DT-X5_E_P59_70.p65 2004.10.1, 9:50 AM66

E-67

Dual Battery Charger (DT-5022CHG) Specifications

1. Model

DT-5022CHG

2. Charging

Charging System: Fixed-voltage (with current limiter)

Charge Time: Approximately 2.5 hours for one HA-A20BAT battery pack

Approximately 5.0 hours for one DT-5025LBAT large-capacity

battery pack

Charging Two Battery Packs

Approximately 5.0 hours for two battery packs (HA-A20BAT×2)

Approximately 10 hours for two large-capacity battery packs

(DT-5025LBAT×2)

3. Power Supply

Power Requirement: AC adaptor MPC-577ADP

Consumption Current: Approximately 650mA

4. Operating Environment

Temperature: 0°C to 40°C (32°F to 104°F)

Humidity: 30% to 80% RH (non-condensation)

5. Dimensions and Weight

Dimensions:

Approximately 110(W) × 100(D) × 49(H) mm (4

⁄

"W × 4"D × 1

⁄

"H)

Weight: Approximately 154g (5.4oz)

DT-X5_E_P59_70.p65 2004.10.1, 9:50 AM67

E-68

Using Rechargeable Battery Pack

Your Handheld Terminal supports use of two battery pack types of different capacity. You

can select the one that best suits your needs in terms of operating time, the type of

options you need to use, etc.

When using the large-capacity battery pack, you need to use the special large-capacity

battery pack cover that comes with the Handheld Terminal.

Important!

Store a battery pack in its special soft case whenever you are not using it.

Battery Pack Specifications

Model: HA-A20BAT

Rated Capacitance: 1700mAh

Rated Voltage: 3.7V

Dimensions:

Approximately 37(W) × 57(D) × 13(H) mm (1

⁄

"W × 2

⁄

"D ×

⁄

"H)

Weight: Approximately 45g (1.6oz)

Bundled Item: Soft case

Large-capacity Battery Pack Specifications

Model: DT-5025LBAT

Rated Capacitance: 3400mAh

Rated Voltage: 3.7V

Dimensions:

Approximately 37(W) × 57(D) × 24(H) mm (1

⁄

"W × 2

⁄

"D × 1"H)

Weight: Approximately 87g (3.1oz)

Bundled Item: Soft case

DT-X5_E_P59_70.p65 2004.10.1, 9:50 AM68

E-69

Memo

DT-X5_E_P59_70.p65 2004.10.1, 9:50 AM69

E-70

Memo

DT-X5_E_P59_70.p65 2004.10.1, 9:50 AM70
