Casio Computer YAP10 Wireless Pen Mouse User Manual YA P10
Casio Computer Co Ltd Wireless Pen Mouse YA P10
User Manual
取扱説明書
本書は、お読みになった後も大切に保管してください。 日本語
User’s Guide
Be sure to keep all user documentation handy for future reference. English
Bedienungsanleitung
Bitte bewahren Sie die gesamte Benutzerdokumentation für späteres Nachschlagen auf. Deutsch
Mode d’emploi
Conservez la documentation à portée de main pour toute référence future. Français
Guía del usuario
Asegúrese de tener a mano toda la documentación del usuario para futuras consultas. Español
Guida dell’utilizzatore
Conservare l’intera documentazione dell’utente a portata di mano per riferimenti futuri. Italiano
Instruktionshäfte
Förvara all användardokumentation nära till hands för framtida referens. Svenska
Guia do Usuário
Certifique-se de guardar toda a documentação do usuário à mão para futuras referências.
Português
JEGFSISwChKTrRPo
Interactive Pointer YA-P10
Interactive Pointer YA-P10
Z
E-1
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .E-3
Operating Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .E-7
Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .E-8
Using the CD-ROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .E-9
General Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .E-10
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .E-11
Using the Pointer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .E-15

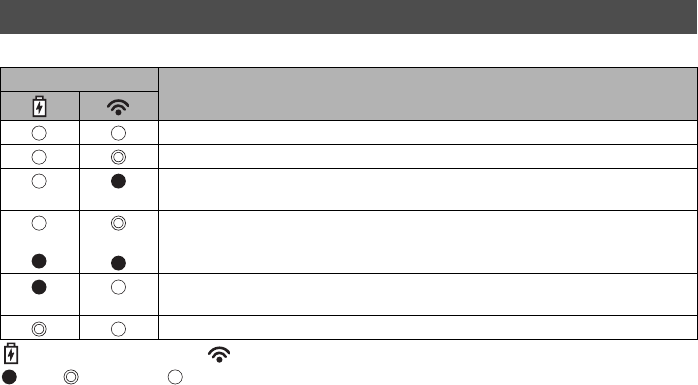

Indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .E-18
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .E-19
Disposing of a Pointer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .E-21
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .E-23
Contents
E-2
zThe term “pointer” in this manual refers the YA-P10 interactive pointer.
zThe contents of this User’s Guide are subject to change without notice.
zCopying of this manual, either in part or its entirety, is forbidden. You are allowed to use this
manual for your own personal use. Any other use is forbidden without the permission of
CASIO COMPUTER CO., LTD.
zCASIO COMPUTER CO., LTD. shall not be held liable for any lost profits or claims from third
parties arising out of the use of this product or this manual.
zCASIO COMPUTER CO., LTD. shall not be held liable for any loss or lost profits due to loss of
data caused by malfunction or maintenance of this product, or any other reason.
E-3
About safety symbols
Various symbols are used in this User’s Guide and on the product itself to ensure safe
use, and to protect you and others against the risk of injury and against material
damage. The meaning of each of the symbols is explained below.
Icon Examples
Safety Precautions
*Warning This symbol indicates information that, if ignored or applied incorrectly, could
possibly create the risk of death or serious personal injury.
*Caution This symbol indicates information that, if ignored or applied incorrectly, could
possibly create the risk of personal injury or material damage.
’A triangle indicates a situation against which you need to exercise caution. The example shown
here indicates you should take precaution against electric shock.
!A circle with a line through it indicates information about an action that you should not perform.
The specific action is indicated by the figure inside the circle. The example shown here means
disassembly is prohibited.
$A black circle indicates information about an action that you must perform. The specific action
is indicated by the figure inside the circle. The example shown here indicates you must unplug
the power cord from the power outlet.
E-4
zAvoid water and other liquids.
zDo not disassemble or modify the pointer in any way.
zDo not dispose of the pointer by burning it.
zDo not use or leave the pointer in any of the following locations.
Doing so creates the risk of fire and electric shock.
• Areas subject to large amounts of moisture or dust
• In a kitchen or other areas exposed to oil smoke
• Near a heater, on a heated carpet, or in an area exposed to direct sunlight
• Other areas subjected to temperature extremes
zNever leave the pointer in a bathroom or anywhere else there is the
chance that it will become wet.
Warning
Never allow the pointer to become wet. Water and other liquids create the risk of fire and
electric shock.
Never try to take the pointer apart or modify it in any way. Doing so creates the risk of electric
shock, burn injury, personal injury, or operational malfunction. Disassembling or modifying the
pointer can void its warranty or make it ineligible for servicing. Request all servicing and repair
from your original retailer or the contact specified for repair.
Never try to dispose of the pointer by burning it. Doing so can cause an explosion, which
creates the risk of fire and personal injury.
*
+
!
-
E-5
zImmediately stop using the pointer whenever any one of the following
conditions exists.
Failure to do so creates the risk of fire, electric shock, or overheating of batteries, and explosion.
• When the pointer is damaged due to dropping
• When the pointer is emitting smoke or strange odor, when the pointer does not operate
normally even when used as instructed by the user's guide, or any other time malfunction of
the pointer is suspected
In any of the above cases request servicing and repair from your original retailer or the contact specified
for repair.
z
Avoid dropping the pointer or otherwise subjecting it to impact or shock.
Failure to do so creates the risk of fire, electric shock, or overheating of batteries, and explosion.
z
Use only the special cable that comes with the pointer when charging it.
Failure to do so creates the risk of fire, electric shock, or overheating of batteries, and explosion.
zRadio waves emitted by the pointer
• If you are using a pace maker or any other electronic medical device, be sure to consult your physician
or device manufacturer before using this product.
Never use this product inside of an aircraft or medical facility, or in any other location where use
of such devices is prohibited. Radio waves can have an effect on the operation of electronic
equipment and medical equipment, and cause accidents.
Do not use this product in the vicinity of high-precision electronic instruments or electronic
devices that handle weak radio signals. Radio waves can have an effect on the operation of
such equipment, and cause accidents.
-
-
E-6
zBe sure to follow all applicable local laws and regulations when disposing of
the pointer.
Caution
*
E-7
zNever use or store the pointer in the following locations. Doing so creates the risk of malfunction
of and damage to the pointer.
• Locations prone to electrostatic charge
• Locations subjected to temperature extremes
• Locations where there is extreme moisture
• Locations subjected to sudden temperature changes
• Locations where there is a lot of dust
• Locations where there is the danger of getting wet
zDo not use the pointer in environments subjected to temperature extremes.
The pointer is designed for use within the temperatures of 5ºC to 35ºC (41ºF to 95ºF). Use
outside of this temperature range creates the risk of malfunction of and damage to the pointer.
zWhen cleaning the pointer, wipe it with a soft, dry cloth. Any other type of cleaning method
creates the risk of malfunction or breaking of the pointer.
zUse in Other Countries
This product has been certified as complying with the wireless regulations in the country of
purchase. Be sure to use it only in the country where you purchased it. Use of this product in
another country may be illegal.
Operating Precautions
E-8
zStrap
zCD-ROM
zUser’s Guide (This Manual)
zWarranty

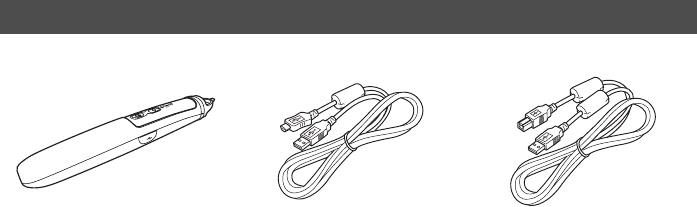

Unpacking
Pointer USB Cable
(Type A to Type Mini B)
(For pointer charging)
USB Cable
(Type A to Type B)
E-9
The CD-ROM that comes with the pointer contains a Presentation Draw application that
provides various projector presentation tools, and a PDF file version of its User’s Guide.
Your computer will need to have Adobe® Reader® installed in order for you to view the
PDF User’s Guide.
The PDF User’s Guide also includes information about the minimum computer system
requirements for Presentation Draw, and the procedure for installing it. Be sure to read
the User’s Guide before installation.
To view the contents of a User’s Guide (PDF)
1. Place the CD-ROM that comes with the pointer into your computer’s CD-ROM drive.
2. Perform either of the following operations.
• If the CD-ROM menu screen appears:
• If the CD-ROM menu screen does not appear:
3. Double-click the User’s Guide file.
Using the CD-ROM
1On the menu screen, click the [Open Folder] button to the right of “User’s Guide”.
2When the User’s Guide folder opens, open the folder that corresponds to the
language you want to use.
1On your computer, navigate to the CD-ROM and then open it.
2Open the User’s Guide folder and then open the folder that corresponds to the
language you want to use.
E-10

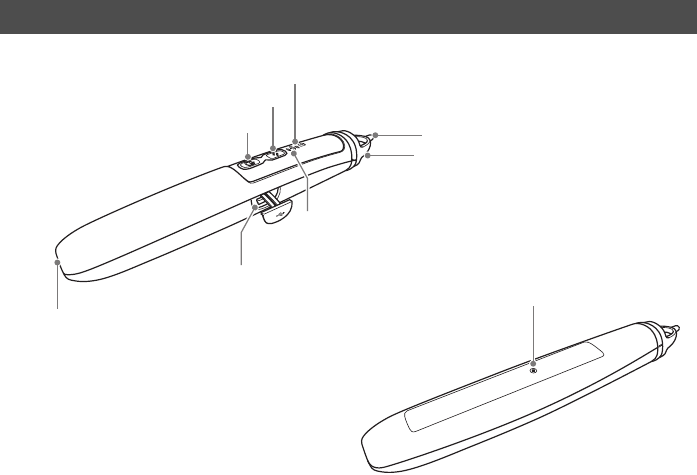

General Guide
RESET button
Strap holder
Charger connector
(USB Type Mini B)
Link indicator (blue)
Left mouse button
Right mouse button
Battery indicator (red)
Pointer tip
Sensor
E-11

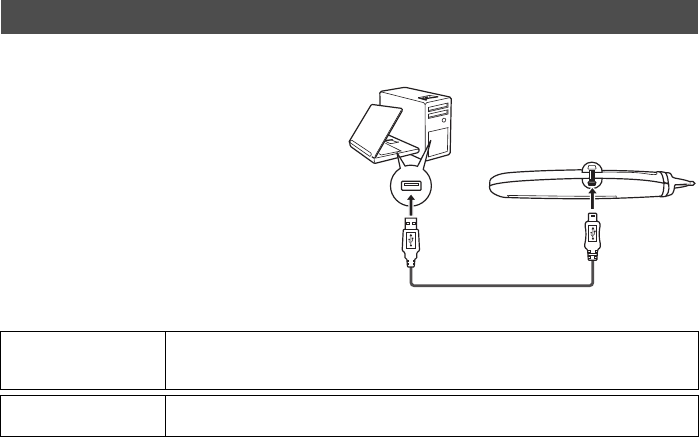

Charging the Pointer
Use the supplied USB cable (Type A to
Type Mini B) to connect the pointer to
your computer as shown nearby.
zThe battery indicator is lit (red) while
charging is in progress and goes out after
charging is complete.
zCharging takes about 2.5 hours.
Setup
*Warning If charging is not complete within the prescribed amount of time, disconnect
the cable from the pointer and stop charging. Failure to do so creates the risk
of battery overheating, fire, and explosion.
*Caution Fluid leaking from a battery that gets onto your skin or clothing can cause skin
irritation. If this happens, immediately rinse the area with clean water.
A to Mini B
E-12
Important!
Important!
Important!
zConnecting the pointer to a computer for charging, make sure that the computer is connected
to an AC power source to ensure a stable power supply.
zIf your computer does not supply power via its USB port when turned off, leave your computer
turned on while charging the pointer.
zThe pointer cannot be used while it is being charged.
Installing the Software that Comes with the Pointer on a Computer
See the Presentation Draw User’s Guide on the CD-ROM that comes with the pointer.
E-13

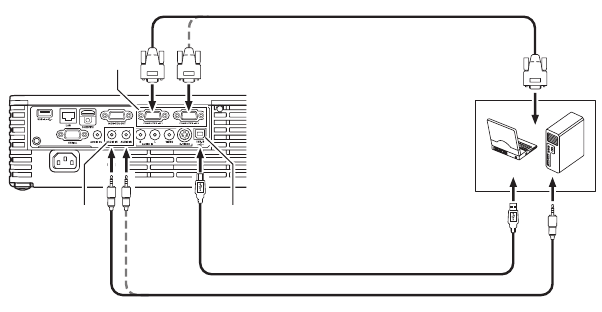

Connecting a Computer to the Projector
In order to use the pointer as a computer pointing device, there must be a USB
connection between the computer and the projector. To project the computer screen
contents with the projector, you also need to connect the analog RGB output terminal of
the computer to the projector’s COMPUTER IN terminal. Connect as shown in the
illustration below.
*Some models have only one COMPUTER IN and one AUDIO IN terminal.
<Projector>
Mini D-Sub cable that comes with projector
Audio cable (commercially available)
To monitor terminal
(analog RGB output terminal)
COMPUTER IN terminal
(1 or 2*)
To line output
terminal
AUDIO IN terminal
(1 or 2*)USB cable (Type A to Type B)
that comes with pointer
USB-B port To USB port
<Computer>
E-14
Important!
Important!
Important!
zAfter connection is complete, be sure to change the projector’s “Option Settings 2Interactive
Pointer” setting to “On”. For more information, see the User’s Guide on the CD-ROM that
comes with the projector.
zBe sure to make the RGB output of the computer connected to the projector the primary
monitor. The pointer will not operate properly if it is the secondary monitor. For information
about configuring monitor settings, see the user documentation that came with your computer,
computer help, etc.
E-15

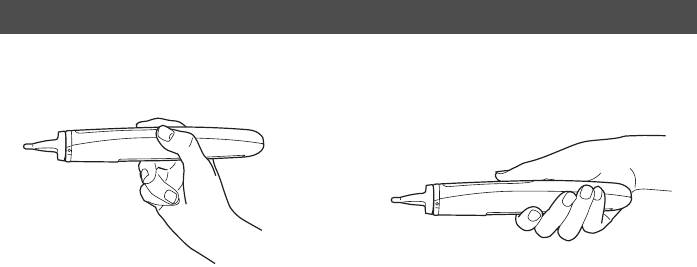

Holding the Pointer
Hold the pointer securely as shown in the illustrations below.
Using the Pointer
or
E-16
To start a pointer operation
1. Press the pointer left mouse button or right mouse button.
• This turns on the pointer and causes the link indicator to start flashing.
2. Holding the pointer securely, point the pointer tip at the projected image.
• The link indicator will go from flashing to lit when a link between the pointer and projector is
established.
• Pointer operations (page E-17) are enabled at this time.
NOTE
zAfter establishing a connection between the pointer and the projector, the link indicator will go
out if you move the pointer tip so it is not pointed at the projected image. You can reestablish
the connection by pointing the pointer tip at the projected image within about one minute after
the link indicator goes out.
zIf you do not perform any operation for a few minutes after the link indicator goes out, the
pointer will turn off automatically.
E-17
Pointer Operations
The following pointer operations are supported on the projected image of a computer’s
RGB output.
Important!
Important!
Important!
zWhen using the pointer, take care to ensure that the pointer tip is not within any shadow cast
onto the projected image. The pointer will not function properly while its tip is within a shadow.
Left-click : Use the pointer tip to point at the location where you want to click (it is
not necessary to touch the screen with the pointer tip), and then press the
left mouse button. Or you could lightly touch the pointer tip to the location
where you want to click.
Right-click : Use the pointer tip to point at the location where you want to click (it is
not necessary to touch the screen with the pointer tip), and then press the
right mouse button.
Drag : Point the pointer tip at the location from which you want to start dragging
(it is not necessary to touch the screen with the pointer tip). Next, hold
down the left mouse button as you drag the pointer tip. When you reach
the end of the drag, release the left mouse button. You also could lightly
touch the tip of the pointer at the drag start point and drag on the screen,
keeping it lightly against the screen the whole way. When you reach the
end of the drag, remove the pointer tip from the screen.
E-18
The following shows the pointer status as indicated by the indicators.
: Battery indicator (red) : Link indicator (blue)
: Lit : Flashing : Unlit
*The pointer will turn off automatically and both indicators will go out if no pointer operation is
performed for a few minutes or if a few minutes elapse after the link between the pointer and
projector is broken. A few seconds immediately before this happens, the link indicator will flash
and then both indicators will light.
Indicators
Indicator Pointer Status
Turned off
Searching for projector
Linked with projector and standing by for interactive pointer
operation. Or in use as interactive pointer.
Powering down*
Battery is charging or battery power is low (approximately 20% of
full charge).
Very low battery power (approximately 10 % of full charge)
E-19
Check the following items whenever you experience any problem while using the pointer.
Troubleshooting
Problem Possible cause and recommended action
Pointer does not
function at all or only
functions intermittently.
zIf the pointer’s battery indicator is flashing or light, it means that the
pointer battery level is low. Charge the pointer. See “Charging the
Pointer” (page E-11).
zThere may be a problem with the USB connection between the
computer and projector. Check the connection. See “Connecting a
Computer to the Projector” (page E-13).
z“Off” may be selected for the projector’s “Option Settings 2
Interactive Pointer” setting. Change the setting to “On”. For more
information, see the User’s Guide on the CD-ROM that comes with the
projector.
zLighting in the location where you are projecting may be too bright.
Take measures to reduce the brightness of the lighting.
zThe pointer tip may be within a shadow cast onto the projected image.
Operate the pointer taking care to keep the tip out of shadows.
zAnother mouse operation may be being performed on the computer at
the same time you are performing a pointer operation. Do not allow any
mouse operations to be performed on the computer during pointer
operations.
E-20
Pointer does not
function at all or only
functions intermittently.
zThe projector may be in the 3D input mode. Switch the projector to the
normal input mode. For more information, see the User’s Guide on the
CD-ROM that comes with the projector.
zThe projector may be projecting an image from an input source that is
not from the USB connected computer. Select the USB connected
computer as the input source and try projecting again.
zPointer operation may be unstable for some reason. Press the
RESET button (page E-10).
The location on the
projected image that is
selected is different from
the location I click.
zHold the pointer securely as close as possible to the screen when
performing click operations.
zThe pointer tip may be within a shadow cast onto the projected image.
Operate the pointer taking care to keep the tip out of shadows.
Problem Possible cause and recommended action
E-21
When disposing of a pointer, use the procedure below to remove its built-in rechargeable
lithium-ion battery and take the battery in for recycling.
zHandling rechargeable batteries (Please recycle!)
Be sure to recycle no longer needed batteries to help conserve precious resources.
Contact your original dealer or authorized CASIO service center for information about
recycling.
zPrecautions when handling old rechargeable batteries
zInsulate the connectors with tape, etc.
zDo not remove the covering.
zNever try to take batteries apart.
Disposing of a Pointer
E-22
Removing the rechargeable lithium-ion battery
1. Remove the back label.
2. Use a Phillips head (+) screwdriver to
remove the two screws.
3. Remove the front case (the side with the
buttons and indicators).
• If the front case is difficult to remove, insert
a flat blade (–) screwdriver into the gap of
the case and then open it.
4. Disconnect the rechargeable lithium-ion
battery connector and then remove the
battery.
5. Do not dispose of the battery. Be sure to
take it in for recycling.
• Contact your original dealer or authorized
CASIO service center for information about
recycling.
6. After removing the lithium-ion battery, be
sure to dispose of the pointer in
accordance with the laws, rules, and
regulations in your geographic area.
Screws
E-23
zThe above “Battery Operation Time” is a general reference value that indicates the time from the
start of operation with a new, fully charged battery. This time is not guaranteed. Also note that
repeated charging can cause a battery to gradually lose its ability to retain a charge.
zUse under low temperatures also can shorten the battery operation time.
zSpecifications are subject to change without notice.
Specifications
Operating Frequency 2.4GHz ISM band
Power Requirements Lithium-ion battery
Normal voltage/capacitance: 3.7V DC, 800mAh
Battery Operation Time Approximately 30 to 35 hours (on a full charge)
Environment Operating temperature: 5 to 35°C (41 to 95°F)
Operating humidity: 20 to 80% (non-condensation)
Rated Power 5V DC Approximately 2W
Dimensions Approximately 210mm/8.3" (long), 28.5mm/1.1" (diameter)
Weight Approximately 75g/2.6oz
The U.S.A. and Canada
GUIDELINES LAID DOWN BY FCC RULES FOR USE OF THIS UNIT IN THE U.S.A. (not
applicable to other areas). NOTICE
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC WARNING
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
Proper connectors must be used for connection to host computer and/or peripherals in order
to meet FCC emission limits.
Caution Exposure to radio frequency radiation (below is for portable device)
To comply with FCC RF exposure compliance requirements, this device must not be co-
located or operating in conjunction with any other antenna or transmitter.
For Users in Canada
These Class B digital apparatuses comply with Canadian ICES-003.
Cet appareil numériqué de la classes B est conformé à la norme NMB-003 du Canada.
These devices comply with RSS 210 of Industry Canada (IC).
Operation is subject to the following two conditions:
(1) These devices may not cause interference, and
(2) These devices must accept any interference, including interference that may cause undesired
operation of this device.
L’utilisation de ce dispositif est autorisée seulement aux conditions suivantes:
(1) il ne doit pas produire de brouillage et
(2) I’utilisateur du dispositif doit étre prêt à accepter tout brouillage radioélectrique reçu, même
si ce brouillage est susceptible de compromettre le fonctionnement du dispositif.
Declaration of Conformity
Model Number: YA-P10
Trade Name: CASIO
Responsible party: Casio America, Inc.
Address: 570 Mt. Pleasant Avenue, Dover, New Jersey 07801, USA
Telephone number: 973-361-5400
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Exposure to radio frequency radiation
The installer of this radio equipment must ensure that the antenna is located or pointed such
that it does not emit RF field in excess of Health Canada limits for the general population;
consult Safety Code 6, obtainable from Health Canada’s website at
http://www.hc-sc.gc.ca/ewh-semt/pubs/radiation/index-eng.php
Europe
Certify and declare under our sole responsibility that the following equipments:
Product description / Intended use
EU/EFTA member states intended for
use EU: Austria, Belgium, Bulgaria, Cyprus,
Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, The Netherlands,
Poland, Portugal, Romania, Slovakia, Slovenia,
Spain, Sweden, United Kingdom
EFTA: Switzerland, Iceland, Liechtenstein, Norway
Member states with restrictive use France, Belgium
Manufacturer CASIO COMPUTER CO., LTD.
Brand CASIO
Type YA-P10
DECLARATION OF CO NFORMITY
We, the under signed, CASIO Europe GmbH, hereby declare that the following equipments:
Product: Wireless Pen Mouse
Model: YA-P10
Brand: CASIO
are in conformity with all the provisions of the following EC directive with meeting the related
test standards:
Council Directive: 1999/5/EC (R&TTE Directive):
Standards for all models:
EN 60950-1: 2006+A11:2009
EN 62311: 2008
EN 301 489-1 v1.8.1 (2008-04)
EN 301 489-3 v1.4.1 (2002-08)
EN 300 440-1 v1.6.1 (2010-08)
EN 300 440-2 v1.4.1 (2010-08)
Hereunder, that this declaration is based on the above standards have been complied fully,
constructing into a Technical File.
The information described above dates from June 2011 and may be subjected to future
changes.
Products are for distribution within all member
states of the EU.
France limited to 2446.5-2483.5 MHz Indoor use.
Belgium limited to 2400-2483.5 MHz Indoor, 2460-2483.5 MHz Outdoor use.
0560
B
YA-P10_Pointer_Cov3-4.fm 21 ページ ２０１１年５月１９日 木曜日 午後３時１０分
Manufacturer:
CASIO COMPUTER CO.,LTD.
6-2, Hon-machi 1-chome, Shibuya-ku, Tokyo 151-8543, Japan
Responsible within the European Union:
CASIO EUROPE GmbH
Casio-Platz 1, 22848 Norderstedt, Germany
Batterij niet weggooien,
maar inlevern als KCA
P9K39-4800-00
Printed in China
Imprimé en Chine
MA1105-B
YA-P10_Pointer_Cov3-4.fm 23 ページ ２０１１年５月１９日 木曜日 午後３時１０分
