CastleNet Technology BTC08R800BLE Bluetooth 4.0 dual mode Embedded Module User Manual BTC08R800 QIG FCC v01

CastleNet Technology Inc. Bluetooth 4.0 dual mode Embedded Module BTC08R800 QIG FCC v01

UserManual.wiki >

CastleNet Technology >

BTC08R800BLE User Manual HTML Version

User Manual



CastleNetBTC08R800UserGuide







User Guide

Bluetooth4.0dualmodeEmbeddedModule



CastleNetBTC08R800UserGuide







FederalCommunicationCommissionInterferenceStatement

ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:(1)

Thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptanyinterferencereceived,

includinginterferencethatmaycauseundesiredoperation.



ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuantto

Part15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmful

interferenceinaresidentialinstallation.Thisequipmentgenerates,usesandcanradiateradiofrequency

energyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmfulinterferenceto

radiocommunications.However,thereisnoguaranteethatinterferencewillnotoccurinaparticular

installation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcan

bedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrecttheinterference

byoneofthefollowingmeasures:



‐ Reorientorrelocatethereceivingantenna.

‐ Increasetheseparationbetweentheequipmentandreceiver.

‐ Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiver

isconnected.

‐ Consultthedealeroranexperiencedradio/TVtechnicianforhelp.



FCCCaution:Anychangesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliance

couldvoidtheuser'sauthoritytooperatethisequipment.



Thistransmittermustnotbeco‐locatedoroperatinginconjunctionwithanyotherantennaortransmitter.



RadiationExposureStatement:

ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforanuncontrolledenvironment.This

equipmentshouldbeinstalledandoperatedwithminimumdistance20cmbetweentheradiator&your

body.



CastleNetBTC08R800UserGuide







ThisdeviceisintendedonlyforOEMintegratorsunderthefollowingconditions:



Theantennamustbeinstalledsuchthat20cmismaintainedbetweentheantennaandusers,and

Thetransmittermodulemaynotbeco‐locatedwithanyothertransmitterorantenna.



Aslongas2conditionsabovearemet,furthertransmittertestwillnotberequired.However,theOEM

integratorisstillresponsiblefortestingtheirend‐productforanyadditionalcompliancerequirements

requiredwiththismoduleinstalled



IMPORTANTNOTE:Intheeventthattheseconditionscannotbemet(forexamplecertainlaptop

configurationsorco‐locationwithanothertransmitter),thentheFCCauthorizationisnolongerconsidered

validandtheFCCIDcannotbeusedonthefinalproduct.Inthesecircumstances,theOEMintegratorwillbe

responsibleforre‐evaluatingtheendproduct(includingthetransmitter)andobtainingaseparateFCC

authorization.



EndProductLabeling

Thistransmittermoduleisauthorizedonlyforuseindevicewheretheantennamaybeinstalledsuchthat20

cmmaybemaintainedbetweentheantennaandusers.Thefinalendproductmustbelabeledinavisible

areawiththefollowing:“ContainsFCCID:RK9‐BTC08R800BLE”.Thegrantee'sFCCIDcanbeusedonlywhen

allFCCcompliancerequirementsaremet.



ManualInformationTotheEndUser

TheOEMintegratorhastobeawarenottoprovideinformationtotheenduserregardinghowtoinstallor

removethisRFmoduleintheuser’smanualoftheendproductwhichintegratesthismodule.

Theendusermanualshallincludeallrequiredregulatoryinformation/warningasshowinthismanual.



CastleNetBTC08R800UserGuide







1. INTRODUCTION

The BTC08R800 series is the new generation of Bluetooth 4.0 module. It is composited of

the latest CSR 8510 PC-ROM chip. The external antenna connection is via IPEX

connector. It is compatible with all BT software in the market, and Microsoft Win7 BT utility.

The bundled software will enrich more Bluetooth application in the Notebook / Tablet PC

etc.

The cable connection and PIN define of “Host I/F connector” from BT module

(BTC08R800 series) to PC system is specially customized by OEM Laptop PC.

2. PIN Define (Host I/F connector)

PIN#DefineDescription

1GND

2USBD+

3USBD‐  

4BT_STATUSConnectedwhen3‐wiredBT‐WiFicoexistence.

5BT_ACTWLANandBTCo‐existence

6BT_ONActiveHightoenableBTRadio..LowtodisableBTRadio.

7WLAN_ACTWLANandBTCo‐existence

8+3.3VPowersupplyformodule

9LEDLEDindicatorforBTactivity./Reserved.

10GND



CastleNetBTC08R800UserGuide







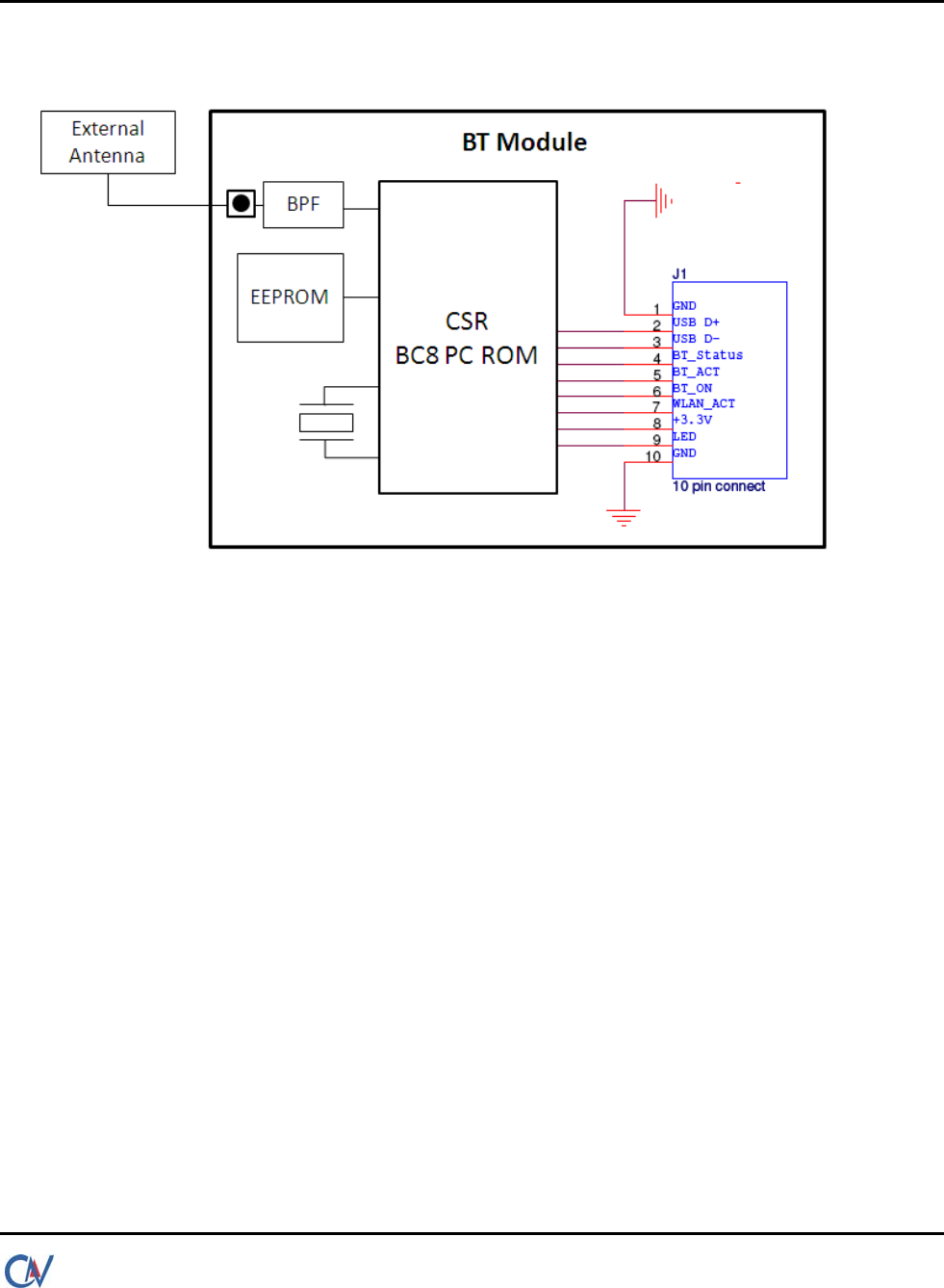

3. Block Diagram

4. INSTALLATION

4.1 Installed in Laptop PC

The Mainboard of the system should provide a Host connector and Cable connection for BT

module. Please follow the SOP to install & assemble it step by step.

4.2 Testing in Lab

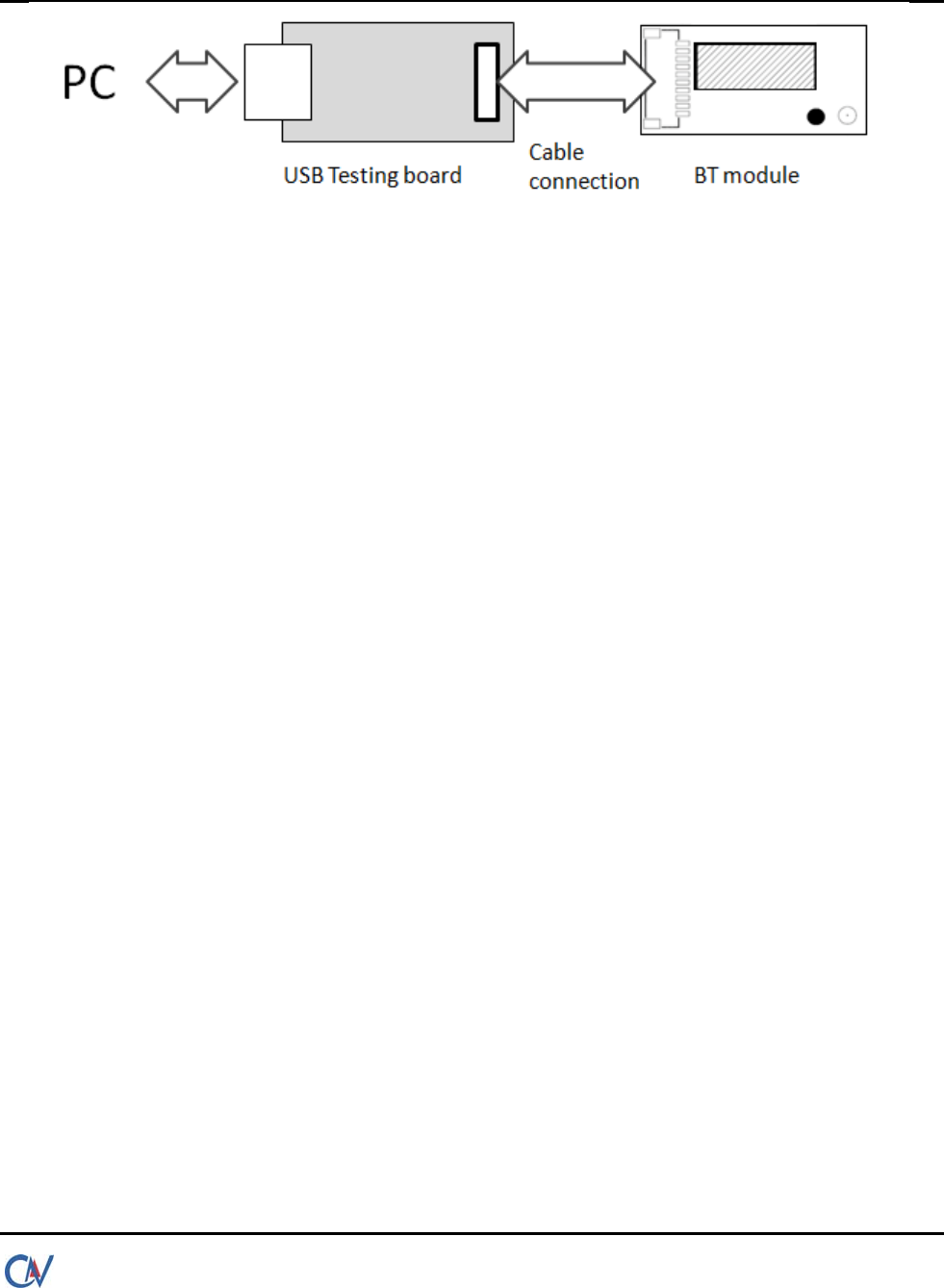

The module is embedded inside Notebook. If for testing purpose, we provide the “USB Testing

Board” in order to let tester connect BTC08R800 via the special cable connection to PC externally.

The USB Testing Board provides +5V/3.3V conversion from PC Host. Please plug into any USB

port on your PC.



CastleNetBTC08R800UserGuide







After Hardware installation, when system find the new hardware, please install the driver /

software correctly.
