Cattron North America 78970 ADL 450 MHZ 2PCA-7897-X001 User Manual
Laird Controls North America Inc. ADL 450 MHZ 2PCA-7897-X001
User Manual
Product Development
LAIRD
ADL Radio Module Manual
Document p/n: 9S02-7897-A001 Rev.A1
CONFIDENTIALITY NOTICE
This correspondence and all information contained within are the exclusive, confidential and proprietary
property of Laird Inc. it is not to be reproduced, nor is it or any portion of it to be used by or disclosed to
any other individual or legal entity, without the prior, written approval of Laird Inc. Furthermore, the
information contained within this correspondence is also to be handled in accordance with any and all
confidentiality agreements between Laird Inc. and the receiver or user of this information.
.
2017 Laird Inc.
ADL Radio Module Manual LAIRD
Document p/n: 9S02-7897-A001 Rev.A1
Laird Inc. Proprietary and Confidential Page ii
Revision History
Date
Revision
Description
Signature / Date
2010-10-06
EM1
Initial draft
Prepared
Pierre Montreuil
Verified
Approved
2010-10-06
EM2
General revision.
Removed LQI measurement
Updated the configuration section (section 5)
Prepared
Pierre Montreuil
Verified
Approved
2012-01-30
A
Fig 4.8 and 4.9 - Remove remaining references to LQI from
drawings.
Table 4.2 – Rename ESC_END for ESC_SOF
[LaB] Added demodulated analog output on pin 48 and
GND on pin 50
Prepared
Pierre Montreuil
Verified
Approved
2017-07
A1
Final
Prepared
H. Lin
Verified
Approved
ADL Radio Module Manual LAIRD
Document p/n: 9S02-7897-A001 Rev.A1
Laird Inc. Proprietary and Confidential Page iii
Table of Contents
1. INTRODUCTION ........................................................................................................................................... 1-1
1.1 PURPOSE ..........................................................................................................................................................1-1
1.2 SCOPE ..............................................................................................................................................................1-1
1.3 APPLICABILITY ................................................................................................................................................1-1
1.4 DEFINITIONS, ACRONYMS ................................................................................................................................1-1
1.4.1 Definitions ..............................................................................................................................................1-1
1.4.2 Acronyms ................................................................................................................................................1-1
2. FEATURES SUMMARY ................................................................................................................................ 2-1
3. HOST INTERFACE DEFINITION ............................................................................................................... 3-2
3.1 PINS ASSIGNMENT ...........................................................................................................................................3-2
3.2 SIGNALS DESCRIPTION .....................................................................................................................................3-3
4. ADL CONFIGURATION CONCEPT ........................................................................................................... 4-4
4.1 STAND-ALONE TEST MODE .............................................................................................................................4-4
5. TEST-SPECIFIC PARAMETERS ................................................................................................................ 5-5
ADL Radio Module Manual LAIRD
Document p/n: 9S02-7897-A001 Rev.A1
Laird Inc. Proprietary and Confidential Page iv
78970 TRX module meets Part 90 of the FCC rules and regulations. Compliance with the labeling
requirements, FCC notices is required. In order to comply with FCC Certification requirements, the
Original Equipment Manufacturer (OEM) must fulfill the following requirements.
1. The system integrator must place an exterior label on the outside of the final product
housing the 78970TRX Module. The figure below shows the contents that must be included
in this label.
2. 78970 TRX modules may only be used with the antennas that have been tested and
approved for use with the module.

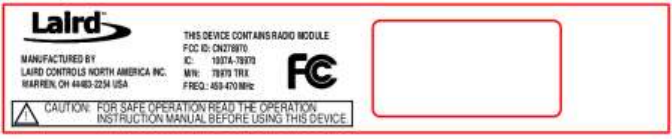

Labeling Requirements
The OEM must make sure that FCC labeling requirements are met. This includes a clearly visible
exterior label on the outside of the final product housing that displays the contents shown in
below.
WARNING: The 78970 TRX modules have been tested by the FCC for use with other products without
further certification (as per FCC Section 2.1091). Changes or modifications to this device not expressly
approved by Cattron-Theimeg could void the user’s authority to operate the equipment.
NOTICE: OEM’s must verify the final end product complies with unintentional radiators (FCC Section
15.107 and 15.109) before providing a declaration of conformity for their final product to Part 15 of the
FCC Rules.
NOTICE: OEM’s must verify the separate approval is required for all other operating
configurations, including portable configurations with respect to Part 2.1093 and different antenna
configurations.
NOTICE: The 78970 TRX modules have been certified for mobile and fixed radio applications. If the
module will be used for portable applications, the device must undergo SAR testing.
RF Exposure WARNING: This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with minimum distance 20
cm between the radiator and your body. This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
NOTICE: The preceding statement must be included as a CAUTION statement in OEM product
manuals in order to alert users of FCC RF Exposure compliance.
78970 TRX is designed for use in countless wireless applications requiring long range communications
with low energy consumption. To ensure that the final product complies with the all of the regulatory
requirements for the Modular Grant the following integration instructions should be followed. 78970
TRX is limited to OEM installation ONLY. The OEM integrator is responsible for ensuring that the end-
user has no manual instructions to remove or install the module.
ADL Radio Module Manual LAIRD
Document p/n: 9S02-7897-A001 Rev.A1
Laird Inc. Proprietary and Confidential Page v
FCC Part 15.105(b) Warning Statement
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
-Consult the dealer or an experienced radio/TV technician for help.
IC RSS-GEN, Sec 7.1.2 Warning Statement- (Required for Transmitters)
ENGLISH:
Under Industry Canada regulations, this radio transmitter may only operate using an
antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry
Canada. To reduce potential radio interference to other users, the antenna type and its gain
should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more
than that necessary for successful communication.
FRENCH:
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut
fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour
l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage
radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain
de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité
nécessaire à l'établissement d'une communication satisfaisante.
IC RSS-GEN, Sec 7.1.2 Warning Statement-
(Required for Transmitters w/ detachable antennas)
ENGLISH:
This radio transmitter (IC: 1007A-78970,Model Number: 78970TRX) has been approved by
Industry Canada to operate with the antenna types listed
below with the maximum permissible gain and required antenna impedance for each
antenna type indicated. Antenna types not included in this list, having a gain greater than
the maximum gain indicated for that type, are strictly prohibited for use with this device.
FRENCH:
Le présent émetteur radio (IC:1007A-78970, Numéro de modèle: 78970TRX) a été approuvé
par Industrie Canada pour fonctionner avec les types d'antennes énumérés ci-dessous ayant un
gain admissible maximal et l'impédance requise pour chaque type d'antenne. Les types
d'antennes non inclus dans cette liste, ou dont le gain est supérieur au gain maximal indiqué,
sont strictement interdits pour l'exploitation de l'émetteur.
IC RSS-102, Sec 2.6 Warning Statements
ENGLISH:
The applicant is responsible for providing proper instructions to the user of the radio device,
ADL Radio Module Manual LAIRD
Document p/n: 9S02-7897-A001 Rev.A1
Laird Inc. Proprietary and Confidential Page vi
and any usage restrictions, including limits of exposure durations. The user manual shall
provide installation and operation instructions, as well as any special usage conditions, to
ensure compliance with SAR and/or RF field strength limits. For instance, compliance
distance shall be clearly stated in the user manual.
FRENCH:
Le requérant est responsable de fournir les instructions adéquates pour l’usage de
l’équipement radio, ainsi que toutes les limitations, incluant les durées maximales
d’exposition. Le manuel utilisateur doit fournir les instructions d’installation et d’opération,
ainsi que toutes les conditions d’utilisation particulières, pour assurer la conformité avec les
limites d’exposition aux champs électromagnétiques radiofréquences et/ou SAR.
Only the antenna gain less than 2.15dBi may be used with the equipment.
Only the following authorized antennas may be used with the equipment:
Splatch patch antenna , 50Ohm, Gain:-3dBi
¼ wave whip antenna, 50Ohm, Gain:-0dBi
½ wave dipole PCB antenna, 50Ohm, Gain: 2.15dBi
PCB loop antenna, 50Ohm,-2dBi
PCB wire antenna, 50Ohm, Gain -5dBi
ADL Radio Module Manual Introduction
Document p/n: 9S02-7897-A001 Rev.A1
Laird Inc. Proprietary and Confidential Page 1-1
1. Introduction
1.1 Purpose
A new family of RF module is being developed by Cattron. This family includes high-selectivity radios covering
several RF bands used world-wide for remote control applications. They are built around a common architecture,
and present a uniform host interface definition. The host interface is used for data communication and radio
configuration.
1.2 Scope
This document describes the host interface signal definitions, timings, operation mode, available functionalities, and
provide details about its integration to Unity products. This document does not cover RF specifications or power
supply specifications.
1.3 Applicability
Applies to ADL family members, P/N 2PCA-7897-xxxx
1.4 Definitions, Acronyms
1.4.1 Definitions
1.4.2 Acronyms
ADL Radio Module Manual Features Summary
Document p/n: 9S02-7897-A001 Rev.A1
Laird Inc. Proprietary and Confidential Page 2-1
2. Features Summary
The ADL design addresses in first place Unity applications requirements. Its interface however is general enough to
allow compatibility to other legacy Cattron products.
Direct electrical compatibility to Unity RF interface – The interface is defined for natural integration to Unity
product line.
Data interface - support for synchronous and asynchronous serial link.

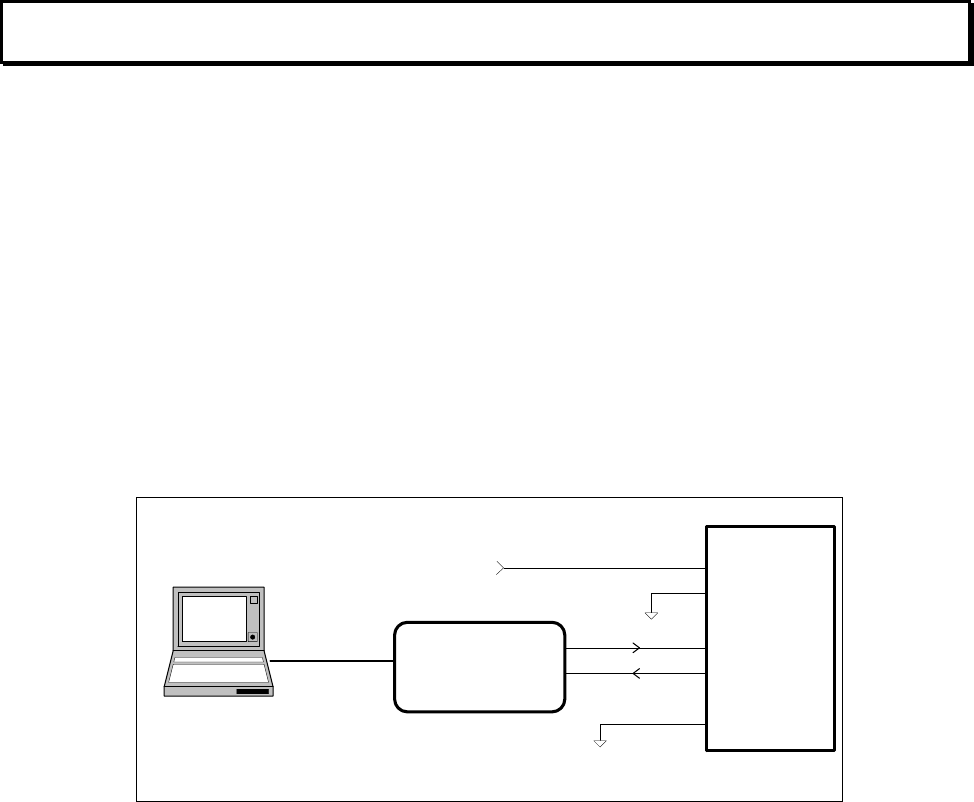

Stand-alone operation for production test – The ADL can interface almost directly to a PC serial port for testing
(no need for CPU board); only a TTL/RS232 translator is required.
These different aspects are covered in the rest of this document.

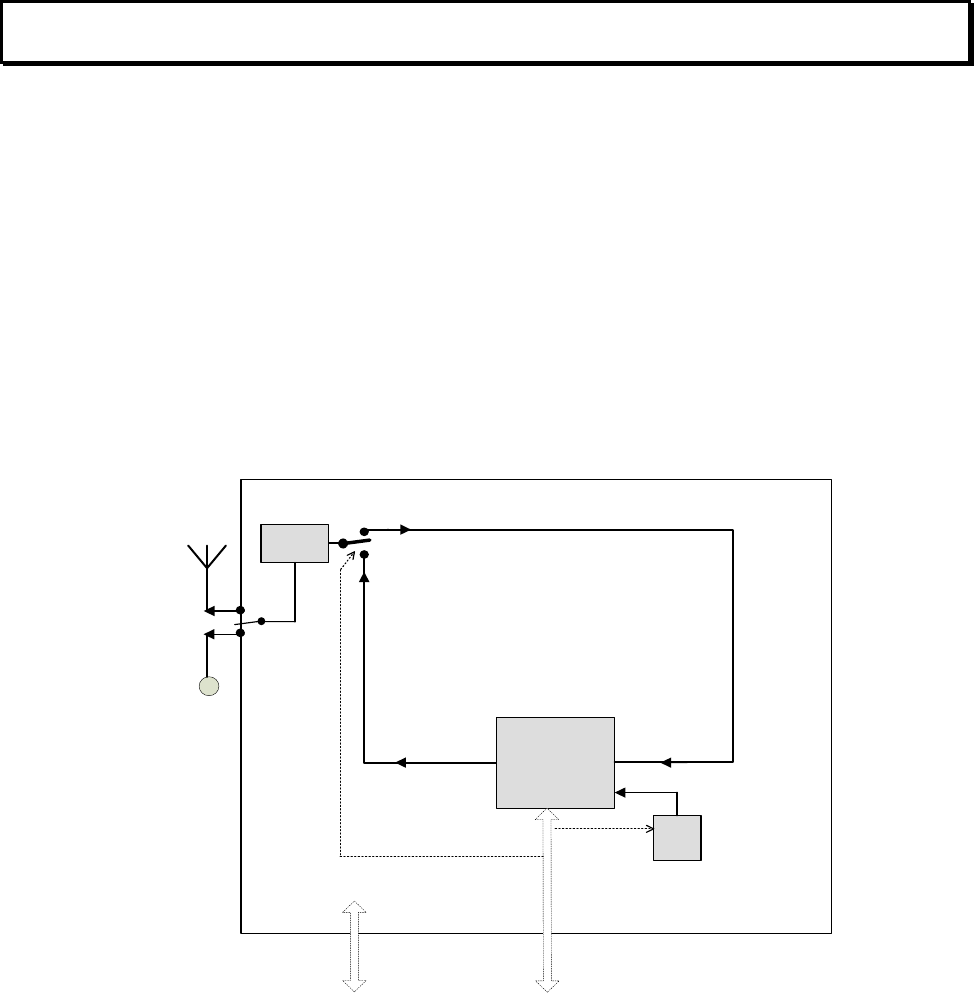

Figure 2.1 - ADL Module Block Diagram
The TCXO provides the reference frequency to transceiver chip
When the module is in RX mode, the RF switch is set to RX enable. The RF signal is sent to transceiver chip via
a bandpass filter. The transceiver chip will decode the rf signal to digital signal and pass to the control interface
When the module is in TX mode, the digital signal will be send to transceiver chip. After the RF signal will be
delivered through RF switch and radiated via either MMCX RF port or embedded PCB loop antenna
PCB
Loop
ANT
Main
Transceiver
ADF7021
TX RX
INTERFACE
TX/RX
POWER SUPPLY
TCXO
BPF
DISCRETE
REF_ON
MMCX
PORT
ADL Radio Module Manual Host Interface Definition
Document p/n: 9S02-7897-A001 Rev.A1
Laird Inc. Proprietary and Confidential Page 3-2
3. Host Interface Definition
3.1 Pins Assignment
Description
IO
Signal
Pin
Number
Signal
IO
Description
49
50
GND
Ground
47
48
45
46
43
44
41
42
I2C clock /
SPI clock
IO
/
O
I2C_SCL /
SPI_SCK
39
40
37
38
I2C_SDA /
SPI_PDO
IO / O
I2C Data /
SPI data output
35
36
O
RXD
33
34
LOCK/MUXOUT
PDI
31
32
PDO
29
30
3.3V DC supply
I
3V3
27
28
4V5
O
monitor
Receive data
O
RXD
25
26
TXD
I
Transmit Data
RX Enable
I
!RX_EN
23
24
CS2
I
SLE
Chip Enable
I
CS1
21
22
GND
Ground
19
20
DCLK
O
Data Clock
17
18
15
16
13
14
11
12
9
10
7
8
5
6
3
4
1
2
Table 3.1 – Host Interface pins assignment
ADL Radio Module Manual Host Interface Definition
Document p/n: 9S02-7897-A001 Rev.A1
Laird Inc. Proprietary and Confidential Page 3-3
3.2 Signals Description
Pin
Nb
Signal
Name
I/O
Description
Category
22, 50
GND
System ground
Power supply
27
3V3
Input
3.3 V power supply voltage input (Vcc)
Power supply
23
!RX_EN
Input
Receive Enable (active low). Used to place the RF module in received mode
*Note: when !TX_EN and !RX_EN are asserted simultaneously, the module is
placed in STANDBY mode (low power consumption, internal registers
conservation)
Data
Transmission
24
SLE
Input
Transmit Enable (active low). Used to activate telegram transmit process
Data
Transmission
25
RXD
Output
Receive Data.
Data
Transmission
26
TXD
Input
Transmit Data
Data
Transmission
20
DCLK
Output
Data Clock. Active when serial port is configured in Synchronous Mode
Data
Transmission
21
CS1
Input
Used to configure the Data transmission signals RXD and TXD for module
configuration.
Asserting can be done in IDLE state only. Active low
Configuration
interface
38
I2C_SDA
SPI_PDO
Bidi /
Output
If configuration interface configured for:
I2C: I2C SDA signal (data)
SPI: PDO (Peripheral Data Out)
Configuration
interface
39
I2C_SCL
SPI_SCLK
Bidi /
Input
If configuration interface configured for:
I2C: I2C SCL signal (clock)
SPI: SCLK (Serial Clock)
Configuration
interface
Table 3.2 - Host Interface signals description
ADL Radio Module Manual ADL Configuration Concept
Document p/n: 9S02-7897-A001 Rev.A1
Laird Inc. Proprietary and Confidential Page 4-4
4. ADL Configuration Concept
All LRM configuration and status parameters are accessible through addressable registers.
- All parameters can be read in any of the following state: IDLE, RX, TX
- All writable parameters can be written in the following state: IDLE only
In order to facilitate adaptation to different platforms, the ADL configuration registers can be accessed using anyone
of three methods: I2C, SPI or serial asynchronous with ASCII strings.
The definition of the configuration registers is given in reference [3]. This section addresses the basic description of
all these three methods.
4.1 Stand-Alone Test Mode
The LRM can be operated in stand-alone mode for production/service tests. In this case, only a 3.3VDC supply is
needed, and a RS232/TTL transceiver (like Cattron FLASHBOX) to connect to a PC serial port.
21
ADL, host interface
26
RXD
TXD
25
!CONFIG
3V3
GND
27
22
RS232 - TTL transceiver
(ex:Test Jig)
3.3VDC
RS232
PC, running automated test
program, or ANSI terminal
emulation software
*Note: The LRM !RX_EN, !TX_EN and !RESET all have internal pull-ups, so they can be left unconnected.
Figure 4.1 - ADL connection for stand-alone operation
The LRM will support several built-in test modes to ease testing from a PC. For example
a. Transmission Tests
- Generation of different type of carrier: unmodulated (CW), or modulated with “101010..” or pseudo-random
sequence
- Automatic generation of test RF frames with predefined content
b. Reception Tests
- Measure PER (packet error rate) when receiving the predefined test RF frames
- Measure RF input level
More details about the test modes can be found in reference [9P13-7949-A001].
ADL Radio Module Manual Test-Specific Parameters
Document p/n: 9S02-7897-A001 Rev.A1
Laird Inc. Proprietary and Confidential Page 5-5
5. Test-Specific Parameters
Parameter
Min Typ. Max
Unit
TEMPERATURE RANGE
-40 +70
C
POWER SUPPLIES Vdd
2.9 3.5
V
TRANSMIT CURRENT
35
mA at 11dBm
RECEIVE CURRENT
25
mA
Sensitivity (2FSK,
DR = 4.8 kbps,
Dev=2.4KHz)
-115
dBm
frequency range
450 470
MHz
Channel spacing
12.5
KHz
RX Saturation
0
dBm
TX conducted power
0 11
dBm
TX occupied bandwidth
@99%
8.5
KHz
Size
2.10x1.45x0.35
In.
Weight
0.4
oz
