Cenix Digicom MMPR630 MP3 Player User Manual MMR R630 ENG IB

Cenix Digicom Co., Ltd MP3 Player MMR R630 ENG IB

users manual

1 Safety Instructions ● These instructions describe the precautions and about how to deal with the product to prevent personal injury or property loss. Please read the following safety precautions carefully. ● Keep this instruction in the place which you can find easily whenever you need. Warning and Caution This symbol indicates that personal injury may occur or the product may be damaged when you fail to follow the given instruction. Warning Caution This symbol indicates that property loss may occur or the product may malfunction when you fail to follow the given instruction.
2 Contents ■ Safety Instruction ■ Precautions ■ Product Features ■ Names of Parts ■ Before Using - Inserting Battery - Powering On/Off - Button Functions ■ MP3 Mode - Playback - Scanning File(FF/REW) - Deleting MP3 File - MP3 Playback Functions - Scan and Playback - Resume - A-B Repeat - Setting Menu - EQ(Equalizer) - USER EQ mode - Repeating - Erasing ■ Voice Mode - Switching to Voice Mode - Recording - Playback - Scanning File(FF/REW) - Deleting File - Recording Function - Index Added Recording - Playback Functions - Scan and Playback - A-B Repeat - Setting Menu - Repeating - Erasing ■ Radio Mode - Switching to Radio Mode - Scanning Frequency - Preset Memory
3 - Using Frequency Preset Memory - Deleting Preset Frequency - Recording Broadcast - Setting Menu - Area ■ PC Interface - Installing Driver - Download - Upload - Deleting File ■ Trouble Shooting ■ Specifications ■ Warranty
4 Precautions ■ Precautions for use of the product Do not install the product in a place exposed to these conditions: * Does not have any responsibility for property loss due to your use of the product even if you use the product correctly. Also does not have any responsibility for demanding any compensation from others. * Does not have any responsibility for memory data corruptions and resulted property loss due to product malfunction or fault, repair, and/or other reasons. High temperature (above 40℃) Poorly ventilated or closed (car inside, especially summer) Much moisture (humidity, above 75%) Dusty place Make sure not to place cash cards or pass cards, susceptible to magnetic influences, near to the speaker of the product. Do not clean using chemicals such as alcohol, benzene, or sinner, etc. Place the battery in a location that your children or infants cannot access to. Do not drop down any materials on the product or impact against the product. Do not impact against the LCD of the product.

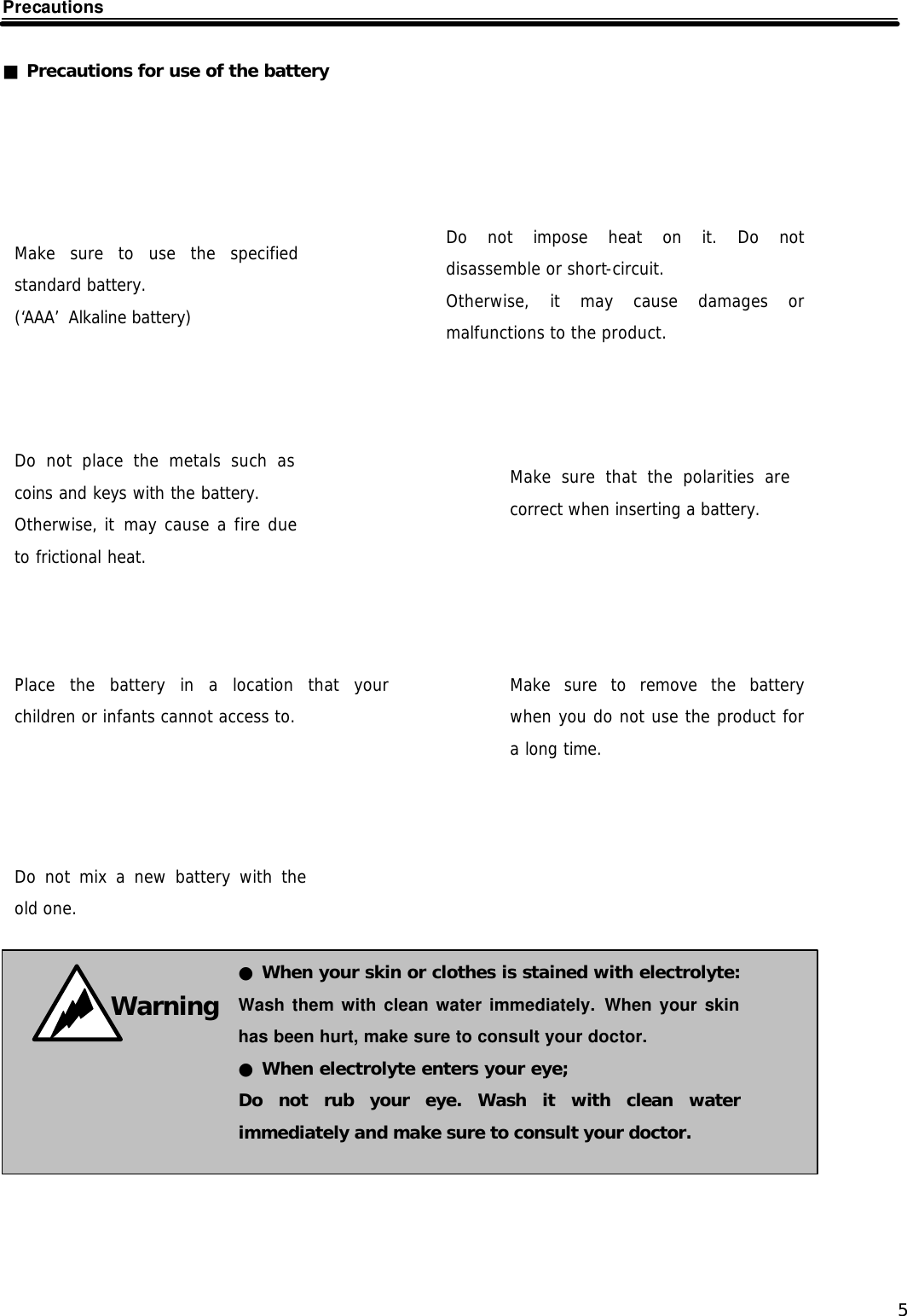

5 Precautions ■ Precautions for use of the battery 주의사항 Make sure to use the specified standard battery. (‘AAA’ Alkaline battery) Do not impose heat on it. Do not disassemble or short-circuit. Otherwise, it may cause damages or malfunctions to the product. Do not place the metals such as coins and keys with the battery. Otherwise, it may cause a fire due to frictional heat. Make sure that the polarities are correct when inserting a battery. Warning ● When your skin or clothes is stained with electrolyte:Wash them with clean water immediately. When your skin has been hurt, make sure to consult your doctor. ● When electrolyte enters your eye; Do not rub your eye. Wash it with clean water immediately and make sure to consult your doctor. Place the battery in a location that your children or infants cannot access to. Make sure to remove the battery when you do not use the product for a long time. Do not mix a new battery with the old one.

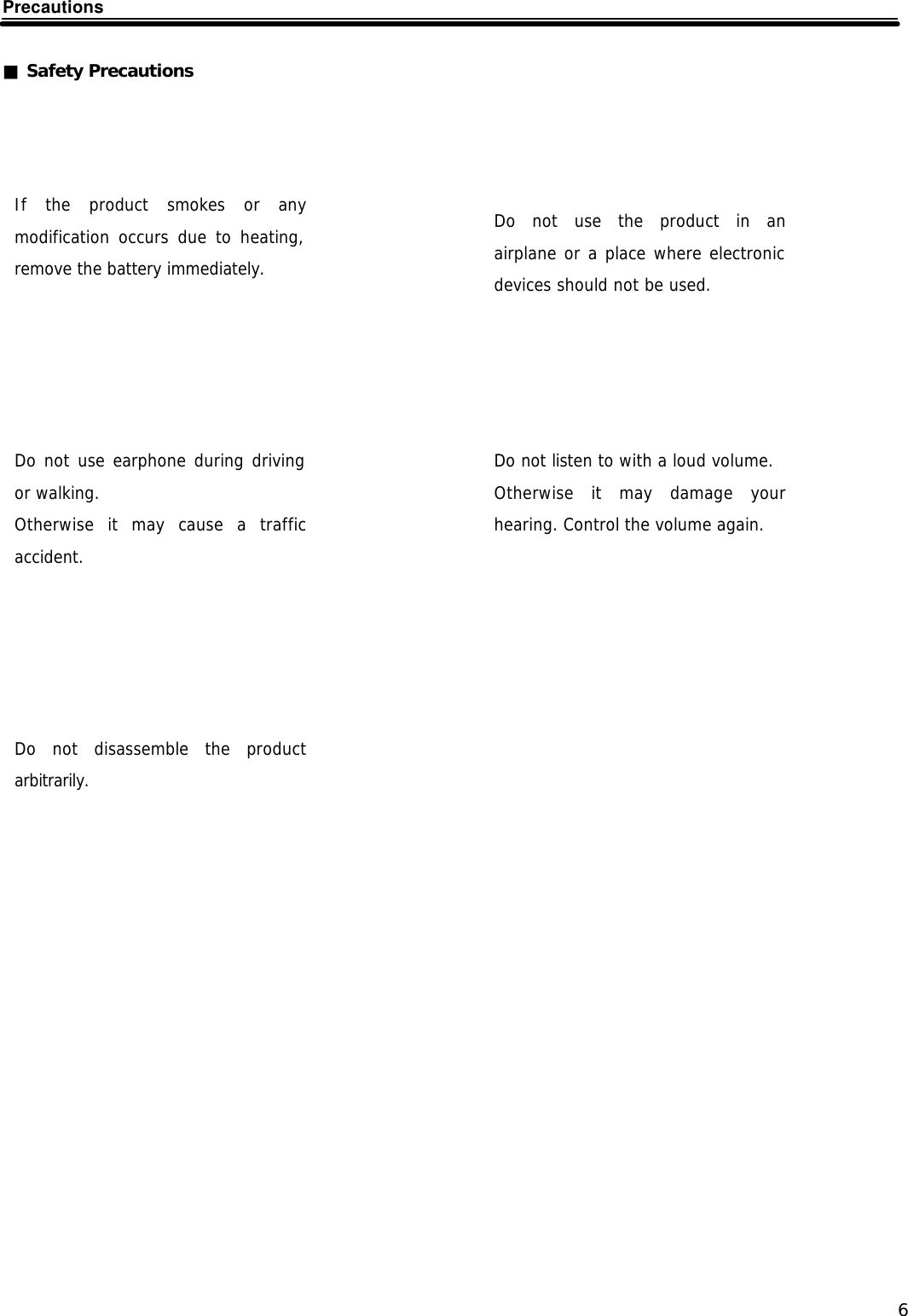

6 Precautions ■ Safety Precautions Do not use earphone during driving or walking. Otherwise it may cause a traffic accident. If the product smokes or any modification occurs due to heating, remove the battery immediately. Do not use the product in an airplane or a place where electronic devices should not be used. Do not listen to with a loud volume. Otherwise it may damage your hearing. Control the volume again. Do not disassemble the product arbitrarily.

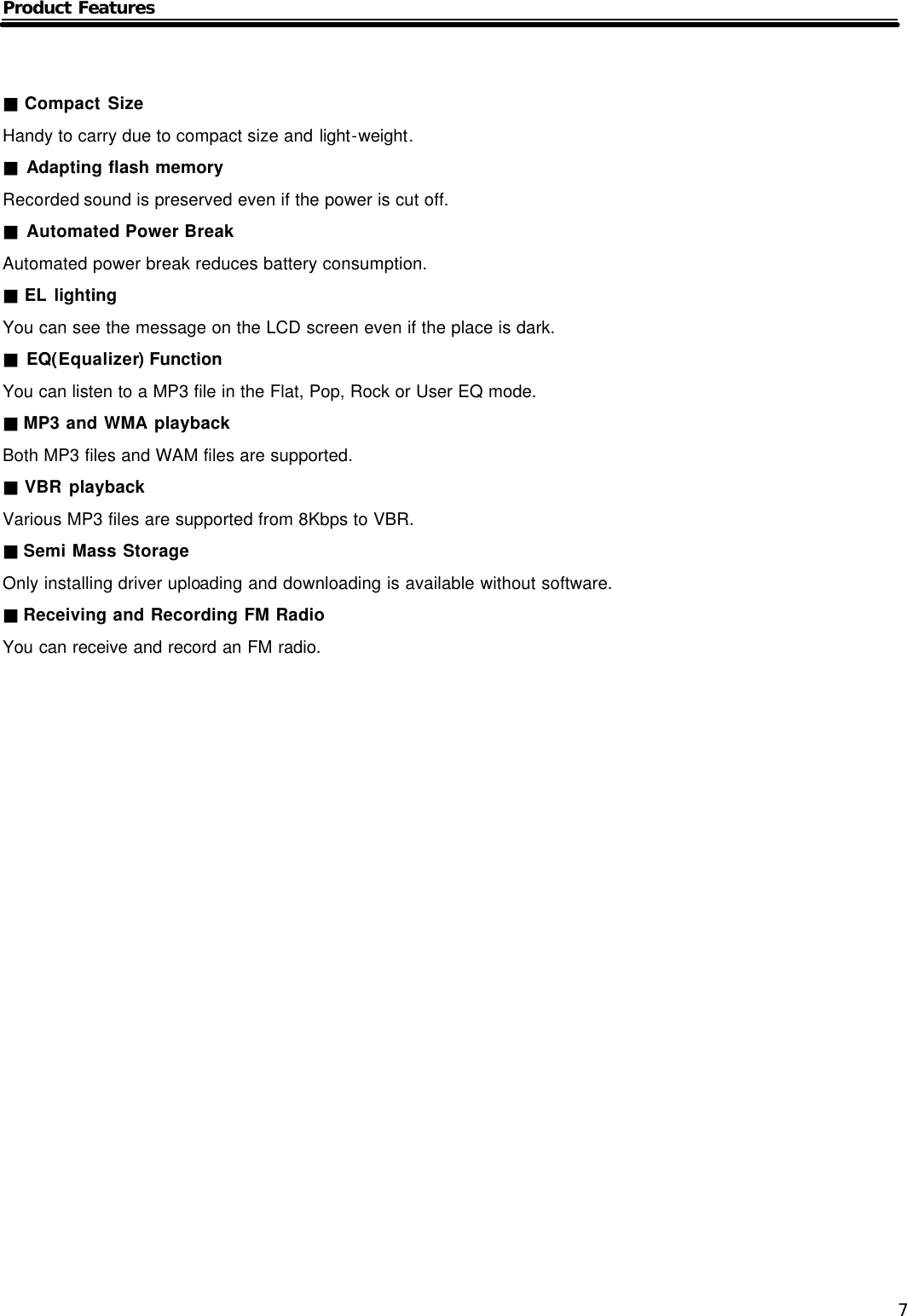

7 Product Features ■ Compact Size Handy to carry due to compact size and light-weight. ■ Adapting flash memory Recorded sound is preserved even if the power is cut off. ■ Automated Power Break Automated power break reduces battery consumption. ■ EL lighting You can see the message on the LCD screen even if the place is dark. ■ EQ(Equalizer) Function You can listen to a MP3 file in the Flat, Pop, Rock or User EQ mode. ■ MP3 and WMA playback Both MP3 files and WAM files are supported. ■ VBR playback Various MP3 files are supported from 8Kbps to VBR. ■ Semi Mass Storage Only installing driver uploading and downloading is available without software. ■ Receiving and Recording FM Radio You can receive and record an FM radio.

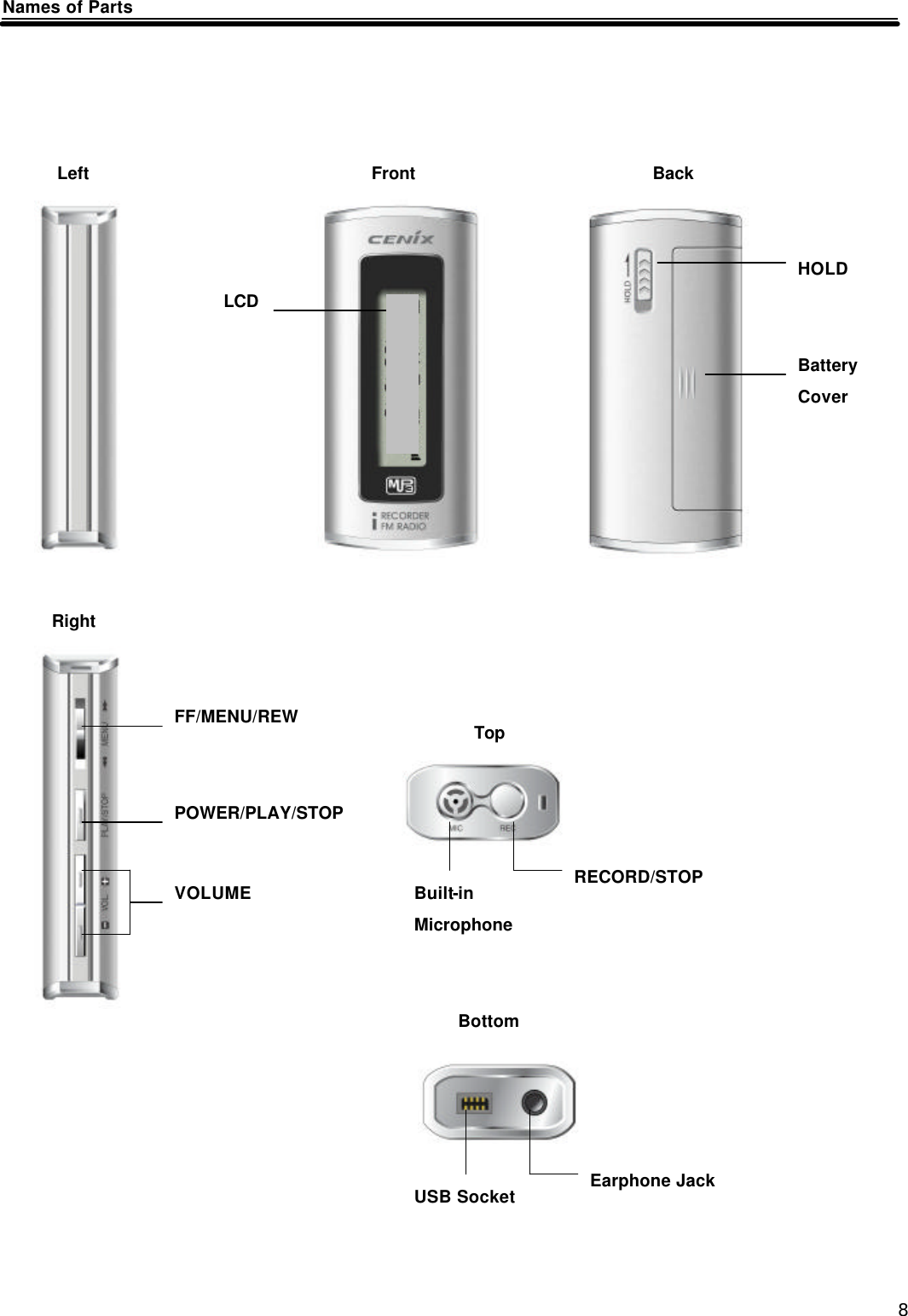

8 Names of Parts Left Front LCD Back HOLD Battery Cover Right FF/MENU/REW POWER/PLAY/STOP VOLUME Top Built-in Microphone RECORD/STOP Bottom USB Socket Earphone Jack

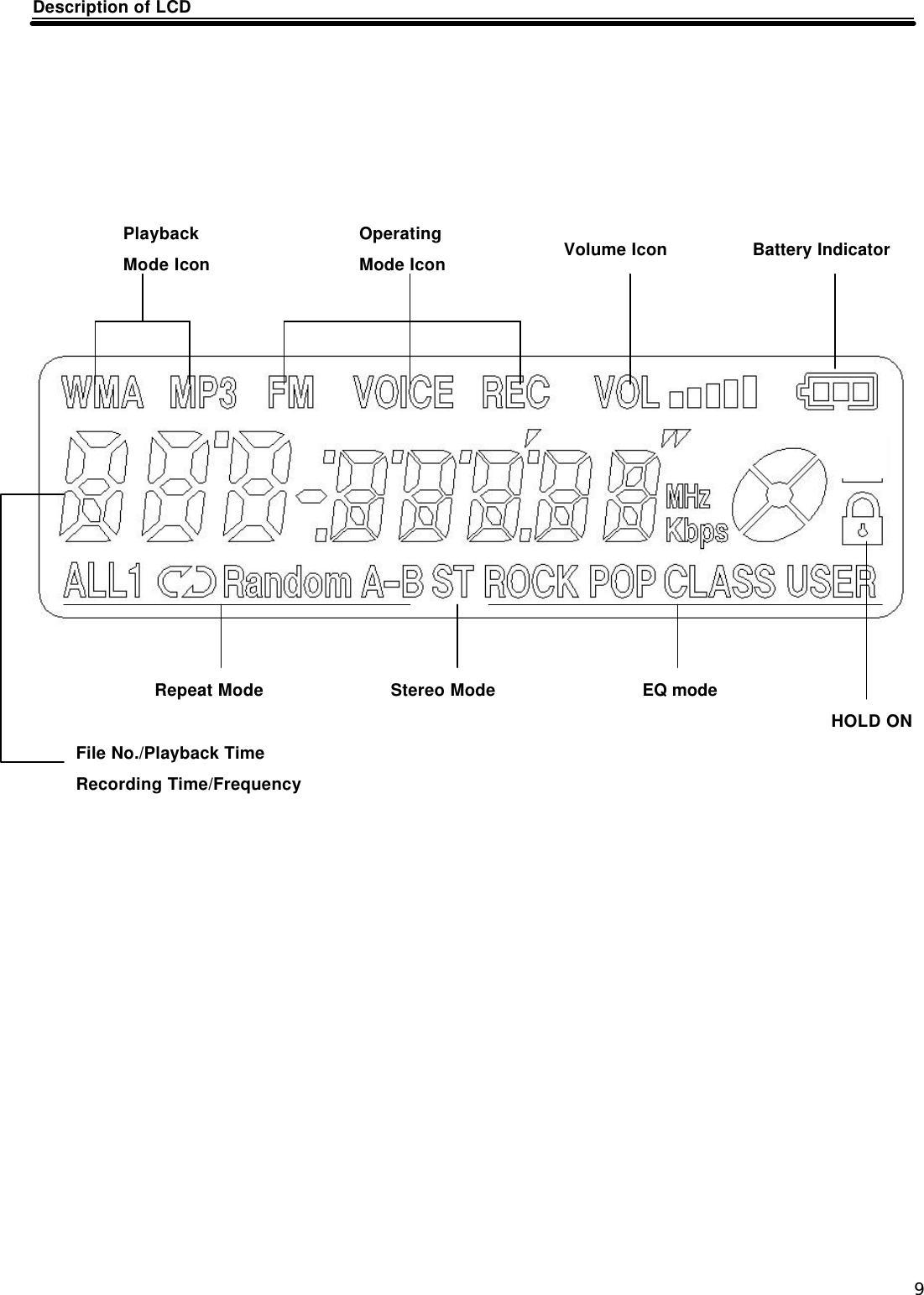

9 Description of LCD Playback Mode Icon Operating Mode Icon Volume Icon Battery Indicator File No./Playback Time Recording Time/Frequency Repeat Mode Stereo Mode EQ mode HOLD ON
10 Before Using ■ Inserting Battery 1. Push the battery cover slightly and slide it in the arrow direction. 2. Insert one AAA alkaline battery. Make sure that the polarities (+, -) are correct. 3. Close the battery cover. ■ Battery Usage Icon Full Little consumed Much consumed Time to replace Caution ● Make sure to replace the batteries in stop mode. ● Make sure that the polarities (+, -) are correct. ☞ Note ☜ "LO Batt" is displayed when the voltage is low due to consumption.

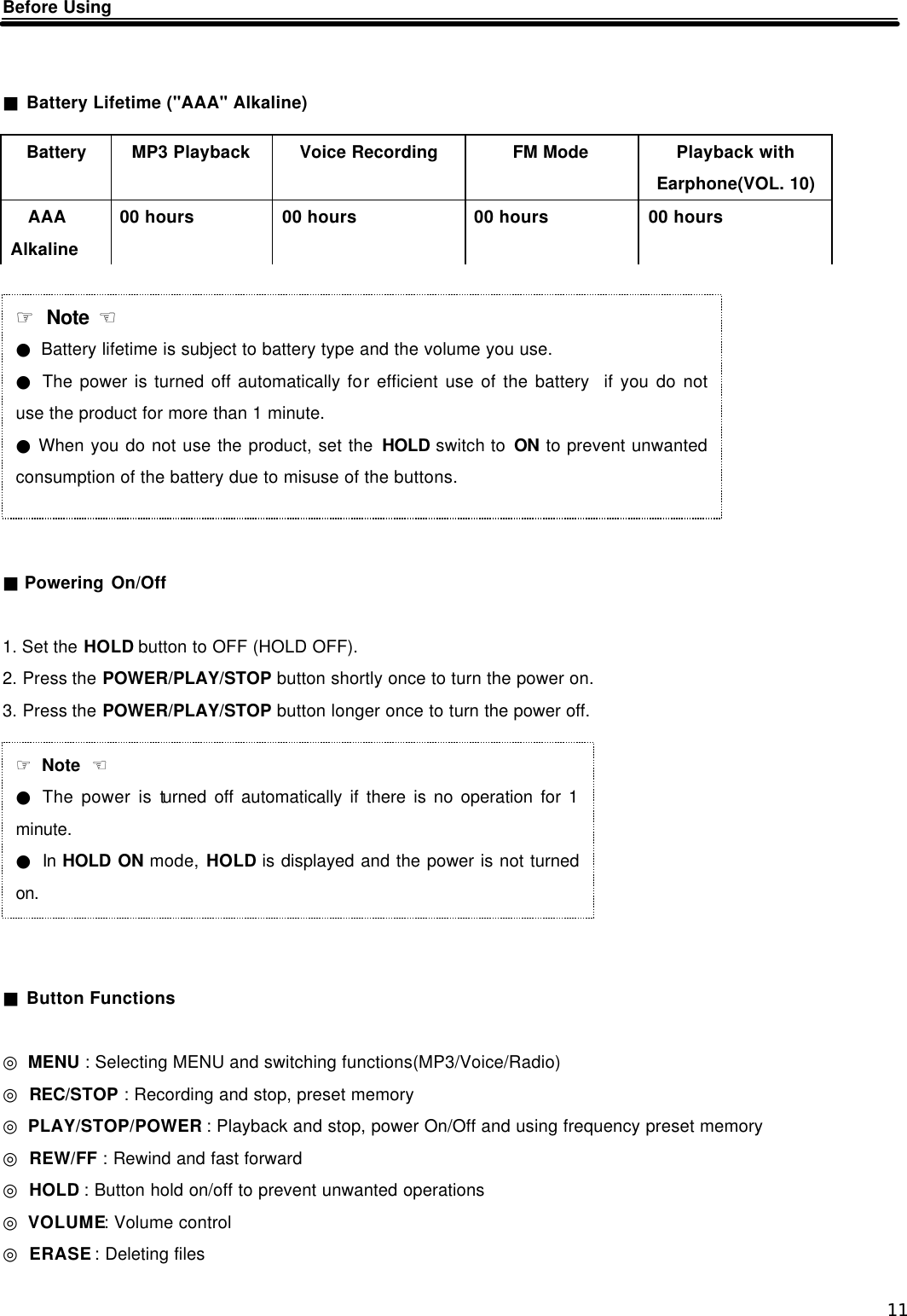

11 Before Using ■ Battery Lifetime ("AAA" Alkaline) ■ Powering On/Off 1. Set the HOLD button to OFF (HOLD OFF). 2. Press the POWER/PLAY/STOP button shortly once to turn the power on. 3. Press the POWER/PLAY/STOP button longer once to turn the power off. ■ Button Functions ◎ MENU : Selecting MENU and switching functions(MP3/Voice/Radio) ◎ REC/STOP : Recording and stop, preset memory ◎ PLAY/STOP/POWER : Playback and stop, power On/Off and using frequency preset memory ◎ REW/FF : Rewind and fast forward ◎ HOLD : Button hold on/off to prevent unwanted operations ◎ VOLUME: Volume control ◎ ERASE : Deleting files Battery MP3 Playback Voice Recording FM Mode Playback with Earphone(VOL. 10) AAA Alkaline 00 hours 00 hours 00 hours 00 hours ☞ Note ☜ ● Battery lifetime is subject to battery type and the volume you use. ● The power is turned off automatically for efficient use of the battery if you do not use the product for more than 1 minute. ● When you do not use the product, set the HOLD switch to ON to prevent unwanted consumption of the battery due to misuse of the buttons. ☞ Note ☜ ● The power is turned off automatically if there is no operation for 1 minute. ● In HOLD ON mode, HOLD is displayed and the power is not turned on.

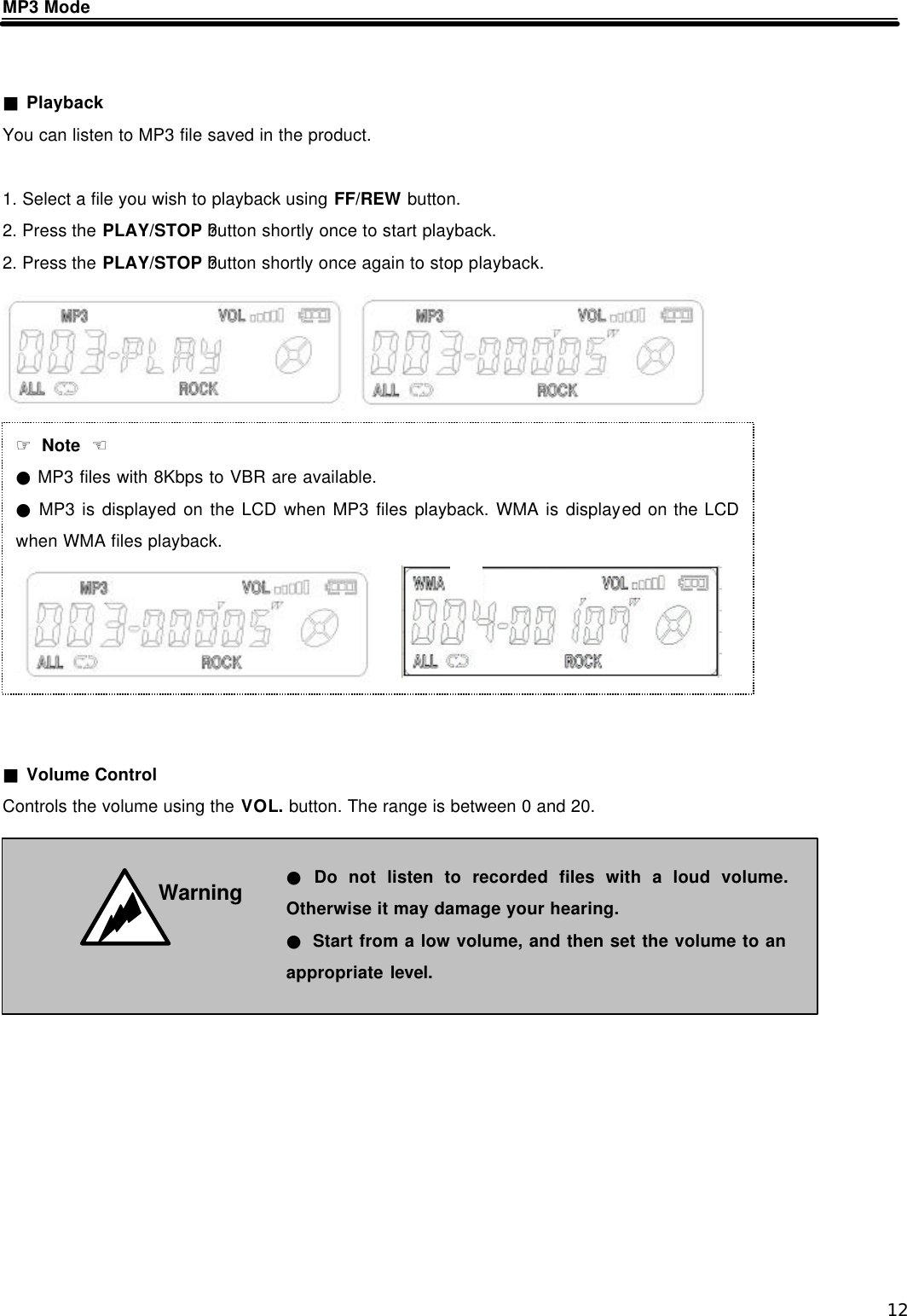

12 MP3 Mode ■ Playback You can listen to MP3 file saved in the product. 1. Select a file you wish to playback using FF/REW button. 2. Press the PLAY/STOP ?button shortly once to start playback. 2. Press the PLAY/STOP ?button shortly once again to stop playback. ■ Volume Control Controls the volume using the VOL. button. The range is between 0 and 20. ☞ Note ☜ ● MP3 files with 8Kbps to VBR are available. ● MP3 is displayed on the LCD when MP3 files playback. WMA is displayed on the LCD when WMA files playback. Warning ● Do not listen to recorded files with a loud volume. Otherwise it may damage your hearing. ● Start from a low volume, and then set the volume to an appropriate level.

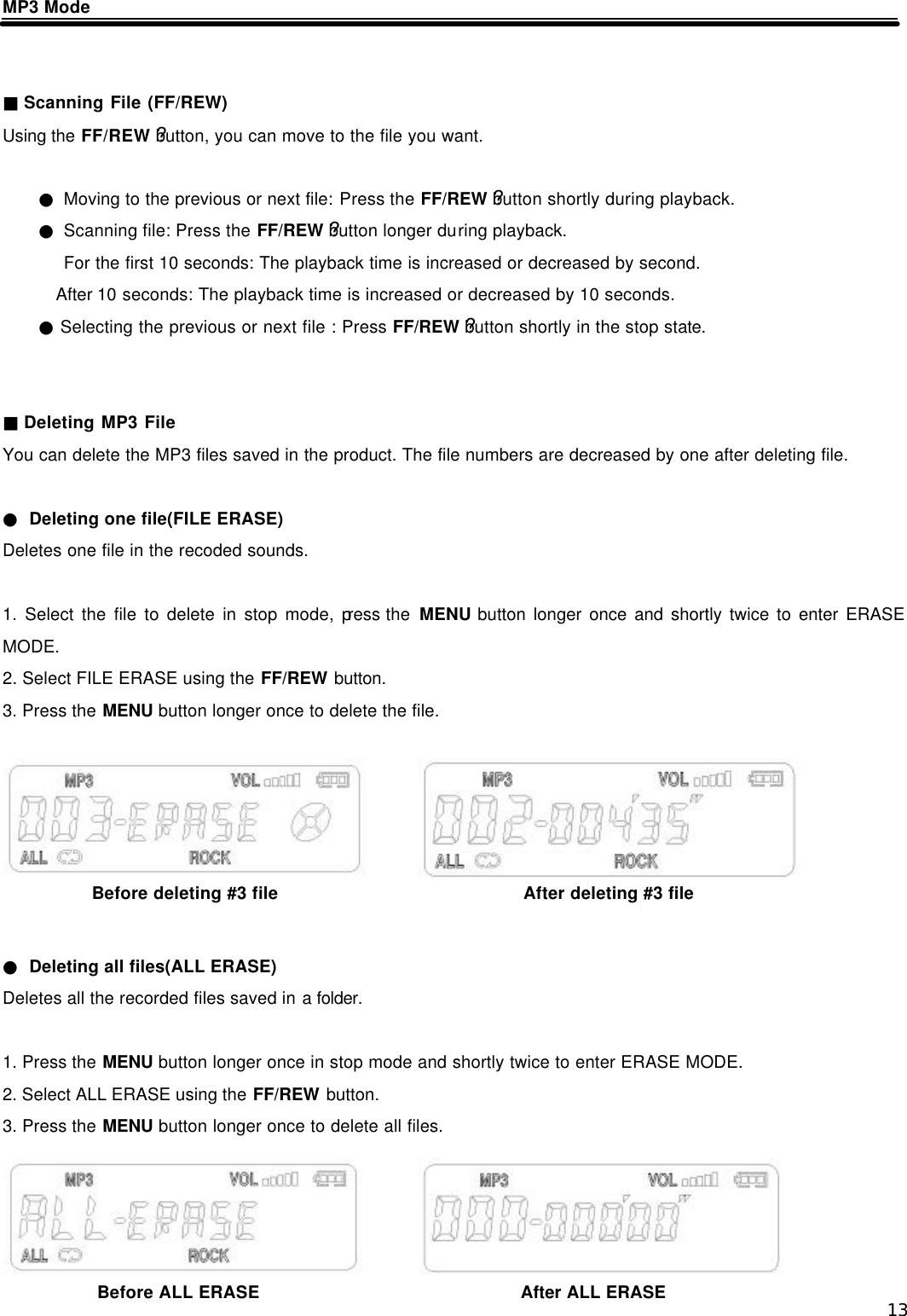

13 MP3 Mode ■ Scanning File (FF/REW) Using the FF/REW ?button, you can move to the file you want. ● Moving to the previous or next file: Press the FF/REW ?button shortly during playback. ● Scanning file: Press the FF/REW ?button longer during playback. For the first 10 seconds: The playback time is increased or decreased by second. After 10 seconds: The playback time is increased or decreased by 10 seconds. ● Selecting the previous or next file : Press FF/REW ?button shortly in the stop state. ■ Deleting MP3 File You can delete the MP3 files saved in the product. The file numbers are decreased by one after deleting file. ● Deleting one file(FILE ERASE) Deletes one file in the recoded sounds. 1. Select the file to delete in stop mode, press the MENU button longer once and shortly twice to enter ERASE MODE. 2. Select FILE ERASE using the FF/REW button. 3. Press the MENU button longer once to delete the file. ● Deleting all files(ALL ERASE) Deletes all the recorded files saved in a folder. 1. Press the MENU button longer once in stop mode and shortly twice to enter ERASE MODE. 2. Select ALL ERASE using the FF/REW button. 3. Press the MENU button longer once to delete all files. Before deleting #3 file After deleting #3 file Before ALL ERASE After ALL ERASE

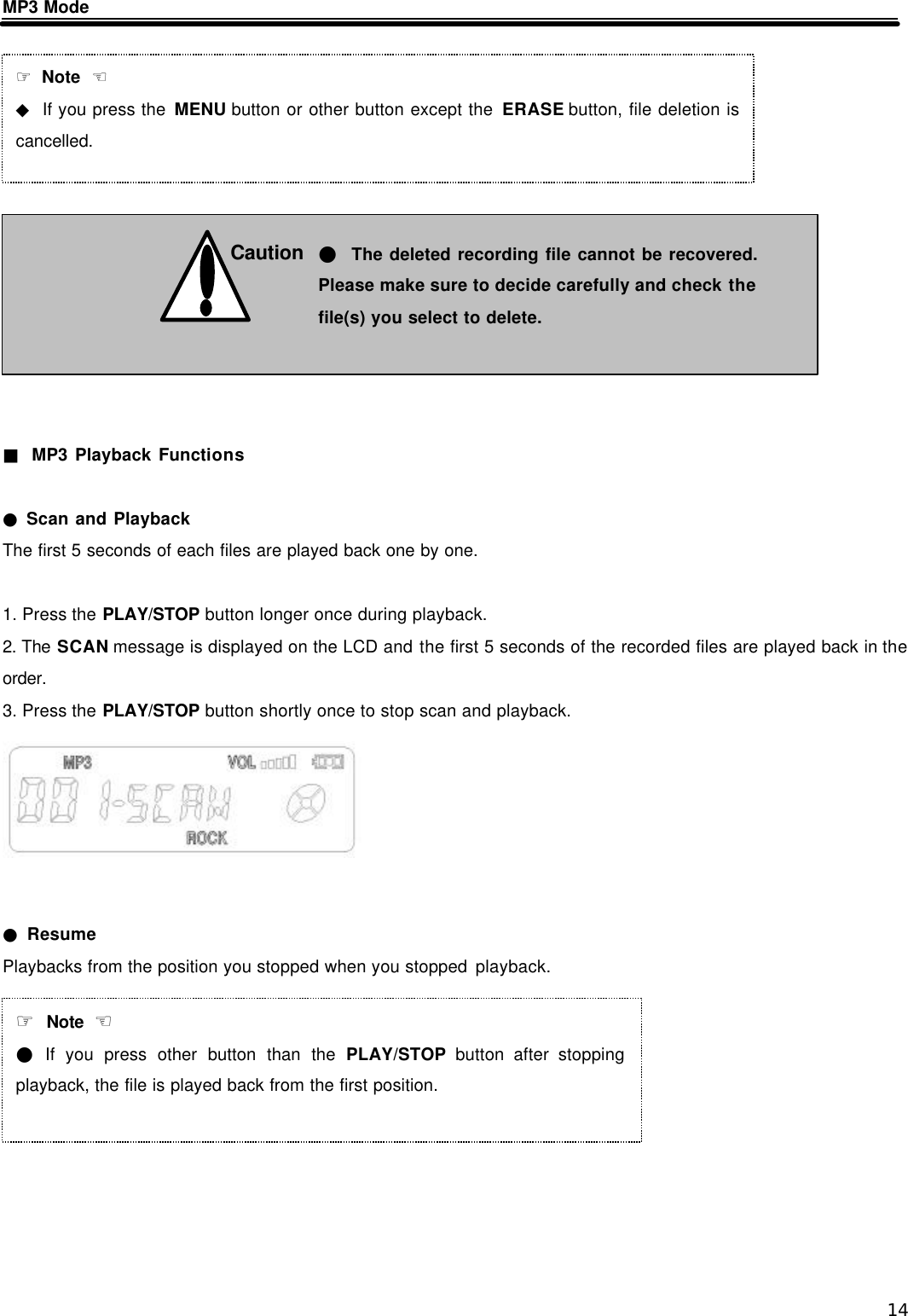

14 MP3 Mode ■ MP3 Playback Functions ● Scan and Playback The first 5 seconds of each files are played back one by one. 1. Press the PLAY/STOP button longer once during playback. 2. The SCAN message is displayed on the LCD and the first 5 seconds of the recorded files are played back in the order. 3. Press the PLAY/STOP button shortly once to stop scan and playback. ● Resume Playbacks from the position you stopped when you stopped playback. ☞ Note ☜ ◆ If you press the MENU button or other button except the ERASE button, file deletion is cancelled. Caution ● The deleted recording file cannot be recovered.Please make sure to decide carefully and check the file(s) you select to delete. ☞ Note ☜ ● If you press other button than the PLAY/STOP button after stopping playback, the file is played back from the first position.

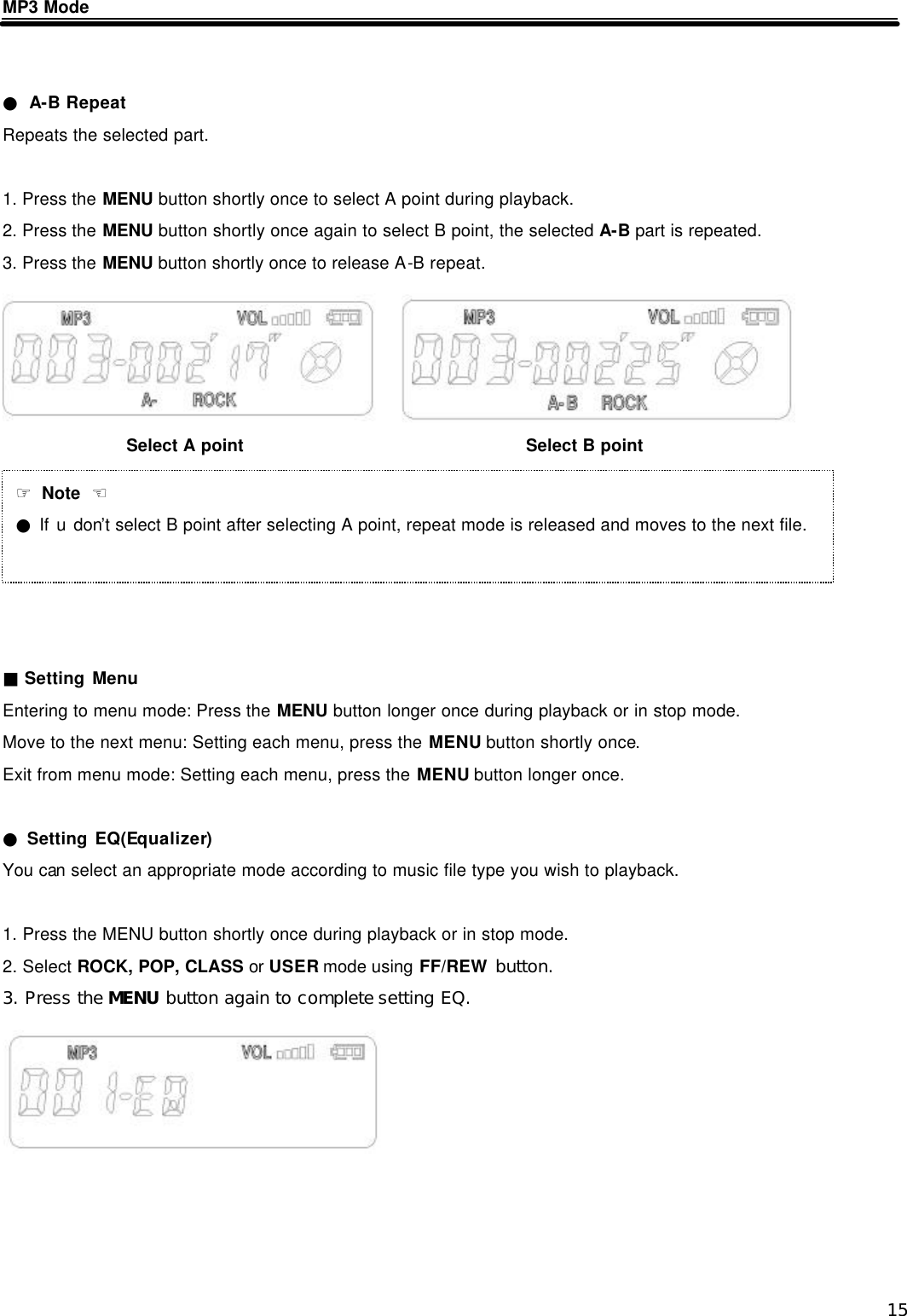

15 MP3 Mode ● A-B Repeat Repeats the selected part. 1. Press the MENU button shortly once to select A point during playback. 2. Press the MENU button shortly once again to select B point, the selected A-B part is repeated. 3. Press the MENU button shortly once to release A-B repeat. ■ Setting Menu Entering to menu mode: Press the MENU button longer once during playback or in stop mode. Move to the next menu: Setting each menu, press the MENU button shortly once. Exit from menu mode: Setting each menu, press the MENU button longer once. ● Setting EQ(Equalizer) You can select an appropriate mode according to music file type you wish to playback. 1. Press the MENU button shortly once during playback or in stop mode. 2. Select ROCK, POP, CLASS or USER mode using FF/REW button. 3. Press the MENU button again to complete setting EQ. Select A point Select B point ☞ Note ☜ ● If u don’t select B point after selecting A point, repeat mode is released and moves to the next file.

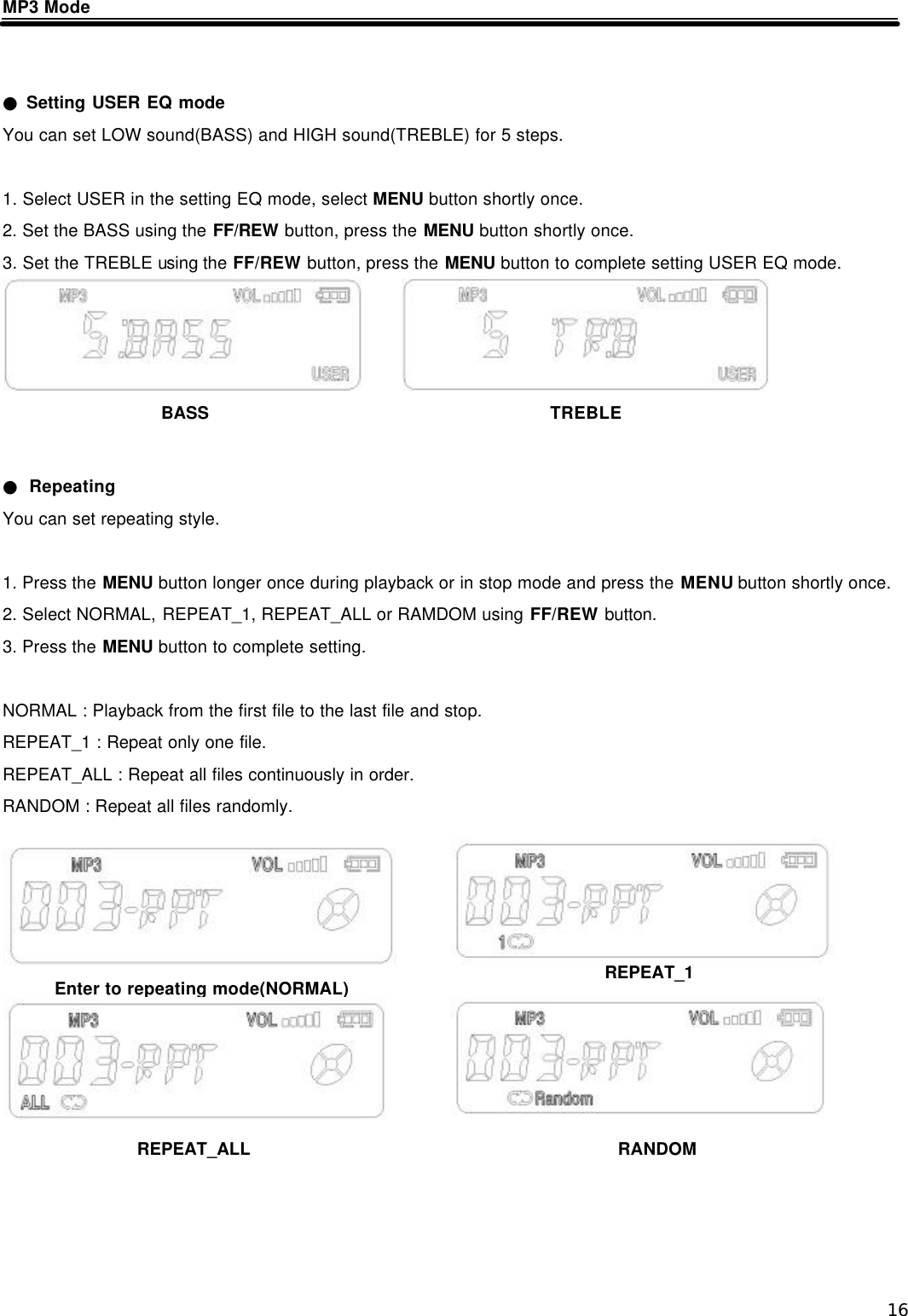

16 MP3 Mode ● Setting USER EQ mode You can set LOW sound(BASS) and HIGH sound(TREBLE) for 5 steps. 1. Select USER in the setting EQ mode, select MENU button shortly once. 2. Set the BASS using the FF/REW button, press the MENU button shortly once. 3. Set the TREBLE using the FF/REW button, press the MENU button to complete setting USER EQ mode. ● Repeating You can set repeating style. 1. Press the MENU button longer once during playback or in stop mode and press the MENU button shortly once. 2. Select NORMAL, REPEAT_1, REPEAT_ALL or RAMDOM using FF/REW button. 3. Press the MENU button to complete setting. NORMAL : Playback from the first file to the last file and stop. REPEAT_1 : Repeat only one file. REPEAT_ALL : Repeat all files continuously in order. RANDOM : Repeat all files randomly. Enter to repeating mode(NORMAL) REPEAT_1 REPEAT_ALL RANDOM BASS TREBLE

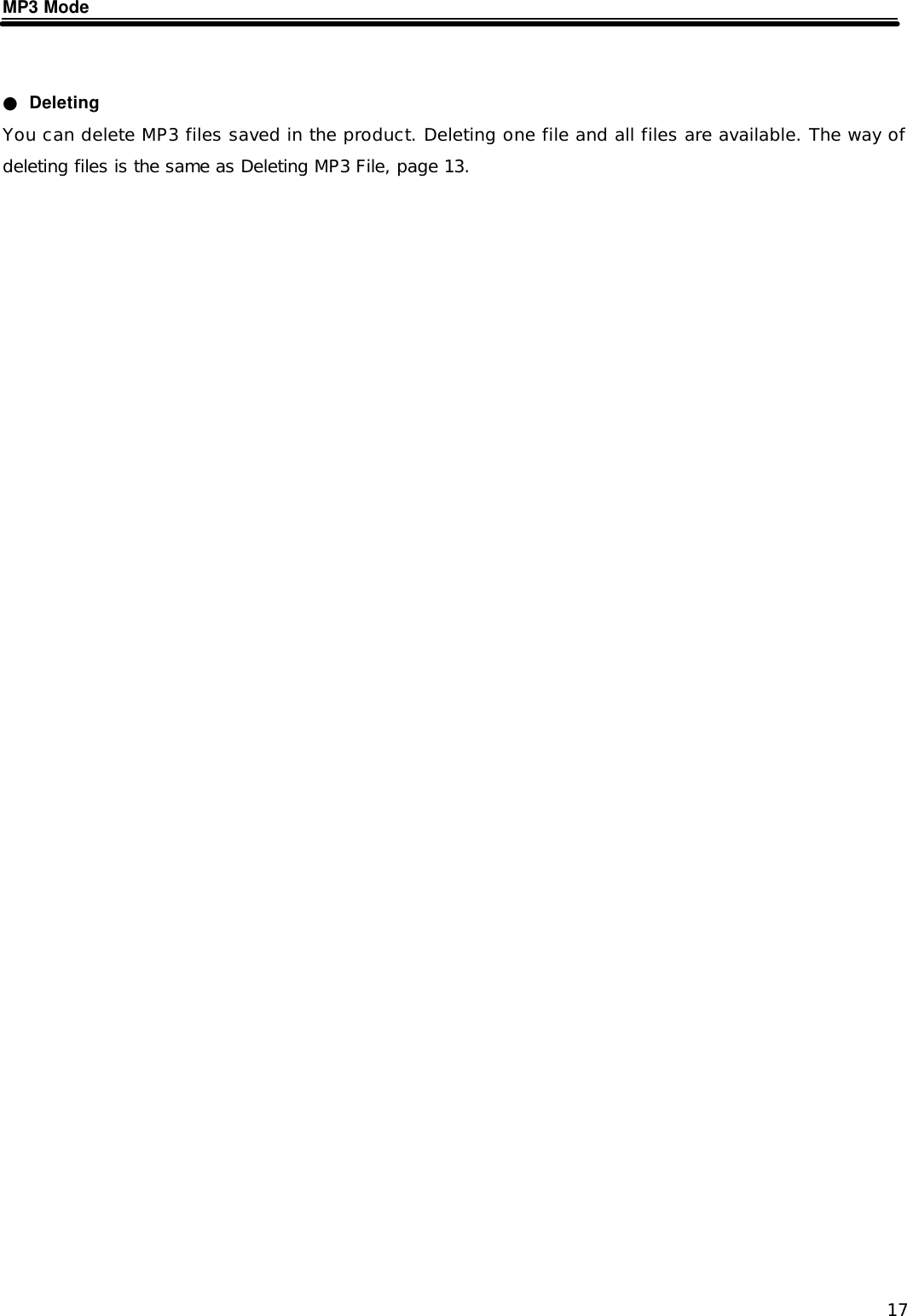

17 MP3 Mode ● Deleting You can delete MP3 files saved in the product. Deleting one file and all files are available. The way of deleting files is the same as Deleting MP3 File, page 13.

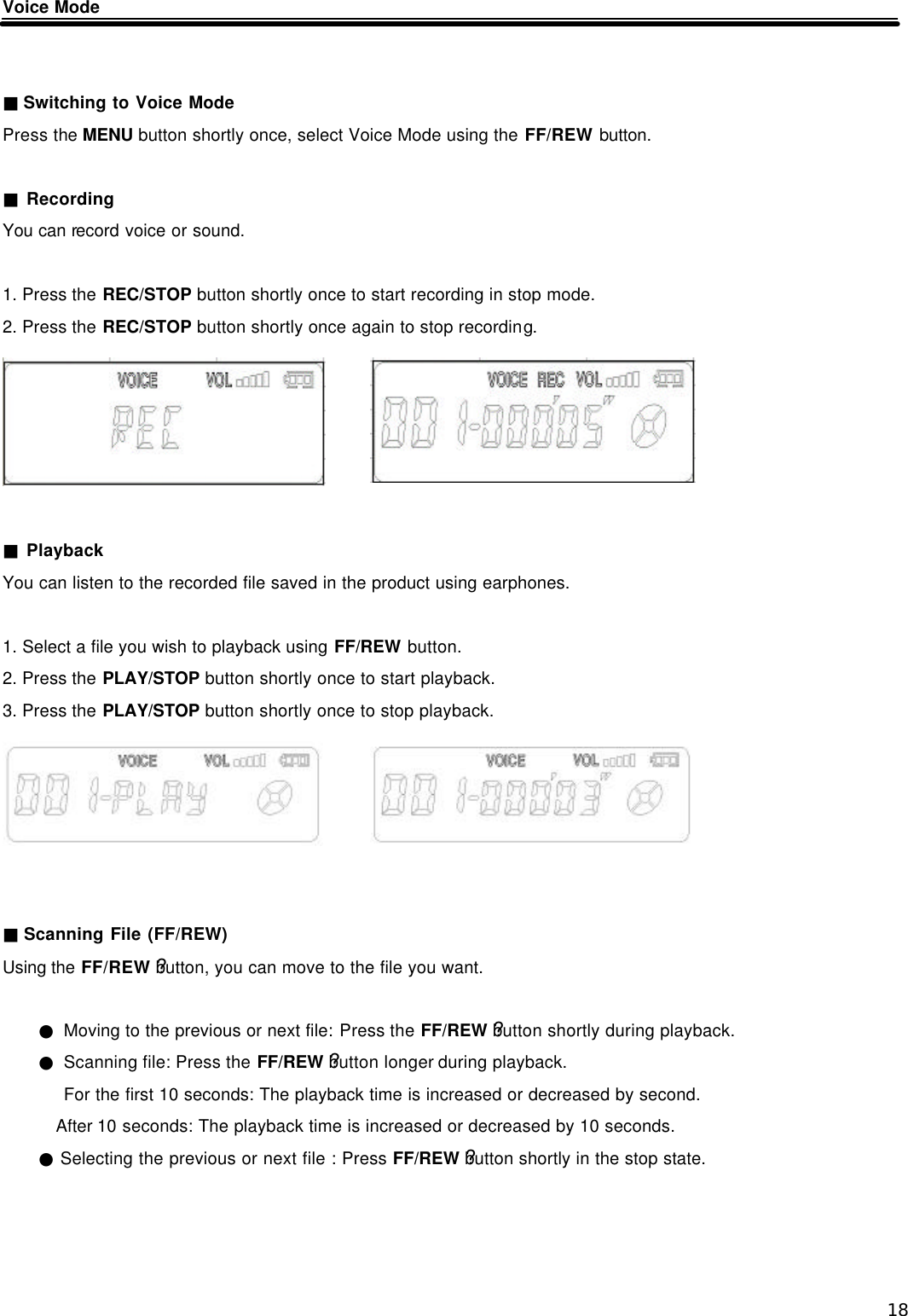

18 Voice Mode ■ Switching to Voice Mode Press the MENU button shortly once, select Voice Mode using the FF/REW button. ■ Recording You can record voice or sound. 1. Press the REC/STOP button shortly once to start recording in stop mode. 2. Press the REC/STOP button shortly once again to stop recording. ■ Playback You can listen to the recorded file saved in the product using earphones. 1. Select a file you wish to playback using FF/REW button. 2. Press the PLAY/STOP button shortly once to start playback. 3. Press the PLAY/STOP button shortly once to stop playback. ■ Scanning File (FF/REW) Using the FF/REW ?button, you can move to the file you want. ● Moving to the previous or next file: Press the FF/REW ?button shortly during playback. ● Scanning file: Press the FF/REW ?button longer during playback. For the first 10 seconds: The playback time is increased or decreased by second. After 10 seconds: The playback time is increased or decreased by 10 seconds. ● Selecting the previous or next file : Press FF/REW ?button shortly in the stop state.

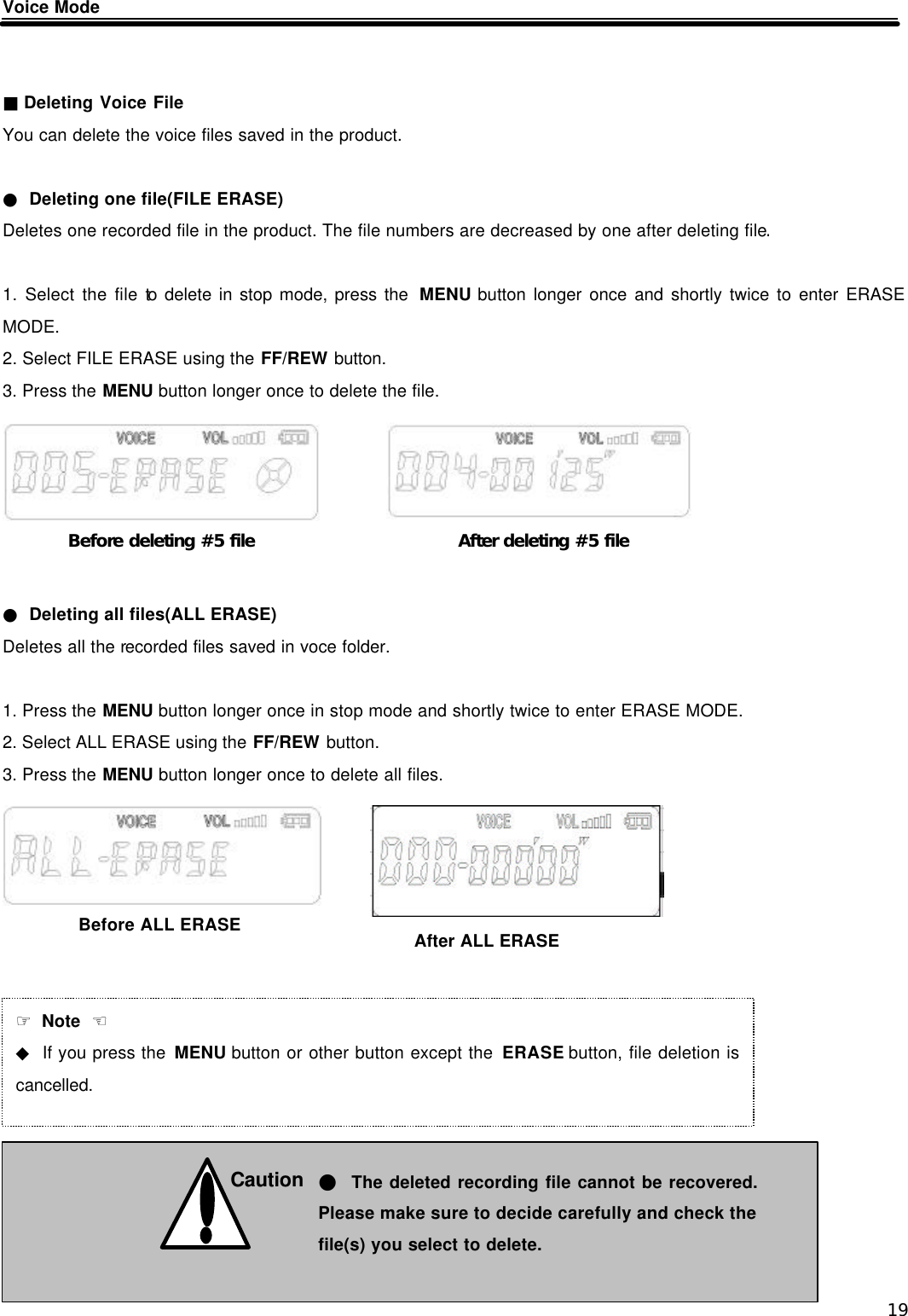

19 Voice Mode ■ Deleting Voice File You can delete the voice files saved in the product. ● Deleting one file(FILE ERASE) Deletes one recorded file in the product. The file numbers are decreased by one after deleting file. 1. Select the file to delete in stop mode, press the MENU button longer once and shortly twice to enter ERASE MODE. 2. Select FILE ERASE using the FF/REW button. 3. Press the MENU button longer once to delete the file. ● Deleting all files(ALL ERASE) Deletes all the recorded files saved in voce folder. 1. Press the MENU button longer once in stop mode and shortly twice to enter ERASE MODE. 2. Select ALL ERASE using the FF/REW button. 3. Press the MENU button longer once to delete all files. Before deleting #5 file After deleting #5 file ☞ Note ☜ ◆ If you press the MENU button or other button except the ERASE button, file deletion is cancelled. Caution ● The deleted recording file cannot be recovered.Please make sure to decide carefully and check the file(s) you select to delete. Before ALL ERASE After ALL ERASE

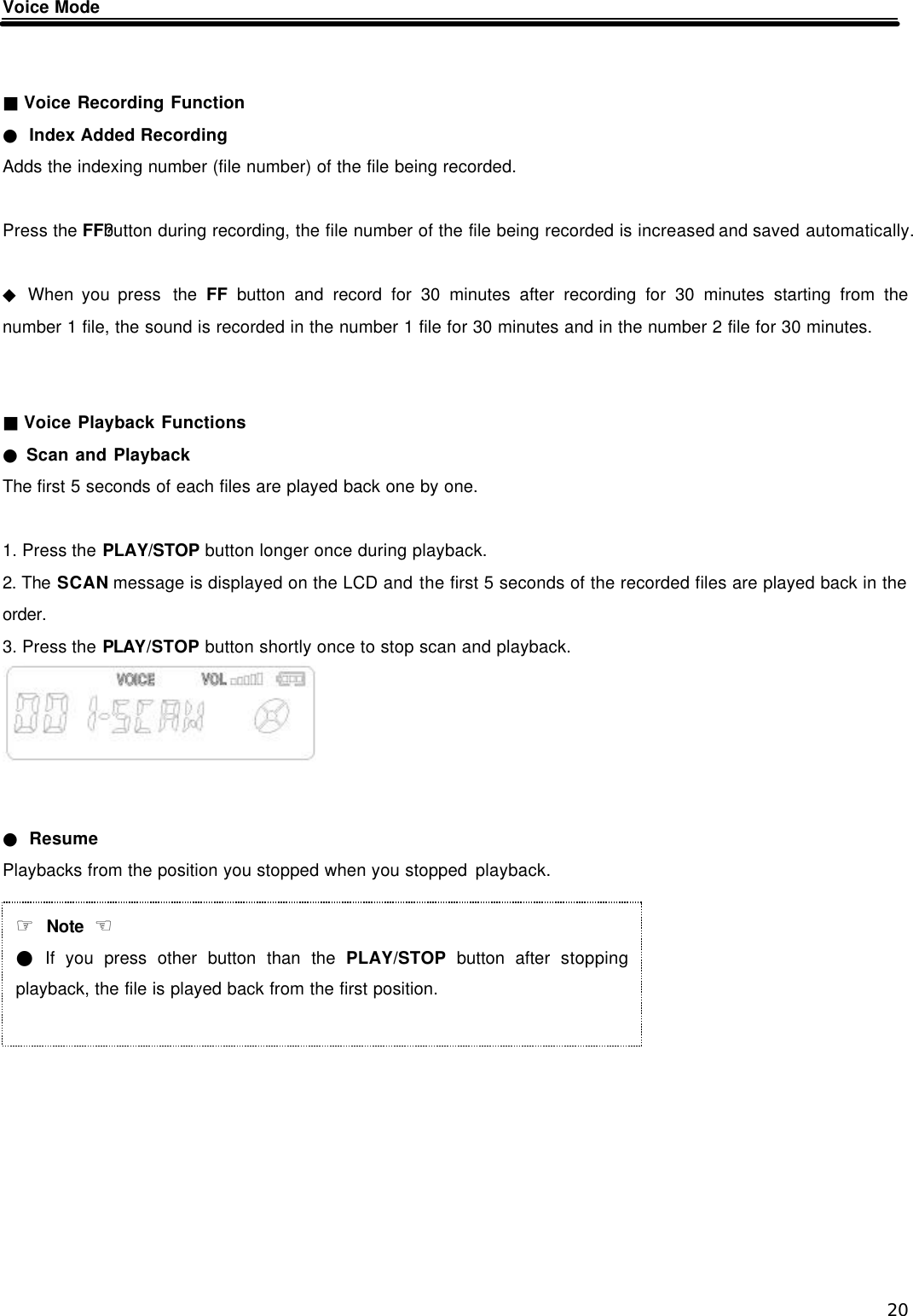

20 Voice Mode ■ Voice Recording Function ● Index Added Recording Adds the indexing number (file number) of the file being recorded. Press the FF?button during recording, the file number of the file being recorded is increased and saved automatically. ◆ When you press the FF button and record for 30 minutes after recording for 30 minutes starting from the number 1 file, the sound is recorded in the number 1 file for 30 minutes and in the number 2 file for 30 minutes. ■ Voice Playback Functions ● Scan and Playback The first 5 seconds of each files are played back one by one. 1. Press the PLAY/STOP button longer once during playback. 2. The SCAN message is displayed on the LCD and the first 5 seconds of the recorded files are played back in the order. 3. Press the PLAY/STOP button shortly once to stop scan and playback. ● Resume Playbacks from the position you stopped when you stopped playback. ☞ Note ☜ ● If you press other button than the PLAY/STOP button after stopping playback, the file is played back from the first position.

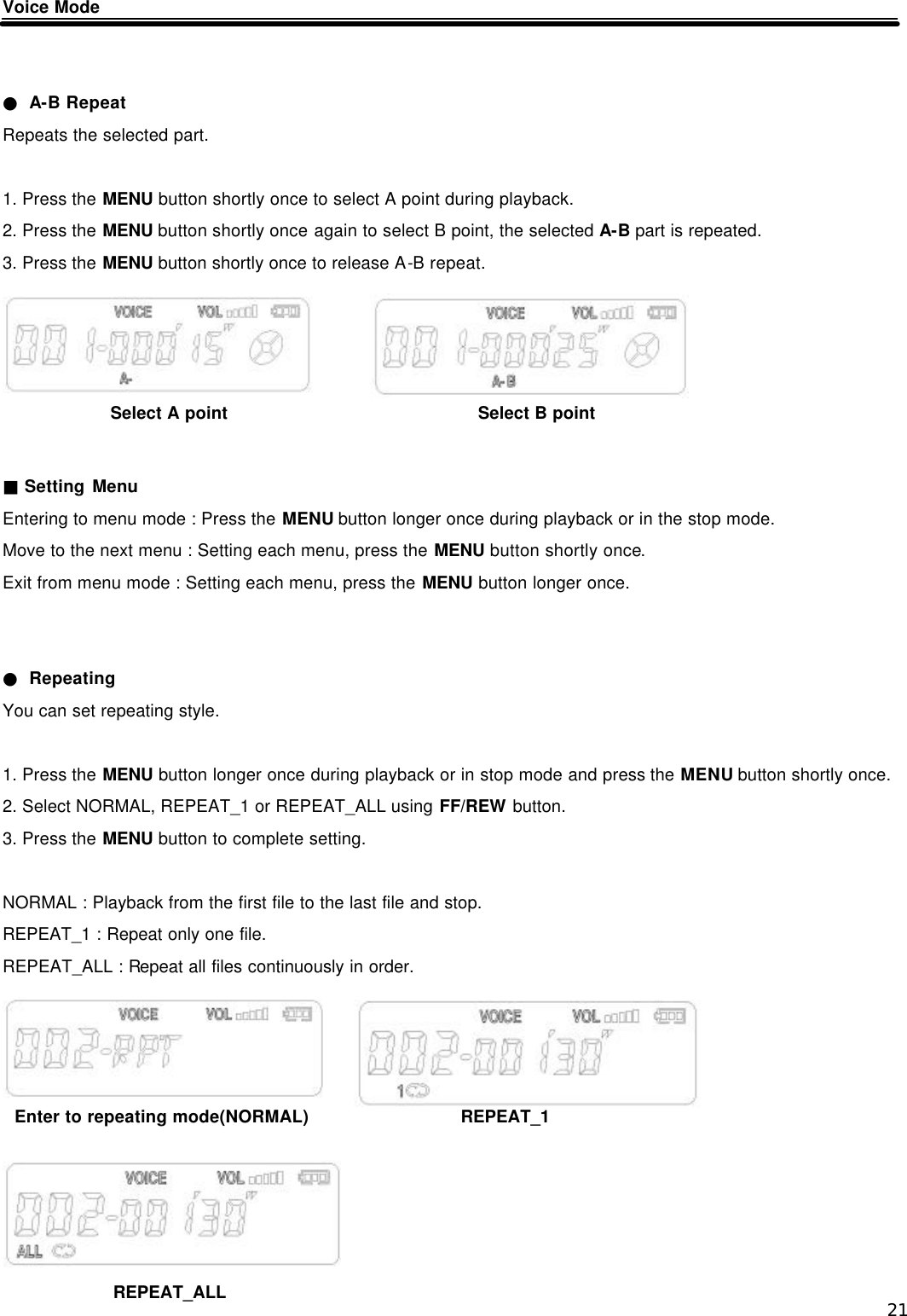

21 Voice Mode ● A-B Repeat Repeats the selected part. 1. Press the MENU button shortly once to select A point during playback. 2. Press the MENU button shortly once again to select B point, the selected A-B part is repeated. 3. Press the MENU button shortly once to release A-B repeat. ■ Setting Menu Entering to menu mode : Press the MENU button longer once during playback or in the stop mode. Move to the next menu : Setting each menu, press the MENU button shortly once. Exit from menu mode : Setting each menu, press the MENU button longer once. ● Repeating You can set repeating style. 1. Press the MENU button longer once during playback or in stop mode and press the MENU button shortly once. 2. Select NORMAL, REPEAT_1 or REPEAT_ALL using FF/REW button. 3. Press the MENU button to complete setting. NORMAL : Playback from the first file to the last file and stop. REPEAT_1 : Repeat only one file. REPEAT_ALL : Repeat all files continuously in order. Select A point Select B point Enter to repeating mode(NORMAL) REPEAT_1 REPEAT_ALL

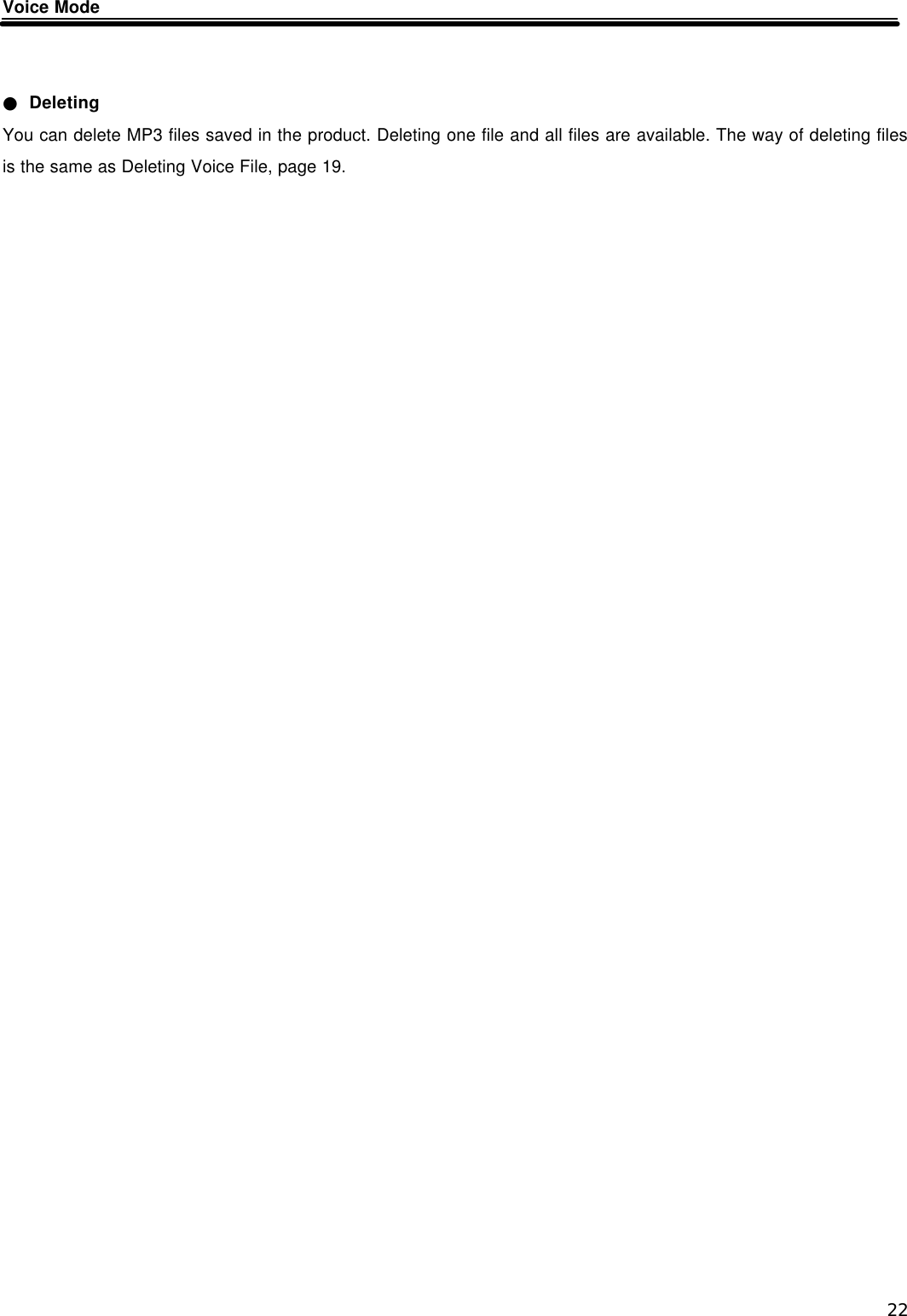

22 Voice Mode ● Deleting You can delete MP3 files saved in the product. Deleting one file and all files are available. The way of deleting files is the same as Deleting Voice File, page 19.
23 Radio Mode ■ Switching to Radio Mode Press the MENU button shortly once, select Radio Mode using the FF/REW button. ■ Scanning Frequency Scans the frequency of the broadcast you wish to listen to. ● Auto Frequency Scanning Press the FF/REW button longer while listening to a radio broadcast. ● Manual Frequency Scanning Press the FF/REW button shortly once while listening to a radio broadcast. ■ Preset Memory Memorizes the frequency of the current broadcast to your desired frequency memory number. You can save up to 20 frequencies. 1. Press the REC/STOP button shortly once while listening to a radio broadcast. 2. Select your desired frequency memory number using the FF/REW button. 3. Press the REC/STOP button shortly once again to save the current broadcast frequency to the selected number.

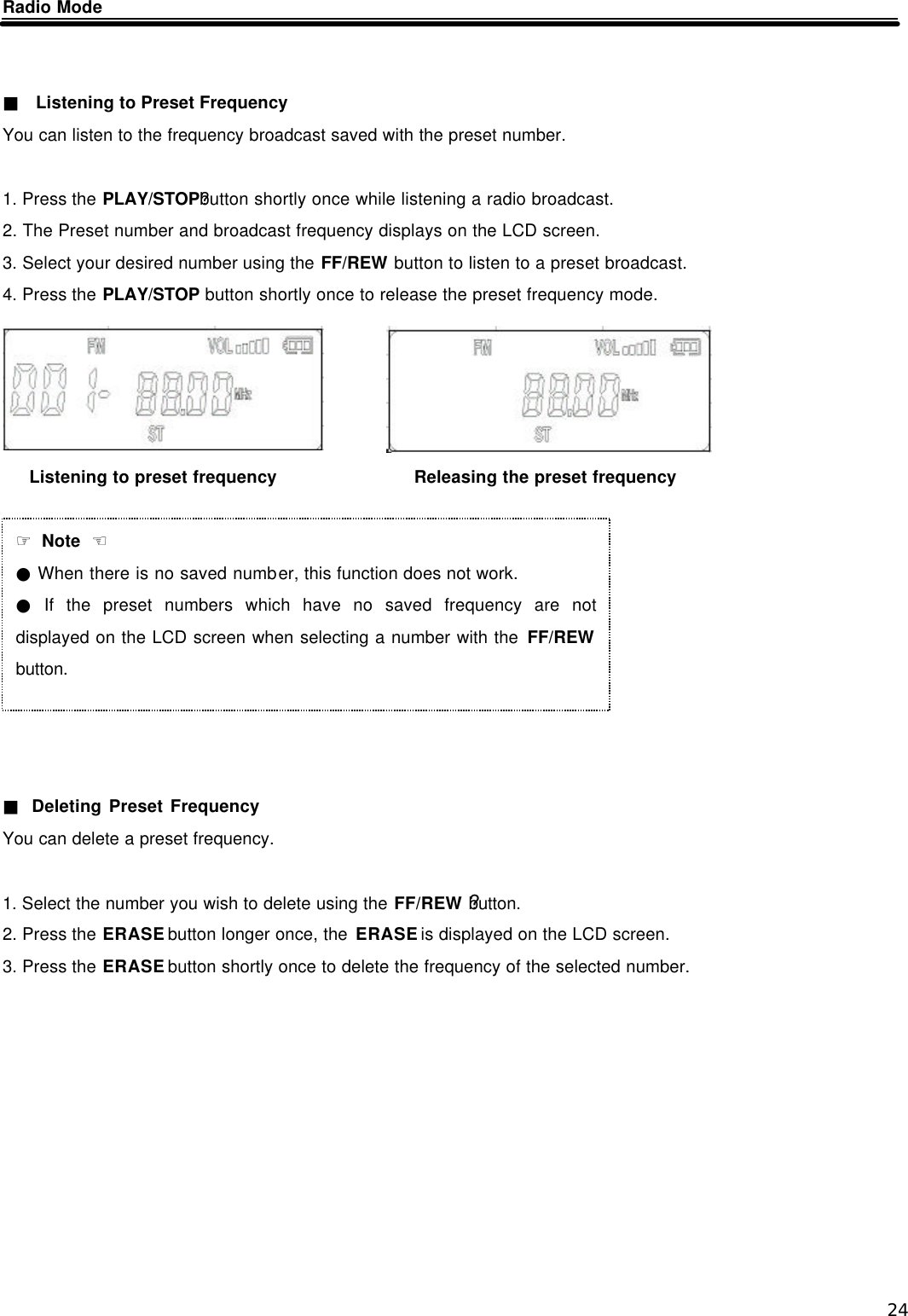

24 Radio Mode ■ Listening to Preset Frequency You can listen to the frequency broadcast saved with the preset number. 1. Press the PLAY/STOP?button shortly once while listening a radio broadcast. 2. The Preset number and broadcast frequency displays on the LCD screen. 3. Select your desired number using the FF/REW button to listen to a preset broadcast. 4. Press the PLAY/STOP button shortly once to release the preset frequency mode. ■ Deleting Preset Frequency You can delete a preset frequency. 1. Select the number you wish to delete using the FF/REW ?button. 2. Press the ERASE button longer once, the ERASE is displayed on the LCD screen. 3. Press the ERASE button shortly once to delete the frequency of the selected number. Listening to preset frequency Releasing the preset frequency ☞ Note ☜ ● When there is no saved number, this function does not work. ● If the preset numbers which have no saved frequency are not displayed on the LCD screen when selecting a number with the FF/REWbutton.
25 Radio Mode ■ Recording Broadcast Records the broadcast you are listening to. 1. Press the REC/STOP button longer to start recording while listening to a broadcast. 2. Press the REC/STOP button longer once to stop recording. ■ Playback the Recorded Broadcast 1. Switch to the Voice Mode. (See page 18) 2. Select a file you wish to playback using FF/REW button. 3. Press the PLAY/STOP button shortly once to start playback. 4. Press the PLAY/STOP button shortly once to stop playback. ☞ Note ☜ ● Recorded file is saved in the VOICE folder as *.WAV. You can check it on the screen after connecting to the PC.

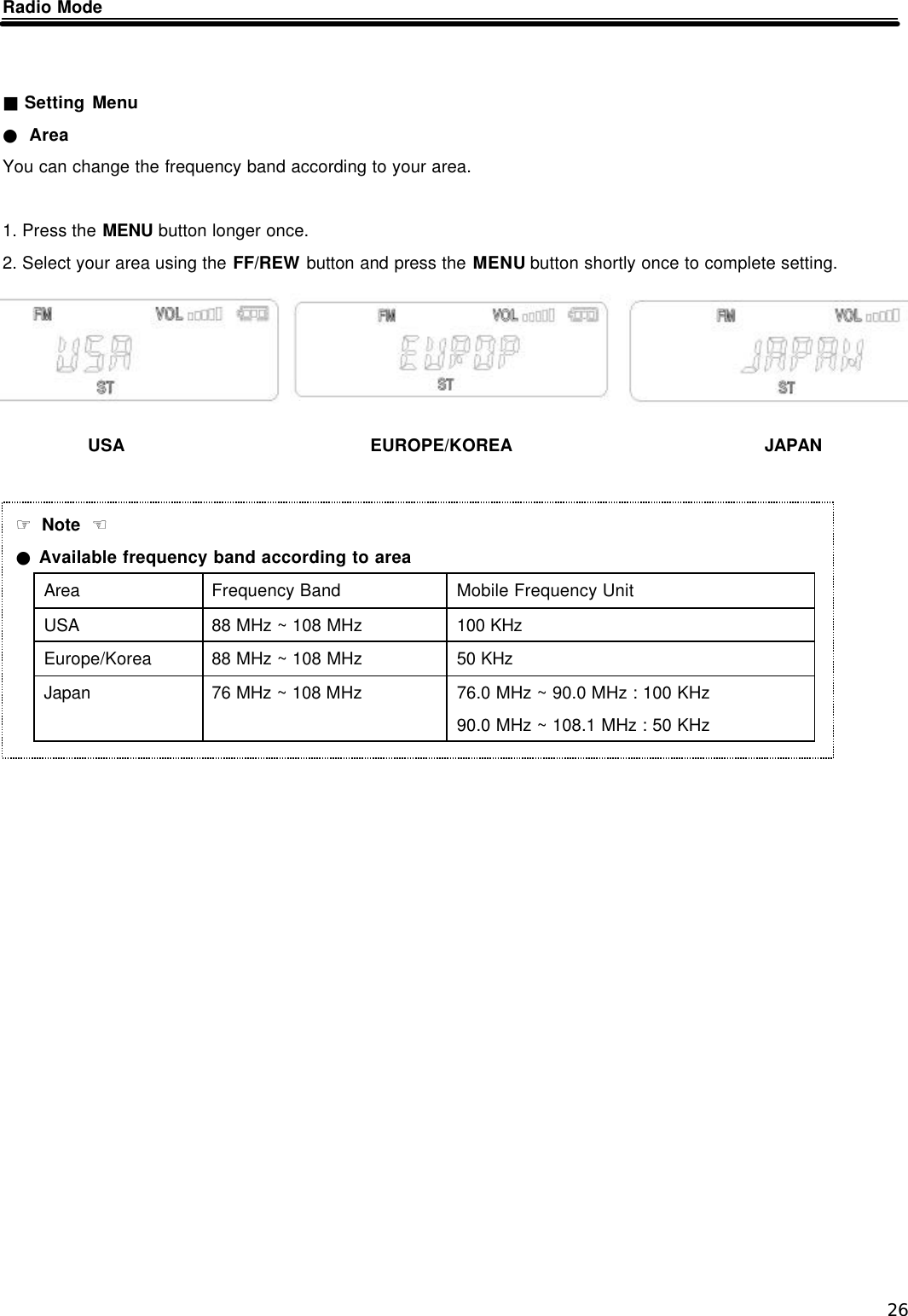

26 Radio Mode ■ Setting Menu ● Area You can change the frequency band according to your area. 1. Press the MENU button longer once. 2. Select your area using the FF/REW button and press the MENU button shortly once to complete setting. USA EUROPE/KOREA JAPAN ☞ Note ☜ ● Available frequency band according to area Area Frequency Band Mobile Frequency Unit USA 88 MHz ~ 108 MHz 100 KHz Europe/Korea 88 MHz ~ 108 MHz 50 KHz Japan 76 MHz ~ 108 MHz 76.0 MHz ~ 90.0 MHz : 100 KHz 90.0 MHz ~ 108.1 MHz : 50 KHz
27 PC Interface ■ Installing Driver 1. Insert the Driver CD on your CD Rom driver. Open the CD driver on the windows explorer. 2. Double-click the [Setup.exe] item in the right window.
28 3. Press the NEXT button sequentially as directed on the screen to finish the installation. ※ Note Please press the [Continue Anyway] button and keep installing when the below message is shown after installing the driver on the Windows XP. ※ Caution Do not connect the product to the PC before installing the driver. Click Click

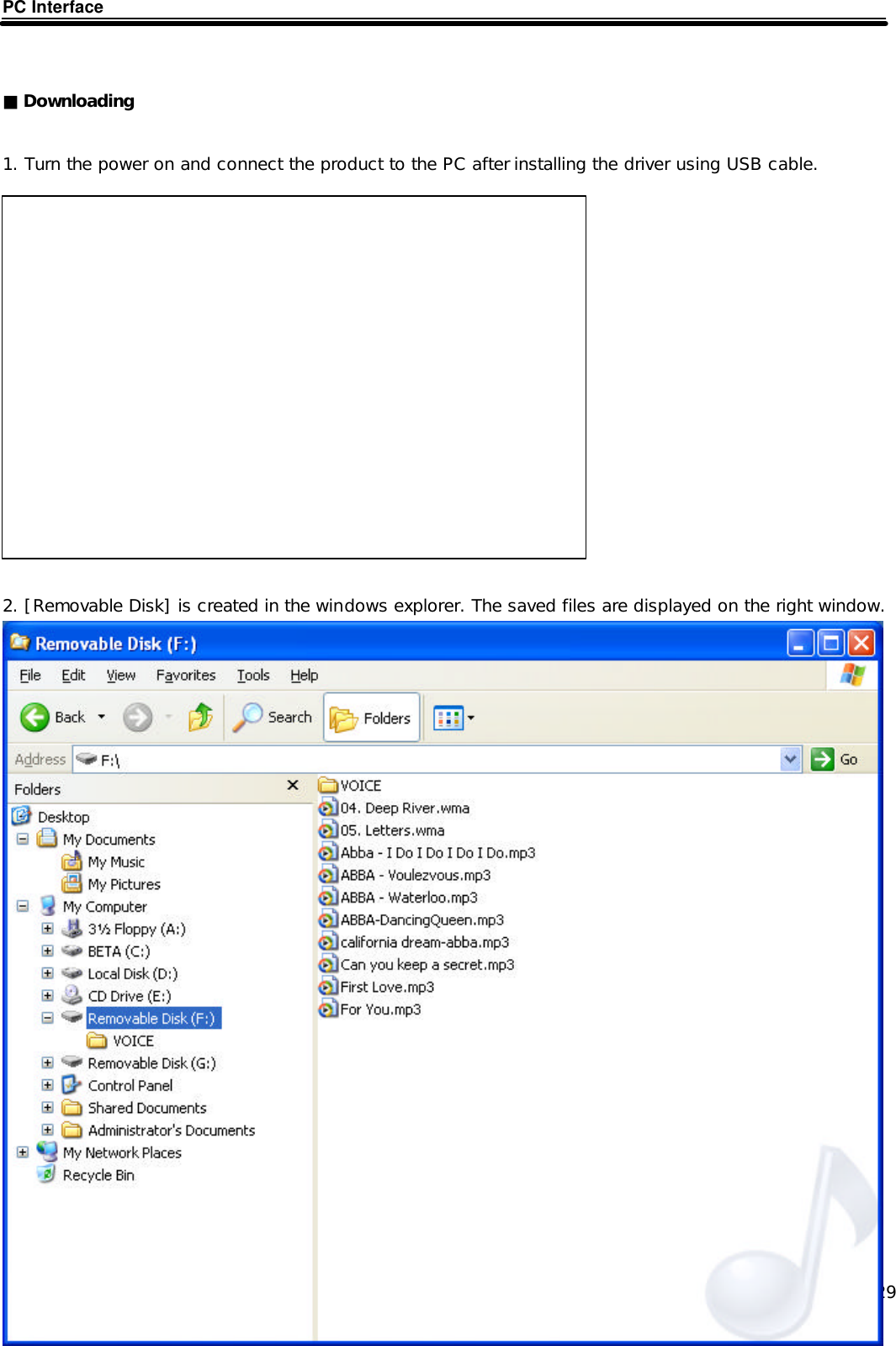

29 PC Interface ■ Downloading 1. Turn the power on and connect the product to the PC after installing the driver using USB cable. 2. [Removable Disk] is created in the windows explorer. The saved files are displayed on the right window.
30 3. Select the MP3 file(s) you wish to download to the product.

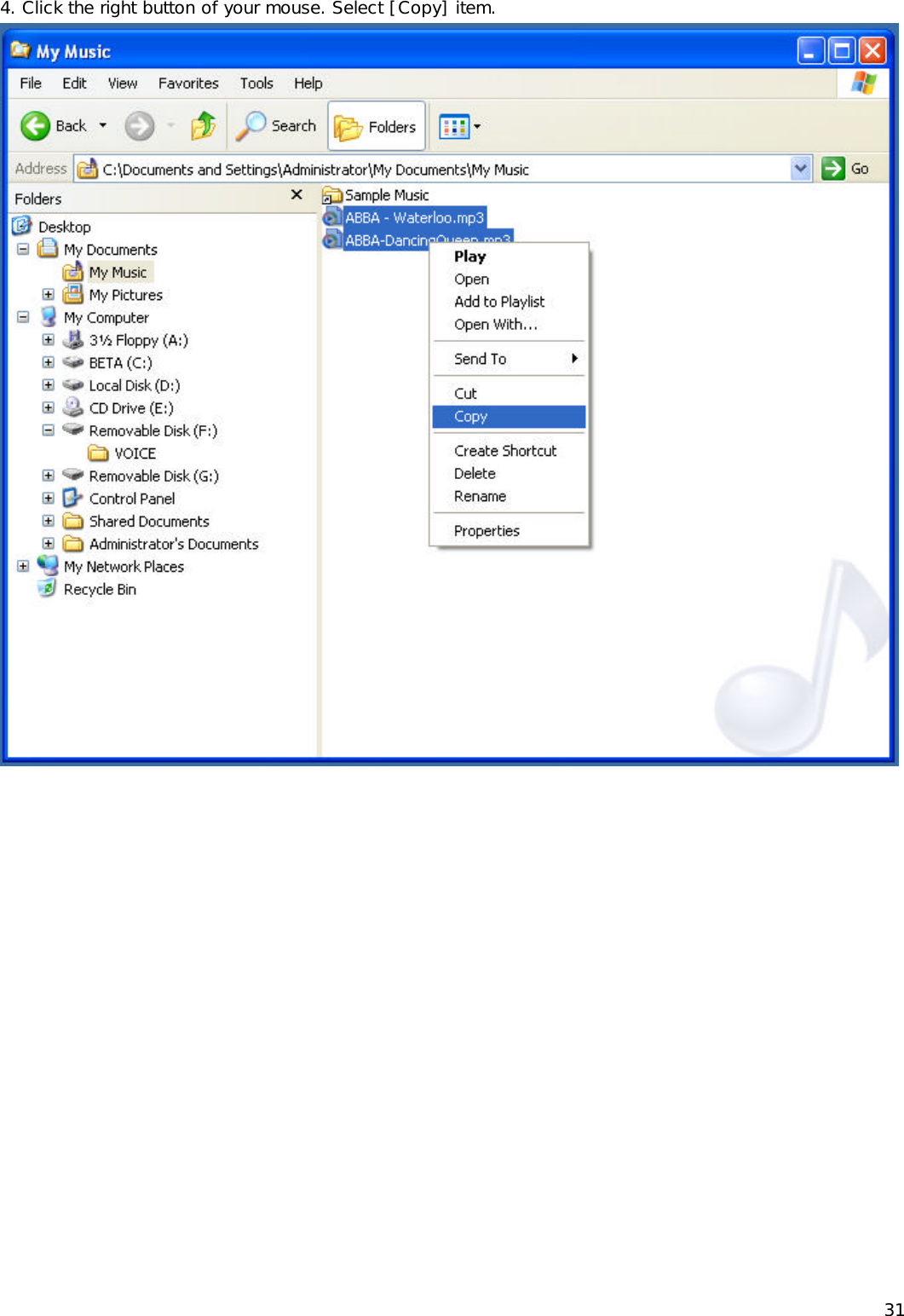

31 4. Click the right button of your mouse. Select [Copy] item.
32 5. Select the [Removable Disk] on the left window and click the [Paste]. Or drag and drop to the [Removable Disk].

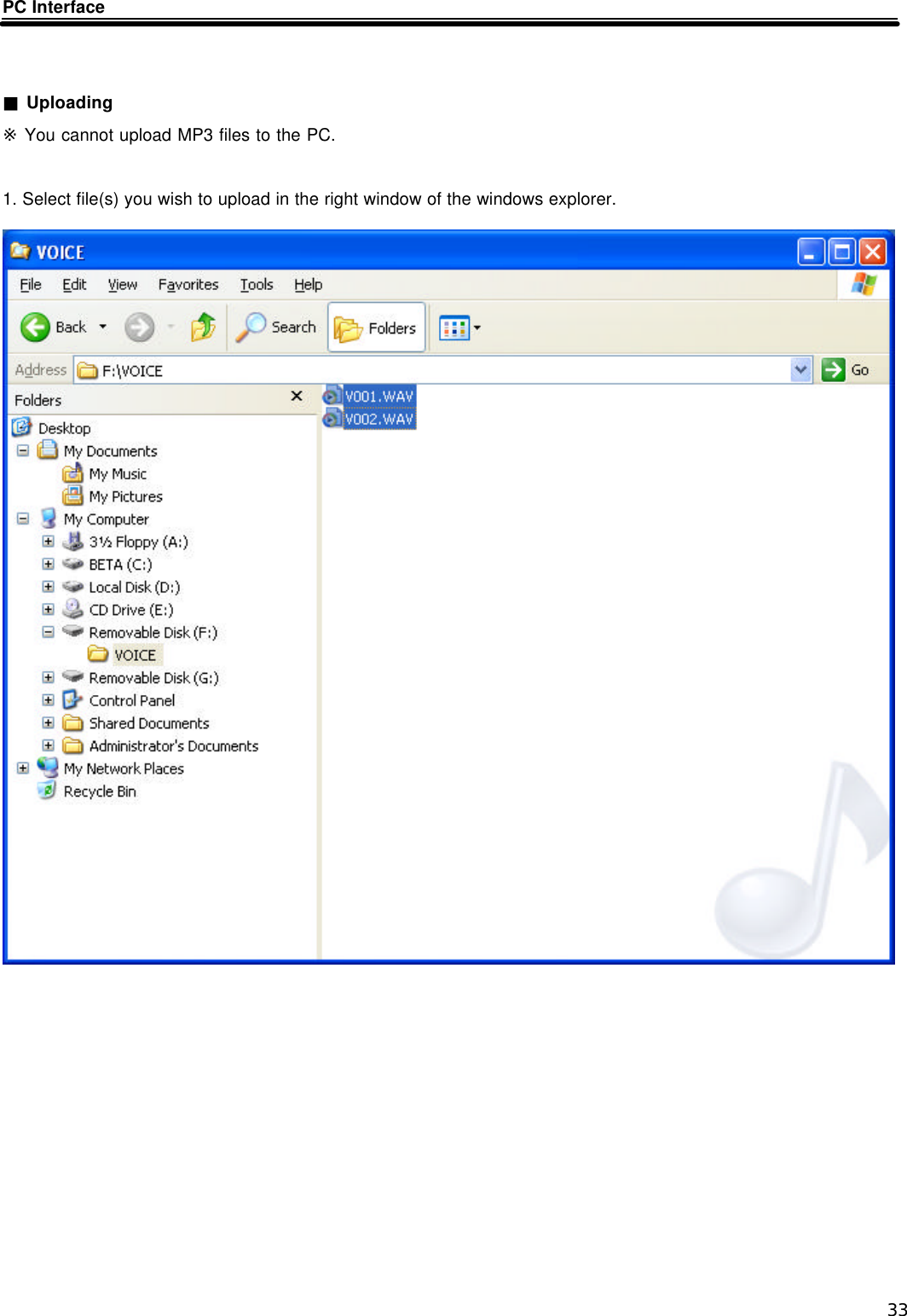

33 PC Interface ■ Uploading ※ You cannot upload MP3 files to the PC. 1. Select file(s) you wish to upload in the right window of the windows explorer.
34 2. Click the right button of your mouse and select the [Copy].
35 3. Select any folder to save file(s) and click the [Paste]. Or drag and drop file(s) where you want to save.
36 PC Interface ■ Deleting File 1. Select file(s) you wish to delete on the right window of the windows explorer.

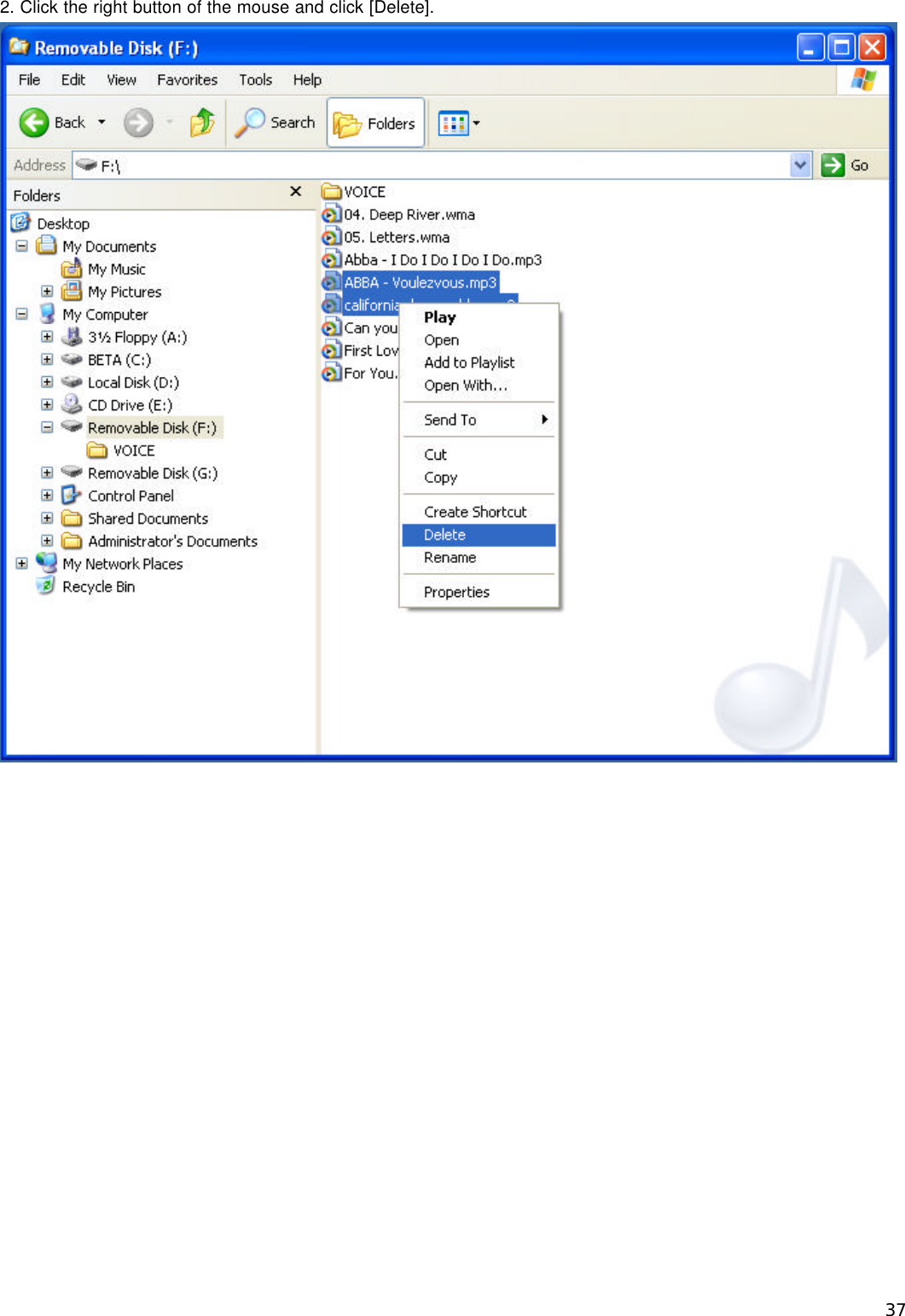

37 2. Click the right button of the mouse and click [Delete].
38 3. Click [Yes] to delete the file(s).

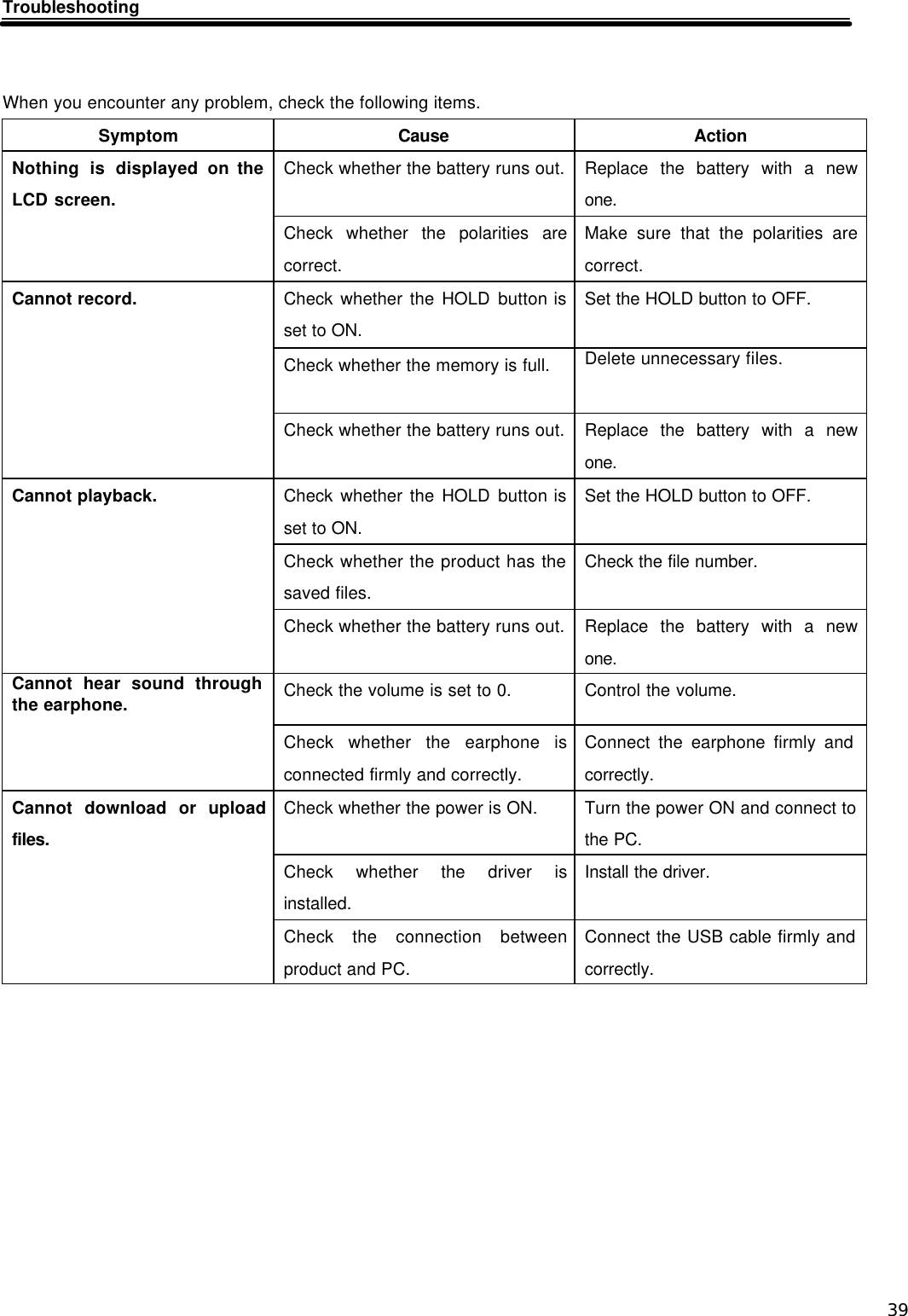

39 Troubleshooting When you encounter any problem, check the following items. Symptom Cause Action Check whether the battery runs out. Replace the battery with a new one. Nothing is displayed on the LCD screen. Check whether the polarities are correct. Make sure that the polarities are correct. Check whether the HOLD button is set to ON. Set the HOLD button to OFF. Check whether the memory is full. Delete unnecessary files. Cannot record. Check whether the battery runs out. Replace the battery with a new one. Check whether the HOLD button is set to ON. Set the HOLD button to OFF. Check whether the product has the saved files. Check the file number. Cannot playback. Check whether the battery runs out. Replace the battery with a new one. Check the volume is set to 0. Control the volume. Cannot hear sound through the earphone. Check whether the earphone is connected firmly and correctly. Connect the earphone firmly and correctly. Check whether the power is ON. Turn the power ON and connect to the PC. Check whether the driver is installed. Install the driver. Cannot download or upload files. Check the connection between product and PC. Connect the USB cable firmly and correctly.

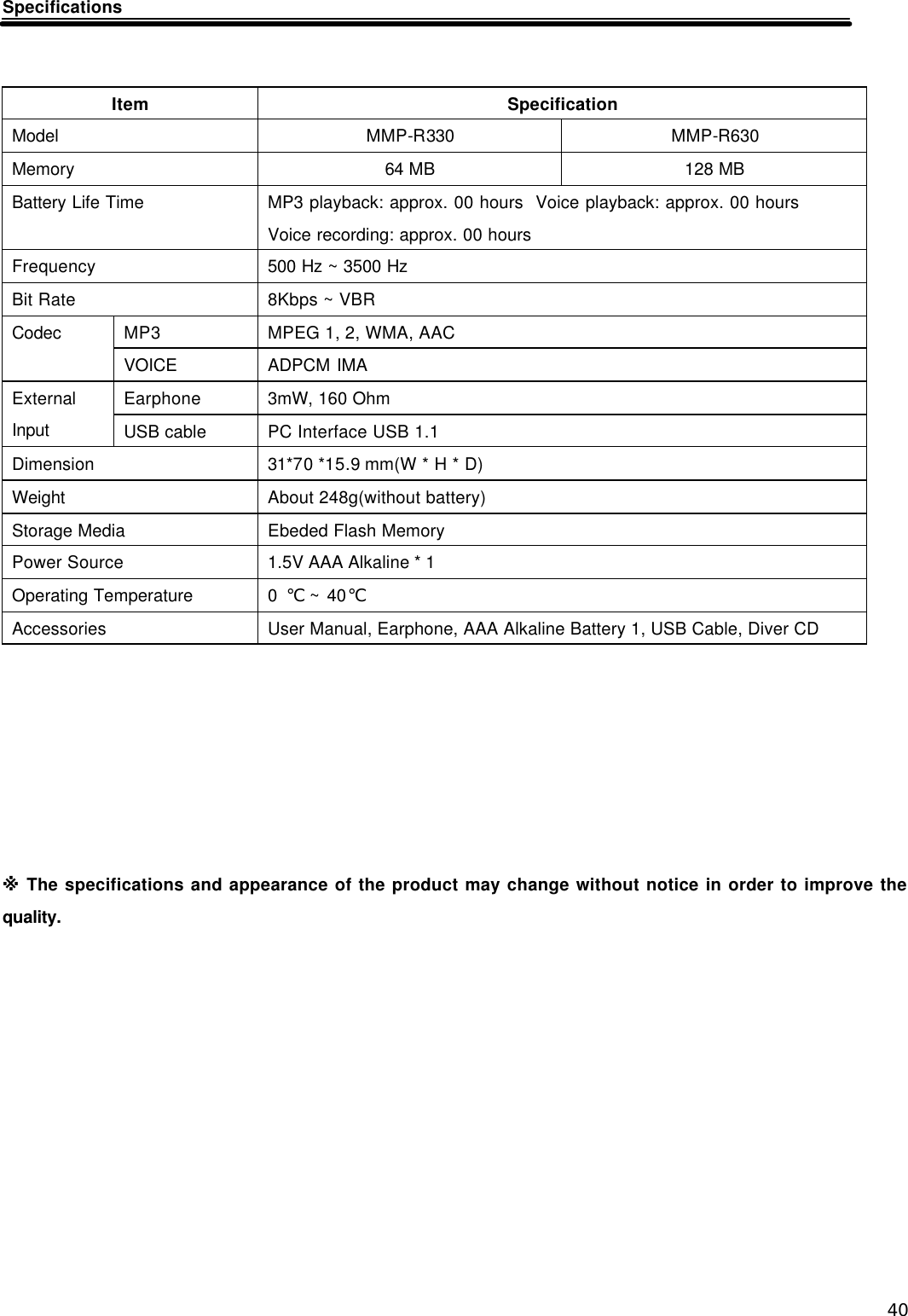

40 Specifications Item Specification Model MMP-R330 MMP-R630 Memory 64 MB 128 MB Battery Life Time MP3 playback: approx. 00 hours Voice playback: approx. 00 hours Voice recording: approx. 00 hours Frequency 500 Hz ~ 3500 Hz Bit Rate 8Kbps ~ VBR MP3 MPEG 1, 2, WMA, AAC Codec VOICE ADPCM IMA Earphone 3mW, 160 Ohm External Input USB cable PC Interface USB 1.1 Dimension 31*70 *15.9 mm(W * H * D) Weight About 248g(without battery) Storage Media Ebeded Flash Memory Power Source 1.5V AAA Alkaline * 1 Operating Temperature 0 ℃ ~ 40℃ Accessories User Manual, Earphone, AAA Alkaline Battery 1, USB Cable, Diver CD ※ The specifications and appearance of the product may change without notice in order to improve the quality.
41 Warranty

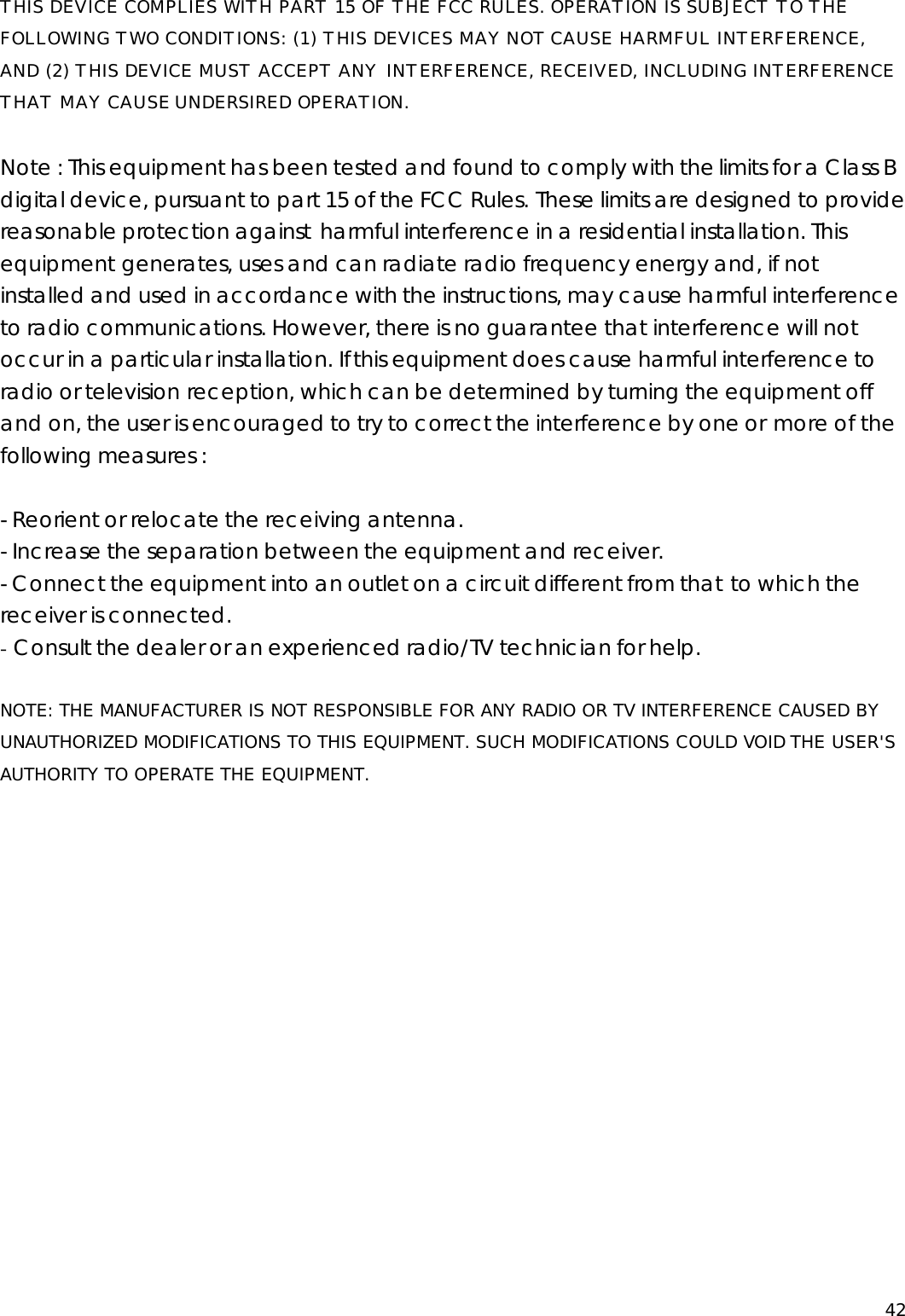

42 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICES MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE, RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDERSIRED OPERATION. Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures : - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.
