Cenix Digicom MMPR630 MP3 Player User Manual MMR R630 ENG IB
Cenix Digicom Co., Ltd MP3 Player MMR R630 ENG IB
users manual
1
Safety Instructions
● These instructions describe the precautions and about how to deal with the product to prevent personal injury or
property loss. Please read the following safety precautions carefully.
● Keep this instruction in the place which you can find easily whenever you need.
Warning and Caution
This symbol indicates that personal
injury may occur or the product may
be damaged when you fail to follow
the given instruction.
Warning
Caution
This symbol indicates that property
loss may occur or the product may
malfunction when you fail to follow
the given instruction.
2
Contents
■ Safety Instruction
■ Precautions
■ Product Features
■ Names of Parts
■ Before Using
- Inserting Battery
- Powering On/Off
- Button Functions
■ MP3 Mode
- Playback
- Scanning File(FF/REW)
- Deleting MP3 File
- MP3 Playback Functions
- Scan and Playback
- Resume
- A-B Repeat
- Setting Menu
- EQ(Equalizer)
- USER EQ mode
- Repeating
- Erasing
■ Voice Mode
- Switching to Voice Mode
- Recording
- Playback
- Scanning File(FF/REW)
- Deleting File
- Recording Function
- Index Added Recording
- Playback Functions
- Scan and Playback
- A-B Repeat
- Setting Menu
- Repeating
- Erasing
■ Radio Mode
- Switching to Radio Mode
- Scanning Frequency

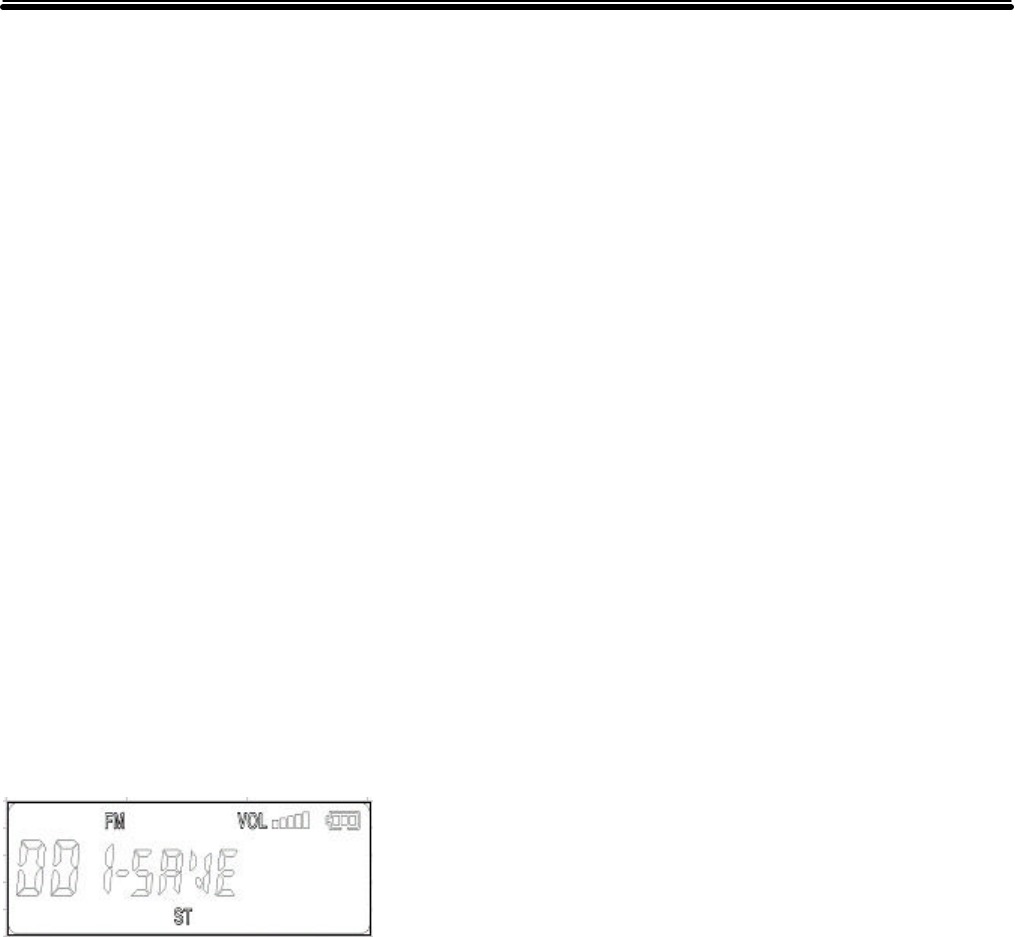

- Preset Memory
3
- Using Frequency Preset Memory
- Deleting Preset Frequency

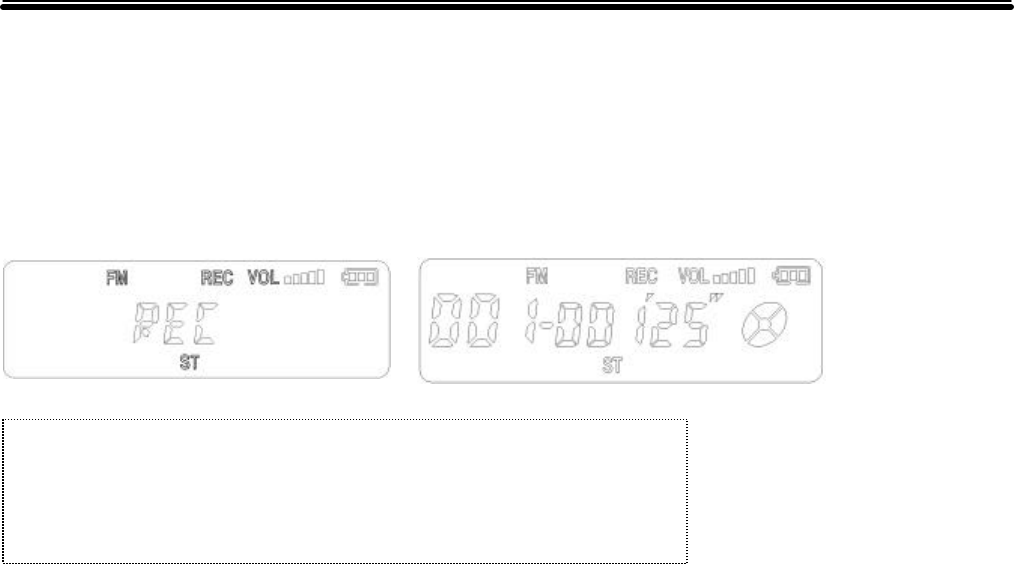

- Recording Broadcast
- Setting Menu

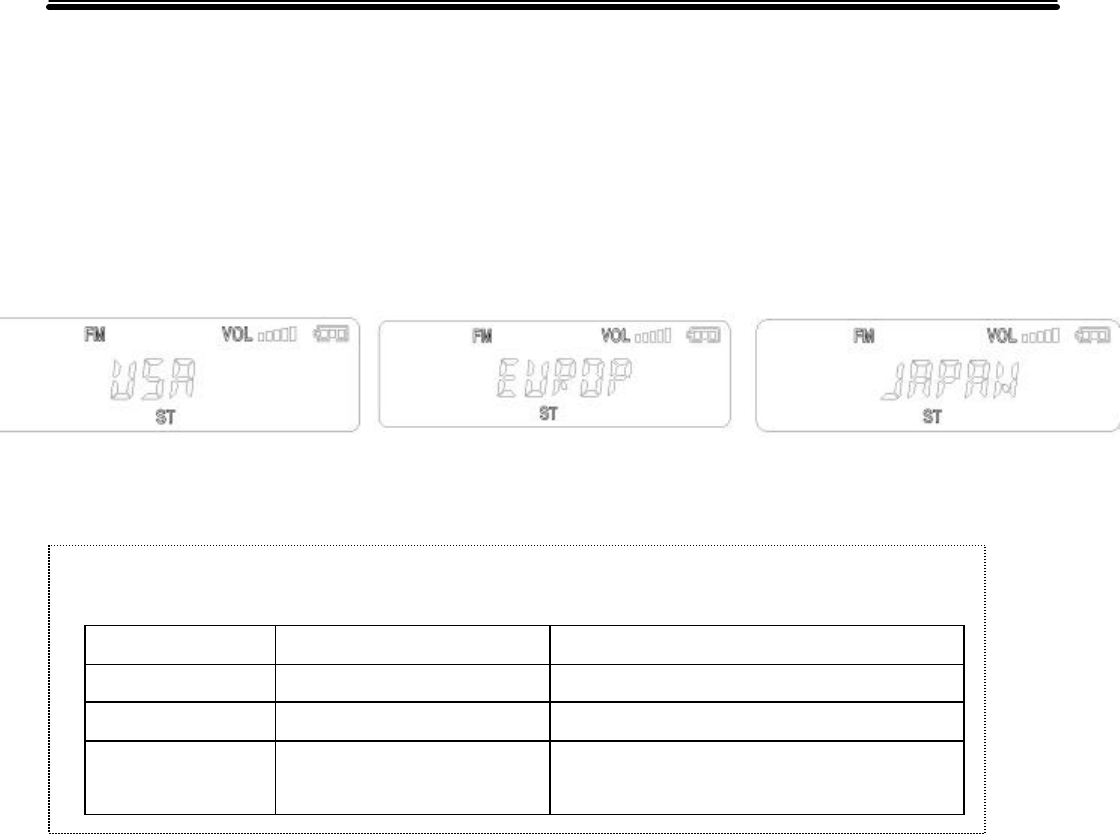

- Area
■ PC Interface

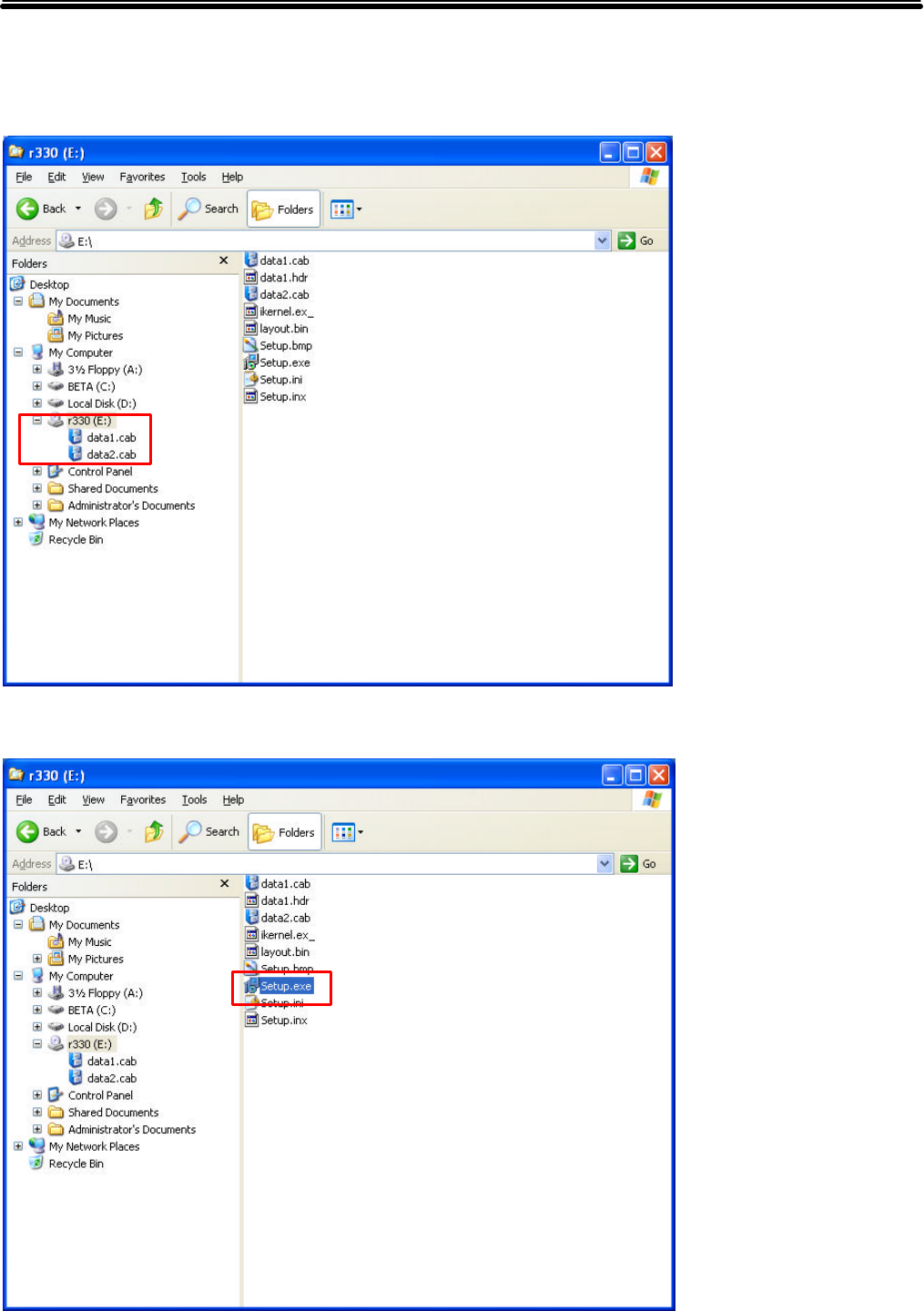

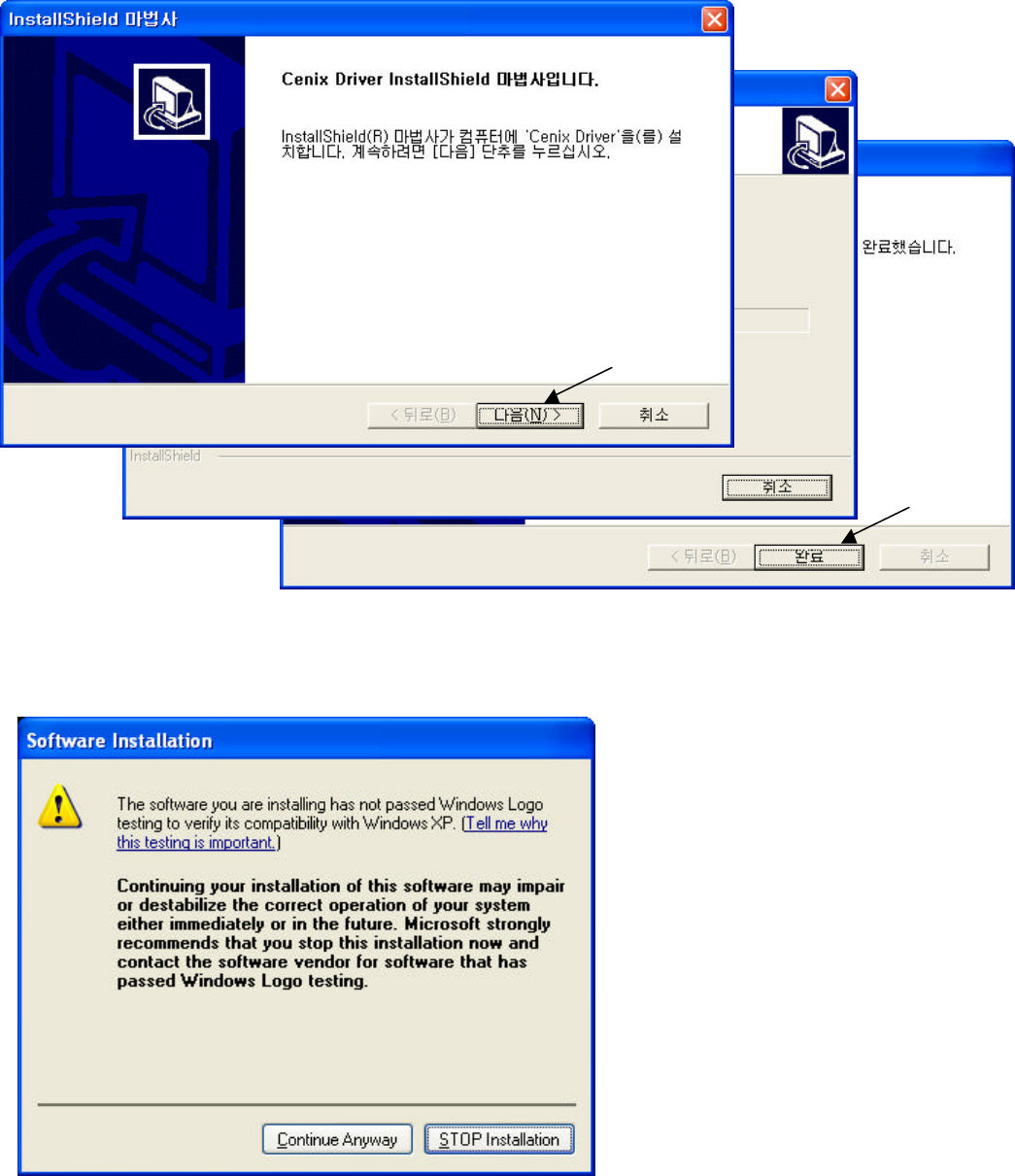

- Installing Driver

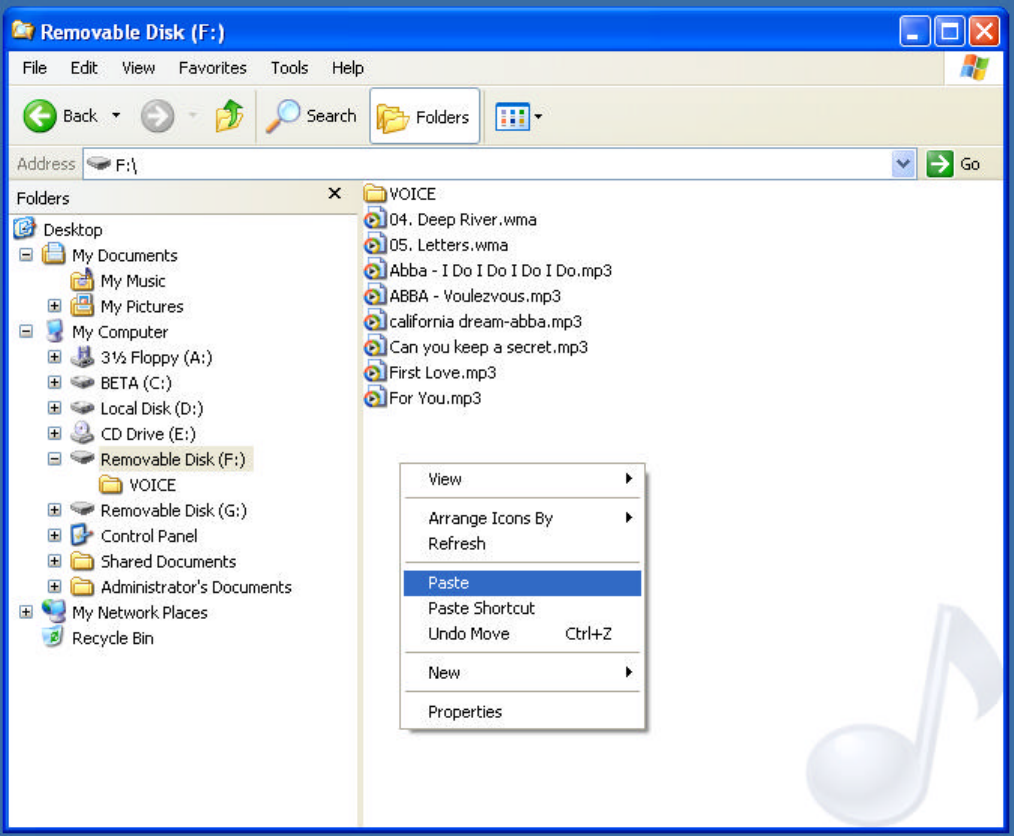

- Download

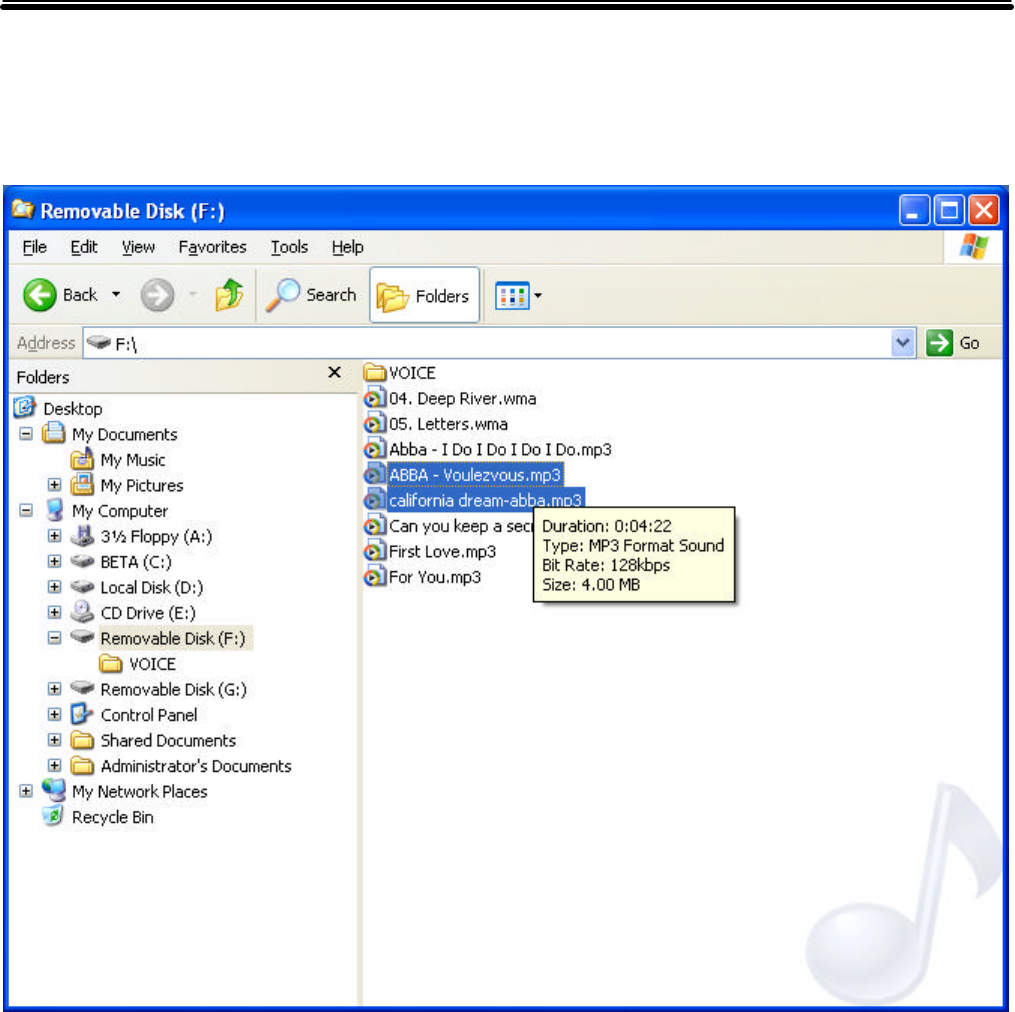

- Upload

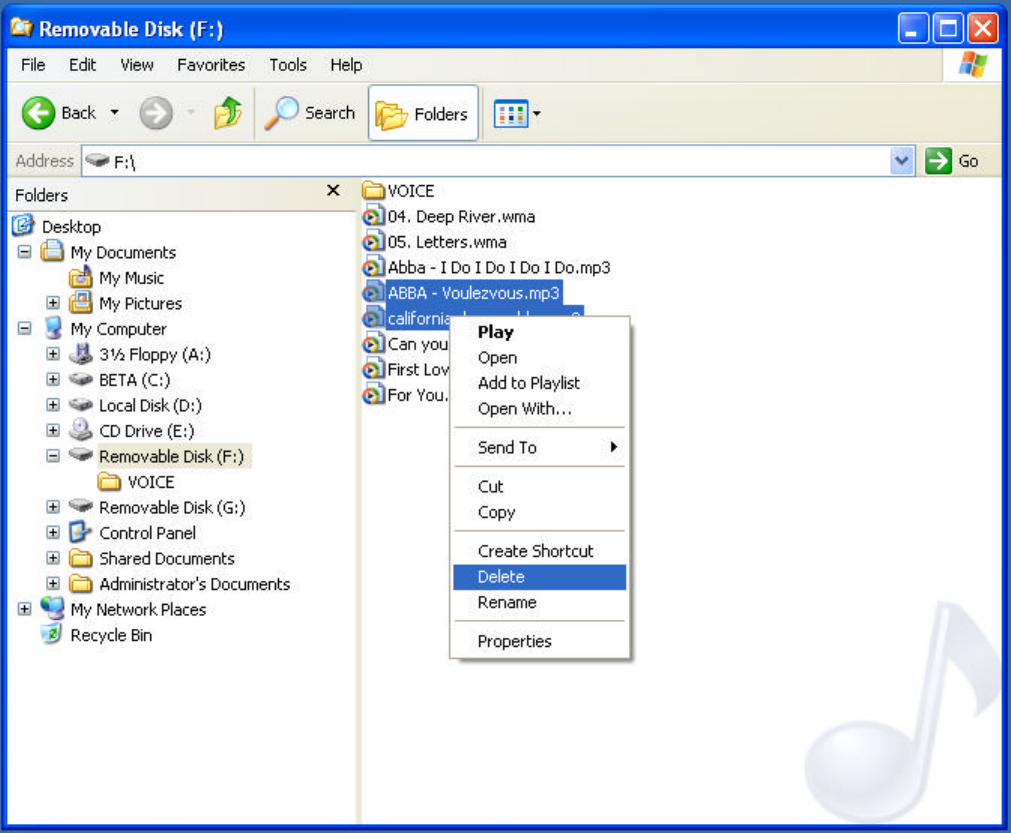

- Deleting File
■ Trouble Shooting
■ Specifications
■ Warranty
4
Precautions
■ Precautions for use of the product
Do not install the product in a place exposed to these conditions:
* Does not have any responsibility for property loss due to your use of the product even if you use the product
correctly. Also does not have any responsibility for demanding any compensation from others.
* Does not have any responsibility for memory data corruptions and resulted property loss due to product
malfunction or fault, repair, and/or other reasons.
High temperature (above 40℃)
Poorly ventilated or closed
(car inside, especially summer)
Much moisture
(humidity, above 75%)
Dusty place
Make sure not to place cash cards
or pass cards, susceptible to
magnetic
influences, near to the
speaker of the product.
Do not clean using chemicals such
as alcohol, benzene, or sinner, etc.
Pla
ce the battery in a location that
your children or infants cannot
access to.
Do not drop down any materials on
the product or impact against the
product.
Do not impact against the LCD of
the product.
5
Precautions
■ Precautions for use of the battery
주의사항
Make sure to use the specified
standard battery.
(‘AAA’ Alkaline battery)
Do not impose heat on it. Do not
disassemble or short-circuit.
Otherwise, it may cause damages or
malfunctions to the product.
Do not place the metals such as
coins and keys with the battery.
Otherwise, it
may cause a fire due
to frictional heat.
Make sure that the polarities are
correct when inserting a battery.
Warning
● When your skin or clothes is stained with electrolyte:
Wash them with clean water immediately.
When your skin
has been hurt, make sure to consult your doctor.
● When electrolyte enters your eye;
Do not rub your eye. Wash it with clean wate
r
immediately and make sure to consult your doctor.
Place the battery in a location that your
children or infants cannot access to.
Make sure to remove the battery
when you do not use the product for
a long time.
Do not mix a new battery with the
old one.
6
Precautions
■ Safety Precautions
Do not use earphone during driving
or walking.
Otherwise it may cause a traffic
accident.
If the product smokes or any
modification occurs due to heating,
remove the battery immediately.
Do not use the product in an
airplane or a place where electronic
devices should not be used.
Do not listen to with a loud volume.
Otherwise it may damage your
hearing. Control the volume again.
Do not disassemble the product
arbitrarily.
7
Product Features
■ Compact Size
Handy to carry due to compact size and light-weight.
■ Adapting flash memory
Recorded sound is preserved even if the power is cut off.
■ Automated Power Break
Automated power break reduces battery consumption.
■ EL lighting
You can see the message on the LCD screen even if the place is dark.
■ EQ(Equalizer) Function
You can listen to a MP3 file in the Flat, Pop, Rock or User EQ mode.
■ MP3 and WMA playback
Both MP3 files and WAM files are supported.
■ VBR playback
Various MP3 files are supported from 8Kbps to VBR.
■ Semi Mass Storage
Only installing driver uploading and downloading is available without software.
■ Receiving and Recording FM Radio
You can receive and record an FM radio.
8

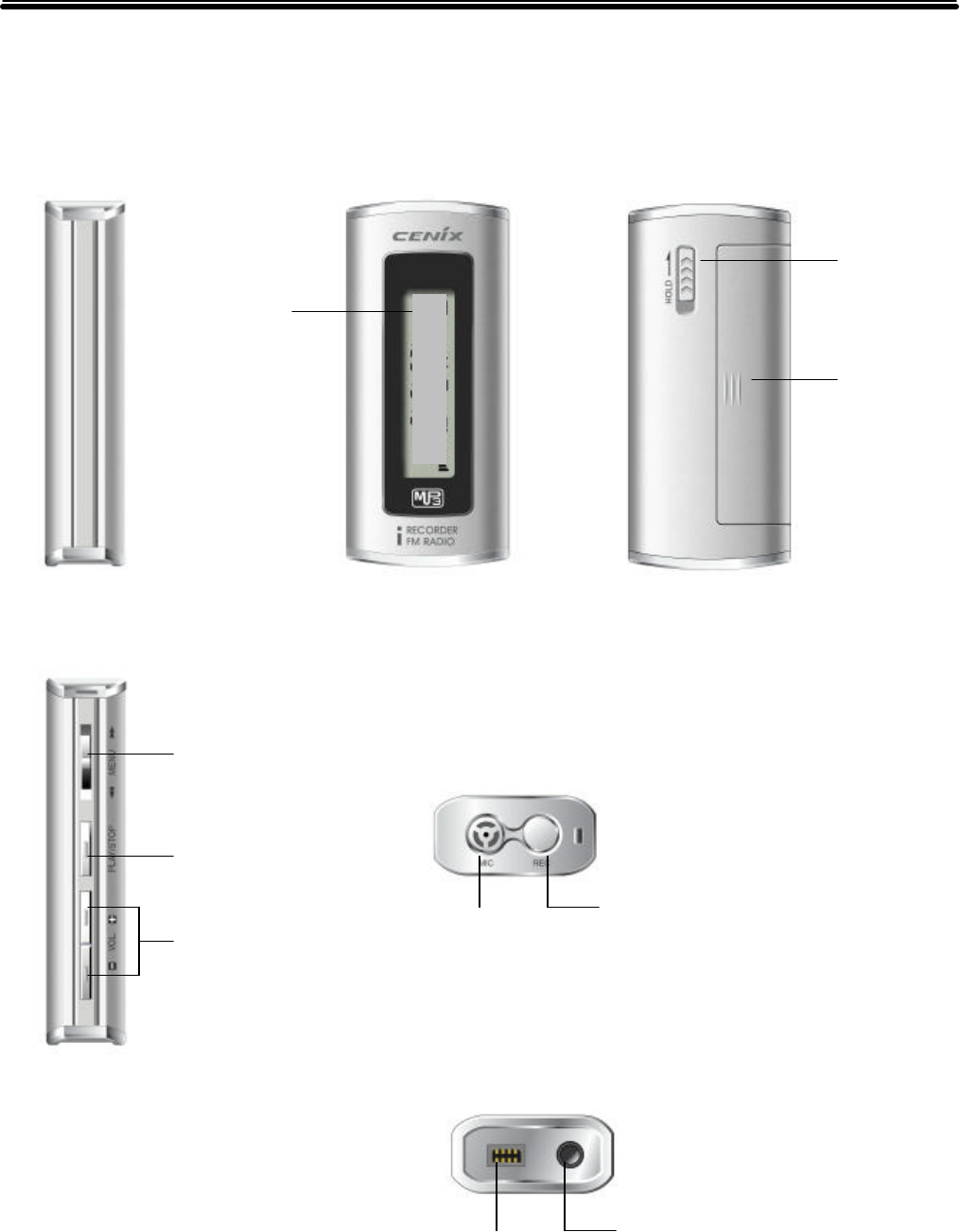

Names of Parts
Left Front
LCD
Back
HOLD
Battery
Cover
Right
FF/MENU/REW
POWER/PLAY/STOP
VOLUME
Top
Built-in
Microphone
RECORD/STOP
Bottom
USB Socket Earphone Jack
9

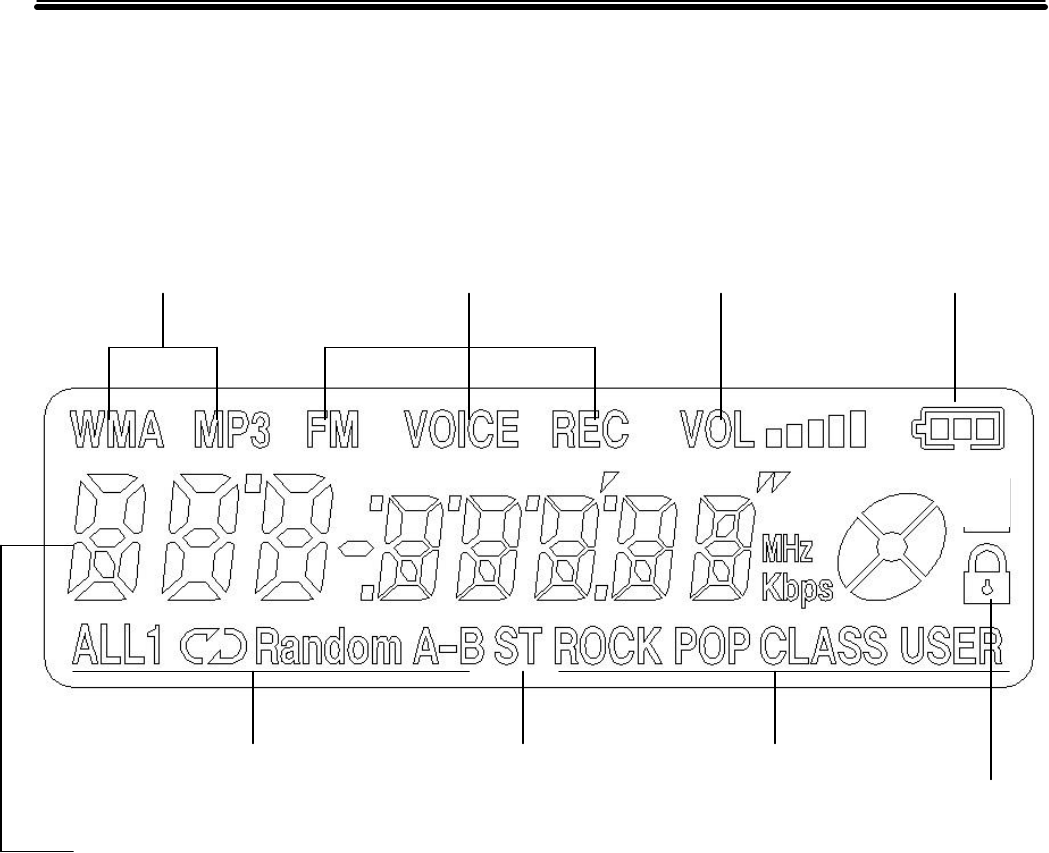

Description of LCD
Playback
Mode Icon
Operating
Mode Icon Volume Icon Battery Indicator
File No./Playback Time
Recording Time/Frequency
Repeat Mode Stereo Mode
EQ mode
HOLD ON
10
Before Using

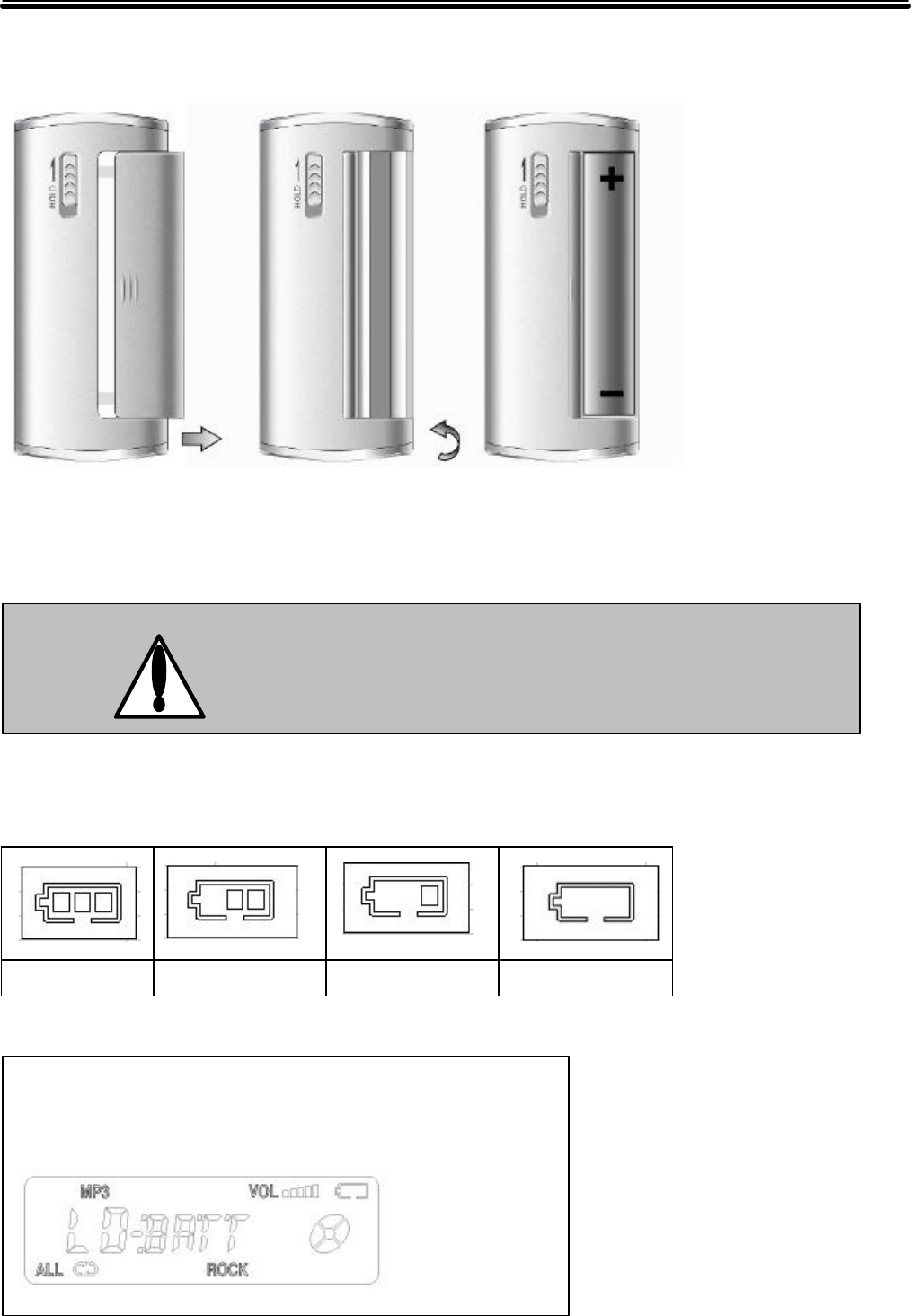

■ Inserting Battery
1. Push the battery cover slightly and slide it in the arrow direction.
2. Insert one AAA alkaline battery. Make sure that the polarities (+, -) are correct.
3. Close the battery cover.
■ Battery Usage Icon
Full Little consumed Much consumed Time to replace
Caution ● Make sure to replace the batteries in stop mode.
● Make sure that the polarities (+, -) are correct.
☞ Note ☜
"LO Batt" is displayed when the voltage is low due to
consumption.
11
Before Using
■ Battery Lifetime ("AAA" Alkaline)
■ Powering On/Off
1. Set the HOLD button to OFF (HOLD OFF).
2. Press the POWER/PLAY/STOP button shortly once to turn the power on.
3. Press the POWER/PLAY/STOP button longer once to turn the power off.
■ Button Functions
◎ MENU : Selecting MENU and switching functions(MP3/Voice/Radio)
◎ REC/STOP : Recording and stop, preset memory
◎ PLAY/STOP/POWER : Playback and stop, power On/Off and using frequency preset memory
◎ REW/FF : Rewind and fast forward
◎ HOLD : Button hold on/off to prevent unwanted operations
◎ VOLUME: Volume control
◎ ERASE : Deleting files
Battery MP3 Playback Voice Recording FM Mode Playback with
Earphone(VOL. 10)
AAA
Alkaline
00 hours 00 hours 00 hours 00 hours
☞ Note ☜
● Battery lifetime is subject to battery type and the volume you use.
● The power is turned off automatically fo
r efficient use of the battery if you do not
use the product for more than 1 minute.
● When you do not use the product, set the HOLD switch to ON
to prevent unwanted
consumption of the battery due to misuse of the buttons.
☞ Note ☜
● The power is t
urned off automatically if there is no operation for 1
minute.
● In HOLD ON mode, HOLD
is displayed and the power is not turned
on.
12
MP3 Mode
■ Playback
You can listen to MP3 file saved in the product.
1. Select a file you wish to playback using FF/REW button.
2. Press the PLAY/STOP ?button shortly once to start playback.
2. Press the PLAY/STOP ?button shortly once again to stop playback.
■ Volume Control
Controls the volume using the VOL. button. The range is between 0 and 20.
☞ Note ☜
● MP3 files with 8Kbps to VBR are available.
● MP3 is displayed on the LCD when MP3 files playback. WMA is display
ed on the LCD
when WMA files playback.
Warning
●
Do not listen to recorded files with a loud volume.
Otherwise it may damage your hearing.
●
Start from a low volume, and then set the volume to an
appropriate level.
13
MP3 Mode

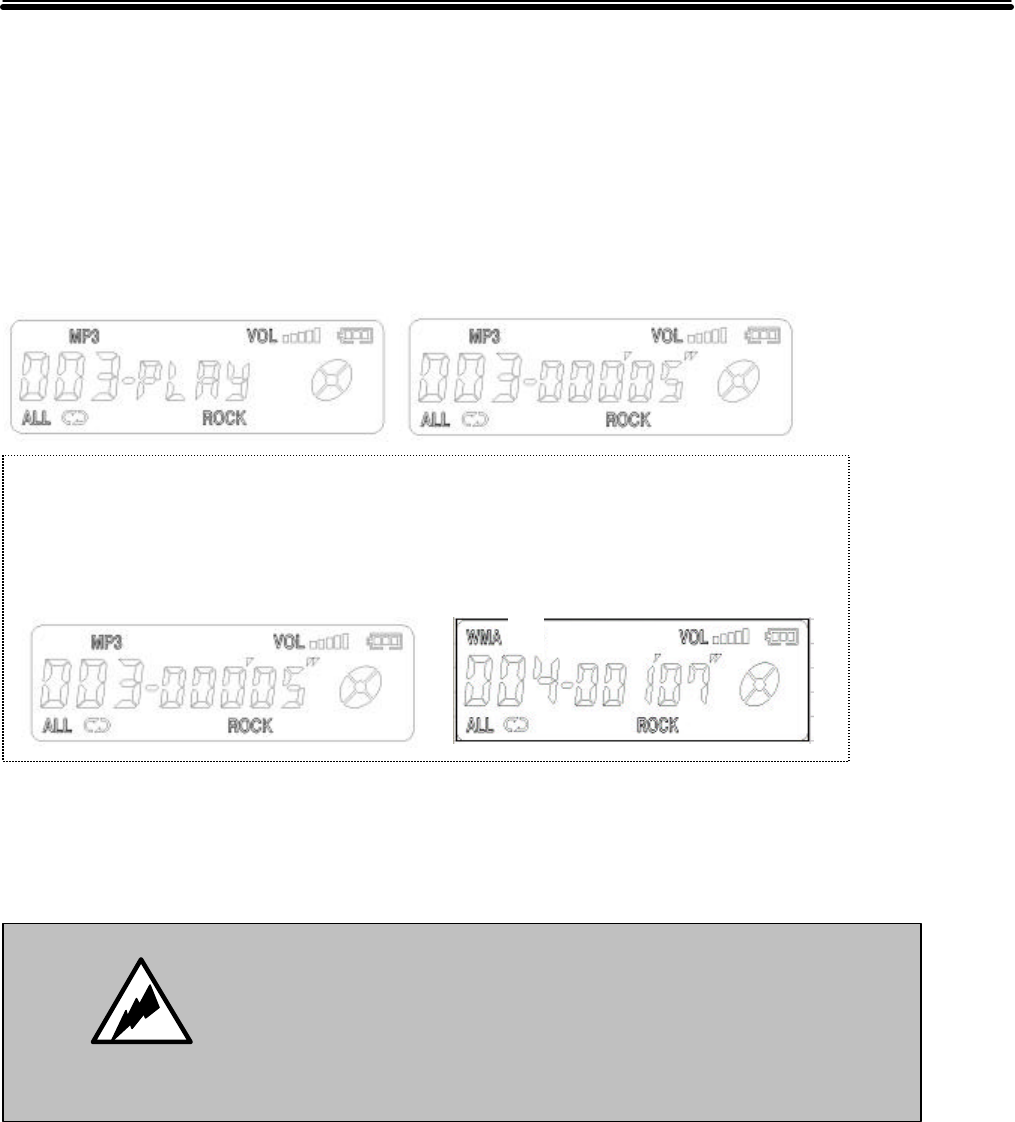

■ Scanning File (FF/REW)
Using the FF/REW ?button, you can move to the file you want.
● Moving to the previous or next file: Press the FF/REW ?button shortly during playback.
● Scanning file: Press the FF/REW ?button longer during playback.
For the first 10 seconds: The playback time is increased or decreased by second.
After 10 seconds: The playback time is increased or decreased by 10 seconds.
● Selecting the previous or next file : Press FF/REW ?button shortly in the stop state.
■ Deleting MP3 File
You can delete the MP3 files saved in the product. The file numbers are decreased by one after deleting file.
● Deleting one file(FILE ERASE)
Deletes one file in the recoded sounds.
1. Select the file to delete in stop mode, press the MENU button longer once and shortly twice to enter ERASE
MODE.
2. Select FILE ERASE using the FF/REW button.
3. Press the MENU button longer once to delete the file.
● Deleting all files(ALL ERASE)
Deletes all the recorded files saved in a folder.
1. Press the MENU button longer once in stop mode and shortly twice to enter ERASE MODE.
2. Select ALL ERASE using the FF/REW button.
3. Press the MENU button longer once to delete all files.

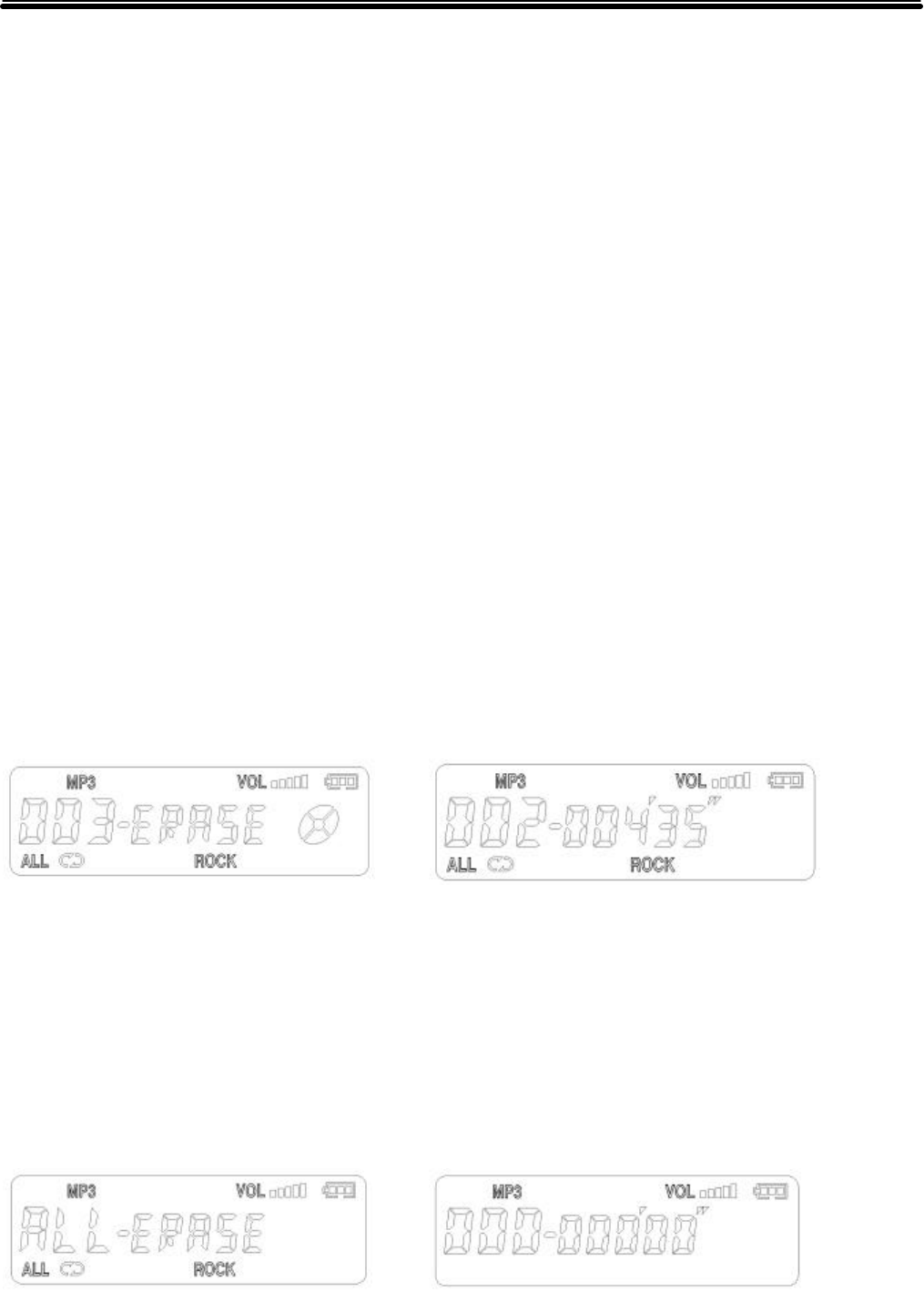

Before deleting #3 file After deleting #3 file
Before ALL ERASE After ALL ERASE
14
MP3 Mode
■ MP3 Playback Functions

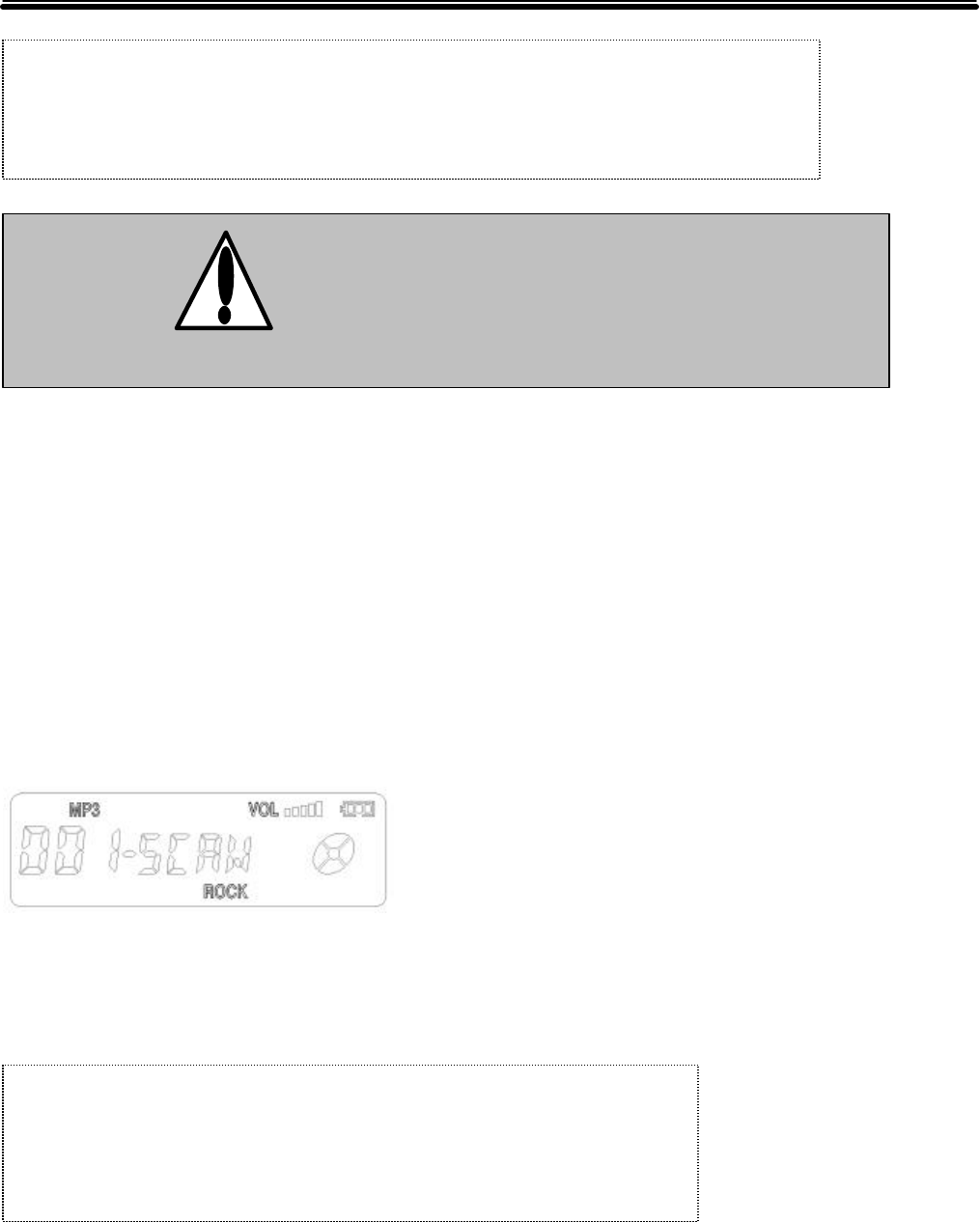

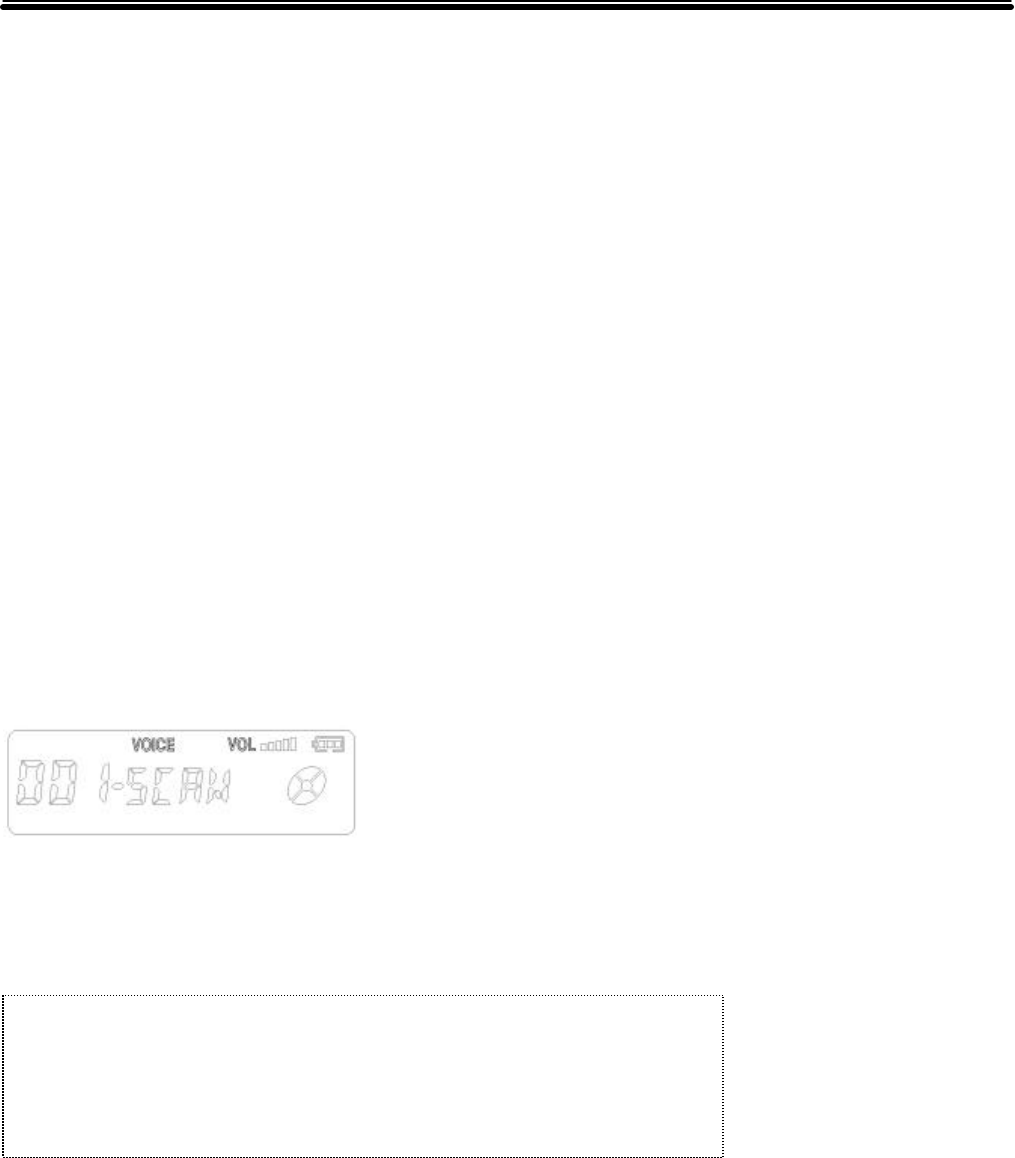

● Scan and Playback
The first 5 seconds of each files are played back one by one.
1. Press the PLAY/STOP button longer once during playback.
2. The SCAN message is displayed on the LCD and the first 5 seconds of the recorded files are played back in the
order.
3. Press the PLAY/STOP button shortly once to stop scan and playback.
● Resume
Playbacks from the position you stopped when you stopped playback.
☞ Note ☜
◆ If you press the MENU button or other button except the ERASE
button, file deletion is
cancelled.
Caution
● The deleted recording file cannot be recovered.
Please make sure to decide carefully and check
the
file(s) you select to delete.
☞ Note ☜
● If you press other button than the PLAY/STOP
button after stopping
playback, the file is played back from the first position.
15
MP3 Mode

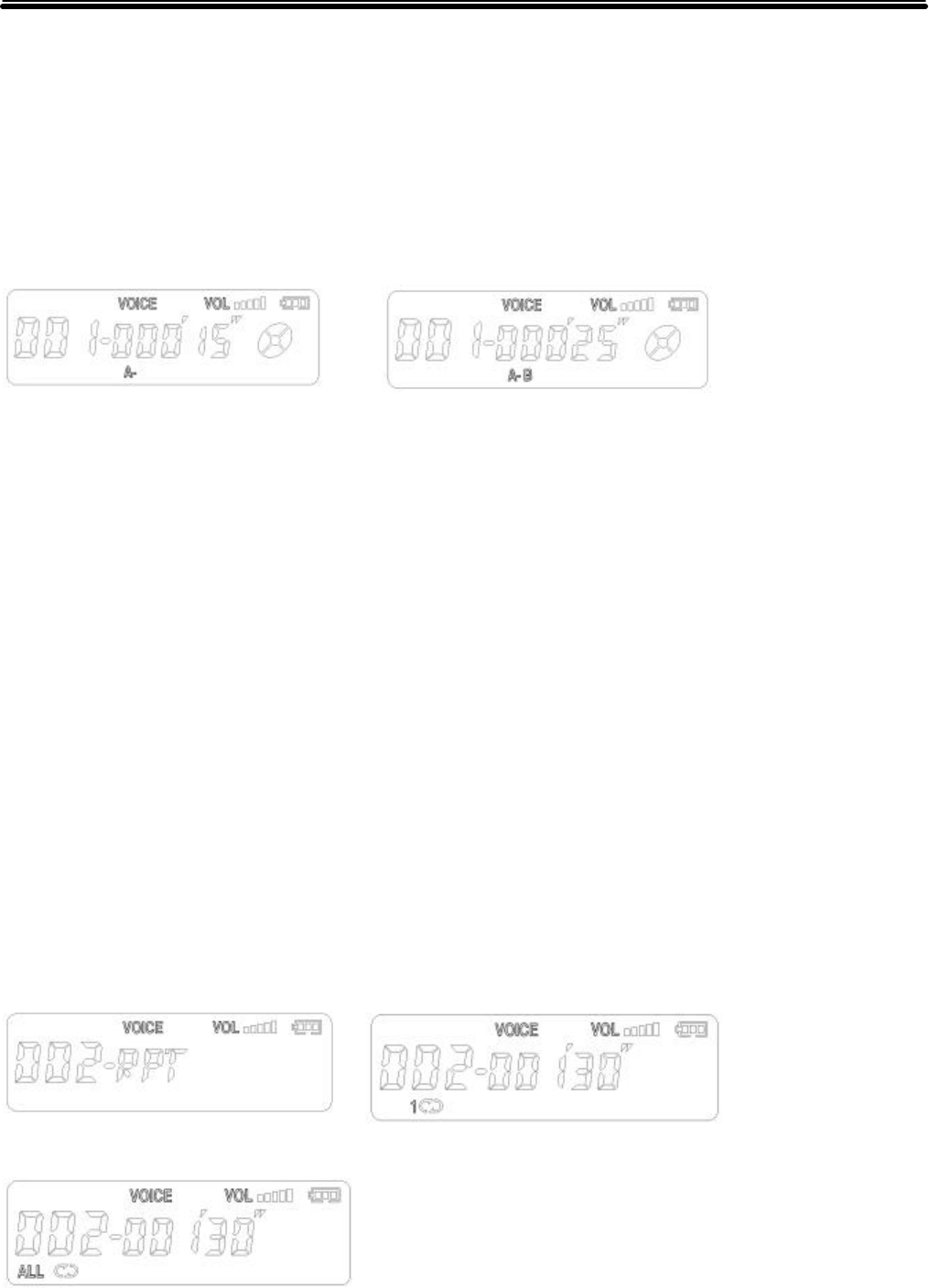

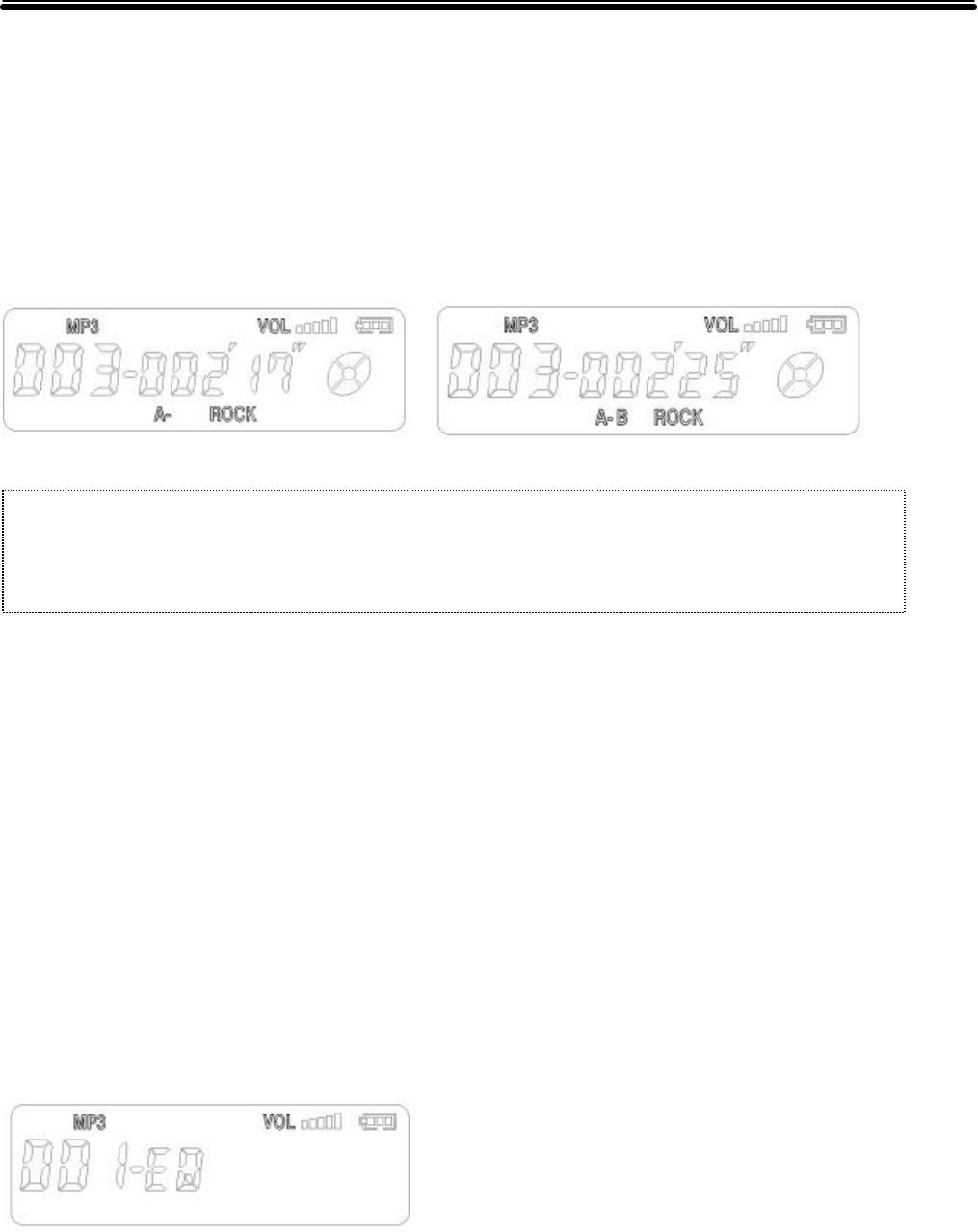

● A-B Repeat
Repeats the selected part.
1. Press the MENU button shortly once to select A point during playback.
2. Press the MENU button shortly once again to select B point, the selected A-B part is repeated.
3. Press the MENU button shortly once to release A-B repeat.
■ Setting Menu
Entering to menu mode: Press the MENU button longer once during playback or in stop mode.
Move to the next menu: Setting each menu, press the MENU button shortly once.
Exit from menu mode: Setting each menu, press the MENU button longer once.
● Setting EQ(Equalizer)
You can select an appropriate mode according to music file type you wish to playback.
1. Press the MENU button shortly once during playback or in stop mode.
2. Select ROCK, POP, CLASS or USER mode using FF/REW button.
3. Press the MENU button again to complete setting EQ.
Select A point Select B point
☞ Note ☜
● If u don’t select B point after selecting A point, repeat mode is released and moves to the next file.
16
MP3 Mode

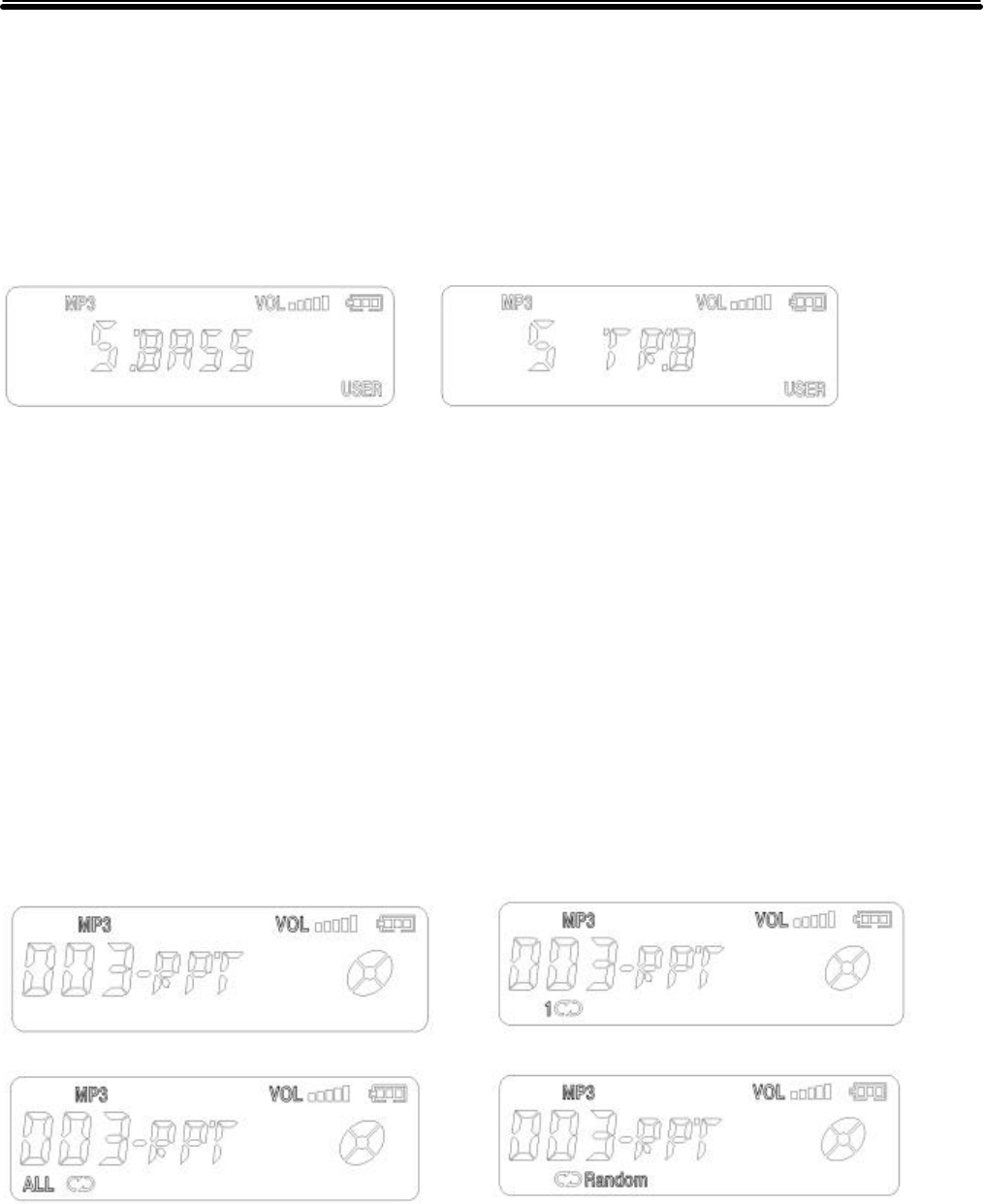

● Setting USER EQ mode
You can set LOW sound(BASS) and HIGH sound(TREBLE) for 5 steps.
1. Select USER in the setting EQ mode, select MENU button shortly once.
2. Set the BASS using the FF/REW button, press the MENU button shortly once.
3. Set the TREBLE using the FF/REW button, press the MENU button to complete setting USER EQ mode.
● Repeating
You can set repeating style.
1. Press the MENU button longer once during playback or in stop mode and press the MENU button shortly once.
2. Select NORMAL, REPEAT_1, REPEAT_ALL or RAMDOM using FF/REW button.
3. Press the MENU button to complete setting.
NORMAL : Playback from the first file to the last file and stop.
REPEAT_1 : Repeat only one file.
REPEAT_ALL : Repeat all files continuously in order.
RANDOM : Repeat all files randomly.
Enter to repeating mode(NORMAL) REPEAT_1
REPEAT_ALL RANDOM
BASS TREBLE
17
MP3 Mode
● Deleting
You can delete MP3 files saved in the product. Deleting one file and all files are available. The way of
deleting files is the same as Deleting MP3 File, page 13.
18
Voice Mode
■ Switching to Voice Mode
Press the MENU button shortly once, select Voice Mode using the FF/REW button.

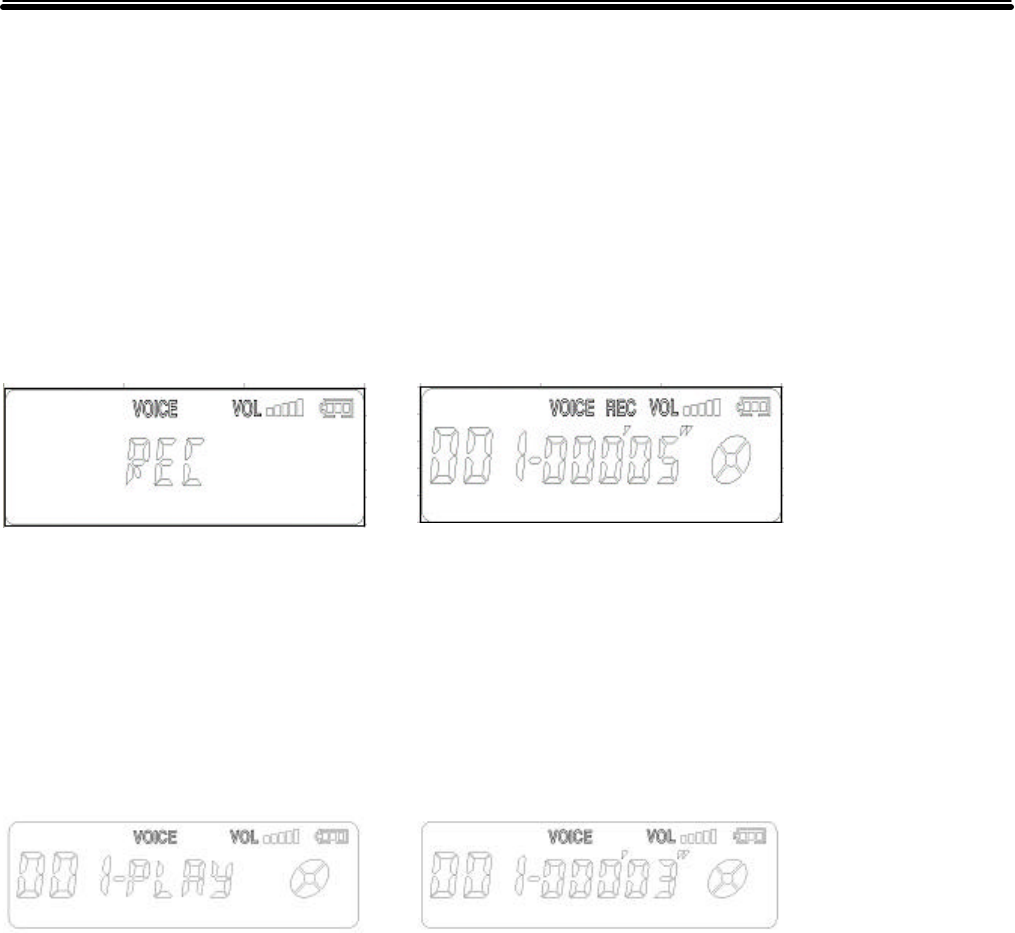

■ Recording
You can record voice or sound.
1. Press the REC/STOP button shortly once to start recording in stop mode.
2. Press the REC/STOP button shortly once again to stop recording.
■ Playback
You can listen to the recorded file saved in the product using earphones.
1. Select a file you wish to playback using FF/REW button.
2. Press the PLAY/STOP button shortly once to start playback.
3. Press the PLAY/STOP button shortly once to stop playback.
■ Scanning File (FF/REW)
Using the FF/REW ?button, you can move to the file you want.
● Moving to the previous or next file: Press the FF/REW ?button shortly during playback.
● Scanning file: Press the FF/REW ?button longer during playback.
For the first 10 seconds: The playback time is increased or decreased by second.
After 10 seconds: The playback time is increased or decreased by 10 seconds.
● Selecting the previous or next file : Press FF/REW ?button shortly in the stop state.
19
Voice Mode

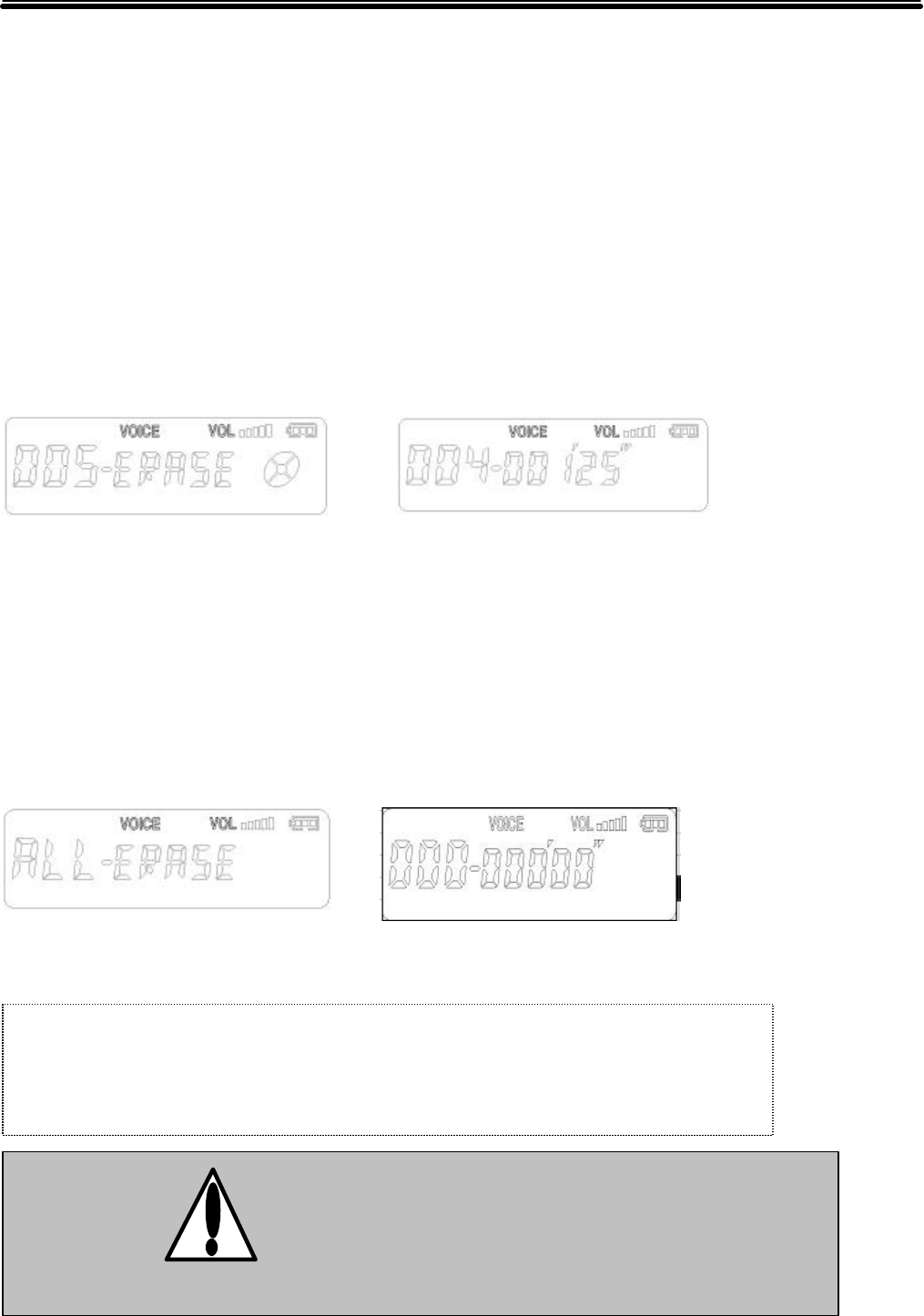

■ Deleting Voice File
You can delete the voice files saved in the product.
● Deleting one file(FILE ERASE)
Deletes one recorded file in the product. The file numbers are decreased by one after deleting file.
1. Select the file to delete in stop mode, press the MENU button longer once and shortly twice to enter ERASE
MODE.
2. Select FILE ERASE using the FF/REW button.
3. Press the MENU button longer once to delete the file.
● Deleting all files(ALL ERASE)
Deletes all the recorded files saved in voce folder.
1. Press the MENU button longer once in stop mode and shortly twice to enter ERASE MODE.
2. Select ALL ERASE using the FF/REW button.
3. Press the MENU button longer once to delete all files.
Before deleting #5 file After deleting #5 file
☞ Note ☜
◆ If you press the MENU button or other button except the ERASE
button, file deletion is
cancelled.
Caution
● The deleted recording file cannot be recovered.
Please make sure to decide carefully and check the
file(s) you select to delete.
Before ALL ERASE After ALL ERASE
20
Voice Mode
■ Voice Recording Function
● Index Added Recording
Adds the indexing number (file number) of the file being recorded.
Press the FF?button during recording, the file number of the file being recorded is increased and saved automatically.
◆ When you press the FF button and record for 30 minutes after recording for 30 minutes starting from the
number 1 file, the sound is recorded in the number 1 file for 30 minutes and in the number 2 file for 30 minutes.
■ Voice Playback Functions
● Scan and Playback
The first 5 seconds of each files are played back one by one.
1. Press the PLAY/STOP button longer once during playback.
2. The SCAN message is displayed on the LCD and the first 5 seconds of the recorded files are played back in the
order.
3. Press the PLAY/STOP button shortly once to stop scan and playback.
● Resume
Playbacks from the position you stopped when you stopped playback.
☞ Note ☜
● If you press other button than the PLAY/STOP button after s
topping
playback, the file is played back from the first position.
21
Voice Mode
● A-B Repeat
Repeats the selected part.
1. Press the MENU button shortly once to select A point during playback.
2. Press the MENU button shortly once again to select B point, the selected A-B part is repeated.
3. Press the MENU button shortly once to release A-B repeat.
■ Setting Menu
Entering to menu mode : Press the MENU button longer once during playback or in the stop mode.
Move to the next menu : Setting each menu, press the MENU button shortly once.
Exit from menu mode : Setting each menu, press the MENU button longer once.
● Repeating
You can set repeating style.
1. Press the MENU button longer once during playback or in stop mode and press the MENU button shortly once.
2. Select NORMAL, REPEAT_1 or REPEAT_ALL using FF/REW button.
3. Press the MENU button to complete setting.
NORMAL : Playback from the first file to the last file and stop.
REPEAT_1 : Repeat only one file.
REPEAT_ALL : Repeat all files continuously in order.
Select A point Select B point
Enter to repeating mode(NORMAL)
REPEAT_1
REPEAT_ALL
22
Voice Mode
● Deleting
You can delete MP3 files saved in the product. Deleting one file and all files are available. The way of deleting files
is the same as Deleting Voice File, page 19.
23
Radio Mode
■ Switching to Radio Mode
Press the MENU button shortly once, select Radio Mode using the FF/REW button.
■ Scanning Frequency
Scans the frequency of the broadcast you wish to listen to.
● Auto Frequency Scanning
Press the FF/REW button longer while listening to a radio broadcast.
● Manual Frequency Scanning
Press the FF/REW button shortly once while listening to a radio broadcast.
■ Preset Memory
Memorizes the frequency of the current broadcast to your desired frequency memory number. You can save up to
20 frequencies.
1. Press the REC/STOP button shortly once while listening to a radio broadcast.
2. Select your desired frequency memory number using the FF/REW button.
3. Press the REC/STOP button shortly once again to save the current broadcast frequency to the selected number.
24
Radio Mode
■ Listening to Preset Frequency
You can listen to the frequency broadcast saved with the preset number.
1. Press the PLAY/STOP?button shortly once while listening a radio broadcast.
2. The Preset number and broadcast frequency displays on the LCD screen.
3. Select your desired number using the FF/REW button to listen to a preset broadcast.
4. Press the PLAY/STOP button shortly once to release the preset frequency mode.
■ Deleting Preset Frequency
You can delete a preset frequency.
1. Select the number you wish to delete using the FF/REW ?button.
2. Press the ERASE button longer once, the ERASE is displayed on the LCD screen.
3. Press the ERASE button shortly once to delete the frequency of the selected number.

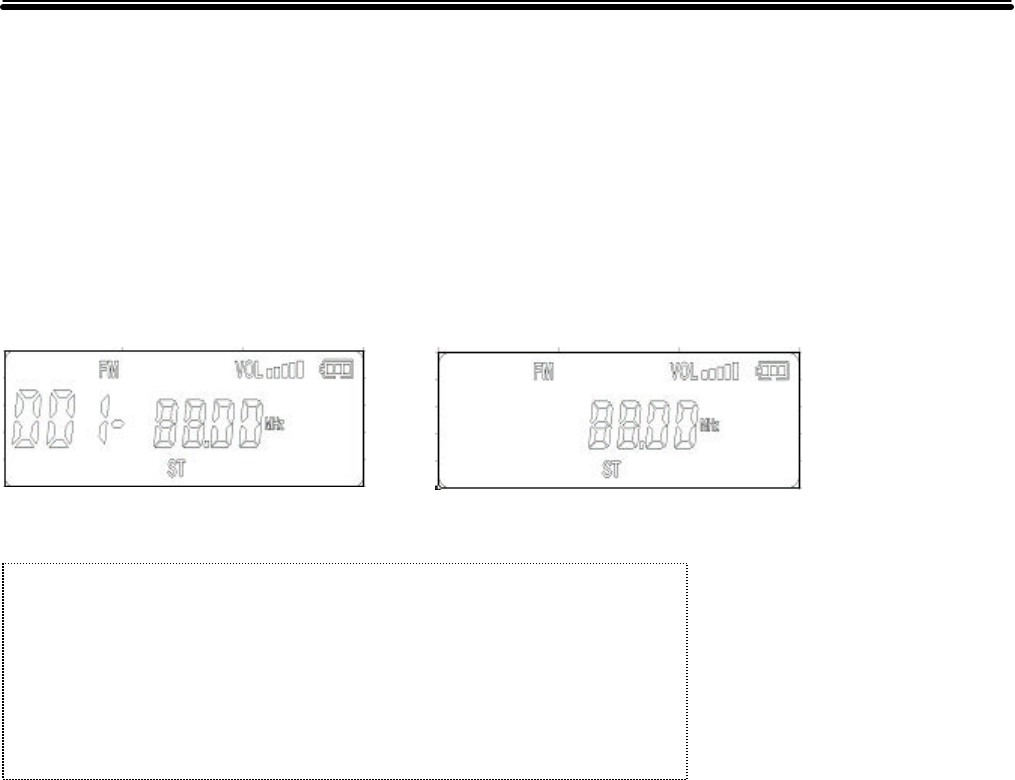

Listening to preset frequency
Releasing the preset frequency
☞ Note ☜
● When there is no saved number, this function does not work.
●
If the preset numbers which have no saved frequency are not
displayed on the LCD screen when selecting a number with the FF/REW
button.
25
Radio Mode
■ Recording Broadcast
Records the broadcast you are listening to.
1. Press the REC/STOP button longer to start recording while listening to a broadcast.
2. Press the REC/STOP button longer once to stop recording.
■ Playback the Recorded Broadcast
1. Switch to the Voice Mode. (See page 18)
2. Select a file you wish to playback using FF/REW button.
3. Press the PLAY/STOP button shortly once to start playback.
4. Press the PLAY/STOP button shortly once to stop playback.
☞ Note ☜
● Recorded file is saved in the VOICE folder as *.WAV. You can check i
t
on the screen after connecting to the PC.
26
Radio Mode
■ Setting Menu
● Area
You can change the frequency band according to your area.
1. Press the MENU button longer once.
2. Select your area using the FF/REW button and press the MENU button shortly once to complete setting.
USA EUROPE/KOREA JAPAN
☞ Note ☜
● Available frequency band according to area
Area Frequency Band Mobile Frequency Unit
USA 88 MHz ~ 108 MHz 100 KHz
Europe/Korea 88 MHz ~ 108 MHz 50 KHz
Japan 76 MHz ~ 108 MHz 76.0 MHz ~ 90.0 MHz : 100 KHz
90.0 MHz ~ 108.1 MHz : 50 KHz
27
PC Interface
■ Installing Driver
1. Insert the Driver CD on your CD Rom driver. Open the CD driver on the windows explorer.
2. Double-click the [Setup.exe] item in the right window.
28
3. Press the NEXT button sequentially as directed on the screen to finish the installation.
※ Note
Please press the [Continue Anyway] button and keep installing when the below message is shown after installing
the driver on the Windows XP.
※ Caution
Do not connect the product to the PC before installing the driver.
Click
Click
29
PC Interface
■ Downloading

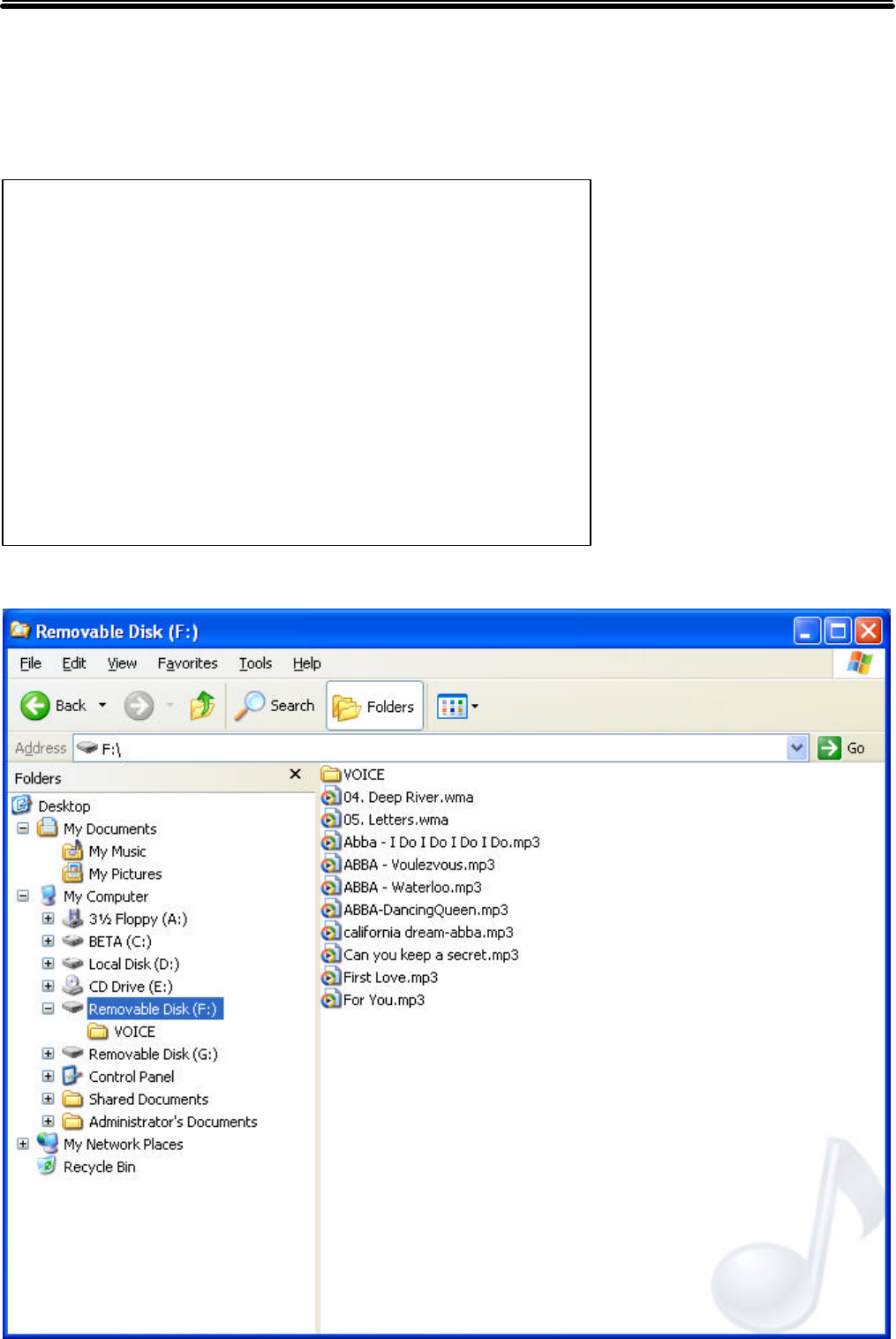

1. Turn the power on and connect the product to the PC after installing the driver using USB cable.
2. [Removable Disk] is created in the windows explorer. The saved files are displayed on the right window.
30

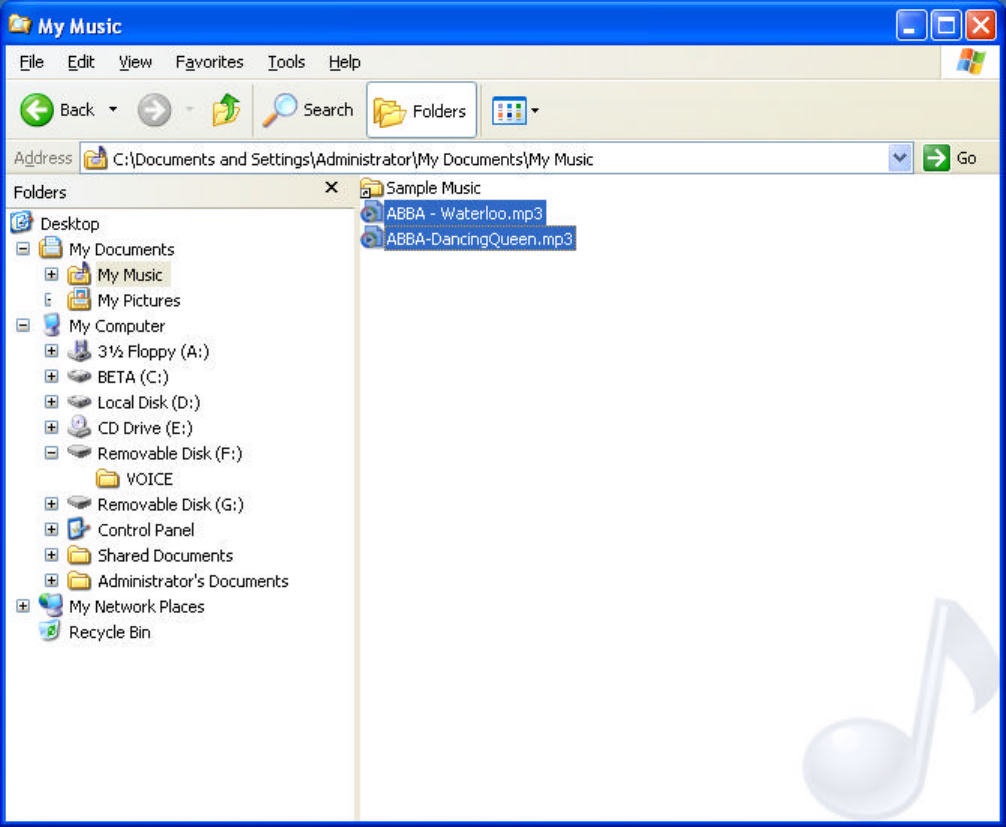

3. Select the MP3 file(s) you wish to download to the product.
31

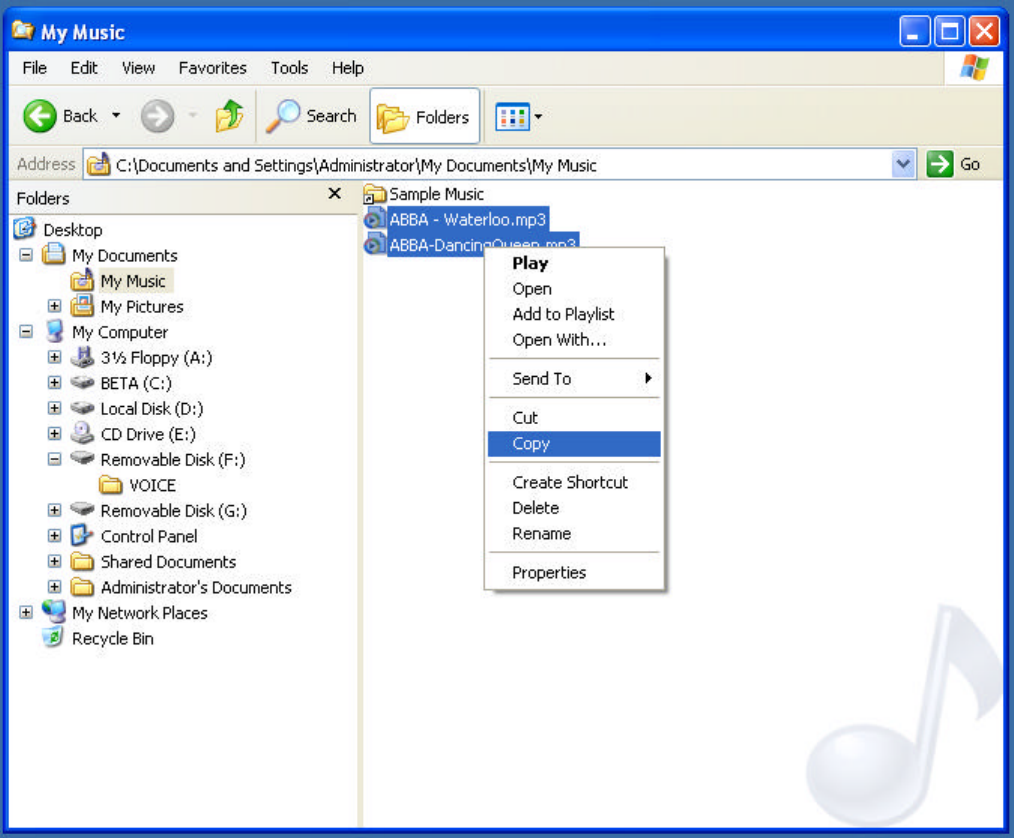

4. Click the right button of your mouse. Select [Copy] item.
32

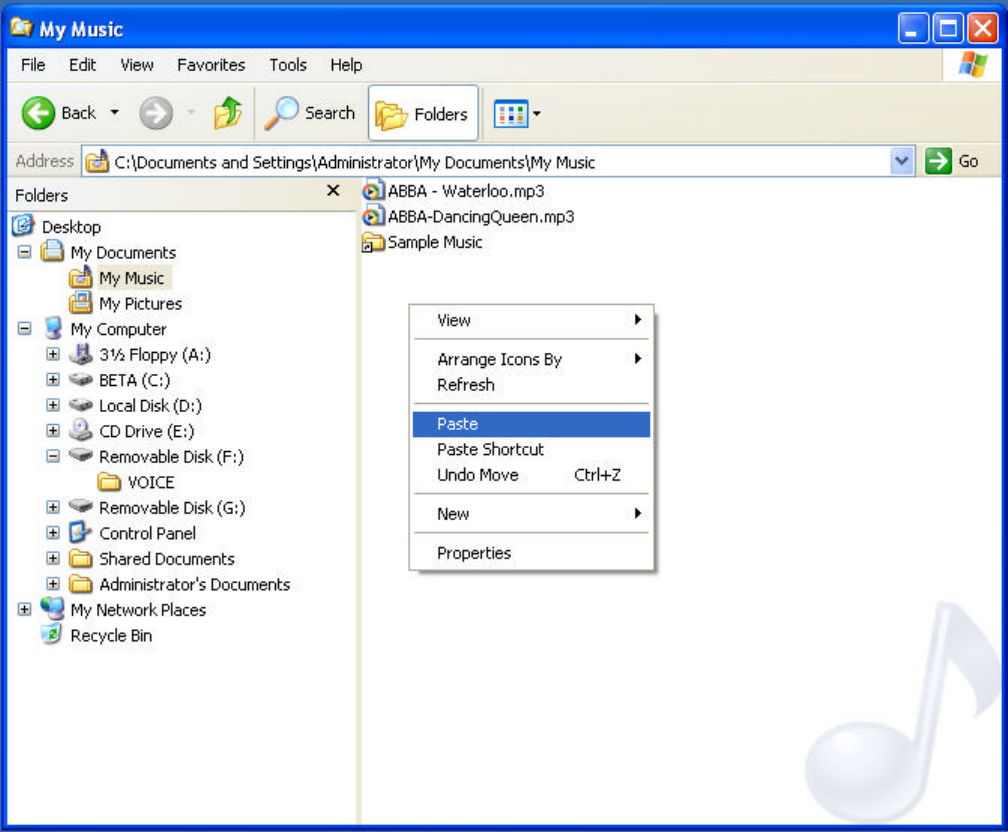

5. Select the [Removable Disk] on the left window and click the [Paste]. Or drag and drop to the
[Removable Disk].
33
PC Interface
■ Uploading
※ You cannot upload MP3 files to the PC.

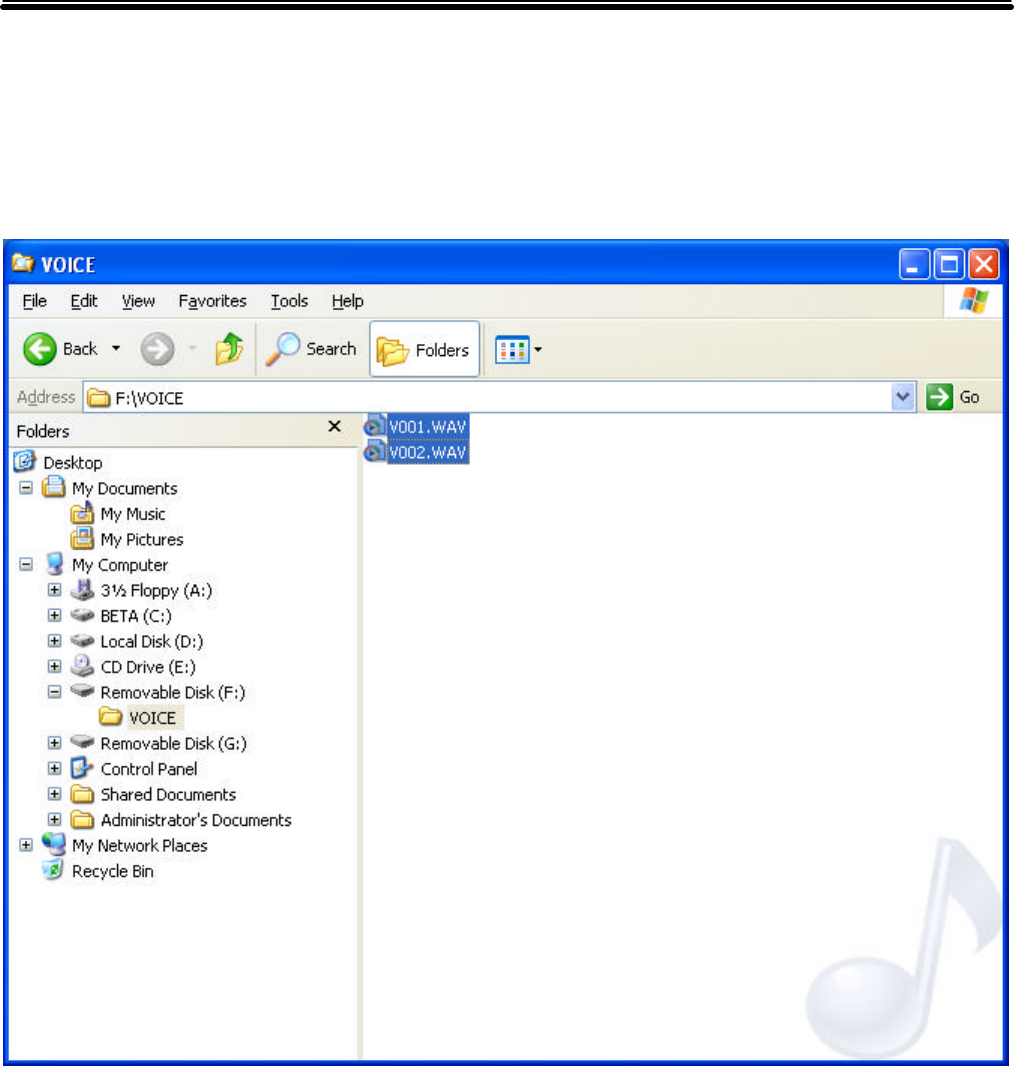

1. Select file(s) you wish to upload in the right window of the windows explorer.
34

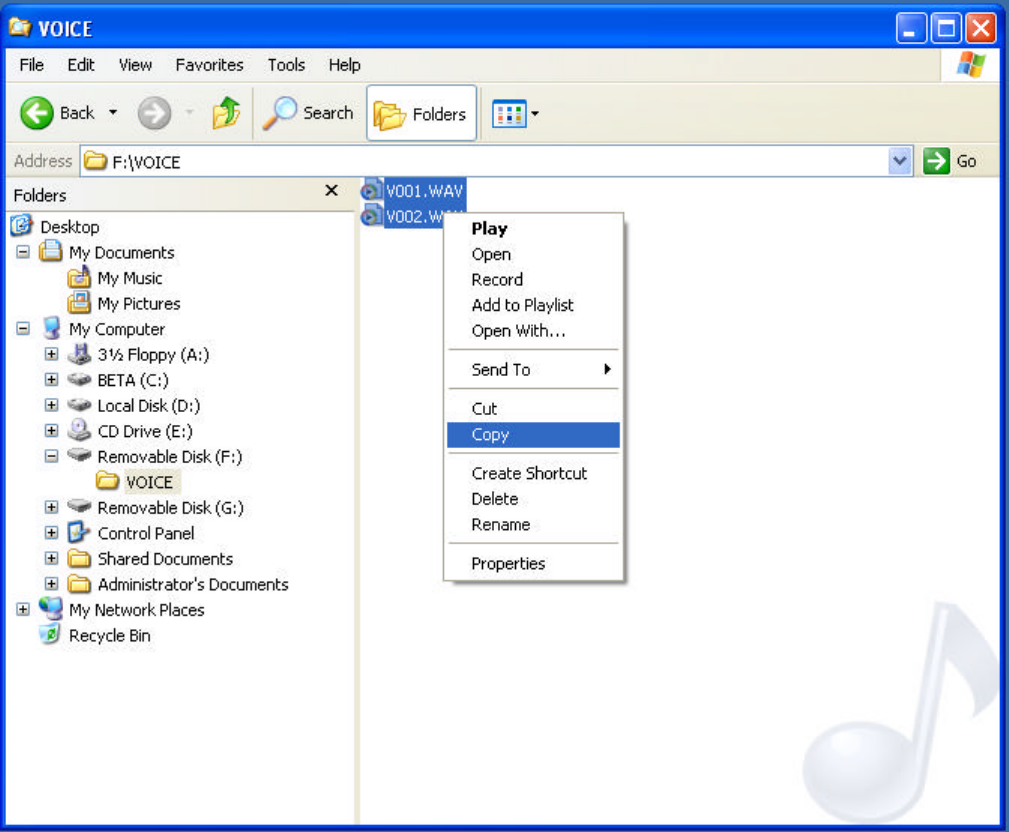

2. Click the right button of your mouse and select the [Copy].
35
3. Select any folder to save file(s) and click the [Paste]. Or drag and drop file(s) where you want to save.
36
PC Interface
■ Deleting File
1. Select file(s) you wish to delete on the right window of the windows explorer.
37
2. Click the right button of the mouse and click [Delete].
38

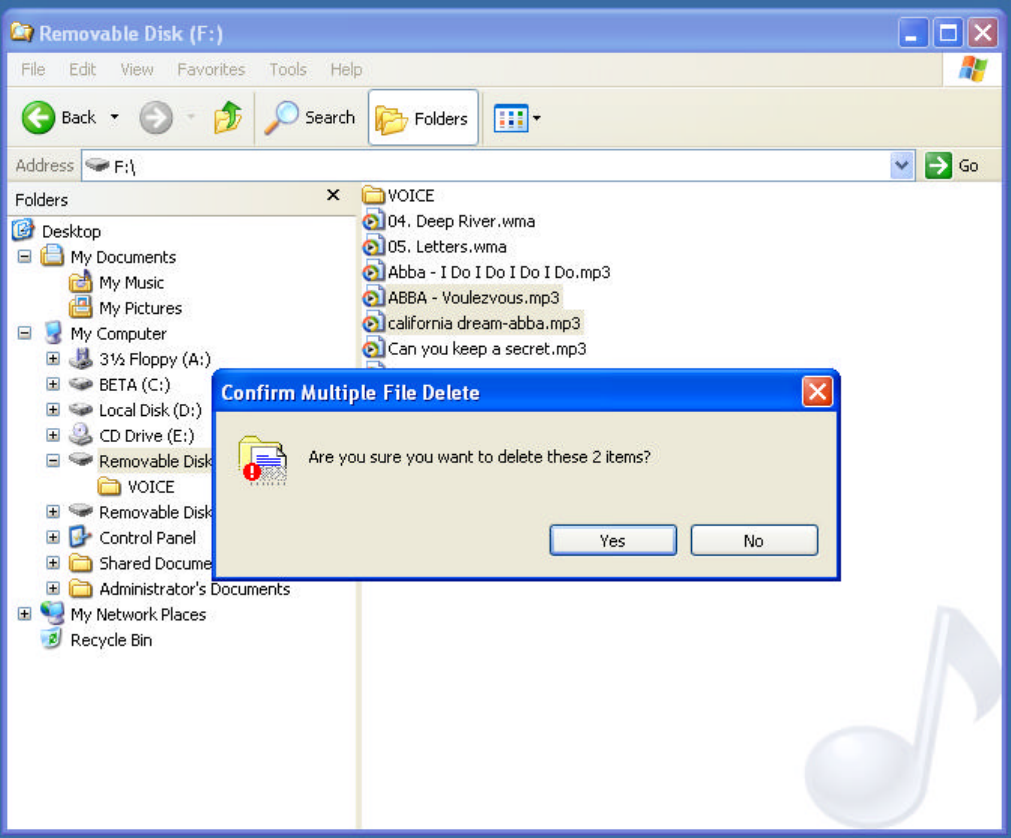

3. Click [Yes] to delete the file(s).
39
Troubleshooting
When you encounter any problem, check the following items.
Symptom Cause Action
Check whether the battery runs out.
Replace the battery with a new
one.
Nothing is displayed on the
LCD screen.
Check whether the polarities are
correct.
Make sure that the polarities are
correct.
Check whether the HOLD button is
set to ON.
Set the HOLD button to OFF.
Check whether the memory is full. Delete unnecessary files.
Cannot record.
Check whether the battery runs out.
Replace the battery with a new
one.
Check whether the HOLD button is
set to ON.
Set the HOLD button to OFF.
Check whether the product has the
saved files.
Check the file number.
Cannot playback.
Check whether the battery runs out.
Replace the battery with a new
one.
Check the volume is set to 0. Control the volume.
Cannot hear sound through
the earphone.
Check whether the earphone is
connected firmly and correctly.
Connect the earphone firmly and
correctly.
Check whether the power is ON. Turn the power ON and connect to
the PC.
Check whether the driver is
installed.
Install the driver.
Cannot download or upload
files.
Check the connection between
product and PC.
Connect the USB cable firmly and
correctly.
40
Specifications
Item Specification
Model MMP-R330 MMP-R630
Memory 64 MB 128 MB
Battery Life Time MP3 playback: approx. 00 hours Voice playback: approx. 00 hours
Voice recording: approx. 00 hours
Frequency 500 Hz ~ 3500 Hz
Bit Rate 8Kbps ~ VBR
MP3 MPEG 1, 2, WMA, AAC Codec
VOICE ADPCM IMA
Earphone 3mW, 160 Ohm External
Input USB cable PC Interface USB 1.1
Dimension 31*70 *15.9 mm(W * H * D)
Weight About 248g(without battery)
Storage Media Ebeded Flash Memory
Power Source 1.5V AAA Alkaline * 1
Operating Temperature 0 ℃ ~ 40℃
Accessories User Manual, Earphone, AAA Alkaline Battery 1, USB Cable, Diver CD
※ The specifications and appearance of the product may change without notice in order to improve the
quality.
41
Warranty
42
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE
FOLLOWING TWO CONDITIONS: (1) THIS DEVICES MAY NOT CAUSE HARMFUL INTERFERENCE,
AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE, RECEIVED, INCLUDING INTERFERENCE
THAT MAY CAUSE UNDERSIRED OPERATION.
Note : This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures :
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY
UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S
AUTHORITY TO OPERATE THE EQUIPMENT.
