USERS MANUAL

MP-430T User’s Manual PDF created with pdfFactory Pro trial version www.pdffactory.com

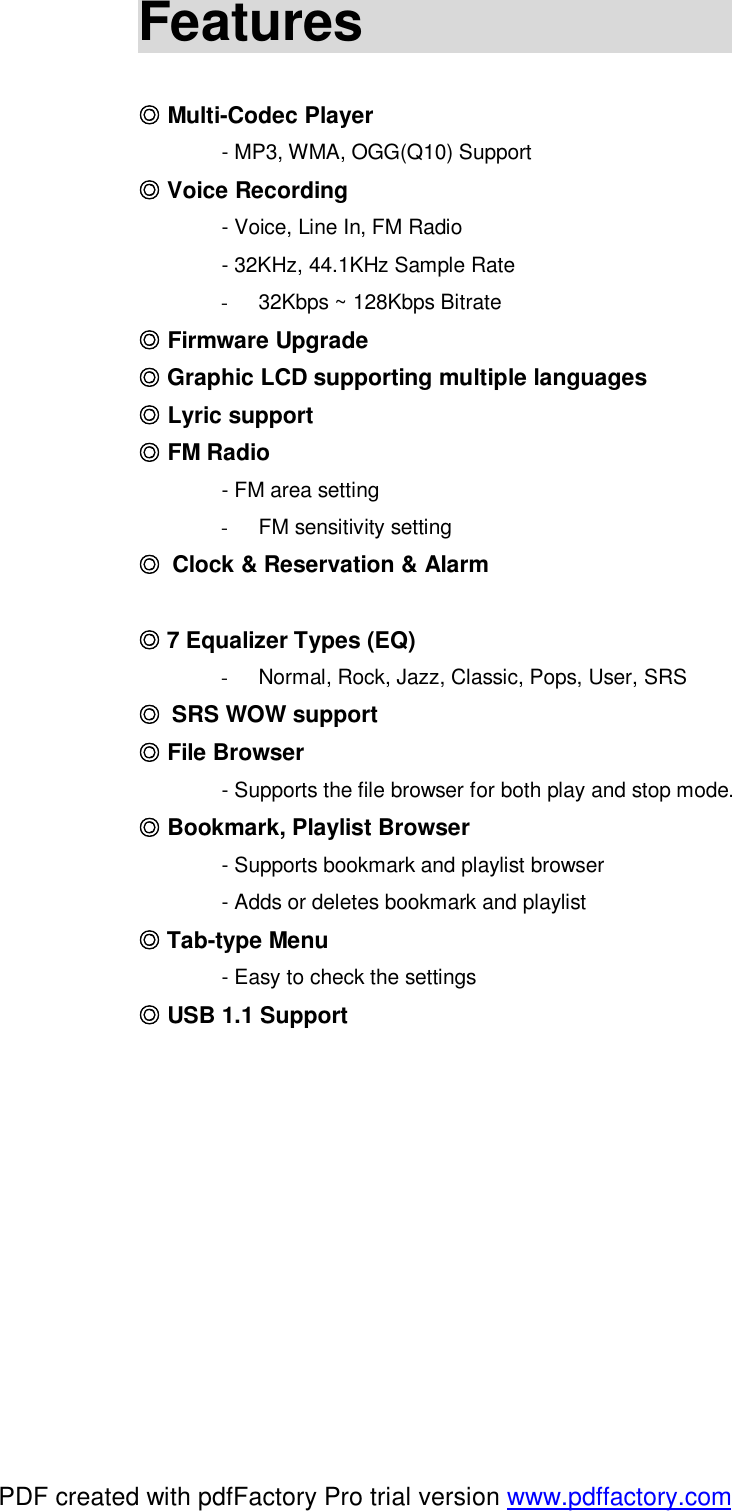

Features Multi◎-Codec Player - MP3, WMA, OGG(Q10) Support Voice Recording◎ - Voice, Line In, FM Radio - 32KHz, 44.1KHz Sample Rate - 32Kbps ~ 128Kbps Bitrate F◎irmware Upgrade Graphic LCD supporting◎ multiple languages ◎ Lyric support FM Radio◎ - FM area setting - FM sensitivity setting ◎ Clock & Reservation & Alarm 7◎ Equalizer Types (EQ) - Normal, Rock, Jazz, Classic, Pops, User, SRS ◎ SRS WOW support File ◎Browser - Supports the file browser for both play and stop mode. Bookmark, Playlist Browser◎ - Supports bookmark and playlist browser - Adds or deletes bookmark and playlist Tab◎-type Menu - Easy to check the settings USB 1.1◎ Support PDF created with pdfFactory Pro trial version www.pdffactory.com

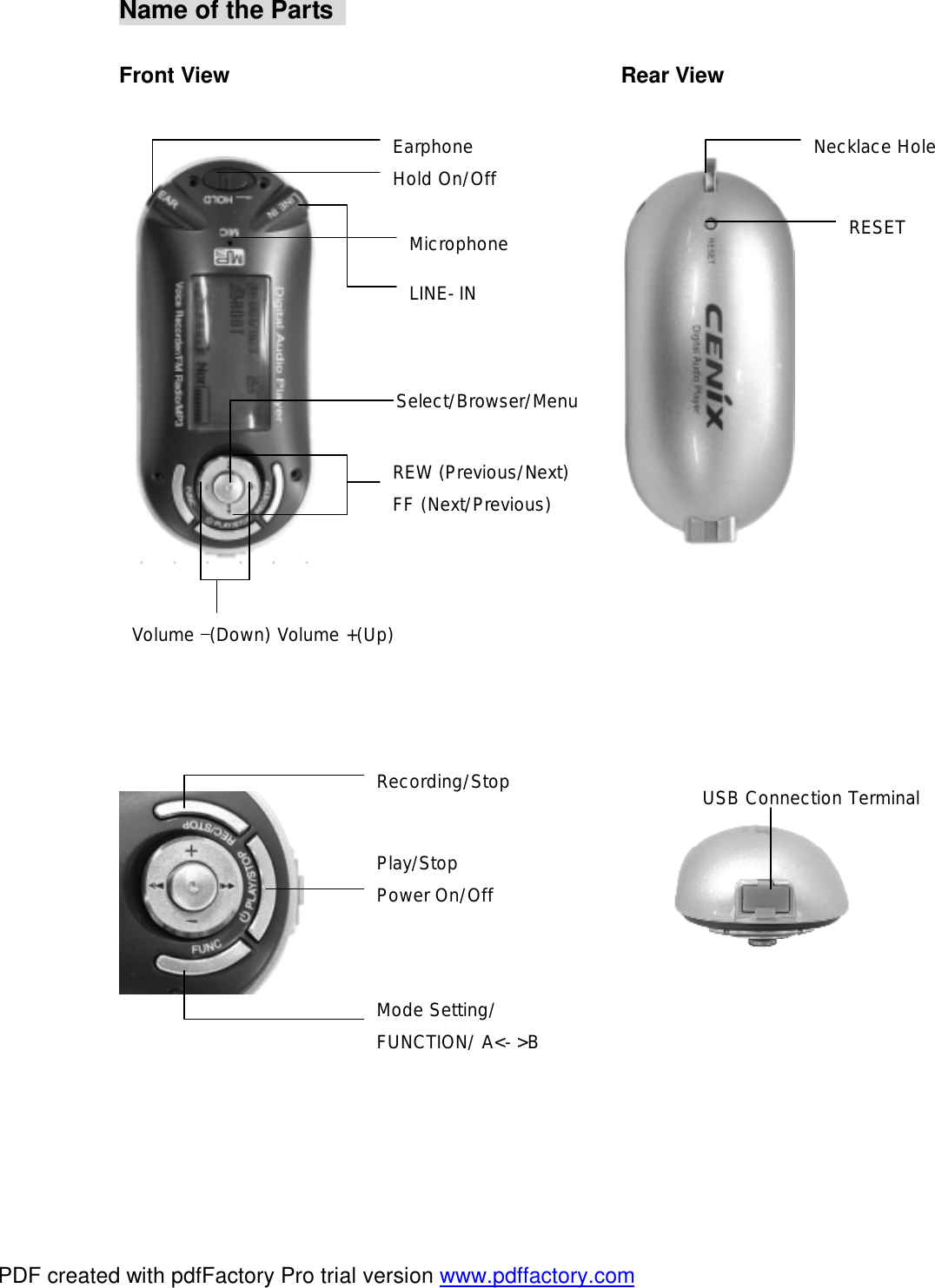

Name of the Parts Front View Rear View Volume –(Down) Volume +(Up) Select/Browser/Menu Microphone REW (Previous/Next) FF (Next/Previous) Earphone LINE-IN Hold On/Off Necklace Hole RESET Recording/Stop Mode Setting/ FUNCTION/ A<->B Play/Stop Power On/Off USB Connection Terminal PDF created with pdfFactory Pro trial version www.pdffactory.com

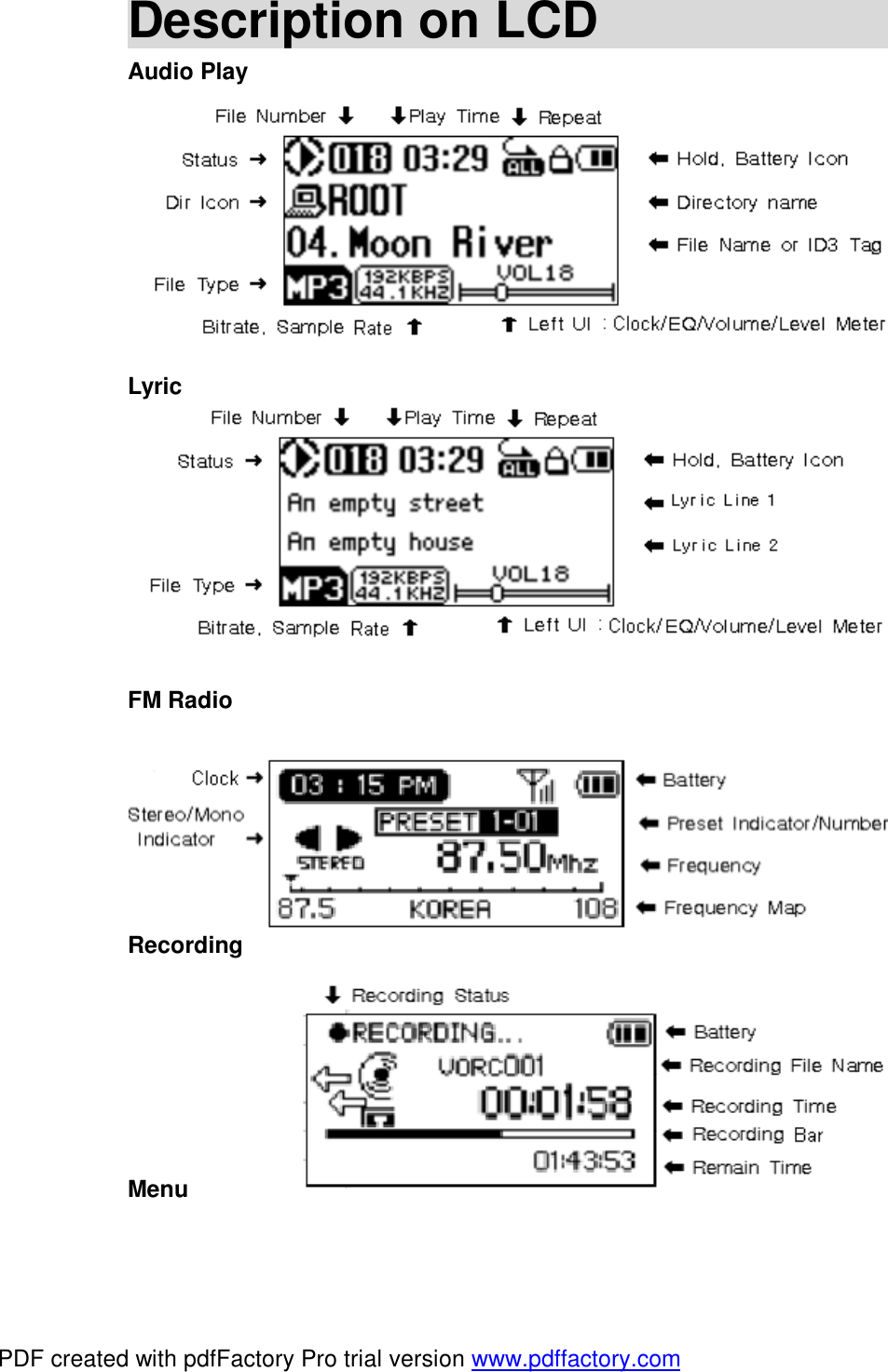

Description on LCD Audio Play Lyric FM Radio Recording Menu PDF created with pdfFactory Pro trial version www.pdffactory.com
PDF created with pdfFactory Pro trial version www.pdffactory.com

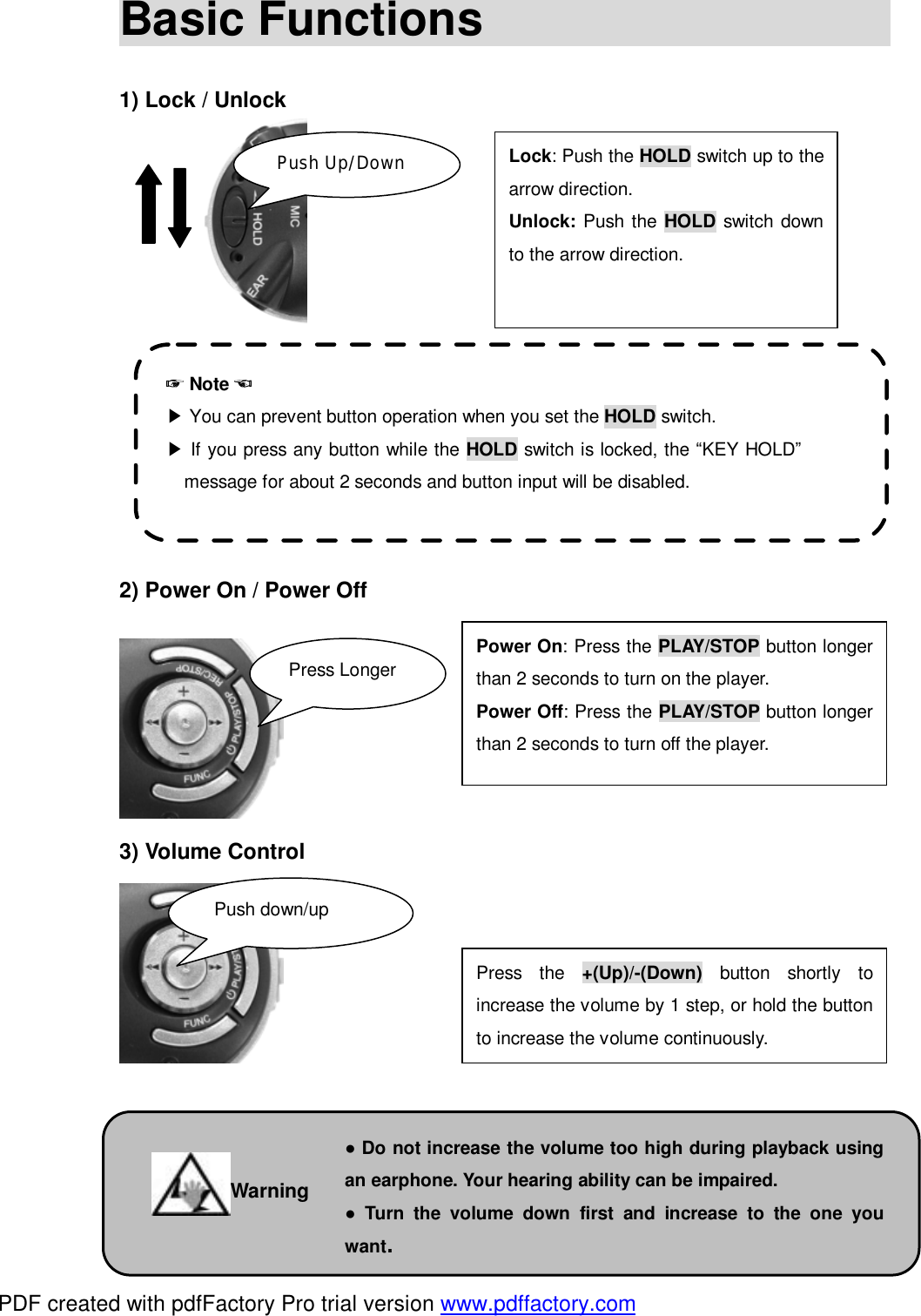

Basic Functions 1) Lock / Unlock 2) Power On / Power Off 3) Volume Control Lock: Push the HOLD switch up to the arrow direction. Unlock: Push the HOLD switch down to the arrow direction. Power On: Press the PLAY/STOP button longer than 2 seconds to turn on the player. Power Off: Press the PLAY/STOP button longer than 2 seconds to turn off the player. ☞ Note ☜ ▶ You can prevent button operation when you set the HOLD switch. ▶ If you press any button while the HOLD switch is locked, the “KEY HOLD”message for about 2 seconds and button input will be disabled. Push Up/Down Press Longer Press the +(Up)/-(Down) button shortly to increase the volume by 1 step, or hold the button to increase the volume continuously. Push down/up ● Do not increase the volume too high during playback using an earphone. Your hearing ability can be impaired. ● Turn the volume down first and increase to the one you want. Warning PDF created with pdfFactory Pro trial version www.pdffactory.com

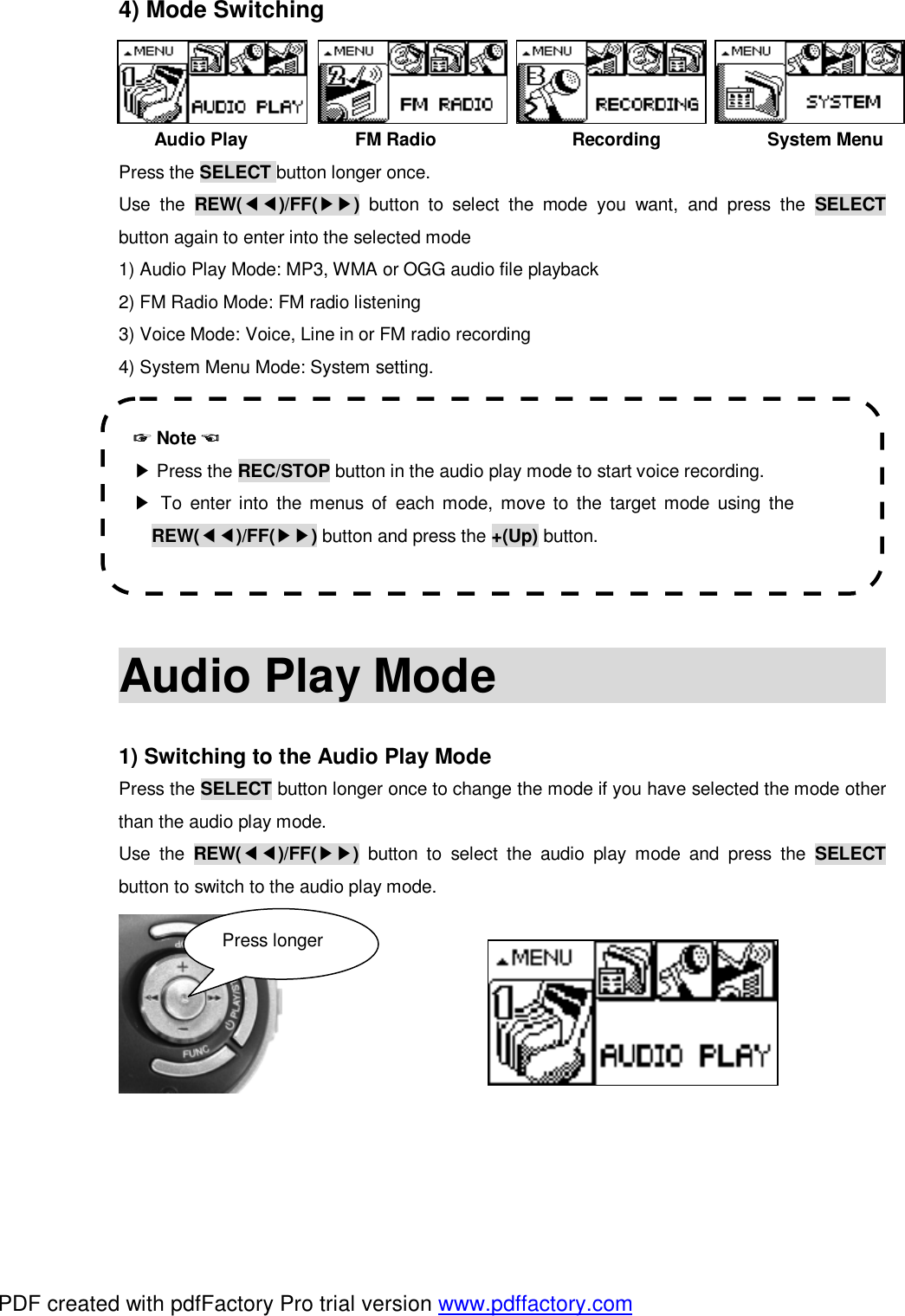

4) Mode Switching Audio Play FM Radio Recording System Menu Press the SELECT button longer once. Use the REW(◀◀)/FF(▶▶) button to select the mode you want, and press the SELECT button again to enter into the selected mode 1) Audio Play Mode: MP3, WMA or OGG audio file playback 2) FM Radio Mode: FM radio listening 3) Voice Mode: Voice, Line in or FM radio recording 4) System Menu Mode: System setting. Audio Play Mode 1) Switching to the Audio Play Mode Press the SELECT button longer once to change the mode if you have selected the mode other than the audio play mode. Use the REW(◀◀)/FF(▶▶) button to select the audio play mode and press the SELECT button to switch to the audio play mode. ☞ Note ☜ ▶ Press the REC/STOP button in the audio play mode to start voice recording. ▶ To enter into the menus of each mode, move to the target mode using the REW(◀◀)/FF(▶▶) button and press the +(Up) button. Press longer PDF created with pdfFactory Pro trial version www.pdffactory.com

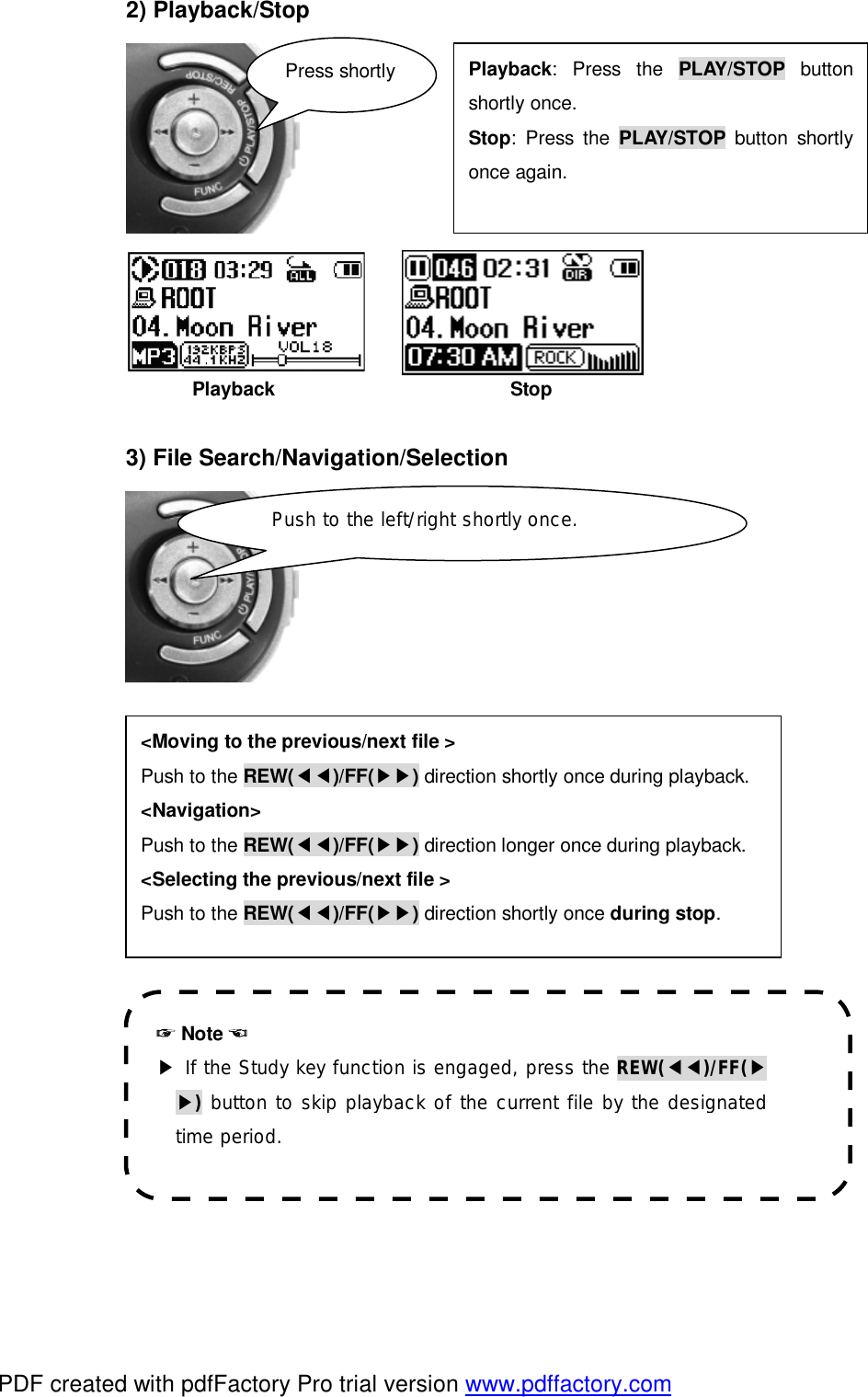

2) Playback/Stop Playback Stop 3) File Search/Navigation/Selection ☞ Note ☜ ▶ If the Study key function is engaged, press the REW(◀◀)/FF(▶▶) button to skip playback of the current file by the designated time period. Playback: Press the PLAY/STOP button shortly once. Stop: Press the PLAY/STOP button shortly once again. Press shortly <Moving to the previous/next file > Push to the REW(◀◀)/FF(▶▶) direction shortly once during playback. <Navigation> Push to the REW(◀◀)/FF(▶▶) direction longer once during playback. <Selecting the previous/next file > Push to the REW(◀◀)/FF(▶▶) direction shortly once during stop. Push to the left/right shortly once. PDF created with pdfFactory Pro trial version www.pdffactory.com

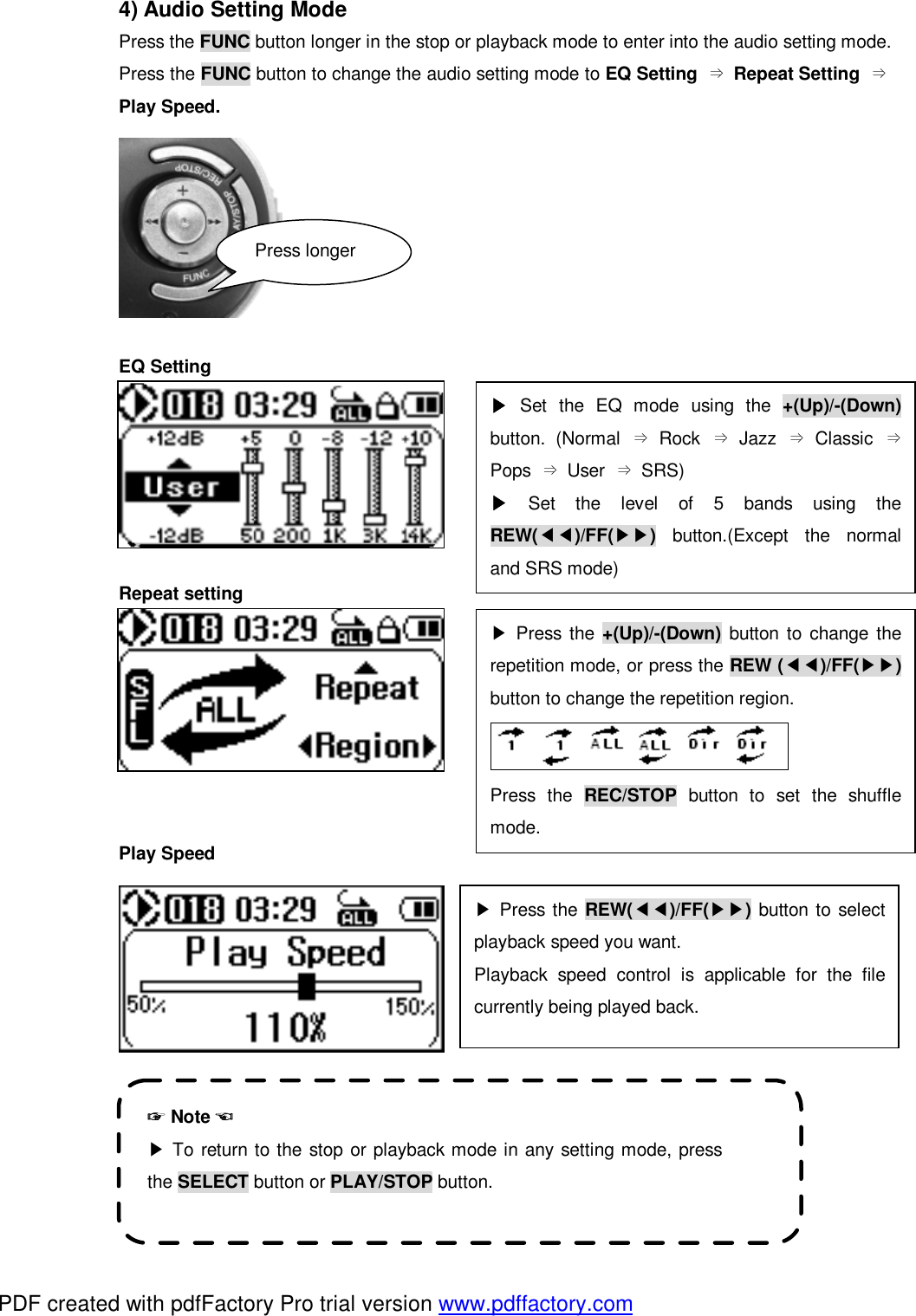

4) Audio Setting Mode Press the FUNC button longer in the stop or playback mode to enter into the audio setting mode. Press the FUNC button to change the audio setting mode to EQ Setting ⇒ Repeat Setting ⇒ Play Speed. EQ Setting Repeat setting - Play Speed Press longer ▶ Set the EQ mode using the +(Up)/-(Down)button. (Normal ⇒ Rock ⇒ Jazz ⇒ Classic ⇒Pops ⇒ User ⇒ SRS) ▶ Set the level of 5 bands using theREW(◀◀)/FF(▶▶) button.(Except the normal and SRS mode) ▶ Press the +(Up)/-(Down) button to change the repetition mode, or press the REW (◀◀)/FF(▶▶)button to change the repetition region. Press the REC/STOP button to set the shuffle mode. ▶Press the REW(◀◀)/FF(▶▶) button to select playback speed you want. Playback speed control is applicable for the file currently being played back. ☞ Note ☜ ▶ To return to the stop or playback mode in any setting mode, press the SELECT button or PLAY/STOP button. PDF created with pdfFactory Pro trial version www.pdffactory.com

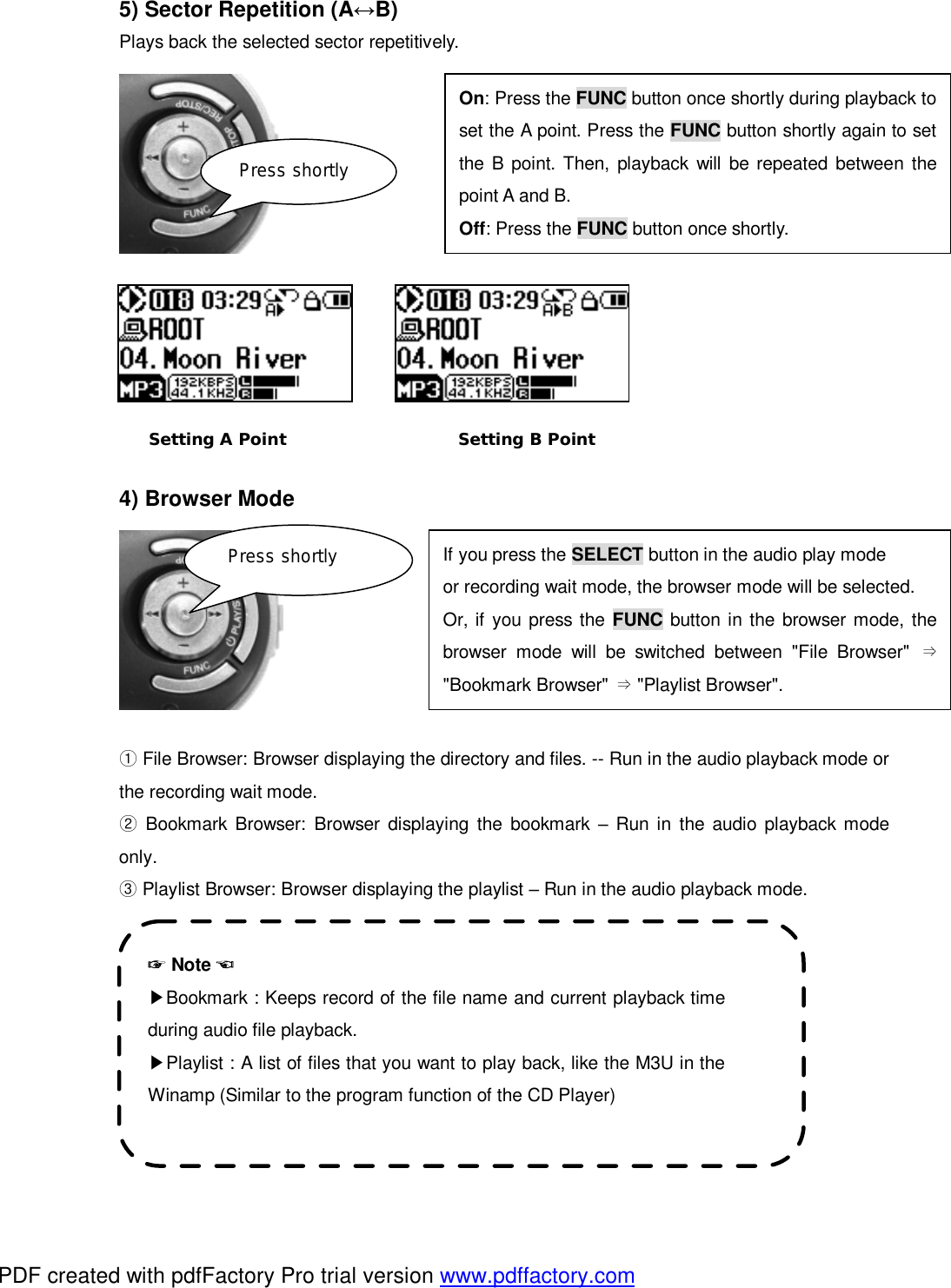

5) Sector Repetition (A↔B) Plays back the selected sector repetitively. 4) Browser Mode File Browser:① Browser displaying the directory and files. -- Run in the audio playback mode or the recording wait mode. Bookmark Browser:② Browser displaying the bookmark – Run in the audio playback mode only. Playlist Browser: ③Browser displaying the playlist – Run in the audio playback mode. Press shortly Press shortly ☞ Note ☜ ▶Bookmark : Keeps record of the file name and current playback time during audio file playback. ▶Playlist : A list of files that you want to play back, like the M3U in the Winamp (Similar to the program function of the CD Player) Setting A Point Setting B Point On: Press the FUNC button once shortly during playback to set the A point. Press the FUNC button shortly again to set the B point. Then, playback will be repeated between the point A and B. Off: Press the FUNC button once shortly. If you press the SELECT button in the audio play mode or recording wait mode, the browser mode will be selected. Or, if you press the FUNC button in the browser mode, the browser mode will be switched between "File Browser" ⇒"Bookmark Browser" ⇒ "Playlist Browser". PDF created with pdfFactory Pro trial version www.pdffactory.com

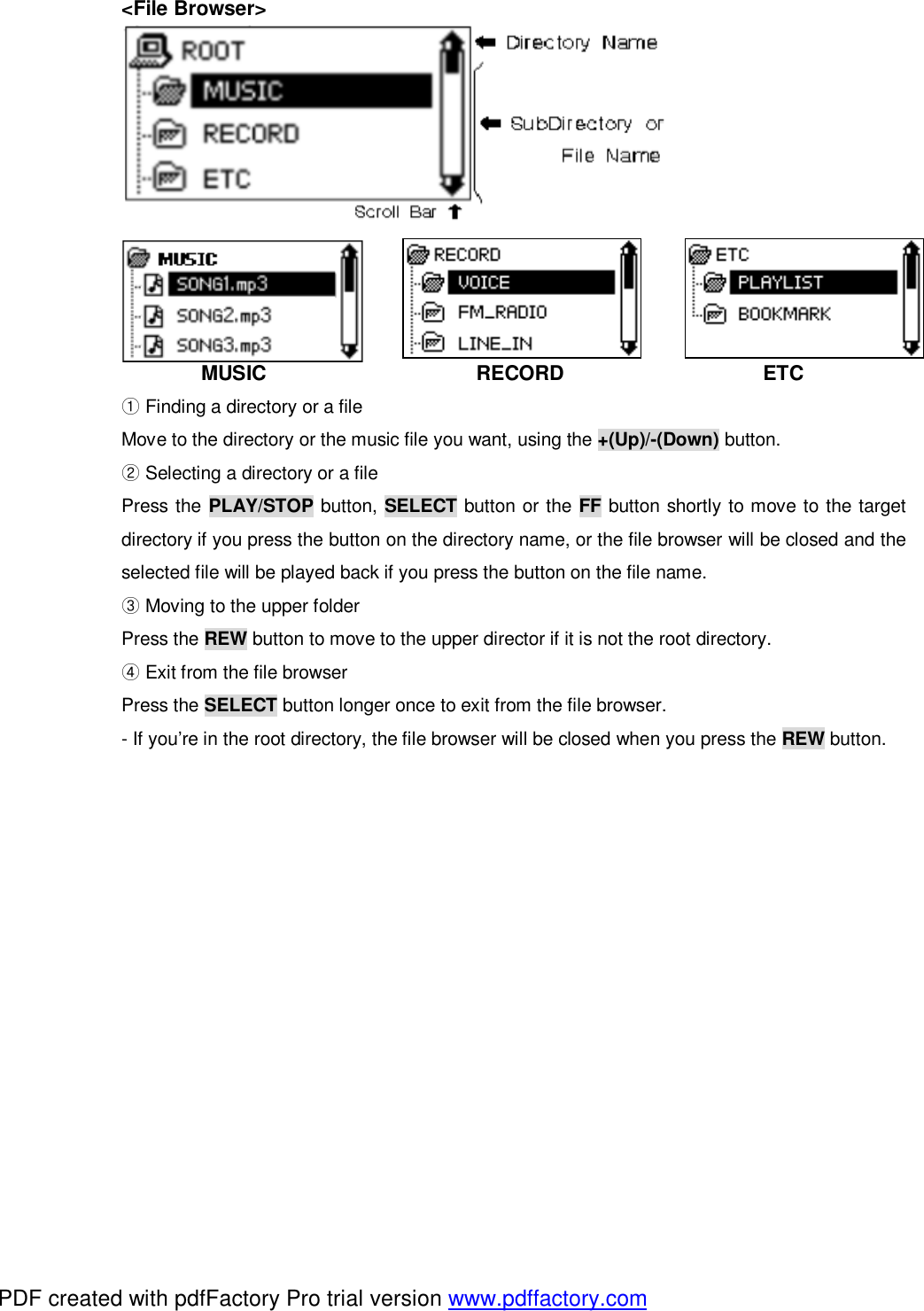

<File Browser> MUSIC RECORD ETC ①Finding a directory or a file Move to the directory or the music file you want, using the +(Up)/-(Down) button. ②Selecting a directory or a file Press the PLAY/STOP button, SELECT button or the FF button shortly to move to the target directory if you press the button on the directory name, or the file browser will be closed and the selected file will be played back if you press the button on the file name. ③Moving to the upper folder Press the REW button to move to the upper director if it is not the root directory. ④Exit from the file browser Press the SELECT button longer once to exit from the file browser. - If you’re in the root directory, the file browser will be closed when you press the REW button. PDF created with pdfFactory Pro trial version www.pdffactory.com

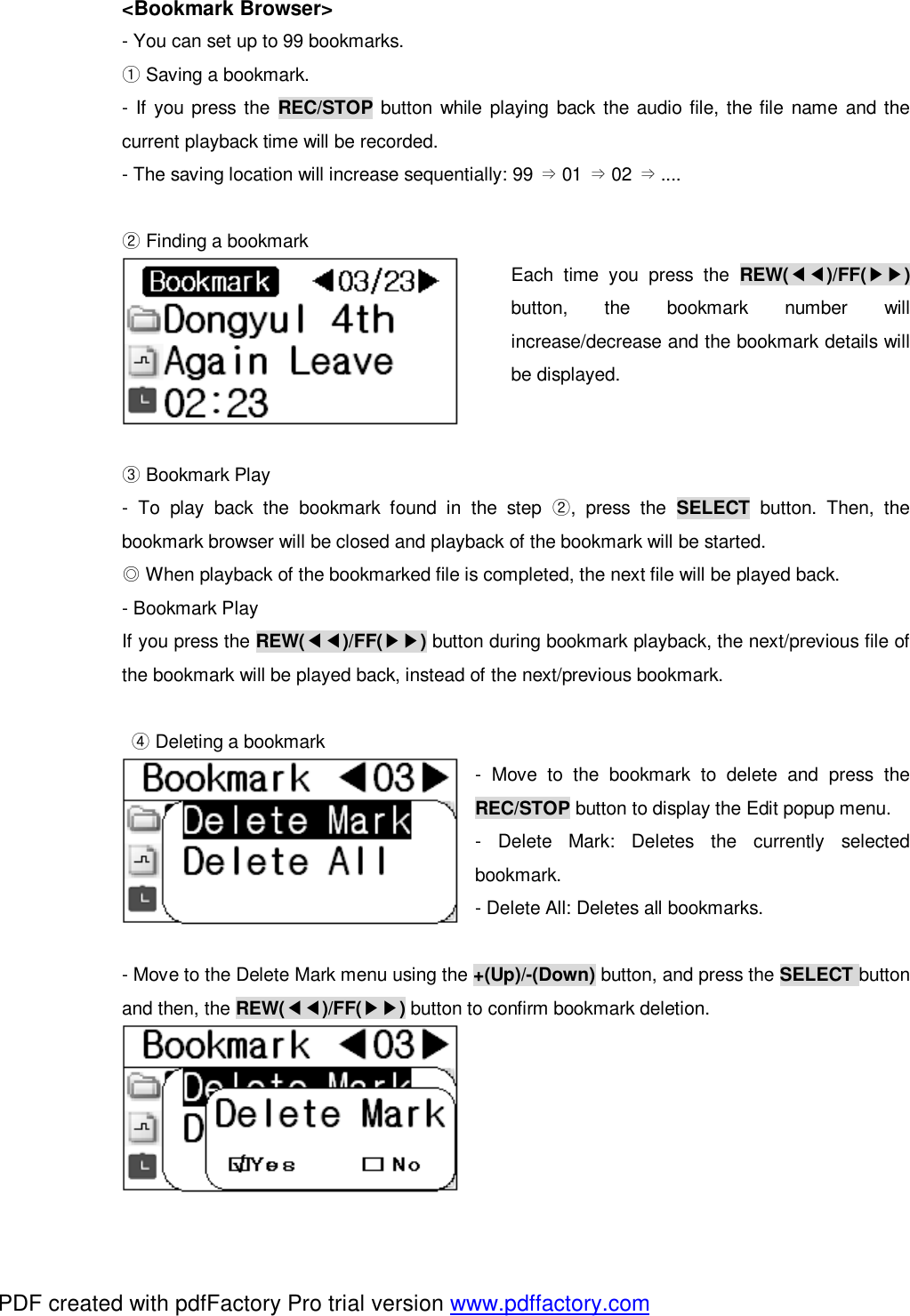

<Bookmark Browser> - You can set up to 99 bookmarks. ①Saving a bookmark. - If you press the REC/STOP button while playing back the audio file, the file name and the current playback time will be recorded. - The saving location will increase sequentially: 99 01 02 ....⇒⇒⇒ ②Finding a bookmark Each time you press the REW(◀◀)/FF(▶▶) button, the bookmark number will increase/decrease and the bookmark details will be displayed. Bookmark P③lay - To play back the bookmark found in the step ②, press the SELECT button. Then, the bookmark browser will be closed and playback of the bookmark will be started. ◎When playback of the bookmarked file is completed, the next file will be played back. - Bookmark Play If you press the REW(◀◀)/FF(▶▶) button during bookmark playback, the next/previous file of the bookmark will be played back, instead of the next/previous bookmark. ④Deleting a bookmark - Move to the bookmark to delete and press the REC/STOP button to display the Edit popup menu. - Delete Mark: Deletes the currently selected bookmark. - Delete All: Deletes all bookmarks. - Move to the Delete Mark menu using the +(Up)/-(Down) button, and press the SELECT button and then, the REW(◀◀)/FF(▶▶) button to confirm bookmark deletion. PDF created with pdfFactory Pro trial version www.pdffactory.com

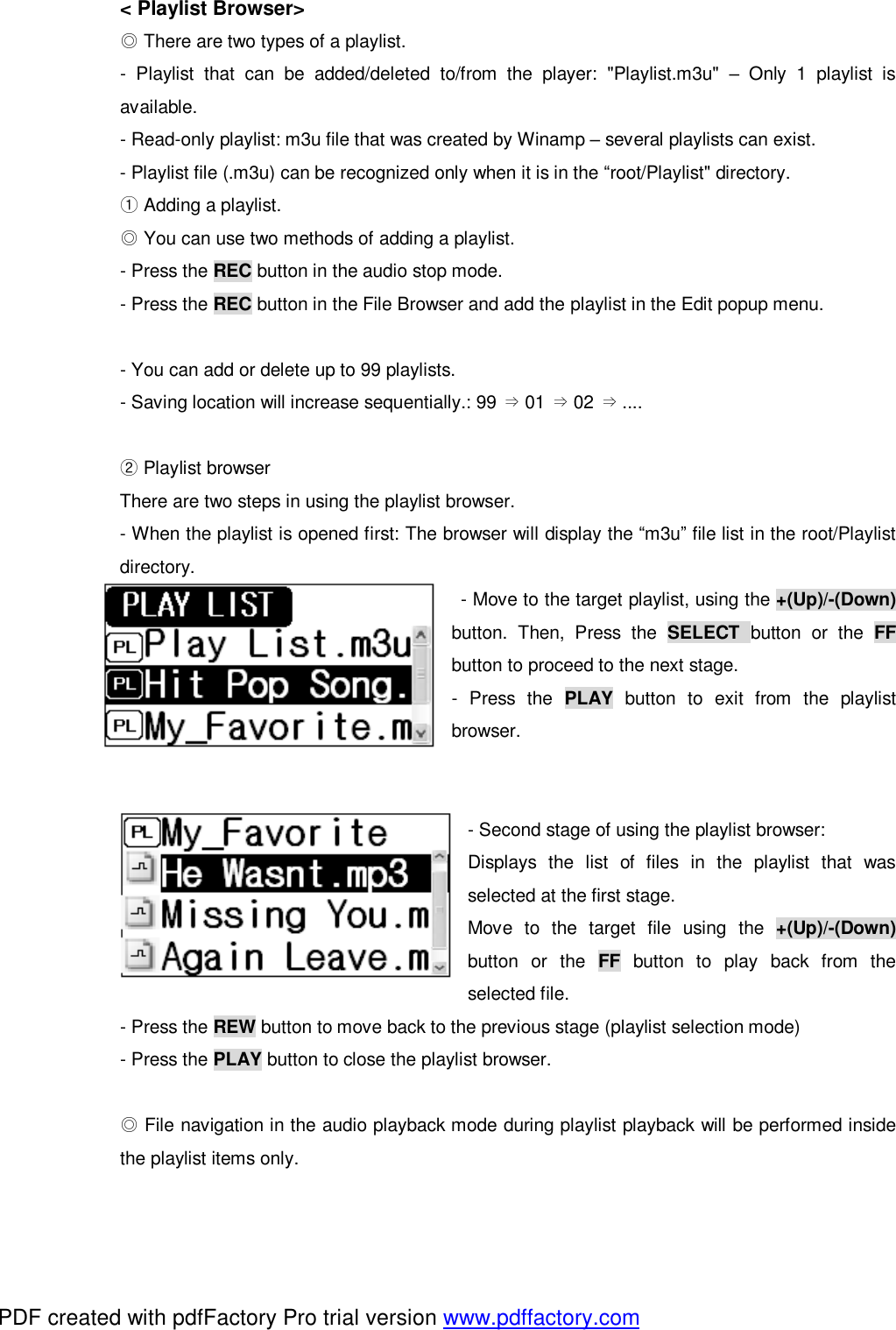

< Playlist Browser> ◎There are two types of a playlist. - Playlist that can be added/deleted to/from the player: "Playlist.m3u" – Only 1 playlist is available. - Read-only playlist: m3u file that was created by Winamp – several playlists can exist. - Playlist file (.m3u) can be recognized only when it is in the “root/Playlist" directory. ①Adding a playlist. ◎You can use two methods of adding a playlist. - Press the REC button in the audio stop mode. - Press the REC button in the File Browser and add the playlist in the Edit popup menu. - You can add or delete up to 99 playlists. - Saving location will increase sequentially.: 99 01 02 ....⇒⇒⇒ Playlist ②browser There are two steps in using the playlist browser. - When the playlist is opened first: The browser will display the “m3u” file list in the root/Playlist directory. - Move to the target playlist, using the +(Up)/-(Down) button. Then, Press the SELECT button or the FF button to proceed to the next stage. - Press the PLAY button to exit from the playlist browser. - Second stage of using the playlist browser: Displays the list of files in the playlist that was selected at the first stage. Move to the target file using the +(Up)/-(Down) button or the FF button to play back from the selected file. - Press the REW button to move back to the previous stage (playlist selection mode) - Press the PLAY button to close the playlist browser. ◎File navigation in the audio playback mode during playlist playback will be performed inside the playlist items only. PDF created with pdfFactory Pro trial version www.pdffactory.com

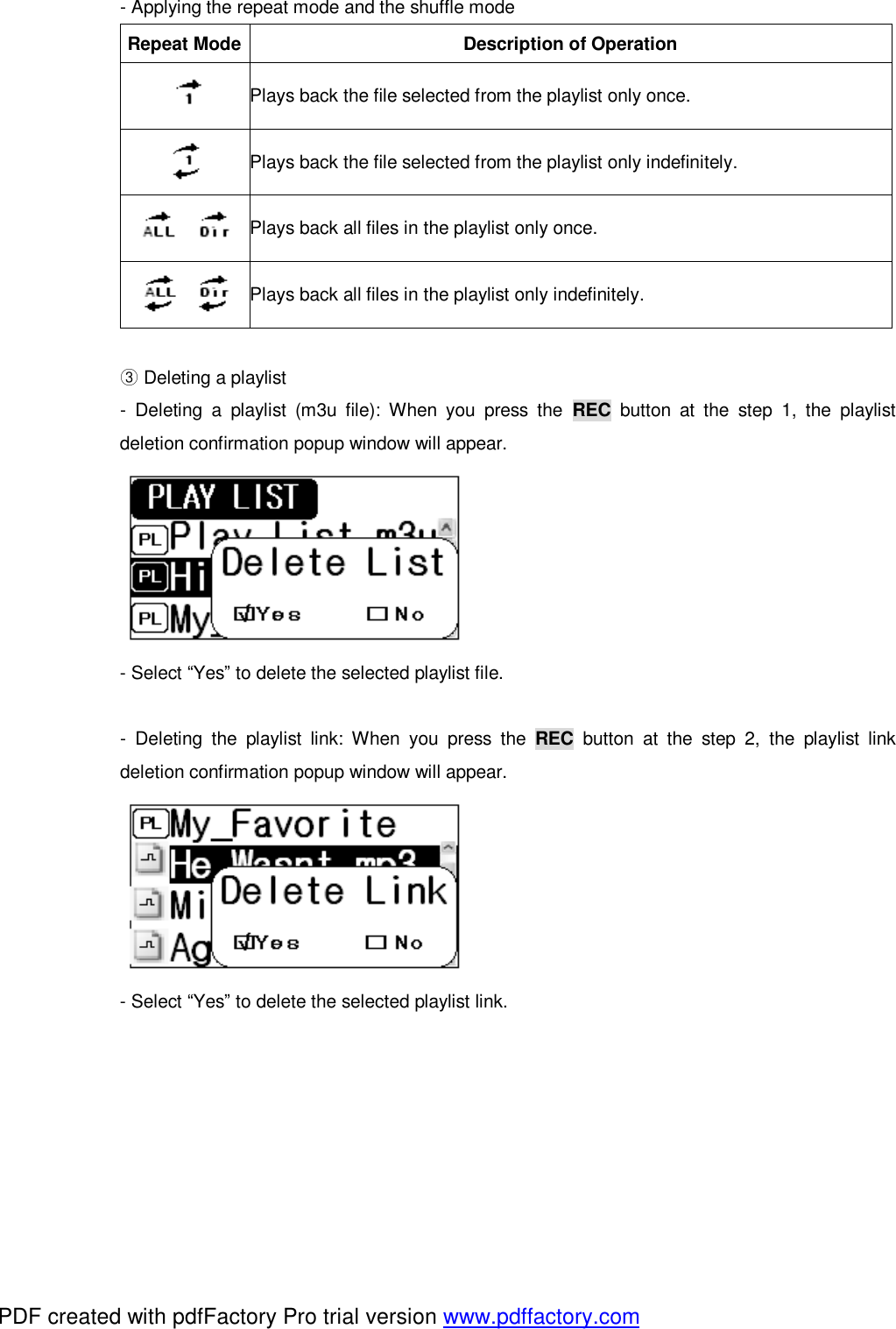

- Applying the repeat mode and the shuffle mode Repeat Mode Description of Operation Plays back the file selected from the playlist only once. Plays back the file selected from the playlist only indefinitely. Plays back all files in the playlist only once. Plays back all files in the playlist only indefinitely. Deleting a playlist③ - Deleting a playlist (m3u file): When you press the REC button at the step 1, the playlist deletion confirmation popup window will appear. - Select “Yes” to delete the selected playlist file. - Deleting the playlist link: When you press the REC button at the step 2, the playlist link deletion confirmation popup window will appear. - Select “Yes” to delete the selected playlist link. PDF created with pdfFactory Pro trial version www.pdffactory.com

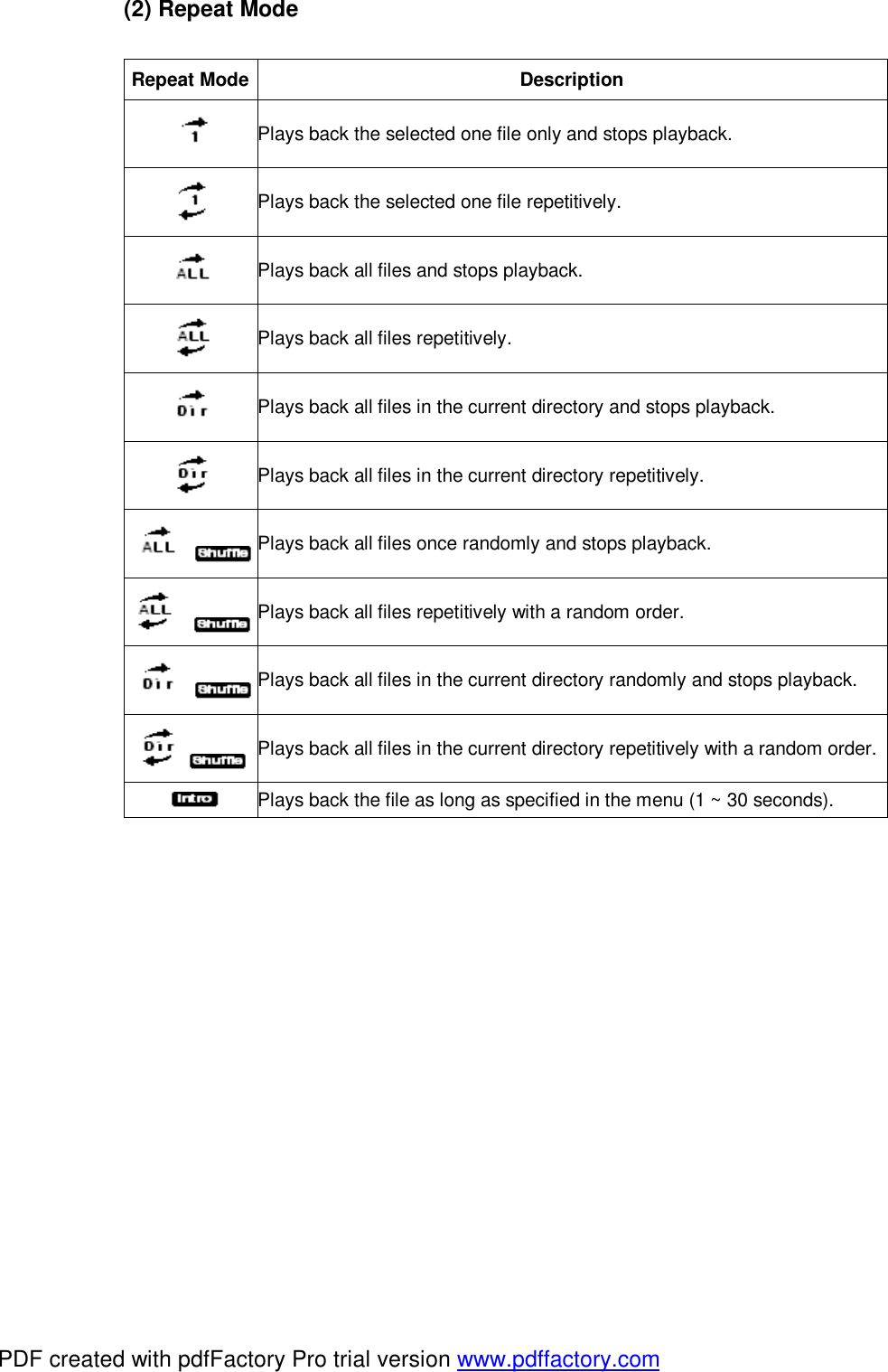

(2) Repeat Mode Repeat Mode Description Plays back the selected one file only and stops playback. Plays back the selected one file repetitively. Plays back all files and stops playback. Plays back all files repetitively. Plays back all files in the current directory and stops playback. Plays back all files in the current directory repetitively. Plays back all files once randomly and stops playback. Plays back all files repetitively with a random order. Plays back all files in the current directory randomly and stops playback. Plays back all files in the current directory repetitively with a random order. Plays back the file as long as specified in the menu (1 ~ 30 seconds). PDF created with pdfFactory Pro trial version www.pdffactory.com

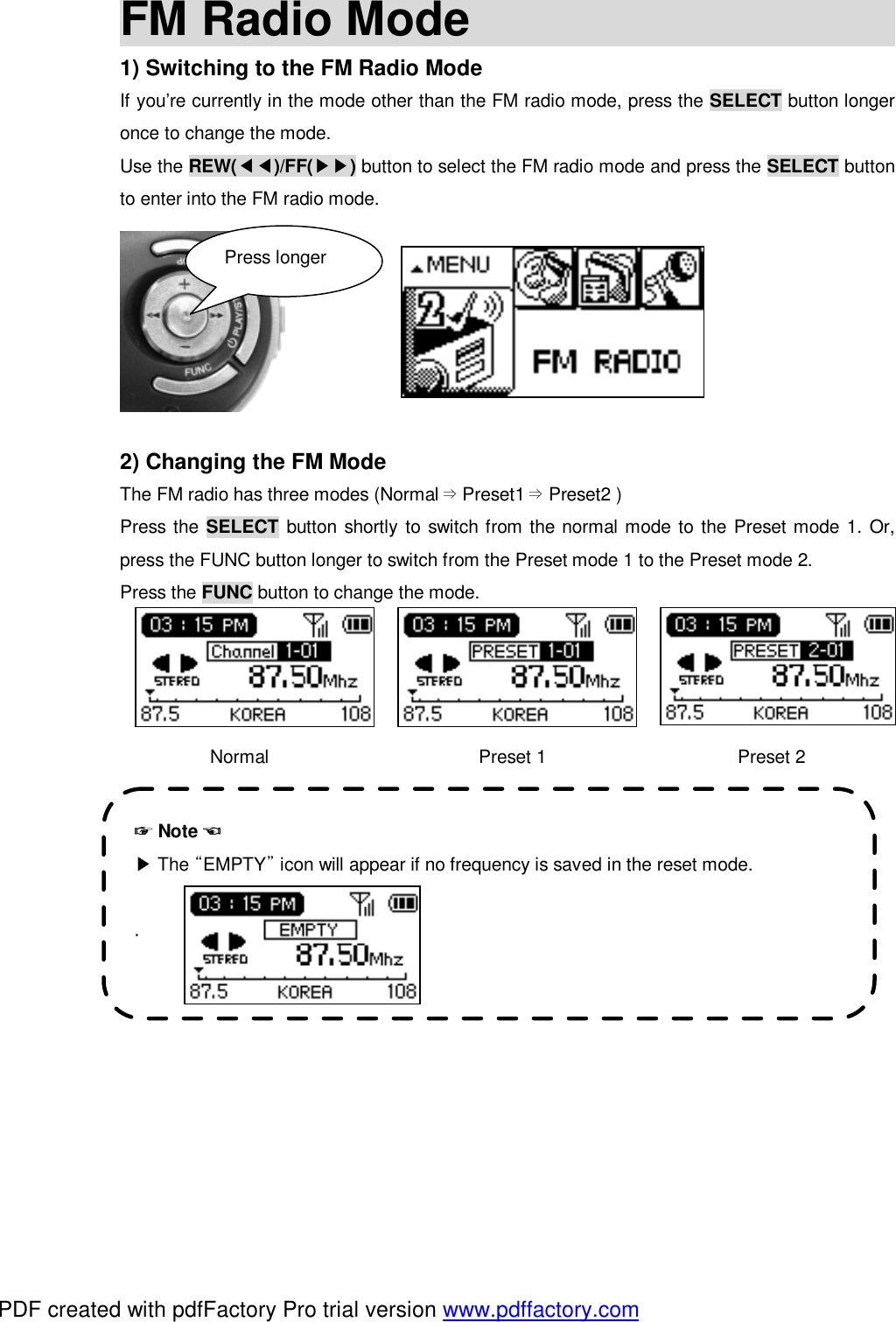

FM Radio Mode 1) Switching to the FM Radio Mode If you’re currently in the mode other than the FM radio mode, press the SELECT button longer once to change the mode. Use the REW(◀◀)/FF(▶▶) button to select the FM radio mode and press the SELECT button to enter into the FM radio mode. 2) Changing the FM Mode The FM radio has three modes (Normal Preset⇒1 Preset⇒2 ) Press the SELECT button shortly to switch from the normal mode to the Preset mode 1. Or, press the FUNC button longer to switch from the Preset mode 1 to the Preset mode 2. Press the FUNC button to change the mode. Normal Preset 1 Preset 2 Press longer ☞ Note ☜ ▶The “EMPTY” icon will appear if no frequency is saved in the reset mode. . PDF created with pdfFactory Pro trial version www.pdffactory.com

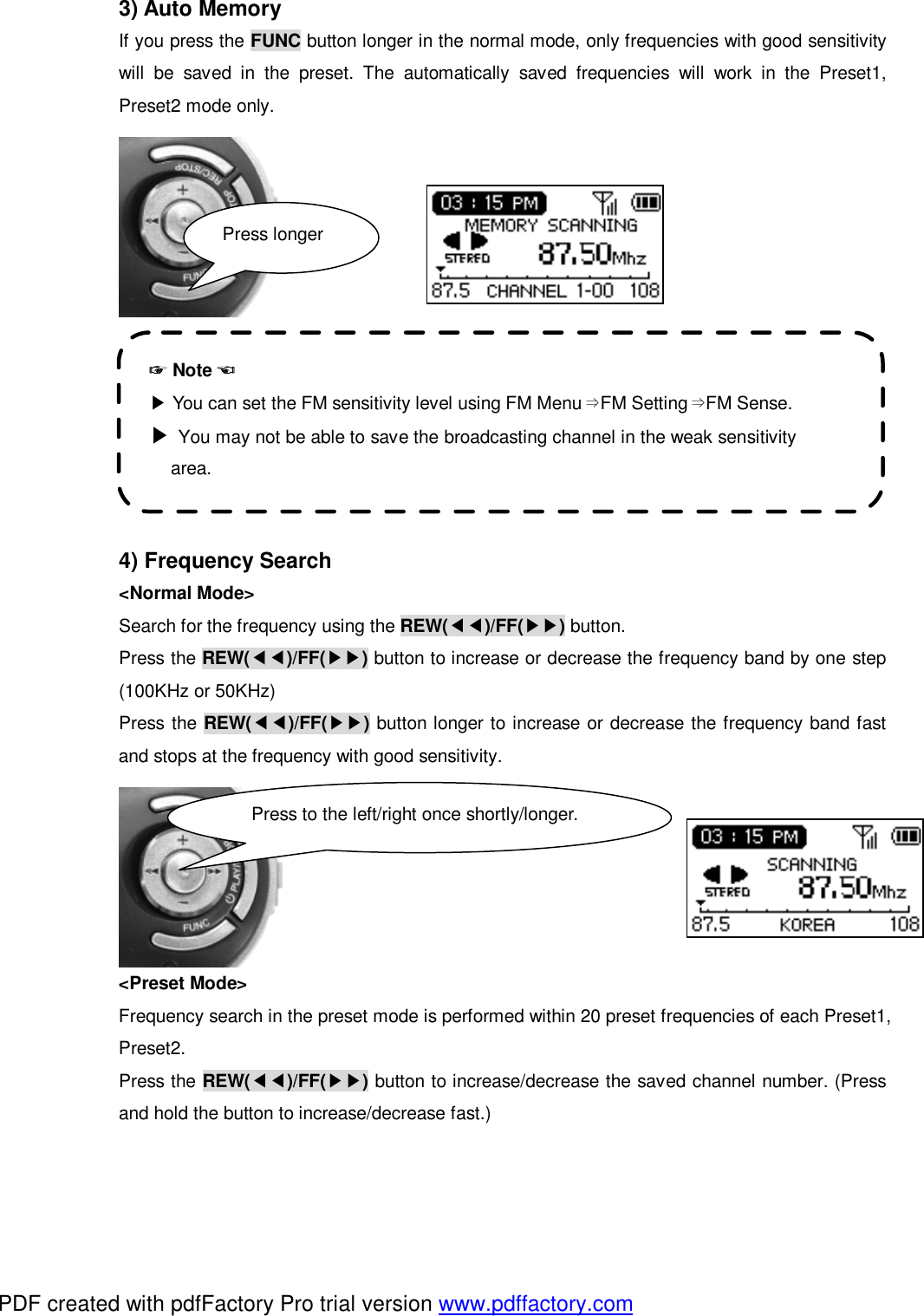

3) Auto Memory If you press the FUNC button longer in the normal mode, only frequencies with good sensitivity will be saved in the preset. The automatically saved frequencies will work in the Preset1, Preset2 mode only. 4) Frequency Search <Normal Mode> Search for the frequency using the REW(◀◀)/FF(▶▶) button. Press the REW(◀◀)/FF(▶▶) button to increase or decrease the frequency band by one step (100KHz or 50KHz) Press the REW(◀◀)/FF(▶▶) button longer to increase or decrease the frequency band fast and stops at the frequency with good sensitivity. <Preset Mode> Frequency search in the preset mode is performed within 20 preset frequencies of each Preset1, Preset2. Press the REW(◀◀)/FF(▶▶) button to increase/decrease the saved channel number. (Press and hold the button to increase/decrease fast.) Press to the left/right once shortly/longer. ☞ Note ☜ ▶You can set the FM sensitivity level using FM Menu⇒FM Setting⇒FM Sense. ▶ You may not be able to save the broadcasting channel in the weak sensitivity area. Press longer PDF created with pdfFactory Pro trial version www.pdffactory.com

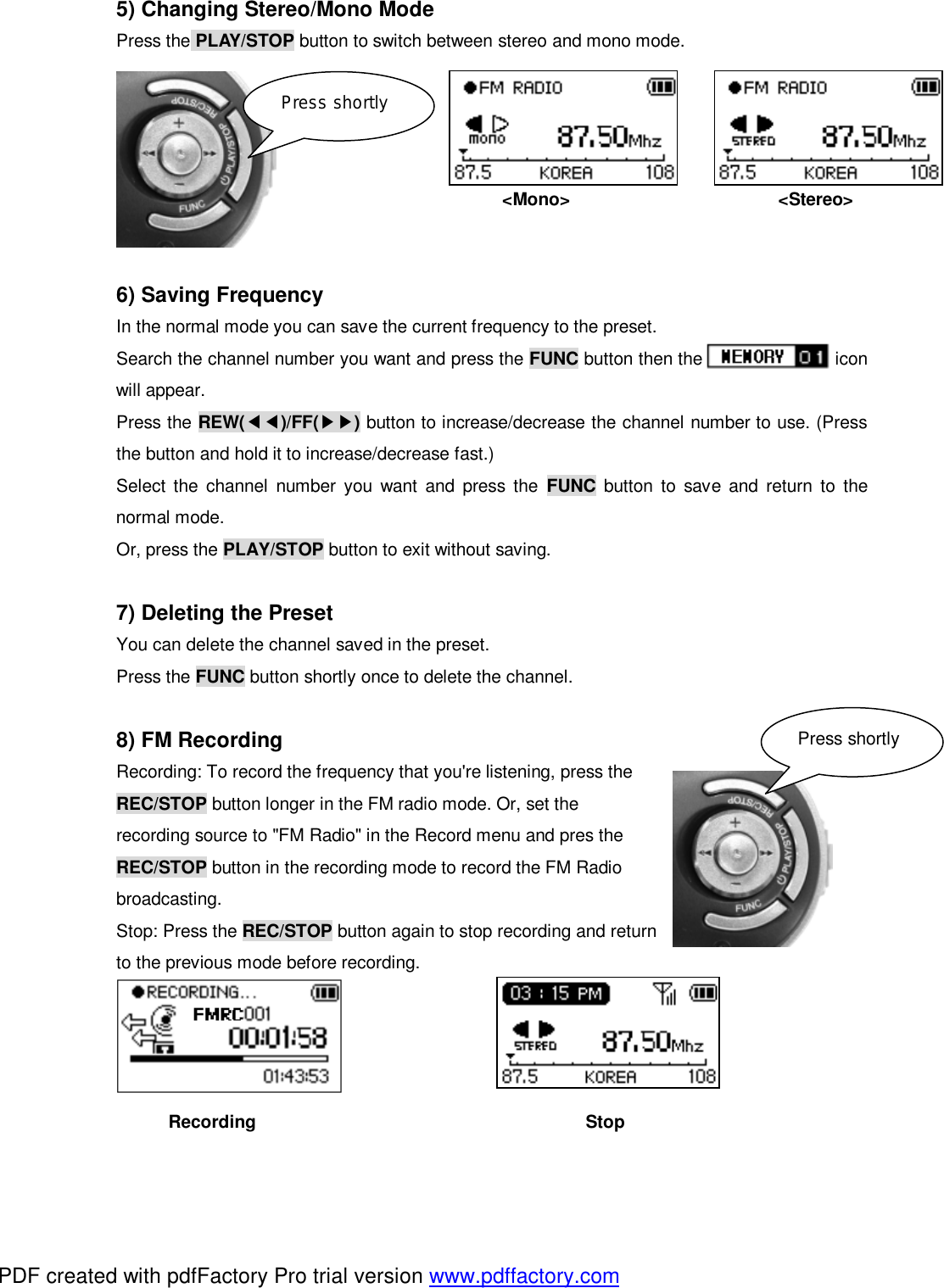

5) Changing Stereo/Mono Mode Press the PLAY/STOP button to switch between stereo and mono mode. <Mono> <Stereo> 6) Saving Frequency In the normal mode you can save the current frequency to the preset. Search the channel number you want and press the FUNC button then the icon will appear. Press the REW(◀◀)/FF(▶▶) button to increase/decrease the channel number to use. (Press the button and hold it to increase/decrease fast.) Select the channel number you want and press the FUNC button to save and return to the normal mode. Or, press the PLAY/STOP button to exit without saving. 7) Deleting the Preset You can delete the channel saved in the preset. Press the FUNC button shortly once to delete the channel. 8) FM Recording Recording: To record the frequency that you're listening, press the REC/STOP button longer in the FM radio mode. Or, set the recording source to "FM Radio" in the Record menu and pres the REC/STOP button in the recording mode to record the FM Radio broadcasting. Stop: Press the REC/STOP button again to stop recording and return to the previous mode before recording. Recording Stop Press shortly Press shortly PDF created with pdfFactory Pro trial version www.pdffactory.com

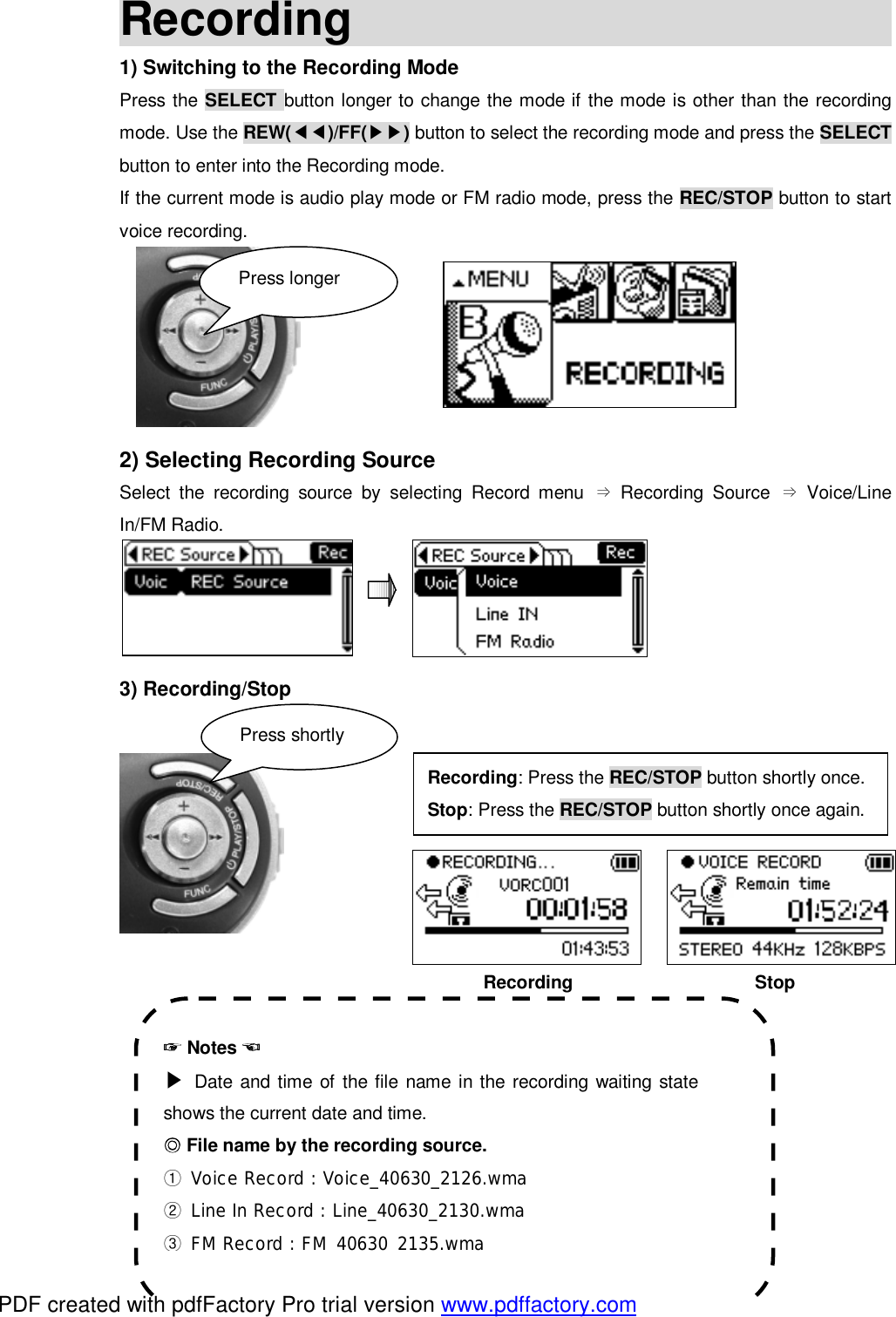

Recording 1) Switching to the Recording Mode Press the SELECT button longer to change the mode if the mode is other than the recording mode. Use the REW(◀◀)/FF(▶▶) button to select the recording mode and press the SELECT button to enter into the Recording mode. If the current mode is audio play mode or FM radio mode, press the REC/STOP button to start voice recording. 2) Selecting Recording Source Select the recording source by selecting Record menu Recording Source Voice/Line ⇒⇒In/FM Radio. 3) Recording/Stop Recording Stop ☞ Notes ☜ ▶ Date and time of the file name in the recording waiting state shows the current date and time. ◎File name by the recording source. ① Voice Record : Voice_40630_2126.wma ② Line In Record : Line_40630_2130.wma ③ FM Record : FM_40630_2135.wma Press shortly Recording: Press the REC/STOP button shortly once. Stop: Press the REC/STOP button shortly once again. Press longer PDF created with pdfFactory Pro trial version www.pdffactory.com

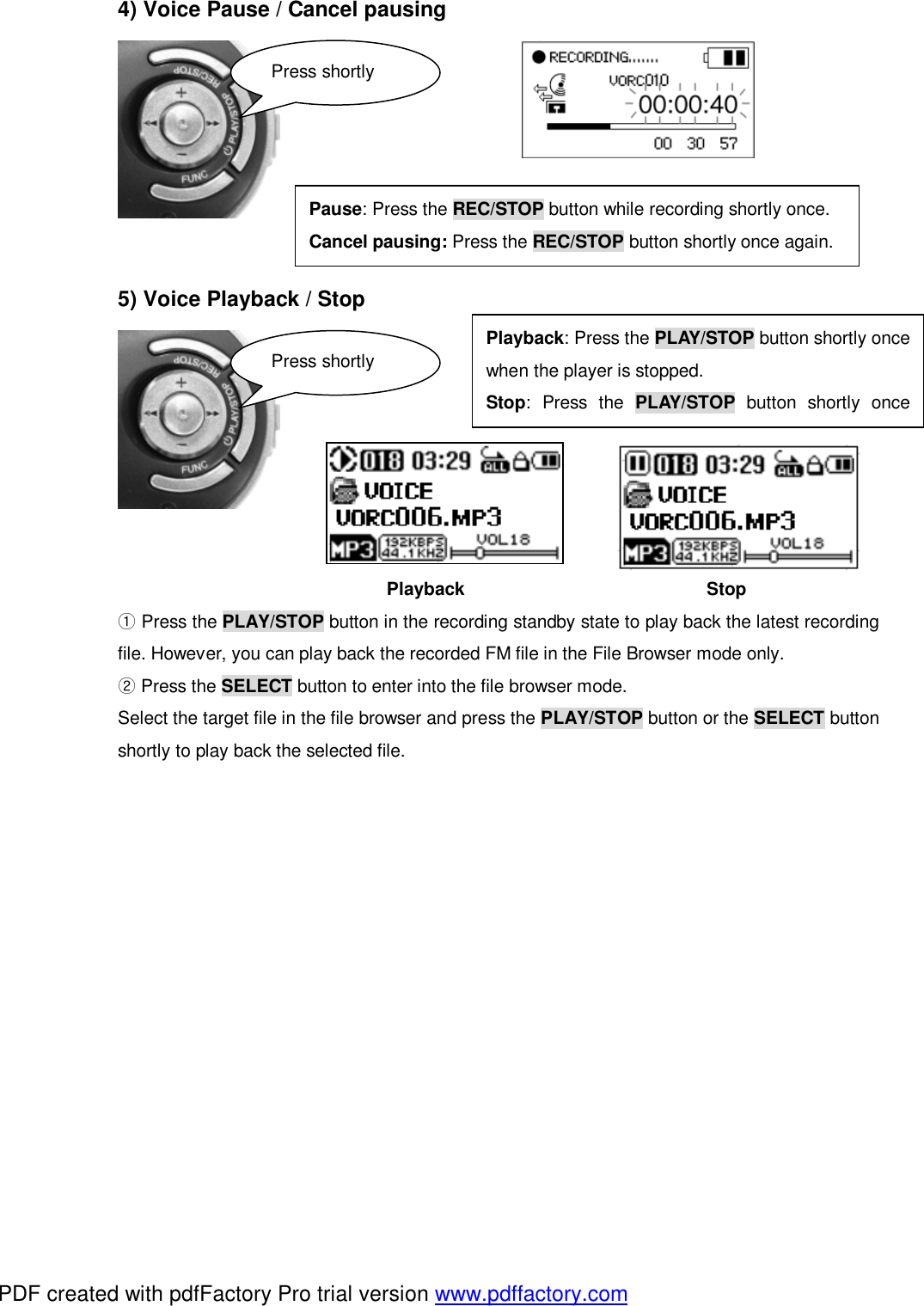

4) Voice Pause / Cancel pausing 5) Voice Playback / Stop Playback Stop ①Press the PLAY/STOP button in the recording standby state to play back the latest recording file. However, you can play back the recorded FM file in the File Browser mode only. ②Press the SELECT button to enter into the file browser mode. Select the target file in the file browser and press the PLAY/STOP button or the SELECT button shortly to play back the selected file. Press shortly Pause: Press the REC/STOP button while recording shortly once. Cancel pausing: Press the REC/STOP button shortly once again. Playback: Press the PLAY/STOP button shortly oncewhen the player is stopped. Stop: Press the PLAY/STOP button shortly oncePress shortly PDF created with pdfFactory Pro trial version www.pdffactory.com

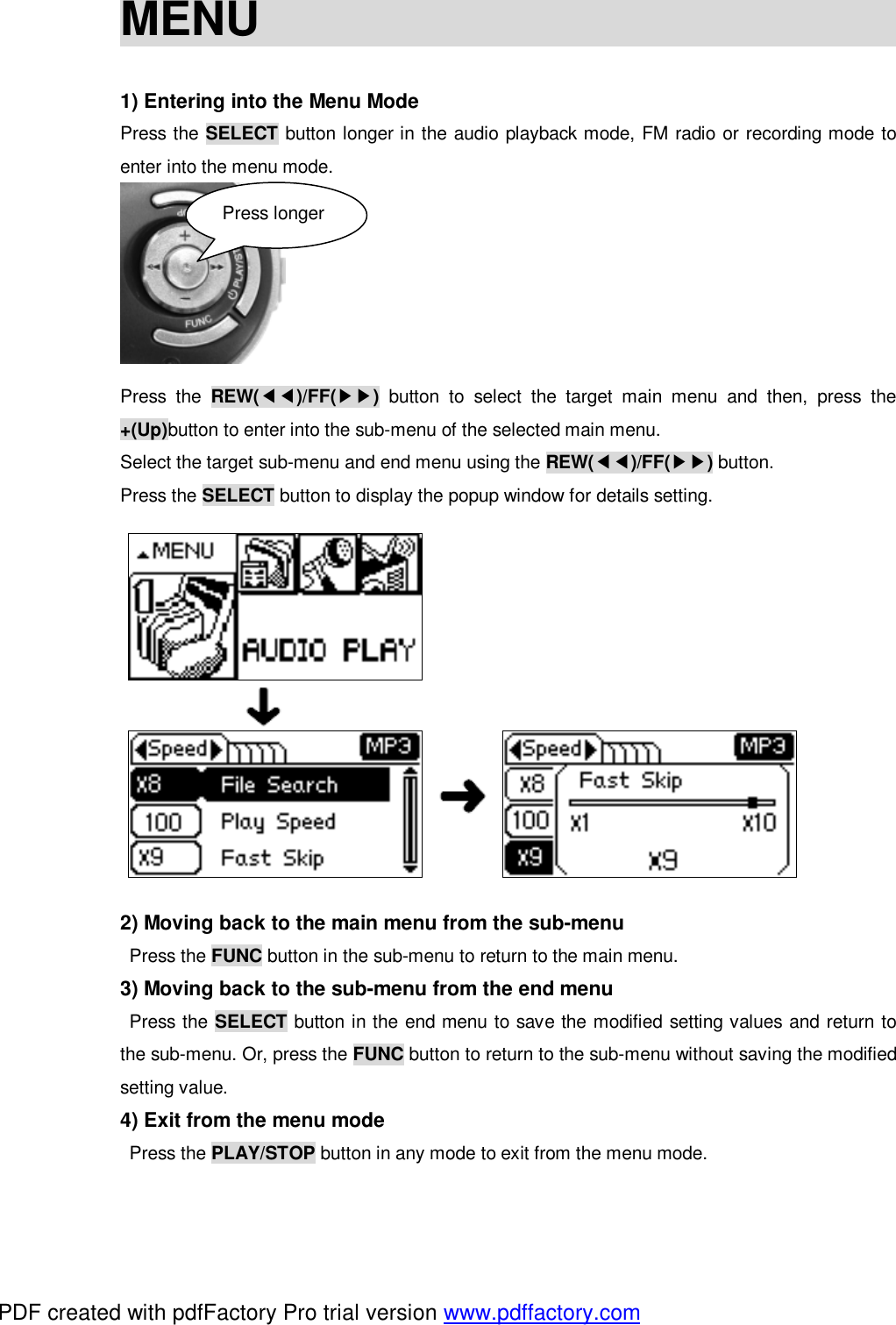

MENU 1) Entering into the Menu Mode Press the SELECT button longer in the audio playback mode, FM radio or recording mode to enter into the menu mode. Press the REW(◀◀)/FF(▶▶) button to select the target main menu and then, press the +(Up)button to enter into the sub-menu of the selected main menu. Select the target sub-menu and end menu using the REW(◀◀)/FF(▶▶) button. Press the SELECT button to display the popup window for details setting. 2) Moving back to the main menu from the sub-menu Press the FUNC button in the sub-menu to return to the main menu. 3) Moving back to the sub-menu from the end menu Press the SELECT button in the end menu to save the modified setting values and return to the sub-menu. Or, press the FUNC button to return to the sub-menu without saving the modified setting value. 4) Exit from the menu mode Press the PLAY/STOP button in any mode to exit from the menu mode. Press longer PDF created with pdfFactory Pro trial version www.pdffactory.com

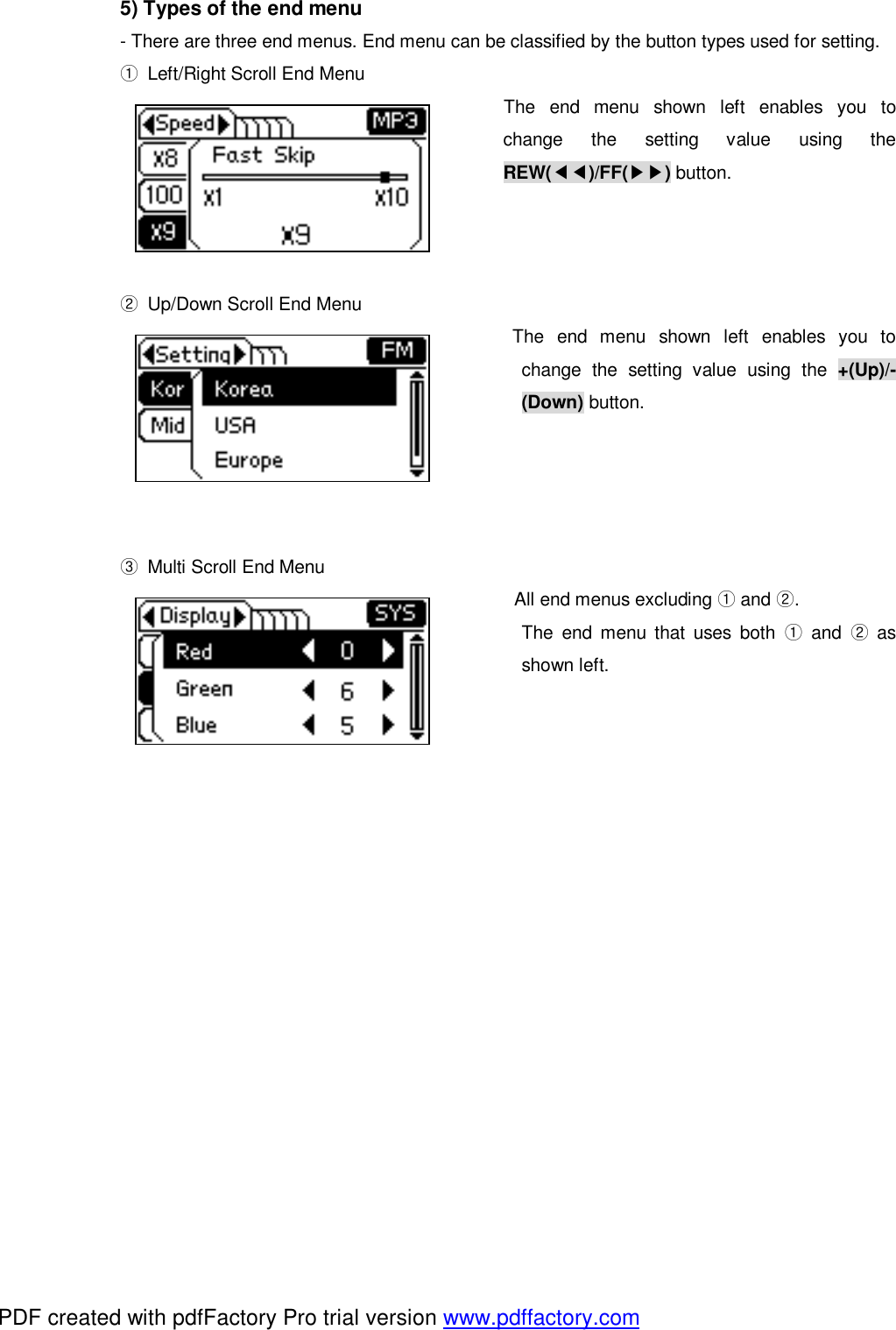

5) Types of the end menu - There are three end menus. End menu can be classified by the button types used for setting. ① Left/Right Scroll End Menu The end menu shown left enables you to change the setting value using the REW(◀◀)/FF(▶▶) button. ② Up/Down Scroll End Menu The end menu shown left enables you to change the setting value using the +(Up)/-(Down) button. ③ Multi Scroll End Menu All end menus excluding and .①② The end menu that uses both and as ①②shown left. PDF created with pdfFactory Pro trial version www.pdffactory.com
PDF created with pdfFactory Pro trial version www.pdffactory.com

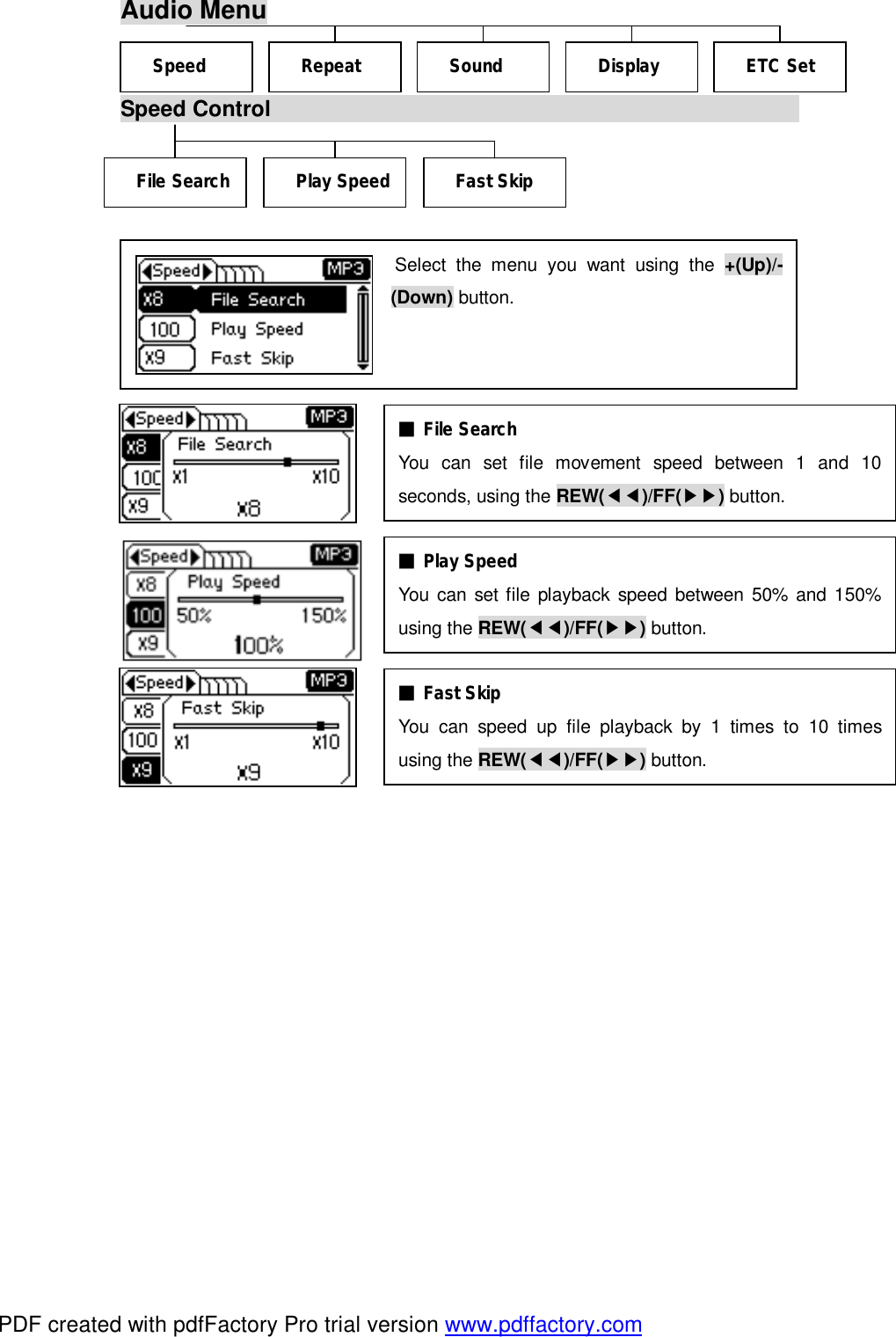

Audio Menu Speed Control ■ File Search You can set file movement speed between 1 and 10 seconds, using the REW(◀◀)/FF(▶▶) button. ■ Play Speed You can set file playback speed between 50% and 150% using the REW(◀◀)/FF(▶▶) button. ■ Fast Skip You can speed up file playback by 1 times to 10 times using the REW(◀◀)/FF(▶▶) button. Select the menu you want using the +(Up)/-(Down) button. Speed ETC Set Display Sound Repeat File Search Fast Skip Play Speed PDF created with pdfFactory Pro trial version www.pdffactory.com

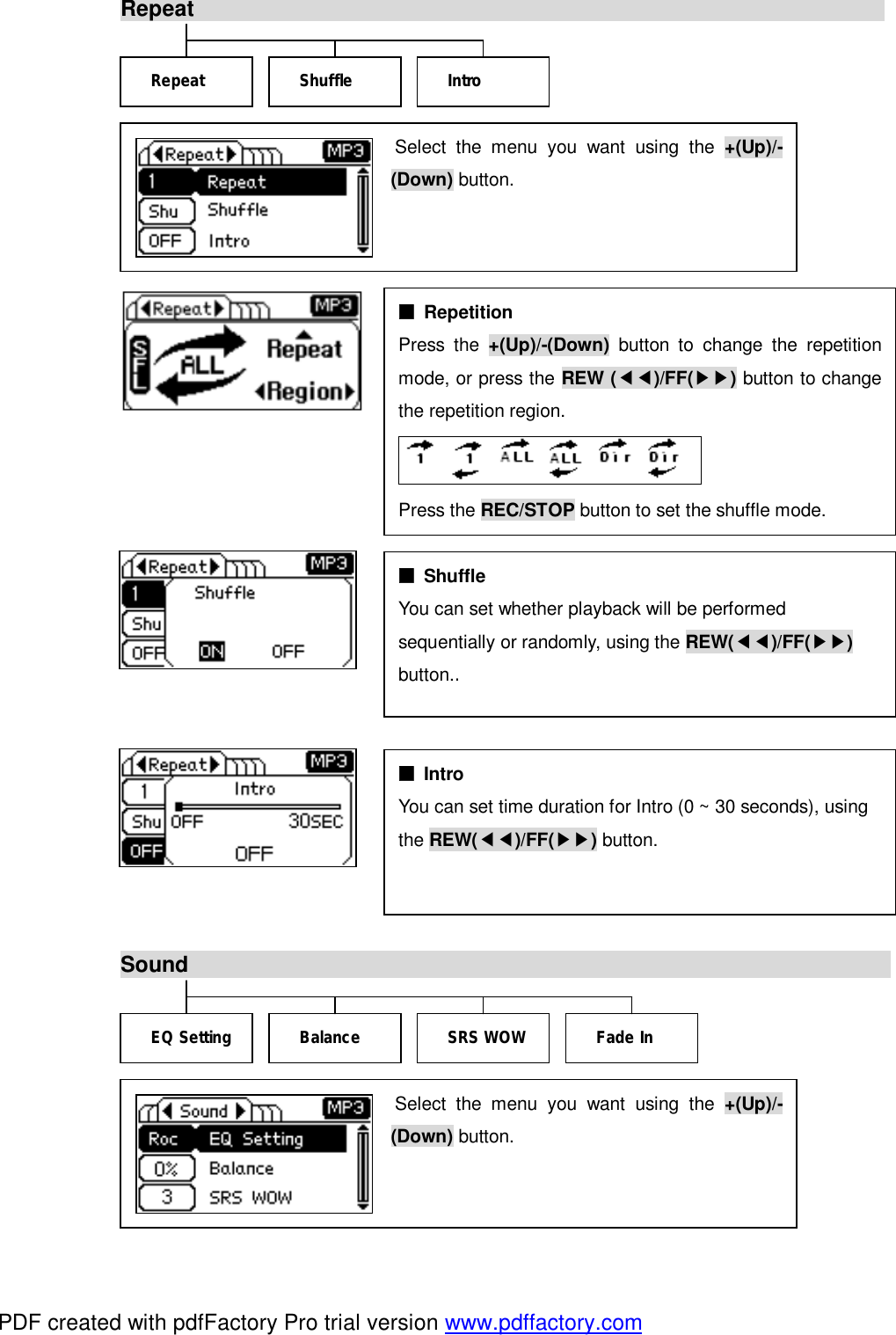

Repeat Sound Select the menu you want using the +(Up)/-(Down) button. ■ Repetition Press the +(Up)/-(Down) button to change the repetitionmode, or press the REW (◀◀)/FF(▶▶) button to changethe repetition region. Press the REC/STOP button to set the shuffle mode. ■ Shuffle You can set whether playback will be performed sequentially or randomly, using the REW(◀◀)/FF(▶▶) button.. ■ Intro You can set time duration for Intro (0 ~ 30 seconds), using the REW(◀◀)/FF(▶▶) button. Repeat Intro Shuffle EQ Setting Fade In SRS WOW Balance Select the menu you want using the +(Up)/-(Down) button. PDF created with pdfFactory Pro trial version www.pdffactory.com

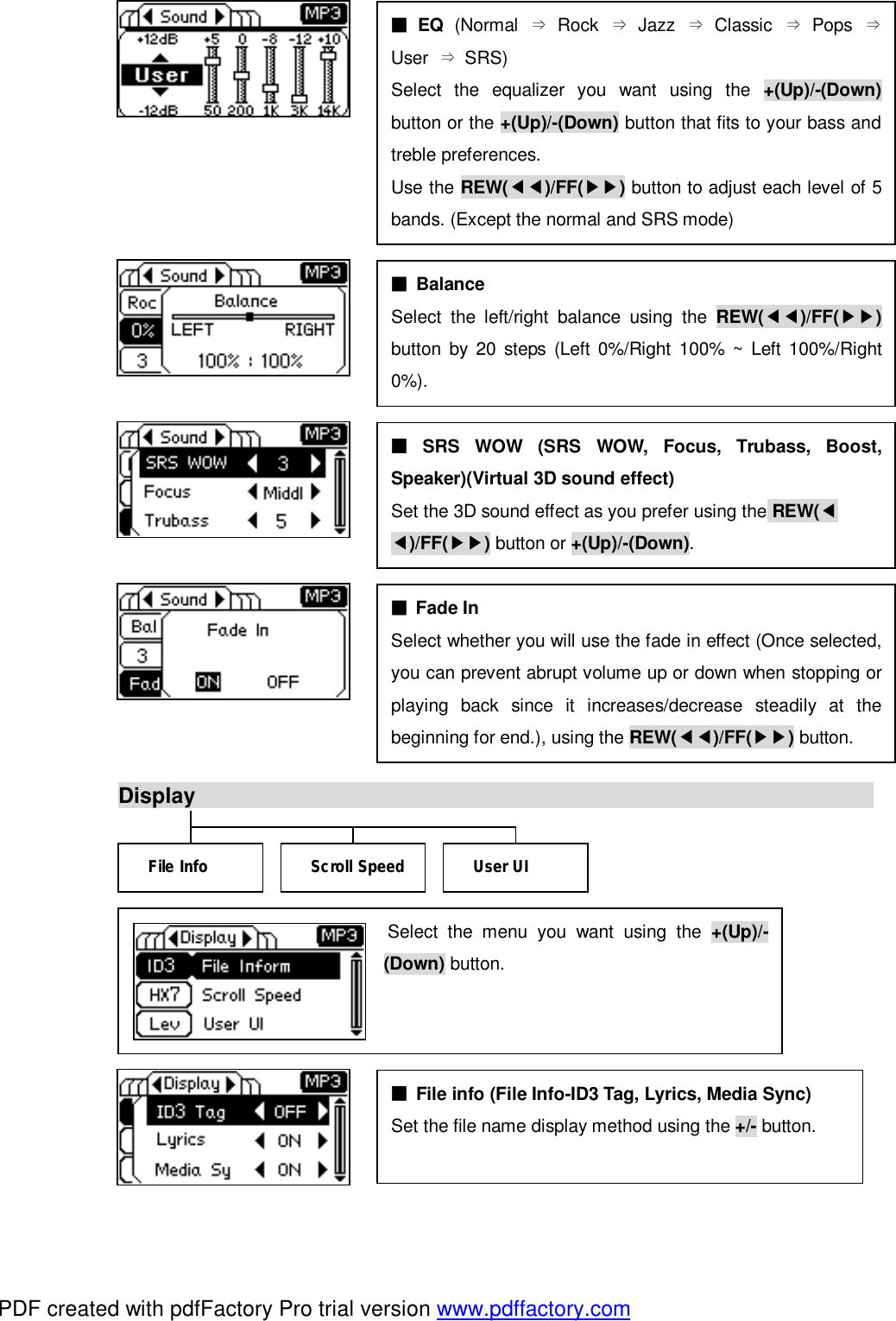

Display Select the menu you want using the +(Up)/-(Down) button. ■ SRS WOW (SRS WOW, Focus, Trubass, Boost, Speaker)(Virtual 3D sound effect) Set the 3D sound effect as you prefer using the REW(◀ ◀)/FF(▶▶) button or +(Up)/-(Down). ■ File info (File Info-ID3 Tag, Lyrics, Media Sync) Set the file name display method using the +/- button. File Info User UI Scroll Speed ■ EQ (Normal ⇒ Rock ⇒ Jazz ⇒ Classic ⇒ Pops ⇒User ⇒ SRS) Select the equalizer you want using the +(Up)/-(Down)button or the +(Up)/-(Down) button that fits to your bass and treble preferences. Use the REW(◀◀)/FF(▶▶) button to adjust each level of 5 bands. (Except the normal and SRS mode) ■ Balance Select the left/right balance using the REW(◀◀)/FF(▶▶)button by 20 steps (Left 0%/Right 100% ~ Left 100%/Right 0%). ■ Fade In Select whether you will use the fade in effect (Once selected, you can prevent abrupt volume up or down when stopping or playing back since it increases/decrease steadily at the beginning for end.), using the REW(◀◀)/FF(▶▶) button. PDF created with pdfFactory Pro trial version www.pdffactory.com

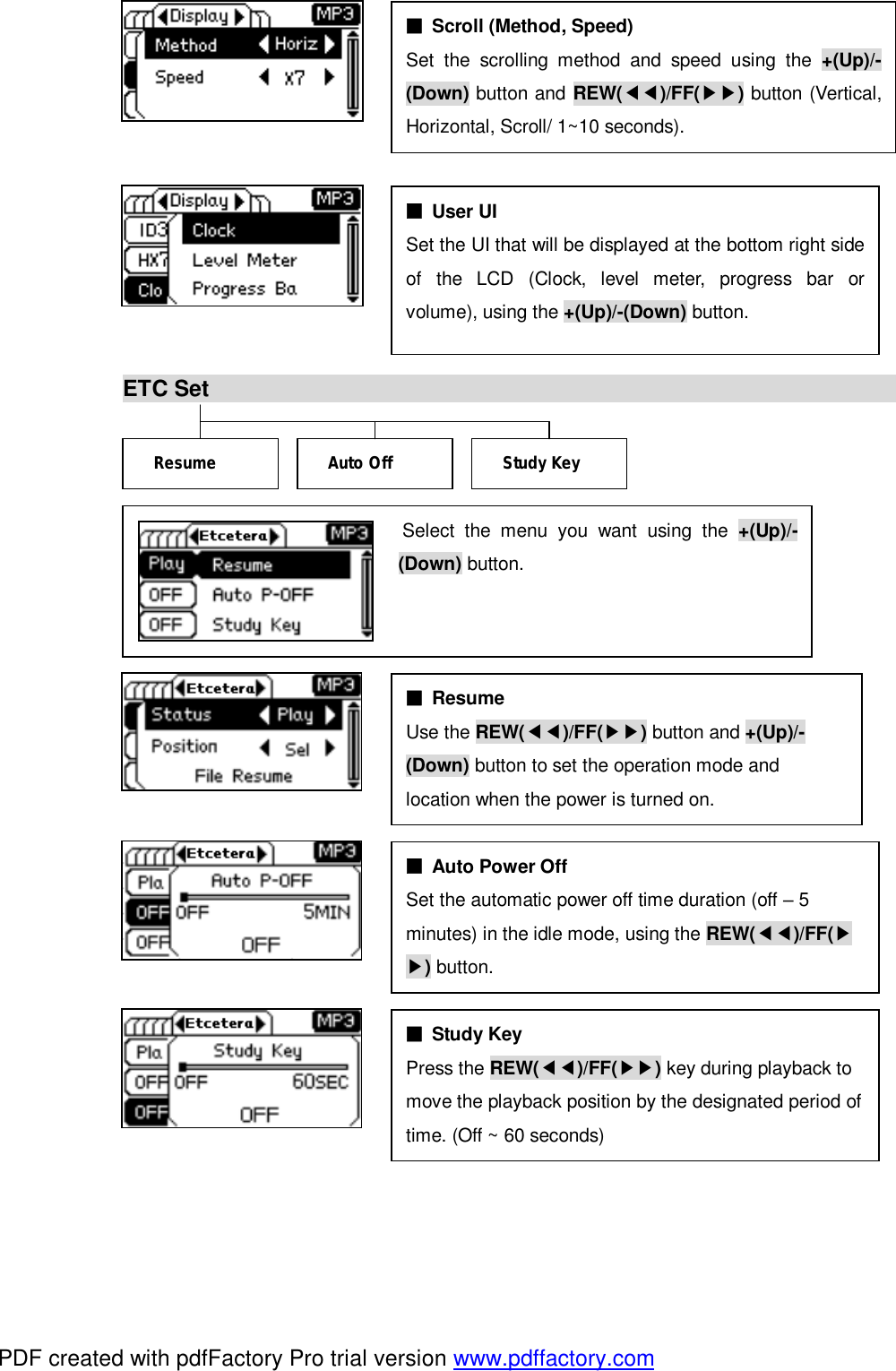

ETC Set ■ Resume Use the REW(◀◀)/FF(▶▶) button and +(Up)/- (Down) button to set the operation mode and location when the power is turned on. ■ Study Key Press the REW(◀◀)/FF(▶▶) key during playback to move the playback position by the designated period of time. (Off ~ 60 seconds) Resume Study Key Auto Off ■ User UI Set the UI that will be displayed at the bottom right side of the LCD (Clock, level meter, progress bar or volume), using the +(Up)/-(Down) button. ■ Auto Power Off Set the automatic power off time duration (off – 5 minutes) in the idle mode, using the REW(◀◀)/FF(▶ ▶) button. ■ Scroll (Method, Speed) Set the scrolling method and speed using the +(Up)/-(Down) button and REW(◀◀)/FF(▶▶) button (Vertical, Horizontal, Scroll/ 1~10 seconds). Select the menu you want using the +(Up)/-(Down) button. PDF created with pdfFactory Pro trial version www.pdffactory.com

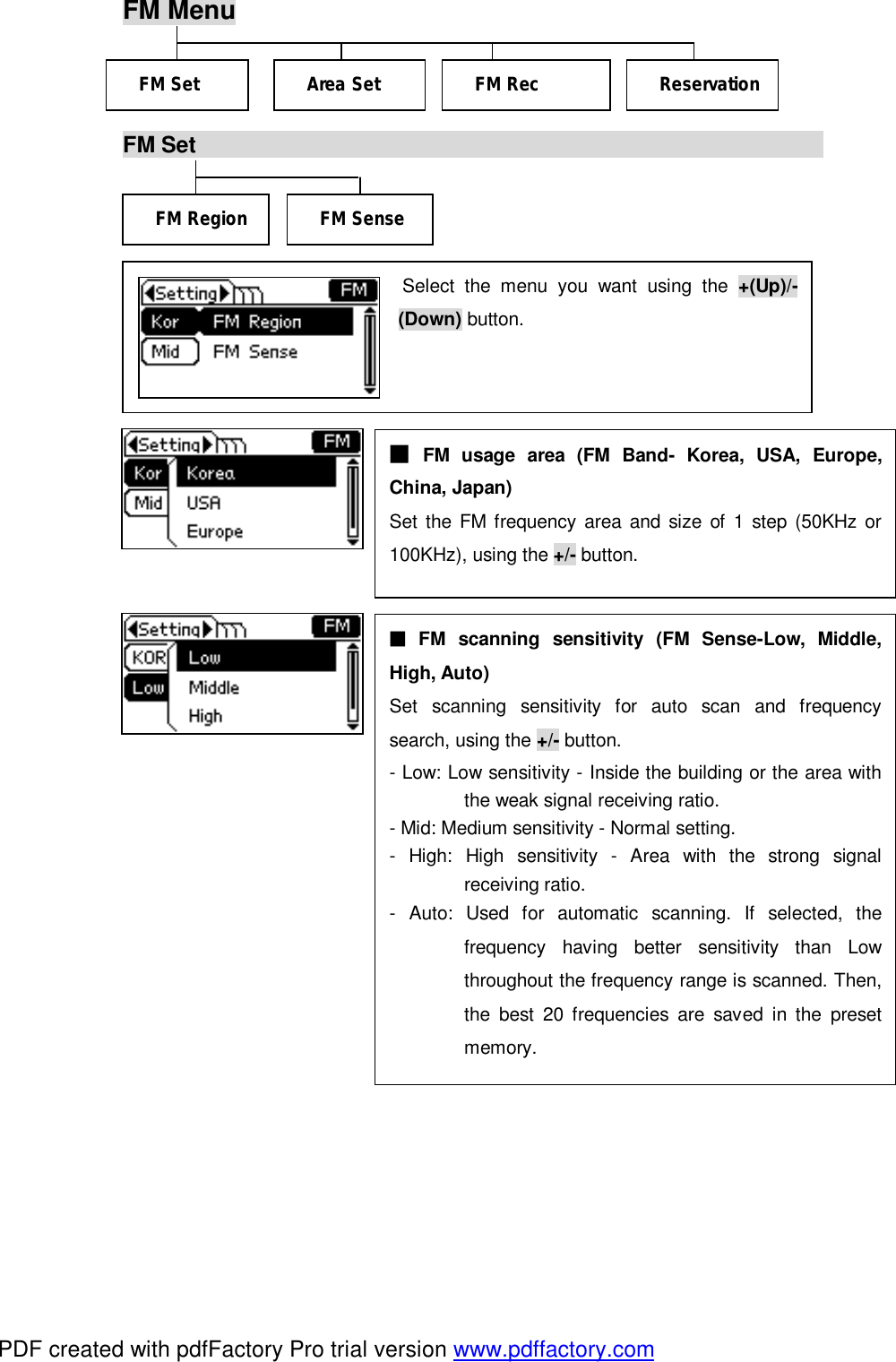

FM Menu FM Set Select the menu you want using the +(Up)/-(Down) button. ■ FM scanning sensitivity (FM Sense-Low, Middle, High, Auto) Set scanning sensitivity for auto scan and frequency search, using the +/- button. - Low: Low sensitivity - Inside the building or the area with the weak signal receiving ratio. - Mid: Medium sensitivity - Normal setting. - High: High sensitivity - Area with the strong signal receiving ratio. - Auto: Used for automatic scanning. If selected, the frequency having better sensitivity than Low throughout the frequency range is scanned. Then, the best 20 frequencies are saved in the preset memory. FM Region FM Sense FM Set FM Rec Area Set ■ FM usage area (FM Band- Korea, USA, Europe, China, Japan) Set the FM frequency area and size of 1 step (50KHz or 100KHz), using the +/- button. Reservation PDF created with pdfFactory Pro trial version www.pdffactory.com
Area Set FM Rec ■ Bit Rate ( 32, 48, 64, 80, 96, 128 Kbps) Set the recording Bit Rate, using the REW(◀ ◀)/FF(▶▶) button. ■ Sample Rate (32, 44.1 KHz) Set the recording Sample Rate, using the REW(◀◀)/FF(▶▶) button. Bit Rate REC Volume Sample Rate ■ ■ FM Area Area File Select the menu you want using the +(Up)/-(Down) button. Select the menu you want using the +(Up)/-(Down) button. PDF created with pdfFactory Pro trial version www.pdffactory.com

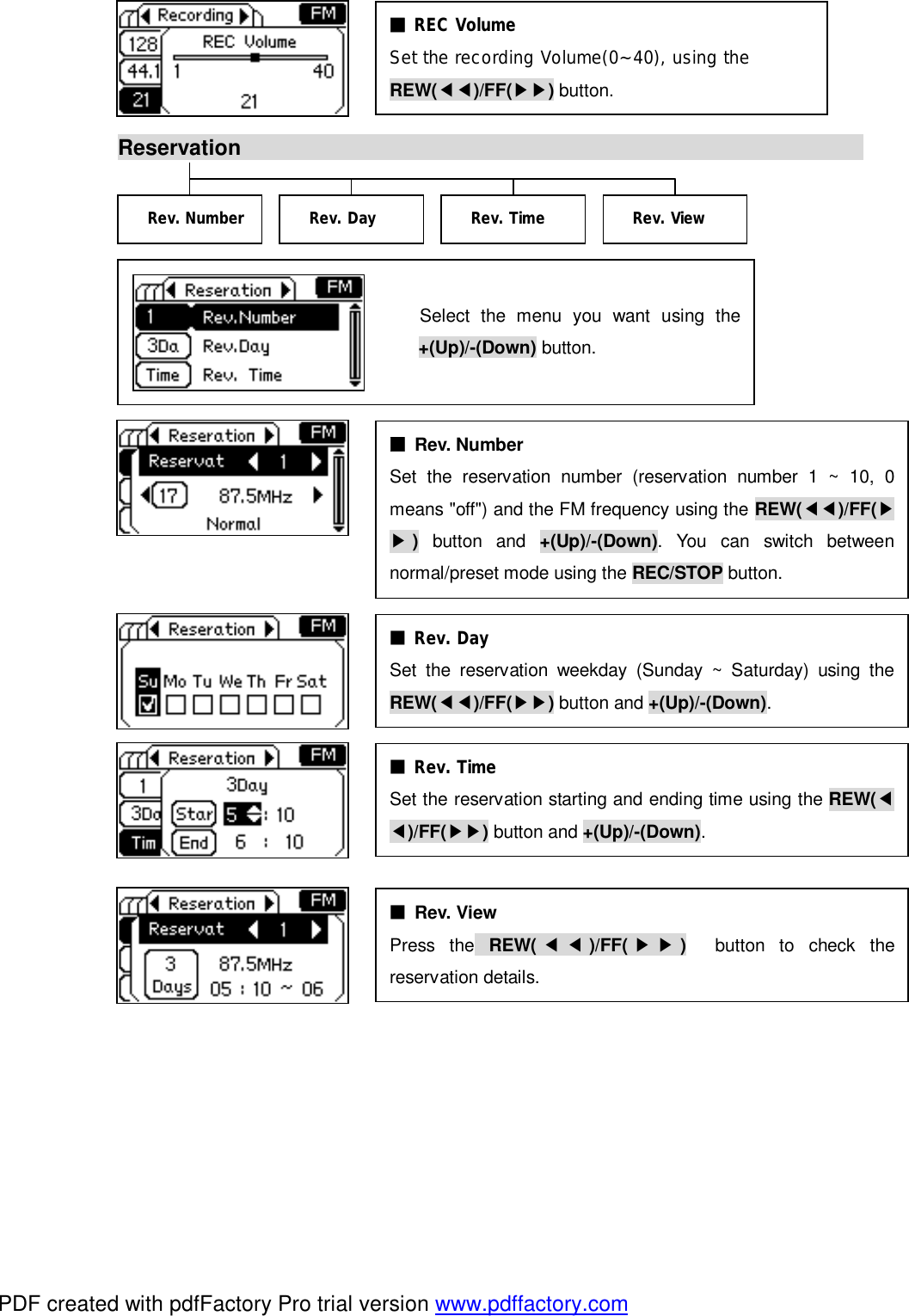

Reservation Select the menu you want using the +(Up)/-(Down) button. ■ REC Volume Set the recording Volume(0~40), using the REW(◀◀)/FF(▶▶) button. ■ Rev. Number Set the reservation number (reservation number 1 ~ 10, 0 means "off") and the FM frequency using the REW(◀◀)/FF(▶▶) button and +(Up)/-(Down). You can switch betweennormal/preset mode using the REC/STOP button. ■ Rev. Day Set the reservation weekday (Sunday ~ Saturday) using theREW(◀◀)/FF(▶▶) button and +(Up)/-(Down). ■ Rev. Time Set the reservation starting and ending time using the REW(◀◀)/FF(▶▶) button and +(Up)/-(Down). ■ Rev. View Press the REW( ◀◀)/FF( ▶▶) button to check the reservation details. Rev. Number Rev. View Rev. Time Rev. Day PDF created with pdfFactory Pro trial version www.pdffactory.com

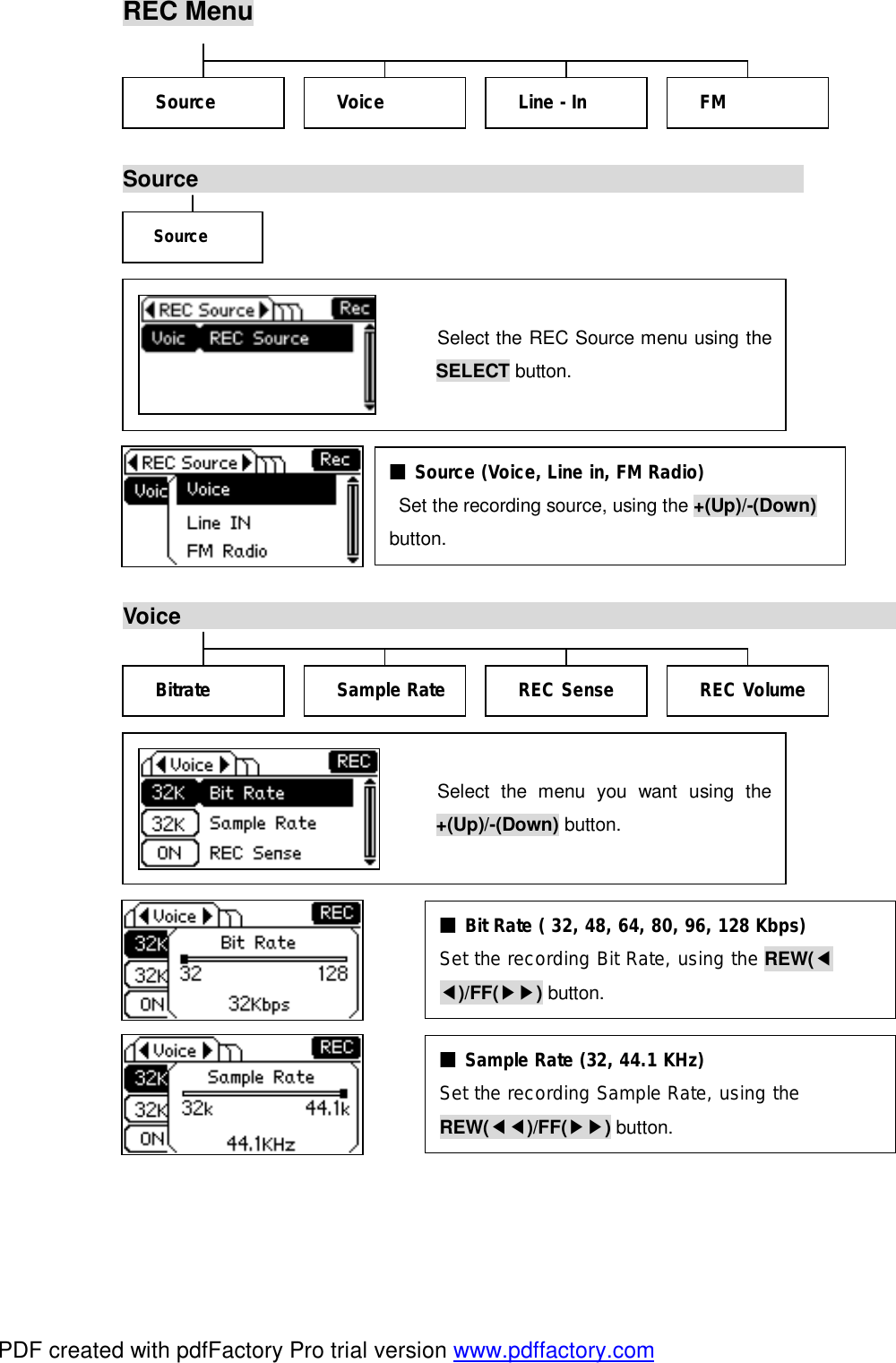

REC Menu Source Voice Select the menu you want using the +(Up)/-(Down) button. Source FM Line -In Voice Source Bitrate REC Volume REC Sense Sample Rate ■ Source (Voice, Line in, FM Radio) Set the recording source, using the +(Up)/-(Down) button. Select the REC Source menu using the SELECT button. ■ Bit Rate ( 32, 48, 64, 80, 96, 128 Kbps) Set the recording Bit Rate, using the REW(◀ ◀)/FF(▶▶) button. ■ Sample Rate (32, 44.1 KHz) Set the recording Sample Rate, using the REW(◀◀)/FF(▶▶) button. PDF created with pdfFactory Pro trial version www.pdffactory.com

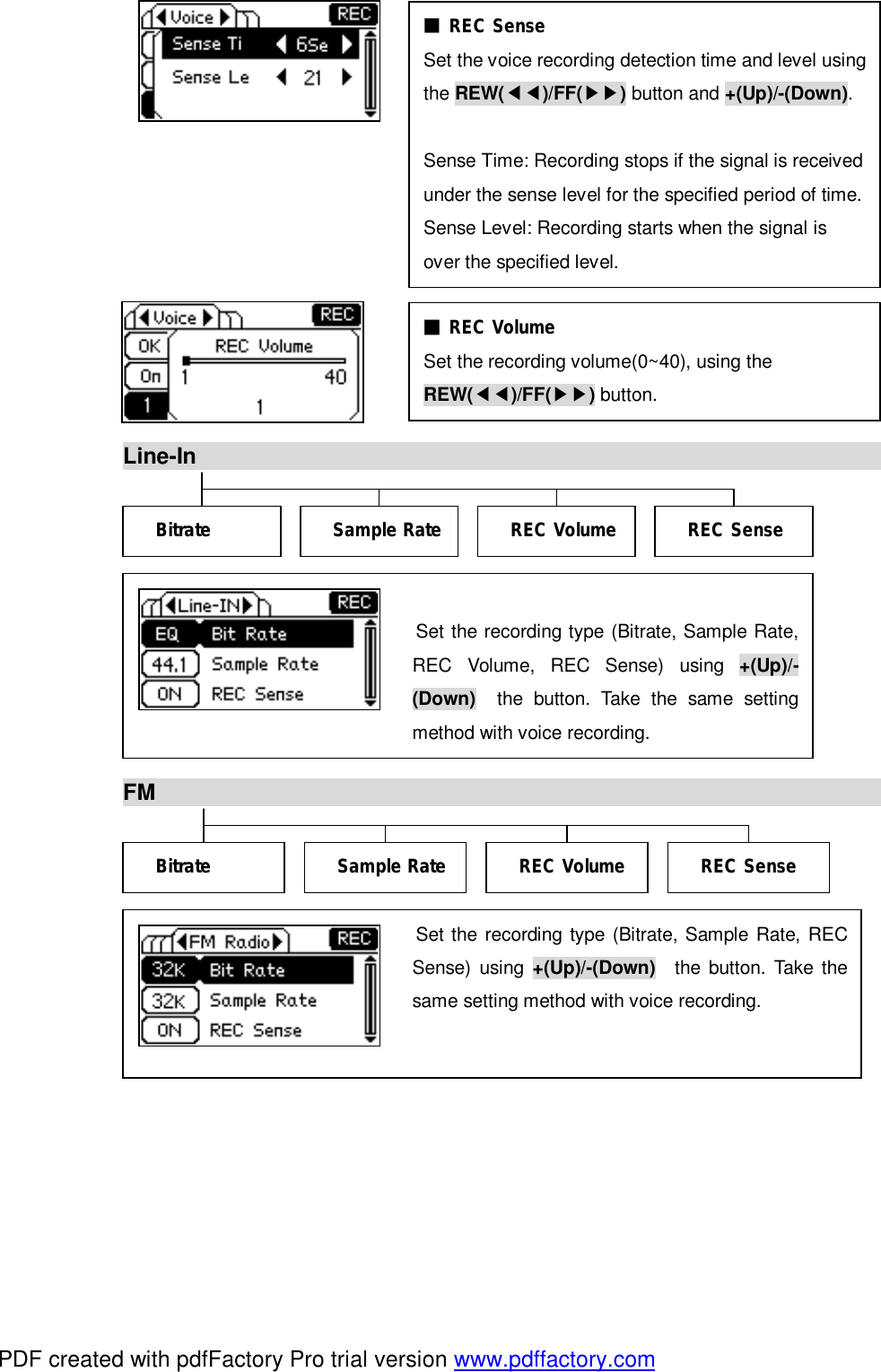

Line-In FM Set the recording type (Bitrate, Sample Rate, REC Volume, REC Sense) using +(Up)/-(Down) the button. Take the same setting method with voice recording. Bitrate REC Sense REC Volume Sample Rate Bitrate REC Sense REC Volume Sample Rate ■ REC Sense Set the voice recording detection time and level using the REW(◀◀)/FF(▶▶) button and +(Up)/-(Down). Sense Time: Recording stops if the signal is received under the sense level for the specified period of time. Sense Level: Recording starts when the signal is over the specified level. ■ REC Volume Set the recording volume(0~40), using the REW(◀◀)/FF(▶▶) button. Set the recording type (Bitrate, Sample Rate, REC Sense) using +(Up)/-(Down) the button. Take the same setting method with voice recording. PDF created with pdfFactory Pro trial version www.pdffactory.com

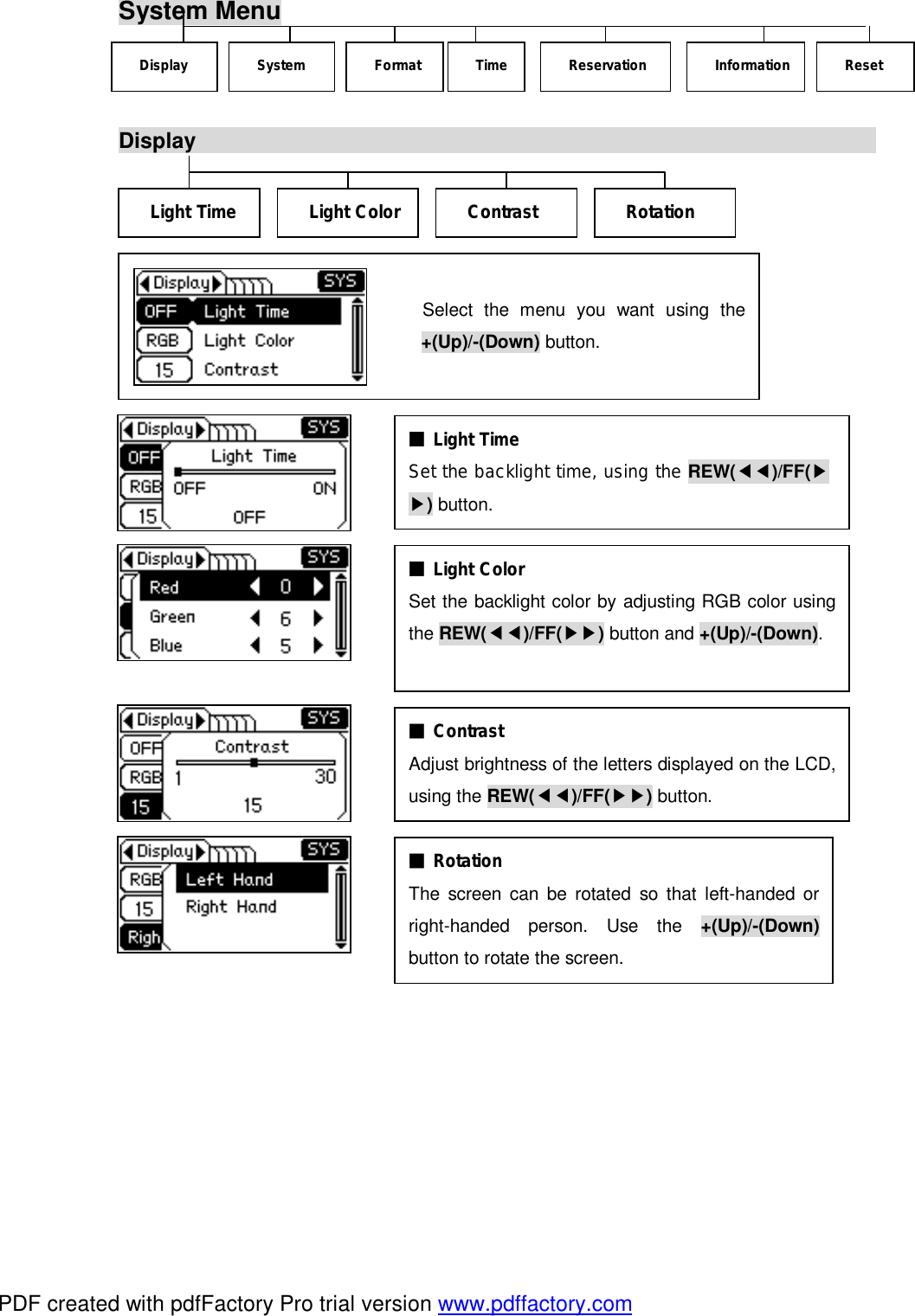

System Menu Display Select the menu you want using the +(Up)/-(Down) button. ■ Light Time Set the backlight time, using the REW(◀◀)/FF(▶ ▶) button. ■ Light Color Set the backlight color by adjusting RGB color using the REW(◀◀)/FF(▶▶) button and +(Up)/-(Down). Display Time Format System Reservation 장치정 Reset Information ■ Contrast Adjust brightness of the letters displayed on the LCD, using the REW(◀◀)/FF(▶▶) button. ■ Rotation The screen can be rotated so that left-handed or right-handed person. Use the +(Up)/-(Down)button to rotate the screen. Light Time Rotation Contrast Light Color PDF created with pdfFactory Pro trial version www.pdffactory.com

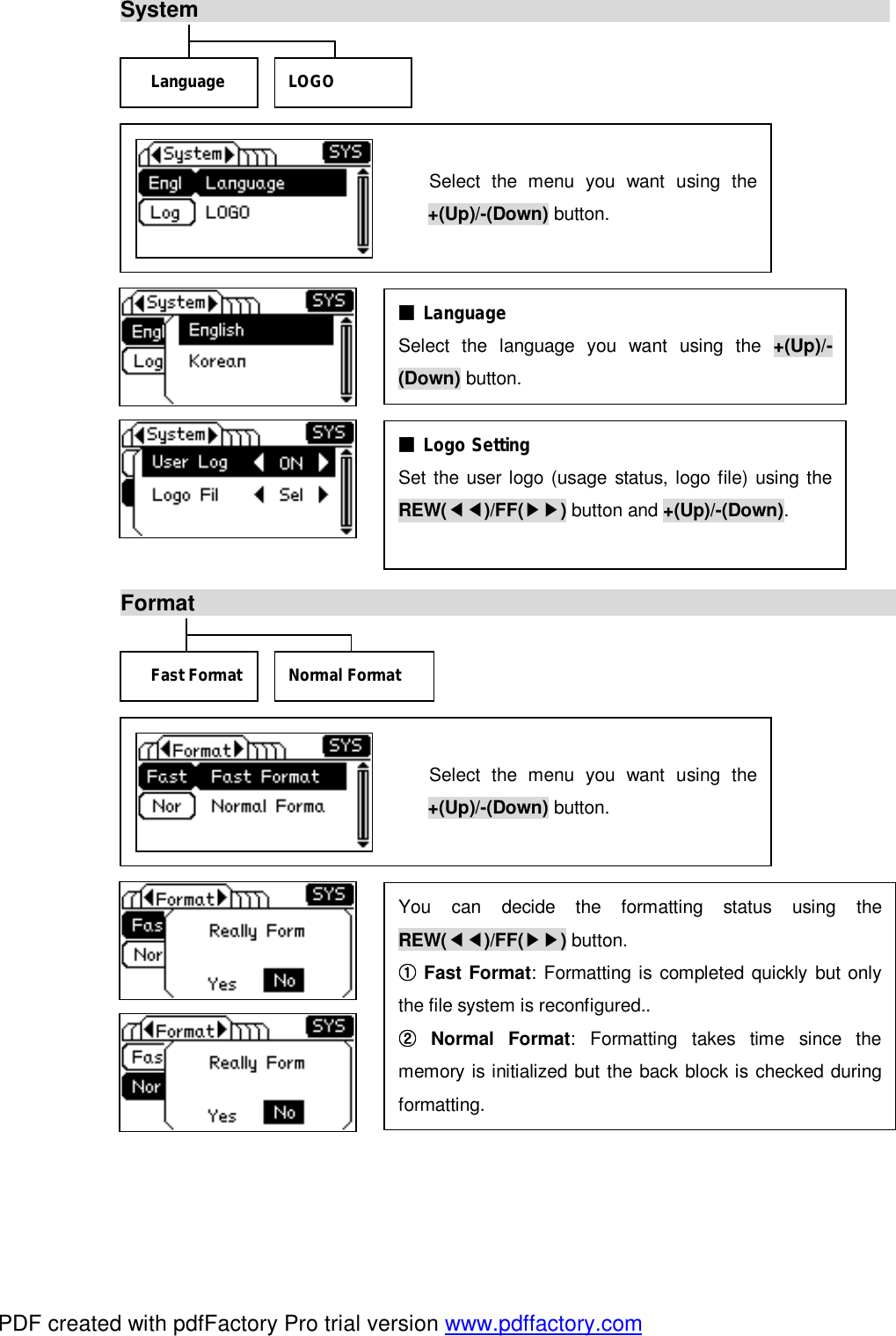

System Format Select the menu you want using the +(Up)/-(Down) button. Select the menu you want using the +(Up)/-(Down) button. ■ Language Select the language you want using the +(Up)/-(Down) button. ■ Logo Setting Set the user logo (usage status, logo file) using theREW(◀◀)/FF(▶▶) button and +(Up)/-(Down). Language LOGO You can decide the formatting status using theREW(◀◀)/FF(▶▶) button. Fast Format①: Formatting is completed quickly but only the file system is reconfigured.. Normal Format②: Formatting takes time since the memory is initialized but the back block is checked during formatting. Fast Format Normal Format PDF created with pdfFactory Pro trial version www.pdffactory.com

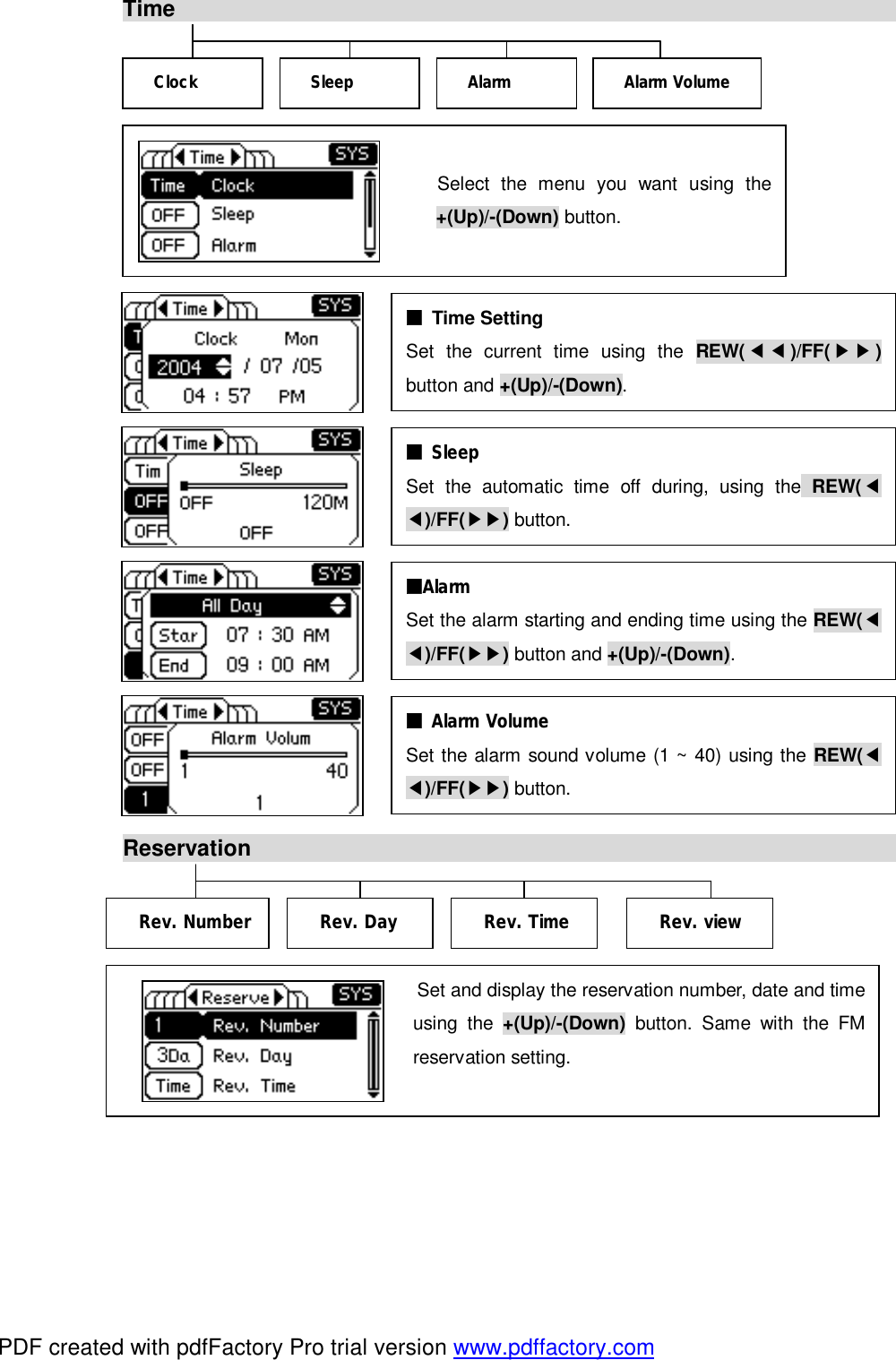

Time Reservation ■ Time Setting Set the current time using the REW(◀◀)/FF(▶▶)button and +(Up)/-(Down). ■ Sleep Set the automatic time off during, using the REW(◀◀)/FF(▶▶) button. Clock Alarm Sleep Rev. Number Rev. Time Rev. Day Alarm Volume Rev. view Select the menu you want using the +(Up)/-(Down) button. ■Alarm Set the alarm starting and ending time using the REW(◀◀)/FF(▶▶) button and +(Up)/-(Down). ■ Alarm Volume Set the alarm sound volume (1 ~ 40) using the REW(◀◀)/FF(▶▶) button. Set and display the reservation number, date and time using the +(Up)/-(Down) button. Same with the FM reservation setting. PDF created with pdfFactory Pro trial version www.pdffactory.com

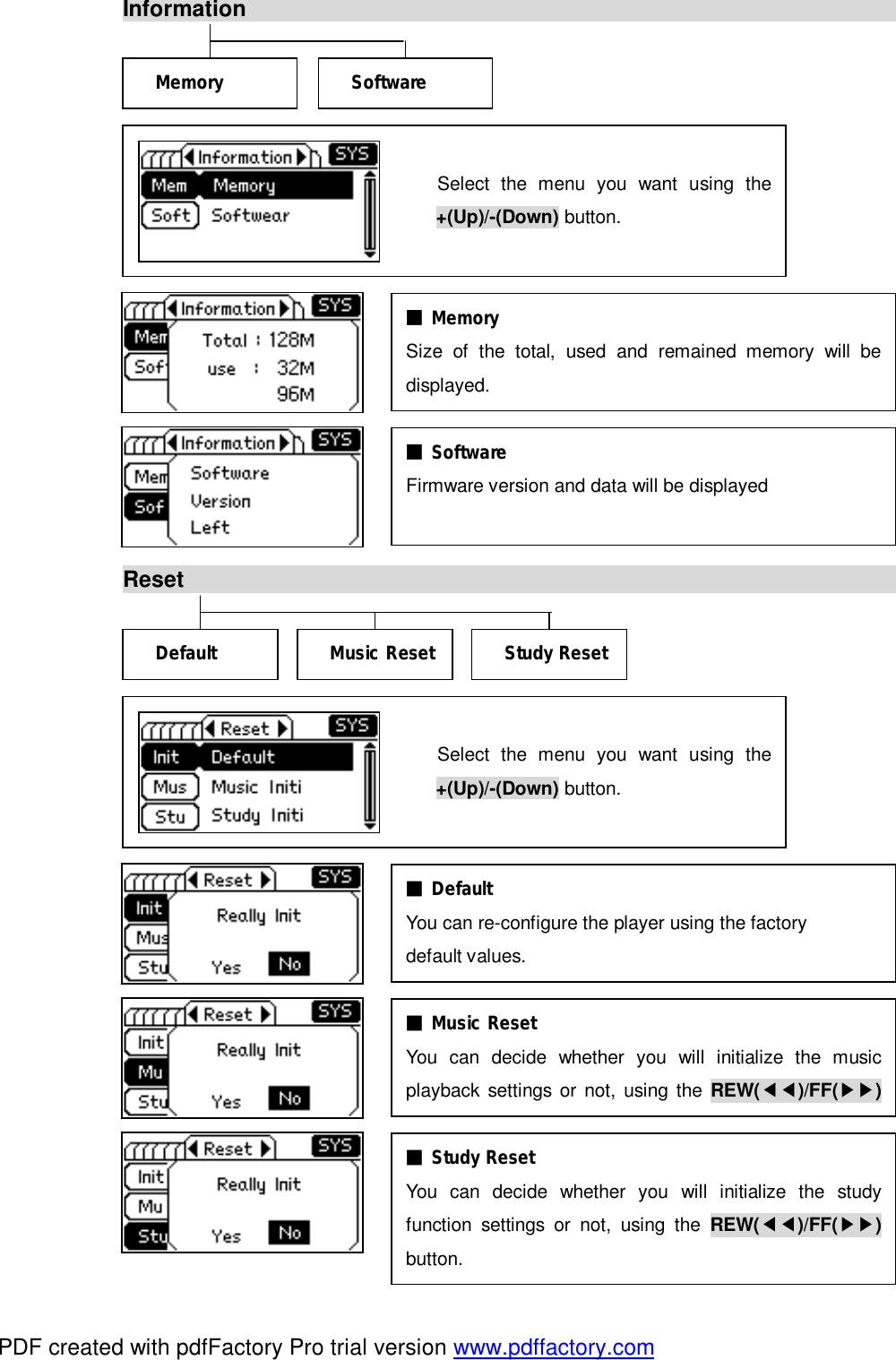

Information Reset Memory Software Default Study Reset Music Reset ■ Memory Size of the total, used and remained memory will be displayed. ■ Software Firmware version and data will be displayed ■ Default You can re-configure the player using the factory default values. Select the menu you want using the +(Up)/-(Down) button. Select the menu you want using the +(Up)/-(Down) button. ■ Music Reset You can decide whether you will initialize the music playback settings or not, using the REW(◀◀)/FF(▶▶) ■ Study Reset You can decide whether you will initialize the study function settings or not, using the REW(◀◀)/FF(▶▶)button. PDF created with pdfFactory Pro trial version www.pdffactory.com

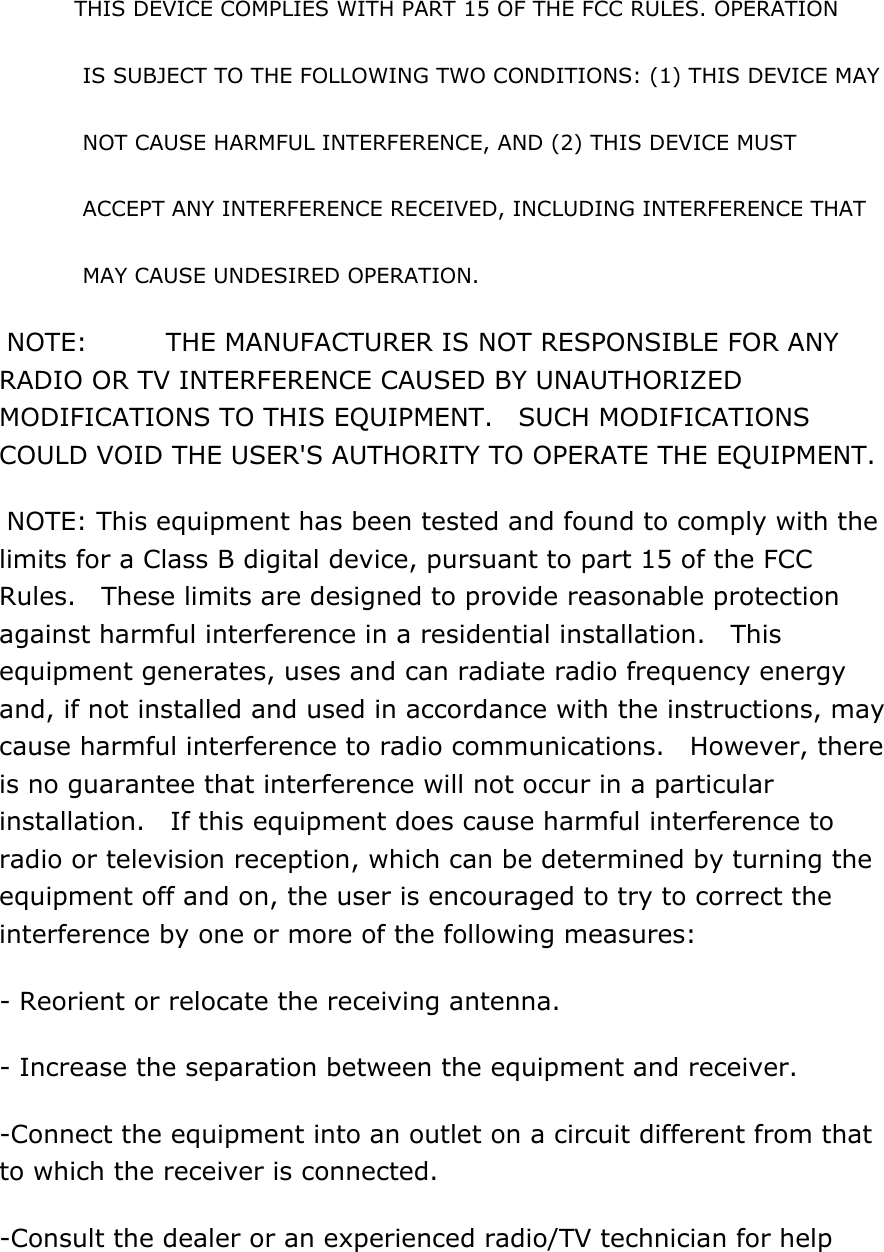

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help
