Centrak ITD736 Ambient Cyro Temperature Sensor ITD- 736H/736LT/736TO User Manual PowerPoint Presentation
Centrak, Inc. Ambient Cyro Temperature Sensor ITD- 736H/736LT/736TO PowerPoint Presentation
Centrak >
User Manual
© CenTrak 2014. All Rights Reserved. Proprietary and Confidential. Draft version subject to revision.

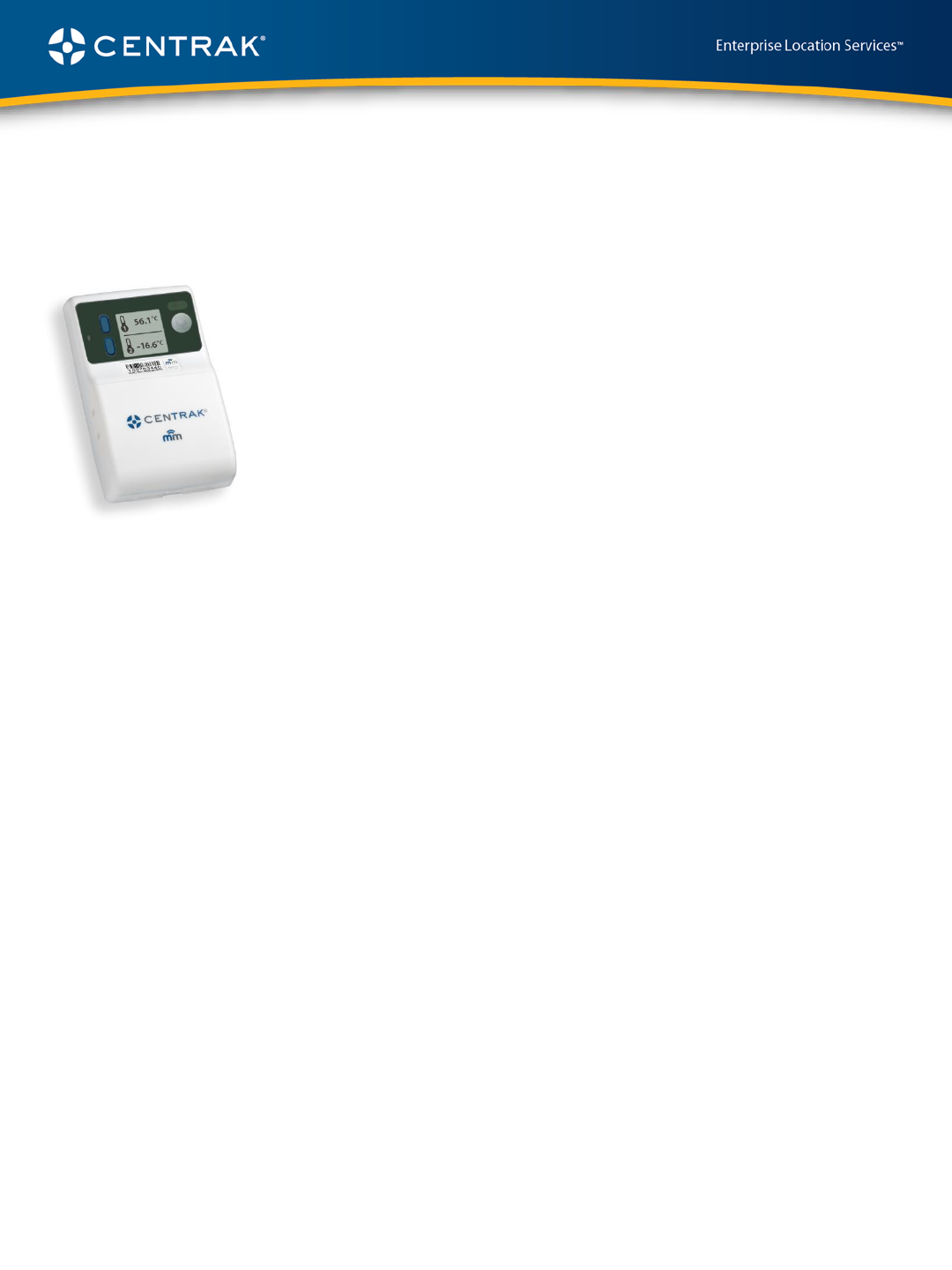

ITD-736TH Ambient Sensor
•Wireless operation over available over Wi-Fi network, CCX or 900 MHz
•-40 ⁰C to 100 ⁰C (+/- 0.5 ⁰C)
•2% RH; Accuracy (10-90%)
•Reliable and accurate temperature and humidity sensing
•Replaceable temperature and humidity calibrated modules for cost
efficient yearly replacement
•Configurable reporting rates
•Local audible alerting when temperatures or conditions are sensed
outside of parameters
•Patented Guaranteed Data Delivery (GDD) for up to 30 days if network is
down
•Long battery life with low-battery alert feature
•Configurable reporting rates
•BLE connectivity for local setup and monitoring
The ITD‐736TH is a temperature and humidity sensor that has the ability
to sense environmental changes reliably and accurately with customizable
reporting rates.
The ITD-736TH Ambient Sensor is part of CenTrak’s family of
environmental sensors. The devices enable a cost effective mechanism to
ensure correct temperature and humidity levels in rooms or refrigerators.
The ITD-736TH can generate alerts when temperatures or humidity levels
are sensed above or below set parameters, and the system can provide
logs which eliminate human error and the cost of manual documentation.
The sensors will continue to monitor temperature and humidity in the
event of a power outage, and have the ability to store measurements off
line which can be transmitted when the network is restored. These
sensors can operate over CCX, regular Wi-Fi or 902-928 MHz ISM band.
Maintenance and management is easy. CenTrak’s family of environmental
sensors offer extreme battery life, are fully configurable in the field and
allow for wireless upgrades.
CenTrak, Inc.
826 Newtown-Yardley Road
Newtown, PA 18940
t: 215-860-2928 e: sales@centrak.com
www.centrak.com
CenTrak 2017. All Rights Reserved. Proprietary and Confidential.

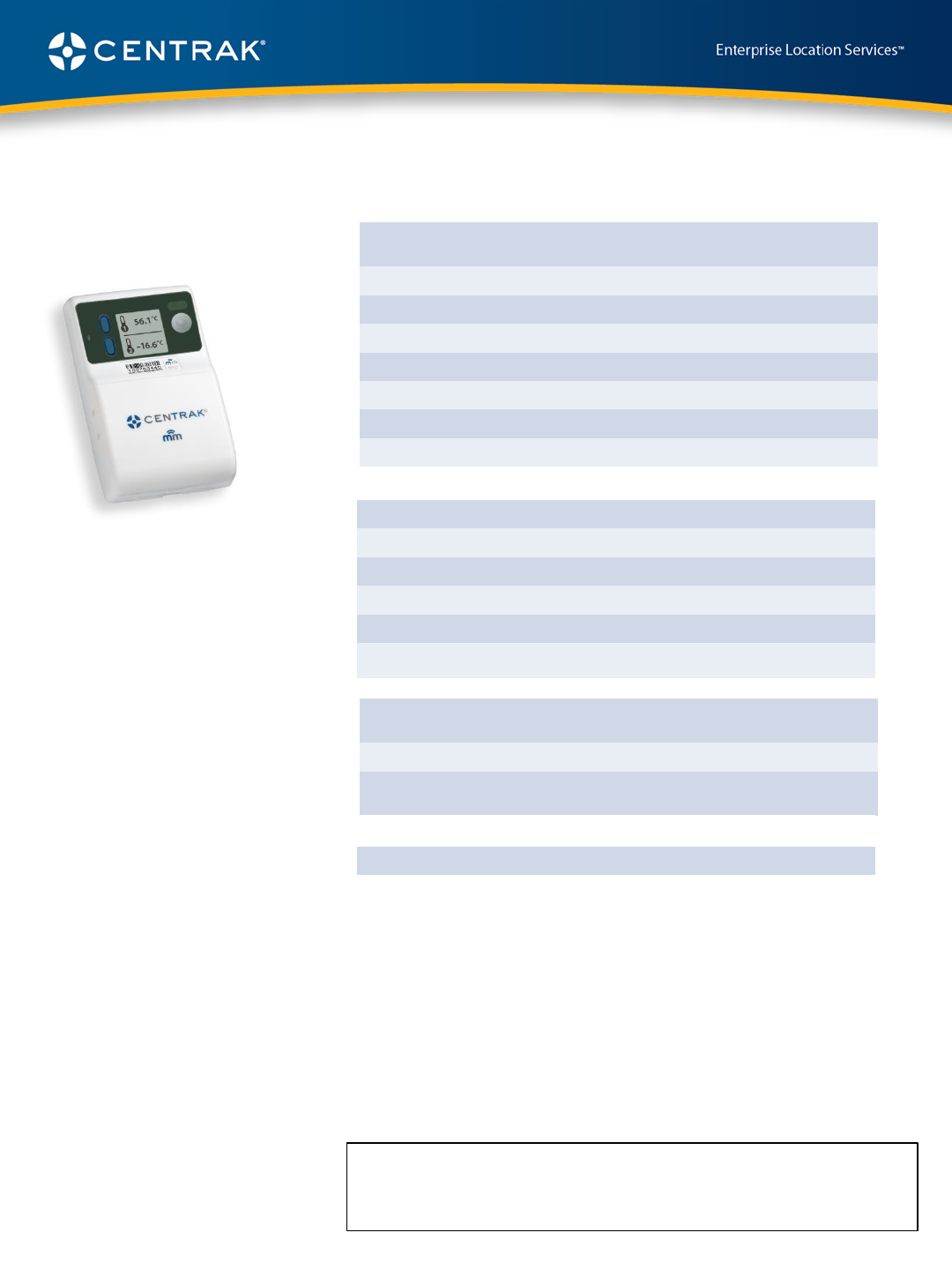

ITD-736TH Ambient Sensor
© CenTrak 2014. All Rights Reserved. Proprietary and Confidential. Draft version subject to revision.
ITD-736TH Ambient Sensor
Technical Specifications
Environmental/Cleaning
Storage Temperature (Tag) -20 oC to +75 oC (for best battery life store at
room temperature or below)
Sealing Splash resistant
Sensor cleaning method Wipe Cleaning Method Only. See CenTrak
Disinfection Guide for Instructions
Power
Battery Type Single Lithium AA (replaceable)
Operation
Wi-Fi or 900 MHz 2.4 GHz (operates using CCX or Wi-Fi on
802.11 b/g) or 902-928 MHz ISM band
BLE (Bluetooth) 2.4 GHz (operates according to BLE protocol)
Display Multi-line display
LED indicator YES
NIST traceable calibration YES
Battery Replacement YES, single screw
Temperature Range (accuracy) 0 oC to 70 oC +/- 0.5 oC, 2% RH
Humidity Ranges (accuracy) 2% RH (10 - 90%)
4% RH (0% - 100%)
Sensor Dimensions
Case Length 2.7 in (68 mm)
Case Height 4.5 in (114 mm)
Case Width 0.8 to 0.9 in (21 to 24 mm)
Case Weight (with battery) 4 oz. (114 g)
Construction PC/ABS Mixture
Durability Tough, impact resistant and temperature stable
CenTrak, Inc.
826 Newtown-Yardley Road
Newtown, PA 18940
t: 215-860-2928 e: sales@centrak.com
www.centrak.com
CenTrak 2017. All Rights Reserved. Proprietary and Confidential.
ITD-736TH Ambient Sensor
This component complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) The device may not cause harmful
interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Modifying or
tampering with the transceiver’s or receiver’s internal components can cause a malfunction, invalidate the warranty, and will void FCC authorization to
use these products. This product or its systems are covered by one or more of the following U.S. patents: 5,917,425, 7,061,428, 7,378,964, 7,619,532.
L ‘ utilisation de ce dispositif est autorisée seulement aux conditions suivantes : (1) il ne doit pas produire de brouillage et (2) l’ utilisateur du dispositif
doit étre prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif.
*Available features may vary based upon the mode of operation
IC Statement per the requirements in RSS-Gen Section 8.4 and RSP-100 Section 4.
English:
This component complies with Industry Canada ’s license-exempt RSSs. Operation is subject
to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause
undesired operation of the device.
French:
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1)
l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit
accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement.
Warning: For mobile or fixed location transmitters, the minimum separation distance between
the antenna & radiating structures of the device and nearby persons is 20 cm, even if calculations
indicate that the MPE distance would be less.
© CenTrak 2015. All Rights Reserved. Proprietary and Confidential. Draft version subject to revision.

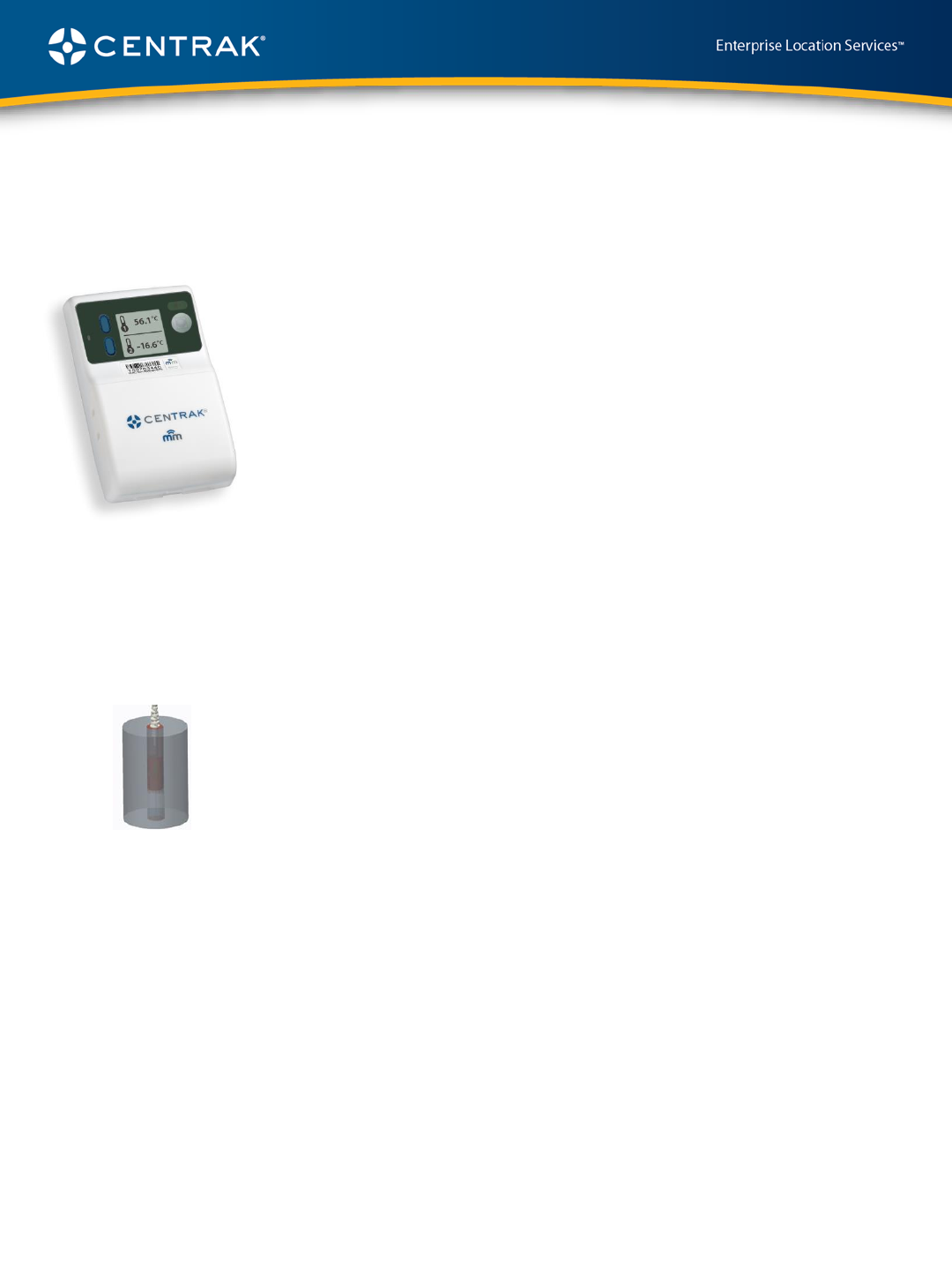

ITD-736LT Cryo Sensor
CenTrak, Inc.
826 Newtown-Yardley Road
Newtown, PA 18940
t: 215-860-2928 e: sales@centrak.com
www.centrak.com
•Wireless operation available over CCX, regular WiFi Wi-Fi or 900 MHz ISM band
•-90 °C to -30 °C (+/- 0.5 °C)
•Reliable and accurate temperature sensing
•Patented Guaranteed Data Delivery (GDD*) after network outage via stored data
•NIST traceable calibration
•Instant button-initiated temperature measurement
•Multiple cable lengths and types for a variety of applications
•Multi-year battery life with low-battery alerting feature
•Local audible and LED visual alerts when outside user-selected range
•Configurable reporting rates
•Door ajar sensing
•BLE connectivity for local setup and monitoring
All of CenTrak Environmental Sensors, like the ITD-736LT, are designed to eliminate
manual measurements and meet regulatory requirements. The sensors use high quality
probes to ensure accurate measurement and reliable performance. Data storage secures
temperature readings during network outages and delivers the data to eliminate and
data gaps.
The ITD-736LT, is a probe‐based temperature sensor that has the ability to precisely
monitor the temperatures required for cryogenic or extreme low temperature storage
and handling. The sensor comes equipped with LCD screen, cryogenic probe and buffer
agent.
The device enables a cost effective mechanism to ensure critical items are stored at
desired cold temperatures. The ITD-736LT, can generate alerts when temperatures are
sensed above or below set parameters, and the system can provide temperature logs
which eliminate human error and the cost of manual documentation. The sensors will
continue to monitor temperature in the event of a power or network outage, and have
the ability to store measurements off line which can be transmitted when the network is
restored. These sensors can operate over any CCX or Wi-Fi network.
Maintenance and management is easy. The CenTrak family of environmental sensors
offer extreme battery life, are fully configurable in the field and allow for wireless
upgrades. Reporting rates can be customized down to a few seconds for application
requiring high time resolution.

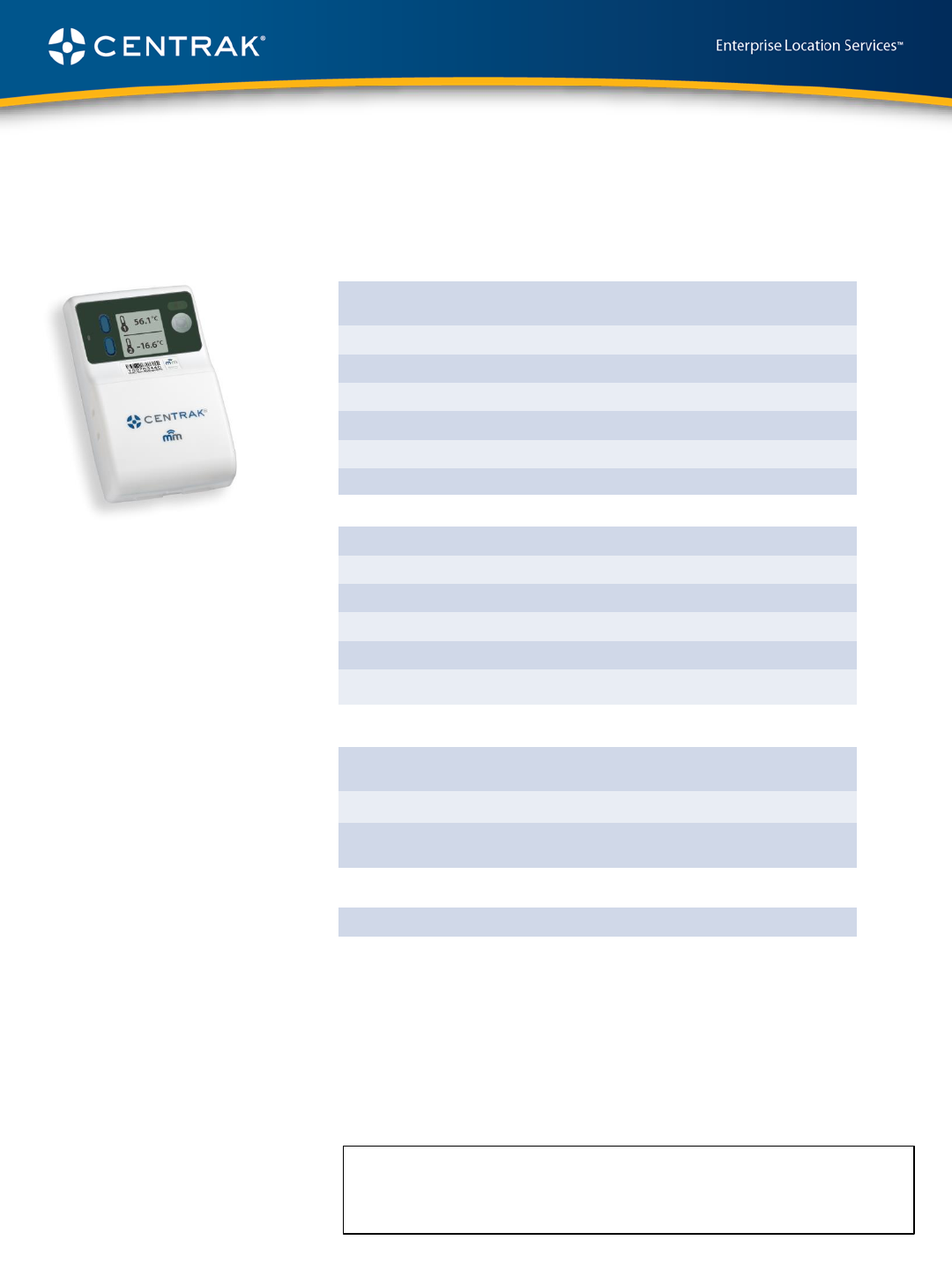

ITD-736LT Cryo Sensor
*Patented GDD
CenTrak 2017. All Rights Reserved. Proprietary and Confidential.
Ribbon Cable Probe ITA-781F
(right).
© CenTrak 2015. All Rights Reserved. Proprietary and Confidential. Draft version subject to revision.
Technical Specifications
Environmental/Cleaning
Storage Temperature (Sensor) -20 °C to 75 °C (for best battery life, store at
room temperature or below)
Sealing Splash resistant
Sensor cleaning method Wipe Cleaning Method Only. See CenTrak Tag
Disinfection Guide for Instructions
Power
Battery Type Single Lithium AA (replaceable)
Operation*
Wi-Fi or 900 MHz 2.4 GHz (operates using CCX or Wi-Fi on
802.11 b/g) or 902-928 MHz ISM band
Bluetooth 2.4 to 2.485 GHz
Number of probe ports 1
LED indicator YES
Local Audible Alert YES
NIST traceable calibration YES
Battery Replacement YES
Temperature Ranges (accuracy) -90 °C to –30 °C (+/- 0.5 °C)
Sensor Dimensions
Case Length 2.7 in (68 mm)
Case Height 4.5 in (114 mm)
Case Width 0.8 to 0.9 in (21 to 24 mm)
Case Weight (with battery) 4 oz. (114 g)
Construction PC/ABS Mixture
Durability Tough, impact resistant and temperature stable
*Available features may vary based upon the mode of operation
CenTrak, Inc.
826 Newtown-Yardley Road
Newtown, PA 18940
t: 215-860-2928 e: sales@centrak.com
www.centrak.com

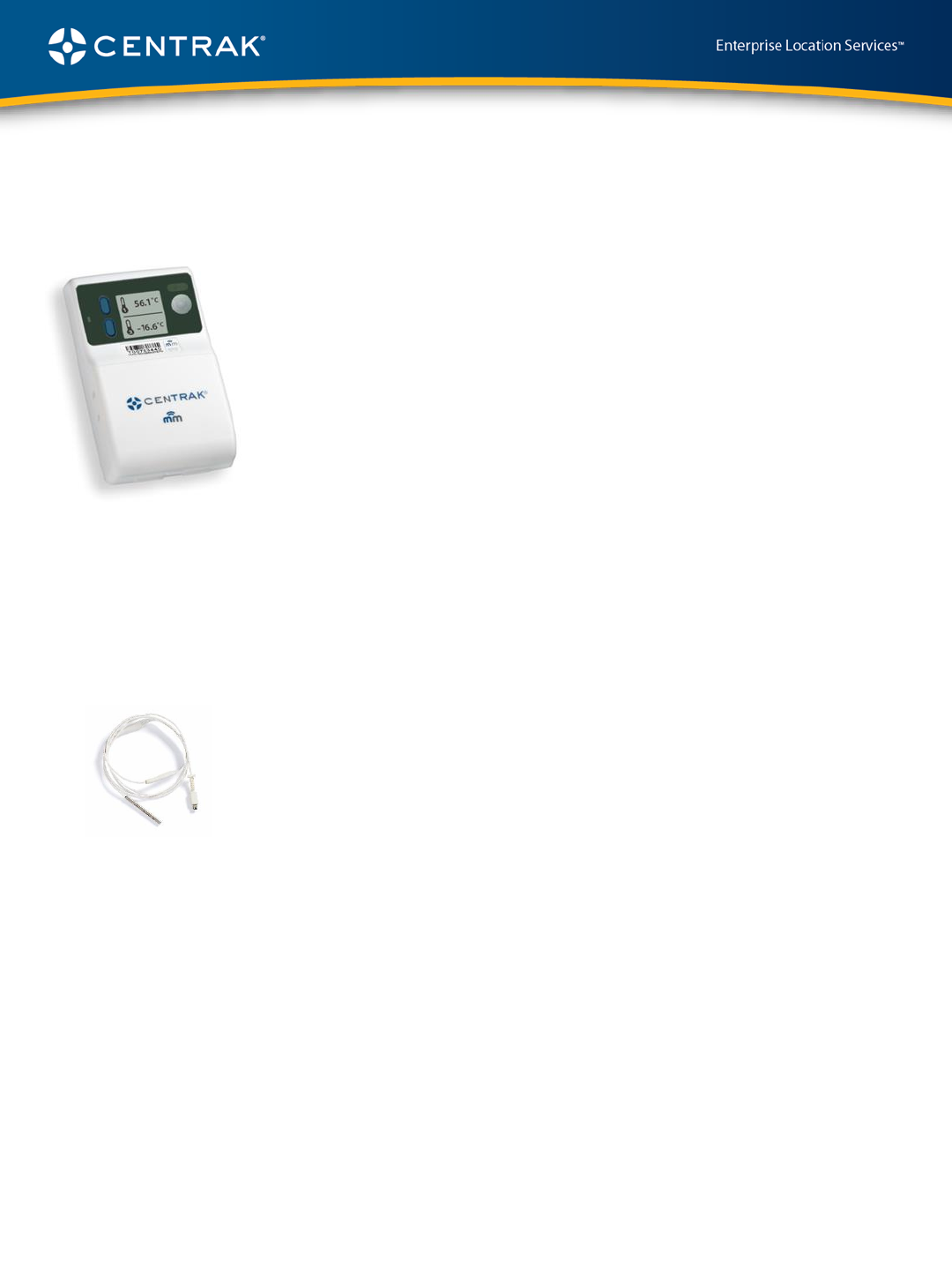

Environmental Sensor Probes
•ITA-781F
•Available in 1’, 6’, 12’, and 25’
lengths with round probe cable.
•Specify flat ribbon cable for door
seal installs.
CenTrak 2017. All Rights Reserved. Proprietary and Confidential.
Other CenTrak Environmental Sensors
•ITD-736TO Temperature Sensor
•ITD-736TH Ambient Sensor
ITD-736LT Cryo Sensor
This component complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) The device may not cause harmful
interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Modifying or
tampering with the transceiver’s or receiver’s internal components can cause a malfunction, invalidate the warranty, and will void FCC authorization to
use these products. This product or its systems are covered by one or more of the following U.S. patents: 5,917,425, 7,061,428, 7,378,964, 7,619,532.
L ‘ utilisation de ce dispositif est autorisée seulement aux conditions suivantes : (1) il ne doit pas produire de brouillage et (2) l’ utilisateur du dispositif
doit étre prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif.
IC Statement per the requirements in RSS-Gen Section 8.4 and RSP-100 Section 4.
English:
This component complies with Industry Canada ’s license-exempt RSSs. Operation is subject
to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause
undesired operation of the device.
French:
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1)
l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit
accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement.
Warning: For mobile or fixed location transmitters, the minimum separation distance between
the antenna & radiating structures of the device and nearby persons is 20 cm, even if calculations
i indicate that the MPE distance would be less.
© CenTrak 2015. All Rights Reserved. Proprietary and Confidential. Draft version subject to revision.

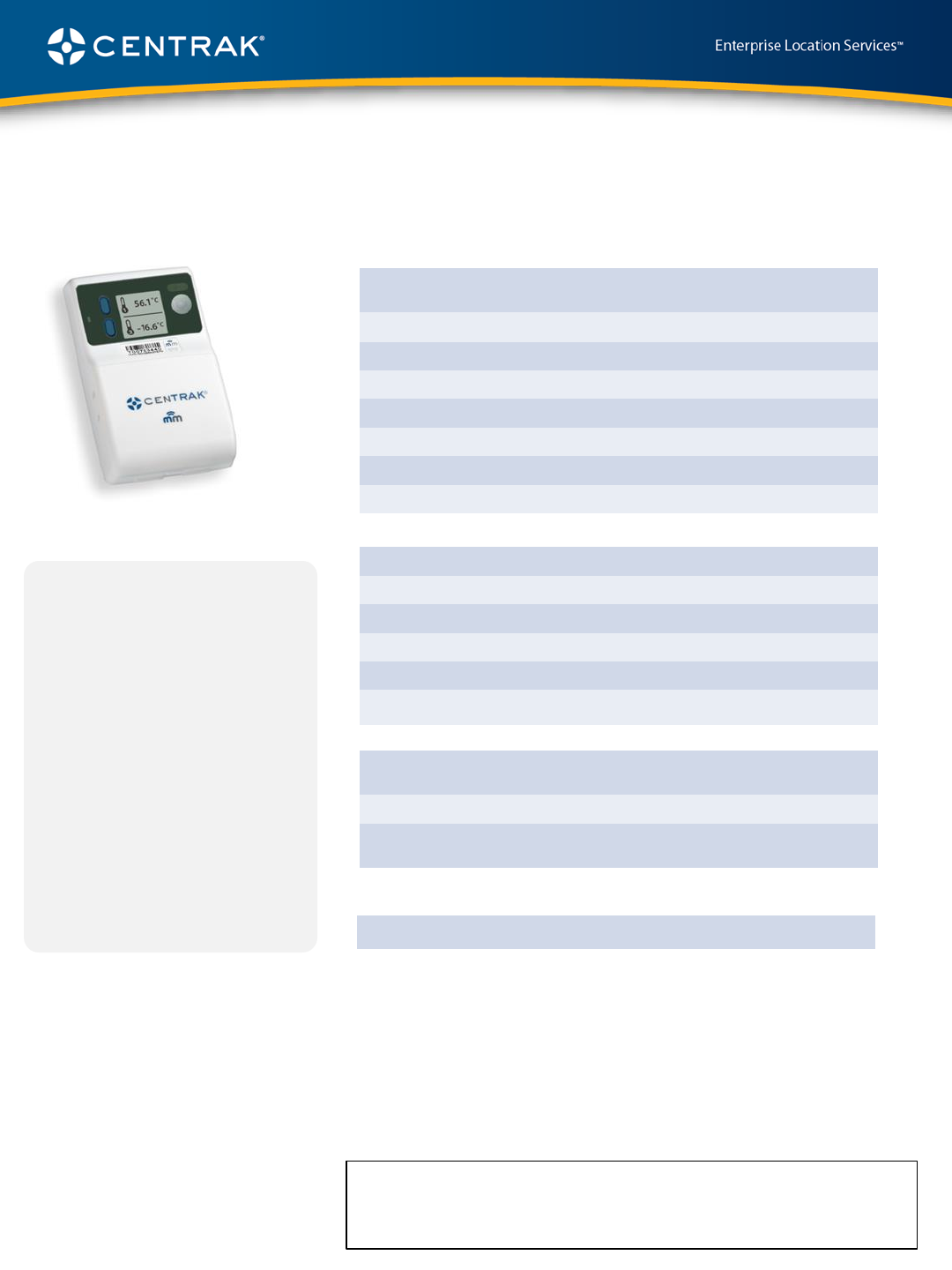

ITD-736TO Temperature Sensor
CenTrak, Inc.
826 Newtown-Yardley Road
Newtown, PA 18940
t: 215-860-2928 e: sales@centrak.com
www.centrak.com
•Operates using CCX, regular WiFi or the 900 MHz ISM band
•Reliable and accurate wireless temperature sensing
•-40 °C to 100 °C (+/- 0.5 °C maximum)
•Rotating display to support multi-direction sensor mounting
•Long battery life with low-battery alert feature
•Configurable reporting rates
•Local audible alerting when temperatures or conditions are sensed
outside of parameters
•Onboard backup storage with Patented Guaranteed Data Delivery
(GDD) for up to 30 days in case of network disruptions
•Door ajar sensing
•BLE connectivity for local setup and monitoring
All of CenTrak’s Environmental Sensors, like the ITD-7386TO, are designed to eliminate
the need to take continual manual measurements 24/7 to meet regulatory requirements.
The sensors use high quality probes, rather than thermistors, to ensure accurate and
reliable read performance, with back up storage to secure readings at all times.
The ITD‐736TO is a probe‐based temperature sensor that has the ability to monitor a
wide range of temperatures, from freezers to above room temperature reliably and
accurately with customizable reporting rates. The sensor comes equipped with two ports
for to support door ajar sensing and temperature sensing. The build-in display allows for
immediate temperature viewing.
The device enables a cost effective mechanism to ensure critical items are stored at
desired temperatures. The ITD-736TO can generate alerts when temperatures are
sensed above or below set parameters, and the system can provide temperature logs
which eliminate human error and the cost of manual documentation. The sensors will
continue to monitor temperature in the event of a power outage, and have the ability to
store measurements off line which can be transmitted when the network is restored.
These sensors can operate over any CCX or Wi-Fi network.
Maintenance and management is easy. CenTrak’s family of environmental sensors offer
extreme battery life, are fully configurable in the field and allow for wireless upgrades.
ITD0736TO Temperature
Sensor
Buffer agent accessory (left).
Available in small and large sizes.
ITA-740, ITA-741
CenTrak 2017. All Rights Reserved. Proprietary and Confidential.
© CenTrak 2015. All Rights Reserved. Proprietary and Confidential. Draft version subject to revision.
ITD-736TO Temperature Sensor
Technical Specifications
Environmental/Cleaning
Storage Temperature (Sensor) -20° C to +75° C (for best battery life store at
room temperature or below)
Sealing Splash resistant
Sensor cleaning method Wipe Cleaning Method Only. See CenTrak Tag
Disinfection Guide for Instructions
Power
Battery Type Single Lithium AA (replaceable)
Operation
Wi-Fi or 900 MHz 2.4 GHz (operates using CCX or Wi-Fi on
802.11 b/g) or 902-928 MHz ISM band
Bluetooth 2.4 to 2.485 GHz
Number of probe ports 1
LED indicator YES
Local Audible Alert YES
NIST traceable calibration YES
Battery Replacement YES
Temperature Ranges -40°C to 100C (0.5°C accuracy)
Sensor Dimensions
Case Length 2.7 in (68 mm)
Case Height 4.5 in (114 mm)
Case Width 0.8 to 0.9 in (21 to 24 mm)
Case Weight (with battery) 4 oz. (114 g)
Construction PC/ABS Mixture
Durability Tough, impact resistant and temperature stable
CenTrak, Inc.
826 Newtown-Yardley Road
Newtown, PA 18940
t: 215-860-2928 e: sales@centrak.com
www.centrak.com
This component complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) The device may not cause harmful
interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Modifying or
tampering with the transceiver’s or receiver’s internal components can cause a malfunction, invalidate the warranty, and will void FCC authorization to
use these products. This product or its systems are covered by one or more of the following U.S. patents: 5,917,425, 7,061,428, 7,378,964, 7,619,532.
L ‘ utilisation de ce dispositif est autorisée seulement aux conditions suivantes : (1) il ne doit pas produire de brouillage et (2) l’ utilisateur du dispositif
doit étre prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif.
CenTrak 2017. All Rights Reserved. Proprietary and Confidential.
ITD0736TO Temperature
Sensor
*Available features may vary based upon the mode of operation
IC Statement per the requirements in RSS-Gen Section 8.4 and RSP-100 Section 4.
English:
This component complies with Industry Canada ’s license-exempt RSSs. Operation is subject
to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause
undesired operation of the device.
French:
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1)
l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit
accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement.
Warning: For mobile or fixed location transmitters, the minimum separation distance between
the antenna & radiating structures of the device and nearby persons is 20 cm, even if calculations
indicate that the MPE distance would be less.
