Centrica Hive MH11 Mini Hub V2 User Manual Alarm Sensor

AlertMe.com Ltd Mini Hub V2 Alarm Sensor

device pairing

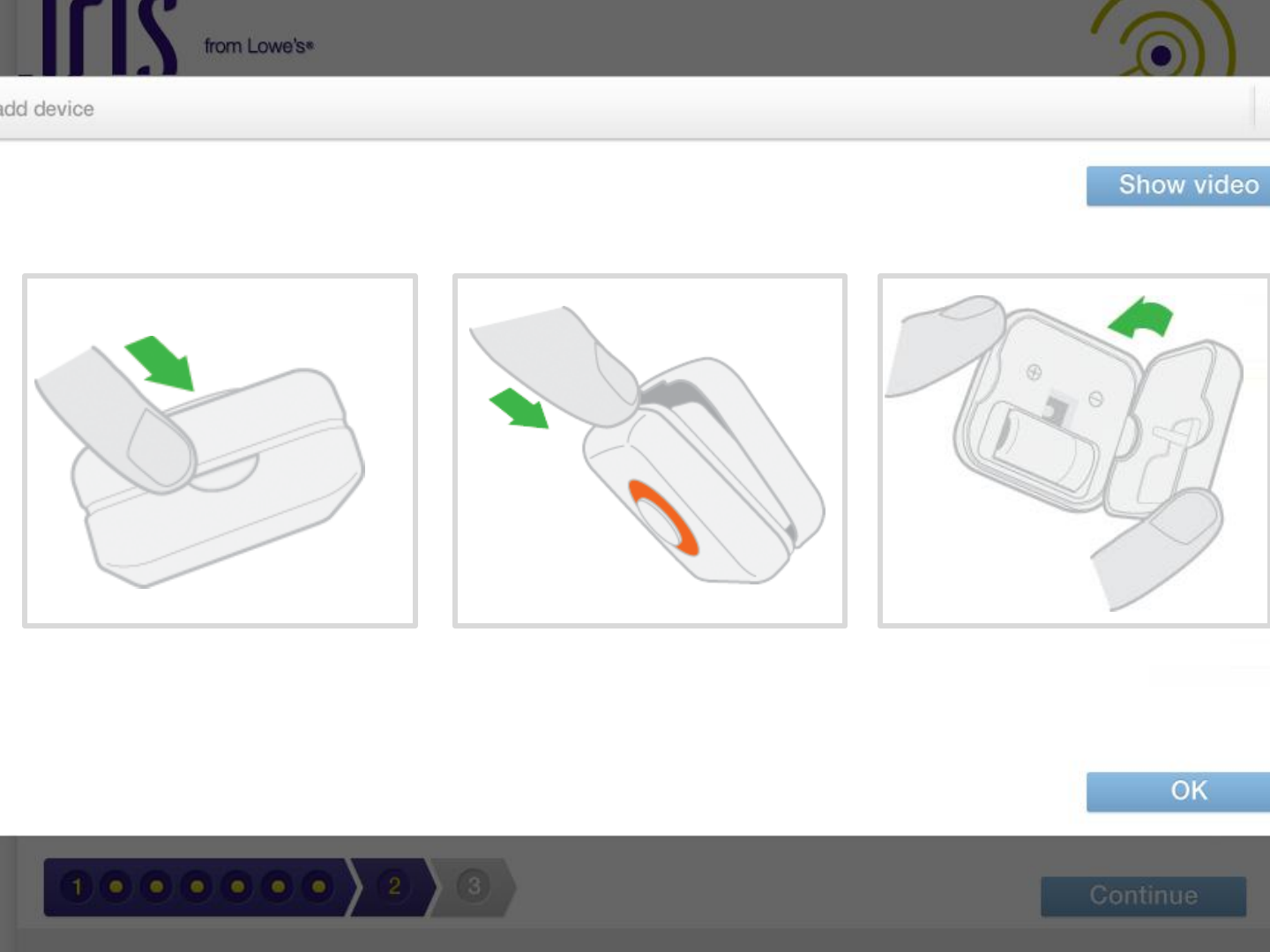

Iris Smart Button
Squeeze sides together then hinge
open.
Insert battery checking correct
orientation.
Replace cover. The button will flash
until it has been added to your system.
Repeat this for all buttons then click ‘ok’
Iris Motion Sensor
Squeeze sides together then hinge
open.
Insert battery checking correct
orientation.
Replace cover. The sensor will flash
until it has been added to your system.
Repeat this for all motions sensors then click ‘ok’
Need to use
v2 sensor
images
Iris Wireless Video Camera
Plug the camera into a power socket using the supplied
cable and adapter and turn on.
Connect the camera to a network port on your router using
the supplied cable.
1. 2.
Repeat this for all cameras then click ‘ok’.
Need to use
new camera
network
Power
Blue Line Optical Electricity Meter Reader
PROCESS TBD
Down load the driver
Connect the gateway
Start the install
Add the reader
Pair reader and gateway
Pair gateway and hub
Iris Door/Window/Cabinet Sensor
Squeeze sides together then hinge
open.
Insert battery checking correct
orientation.
Replace cover. The sensor will flash
until it has been added to your system.
Iris Smart Key Fob
Lever open the key fob using the
supplied tool. Insert battery checking correct
orientation.
Slide the thin end together then
squeeze closed. Key fob will flash until
it has been added to your system.
Repeat this for all key fobs then click ‘ok’
2.
Iris Smart Plug
The light on the front of the Smart Plug will flash until it has
been added to your system.
Plug the Smart Plug into an outlet that is no more than 10
foot from your smart hub.
Repeat this for all smart plugs then click ‘ok’
Use the US
smart plug here And a US socket
Iris Smart Keypad
Remove the back of the keypad as
shown Insert the batteries checking correct
orientation.
The ‘off’ light will flash until it has
been added to your system.
Repeat this for all keypads then click ‘ok’
RTOA Smart Thermostat
Install the thermostat as instructed in
the printed manual.
TBD […] will flash until it has been added
to your system.
2.

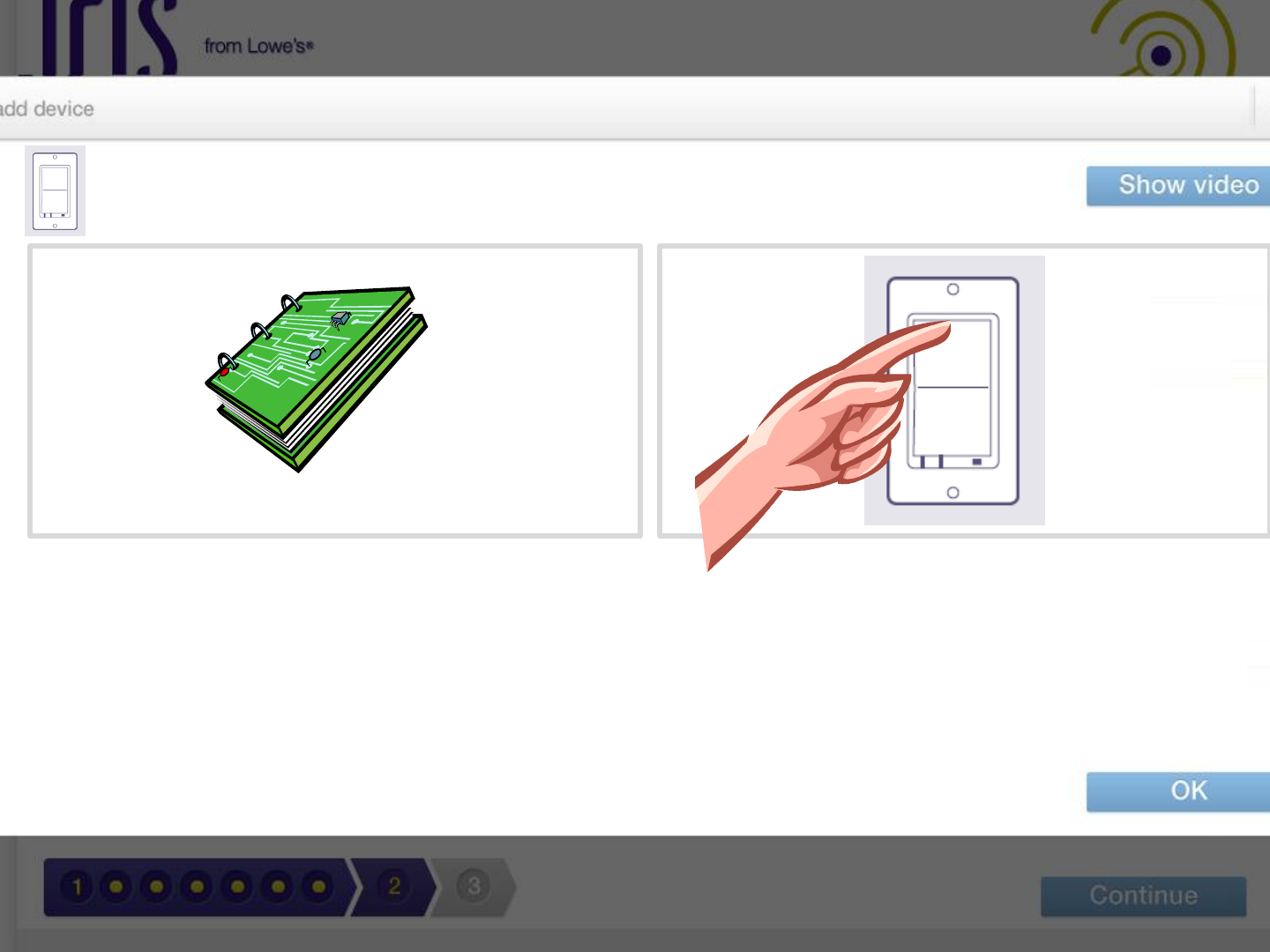

GE On/Off Light Switch
To include your light switch press the top of the rocker
switch. The smart hub will beep when it has been found.
Install the switch as instructed in the printed manual.
2.
GE Dimmer Light Switch
To include your dimmer switch press the top of the rocker
switch. The smart hub will beep when it has been found.
Install the switch as instructed in the printed manual.
2.
GE Outdoor Module
To include your outdoor module press the button on the
front of the module. The smart hub will beep when it has
been found.
Plug the Outdoor module into an outlet that is no more than
10 foot from your Smart Hub.
Show plugged into
a power outlet
Show plugged into
a power outlet
2.

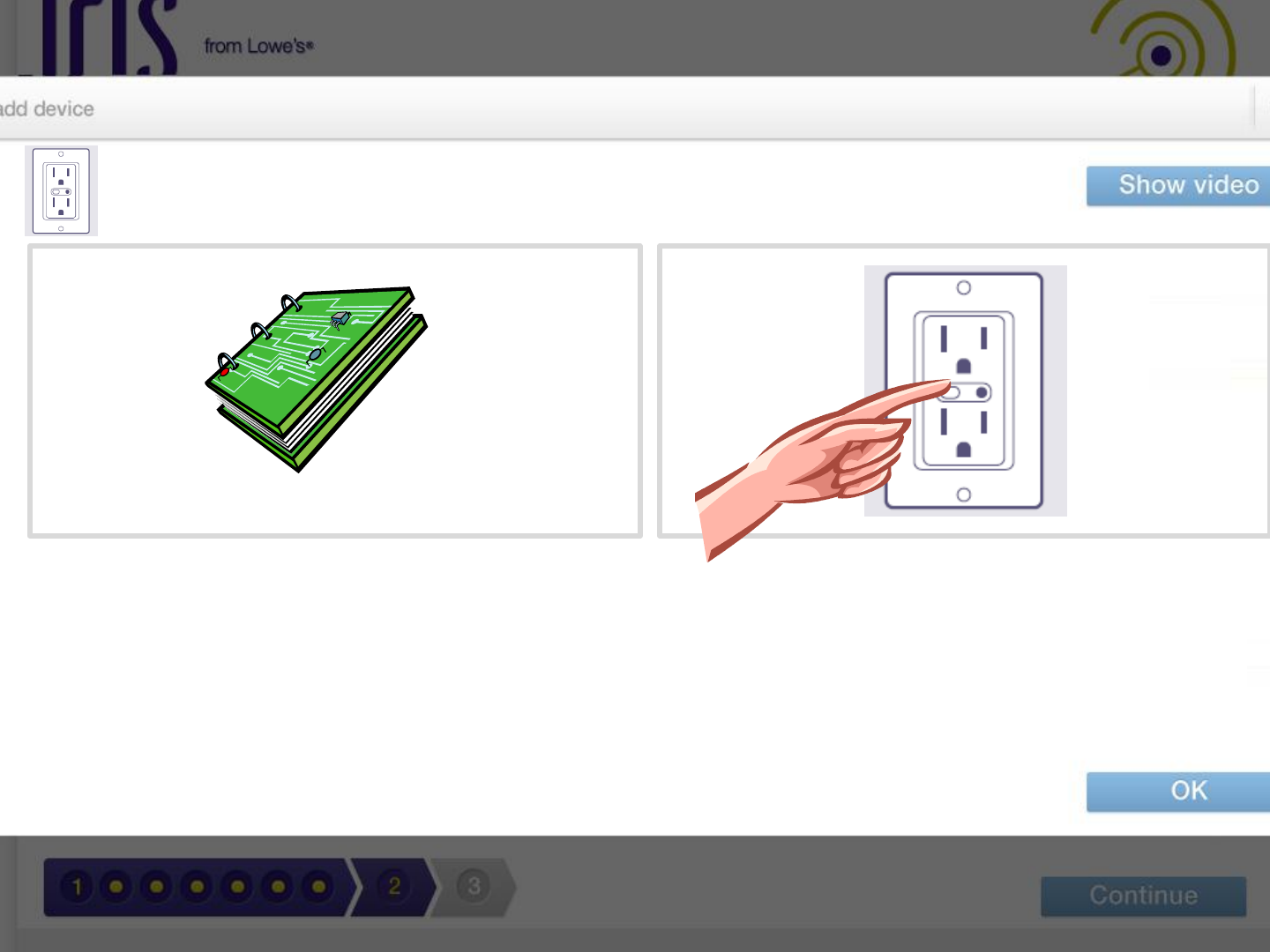

GE Duplex Receptacle
To include your duplex receptacle press the button on the
front of the receptacle. The smart hub will beep when it has
been found.
Install the outlet as instructed in the printed manual.
2.
GE 3 Way Switch
To include your 3 way switch press the top of the rocker
switch. The smart hub will beep when it has been found.
Install the switch as instructed in the printed manual.
Schlage Deadbolt Doorlock - Nickel
Follow the printed instructions to
install your Smart Deadbolt into your
door. Note the 6 digit program code
from the sticker on the lock.
Enter the six digit program code.
Wait for the Schlage button to flash
and beep three times.
Press the Schlage button and then
the number 0. The hub will beep
once it has found the lock.

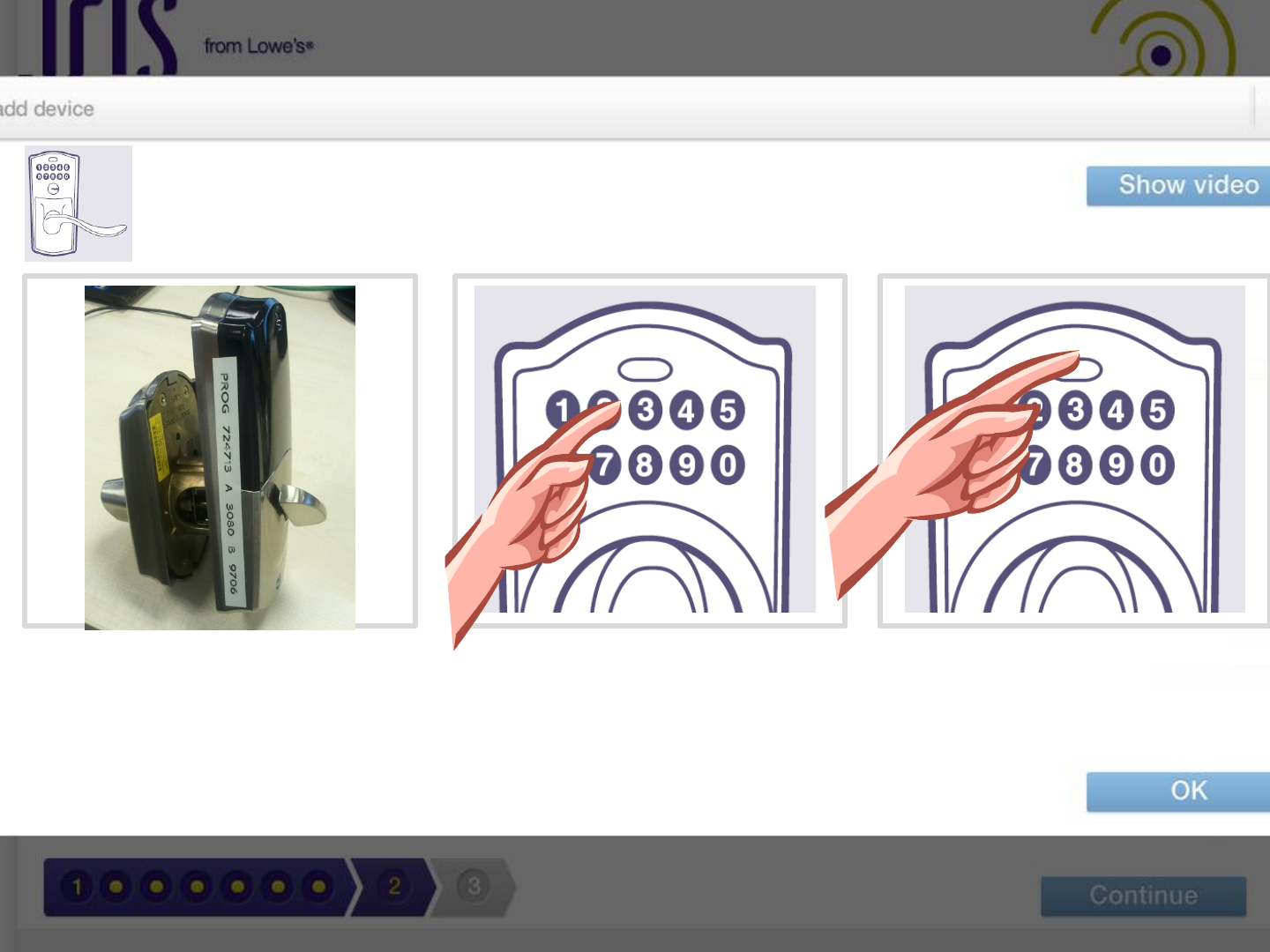

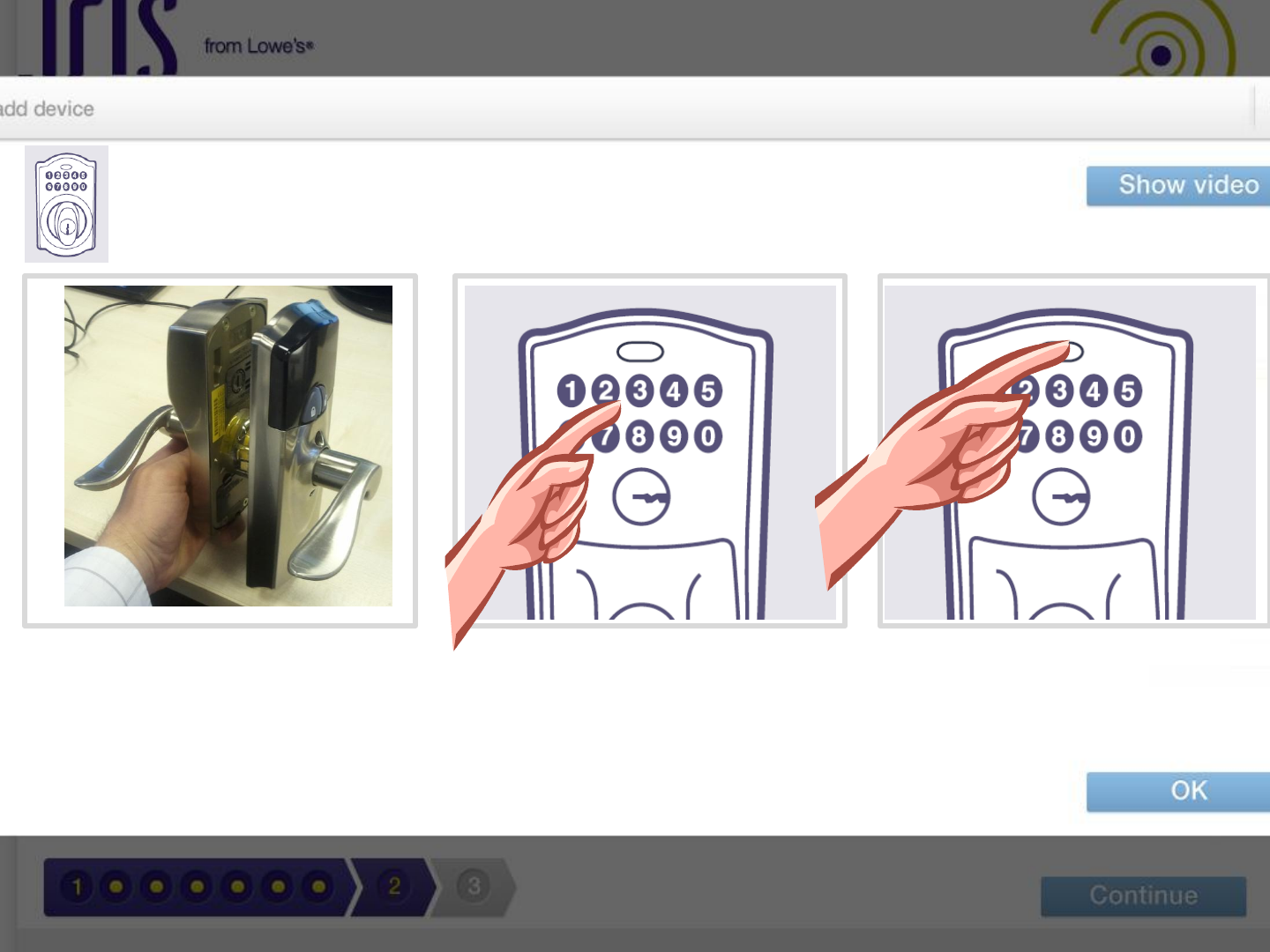

Schlage Level Doorlock - Nickel
Follow the printed instructions to
install your Smart Deadbolt into your
door. Note the 6 digit program code
from the sticker on the lock.
Enter the six digit program code.
Wait for the Schlage button to flash
and beep three times.
Press the Schlage button and then
the number 0. The hub will beep
once it has found the lock.
2.

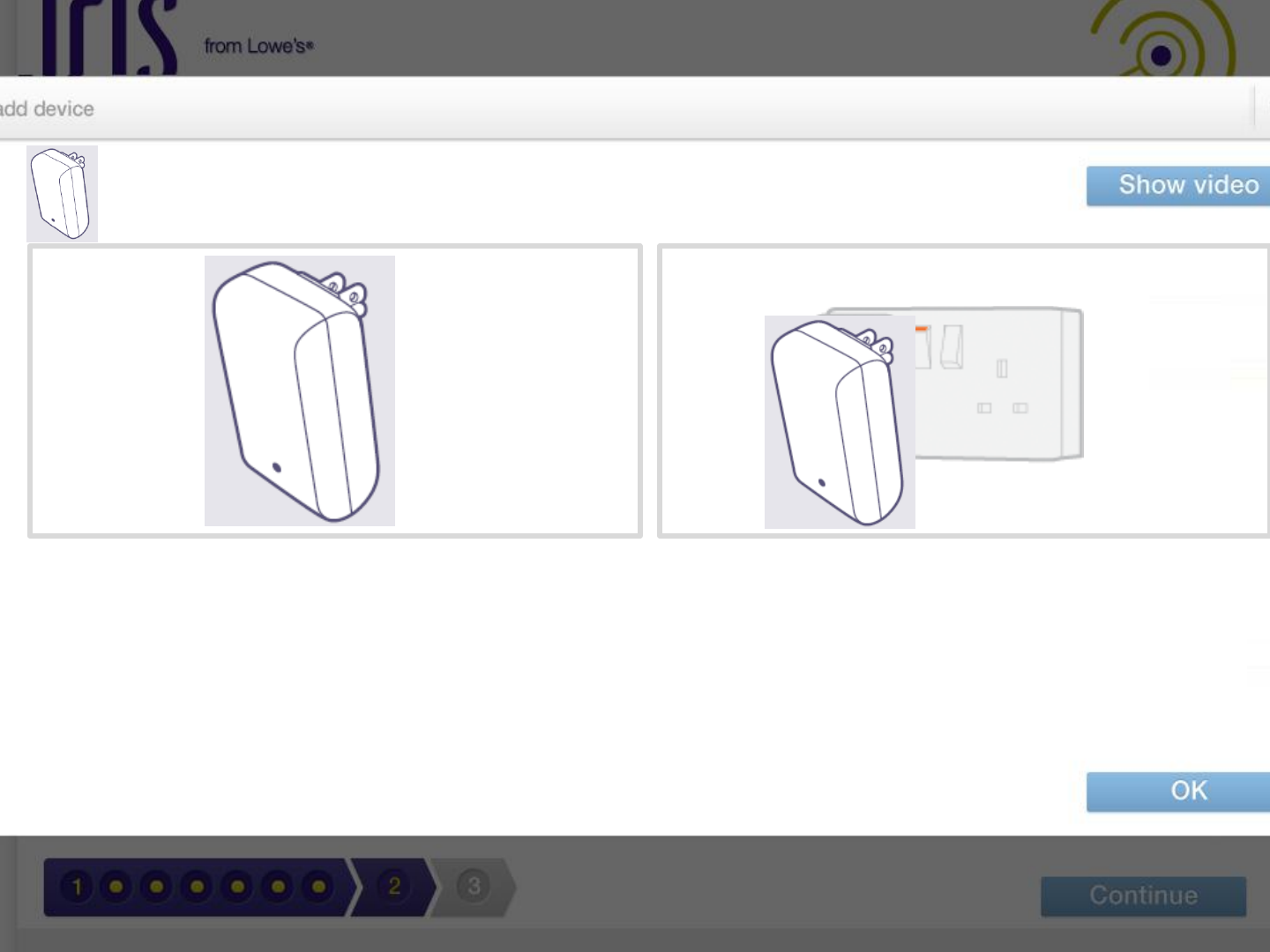

Iris Range Extender
The light on the range extender will flash for a while until it
is added to your system. This should take no more than 5
minutes.
Plug the range extender into an outlet that is no more than
10 foot from your smart hub.
