Chamberlain Group The 1D1519 Garage Door Remote Control User Manual 114A2504 Clicker

Chamberlain Group Inc, The Garage Door Remote Control 114A2504 Clicker

Contents

instructions

The Receiver DIP switch has three positions labeled “+”, “0”
and “-”. The “0” setting cannot be used with the clicker remote.
1) Reset switches: 1 to “-” and positions 2 through 9 to a random
setting using “+” and the “-”. DO NOT USE THE “O” SETTING.
2) Gather any existing remotes and open to expose the DIP switches. Reset
the DIP switch to match the newly coded receiver. Note: some three button remotes do
not have a #1 switch. Match the 2 through 9 to the receiver. On three button remotes
the large button is now programmed to activate the door. 3) Test all the newly coded
remote controls to be sure that they operate the door before proceeding to the BRAND MODE SETTING.
After determining that the Receiver has a yellow, white or gray
learn button, 1) Gather any existing remotes and open to expose
the DIP switches labeled “+”, “0” and “-”. 2) Reset switches: 1 to
“-” and positions 2 through 9 to a random setting using “+” and
the “-”. DO NOT USE THE “0” SETTING, SET ALL REMOTES
TO THE SAME SETTING. On three button remotes the large button is
now programmed to activate the door. 3) The recoded remotes must be
programmed to the receiver. Press and release the smart-learn button.
Then press and hold the existing remote push button for three seconds.
4) Test all the newly coded remote controls to be sure that they operate the
door before proceeding to the BRAND MODE SETTING.
With this type receiver, the existing remotes do not contain DIP switches.
Proceed to BRAND MODE SETTINGS.
LOCK
LIGHT
Motor
Unit &
Receiver
Wall Mounted
Control
Remote Control
The clicker remote can be programmed to operate up to 2 garage door openers or gates,
including different brands. All programming is done using the:
• Brand switch
• Transmitter DIP switch
• Transmit push buttons A and B, and LED indicator
Determine the BRAND of the existing garage door opener or handheld remote controls. If all
remote controls are lost, the BRAND is located on the ceiling mounted motor unit or on the
receiver near the flexible wire antenna. Proceed to the SECTION indicated on the BRAND chart
below.
Note: If programming to more than one opener, after programming button “A” refer to brand
chart, and follow the instructions pertaining to the brand you wish to program into button “B”.
When the remotes range is diminished, operation is intermittent, or the LED dims, replace the
battery. Memory is not lost when the battery is removed. Note: Dispose of old batteries
properly.

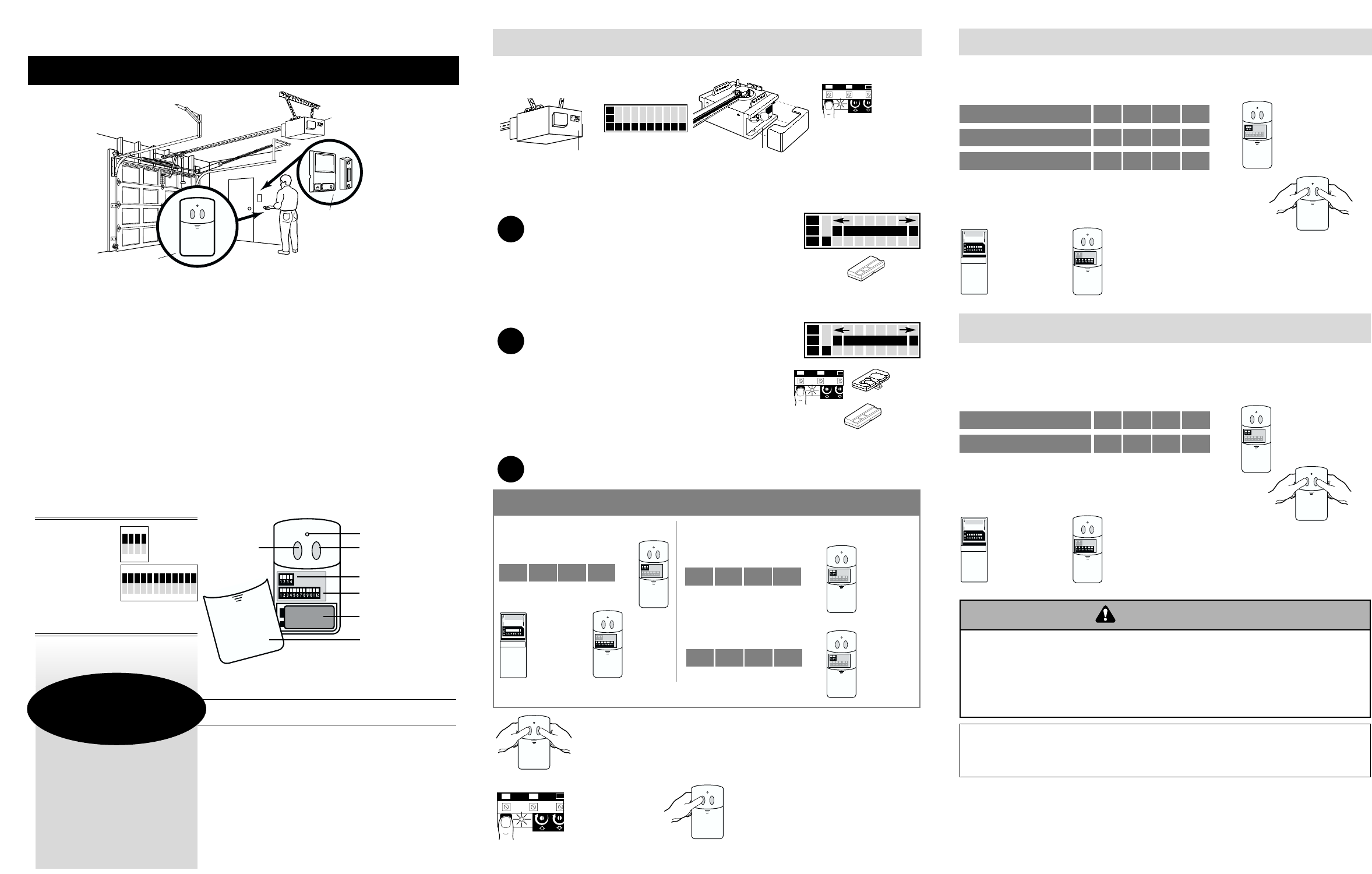

Model No. CLT 1
Universal Garage Door Opener Remote Control
CLICKER
Proceed to appropriate section.
Step 4 - When LED flashes,
release both buttons.
Step 5 - Press the button you wish to operate the
opener (your choice).
Step 6 - Programming is complete, to test, press the
button selected to activate garage door.
Step 2
Step 1
Existing
Remote
Clicker
Remote
Match
existing
codes.
Set extra
switches off.
➡
➡
SECTION III
• Open existing remote; determine if there are 9 or 12 code switch settings.
• Set brand mode switches on clicker remote.
• Program clicker remote push button.
Step 1
ORANGE/RED
SMART-LEARN BUTTON
SECTION I SECTION II
• Determine specific brand and circle above. • Open existing remote to expose code switches.
• Set brand mode switches on clicker remote. • Program clicker remote push button.
➡
Chamberlain, Sears, LiftMaster, Master Mechanic, DoIt
-
➡
ON ON OFF OFF
OFF ON ON OFF
OFF OFF OFF OFF
STANLEY
ON OFF OFF OFF
MULTI-CODE
OFF ON OFF OFF
LINEAR/MOORE-O-MATIC
OFF OFF ON OFF
GENIE 9 SWITCH
ON OFF ON OFF
GENIE 12 SWITCH
SECTION I - Chamberlain, Sears, LiftMaster,
Master Mechanic, DoIt
SECTION II - Stanley, Multi-code, Linear,
Moore-O-Matic
SECTION III - Genie
BRAND
CHART
LED
Button B
Button A
Brand Switch
Dip Switch
Battery
Slide battery
door down
& Remove
Preparation
Determine if your motor unit/receiver system has DIP switches or a smart-learn button.
(Locate the small gray wire antenna. Some
models require removing the light lens.)
• If the Receiver has 9 DIP switches Proceed to TYPE A
• If the Receiver has a yellow, white, or gray smart-learn button, proceed to TYPE B
• If the Receiver has a green, red, or orange smart-learn button, proceed to TYPE C
SMART-LEARN
BUTTON
➡
DIP SWITCHES
A
TYPE
B
TYPE
C
TYPE
➡
✚
–
O
23
1
KG KG
➡
Use this
button
23
1
KG KG
➡
Remote
push button
TECHNICAL SUPPORT: 800-442-1255 (MONDAY-FRIDAY 6AM-7PM CST; SATURDAY 8AM-6PM)
Chamberlain, LiftMaster and Moore-O-Matic are Trademarks of Chamberlain Group. Genie is a Trademark of Overhead Door
Corporation. Linear and Multi-Code are Trademarks of Linear Corporation. Master Mechanic is a Trademark of TruServ.
Sears is a Trademark of Sears & Roebuck. Stanley is a Trademark of The Stanley Works.
DoIt is a trademark of DoIt Best Corporation.
©2001, Clicker Corporation
114A2504B All Rights Reserved Printed in Mexico
➡
Existing
Remote
Match
existing codes.
Set extra
switches off.
➡
➡
Clicker
Remote
✚
O
–
123456789
RANDOM 2-9
DO NOT USE
✚
O
–
123456789
RANDOM 2-9
DO NOT USE
Use this
button
➡
FOR TYPE A AND B
ON ON ON OFF
GREEN SMART-LEARN
BUTTON
➡
Code switch
settings are
not used.
➡
➡
Code switch
settings are
not used.
➡
- Stanley, Multi-Code, Linear, Moore-O-Matic
- Genie - 9 Code Switch, Genie - 12 Code Switch
Step 1
- Step 1
Step 3 - Press and hold both
buttons for 5 seconds
or until LED begins to
flash.
Step 4 - When LED flashes,
release both buttons.
Step 5 - Press the button you wish to operate the
opener (your choice).
Step 6 - Programming is complete, to test, press the
button selected to activate garage door.
Step 2
Existing
Remote
Clicker
Remote
Match
existing
codes.
Set extra
switches off.
➡
➡
Step 3 - Press and hold
both buttons for 5
seconds or until LED
begins to flash.
BRAND MODE SETTINGS
- Set switches on clicker remote
Step 2 - Press and hold both buttons for 5 seconds or until LED begins to flash.
Step 3 - When LED flashes, release both buttons.
Step 4 - Press the button you wish to operate the opener (your choice).
For type A & B, proceed to step 6. For type C, continue on to Step 5.
23
1
KG KG
A. Press and release
Smart-Learn
button.
Step 6 -
Programming is complete, to test, press the button selected to activate garage door.
FOR TYPE C
– OR –
B. Press and hold button
selected in Step 4 for 3 seconds.
Continue to Step 2.
Step 5
Note: Use pen or small screwdriver
to move dip switches.
123456789
1234
➡
➡
10 1112
ON
ON
➡
➡
UP Position is ON
DOWN Position is OFF
UP Position is ON
DOWN Position is OFF
WARNING
CAUTION WARNING
WARNING
To prevent possible SERIOUS INJURY or DEATH from a moving gate or garage door:
• ALWAYS keep remote controls out of reach of children. NEVER permit children to operate, or play
with remote control transmitters.
• Activate gate or door ONLY when it can be seen clearly, is properly adjusted, and there are no
obstructions to door travel.
• ALWAYS keep gate or garage door in sight until completely closed. Never permit anyone to cross
path of moving gate or door.
NOTICE: To comply with FCC and or Industry Canada rules, adjustment or modifications of this receiver and/or transmitter are
prohibited, except for changing the code setting or replacing the battery. THERE ARE NO OTHER USER SERVICEABLE PARTS.
Tested to Comply with FCC Standards FOR HOME OR OFFICE USE. Operation is subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
