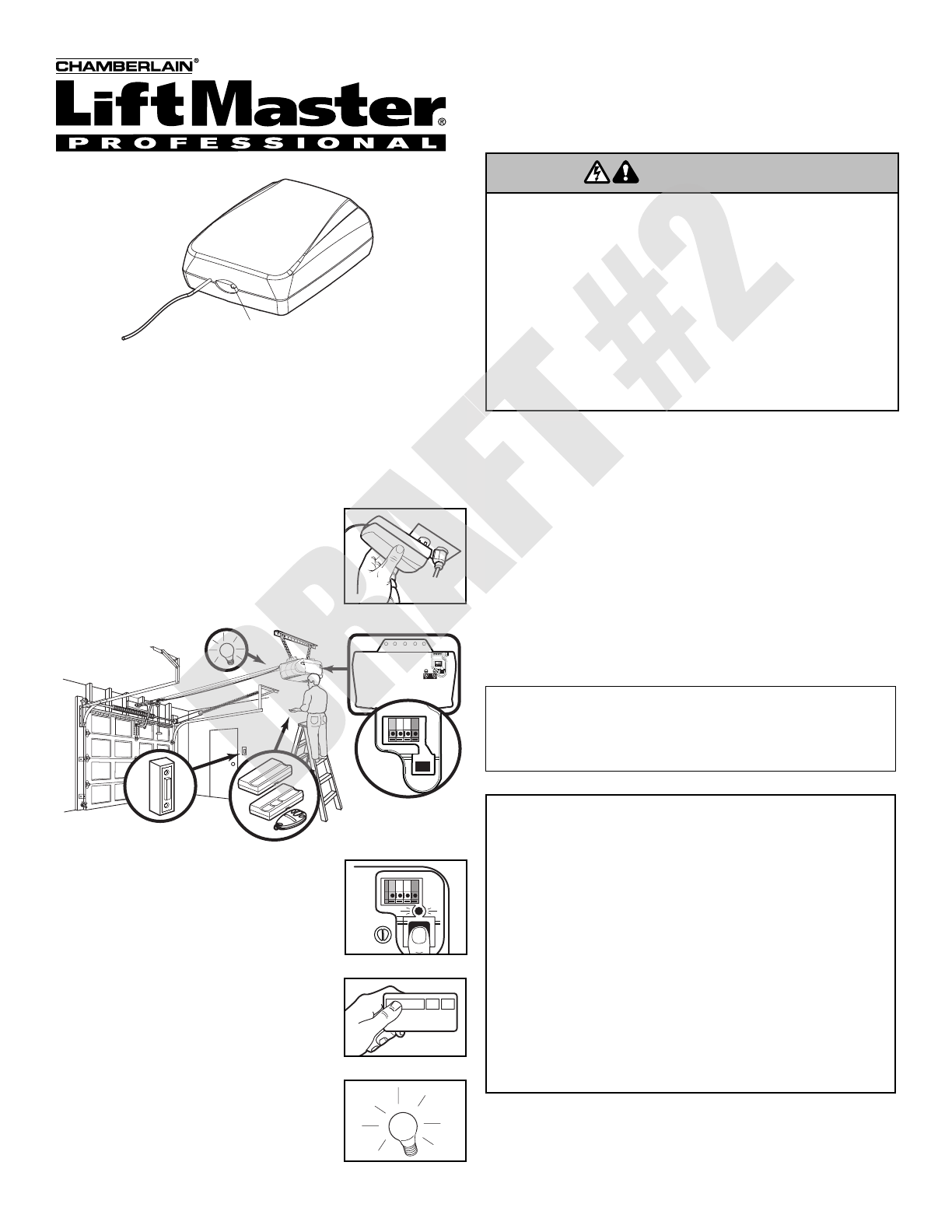

Frequency Translator
Model 385LM
Owner’s Manual
The Frequency Translator is for applications experiencing
high radio interference. The Frequency Translator
receives a radio signal from a 315MHz remote and
transmits a 390MHz signal so you can operate your
garage door opener.
Installation and Programming
1.Remove the Frequency Translator
from the carton and plug it into a
120Vac polarized outlet as close as
possible to your garage door opener
inside garage. Straighten the
antenna.
2. Press and release the “learn” button
on the motor unit. The learn indicator
light will glow steadily for 30
seconds.
3. Within 30 seconds, press and hold
the button on the 315MHz hand-held
remote that you wish to operate your
garage door.
4. Release the button when the motor
unit lights blink. It has learned the
code. If light bulbs are not installed,
two clicks will be heard.
To Erase All Codes From Motor Unit Memory
To deactivate any unwanted remote, first erase all codes:
Press and hold the “learn” button on motor unit until the
learn indicator light goes out (approximately 6 seconds).
All previous codes are now erased. Reprogram each
remote or keyless entry you wish to use.
Troubleshooting
If the garage door opener does not open or close, confirm
that the Receiver/Transmitter indicator light blinks 4 times
when pressing the 315MHz remote button.
Ensure the unit is plugged into a 120VAC AC polarized
outlet.
NOTICE: To comply with FCC and or Industry Canada (IC) rules, adjustment or modifications of
this receiver and/or transmitter are prohibited, except for changing the code setting or replacing
the battery. THERE ARE NO OTHER USER SERVICEABLE PARTS.
Tested to Comply with FCC Standards FOR HOME OR OFFICE USE. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired operation.
Accessories
315MHz Remote(s):
370LM: Security✚®3-Button Mini-Remote Control
371LM: Security✚®1-Button Remote Control
373LM: Security✚®3-Button Remote Control
373W: Security✚®3-Button Remote Control
374LM: Security✚®4-Button Remote Control
Radio Receiver(s):
335LM: Security✚®390MHz Universal Radio Control
535LM: Security✚®390MHz Universal Radio Control
635LM: Security✚®390MHz Universal Radio Control
For service dial our toll free number: 1-800-528-2817
© 2005 The Chamberlain Group, Inc.
114A3229 All Rights Reserved Printed in Mexico
Rating: 120Vac, 60Hz, 35mA
