3-BUTTON REMOTE CONTROLS
MODELS 953EV, 953EVC, 956EV AND 956EVC
To prevent possible SERIOUS INJURY or
DEATH from a moving gate or garage door:
ALWAYS keep remote controls out of
reach of children. NEVER permit children
to operate or play with remote controls.
Activate gate or door ONLY when it can be
seen clearly, is properly adjusted and there
are no obstructions to door travel.
ALWAYS keep gate or garage door in sight
until completely closed. NEVER permit
anyone to cross path of moving gate or
door.
For use with Chamberlain 315 MHz or 390 MHz garage door openers manufactured after
January 1, 1993. The garage door opener activates when the programmed button on the
remote control is pressed. The remote control can activate up to three garage door openers.
Make sure the garage door opener has a working light bulb because it is a programming
indicator.
®
LED LED
Locate the Program button on the
remote control.
Locate the Learn
button on the garage
door opener.
NOTE: Your garage door
opener may look different.
OR OR
Learn
LED
Learn
LED
Learn
LED
Green
or
Red/Orange
Purple Yellow Program Button
Program Button
23Press and release the remote
control button you want to use...
4To exit programming mode, press
any remote control button except
the button that was just programmed.
Install the visor clip.
6
The garage door opener
will activate.
To test, press the programmed button on
the remote control...
1Press and
release the
Learn button
on the garage
door opener.
Within 30 seconds...
To enter
programming
mode, use the
visor clip to
press the Program
button until the LED
on the front of the
remote control turns on.
The Learn LED will light.
Check to see if the garage door opener
light bulb blinks. If not, wait for the
remote control LED to light solid then
slowly press and release the remote
control button again. Repeat until the
light bulb blinks.
DO NOT press the button after the
light bulb blinks.
5
MODELS 953EV AND 953EVC MODELS 956EV AND 956EVC
GARAGE ACCESS SYSTEM
REMOTE
GARAGE ACCESS SYSTEM
KEYCHAIN REMOTE

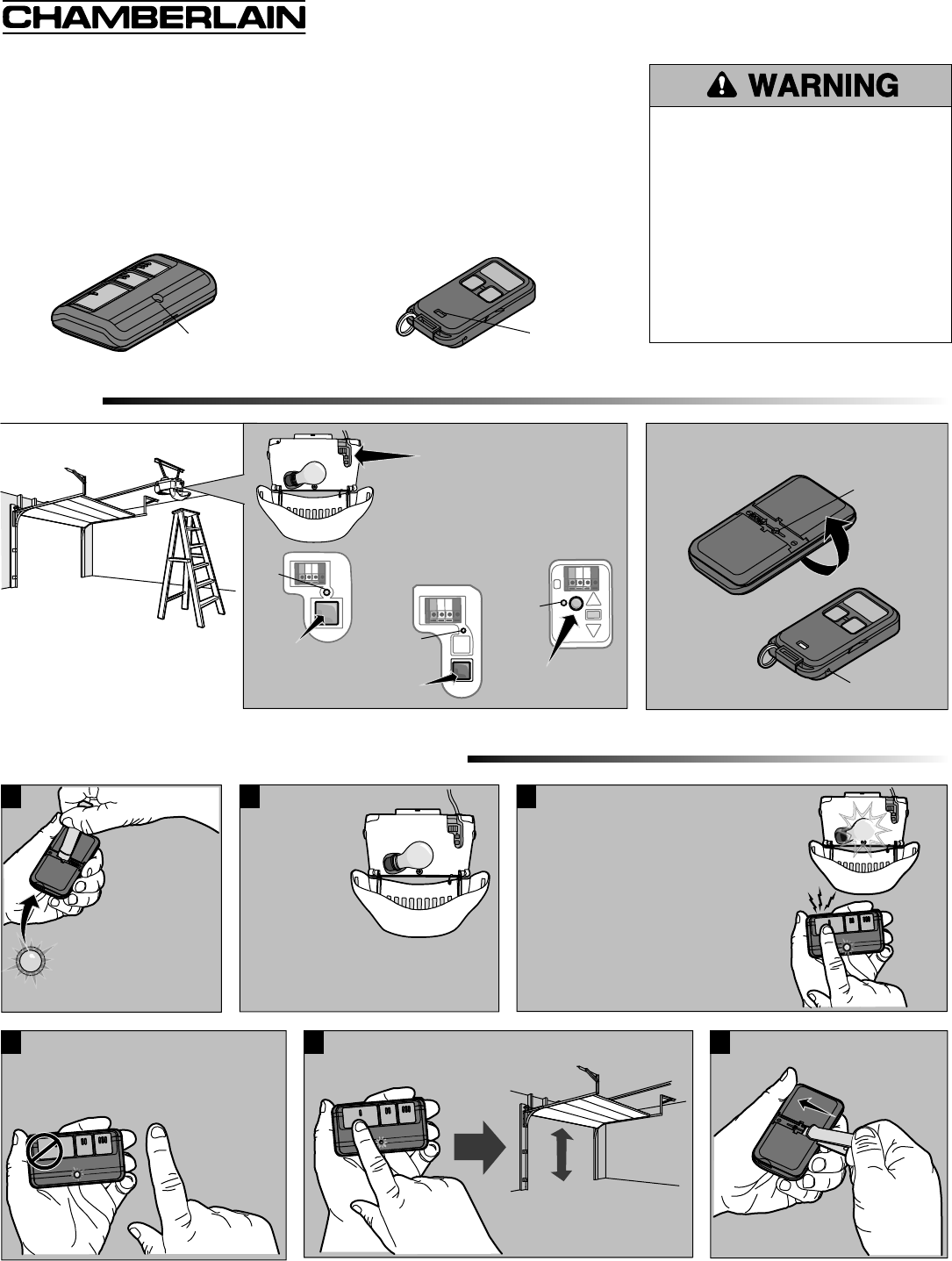

PREPARE
PROGRAM THE REMOTE CONTROL (953EV & 953EVC)
953EV &
953EVC
956EV &
956EVC
4To exit programming mode, press
any remote control button except
the button that was just programmed.
The garage door opener
will activate.
To test, press the programmed button on the remote control...
Using a safety pin or paper
clip, press the Program button
until the LED on the front of
the remote control turns on.
12Press and
release the
Learn button
on the garage
door opener.
Within 30 seconds...
The Learn LED will light.
3Press and release the remote
control button you want to use...
Check to see if the garage door opener
light bulb blinks. If not, wait for the
remote control LED to light solid then
slowly press and release the remote
control button again. Repeat until the
light bulb blinks.
DO NOT press the button after the
light bulb blinks.
5
NOTICE: To comply with FCC and or Industry Canada rules (IC),
adjustment or modifications of this receiver and/or transmitter
are prohibited, except for changing the code setting or replacing
the battery. THERE ARE NO OTHER USER SERVICEABLE
PARTS.
Tested to Comply with FCC Standards for Home or office use.
Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device
must accept any interference received, including interference
that may cause undesired operation.

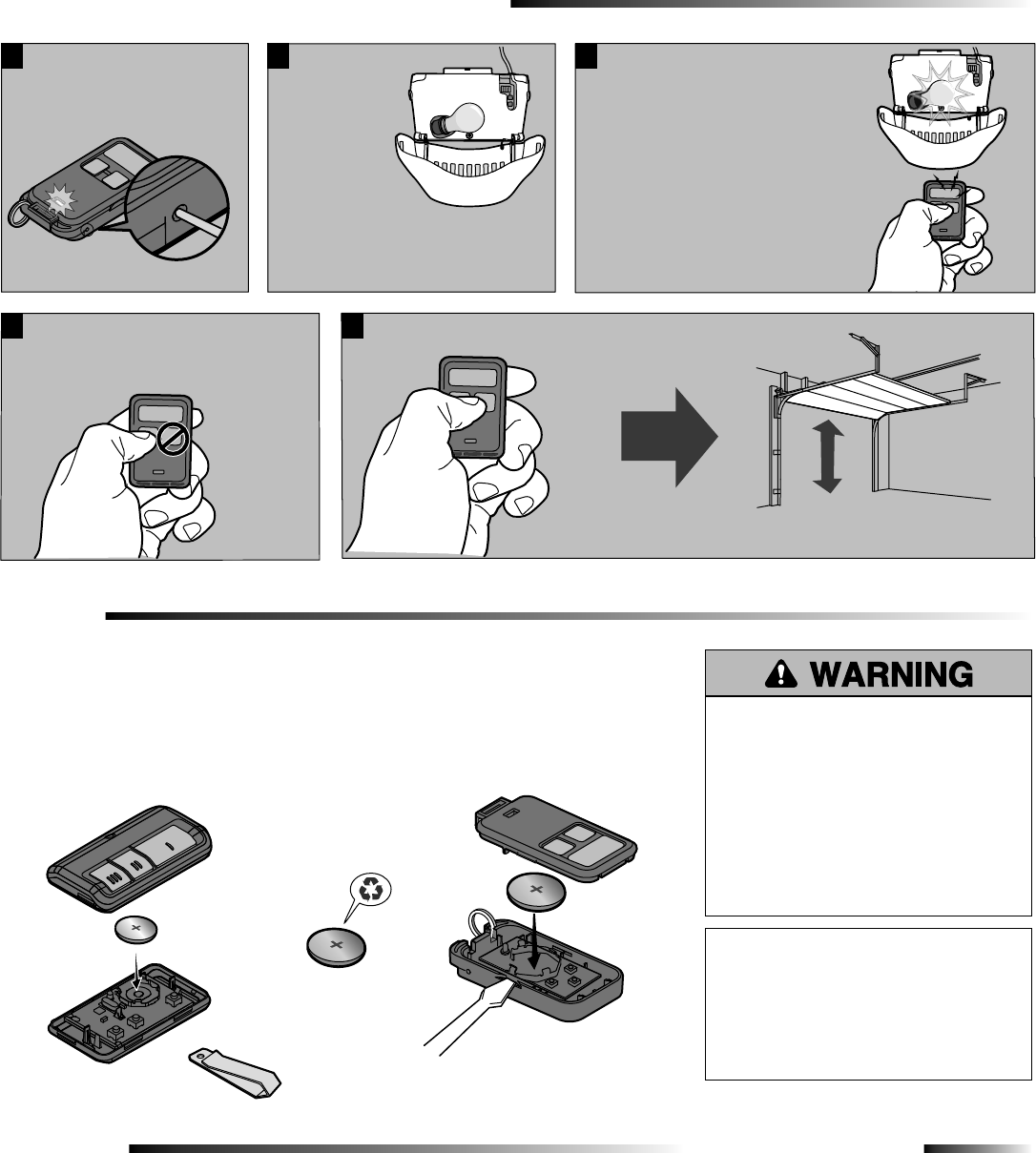

BATTERY
The LED on your remote will stop flashing when the battery is low and needs to be replaced.
To replace battery, open the case as shown. Insert battery positive side up (+). Replace the battery
with only 3V2032 coin cell batteries. Dispose of old battery properly. To prevent possible SERIOUS INJURY or
DEATH:
NEVER allow small children near batteries.
If battery is swallowed, immediately notify
doctor.
To reduce risk of fire, explosion or chemical
burn:
Replace ONLY with 3V2032 coin batteries.
DO NOT recharge, disassemble, heat
above 212° F (100° C) or incinerate.
1-800-528-9131
114A3924 © 2011, The Chamberlain Group, Inc.
All Rights Reserved
REPLACEMENT PARTS
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . 10A20
Visor Clip
(Models 953EV & 953EVC ONLY) . . . . 20B137
1
2
3
WARRANTY
www.chamberlain-diy.com
ONE YEAR LIMITED WARRANTY
The Chamberlain Group, Inc. warrants to the first retail purchaser of this product that is free from
defect in materials and/or workmanship for a period of 1 year from the date of purchase.
Pry open the case with a screwdriver blade.
956EV & 956EVC
Pry open the case first in the middle (1), then
at each side (2 and 3) with the visor clip.
953EV & 953EVC
PROGRAM THE REMOTE CONTROL (956EV & 956EVC)
