Chaney Instrument 00782TX Digital Wireless Thermometer User Manual 516526
Chaney Instrument Co. Digital Wireless Thermometer 516526
User Manual
00782
I
Instruction Manual
Specification
- The current indoor and outdoor are display on the main LCD readout
- Temperature measurement range:
Indoor main unit:32F – 122F (0C -50C)
Wireless remote unit:0F – 122F (-20C – 50C)
- Temperature resolution:0.1 degree
- Transmission range: up to 100ft. in an open area
INSTRUCTION MANUAL
ATTENTION
For the first installation, insert the batteries in the main unit and then the remote
sensor.
Battery installation
Main unit
Insert 2 fresh “AAA” alkaline batteries into the main unit. (Batteries not
included)

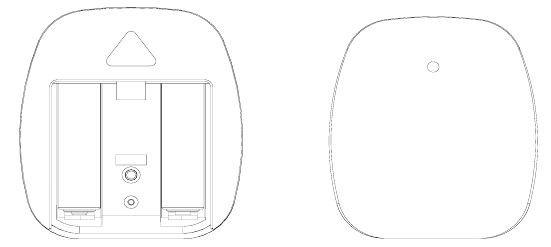

Remote sensor
Insert 2 fresh “AAA” alkaline batteries into the main unit. (Batteries not
included)
Getting Started

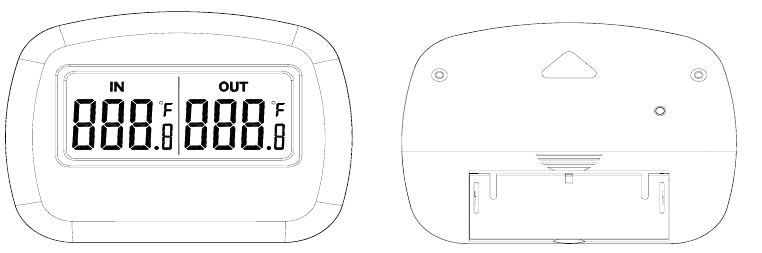

Indoor unit
Insert the batteries into the main unit. It displays the indoor temperature. And
the outdoor reading “- - -“
Remote sensor
Insert the batteries into the remote sensor. The Indoor unit displays the outdoor
temperature.
reset
Replace Batteries
For remote sensor
When the outdoor window display “- - -“continuously, maybe the remote sensor
out of range or batteries low. Replace the fresh batteries into the Remote sensor
and MUST be press the RESET button on the Indoor unit (receiver).
When the Indoor unit (receiver) cannot display any reading, please replace the
fresh batteries into the Main unit (receiver).
Troubleshooting
Using the Reset button on the Indoor unit (receiver)
In some unusual occasions, the Indoor unit may be affected by electrical
interference and respond abnormally. In such conditions, press the RESET
button on the Indoor unit to resume normal operation. The Indoor unit will reset
the display and display the indoor temperature. The outdoor window displays “-
- -“, and display the outdoor temperature within 1 minute.
Using the Reset button on the remote sensor (sender)
In some unusual occasions, the remote senor may be affected by electrical
interference and respond abnormally. In such conditions, press the RESET
button on the remote sensor to resume normal operation.
If you press the RESET button on the remote sensor, you MUST press the
RESET button on the Indoor unit (receiver) as well.
When the Indoor unit display “- - -“continuously in the outdoor window, it may
the remote sensor out of range or batteries low. Please put the Remote sensor
(sender) close to the Indoor unit (receiver) or replace the fresh batteries.
After press the Reset button or replace the batteries on the Remote sensor
(sender), you MUST press the Reset button on the Main unit (receiver).
Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) This device must
accept any interference received, including interference that may cause undesired operation.
Warning: Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user’s authority to operate the
equipment.
Note: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Trade Name:
Model Number: 00782
The responsible party information:
Chaney Instrument Co.
965 S. Wells Street,
Lake Geneva, WI 53147,
Tel: 262-248-4449
Contact Person: Robin Hansen
LIMITED WARRANTY INTERNATIONAL
Consumer may have more remedies at law than follows. Chaney Instrument
Company warrants to the owner, this product to be free from defect in material and
workmanship for one year from date of purchase. CHANEY INSTRUMENT SHALL
NOT BE LIABLE FOR ANY INCIDENTAL, INDIRECT OR CONSEQUENTIAL
DAMAGES, WHETHER ARISING IN CONTRACT OR TORT. Chaney Instrument’s
obligation (at its option) is limited to repair or replace this product.
For in- warranty repair, send clock, accompanied by Guarantee, bearing Dealer’s
name and date of purchase, with $5.00 to cover handling and postage, to:
Chaney Instrument Company
965 Wells Street
Lake Geneva, Wisconsin 53147
Lake Geneva, WISCONSIN 53147
www.chaneyinstrument.com
