Chaney Instrument RF100XTX Temperature and Humidity Transmitter User Manual
Chaney Instrument Co. Temperature and Humidity Transmitter Users Manual
user manual
Model No. 00611 / 00615
Model Name Wireless Weather Station
Version 1.0
Product Specification
Effective Date 1/2/2007
Wireless Weather Station
Model No.: 00611 / 00615
Product Specification
Version 1.0
2007-1-2
Model No. 00611 / 00615
Model Name Wireless Weather Station
Version 4.0
Design Summary
Effective Date 12/6/2006
Copyright © 2006 Primex of Companies - All rights reserved
C
Co
on
nt
te
en
nt
ts
s
1. Foreword ........................................................................................................................................... 2
2. General Requirement..................................................................................................................... 2
3. Product Specification .................................................................................................................... 2
4. Feature List....................................................................................................................................... 4
5. Communication Protocol.............................................................................................................. 4
6. Product Operation .......................................................................................................................... 6
Page 1 of 6
Model No. 00611 / 00615
Model Name Wireless Weather Station
Version 4.0
Design Summary
Effective Date 12/6/2006
Copyright © 2006 Primex of Companies - All rights reserved
1. Foreword
The summarization is written for relative persons’ approval and record.
2. General Requirement
2.1 RoHS Compliance
All materiel shall meet RoHS compliance.
2.2 FCC & IC Compliance and Certification
3. Product Specification
3.1 Humidity
3.1.1 Receiver (indoor readings)
3.1.1.1 Operating Temperature Range = 32F to 120F (0C to 50C)
3.1.1.2 Operating humidity range = 20% RH to 95%
3.1.1.3 Resolution = 1 % RH
3.1.2 Transmitter (receiver outdoor readings)
3.1.2.1 Operating Temperature Range = 32F to 122F (0C to 50C)
3.1.2.2 Operating Humidity Range = 20% RH to 95% RH
3.1.2.3 Resolution = 1 % RH
3.2 Temperature
3.2.1 Receiver
3.2.1.1 Operating temperature range = 32 F to 122 F (0C to 50C)
3.2.1.2 Resolution = 1 degree F
3.2.2 Transmitter
3.2.2.1 Operating Temperature Range = -40 F to 158 F (-40C to 70C)
3.2.2.2 Resolution = 1 degree F
3.3 Transmitter / Receiver:
3.3.1 Radio Frequency = 433MHz (Up to FCC 15.231 e)
3.3.2 Transmission time = approximately 100ms
3.3.3 Transmission intervals = approximately 16s
3.4 Operating Voltage Range
3.4.1 Receiver: 3.6V-4.5V (3*AA)
3.4.2 Transmitter: 2.4V-3.0V (2*AA)
Page 2 of 6

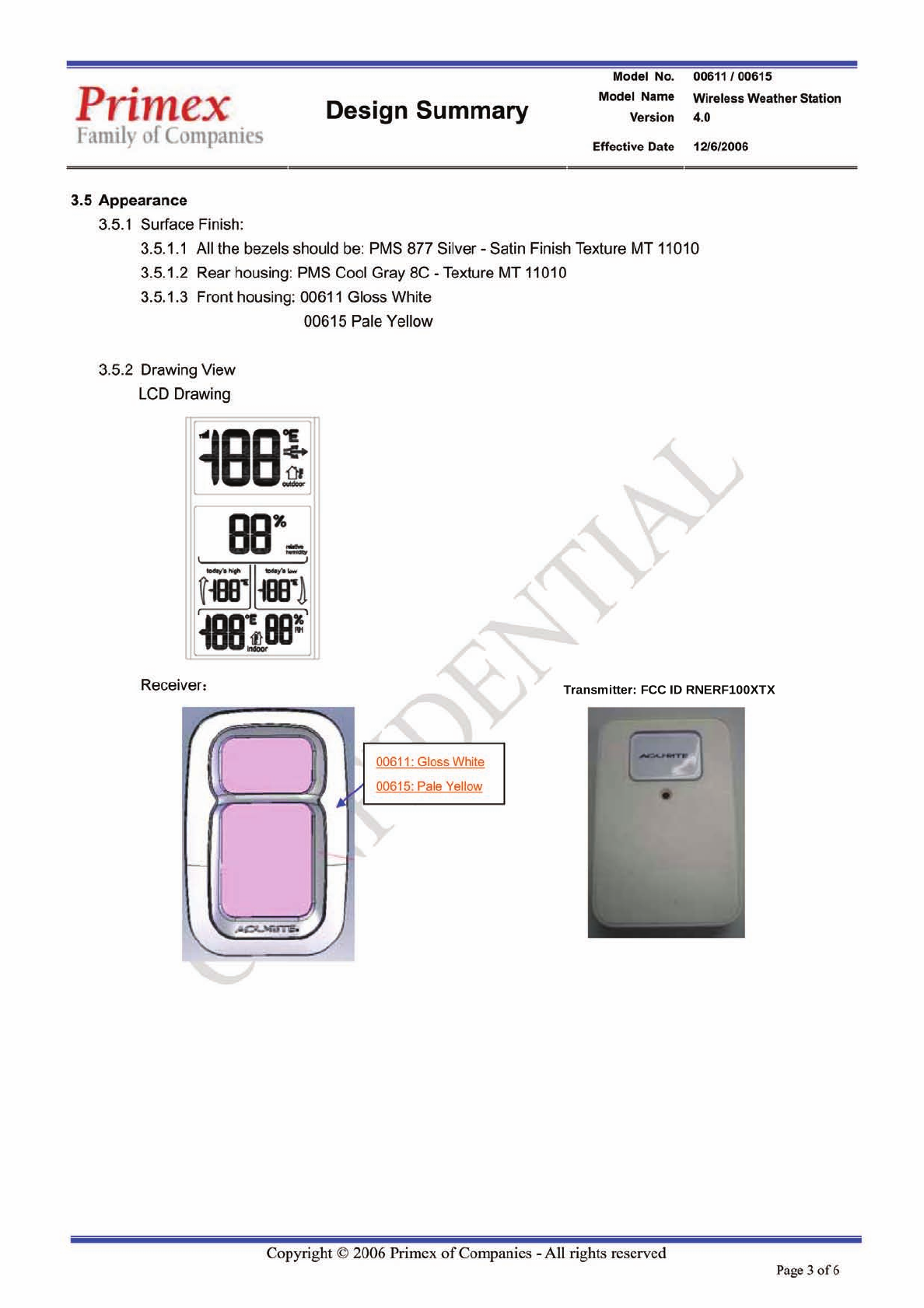

Transmitter: FCC ID RNERF100XTX
Model No. 00611 / 00615
Model Name Wireless Weather Station
Version 4.0
Design Summary
Effective Date 12/6/2006
Copyright © 2006 Primex of Companies - All rights reserved Page 4 of 6
4. Feature List
4.1 Receiver
4.1.1 Indoor Humidity / Temperature
4.1.2 Outdoor Temperature and Humidity Display
4.1.3 Outdoor today’s high / low Temperature Display
4.1.4 Today’s high / low temperature display icon
4.1.5 Outdoor Temperature Trend Line Display
4.1.6 C/F Slide Switch
4.1.7 ID A, B, C Slide Switch
4.1.8 The Display Icon of Reception Signal Strength -115 dB
4.2 Transmitter
4.2.1 Outdoor Temperature / Humidity
4.2.2 C/F button - Inside Search Button (This function is used for manufactory)
4.2.3 ID A, B, C Slide Switch
5. Communication Protocol
5.1 Data Format
5.1.1 Format

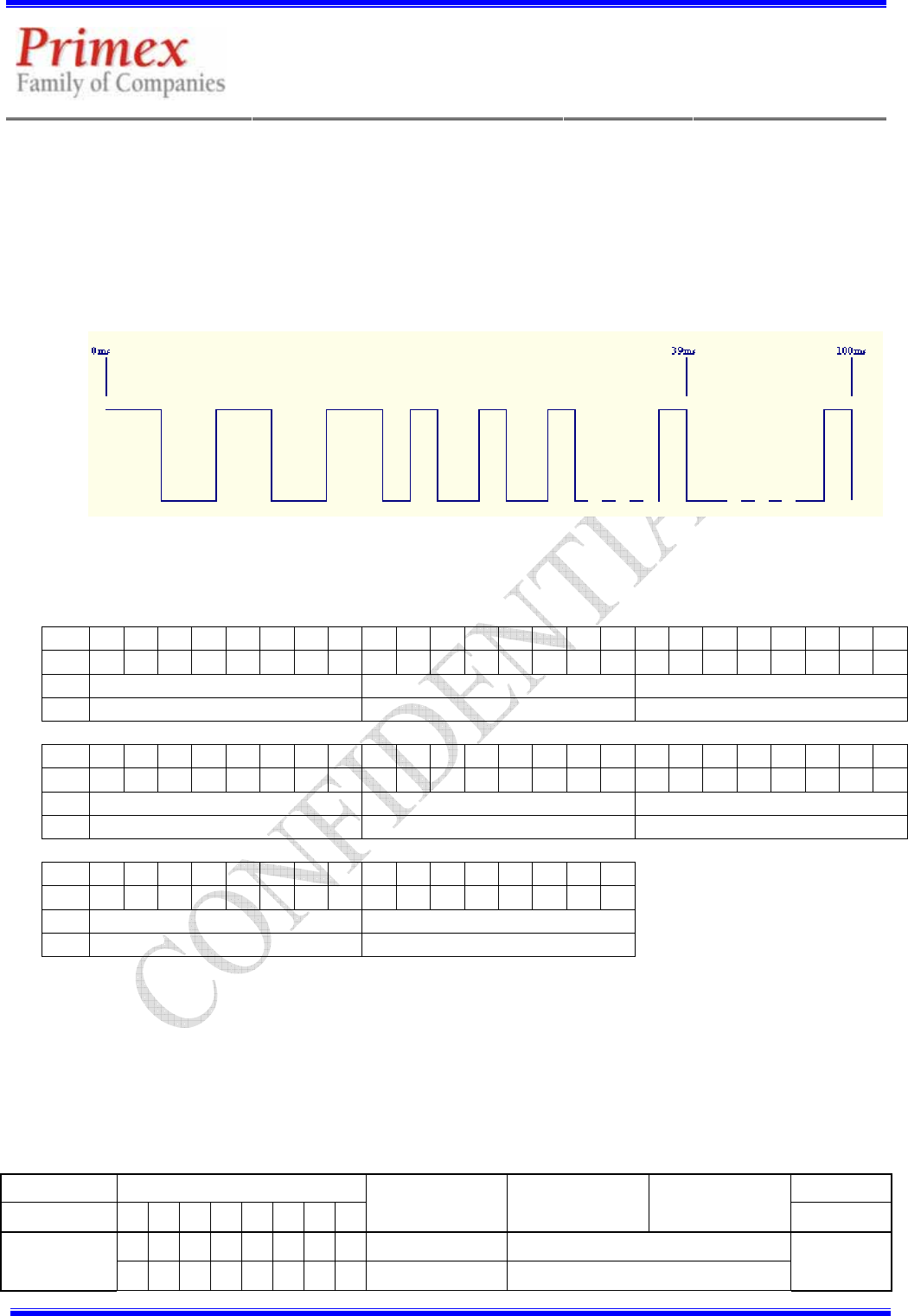

There are two data types – Data 1, Data 2. The duration time for each data is 610us
Data 1: The duration time of High Level is 400us,
The duration time of Low Level is 210us.
Data 2: The duration time of High Level is 210us,
The duration time of Low Level is 400us.
5.1.2 Preamble Format
The preamble is 1 byte. There are 8 bits in the preamble. It is made up of 4 high levels (610us) and 4
low levels (610us) as below figure. It is transmitted from high level.
Model No. 00611 / 00615
Model Name Wireless Weather Station
Version 4.0
Design Summary
Effective Date 12/6/2006
Copyright © 2006 Primex of Companies - All rights reserved Page 5 of 6
5.1.3 Data Rate Analysis
5.1.3.1 Data Rate is 1.64Kbps
5.1.3.2 There are 8 bytes every transmission. The total is 64bits. The duration time for each
transmission is 610us * 64 +x= 100ms.
5.1.3.3 If repeatedly transmit multi-group data, then the transmission duration time is 610us * 8 *
7=34.16 ms for each additional data. The preamble does not repeatedly be transmitted in each
data.
One cycle （transmit times 100ms）
5.2 Data Package Format
bit 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
data 1 0 1 0 1 0 1 0 x X x x x x x x x x x x x x x x
def. Preamble ID1 ID2
total 8 bits 8 bits 8 bits
bit 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47
data x x x x x x x x x X x x x x x x x x x x x x x x
def. Message type & Length Data0 Data1
total 8 bits 8 bits 8 bits
bit 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63
data x x x x x x x x x X x x x x x x
def. Data2 Check sum
total 8 bits 8 bits
5.2.1 The transmission interval is
T = X + Y
X is above 15 positive integer, the time unit is second. It lies on Message type.
Y is one of following figures 0, 125, 250, 375, 500, 625, 750, 850. The time unit is ms.
5.3 Data Package Definition
Def. Message type Interval X
Bit 7 6 5 4 3 2 1 0 Data0 Data1 Data2
Unit: s
0 0 0 0 0 1 0 0 Humidity UT2 Temperature
TEMP/HUMI
0 0 0 0 0 1 0 1 Humidity UT3 Temperature
RF433: 16
Model No. 00611 / 00615
Model Name Wireless Weather Station
Version 4.0
Design Summary
Effective Date 12/6/2006
Copyright © 2006 Primex of Companies - All rights reserved
0 0 0 0 0 1 1 0 reserve reserve reserve
0 0 0 0 0 1 1 1 reserve reserve reserve
6.
7. Product Operation
7.1 Receiver
7.1.1 Key Function
7.1.1.1 There is one slide switch to select C/F unit.
7.1.1.2 There is one slide switch to select ID A, B, C.
7.1.2 When Power on or reset the LCD will full display for 3 seconds, the unit start to work.
7.1.3 The unit will detect the temperature and humidity every 30s.
7.1.4 Indoor Humidity Calculation and Display
7.1.5 Indoor Temperature Display
7.1.6 The outdoor temperature and humidity will be displayed when the signal is picked up, and the High/Low
temperature is displayed at the same time.
7.1.7 Display of high and low outdoor temperatures is to be a rolling 24-48 hour value as follows:
7.1.8 Trend lines (increasing decreasing steady)
7.1.9 RF433 Reception
When power on the receiver, the unit will turn on the RF module to looking for the RF signal, the
RF433 reception bars cycles (i.e. one bar, two bars, three bars…….one bar, two bars … etc.) This
continues until the unit receives a valid signal or for maximum 6 minutes if no signal is captured.
7.2 Transmitter (FCC ID: RNERF100XTX)
7.2.1 Key Function
7.2.1.1 A C/F button (search button) is added inside the transmitter.
7.2.1.2 A slide switch with A, B, C position is to select A, B, C channel. The factory default setting is A.
7.2.4 The unit will detect the temperature and humidity every 16s.
7.2.5 Outdoor Humidity Calculation and display in the receiver
7.2.6 Outdoor Temperature Display in the receiver
Page 6 of 6

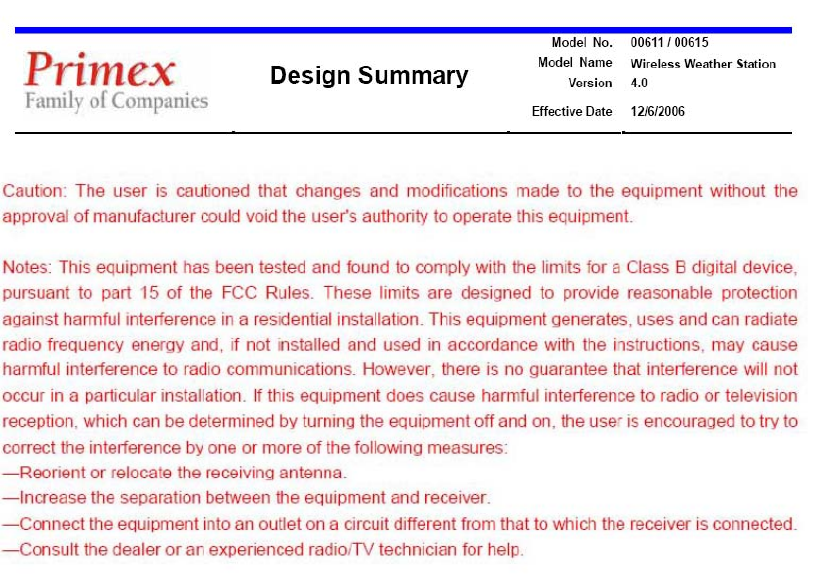

This device complies with part 15of the FCC Rules and RSS-210 of IC rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation
