Changzhou Smoothies Electronics T8SG MULTIPROTOCOL TX User Manual
Changzhou Smoothies Electronics Co., Ltd. MULTIPROTOCOL TX Users Manual
Users Manual
47-Channel Digital Proportional R/C System
2.4GHZ
T8SG
SYSTEM FEATURES
The Jumper series models Multi-Protocol radio features a compact size and
a host of protocol options all built in to one product. Various protocols can be
quickly and easily selected from the model menu allowing you to bind the
radio to just about any major protocol in today’s market. T8SG firmware only
activate the CC2500 RF Chip module and also features sound and
vibration alerts, back lit LCD display, smooth gimbals and assignable
switches .
SYSTEM SPECIFICATIONS
Use range: Remote control model
Brand Name: Jumper
Item Number: T8SG
MCU: STM32F103RCT6
Storage: 25VF016B (2MB)
Display screen: 128*64, 1.7 inch LCD
Channels: 47 (up to 12 depending software)
Prompt mode: sound and vibration
Power supply: 2S Lipo(DC7.4V)
Dimension: 188*151*86mm
Weight: 338g (not include battery)

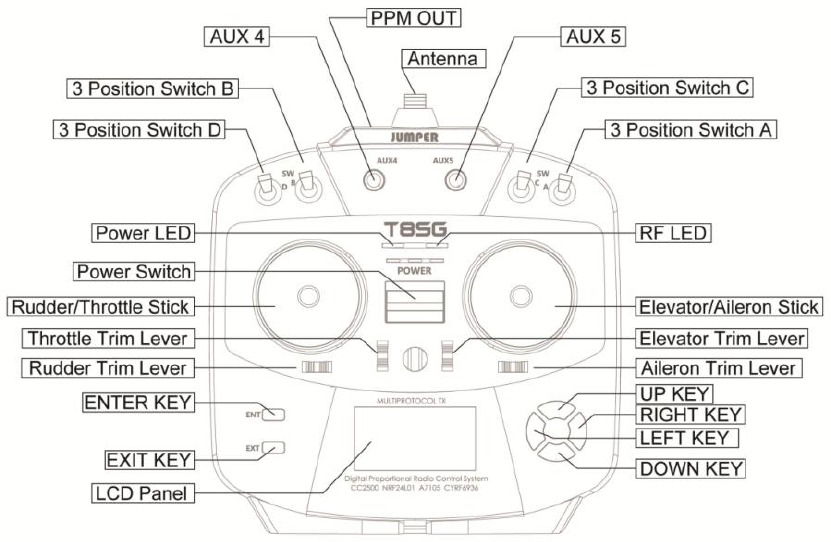

FEATURES DESCRIPTIONS
Antenna 2dBi omnidirectional antenna
PPM Out 3.5mm audio socket Used to connect computer games
AUX4 Knob to enter 4
AUX5 Knob to enter 5
SWA 3 Position Switch A input
SWB 3 Position Switch B input
SWC 3 Position Switch C input
SWD 3 Position Switch D input
Power LED Red power light
RF LED Green light on RF output
Power Switch Turn on, shut down
Rudder/Throttle Stick Rudder/Throttle Analog input,L/R= Rudder,U/D= Throttle
Elevator/Aileron Stick Elevator/Aileron Analog input,L/R= Elevator,U/D= Aileron
Throttle Trim Lever Throttle Offset adjustment
Rudder Trim Lever Rudder Offset adjustment
Elevator Trim Lever Elevator Offset adjustment
Aileron Trim Lever Aileron Offset adjustment
ENTER KEY Menu confirmation button
EXIT KEY Menu exit button
UP KEY Menu up button
DOWN KEY Menu DOWN button
RIGHT KEY Menu RIGHT button
LEFT KEY Menu LEFT button

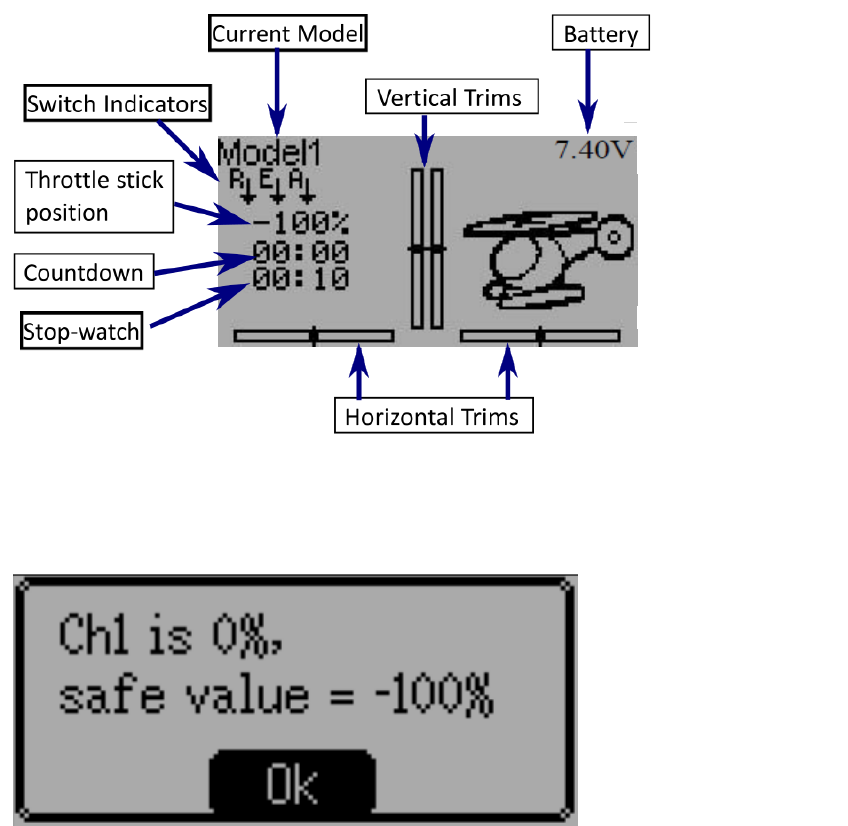

MAIN SCREEN DESCRIPTION
SAFETY SYSTEM
DEVIATION HAS A SAFETY SYSTEM TO PREVENT STARTING UP IN A DANGEROUS
STATE (FOR INSTANCE SPINNING UP THE MAIN ROTOR OF A HELICOPTER
ACCIDENTALLY). THE SAFETY SYSTEM WORKS BY VERIFYING THAT SPECIFIC
CONDITIONS ARE MET BEFORE STARTING TO TRANSMIT TO THE MODEL. BY DEFAULT
THE OUTPUT CHANNEL ASSOCIATED WITH THE THROTTLE STICK MUST BE MINIMUM.
THE DEVIATION FIRMWARE DOES NOT INCLUDE A MECHANISM TO DEFINE NEW
SAFETY CONDITIONS, HOWEVER, THEY CAN BE ADDED BY DIRECTLY MODIFYING THE
MODEL.INI FILE. WHILE THE SAFETY MESSAGE IS DISPLAYED, THE TRANSMITTER
WILL NOT COMMUNICATE WITH THE MODEL. THIS MESSAGE MAY APPEAR EITHER
WHEN INITIALLY TURNING ON THE TRANSMITTER, OR WHEN SWITCHING TO A
DIFFERENT MODEL. THE MESSAGE WILL DISAPPEAR AUTOMATICALLY ONCE ALL
SAFETY CONDITIONS HAVE BEEN MET OR WHEN ‘OK’ IS PRESSED. IN EITHER CASE,
DEVIATION WILL START COMMUNICATION WITH THE MODEL ONCE THE DIALOG IS
DISMISSED.

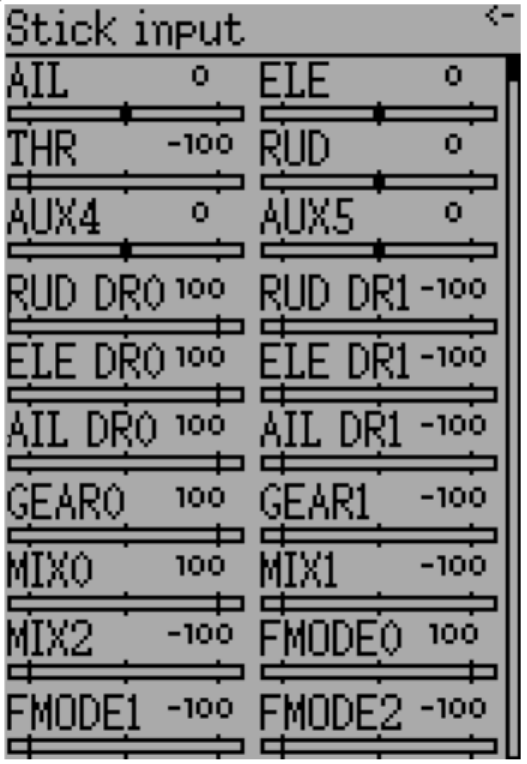

INPUT MONITOR
THE INPUT MONITOR SCREEN SHOWS THE VALUES ASSOCIATED WITH THE CURRENT
POSITION OF THE CONTROL POINTS. THE VALUES SHOWN ARE A PERCENTAGE OF
THE TOTAL RANGE OF THE CONTROLS BASED ON A -100% TO +100% SCALE.
CHANNEL MONITOR
THE CHANNEL MONITOR SCREEN ALLOWS THE USER TO SEE THE VALUES OF EACH
CHANNEL AS OUTPUT BY THE TRANSMITTER.CHANNELS WITHOUT MIXERS WILL NOT
BE DISPLAYED. CHANNEL OUTPUT DISPLAYED IS THE VALUE BASED ON MINIMUM/
MAXIMUM VALUES AS WELL AS SCALING.
WARNING
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
