ChargePoint CT1H00 Electric Vehicle Charging Station User Manual Pole Inst

ChargePoint, Inc. Electric Vehicle Charging Station Pole Inst

Contents

User Manual 2

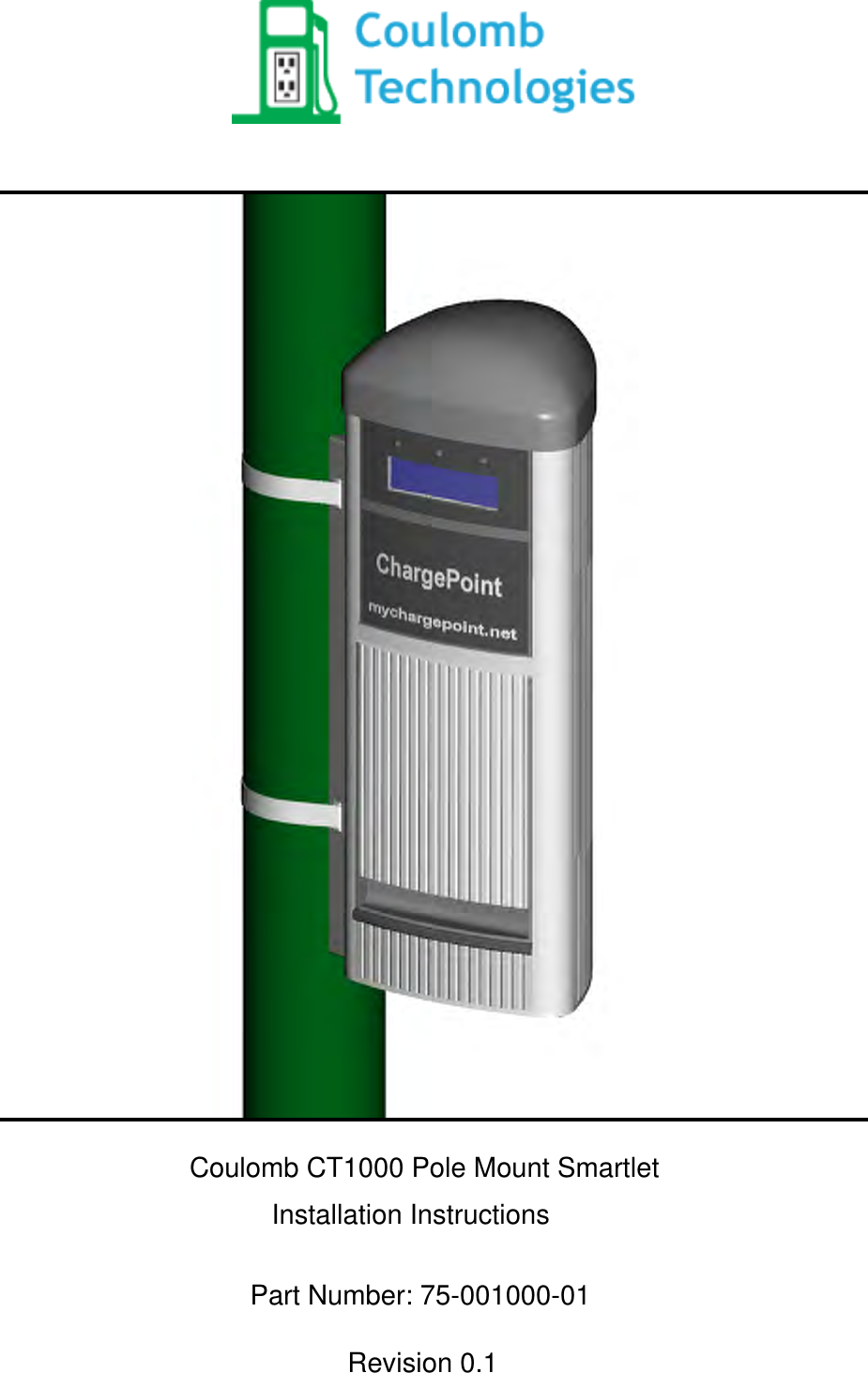

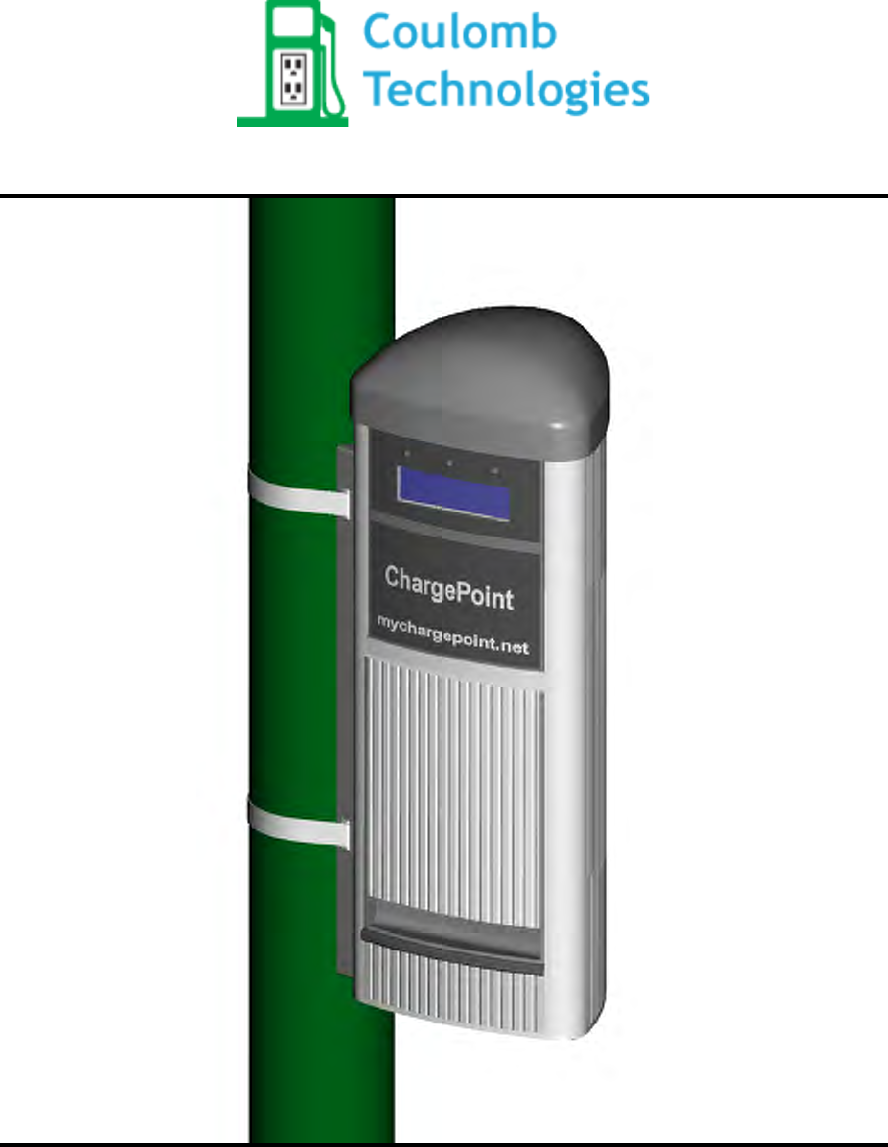

Installation InstructionsCoulomb CT1000 Pole Mount SmartletPart Number: 75-001000-01Revision 0.1
CopyrightCopyright© 2008 Coulomb Technologies, Inc. All rights reserved.This material is protected by the copyright laws of the United States and other countries. It may not be modied, reproduced or distributed without the prior, express written consent of Coulomb Technologies, Inc.Safety and ComplianceThis manual only covers installation of Coulomb’s Smartlet™ Charging Station and should not be used for any other product. Before installing the Smartlet Charging Station, you should review this manual carefully and consult with a licensed contractor, licensed elec-trician and trained installation expert to ensure compliance with local building practices, climate conditions, safety standards, and state and local codes. The Smartlet Charging Station should be installed only by a licensed contractor and a licensed electrician and in accordance with the U.S. National Electric Code and the National Fire Protection Association codes and standards. The Smartlet Charging Station should be inspected by an authorized installer prior to the initial use. Under no circumstances will compliance with the information in this manual relieve the user of his/her responsibility for compliance with all applicable codes or safety standards.No Guarantee as to AccuracyReasonable eort was made to ensure that the specications and other information in this manual were accurate and complete at the time of its publication. However, the specica-tions and other information in this manual are subject to change at any time without prior notice. Warranty Information and DisclaimerYour use of or modication to the Smartlet Charging Station in a manner in which the Smartlet Charging Station is not intended to be used or modied will void the limited warranty. Other than any such limited warranty, the Coulomb products are provided “AS IS,” and Coulomb and its distributors expressly disclaim all implied warranties, including any warranty of design, merchantability, tness for a particular purposes and non-infringement, to the maximum extent permitted by law.Limitation of LiabilityIN NO EVENT SHALL COULOMB TECHNOLOGIES, INC. OR ITS AUTHORIZED DISTRIBUTORS BE LIABLE FOR ANY INDIRECT, INCIDENTAL, SPECIAL, PUNITIVE, OR CONSEQUENTIAL DAMAGES, INCLUDING WITHOUT LIMITATION LOST PROFITS, LOST DATA, LOSS OF USE, COST OF COVER, OR LOSS OR DAMAGE TO THE SMARTLET CHARGING STATION, ARISING OUT OF OR RELATING TO THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF COULOMB TECHNOLOGIES, INC. OR ITS AUTHORIZED DISTRIBUTORS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.TrademarksCOULOMB TECHNOLOGIES, SMARTLET, and CHARGEPOINT are trademarks or service marks of Coulomb Technologies, Inc in the U.S. and other countries. All other trademarks or service marks mentioned in this manual or on the Coulomb Technologies, Inc. website are the property of their respective owners. Coulomb CT1000 Pole Mount Smartlet Installation Instructions Revision 0.1 PRELIMINARY

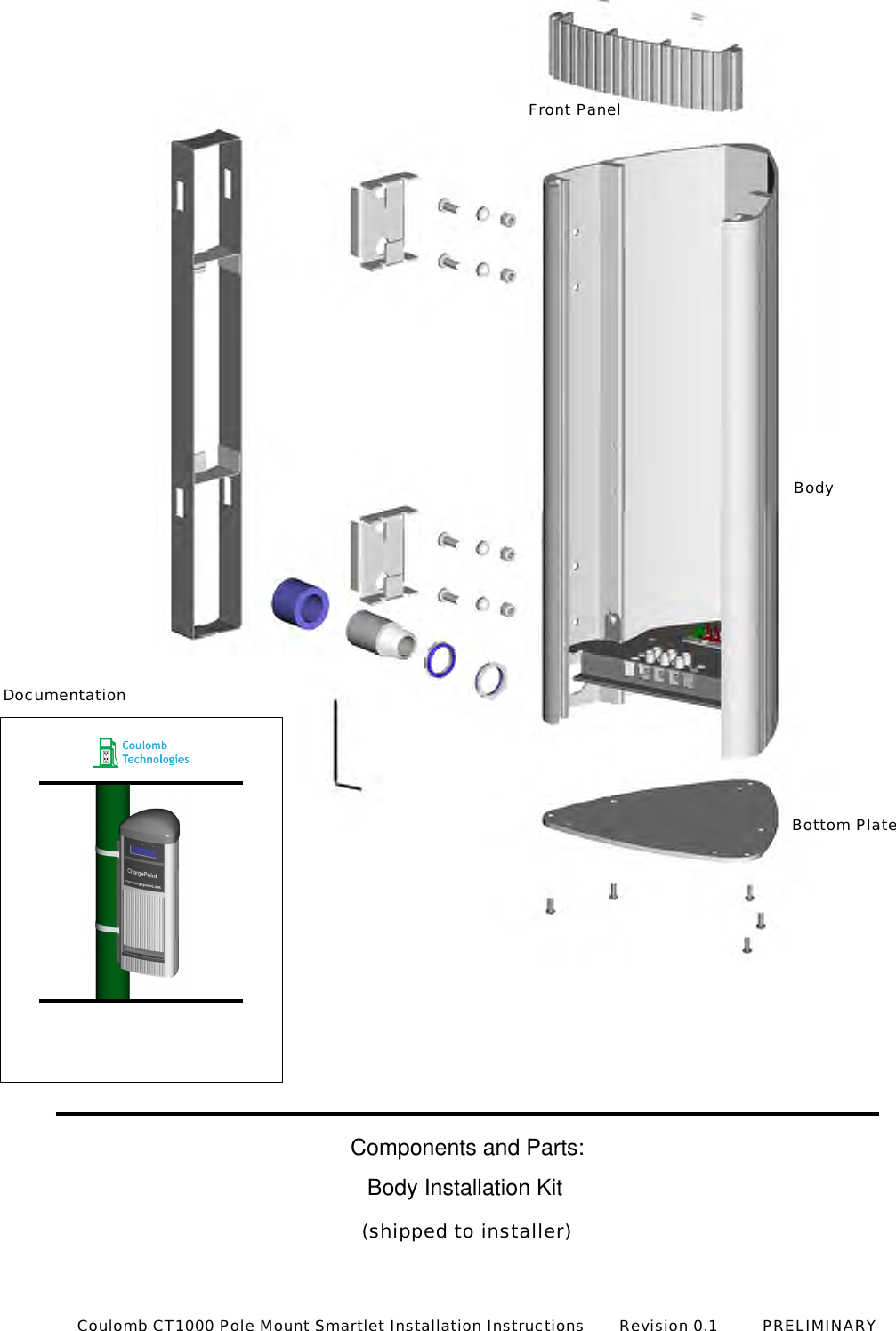

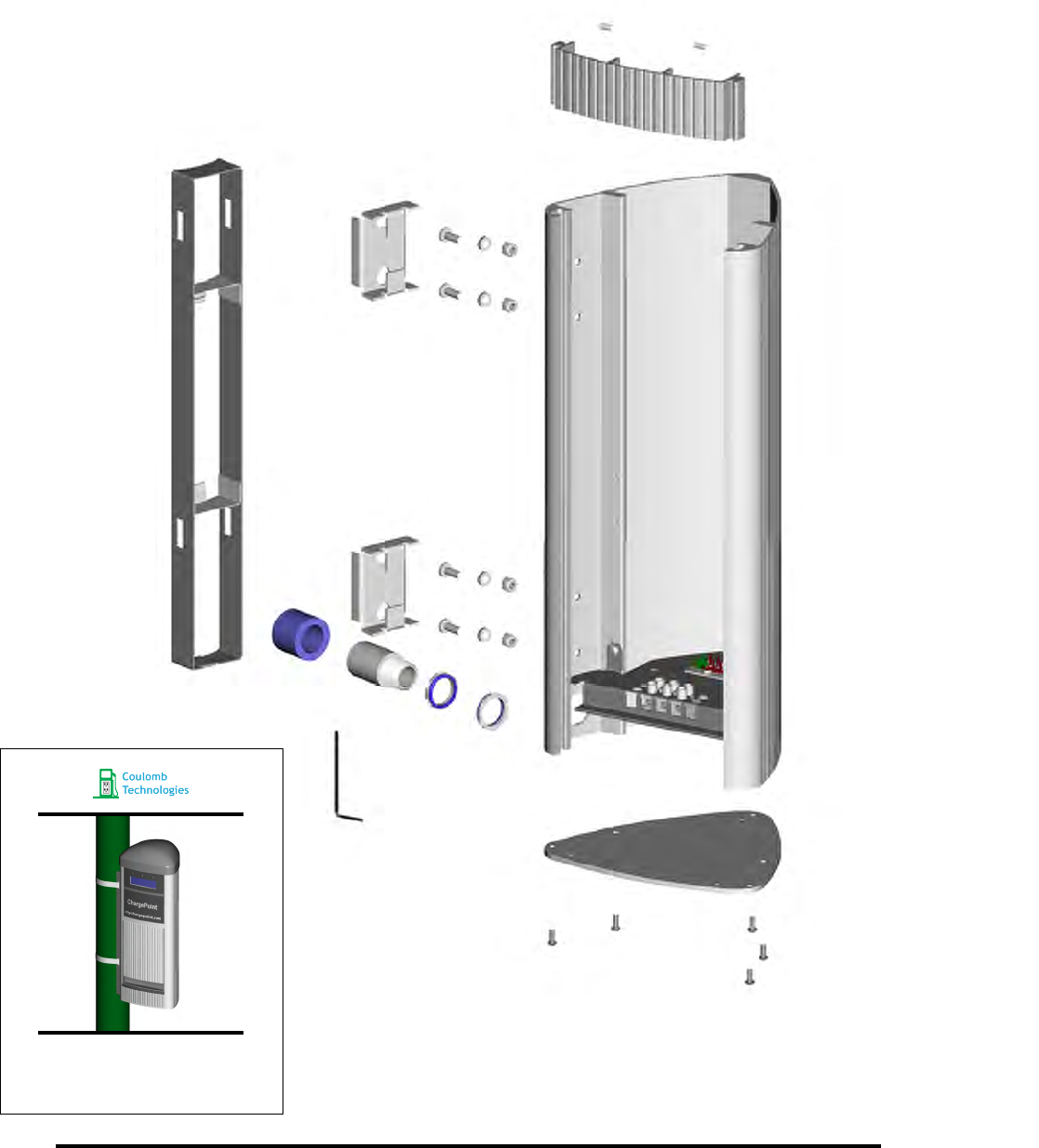

Components and Parts:Body Installation Kit(shipped to installer)BodyFront PanelBottom PlateDocumentationCoulomb CT1000 Pole Mount Smartlet Installation Instructions Revision 0.1 PRELIMINARY
Components and Parts:Head Module Installation KitHead ModuleSecurity ScrewsCaps for Security ScrewsCoulomb CT1000 Pole Mount Smartlet Installation Instructions Revision 0.1 PRELIMINARY

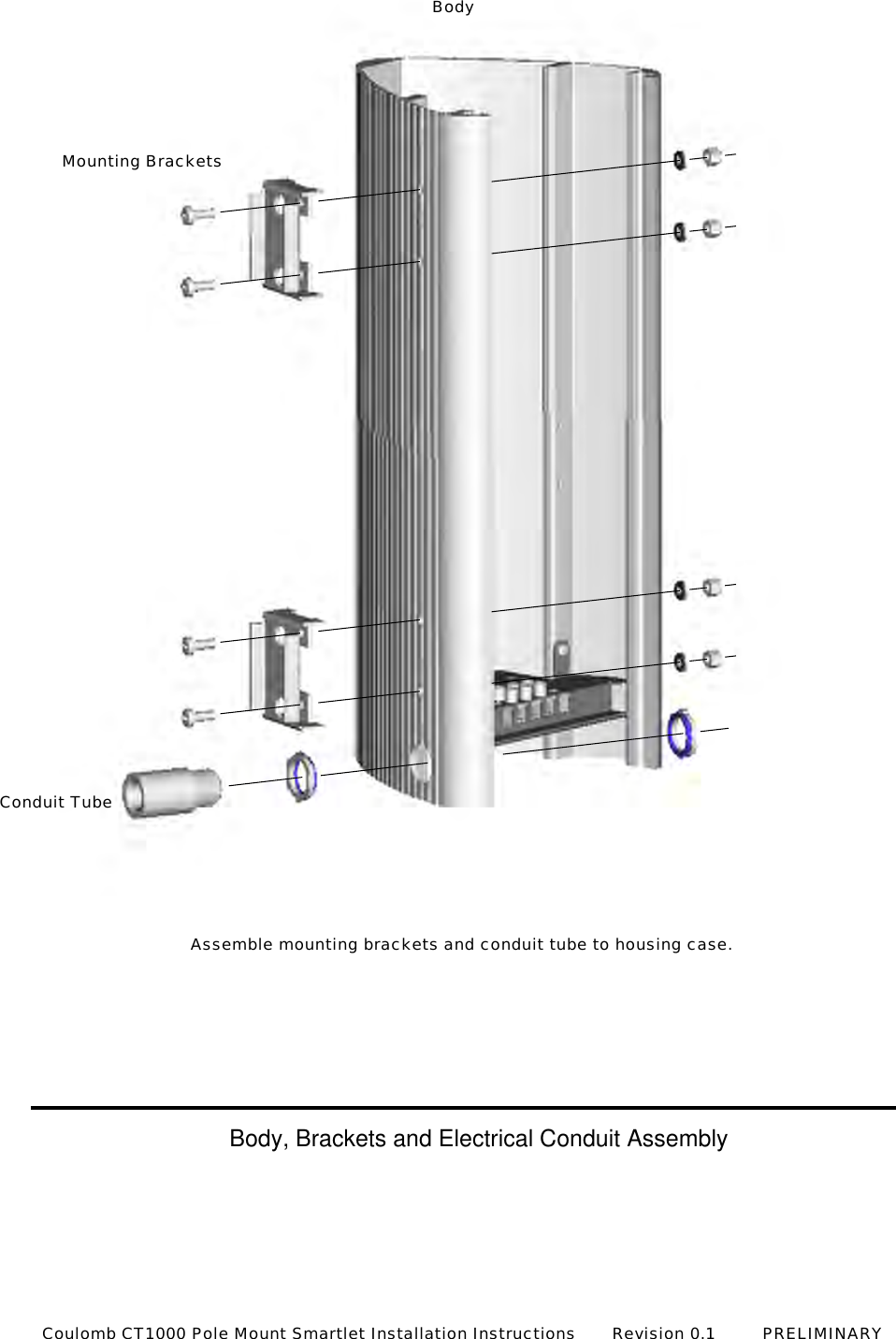

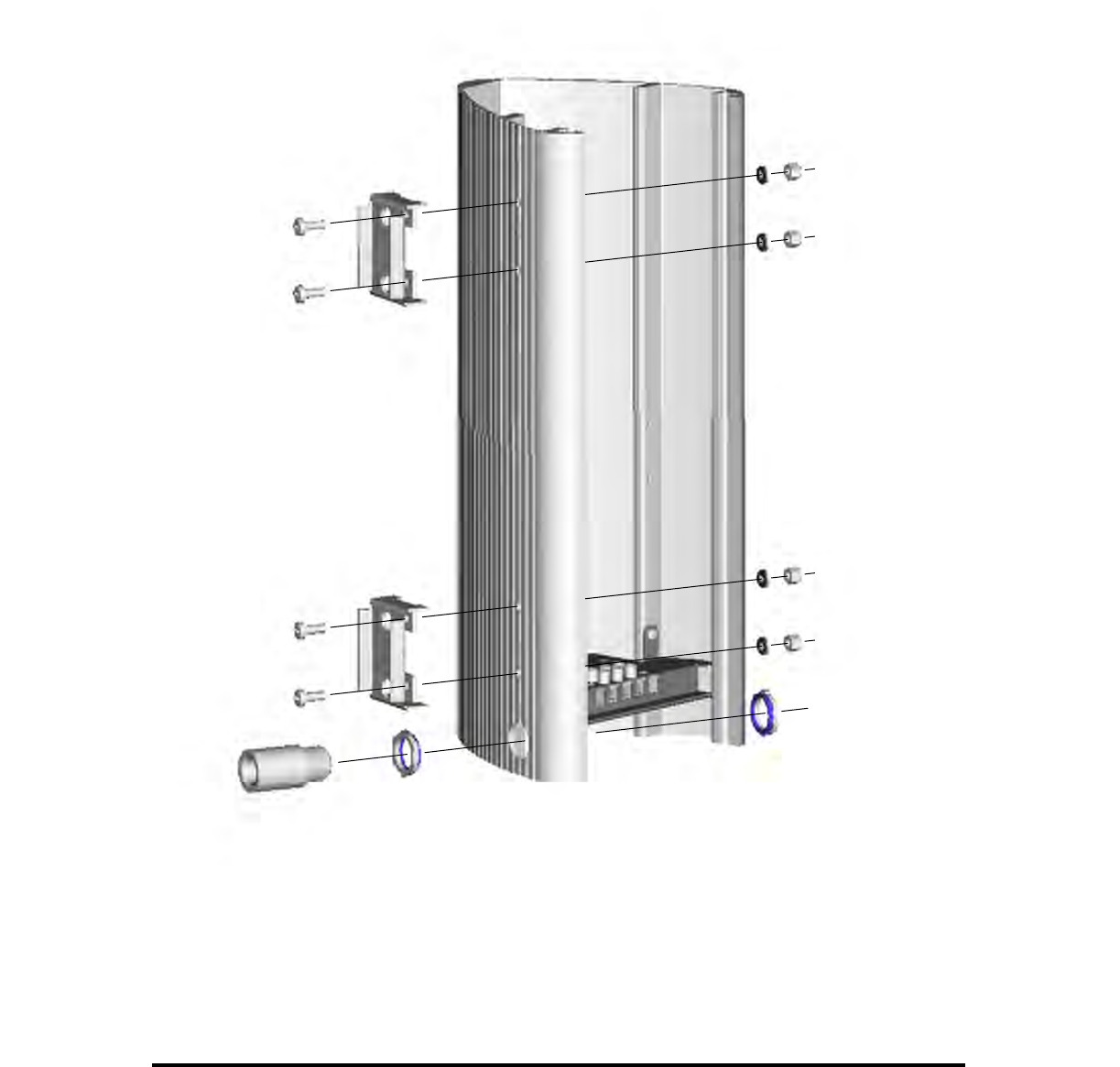

Conduit TubeMounting BracketsBodyAssemble mounting brackets and conduit tube to housing case.Body, Brackets and Electrical Conduit AssemblyCoulomb CT1000 Pole Mount Smartlet Installation Instructions Revision 0.1 PRELIMINARY

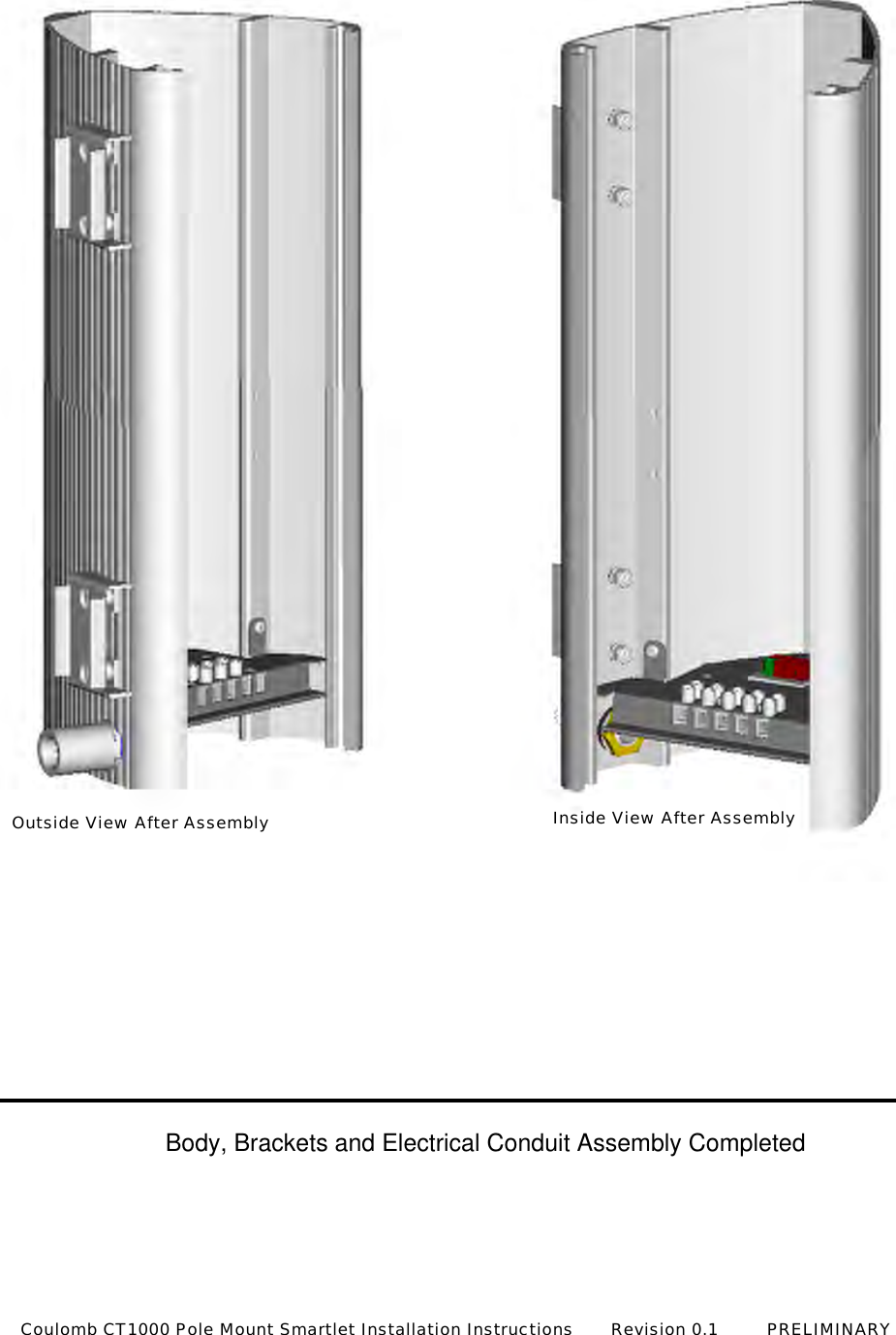

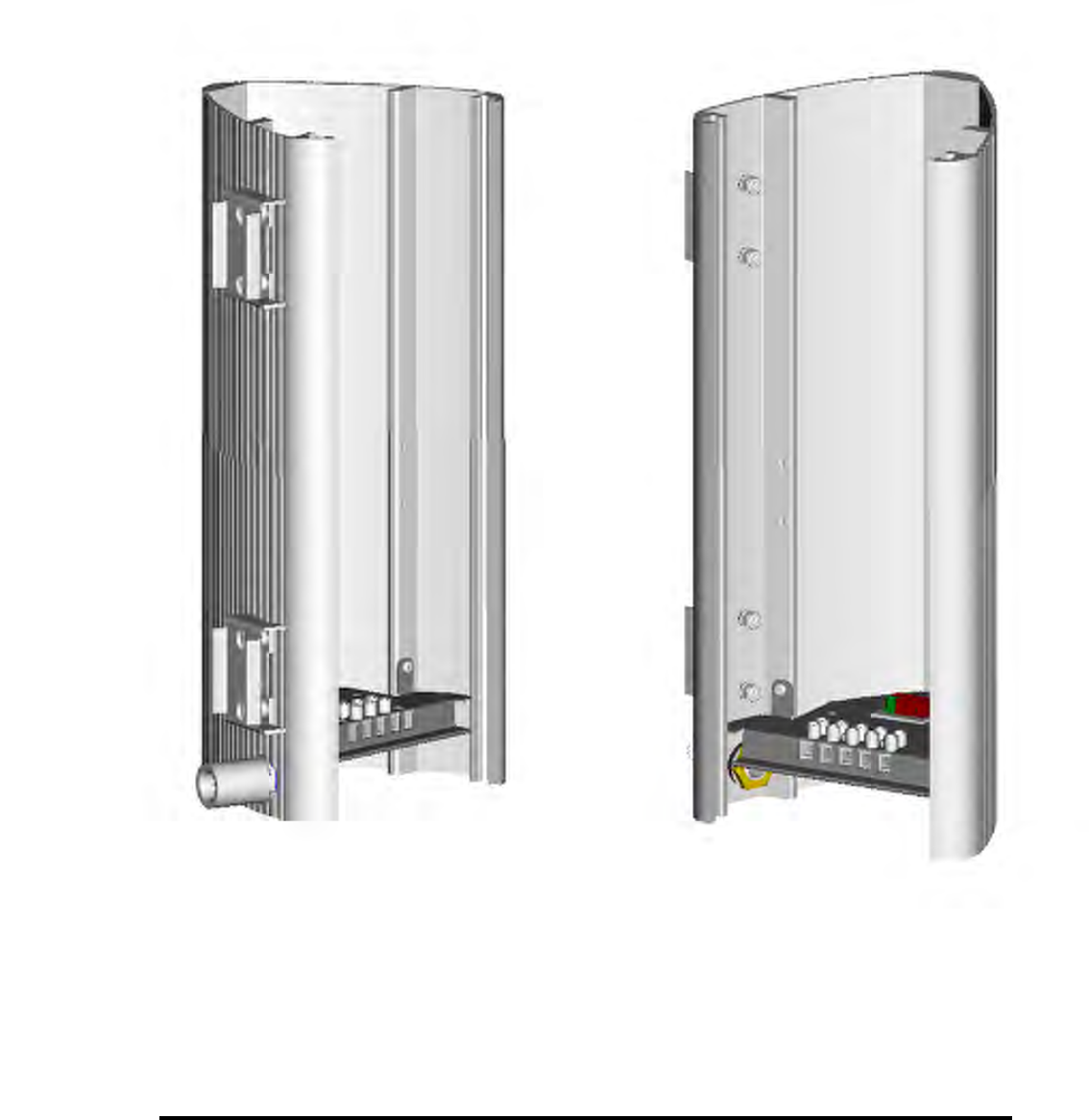

Body, Brackets and Electrical Conduit Assembly CompletedOutside View After Assembly Inside View After AssemblyCoulomb CT1000 Pole Mount Smartlet Installation Instructions Revision 0.1 PRELIMINARY

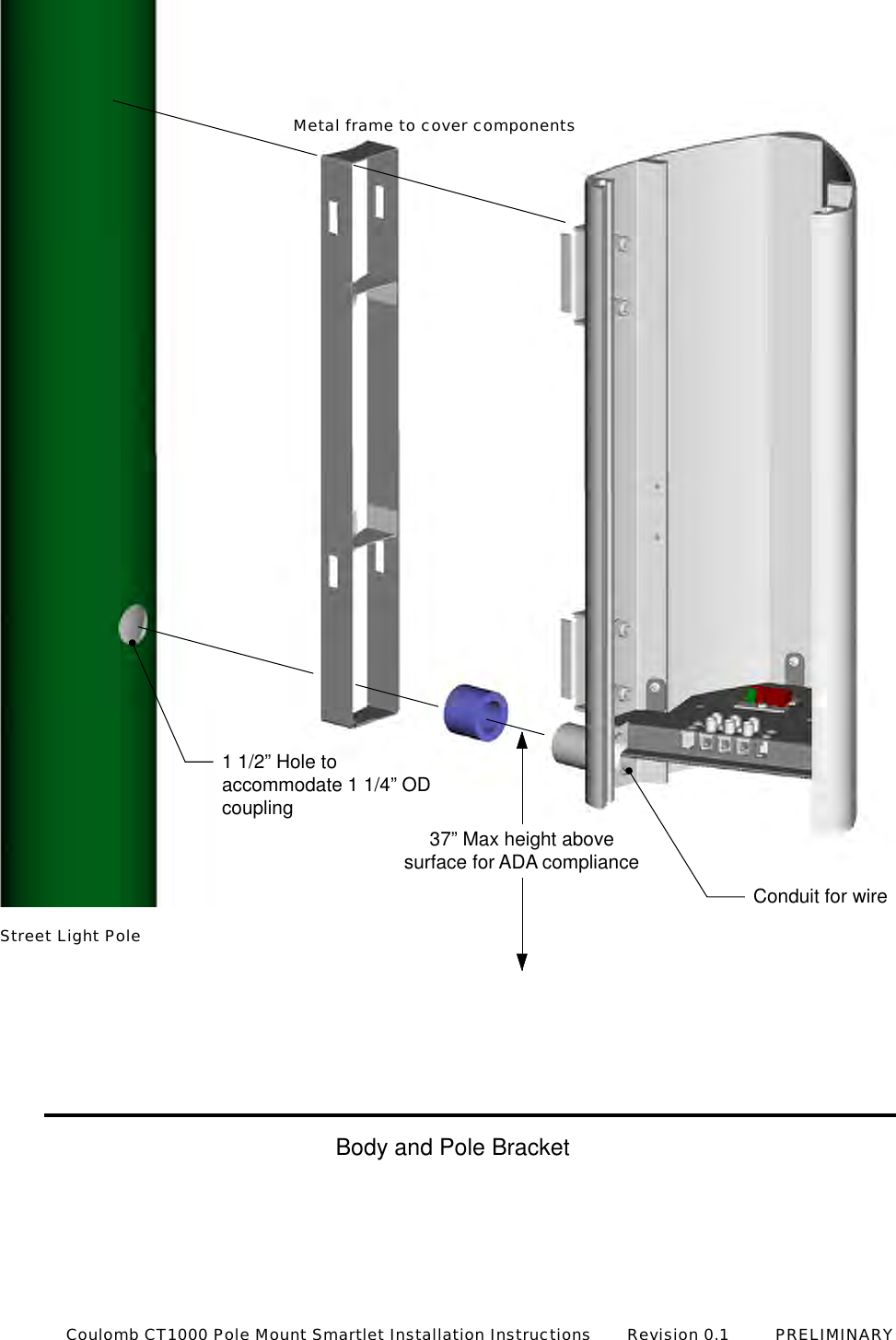

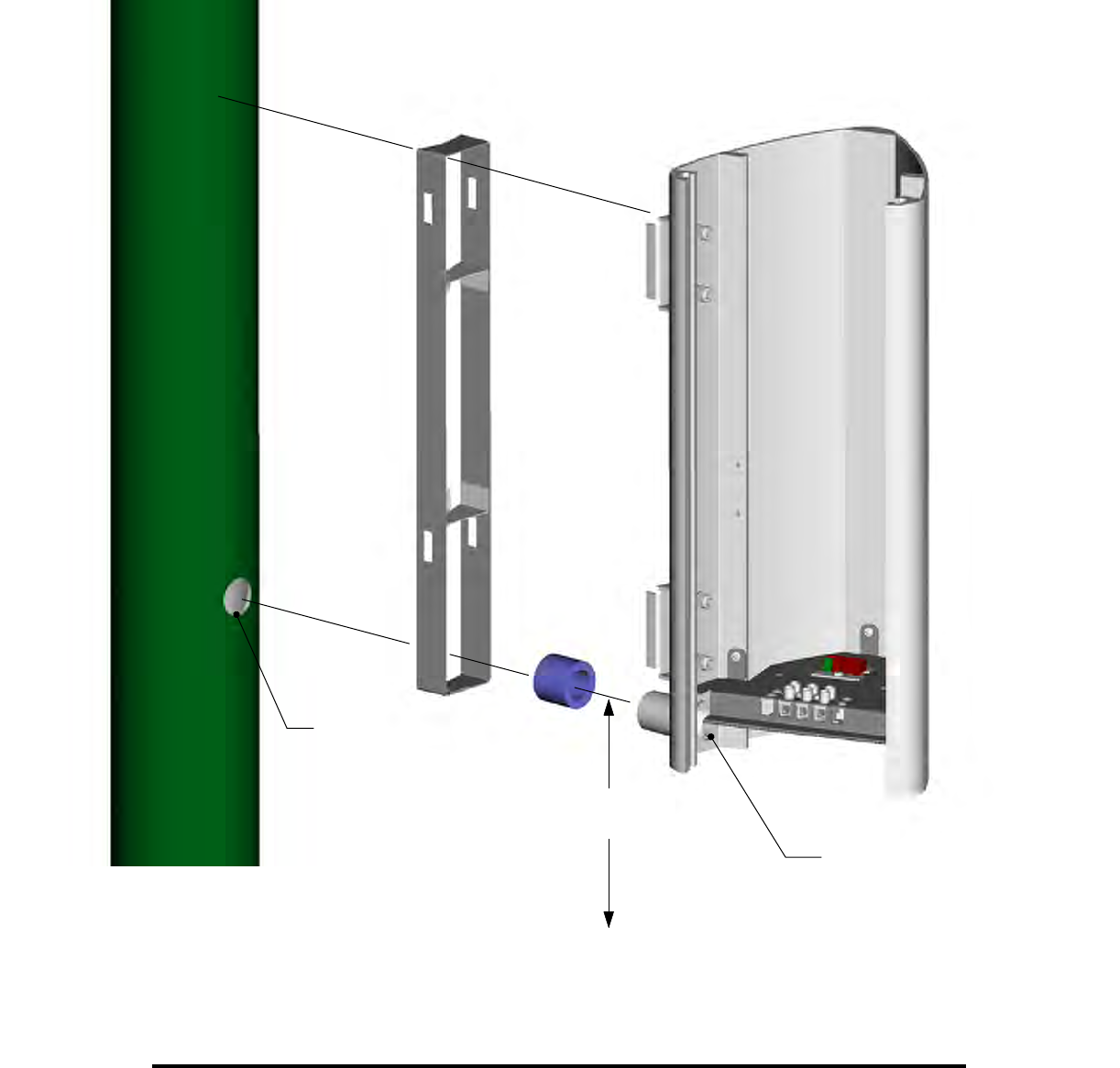

1 1/2” Hole toaccommodate 1 1/4” ODcouplingConduit for wire37” Max height abovesurface for ADA complianceStreet Light PoleMetal frame to cover componentsBody and Pole BracketCoulomb CT1000 Pole Mount Smartlet Installation Instructions Revision 0.1 PRELIMINARY

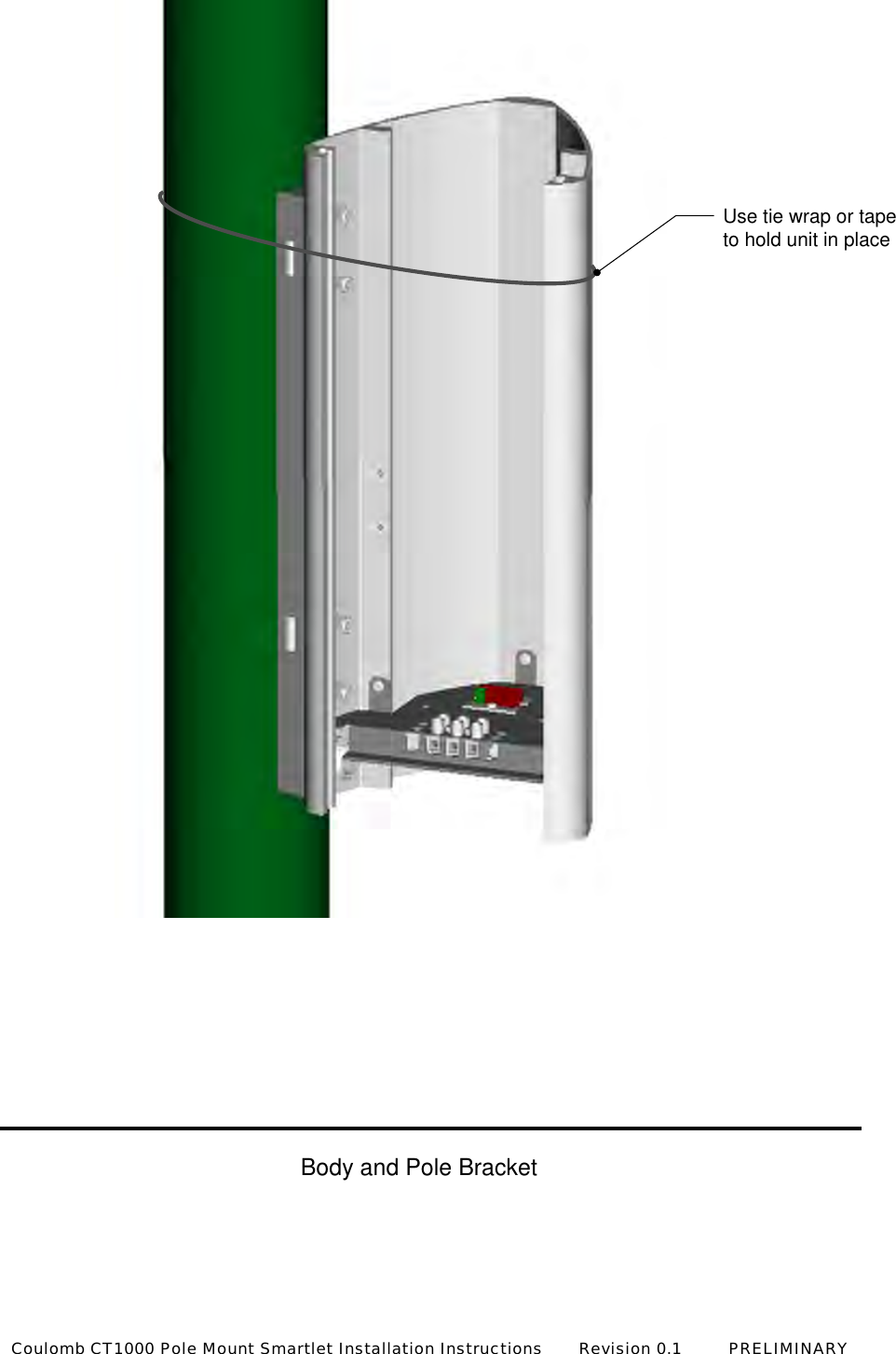

Use tie wrap or tapeto hold unit in placeBody and Pole BracketCoulomb CT1000 Pole Mount Smartlet Installation Instructions Revision 0.1 PRELIMINARY

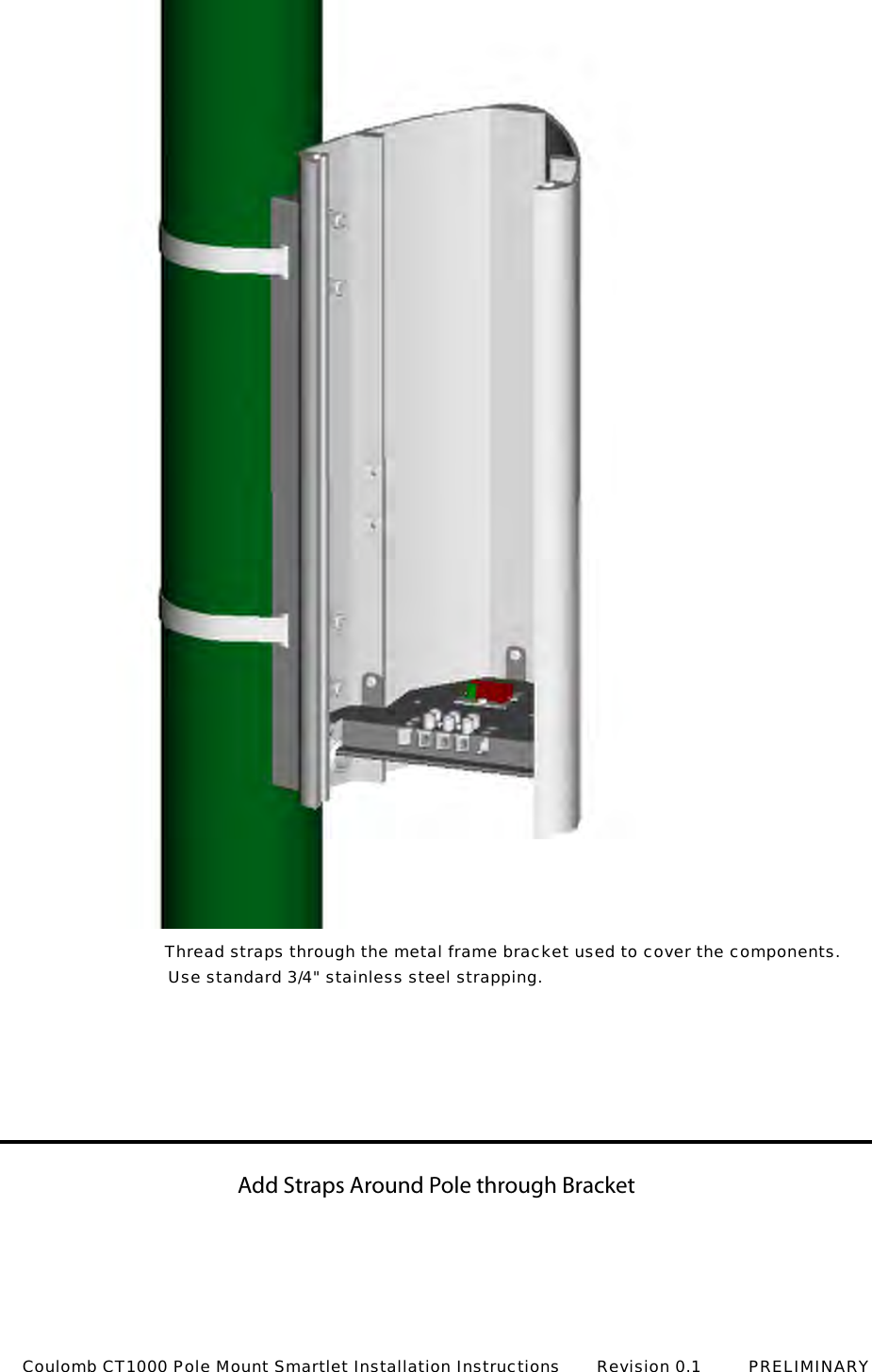

Add Straps Around Pole through Bracket Thread straps through the metal frame bracket used to cover the components.Use standard 3/4" stainless steel strapping.Coulomb CT1000 Pole Mount Smartlet Installation Instructions Revision 0.1 PRELIMINARY

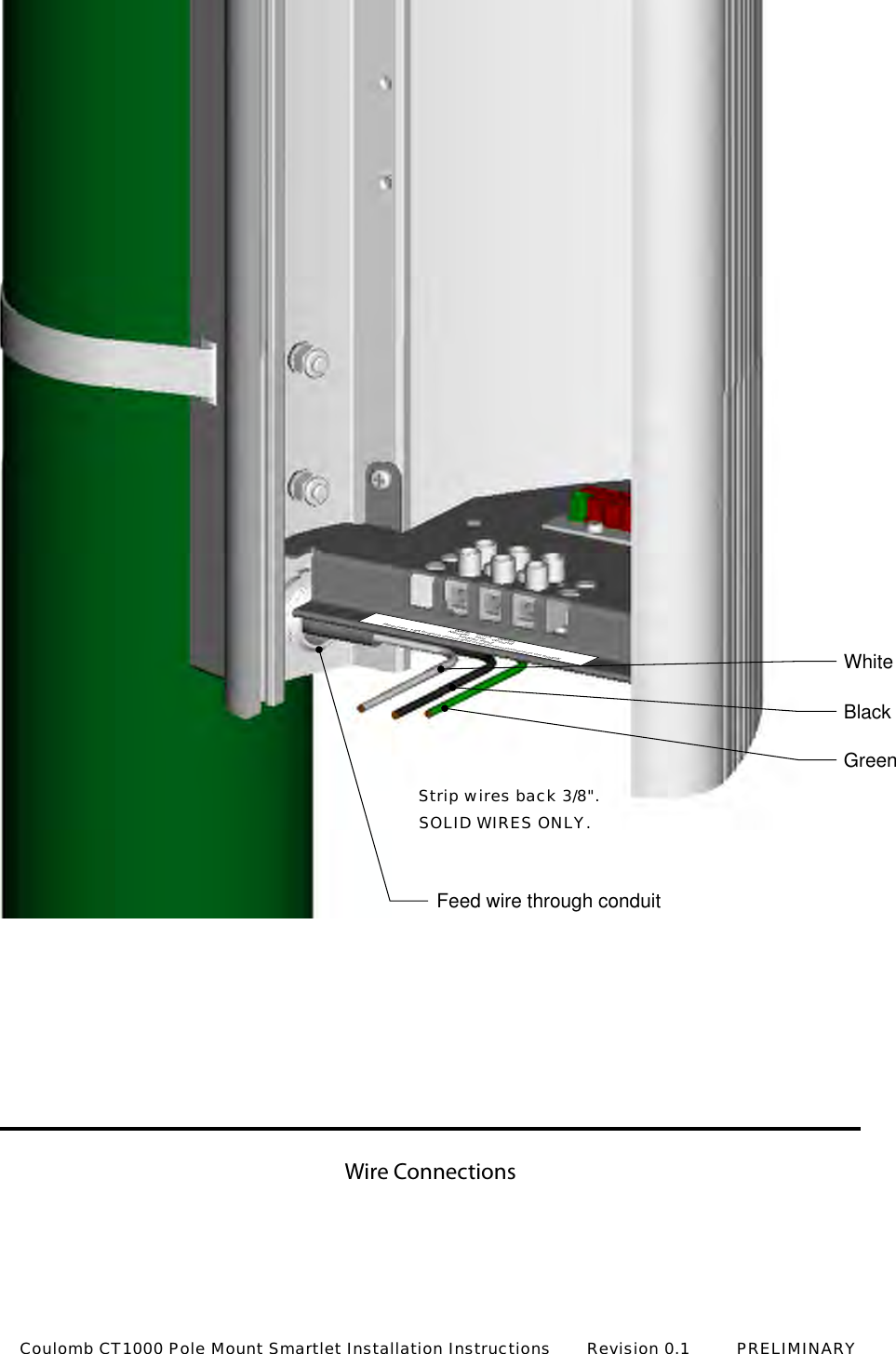

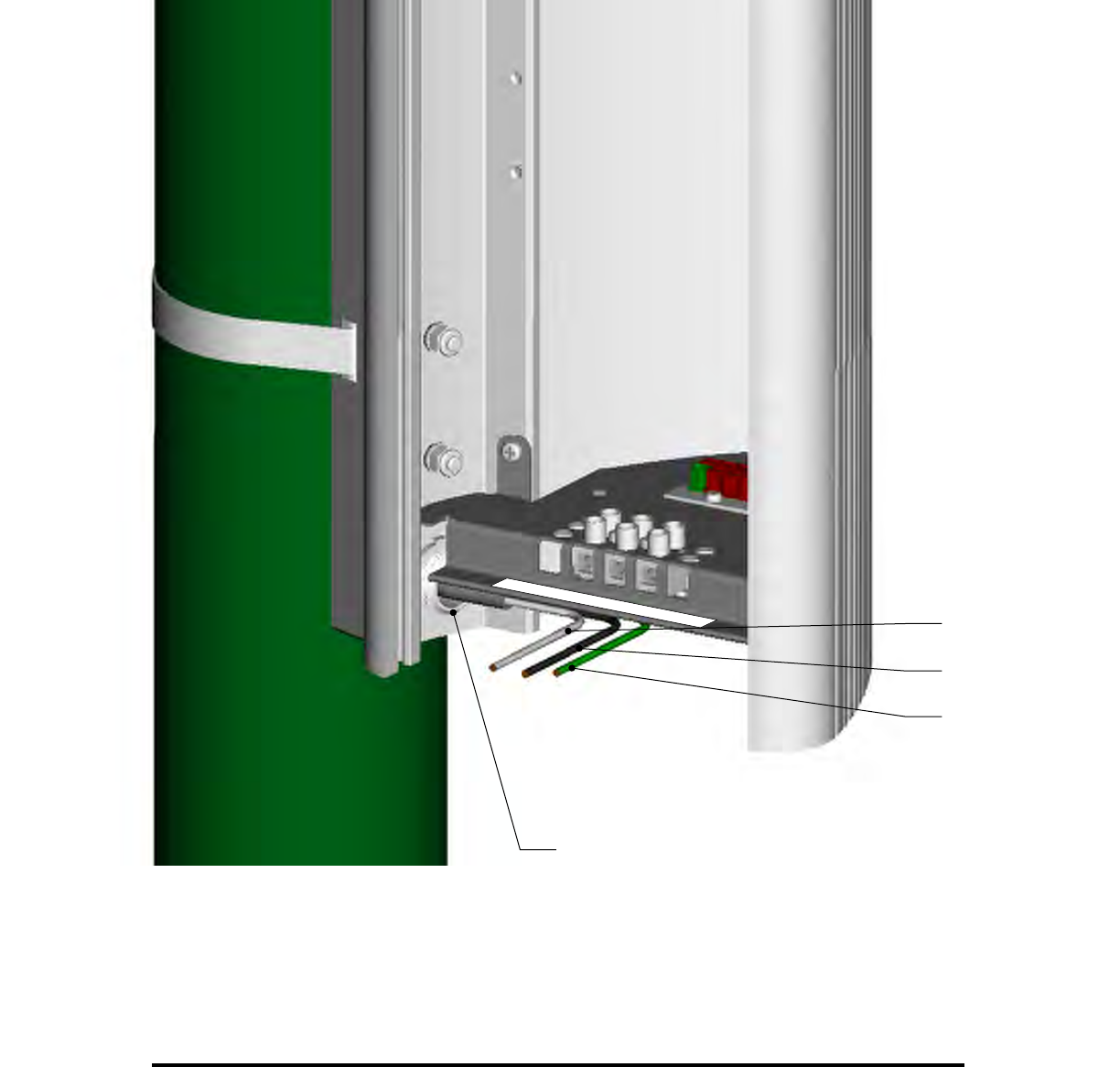

Wire ConnectionsFeed wire through conduitWhiteNeutral BlackHot120vac InputRequires 15A branch circuit and overcurrent protection on supplyGreenGroundWhiteBlackGreenStrip wires back 3/8".SOLID WIRES ONLY.Coulomb CT1000 Pole Mount Smartlet Installation Instructions Revision 0.1 PRELIMINARY

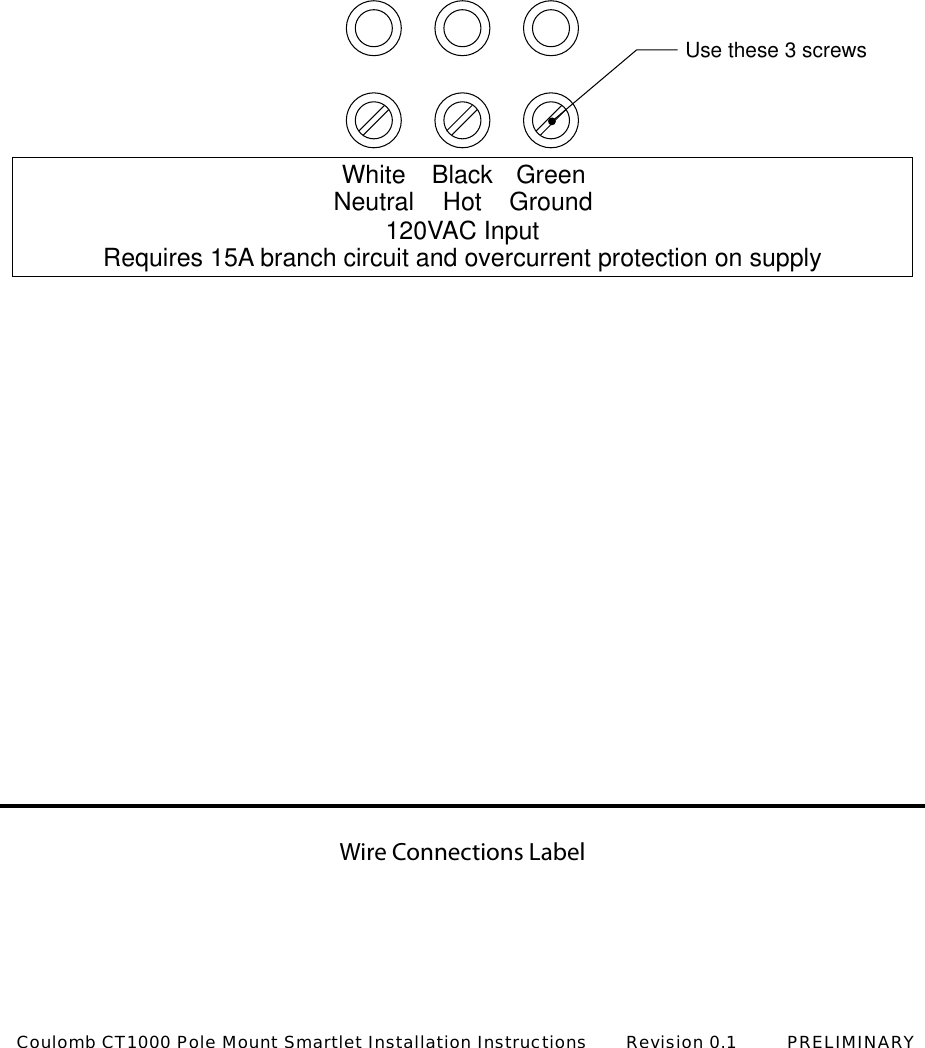

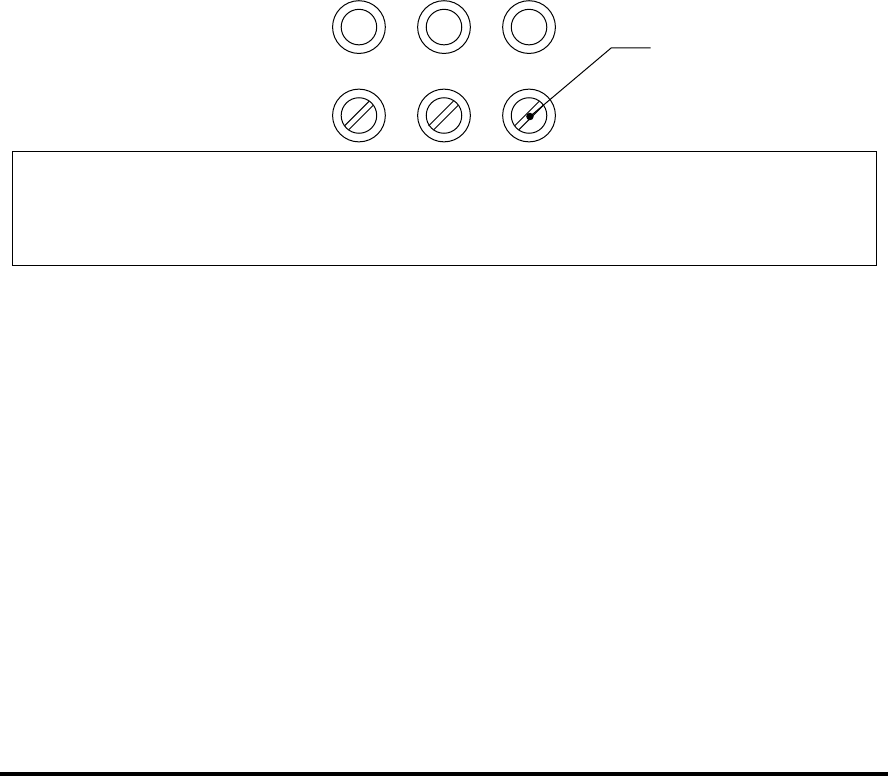

Wire Connections LabelUse these 3 screwsWhiteNeutral BlackHot120VAC InputRequires 15A branch circuit and overcurrent protection on supplyGreenGroundCoulomb CT1000 Pole Mount Smartlet Installation Instructions Revision 0.1 PRELIMINARY

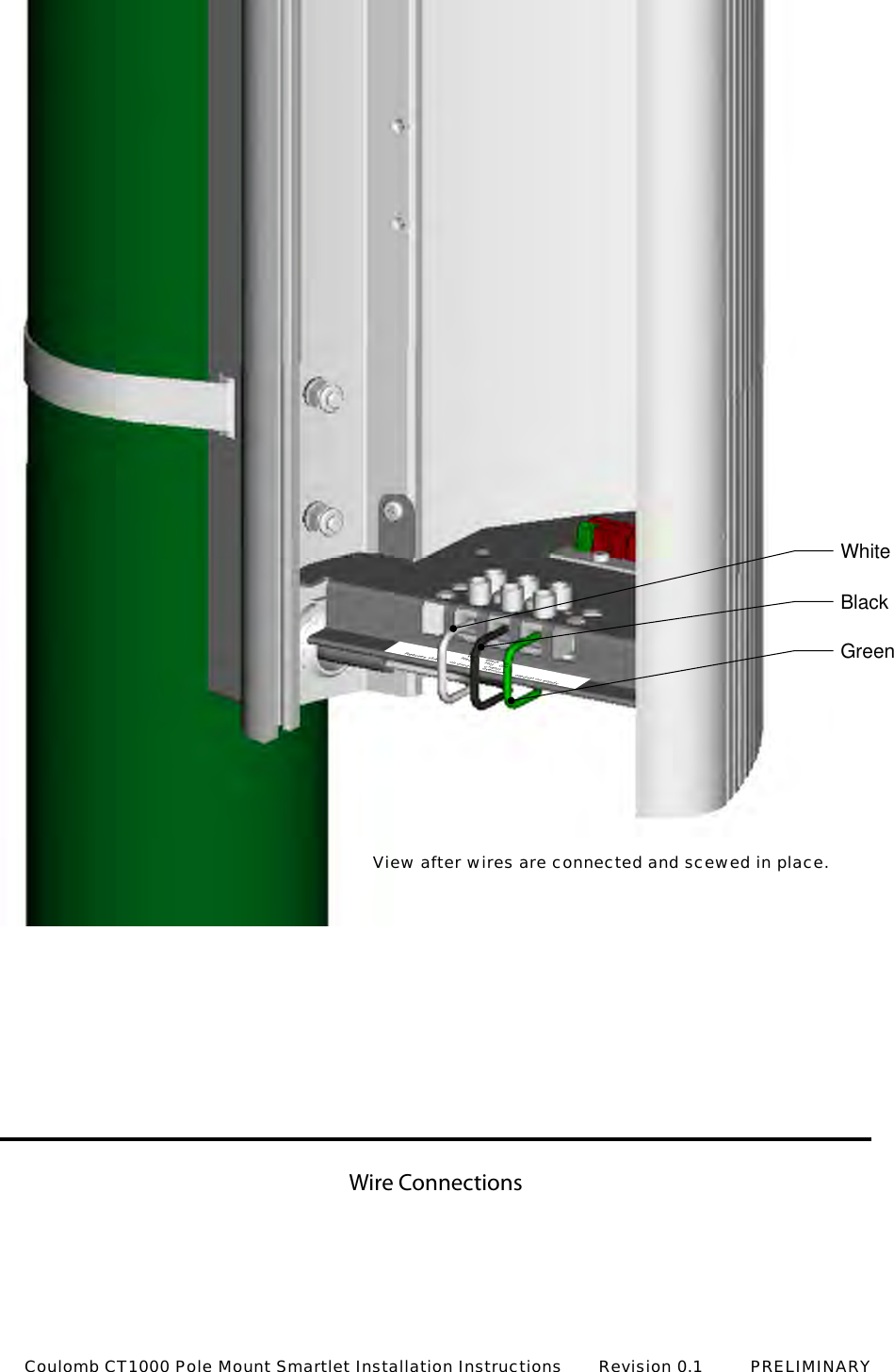

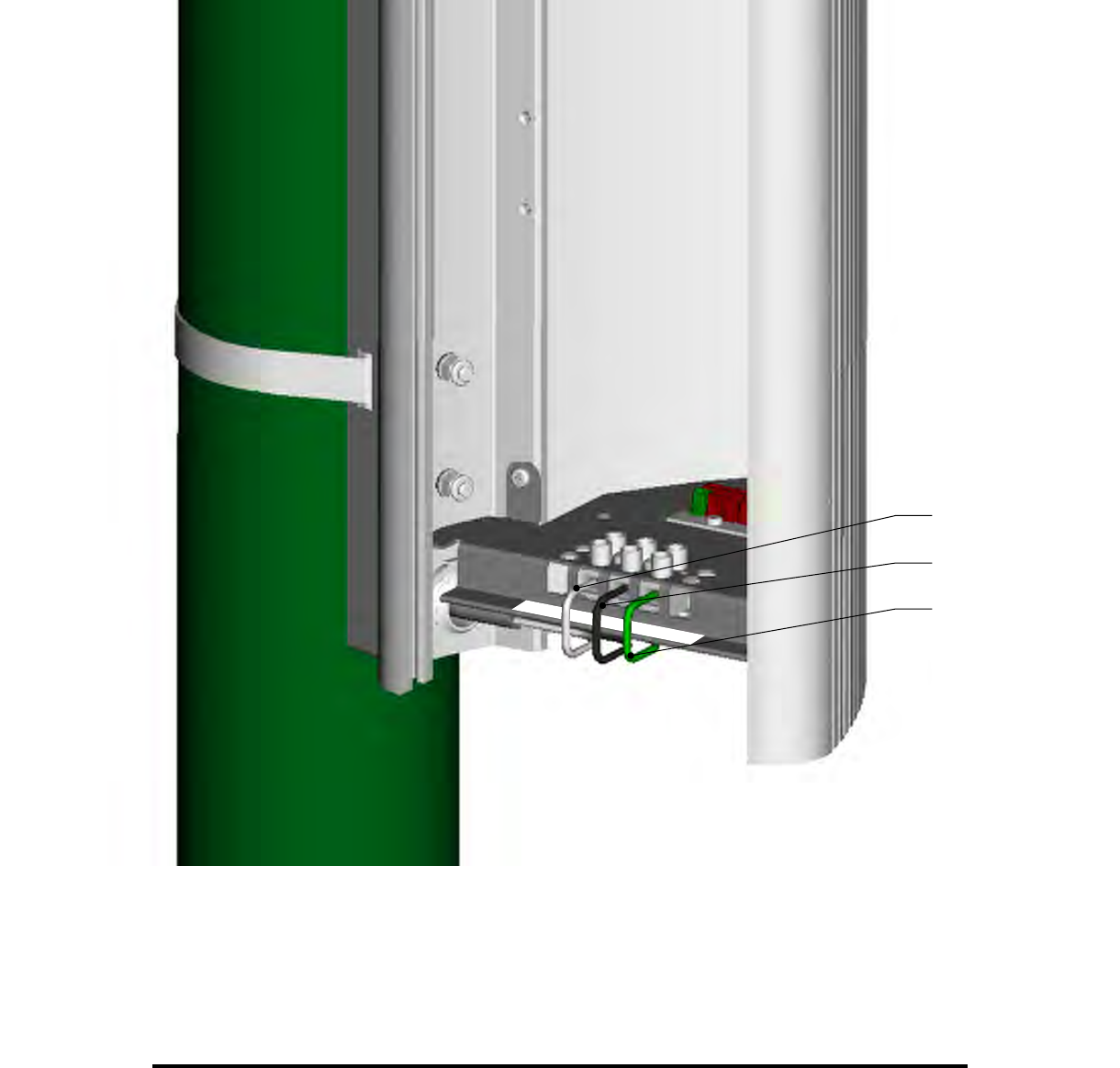

Wire ConnectionsWh Neutr BlackHot1 c InputRequires 15A ch circuit overcurre otection on supplyG Gro WhiteBlackGreenView after wires are connected and scewed in place.Coulomb CT1000 Pole Mount Smartlet Installation Instructions Revision 0.1 PRELIMINARY

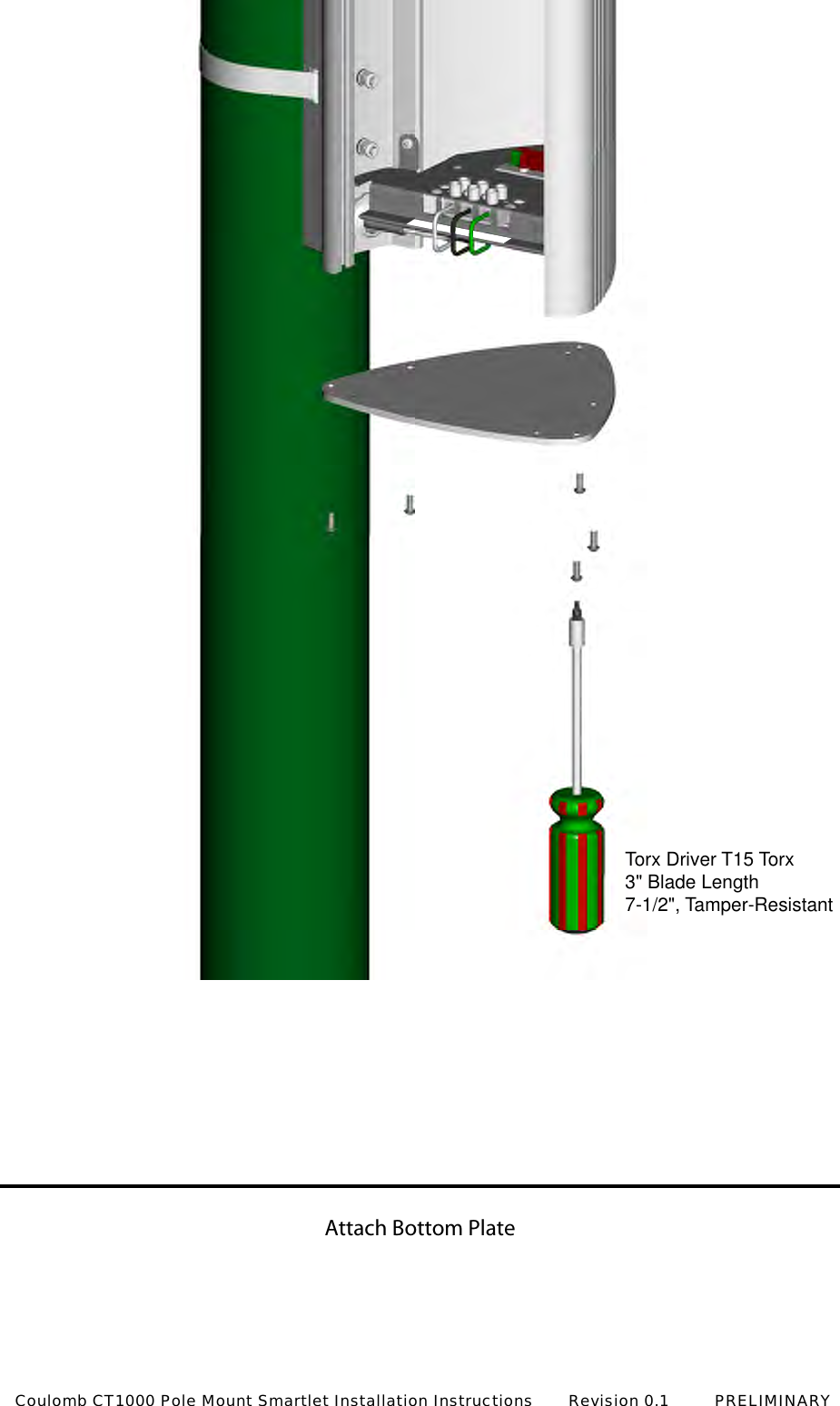

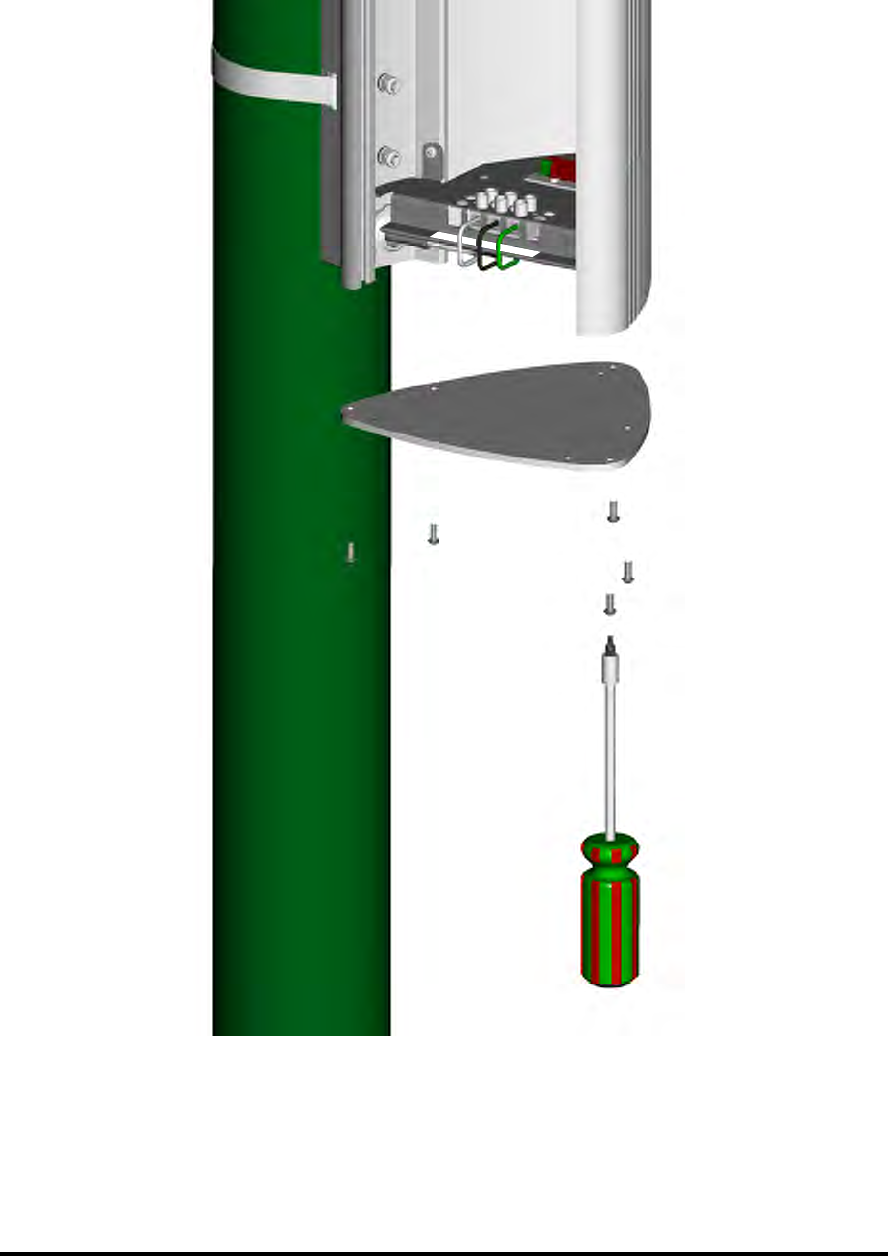

Attach Bottom PlateTorx Driver T15 Torx3" Blade Length7-1/2", Tamper-Resistant Coulomb CT1000 Pole Mount Smartlet Installation Instructions Revision 0.1 PRELIMINARY

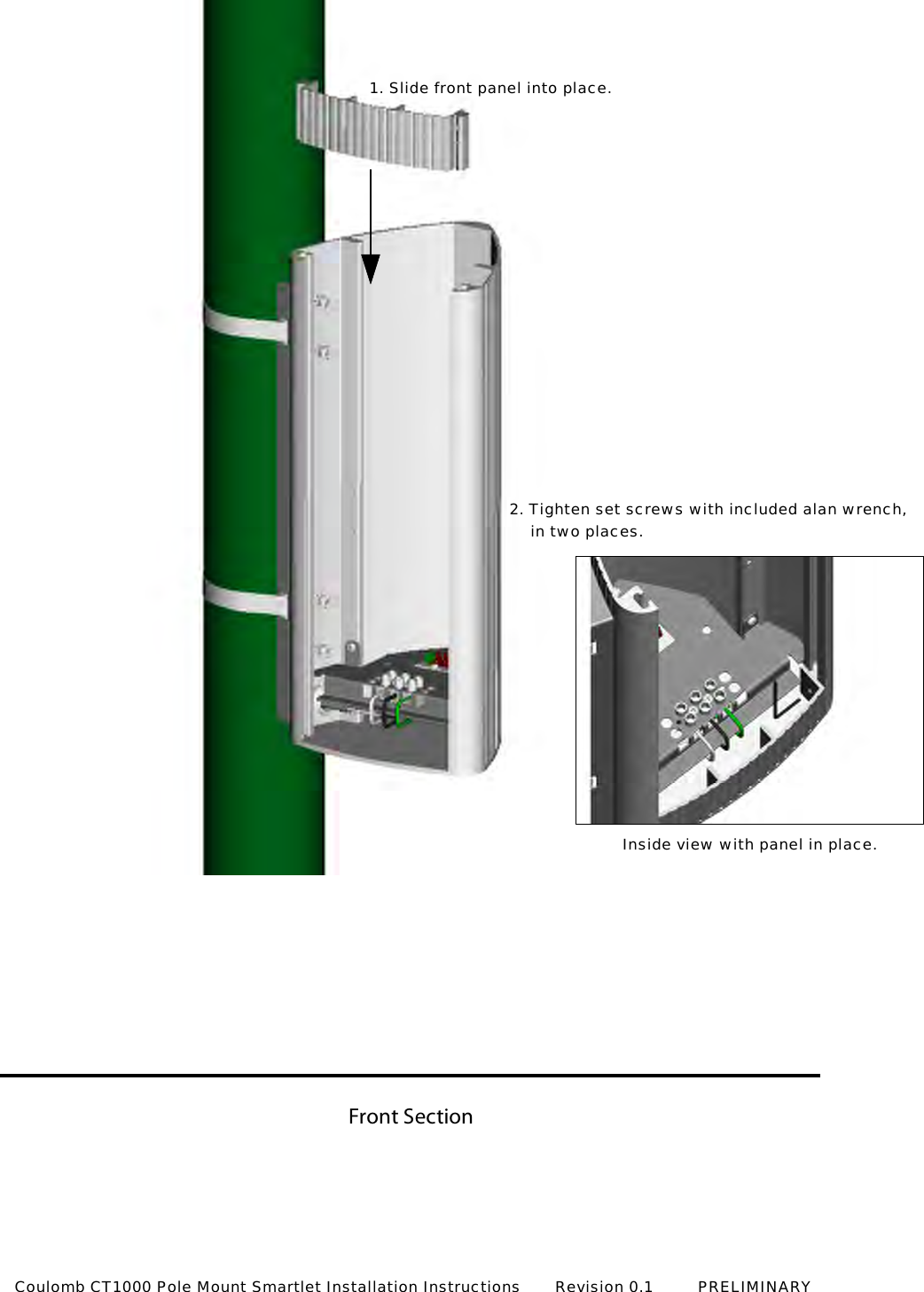

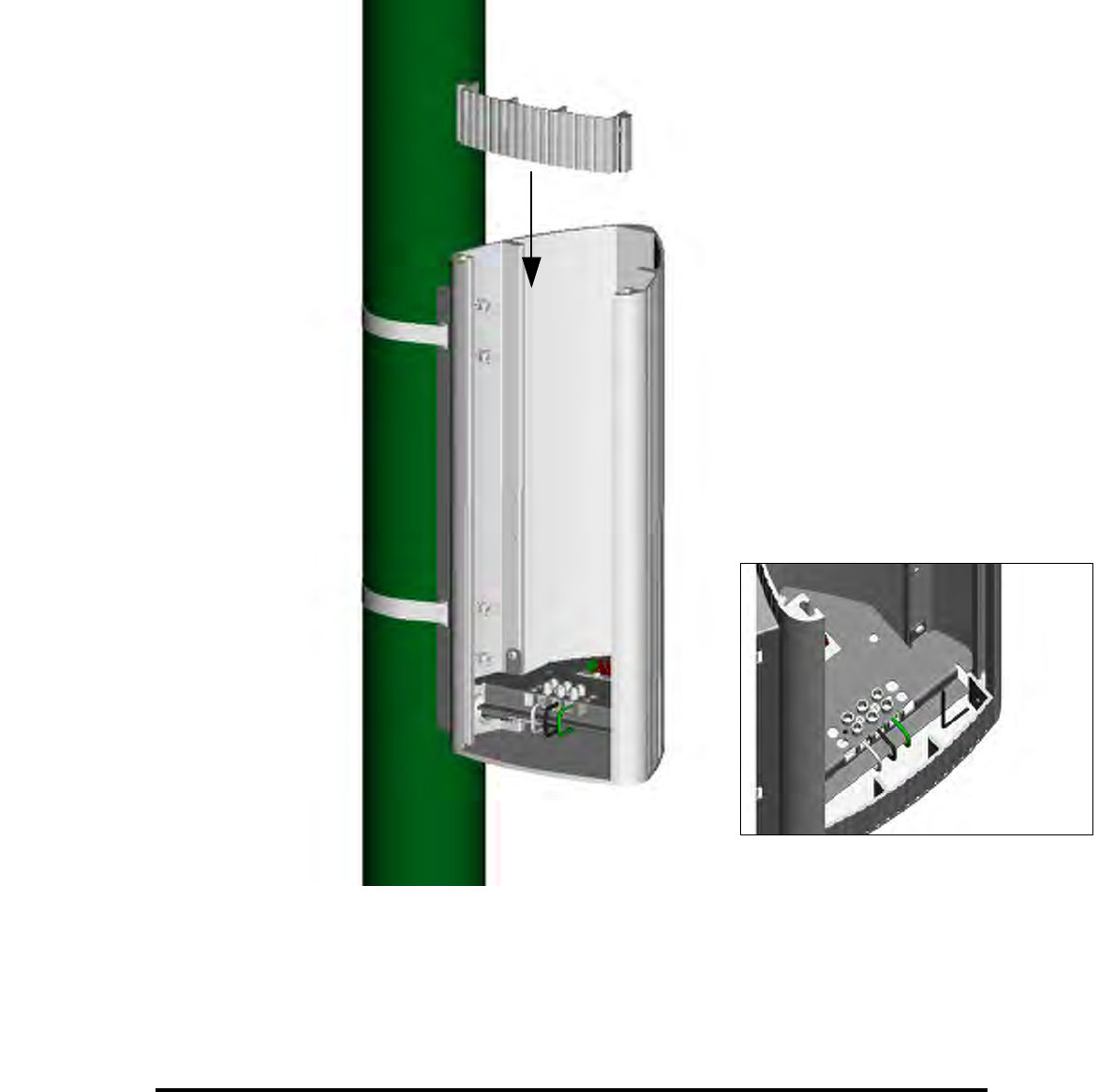

Front Sectionin two places.2. Tighten set screws with included alan wrench,Inside view with panel in place.Coulomb CT1000 Pole Mount Smartlet Installation Instructions Revision 0.1 PRELIMINARY1. Slide front panel into place.

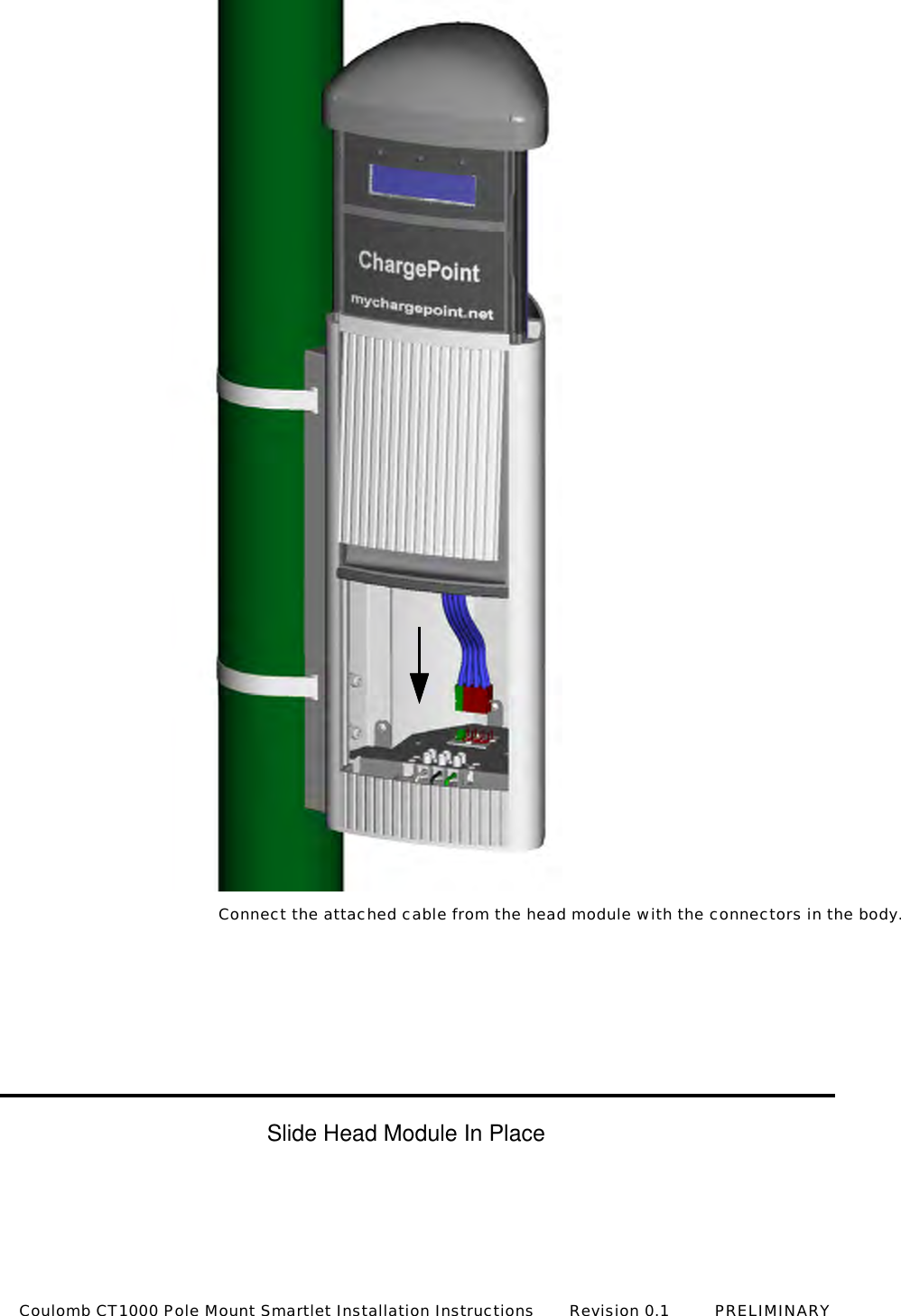

Slide Head Module In PlaceConnect the attached cable from the head module with the connectors in the body.Coulomb CT1000 Pole Mount Smartlet Installation Instructions Revision 0.1 PRELIMINARY
Secure Head Module (4 screws)Max height forADA is 48”Torx Driver T15 Torx3" Blade Length, 7-1/2"Tamper-Resistant Coulomb CT1000 Pole Mount Smartlet Installation Instructions Revision 0.1 PRELIMINARY

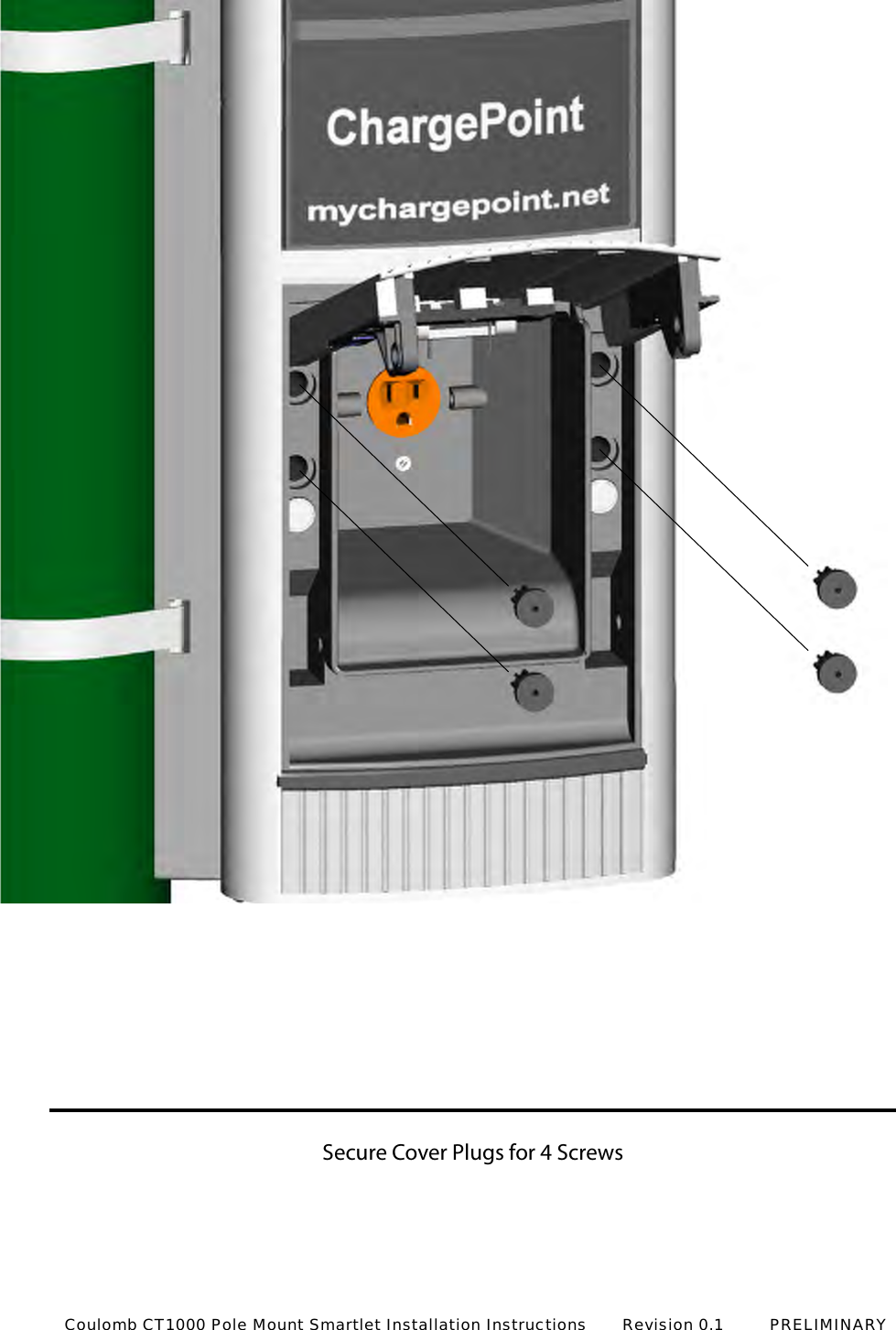

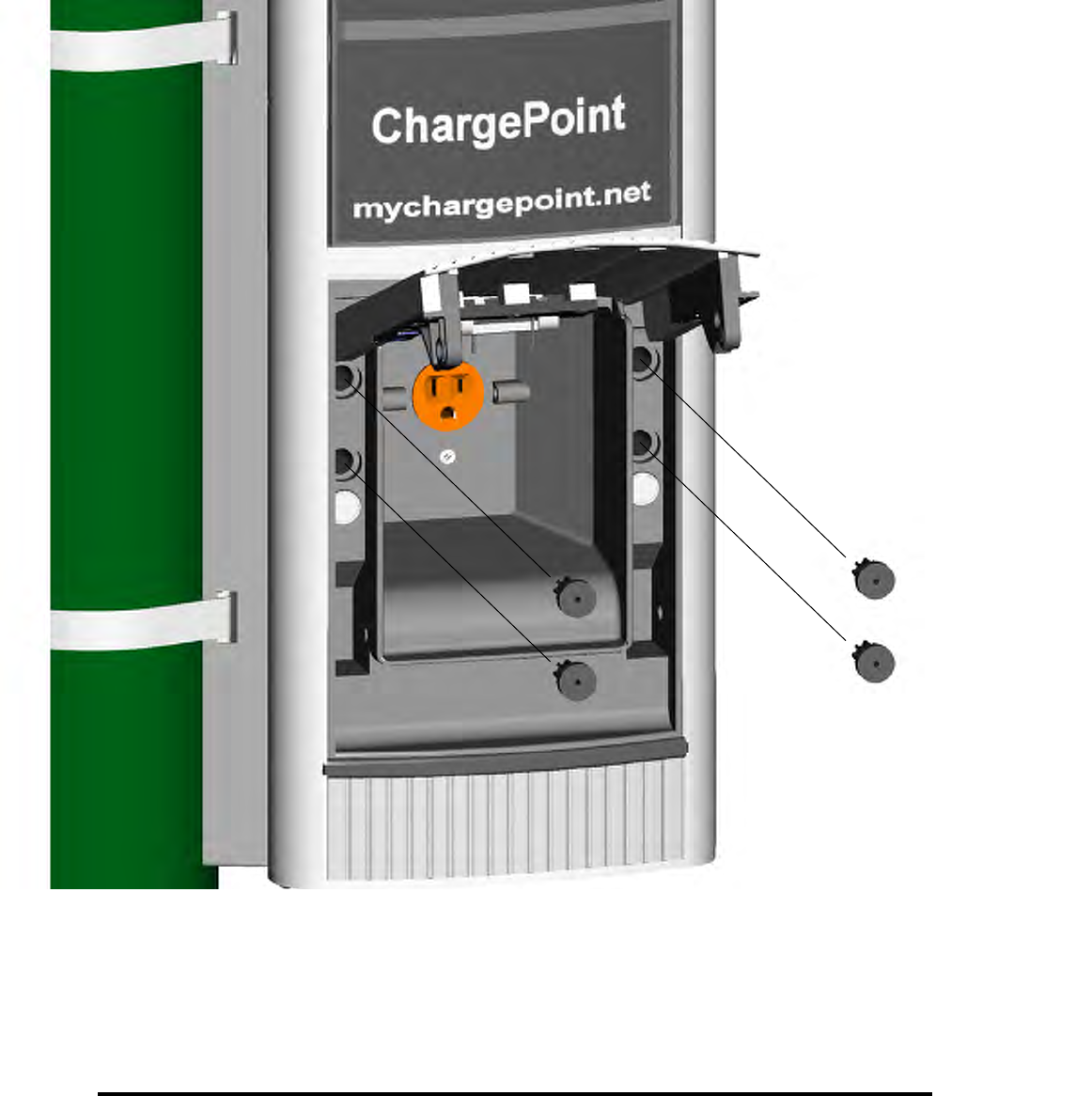

Secure Cover Plugs for 4 ScrewsCoulomb CT1000 Pole Mount Smartlet Installation Instructions Revision 0.1 PRELIMINARY

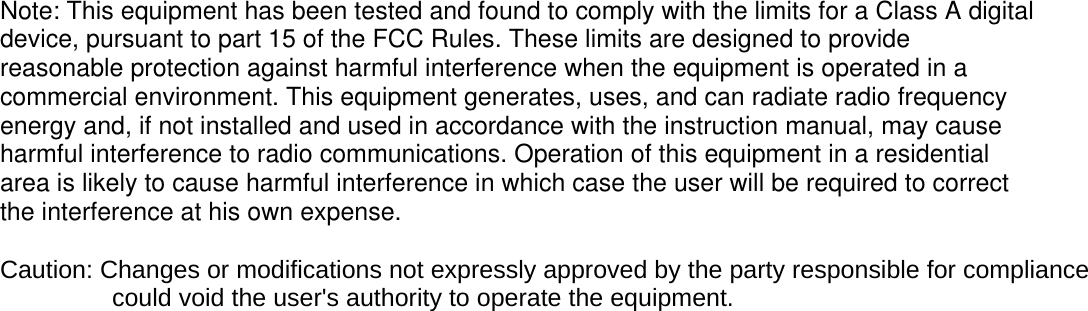

Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
