Cheng Uei Precision Industry 58905349 Motorola Shred stereo headset User Manual Cover Print Front A6 ENG
Cheng Uei Precision Industry Co., Ltd. Motorola Shred stereo headset Cover Print Front A6 ENG
Users Manaul
motorola.com
S805 Bluetooth® Stereo Module
Extra-cranial Intelligence for R.E.D. Audex™ Products
DRAFT 5- 9/19/2005
English
DRAFT
1
Motorola, Inc.
Consumer Advocacy Office
1307 East Algonquin Road
Schaumburg, IL 60196
www.hellomoto.com
MOTOROLA and the Stylized M Logo are registered in the US Patent &
Trademark Office. The Bluetooth trademarks are owned by their proprietor
and used by Motorola, Inc. under license. All other product or service
names are the property of their respective owners.
© Motorola, Inc., 2005.
Caution:
Changes or modifications made in the phone or Bluetooth
module, not expressly approved by Motorola, will void the user’s authority
to operate the equipment.
Manual Number: 6809498A40-O
Certain mobile phone features are dependent on the capabilities and
settings of your service provider’s network. Additionally, certain features
may not be activated by your service provider, and/or the provider's
network settings may limit the feature’s functionality. Always contact your
service provider about feature availability and functionality. All features,
functionality, and other product specifications, as well as the information
contained in this user's guide are based upon the latest available
information and are believed to be accurate at the time of printing.
Motorola reserves the right to change or modify any information or
specifications without notice or obligation.
DRAFT
2
R.E.D.
[Address]
[Web Site]
© 2005 R.E.D.
[Add Trademarks]
DRAFT
3
Motorola S805 Bluetooth Module
Motorola S805 Bluetooth
Module
Congratulations on the purchase of an Audex product.
Your Audex helmet or padded hat is the first to combine
coveted R.E.D. styling with leading Bluetooth wireless
technology from Motorola. This cutting edge technology
provides wireless communication and music on or off the
mountain.

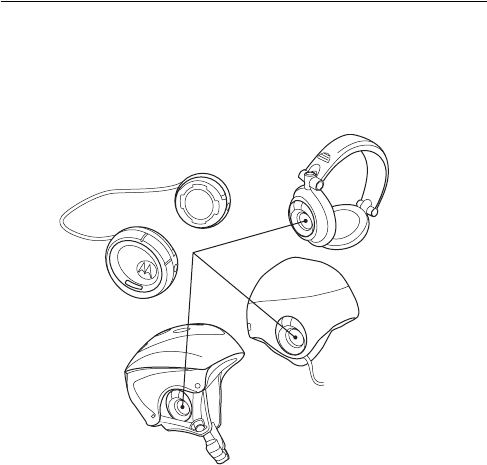

Detachable Bluetooth stereo speakers allow you to listen to
music wirelessly and never miss a call. The fun doesn’t have
to end with the season since the speakers can be removed
from the helmet or padded hat and worn as headphones
1
.
With up to [TBD] hours of talk, standby and music listening
time, you have all the power you need to get through a full
day of activities. Enjoy quality audio from the summit to the
street thanks to a wind resistant microphone and noise
reduction technology.
Package Contents
Your Audex helmet or padded hat is accompanied by:
•
S805 Bluetooth module
•
Wall charger (with adapters)
•
User's Guide (this booklet)
1. Send in the enclosed product registration card and redeem a free DJ-style
headband.
DRAFT
4
Motorola S805 Bluetooth Module
•
Product registration card (see instructions to redeem
free headband)
DRAFT
5
Contents
Contents
Overview
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
S805 Controls
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Using the S805
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Charging Your S805’s Internal Battery . . . . . . . . . . . . . . 10
Pairing Your S805 and Bluetooth Phone. . . . . . . . . . . . . 11
Pairing Your S805 and Bluetooth Audio Device . . . . . . . 14
Connecting Your S805 to a Wired Audio Device . . . . . . 15
Turning Your S805 On and Off . . . . . . . . . . . . . . . . . . . . 16

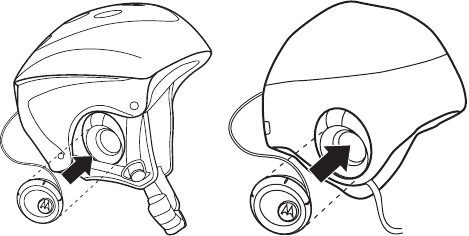

Attaching the S805 to Helmet or Padded Hat . . . . . . . . 16
Attaching the S805 to Headband . . . . . . . . . . . . . . . . . . 17
Making Calls With Your S805 . . . . . . . . . . . . . . . . . . . . . 18
Listening to Music With Your S805 . . . . . . . . . . . . . . . . 21
S805 Indicator Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
S805 Audio Tones. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
DRAFT
6
Overview
Overview
The Motorola S805 Bluetooth Module allows you to listen to
music and place and receive phone calls from your R.E.D
helmet or padded hat.
There are three applications for using the S805 Bluetooth
Module:
•
Listen to music and make/receive calls from a
Bluetooth-enabled cell phone with both A2DP
Streaming Audio and Handsfree profiles.
•
Make/receive phone calls from a Bluetooth -enabled
cell phone with Handsfree profile, and listen to music
from a connected audio device (such as an Apple
iPod).
DRAFT
7
Overview
•
Make/receive phone calls from a Bluetooth -enabled
cell phone with Handsfree profile, and listen to music
from a Bluetooth-enabled audio device with A2DP
Audio Streaming profile.
DRAFT
8
S805 Controls
S805 Controls
1—Track Control Wheel
Allows you to skip forward to
the next music track, or skip back to the previous
music track.
2—Play/Pause/Stop Button
M
Allows you to play,
pause, or stop music when listening to streaming
audio only. For non-streaming audio, allows you to
mute/unmute music.
3—Microphone
Used when placing or receiving calls.
1
2
3
Music Controls (Right Side)
DRAFT
9
S805 Controls
4—Volume Control Wheel
Allows you to increase or
decrease volume for music or calls.
5—Call Button
L
Used to answer and end calls. Also
used to turn the S805 on and off.
6—Headset Jack
Allows you to connect non-Bluetooth
audio devices.
Call Controls (Left Side)
4
5
6
DRAFT
10
Using the S805
Using the S805
Before you can use your S805, you
must
do the following:
1
Charge your S805’s internal battery.
2
Pair your S805 with your Bluetooth phone and/or
Bluetooth audio device.
3
If required, connect a wired audio device to your S805.
Charging Your S805’s Internal
Battery
First-Time Use
—Before you can use your S805, you need
to charge its internal battery for two hours
Step
1
If necessary, install the proper country
adapter on the wall charger connector.
2
Plug the charger into your S805.
DRAFT
11
Using the S805
Note:
You can also use a Motorola Original™ Vehicle Power
Adapter to charge your S805 while in your vehicle.
A fully charged S805 battery provides approximately:
•
[12?] hours of stereo music listening time
•
[15?] hours of phone call talk time
•
[400?] hours of standby time
Pairing Your S805 and Bluetooth
Phone
You must pair (link) your S805 and your Bluetooth-enabled
phone before you can make/receive calls or listen to music
(originating from your phone).
Note:
To listen to music originating from your
Bluetooth-enabled phone, stereo audio streaming (A2DP
Profile) must be supported by the phone.
3
Plug the other end of the charger power
cord into an electrical outlet.
While charging, both S805 indicators turn
on and remain on until charging completes.
The S805 cannot be used while charging.
Your S805 fully charges in about 2 hours.
4
When charging completes (indicators off),
unplug the charger from the electrical
outlet, and your S805.
Step
DRAFT
12
Using the S805
“Pairing” links two Bluetooth equipped devices, and allows
your phone to remember your S805’s unique ID. After your
S805 and phone are paired, your S805 automatically
connects to your phone when you turn it on.
Perform these steps to pair (link) your phone and S805:
Step
1
Turn on the Bluetooth power on your
phone. Bluetooth power option may
be
OFF
by default. Bluetooth power
must be
ON
to search for devices.
For most Motorola phones:
a
M(Menu)
>
Settings
>
Connection
>
Bluetooth
Link
>
Setup
>
b
Scroll to
Power
.
c
Select
Change
.
d
Scroll to
On
.
e
Press
Select
to turn on the Bluetooth
feature. Bluetooth feature remains on
until you turn it off.
Note:
For other phones, refer to your
phone’s user’s guide.
2
Put your S805 into pairing mode.
With your S805 off, press and hold
L
until the indicator light turns on and
remains on (about 6 seconds).
DRAFT
13
Using the S805
3
Set your phone to look for your S805.
For most Motorola phones:
a
M(Menu)
>
Settings
>
Connection
>
Bluetooth
Link
>
Handsfree
>
Look for Devices
The phone lists all Bluetooth devices it
finds.
b
Select
Motorola S805
.
c
Press
OK
and
Yes
to pair (link) the
handsfree device.
d
Enter the passkey
0000
and press
OK
.
Your S805’s ID is now stored in your
phone’s memory.
When your S805 is successful paired
with your phone, the S805 indicator
rapidly flashes and then resumes
regular flashing.
Note:
For more information on pairing
with your Bluetooth phone, see the
direct.motorola.com/hellomoto/Motos
upport/source/BluetoothSelect.asp
web site.
Step
DRAFT
14
Using the S805
Pairing Your S805 and Bluetooth
Audio Device
You must pair (link) your S805 and your Bluetooth-enabled
audio device before you can play music.
Note:
For the S805 to listen to music originating from your
Bluetooth-enabled audio device, stereo audio streaming
(A2DP Profile) must be supported by the audio device.
“Pairing” links two Bluetooth equipped devices, and allows
your phone to remember your S805’s unique ID. After your
S805 and audio device are paired, your S805 automatically
connects to your audio device when you turn it on.
Perform these steps to pair (link) your S805 and audio device:
Step
1
Holding the S805 close to the audio device,
put your S805 into pairing mode:
With your S805 off, press and hold
L
until
the indicator light turns on and remains on
(about 6 seconds).
2
Place your Bluetooth-enabled audio device
into pairing mode.
Note:
For details on placing your
Bluetooth-enabled audio device in pairing mode,
see the device’s user documentation.
3
When the S805 pairs successfully with the
audio device, you will see a series of 10 rapid
flashes from the
L
button indicator light.
DRAFT
15
Using the S805
Pairing to Additional Devices
Your S805 can store pairing information for up to eight
different Bluetooth devices. These devices are stored in
chronological order in the “Paired Device List” in your S805’s
memory. When you try to pair to more than eight devices,
the oldest paired device is removed from the list.
Any of the eight paired devices can start a paired connection
to your S805.
When you turn on your S805 it automatically connects only
to the
last
handsfree device (such as a mobile phone)
and
the last music source it was
connected to
. If you want to
connect your S805 to another device in the paired device list,
you must start the connection from that device. When any
one of the eight devices starts a connection to your S805
afterwards, that device then becomes the “last connected”
device.
Connecting Your S805 to a Wired
Audio Device
To listen to music from a non-Bluetooth audio device,
connect your audio device to the headset jack using the
2.5mm-to-3.5mm stereo audio cable included with your
S805.
DRAFT
16
Using the S805
Turning Your S805 On and Off
To turn your S805 on, press and hold
L
for approximately 2
seconds until the LED flashes twice.
To turn your S805 off, press and hold
L
for approximately 5
seconds until the LED flashes 3 times.
Attaching the S805 to Helmet or
Padded Hat
Your S805 is designed to be easily connected to your helmet
or padded hat.
Helmet Connection Padded Hat Connection
DRAFT
17
Using the S805
To connect, snap each S805 pod into the connector as
shown.
Attaching the S805 to Headband
Your S805 is designed to be easily connected to the included
headphone adapter.
[Insert graphic of close-up of
S805 inserted into
connector.]
DRAFT
18
Using the S805
To connect, snap each S805 pod into the connector as
shown.
Making Calls With Your S805
Your S805 supports both Handsfree and Headset Profiles.
Accessing call functions depends on which profile your
phone supports.
Note:
Some phones do not support all features listed. See
your phone’s user’s guide.
Note:
When placing or receiving calls, music playing from a
Bluetooth-enabled device is automatically paused. When the
call is finished, the music playing is resumed. Music playing
from a non-Bluetooth audio device is muted when placing or
receiving calls, and unmuted when the call is finished.
[Insert graphic of close-up of
S805 inserted into
connector.]
DRAFT
19
Using the S805
You can activate call functions for the Handsfree profile
according to the following table:
Make a
Call
(Voice
Dial)
Phone:
On in idle
S805:
On
Short press
L
, speak name,
phone dials call
Make a
Call
(Hand
Dial)
Phone:
On
S805:
On
Enter phone number on phone,
press Send key on phone, phone
dials call.
End a Call Phone:
On–in call
S805:
On
Short press
L
Receive
(Answer)
a Call
Phone:
On–phone rings
S805:
On
Short press
L
Reject a
Call
Phone:
On–phone rings
S805:
On
Long press
L
Mute/Un
mute a
Call
Phone:
On–in call
S805:
On
Short press
M
DRAFT
20
Using the S805
Answer
Second
Incoming
Call
Phone:
On–in call, 2nd call
incoming in
S805:
On
Long press
L
, places 1st call on
hold, answers incoming call
Join a
3-Way
Call
Phone:
On–in call, 2nd call on
hold
S805:
On
Long press
L
and
M
at the same
time, both calls are joined
Toggle
between
Two
Active
Calls
Phone:
On–in call, 2nd call on
hold
S805:
On
Long press
L
, places active call
on hold, holding call becomes
active
Place
Active
Call On
Hold
Phone:
On–in call
S805:
On
Long press
L
Resume
call on
hold
Phone:
On-active call on hold
S805:
On
Long press
L
DRAFT
21
Using the S805
Listening to Music With Your S805
Your S805 supports Bluetooth A2DP Streaming Audio
Profile. The following table provides details for playing music
on a Bluetooth-enabled phone or audio device with
streaming music capability.
Play or
Pause,
Music
Short press
M
Stop
Music
Long press
M
Adjust
Music
Volume
Turn
Volume Control Wheel
(on
left pod) forward (to increase
volume) or backward (to decrease
volume)
Skip
Back to
Previous
Song
Turn
Track Control Wheel
(on
right pod) all the way backward
and release
Skip
Forward
to Next
Song
Turn
Track Control Wheel
all the
way forward and release
DRAFT
22
Using the S805
The following table provides details for playing music on a
wired audio device (no streaming music).
Mute/
Unmute
Music
Short press
M
DRAFT
23
Using the S805
S805 Indicator Lights
The indicator lights on the S805 provide status information.
With charger plugged in:
With no charger plugged in:
Light Status
On
(Steady)
charging in progress
Off
charging complete
Light Status
Off
power off
On (steady)
pairing mode
10 rapid flashes
pairing successful
Rapid Flashes
(flash
on,
3 seconds off)
standby, not on a call
Slow Pulses
(2 seconds on,
6 seconds off)
connected in a call
DRAFT
24
Using the S805
To turn off S805 indicator lights, short press
L
and
M
at the
same time. When indicator lights are off, the following
actions turn the S805 indicator lights back on:
•
short press
L
and
M
at the same time
•
turn S805 off, then on
•
plug charger into unit
S805 Audio Tones
The audio tones in your S805 provide status information.
Audio Tone Status
Single high tone
when pressing
volume button
volume maximum or
minimum reached
Five rapid high
tones, repeated
every 60 seconds
low battery
Note:
While
streaming music
wirelessly, the low
battery tone will be
played only once.
No audio
indications;
deteriorating audio
quality
out of range
Ring tone
incoming call
Single high tone
pairing confirmation
DRAFT
25
Using the S805
Single low tone
initiate voice
activation
Dual high/low tone
voice tag not
recognized
Single high tone
end call
Low to high tone
phone network not
available
Two tones
Mute on/off
Single tone
power on/off
Audio Tone Status
DRAFT
26
Using the S805
European Union Directives
Conformance Statement
Hereby, Motorola declares that this product is in compliance
with
•
The essential requirements and other relevant provisions of
Directive 1999/5/EC
•
All other relevant EU Directives

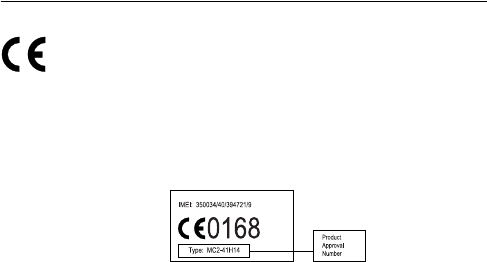

The above gives an example of a typical Product Approval Number.
You can view your product’s Declaration of Conformity (DoC) to Directive
1999/5/EC (to R&TTE Directive) at www.motorola.com/rtte. To find your
DoC, enter the product Approval Number from your product’s label in the
“Search” bar on the web site.
27
Using the S805
Caring for the Environment by
Recycling
When you see this symbol on a Motorola product, do not dispose
the product with household waste.
Recycling Mobile Phones and
Accessories
The rechargeable batteries that power this product must be
disposed of properly and may need to be recycled.
In some countries or regions, collection systems are set up to
handle electrical and electronic waste items. Contact your
regional authorities for more details. If collection systems aren’t available,
return unwanted mobile phones or electrical accessories to any Motorola
Approved Service Centre in your region.
Warning:
Never dispose of batteries in a fire because they may explode.
032375o
28
Using the S805
Safety and General Information
Safety and General Information
IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION.
READ THIS INFORMATION BEFORE USING YOUR DEVICE.
Safety Information: Wireless Devices
Users are not permitted to make changes or modify the device in any way.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user ‘s authority to operate the equipment.
See 47 CFR Sec. 15.21.
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation. See 47 CFR
Sec.15.19(3).
Electromagnetic Interference
Note:
Nearly every electronic device is susceptable to electromagnetic
interference (EMI) if inadequately shielded, designed, or otherwise
configured for electromagnetic compatibility.
Facilities
To avoid electromagnetic interference and/or compatibility conflicts, turn
off your device in any facility where posted notices instruct you to do so.
Hospitals or health care facilities may be using equipment that is sensitive
to external radio frequency (RF) energy emitted by your device.
Aircraft
While aboard aircraft, turn off your device when instructed to do so. Any
use of the device must be in accordance with applicable regulations per
airline crew instructions.
29
Using the S805
Medical Devices
Hearing Aids:
Some devices may interfere with some hearing aids. In the
event of such interference, you may want to consult with your hearing aid
manufacturer to discuss alternatives.
Other Medical Devices:
If you use any other personal medical device,
consult the manufacturer of your device to determine if it is adequately
shielded from RF energy. Your physician may be able to assist you in
obtaining this information.
Safety Information: General Use
USE AT YOUR OWN RISK
Do not use your headphones and cellular phone while riding or moving.
Only use them while waiting for the lift, on the lift, waiting to ride, or in the
lodge. Listening to tunes or talking on a phone while riding may prevent
you from hearing others around you, distract you from riding safely, and
limit your ability to hear what your edges are doing on the snow. All of
these can cause loss of control and an accident possibly resulting in injury
or death to you or others.
Avoid Distraction
Using headsets while operating a motor vehicle, motorcycle or bicycle is
dangerous, and is illegal in some states. Check your local laws. Use
caution while using your Audex S805 when engaging in ANY activity that
requires your full attention. Avoid placing or receiving calls while driving an
automobile, motorcycle, equipment or any other motorized mode of
transportation to reduce the risk of accident or injury.
Avoid Hearing Damage
Using the headset at high volume may result in permanent hearing loss. If
you experience ringing in your ear, reduce the volume or discontinue using
Audex S805. With continued use at high volume, your ear may become
accustomed to the sound level, which may result in permanent damage to
your hearing. Keep Audex S805 volume at a safe level.
30
Using the S805
Avoid Moisture
Using Audex S805 in or near water or other liquids, or in wet locations,
may cause electric shock and serious injury. The transceiver module is not
waterproof, so follow these safeguards:
•
Do not use Audex S805 while swimming or bathing.
•
Do not wear Audex S805 in the rain.
•
If any food or liquid is spilled on Audex S805 or its power adapter,
unplug the charging cable from Audex S805 and unplug the power
adapter from the electrical outlet before drying.
Location of Use
Audex S805 is NOT to be used in the vicinity of any explosive or hazardous
substances, as it may become volatile and cause serious injury or death.
See "Electromagnetic Interference" above for restrictions on using Audex
S805 in medical facilities and aboard aircraft.
Proper Care of your Audex S805
Do Not Modify or Dismantle
Do not attempt to dismantle the Audex S805. Doing so may expose you to
electric shock and serious injury. There are no user-serviceable parts
inside. Any attempt to alter or repair the module will void the limited
warranty. Users are not permitted to make changes or modify the device in
any way. Changes and modifications void the user's authority to operate
the device. See 47 CFR Sec. 15.21.
Battery
Do not attempt to remove the internal rechargeable battery. Disposal of
devices that contain internal rechargeable batteries must be in accordance
with local environmental regulations.
31
Using the S805
Temperature
[Needs to be modified]
•
Do not store or use Audex S805 in temperatures lower than -20°C /
-4°F or higher than 50°C / 122°F.
•
Do not recharge Audex S805 in temperatures lower than 0°C / 32°F
or higher than 40°C / 104°F.
•
Conditions inside a parked car can exceed this temperature range.
Do not store Audex S805 in a parked car.
•
Do not store Audex S805 in direct sunlight.
•
Storing Audex S805 fully charged in high temperature conditions
may permanently reduce the life of the battery.
•
Battery life may temporarily shorten in low-temperature conditions.
Shockwave
Do not expose Audex S805 to excessive force or impact. Be careful not to
drop the Audex S805.
Charger
Do not force the charging cable connector into the battery charging port. If
the connector won't go into the port, try flipping the connector 180
degrees. Do not attempt to charge Audex S805 with any charger other than
the one designed by Motorola specifically to be used with this product.
32
Using the S805
Cleaning
To clean components in your Audex S805, use a soft cotton cloth to gently
brush all surfaces to remove any grit or particles that might scratch the
surfaces. Please note the following:
•
Before cleaning, make sure the Audex S805 is unplugged from the
wall charger.
•
The Audex S805 module is not waterproof, and excessive moisture
may damage the electronic circuitry. Do not rinse or immerse any
modules.
•
Do not clean the modules with soaps, detergents, ammonia,
alkaline cleaners, abrasive cleaning compounds or solvents. These
substances may leak into the module and damage the electronic
circuitry.
33
Using the S805
Support
If your Audex S805 does not function, please make sure that the battery is
charged, you have followed the instructions to install and operate your
system. In addition, go to [R.E.D. support website?] for the latest support
information. If Audex S805 still does not function, contact Motorola
Product Support as follows:
North America
www.hellomoto.com or 1.877.MOTOBLU
Australia
1300 138823
New Zealand
0508 6686 7652
34
Using the S805
Consumer Warranty Coverage
Thank you for purchasing your Audex product. This Audex product is
covered by two different warranties; one that covers the helmet or padded
hat and related components, which is administered by R.E.D., and one that
covers the S805 BluetoothÆ module system, and which is administered by
Motorola, Inc.
Audex Warranty Policy – Helmet/Padded Hat
and Related Components Coverage
R.E.D. warrants all products sold by R.E.D. to be free of defects in
material or workmanship for a period of one year from the date of
purchase.
If a product is found to be defective by R.E.D., in its sole discretion, R.E.D.'s
only responsibility shall be limited to repair or replacement of the defective
product. R.E.D. will not be responsible for any costs, losses, or damages
incurred as a result of loss of use of product. This warranty is subject to the
following limitations, in addition to any imposed by virtue of applicable
law.
•
The warranty applies only to R.E.D. products purchased from an
Authorized R.E.D. Dealer and is valid for the original purchaser only.
•
All products returned to R.E.D. for warranty inspection must receive
prior return authorization which can be given over the phone. Ship
products freight prepaid and insured. R.E.D. assumes no
responsibility for products during shipment from the customer to
our Warranty Department. Shipping charges are not refundable.
•
Excluded from coverage under this warranty are the following:
•
Damage caused by misuse, abuse or neglect.
•
Damage caused by improper mounting or adjustment of the bindings.
•
Normal wear and tear.
•
Damage caused by anything other than defects in materials or workmanship.
35
Using the S805
•
Damage caused by use of solvents, adhesives, or LOC-TITE.
•
Damage caused by use of non-R.E.D. hardware for mounting bindings.
•
Damage to R.E.D. products caused by non-R.E.D. products.
•
Any and all claims for consequential and incidental damages are excluded from
coverage under this warranty although, some States do not allow the exclusion
or limitation of incidental or consequential damages, and so the above
limitation or exclusion may not apply to you.
ROCK OR RAIL DAMAGE AND ANY OTHER IMPACT RELATED DAMAGE IS
NOT COVERED UNDER THIS WARRANTY.
•
All coverage under this warranty is void if any modification, change
or alteration has been made to the product that is not specifically
authorized in writing by R.E.D.
•
Repaired or replaced products are covered for the remainder of the
original warranty only.
•
All warranty claims must be accompanied by the original purchase
receipt from an Authorized R.E.D. Dealer. Invoice or charge receipt
must clearly identify the dealer.
•
R.E.D. products are not covered by any verbal warranties.
All coverage under this warranty is void if any modification, change or
alteration has been made to the product that is not specifically authorized
in writing by R.E.D. Repaired or replaced products are covered for the
remainder of the original warranty only. All warranty claims must be
accompanied by the original purchase receipt from an Authorized R.E.D.
Dealer. Invoice or charge receipt must clearly identify the dealer. R.E.D.
products are not covered by any verbal warranties.
36
Using the S805
Audex Coverage – Helmet/Padded Hat and
Related Components Coverage
Covered: Manufacturing defects (as determined by R.E.D.) some
examples listed below.
•
Defective sewing.
•
Defective hardware
•
Defective zippers and snaps
•
Cracking/breaking of any parts, not due to misuse, abuse, neglect,
impact, or the use of paint and/or solvents
Not Covered:
•
Any problem resulting from misuse, abuse or neglect
•
Damage caused from impact
•
Cosmetic issues including discolored fabrics, shell dents
•
Damage caused by any modifications
•
Rips and tears
•
Fading (this includes UV damage)
•
Pilling
•
Shrinking
•
Damage (including color bleeding) resulting from improper
washing, improper detergents, or exposure to liquid, water, beer,
rain, sand, nachos or dirt.
For additional information please see the R.E.D. crash replacement policy
[web link??]
Outerwear Life Time Warranty***
For specific SG tech product, beginning with 2003 product, there is a
lifetime warranty policy. The policy will be to repair, if possible, to first
37
Using the S805
quality. If repair can't be done, replace with same or better grade product,
providing consumer with options for them to choose. Warranty applies to
original purchase only and valid proof of purchase is required.
***Lifetime warranty does not apply for electronic features found in some
of our Helmet/Padded Hats.
[Is this true? Need to verify.]
Audex Claims Procedure – Helmet/Padded Hat
and Related Components Coverage
STEP ONE
Evaluate the Validity of the Claim
•
Was the product purchased in the last 12 months?
•
Does the damage appear to be attributable to defective materials
or workmanship?
•
Does the damage appear to be due to impact, abuse, negligence, or
reactions to heat, solvents, or harsh detergents?
For specific instructions regarding different products, please consult the
Warranty Guidelines.
If it appears to meet the "Covered" Guidelines in this manual,
continue…
STEP TWO
CALL FOR A RETURN AUTHORIZATION (RA) NUMBER
•
Dealers call 1-800-367-2951.
•
Consumers call 1-800-881-3138.
•
Tell us WHAT you are sending back - describe the product.
•
Tell us WHY you are sending it back - describe the problem.
•
Record the RA# and details in a log.
38
Using the S805
STEP THREE
PACK AND SHIP THE PRODUCT IMMEDIATELY!
•
Include the original proof of purchase (receipt).
•
Include a brief description of the problem and the RA#
•
Mark the defect with masking tape if possible.
•
Print the RA# clearly on the outside of the box.
•
Ship the claim to:
R.E.D.
Attn: Product Service RA#____________________
30 Community Drive Suite #3
South Burlington, VT 05403
[This is Burton’s address? Need R.E.D’s address]
Customers are responsible for shipping charges to R.E.D.
Overnight and 2-Day shipments to R.E.D. will be returned in the same
manner at our expense.
***W48 GOES INTO EFFECT WHEN WE RECEIVE THE PRODUCT.***
(What is W48? This means the product will be on it's way back to you in 2
business days.)
Within 48 hours of receipt of product, the claim will be handled in one of
the following ways:
•
If the returned product is within the valid warranty period of one
year and judged by R.E.D. to be defective, we will repair or replace
the product.
The warranty remains valid on repaired and
39
Using the S805
replaced items for the balance of one year from the original
purchase date.
•
If the problem is determined to be not covered under warranty but
can be repaired, we will call with a quote, and to get authorization
to proceed with the repair.
•
If the problem is not covered under warranty, nor repairable, the
product will be returned as is.
40
Using the S805
Motorola Bluetooth Module System
Limited Warranty
What Does this Warranty Cover?
Subject to the exclusions contained below, Motorola, Inc. warrants its
wireless telephones, pagers and consumer two-way radios that operate via
Family Radio Service or General Mobile Radio Service ("Products"),
Motorola-branded or certified accessories sold for use with these Products
("Accessories") and Motorola software contained on CD-ROMs or other
tangible media and sold for use with these Products ("Software") to be free
from defects in materials and workmanship under normal consumer usage
for the period(s) outlined below. This limited warranty is a consumer's
exclusive remedy, and applies as follows to new Motorola Products,
Accessories and Software purchased by consumers in the United States or
Canada, which are accompanied by this written warranty:
41
Using the S805
Products
Covered
Length of
Coverage
Exclusions
A Products and
Accessories
as defined
above, unless
otherwise
provided for
below.
A One (1) year
from the date
of purchase by
the first
consumer
purchaser of
the product
unless
otherwise
provided for
below.
Normal Wear and Tear.
Periodic maintenance, repair
and replacement of parts due
to normal wear and tear are
excluded from coverage.
Batteries.
Only batteries
whose fully charged capacity
falls below 80% of their rated
capacity and batteries that
leak are covered by this
limited warranty.
Wiring and other
electrical
harnesses.
Wiring and other
electrical harnesses
integrated into clothing or
wearable items and which
connect Products or
Accessories are excluded
from coverage.
42
Using the S805
1 Decorative
Accessories
and Cases.
Decorative
covers, bezels,
PhoneWrap™
covers and
cases.
1 Limited
lifetime
warranty
for
the lifetime
of ownership
by the first
consumer
purchaser of
the product.
Abuse & Misuse.
Defects or
damage that result from:
(a) improper operation,
storage, misuse or abuse,
accident or neglect, such as
physical damage (cracks,
scratches, etc.) to the surface
of the product resulting from
misuse; (b) impact, collision or
other contact with solid
objects; (c) contact with
liquid, water, rain, extreme
humidity or heavy
perspiration, sand, dirt or the
like, extreme heat, or food;
(d) contact with solvents,
adhesives, or other chemicals;
(e) use of the Products or
Accessories for commercial
purposes or subjecting the
Product or Accessory to
abnormal usage or conditions;
or (f) other acts which are not
the fault of Motorola, are
excluded from coverage.
Products
Covered
Length of
Coverage
Exclusions
43
Using the S805
1 Decorative
Accessories
and Cases.
Decorative
covers, bezels,
PhoneWrap™
covers and
cases.(con’t)
1 Limited
lifetime
warranty
for
the lifetime
of ownership
by the first
consumer
purchaser of
the product
(con’t)
Use of Non-Motorola
Products and Accessories.
Defects or damage that result
from the use of Non-Motorola
branded or certified Products,
Accessories, Software or
other peripheral equipment
are excluded from coverage.
Unauthorized Service or
Modification.
Defects or
damages resulting from
service, testing, adjustment,
installation, maintenance,
alteration, or modification in
any way by someone other
than Motorola, or its
authorized service centers,
are excluded from coverage.
Products
Covered
Length of
Coverage
Exclusions
44
Using the S805
2 Monaural
Headsets.
Ear buds and
boom
headsets that
transmit mono
sound through
a wired
connection.
2 Limited
lifetime
warranty
for
the lifetime
of ownership
by the first
consumer
purchaser of
the product.
Altered Products.
Products
or Accessories with (a) serial
numbers or date tags that
have been removed, altered
or obliterated; (b) broken
seals or that show evidence
of tampering; (c) mismatched
board serial numbers; or
(d) nonconforming or
non-Motorola housings, or
parts, are excluded from
coverage.
Communication Services.
Defects, damages, or the
failure of Products,
Accessories or Software due
to any communication service
or signal you may subscribe to
or use with the Products
Accessories or Software is
excluded from coverage.
3 Consumer
and
Professional
Two-Way
Radio
Accessories.
3 Ninety (90)
days
from
the date of
purchase by
the first
consumer
purchaser of
the product.
4 Products
and
Accessories
that are
Repaired or
Replaced.
4 The balance
of the
original
warranty or
for ninety
(90) days
from the date
returned to
the
consumer,
whichever is
longer.
Products
Covered
Length of
Coverage
Exclusions
45
Using the S805
Who Is Covered?
This warranty extends only to the first consumer purchaser, and is not
transferable.
What Will Motorola Do?
Motorola, at its option, will at no charge repair, replace or refund the
purchase price of any Products, Accessories or Software that does not
conform to this warranty. We may use functionally equivalent
B Software.
Applies only to
physical
defects in the
media that
embodies the
copy of the
software (e.g.
CD-ROM, or
floppy disk)
B Ninety (90)
days
from the
date of
purchase.
Software Embodied in
Physical Media.
No
warranty is made that the
software will meet your
requirements or will work in
combination with any
hardware or software
applications provided by third
parties, that the operation of
the software products will be
uninterrupted or error free, or
that all defects in the
software products will be
corrected.
Software NOT Embodied in
Physical Media.
Software
that is not embodied in
physical media (e.g. software
that is downloaded from the
internet), is provided “as is”
and without warranty.
Products
Covered
Length of
Coverage
Exclusions
46
Using the S805
reconditioned/refurbished/pre-owned or new Products, Accessories or
parts. No data, software or applications added to your Product, Accessory
or Software, including but not limited to personal contacts, games and
ringer tones, will be reinstalled. To avoid losing such data, software and
applications please create a back up prior to requesting service.
How to Obtain Warranty Service or Other Information
You will receive instructions on how to ship the Products, Accessories or
Software, at your expense, to a Motorola Authorized Repair Center. To
obtain service, you must include: (a) a copy of your receipt, bill of sale or
other comparable proof of purchase; (b) a written description of the
problem; (c) the name of your service provider, if applicable; (d) the name
and location of the installation facility (if applicable) and, most importantly;
(e) your address and telephone number.
What Other Limitations Are There?
ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, SHALL BE LIMITED TO THE DURATION OF THIS
LIMITED WARRANTY, OTHERWISE THE REPAIR, REPLACEMENT, OR
REFUND AS PROVIDED UNDER THIS EXPRESS LIMITED WARRANTY IS
THE EXCLUSIVE REMEDY OF THE CONSUMER, AND IS PROVIDED IN LIEU
OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. IN NO EVENT SHALL
USA Phones:
1-800-331-6456
Pagers:
1-800-548-9954
Two-Way Radios and Messaging Devices:
1-800-353-2729
Canada All Products:
1-800-461-4575
TTY
1-888-390-6456
For
Accessories
and
Software
, please call the telephone number
designated above for the product with which they are used.
47
Using the S805
MOTOROLA BE LIABLE, WHETHER IN CONTRACT OR TORT (INCLUDING
NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF
THE PRODUCT, ACCESSORY OR SOFTWARE, OR FOR ANY INDIRECT,
INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES OF ANY KIND, OR
LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF
INFORMATION OR DATA, SOFTWARE OR APPLICATIONS OR OTHER
FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE ABILITY
OR INABILITY TO USE THE PRODUCTS, ACCESSORIES OR SOFTWARE TO
THE FULL EXTENT THESE DAMAGES MAY BE DISCLAIMED BY LAW.
Some states and jurisdictions do not allow the limitation or
exclusion of incidental or consequential damages, or limitation on
the length of an implied warranty, so the above limitations or
exclusions may not apply to you. This warranty gives you specific
legal rights, and you may also have other rights that vary from state
to state or from one jurisdiction to another.
48
Using the S805
Wireless Phone Safety Tips
Drive Safe, Call Smart
SM
Check the laws and regulations on the use of wireless phones and
their accessories in the areas where you drive. Always obey them.
The use of these devices may be prohibited or restricted in certain
areas. Contact www.motorola.com/callsmart for more information.
Your wireless phone lets you communicate by voice and data—almost
anywhere, anytime, wherever wireless service is available and safe
conditions allow. When driving a car, driving is your first responsibility. If
you choose to use your wireless phone while driving, remember the
following tips:
Get to know your Motorola wireless phone and its features such as
speed dial and redial.
If available, these features help you to place your
call without taking your attention off the road.
When available, use a handsfree device.
If possible, add an additional
layer of convenience to your wireless phone with one of the many
Motorola Original
™
handsfree accessories available today.
Position your wireless phone within easy reach.
Be able to access
your wireless phone without removing your eyes from the road. If you
receive an incoming call at an inconvenient time, if possible, let your voice
mail answer it for you.
Let the person you are speaking with know you are driving; if
necessary, suspend the call in heavy traffic or hazardous weather
conditions.
Rain, sleet, snow, ice, and even heavy traffic can be
hazardous.
Do not take notes or look up phone numbers while driving.
Jotting
down a “to do” list or going through your address book takes attention
away from your primary responsibility—driving safely.
49
Using the S805
Dial sensibly and assess the traffic; if possible, place calls when
your car is not moving or before pulling into traffic.
If you must make
a call while moving, dial only a few numbers, check the road and your
mirrors, then continue.
Do not engage in stressful or emotional conversations that may be
distracting.
Make people you are talking with aware you are driving and
suspend conversations that can divert your attention away from the road.
Use your wireless phone to call for help.
Dial 9-1-1 or other local
emergency number in the case of fire, traffic accident, or medical
emergencies.
1
Use your wireless phone to help others in emergencies.
If you see
an auto accident, crime in progress, or other serious emergency where
lives are in danger, call 9-1-1 or other local emergency number, as you
would want others to do for you.
1
Call roadside assistance or a special non-emergency wireless
assistance number when necessary.
If you see a broken-down vehicle
posing no serious hazard, a broken traffic signal, a minor traffic accident
where no one appears injured, or a vehicle you know to be stolen, call
roadside assistance or other special non-emergency wireless number.
1
1.Wherever wireless phone service is available.
50
Using the S805
Industry Canada Notice to Users
Industry Canada Notice to Users
Operation is subject to the following two conditions: (1) This device may
not cause interference and (2) This device must accept any interference,
including interference that may cause undesired operation of the device
Ref IC RSS 210. The term “IC:” before the
certification/registration number only signifies that registration was
performed based on a Declaration of Conformity indicating that Industry
Canada technical specifications were met. It does not imply that Industry
Canada approved the equipment. See Ref IC Self-Marking 6(f) and RSP-100
Sec. 4.
51
Using the S805
FCC Notice to Users
FCC Notice to Users
Users are not permitted to make changes or modify the device in any way.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
See 47 CFR Sec. 15.21.
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation. See 47 CFR
Sec. 15.19(3).
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly
approved by the party responsible for compliance could void the
user's authority to operate this equipment.
The antenna(s) used for this transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
51 Using the S805
52
Using the S805
Export Law Assurances
Export Law Assurances
This product is controlled under the export regulations of the United States
of America and Canada. The Governments of the United States of America
and Canada may restrict the exportation or re-exportation of this product to
certain destinations. For further information contact the U.S. Department of
Commerce or the Canadian Department of Foreign Affairs and International
Trade.
53
Using the S805
54
Using the S805
