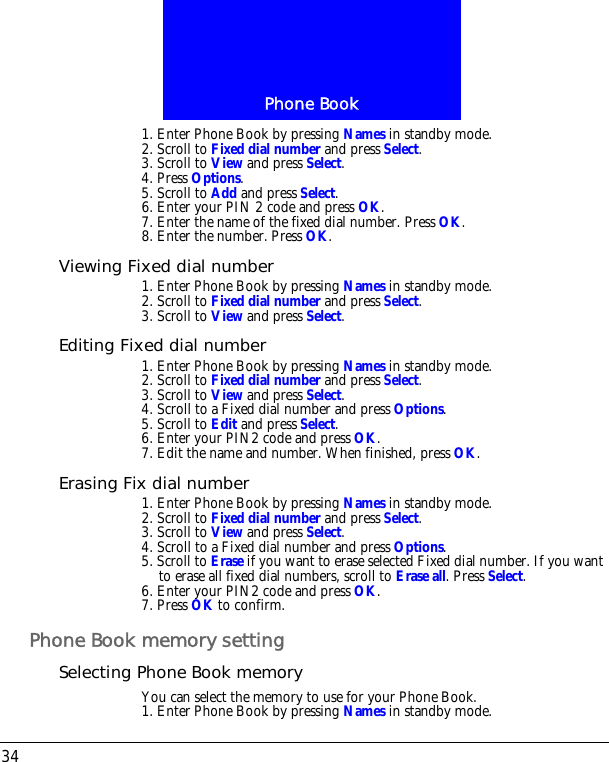

Phone Book341. Enter Phone Book by pressing Names in standby mode.2. Scroll to Fixed dial number and press Select.3. Scroll to View and press Select. 4. Press Options.5. Scroll to Add and press Select.6. Enter your PIN 2 code and press OK.7. Enter the name of the fixed dial number. Press OK.8. Enter the number. Press OK.Viewing Fixed dial number1. Enter Phone Book by pressing Names in standby mode.2. Scroll to Fixed dial number and press Select.3. Scroll to View and press Select.Editing Fixed dial number1. Enter Phone Book by pressing Names in standby mode.2. Scroll to Fixed dial number and press Select.3. Scroll to View and press Select. 4. Scroll to a Fixed dial number and press Options.5. Scroll to Edit and press Select.6. Enter your PIN2 code and press OK.7. Edit the name and number. When finished, press OK.Erasing Fix dial number1. Enter Phone Book by pressing Names in standby mode.2. Scroll to Fixed dial number and press Select.3. Scroll to View and press Select. 4. Scroll to a Fixed dial number and press Options.5. Scroll to Erase if you want to erase selected Fixed dial number. If you want to erase all fixed dial numbers, scroll to Erase all. Press Select.6. Enter your PIN2 code and press OK.7. Press OK to confirm.Phone Book memory settingSelecting Phone Book memoryYou can select the memory to use for your Phone Book.1. Enter Phone Book by pressing Names in standby mode.

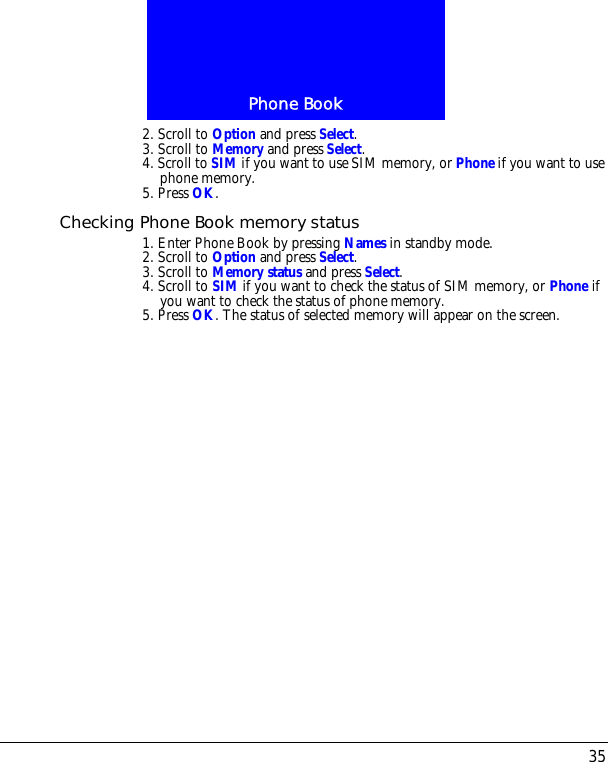

35Phone Book2. Scroll to Option and press Select.3. Scroll to Memory and press Select. 4. Scroll to SIM if you want to use SIM memory, or Phone if you want to use phone memory.5. Press OK.Checking Phone Book memory status1. Enter Phone Book by pressing Names in standby mode.2. Scroll to Option and press Select.3. Scroll to Memory status and press Select. 4. Scroll to SIM if you want to check the status of SIM memory, or Phone if you want to check the status of phone memory.5. Press OK. The status of selected memory will appear on the screen.

36The Main Menu

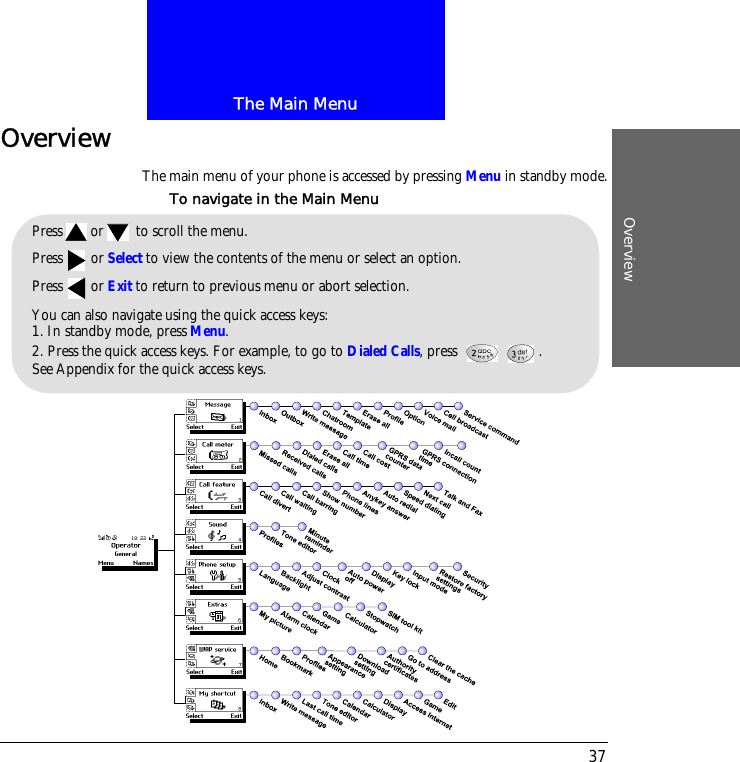

The Main MenuOverview37OverviewThe main menu of your phone is accessed by pressing Menu in standby mode.Pressor to scroll the menu.Press or Select to view the contents of the menu or select an option.Press or Exit to return to previous menu or abort selection.You can also navigate using the quick access keys:1. In standby mode, press Menu.2. Press the quick access keys. For example, to go to Dialed Calls, press .See Appendix for the quick access keys.To navigate in the Main Menu

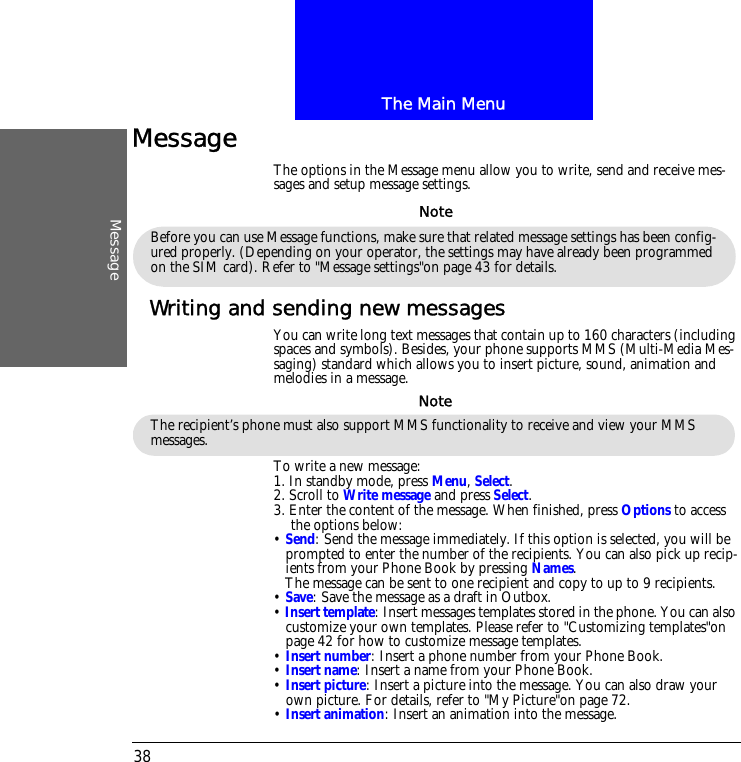

The Main MenuMessage38MessageThe options in the Message menu allow you to write, send and receive mes-sages and setup message settings.Writing and sending new messagesYou can write long text messages that contain up to 160 characters (including spaces and symbols). Besides, your phone supports MMS (Multi-Media Mes-saging) standard which allows you to insert picture, sound, animation and melodies in a message.To write a new message:1. In standby mode, press Menu, Select.2. Scroll to Write message and press Select. 3. Enter the content of the message. When finished, press Options to access the options below:• Send: Send the message immediately. If this option is selected, you will be prompted to enter the number of the recipients. You can also pick up recip-ients from your Phone Book by pressing Names. The message can be sent to one recipient and copy to up to 9 recipients.• Save: Save the message as a draft in Outbox.• Insert template: Insert messages templates stored in the phone. You can also customize your own templates. Please refer to "Customizing templates"on page 42 for how to customize message templates.• Insert number: Insert a phone number from your Phone Book.• Insert name: Insert a name from your Phone Book.• Insert picture: Insert a picture into the message. You can also draw your own picture. For details, refer to "My Picture"on page 72.• Insert animation: Insert an animation into the message.Before you can use Message functions, make sure that related message settings has been config-ured properly. (Depending on your operator, the settings may have already been programmed on the SIM card). Refer to "Message settings"on page 43 for details.NoteThe recipient’s phone must also support MMS functionality to receive and view your MMS messages.Note

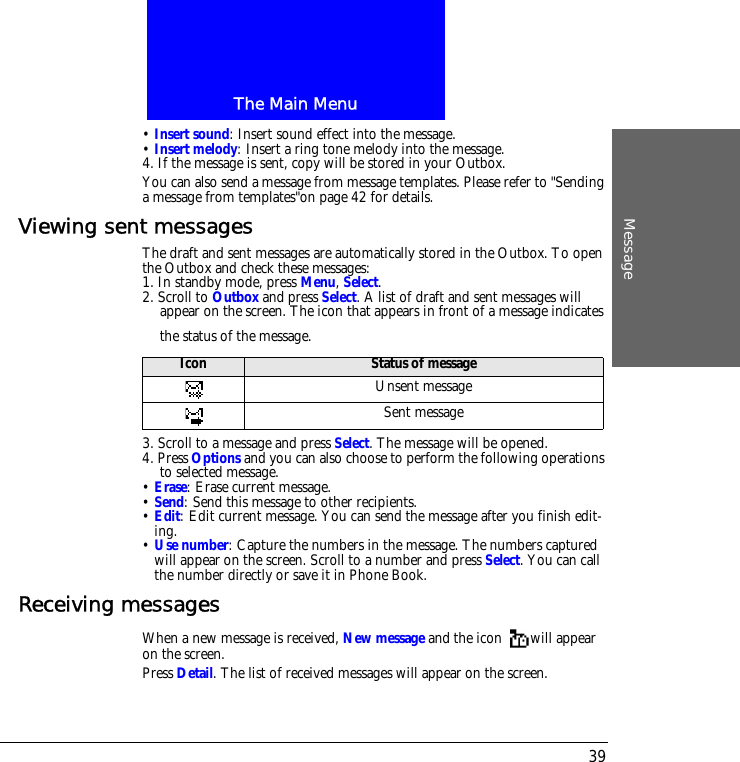

The Main MenuMessage39• Insert sound: Insert sound effect into the message.• Insert melody: Insert a ring tone melody into the message.4. If the message is sent, copy will be stored in your Outbox. You can also send a message from message templates. Please refer to "Sending a message from templates"on page 42 for details.Viewing sent messagesThe draft and sent messages are automatically stored in the Outbox. To open the Outbox and check these messages:1. In standby mode, press Menu, Select.2. Scroll to Outbox and press Select. A list of draft and sent messages will appear on the screen. The icon that appears in front of a message indicates the status of the message.3. Scroll to a message and press Select. The message will be opened.4. Press Options and you can also choose to perform the following operations to selected message.• Erase: Erase current message.• Send: Send this message to other recipients.• Edit: Edit current message. You can send the message after you finish edit-ing.• Use number: Capture the numbers in the message. The numbers captured will appear on the screen. Scroll to a number and press Select. You can call the number directly or save it in Phone Book.Receiving messagesWhen a new message is received, New message and the icon will appear on the screen.Press Detail. The list of received messages will appear on the screen.Icon Status of messageUnsent messageSent message

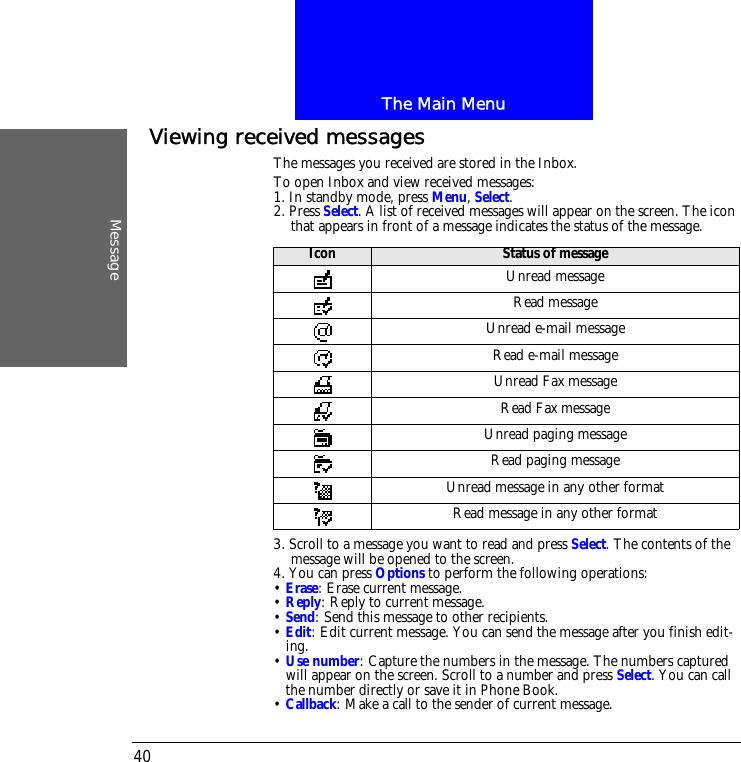

The Main MenuMessage40Viewing received messagesThe messages you received are stored in the Inbox.To open Inbox and view received messages:1. In standby mode, press Menu, Select.2. Press Select. A list of received messages will appear on the screen. The icon that appears in front of a message indicates the status of the message.3. Scroll to a message you want to read and press Select. The contents of the message will be opened to the screen. 4. You can press Options to perform the following operations:• Erase: Erase current message.• Reply: Reply to current message.• Send: Send this message to other recipients.• Edit: Edit current message. You can send the message after you finish edit-ing.• Use number: Capture the numbers in the message. The numbers captured will appear on the screen. Scroll to a number and press Select. You can call the number directly or save it in Phone Book.• Callback: Make a call to the sender of current message.Icon Status of messageUnread messageRead messageUnread e-mail messageRead e-mail messageUnread Fax messageRead Fax messageUnread paging messageRead paging messageUnread message in any other formatRead message in any other format

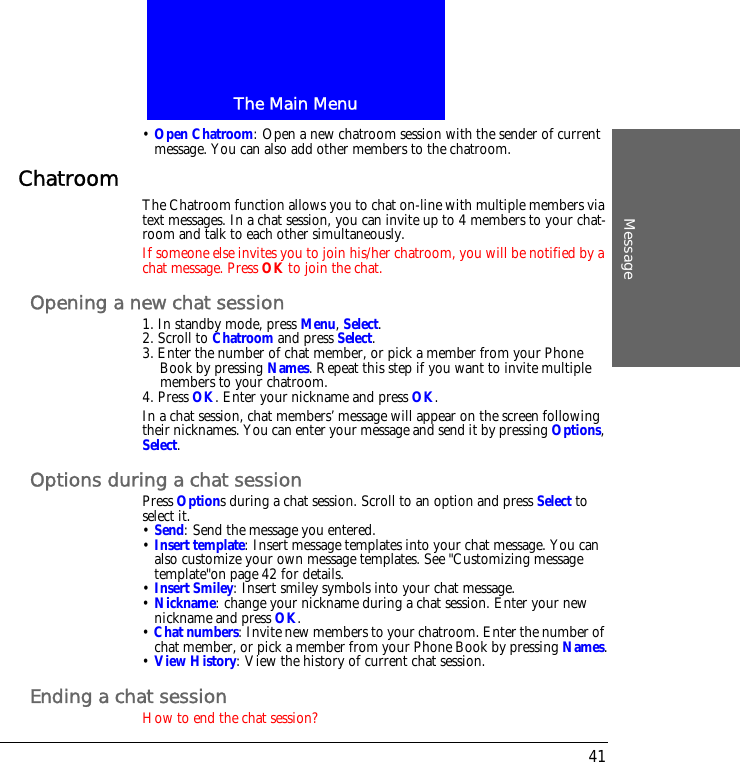

The Main MenuMessage41• Open Chatroom: Open a new chatroom session with the sender of current message. You can also add other members to the chatroom.Chatroom The Chatroom function allows you to chat on-line with multiple members via text messages. In a chat session, you can invite up to 4 members to your chat-room and talk to each other simultaneously.If someone else invites you to join his/her chatroom, you will be notified by a chat message. Press OK to join the chat.Opening a new chat session1. In standby mode, press Menu, Select.2. Scroll to Chatroom and press Select.3. Enter the number of chat member, or pick a member from your Phone Book by pressing Names. Repeat this step if you want to invite multiple members to your chatroom.4. Press OK. Enter your nickname and press OK.In a chat session, chat members’ message will appear on the screen following their nicknames. You can enter your message and send it by pressing Options, Select.Options during a chat sessionPress Options during a chat session. Scroll to an option and press Select to select it.• Send: Send the message you entered.• Insert template: Insert message templates into your chat message. You can also customize your own message templates. See "Customizing message template"on page 42 for details.• Insert Smiley: Insert smiley symbols into your chat message.• Nickname: change your nickname during a chat session. Enter your new nickname and press OK.• Chat numbers: Invite new members to your chatroom. Enter the number of chat member, or pick a member from your Phone Book by pressing Names.• View History: View the history of current chat session.Ending a chat sessionHow to end the chat session?

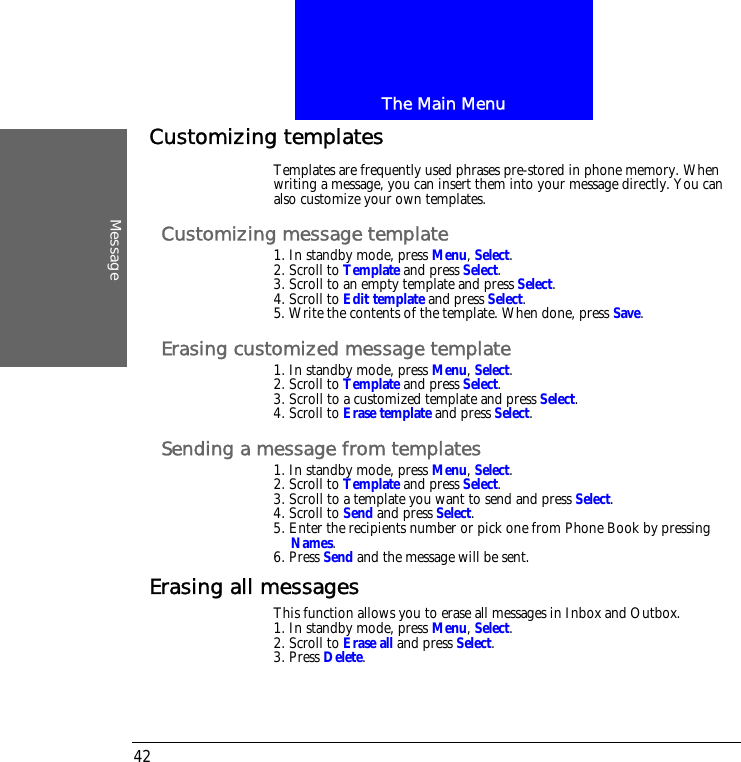

The Main MenuMessage42Customizing templatesTemplates are frequently used phrases pre-stored in phone memory. When writing a message, you can insert them into your message directly. You can also customize your own templates.Customizing message template1. In standby mode, press Menu, Select.2. Scroll to Template and press Select.3. Scroll to an empty template and press Select.4. Scroll to Edit template and press Select.5. Write the contents of the template. When done, press Save.Erasing customized message template1. In standby mode, press Menu, Select.2. Scroll to Template and press Select.3. Scroll to a customized template and press Select.4. Scroll to Erase template and press Select.Sending a message from templates1. In standby mode, press Menu, Select.2. Scroll to Template and press Select.3. Scroll to a template you want to send and press Select.4. Scroll to Send and press Select.5. Enter the recipients number or pick one from Phone Book by pressing Names.6. Press Send and the message will be sent.Erasing all messagesThis function allows you to erase all messages in Inbox and Outbox.1. In standby mode, press Menu, Select.2. Scroll to Erase all and press Select.3. Press Delete.

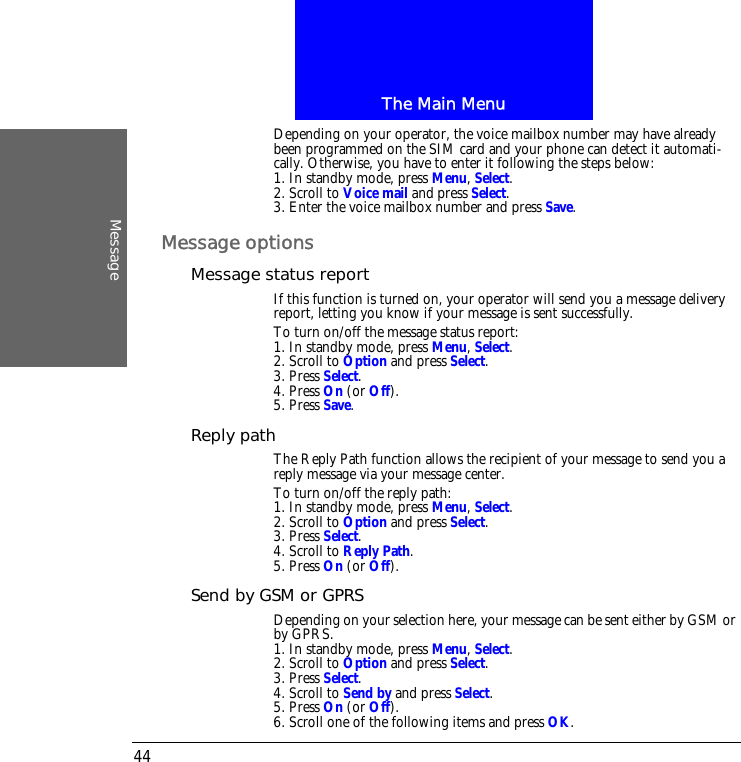

The Main MenuMessage44Depending on your operator, the voice mailbox number may have already been programmed on the SIM card and your phone can detect it automati-cally. Otherwise, you have to enter it following the steps below:1. In standby mode, press Menu, Select.2. Scroll to Voice mail and press Select.3. Enter the voice mailbox number and press Save.Message optionsMessage status reportIf this function is turned on, your operator will send you a message delivery report, letting you know if your message is sent successfully.To turn on/off the message status report:1. In standby mode, press Menu, Select.2. Scroll to Option and press Select.3. Press Select.4. Press On (or Off).5. Press Save.Reply pathThe Reply Path function allows the recipient of your message to send you a reply message via your message center.To turn on/off the reply path:1. In standby mode, press Menu, Select.2. Scroll to Option and press Select.3. Press Select.4. Scroll to Reply Path.5. Press On (or Off).Send by GSM or GPRSDepending on your selection here, your message can be sent either by GSM or by GPRS.1. In standby mode, press Menu, Select.2. Scroll to Option and press Select.3. Press Select.4. Scroll to Send by and press Select.5. Press On (or Off).6. Scroll one of the following items and press OK.

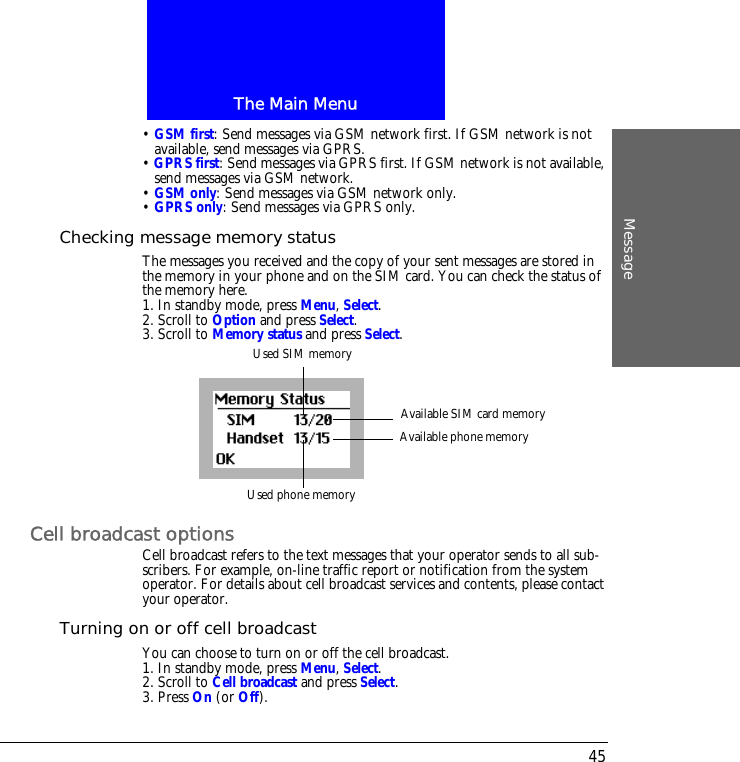

The Main MenuMessage45• GSM first: Send messages via GSM network first. If GSM network is not available, send messages via GPRS.• GPRS first: Send messages via GPRS first. If GSM network is not available, send messages via GSM network.• GSM only: Send messages via GSM network only.• GPRS only: Send messages via GPRS only.Checking message memory statusThe messages you received and the copy of your sent messages are stored in the memory in your phone and on the SIM card. You can check the status of the memory here.1. In standby mode, press Menu, Select.2. Scroll to Option and press Select.3. Scroll to Memory status and press Select.Cell broadcast optionsCell broadcast refers to the text messages that your operator sends to all sub-scribers. For example, on-line traffic report or notification from the system operator. For details about cell broadcast services and contents, please contact your operator. Turning on or off cell broadcastYou can choose to turn on or off the cell broadcast.1. In standby mode, press Menu, Select.2. Scroll to Cell broadcast and press Select.3. Press On (or Off).Used SIM memoryUsed phone memoryAvailable SIM card memoryAvailable phone memory

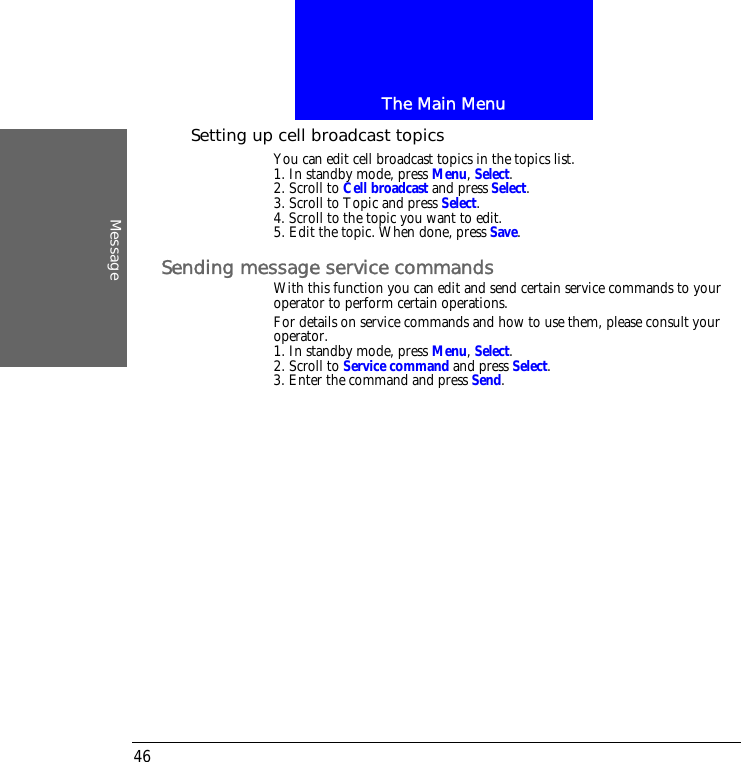

The Main MenuMessage46Setting up cell broadcast topicsYou can edit cell broadcast topics in the topics list.1. In standby mode, press Menu, Select.2. Scroll to Cell broadcast and press Select.3. Scroll to Topic and press Select.4. Scroll to the topic you want to edit.5. Edit the topic. When done, press Save.Sending message service commandsWith this function you can edit and send certain service commands to your operator to perform certain operations.For details on service commands and how to use them, please consult your operator.1. In standby mode, press Menu, Select.2. Scroll to Service command and press Select.3. Enter the command and press Send.

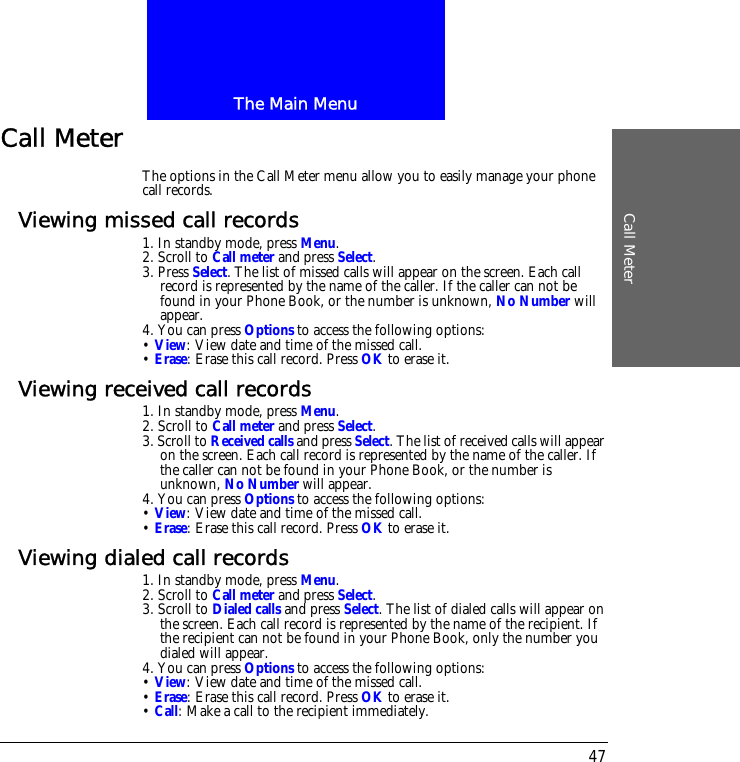

The Main MenuCall Meter47Call MeterThe options in the Call Meter menu allow you to easily manage your phone call records.Viewing missed call records1. In standby mode, press Menu.2. Scroll to Call meter and press Select.3. Press Select. The list of missed calls will appear on the screen. Each call record is represented by the name of the caller. If the caller can not be found in your Phone Book, or the number is unknown, No Number will appear.4. You can press Options to access the following options:• View: View date and time of the missed call.• Erase: Erase this call record. Press OK to erase it.Viewing received call records1. In standby mode, press Menu.2. Scroll to Call meter and press Select.3. Scroll to Received calls and press Select. The list of received calls will appear on the screen. Each call record is represented by the name of the caller. If the caller can not be found in your Phone Book, or the number is unknown, No Number will appear.4. You can press Options to access the following options:• View: View date and time of the missed call.• Erase: Erase this call record. Press OK to erase it.Viewing dialed call records1. In standby mode, press Menu.2. Scroll to Call meter and press Select.3. Scroll to Dialed calls and press Select. The list of dialed calls will appear on the screen. Each call record is represented by the name of the recipient. If the recipient can not be found in your Phone Book, only the number you dialed will appear.4. You can press Options to access the following options:• View: View date and time of the missed call.• Erase: Erase this call record. Press OK to erase it.• Call: Make a call to the recipient immediately.

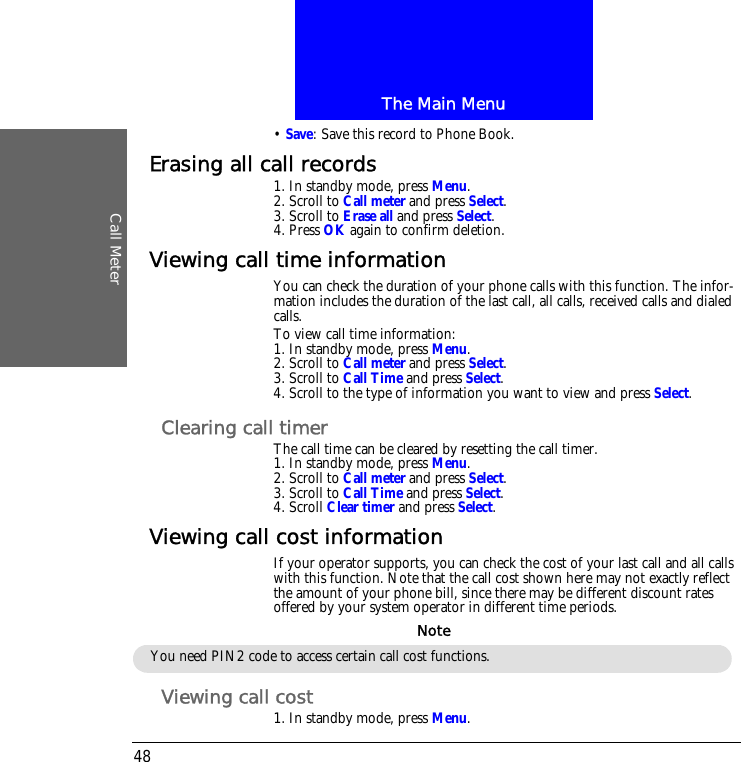

The Main MenuCall Meter48• Save: Save this record to Phone Book.Erasing all call records1. In standby mode, press Menu.2. Scroll to Call meter and press Select.3. Scroll to Erase all and press Select.4. Press OK again to confirm deletion.Viewing call time informationYou can check the duration of your phone calls with this function. The infor-mation includes the duration of the last call, all calls, received calls and dialed calls.To view call time information:1. In standby mode, press Menu.2. Scroll to Call meter and press Select.3. Scroll to Call Time and press Select.4. Scroll to the type of information you want to view and press Select.Clearing call timerThe call time can be cleared by resetting the call timer.1. In standby mode, press Menu.2. Scroll to Call meter and press Select.3. Scroll to Call Time and press Select.4. Scroll Clear timer and press Select.Viewing call cost informationIf your operator supports, you can check the cost of your last call and all calls with this function. Note that the call cost shown here may not exactly reflect the amount of your phone bill, since there may be different discount rates offered by your system operator in different time periods.Viewing call cost1. In standby mode, press Menu.You need PIN2 code to access certain call cost functions.Note

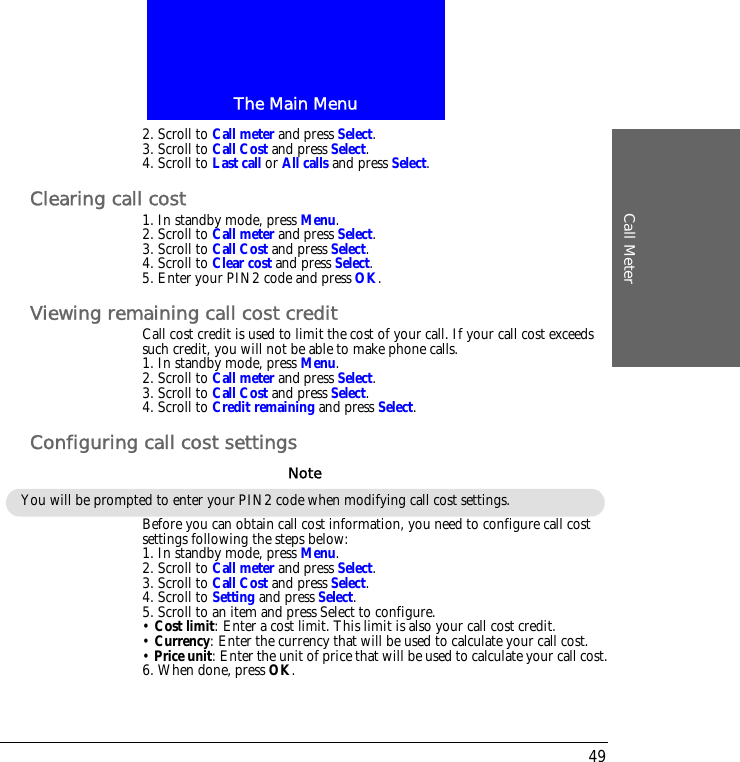

The Main MenuCall Meter492. Scroll to Call meter and press Select.3. Scroll to Call Cost and press Select.4. Scroll to Last call or All calls and press Select.Clearing call cost1. In standby mode, press Menu.2. Scroll to Call meter and press Select.3. Scroll to Call Cost and press Select.4. Scroll to Clear cost and press Select.5. Enter your PIN2 code and press OK.Viewing remaining call cost creditCall cost credit is used to limit the cost of your call. If your call cost exceeds such credit, you will not be able to make phone calls.1. In standby mode, press Menu.2. Scroll to Call meter and press Select.3. Scroll to Call Cost and press Select.4. Scroll to Credit remaining and press Select.Configuring call cost settingsBefore you can obtain call cost information, you need to configure call cost settings following the steps below:1. In standby mode, press Menu.2. Scroll to Call meter and press Select.3. Scroll to Call Cost and press Select.4. Scroll to Setting and press Select.5. Scroll to an item and press Select to configure.• Cost limit: Enter a cost limit. This limit is also your call cost credit.• Currency: Enter the currency that will be used to calculate your call cost.• Price unit: Enter the unit of price that will be used to calculate your call cost.6. When done, press OK.You will be prompted to enter your PIN2 code when modifying call cost settings.Note

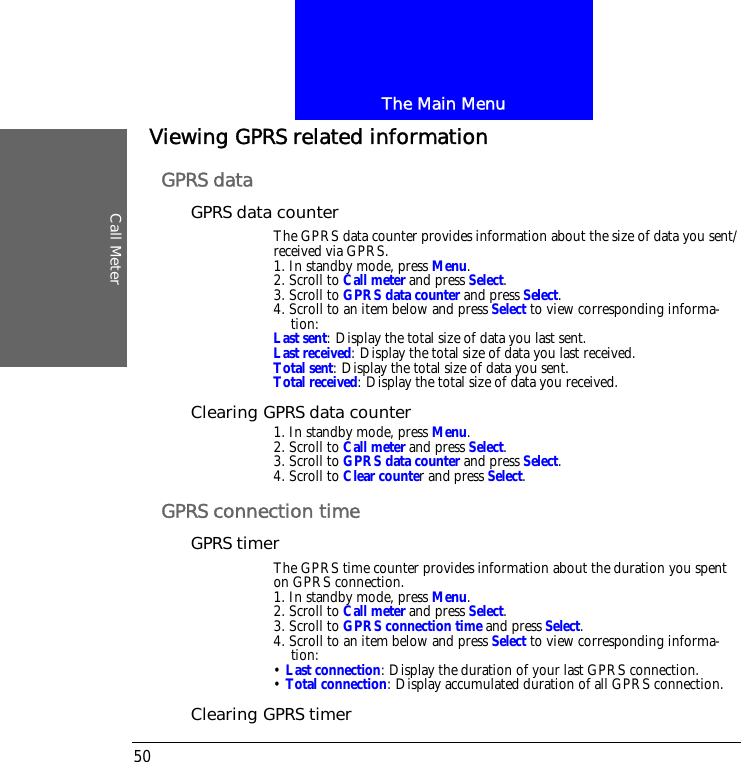

The Main MenuCall Meter50Viewing GPRS related informationGPRS dataGPRS data counterThe GPRS data counter provides information about the size of data you sent/received via GPRS.1. In standby mode, press Menu.2. Scroll to Call meter and press Select.3. Scroll to GPRS data counter and press Select.4. Scroll to an item below and press Select to view corresponding informa-tion:Last sent: Display the total size of data you last sent.Last received: Display the total size of data you last received.Total sent: Display the total size of data you sent.Total received: Display the total size of data you received.Clearing GPRS data counter1. In standby mode, press Menu.2. Scroll to Call meter and press Select.3. Scroll to GPRS data counter and press Select.4. Scroll to Clear counter and press Select.GPRS connection timeGPRS timerThe GPRS time counter provides information about the duration you spent on GPRS connection.1. In standby mode, press Menu.2. Scroll to Call meter and press Select.3. Scroll to GPRS connection time and press Select.4. Scroll to an item below and press Select to view corresponding informa-tion:• Last connection: Display the duration of your last GPRS connection.• Total connection: Display accumulated duration of all GPRS connection.Clearing GPRS timer

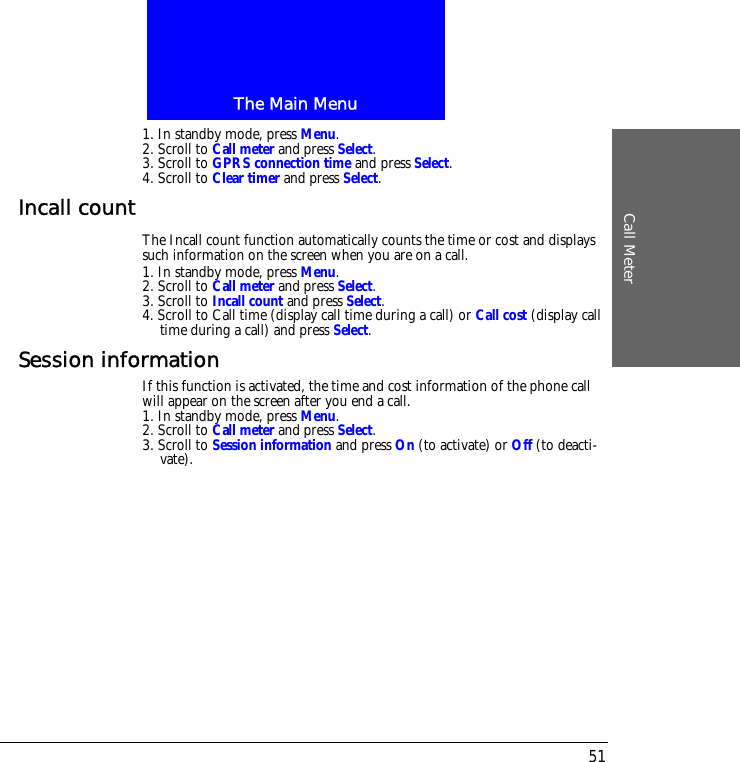

The Main MenuCall Meter511. In standby mode, press Menu.2. Scroll to Call meter and press Select.3. Scroll to GPRS connection time and press Select.4. Scroll to Clear timer and press Select.Incall countThe Incall count function automatically counts the time or cost and displays such information on the screen when you are on a call.1. In standby mode, press Menu.2. Scroll to Call meter and press Select.3. Scroll to Incall count and press Select.4. Scroll to Call time (display call time during a call) or Call cost (display call time during a call) and press Select.Session informationIf this function is activated, the time and cost information of the phone call will appear on the screen after you end a call.1. In standby mode, press Menu.2. Scroll to Call meter and press Select.3. Scroll to Session information and press On (to activate) or Off (to deacti-vate).

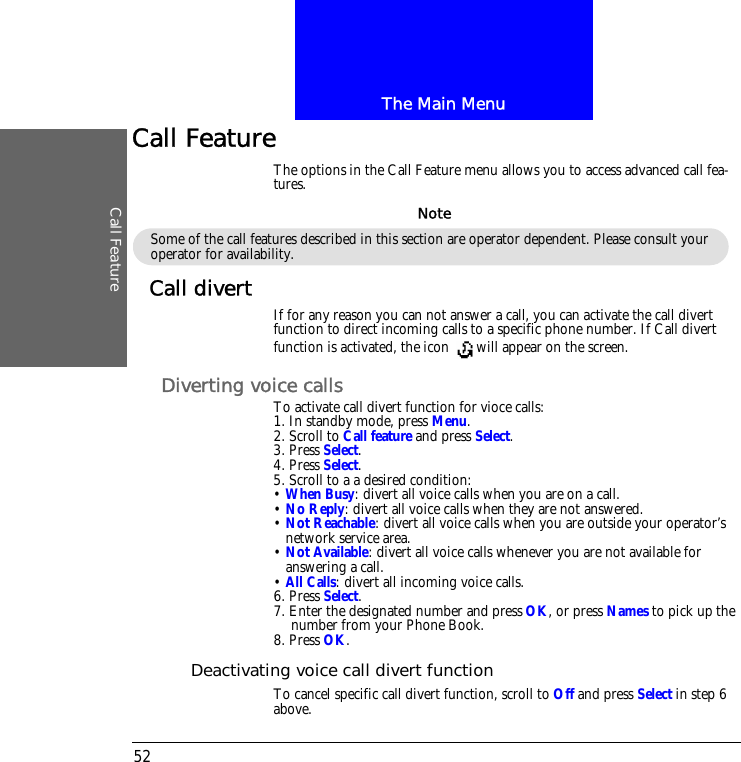

The Main MenuCall Feature52Call FeatureThe options in the Call Feature menu allows you to access advanced call fea-tures.Call divert If for any reason you can not answer a call, you can activate the call divert function to direct incoming calls to a specific phone number. If Call divert function is activated, the icon will appear on the screen.Diverting voice callsTo activate call divert function for vioce calls:1. In standby mode, press Menu.2. Scroll to Call feature and press Select.3. Press Select.4. Press Select.5. Scroll to a a desired condition:• When Busy: divert all voice calls when you are on a call.• No Reply: divert all voice calls when they are not answered.• Not Reachable: divert all voice calls when you are outside your operator’s network service area.• Not Available: divert all voice calls whenever you are not available for answering a call.• All Calls: divert all incoming voice calls.6. Press Select.7. Enter the designated number and press OK, or press Names to pick up the number from your Phone Book.8. Press OK.Deactivating voice call divert functionTo cancel specific call divert function, scroll to Off and press Select in step 6 above.Some of the call features described in this section are operator dependent. Please consult your operator for availability.Note

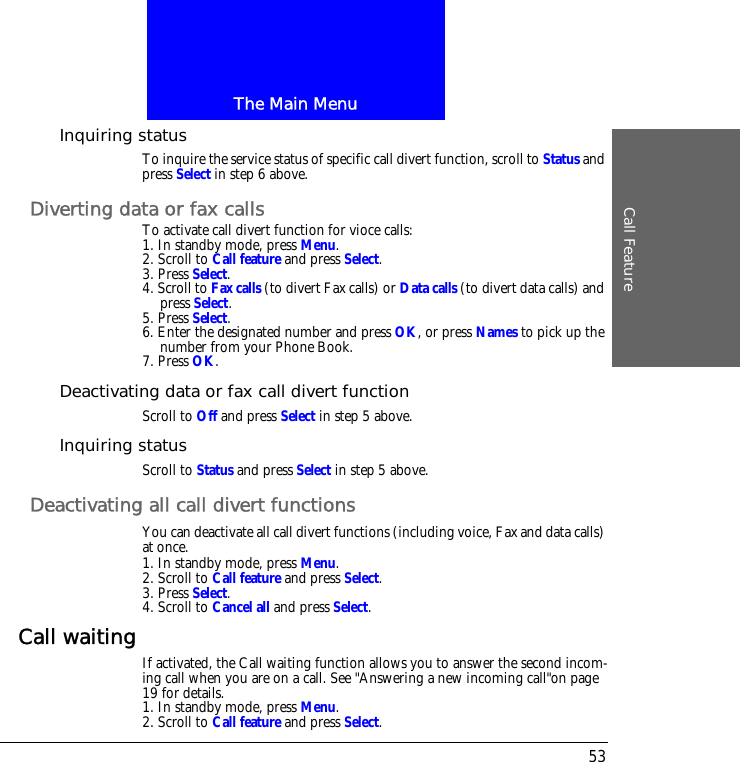

The Main MenuCall Feature53Inquiring statusTo inquire the service status of specific call divert function, scroll to Status and press Select in step 6 above.Diverting data or fax callsTo activate call divert function for vioce calls:1. In standby mode, press Menu.2. Scroll to Call feature and press Select.3. Press Select.4. Scroll to Fax calls (to divert Fax calls) or Data calls (to divert data calls) and press Select.5. Press Select.6. Enter the designated number and press OK, or press Names to pick up the number from your Phone Book.7. Press OK.Deactivating data or fax call divert functionScroll to Off and press Select in step 5 above.Inquiring statusScroll to Status and press Select in step 5 above.Deactivating all call divert functionsYou can deactivate all call divert functions (including voice, Fax and data calls) at once.1. In standby mode, press Menu.2. Scroll to Call feature and press Select.3. Press Select.4. Scroll to Cancel all and press Select.Call waiting If activated, the Call waiting function allows you to answer the second incom-ing call when you are on a call. See "Answering a new incoming call"on page 19 for details.1. In standby mode, press Menu.2. Scroll to Call feature and press Select.

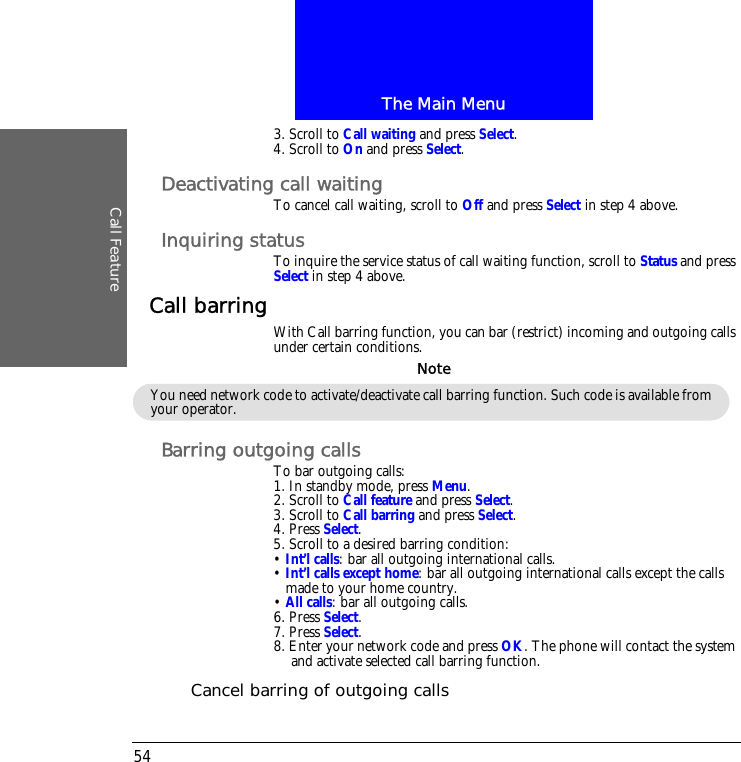

The Main MenuCall Feature543. Scroll to Call waiting and press Select.4. Scroll to On and press Select.Deactivating call waitingTo cancel call waiting, scroll to Off and press Select in step 4 above.Inquiring statusTo inquire the service status of call waiting function, scroll to Status and press Select in step 4 above.Call barring With Call barring function, you can bar (restrict) incoming and outgoing calls under certain conditions.Barring outgoing callsTo bar outgoing calls:1. In standby mode, press Menu.2. Scroll to Call feature and press Select.3. Scroll to Call barring and press Select.4. Press Select.5. Scroll to a desired barring condition:• Int’l calls: bar all outgoing international calls.• Int’l calls except home: bar all outgoing international calls except the calls made to your home country.• All calls: bar all outgoing calls.6. Press Select.7. Press Select.8. Enter your network code and press OK. The phone will contact the system and activate selected call barring function.Cancel barring of outgoing callsYou need network code to activate/deactivate call barring function. Such code is available from your operator.Note

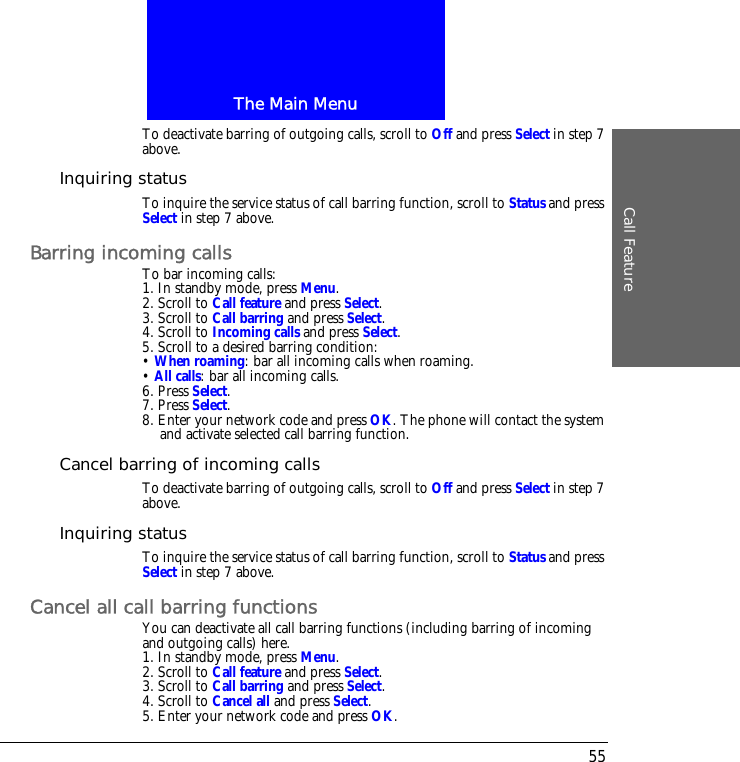

The Main MenuCall Feature55To deactivate barring of outgoing calls, scroll to Off and press Select in step 7 above.Inquiring statusTo inquire the service status of call barring function, scroll to Status and press Select in step 7 above.Barring incoming callsTo bar incoming calls:1. In standby mode, press Menu.2. Scroll to Call feature and press Select.3. Scroll to Call barring and press Select.4. Scroll to Incoming calls and press Select.5. Scroll to a desired barring condition:• When roaming: bar all incoming calls when roaming.• All calls: bar all incoming calls.6. Press Select.7. Press Select.8. Enter your network code and press OK. The phone will contact the system and activate selected call barring function.Cancel barring of incoming callsTo deactivate barring of outgoing calls, scroll to Off and press Select in step 7 above.Inquiring statusTo inquire the service status of call barring function, scroll to Status and press Select in step 7 above.Cancel all call barring functionsYou can deactivate all call barring functions (including barring of incoming and outgoing calls) here.1. In standby mode, press Menu.2. Scroll to Call feature and press Select.3. Scroll to Call barring and press Select.4. Scroll to Cancel all and press Select.5. Enter your network code and press OK.

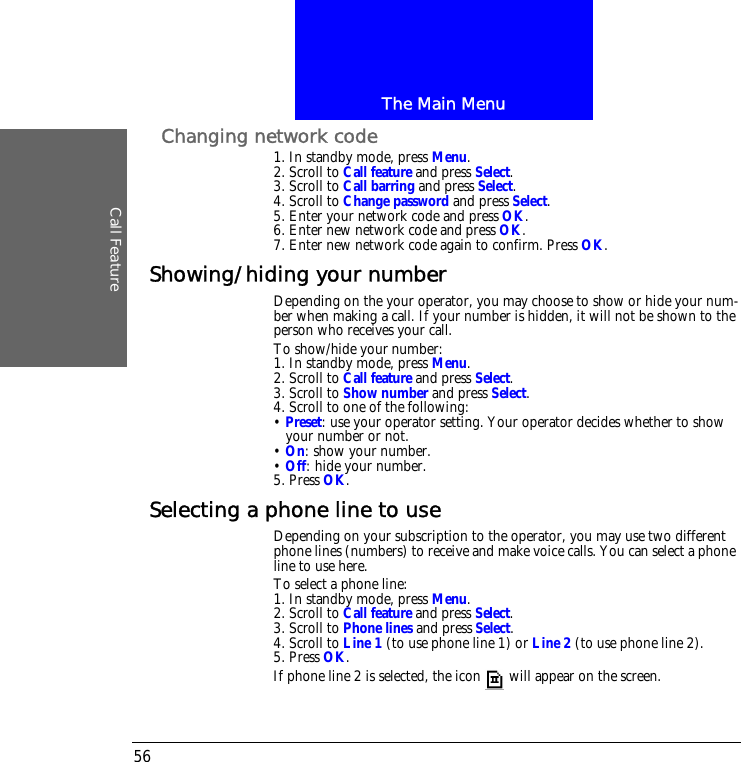

The Main MenuCall Feature56Changing network code1. In standby mode, press Menu.2. Scroll to Call feature and press Select.3. Scroll to Call barring and press Select.4. Scroll to Change password and press Select.5. Enter your network code and press OK.6. Enter new network code and press OK.7. Enter new network code again to confirm. Press OK.Showing/hiding your numberDepending on the your operator, you may choose to show or hide your num-ber when making a call. If your number is hidden, it will not be shown to the person who receives your call.To show/hide your number:1. In standby mode, press Menu.2. Scroll to Call feature and press Select.3. Scroll to Show number and press Select.4. Scroll to one of the following:• Preset: use your operator setting. Your operator decides whether to show your number or not.• On: show your number.• Off: hide your number.5. Press OK.Selecting a phone line to useDepending on your subscription to the operator, you may use two different phone lines (numbers) to receive and make voice calls. You can select a phone line to use here. To select a phone line:1. In standby mode, press Menu.2. Scroll to Call feature and press Select.3. Scroll to Phone lines and press Select.4. Scroll to Line 1 (to use phone line 1) or Line 2 (to use phone line 2).5. Press OK.If phone line 2 is selected, the icon will appear on the screen.

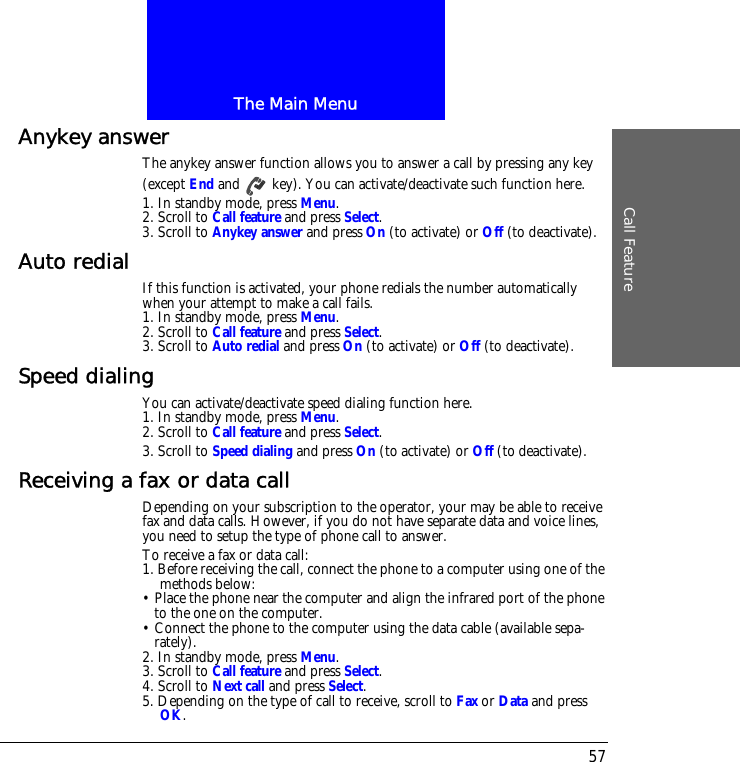

The Main MenuCall Feature57Anykey answerThe anykey answer function allows you to answer a call by pressing any key (except End and key). You can activate/deactivate such function here.1. In standby mode, press Menu.2. Scroll to Call feature and press Select.3. Scroll to Anykey answer and press On (to activate) or Off (to deactivate).Auto redial If this function is activated, your phone redials the number automatically when your attempt to make a call fails.1. In standby mode, press Menu.2. Scroll to Call feature and press Select.3. Scroll to Auto redial and press On (to activate) or Off (to deactivate).Speed dialingYou can activate/deactivate speed dialing function here.1. In standby mode, press Menu.2. Scroll to Call feature and press Select.3. Scroll to Speed dialing and press On (to activate) or Off (to deactivate).Receiving a fax or data callDepending on your subscription to the operator, your may be able to receive fax and data calls. However, if you do not have separate data and voice lines, you need to setup the type of phone call to answer.To receive a fax or data call:1. Before receiving the call, connect the phone to a computer using one of the methods below:• Place the phone near the computer and align the infrared port of the phone to the one on the computer.• Connect the phone to the computer using the data cable (available sepa-rately).2. In standby mode, press Menu.3. Scroll to Call feature and press Select.4. Scroll to Next call and press Select.5. Depending on the type of call to receive, scroll to Fax or Data and press OK.

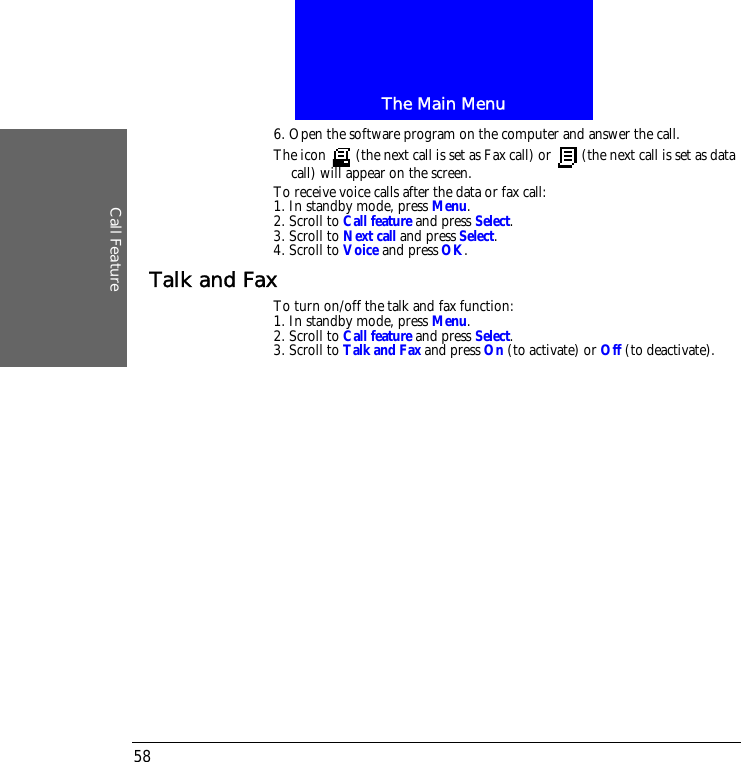

The Main MenuCall Feature586. Open the software program on the computer and answer the call.The icon (the next call is set as Fax call) or (the next call is set as data call) will appear on the screen.To receive voice calls after the data or fax call:1. In standby mode, press Menu.2. Scroll to Call feature and press Select.3. Scroll to Next call and press Select.4. Scroll to Voice and press OK.Talk and FaxTo turn on/off the talk and fax function:1. In standby mode, press Menu.2. Scroll to Call feature and press Select.3. Scroll to Talk and Fax and press On (to activate) or Off (to deactivate).

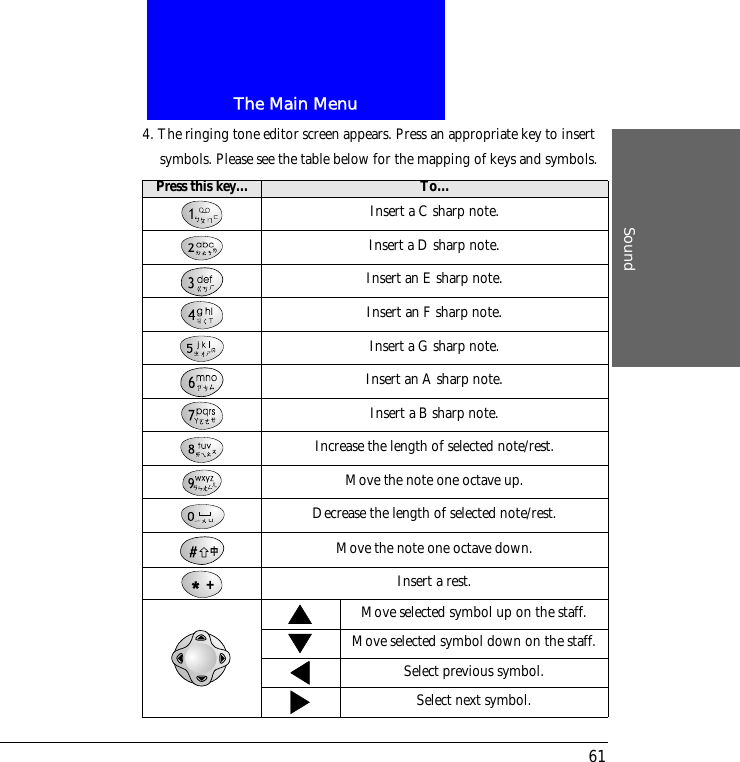

The Main MenuSound614. The ringing tone editor screen appears. Press an appropriate key to insert symbols. Please see the table below for the mapping of keys and symbols.Press this key... To...Insert a C sharp note.Insert a D sharp note.Insert an E sharp note.Insert an F sharp note.Insert a G sharp note.Insert an A sharp note.Insert a B sharp note.Increase the length of selected note/rest.Move the note one octave up.Decrease the length of selected note/rest.Move the note one octave down.Insert a rest.Move selected symbol up on the staff.Move selected symbol down on the staff.Select previous symbol.Select next symbol.

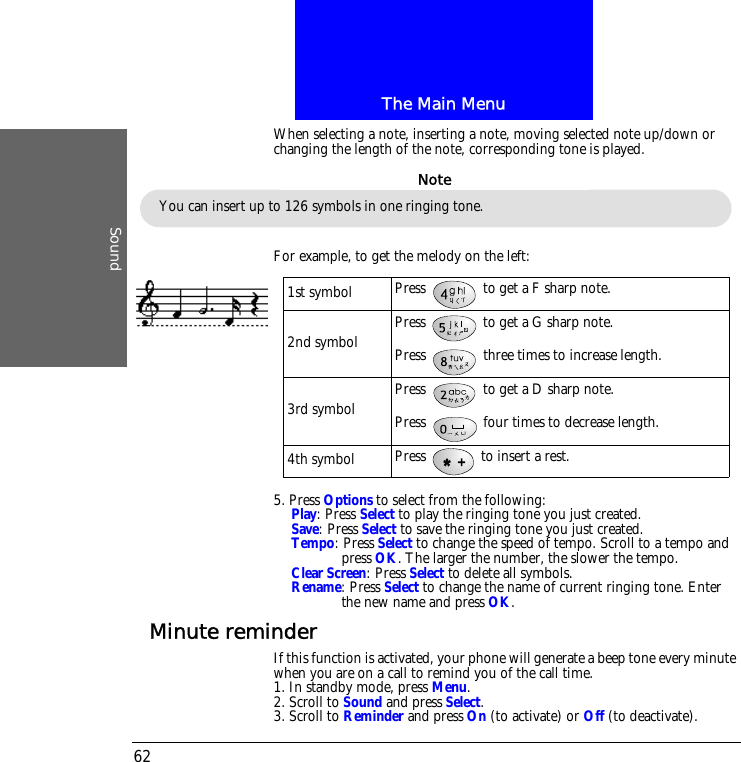

The Main MenuSound62When selecting a note, inserting a note, moving selected note up/down or changing the length of the note, corresponding tone is played.For example, to get the melody on the left:5. Press Options to select from the following:Play: Press Select to play the ringing tone you just created.Save: Press Select to save the ringing tone you just created.Tempo: Press Select to change the speed of tempo. Scroll to a tempo and press OK. The larger the number, the slower the tempo.Clear Screen: Press Select to delete all symbols.Rename: Press Select to change the name of current ringing tone. Enter the new name and press OK.Minute reminderIf this function is activated, your phone will generate a beep tone every minute when you are on a call to remind you of the call time.1. In standby mode, press Menu.2. Scroll to Sound and press Select.3. Scroll to Reminder and press On (to activate) or Off (to deactivate).You can insert up to 126 symbols in one ringing tone.Note1st symbol Press to get a F sharp note.2nd symbol Press to get a G sharp note.Press three times to increase length.3rd symbol Press to get a D sharp note.Press four times to decrease length.4th symbol Press to insert a rest.

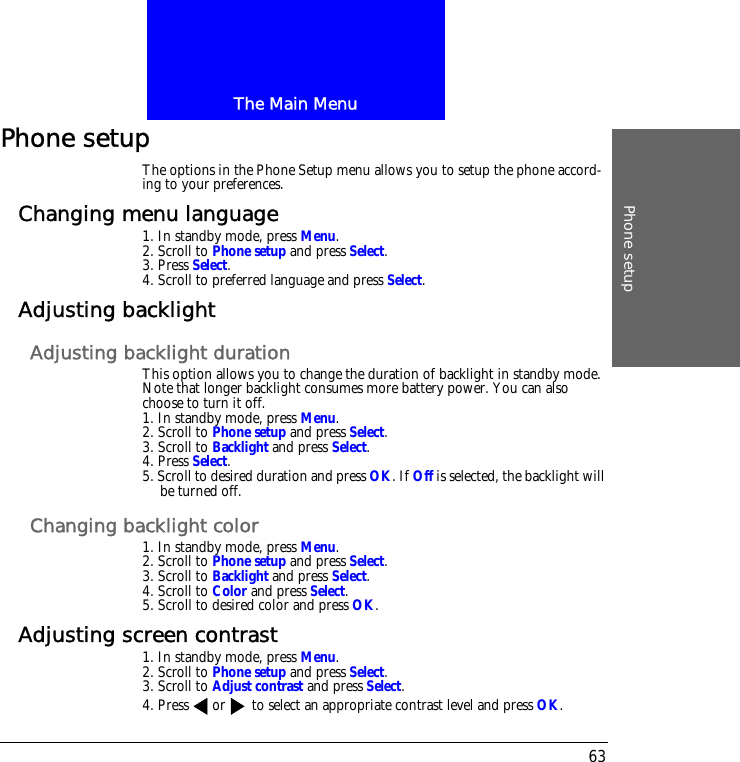

The Main MenuPhone setup63Phone setupThe options in the Phone Setup menu allows you to setup the phone accord-ing to your preferences.Changing menu language1. In standby mode, press Menu.2. Scroll to Phone setup and press Select.3. Press Select.4. Scroll to preferred language and press Select.Adjusting backlightAdjusting backlight durationThis option allows you to change the duration of backlight in standby mode. Note that longer backlight consumes more battery power. You can also choose to turn it off.1. In standby mode, press Menu.2. Scroll to Phone setup and press Select.3. Scroll to Backlight and press Select.4. Press Select.5. Scroll to desired duration and press OK. If Off is selected, the backlight will be turned off.Changing backlight color1. In standby mode, press Menu.2. Scroll to Phone setup and press Select.3. Scroll to Backlight and press Select.4. Scroll to Color and press Select.5. Scroll to desired color and press OK.Adjusting screen contrast1. In standby mode, press Menu.2. Scroll to Phone setup and press Select.3. Scroll to Adjust contrast and press Select.4. Press or to select an appropriate contrast level and press OK.

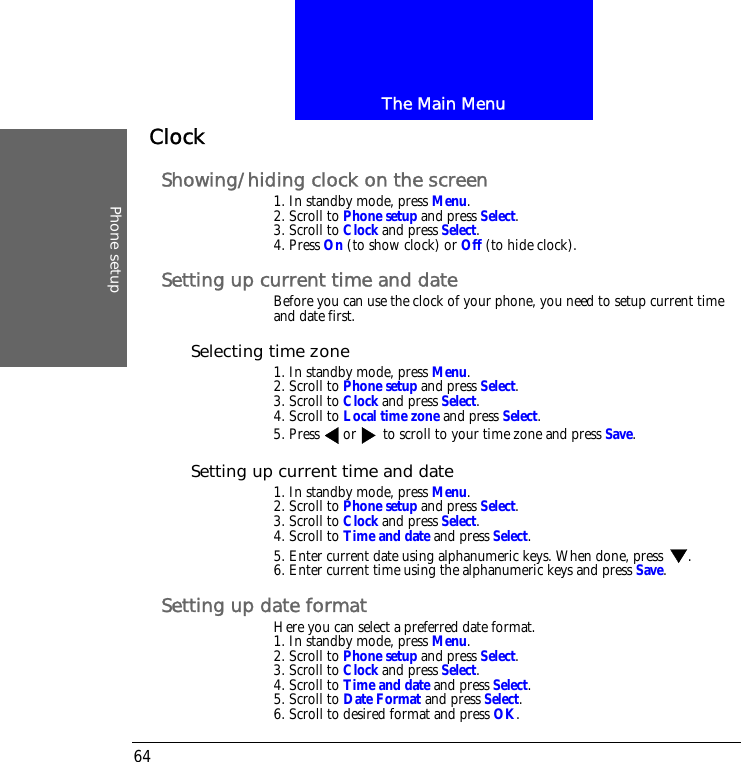

The Main MenuPhone setup64ClockShowing/hiding clock on the screen1. In standby mode, press Menu.2. Scroll to Phone setup and press Select.3. Scroll to Clock and press Select.4. Press On (to show clock) or Off (to hide clock).Setting up current time and dateBefore you can use the clock of your phone, you need to setup current time and date first.Selecting time zone1. In standby mode, press Menu.2. Scroll to Phone setup and press Select.3. Scroll to Clock and press Select.4. Scroll to Local time zone and press Select.5. Press or to scroll to your time zone and press Save.Setting up current time and date1. In standby mode, press Menu.2. Scroll to Phone setup and press Select.3. Scroll to Clock and press Select.4. Scroll to Time and date and press Select.5. Enter current date using alphanumeric keys. When done, press .6. Enter current time using the alphanumeric keys and press Save.Setting up date formatHere you can select a preferred date format.1. In standby mode, press Menu.2. Scroll to Phone setup and press Select.3. Scroll to Clock and press Select.4. Scroll to Time and date and press Select.5. Scroll to Date Format and press Select.6. Scroll to desired format and press OK.

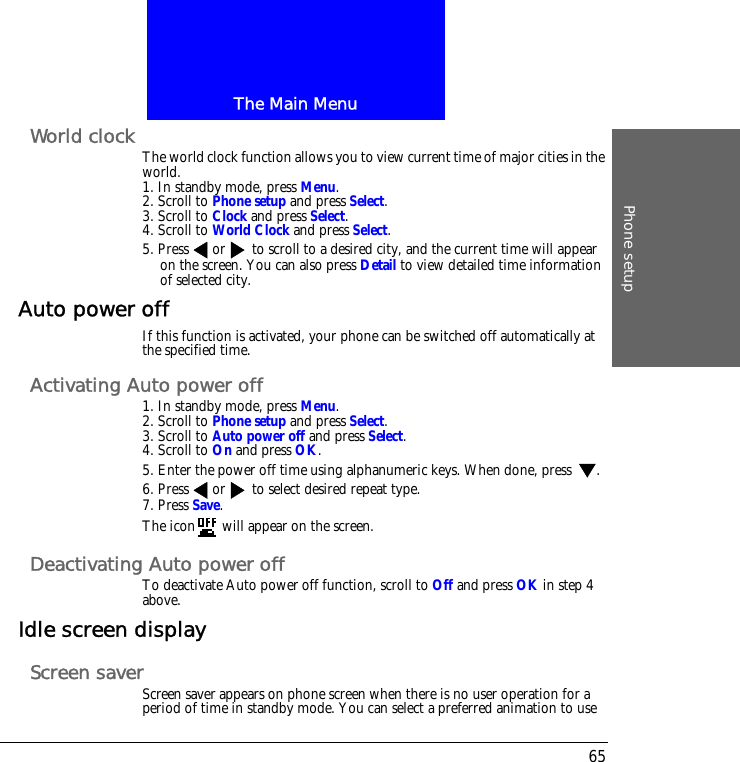

The Main MenuPhone setup65World clock The world clock function allows you to view current time of major cities in the world.1. In standby mode, press Menu.2. Scroll to Phone setup and press Select.3. Scroll to Clock and press Select.4. Scroll to World Clock and press Select.5. Press or to scroll to a desired city, and the current time will appear on the screen. You can also press Detail to view detailed time information of selected city.Auto power offIf this function is activated, your phone can be switched off automatically at the specified time.Activating Auto power off1. In standby mode, press Menu.2. Scroll to Phone setup and press Select.3. Scroll to Auto power off and press Select.4. Scroll to On and press OK.5. Enter the power off time using alphanumeric keys. When done, press .6. Press or to select desired repeat type.7. Press Save.The icon will appear on the screen.Deactivating Auto power offTo deactivate Auto power off function, scroll to Off and press OK in step 4 above.Idle screen displayScreen saverScreen saver appears on phone screen when there is no user operation for a period of time in standby mode. You can select a preferred animation to use

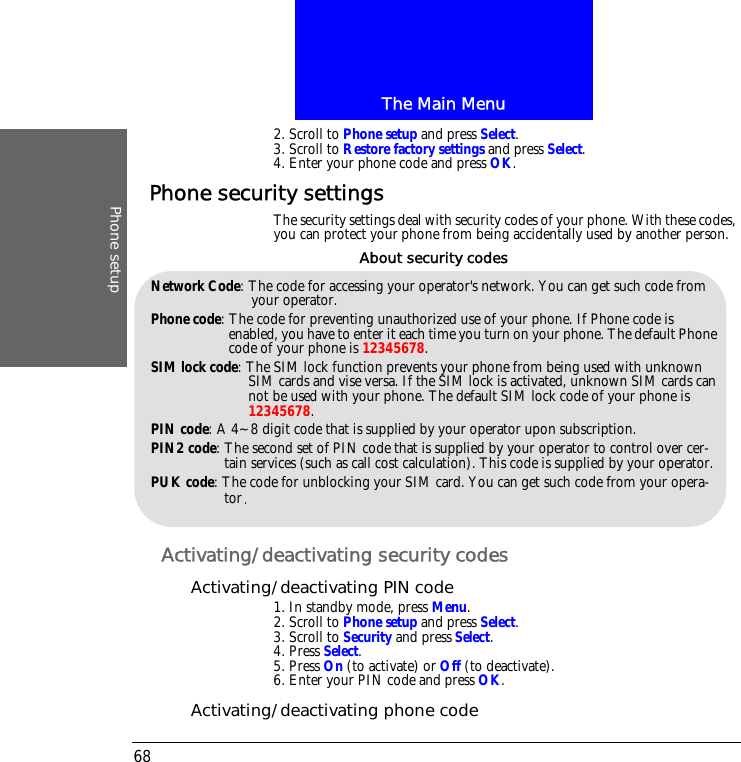

The Main MenuPhone setup682. Scroll to Phone setup and press Select.3. Scroll to Restore factory settings and press Select.4. Enter your phone code and press OK.Phone security settingsThe security settings deal with security codes of your phone. With these codes, you can protect your phone from being accidentally used by another person.Activating/deactivating security codesActivating/deactivating PIN code1. In standby mode, press Menu.2. Scroll to Phone setup and press Select.3. Scroll to Security and press Select.4. Press Select.5. Press On (to activate) or Off (to deactivate).6. Enter your PIN code and press OK.Activating/deactivating phone codeNetwork Code: The code for accessing your operator's network. You can get such code from your operator.Phone code: The code for preventing unauthorized use of your phone. If Phone code is enabled, you have to enter it each time you turn on your phone. The default Phone code of your phone is 12345678.SIM lock code: The SIM lock function prevents your phone from being used with unknown SIM cards and vise versa. If the SIM lock is activated, unknown SIM cards can not be used with your phone. The default SIM lock code of your phone is 12345678.PIN code: A 4~8 digit code that is supplied by your operator upon subscription.PIN2 code: The second set of PIN code that is supplied by your operator to control over cer-tain services (such as call cost calculation). This code is supplied by your operator.PUK code: The code for unblocking your SIM card. You can get such code from your opera-torAbout security codes

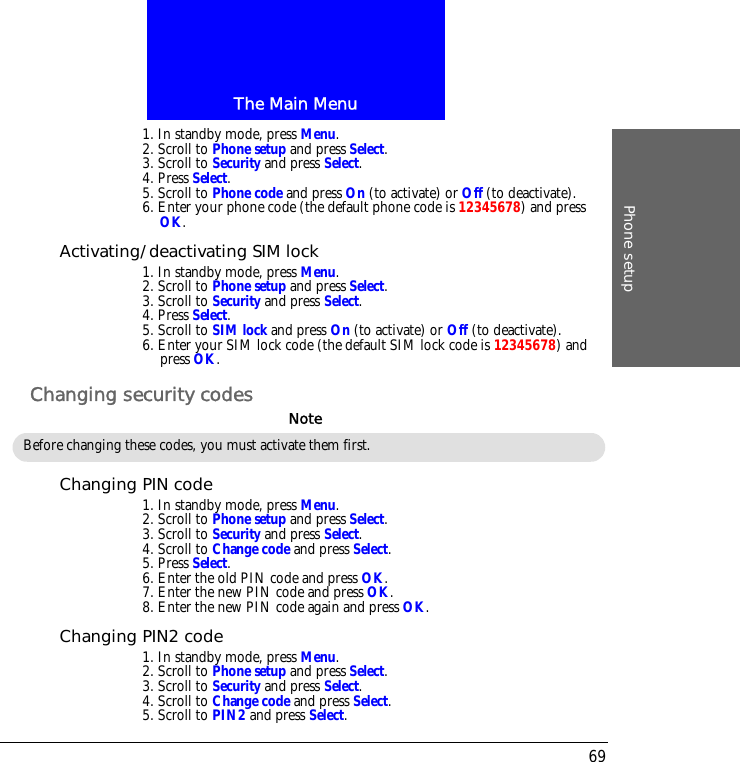

The Main MenuPhone setup691. In standby mode, press Menu.2. Scroll to Phone setup and press Select.3. Scroll to Security and press Select.4. Press Select.5. Scroll to Phone code and press On (to activate) or Off (to deactivate).6. Enter your phone code (the default phone code is 12345678) and press OK.Activating/deactivating SIM lock1. In standby mode, press Menu.2. Scroll to Phone setup and press Select.3. Scroll to Security and press Select.4. Press Select.5. Scroll to SIM lock and press On (to activate) or Off (to deactivate).6. Enter your SIM lock code (the default SIM lock code is 12345678) and press OK.Changing security codesChanging PIN code1. In standby mode, press Menu.2. Scroll to Phone setup and press Select.3. Scroll to Security and press Select.4. Scroll to Change code and press Select.5. Press Select.6. Enter the old PIN code and press OK.7. Enter the new PIN code and press OK.8. Enter the new PIN code again and press OK.Changing PIN2 code1. In standby mode, press Menu.2. Scroll to Phone setup and press Select.3. Scroll to Security and press Select.4. Scroll to Change code and press Select.5. Scroll to PIN2 and press Select.Before changing these codes, you must activate them first.Note

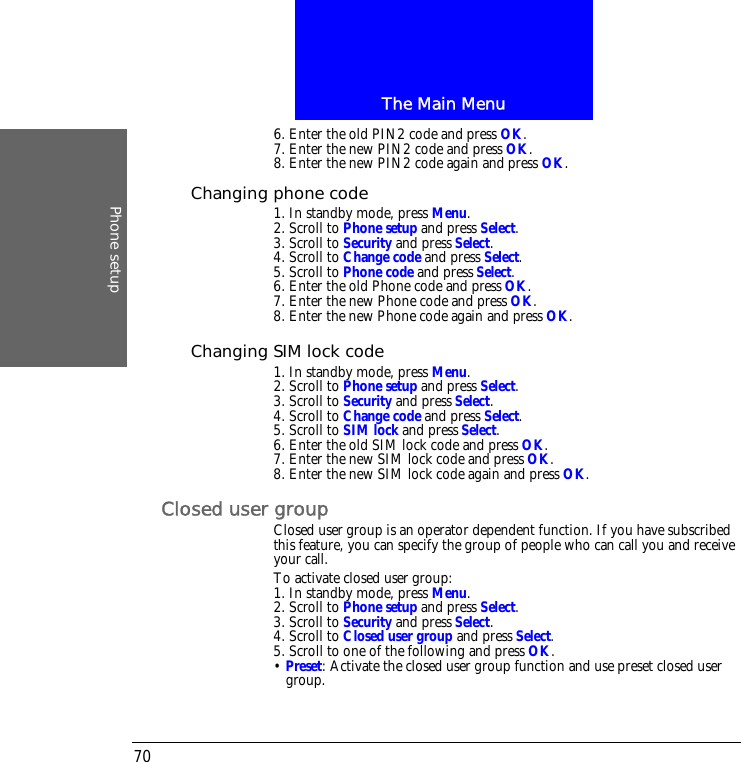

The Main MenuPhone setup706. Enter the old PIN2 code and press OK.7. Enter the new PIN2 code and press OK.8. Enter the new PIN2 code again and press OK.Changing phone code1. In standby mode, press Menu.2. Scroll to Phone setup and press Select.3. Scroll to Security and press Select.4. Scroll to Change code and press Select.5. Scroll to Phone code and press Select.6. Enter the old Phone code and press OK.7. Enter the new Phone code and press OK.8. Enter the new Phone code again and press OK.Changing SIM lock code1. In standby mode, press Menu.2. Scroll to Phone setup and press Select.3. Scroll to Security and press Select.4. Scroll to Change code and press Select.5. Scroll to SIM lock and press Select.6. Enter the old SIM lock code and press OK.7. Enter the new SIM lock code and press OK.8. Enter the new SIM lock code again and press OK.Closed user groupClosed user group is an operator dependent function. If you have subscribed this feature, you can specify the group of people who can call you and receive your call.To activate closed user group:1. In standby mode, press Menu.2. Scroll to Phone setup and press Select.3. Scroll to Security and press Select.4. Scroll to Closed user group and press Select.5. Scroll to one of the following and press OK.• Preset: Activate the closed user group function and use preset closed user group.

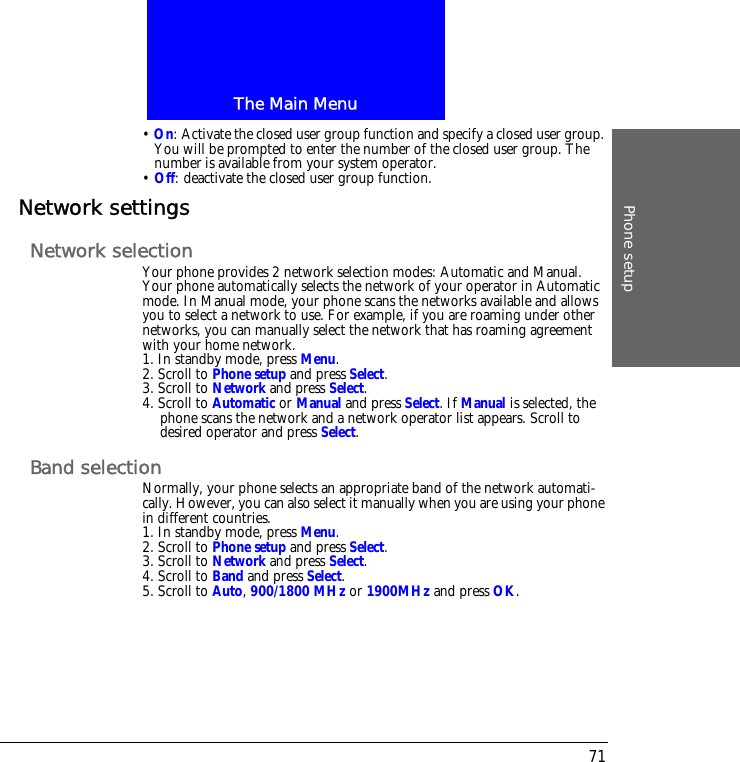

The Main MenuPhone setup71• On: Activate the closed user group function and specify a closed user group. You will be prompted to enter the number of the closed user group. The number is available from your system operator.• Off: deactivate the closed user group function.Network settingsNetwork selectionYour phone provides 2 network selection modes: Automatic and Manual. Your phone automatically selects the network of your operator in Automatic mode. In Manual mode, your phone scans the networks available and allows you to select a network to use. For example, if you are roaming under other networks, you can manually select the network that has roaming agreement with your home network.1. In standby mode, press Menu.2. Scroll to Phone setup and press Select.3. Scroll to Network and press Select.4. Scroll to Automatic or Manual and press Select. If Manual is selected, the phone scans the network and a network operator list appears. Scroll to desired operator and press Select.Band selectionNormally, your phone selects an appropriate band of the network automati-cally. However, you can also select it manually when you are using your phone in different countries.1. In standby mode, press Menu.2. Scroll to Phone setup and press Select.3. Scroll to Network and press Select.4. Scroll to Band and press Select.5. Scroll to Auto, 900/1800 MHz or 1900MHz and press OK.

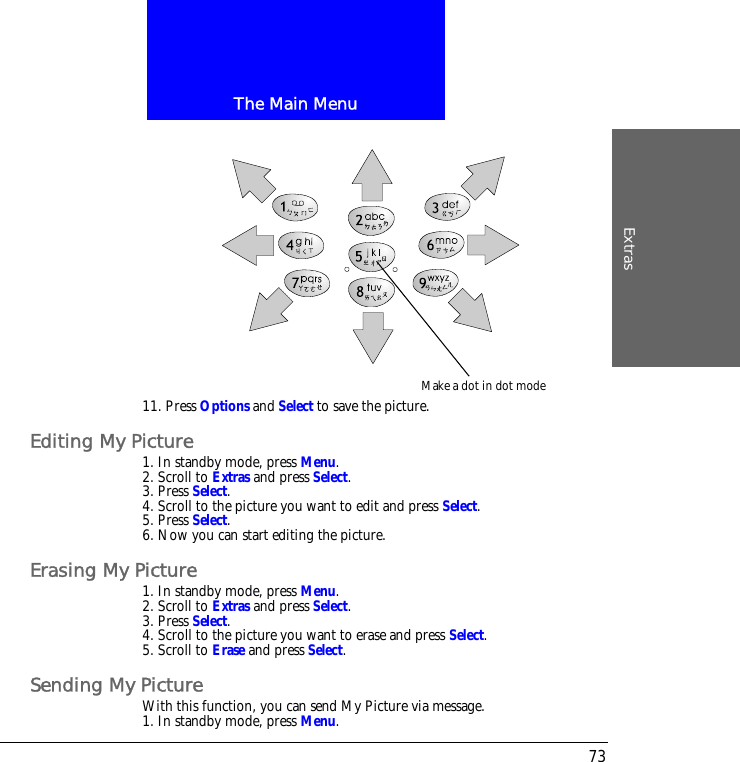

The Main MenuExtras7311. Press Options and Select to save the picture.Editing My Picture1. In standby mode, press Menu.2. Scroll to Extras and press Select.3. Press Select.4. Scroll to the picture you want to edit and press Select.5. Press Select.6. Now you can start editing the picture.Erasing My Picture1. In standby mode, press Menu.2. Scroll to Extras and press Select.3. Press Select.4. Scroll to the picture you want to erase and press Select.5. Scroll to Erase and press Select.Sending My PictureWith this function, you can send My Picture via message.1. In standby mode, press Menu.Make a dot in dot mode

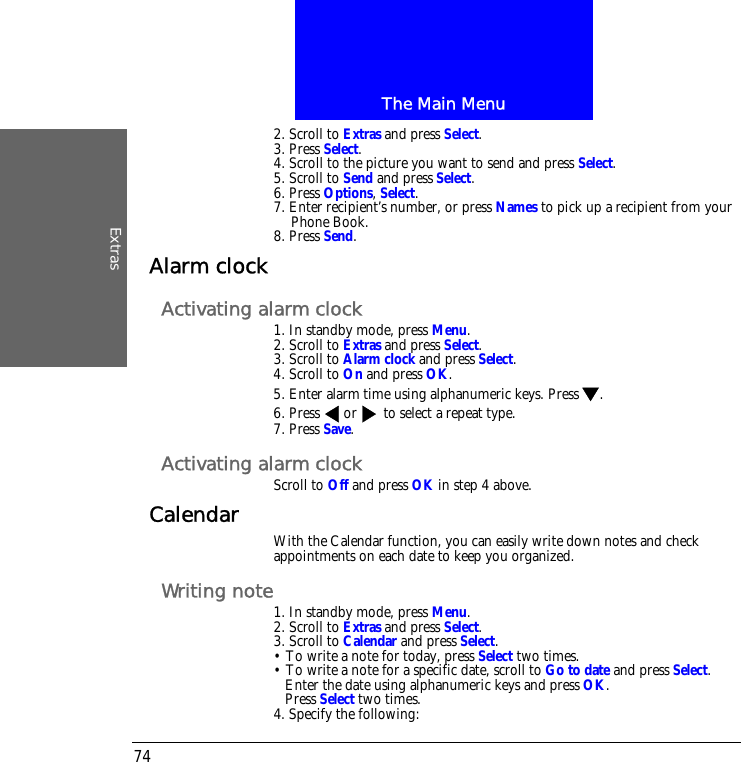

The Main MenuExtras742. Scroll to Extras and press Select.3. Press Select.4. Scroll to the picture you want to send and press Select.5. Scroll to Send and press Select.6. Press Options, Select.7. Enter recipient’s number, or press Names to pick up a recipient from your Phone Book.8. Press Send.Alarm clockActivating alarm clock1. In standby mode, press Menu.2. Scroll to Extras and press Select.3. Scroll to Alarm clock and press Select.4. Scroll to On and press OK.5. Enter alarm time using alphanumeric keys. Press .6. Press or to select a repeat type.7. Press Save.Activating alarm clockScroll to Off and press OK in step 4 above.Calendar With the Calendar function, you can easily write down notes and check appointments on each date to keep you organized.Writing note1. In standby mode, press Menu.2. Scroll to Extras and press Select.3. Scroll to Calendar and press Select.• To write a note for today, press Select two times.• To write a note for a specific date, scroll to Go to date and press Select.Enter the date using alphanumeric keys and press OK.Press Select two times.4. Specify the following:

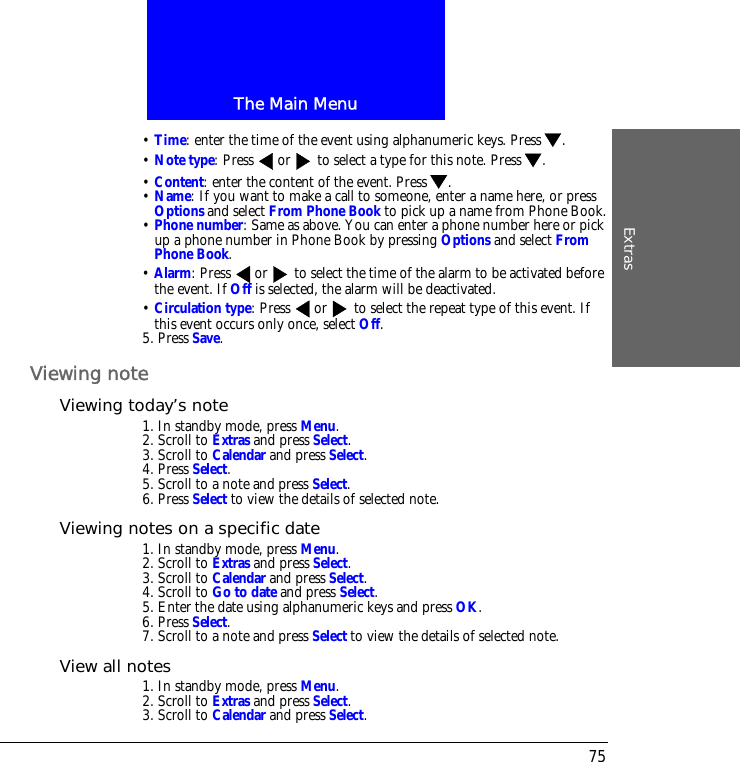

The Main MenuExtras75• Time: enter the time of the event using alphanumeric keys. Press .• Note type: Press or to select a type for this note. Press .• Content: enter the content of the event. Press .• Name: If you want to make a call to someone, enter a name here, or press Options and select From Phone Book to pick up a name from Phone Book.• Phone number: Same as above. You can enter a phone number here or pick up a phone number in Phone Book by pressing Options and select From Phone Book. • Alarm: Press or to select the time of the alarm to be activated before the event. If Off is selected, the alarm will be deactivated.• Circulation type: Press or to select the repeat type of this event. If this event occurs only once, select Off.5. Press Save.Viewing noteViewing today’s note1. In standby mode, press Menu.2. Scroll to Extras and press Select.3. Scroll to Calendar and press Select.4. Press Select.5. Scroll to a note and press Select.6. Press Select to view the details of selected note.Viewing notes on a specific date1. In standby mode, press Menu.2. Scroll to Extras and press Select.3. Scroll to Calendar and press Select.4. Scroll to Go to date and press Select.5. Enter the date using alphanumeric keys and press OK.6. Press Select.7. Scroll to a note and press Select to view the details of selected note.View all notes1. In standby mode, press Menu.2. Scroll to Extras and press Select.3. Scroll to Calendar and press Select.

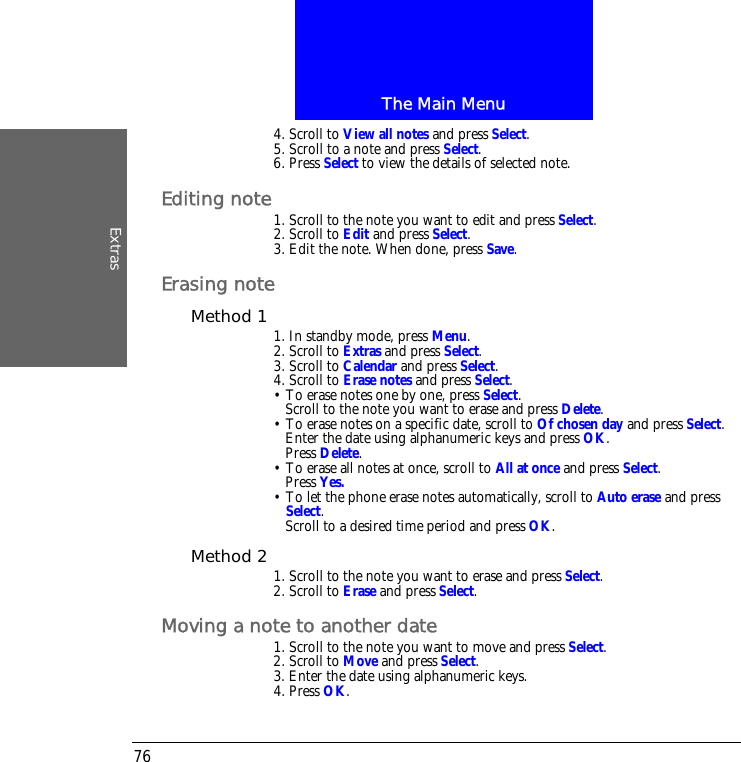

The Main MenuExtras764. Scroll to View all notes and press Select.5. Scroll to a note and press Select.6. Press Select to view the details of selected note.Editing note1. Scroll to the note you want to edit and press Select.2. Scroll to Edit and press Select.3. Edit the note. When done, press Save.Erasing noteMethod 1 1. In standby mode, press Menu.2. Scroll to Extras and press Select.3. Scroll to Calendar and press Select.4. Scroll to Erase notes and press Select.• To erase notes one by one, press Select. Scroll to the note you want to erase and press Delete.• To erase notes on a specific date, scroll to Of chosen day and press Select. Enter the date using alphanumeric keys and press OK.Press Delete.• To erase all notes at once, scroll to All at once and press Select.Press Yes.• To let the phone erase notes automatically, scroll to Auto erase and press Select.Scroll to a desired time period and press OK.Method 2 1. Scroll to the note you want to erase and press Select.2. Scroll to Erase and press Select.Moving a note to another date1. Scroll to the note you want to move and press Select.2. Scroll to Move and press Select.3. Enter the date using alphanumeric keys.4. Press OK.

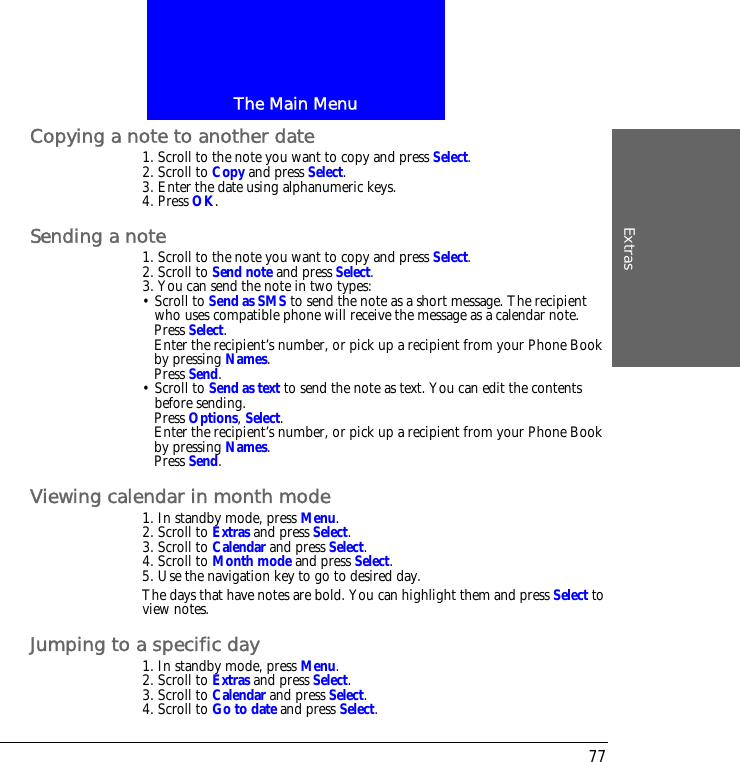

The Main MenuExtras77Copying a note to another date1. Scroll to the note you want to copy and press Select.2. Scroll to Copy and press Select.3. Enter the date using alphanumeric keys.4. Press OK.Sending a note1. Scroll to the note you want to copy and press Select.2. Scroll to Send note and press Select.3. You can send the note in two types:• Scroll to Send as SMS to send the note as a short message. The recipient who uses compatible phone will receive the message as a calendar note.Press Select.Enter the recipient’s number, or pick up a recipient from your Phone Book by pressing Names.Press Send.• Scroll to Send as text to send the note as text. You can edit the contents before sending.Press Options, Select.Enter the recipient’s number, or pick up a recipient from your Phone Book by pressing Names.Press Send.Viewing calendar in month mode1. In standby mode, press Menu.2. Scroll to Extras and press Select.3. Scroll to Calendar and press Select.4. Scroll to Month mode and press Select.5. Use the navigation key to go to desired day.The days that have notes are bold. You can highlight them and press Select to view notes.Jumping to a specific day1. In standby mode, press Menu.2. Scroll to Extras and press Select.3. Scroll to Calendar and press Select.4. Scroll to Go to date and press Select.

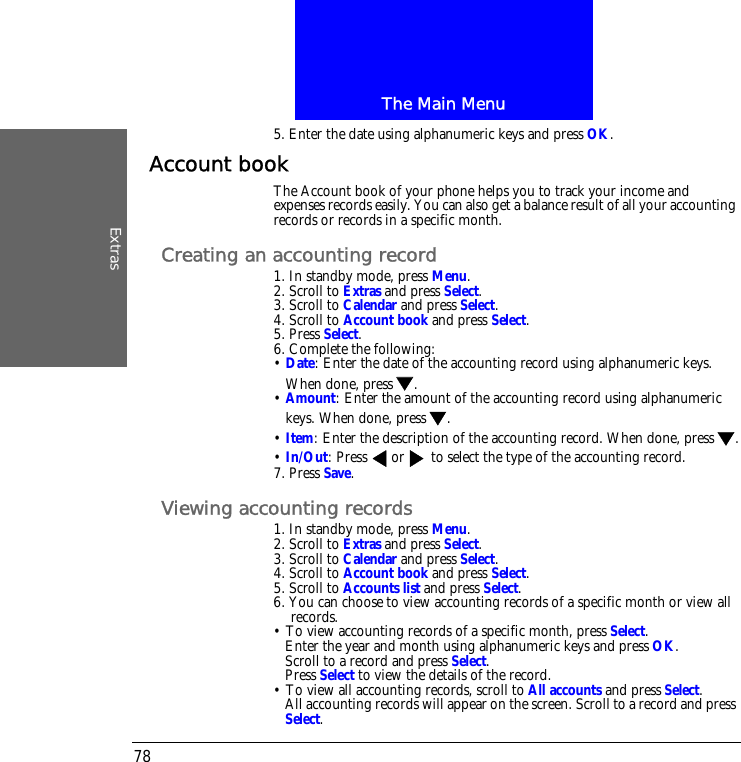

The Main MenuExtras785. Enter the date using alphanumeric keys and press OK.Account bookThe Account book of your phone helps you to track your income and expenses records easily. You can also get a balance result of all your accounting records or records in a specific month.Creating an accounting record1. In standby mode, press Menu.2. Scroll to Extras and press Select.3. Scroll to Calendar and press Select.4. Scroll to Account book and press Select.5. Press Select.6. Complete the following:• Date: Enter the date of the accounting record using alphanumeric keys. When done, press .• Amount: Enter the amount of the accounting record using alphanumeric keys. When done, press .• Item: Enter the description of the accounting record. When done, press .• In/Out: Press or to select the type of the accounting record.7. Press Save.Viewing accounting records1. In standby mode, press Menu.2. Scroll to Extras and press Select.3. Scroll to Calendar and press Select.4. Scroll to Account book and press Select.5. Scroll to Accounts list and press Select.6. You can choose to view accounting records of a specific month or view all records.• To view accounting records of a specific month, press Select.Enter the year and month using alphanumeric keys and press OK.Scroll to a record and press Select.Press Select to view the details of the record.• To view all accounting records, scroll to All accounts and press Select.All accounting records will appear on the screen. Scroll to a record and press Select.

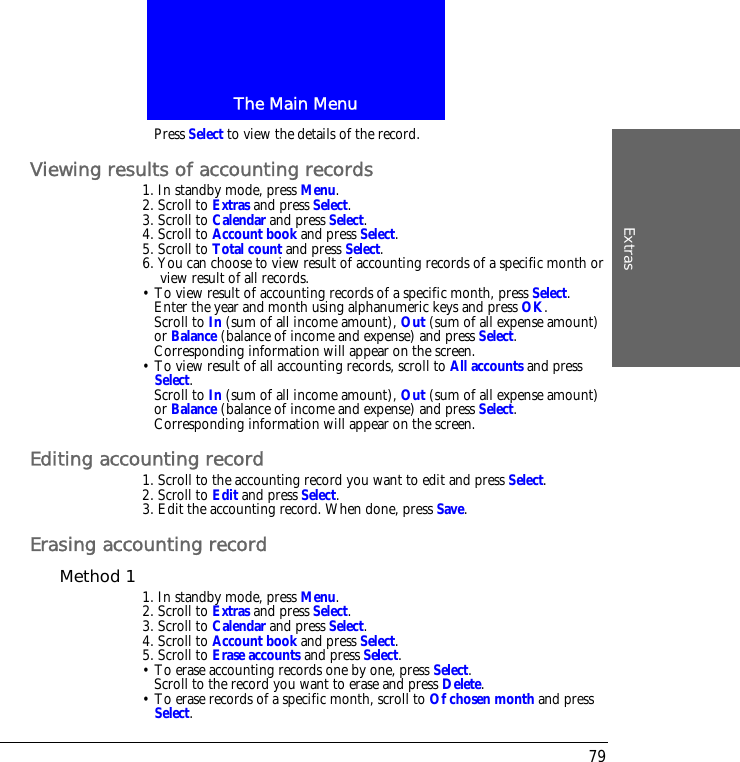

The Main MenuExtras79Press Select to view the details of the record.Viewing results of accounting records1. In standby mode, press Menu.2. Scroll to Extras and press Select.3. Scroll to Calendar and press Select.4. Scroll to Account book and press Select.5. Scroll to Total count and press Select.6. You can choose to view result of accounting records of a specific month or view result of all records.• To view result of accounting records of a specific month, press Select.Enter the year and month using alphanumeric keys and press OK.Scroll to In (sum of all income amount), Out (sum of all expense amount) or Balance (balance of income and expense) and press Select.Corresponding information will appear on the screen.• To view result of all accounting records, scroll to All accounts and press Select.Scroll to In (sum of all income amount), Out (sum of all expense amount) or Balance (balance of income and expense) and press Select.Corresponding information will appear on the screen.Editing accounting record1. Scroll to the accounting record you want to edit and press Select.2. Scroll to Edit and press Select.3. Edit the accounting record. When done, press Save.Erasing accounting recordMethod 1 1. In standby mode, press Menu.2. Scroll to Extras and press Select.3. Scroll to Calendar and press Select.4. Scroll to Account book and press Select.5. Scroll to Erase accounts and press Select.• To erase accounting records one by one, press Select. Scroll to the record you want to erase and press Delete.• To erase records of a specific month, scroll to Of chosen month and press Select.

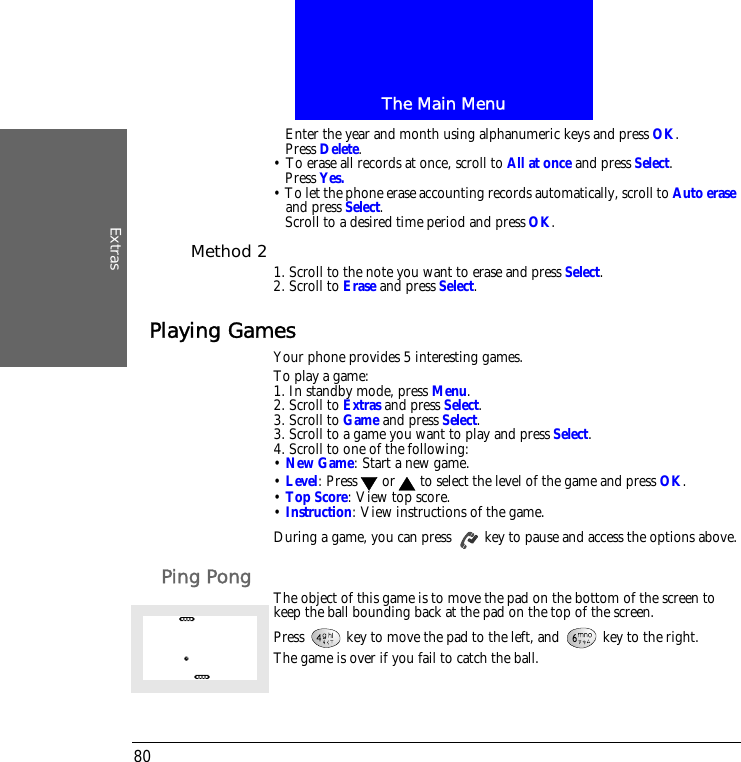

The Main MenuExtras80Enter the year and month using alphanumeric keys and press OK.Press Delete.• To erase all records at once, scroll to All at once and press Select.Press Yes.• To let the phone erase accounting records automatically, scroll to Auto erase and press Select.Scroll to a desired time period and press OK.Method 2 1. Scroll to the note you want to erase and press Select.2. Scroll to Erase and press Select.Playing GamesYour phone provides 5 interesting games.To play a game:1. In standby mode, press Menu.2. Scroll to Extras and press Select.3. Scroll to Game and press Select.3. Scroll to a game you want to play and press Select.4. Scroll to one of the following:• New Game: Start a new game.• Level: Press or to select the level of the game and press OK.• Top Score: View top score.• Instruction: View instructions of the game.During a game, you can press key to pause and access the options above.Ping Pong The object of this game is to move the pad on the bottom of the screen to keep the ball bounding back at the pad on the top of the screen.Press key to move the pad to the left, and key to the right. The game is over if you fail to catch the ball.

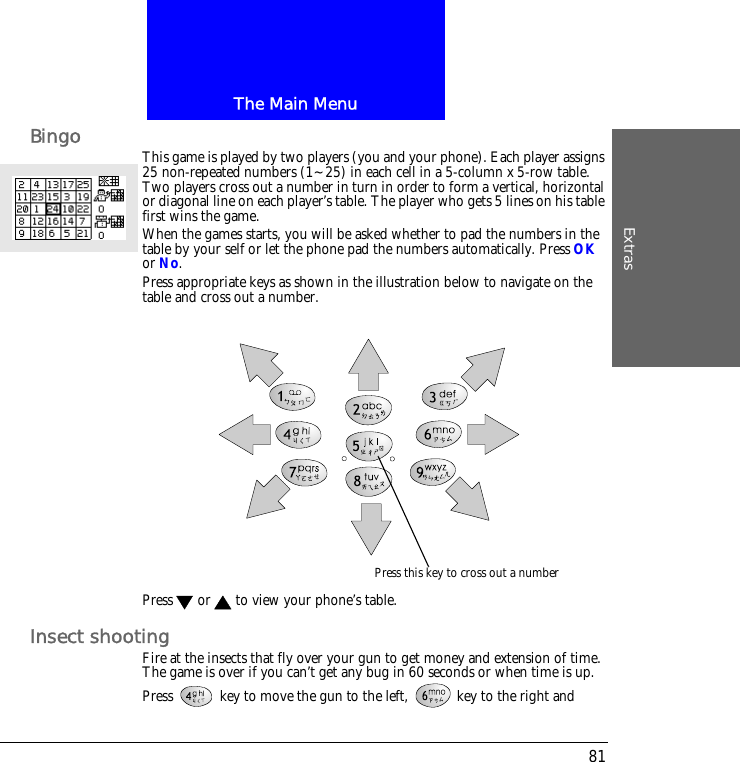

The Main MenuExtras81Bingo This game is played by two players (you and your phone). Each player assigns 25 non-repeated numbers (1~25) in each cell in a 5-column x 5-row table. Two players cross out a number in turn in order to form a vertical, horizontal or diagonal line on each player’s table. The player who gets 5 lines on his table first wins the game.When the games starts, you will be asked whether to pad the numbers in the table by your self or let the phone pad the numbers automatically. Press OK or No.Press appropriate keys as shown in the illustration below to navigate on the table and cross out a number.Press or to view your phone’s table. Insect shootingFire at the insects that fly over your gun to get money and extension of time. The game is over if you can’t get any bug in 60 seconds or when time is up. Press key to move the gun to the left, key to the right and Press this key to cross out a number

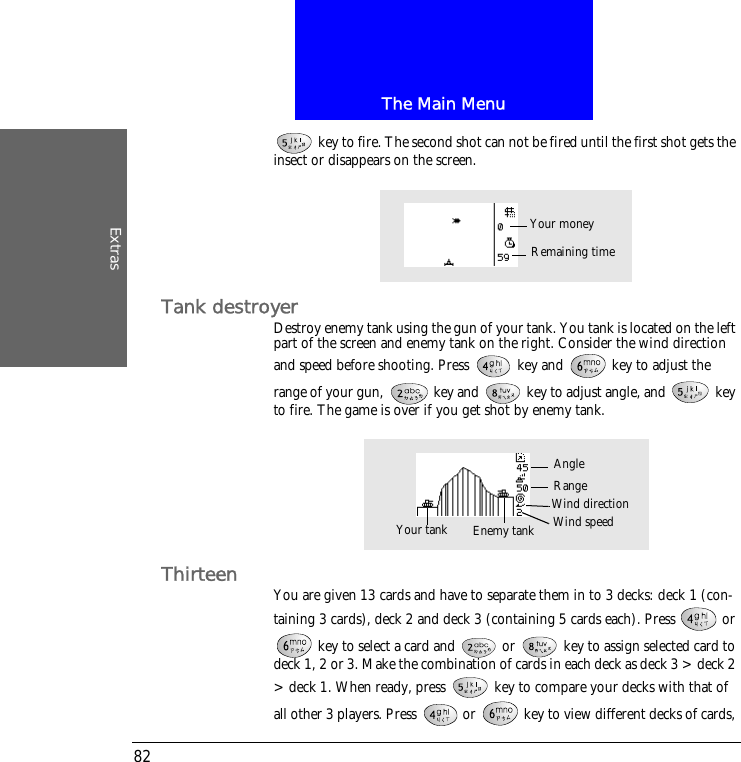

The Main MenuExtras82 key to fire. The second shot can not be fired until the first shot gets the insect or disappears on the screen.Tank destroyerDestroy enemy tank using the gun of your tank. You tank is located on the left part of the screen and enemy tank on the right. Consider the wind direction and speed before shooting. Press key and key to adjust the range of your gun, key and key to adjust angle, and key to fire. The game is over if you get shot by enemy tank.Thirteen You are given 13 cards and have to separate them in to 3 decks: deck 1 (con-taining 3 cards), deck 2 and deck 3 (containing 5 cards each). Press or key to select a card and or key to assign selected card to deck 1, 2 or 3. Make the combination of cards in each deck as deck 3 > deck 2 > deck 1. When ready, press key to compare your decks with that of all other 3 players. Press or key to view different decks of cards, Remaining timeYour moneyWind speedAngleYour tank Enemy tankRangeWind direction

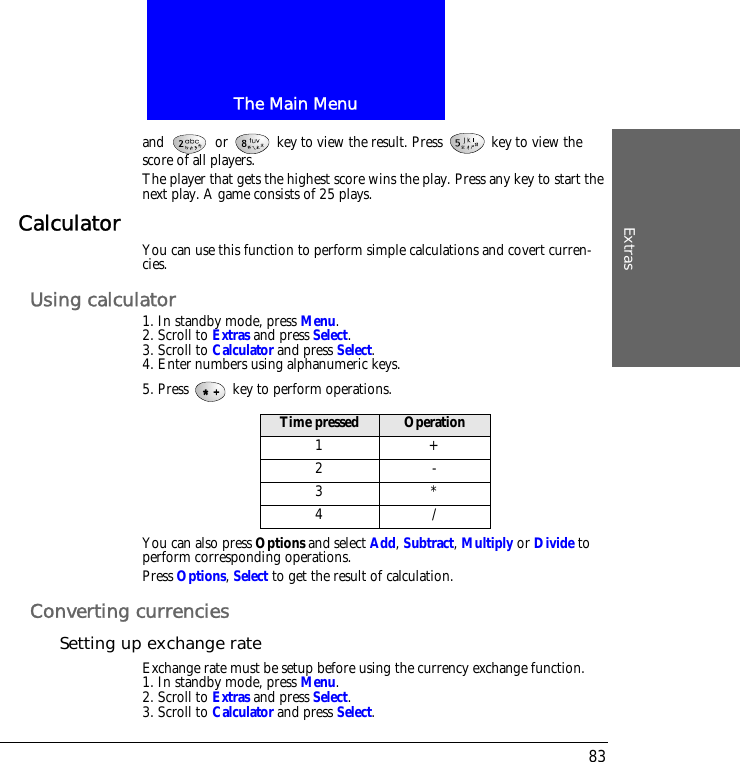

The Main MenuExtras83and or key to view the result. Press key to view the score of all players.The player that gets the highest score wins the play. Press any key to start the next play. A game consists of 25 plays.Calculator You can use this function to perform simple calculations and covert curren-cies.Using calculator1. In standby mode, press Menu.2. Scroll to Extras and press Select.3. Scroll to Calculator and press Select.4. Enter numbers using alphanumeric keys.5. Press key to perform operations.You can also press Options and select Add, Subtract, Multiply or Divide to perform corresponding operations.Press Options, Select to get the result of calculation.Converting currenciesSetting up exchange rateExchange rate must be setup before using the currency exchange function.1. In standby mode, press Menu.2. Scroll to Extras and press Select.3. Scroll to Calculator and press Select.Time pressed Operation1+2-3*4/

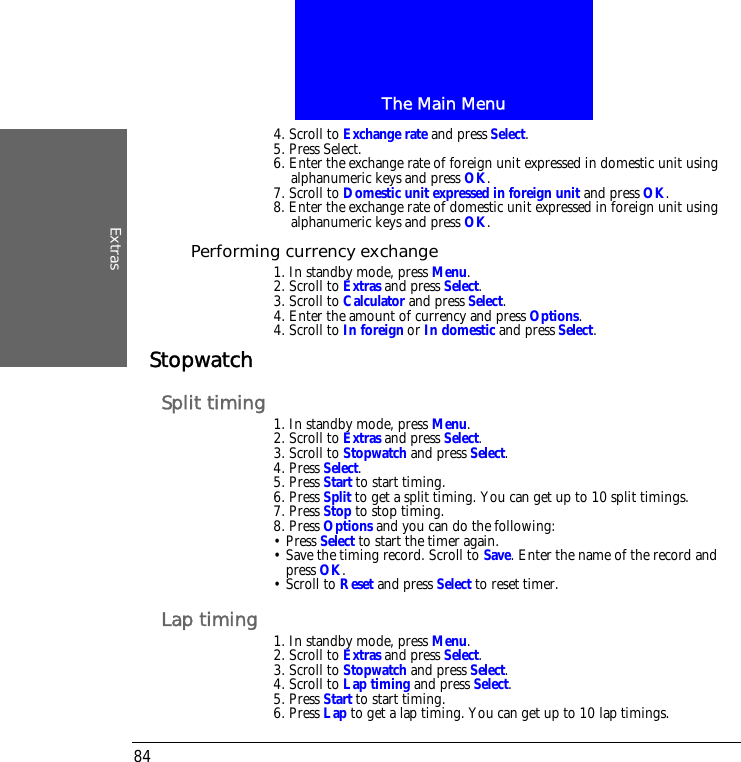

The Main MenuExtras844. Scroll to Exchange rate and press Select.5. Press Select.6. Enter the exchange rate of foreign unit expressed in domestic unit using alphanumeric keys and press OK.7. Scroll to Domestic unit expressed in foreign unit and press OK. 8. Enter the exchange rate of domestic unit expressed in foreign unit using alphanumeric keys and press OK.Performing currency exchange1. In standby mode, press Menu.2. Scroll to Extras and press Select.3. Scroll to Calculator and press Select.4. Enter the amount of currency and press Options.4. Scroll to In foreign or In domestic and press Select.StopwatchSplit timing 1. In standby mode, press Menu.2. Scroll to Extras and press Select.3. Scroll to Stopwatch and press Select.4. Press Select.5. Press Start to start timing.6. Press Split to get a split timing. You can get up to 10 split timings.7. Press Stop to stop timing.8. Press Options and you can do the following:• Press Select to start the timer again.• Save the timing record. Scroll to Save. Enter the name of the record and press OK. • Scroll to Reset and press Select to reset timer.Lap timing 1. In standby mode, press Menu.2. Scroll to Extras and press Select.3. Scroll to Stopwatch and press Select.4. Scroll to Lap timing and press Select.5. Press Start to start timing.6. Press Lap to get a lap timing. You can get up to 10 lap timings.

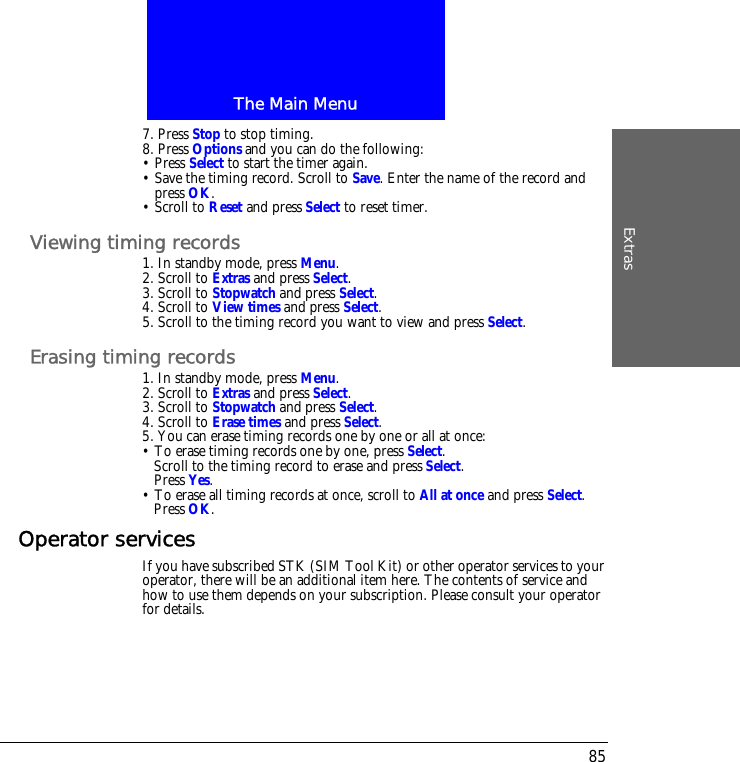

The Main MenuExtras857. Press Stop to stop timing.8. Press Options and you can do the following:• Press Select to start the timer again.• Save the timing record. Scroll to Save. Enter the name of the record and press OK.• Scroll to Reset and press Select to reset timer.Viewing timing records1. In standby mode, press Menu.2. Scroll to Extras and press Select.3. Scroll to Stopwatch and press Select.4. Scroll to View times and press Select.5. Scroll to the timing record you want to view and press Select.Erasing timing records1. In standby mode, press Menu.2. Scroll to Extras and press Select.3. Scroll to Stopwatch and press Select.4. Scroll to Erase times and press Select.5. You can erase timing records one by one or all at once:• To erase timing records one by one, press Select.Scroll to the timing record to erase and press Select.Press Yes.• To erase all timing records at once, scroll to All at once and press Select.Press OK.Operator servicesIf you have subscribed STK (SIM Tool Kit) or other operator services to your operator, there will be an additional item here. The contents of service and how to use them depends on your subscription. Please consult your operator for details.

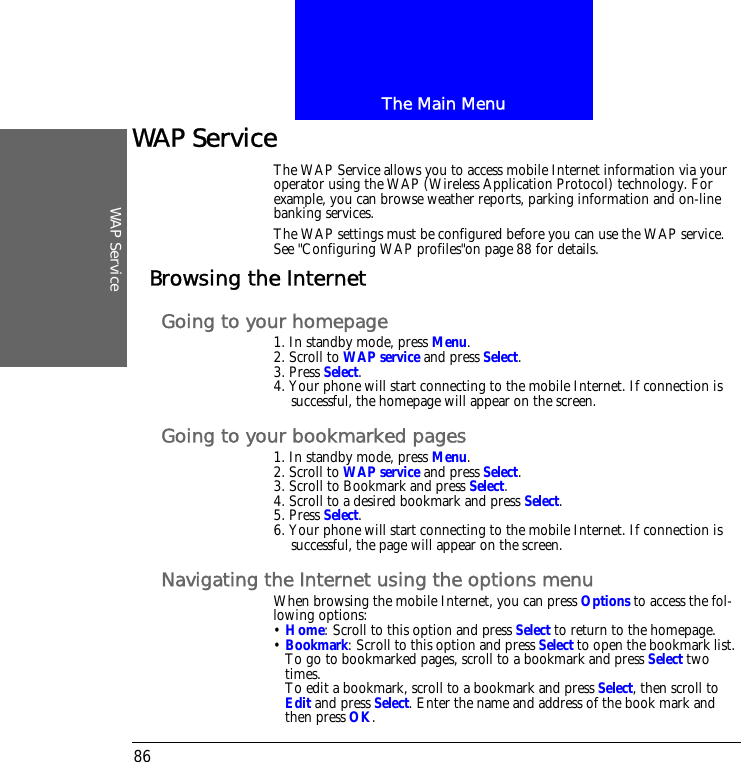

The Main MenuWAP Service86WAP ServiceThe WAP Service allows you to access mobile Internet information via your operator using the WAP (Wireless Application Protocol) technology. For example, you can browse weather reports, parking information and on-line banking services.The WAP settings must be configured before you can use the WAP service.See "Configuring WAP profiles"on page 88 for details.Browsing the InternetGoing to your homepage1. In standby mode, press Menu.2. Scroll to WAP service and press Select.3. Press Select.4. Your phone will start connecting to the mobile Internet. If connection is successful, the homepage will appear on the screen.Going to your bookmarked pages1. In standby mode, press Menu.2. Scroll to WAP service and press Select.3. Scroll to Bookmark and press Select.4. Scroll to a desired bookmark and press Select.5. Press Select.6. Your phone will start connecting to the mobile Internet. If connection is successful, the page will appear on the screen.Navigating the Internet using the options menuWhen browsing the mobile Internet, you can press Options to access the fol-lowing options:• Home: Scroll to this option and press Select to return to the homepage.• Bookmark: Scroll to this option and press Select to open the bookmark list. To go to bookmarked pages, scroll to a bookmark and press Select two times.To edit a bookmark, scroll to a bookmark and press Select, then scroll to Edit and press Select. Enter the name and address of the book mark and then press OK.

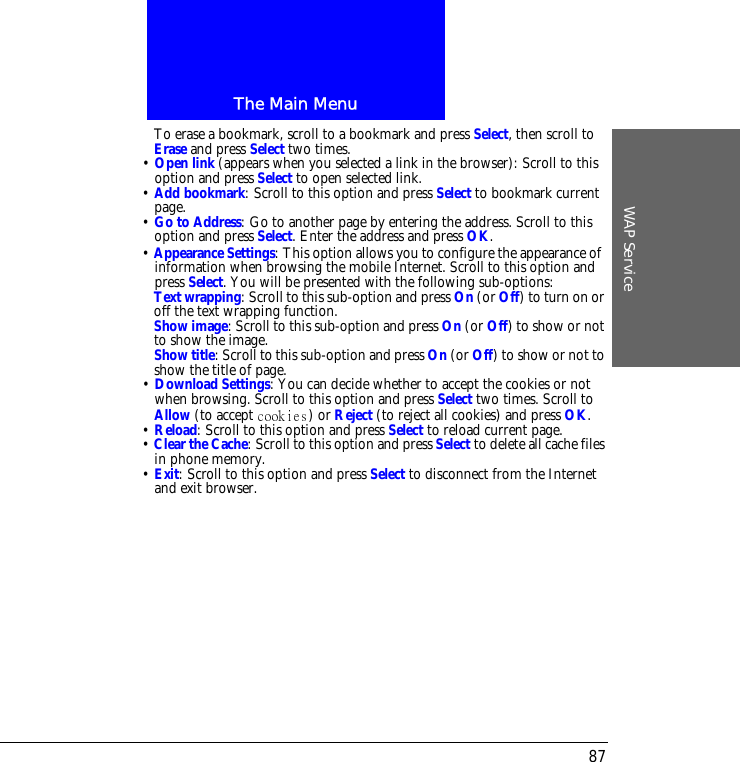

The Main MenuWAP Service87To erase a bookmark, scroll to a bookmark and press Select, then scroll to Erase and press Select two times.• Open link (appears when you selected a link in the browser): Scroll to this option and press Select to open selected link.• Add bookmark: Scroll to this option and press Select to bookmark current page.• Go to Address: Go to another page by entering the address. Scroll to this option and press Select. Enter the address and press OK.• Appearance Settings: This option allows you to configure the appearance ofinformation when browsing the mobile Internet. Scroll to this option and press Select. You will be presented with the following sub-options:Text wrapping: Scroll to this sub-option and press On (or Off) to turn on or off the text wrapping function.Show image: Scroll to this sub-option and press On (or Off) to show or not to show the image.Show title: Scroll to this sub-option and press On (or Off) to show or not to show the title of page.• Download Settings: You can decide whether to accept the cookies or not when browsing. Scroll to this option and press Select two times. Scroll to Allow (to accept ) or Reject (to reject all cookies) and press OK.• Reload: Scroll to this option and press Select to reload current page.• Clear the Cache: Scroll to this option and press Select to delete all cache files in phone memory.• Exit: Scroll to this option and press Select to disconnect from the Internet and exit browser.

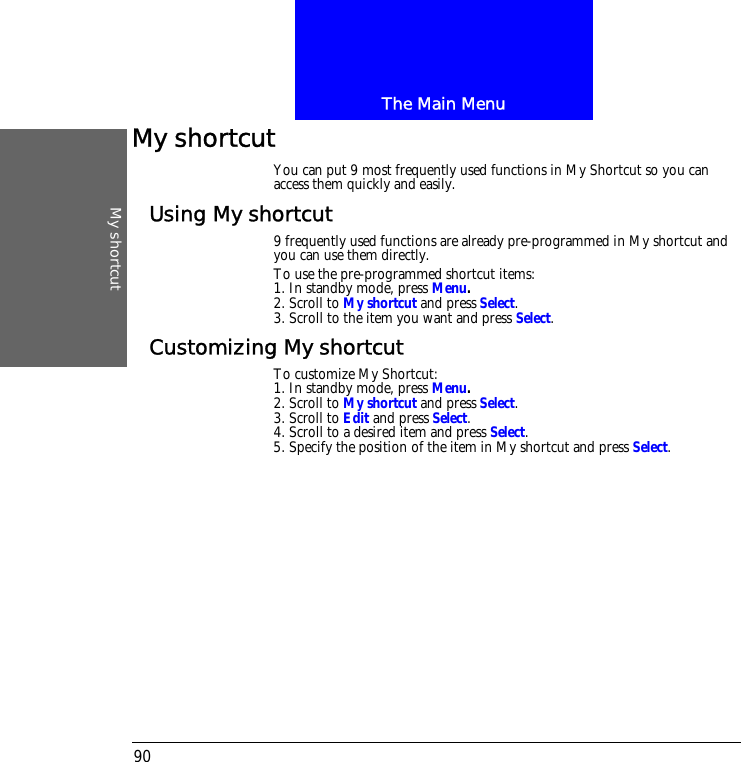

The Main MenuMy shortcut90My shortcutYou can put 9 most frequently used functions in My Shortcut so you can access them quickly and easily.Using My shortcut9 frequently used functions are already pre-programmed in My shortcut and you can use them directly.To use the pre-programmed shortcut items:1. In standby mode, press Menu.2. Scroll to My shortcut and press Select.3. Scroll to the item you want and press Select.Customizing My shortcutTo customize My Shortcut:1. In standby mode, press Menu.2. Scroll to My shortcut and press Select.3. Scroll to Edit and press Select.4. Scroll to a desired item and press Select.5. Specify the position of the item in My shortcut and press Select.

Appendix

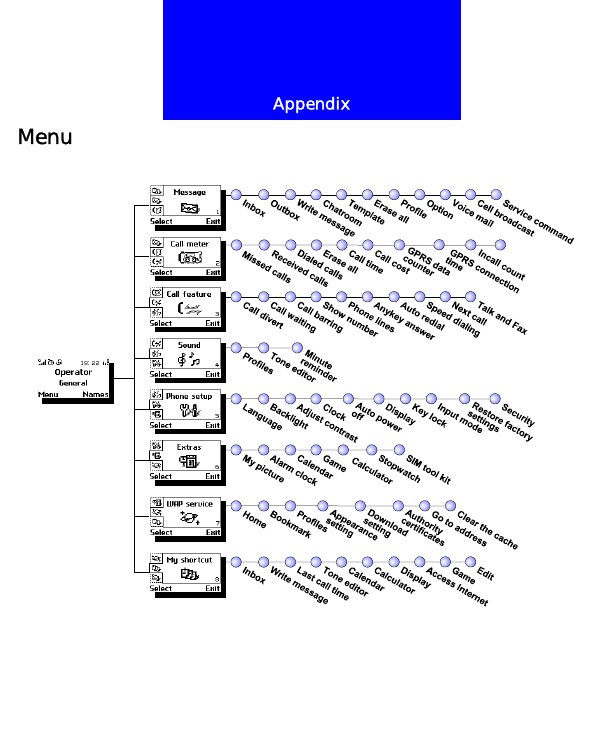

AppendixMenu

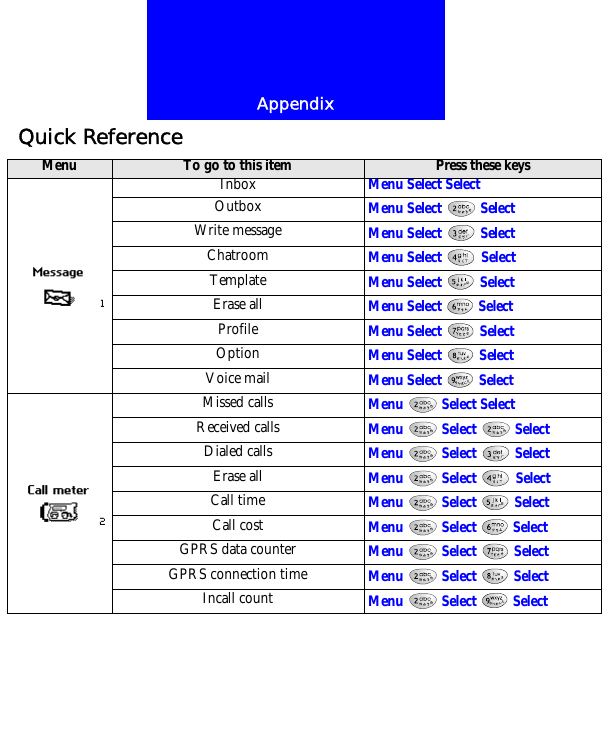

AppendixQuick ReferenceMenu To go to this item Press these keysInbox Menu Select SelectOutbox Menu Select SelectWrite message Menu Select SelectChatroom Menu Select SelectTemplate Menu Select SelectErase all Menu Select SelectProfile Menu Select SelectOption Menu Select SelectVoice mail Menu Select SelectMissed calls Menu Select SelectReceived calls Menu Select SelectDialed calls Menu Select SelectErase all Menu Select SelectCall time Menu Select SelectCall cost Menu Select SelectGPRS data counter Menu Select SelectGPRS connection time Menu Select SelectIncall count Menu Select Select

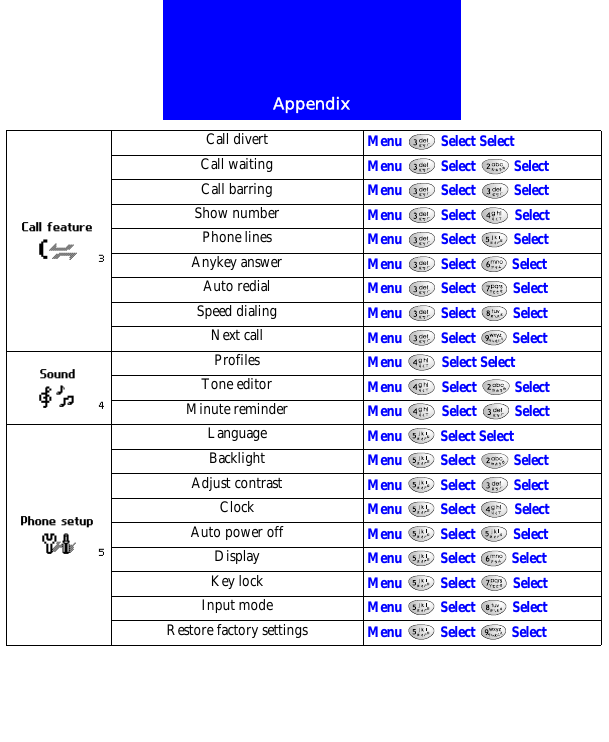

AppendixCall divert Menu Select SelectCall waiting Menu Select SelectCall barring Menu Select SelectShow number Menu Select SelectPhone lines Menu Select SelectAnykey answer Menu Select SelectAuto redial Menu Select SelectSpeed dialing Menu Select SelectNext call Menu Select SelectProfiles Menu Select SelectTone editor Menu Select SelectMinute reminder Menu Select SelectLanguage Menu Select SelectBacklight Menu Select SelectAdjust contrast Menu Select SelectClock Menu Select SelectAuto power off Menu Select SelectDisplay Menu Select SelectKey lock Menu Select SelectInput mode Menu Select SelectRestore factory settings Menu Select Select

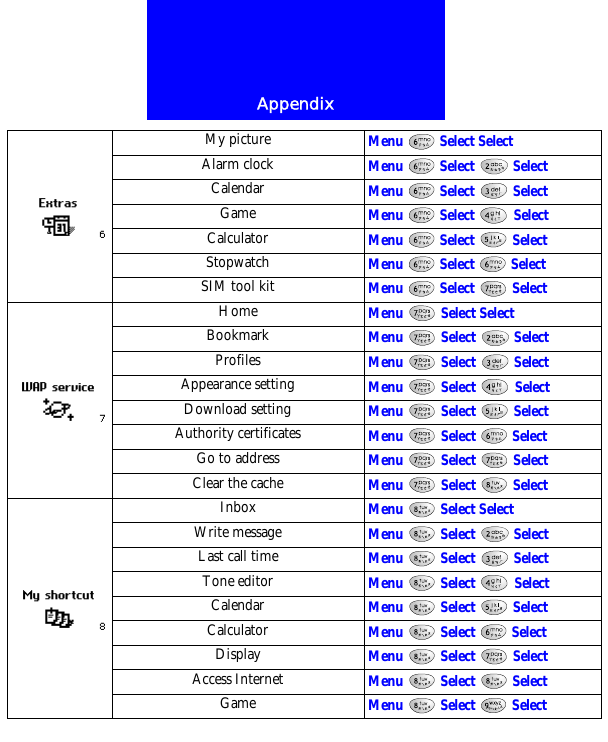

AppendixMy picture Menu Select SelectAlarm clock Menu Select SelectCalendar Menu Select SelectGame Menu Select SelectCalculator Menu Select SelectStopwatch Menu Select SelectSIM tool kit Menu Select SelectHome Menu Select SelectBookmark Menu Select SelectProfiles Menu Select SelectAppearance setting Menu Select SelectDownload setting Menu Select SelectAuthority certificates Menu Select SelectGo to address Menu Select SelectClear the cache Menu Select SelectInbox Menu Select SelectWrite message Menu Select SelectLast call time Menu Select SelectTone editor Menu Select SelectCalendar Menu Select SelectCalculator Menu Select SelectDisplay Menu Select SelectAccess Internet Menu Select SelectGame Menu Select Select
