GENERAL
R-1001/ R-2001 is a VHF high-band non-diversity system with quartz controlled
fixedfrequency design. The receiver must be combined with Chiayo's Q- and M-
series of wireless microphone.
COMPOSITION
1. MAINFRAME:R-1001/ R-2001
2. ACCESSORIES:1)ACadapter 2)antennaX 1(R-1001) /antenna X 2(R-2001)
3)Outputcable / PHONE 4)Operatingmanual
COMBINATION
1. MATCHINGWIRELESS MICROPHONE:Q- and M- series such as Q-1001 &
M-1001

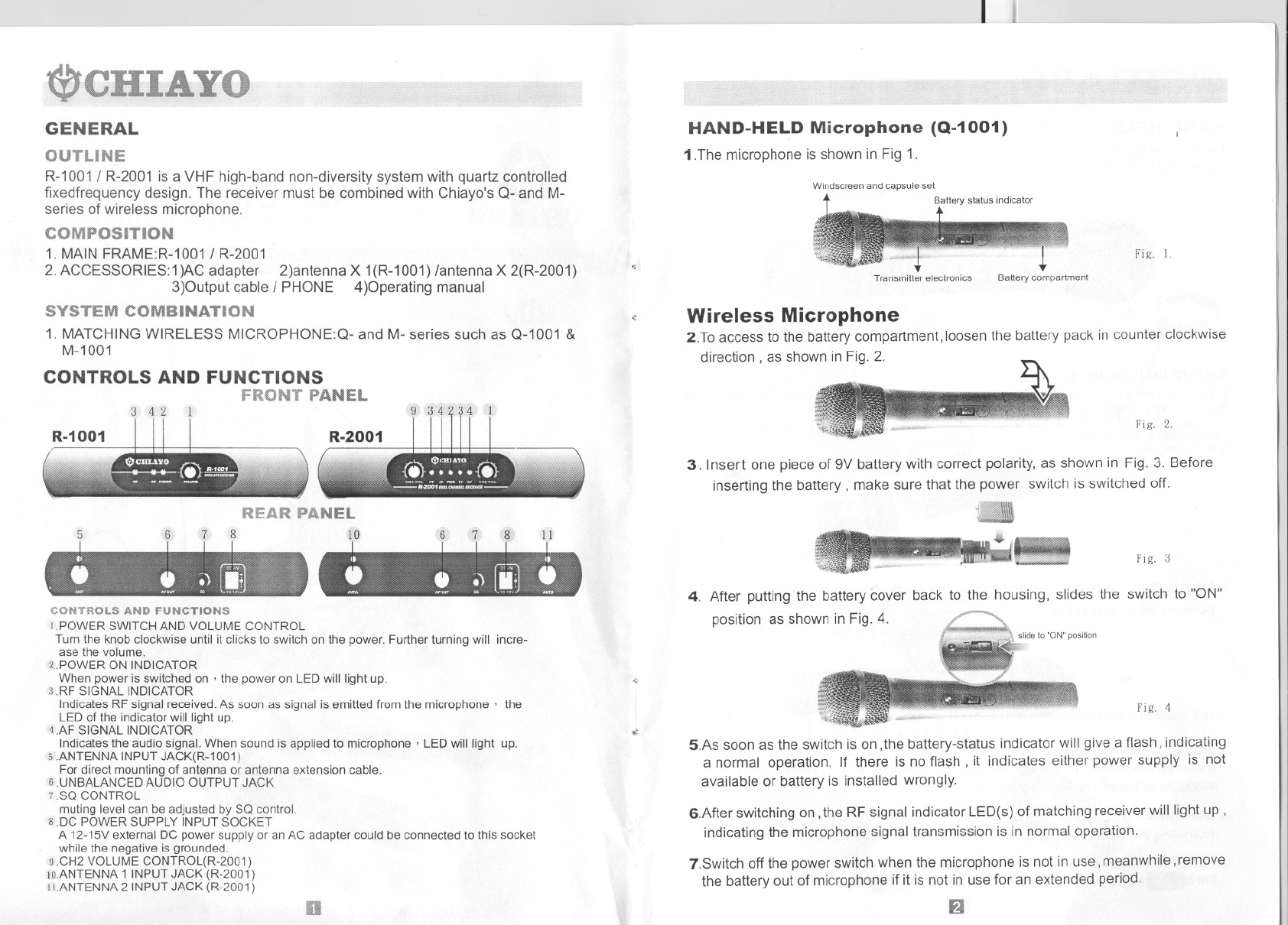

CONTROLS AND FUNCTIONS
FRONT PANEL
REAR PANEL
s
CONTROLS AND FUNCTIONS
I.POWER SWITCH AND VOLUME CONTROL
Turn the knob clockwise until it clicks to switch on the power. Further turning will incre-
ase the volume.
<..POWER ON INDICATOR
When power is switched on ' the power on LED will light up.
3 .RF SIGNAL INDICATOR
Indicates RF signal received. As soon as signal is emitted from the microphone' the
LED of the indicator will light up.
4.AF SIGNAL INDICATOR
Indicates the audio signal. When sound is applied to microphone' LED will light up.
5.ANTENNA INPUT JACK(R-1001)
For direct mounting of antenna or antenna extension cable.
6 .UNBALANCED AUDIO OUTPUT JACK
7 .SO CONTROL
muting level can be adjusted by SO control.
8 DC POWER SUPPLY INPUT SOCKET
A 12-15V external DC power supply or an AC adapter could be connected to this socket
while the negative is grounded.
9 .CH2 VOLUME CONTROL(R-2001)
to.ANTENNA 1 INPUT JACK (R-2001)
11.ANTENNA 2 INPUT JACK (R-2001)
HAND-HELD Microphone (Q-1001)
1.The microphone is shown in Fig 1.
Windscreen and capsule set
Battery status indicator
~Fig. 1.
Transmitter electronics Battery compartment
.: Wireless Microphone
2.To access to the battery compartment, loosen the battery pack in counter clockwise
direction, as shown in Fig. 2.
Fig. 2.
3. Insert one piece of 9V battery with correct polarity, as shown in Fig. 3. Before
inserting the battery, make sure that the power switch is switched off.
Fig. 3
4. After putting the battery cover back to the housing, slides the switch to "ON"
position as shown in Fig. 4.
~
Fig. 4
.:
5.As soon as the switch is on, the battery-status indicator will give a flash, indicating
a normal operation. If there is no flash, it indicates either power supply is not
available or battery is installed wrongly.
6.After switching on, the RF signal indicator LED(s) of matching receiver will light up,
indicating the microphone signal transmission is in normal operation.
7.Switch off the power switch when the microphone is not in use, meanwhile, remove
the battery out of microphone if it is not in use for an extended period.
HAND-HELD Microphone (Q-1002)
Handheld Microphone
Parts and Functions
Battery status
LED indicator
I
Battery compartment
cover
Fig.1
Metal Grille
( Capsule module inside)
Power Switch
Battery Installation
Q-802 uses 1 piece of 9V battery. To install new or replace the old battery, First unscrew the battery cap
from the battery compartment, then insert the new battery according to
its correct polarity as indicated. For longer
Operation hour, Alkaline battery
is recommended! ..,.
Fig.2
After putting the battery cover back to the housing, slides the switch to "ON"
position as shown in Fig. 3.
Fig.3
As soon as the switch is on, the battery-status indicator will give a flash, indicating
a normal operation. If there is no flash, it indicates either power supply is not
available or battery is installed wrongly.
After switching on, the RF signal indicator LED(s) of matching receiver will light up,
indicating the microphone signal transmission is in normal operation.
Switch off the power switch when the microphone is not in use, meanwhile, remove
the battery out of microphone if it is not in use for an extended period.
_J

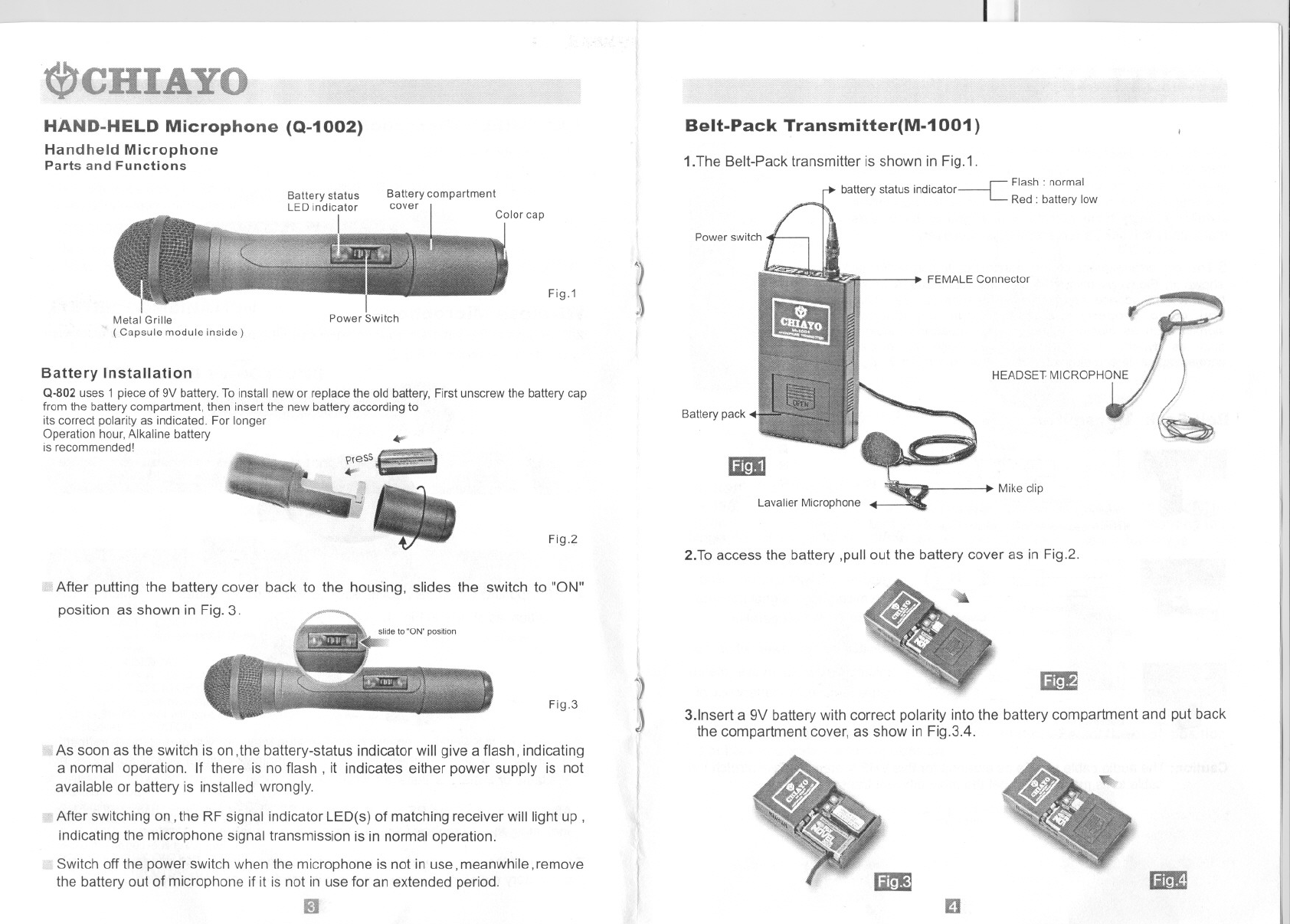

Belt-Pack Transmitter(M-1 001)
J
1.The Belt-Pack transmitter is shown in Fig.1.
b II I I .d.I-c Flash: normal
a ery s a us In Ica or Red: battery Iow
J
)
FEMALE Connector
Battery pack
ID
lavalier Microphone
Mike clip
2.To access the battery ,pull out the battery cover as in Fig.2.
I
J
Iim8
3.lnsert a 9V battery with correct polarity into the battery compartment and put back
the compartment cover, as show in Fig.3.4.
mE
m
ID
--- - 1-----------
4.Sliding the power switch of the transmitter control panel to
"ON" position, as show in Fig.?, the battery status indicator
gives a flash to indicate a normal operation. If there is no flash,
it indicates either power supply is not available or battery is
installed wrongly. If the indicator keeps lighting, it indicates
that battery is weak, a replacement is necessary.
--
Connector

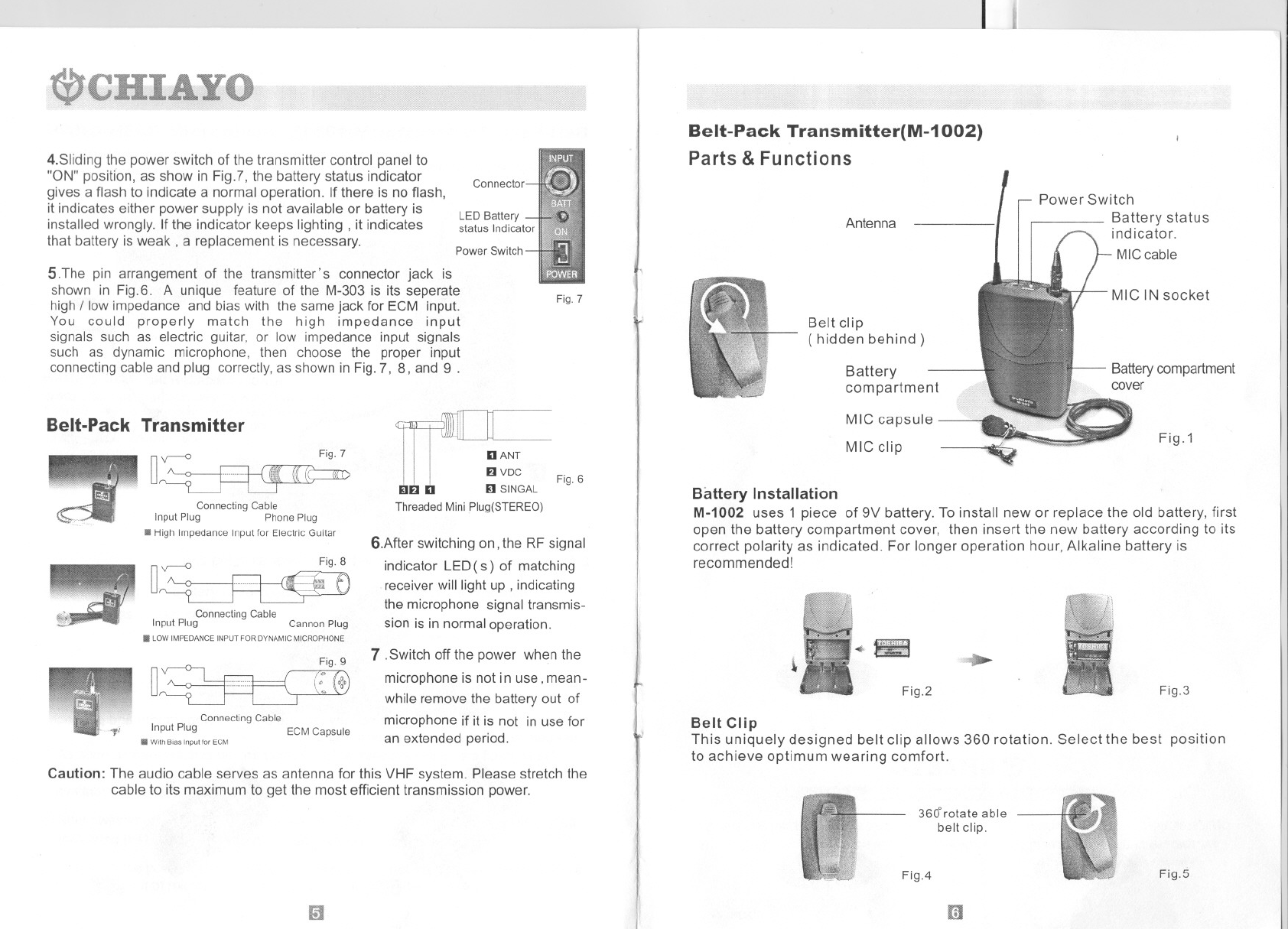

Belt-Pack Transmitter(M-1002)
Parts & Functions
Power Switch
Battery status
indicator.
MIC cable
LED Battery
status Indicator Antenna
Power Switch
5.The pin arrangement of the transmitter's connector jack is
shown in Fig.6. A unique feature of the M-303 is its seperate
high / Iow impedance and bias with the same jack for ECM input.
You could properly match the high impedance input
signals such as electric guitar, or Iow impedance input signals
such as dynamic microphone, then choose the proper input
connecting cable and plug correctly, as shown in Fig.7, 8, and 9 .
Belt-Pack Transmitter
Fig. 7
Connecting Cable
Input Plug Phone Plug
III High Impedance Input for Electric Guitar
Fig. 8
Connecting Cable
Input Plug Cannon Plug
III LOW IMPEDANCE INPUT FOR DYNAMIC MICROPHONE
u
Battery
compartment
Fig.7
Belt clip
( hidden behind)
lli lDDANT
El VDC
.. .. S,"GAC
Threaded Mini Plug(STEREO)
MIC capsule
MIC clip Fig.1
Connecting Cable
Input Plug ECM Capsule
III With Bias Input 1o. ECM
Fig. 6
Battery Installation
M-1002 uses 1 piece of 9V battery. To install new or replace the old battery, first
open the battery compartment cover, then insert the new battery according to its
correct polarity as indicated. For longer operation hour, Alkaline battery is
recommended!
6.After switching on, the RF signal
indicator LED( s) of matching
receiver will light up , indicating
the microphone signal transmis-
sion is in normal operation.
Fig.3
7 .Switch off the power when the
microphone is not in use, mean-
while remove the battery out of
microphone if it is not in use for
an extended period.
.!Ill
~
Fig.2
Belt Clip
This uniquely designed belt clip allows 360 rotation. Select the best position
to achieve optimum wearing comfort.
Caution: The audio cable serves as antenna for this VHF system. Please stretch the
cable to its maximum to get the most efficient transmission power.
m
3600 rotate able
belteljp.
Fig.5
Fig.4
