Chiayo Electronics Co Q-1002 Wireless microphone transmitter User Manual rev01

user manual rev01

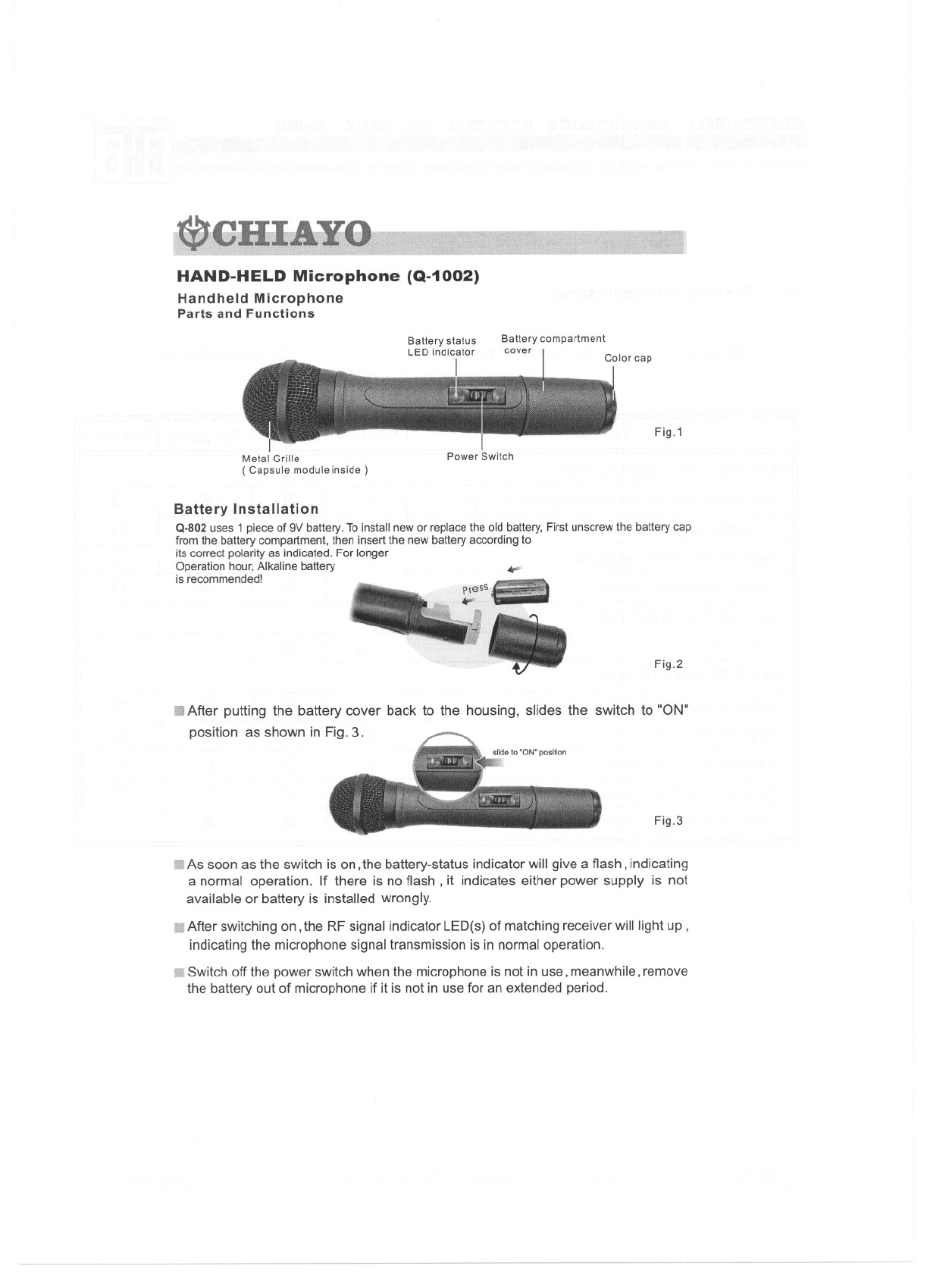

HAND-HELD Microphone (Q-1002)

Handheld Microphone

Parts and Functions

Battery status

LED indicator

Battery compartment

cover

Fig.1

Metal Grille

( Capsule module inside)

Power Switch

Battery Installation

Q-802 uses 1 piece of 9V battery. To install new or replace the old battery, First unscrew the battery cap

from the battery compartment, then insert the new battery according to

its correct polarity as indicated. For longer

Operation hour, Alkaline battery

is recommended! ~

Fig.2

III After putting the battery cover back to the housing, slides the switch to "ON"

position as shown in Fig. 3.

Fig.3

As soon as the switch is on, the battery-status indicator will give a flash, indicating

a normal operation. If there is no flash, it indicates either power supply is not

available or battery is installed wrongly.

III After switching on, the RF signal indicator LED(s) of matching receiver will light up,

indicating the microphone signal transmission is in normal operation.

Switch off the power switch when the microphone is not in use, meanwhile, remove

the battery out of microphone if it is not in use for an extended period.
