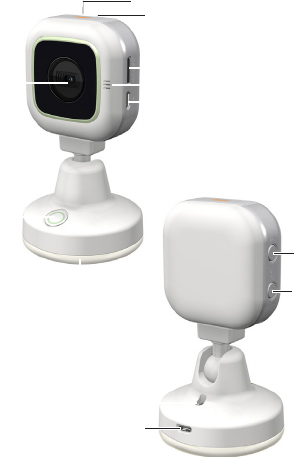

Names of Parts
Status Indicator
microSD Card Slot
Lens
Night Light
Button
Temperature Sensor
Micro USB Port
Night Light
Micro USB Port
Speaker
WPS
Button
Power/Mode
Button
Microphone
2 | English
1. Insert a microSD Card (suggested class 10, up to 64GB)
For initial use, mobile needs to:
1. Connects to internet (via WiFi, 3G/4G).
2. Download and install App [Unieye Care] from
Google Play Store or Apple App Store.
Getting Started
2.

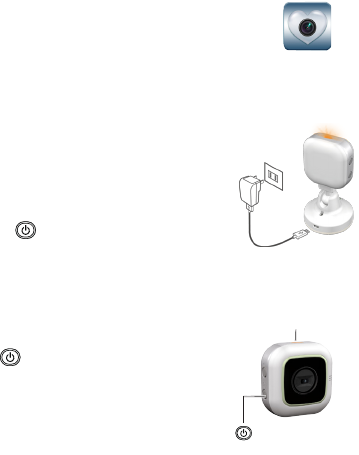

Power on: Plug a USB power cable into one of
• PC USB port
• USB output adapter
Unieye Care
3. Power off:
Press for 2 seconds to turn off camera.
M
obile connects to smart WiFi baby monitor directly via App
[Unieye
Care]
for remote control,
live view, lullaby playback, Night Light
control
a
nd receives push alerts when events are detected.
Modes Switch in Camera
Camera status indicator shows current funciton.
Press to switch.
•
Steady orange for direct control
•
Steady green for Internet control
Power/Mode
Camera needs to:
Status Indicator
| 3
English
Wireless & App Operation

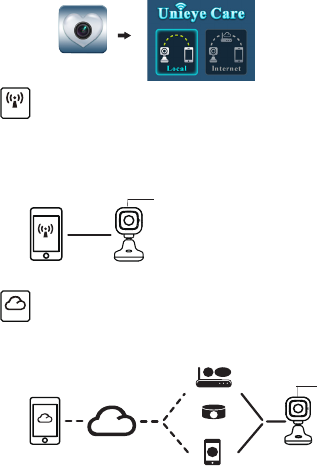

Run App [Unieye Care] on mobile and navigate either one of functions:
(I) Local - Direct control (II) Internet - Internet control
Unieye Care
【Local】
(I)
Local
Internet
【Internet】
(II)
Local
Internet
Mobile Camera
Local
Status: Orange
Unieye
Server
AP
3G/4G Mobile Hotspot
Wireless Router
AP WPS
Camera
3G/4G Mobile
Wireless Router
AP
Mobile
Internet
Status: Green
Mobile directly connects to camera via WiFi for remote control,
live view, lullaby playback, night light control, camera setup,
and receives push notication when noise and motion events are
detected.
Mobile connects to camera via internet to accomplish the same
features as in [Local] function, and links to partner's camera to
enjoy the instant live sharing.
4 | English

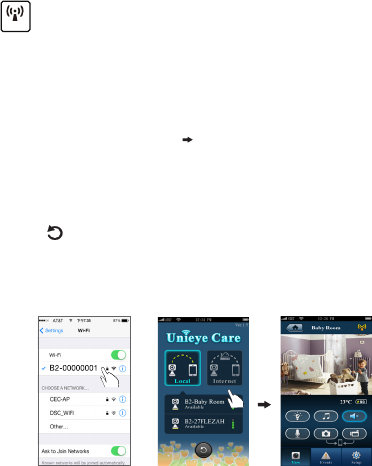

Mobile Connects to Camera
1. F
or Android: Turn on [Wi-Fi].
For iOS: Go to [Settings] [Wi-Fi].
Turn on [Wi-Fi] and select the camera name.
2. Run [Unieye Care].
3. Tap【Local】and select the camera to enter View Page.
Tap [ ] to scan again if camera is not found.
Note:
For rst use, password is not required. User can set camera
password in Setup Page.
【Local】Function
iOS Settings
Local
Internet
Before using mobile App's【Local】function, ensure mobile WiFi
been on and camera status indicator shows steady orange.
Local View Page
Local Main Page
| 5
English

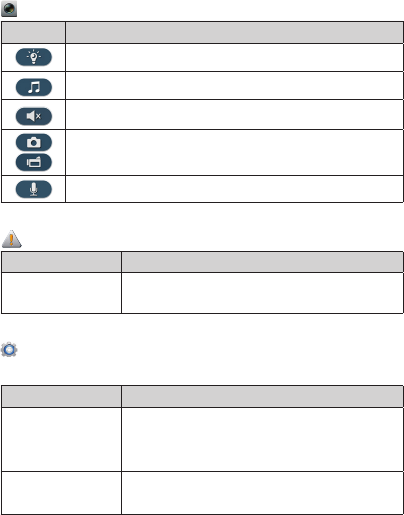

Items Descriptions
Adjust brightness level of night light.
Play lullaby.
Mute the sound from camera.
Shoot videos or take photos and saved les into
mobile "Album\Unieye Care
\".
Talk to camera from mobile.
Groups Descriptions
Camera Settings
Edit name, password. Format SD card.
Adjust night vision, noise detection, motion
detection, etc.
Internet Settings Edit Email and AP for【Internet】function.
View Page
Events Page (for camera)
4.【Local】function has three function pages: View, Album and Setup.
In [Setup] Page, tap [Save] to complete settings to camera.
Items Descriptions
Camera Videos View or delete video les recorded and saved in
camera during motion and noise detection.
Setup Page (for camera)
6 | English

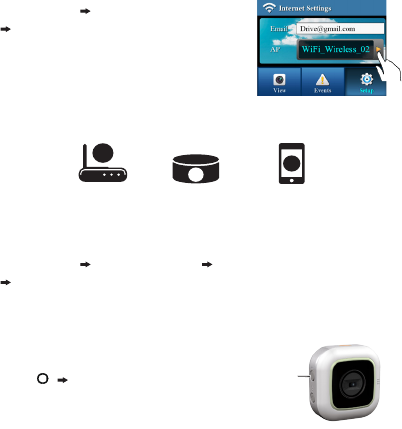

1. Go to [Setup] [ Internet Settings]
Edit Email and AP
2.
Tap [Save] to complete Email & AP settings.
Camera Internet Setup
Note: AP(Access Point) can be
• Wireless Router or
• 3G/4G Mobile Wireless Router or
• 3G/4G Mobile Hotspot
AP
AP
AP
Wireless Router
AP
AP
AP
3G/4G Mobile
Wireless Router
AP
AP
AP
3G/4G
Mobile Hotspot
(I) AP without WPS
(II) WPS Wireless Router
Before using internet, Internet Settings must be properly setup. Camera
has two different procedures to complete Internet Settings:
(I) AP without WPS
(II) WPS wireless router
1. Setup Mobile App
Go to [Setup] [ Internet Settings] Edit Email
Tap [Save] to complete Email settings.
2. Setup Router
Press WPS button of WPS wireless router.
3. Setup Camera
Press
WPS
Status indicator shows steady
green when connects【Internet】function
successfully.
WPS
Button
| 7
English
Remote Control Functions
【
Internet
】function has two function pages: View and Setup.
【Internet】Function
Local
Internet
A camera can setup【Internet】Function by 2 methods:
(I) Setup Wizard (II) Others

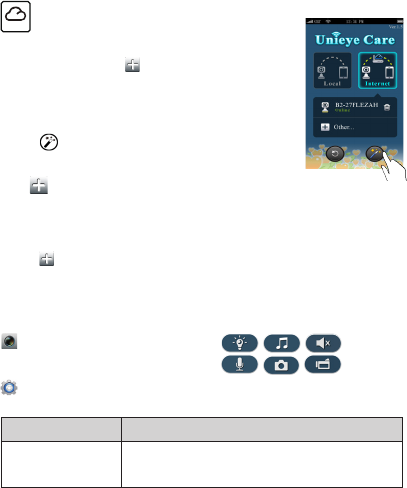

1. Run [Unieye Care] and tap【Internet】.
2. Tap Others in list. Enter camera ID and password.
(I) Setup Wizard
1. Run [Unieye Care] and tap【Internet】.
2. Tap
and follow the instructions to view internet
live videos.
(II) Others
Before adding a congured camera or using another mobile, ensure the
camera is in 【Internet】function and status indicator shows steady green.
Intenet Main Page
View Page: Same as the 6 features
in【Local】function.
Groups Descriptions
Camera Settings Adjust night vision, noise detection, motion
detection, rmware upgrade, etc.
In [Setup] Page, tap [Save] to complete settings to camera
.
Setup Page (for camera)
Push Notication
When camera is in【Internet】function and events are detected, Push
Notication and Email will be sent to mobile and events clips to be
saved to SD card.
8 | English
Micro USB Port
Transfer Files to PC
1. Use Micro USB cable to connect camera to PC.
2. Find videos at "My computer\Removable Disk\".
3. Copy, move, delete, or playback videos on PC.

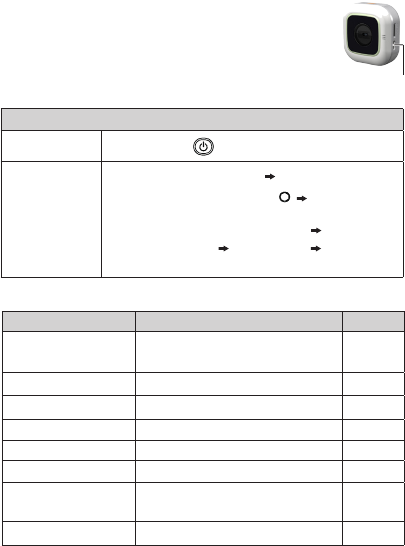

Condition Status Indicator Beep
Power On Flash in orange for few seconds,
then turn to steady orange 1 time
Mass Storage Mode Steady red N/A
【Local】function Steady orange N/A
【Internet】function Steady green N/A
Power Off No indication 1 time
Low Battery No change 2 times
Fail connect to
【Internet】
Flash in green for few seconds,
then turn to orange N/A
Factory Reset No change 3 times
Camera Hotkey
Forced Shutdown
Press and hold for 5 seconds to turn off camera.
Forced
Factory
Settings
• Camera: Power on camera Press and hold
Night Light button and press
WPS
Alert beep
tones to complete the default settings.
• Mobile:
Go to App [Unieye Care]
Connect
【Local】function [Setup] page Reset
factory settings.
Camera Indication
Camera Hotkey
| 9
English
Situation Cause/Solution
Camera cannot turn on Power is low. Recharge battery
Camera is frozen Press and hold for 5 seconds to force
turn off; press again to power on
Camera cannot record
•
No microSD card or microSD card is full
•
microSD card cannot be recognized
•
Format microSD card in [Unieye Care] or
replace microSD card
Camera cannot
connect to AP or could
server
• Invalid AP name or password
• Weak WiFi signal or not in WiFi coverage
• No internet or cloud server is not accessible
• Blocked by some rewall
Mobile cannot nd
Camera
• Camera not in WiFi coverage
• Mobile WiFi is disabled
• iOS user does not choose camera name in
Wi-Fi Settings
• Tap [ ] on [Unieye Care]
Mobile cannot watch
live view • Weak WiFi signal
• Camera is occupied by other mobile
Mobile cannot connect
to cloud server
• Check mobile 3G/4G or WiFi internet
connection
• Blocked by some rewall
Mobile cannot watch
live view The internet bandwidth is insufcient for
camera upload or mobile download
Forget Camera
password
Press and hold Night Light button and press
WPS
to reset
Troubleshooting
【Internet】
【Internet】
【Local】
【Local】
