Chuango Security Technology D102 Door/Window Contact User Manual 1

Chuango Security Technology Corporation Door/Window Contact 1

Users Manual

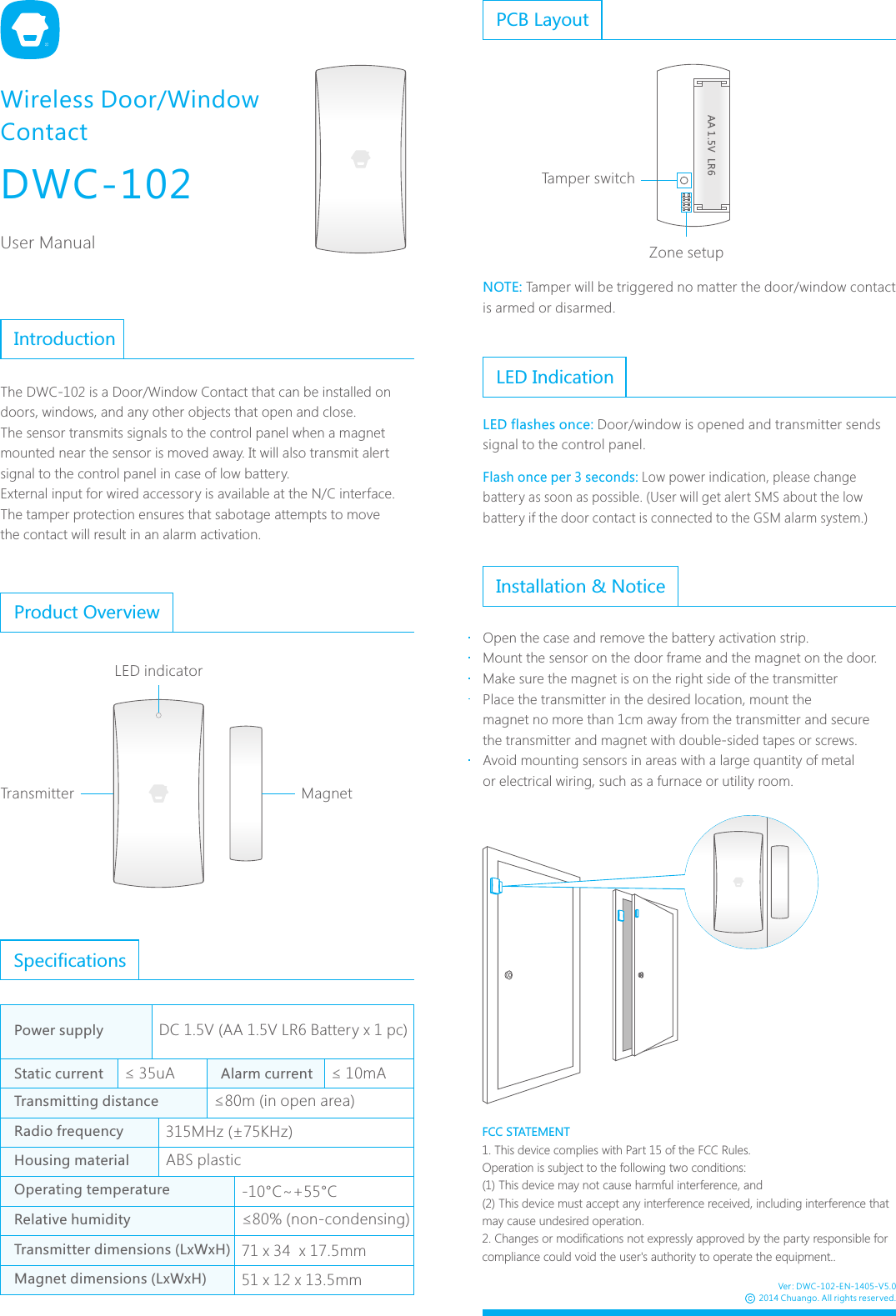

DWC-102User ManualWireless Door/Window ContactPCB LayoutTamper switchZone setupInstallation & NoticeOpen the case and remove the battery activation strip.Mount the sensor on the door frame and the magnet on the door. Make sure the magnet is on the right side of the transmitterPlace the transmitter in the desired location, mount the magnet no more than 1cm away from the transmitter and secure the transmitter and magnet with double-sided tapes or screws. Avoid mounting sensors in areas with a large quantity of metal or electrical wiring, such as a furnace or utility room.The DWC-102 is a Door/Window Contact that can be installed on doors, windows, and any other objects that open and close. The sensor transmits signals to the control panel when a magnet mounted near the sensor is moved away. It will also transmit alert signal to the control panel in case of low battery.External input for wired accessory is available at the N/C interface.The tamper protection ensures that sabotage attempts to movethe contact will result in an alarm activation.IntroductionProduct OverviewTransmitter MagnetLED indicatorSpecifications-10°C~+55°C71 x 34  x 17.5mm51 x 12 x 13.5mmDC 1.5V (AA 1.5V LR6 Battery x 1 pc)315MHz (±75KHz) ≤ 35uA ≤ 10mAPower supplyStatic current Alarm currentTransmitting distanceRadio frequencyHousing material ABS plasticOperating temperatureTransmitter dimensions (LxWxH)Magnet dimensions (LxWxH)Relative humidity ≤80% (non-condensing)≤80m (in open area)AA 1.5V  LR6LED IndicationLED flashes once: Door/window is opened and transmitter sends signal to the control panel. Flash once per 3 seconds: Low power indication, please change battery as soon as possible. (User will get alert SMS about the low battery if the door contact is connected to the GSM alarm system.) Ver: DWC-102-EN-1405-V5.02014 Chuango. All rights reserved.NOTE: Tamper will be triggered no matter the door/window contact is armed or disarmed.FCC STATEMENT1. This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and(2) This device must accept any interference received, including interference that may cause undesired operation.2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment..
