Chuango Security Technology KP20 KP-20 Security Keypad User Manual
Chuango Security Technology Corporation KP-20 Security Keypad
User Manual
KP-20
Security Keypad
USER MANUAL
EN DE ESFR PTNL IT
© 2017 SMANOS HOLDING LTD. All Rights Reserved. Ver: KP-20-UM-ML-V1.0
Printed in China
FCC STATEMENT
1. This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
2. Changes or modications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital, pursuant to Part 15 or the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not in stalled and used in
accordance with the instructions, may casue harmful interference
to radio communications, However, there is no guarantee
that interference will not occur in a particular installation. If
the equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
--- Reorient or relocate the receiving antenna.
--- Increase the separation between the equipment and receiver.
--- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
--- Consult the dealer or an experienced radio/ TV technician for
help.
Industry Canada Notice
This device complies with Industry Canada licence-exempt RSS
standard(s).
1. Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including
interferencethat may cause undesired operation of the device."
2.Changes or modications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
Avis d'Industrie Canada
Le présent appareil est conforme aux CNR d'Industrie Canada applicables
aux appareils radio exempts de licence. L'exploitation est autorisée
aux deux conditions suivantes : (1) l'appareil ne doit pas produire
de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage est susceptible
d'en compromettre le fonctionnement. Cet appareil numérique ne dé
passe pas les Rèlements sur l'interférence radio par un appareil num
érique de classe B stipulées dans les Règlement sur l'interférence
redio d'industrie Canada.
Introduction
This KP-20 Security Keypad is a wireless device with four non-
numeric keys that can be used to Arm, Disarm or Home Arm K1
system .
Pairing to the K1 Hub
This Keypad needs to be paired (other than the KP-20 that is
included with the K1 System Kit) to the K1 Hub rst before use. To
pair the Keypad, please refer to the K1 Hub’s user manual or in
the K1 section of the smanos home app, press the "+" button and
follow the instructions on the Accessories page.
Product Overview

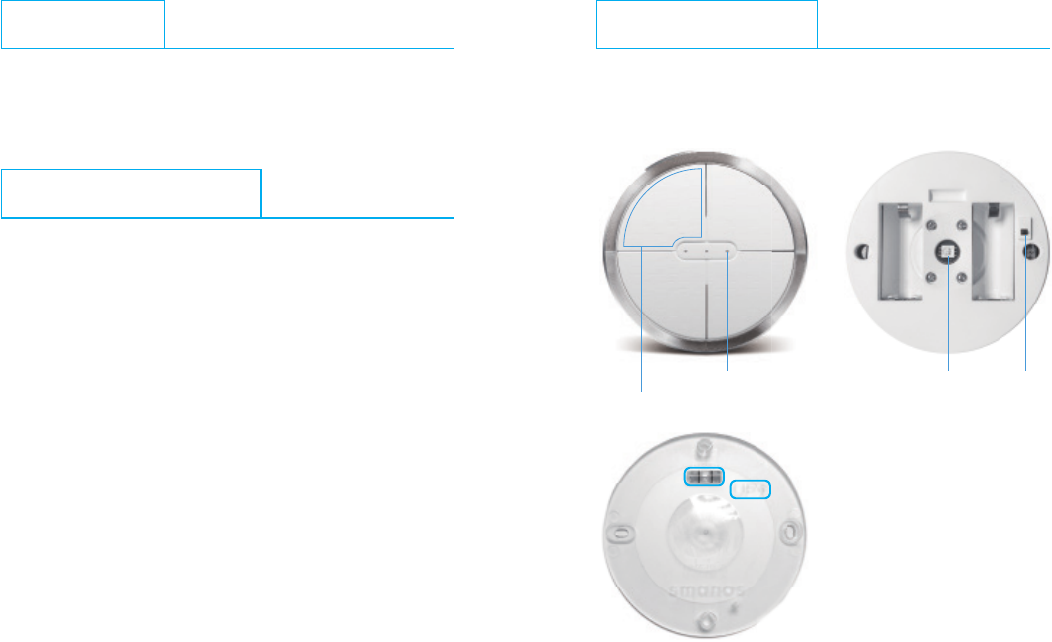

Front View Rear View

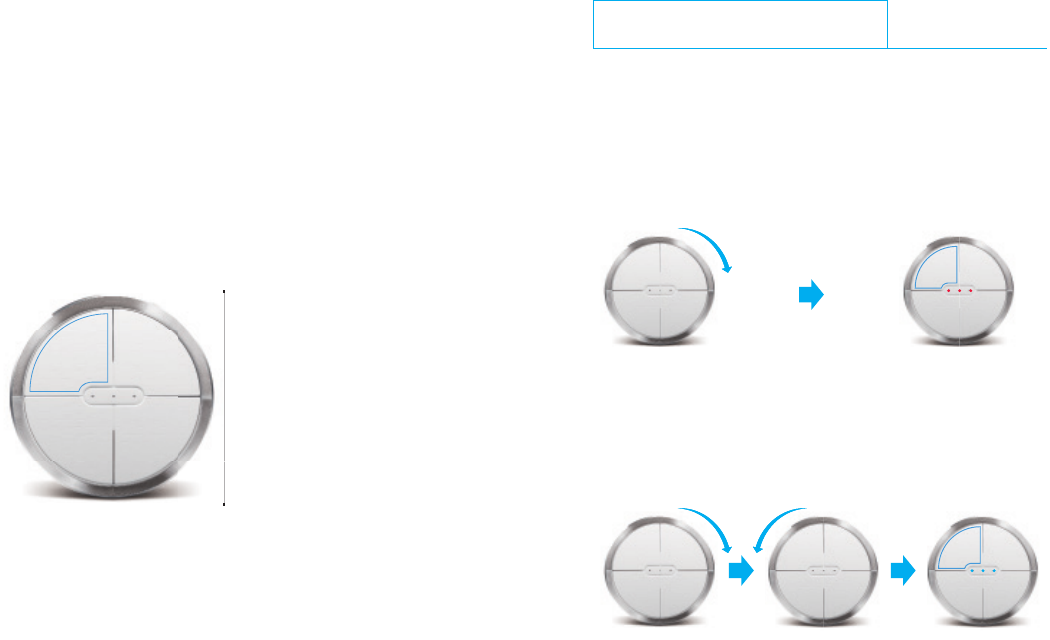

Rotatable Keypad Ring
;6ɑ
;6ɑ
Four Non-numeric Keys *
;6ɑ
;6ɑ
Back Cover (Mounting Base)
LED Indicators Tampering
Switch
LED
Indicator
LED Indication
Steady Red: System Armed
Steady Blue: System in Home Mode
Steady Green: System Disarmed
Blink once every 3 seconds: Low battery, please change the battery.
Tamper Switch
Anti-tampering protection ensures that any attempts to move the
Keypad off the Back Cover results in an alarm and push notication.
Non-numeric Keys
Non-numeric Keys are used to set the password for changing the
status of K1 system. The default password is shown as below and
can be changed in app.
;6ɑ
;6ɑ
Press the key at the left top 6 times
How to Use After Pairing
Make sure the UP mark on the Back Cover points up before putting
the Keypad on a at surface.
Arm
Rotate the Keypad Ring to the right, and then enter the Keypad
password (if you have not changed the default password, Press the
left top key 6 times). The indicators will turn to Red.
Home Mode
Rotate the Keypad Ring to the right rst, then to the left, and then
enter the Keypad password (if you have not changed the default
password, Press the left top key 6 times). The indicators will turn to
Blue.
Disarm
Rotate the Keypad Ring to the left, and then enter the Keypad
password (if you have not changed the default password, Press the
left top key 6 times). The indicators will turn to Green.
Installation

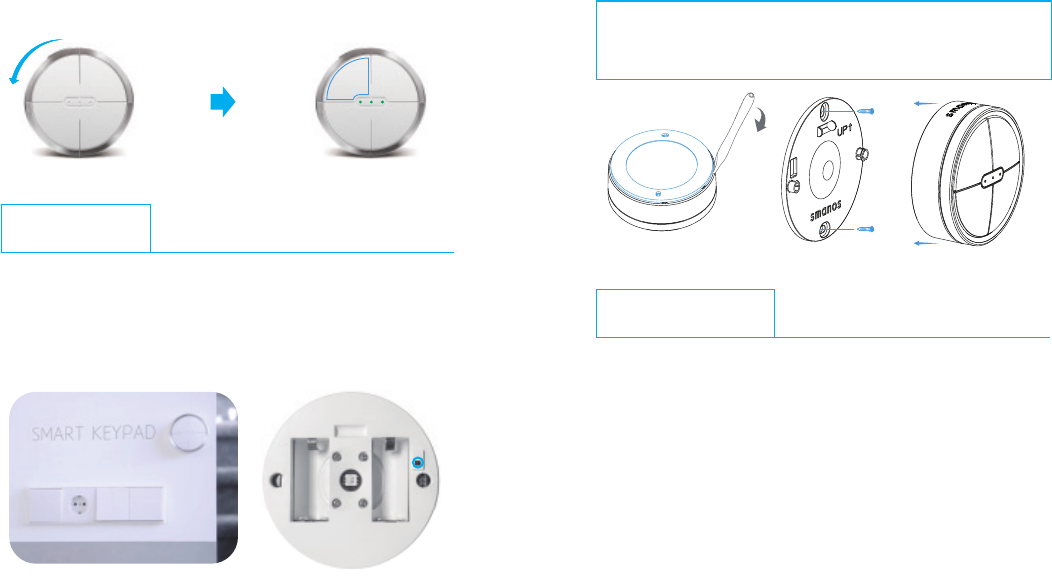

Place the Keypad near the
entrance of your home that is
convenient for you to control
the system on your way out/in.
Set the K1 system to Test
Mode, and then trigger the
Keypad by pressing the
Tampering Switch on the back
of the Keypad
;6ɑ
;6ɑ
The K1 Hub will sound 3 beeps to confirm the connection and
range with K1 Hub is good.
Start to install the Keypad with by supplied double-sided tape or
screws.
Notice: Removing the Back Cover off of the KP-20 will result in
an alarm; you can disarm the alarm and continue the installation.
Specications
Model: KP-20
Power: 3V CR123A li-Mn battery x 2 pcs
Frequency: 868MHz/EU or 915MHz/Americas (±75KHz)
Wireless range: ≤ 80 m (in open area)
Operating conditions:
0-50°C / 32° - 122°F, humidity < 90% RH (non-condensing)
Dimensions (L x W x H): 80 x 80 x 35.5mm / 3.15" x 3.15" x 1.34"
Frequency: 915MHz (±75KHz)
