Chuango Security Technology MD20 MD-20 Pet Friendly Motion Sensor User Manual
Chuango Security Technology Corporation MD-20 Pet Friendly Motion Sensor
User Manual
MD-20
Pet-Friendly Motion Sensor
USER MANUAL
EN DE ESFR PTNL IT
© 2017 SMANOS HOLDING LTD. All Rights Reserved. Ver: MD-20-UM-ML-V1.0
Printed in China
FCC STATEMENT
1. This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
2. Changes or modications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital, pursuant to Part 15 or the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not in stalled and used in
accordance with the instructions, may casue harmful interference
to radio communications, However, there is no guarantee
that interference will not occur in a particular installation. If
the equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
--- Reorient or relocate the receiving antenna.
--- Increase the separation between the equipment and receiver.
--- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
--- Consult the dealer or an experienced radio/ TV technician for
help.
Industry Canada Notice
This device complies with Industry Canada licence-exempt RSS
standard(s).
1. Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including
interferencethat may cause undesired operation of the device."
2.Changes or modications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
Avis d'Industrie Canada
Le présent appareil est conforme aux CNR d'Industrie Canada applicables
aux appareils radio exempts de licence. L'exploitation est autorisée
aux deux conditions suivantes : (1) l'appareil ne doit pas produire
de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage est susceptible
d'en compromettre le fonctionnement. Cet appareil numérique ne dé
passe pas les Rèlements sur l'interférence radio par un appareil num
érique de classe B stipulées dans les Règlement sur l'interférence
redio d'industrie Canada.
Introduction
The MD-20 Pet-Friendly Motion Sensor is a sensor that detects
suspicious motion while ignoring motion from your pets under
50 lbs / 23 kg. The sensor is suitable for homes & small business/
ofces. The most common placements are in livingrooms, lobbies,
hallways & garages to name a few. The detection range is between
0 & 9m/0-29' straight ahead. Please keep this in mind when placing
keeping in mind windows where unwanted, outside activity can be
easily picked up. Also, movement of window coverings should be
considered as shadows can be perceived as movement from tress
blowing in the wind.
Pairing to the K1 Hub
This Motion Sensor needs to be paired (other than the MD-20 that
is included with the K1 System Kit) to the K1 Hub rst before use.
To pair the sensor, please refer to the K1 Hub’s user manual or in
the K1 section of the smanos home app, press the "+" button and
follow the instructions on the Accessories page to easily add your
smanos MD-20 Pet Immune Motion Detector.

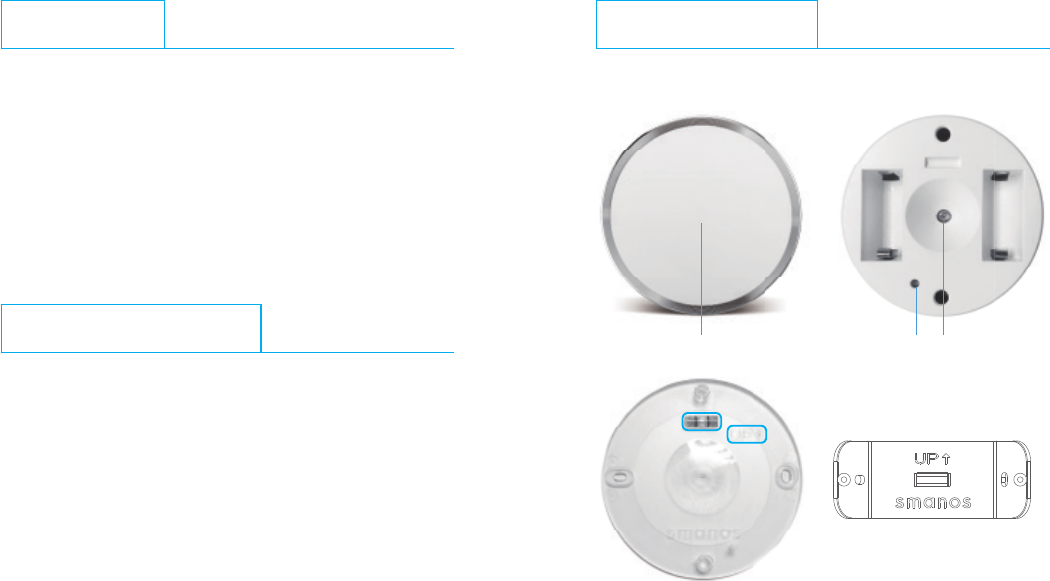

Product Overview
Front View Rear View
;6ɑ
2m
N N
2m
N
N N N
90°
Detection Window Tamper Switch LED Indicator
;6ɑ
2m
N N
2m
N
N N N
90°
Back Cover
(Wall Mounting Base)
Corner Mounting Bracket
LED Indicator
Blinks once: Motion detected.
Blinks once per 3 seconds: Low battery, please change the batteries.
Tamper Switch
Anti-tamper protection ensures that any attempts to remove
the battery cover /mounting plate results in an alarm and push
notication and possible email if selected.

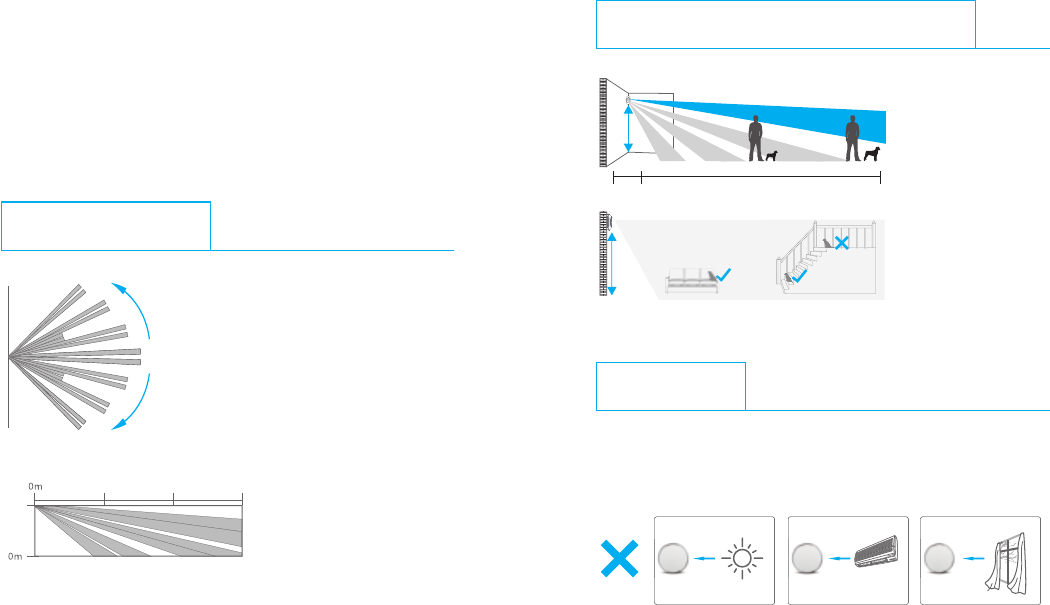

Detection Range
;6ɑ
2m
N N
2m
N
N N N
90°
Pet-Immune Function Illustration
;6ɑ
2m
N N
2m
N
N N N
90°

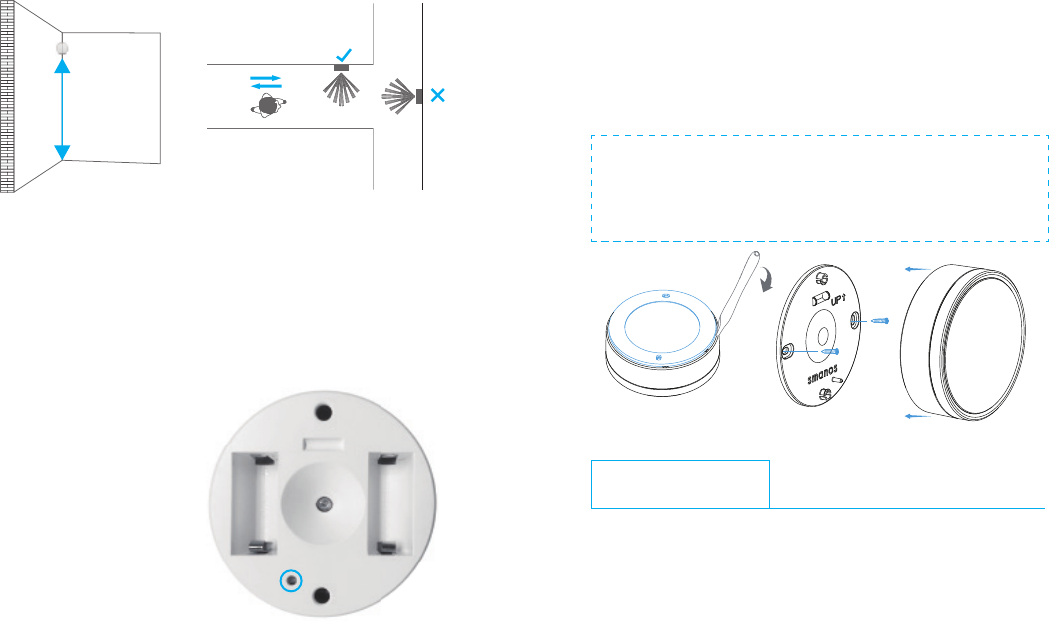

Installation
Installation Notices
An optimum mounting placement will increase the effectiveness of
this Motion Sensor and reduce false alarms.
ON
2-2.2 m
(6.6’-7.3’)
Facing
direct sunlight
Near air
conditioning /
heat sources
Facing swimming
object
Top view
Side view
ON
2-2.2 m
(6.6’-7.3’)
Mounted on wall or
corner at a height of 2-2.2
meters (6.6'-7.3') from the
oor.
The best installation placement
is when the MD-20 is facing
90°to the walking direction
or pathway of any would-be
intruders.
Test
Set the K1 system to T
est
Mode (from the K1, within
the smanos home app),
and then trigger the Motion
Sensor by pressing the
tampering switch on the
back of the sensor (MD-
20 mounting plate must be
removed), the K1 Hub will
sound 3 beeps to conrm
the connection and range
with K1 Hub is good.
Mounting
Important: Make sure the UP mark on the Back Cover is pointing up
before mounting the MD-20 on a at surface. Once level, mount
the mounting bracket to the wall using either the double face take
or the mounting screws with mollys, both of which are included in
the package.
Notice: Removing the Back Cover will result in an alarm; you
can disarm the alarm with the KP-20 or through your K1 app
in the smanos home and then continue the installation in peace
& quiet.
Specications
Model: MD-20
Power: 3V CR123A Li-Mn battery x 2 pcs
Frequency: 915MHz
Wireless range: ≤ 80 m (in open area)
Operating conditions:
0-50°C/ 32° - 122°F, humidity < 90% RH (non-condensing)
Dimensions (L x W x H): 85 x 85 x 36mm / 3.35" x 3.35" x 1.42"
