Chuango Security Technology P70 HD Wi-Fi Camera User Manual

Chuango Security Technology Corporation HD Wi-Fi Camera Users Manual

Users Manual

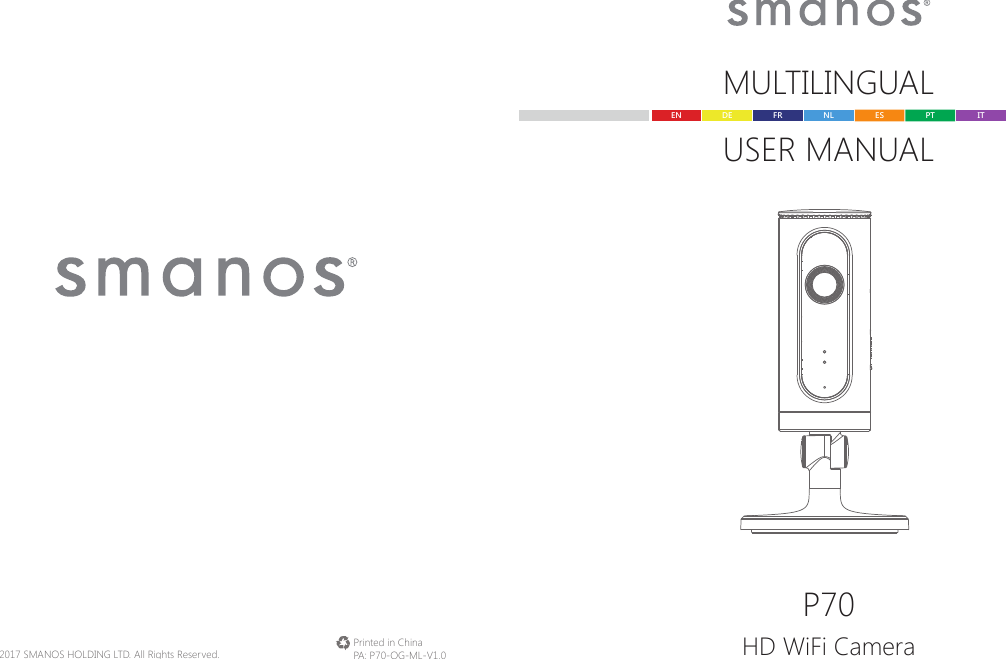

Printed in ChinaPA: P70-QG-ML-V1.0© 2017 SMANOS HOLDING LTD. All Rights Reserved. P70HD WiFi CameraMULTILINGUALUSER MANUALEN DE ESFR PTNL IT

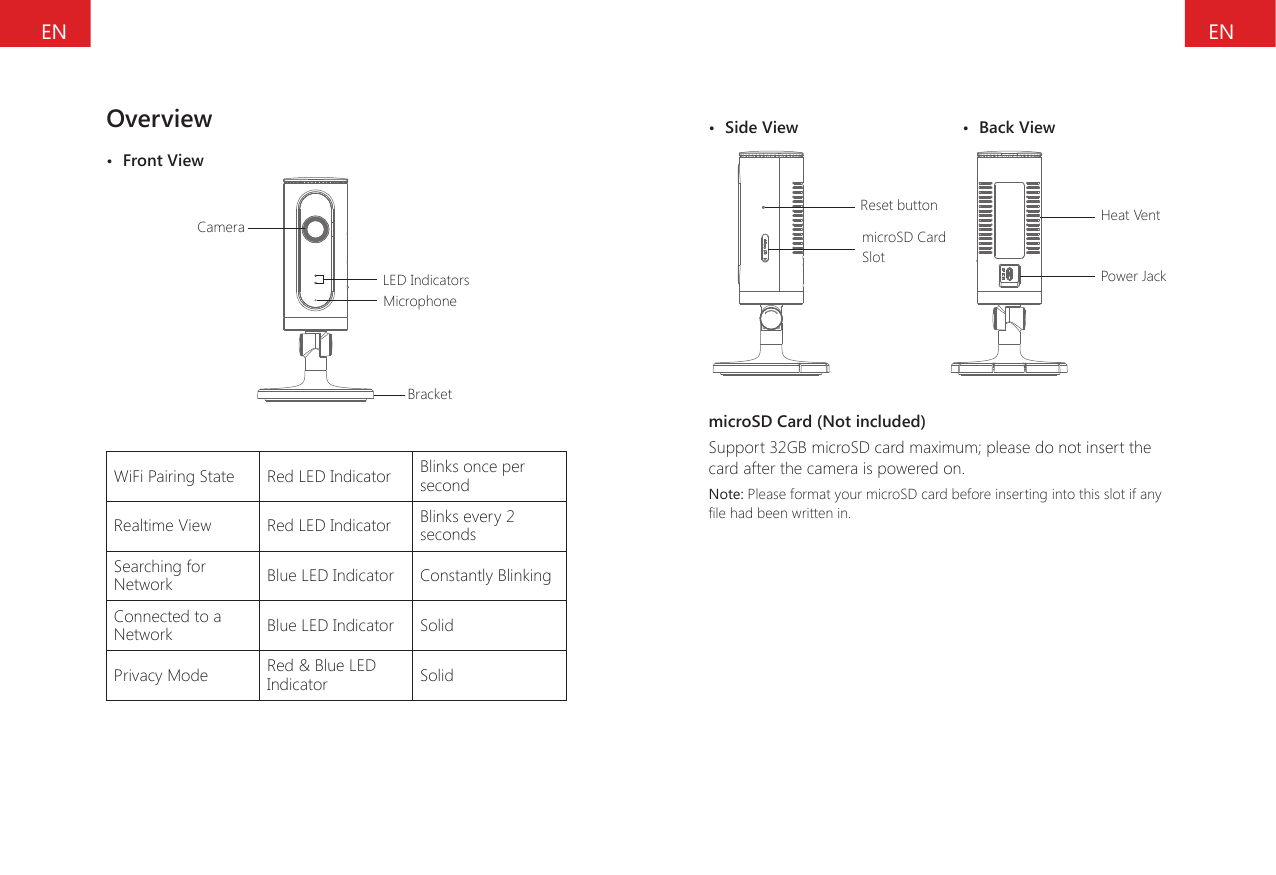

ENENOverview• Front ViewLED IndicatorsCameraMicrophoneBracketWiFi Pairing State Red LED Indicator Blinks once per secondRealtime View Red LED Indicator Blinks every 2 secondsSearching for Network Blue LED Indicator Constantly BlinkingConnected to a Network Blue LED Indicator SolidPrivacy Mode Red & Blue LED Indicator Solid• Side View • Back ViewReset buttonmicroSD Card SlotHeat VentPower JackmicroSD Card (Not included)Support 32GB microSD card maximum; please do not insert the card after the camera is powered on.Note: Please format your microSD card before inserting into this slot if any le had been written in.

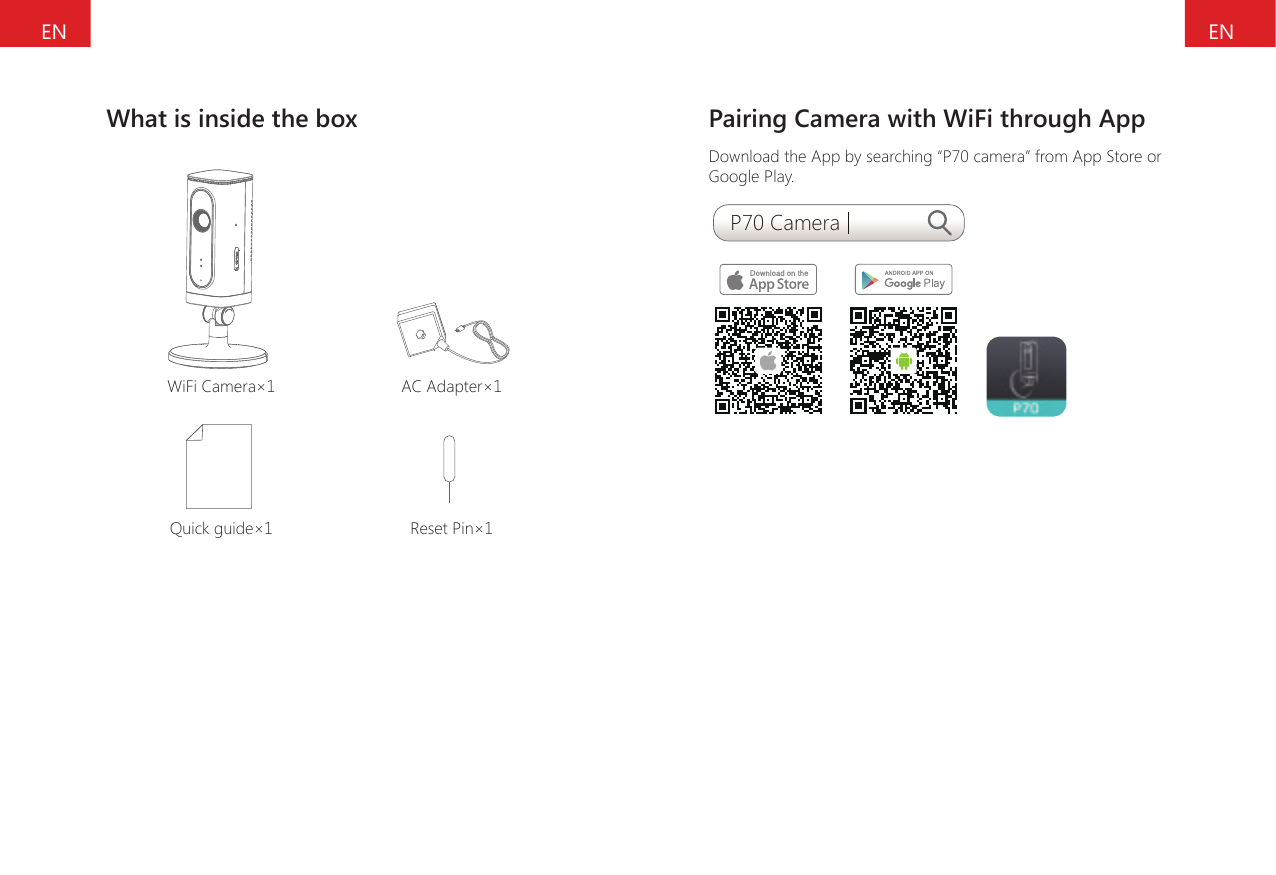

ENENWhat is inside the boxWiFi Camera×1 AC Adapter×1Quick guide×1 Reset Pin×1Pairing Camera with WiFi through AppDownload the App by searching “P70 camera” from App Store or Google Play.P70 Camera

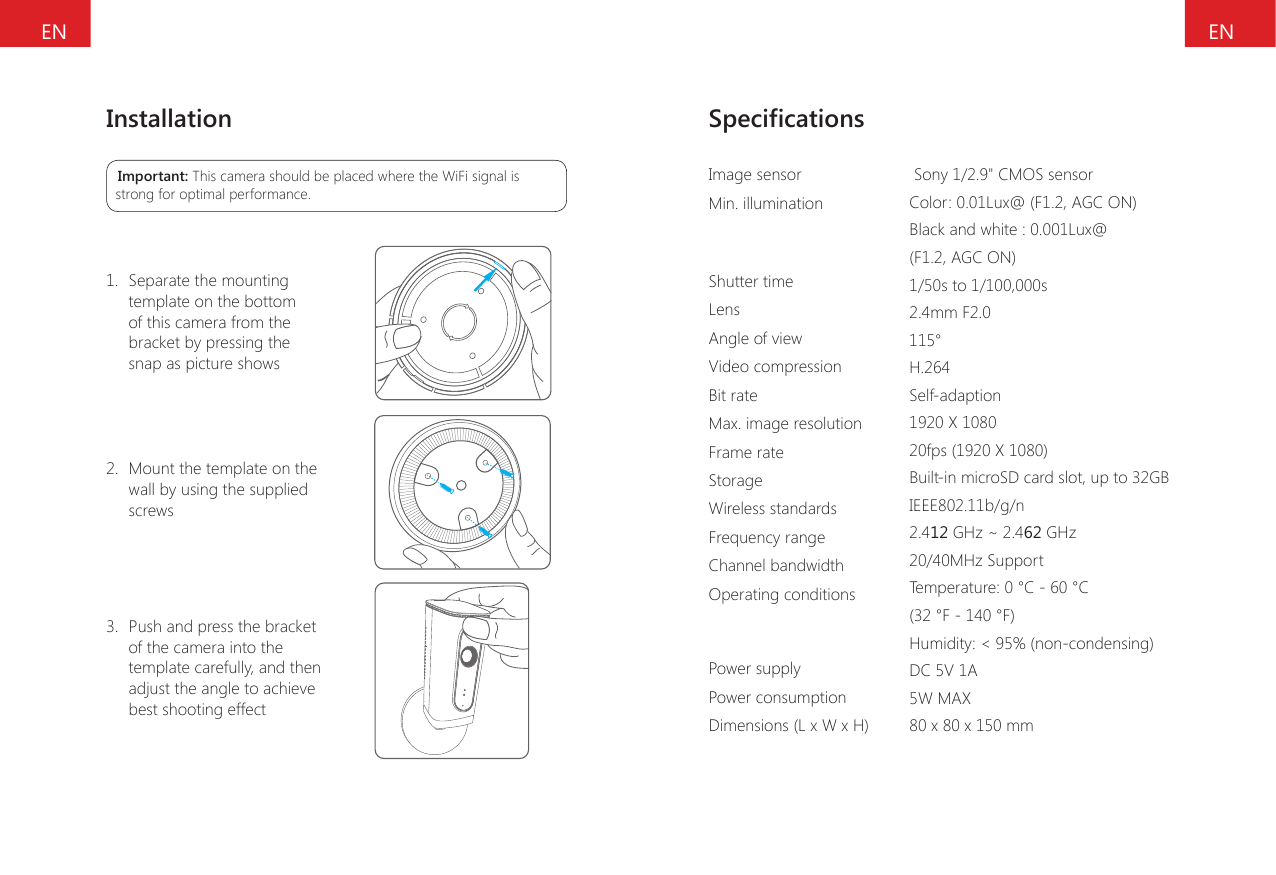

ENENInstallationImportant: This camera should be placed where the WiFi signal is strong for optimal performance.1. Separate the mountingtemplate on the bottomof this camera from thebracket by pressing thesnap as picture shows2. Mount the template on thewall by using the suppliedscrews3. Push and press the bracketof the camera into the template carefully, and then adjust the angle to achieve best shooting effectSpecicationsImage sensorMin. illuminationShutter timeLensAngle of viewVideo compressionBit rateMax. image resolutionFrame rateStorageWireless standardsFrequency rangeChannel bandwidthOperating conditionsPower supplyPower consumptionDimensions (L x W x H) Sony 1/2.9" CMOS sensorColor: 0.01Lux@ (F1.2, AGC ON) Black and white : 0.001Lux@ (F1.2, AGC ON)1/50s to 1/100,000s2.4mm F2.0115°H.264Self-adaption1920 X 108020fps (1920 X 1080)Built-in microSD card slot, up to 32GB IEEE802.11b/g/n2.412 GHz ~ 2.462 GHz20/40MHz SupportTemperature: 0 °C - 60 °C (32 °F - 140 °F)Humidity: < 95% (non-condensing) DC 5V 1A5W MAX80 x 80 x 150 mm

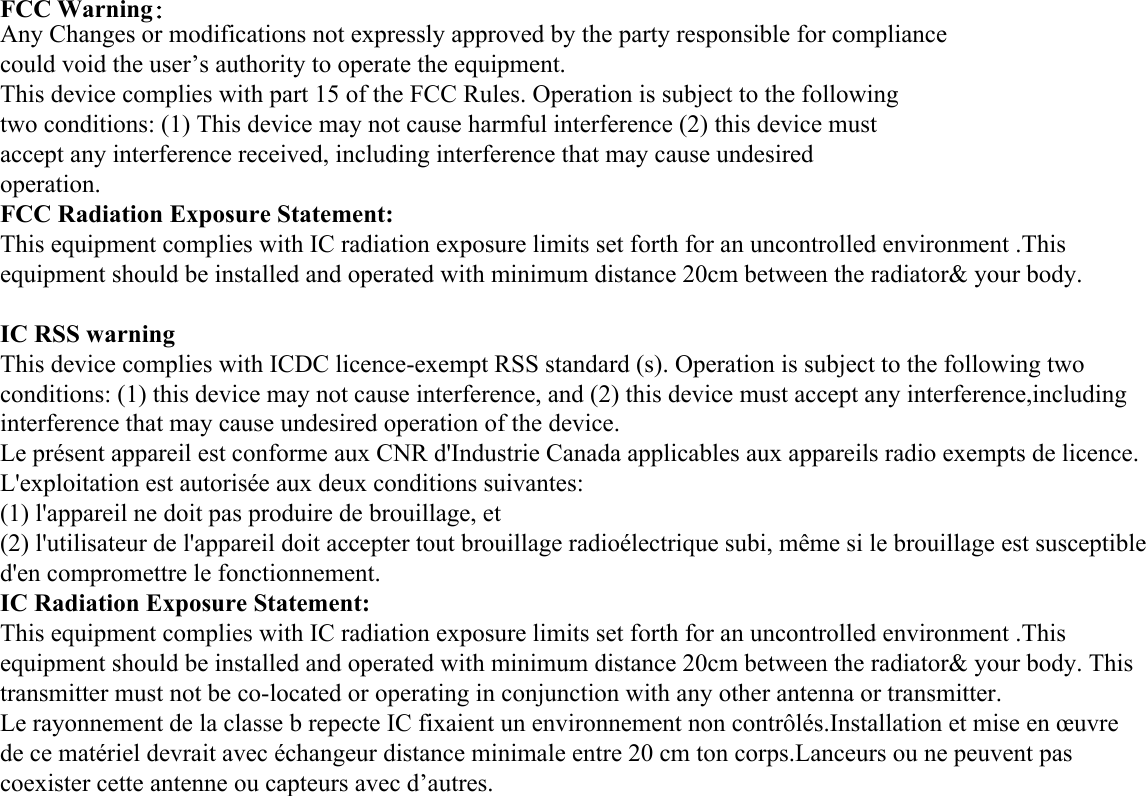

FCC Warning：Any Changes or modifications not expressly approved by the party responsible for compliancecould void the user’s authority to operate the equipment.This device complies with part 15 of the FCC Rules. Operation is subject to the followingtwo conditions: (1) This device may not cause harmful interference (2) this device mustaccept any interference received, including interference that may cause undesiredoperation.FCC Radiation Exposure Statement:This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment .This equipment should be installed and operated with minimum distance 20cm between the radiator& your body. IC RSS warning This device complies with ICDC licence-exempt RSS standard (s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference,including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. IC Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment .This equipment should be installed and operated with minimum distance 20cm between the radiator& your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Le rayonnement de la classe b repecte IC fixaient un environnement non contrôlés.Installation et mise en œuvre de ce matériel devrait avec échangeur distance minimale entre 20 cm ton corps.Lanceurs ou ne peuvent pas coexister cette antenne ou capteurs avec d’autres.
