CEILING FAN REMOTE CONTROLLER
OPERATION AND INSTALLATION INSTRUCTIONS
(Please keep this instruction pamphlet.)
IMPORTANT POINTS TO REMEMBER:
1. Read and save these instructions.
2. Please note that all fixed wiring appliances should be installed by a qualified electrician.
3. The supply to the remote control receiver should be connected through a mains switch, i.e.
existing wall switch.
4. Disconnect from power supply at wall switch before working on remote control receiver or
ceiling fan.
5. Install receiver into the ceiling fan canopy of the fan to ensure proper protection.
6. This unit is to be used for the control of ceiling fan and in an AC120V 60Hz power supply only.
7. Do not install in damp locations or immerse in water. (For indoor use only.)
8. Do not pull on or cut leads shorter.
9. Do not drop or bump the unit.
10. PLEASE NOTE: The battery will weaken with age and should be replaced before leaking
takes place as this will damage the transmitter. Dispose of used battery properly, and keep
the battery out of reach of children.
11. CAUTION: To reduce the risk of fire or injury, do not use this product in conjunction with any
variable (rheostat) wall control.
INSTALLATION INSTRUCTIONS
1. Ceiling fan must be set at HIGH speed and light kit (If any) at ON position by pressing the
“Light Switch” after installation.

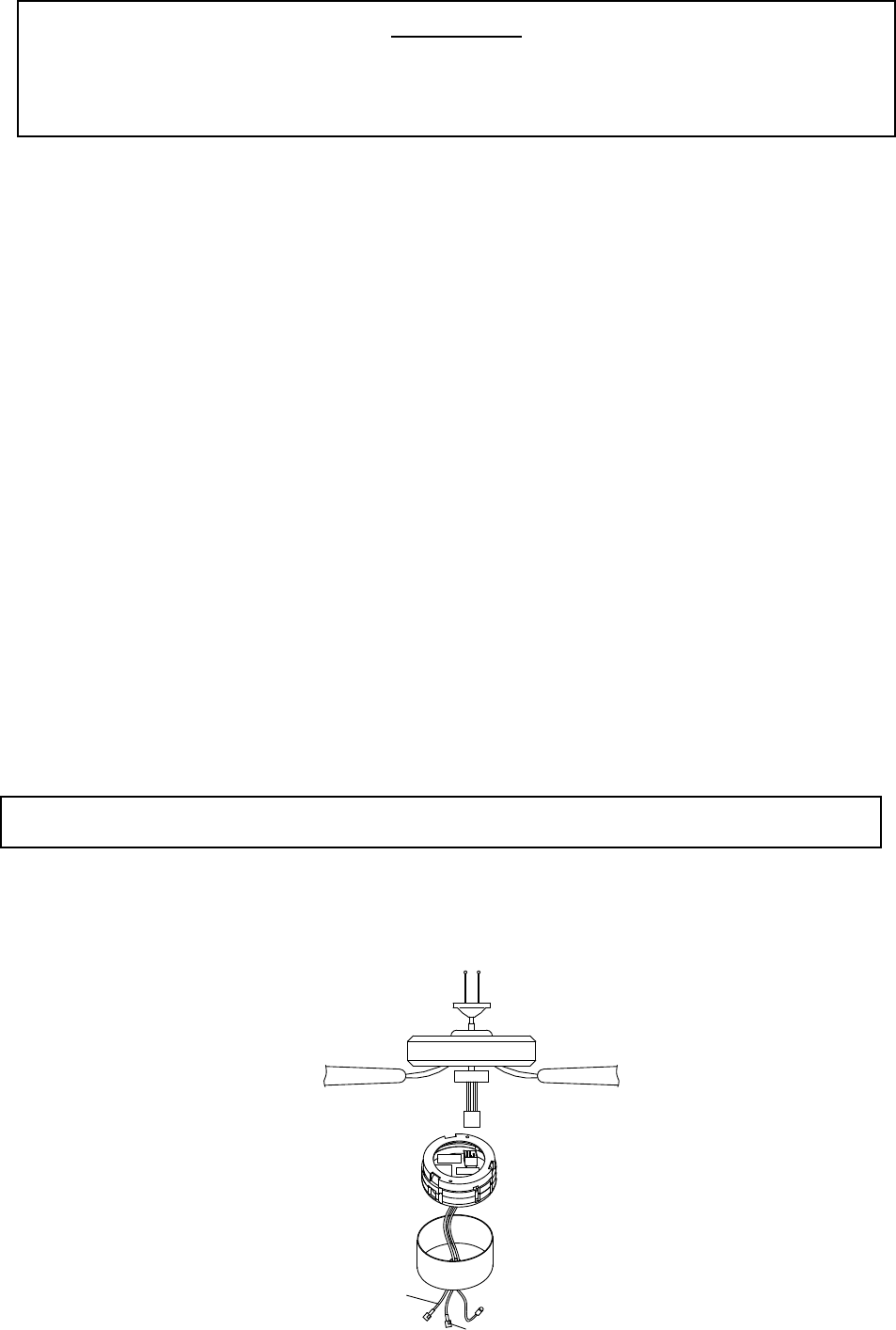

2. Once the connection has been made, the receiver inserts into motor control case.
WHITE(FOR LIGHT)
BLUE(FOR LIGHT)
IMPORTANT
YOU MUST SET CEILING FAN MANUAL SWITCH TO HIGH SPEED AND LIGHT
KIT (IF ANY) TO ON POSITION BEFORE OPERATING REMOTE CONTROL.
CAUTION: INCORRECT WIRE CONNECTION WOULD DAMAGE THIS RECEIVER.
LEARNING PROCESS
1. This unit finished learning process inside manufactory, if replace transmitter or receiver, user
need to redo learning process before using this unit.
2. Open battery cover (with battery, DC9V 1pcs, installed) and use a ball pen to set Code switch
up or down (Fig. 1). Then turn ceiling fan power on, press transmitter “FAN OFF” key over
5seconds, down light will be flash twice, which indicate that learning process finished. Learning
effect distance is same with remote’s. Please note that must press the “FAN OFF” key within
30sensonds after power on. If just replace batteries, no need to re-learn.
3. Please note that the transmitter can learn in multiple receiver, when doing learning process
please make sure not learn in other receiver. Suggest to separate power switches of fans in 2
meter range.
LIGHT FUNCTION SELECT SWITCH
1. If installed energy light onto ceiling fan down light, please slide the “down light function select
switch” to “O” position (Fig. 2). If installed tungsten light onto ceiling fan, please slide the “down
light function select switch” to “D” position.
FUNCTIONS OF TRANSMITTER
LIGHT : ON/OFF- Press and release immediately to turn on or off
the light.
DIMMER-Press and hold to dim or brighten light
to the desired level and release.
(Tungsten only and down light function select
switch” to “D” position.)
FAN OFF : Turn off the ceiling fan.
HI :Turn on the fan at high speed
MED :Turn on the fan at medium speed MODEL:TR125B
LOW : Turn on the fan at low speed
REVERSE : Press and release immediately to set
fan wind direction up or down.
TRANSMITTER
Installation of
Transmitter Wall
Mount Holder with
two screws.

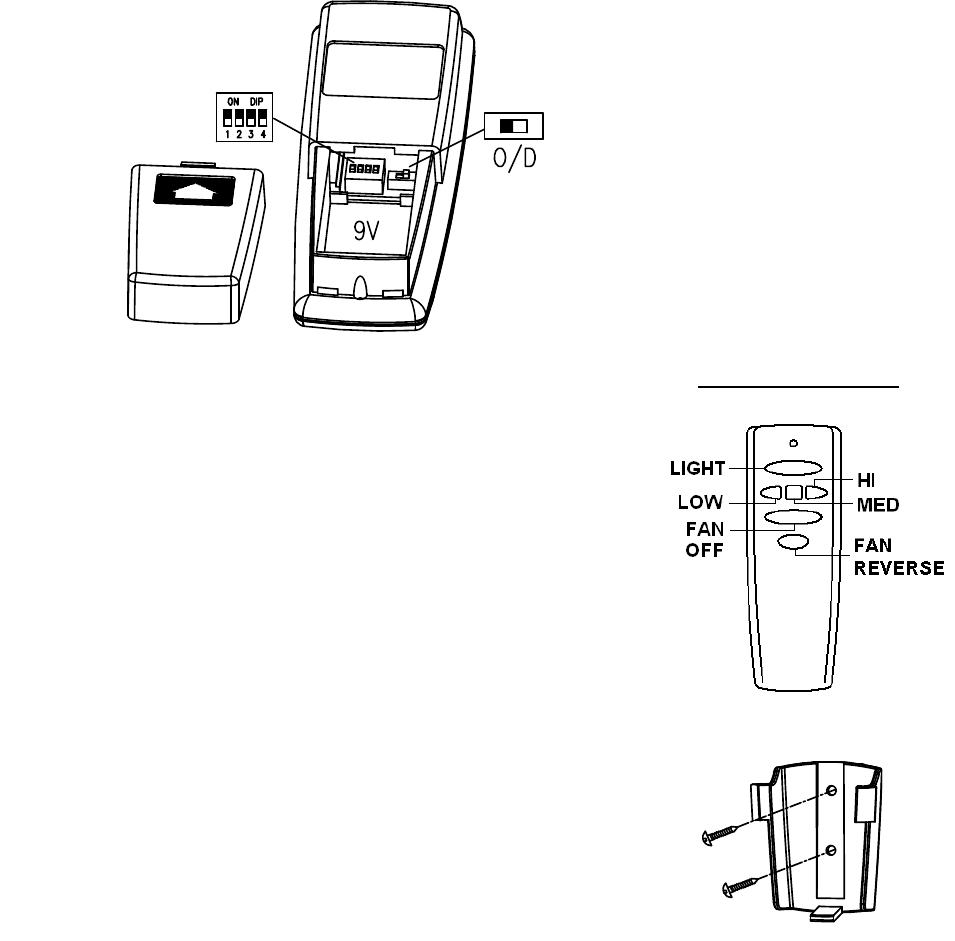

CODE SWITCH
Fig. 1
DOWN LIGHT FUNCTION
SELECT SWITCH
Fig. 2
FEDERAL COMMUNICATIONS COMMISSION
INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are desi
g
ned to
p
rovide reasonable
p
rotection a
g
ainst harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
g
uarantee that interference will not occur in a
p
articular installation. If this e
q
ui
p
ment does cause harmful interference to
radio or television reception, which can be determined b
y
turnin
g
the e
q
ui
p
ment off and on
,
the user is encoura
g
ed to tr
y
to correct the interference by one or more of the following measures:
--Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
To assure continued FCC compliance:
Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to
operate the equipment.
FCC ID：KUJCE10010
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
